Product Type	8-Channel Hybrid DVR (Digital Video Recorder)
Analog Video Input	8 channels, BNC (1.0 Vp-p, 75 Ω), support HDTVI, AHD, HDCVI, CVBS
IP Video Input	Up to 2 channels, up to 1080p resolution
Video Compression	H.264+ / H.264
Audio Compression	G.711u
Video Output	1 HDMI, 1 VGA (up to 1920×1080/60Hz)
Audio Input/Output	1 RCA input (2.0 Vp-p, 1 KΩ), 1 RCA output (Linear, 1 KΩ)
Recording Resolution	720p/WD1/4CIF/VGA/CIF; 1080p lite when enabled
Frame Rate	Main stream: up to 25/30 fps; Sub-stream: up to 25/30 fps

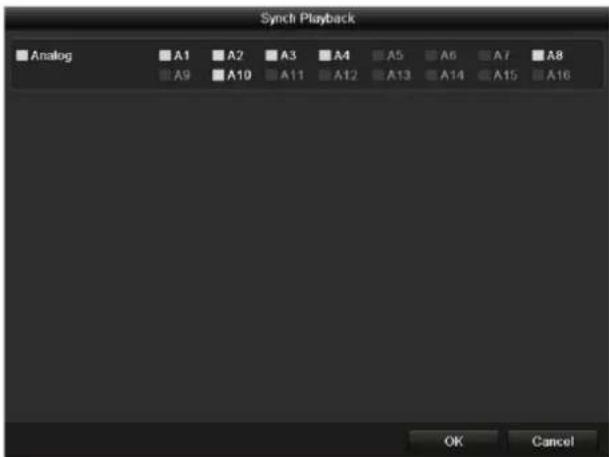

Synchronous Playback	Up to 8 channels
Hard Disk Drive	1 SATA interface, up to 6 TB per disk
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet
USB Interface	2 USB 2.0 on rear panel
Power Supply	12 VDC
Power Consumption	≤ 12 W (without HDD)
Operating Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Dimensions (W×D×H)	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 in)
Weight	≤ 1 kg (2.2 lb) without HDD
Key Functions	Live view, PTZ control, motion detection, alarm, remote access, H.264+
Certifications	FCC Class A, CE, ICES-003

Frequently Asked Questions - C8XVR CONCEPTRONIC

No image is displayed on the monitor after startup. What should I do?

First, ensure the device is connected via HDMI or VGA cable. If not, connect and reboot. Second, check if the cable is damaged and replace if needed. Third, verify the monitor's input mode matches the DVR output (e.g., HDMI). If the issue persists, contact support.

Why does the DVR emit a continuous beeping sound after power-on?

This usually indicates that no HDD is installed, the HDD is not initialized, or the HDD is incompatible/defective. To stop the beep, go to Menu > Configuration > Exceptions and uncheck 'Audible Warning' for HDD Error. Alternatively, install a compatible HDD and initialize it via Menu > HDD > General.

Live view video is stuck or lagging locally. How can I fix it?

Check that the frame rate settings are set to 'Full Frame' under Menu > Record > Parameters > Record for both Main Stream (Continuous) and Main Stream (Event). Ensure the resolution is not set too high for your system. If using multiple channels, reduce the number of displayed channels.

There is no audio during live view. How do I enable sound?

Verify the audio cable connection between the pickup and camera is secure. Then go to Menu > Record > Parameters > Record and set the Stream Type to 'Video & Audio'. Ensure the audio input is properly connected to the RCA input on the DVR.

Playback video is choppy or stuck. What can I improve?

Reduce the number of simultaneous playback channels (max 8 supported at 4CIF). Lower the recording resolution or bitrate in Menu > Record > Parameters. Also ensure the HDD is not full or failing. If using 720p playback on multiple channels, frame extraction may occur.

No recorded files are found when searching. Why?

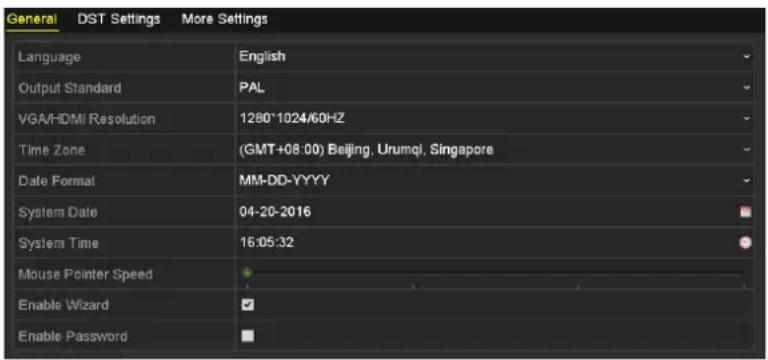

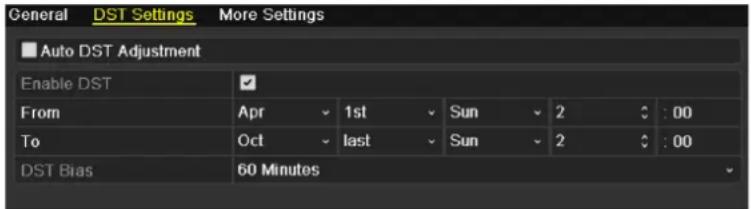

Check the system time under Menu > Configuration > General to ensure it is correct. Verify the search criteria (channel and time range) are accurate. Also confirm the HDD is detected and initialized under Menu > HDD > General. If the HDD is faulty, replace it.

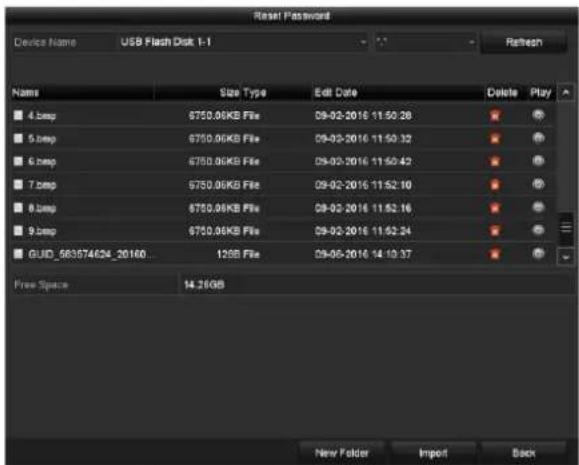

How do I reset the admin password if I forgot it?

You need the exported GUID file from initial setup. On the login screen, click 'Forget Password'. Import the GUID file from a USB flash drive. Then set a new password. If no GUID was exported, contact technical support for assistance.

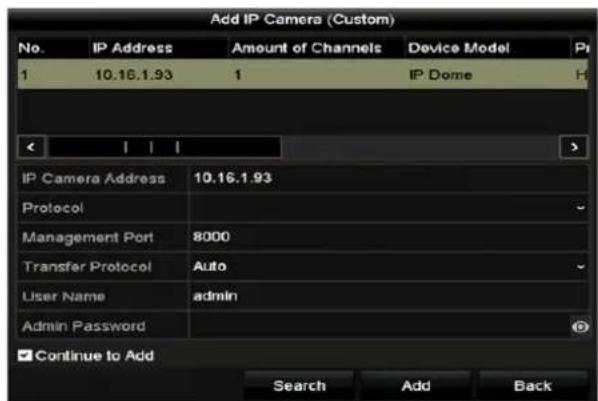

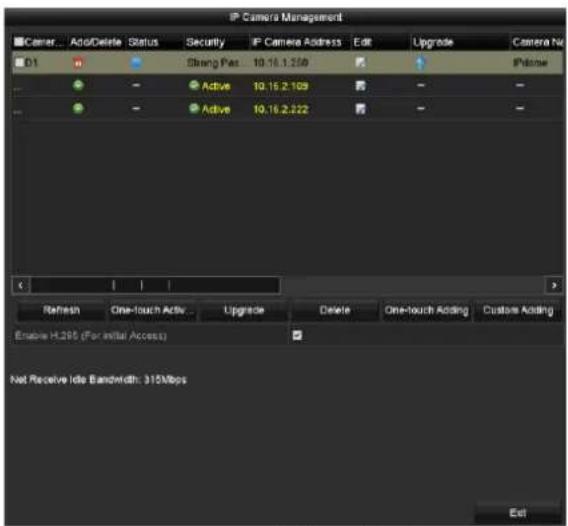

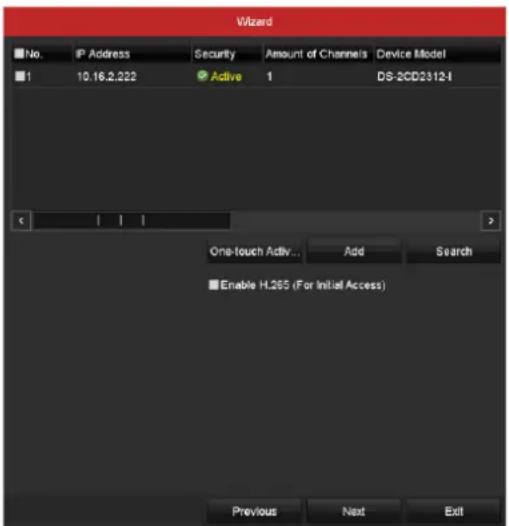

How can I add IP cameras to the DVR?

Go to Menu > Camera > IP Camera. Click 'Search' to discover online cameras. Select the camera and click the + icon to add it. If the camera is inactive, activate it first using the admin password. For custom adding, click 'Custom Adding' and enter the IP address, protocol, and port.

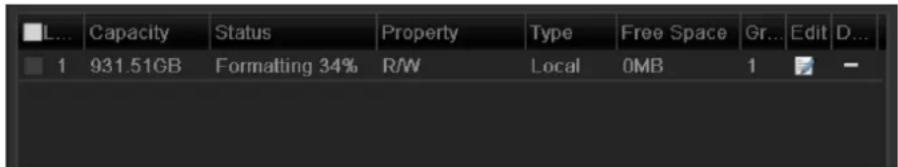

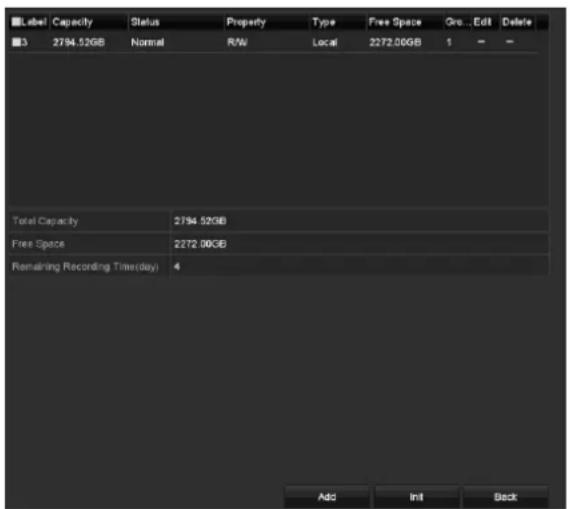

How do I initialize a new hard drive?

Install the HDD physically, then go to Menu > HDD > General. Select the uninitialized HDD and click 'Init'. This will erase all data and prepare the drive for recording. You can also set the storage mode to Group or Quota under the Advanced tab.

What network protocols does the DVR support for remote access?

It supports TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS. Remote access is also available via Guarding Vision mobile app. Configure network settings under Menu > Configuration > Network.

USER MANUAL C8XVR CONCEPTRONIC

8-Channel Hybrid DVR

C8XVR

User Manual

User Manual

About this Manual

This Manual is applicable to HD Digital Video Recorder (DVR).

The Manual includes instrucons for using and managing the product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please nd the latest version in the company website.

Please use this user manual under the guidance of professionals.

Legal Disclaimer

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Direcve 2014/30/EU, the LVD Direcve 2014/35/EU, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for speci baery informaon. The baery is marked with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Symbol Convenons

The symbols that may be found in this document are dened as follows.

Symbol	Descripon
	Provides additional informaon to emphasize or supplement important points of the main text.
	Indicates a potenally hazardous situaon, which if not avoided, could result in equipment damage, data loss, performance degradaon, or unexpected results.
	Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.

Safety Instrucons

• Proper conguraon of all passwords and other security sengs is the responsibility of the installer and/or end-user.
• In the use of the product, you must be in strict compliance with the electrical safety regulaons of the naon and region. Please refer to technical specicaons for detailed informaon.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100 to 240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical speciaons for detailed informaon.
• Do not connect several devices to one power adapter as adapter overload may cause over-heang or a re hazard.
• Please make sure that the plug is rmly connected to the power socket.
• If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

Prevenve and Cauonary Tips

Before connecng and operang your device, please be advised of the following ps:

• Ensure unit is installed in a well-venlated, dust-free environment.
  ● Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory speciaons.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit.
• Use the device in conjuncon with an UPS if possible.
  ● Power down the unit before connecng and disconnectg accessories and peripherals.
  ● A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used baeries according to the instrucons provided by the baery manufacturer.

Product Key Features

General

• Connectable to HDTVI and analog cameras;
  ● Supports UTC (Coaxitron) protocol for connecng camera over coax;
• Connectable to AHD cameras;
• Connectable to HDCVI cameras;
• Connectable to IP cameras;

● Each channel supports dual-stream. And sub-stream supports up to WD1 resoluon;

● The main stream of 720P DVR support up to 720p resoluon;

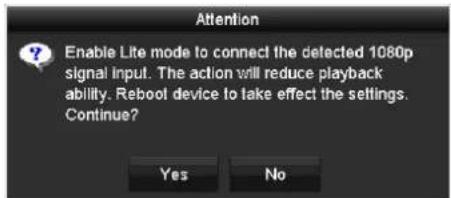

- For 720P DVR, 1080p lite mode is applicable to all the channels;

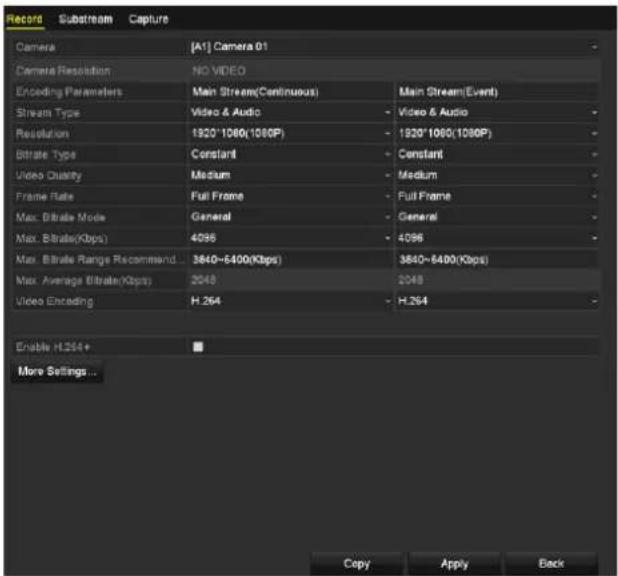

- Independent conguraon for each channel, including resoluon, frame rate, bit rate, image quality, etc.;

- Encoding for both video stream and video & audio stream; audio and video synchronizaon during composite stream encoding;

● Support enabling H.264+ to ensure high video quality with lowered bitrate;

● One-key enable or disable H.264+;

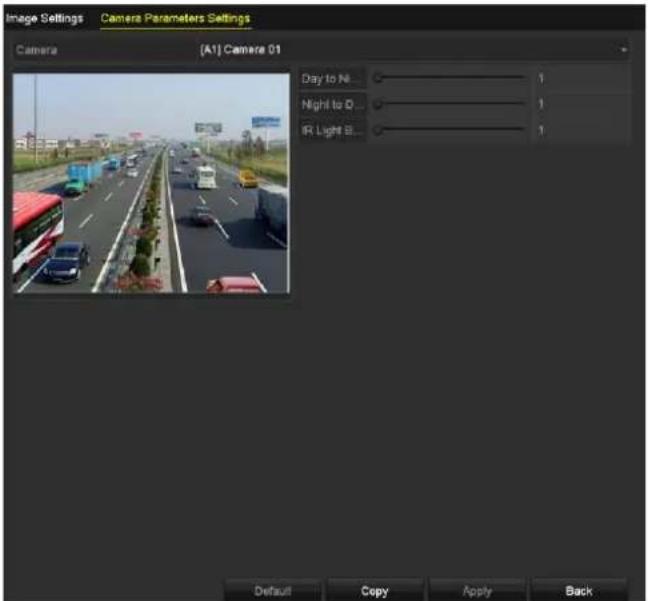

● Support conguring night to day sensitivity, day to night sensitivity, and IR light brightness for the connected analog cameras supporting these parameters;

● Watermark technology.

Local Monitoring

• HDMI/VGA output
  ● 8 screen live view is supported, and the display sequence of screens is adjustable;
  ● Live view screen can be switched in group and manual switch and automac cycle live view are also provided, the interval of automac cycle can be adjusted;
• Quick seng menu is provided for live view;
  ● The selected live view channel can be shielded;

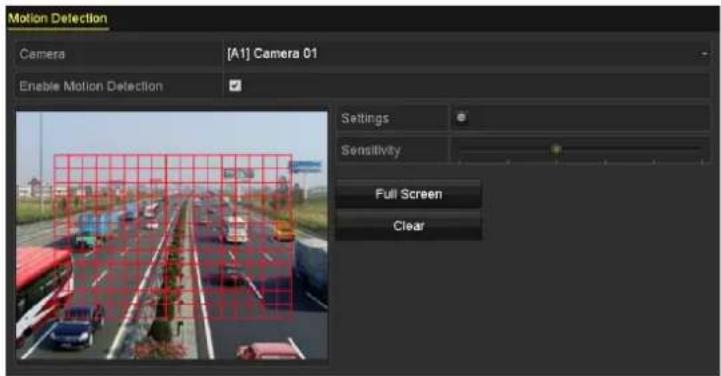

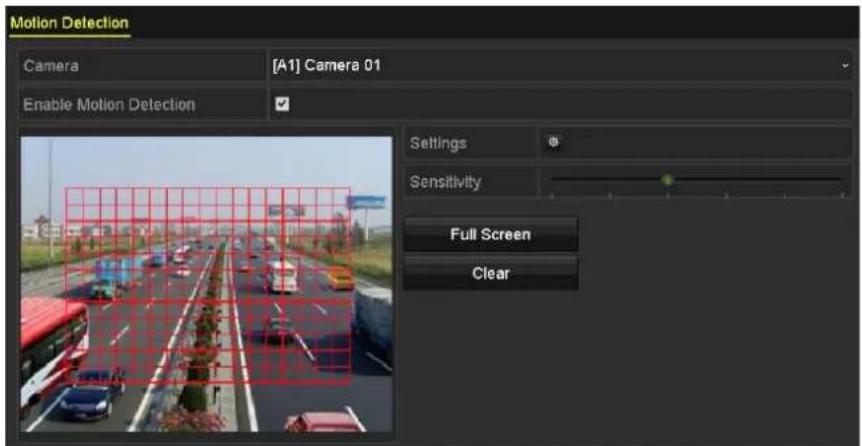

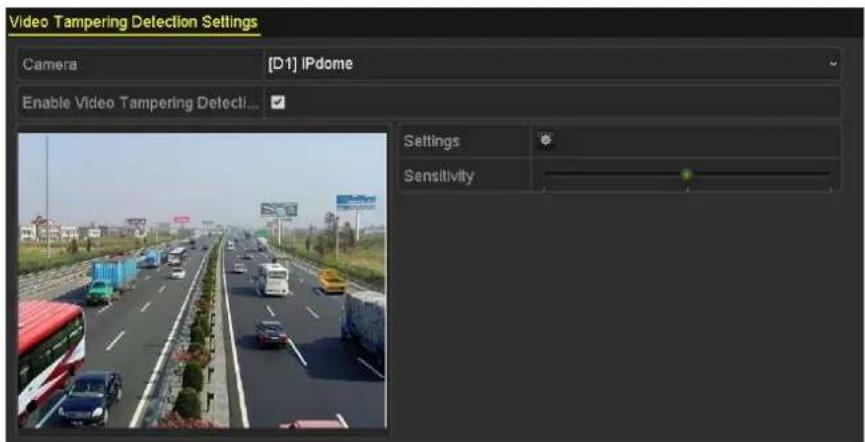

• Moon detecon, video-tampering detecon, video excepon alarm, video loss alarm and VCA alarm funcons;

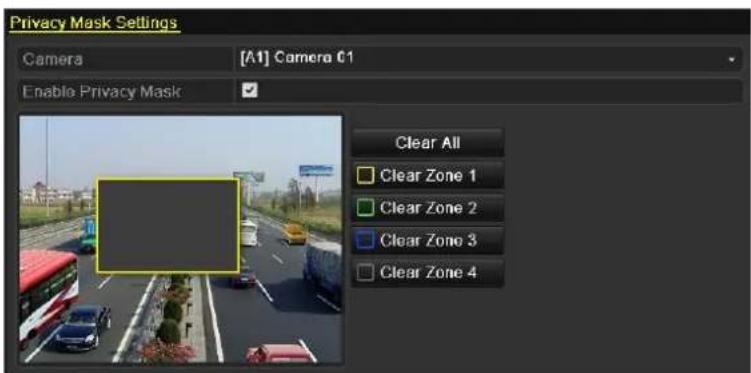

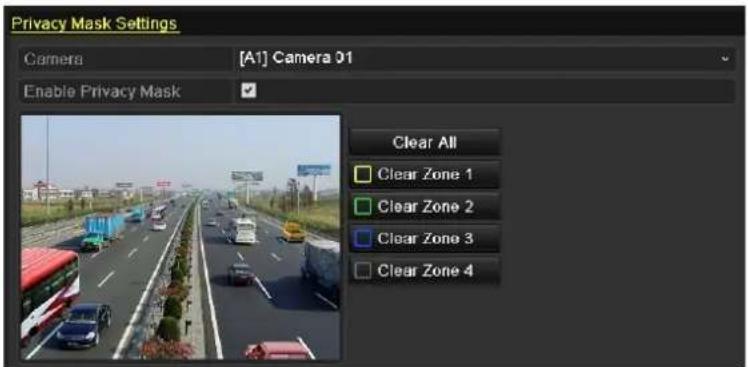

• Privacy mask;
• Several PTZ protocols (including Omnicast VMS of Genetec) supported; PTZ preset, patrol and paern;
• Zooming in/out by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

● One 3.5" disk slot supports disk capacity of up to 6TB

● Remaining recording me of the HDD can be viewed;
● Support cloud storage;
● S.M.A.R.T. and bad sector detecon;
- HDD sleeping funcon;

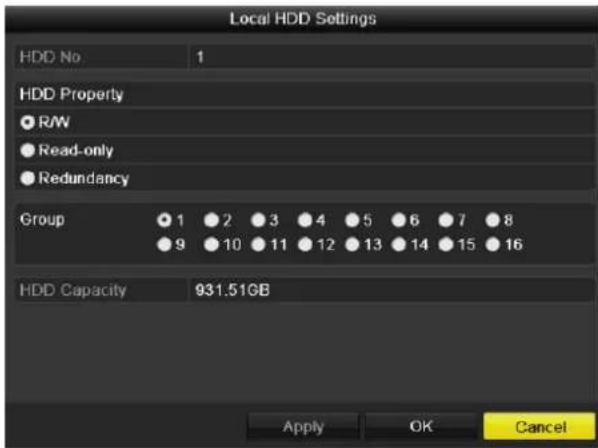

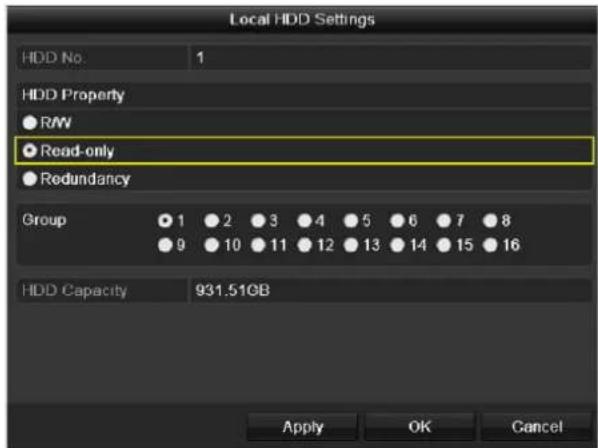

- HDD property: redundancy, read-only, read/write (R/W);

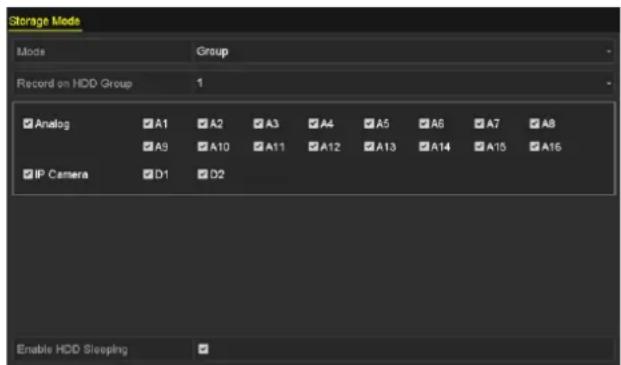

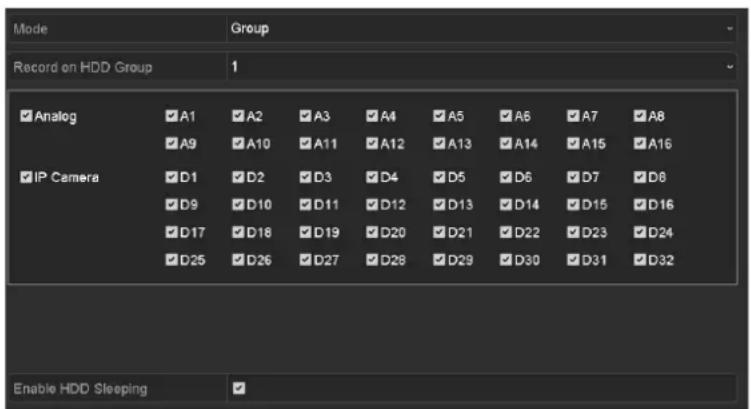

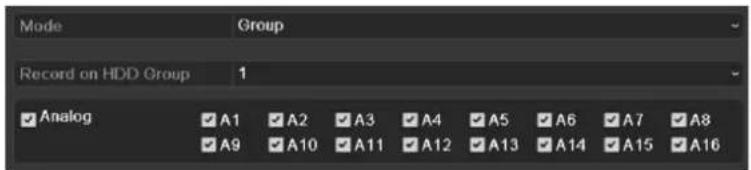

- HDD group management;

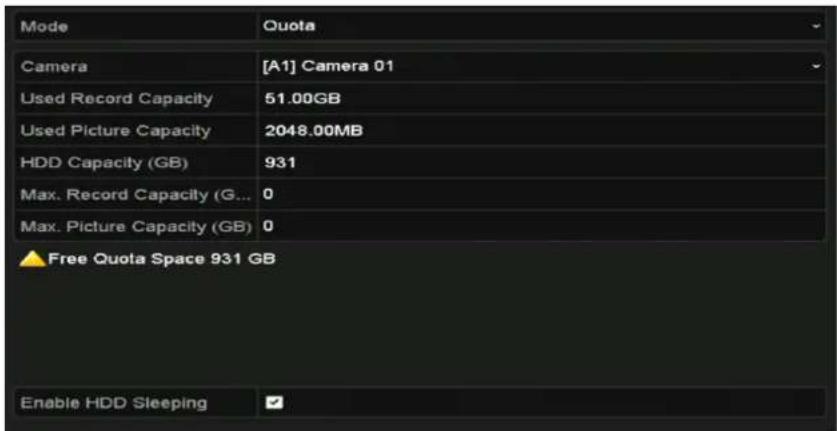

- HDD quota management; different capacity can be assigned to dierent channels.

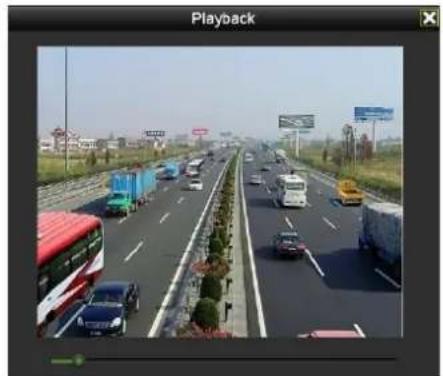

Recording and Playback

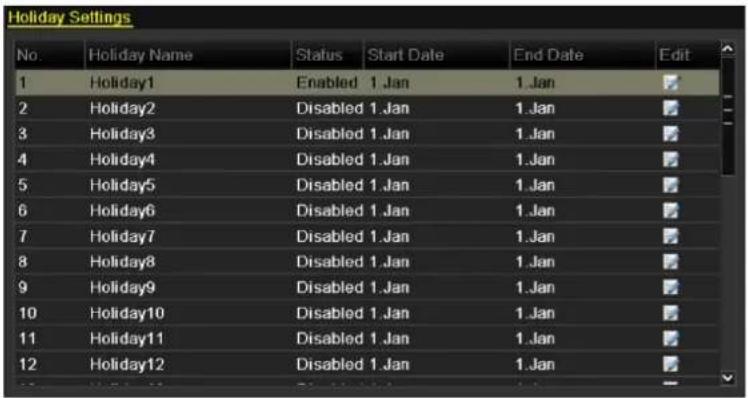

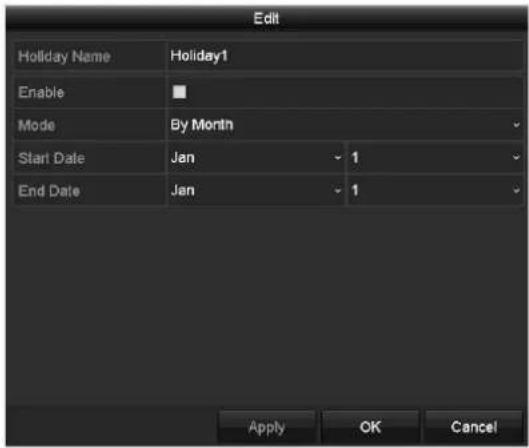

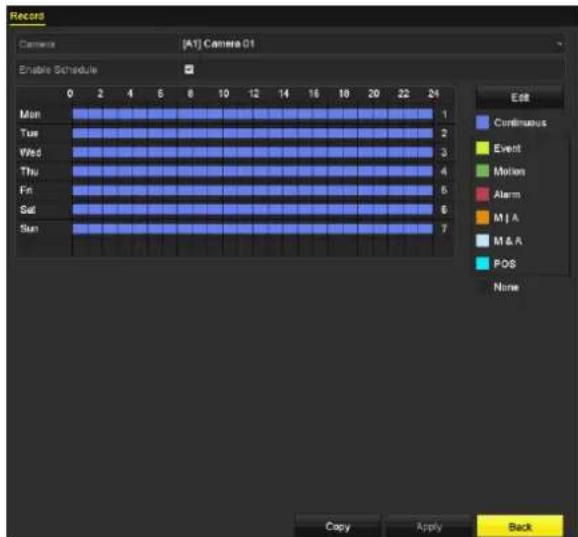

● Holiday recording schedule conguraon;
● Cycle and non-cycle recording modes;
● Normal and event video encoding parameters;
- Mulple recording types: manual, connuous, alarm, moon, moon | alarm, moon & alarm and Event;

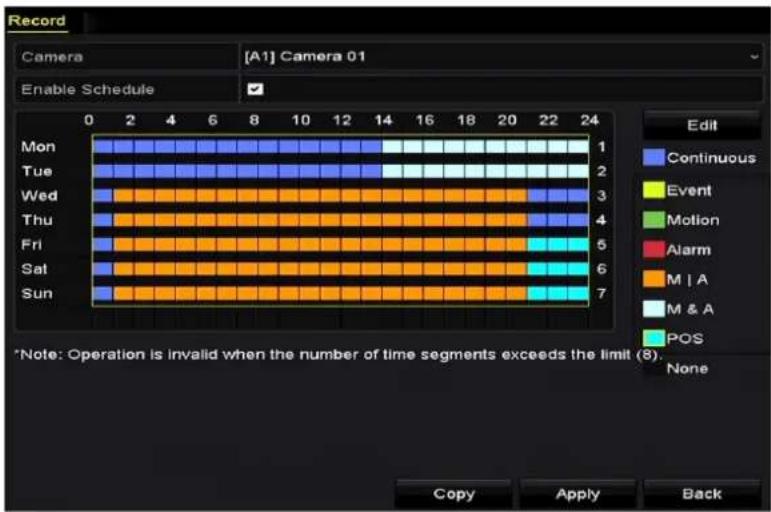

● 8 recording me periods with separated recording types;
● Support Channel-Zero encoding;
● Main stream and sub-stream congorable for simultaneous recording;

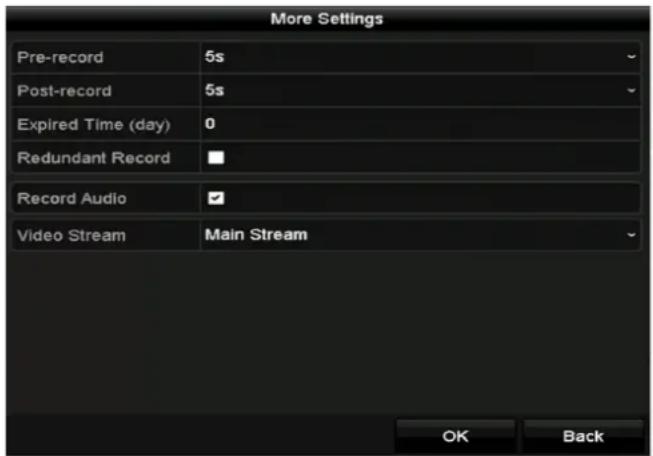

- Pre-record and post-record for moon detecon triggered recording, and pre-record me for schedule and manual recording;

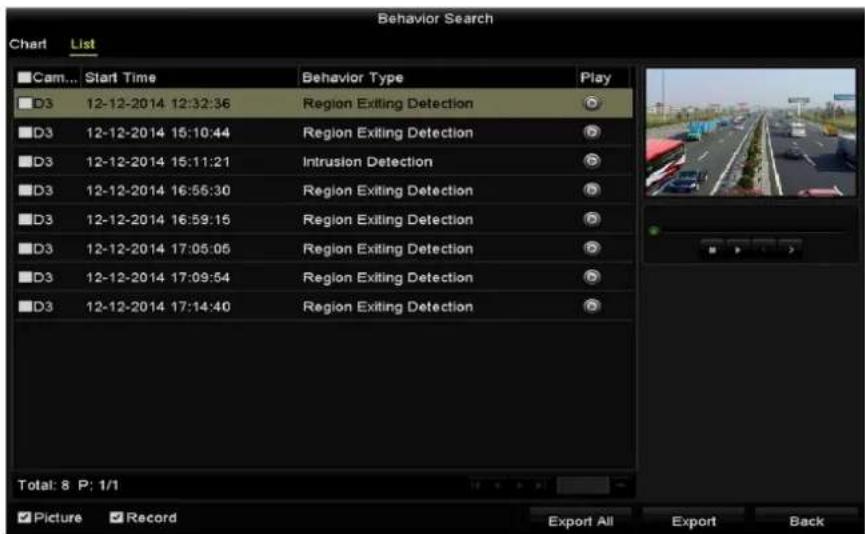

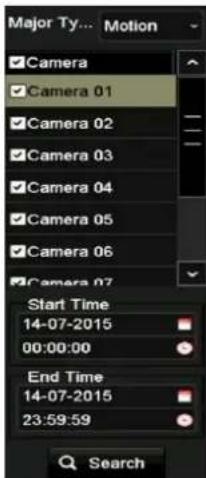

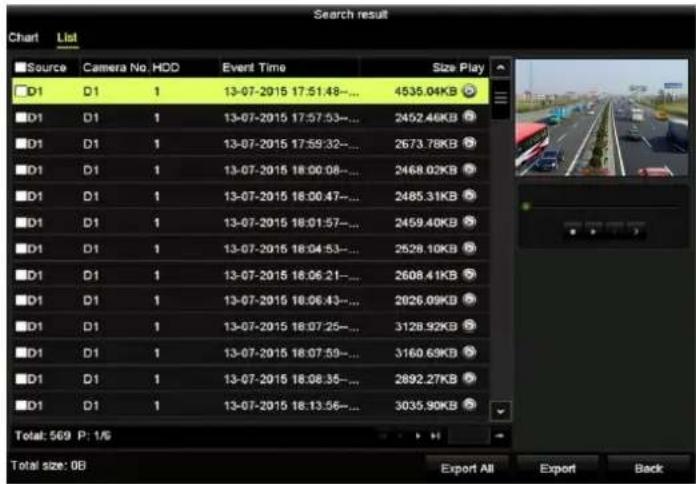

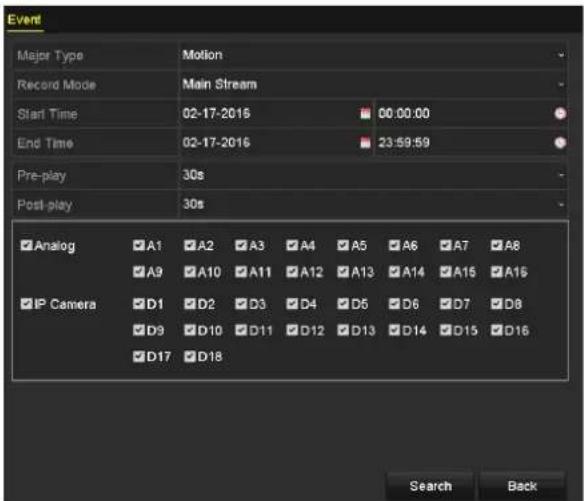

- Searching record les and captured pictures by events (alarm input/moon detecon);

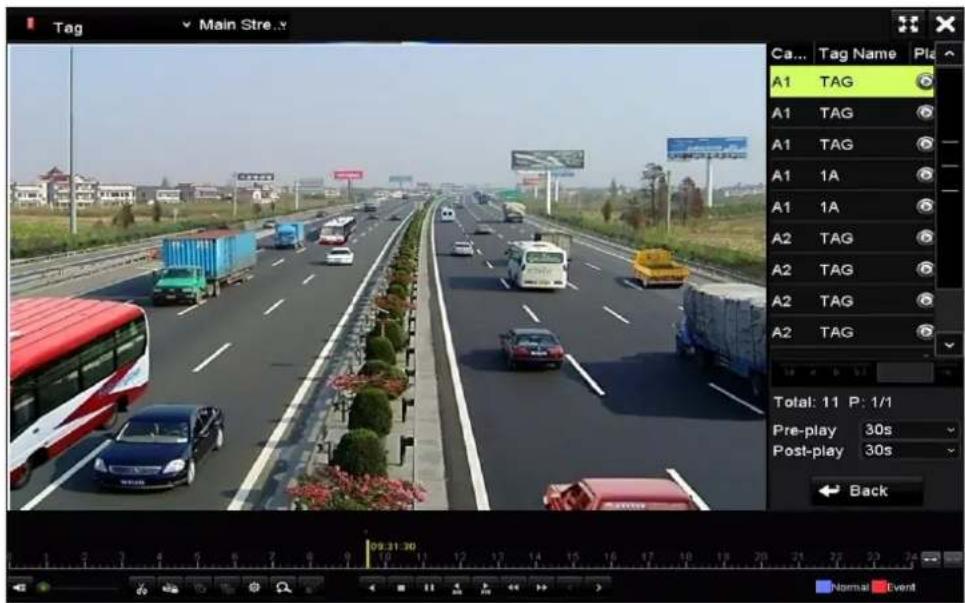

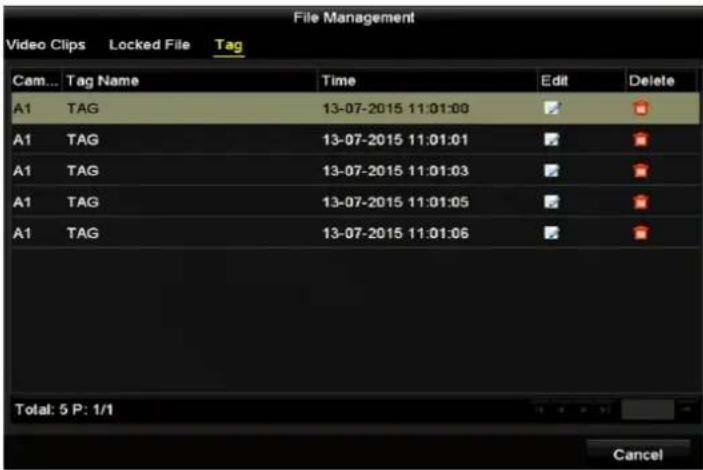

- Customizaon of tags, searching and playing back by tags;
- Locking and unlocking of record les;
- Local redundant recording and capture;
- When HDTVI, AHD, or HDCVI input is connected, the informaon including the resoluon and frame rate will be overlaid on the boom right corner of the live view for 5 seconds. When CVBS input is connected, the informaon such as NTSC or PAL will be overlaid on the boom right corner of the live view for 5 seconds.

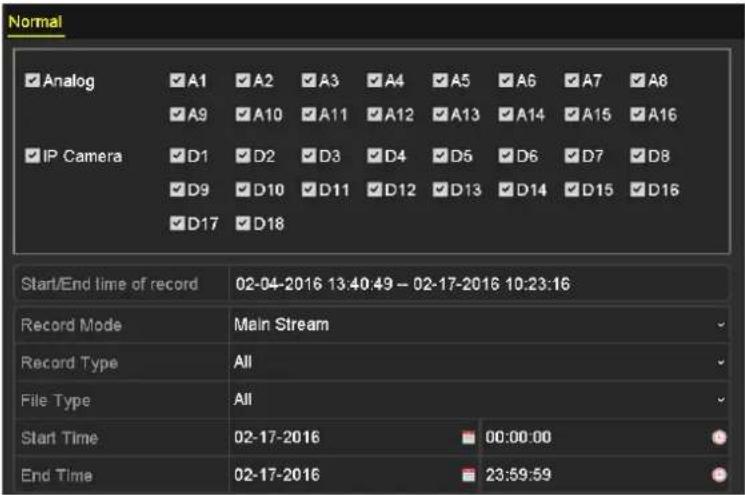

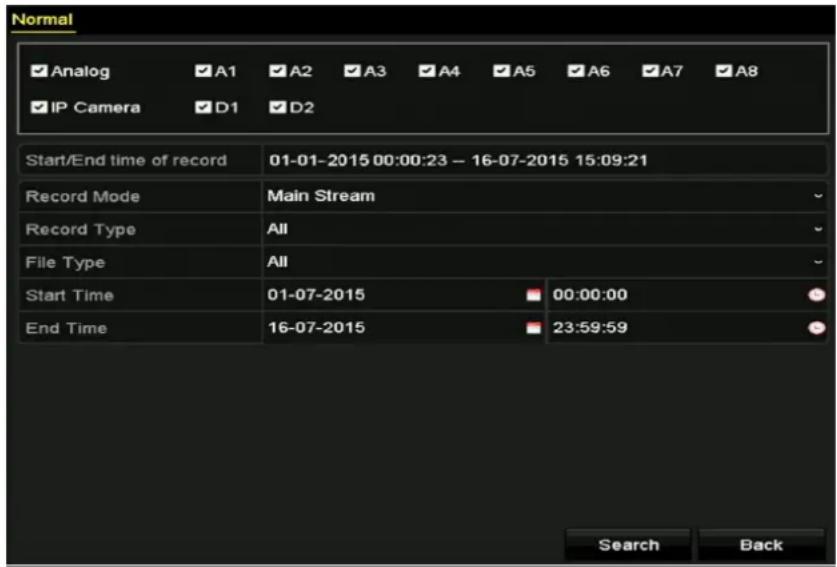

- Searching and playing back record les by camera number, recording type, start me, end me, etc.;

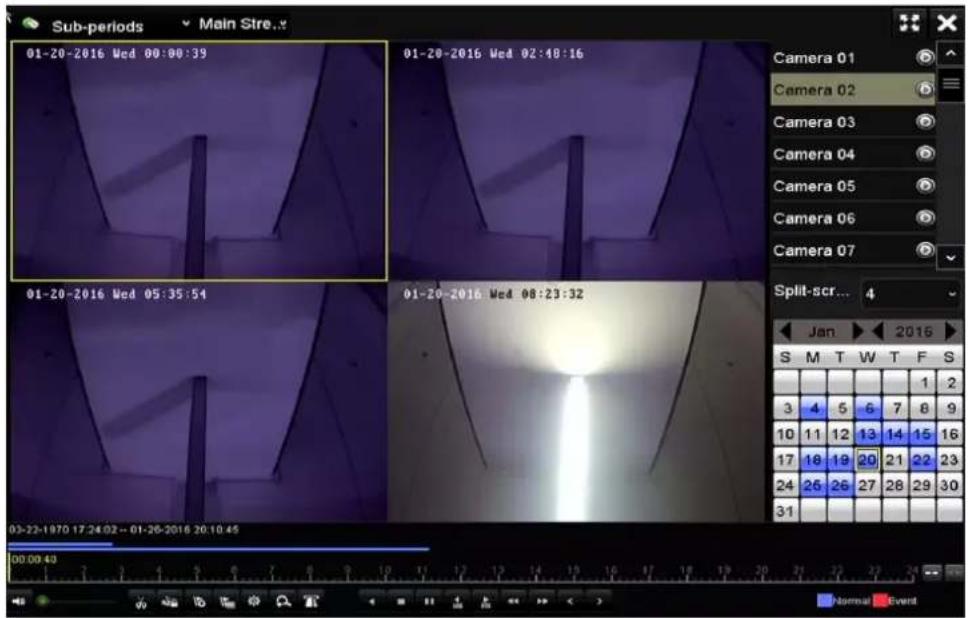

● Smart playback to go through less eecve informaon;

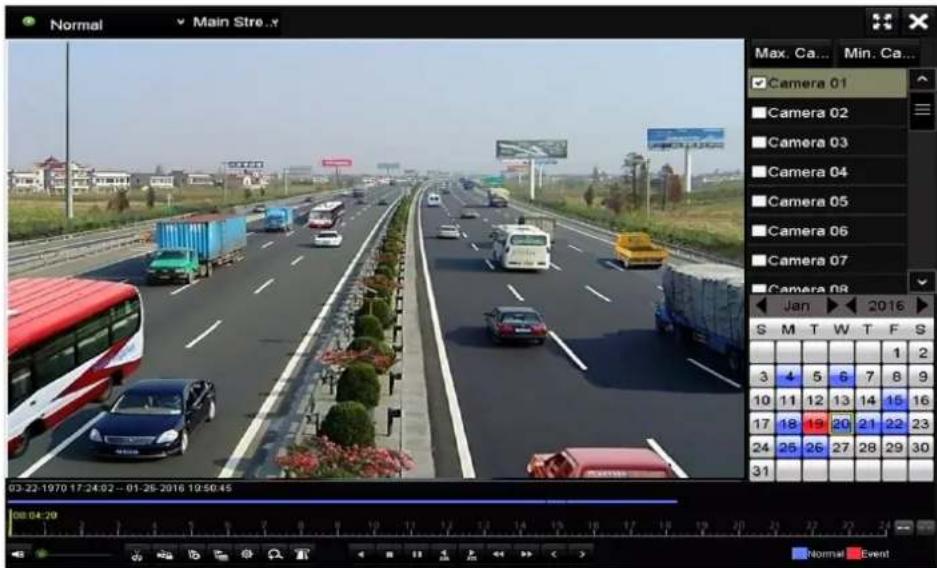

● Main stream and sub-stream selectable for local/remote playback;

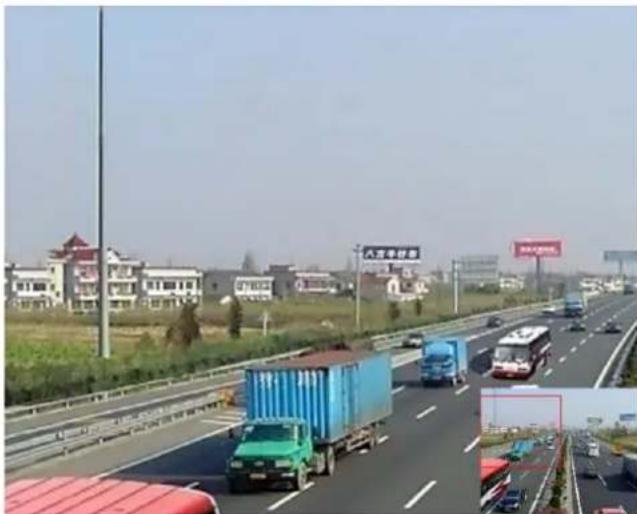

- Zooming in for any area when playback;
- Mul-channel reverse playback;
● Supports pause, fast forward, slow forward, skip forward, and skip backward when playback, locang by dragging the mouse on the progress bar;
● 8-ch synchronous playback;

Backup

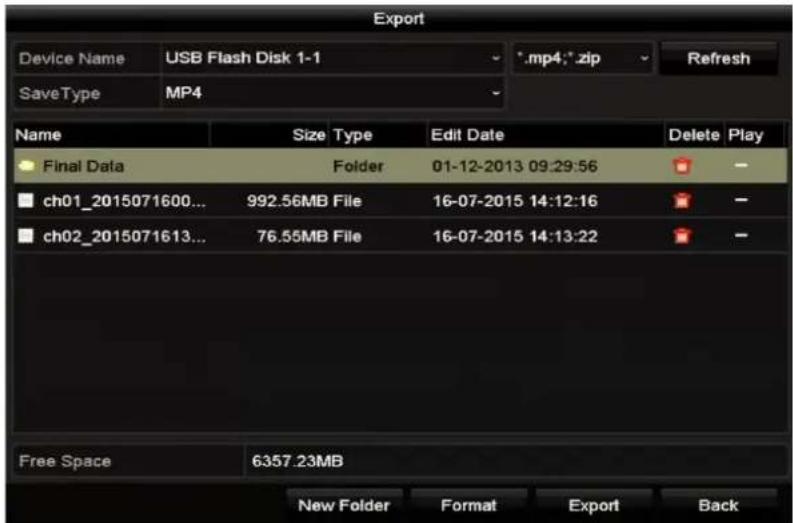

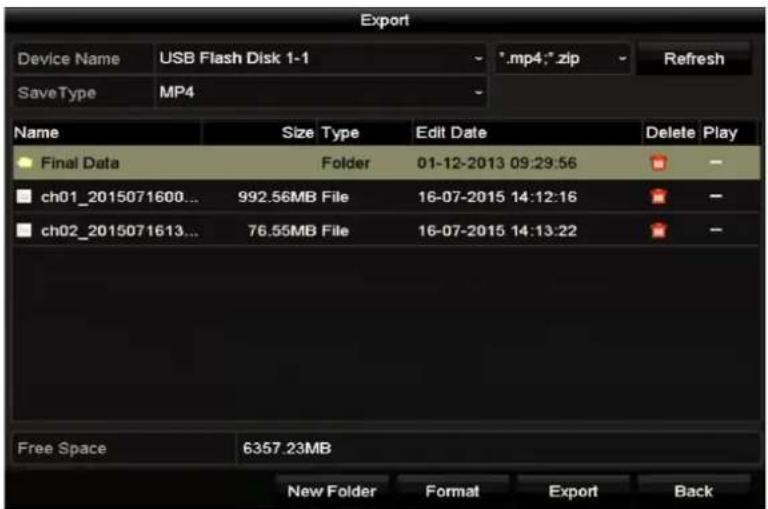

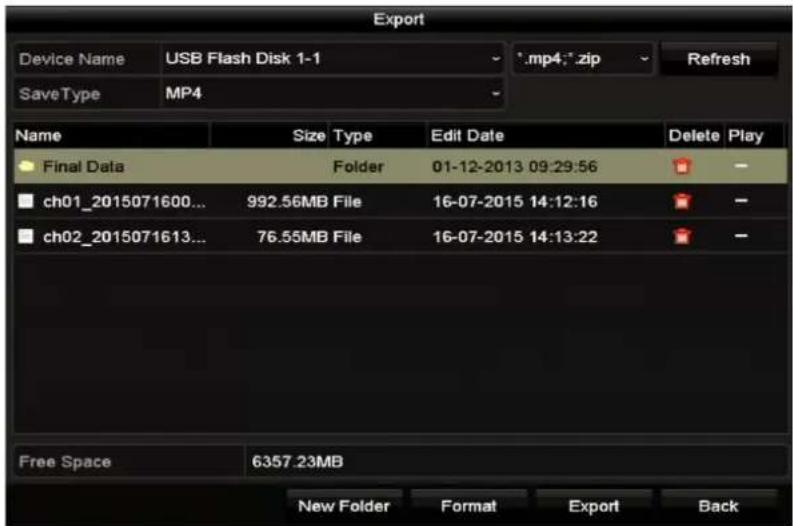

● Export data by a USB, and SATA device;

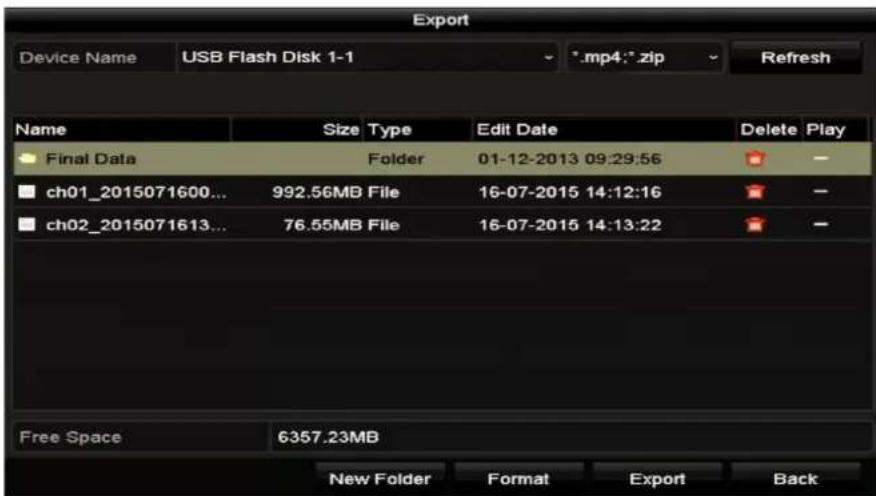

- Export video clips when playback;
● Video and Log, Video and Player, and Player selectable to export for backup;
● Management and maintenance of backup devices.

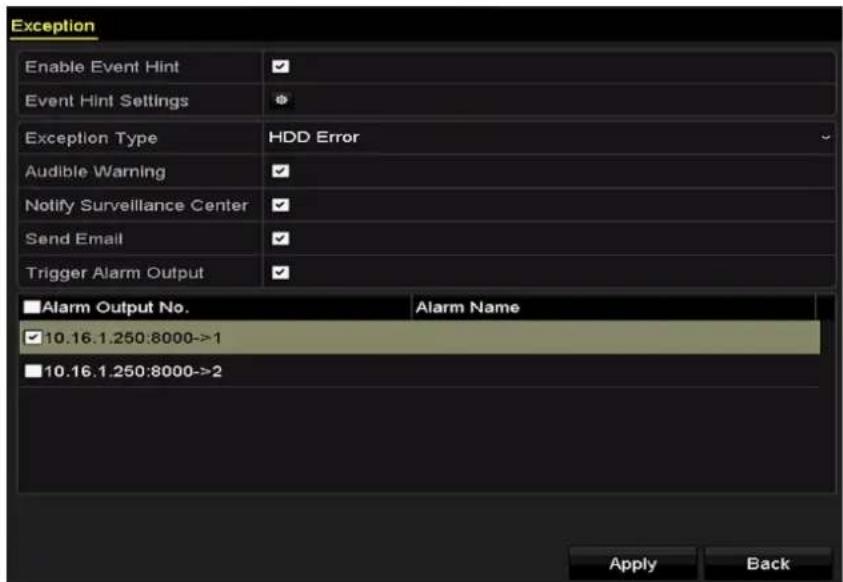

Alarm and Excepon

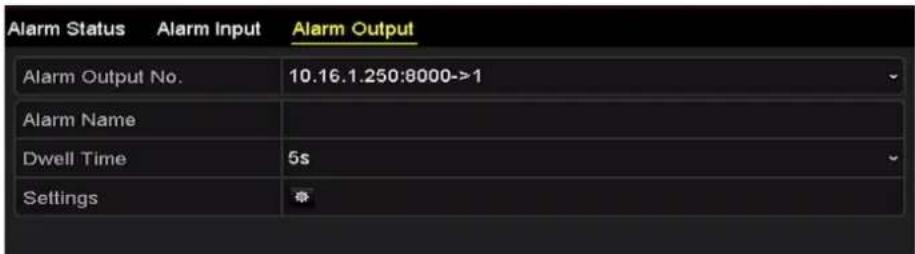

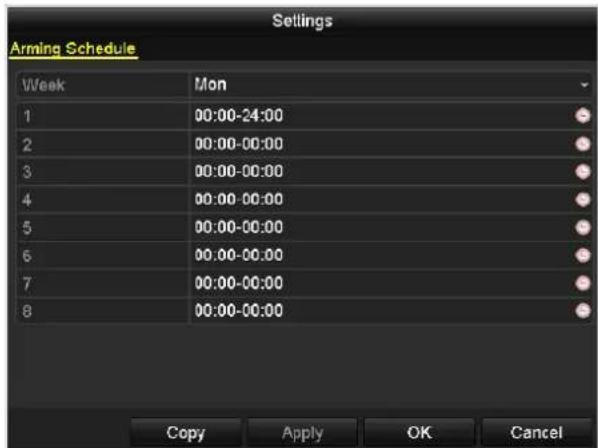

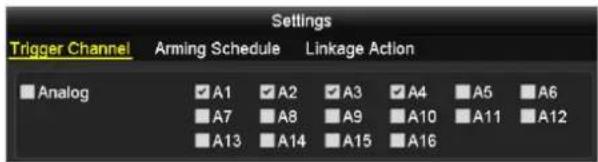

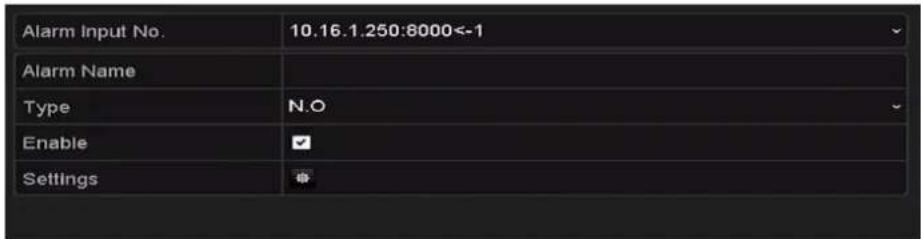

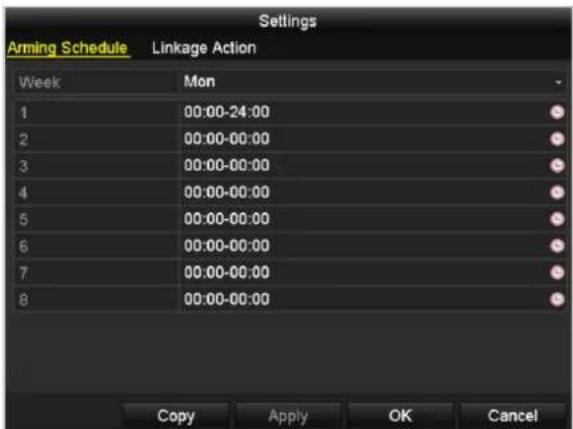

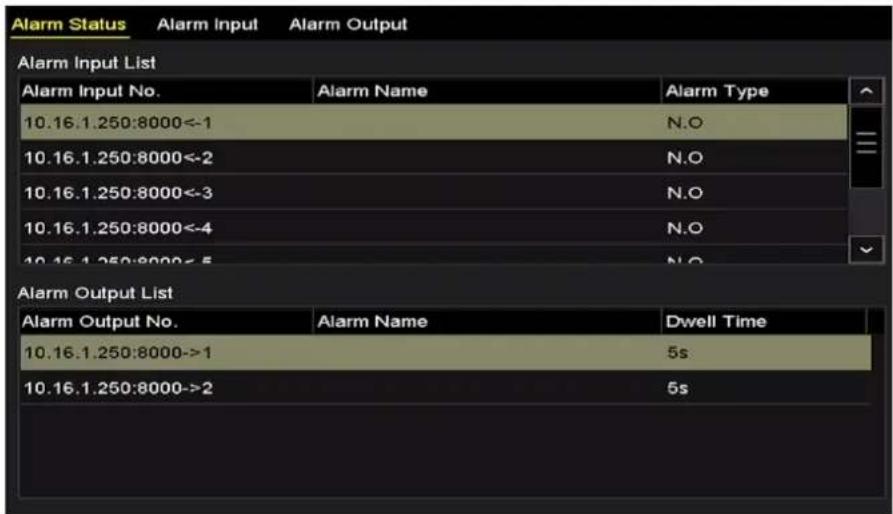

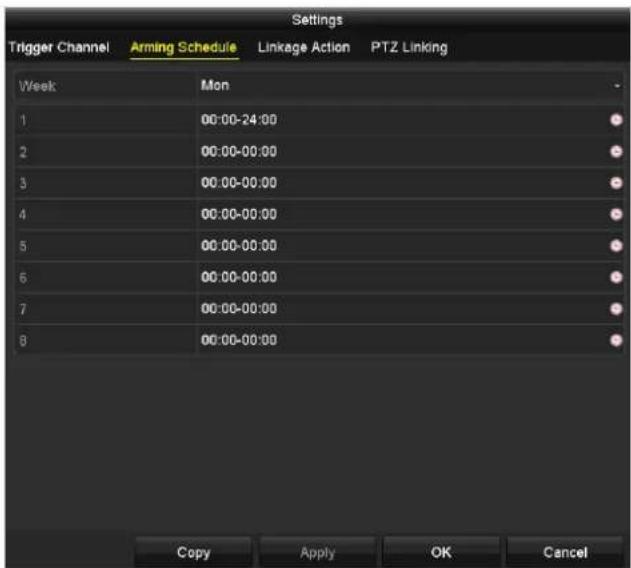

● Congurable arming me of alarm input/output;

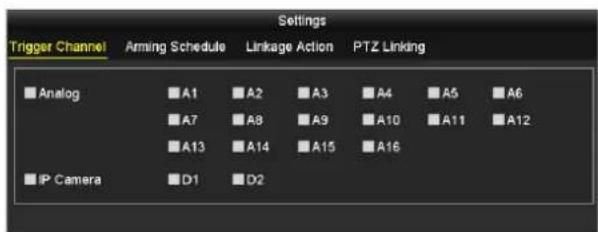

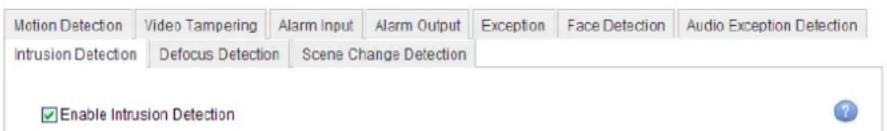

- Alarm for video loss, moon detecon, video tampering, abnormal signal, video input/recording resoluon mismatch, illegal login, network disconnected, IP conicon, record excepon, HDD error, and HDD full, etc.;
- Alarm triggers full screen monitoring, audio alarm, nofying surveillance center, sending email and alarm output;

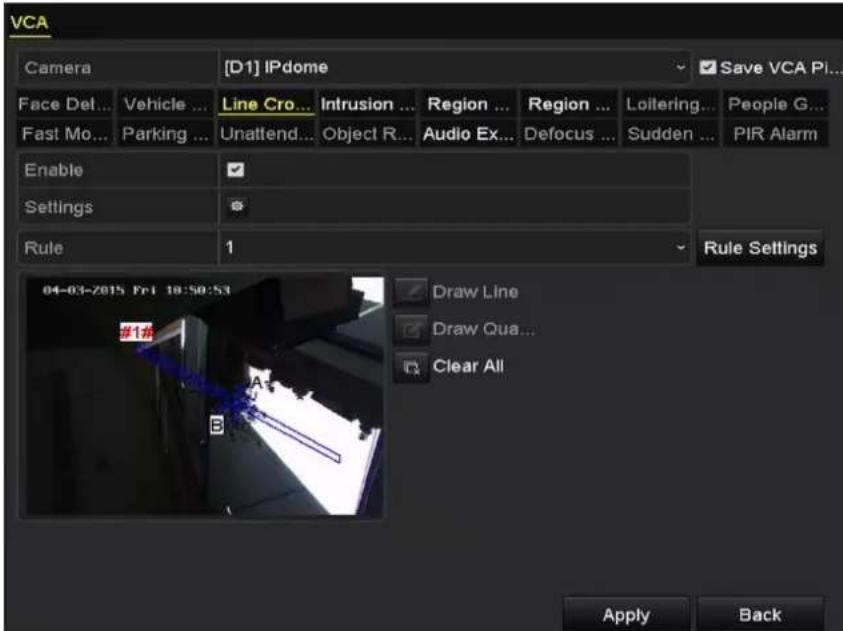

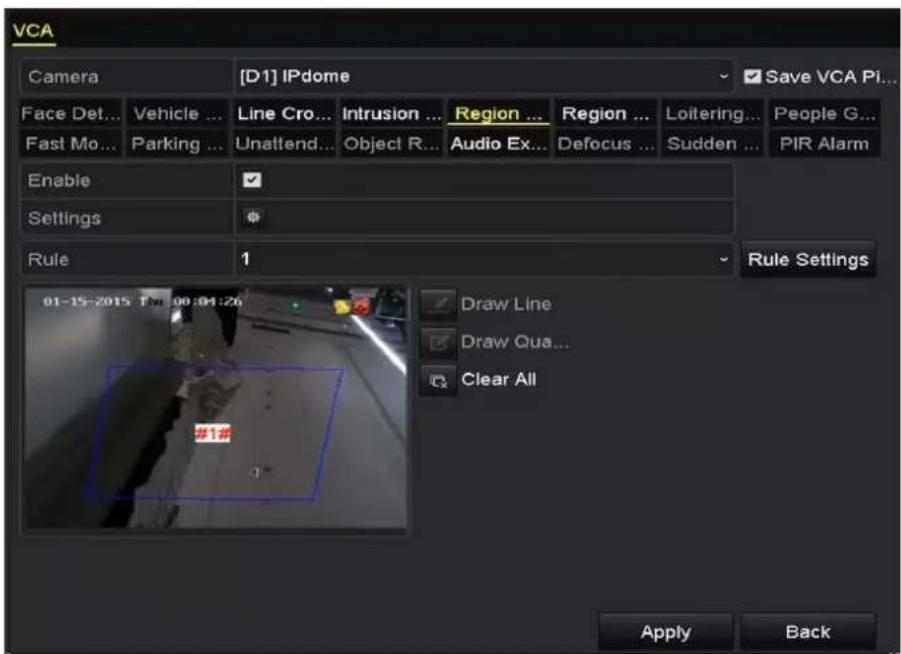

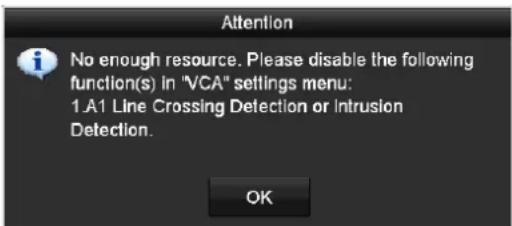

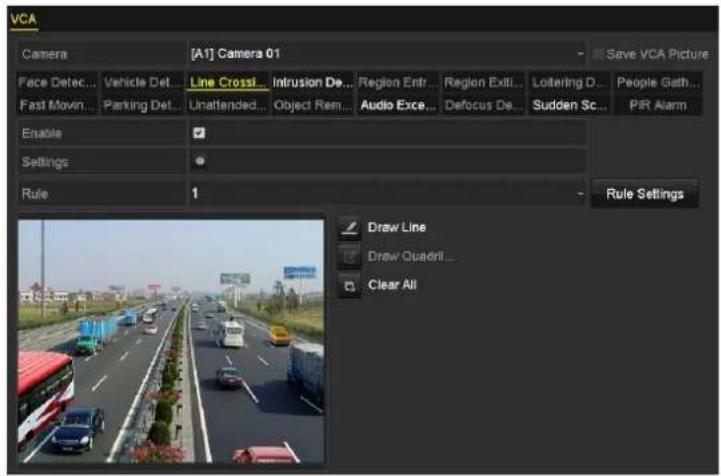

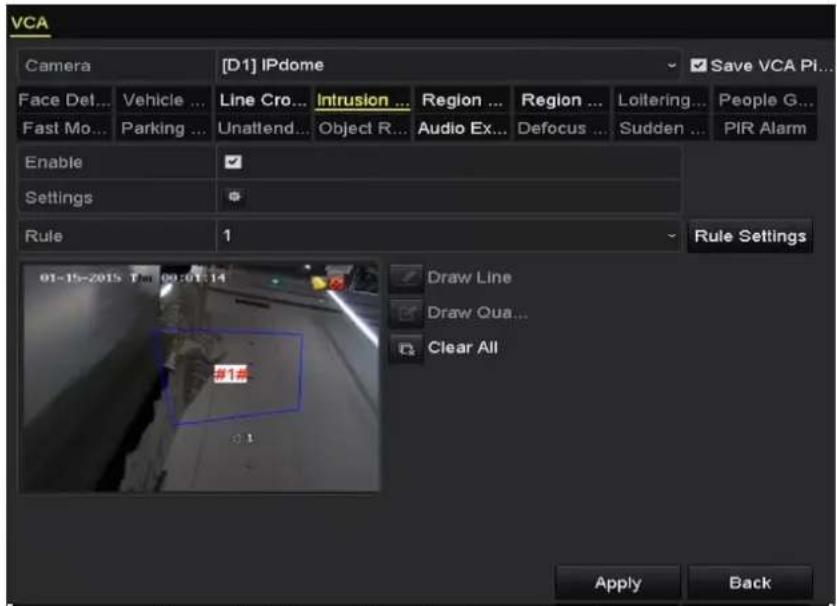

● VCA detecon alarm is supported;
● Support coaxial alarm;
● Automac restore when system is abnormal.

Other Local Funcons

● Manual and automac video quality diagnoses;
- Operable by mouse and remote control;

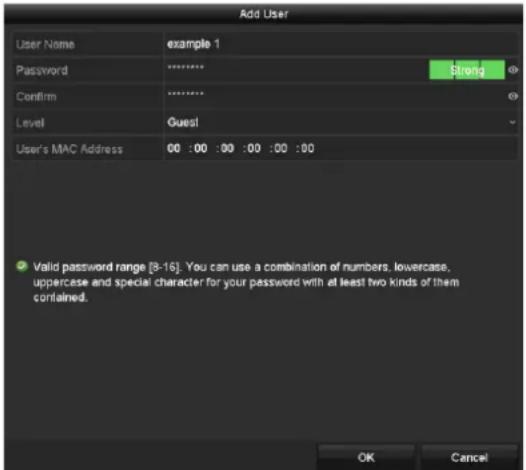

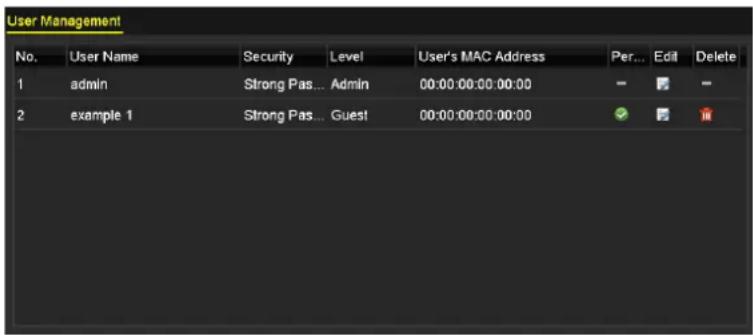

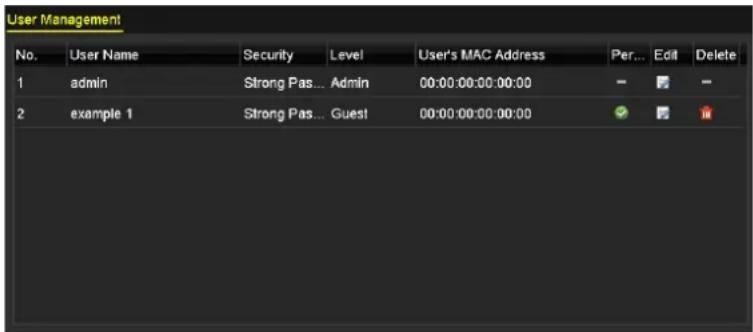

- Three-level user management; admin user can create many operang account and dene their operang permission, which includes the permission to access any channel;

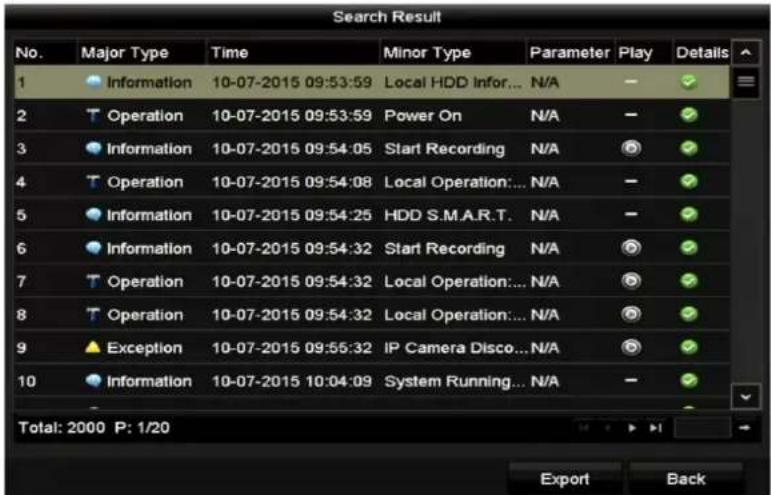

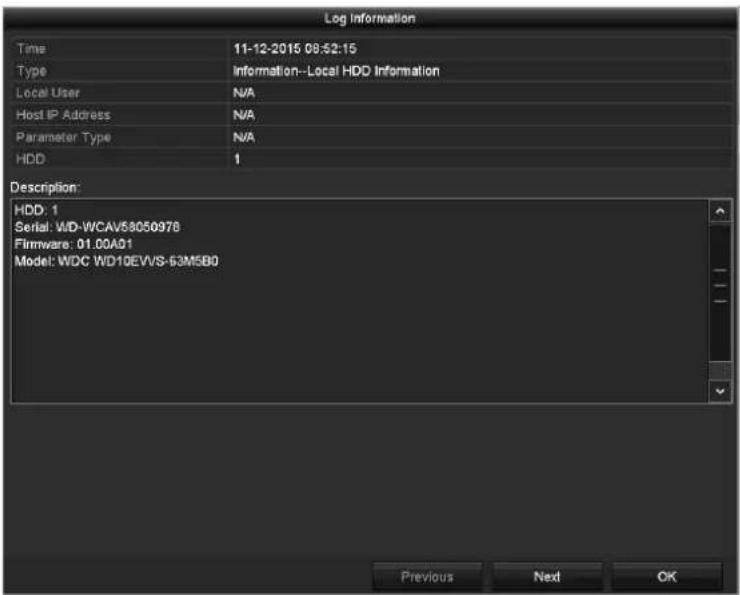

● Completeness of operaon, alarm, excepons and log wring and searching;
● Manually triggering and clearing alarms;
- Imporng and exporng of conguraon le of devices;
● Geng cameras type informaon automacally;

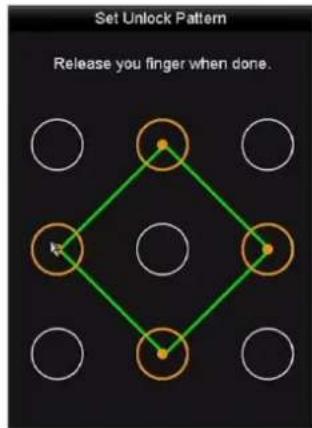

- Unlock pattern for device login for the admin;
- Clear-text password available;

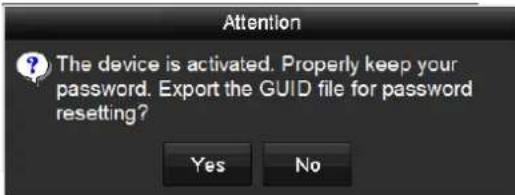

● GUID le can be exported for password reseng.

Network Funcons

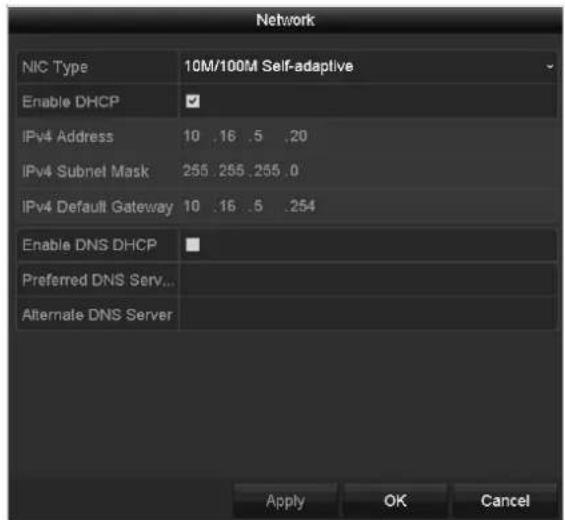

• 1 self-adapve 10M/100M/1000M network interface or 1 self-adapve 10M/100Mbps network interface provided;
• IPv6 is supported;

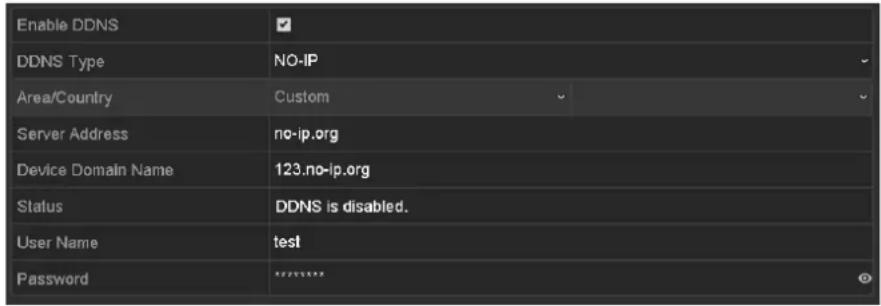

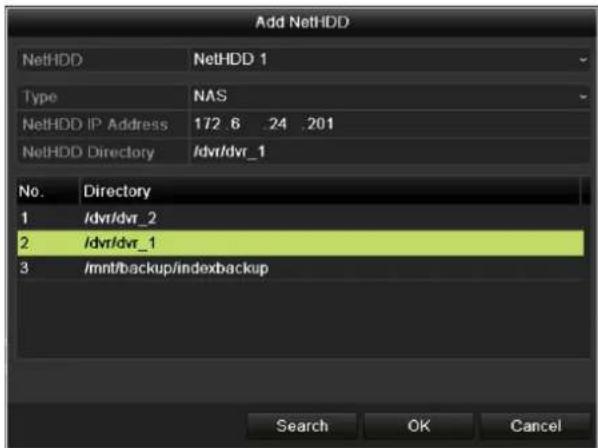

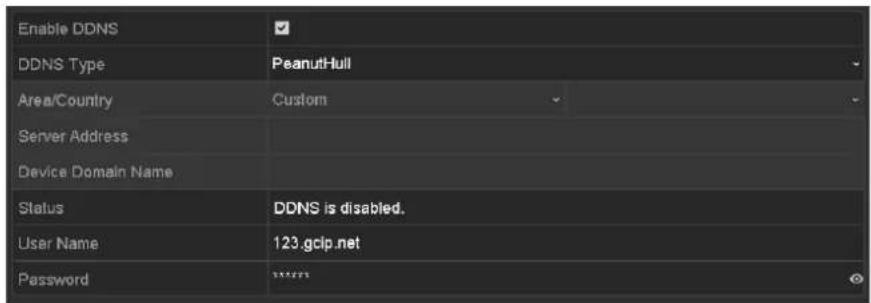

• TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™ and HTTPS are supported;

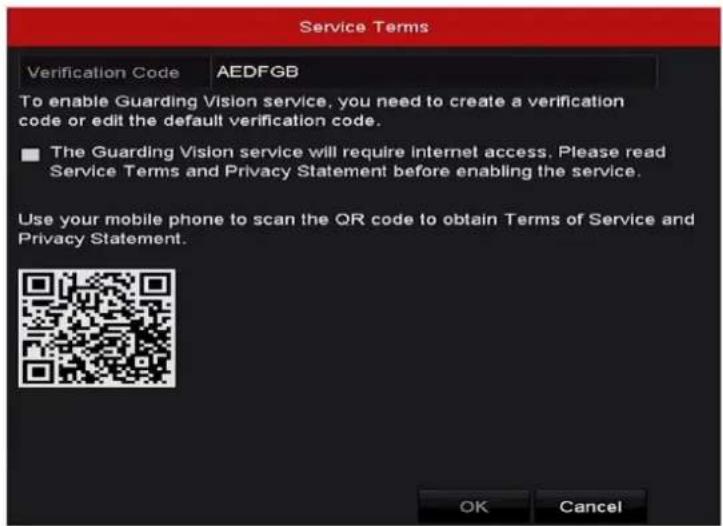

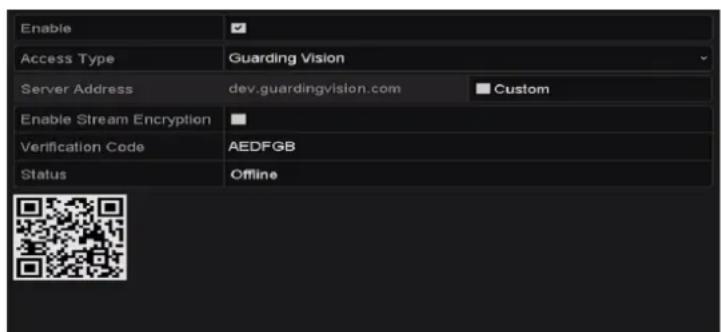

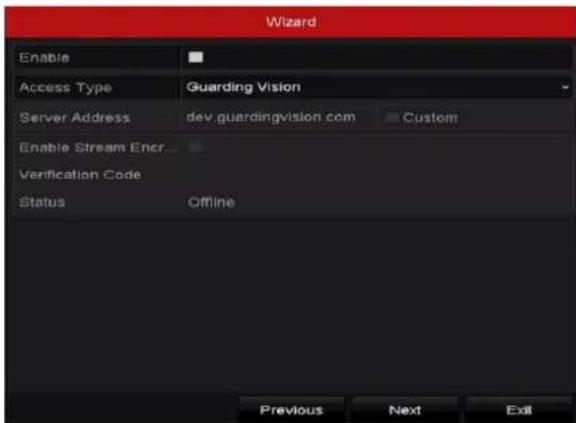

  ● Supports access by Guarding Vision;
  ● TCP, UDP and RTP for unicast;

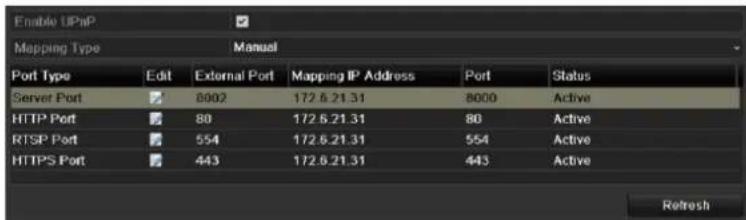

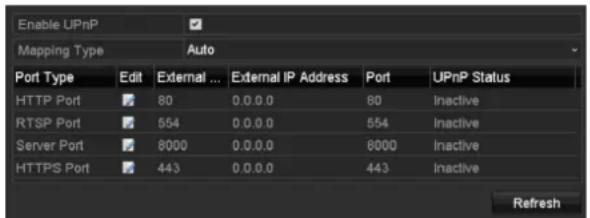

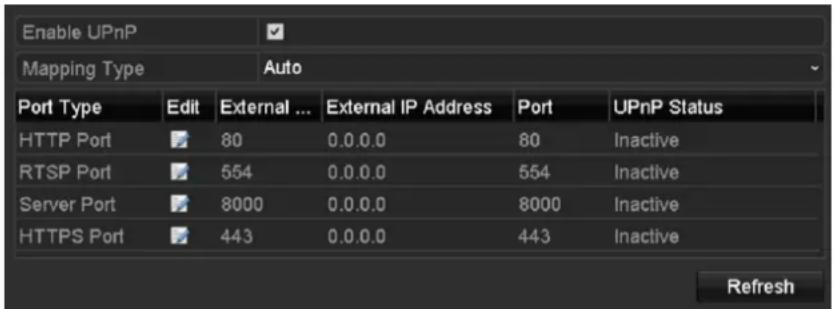

  ● Auto/Manual port mapping by UPnPTM;

• Remote search, playback, download, locking and unlocking the record les, and downloading les broken transfer resume;

• Remote parameters setup; remote import/export of device parameters;
• Remote viewing of the device status, system logs and alarm status;
• Remote keyboard operaon;
• Remote HDD formang and program upgrading;
  ● Remote system restart and shutdown;

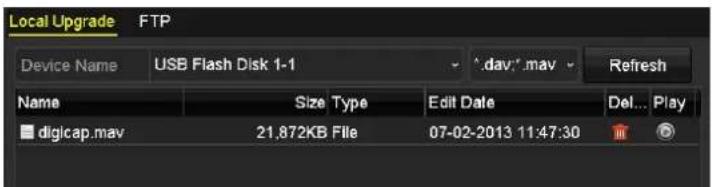

  ● Support upgrading via remote FTP server;
  ● RS-485 transparent channel transmission;
• Alarm and excepon informaon can be sent to the remote host;
  ● Remotely start/stop recording;
  ● Remotely start/stop alarm output;
• Remote PTZ control;
• Two-way audio and voice broadcasts;

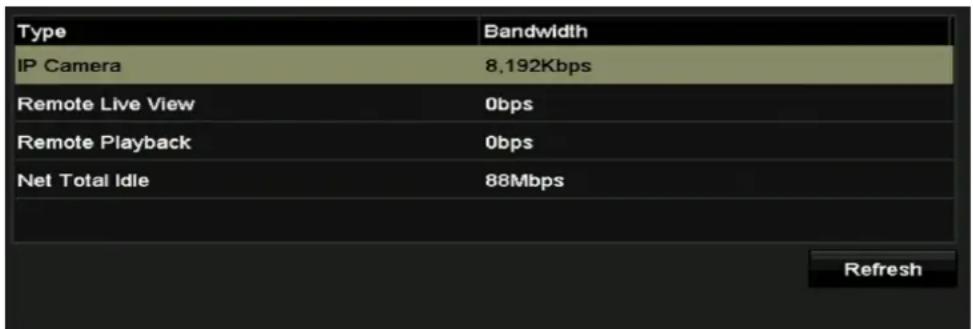

  ● Output bandwidth limit congorable;
• Embedded WEB server;
• If DHCP is enabled, you can enable DNS DHCP or disable it and edit the Preferred DNS Server and Alternate DNS Server.

Development Scalability

• SDK for Windows and Linux system;
  ● Source code of applicaon soware for demo;
  ● Development support and training for applicaon system.

Table of Contents

Product Key Features 6

Chapter 1 Introduction....15

1.1 Front Panel....15

1.2 USB Mouse Operaon 15

1.3 Input Method Descripon 16

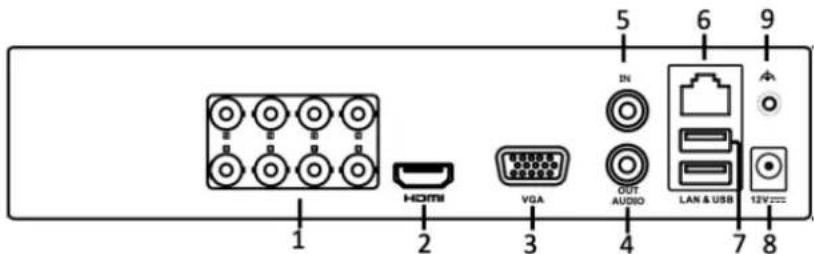

1.4 Rear Panel 17

Chapter 2 Getting Started ....18

2.1 Starng Up and Shung Down the DVR 18

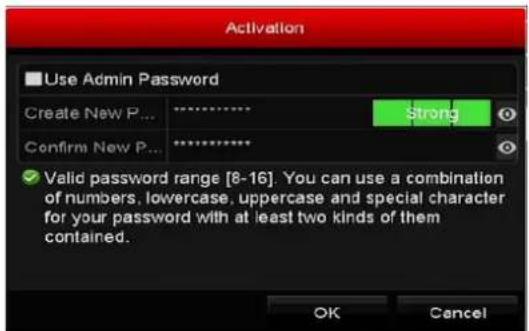

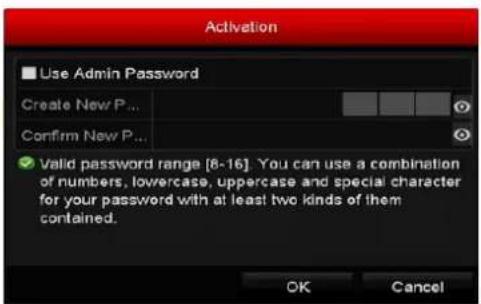

2.2 Acvang the Device 19

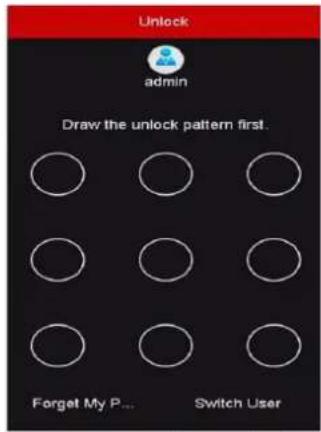

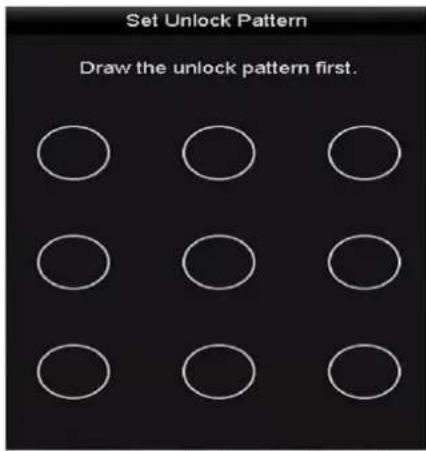

2.3 Using the Unlock Pattern for Login 21

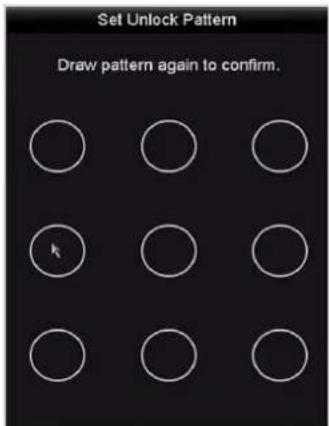

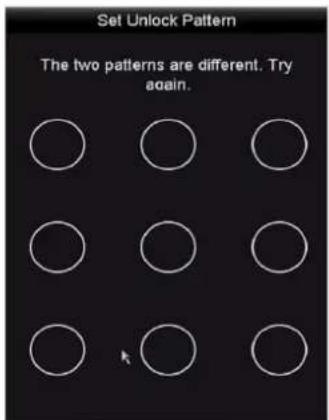

2.3.1 Conguring the Unlock Paern 21

2.3.2 Logging in via Unlock Pattern....23

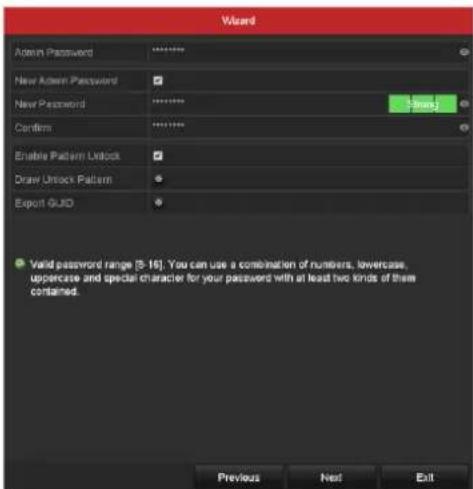

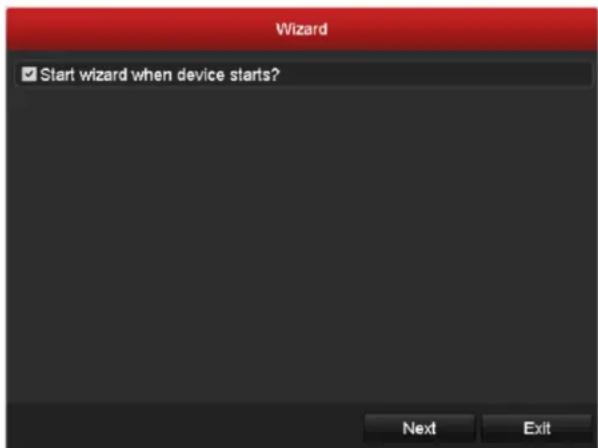

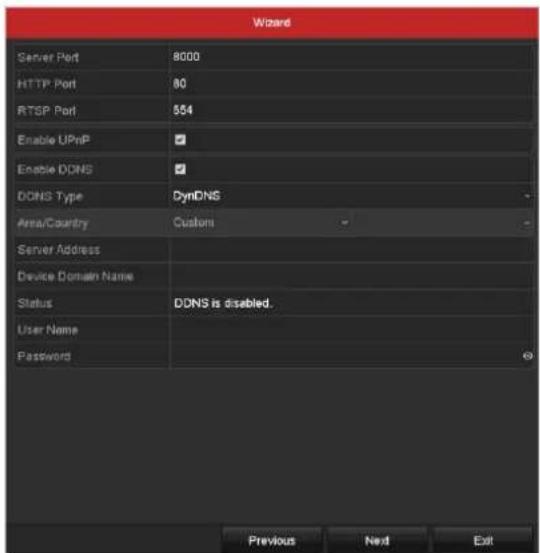

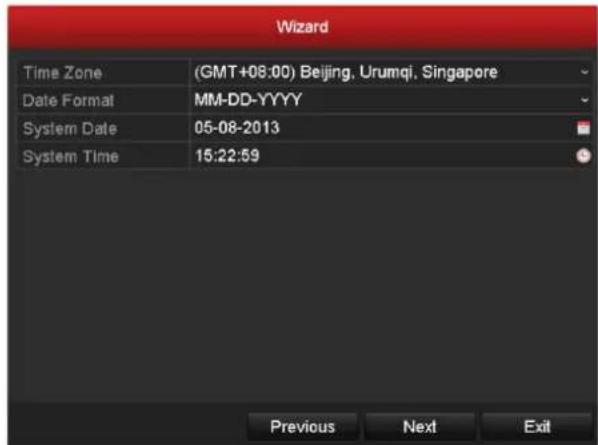

2.4 Basic Conguraon in Startup Wizard 25

2.4.1 Conguring the Signal Input Wizard....25

2.4.2 Using the Wizard for Basic Conguraon 25

2.5 Login and Logout 30

2.5.1 User Login 30

2.5.2 User Logout....31

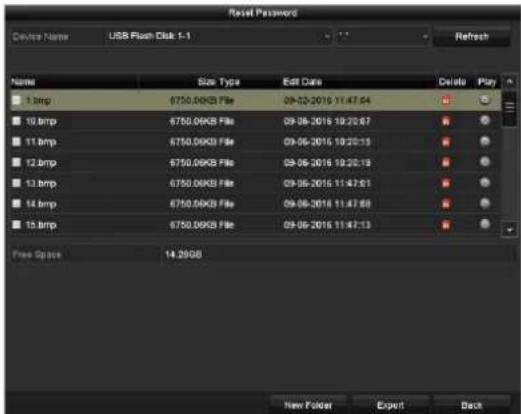

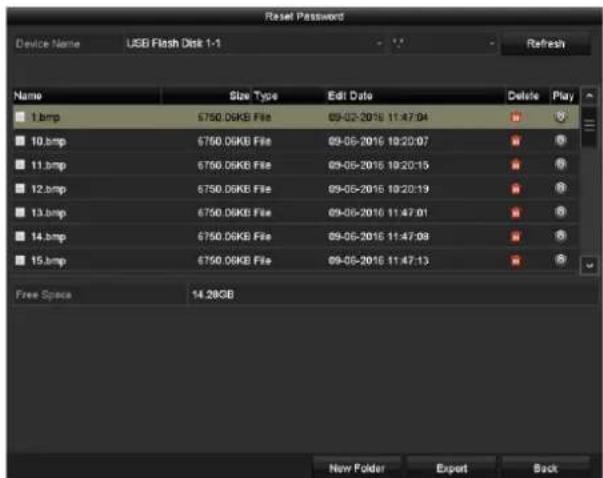

2.6 Reseng Your Password....32

2.7 Adding and Connecng the IP Cameras 33

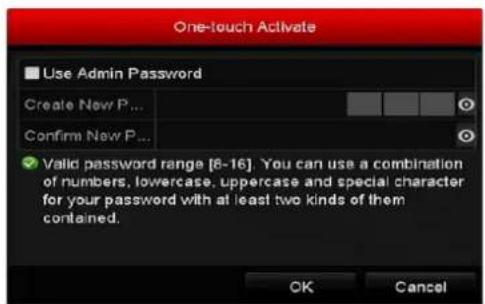

2.6.1 Acvang the IP Camera....33

2.6.2 Adding the Online IP Camera....35

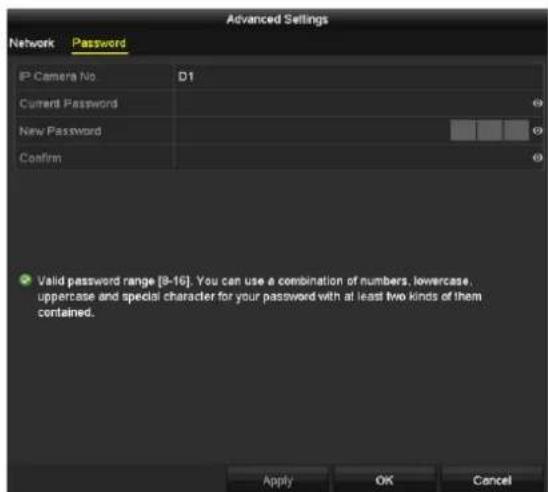

2.6.3 Eding the Connected IP Camera 38

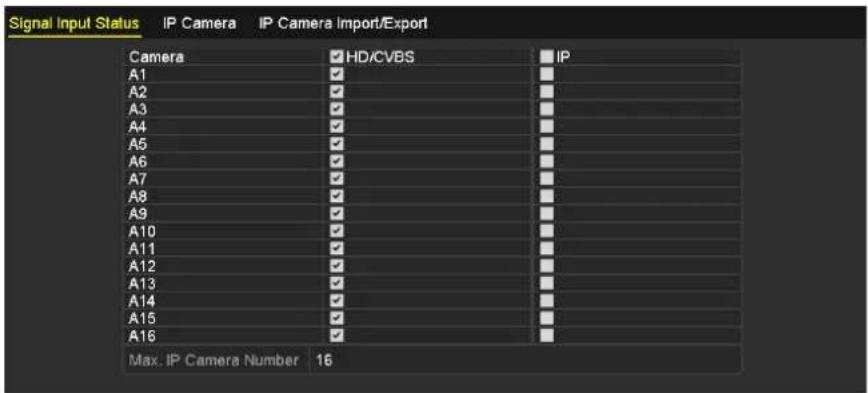

2.8 Conguring the Signal Input Channel 39

Chapter 3 Live View ....41

3.1 Introduction of Live View 41

3.2 Operations in Live View Mode 41

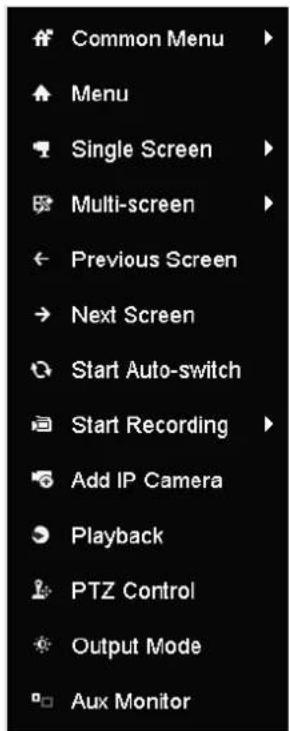

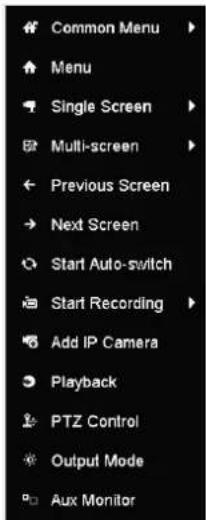

3.2.1 Using the Mouse in Live View....42

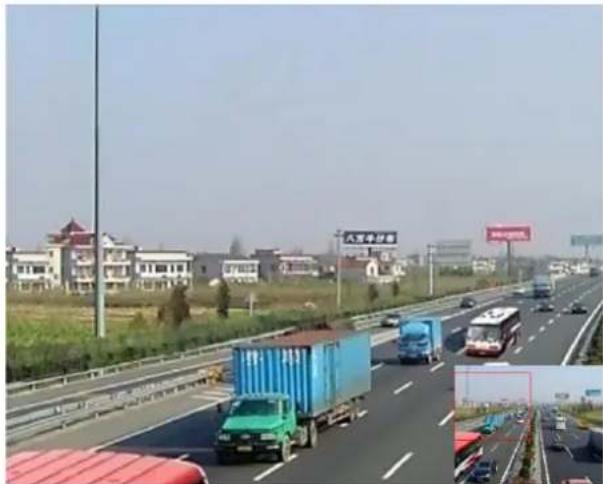

3.2.2 Quick Seng Toolbar in Live View Mode 44

3.3 Channel-Zero Encoding....46

3.4 Adjusting Live View Settings 46

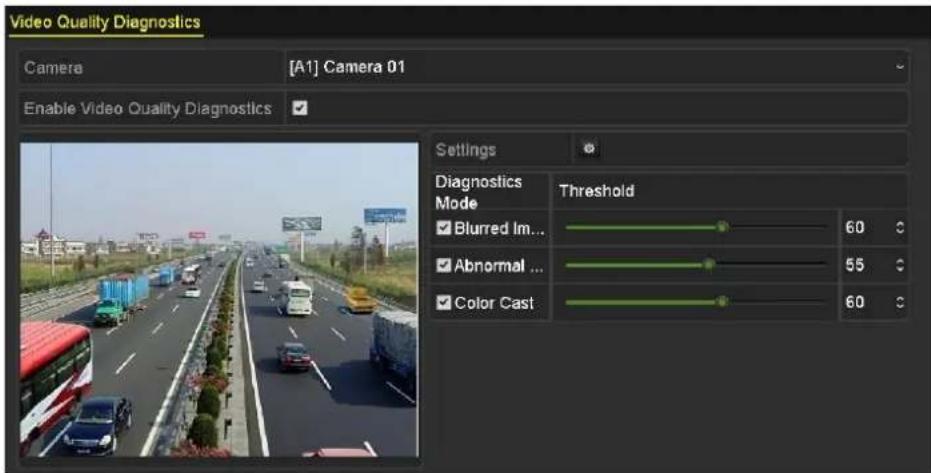

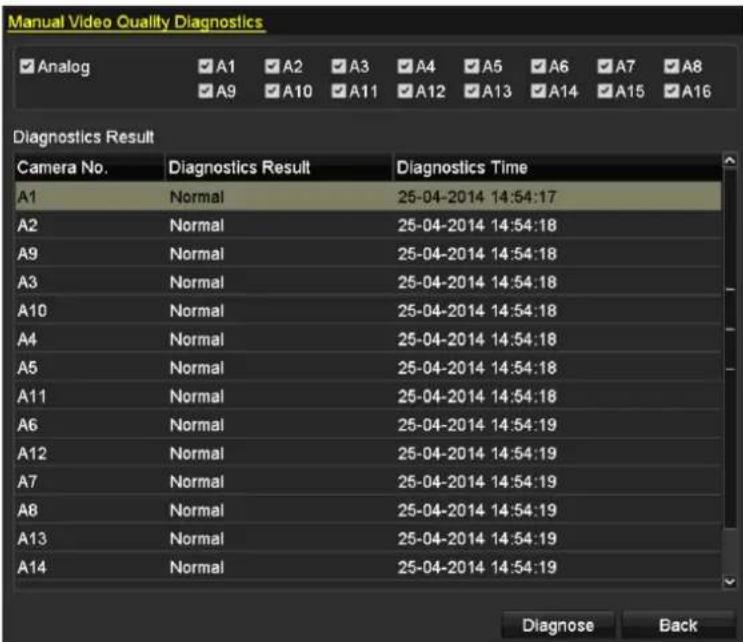

3.5 Manual Video Quality Diagnostics....48

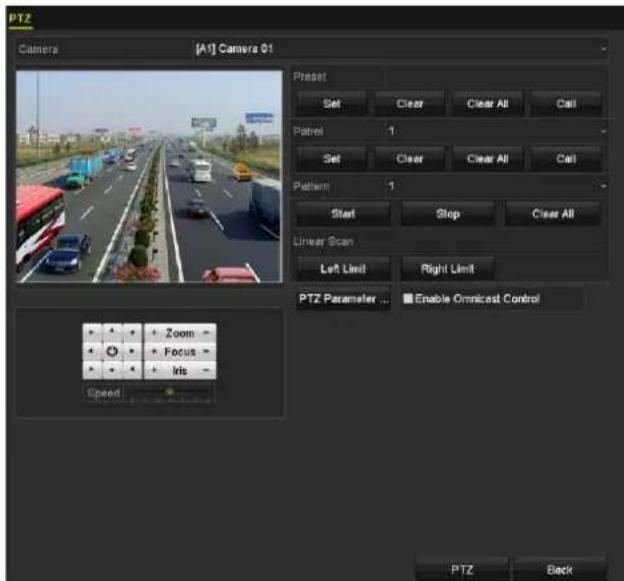

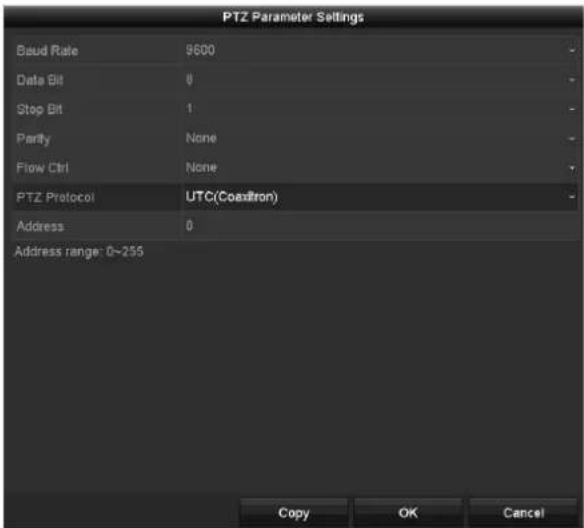

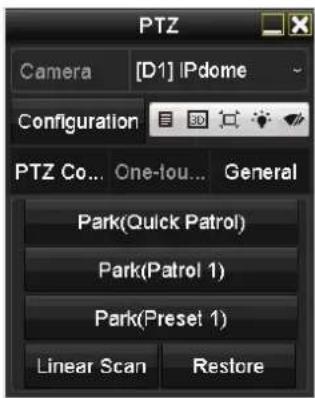

Chapter 4 PTZ Controls ....50

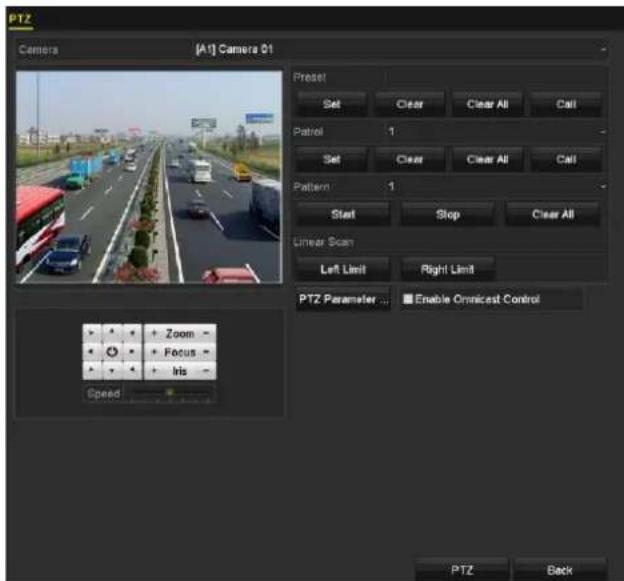

4.1 Conguring PTZ Setngs....50
4.2 Seng PTZ Presets, Patrols and Paerns 52

4.2.1 Customizing Presets....52
4.2.2 Calling Presets....53
4.2.3 Customizing Patrols....53
4.2.4 Calling Patrols....54
4.2.5 Customizing Paerns 55
4.2.6 Calling Patterns 56
4.2.7 Customizing Linear Scan Limit 57
4.2.8 Calling Linear Scan....58
4.2.9 One-touch Park....59

4.3 PTZ Control Panel....60

Chapter 5 Recording Settings....62

5.1 Conguring Encoding Parameters 62
5.2 Conguring Recording Schedule....66
5.3 Conguring Moon Detecon Recording....69
5.4 Conguring Alarm Triggered Recording....70
5.5 Conguring Event Recording....72
5.6 Conguring Manual Recording 74
5.7 Conguring Holiday Recording 74

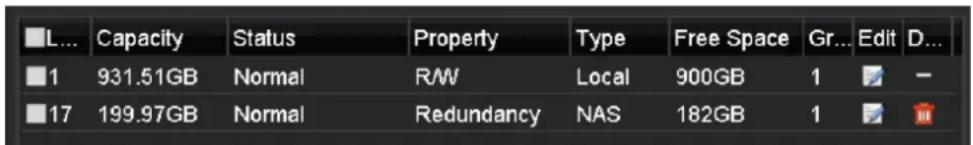

5.8 Conguring Redundant Recording....76
5.9 Conguring HDD Group 78
5.10 Files Protecon 79
5.11 One-Key Enabling and Disabling H.264+ for Analog Cameras 81
5.12 Conguring 1080P Lite....83

Chapter 6 Playback....85

6.1 Playing Back Record Files....85

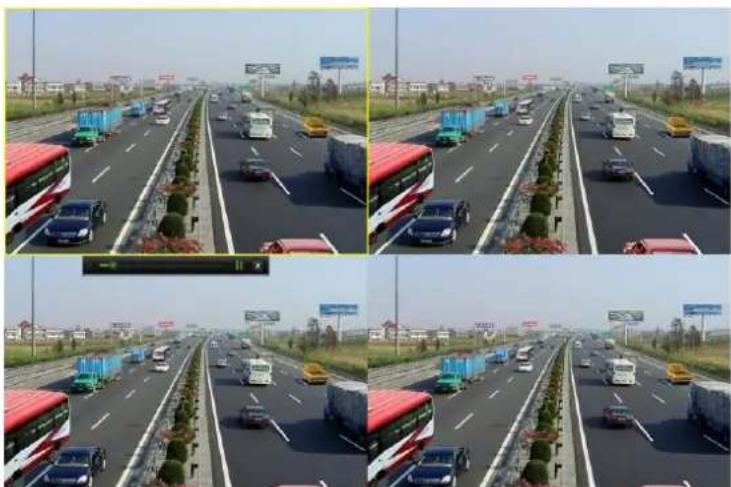

6.1.1 Instant Playback....85
6.1.2 Playing Back by Normal Search....85

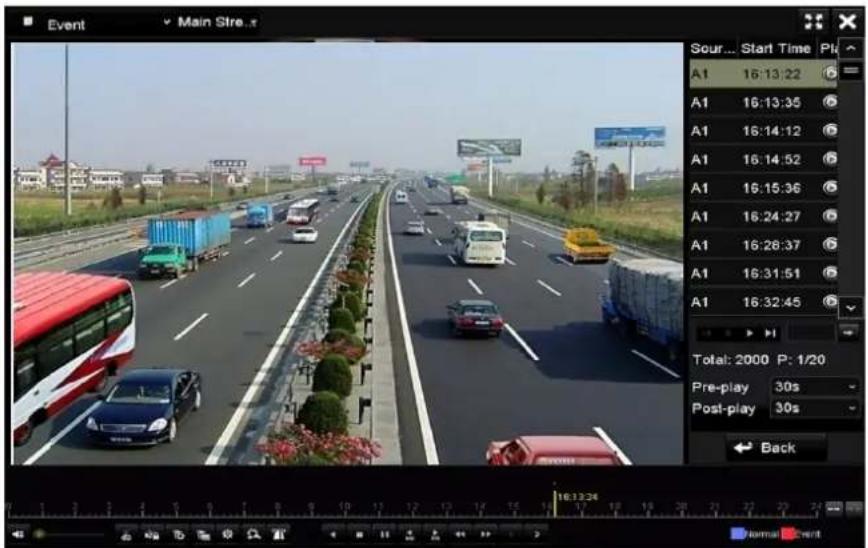

6.1.3 Playing Back by Event Search....88
6.1.4 Playing Back by Tag 90
6.1.5 Playing Back by Smart Search 93

6.1.6 Playing Back by System Logs....96
6.1.7 Playing Back by Sub-Periods 97
6.1.8 Playing Back External File 98
6.2 Auxiliary Funcons of Playback 99
6.2.1 Playing Back Frame by Frame 99
6.2.2 Digital Zoom....99
6.2.3 Reverse Playback of Mul-Channel 100

Chapter 7 Backup....102

7.1 Backing up Record Files 102
7.1.1 Backing up by Normal Video/Picture Search....102
7.1.2 Backing up by Event Search 104
7.1.3 Backing up Video Clips....105
7.2 Managing Backup Devices 106

Chapter 8 Alarm Settings....108

8.1 Seng Moon Detecon 108

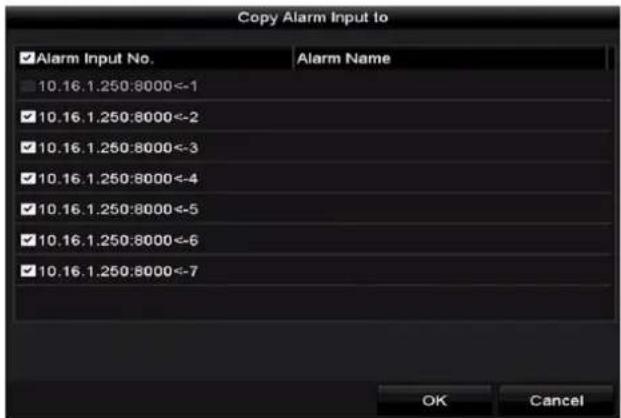

8.2 Seng Sensor Alarms....110
8.3 Detecng Video Loss 112
8.4 Detecng Video Tampering 114
8.5 Seng All-day Video Quality Diagnoscs 115

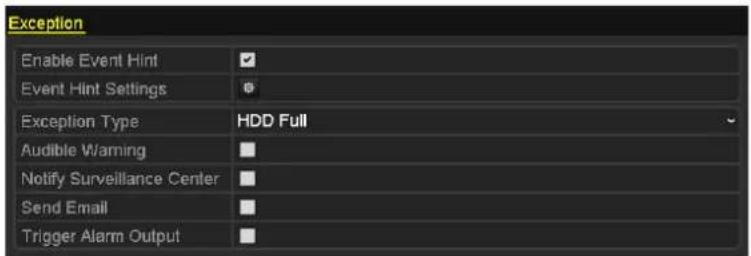

8.6 Handling Excepons....117
8.7 Seng Alarm Response Acons....119

Chapter 9 VCA Alarm....122

9.1 Face Detecon 122

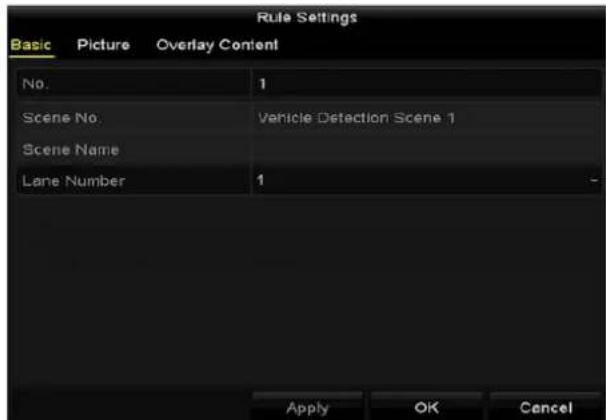

9.2 Vehicle Detecon....123
9.3 Line Crossing Detecon 125
9.4 Intrusion Detecon....126
9.5 Region Entrance Detecon....128
9.6 Region Exing Detecon....129
9.7 Loitering Detecon 130
9.8 People Gathering Detecon 130
9.9 Fast Moving Detecon....130
9.10 Parking Detecon....131
9.11 Unaended Baggage Detecon....131
9.12 Object Removal Detecon....132

9.13 Audio Excepon Detecon 132

9.14 Defocus Detecon....133

9.15 Sudden Scene Change....134

9.16 PIR Alarm .... 134

Chapter 10 VCA Search....136

10.1 Face Search 136

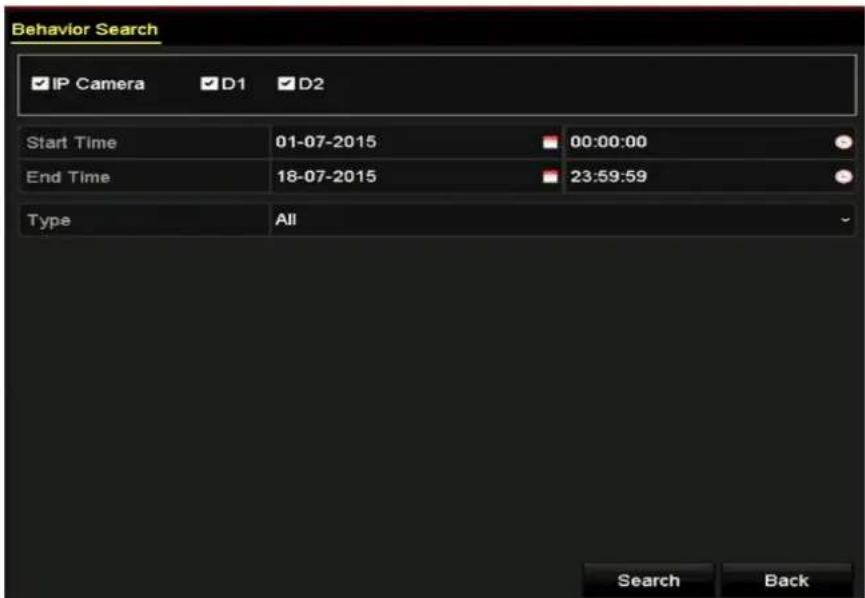

10.2 Behavior Search 138

10.3 Plate Search 139

10.4 People Counng....140

10.5 Heat Map 141

Chapter 11 Network Settings ....143

11.1 Conguring General Setngs 143

11.2 Conguring Advanced Sengs....144

11.2.1 Conguring PPPoE Sengs....144

11.2.2 Conguring Guarding Vision (Mobile access)....144

11.2.3 Conguring DDNS 147

11.2.4 Conguring NTP Server....148

11.2.5 Conguring NAT 149

11.2.6 Conguring More Sengs....151

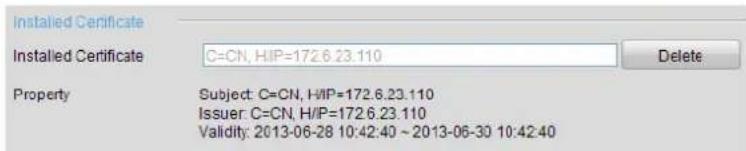

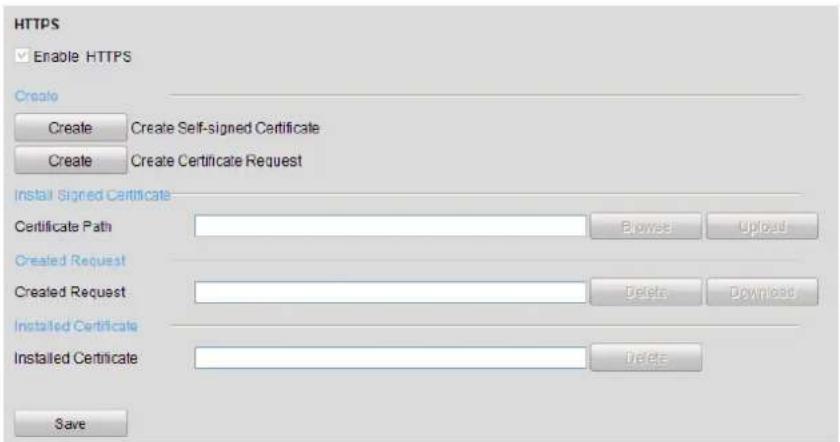

11.2.7 Conguring HTTPS Port....152

11.2.8 Conguring Email....154

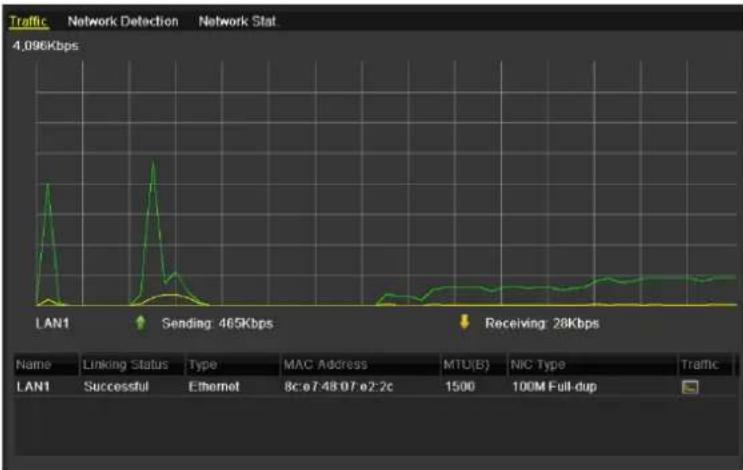

11.2.9 Checking Network Trac....155

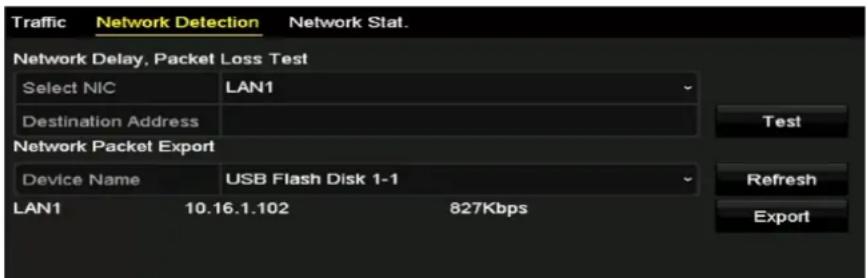

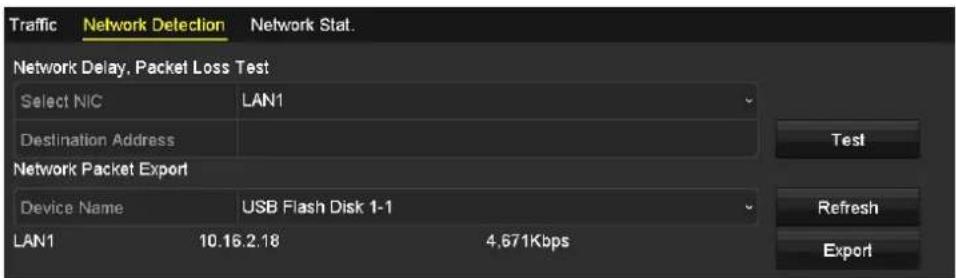

11.3 Conguring Network Detecon....156

11.3.1 Tesng Network Delay and Packet Loss....156

11.3.2 Exporng Network Packet 157

11.3.3 Checking Network Status....157

11.3.4 Checking Network Stascs....158

Chapter 12 HDD Management ....160

12.1 Inializing HDDs....160

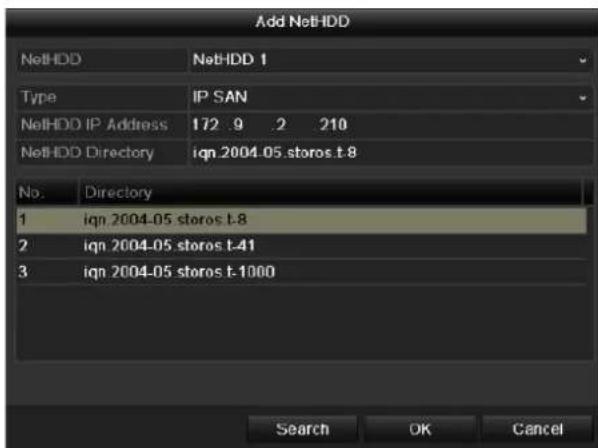

12.2 Managing Network HDD....161

12.3 Managing HDD Group....164

12.3.1 Seng HDD Groups 164

12.3.2 Seng HDD Property....165

12.4 Conguring Quota Mode 166

12.5 Checking HDD Status 167

12.6 Checking S.M.A.R.T Informaon 168

12.7 Detecng Bad Sector 169

12.8 Conguring HDD Error Alarms....170

Chapter 13 Camera Settings ....171

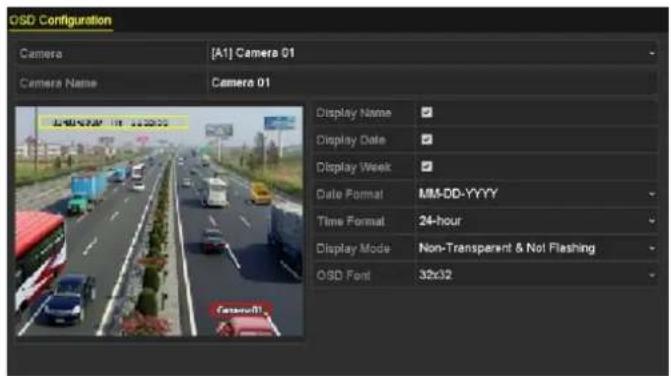

13.1 Conguring OSD Setngs....171

13.2 Conguring Privacy Mask....172

13.3 Conguring Video Parameters....173

13.3.1 Conguring Image Sengs....173

13.3.2 Conguring Camera Parameters Sengs 175

Chapter 14 DVR Management and Maintenance....177

14.1 Viewing System Informaon....177

14.2 Searching Log Files....177

14.3 Imporng/Exporng IP Camera Info 180

14.4 Imporng/Exporng Conguraon Files....180

14.5 Upgrading System 181

14.5.1 Upgrading by Local Backup Device 181

14.5.2 Upgrading by FTP 182

14.6 Restoring Default Setngs....182

Chapter 15 Others ....184

15.1 Conguring General Setngs 184

15.2 Conguring DST Setngs....185

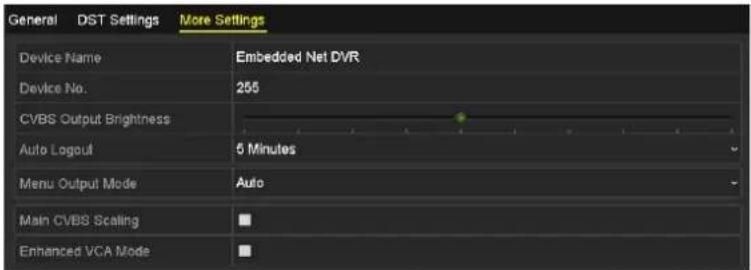

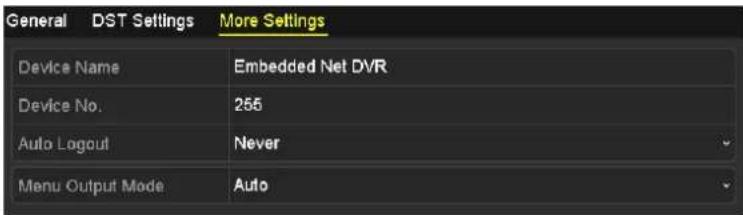

15.3 Conguring More Sengs....185

15.4 Managing User Accounts 186

15.5.1 Adding a User....187

15.5.2 Deleng a User....190

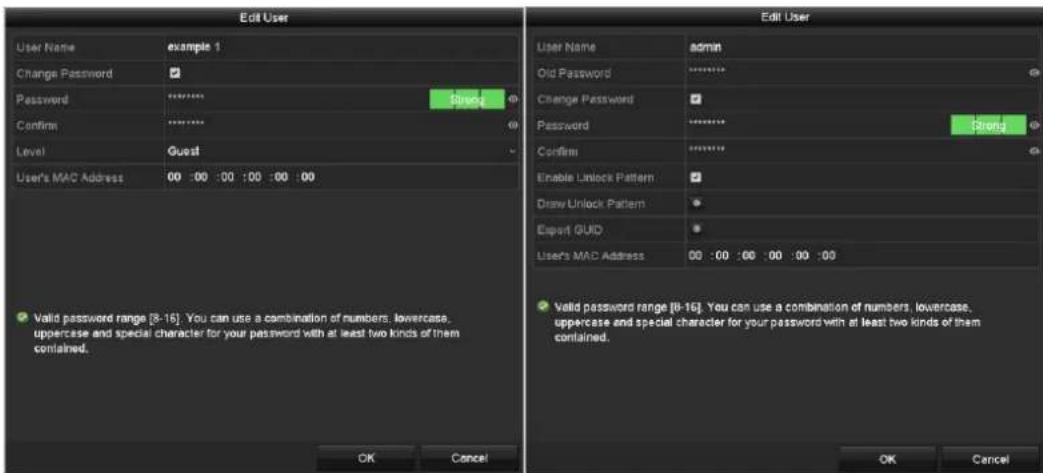

15.5.3 Eding a User....190

Chapter 16 Appendix ......194

16.1 Specicaons....194

16.2 Glossary 195

16.3 Troubleshoong....197

Chapter 1 Introducon

1.1 Front Panel

Figure 1-1 Front Panel of DVR

Table 1-1 Descriponon of Front Panel

No.	Icon	Descripon
1		Turns red when DVR is powered up.
2		Turns red when data is being read from or wrien to HDD.
3		Flickers blue when network conncon is funconing properly.

1.2 USB Mouse Operaon

A regular 3-buon (Le/Right/Scroll-wheel) USB mouse can also be used with this DVR. To use a USB mouse:

Step 1 Plug USB mouse into one of the USB interfaces on the front panel of the DVR.

Step 2 The mouse should automacally be detected. If in a rare case that the mouse is not detected, the possible reason may be that the two devices are not compatible, please refer to the recommended the device list from your provider.

The operaon of the mouse:

Table 1-2 Descripon of the Mouse Control

Name	Acon	Descripon
Le-Click	Single-Click	Live view: Select channel and show the quick set menu.Menu: Select and enter.
	Double-Click	Live view: Switch between single-screen and
		mul-screen.
	Drag	PTZ control: Wheeling.Privacy mask and moon detecon: Select target area.Digital zoom-in: Drag and select target area.Live view: Drag channel/me bar.
Right-Click	Single-Click	Live view: Show menu.Menu: Exit current menu to upper level menu.
Scroll-Wheel	Scrolling up	Live view: Previous screen.Menu: Previous item.
	Scrolling down	Live view: Next screen.Menu: Next item.

1.3 Input Method Descripon

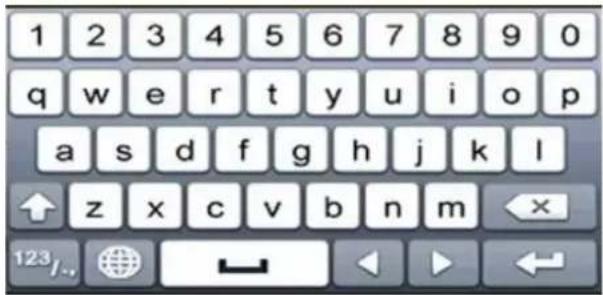

Figure 1-2 So Keyboard

Descripon of the buons on the so keyboard:

Table 1-3 Descripon of the So Keyboard Icons

Icon	Descripon	Icon	Descripon
	Number		English leer
	Lowercase/Uppercase	[4DTX]	Backspace
ABC	Switch the keyboardPosioning the cursor	[0DH6]	SpaceEnter
	Symbols		Reserved

1.4 Rear Panel

Figure 1-3 Rear Panel of DVR

Table 1-4 Descripon of Rear Panel

No.	Item	Descripon
1	VIDEO IN	BNC interface for HDTV1 and analog video input.
2	HDMI	HDMI video output connector.
3	VGA	DB15 connector for VGA output. Display local video output and menu.
4	AUDIO OUT	RCA connector
5	AUDIO IN	RCA connector
6	Network Interface	Connector for network
7	USB Port	Universal Serial Bus (USB) port for additional devices.
8	Power Supply	12 VDC power supply.
9	GND	Ground

Chapter 2 Geng Started

2.1 Starng Up and Shung Down the DVR

Purpose

Proper startup and shutdown procedures are crucial to expanding the life of the DVR.

Before you start

Check that the voltage of the extra power supply is the same with the DVR's requirement, and the ground conncon is working properly.

Starng up the DVR

Step 1 Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptable Power Supply (UPS) be used in conjunction with the device.

Step 2 Turn on the power switch on the rear panel, and the Power indicator LED should turn on indicang that the unit begins to start up.

Step 3 Aer startup, the Power indicator LED remains on.

Shung down the DVR

There are two proper ways to shut down the DVR. To shut down the DVR:

• OPTION 1: Standard shutdown

Step 1 Enter the Shutdown menu.

Menu > Shutdown

Figure 2-1 Shutdown Menu

Step 2 Select the Shutdown buon.

Step 3 Click the Yes buon.

Step 4 Turn o the power switch on the rear panel when the note appears.

Figure 2-2 Shutdown Tips

Reboong the DVR

While in the Shutdown menu (Figure 2-1), you can also reboot the DVR.

Step 1 Enter the Shutdown menu by clicking Menu > Shutdown.

Step 2 Click the Logout buon to log out or the Reboot buon to reboot the DVR.

2.2 Acvang the Device

Purpose

For the rst-me access, you need to acvate the device by seng an admin password. No operaon is allowed before acvaon. You can also acvate the device via Web Browser, SADP or Client Soware.

Step 1 Input the same password in the text eld of Create New Password and Conrm New Password.

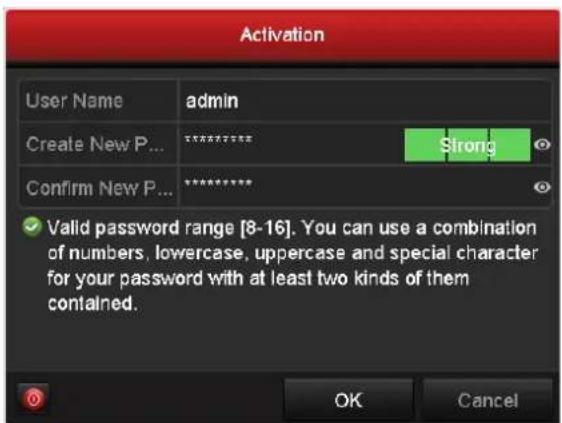

Figure 2-3 Sengs Admin Password

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

Step 2 Click OK to save the password and acvate the device.

i NOTE

• Clear-text password is supported. Click the icon and you can see the clear text of the password. Click the icon again and the content of the password restores invisible.
• For the old version device, if you update it to the new version, the following dialog box will pop up once the device starts up. You can click YES and follow the wizard to set a strong password.

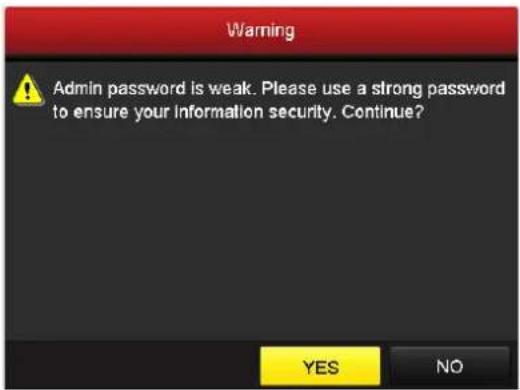

Figure 2-4 Warning

Step 3 Aer the device is acvated, the Aenon box pops up as below.

Figure 2-5 Aenon

Step 4 (Oponal) Click Yes to export GUID. The Reset Password interface pops up. Click Export to export GUID to the USB ash disk for password reseng.

Figure 2-6 Export GUID

Step 5 Aer exporng GUID, the Aenon box pops up as below. Click Yes to duplicate the password or No to cancel it.

Figure 2-7 Duplicate the Password

2.3 Using the Unlock Paern for Login

Purpose

For the admin, you can congregate the unlock paern for device login.

2.3.1 Conguring the Unlock Paern

Aer the device is acvated, you can enter the following interface to conjure the device unlock paern.

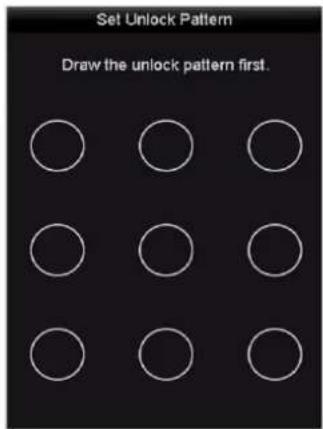

Figure 2-8 Set Unlock Paern

Step 1 Use the mouse to draw a paern among the 9 dots on the screen. Release the mouse when the paern is done.

Figure 2-9 Draw the Paern

i NOTE

• Connect at least 4 dots to draw the paern.
  ● Each dot can be connected for once only.

Step 2 Draw the same paern again to conrm it. When the two paerns match, the paern is congured successfully.

Figure 2-10 Conrm the Paern

i NOTE

If the two paerns are dierent, you must set the paern again.

Figure 2-11 Reset the Paern

2.3.2 Logging in via Unlock Paern

i NOTE

• Only the admin user has the permission to unlock the device.
• Please congregate the paern rst before unlocking. Please refer to Chapter 2.3.1 Conguring the Unlock Paern.

Step 1 Right click the mouse on the screen and select the menu to enter the interface.

Figure 2-12 Draw the Unlock Paern

Step 2 Draw the pre-dened paern to unlock to enter the menu operaon.

i NOTE

● You can right click the mouse to log in via the normal mode.
- If you have forgotten your paern, you can select the Forget My Paern or Switch User opon to enter the normal login dialog box.
- When the paern you draw is dierent from the paern you have congured, you should try again.
- If you have drawn the wrong paern for 7 mes, the account will be locked for 1 minute.

Figure 2-13 Normal Login Dialog Box

Figure 2-14 Lock the Account

2.4 Basic Conguraon in Startup Wizard

2.4.1 Conguring the Signal Input Wizard

Purpose

Aer the startup and login, the device system enters the Wizard for conguring the signal input.

You can also click Menu > Camera > Signal Input Status to congregate the signal input.

Step 1 Check the checkbox to select dierent signal input types: HD/CVBS and IP.

Step 2 Click Apply to save the sengs.

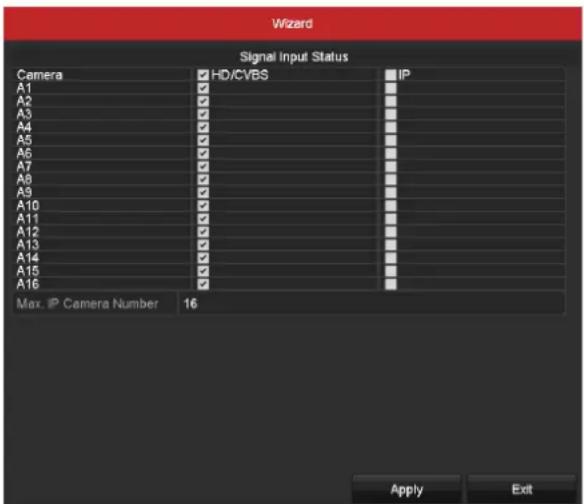

Figure 2-15 Congure Signal Input Type

For detailed informaon of signal input, you can refer to Chapter 2.8 Conguring the Signal Input Channel for reference.

2.4.2 Using the Wizard for Basic Conguraon

Purpose

By default, the Setup Wizard starts once the device has loaded. You can follow it to complete the basic conguraon.

Selecng the language:

Step 1 Select the language from the drop-down list.

Step 2 Click Apply buon.

Figure 2-16 Language Conguraon

Operang the Setup Wizard:

Step 1 The Start Wizard can walk you through some important sengs of the device. If you don't want to use the Start Wizard at that moment, click Exit. You can also choose to use the Start Wizard next me by leaving the "Start wizard when device starts?" checkbox checked.

Figure 2-17 Start Wizard Interface

Step 2 Click Next buon to enter the Change the Password interface.

1) Input the Admin Password.
2) (Oponal) Check the checkbox of New Admin Password, input the New Password and conrm it.
3) (Oponal) Check the checkbox of Enable Paern Unlock and draw the unlock paern. Or click 📋 icon of Draw Unlock Paern to change the paern. Refer to Chapter 2.3 Using the Unlock Paern for Login for reference.
4) (Oponal) Click icon of Export GUID to export GUID to the connected USB ash disk for reseng password. Refer to Chapter 17.5.3 Eding a User for reference.

Figure 2-18 Change the Password

i NOTE

Clear-text password is supported. Click the 📄icon and you can see the clear text of the password. Click the icon again and the content of the password restores invisible.

Step 3 Click Next buon and the Aenon box pops up as shown below. Click Yes to duplicate the password of the device to IP cameras that are connected with default protocol. Or click No to enter the Date and Time Sengs interface.

Figure 2-19 Duplicate the Password

Figure 2-20 Date and Time Sengs

Step 4 Aer the me sengs, click Next buon to enter the General Network Setup Wizard interface as shown below.

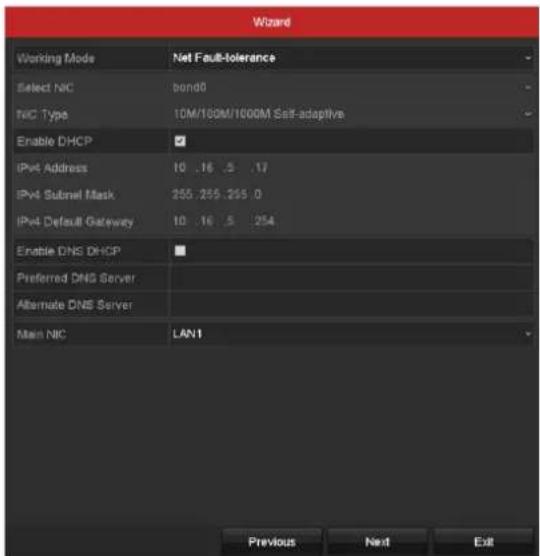

Figure 2-21 General Network Conguraon

i NOTE

• 1 self-adapve 10M/100M/1000M network interface or 1 self-adapve 10M/100Mbps network interface provided.
• If DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit the Preferred DNS Server and Alternate DNS Server.

Step 5 Click Next buon aer you congured the basic network parameters.

Then you will enter the Guarding Vision interface. Congure the Guarding Vision according to your need. Refer to Chapter 12.2.2 Conguring Guarding Vision for detailed operaons.

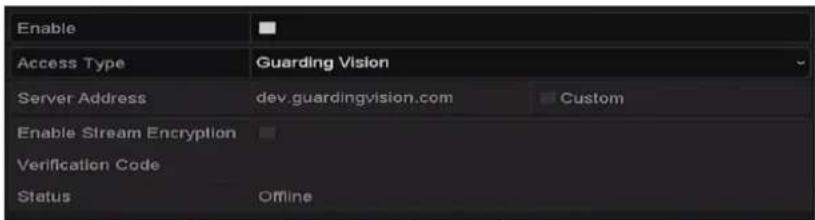

Figure 2-22 Guarding Vision Interface

Step 6 Click Next buon to enter the Advanced Network Parameters interface. You can enable DDNS and set other ports according to your need.

Figure 2-23 Set Advanced Network Parameters

Step 7 Click Next buon aer conguring the advanced network parameters, which will take you to the HDD Management interface as shown in Figure 2-24.

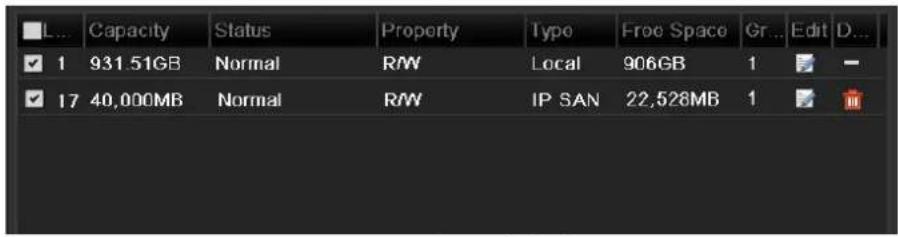

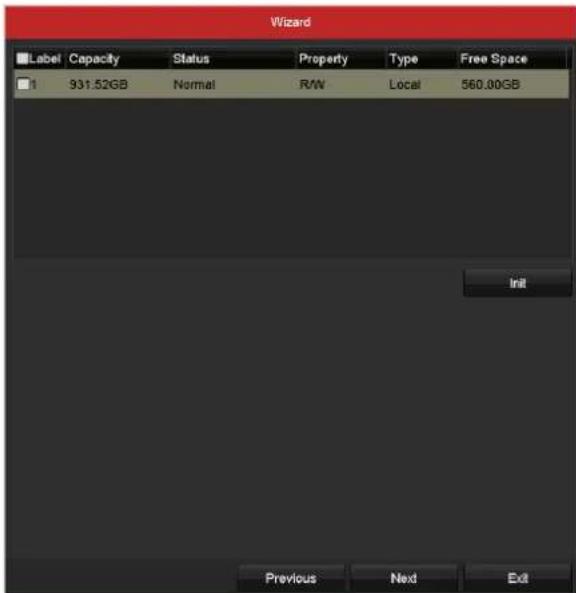

Figure 2-24 HDD Management

Step 8 To initialize the HDD, click the Init buon. Inializaon will remove all the data saved in the HDD.

Step 9 Click Next buon to enter the IP Camera Management interface.

Step 10 Add the IP camera.

1) Click Search to search the online IP Camera. The Security status shows whether it is acve or inacve. Before adding the camera, make sure the IP camera to be added is in acve status. If the camera is in inacve status, you can click the inacve icon of the camera to

set the password to acvate it. You can also select mulple cameras from the list and click the One-touch Acvate to acvate the cameras in batch.

2) Click the Add to add the camera.

Figure 2-25 IP Camera Management

Step 11 After nishing IP Camera sengs, click Next to enter the Record Sengs interface.

Step 12 Click the icon, and you can enable the connuous recording or moon detecon recording for all channels of the device.

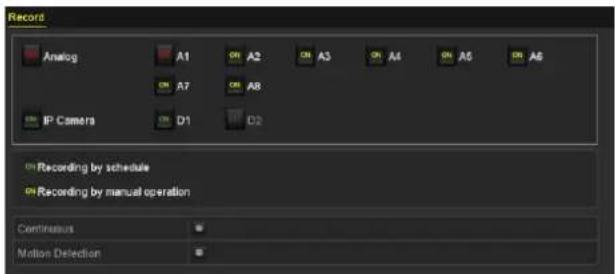

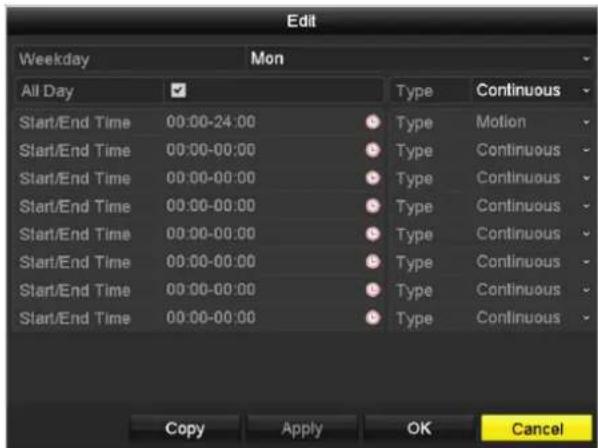

Figure 2-26 Record Sengs

Step 13 Click OK to complete the wizard sengs.

2.5 Login and Logout

2.5.1 User Login

Purpose

You have to log in to the device before operang the menu and other funcons

Step 1 Select the User Name in the drop-down list.

Figure 2-27 Login Interface

Step 2 Input the Password.

Step 3 Click OK to log in.

NOTE

• Clear-text password is supported. Click the icon and you can see the clear text of the password. Click the icon again and the content of the password restores invisible.
• In the Login interface, for the admin, if you have entered the wrong password for 7 mes, the account will be locked for 60 seconds. For the operator, if you have entered the wrong password for 5 mes, the account will be locked for 60 seconds.

Figure 2-28 User Account Protecon for the Admin

Figure 2-29 User Account Protecon for the Operator

2.5.2 User Logout

Purpose

Aer logging out, the monitor turns to the live view mode and if you want to perform some operaons, you need to enter the user name and password to log in again.

Step 1 Enter the Shutdown menu.

Menu > Shutdown

Figure 2-30 Logout

Step 2 Click Logout.

Aer you have logged out of the system, menu operaon on the screen is invalid. It is required to input a user name and password to unlock the system.

2.6 Reseng Your Password

Purpose

When you forget the password of the admin, you can reset the password by imporng the GUID le. The GUID le must be exported and saved in the local USB ash disk aer you have acvated the device (refer to Chapter 2.2 Acvang the Device).

Step 2 On the user login interface, click Forget Password to pop up the Import GUID interface.

Figure 2-31 Import GUID

Step 3 Select the GUID le from the USB ash disk and click Import buon to pop up the Reset Password interface.

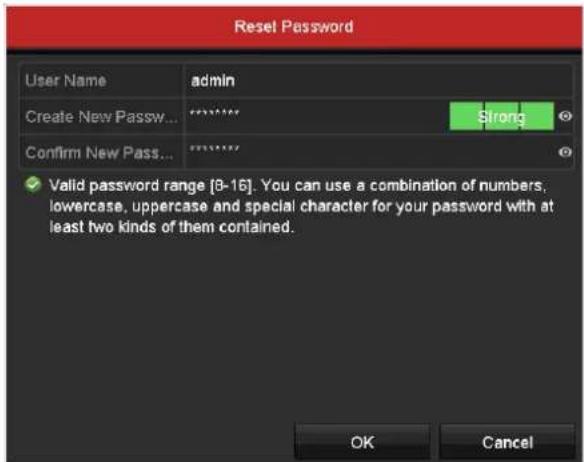

Figure 2-32 Reset Password

Step 4 Input the new password and conrm the password.

Step 5 Click OK to save the new password. Then the Aenon box pops up as shown below.

Figure 2-33 GUID File Imported

Step 6 Click OK and the Aenon box as below pops up to remind you to duplicate the password of the device to IP cameras that are connected with default protocol. Click Yes to duplicate the password or No to cancel it.

Figure 2-34 Duplicate the Password

i NOTE

• If you want to retrieve the password when you forget it, you must export the GUID le rst.
• Once the password is reset, the GUID le will be invalid. You can export a new GUID le. Refer to Chapter 17.5.3 Eding a User for reference.

2.7 Adding and Connecng the IP Cameras

2.6.1 Acvang the IP Camera

Purpose

Before adding the camera, make sure the IP camera to be added is in acve status.

Step 1 Select the Add IP Camera opon from the right-click menu in live view mode or click Menu> Camera> IP Camera to enter the IP Camera Management interface.

For the IP camera detected online in the same network segment, the Security status shows whether it is acve or inacve.

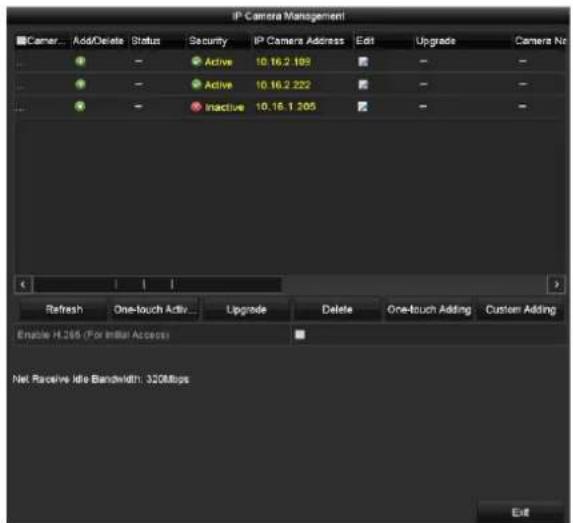

Figure 2-35 IP Camera Management Interface

Step 2 Click the inacve icon of the camera to enter the following interface to acvate it. You can also select mulple cameras from the list and click the One-touch Acvate to acvate the cameras in batch.

Figure 2-36 Acvate the Camera

Step 3 Set the password of the camera to acvate it.

Use Admin Password: When you check the checkbox, the camera (s) will be congured with the same admin password of the operang DVR.

Create New Password: If the admin password is not used, you must create the new password for the camera and conrm it.

Figure 2-37 Set New Password

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

Step 4 Click OK to nish the acitavng of the IP camera. And the security status of camera will be changed to Acve.

2.6.2 Adding the Online IP Camera

Purpose

Before you can get a live view or record of the video, you should add the network cameras to the conneccon list of the device.

Before you start

Ensure the network conncon is valid and correct. For detailed checking and conguring of the network, please see Chapter 12 Network Sengs.

- OPTION 1:

Step 1 Select the Add IP Camera opon from the right-click menu in live view mode or click Menu> Camera> IP Camera to enter the IP Camera Management interface.

Figure 2-38 IP Camera Management Interface

Step 2 The online cameras with same network segment will be detected and displayed in the camera list.

Step 3 Select the IP camera from the list and click the 📊uon to add the camera (with the same admin password of the DVR's). Or you can click the One-touch Adding buon to add all cameras (with the same admin password) from the list.

i NOTE

Make sure the camera to add has already been acavted by seng the admin password, and the admin password of the camera is the same with the DVR's.

Step 4 (For the encoders with mulple channels only) check the checkbox of Channel Port in the pop-up window, as shown in the following gure, and click OK to add mulple channels.

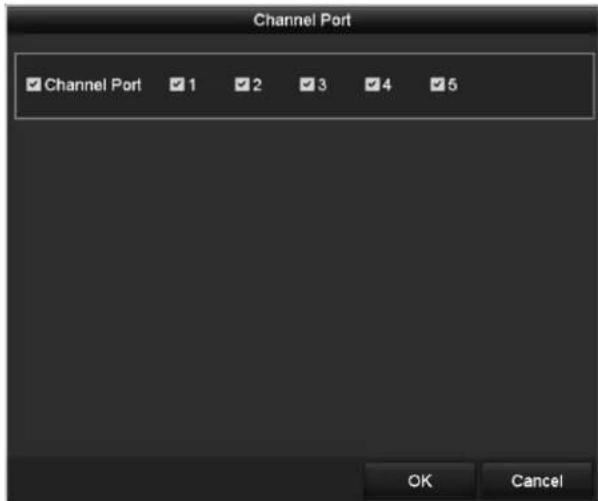

Figure 2-39 Select Mulple Channels

- OPTION 2:

Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the Add IP Camera (Custom) interface.

Figure 2-40 Custom Adding IP Camera Interface

Step 2 You can edit the IP address, protocol, management port, and other informaon of the IP camera to be added.

If the IP camera to add has not been acavated, you can acvate it from the IP camera list on the IP Camera Management interface.

Step 3 Click Add to add the camera.

For the successfully added IP cameras, the Security status shows the security level of the password of camera: strong password, weak password and risky password.

Figure 2-41 Successfully Added IP Cameras

Please refer to Chapter 18.1 Specicaons for the number of connectable IP cameras for dierent models.

Table 2-1 Explanaon of the icons

Icon	Explanaon	Icon	Explanaon
[A4HSH]	Edit basic parameters of the camera	[CBST4]	Add the detected IP camera.
	The camera is disconnected; You can click the icon to get the excepon informaon of camera.	[GBD6]	Delete the IP camera
[ISO00]	Play the live video of the connected camera.	[A806]	Advanced sengs of the camera.
[DA441]	Upgrade the connected IP camera.	Security	Shows the security status of the camera to be acve/inacve or the password strength (strong/medium/weak/risky)

2.6.3 Eding the Connected IP Camera

Purpose

Aer the adding of the IP cameras, the basic informaon of the camera is listed on the interface, and you can congure the basic sengs of the IP cameras.

Step 1 Click the 📋 icon to edit the parameters. You can edit the IP address, protocol and other parameters.

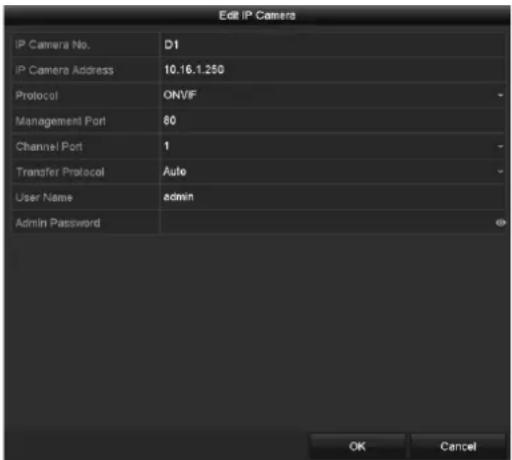

Figure 2-42 Edit IP Camera

Channel Port: If the connected device is an encoding device with mulple channels, you can choose the channel to connect by selecng the channel port No. in the drop-down list.

Step 2 Click OK to save the sengs and exit from the eding interface.

Step 3 Drag the horizontal scroll bar to the right side and click the 📋 icon to edit the advanced parameters.

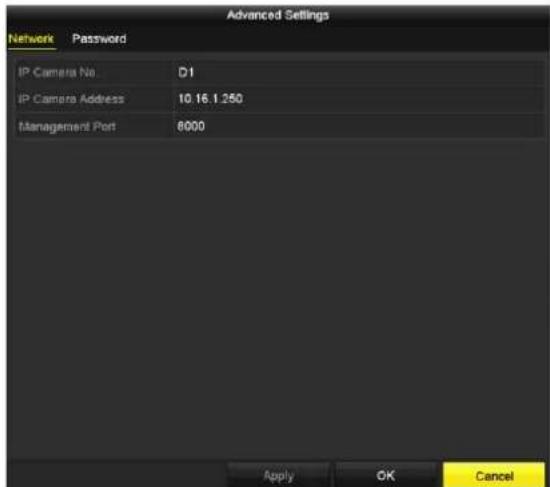

Figure 2-43 Network Conguraon of the Camera

Step 4 You can edit the network informaon and the password of the camera.

Figure 2-44 Password Conguraon of the Camera

Step 5 Click OK to save the sengs and exit the interface.

2.8 Conguring the Signal Input Channel

Purpose

You should congregate the analog and IP signal input types.

Step 1 Enter the Signal Input Status interface.

Menu > Camera > Signal Input Status

Step 2 Check the checkbox to select different signal input types: HD/CVBS and IP. If you select HD/CVBS, four types of analog signal inputs including HDTV1, AHD, HDCVI, and CVBS can be connected randomly for the selected channel. If you select IP, IP camera can be connected for the selected channel.

Figure 2-45 Congure Signal Input Type

Step 3 Click Apply to save the sengs.

- Four kinds of analog signal inputs including HDTV1, AHD, HDCVI and CVBS can be connected. The analog signal inputs can be recognized automatically and can be mixed randomly.

- When HDTV1, AHD, or HDCVI input is connected, the informaon including the resolution and frame rate (e.g., 720P25) will be overlaid on the boom right corner of the live view for 5 seconds. When CVBS input is connected, the informaon such as NTSC or PAL will be overlaid on the boom right corner of the live view for 5 seconds. When there is no video signal for the channel, the connectable video signal type message will not be displayed on the screen. When the unsupported signal input is connected, no video message is displayed on the screen. You can refer to the speciaons for the supported resolution of the analog signal input types.

- You can view the max. IP camera accessible number in the Max. IP Camera Number text eld.

Chapter 3 Live View

3.1 Introducon of Live View

Live view shows you the video image geng from each camera in real me. The DVR will automatically enter Live View mode when powered on. It is also at the very top of the menu hierarchy, thus hing the ESC many mes (depending on which menu you're on) will bring you to the Live View mode.

Live View Icons

In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms occur as soon as possible.

Table 3-1 Descripon of Live View Icons

Icons	Descripon
[16CB7]	Alarm (video loss, tampering, moon detecon, VCA or sensor alarm)
[20YH4]	Record (manual record, schedule record, moon detecon or alarm triggered record)
[30HH2]	Alarm & Record
[1000K]	Event/Excepon (moon detecon, sensor alarm or excepon informaon. For details, see Chapter 8.6 Handling Excepons.)

3.2 Operaons in Live View Mode

In live view mode, there are many funcons provided. The funcons are listed below.

● Single Screen: show only one screen on the monitor.
- Mul-screen: show mulple screens on the monitor simultaneously.

• Start Auto-switch: the screen is auto switched to the next one. And you must set the dwell me for each screen on the conguraon menu before enabling the auto-switch. Menu>Conguraon>Live View>Dwell Time.
• Start Recording: normal record and moon detecon record are supported.
• Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.
• Playback: play back the recorded videos for current day.
• Aux/Main Monitor: the DVR checks the conneccon of the output interfaces to dene the main and auxiliary output interfaces. When the aux output is enabled, the main output cannot do any operaon, and you can do some basic operaon on the live view mode for the Aux output.

The VGA/HDMI output is the main output. The priority relationship is shown as Table 3-2.

Table 3-2 Priorities of Outputs

S.N	HDMI	VGA	Main output
1	or ×	or ×	VGA/HDMI

√ means the interface is in use, × means the interface is out of use or the conneccon is invalid. And the HDMI and VGA can be used at the same me.

3.2.1 Using the Mouse in Live View

You can refer to Table 3-3 for the descripon of mouse operaon in live view mode.

Table 3-3 Mouse Operaon in Live View

Name	Descripon
Menu	Enter the main menu of the system by right clicking the mouse.
Single Screen	Switch to the single full screen by choosing channel number from the drop-down list.
Mul-Screen	Adjust the screen layout by selecng from the drop-down list.
Previous Screen	Switch to the previous screen.
Next Screen	Switch to the next screen.
Start/Stop Auto-Switch	Enable/disable the auto-switch of the screens. The dwell me of the live view conguraon must be set before using Start Auto-Switch.
Start Recording	Start recording of all channels, Connuous Record and Moon Detecon Record are selectable from the drop-down list.
Add IP Camera	A shortcut to enter the IP camera management interface.
Playback	Enter the playback interface and start playing back the video of the selected channel immediately.
PTZ Control	A shortcut to enter the PTZ control interface of the selected camera.
Output Mode	Output Mode is congorable with Standard, Bright, Gentle and Vivid opons.
Aux Monitor	Switch to the auxiliary output mode and the operaon for the main output is disabled. If you enter Aux monitor mode and the Aux monitor is not connected, the mouse operaon is disabled. You need to switch back to the Main output with the F1 buon on front panel or VOIP/MON buon on IR remote control and then press the Enter buon.

Figure 3-1 Right-click Menu

3.2.2 Quick Seng Toolbar in Live View Mode

On the screen of each channel, there is a quick seng toolbar which shows when you click the screen.

Figure 3-2 Quick Seng Toolbar

You can refer to Table 3-5 for the descripon of Quick Seng Toolbar icons.

Table 3-4 Descripon of Quick Seng Toolbar Icons

Icons	Descripon	Icons	Descripon	Icons	Descripon
	Enable/Disable Manual Record		Instant Playback		Mute/Audio on
	PTZ Control		Digital Zoom	[W222]	Image Sengs
	Close Live View		Face Detecon		Informaon

Instant Playback only shows the record in last ve minutes. If no record is found, it means there is no record during the last ve minutes.

Digital Zoom can zoom in the selected area to the full screen. Click and draw to select the to zoom in, as shown in Figure 3-3.

Highway scene with vehicles and residential buildings in the background (no visible text or symbols)

Figure 3-3 Digital Zoom

Image Sengs icon can be selected to enter the Image Sengs menu. You can drag the mouse or click 📄 to adjust the image parameters, including brightness, contrast, and saturaon. Refer to the Chapter 13.3 Conguring Video Parameters for details.

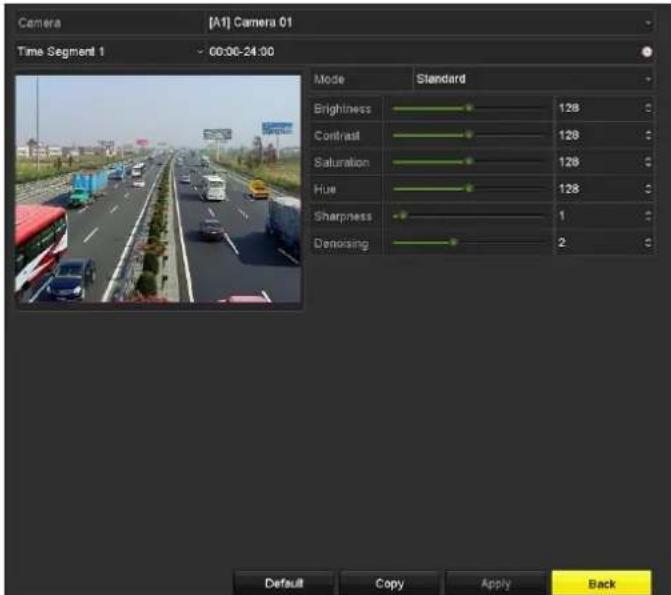

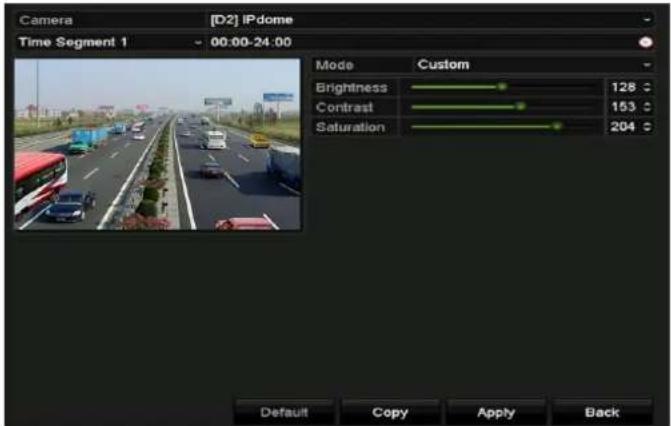

Figure 3-4 Image Sengs

Face Detecon can be enabled if you click the icon. The dialog pops up as shown in Figure 3-6. Click Yes and the full-screen live view of the channel is enabled. You can click ✗ to exit from the full-screen mode.

Figure 3-5 Enable Face Detecon

You can congregate face detection only when it is supported by the connected camera.

Move the mouse onto the Informaon icon to show the real-me stream informaon, adding the frame rate, bit rate, resoluon and stream type.

Figure 3-6 Informaon

3.3 Channel-Zero Encoding

Purpose

Sometimes you need to get a remote view of many channels in real me from web browser or CMS (Client Management System) soware, in order to decrease the bandwidth requirement without aecng the image quality, channel-zero encoding is supported as an opon for you.

Step 1 Enter the Live View Sengs interface.

Menu> Conguraon> Live View

Step 2 Select the Channel-Zero Encoding tab.

Enable Channel-Zero Enc...	✓
Frame Rate	12fps
Max. Bitrate Mode	General
Max. Bitrate(Kbps)	1024

Figure 3-7 Live View- Channel-Zero Encoding

Step 3 Check the checkbox aer Enable Channel-Zero Encoding.

Step 4 Congure the Frame Rate, Max. Bitrate Mode and Max. Bitrate.

Step 5 Click the Apply buon to acvate the sengs.

Step 6 Aer you set the Channel-Zero encoding, you can get a view in the remote client or web browser of 16 channels in one screen.

3.4 Adjusng Live View Setngs

Purpose

Live View sengs can be customized according to dierent needs. You can conjure the output interface, dwell me for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

Step 1 Enter the Live View Sengs interface.

Menu> Conguraon> Live View

Figure 3-8 Live View-General (1)

Figure 3-9 Live View-General (2)

The sengs available in this menu include:

● Video Output Interface: Selects the output to conjure the sengs.
HDMI/VGA serves as the video output interface.
● Live View Mode: Selects the display mode to be used for Live View.
- Dwell Time: The me in seconds to dwell between switching of channels when enabling auto-switch in Live View.
- Enable Audio Output: Enables/disables audio output for the selected camera in the live view mode.
● Volume: Adjust the volume of the audio output.
- Event Output: Designates the output to show event video. If available, you can select a dierent video output interface from the Video Output Interface when an event occurs.
● Full Screen Monitoring Dwell Time: The me in seconds to show alarm event screen.

Step 2 Set the camera order.

1) Click View tab and select the Video Output Interface from the drop-down list.

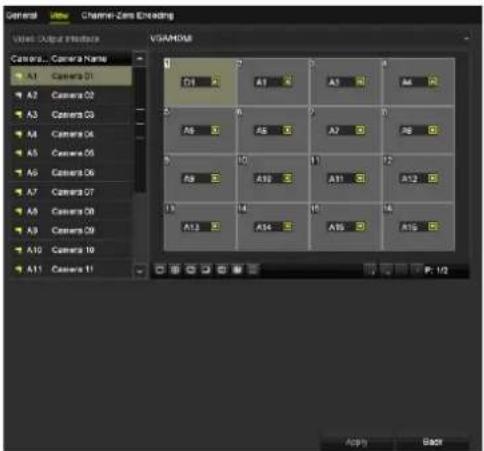

Figure 3-10 Live View-Camera Order

2) Click a window to select it, and then double-click a camera name in the camera list you would like to display. Seng an 'X' means the window will not display any camera.
3) You can also click 📄 to start live view of all channels in order and click 📄 to stop live view of all channels. Click 📄 to go to the previous or next page.
4) Click the Apply buon.

3.5 Manual Video Quality Diagnoscs

Purpose

The video quality of the analog channels can be diagnosed manually and you can view the diagnosc results from a list.

Step 1 Enter the Manual Video Quality Diagnoscs interface.

Menu> Manual >Manual Video Quality Diagnoscs

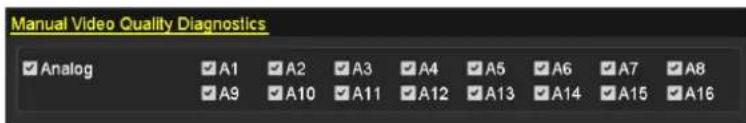

Figure 3-11 Video Quality Diagnoscs

Step 2 Check the checkboxes to select the channels for diagnoses.

Step 3 Click the buon Diagnose, and the results will be displayed on a list. You can view the video status and diagnoses me of the selected channels.

Figure 3-12 Diagnoscs Result

i NOTE

• Connect the camera to the device for the video quality diagnoses.
• Three excepon types can be diagnosed: Blurred Image, Abnormal Brightness and Color Cast.

Chapter 4 PTZ Controls

4.1 Conguring PTZ Sengs

Purpose

Follow the procedure to set the parameters for PTZ. The conguring of the PTZ parameters should be done before you control the PTZ camera.

Step 1 Enter the PTZ Sengs interface.

Menu >Camera> PTZ

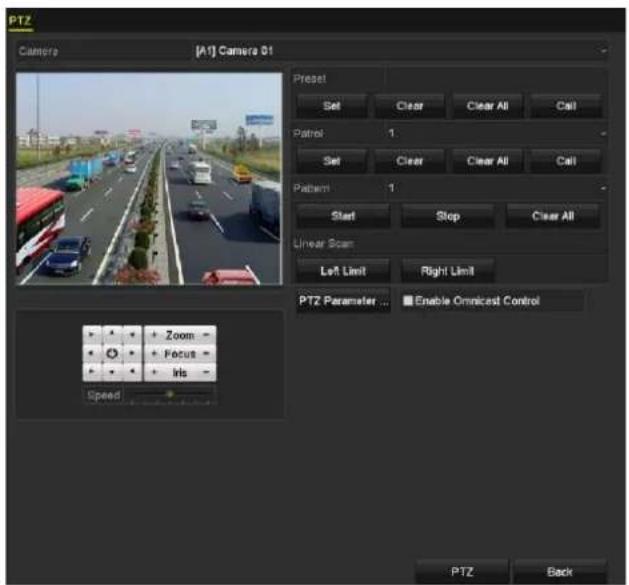

Figure 4-1 PTZ Sengs

Step 2 Select the camera for PTZ seng in the Camera drop-down list.

Step 3 Click the PTZ Parameters buon to set the PTZ parameters.

Figure 4-2 PTZ- General

Step 4 Select the parameters of the PTZ camera from the drop-down list.

i NOTE

● All the parameters should be exactly the same as the PTZ camera parameters.
- For the Coaxitron camera/dome connected, you can select the PTZ protocol to UTC (Coaxitron). Make sure the protocol selected here is supported by the connected camera/dome.
- When the Coaxitron protocol is selected, all the other parameters like the baud rate, data bit, stop bit, parity and ow control are not congorable.

Step 5 (Oponal) Click Copy buon to copy the sengs to the other channels. Select the channels you want to copy to and click OK to return to the PTZ Parameters Sengs interface.

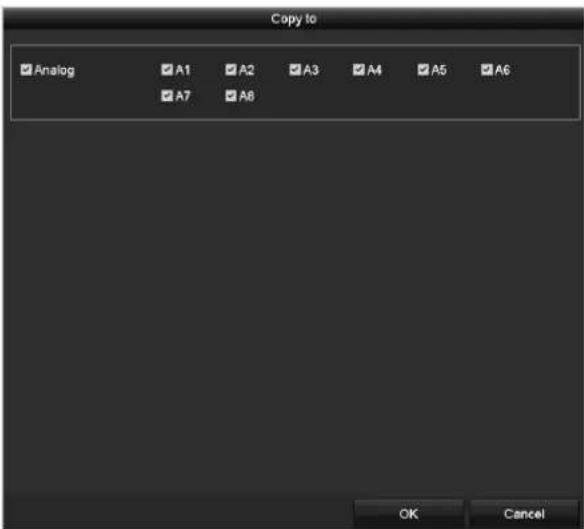

Figure 4-3 Copy to Other Channels

Step 6 Click OK to save the sengs.

Step 7 (Oponal) Check the checkbox of Enable Omnicast Control to enable the PTZ control of the selected camera via Omnicast VMS of Genetec.

4.2 Seng PTZ Presets, Patrols and Paerns

Before you start

Please make sure that the presets, patrols and paerns should be supported by PTZ protocols.

4.2.1 Customizing Presets

Purpose

Follow the steps to set the Preset locaon which you want the PTZ camera to point to when an event takes place.

Step 1 Enter the PTZ Sengs interface.

Menu>Camera>PTZ

Figure 4-4 PTZ Sengs

Step 2 Use the direconal buon to wheel the camera to the locaon where you want to set preset; and the zoom and focus operaons can be recorded in the preset as well.

Step 3 Enter the preset No. (1\~255) in the preset text eld, and click the Set button to link the locaon to the preset.

Repeat the steps from 2 to 3 to save more presets.

You can click the Clear buon to clear the locaon informaon of the preset, or click the Clear All buon to clear the locaon informaon of all the presets.

4.2.2 Calling Presets

Purpose

This feature enables the camera to point to a specied posion such as a window when an event takes place.

Step 1 Click the buon PTZ in the lower-right corner of the PTZ seng interface;

Or press the PTZ buon on the front panel or click the PTZ Control icon in the quick seng bar, or select the PTZ opon in the right-click menu to show the PTZ control panel.

Step 2 Choose Camera in the drop-down list.

Step 3 Click the General tab to show the general sengs of the PTZ control.

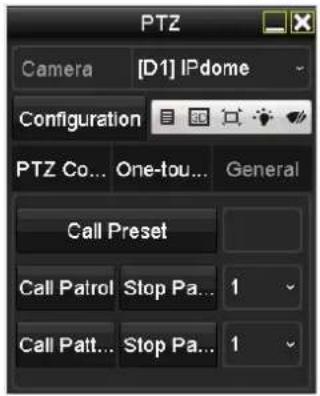

Figure 4-5 PTZ Panel-General

Step 4 Click to enter the preset No. in the corresponding text eld.

Step 5 Click the Call Preset buon to call it.

When the Coaxitron camera/dome connected and the PTZ protocol is selected to UTC (Coaxitron), you can call the preset 95 to enter the menu of the connected Coaxitron camera/dome. Use the direconal buons on the PTZ control panel to operate the menu.

4.2.3 Customizing Patrols

Purpose

Patrols can be set to move the PTZ to dierent key points and have it stay there for a set duraon before moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets.

Step 1 Enter the PTZ Sengs interface.

Menu>Camera>PTZ

Figure 4-6 PTZ Sengs

Step 2 Select patrol No. in the drop-down list of patrol.

Step 3 Click the Set buon to add key points for the patrol.

Figure 4-7 Key point Conguraon

Step 4 Congure key point parameters, such as the key point No., duraon of staying for one key point and speed of patrol. The key point is corresponding to the preset. The Key Point No. determines the order at which the PTZ will follow while cycling through the patrol. The Duraon refers to the me span to stay at the corresponding key point. The Speed denes the speed at which the PTZ will move from one key point to the next.

Step 5 Click the Add buon to add the next key point to the patrol, or you can click the OK buon to save the key point to the patrol.

You can delete all the key points by clicking the Clear buon for the selected patrol, or click the Clear All buon to delete all the key pints for all patrols.

4.2.4 Calling Patrols

Purpose

Calling a patrol makes the PTZ to move according the predened patrol path.

Step 1 Click the buon PTZ in the lower-right corner of the PTZ Sengs interface;

Or press the PTZ buon on the front panel or click the PTZ Control icon in the quick seng bar, or select the PTZ opon in the right-click menu to show the PTZ control panel.

Step 2 Click the General tab to show the general sengs of the PTZ control.

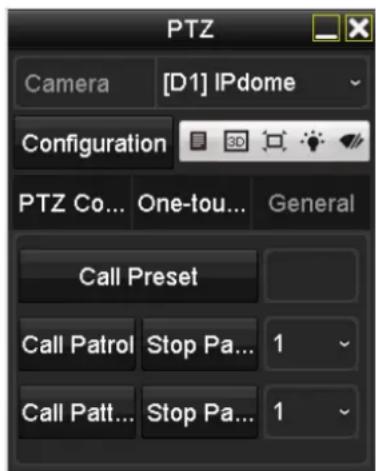

Figure 4-8 PTZ Panel - General

Step 3 Select a patrol in the drop-down list and click the Call Patrol buon to call it.

Step 4 You can click the Stop Patrol buon to stop calling it.

4.2.5 Customizing Paerns

Purpose

Paerns can be set by recording the movement of the PTZ. You can call the paern to make the PTZ movement according to the predened path.

Step 1 Enter the PTZ Sengs interface.

Menu > Camera > PTZ

Figure 4-9 PTZ Sengs

Step 2 Choose paern number in the drop-down list.

Step 3 Click the Start buon and click corresponding buons in the control panel to move the PTZ camera, and click the Stop buon to stop it.

The movement of the PTZ is recorded as the paern.

4.2.6 Calling Paerns

Purpose

Follow the procedure to move the PTZ camera according to the predened paerns.

Step 1 Click the buon PTZ in the lower-right corner of the PTZ Sengs interface;

Or press the PTZ buon on the front panel or click the PTZ Control icon in the quick seng bar, or select the PTZ opon in the right-click menu to show the PTZ control panel.

Step 2 Click the General tab to show the general sengs of the PTZ control.

Figure 4-10 PTZ Panel - General

Step 3 Click the Call Paern buon to call it.

Step 4 Click the Stop Pattern buon to stop calling it.

4.2.7 Customizing Linear Scan Limit

Purpose

The Linear Scan can be enabled to trigger the scan in the horizontal direcon in the predened range.

This funcon is supported by some certain models.

Step 1 Enter the PTZ Sengs interface.

Menu > Camera > PTZ

Figure 4-11 PTZ Sengs

Step 2 Use the direconal button to wheel the camera to the locaon where you want to set the limit, and click the Le Limit or Right Limit button to link the locaon to the corresponding limit.

The speed dome starts linear scan from the le limit to the right limit, and you must set the le limit on the le side of the right limit, as well the angle from the le limit to the right limit should be no more than 180^ .

4.2.8 Calling Linear Scan

Purpose

Follow the procedure to call the linear scan in the predened scan range.

Step 1 Click the buon PTZ in the lower-right corner of the PTZ Sengs interface;

Or press the PTZ buon on the front panel or click the PTZ Control icon in the quick seng bar to enter the PTZ seng menu in live view mode.

Step 2 Click the One-touch tab to show the one-touch funcon of the PTZ control.

Figure 4-12 PTZ Panel - One-touch

Step 3 Click Linear Scan buon to start the linear scan and click the Linear Scan buon again to stop it.

You can click the Restore button to clear the dened le limit and right limit data and the dome needs to reboot to make sengs take eect.

4.2.9 One-touch Park

Purpose

For some certain model of the speed dome, it can be congured to start a predened park acon (scan, preset, patrol and etc.) automacally aer a period of inacvity (park me).

Step 1 Click the buon PTZ in the lower-right corner of the PTZ Sengs interface;

Or press the PTZ buon on the front panel or click the PTZ Control icon in the quick seng bar to enter the PTZ seng menu in live view mode.

Step 2 Click the One-touch tab to show the one-touch funcon of the PTZ control.

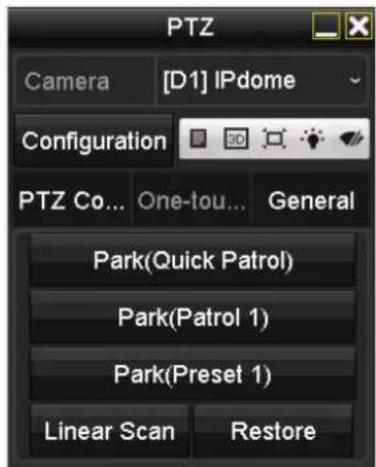

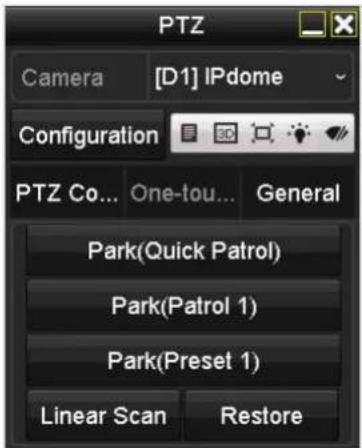

Figure 4-13 PTZ Panel - One-touch

Step 3 There are 3 one-touch park types selectable. Click the corresponding button to acvate the park acon.

Park (Quick Patrol): The dome starts patrol from the predened preset 1 to preset 32 in order aer the park me. The undened preset will be skipped.

Park (Patrol 1): The dome starts moving according to the predened patrol 1 path aer the park me.

Park (Preset 1): The dome moves to the predened preset 1 locaon aer the park me.

The park me can only be set through the speed dome conguraon interface. The default value is 5s.

Step 4 Click the buon again to inacvate it.

4.3 PTZ Control Panel

To enter the PTZ control panel, there are two ways supported.

OPTION 1:

In the PTZ Sengs interface, click the PTZ buon on the lower-right corner which is next to the Back buon.

OPTION 2:

In the Live View mode, you can press the PTZ Control buon on the front panel or on the remote control, or choose the PTZ Control icon 📄 the quick seng bar, or select the PTZ Control opon in the right-click menu.

Click the Conguraon buon on the control panel, and you can enter the PTZ Setngs interface.

In PTZ control mode, the PTZ panel will be displayed when a mouse is connected with the device. If no mouse is connected, the PTZ on appears in the lower-le corner of the window, indicating that this camera is in PTZ control mode.

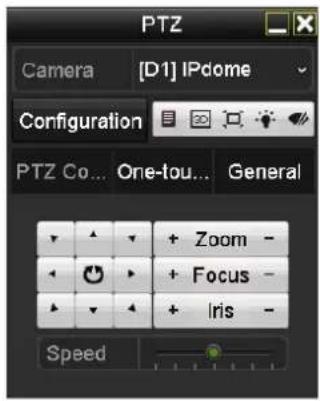

Figure 4-14 PTZ Control Panel

You can refer to Table 4-1 for the descripon of the PTZ panel icons.

Table 4-1 Descripon of the PTZ panel icons

Icon	Descripon	Icon	Descripon	Icon	Descripon
	Direconbuon and theauto-cyclebuon		Zoom+, Focus+,Iris+		Zoom-, Focus-,Iris-
	The speed ofthe PTZmovement		Light on/o		Wiper on/o
[HB7A]	3D-Zoom		ImageCentralizaon		Menu
	Switch to thePTZ controlinterface	One-touch	Switch to theone-touchcontrolinterface	General	Switch to thegeneral sengsinterface
[W70C]	Exit		Minimizewindows

Chapter 5 Recording Sengs

5.1 Conguring Encoding Parameters

Before you start

Step 1 Make sure that the HDD has already been installed. If not, please install a HDD and inialize it. (Menu>HDD>General)

Figure 5-1 HDD- General

Step 2 Click Advanced tab to check the storage mode of the HDD. (Menu>HDD>Advanced>Storage Mode)

1) If the HDD mode is Quota, please set the maximum record capacity. For detailed informaon, see Chapter 12.4 Conguring Quota Mode.
2) If the HDD mode is Group, you should set the HDD group. For detailed informaon, see Chapter 5.9 Conguring HDD Group.

Figure 5-2 HDD- Advanced

Steps

Step 1 Enter the Record Parameters interface to congregate the encoding parameters.

Menu>Record>Parameters

Figure 5-3 Record Parameters

Step 2 Set the parameters for recording.

1) Select the Record tab to congregate.
2) Select a camera from the camera drop-down list.
3) View the Camera Resoluon.

i NOTE

When HDTVI, AHD, or HDCVI input is connected, you can view the informaon including the input signal type, resoluon and frame rate (e.g., 720P25). When CVBS input is connected, you can view the informaon such as NTSC or PAL.

4) Congure the following parameters for the Main Stream (Connuous) and the Main Stream (Event): Stream Type: Set the stream type to be Video or Video & Audio.

Resoluon: Set recording resoluon.

• Four kinds of analog signal inputs including HDTVI (including 1080p and 720p signal), AHD, HDCVI and CVBS can be connected. The analog signal inputs can be recognized automatically and can be mixed randomly.
• If the congured encoding resoluon conicts with the resoluon of the front-end camera, the encoding parameters will adjust automacally to meet the front-end camera. E.g., if the resoluon of the front-end camera is 720p, then the encoding resoluon of the main stream will adjust to 720p automacally.
• The resolution of 960 × 1080 (1080P Lite) is available when the 1080P Lite is enabled in the Record>Advanced Sengs interface (refer to Chapter 5.12 Conguring 1080P Lite).
• Please refer to the Appendix-Specificaons for the supported resoluons of dierent models.

Bitrate Type: Set the bitrate type to be Variable or Constant.

Video Quality: Set the video quality of recording, with 6 levels congorable.

The Stream Type, Resoluon, Bitrate Type and Video Quality are not congorable for the Main Stream (Event) of the IP Camera.

Frame Rate: Set the frame rate of recording.

Max. Bitrate Mode: Set the mode to General or Custom.

Max Bitrate (Kbps): Select or customize the maximum bit rate for recording.

Max. Bitrate Range Recommended: A recommended max. bit rate range is provided for reference.

Max. Average Bitrate (Kbps): Set the max. average bit rate which refers to the average amount of data transferred per unit of me.

Video Encoding: only H.264 can be selected for the video encoding.

Step 3 Check the checkbox of Enable H.264+ to enable this funcon. Enabling it helps to ensure the high video quality with a lowered bitrate.

• Aer enabling the H.264+, the Bitrate Type, Video Quality, Max. Bitrate Mode, Max. Bitrate(Kbps) and Max. Bitrate Range Recommend are not congorable.
  ● The H.264+ is not supported simultaneously with SVC.
• For the connected IP camera, the H.264+ should be supported by the camera and added to the DVR with the supported protocol.
• You should reboot the device to acvate the new sengs aer enabling the H.264+.

Step 4 Click More Sengs to congregate more parameters.

Figure 5-4 More Sengs of Record Parameters

Pre-record: The me you set to record before the scheduled me or event. For example, when an alarm triggered the recording at 10:00, if you set the pre-record me as 5 seconds, the camera records it at 9:59:55.

Post-record: The me you set to record aer the event or the scheduled me. For example, when an alarm triggered the recording ends at 11:00, if you set the post-record me as 5 seconds, it records ll 11:00:05.

Expired Time: The me for keeping the record les in the HDDs, once exceeded, the les will be deleted. The les will be saved permanently if the value is set as 0. The actual keeping me for the les should be determined by the capacity of the HDDs.

Redundant Record: Enabling redundant record means you save the record in the redundant HDD. See Chapter 5.8 Conguring Redundant Recording.

Record Audio: Enable this feature to record the sound and disable it to record the video without sound.

Video Stream: Main stream, Sub-stream and Dual-stream are selectable for recording. When you select sub-stream, you can record for a longer me with the same storage space.

i NOTE

● The Redundant Record opon is only available when the HDD mode is Group.
- Redundant HDD is required for the redundant record funcon. For detailed informaon, see Chapter 14.3.2 Seng HDD Property.
- For network cameras, the parameters of Main Stream (Event) are not editable.

Step 5 Click Apply to save the sengs.

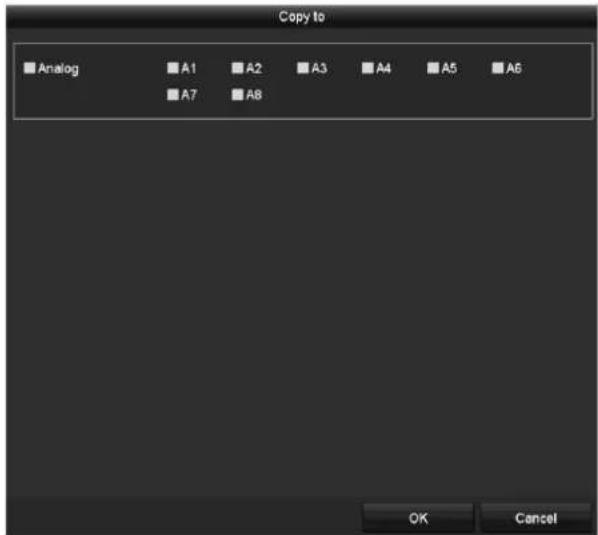

Step 6 Oponally, you can click Copy to copy the settings to other analog channels if needed.

i NOTE

- The analog signal inputs can be recognized automatically and mixed randomly. So you can copy the same sengs of the selected analog camera to any other analog channel.

Step 7 Set encoding parameters for sub-stream.

1) Select the Sub-Stream tab.

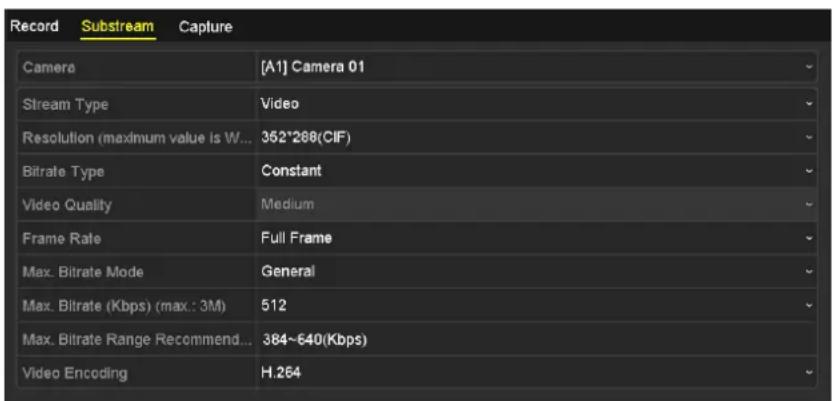

Figure 5-5 Sub-Stream Encoding

2) Select a camera in the camera drop-down list.
3) Congure the parameters.

4) Click Apply to save the sengs.

5) (Oponal) If the parameters can also be used to other cameras, click Copy to copy the sengs to other channels.

5.2 Conguring Recording Schedule

Purpose

Set the record schedule, and then the camera will automatically start/stop recording according to the congured schedule.

Step 1 Enter the Record Schedule interface.

Menu > Record > Schedule

Figure 5-6 Record Schedule

Dierent recording types are marked in dierent color icons.

Connuous: scheduled recording.

Event: recording triggered by all event triggered alarm.

Moon: recording triggered by moon detecon.

Alarm: recording triggered by alarm.

M/A: recording triggered by either moon detecon or alarm.

M&A: recording triggered by moon detecon and alarm.

Step 2 Choose the camera you want to conjure in the Camera drop-down list.

Step 3 Check the checkbox of Enable Schedule.

Step 4 Congure the record schedule.

Edit the schedule

1) Click Edit.
2) In the message box, you can choose the day to which you want to set schedule.
3) To schedule an all-day recording, check the checkbox aer the All Day item.

Figure 5-7 Edit Schedule- All Day

4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End me.

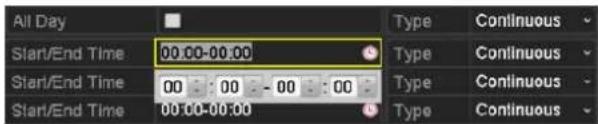

Figure 5-8 Edit Schedule- Set Time Period

i NOTE

• Up to 8 periods can be congured for each day. And the me periods cannot be overlapped with each other.
  5) Repeat the above steps 1)-4) to schedule recording for other days in the week. If the schedule can also be set to other days, click Copy.

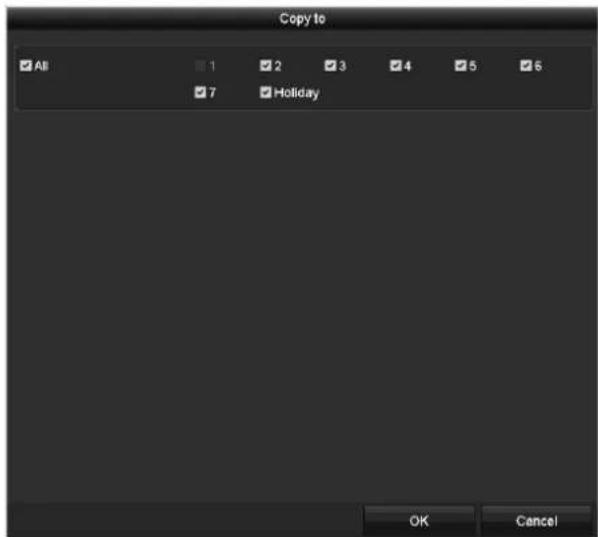

Figure 5-9 Copy Schedule to Other Days

The Holiday opon is available when you enable holiday schedule in Holiday sengs. See Chapter 5.7 Conguring Holiday Record.

6) Click OK to save seng and back to upper level menu.

Draw the schedule

1) Click on the color icon to select a record type in the event list on the right-side of the interface.

Figure 5-10 Draw the Recording Schedule

2) Click and drag the mouse on the schedule.
3) Click on the other area except for the schedule table to nish and exit from the drawing.

You can repeat step 4 to set schedule for other channels. If the sengs can also be used to other channels, click Copy, and then choose the channel to which you want to copy to.

Step 5 Click Apply in the Record Schedule interface to save the sengs.

5.3 Conguring Moon Detecon Recording

Purpose

Follow the steps to set the moon detecon parameters. In the live view mode, once a moon detecon event takes place, the DVR can analyze it and do many acons to handle it. Enabling moon detecon funcon can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, nofying the surveillance center, sending email and so on.

Step 1 Enter the Moon Detecon interface.

Menu>Camera>Moon

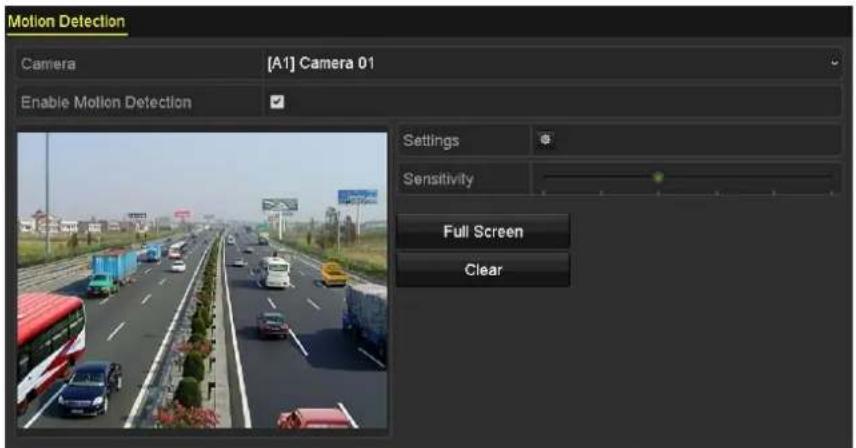

Figure 5-11 Moon Detecon

Step 2 Congure Moon Detecon:

1) Choose camera you want to congure.
2) Check the checkbox aer Enable Moon Detecon.
3) Drag and draw the area for moon detecon by mouse. If you want to set the moon detecon for all the area shot by the camera, click Full Screen. To clear the moon detecon area, click Clear.

Figure 5-12 Moon Detecon-Mask

4) Click 📄, and the message box for channel informaon pops up.

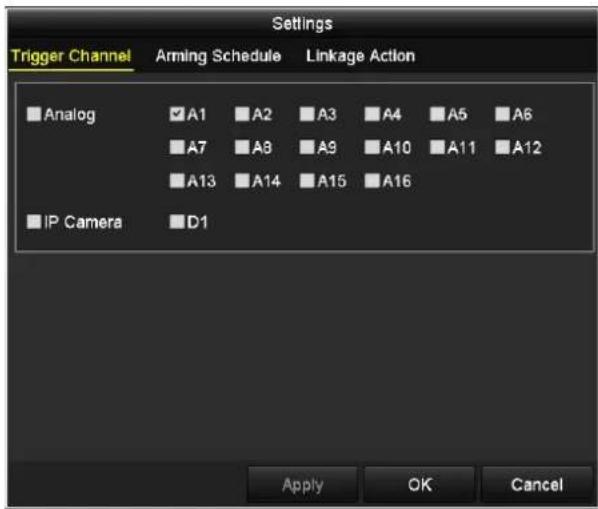

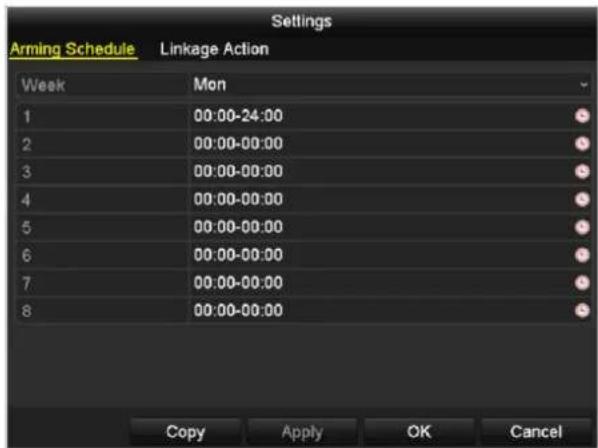

Figure 5-13 Moon Detecon Sengs

5) Select the channels which you want the moon detecon event to trigger recording.
6) Click Apply to save the sengs.
7) Click OK to back to the upper level menu.
8) Exit the Moon Detecon menu.

Step 3 Congure the schedule.

Please refer to the step 4 of Chapter 5.2 Conguring Recording Schedule, while you may choose Moon as the record type.

5.4 Conguring Alarm Triggered Recording

Purpose

Follow the procedure to conjure alarm triggered recording.

Step 1 Enter the Alarm Seng interface.

Menu > Conguraon > Alarm

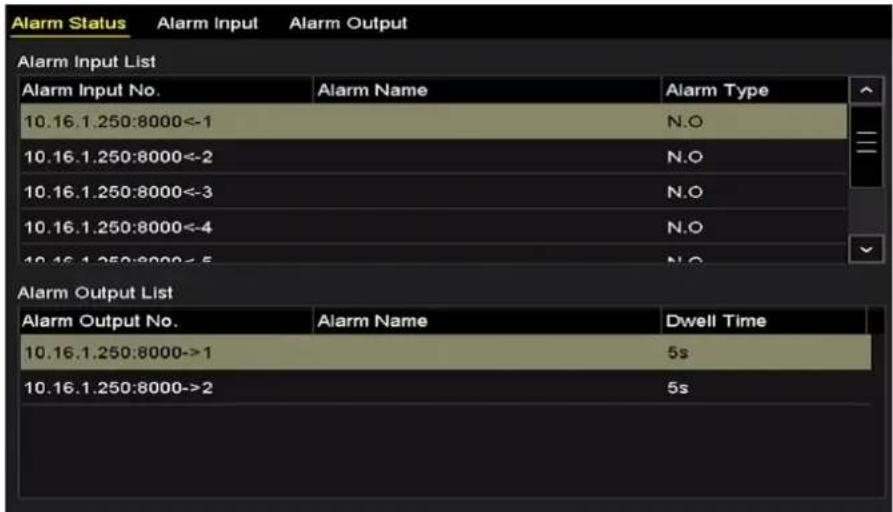

Figure 5-14 Alarm Sengs

Step 2 Click the Alarm Input tab.

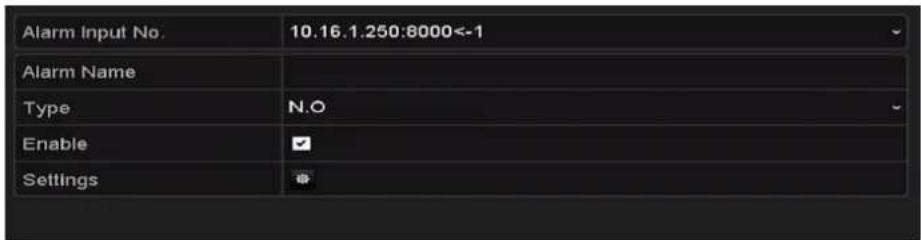

Figure 5-15 Alarm Sengs- Alarm Input

1) Select Alarm Input number and congure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox of Seng.

4) Click the buon.

Figure 5-16 Alarm Handling

5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save sengs.
8) Click OK to back to the upper level menu.

Repeat the steps from 1) to 8) to congure other alarm input parameters.

If the seng can also be applied to other alarm inputs, click Copy and choose the alarm input number.

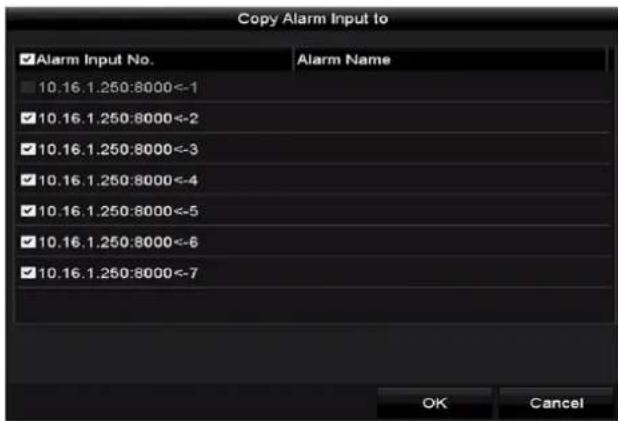

Figure 5-17 Copy Alarm Input

Step 3 Congure the schedule.

Please refer to the step 4 of Chapter 5.2 Conguring Recording Schedule, while you may choose Alarm as the record type.

5.5 Conguring Event Recording

Purpose

The event triggered recording can be congured through the menu. Then events include the moon detecon, alarm and VCA events (face detecon/face capture, line crossing detecon, intrusion detecon, region entrance detecon, region exing detecon, loitering detecon, people gathering detecon, fast moving detecon, parking detecon, unaended baggage detecon, object removal detecon, audio loss excepon detecon, sudden change of sound intensity detecon, and defocus detecon).

● DVR supports 1-ch VCA (line crossing detecon and intrusion detecon). Channels with audio support audio excepon detecon.
- For the analog channels, the line crossing detecon and intrusion detecon conict with other VCA detecon such as sudden scene change detecon, face detecon and vehicle detecon and heat map or people counting funcons. You can only enable one funcon.

Step 1 Enter the VCA sengs interface and select a camera for the VCA sengs.

Menu > Camera > VCA

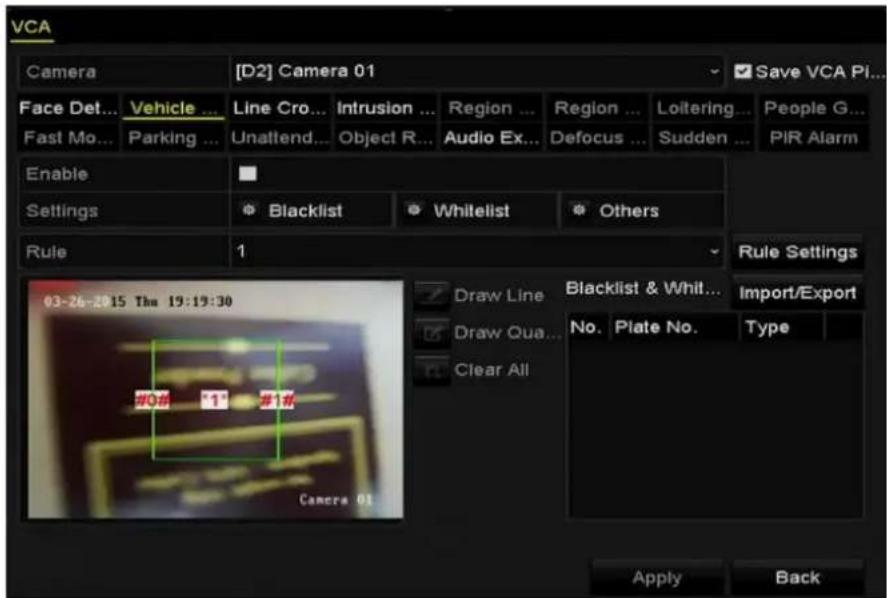

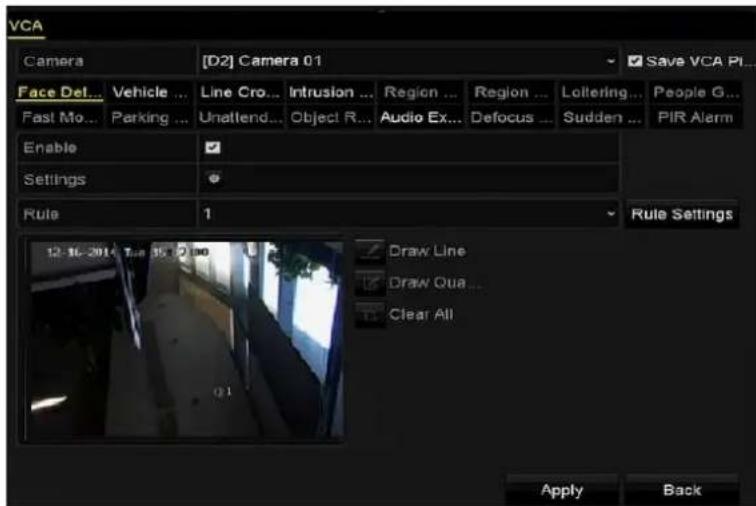

Figure 5-18 VCA Sengs

Step 2 Congure the detecon rules for VCA events. For details, see the step 6 in Chapter 10.3 Line Crossing Detecon.

Step 3 Click the icon ☐ congregate the alarm linkage acons for the VCA events.

Select Trigger Channel tab and select one or more channels which will start to record when VCA alarm is triggered.

Step 4 Click Apply to save the sengs.

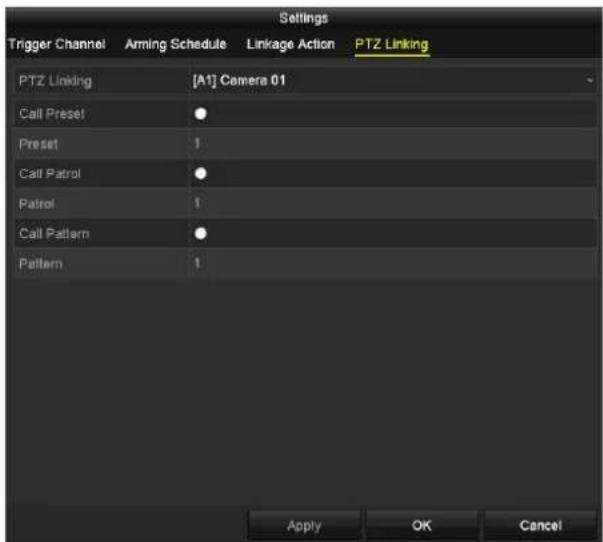

Figure 5-19 Set Trigger Camera of VCA Alarm

The PTZ Linking funcon is only available for the VCA sengs of IP cameras.

Step 5 Enter Record Schedule Setngs interface (Menu> Record> Schedule>Record Schedule), and then set Event as the record type. For details, see step 2 in Chapter 5.2 Conguring Recording Schedule.

5.6 Conguring Manual Recording

Purpose

Follow the steps to set parameters for the manual recording. Using manual recording, you need to manually cancel the record. The manual recording is prior to the scheduled recording.

Step 1 Enter the Manual Record interface.

Menu > Manual

Figure 5-20 Manual Record

Step 2 Enable manual record.

Click the status icon before camera number to change it to . ON

Or click the status icon of Analog to enable manual record of all channels.

Step 3 Disable manual record.

Click the status icon to change it to .

Or click the status icon ☐ of Analog to disable manual record of all channels.

Aer reboong all the manual records enabled are canceled.

5.7 Conguring Holiday Recording

Purpose

Follow the steps to congregate the record schedule on holiday for that year. You may want to have dierent plan for recording on holiday.

Step 1 Enter the Record seng interface.

Menu > Record

Step 2 Choose Holiday on the le bar.

Figure 5-21 Holiday Sengs

Step 3 Enable Edit Holiday schedule.

1) Click to enter the Edit interface.

Figure 5-22 Edit Holiday Sengs

2) Check the checkbox of Enable.
3) Select Mode from the drop-down list.

There are three dierent modes for the date format to congure holiday schedule. By Month, By Week, and By Date are selectable.

4) Set the start and end date.
5) Click Apply to save sengs.
6) Click OK to exit the Edit interface.

Step 4 Congure the record schedule.

Please refer to the Chapter 5.2 Conguring Recording Schedule, while you may choose Holiday in the Schedule drop-down list, or you can draw the schedule on the meline of Holiday.

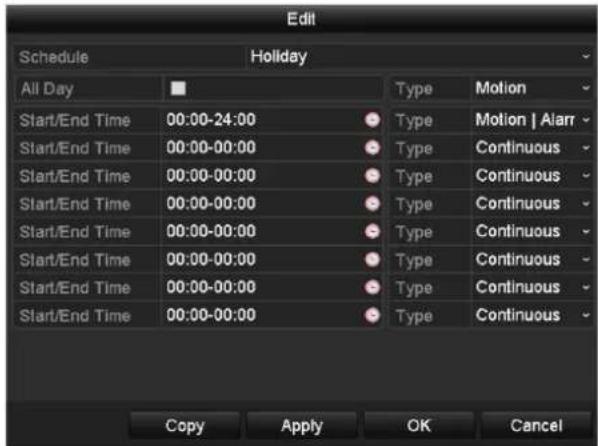

Figure 5-23 Edit Schedule- Holiday

i NOTE

• Up to 8 periods can be congured for each day. And the me periods cannot be overlapped each other.
• In the me table of the channel, both holiday schedule and normal day schedule are displayed.
• Repeat the above step 4 to set Holiday schedule for other channels. If the holiday schedule can also be used to other channels, click Copy and choose the channel you want to apply the sengs.

5.8 Conguring Redundant Recording

Purpose

Enabling redundant recording, which means saving the record les not only in the R/W HDD but also in the redundant HDD, will eecvely enhance the data safety and reliability.

Before you start

You must set the Storage mode in the HDD advanced sengs to Group before you set the HDD property to Redundant. For detailed informaon, please refer to Chapter 12.3 Managing HDD Group. There should be at least another HDD which is in Read/Write status.

Step 1 Enter HDD Informaon interface.

Menu> HDD

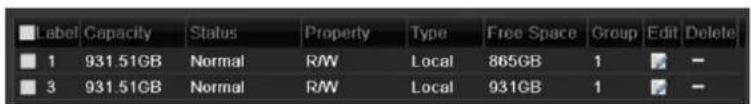

Figure 5-24 HDD General

Step 2 Select the HDD and click to enter the Local HDD Setngs interface.

1) Set the HDD property to Redundant.

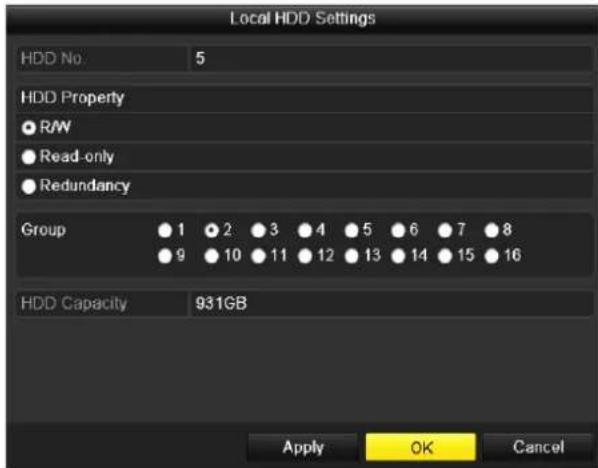

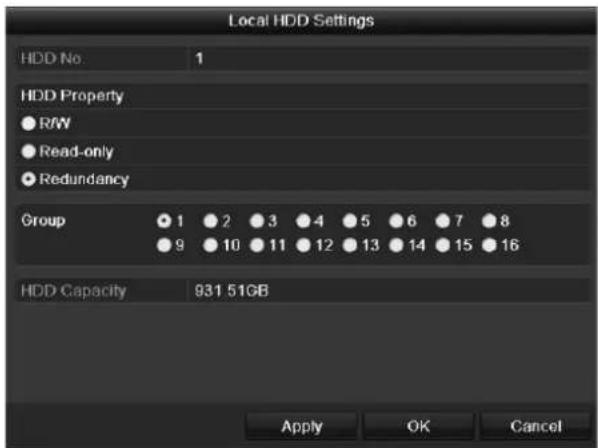

Figure 5-25 HDD General-Eding

2) Click Apply to save the sengs.
3) Click OK to back to the upper level menu.

Step 3 Enter the Record seng interface.

Menu> Record> Parameters

1) Select the Record tab.
2) Select Camera you want to congure.
3) Click More Sengs buon.

Figure 5-26 More Sengs

4) Check the checkbox of Redundant Record.
5) Click OK to save the sengs.
6) If the encoding parameters can also be used to other channels, click Copy and choose the channel you want to apply the sengs.

5.9 Conguring HDD Group

Purpose

You can group the HDDs and save the record les in certain HDD group.

Step 1 Enter HDD seng interface.

Menu>HDD>Advanced

Step 2 Select Storage Mode tab.

Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed informaon, please refer to Chapter 12.3 Managing HDD Group.

Step 3 Select General in the le bar.

Click to enter eding interface.

Step 4 Conguring HDD group.

1) Choose a group number for the HDD group.
2) Click Apply to save your sengs.
3) Click OK to back to the upper level menu.

Step 5 Repeat the above steps to conjure more HDD groups.

Step 6 Choose the Channels which you want to save the record les in the HDD group.

1) Enter Storage Mode interface.

Menu>HDD>Advanced> Storage Mode

Figure 5-27 HDD Advanced

2) Choose Group number in the drop-down list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save sengs.

Aer you have congured the HDD groups, you can congure the recording sengs following the procedure provided in Chapter 5.2-5.7.

5.10 Files Protecon

Purpose

You can lock the recorded les or set the HDD property to Read-only to protect the record les from being overwrien.

Protect le by locking the record les

Step 1 Enter Export Sengs interface.

Menu> Export

Figure 5-28 Export

Step 2 Select the channels you want to investigate by checking the checkbox to .

Step 3 Congure the record mode, record type, le type, start me and end me.

Step 4 Click Search to show the results.

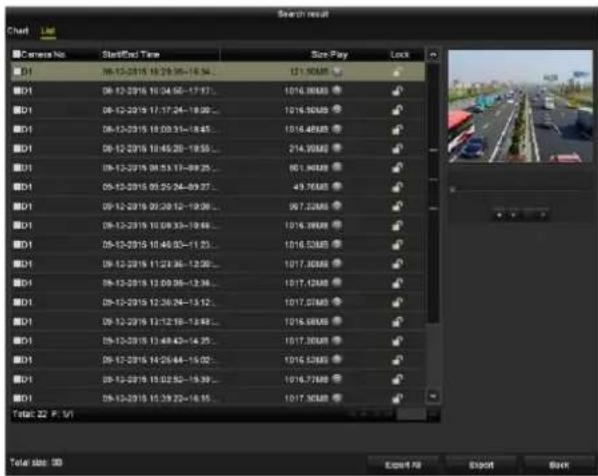

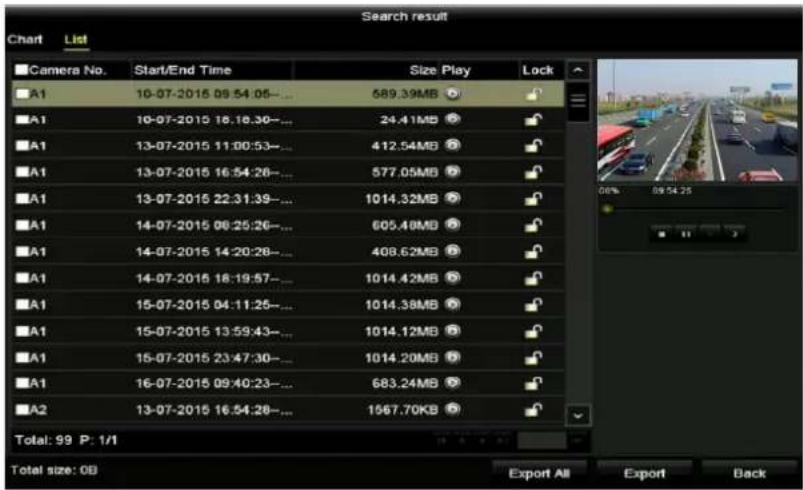

Figure 5-29 Export-Search Result

Step 5 Protect the record les.

1) Find the record les you want to protect, and then click the indicang that the le is locked.

icon which will turn to

The record les of which the recording is sll not completed cannot be locked.

2) Click 🔍 to change it to 🔍 to unlock the le and the le is not protected.

Protect le by seng HDD property to Read-only

Before you start

To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter 12.3 Managing HDD Group.

Step 1 Enter HDD seng interface.

Menu> HDD

Figure 5-30 HDD General

Step 2 Click to edit the HDD you want to protect.

Figure 5-31 HDD General- Eding

Step 3 Set the HDD to Read-only.

Step 4 Click OK to save sengs and back to the upper level menu.

i NOTE

• You cannot save any les in a Read-only HDD. If you want to save les in the HDD, change the property to R/W.
• If there is only one HDD and is set to Read-only, the DVR cannot record any les. Only live view mode is available.
• If you set the HDD to Read-only when the DVR is saving les in it, then the le will be saved in next R/W HDD. If there is only one HDD, the recording will be stopped.

5.11 One-Key Enabling and Disabling H.264+ for Analog Cameras

Purpose

You can one-key enable or disable H.264+ for the analog cameras.

Task 1: One-Key Enabling H.264+ for All Analog Cameras

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the Advanced Sengs interface.

Figure 5-32 Advanced Sengs

Step 3 Click Enable to enable H.264+ for all the analog cameras and the following attenon box pops up.

Figure 5-33 Aenon Box

Step 4 Click Yes to enable the funcon and reboot the device to have new sengs taken eect.

If H.264+ is already enabled for all the analog cameras, when you click Enable buon, the following aenon box pops up to remind you that H.264+ is already enabled for all analog cameras.

Figure 5-34 Aenon Box

Task 2: One-Key Disabling H.264+ for All Analog Cameras

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Figure 5-35 Advanced Sengs

Step 3 Click Disable to disable H.264+ for all the analog cameras and the following aenon box pops up.

Figure 5-36 Aenon Box

Step 4 Click Yes to enable the funcon and reboot the device to have new sengs taken eect.

If H.264+ is already disabled for all the analog cameras, when you click Disable buon, the following aenon box pops up to remind you that H.264+ is already disabled for all analog cameras.

Figure 5-37 Aenon Box

5.12 Conguring 1080P Lite

Purpose

When 1080p lite mode is enabled, the encoding resolution at 1080p lite (real-me) is supported. If not, up to 1080p (non-real-me) is supported.

You can enable 1080p lite mode in two ways.

Task 1: Enabling 1080P Lite Mode in Live View

Step 1 In live view mode, connect 1080p signal to the DVR.

Then the interface as shown below will pop up to remind you to enable 1080p lite mode.

Figure 5-38 Aenon

Step 2 Click Yes to reboot the device and enable 1080p lite mode.

Or click No to cancel it.

i NOTE

• The Aenon interface will only pop up in live view mode. If you enter the main menu, it will not pop up. If you exit from the main menu and the device detects the signal, it will pop up.
• When the 1080p signal is connected to mulple channels and the interface already pops up for one channel, the interface will not pop up for other channels.
• If you click No, the interface will not pop up again if you do not disconnect it. If you disconnect it and connect it again, the interface will pop up.
  ● The interface will not disappear if you do not operate.

Task 2: Enabling 1080P Lite Mode in Advanced Sengs

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Figure 5-39 Advanced Interface

Step 3 Check the checkbox of 1080P Lite Mode.

Step 4 Click Apply and the aenon box pops up as below.

Figure 5-40 Aenon

Step 5 Click Yes to reboot the device and enable 1080p lite mode.

Task 3: Disabling the 1080P Lite Mode

Step 1 On the Advanced Sengs interface, uncheck the checkbox of 1080P Lite Mode.

Step 2 Click Apply and the aenon box pops up as below.

Figure 5-41 Aenon

Step 3 Click Yes on the pop-up interface to reboot the device and disable 1080p lite mode.

Chapter 6 Playback

6.1 Playing Back Record Files

6.1.1 Instant Playback

Purpose

Play back the recorded video les of a speci channel in the live view mode. Channel switch is supported.

Instant playback by channel

Choose a channel in live view mode and click the 📄ion in the quick seng toolbar.

In the instant playback mode, only record les recorded during the last ve minutes on this channel will be played back.

Four-panel composite image showing a multi-lane highway with vehicles and traffic, no visible text or symbols.

Figure 6-1 Instant Playback Interface

6.1.2 Playing Back by Normal Search

Playback by Channel

Enter the Playback interface.

Right click a channel in live view mode and select Playback from the menu, as shown in the following gure:

Figure 6-2 Right-click Menu under Live View

Playback by Time

Purpose

Play back video les recorded in specied me duraon. Mul-channel simultaneous playback and channel switch are supported.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.

Figure 6-3 Playback Calendar

If there are record les for that camera in that day, in the calendar, the icon for that day is displayed as . Otherwise it is displayed as .

Playback Interface

You can select the main stream or sub stream from the drop-down list for playback.

You can also use the toolbar in the boom part of Playback interface to control playing progress, as shown in the following gure.

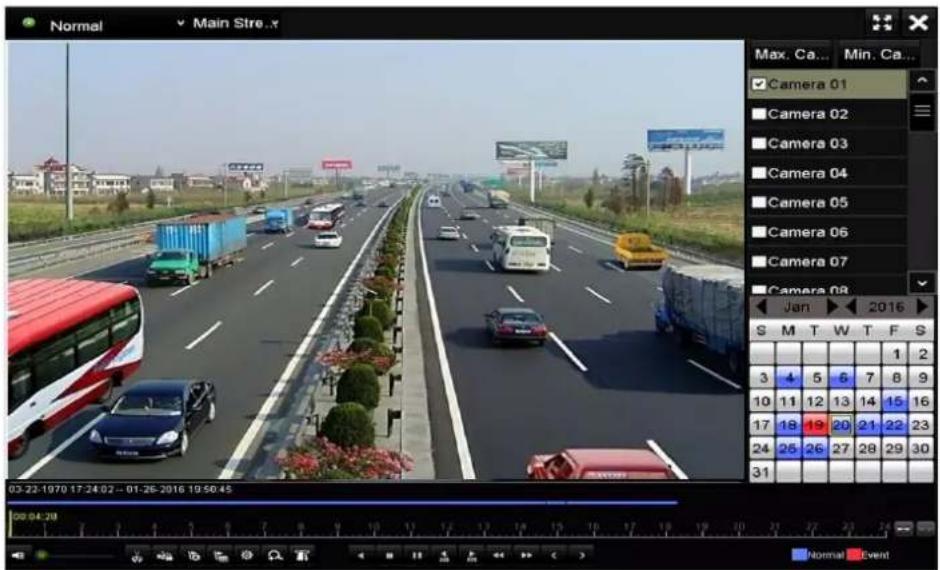

Figure 6-4 Playback Interface

Select the channel(s) if you want to switch playback to another channel or execute simultaneous playback of mulple channels.

Figure 6-5 Toolbar of Playback

Table 6-1 Detailed Explanaon of Playback Toolbar

Buon	Operaon	Buon	Operaon	Buon	Operaon
	Audio on/Mute		Start/Stop clipping	[SXTH]	Lock File
[7Y7A]	Add default tag	[8Z8A]	Add customized tag	[CDCK]	File management for video clips, locked les andtags
	Reverse play/Pause		Stop	[0ZXT]	Digital Zoom
[3720]	30s forward	[002C]	30s reverse		Pause/Play
	Fast forward	[04KY]	Previous day	[2220]	Slow forward
[6A0A]	Full Screen	[00AK]	Exit	[2YKD]	Next day
	Save the clips	[0WDT]	Process bar	[0073]	Scaling up/down the me line

i NOTE

● The 01-03 2015 00:11:22 + 14:07:2015 16:18:27 me of the record les.
- represents normal recording (manual or schedule); ■ represents event recording (moon, alarm, moon | alarm, moon & alarm).
- Playback progress bar: use the mouse to click any point of the progress bar to locate special frames.

6.1.3 Playing Back by Event Search

Purpose

Play back record les on one or several channels searched out by restrictive event type (moon detecon, alarm input or VCA). Channel switch is supported.

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Click 📷 to enter the Event Playback interface.

Step 3 Select Alarm Input, Moon, VCA as the event type, and specify the start me and end me for search.

Figure 6-6 Video Search by Moon Detecon

Step 4 Click Search, and the record les matching the search conditions will be displayed on a list.

Step 5 Select and click button to play back the record les.

You can click Back buon to return to the search interface.

If there is only one channel triggered, clicking 📄uon takes you to Full-screen Playback interface of this channel.

If several channels are triggered, clicking 📄ion takes you to the Synchronous Playback interface. Check checkbox to select one channel for playback or select mulple channels for synchronous playback.

i NOTE

The maximum number of channels for synchronous playback supported varies to dierent models.

Figure 6-7 Select Channels for Synchronous Playback

Step 6 On the Event Playback interface, you can select the main stream or sub-stream from the drop-down list for playback.

The toolbar in the boom part of Playback interface can be used to control playing process.

Figure 6-8 Interface of Playback by Event

Pre-play and post-play can be congured for the playback of event triggered record les.

Pre-play: The me you set to play back before the event. For example, when an alarm triggered the recording at 10:00, if you set the pre-play me as 5 seconds, the video plays back from 9:59:55.

Post-play: The me you set to play back aer the event. For example, when an alarm triggered the recording ends at 11:00, if you set the post-play me as 5 seconds, the video plays back ll 11:00:05.

Step 7 You can click < or > buon to select the previous or next event. Please refer to Table 6-1 for the descripon of buons on the toolbar.

6.1.4 Playing Back by Tag

Purpose

Video tag allows you to record related informaon like people and locaon of a certain me point during playback. You are also allowed to use video tag(s) to search for record les and posion me point.

Before playing back by tag

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Search and play back the record le(s). Refer to Chapter 6.1.2 Playing Back by Normal Search for the detailed informaon about searching and playback of the record les.

Figure 6-9 Interface of Playback by Time

Click ■ uon to add default tag.

Click ☐ uon to add customized tag and input tag name.

Figure 6-10 Add Tag

Max. 64 tags can be added to a single video le.

Step 3 Tag management.

Click 📄uon to check, edit and delete tag(s).

Figure 6-11 Tag Management Interface

Steps

Step 1 Select Tag from the drop-down list in the Playback interface.

Step 2 Choose channels, edit start me and end me, and then click Search to enter Search Result interface.

NOTE

You can enter keyword in the textbox Keyword search the tag on your command.

Figure 6-12 Video Search by Tag

Step 3 Click buon to play back the le.

You can click the Back buon to return to the search interface.

i NOTE

● Pre-play and post-play can be congured.
- You can click for buon to select the previous or next tag. Please refer to Table 6-1 for the descripon of buons on the toolbar.

6.1.5 Playing Back by Smart Search

Purpose

The smart playback funcon provides an easy way to get through the less eecve informaon. When you select the smart playback mode, the system will analyze the video containing the moon or VCA informaon, mark it with green color and play it in the normal speed while the video without moon will be played in the 16-me speed. The smart playback rules and areas are congorable.

Before you start

To get the smart search result, the corresponding event type must be enabled and congured on the IP camera. Here we take the intrusion detecon as an example.

Step 1 Log in the IP camera by the web browser, and enable the intrusion detecon by checking the checkbox of it. You may enter the moon detecon conguraon interface by Conguraon > Advanced Conguraon > Events > Intrusion Detecon.

Figure 6-13 Seng Intrusion Detecon on IP Camera

Step 2 Congure the required parameters of intrusion detecon, including area, arming schedule and linkage methods. Refer to the user manual of smart IP camera for detailed instrucons.

Steps

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Select the Smart in the drop-down list on the top-le side.

Step 3 Select a camera in the camera list.

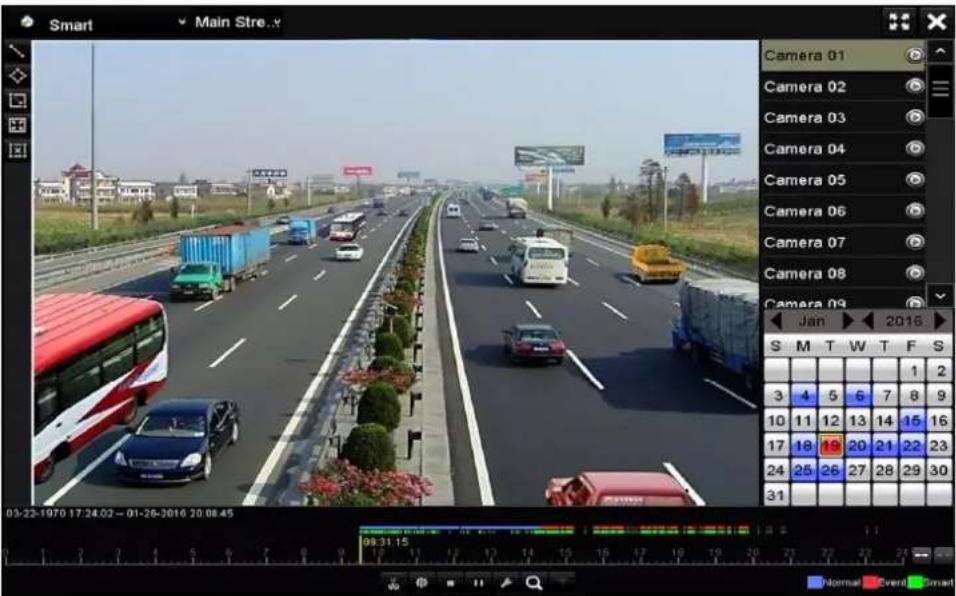

Figure 6-14 Smart Playback Interface

Step 4 Select a date in the calendar and click the buon to play.

Refer to Table 6-2 for the descripons of the buons on the Smart Playback Toolbar.

Table 6-2 Detailed Explanaon of Smart Playback Toolbar

Buon	Operaon	Buon	Operaon	Buon	Operaon
[24W4]	Draw line for the line crossing detecon		Draw quadrilateral for the intrusion detecon		Draw rectangle for the intrusion detecon
	Set full screen for moon detecon		Clear all	[WWRX]	Start/Stop clipping
[XWZW]	File management for video clips	[A430]	Stop playing		Pause playing /Play
	Smart sengs	[HOWX]	Search matched video les		Filter video les by seng the targetcharacters

Step 5 Set the rules and areas for smart search of VCA event or moon event.

● Line Crossing Detecon

Select the ☐ion, and click on the image to specify the start point and end point of the line.

- Intrusion Detecon

Click the ☐ion, and specify 4 points to set a quadrilateral region for intrusion detecon. Only one region can be set.

- Moon Detecon

Click the ☐ion and then click and draw the mouse to set the detecon area manually. You can also click the ☐ion to set the full screen as the detecon area.

Step 6 Click ☐ congregate the smart sengs.

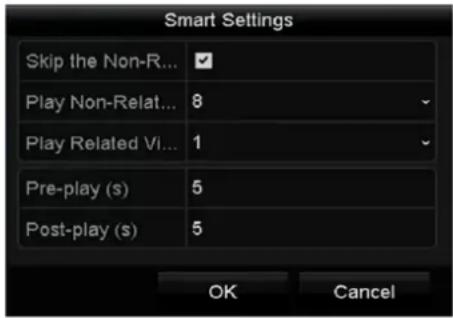

Figure 6-15 Smart Sengs

Skip the Non-Related Video: The non-related video will not be played if this funcon is enabled.

Play Non-Related Video at: Set the speed to play the non-related video. Max. 8/4/2/1 are selectable.

Play Related Video at: Set the speed to play the related video. Max. 8/4/2/1 are selectable.

Pre-play and post-play is not available for the moon event type.

Step 7 Click search and play the matched video les.

Step 8 (Oponal) You can click the searched video les by seng the target characters, including the gender and age of the human and whether he/she wears glasses.

Figure 6-16 Set Result Filter

The Result Filter funcon is supported by the IP camera only.

6.1.6 Playing Back by System Logs

Purpose

Play back record le(s) associated with channels aer searching system logs.

Step 1 Enter Log Informaon interface.

Menu>Maintenance>Log Informaon

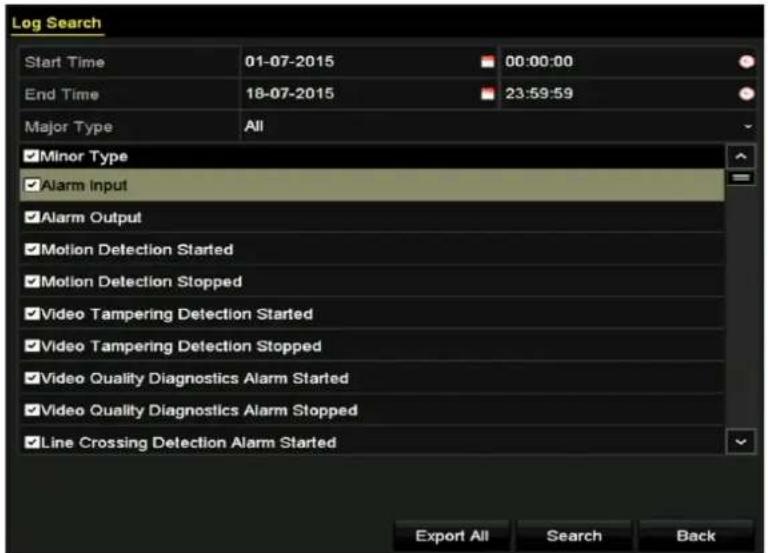

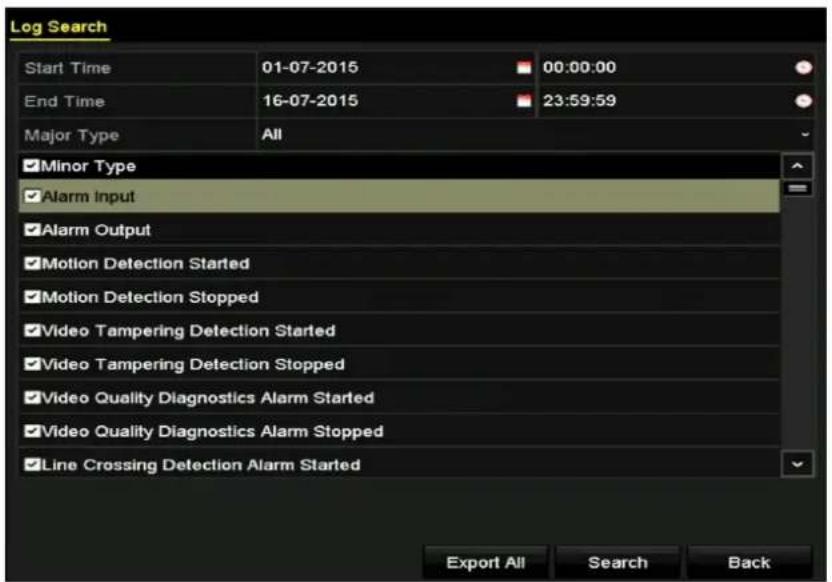

Figure 6-17 System Log Search Interface

Step 2 Click Log Search tab to enter System Log Search interface.

Set search me and type and click Search buon.

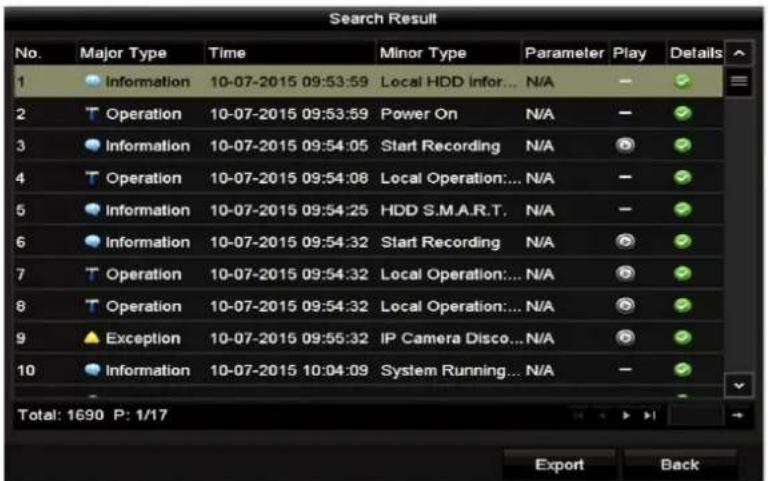

Figure 6-18 Result of System Log Search

Step 3 Choose a log with record le and click 📋buon to enter Playback interface.

If there is no record le at the me point of the log, the message box "No result found" will pop up.

Step 4 Playback management.

The toolbar in the boom part of Playback interface can be used to control playing process.

Highway scene with multiple vehicles and a red double-decker bus, no visible text or symbols on the road or traffic.

Figure 6-19 Interface of Playback by Log

6.1.7 Playing Back by Sub-Periods

Purpose

The video les can be played in mulple sub-periods simultaneously on the screens.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Select Sub-periods from the drop-down list in the upper-le corner of the page to enter the Sub-periods Playback interface.

Step 3 Select a date and start playing the video le.

Step 4 Select the Split-screen Number from the drop-down list. Up to 16 screens are congorable.

Figure 6-20 Interface of Sub-periods Playback

i NOTE

According to the dened number of split-screens, the video les on the selected date can be divided into average segments for playback. E.g., if there are video les exisng between 16:00 and 22:00, and the 6-screen display mode is selected, then it can play the video les for 1 hour on each screen simultaneously.

6.1.8 Playing Back External File

Purpose

Perform the following steps to look up and play back les in the external devices.

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Select the External File in the drop-down list on the top-le side.

The les are listed in the right-side list.

You can click the Refresh refresh the le list.

Step 3 Select and click the buon to play back it.

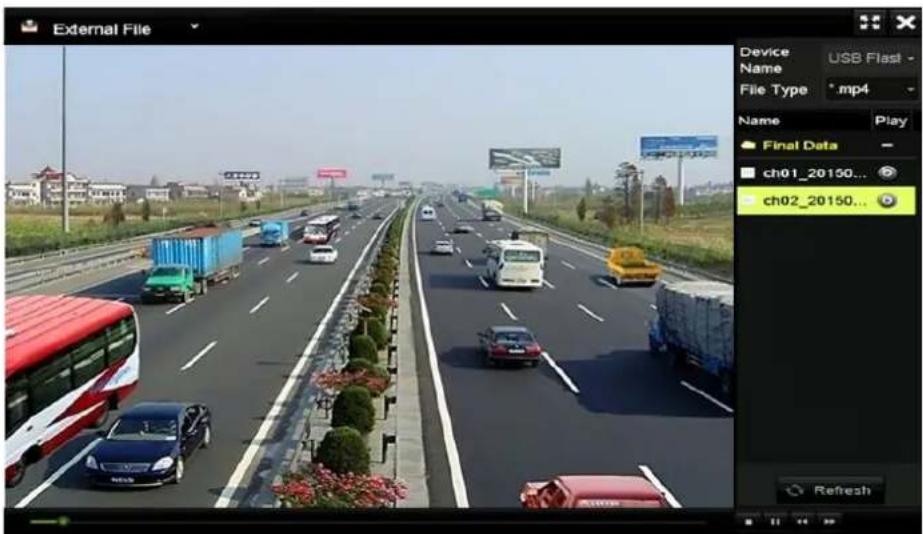

Figure 6-21 Interface of External File Playback

6.2 Auxiliary Funcons of Playback

6.2.1 Playing Back Frame by Frame

Purpose

Play video les frame by frame, in order to check image details of the video when abnormal events happen.

Step 1 Go to Playback interface and click buon 📁 unl the speed changes to Single frame.

Step 2 One click on the playback screen represents playback or adverse playback of one frame. You can use buon i toolbar to stop the playing.

6.2.2 Digital Zoom

Step 1 Click the 📄 quon on the playback control bar to enter Digital Zoom interface.

Step 2 Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 mes.

Highway scene with trucks, shipping containers, and residential buildings in the background (no visible text or symbols)

Figure 6-22 Draw Area for Digital Zoom

Step 3 Right-click the image to exit the digital zoom interface.

6.2.3 Reverse Playback of Mul-Channel

Purpose

You can play back record les of mul-channel reversely. Up to 16-ch simultaneous reverse playback is supported.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Check more than one checkboxes to select mulple channels and click to select a date on the calendar.

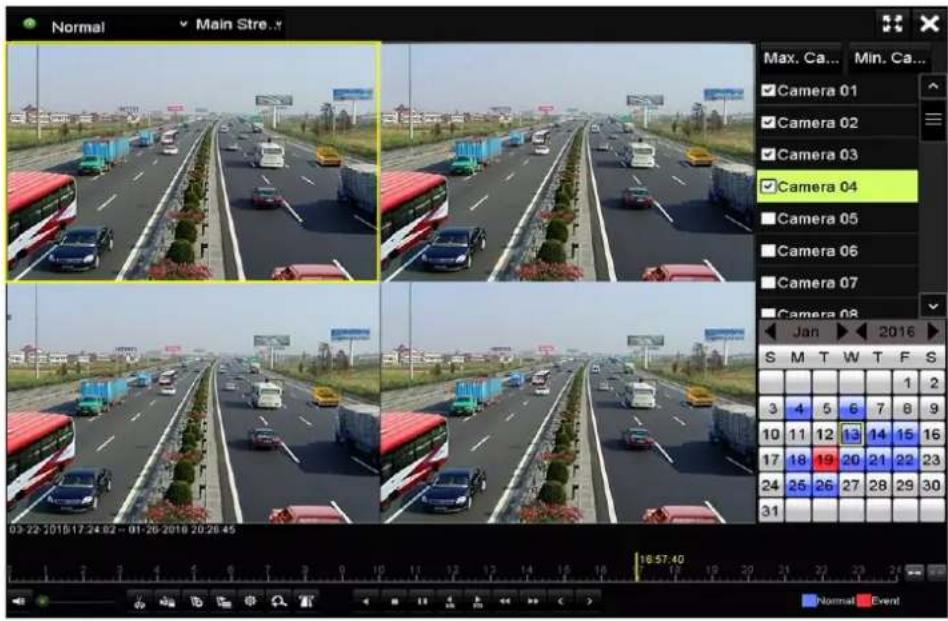

Figure 6-23 4-ch Synchronous Playback Interface

Step 3 Click play back the record les reversely.

Chapter 7 Backup

7.1 Backing up Record Files

Before you start

Please insert the backup device(s) into the device.

7.1.1 Backing up by Normal Video/Picture Search

Purpose

The record les or pictures can be backed up to various devices, such as USB devices (USB ash drives, USB HDDs, USB writer), SATA writer and e-SATA HDD.

Backup using USB ash drives and USB HDDs

Step 1 Enter Export interface.

Menu>Export>Normal/Picture

Step 2 Select the cameras to search.

Step 3 Set search condion and click Search buon to enter the search result interface.

Figure 7-1 Normal Video Search for Backup

Step 4 The matched video les are displayed in Chart or List display mode.

Click to play the record le if you want to check it.

Check the checkbox before the video les you want to back up.

The size of the currently selected les is displayed in the lower-le corner of the window.

Figure 7-2 Result of Normal Video Search for Backup

Step 5 Select video les from the Chart or List to export, and click the buon Export to enter the Export interface.

You can also click Export All to select all the video les for backup and enter the Export interface.

Figure 7-3 Export by Normal Video Search using USB Flash Drive

Step 6 Select the backup device from the drop-down list and you can also select the le format to liter the les exisng in the backup device.

Step 7 Select the saving type.

Step 8 Click the Export buon on the Export interface to start the backup process.

1) On the pop-up message box, click the radio buon to export the video les, log or the player to the backup device.
2) Click OK to conrm it.

Figure 7-4 Backup

Step 9 A prompt message will pop up aer the backup process is complete. Click OK to conrm it.

Figure 7-5 Export Finished

i NOTE

The backup of pictures using USB writer or SATA writer has the same operang instrucons. Please refer to steps described above.

7.1.2 Backing up by Event Search

Purpose

Back up event-related record les using USB devices (USB ash drives, USB HDDs, USB writer), SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.

Step 1 Enter Export interface.

Menu > Export > Event

Step 2 Select the cameras to search.

Step 3 Select the event type to alarm input, moon or VCA.

Figure 7-6 Event Search for Backup

Step 4 Set search condion and click Search buon to enter the search result interface. The matched video les are displayed in Chart or List display mode.

Step 5 Select video les from the Chart or List interface to export.

Figure 7-7 Result of Event Search

Step 6 Export the video les. Please refer to step5 of Chapter 7.1.1 Backing up by Normal Video/Picture Search for details.

7.1.3 Backing up Video Clips

Purpose

You may also select video clips in playback mode to export directly during Playback, using USB devices (USB ash drives, USB HDDs, USB writer), or SATA writer.

Step 1 Enter Playback interface.

Step 2 During playback, use buons or in the playback toolbar to start or stop clipping record le(s).

Step 3 Click enter the le management interface.

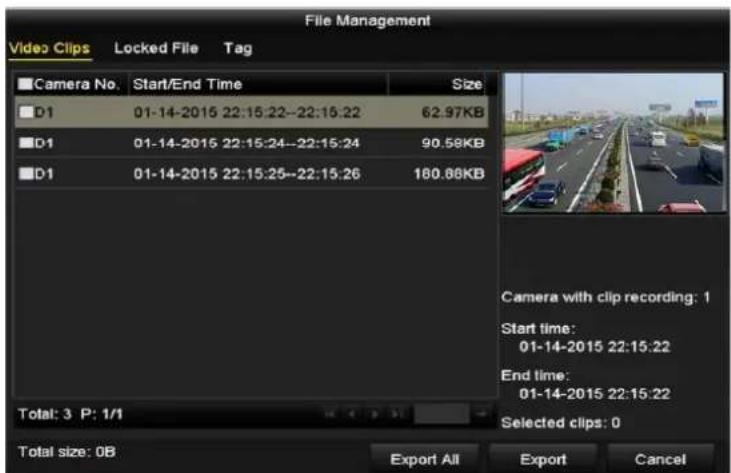

Figure 7-8 Video Clips Export Interface

Step 4 Export the video clips in playback. Please refer to step5 of Chapter 7.1.1 Backing up by Normal Video/Picture Search for details.

7.2 Managing Backup Devices

Management of USB ash drives, USB HDDs and eSATA HDDs

Step 1 Enter the Export interface.

Figure 7-9 Storage Device Management

Step 2 Backup device management.

Click New Folder buon if you want to create a new folder in the backup device.

Select a record le or folder in the backup device and click 📄 on if you want to delete it.

Click Erase buon if you want to erase the les from a re-writable CD/DVD.

Click Format buon to format the backup device.

i NOTE

If the inserted storage device is not recognized:

• Click the Refresh buon.
• Reconnect device.
• Check for compatibility from vendor.

Chapter 8 Alarm Sengs

8.1 Seng Moon Detecon

Step 1 Enter Moon Detecon interface of Camera Management and choose a camera you want to set up moon detecon.

Menu> Camera> Moon

Figure 8-1 Moon Detecon Setup Interface

Step 2 Set detecon area and sensitivity.

Check checkbox to enable moon detecon. Use the mouse to draw detecon area(s) or click Full Screen to set the detecon area to be the full screen and drag the sensitivity bar to set sensitivity.

Click 📋 to set alarm response acons.

Figure 8-2 Set Detecon Area and Sensitivity

Step 3 Click Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when moon alarm is triggered.

Figure 8-3 Set Trigger Camera of Moon Detecon

Step 4 Set arming schedule of the channel.

Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and up to eight me periods can be set within each day. Or you can click the Copy buon to copy the me period sengs to other day(s).

Time periods shall not be repeated or overlapped.

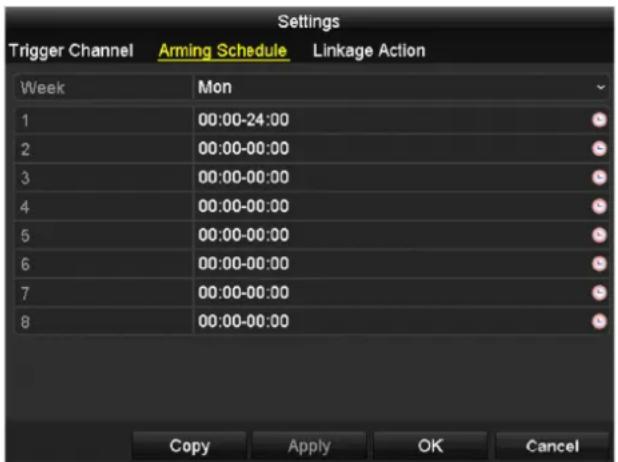

Figure 8-4 Set Arming Schedule of Moon Detecon

Step 5 Click Linkage Acon tab to set up alarm response acons of moon alarm (please refer to Chapter 8.7 Seng Alarm Response Acons).

Repeat the above steps to set up arming schedule of other days of a week.

Click the OK buon to complete the moon detecon sengs of the channel.

Step 6 If you want to set moon detecon for another channel, repeat the above steps or just copy the above sengs to it.

You are not allowed to copy the "Trigger Channel" acon.

8.2 Seng Sensor Alarms

Purpose

Set up handling method of an external sensor alarm.

Step 1 Enter Alarm Sengs of System Conguraon and select an alarm input.

Menu> Conguraon> Alarm

Select Alarm Input tab to enter Alarm Input Sengs interface.

Figure 8-5 Alarm Status Interface of System Conguraon

Step 2 Set the handling method of the selected alarm input.

Check the Enable checkbox and click 16 uon to set its alarm response acons.

Figure 8-6 Alarm Input Sengs Interface

Step 3 Select Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when an external alarm input is triggered.

Step 4 Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and max. eight me periods can be set within each day.

Time periods shall not be repeated or overlapped.

Figure 8-7 Set Arming Schedule of Alarm Input

Step 5 Select Linkage Acon tab to set up alarm response acons of the alarm input (please refer to Chapter 8.7 Seng Alarm Response Acons).

Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy buon to copy an arming schedule to other days.

Step 6 If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input.

Set PTZ linking parameters and click the OK buon to complete the sengs of the alarm input.

Please check whether the PTZ or speed dome supports PTZ linkage.

One alarm input can trigger presets, patrol or paern of more than one channel. But presets, patrols and paerns are exclusive.

Figure 8-8 Set PTZ Linking of Alarm Input

Step 7 If you want to set handling acon of another alarm input, repeat the above steps or just copy the above sengs to it.

Figure 8-9 Copy Sengs of Alarm Input

8.3 Detecng Video Loss

Purpose

Detect video loss of a channel and take alarm response acon(s).

Step 1 Enter Video Loss interface of Camera Management and select a channel you want to detect.

Menu> Camera> Video Loss

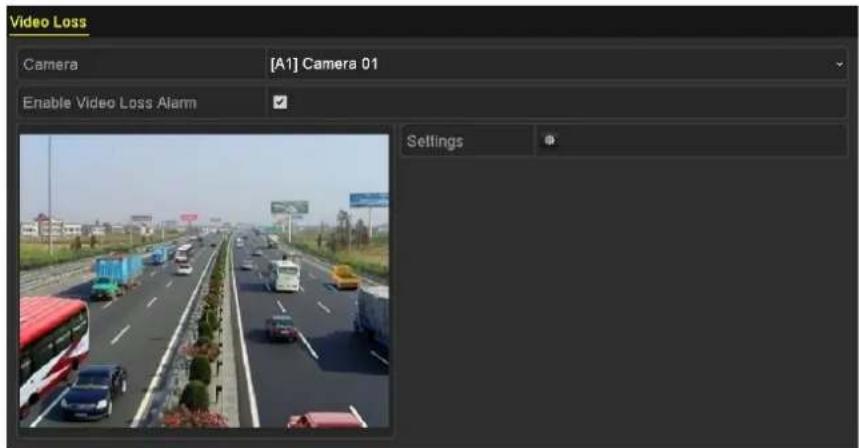

Figure 8-10 Video Loss Setup Interface

Step 2 Set up handling method of video loss.

Check the checkbox of Enable Video Loss Alarm.

Click 📄uon to set up handling method of video loss.

Step 3 Set arming schedule of the channel.

Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and up to eight me periods can be set within each day. Or you can click the Copy buon to copy the me period sengs to other day(s).

Time periods shall not be repeated or overlapped.

Figure 8-11 Set Arming Schedule of Video Loss

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy buon to copy an arming schedule to other days.

Step 4 Select Linkage Acon tab to set up alarm response acon of video loss (please refer to Chapter 8.7 Seng Alarm Response Acons).

Step 5 Click the OK buon to complete the video loss sengs of the channel.

Repeat the above steps to nish sengs of other channels, or click the Copy buon copy the above sengs to them.

8.4 Detecng Video Tampering

Purpose

Trigger alarm when the lens is covered and take alarm response acon(s).

Step 1 Enter Video Tampering interface of Camera Management and select a channel you want to detect video tampering.

Menu> Camera> Video Tampering Detecon

Figure 8-12 Video Tampering Interface

Step 2 Check the checkbox of Enable Video Tampering Detecon.

Step 3 Drag the sensitivity bar and choose a proper sensitivity level.

Step 4 Click 📋 set handling method of video tampering. Set arming schedule and alarm response acons of the channel.

1) Click Arming Schedule tab to set the arming schedule of response acon.

2) Choose one day of a week and up to eight me periods can be set within each day.

Time periods shall not be repeated or overlapped.

Figure 8-13 Set Arming Schedule of Video Tampering

3) Select Linkage Acon tab to set alarm response acons of video tampering alarm (please refer to Chapter 8.7 Seng Alarm Response Acons).

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy buon to copy an arming schedule to other days.

4) Click the OK buon to complete the video tampering sengs of the channel.

Repeat the above steps to nish sengs of other channels, or click the Copy buon copy the above sengs to them.

Step 5 Click the Apply buon to save and acvate the sengs.

8.5 Seng All-day Video Quality Diagnoscs

Purpose

The device provides two ways to diagnose the video quality: manual and all-day. Perform the following steps to set the threshold of the diagnosing and the linkage acons.

Step 1 Enter Video Quality Diagnoscs Sengs interface of Camera Management and select a channel you want to detect video tampering.

Menu> Camera> Video Quality Diagnoscs

Figure 8-14 Video Quality Diagnoscs Interface

Step 2 Check the checkbox of Enable Video Quality Diagnoscs.

i NOTE

To enable video quality diagnoses, the funcon should be supported by the selected camera.

Step 3 Enable and set the threshold of the diagnostic types, there are Blurred Image, Abnormal Brightness, and Color Cast.

Check the corresponding checkbox of the diagnostic type, and adjust the threshold of it by dragging the bar.

i NOTE

The higher the threshold you set, the harder the excepon will be detected.

Step 4 Click set handling method of video quality diagnoses. Set arming schedule and alarm response acons of the channel.

1) Click Arming Schedule tab to set the arming schedule of response acon.

2) Choose one day of a week and up to eight me periods can be set within each day.

i NOTE

Time periods shall not be repeated or overlapped.

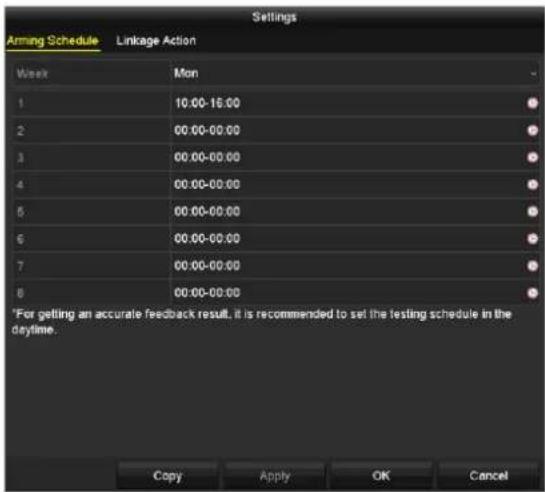

Figure 8-15 Set Arming Schedule of Video Quality Diagnoscs

3) Select Linkage Acon tab to set alarm response acons of video quality diagnoses alarm (please refer to Chapter 8.7 Seng Alarm Response Acons).

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy buon to copy an arming schedule to other days.

4) Click the OK buon to complete the video quality diagnoses sengs of the channel.

Step 5 Click the Apply buon to save and acvate sengs.

Step 6 (Oponal) you can copy the same sengs to other cameras by clicking the Copy buon.

8.6 Handling Excepons

Purpose

Excepon sengs refer to the handling method of various excepons, e.g.

• HDD Full: The HDD is full.
• HDD Error: Wring HDD error, unformaed HDD, etc.
  ● Network Disconnected: Disconnected network cable.
  ● IP Conicted: Duplicated IP address.
• Illegal Login: Incorrect user ID or password.
• Input/Recording Resoluon Mismatch: The input resoluon is smaller than the recording resoluon.
• Record/Capture Excepon: No space for saving recorded les or captured pictures.

Step 1 Enter Excepons interface and handle various excepons.

Menu> Conguraon> Excepons

Figure 8-16 Excepon Sengs Interface

Step 2 Check the checkbox of Enable Event Hint to display the 🔒 (Event/Excepon icon) when an excepconal event occurs. And click the icon ☑ select the detailed event hint for display.

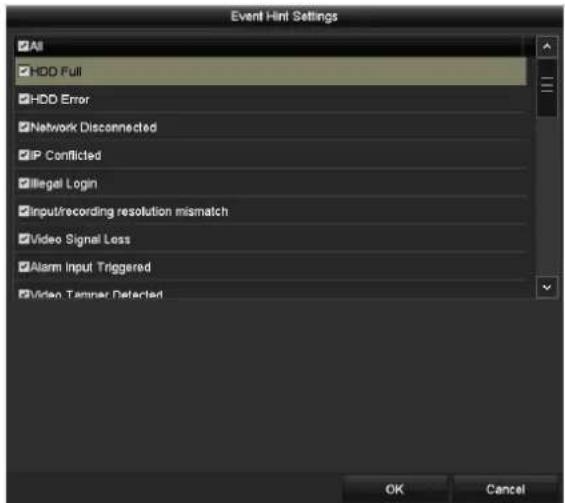

Figure 8-17 Event Hint Sengs

i NOTE

Click the icon 📁 appears in the live view interface, and you can view the detailed informaon of the exceponal event. Click the button Set, and then you can select the detailed event hint for display.

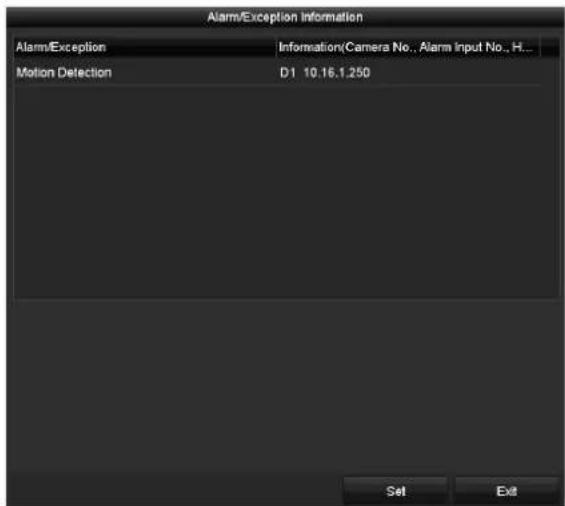

Figure 8-18 Detailed Event

Step 3 Set the alarm linkage acons. For details, see Chapter 8.7 Seng Alarm Response Acons.

Step 4 Click Apply to save the sengs.

8.7 Seng Alarm Response Acons

Purpose

Alarm response acons will be acvated when an alarm or excepon occurs, including Full Screen Monitoring, Audible Warning (buzzer), Nofy Surveillance Center, Send Email and Trigger Alarm Output.

Full Screen Monitoring

When an alarm is triggered, the local monitor (HDMI or VGA monitor) displays in full screen the video image from the alarming channel congured for full screen monitoring.

If alarms are triggered simultaneously in several channels, their full-screen images will be switched at an interval of 10 seconds (default dwell me). A dierent dwell me can be set by going to Menu > Conguraon > Live View.

Auto-switch will terminate once the alarm stops and you will be taken back to the Live View interface.

Audible Warning

Trigger an audible beep when an alarm is detected.

Nofy Surveillance Center

Sends an excepon or alarm signal to remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.

i NOTE

The alarm signal will be transmied automacally at detecon mode when remote alarm host is congured. Please refer to Chapter 12.2.6 Conguring More Sengs for details of alarm host conguraon.

Send Email

Send an email with alarm informaon to a user or users when an alarm is detected.

Please refer to Chapter 12.2.8 Conguring Email for details of Email conguraon.

Trigger Alarm Output

Trigger an alarm output when an alarm is triggered.

Step 1 Enter Alarm Output interface.

Menu> Conguraon> Alarm> Alarm Output

Select an alarm output and set alarm name and dwell me.

Figure 8-19 Alarm Output Sengs Interface

i NOTE

If Manually Clear is selected in the drop-down list of Dwell Time, you can clear it only by going to Menu> Manual> Alarm.

Step 2 Click 📁ion to set the arming schedule of alarm output.

Choose one day of a week and up to 8 me periods can be set within each day.

i NOTE

Time periods shall not be repeated or overlapped.

Figure 8-20 Set Arming Schedule of Alarm Output

Step 3 Repeat the above steps to set arming schedule of other days of a week. You can also click Copy buon to copy an arming schedule to other days.

Click the OK buon to complete the arming schedule seng of alarm output.

Step 4 Click the Apply buon to save the sengs.

Chapter 9 VCA Alarm

Purpose

The DVR can receive the VCA alarm (line crossing detecon, intrusion detecon, sudden scene change detecon and audio excepon detecon) sent by analog camera, and the VCA detecon must be enabled and congured on the camera sengs interface rst. All other VCA detecon features must be supported by the connected IP camera.

● Supports 1-ch VCA (line crossing detecon and intrusion detecon). Channels with audio support audio excepon detecon.
- For the analog channels, the line crossing detecon and intrusion detecon conict with other VCA detecon such as sudden scene change detecon, face detecon and vehicle detecon and heat map or people counting funcons. You can only enable one funcon.

9.1 Face Detecon

Purpose

Face detecon funcon detects the face appears in the surveillance scene, and some certain acons can be taken when the alarm is triggered.

Step 1 Enter the VCA sengs interface.

Menu > Camera > VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Figure 9-1 Face Detecon

Step 3 Select the VCA detecon type to Face Detecon.

Step 4 Click ▶ enter the face detecon sengs interface. Congure the trigger channel, arming schedule and linkage acon for the face detecon alarm. Please refer to step3 to step5 of Chapter 8.1 Setng Moon Detecon for detailed instrucons.

Step 5 Click the Rule Sengs buon to set the face detecon rules. You can drag the slider to set the detecon sensitivity.

Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.

Figure 9-2 Set Face Detecon Sensitivity

Step 6 Click Apply to acvate the sengs.

9.2 Vehicle Detecon

Purpose

Vehicle Detecon is available for the road trac monitoring. In Vehicle Detecon, the passed vehicle can be detected and the picture of its license plate can be captured. You can send alarm signal to nofy the surveillance center and upload the captured picture to FTP server.

Step 1 Enter the VCA sengs interface.

Menu> Camera> VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Step 3 Select the VCA detecon type to Vehicle Detecon.

Step 4 Check the Enable checkbox to enable this funcon.

Figure 9-3 Set Vehicle Detecon

Step 5 Click ☐ congregate the trigger channel, arming schedule and linkage acons for the Blacklist, Whitelist and Others.

Step 6 Click the Rule Setngs to enter the rule sengs interface. Conjure the lane, upload picture and overlay content sengs. Up to 4 lanes are selectable.

Figure 9-4 Rule Sengs

Step 7 Click Save to save the sengs.

i NOTE

Please refer to the User Manual of Network Camera for the detailed instructions for the vehicle detection.

9.3 Line Crossing Detection

Purpose

This function can be used for detecting people, vehicles and objects cross a set virtual line. The line crossing direction can be set as bidirectional, from left to right or from right to left. And you can set the duration for the alarm response actions, such as full screen monitoring, audible warning, etc.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Line Crossing Detecon.

Step 4 Check the Enable checkbox to enable this function.

Step 5 Click ☐ to configure the trigger channel, arming schedule and linkage actions for the line crossing detection alarm.

Step 6 Click the Rule Sengs button to set the line crossing detection rules.

1) Select the direction to A<->B, A->B or B->A.

A<->B: Only the arrow on the B side shows. When an object goes across the configured line, both directions can be detected and alarms are triggered.

A->B: Only the object crossing the configured line from the A side to the B side can be detected.

B->A: Only the object crossing the configured line from the B side to the A side can be detected.

2) Drag the slider to set the detection sensitivity.

Sensitivity: Range [1-100]. The higher the value is, the more easily the detection alarm can be triggered.

3) Click OK to save the rule settings and return to the line crossing detection settings interface.

Figure 9-5 Set Line Crossing Detecon Rules

Step 7 Click 📋 and set two points in the preview window to draw a virtual line.

You can use the ☐ clear the exisng virtual line and re-draw it.

Up to 4 rules can be congured.

Figure 9-6 Draw Line for Line Crossing Detecon

Step 8 Click Apply to acvate the sengs.

The sudden scene change detecon and the line crossing detecon cannot be enabled at the same channel.

9.4 Intrusion Detecon

Purpose

Intrusion detecon funcon detects people, vehicle or other objects which enter and loiter in a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Step 1 Enter the VCA sengs interface.

Menu> Camera> VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Step 3 Select the VCA detecon type to Intrusion Detecon.

Step 4 Check the Enable checkbox to enable this funcon.

Step 5 Click to congregate the trigger channel, arming schedule and linkage acons for the intrusion detecon alarm.

Step 6 Click the Rule Sengs buon to set the intrusion detecon rules. Set the following parameters.

1) Threshold: Range [1s-10s], the threshold for the me of the object loitering in the region. When the duraon of the object in the dened detecon area is longer than the set me, the alarm will be triggered.

2) Drag the slider to set the detecon sensitivity.

Sensitivity: Range [1-100]. The value of the sensitivity denes the size of the object which can trigger the alarm. The higher the value is, the more easily the detecon alarm can be triggered.

3) Percentage: Range [1-100]. Percentage denotes the rao of the in-region part of the object which can trigger the alarm. For example, if the percentage is set as 50%, when the object enters the region and occupies half of the whole region, the alarm is triggered.

Figure 9-7 Set Intrusion Crossing Detecon Rules

4) Click OK to save the rule sengs and back to the line crossing detecon sengs interface.

Step 7 Click and draw a quadrilateral in the preview window by specifying four vertexes of the detecon region, and right click to complete drawing. Only one region can be congured.

You can use the □ clear the exisng virtual line and re-draw it.

Up to 4 rules can be congured.

Figure 9-8 Draw Area for Intrusion Detecon

Step 8 Click Apply to save the sengs.

The sudden scene change detecon and the intrusion detecon cannot be enabled at the same channel.

9.5 Region Entrance Detecon

Purpose

Region entrance detecon funcon detects people, vehicle or other objects which enter a pre-dened virtual region from the outside place, and some certain acons can be taken when the alarm is triggered.

Step 1 Enter the VCA sengs interface.

Menu> Camera> VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Step 3 Select the VCA detecon type to Region Entrance Detecon.

Step 4 Check the Enable checkbox to enable this funcon.

Step 5 Click congregate the trigger channel, arming schedule and linkage acons for the region entrance detecon alarm.

Step 6 Click the Rule Sengs buon to set the sensitivity of the region entrance detecon.

Sensitivity: Range [0-100]. The higher the value is, the more easily the detecon alarm can be triggered.

Step 7 Click 📋d draw a quadrilateral in the preview window by specifying four vertexes of the detecon region, and right click to complete drawing. Only one region can be congured.

You can use the Ⓞ clear the exisng virtual line and re-draw it.

Figure 9-9 Set Region Entrance Detecon

Up to 4 rules can be congured.

Step 8 Click Apply to save the sengs.

9.6 Region Exing Detecon

Purpose

Region exing detecon funcon detects people, vehicle or other objects which exit from a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.5 Region Entrance Detecon for operang steps to congregate the region exing detecon.
  ● Up to 4 rules can be congured.

9.7 Loitering Detecon

Purpose

Loitering detecon funcon detects people, vehicle or other objects which loiter in a pre-dened virtual region for some certain me, and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to conjure the loitering detecon.
• The Threshold [1s-10s] in the Rule Sengs denies the me of the object loitering in the region. If you set the value as 5, alarm is triggered aer the object loitering in the region for 5s; and if you set the value as 0, alarm is triggered immediately aer the object entering the region.
• Up to 4 rules can be congured.

9.8 People Gathering Detecon

Purpose

People gathering detecon alarm is triggered when people gather around in a pre-dened virtual region, and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to conjure the people gathering detecon.
• The Percentage in the Rule Sengs denes the gathering density of the people in the region. Usually, when the percentage is small, the alarm can be triggered when small number of people gathered in the dened detecon region.
  ● Up to 4 rules can be congured.

9.9 Fast Moving Detecon

Purpose

Fast moving detecon alarm is triggered when people, vehicle or other objects move fast in a pre-dened virtual region, and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to conjure the fast moving detecon.
• The Sensitivity in the Rule Sengs denies the moving speed of the object which can trigger the alarm. The higher the value is, the more easily a moving object can trigger the alarm.
  ● Up to 4 rules can be congured.

9.10 Parking Detecon

Purpose

Parking detecon funcon detects illegal parking in places such as highway, one-way street, etc., and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to conjure the parking detecon.
• The Threshold [5s-20s] in the Rule Sengs denies the me of the vehicle parking in the region. If you set the value as 10, alarm is triggered aer the vehicle stay in the region for 10s.
• Up to 4 rules can be congured.

9.11 Unaended Baggage Detecon

Purpose

Unaended baggage detecon funcon detects the objects le over in the pre-dened region such as the baggage, purse, dangerous materials, etc., and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to conjure the unaended baggage detecon.
• The Threshold [5s-20s] in the Rule Sengs denes the me of the objects le over in the region. If you set the value as 10, alarm is triggered aer the object is le and stay in the region for 10s. And the Sensitivity denes the similarity degree of the background image. Usually, when the sensitivity is high, a very small object le in the region can trigger the alarm.
• Up to 4 rules can be congured.

9.12 Object Removal Detecon

Purpose

Object removal detecon funcon detects the objects removed from the pre-dened region, such as the exhibits on display, and a series of acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detecon for operang steps to congure the object removal – detecon.
• The Threshold [5s-20s] in the Rule Sengs denes the me of the objects removed from the region. If you set the value as 10, alarm is triggered aer the object disappears from the region for 10s. And the Sensitivity denes the similarity degree of the background image. Usually, when the sensitivity is high, a very small object taken from the region can trigger the alarm.
• Up to 4 rules can be congured.

9.13 Audio Excepon Detecon

Purpose

Audio excepon detecon funcon detects the abnormal sounds in the surveillance scene, such as the sudden increase/decrease of the sound intensity, and some certain acons can be taken when the alarm is triggered.

i NOTE

The audio excepon detecon is supported by all analog channels.

Step 1 Enter the VCA sengs interface.

Menu> Camera> VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Step 3 Select the VCA detecon type to Audio Excepon Detecon.

Step 4 Click 🙏 to congregate the trigger channel, arming schedule and linkage acon for the audio excepon alarm.

Step 5 Click the Rule Sengs buon to set the audio excepon rules.

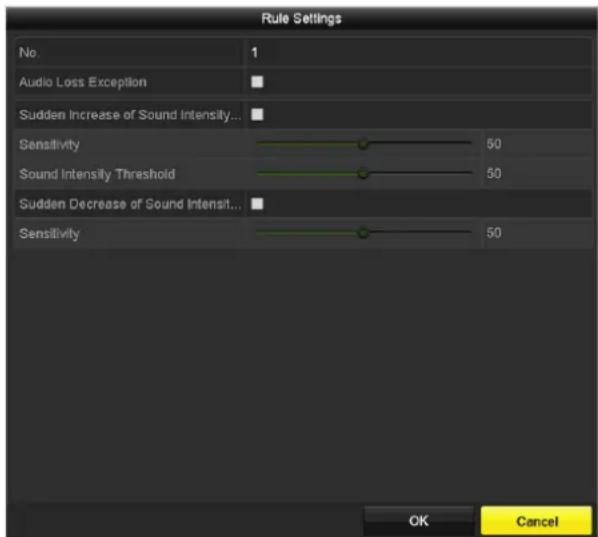

Figure 9-10 Set Audio Excepon Detecon Rules

1) Check the checkbox of Audio Loss Excepon to enable the audio loss detecon funcon.
2) Check the checkbox of Sudden Increase of Sound Intensity Detecon to detect the sound steep rise in the surveillance scene. You can set the detecon sensitivity and threshold for sound steep rise.

Sensitivity: Range [1-100], the smaller the value is, the more severe the change should be to trigger the detecon.

Sound Intensity Threshold: Range [1-100], it can iter the sound in the environment, the louder the environment sound, the higher the value should be. You can adjust it according to the real environment.

3) Check the checkbox of Sudden Decrease of Sound Intensity Detecon to detect the sound steep drop in the surveillance scene. You can set the detecon sensitivity [1-100] for sound steep drop.

Step 6 Click Apply to acvate the sengs.

9.14 Defocus Detecon

Purpose

The image blur caused by defocus of the lens can be detected, and some certain acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.1 Face Detecon for operang steps to congure the defocus detecon.
• The Sensitivity in the Rule Sengs ranges from 1 to 100, and the higher the value is, the more easily the defocus image can trigger the alarm.

9.15 Sudden Scene Change

Purpose

Scene change detecon funcon detects the change of surveillance environment aected by the external factors; such as the intenonal rotaon of the camera and some certain acons can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.1 Face Detecon for operang steps to congure the scene change detecon.
• The Sensitivity in the Rule Sengs ranges from 1 to 100, and the higher the value is, the more easily the change of scene can trigger the alarm.
• For the analog cameras, the line crossing detecon and intrusion detecon conict with other VCA detecon such as sudden scene change detecon, face detecon and vehicle detecon. You can only enable one funcon. If you have enabled line crossing detecon or intrusion detecon, when you enable sudden scene change detecon and apply the sengs, the following aenon box pops up to remind you there is no enough resource and ask you to disable the enabled VCA type(s) of the selected channel(s).

Figure 9-11 Disable Other VCA Type(s)

9.16 PIR Alarm

Purpose

A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's eld of view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs, cats, etc., can be detected.

Step 1 Enter the VCA sengs interface.

Menu> Camera> VCA

Step 2 Select the camera to congregate the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detecon.

Step 3 Select the VCA detecon type to PIR Alarm.

Step 4 Click ☐ to configure the trigger channel, arming schedule and linkage acon for the PIR alarm.

Step 5 Click the Rule Sengs buon to set the rules. Please refer to the Chapter 10.1 Face Detecon for instrucons.

Step 6 Click Apply to acvate the sengs.

Chapter 10 VCA Search

With the congured VCA detecon, the device supports the VCA search for the behavior search, face search, plate search, people counting and heat map results.

10.1 Face Search

Purpose

When there are detected face picture captured and saved in HDD, you can enter the Face Search interface to search the picture and play the picture related video les according to the specied condions.

Before you start

Please refer to Secon 10.1 Face Detecon for conguring the face detecon.

Step 1 Enter the Face Search interface.

Menu>VCA Search> Face Search

Step 2 Select the camera (s) for the face search.

Figure 10-1 Face Search

Step 3 Specify the start me and end me for searching the captured face pictures or video les.

Step 4 Upload the pictures from your local storage device for matching the detected face pictures.

Step 5 Set the similarity level for the source pictures and the captured pictures.

Step 6 Click Search to start searching. The search results of face detecon pictures are displayed in list or in chart.

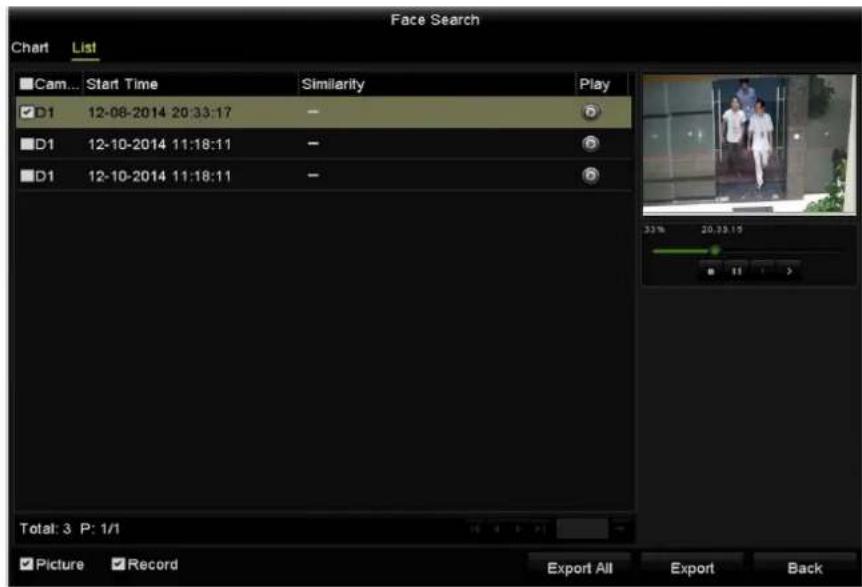

Figure 10-2 Face Search Interface

Step 7 Play the face picture related video le.

You can double click on a face picture to play its related video le in the view window on the top right, or select a picture item and click 📄 to play it.

You can also click □ to stop the playing, or click / to play the previous/next le.

Step 8 If you want to export the captured face pictures to local storage device, connect the storage device to the device and click Export All to enter the Export interface.

Click Export to export all face pictures to the storage device.

Please refer to Chapter 7 Backup for the operaon of exporng les.

Figure 10-3 Export Files

10.2 Behavior Search

Purpose

The behavior analysis detects a series of suspicious behavior based on VCA detecon, and certain linkage methods will be enabled if the alarm is triggered.

Step 1 Enter the Behavior Search interface.

Menu>VCA Search> Behavior Search

Step 2 Select the camera (s) for the behavior search.

Step 3 Specify the start me and end me for searching the matched pictures.

Figure 10-4 Behavior Search Interface

Step 4 Select the VCA detecon type from the drop-down list, including the line crossing detecon, intrusion detecon, unaended baggage detecon, object removal detecon, region entrance detecon, region exing detecon, parking detecon, loitering detecon, people gathering detecon and fast moving detecon.

Step 5 Click Search to start searching. The search results of pictures are displayed in list or in chart.

Figure 10-5 Behavior Search Results

Step 6 Play the behavior analysis picture related video le.

You can double click on a picture from the list to play its related video le in the view window on the top right, or select a picture item and click 📋 to play it.

You can also click □ stop the playing, or click / □ play the previous/next le.

Step 7 If you want to export the captured pictures to local storage device, connect the storage device to the device and click Export All to enter the Export interface.

Click Export to export all pictures to the storage device.

10.3 Plate Search

Purpose

You can search and view the matched captured vehicle plate picture and related informaon according to the plate searching conditions including the start me/end me, country and plate No.

Step 1 Enter the Plate Search interface.

Menu>VCA Search> Plate Search

Step 2 Select the camera (s) for the plate search.

Step 3 Specify the start me and end me for searching the matched plate pictures.

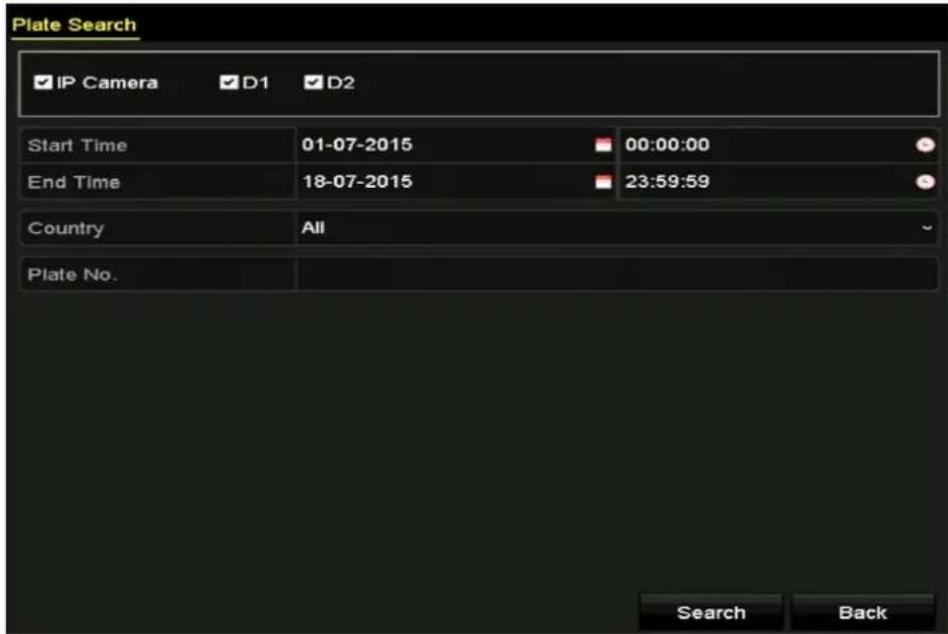

Figure 10-6 Plate Search

Step 4 Select the country from the drop-down list for searching the locaon of the vehicle plate.

Step 5 Input the plate No. in the eld for search.

Step 6 Click Search to start searching. The search results of detected vehicle plate pictures are displayed in list or in chart.

Please refer to the Step 7 to Step 8 of Secon 11.1 Face Search for the operaon of the search results.

10.4 People Counng

Purpose

The People Counng is used to calculate the number of people entered or le a certain congured area and form in daily/weekly/monthly/annual reports for analysis.

Step 1 Enter the People Counng interface.

Menu>VCA Search> People Counng

Step 2 Select the camera for the people counng.

Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.

Step 4 Set the stascs me.

Step 5 Click the Counng buon to start people counng stascs.

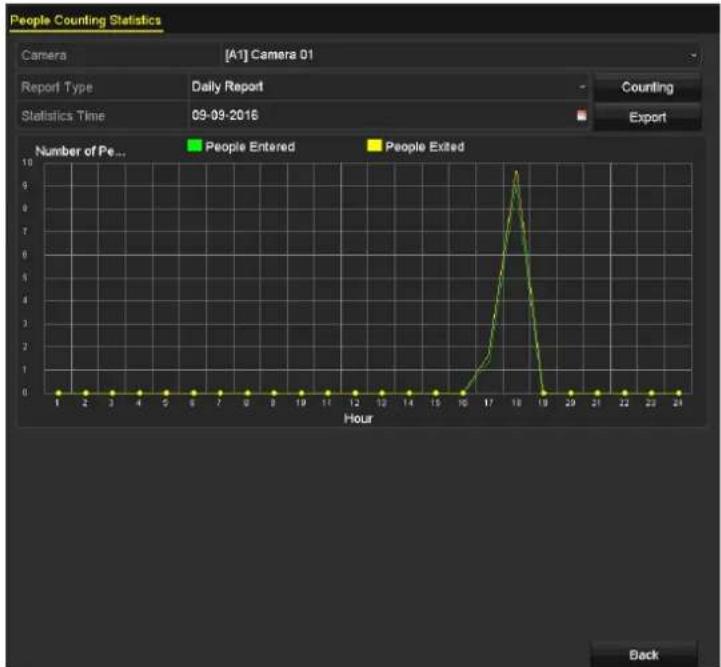

Figure 10-7 People Counng Interface

Step 6 You can click the Export buon to export the stascs report in excel format.

10.5 Heat Map

Purpose

Heat map is a graphical representaon of data represented by colors. The heat map funcon is usually used to analyze the visit mes and dwell me of customers in a congured area.

Step 1 Enter the Heat Map interface.

Menu>VCA Search> Heat Map

Step 2 Select the camera for the heat map processing.

Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.

Step 4 Set the stascs me.

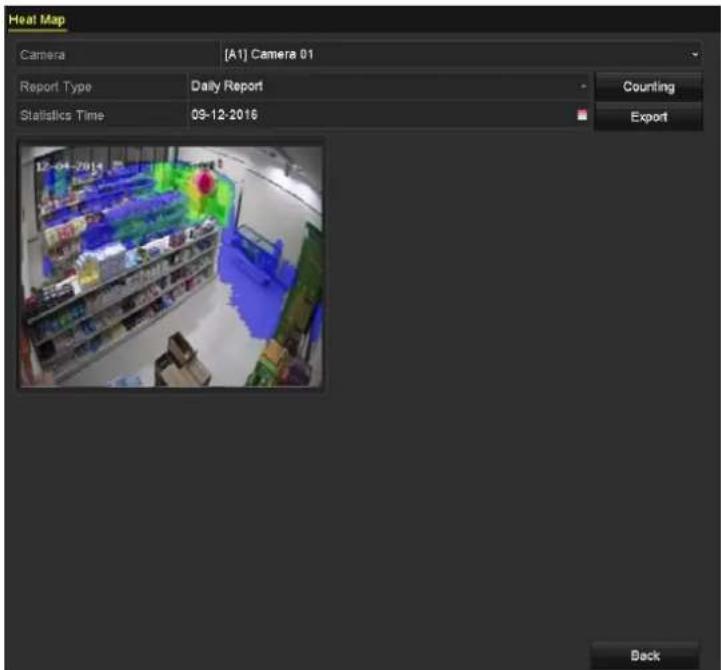

Figure 10-8 Heat Map Interface

Step 5 Click the Counng buon to export the report data and start heat map stascs, and the results are displayed in graphics marked in dierent colors.

As shown in Figure 10-8, red color block (255, 0, 0) indicates the most welcome area, and blue color block (0, 0, 255) indicates the less-popular area.

Step 6 You can click the Export buon to export the stascs report in excel format.

Chapter 11 Network Sengs

11.1 Conguring General Sengs

Purpose

Network sengs must be properly congured before you operate DVR over network.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Working Mode	Net Fault-tolerance
Select NIC	bond0
NIC Type	10M/100M/1000M Self-adaptive
Enable DHCP	✓
IPv4 Address 10 .16 .5 .102		IPv6 Address 1 fe80::2a57:beff:feeb:5a7f/64
IPv4 Subnet ... 255.255.255.0		IPv6 Address 2
IPv4 Default G... 10 .16 .5 .254		IPv6 Default G...
MAC Address	28:57:be:eb:6a:7f
MTU(Bytes)	1500
Enable DNS DHCP	■
Preferred DNS Server
Alternate DNS Server
Main NIC	LAN1

Figure 11-1 Network Sengs Interface (1)

1 self-adapve 10M/100M/1000M network interface or 1 self-adapve 10M/100Mbps network interface provided.

Step 2 Select the General tab.

Step 3 In the General Sengs interface, you can congregate the following parameters: NIC Type, IPv4 Address, IPv4 Gateway, MTU, DNS Server and Main NIC.

- Mul-address Mode: The parameters of the two NIC cards can be congured independently. You can select LAN1 or LAN2 in the NIC type eld for parameter sengs.

You can select one NIC card as default route. And then the system is connecng with the extranet and the data will be forwarded through the default route.

- Net-fault Tolerance Mode: The two NIC cards use the same IP address, and you can select the Main NIC to LAN1 or LAN2. By this way, in case of one NIC card failure, the device will automatically enable the other standby NIC card so as to ensure the normal running of the whole system.

- Load Balance Mode: By using the same IP address and two NIC cards share the load of the total bandwidth, which enables the system to provide two Gigabit network capacity.

i NOTE

● The valid value of MTU is from 500 to 1500.
- If the DHCP server is available, you can check the checkbox of Enable DHCP to automatically obtain an IP address and other network sengs from that server.
- If DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit the Preferred DNS Server and Alternate DNS Server.

Step 4 Aer having congured the general sengs, click the Apply buon to save the sengs.

11.2 Conguring Advanced Sengs

11.2.1 Conguring PPPoE Sengs

Purpose

The DVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the PPPoE tab to enter the PPPoE Sengs interface.

Figure 11-2 PPPoE Sengs Interface

Step 3 Check the Enable PPPoE checkbox to enable this feature.

Step 4 Enter User Name and Password for PPPoE access.

i NOTE

The User Name and Password should be assigned by your ISP.

Step 5 Click the Apply buon to save the sengs.

Step 6 Aer successful sengs, the system asks you to reboot the device to enable the new sengs, and the PPPoE dial-up is automatically connected aer reboot.

You can go to Menu > Maintenance > System Info > Network interface to view the status of PPPoE conncon.

11.2.2 Conguring Guarding Vision (Mobile access)

Purpose

Guarding Vision provides the mobile phone applicaon and the service plaorm page (www.guardingvision.com) to access and manage your connected DVR, which enables you to get a convenient remote access to the surveillance system.

The Guarding Vision can be enabled via operaon on SADP soware, GUI and Web browser. We introduce the operaon steps on GUI in this secon.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the Plaorm Access tab to enter the Guarding Vision Sengs interface.

Figure 11-3 Guarding Vision Sengs

Step 3 Check the Enable checkbox to acvate the funcon.

Then the Service Terms interface pops up as below.

Figure 11-4 Service Terms

1) Create the vericaon code and enter the code in the Vericaon Code text field.
2) Check the checkbox of The Guarding Vision service will require internet access. Please read Service Terms and Privacy Statement before enabling the service.
3) Scan the QR code on the interface to read the Service Terms and Privacy Statement.
4) Click OK to save the sengs and return to the Guarding Vision interface.

i NOTE

● Guarding Vision is disabled by default.
● The vericaon code is empty when the device leaves factory.
● The vericaon code must contain 6 to 12 leers or numbers and is case sensitive.
- For the old versions of DVR with Guarding Vision enabled, if you upgrade it, Guarding Vision is sll enabled. If you disable it and then enable it for the rst me, you need to change the vericaon code if the encrypted vericaon code is the same with that of the conguraon le, or the encrypted vericaon code is empty and the vericaon code of conguraon le is ABCDEF. In these two conditions, you should create a new vericaon code or you can delete the default one and input the same vericaon code with the default one.
- Every me you enable Guarding Vision, the Terms of Service interface pops up and you should check the checkbox before enabling it.

Step 4 (Oponal) Check the checkbox of Custom and input the Server Address.

Step 5 (Oponal) Check the checkbox of Enable Stream Encrypon.

Aer this feature is enabled, the vericaon code is required for remote access and live view.

i NOTE

You can use the scanning tool of your phone to quickly get the code by scanning the QR code below.

Figure 11-5 Guarding Vision Sengs Interface

Step 6 Click the Apply buon to save the sengs.

Aer conguraon, you can access and manage the DVR by your mobile phone on which the Guarding Vision applicaon is installed (download "Guarding Vision" through Google Play (Android) or the Apple Store (Apple iOS)) or by the website (www.guardingvision.com).

i NOTE

Please refer to the help le on the ocial website (www.guardingvision.com) and the Guarding Vision Mobile Client User Manual for adding the device to Guarding Vision and more operaon instrucons.

11.2.3 Conguring DDNS

Purpose

If your DVR is set to use PPPoE as its default network conncon, you may set Dynamic DNS (DDNS) to be used for network access.

Prior registraon with your ISP is required before conguring the system to use DDNS.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the DDNS tab to enter the DDNS Sengs interface.

Step 3 Check the Enable DDNS checkbox to enable this feature.

Step 4 Select DDNS Type. Three dierent DDNS types are selectable: DynDNS, PeanutHull and NO-IP.

- DynDNS:

1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the Device Domain Name text eld, enter the domain obtained from the DynDNS website.
3) Enter the User Name and Password registered in the DynDNS website.

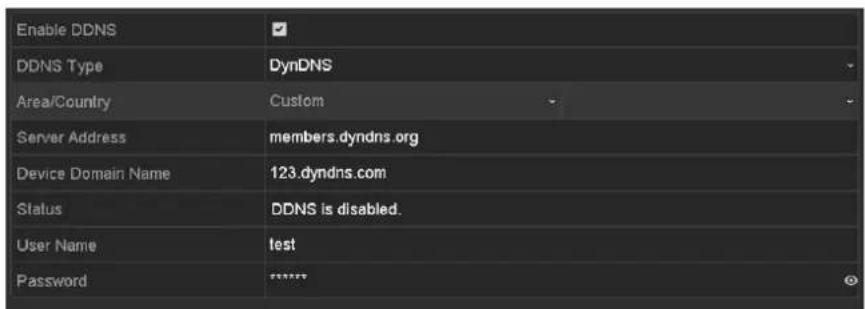

Figure 11-6 DynDNS Sengs Interface

- PeanutHull: Enter the User Name and Password obtained from the PeanutHull website.

Figure 11-7 PeanutHull Sengs Interface

NO-IP:

Enter the account informaon in the corresponding elds. Refer to the DynDNS sengs.

1) Enter Server Address for NO-IP.
2) In the Device Domain Name text eld, enter the domain obtained from the NO-IP website (www.no-ip.com).
3) Enter the User Name and Password registered in the NO-IP website.

Figure 11-8 NO-IP Sengs Interface

Step 5 Click the Apply buon to save and exit the interface.

11.2.4 Conguring NTP Server

Purpose

A Network Time Protocol (NTP) Server can be congured on your DVR to ensure the accuracy of system date/me.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the NTP tab to enter the NTP Sengs interface.

Enable NTP	✓
Interval (min)	60
NTP Server	210.72.145 44
NTP Port	123

Figure 11-9 NTP Sengs Interface

Step 3 Check the Enable NTP checkbox to enable this feature.

Step 4 Congure the following NTP sengs:

• Interval: Time interval between the two synchronizing acons with NTP server. The unit is minute.
  ● NTP Server: IP address of NTP server.

● NTP Port: Port of NTP server.

Step 5 Click the Apply buon to save and exit the interface.

NOTE

The me synchronizaon interval can be set from 1 to 10080 minutes, and the default value is 60 minutes. If the DVR is connected to a public network, you should use a NTP server that has a me synchronizaon funcon, such as the server at the Naonal Time Center (IP Address:

210.72.145.44). If the DVR is set in a more customized network, NTP soware can be used to establish a NTP server used for me synchronizaon.

11.2.5 Conguring NAT

Purpose

Universal Plug and Play (UPnP ^™ ) can permit the device seamlessly discover the presence of other network devices on the network and establish functional network services for data sharing, communicaons, etc. You can use the UPnP ^™ funcon to enable the fast conncon of the device to the WAN via a router without port mapping.

Before you start

If you want to enable the UPnP™ funcon of the device, you must enable the UPnP™ funcon of the router to which your device is connected. When the network working mode of the device is set as mul-address, the Default Route of the device should be in the same network segment as that of the LAN IP address of the router.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the NAT tab to enter the UPnP™ Sengs interface.

Figure 11-10 UPnP™ Sengs Interface

Step 3 Check Enable UPnP checkbox to enable UPnP™.

Step 4 Select the Mapping Type as Manual or Auto in the drop-down list.

OPTION 1: Auto

If you select Auto, the Port Mapping items are read-only, and the external ports are set by the router automacally.

1) Click Apply buon to save the sengs.
2) You can click Refresh buon to get the latest status of the port mapping.

Figure 11-11 UPnP™ Sengs Finished-Auto

OPTION 2: Manual

If you select Manual as the mapping type, you can edit the external port on your demand by clicking to acvate the External Port Sengs dialog box.

1) Click ☐ to acvate the External Port Sengs dialog box. Congure the external port No. for server port, hp port and RTSP port respectively.

i NOTE

● You can use the default port No., or change it according to actual requirements.
● External Port indicates the port No. for port mapping in the router.
- The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be dierent from each other. If mulple devices are congured for the UPnP™ sengs under the same router, the value of the port No. for each device should be unique.

Figure 11-12 External Port Sengs Dialog Box

2) Click Apply buon to save the sengs.
3) You can click Refresh buon to get the latest status of the port mapping.

Figure 11-13 UPnP™ Sengs Finished-Manual

11.2.6 Conguring More Sengs

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the More Sengs tab to enter the More Sengs interface.

Alarm Host IP
Alarm Host Port	0
Server Port	8000
HTTP Port	80
Multicast IP
RTSP Port	554
Output Bandwidth Limit	✓
Output Bandwidth (Mbps)	2

Figure 11-14 More Sengs Interface

Step 3 Congure the remote alarm host, server port, HTTP port, mulcast, and RTSP port.

- Alarm Host IP/Port: With a remote alarm host congured, the device will send the alarm event or exception message to the host when an alarm is triggered. The remote alarm host must have the CMS (Client Management System) sow are installed.

The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management System) soware (e.g., Guarding Expert) is installed, and the Alarm Host Port must be the same as the alarm monitoring port congured in the soware (default port is 7200).

- Mulcast IP: The mulcast can be congured to realize live view for more than the maximum number of cameras through network. A mulcast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging from 239.252.0.0 to 239.255.255.255.

When adding a device to the CMS (Client Management System) soware, the mulcast address must be the same as the device's mulcast IP.

- RTSP Port: The RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers.

Enter the RTSP port in the text eld of RTSP Port. The default RTSP port is 554, and you can change it according to dierent requirements.

- Server Port and HTTP Port: Enter the Server Port and HTTP Port in the text elds. The default Server Port is 8000 and the HTTP Port is 80, and you can change them according to dierent requirements.

i NOTE

The Server Port should be set to the range of 2000-65535 and it is used for remote client soware access. The HTTP port is used for remote IE access.

• Output Bandwidth Limit: You can check the checkbox to enable output bandwidth limit.
• Output Bandwidth: Aer enable the output bandwidth limit, input the output bandwidth in the text eld.

i NOTE

● Enabling output bandwidth limit and sengs output bandwidth opons are applicable.
● The output bandwidth limit is used for the remote live view and playback.
● The minimum output bandwidth is 2 Mbps.

Step 4 Click the Apply buon to save and exit the interface.

11.2.7 Conguring HTTPS Port

Purpose

HTTPS provides authencaon of the web site and associated web server that one is communicang with, which protects against Man-in-the-middle aacks. Perform the following steps to set the port number of hps.

Example

If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by inpung hps://192.0.0.64:443 via the web browser.

i NOTE

The HTTPS port can be only congured through the web browser.

Step 1 Open web browser, input the IP address of device, and the web server will select the language automacally according to the system language and maximize the web browser.

Step 2 Input the correct user name and password, and click Login buon to log in the device.

Step 3 Enter the HTTPS sengs interface.

Conguraon > Remote Conguraon > Network Sengs > HTTPS

Step 4 Create the self-signed cercate or authorized cercate.

Figure 11-15 HTTPS Sengs

OPTION 1: Create the self-signed cercate

1) Click the Create buon to create the following dialog box.

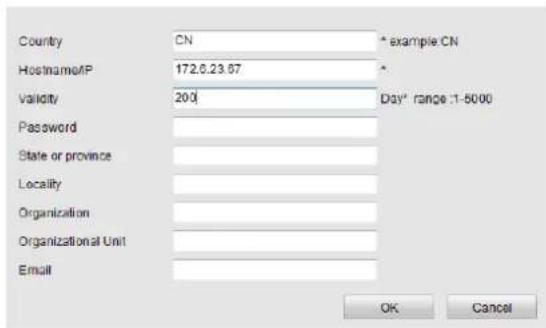

Figure 11-16 Create Self-signed Cercate

2) Enter the country, host name/IP, validity and other informaon.
3) Click OK to save the sengs.

OPTION 2: Create the authorized cercate

1) Click the Create buon to create the cercate request.
2) Download the cercate request and submit it to the trusted cercate authority for signature.
3) Aer receiving the signed valid cercate, import the cercate to the device.

Step 5 There will be the cercate informaon aer you successfully create and install the cercate.

Figure 11-17 Installed Cercate Property

Step 6 Check the checkbox to enable the HTTPS funcon.

Step 7 Click the Save buon to save the sengs.

11.2.8 Conguring Email

Purpose

The system can be congured to send an Email nocaon to all designated users if an event is detected, e.g. an alarm or moon event is detected, etc.

Before conguring the Email sengs, the DVR must be connected to a local area network (LAN) that maintains an SMTP mail server. The network must also be connected to either an intranet or the Internet depending on the locaon of the e-mail accounts to which you want to send nocaaon. Additional, the Preferred DNS server must be congured.

Before you start

Make sure you have congured the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the Network Sengs menu. Please refer to Chapter 11.1 Conguring General Sengs for detailed informaon.

Step 1 Enter the Network Sengs interface.

Menu > Conguraon > Network

Step 2 Select the Email tab to enter the Email Sengs interface.

Enable Server...	✓		SMTP Server
User Name			SMTP Port	25
Password			Enable SSL/T...	■
Sender
Sender's Address
Select Receivers		Receiver 1
Receiver
Receiver's Address
Enable Attached Picture		■
Interval		2s

Figure 11-18 Email Sengs Interface

Step 3 Congure the following Email sengs:

Enable Server Authencaon (oponal): Check the checkbox to enable the server authencaon feature.

User Name: The user account of sender's Email for SMTP server authencaon.

Password: The password of sender's Email for SMTP server authencaon.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.

Enable SSL (oponal): Click the checkbox to enable SSL if required by the SMTP server.

Sender: The name of sender.

Sender's Address: The Email address of sender.

Select Receivers: Select the receiver. Up to 3 receivers can be congured.

Receiver: The name of the receiver of the Email.

Receiver's Address: The Email address of the receiver.

Enable Aached Picture: Check the checkbox if you want to send email with aached alarm images. The interval is the me between two captures of the alarm images.

i NOTE

• For the IP cameras, the alarm images are directly sent as the aached pictures by Email. Up to one picture can be sent for one IP camera. The aached pictures of the linked cameras cannot be sent.
• For analog cameras, 3 aached pictures can be sent for one analog camera when the alarm is triggered.

Interval: The interval refers to the me between two acons of sending aached pictures.

E-mail Test: Sends a test message to verify that the SMTP server can be reached.

Step 4 Click the Apply buon to save the Email sengs.

Step 5 You can click the Test buon to test whether your Email sengs work. The corresponding Aenon message box pops up.

Figure 11-19 Email Tesng Aenon

11.2.9 Checking Network Trac

Purpose

You can check the network trac to obtain real-me informaon of DVR such as linking status, MTU, sending/receiving rate, etc.

Step 1 Enter the Network Trac interface.

Menu > Maintenance > Net Detect

Figure 11-20 Network Trac Interface

Step 2 You can view the sending rate and receiving rate informaon on the interface. The trac data is refreshed every 1 second.

11.3 Conguring Network Detecon

Purpose

You can obtain network connecng status of DVR through the network detecon funcon, including network delay, packet loss, etc.

11.3.1 Tesng Network Delay and Packet Loss

Step 1 Enter the Network Trac interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detecon tab to enter the Network Detecon interface.

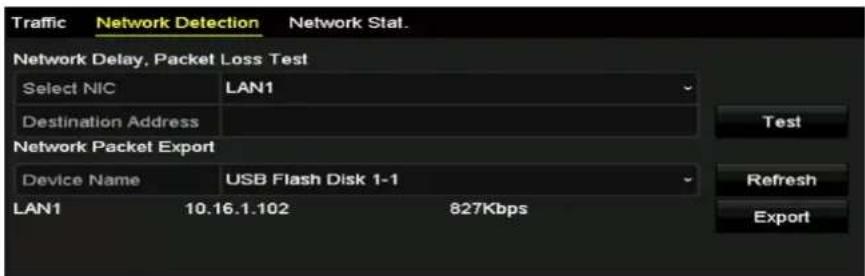

Figure 11-21 Network Detecon Interface

Step 3 Select a NIC to test network delay and packet loss.

Step 4 Enter the desnaon address in the text eld of Desnaon Address.

Step 5 Click the Test buon to start tesng network delay and packet loss.

11.3.2 Exporng Network Packet

Purpose

By connecng the DVR to network, the captured network data packet can be exported to USB-ash disk, SATA and other local backup devices.

Step 1 Enter the Network Trac interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detecon tab to enter the Network Detecon interface.

Step 3 Select the backup device from the drop-down list of Device Name.

Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, please check whether it is compatible with the DVR. You can format the backup device if the format is incorrect.

Figure 11-22 Export Network Packet

Step 4 Click the Export buon to start exporng.

Step 5 Aer the exporng is complete, click OK to nish the packet export.

Figure 11-23 Packet Export Aenon

Up to 1M data can be exported each me.

11.3.3 Checking Network Status

Purpose

You can also check the network status and quick set the network parameters in this interface.

Step 1 Enter the Network Trac interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detecon tab to enter the Network Detecon interface.

Step 3 Click Status on the right boom of the interface.

Figure 11-24 Checking Network Status

If the network is normal the following message box pops out.

Figure 11-25 Network Status Checking Result

If the message box pops out with other informaon instead of this one, you can click Network buon to show the quick seng interface of the network parameters.

Figure 11-26 Network Parameters Conguraon

11.3.4 Checking Network Stascs

Purpose:

You can check the network stascs to obtain the real-me informaon of the device.

Step 1 Enter the Network Stascs interface.

Menu > Maintenance> Net Detect

Step 2 Click the Network Stat. tab to enter the Network Stascs interface.

Figure 11-27 Network Stat. Interface

Step 3 View the bandwidth of Remote Live View, bandwidth of Remote Playback, and bandwidth of Net Total Idle.

Step 4 Click Refresh buon to get the latest bandwidth stascs.

Chapter 12 HDD Management

12.1 Inializing HDDs

Purpose

A newly installed hard disk drive (HDD) must be inialized before it can be used with your DVR.

Step 1 Enter the HDD Informaon interface.

Menu > HDD > General

Figure 12-1 HDD Informaon Interface

You can view the Total Capacity, Free Space and Remaining Recording Time of the HDD. The algorithm of the Remaining Recording Time is to use average bit rate for the channel enabling smart encoding to raise accuracy.

Step 2 Select HDD to be inialized.

Step 3 Click the Init buon.

Figure 12-2 Conrm Inializaon

Step 4 Select the OK buon to start inializaon.

Figure 12-3 Start Inializaon

Step 5 Aer the HDD has been initialized, the status of the HDD will change from Uninialized to Normal.

L...	Capacity	Status	Property	Type	Free Space	Gr...	Edit	D...
1	931.51GB	Normal	RAW	Local	927GB	1

Figure 12-4 HDD Status Changes to Normal

Initializing the HDD will erase all data on it.

The HDDs which are free of working for a long me can be enabled to sleep, thus to decrease the power consumption of the device and extend the life of the HDDs.

Click Menu > HDD > Advanced

Figure 12-5 Enable HDD Sleeping

Check the checkbox of Enable HDD Sleeping (by default), and the HDDs which are free of working for a long me will be set to sleep.

Uncheck the checkbox of Enable HDD Sleeping, and the HDDs will be set to work for all me.

12.2 Managing Network HDD

Purpose

You can add the allocated NAS or disk of IP SAN to DVR, and use it as network HDD.

Step 1 Enter the HDD Informaon interface.

Menu > HDD>General

Figure 12-6 HDD Informaon Interface

Step 2 Click the Add buon to enter the Add NetHDD interface, as shown in Figure 12-7.

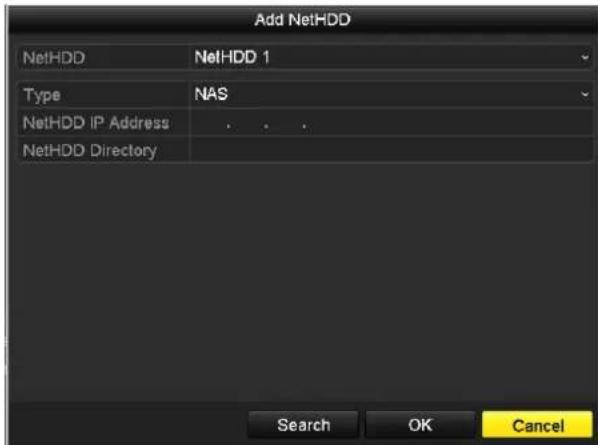

Figure 12-7 HDD Informaon Interface

Step 3 Add the allocated NetHDD.

Step 4 Select the type to NAS or IP SAN.

Step 5 Congure the NAS or IP SAN sengs.

- Add NAS disk:

1) Enter the NetHDD IP address in the text eld.
2) Click Search to search the available NAS disks.
3) Select the NAS disk from the list shown below.

Or you can just manually enter the directory in the text eld of NetHDD Directory.

4) Click OK to add the congured NAS disk.

Up to 8 NAS disks can be added.

Figure 12-8 Add NAS Disk

- Add IP SAN:

1) Enter the NetHDD IP address in the text eld.
2) Click the Search buon to the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK buon to add the selected IP SAN disk.

Up to 8 IP SAN disks can be added.

Figure 12-9 Add IP SAN Disk

5) Aer having successfully added the NAS or IP SAN disk, return to the HDD Informaon menu. The added NetHDD will be displayed in the list.

If the added NetHDD is uninitialized, please select it and click the Init buon for inializaon.

Figure 12-10 Inialize Added NetHDD

12.3 Managing HDD Group

12.3.1 Seng HDD Groups

Purpose

Mulple HDDs can be managed in groups. Video from specied channels can be recorded onto a parcular HDD group through HDD sengs.

Step 1 Enter the Storage Mode interface.

Menu > HDD > Advanced

Step 2 Set the Mode to Group, as shown in Figure 12-11.

Figure 12-11 Storage Mode Interface

Step 3 Click the Apply buon and the following Aenon box will pop up.

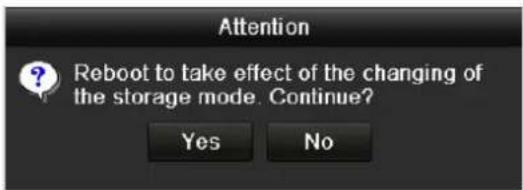

Figure 12-12 Aenon for Reboot

Step 4 Click the Yes buon to reboot the device to acvate the changes.

Step 5 Aer reboot of device, enter the HDD Informaon interface.

Menu > HDD > General

Step 6 Select HDD from the list and click the icon to enter the Local HDD Sengs interface, as shown in Figure 12-13.

Figure 12-13 Local HDD Sengs Interface

Step 7 Select the Group number for the current HDD.

The default group No. for each HDD is 1.

Step 8 Click the OK buon to conrm the sengs.

Figure 12-14 Conrm HDD Group Sengs

Step 9 In the pop-up Aenon box, click the Yes buon to nish the sengs.

12.3.2 Seng HDD Property

Purpose

The HDD property can be set to redundancy, read-only or read/write (R/W). Before seng the HDD property, please set the storage mode to Group (refer to step1-4 of Chapter 12.3.1 Seng HDD Groups).

A HDD can be set to read-only to prevent important recorded les from being overwrien when the HDD becomes full in overwrite recording mode.

When the HDD property is set to redundancy, the video can be recorded both onto the redundancy HDD and the R/W HDD simultaneously so as to ensure high security and reliability of video data.

Step 1 Enter the HDD Informaon interface.

Menu > HDD > General

Step 2 Select HDD from the list and click the 📋 icon to enter the Local HDD Sengs interface, as shown in Figure 12-15.

Figure 12-15 Set HDD Property

Step 3 Set the HDD property to R/W, Read-only or Redundancy.

Step 4 Click the OK buon to save the sengs and exit the interface.

Step 5 In the HDD Informaon menu, the HDD property will be displayed in the list.

At least 2 hard disks must be added on your DVR when you want to set a HDD to Redundancy, and there is one HDD with R/W property.

12.4 Conguring Quota Mode

Purpose

Each camera can be congured with allocated quota for the storage of recorded les.

Steps

Step 1 Enter the Storage Mode interface.

Menu > HDD > Advanced

Step 2 Click the Storage Mode tab.

Step 3 Set the Mode to Quota, as shown in Figure 12-16.

The DVR must be rebooted to enable the changes to take eect.

Figure 12-16 Storage Mode Sengs Interface

Step 4 Select a camera for which you want to congure quota.

Step 5 Enter the storage capacity in the text eld of Max. Record Capacity (GB).

Step 6 You can copy the quota sengs of the current camera to other cameras if required. Click the Copy buon to enter the Copy Camera interface, as shown in Figure 12-17.

Figure 12-17 Copy Sengs to Other Camera(s)

Step 7 Select the camera (s) to be congured with the same quota sengs. You can also click the checkbox of Analog to select all cameras.

Step 8 Click the OK buon to nish the Copy sengs and back to the Storage Mode interface.

Step 9 Click the Apply buon to apply the sengs.

If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.

12.5 Checking HDD Status

Purpose

You may check the status of the installed HDDs on DVR so as to take immediate check and maintenance in case of HDD failure.

Checking HDD Status in HDD Informaon Interface

Step 1 Enter the HDD Informaon interface.

Menu > HDD > General

Step 2 Check the status of each HDD which is displayed on the list, as shown in Figure 12-18.

Figure 12-18 View HDD Status (1)

If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninialized or Abnormal, please initialize the HDD before use. And if the HDD inializaon is failed, please replace it with a new one.

Checking HDD Status in System Informaon Interface

Step 1 Enter the System Informaon interface.
Menu > Maintenance > System Info
Step 2 Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure 12-19.

Label	Status	Capacity	Free Space	Property	Type	Group
1	Normal	931.51GB	900GB	R/W	Local	1
17	Normal	199.97GB	182GB	Redundancy	NAS	1

Figure 12-19 View HDD Status (2)

12.6 Checking S.M.A.R.T Informaon

Purpose

The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of ancipang failures.

Step 1 Enter the HDD Detect interface.

Menu > Maintenance > HDD Detect

Step 2 Click the S.M.A.R.T. Sengs tab to enter the interface.

Step 3 Select the HDD to view its S.M.A.R.T. informaon list, as shown in Figure 12-20.

If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the checkbox before the Connue to use this disk when self-evaluaon is failed item.

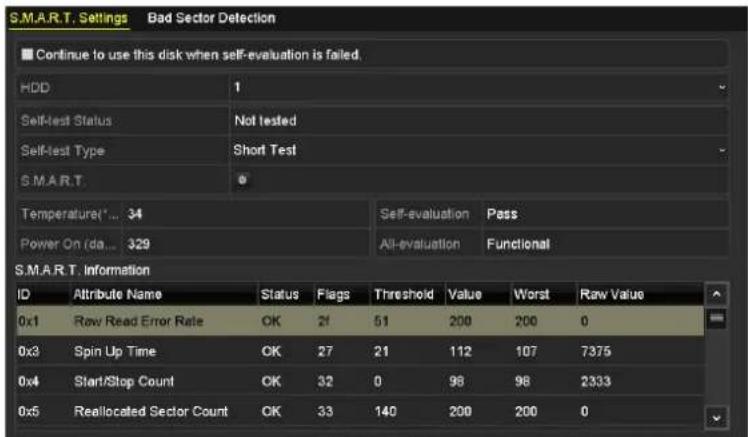

Figure 12-20 S.M.A.R.T Sengs Interface

12.7 Detecng Bad Sector

Purpose

You can detect the bad sector of the HDD to check the status of the HDD.

Step 1 Enter the HDD Detect interface.

Menu>HDD>HDD Detect

Step 2 Click the Bad Sector Detecon tab to enter the interface.

Step 3 Select a HDD and click the Detect buon to start detecng.

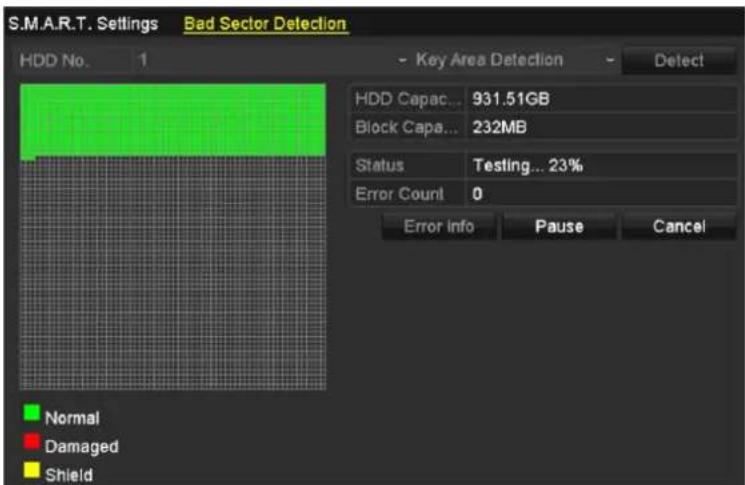

Figure 12-21 Bad Sector Detecng

Step 4 You can click the Pause button to pause the detecon and click the Resume buon to resume the detecon.

Step 5 If there is error informaon about the HDD, you can click the Error Info buon to view the informaon.

12.8 Conguring HDD Error Alarms

Purpose

You can congregate the HDD error alarms when the HDD status is Uninialized or Abnormal.

Step 1 Enter the Excepon interface.

Menu > Conguraon > Excepons

Step 2 Select the Excepon Type to HDD Error from the drop-down list.

Step 3 Check the checkbox(s) below to select the linkage acon(s) for HDD error, as shown in Figure 14-30.

The linkage acons can be selected to: Audible Warning, Nofy Surveillance Center, Send Email and Trigger Alarm Output.

Figure 12-22 Congure HDD Error Alarm

Step 4 When the Trigger Alarm Output is selected, you can also select the alarm output to be triggered from the list below.

Step 5 Click the Apply buon to save the sengs.

Chapter 13 Camera Sengs

13.1 Conguring OSD Sengs

Purpose

You can congregate the OSD (On-Screen Display) sengs for the camera, including date/me, camera name, etc.

Step 1 Enter the OSD Conguraon interface.

Menu > Camera > OSD

Step 2 Select the camera to congure OSD sengs.

Step 3 Edit the Camera Name in the text eld.

Step 4 Congure the Display Name, Display Date and Display Week by checking the checkbox.

Step 5 Select the Date Format, Time Format, Display Mode and the OSD Font.

Figure 13-1 OSD Conguraon Interface

Step 6 You can use the mouse to drag the text frame on the preview window to adjust the OSD posion.

Step 7 Copy Camera Sengs

1) If you want to copy the OSD sengs of the current camera to other cameras, click the Copy buon to enter the Copy Camera interface, as shown in Figure 13-2.

Figure 13-2 Copy Sengs to Other Cameras

2) Select the camera (s) to be congured with the same OSD sengs. You can also check the checkbox of Analog to select all cameras.
3) Click the OK buon to nish the Copy sengs and back to the OSD Conguraon interface.

Step 8 Click the Apply buon to apply the sengs.

13.2 Conguring Privacy Mask

Purpose

You are allowed to congregate the four-sided privacy mask zones that cannot be viewed or recorded by the operator.

Step 1 Enter the Privacy Mask Sengs interface.

Menu > Camera > Privacy Mask

Step 2 Select the camera to set privacy mask.

Step 3 Check the checkbox of Enable Privacy Mask to enable this feature.

Figure 13-3 Privacy Mask Sengs Interface

Step 4 Use the mouse to draw a zone on the window. The zones will be marked with dierent frame colors.

Up to 4 privacy mask zones can be congured, and the size of each area can be adjusted.

Step 5 The congured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.

Figure 13-4 Set Privacy Mask Area

Step 6 You can click the Copy buon to copy the privacy mask sengs of the current camera to other cameras.

Please refer to step 7 of Chapter 13.1 Conguring OSD Sengs.

Step 7 Click the Apply buon to save the sengs.

13.3 Conguring Video Parameters

13.3.1 Conguring Image Sengs

Step 1 Enter the Image Sengs interface.

Menu > Camera > Image

Step 2 Select the Image Sengs tab.

Figure 13-5 Image Sengs Interface (Analog Camera)

Figure 13-6 Image Sengs Interface (IP Camera)

Step 3 Select the camera to set image parameters.

Step 4 Two periods for dierent image sengs are provided, select the period name in the drop-down list.

The me periods cannot be overlapped with each other.

Step 5 Select the mode from the drop-down list of Mode, there are four modes selectable for the analog cameras: Standard, Indoor, Dim Light and Outdoor.

Step 6 Adjust the image parameters according to actual needs. The parameters include Brightness, Contrast, Saturaon, Hue, Sharpness and Denoising for the analog cameras and Brightness,

Contrast and Saturaon for the IP cameras. You can also click Restore to set the parameters to the default sengs.

Step 7 You can click Copy to copy the image sengs of the current camera to other cameras.

Step 8 Click Apply to save the sengs.

13.3.2 Conguring Camera Parameters Sengs

Step 1 Enter the Image Sengs interface.

Menu > Camera > Image

Step 2 Select the Camera Parameters Sengs tab.

Figure 13-7 Camera Parameters Sengs

Step 3 Select the Camera from the drop-down list.

Step 4 Adjust the camera parameters. The parameters include Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness for the analog cameras. You can also click Default to set the parameters to the default sengs.

Step 5 You can click Copy to copy the parameters of the current camera to other analog cameras.

Step 6 Click Apply to save the sengs.

i NOTE

● The camera parameters sengs is only applicable for ananlog cameras.
- The Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness funcons must be supported by the connected analog camera. You cannot set the parameters if the connected analog camera does not support them or there is no video signal.
● The parameters are saved to the connected analog camera and are not saved to the DVR.
- The default value of Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness is 5. The eecve value ranges from 1 to 9.
- If you exit from the interface and enter it again, the parameters displayed are those you have set the last me.
- The DVR connects to the analog camera via coaxitron and there is no response mechanism. Even if the coaxitron is abnormal, the parameters are sll displayed to be set successfully.

Chapter 14 DVR Management and Maintenance

14.1 Viewing System Informaon

Step 1 Enter the System Informaon interface.

Menu > Maintenance > System Info

Step 2 You can click the Device Info, Camera, Record, Network and HDD tabs to view the system informaon of the device.

Device Name	Embedded Net DVR
Model	DS-9016HUHI-F8/N
Serial No.	XXXXXXXXXXXXXXXXXXXXX
Firmware Version	V3.4.60, Build 160827
Hardware Version	0x81d00
Please scan the QR code via IVMS client.

Figure 14-1 System Informaon Interface

● You can view the hardware version in the Device Informaon interface.

14.2 Searching Log Files

Purpose

The operaon, alarm, excepon and informaon of the DVR can be stored in log les, which can be viewed and exported at any me.

Step 1 Enter the Log Search interface.

Menu > Maintenance > Log Informaon

Figure 14-2 Log Search Interface

Step 2 Set the log search conditions to rene your search, including the Start Time, End Time, Major Type and Minor Type.

Step 3 Click the Search buon to start search log les.

Step 4 The matched log les will be displayed on the list shown below.

Up to 2000 log les can be displayed each me.

Figure 14-3 Log Search Results

Step 5 You can click the ☑ buon of each log or double-click it to view its detailed informaon. And you can also click the ☒ buon to view the related video les if available.

Figure 14-4 Log Informaon Interface

Step 6 If you want to export the log les, click the Export buon to enter the Export menu, as shown in Figure 16-5.

Figure 14-5 Export Log Files

Step 7 Select the backup device from the drop-down list of Device Name.

Step 8 Click the Export to export the log les to the selected backup device.

You can click the New Folder buon to create new folder in the backup device, or click the Format buon to format the backup device before log export.

i NOTE

• Please connect the backup device to DVR before operang log export.
• The log les exported to the backup device are named by exporng me, e.g., 20110514124841logBack.txt.

14.3 Imporng/Exporng IP Camera Info

Purpose

The informaon of added IP camera can be generated into an excel le and exported to the local device for backup, including the IP address, manage port, password of admin, etc. And the exported le can be edited on your PC, like adding or deleng the content, and copy the seng to other devices by imporng the excel le to it.

Step 1 Enter the camera management interface.

Menu > Camera > Camera

Click the IP Camera Import/Export tab, the content of detected plugged external device appears.

Step 2 Click the Export buon to export conguraon les to the selected local backup device.

Step 3 To import a conguraon le, select the le from the selected backup device and click the Import buon. Aer the imporg process is completed, you must reboot the DVR.

14.4 Imporng/Exporng Conguraon Files

Purpose

The conguraon les of the DVR can be exported to local device for backup; and the conguraon les of one DVR can be imported to mulple DVR devices if they are to be congured with the same parameters.

Step 1 Enter the Import/Export Conguraon File interface.

Menu > Maintenance > Import/Export

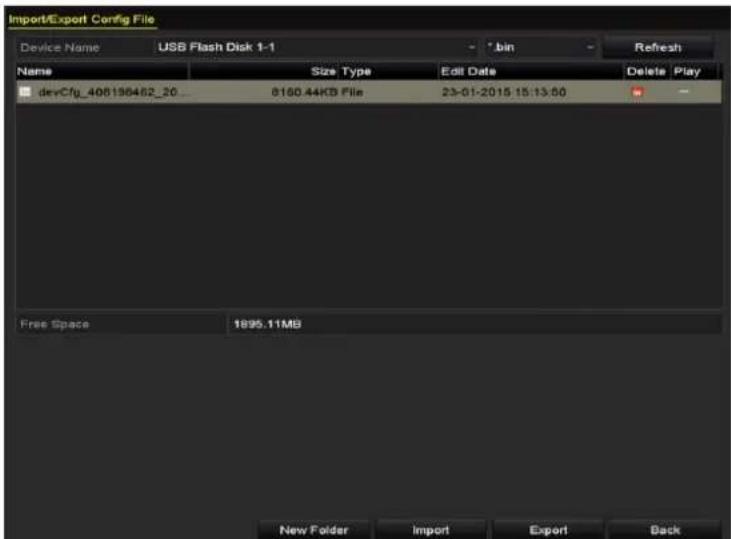

Figure 14-6 Import/Export Conguraon File

Step 2 Click the Export buon to export conguraon les to the selected local backup device.

Step 3 To import a conguraon le, select the le from the selected backup device and click the Import buon. Aer the import process is completed, you must reboot the DVR.

Aer having nished the import of conguraon les, the device will reboot automacally.

14.5 Upgrading System

Purpose

The rmware on your DVR can be upgraded by local backup device or remote FTP server.

14.5.1 Upgrading by Local Backup Device

Step 1 Connect your DVR with a local backup device where the update rmware le is located.

Step 2 Enter the Upgrade interface.

Menu > Maintenance > Upgrade

Step 3 Click the Local Upgrade tab to enter the Local Upgrade interface, as shown in Figure 14-7.

Figure 14-7 Local Upgrade Interface

Step 4 Select the update le from the backup device.

Step 5 Click the Upgrade buon to start upgrading.

Step 6 Aer the upgrading is complete, reboot the DVR to acvate the new rmware.

14.5.2 Upgrading by FTP

Before you start

Congure PC (running FTP server) and DVR to the same Local Area Network. Run the 3 ^rd -party TFTP soware on the PC and copy the rmware into the root directory of TFTP.

Step 1 Enter the Upgrade interface.

Menu > Maintenance > Upgrade

Step 2 Click the FTP tab to enter the Local Upgrade interface, as shown in Figure 14-8.

Figure 14-8 FTP Upgrade Interface

Step 3 Enter the FTP Server Address in the text eld.

Step 4 Click the Upgrade buon to start upgrading.

Step 5 Aer the upgrading is complete, reboot the DVR to acvate the new rmware.

14.6 Restoring Default Sengs

Step 1 Enter the Default interface.

Menu > Maintenance > Default

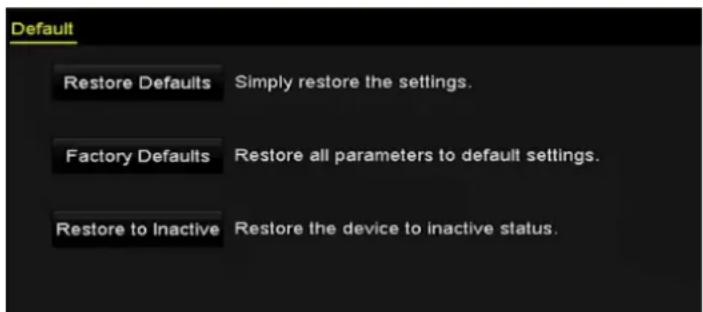

Figure 14-9 Restore Defaults

Step 2 Select the restoring type from the following three opons.

Restore Defaults: Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default sengs.

Factory Defaults: Restore all parameters to the factory default sengs.

Restore to Inacve: Restore the device to the inacve status.

Step 3 Click the OK buon to restore the default sengs.

The device will reboot automacally aer restoring to the default sengs.

Chapter 15 Others

15.1 Conguring General Sengs

Purpose

You can congregate the output resolution, system me, mouse pointer speed, etc.

Step 1 Enter the General Sengs interface.

Menu > Conguraon > General

Step 2 Select the General tab.

Figure 15-1 General Sengs Interface

Step 3 Congure the following sengs:

● Language: The default language used is English.
- Output Standard: Select the output standard to be PAL or NTSC.
- VGA/HDMI Resoluon: Select the output resoluon, which must be the same with the resoluon of the VGA/HDMI display.
● Time Zone: Select the me zone.
● Date Format: Select the date format.
● System Date: Select the system date.
● System Time: Select the system me.
- Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are congorable.
- Enable Wizard: Enable/disable the Wizard when the device starts up.
- Enable Password: Enable/disable the use of the login password.

If you check the checkbox of Enable Password, every me when you log in to the DVR, the Unlock Paern interface will pop up. If you uncheck the checkbox of Enable Password, when you log in to the DVR, the Unlock Paern interface will not pop up.

Step 4 Click the Apply buon to save the sengs.

15.2 Conguring DST Sengs

Step 1 Enter the General Sengs interface.

Menu >Conguraon>General

Step 2 Choose DST Sengs tab.

Figure 15-2 DST Sengs Interface

You can check the checkbox before the Auto DST Adjustment item.

Or you can manually check the Enable DST checkbox, and then you choose the date of the DST period.

15.3 Conguring More Sengs

Step 1 Enter the General Sengs interface.

Menu > Conguraon > General

Step 2 Click the More Sengs tab to enter the More Sengs interface, as shown in the following gures.

General DST Settings More Settings
Device Name	Embedded Net DVR
Device No.	255
Auto Logout	30 Minutes
Menu Output Mode	Auto
Encoding Mode	Non-Real-Time Mode

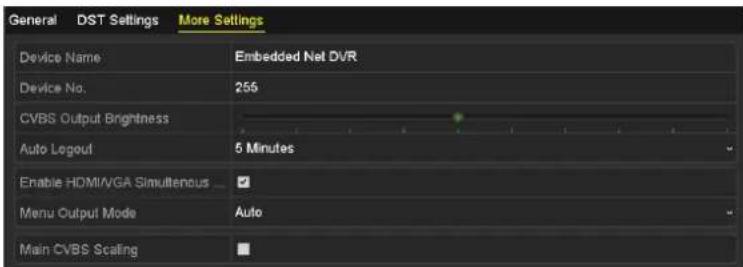

Figure 15-3 More Sengs Interface (1)

Figure 15-4 More Sengs Interface (2)

Figure 15-5 More Sengs Interface (3)

Figure 15-6 More Sengs Interface (4)

Step 3 Congure the following sengs:

● Device Name: Edit the name of DVR.
- Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1\~255, and the default No. is 255.
- Auto Logout: Set meout me for menu inacvity. E.g., when the meout me is set to 5 Minutes, then the system will exit from the current operaon menu to live view screen aer 5 minutes of menu inacvity.
- Menu Output Mode: You can choose the menu display on dierent video output.
- Main CVBS Scaling: You can check the checkbox to enable main CVBS scaling.

Step 4 Click the Apply buon to save the sengs.

15.4 Managing User Accounts

Purpose

There is a default account in the DVR: Administrator. The Administrator user name is admin and the password is set when you start the device for the rst me. The Administrator has the permission to add and delete user and congure user parameters.

15.5.1 Adding a User

Step 1 Enter the User Management interface.

Menu >Conguraon>User

Figure 15-7 User Management Interface

Step 2 Click the Add buon to enter the Add User interface.

Figure 15-8 Add User Menu

Step 3 Enter the informaon for new user, including User Name, Password, Conrm, Level and User's MAC Address.

Password: Set the password for the user account.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

Level: Set the user level to Operator or Guest. Dierent user levels have dierent operang permission.

• Operator: The Operator user level has permission of Two-way Audio in Remote Conguraon and all operang permission in Camera Conguraon by default.
• Guest: The Guest user has no permission of Two-way Audio in Remote Conguraon and only has the local/remote playback in the Camera Conguraon by default.

User's MAC Address: The MAC address of the remote PC which logs onto the DVR. If it is congured and enabled, it only allows the remote user with this MAC address to access the DVR.

Step 4 Click the OK buon to save the sengs and go back to the User Management interface. The added new user will be displayed on the list, as shown in Figure 15-9.

Figure 15-9 Added User Listed in User Management Interface

Step 5 You can assign permissions for the added user.

1) Select the user from the list and then click ✅ to enter the Permission Sengs interface, as shown in Figure 15-10.

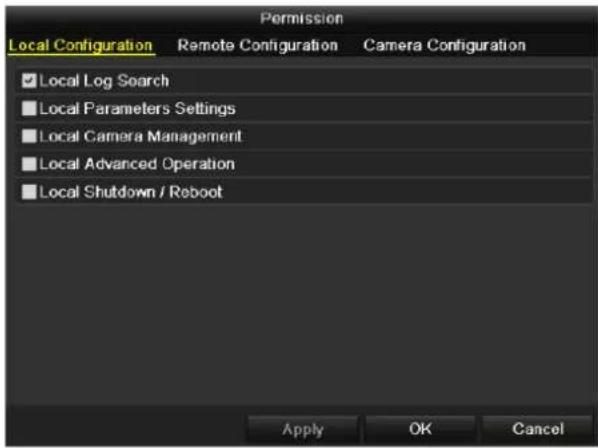

Figure 15-10 User Permission Sengs Interface

2) Set the operang permission of Local Conguraon, Remote Conguraon and Camera Conguraon for the user.

Local Conguraon

• Local Log Search: Searching and viewing logs and system informaon of device.
• Local Parameters Sengs: Conguring parameters, restoring factory default parameters and imporng/exporng conguraon les.
• Local Camera Management: Enabling and disabling analog camera (s). Adding, deleng and eding of network camera (s).
• Local Advanced Operaon: Operang HDD management (initializing HDD, seng HDD property), upgrading system rmware.
• Local Shutdown /Reboot: Shung down or reboong the device.

Remote Conguraon

• Remote Log Search: Remotely viewing logs that are saved on the device.
• Remote Parameters Sengs: Remotely conging parameters, restoring factory default parameters and imporg/exporg conguraon les.
• Remote Camera Management: Remotely enabling and disabling analog camera (s), and adding, deleng and eding of network camera (s).
  ● Remote Serial Port Control: Conguring sengs for RS-485 port.
  ● Remote Video Output Control: Sending remote control panel signal.
  ● Two-way Audio: Realizing two-way radio between the remote client and the device.
• Remote Alarm Control: Remotely arming (nofy alarm and excepon message to the remote client) and controlling the alarm output.
• Remote Advanced Operaon: Remotely operang HDD management (inializing HDD, seng HDD property), upgrading system rmware.

- Remote Shutdown/Reboot: Remotely shung down or reboong the device.

Camera Conguraon

• Remote Live View: Remotely viewing live video of the selected camera (s).
• Local Manual Operaon: Locally starng/stopping manual recording, picture capturing and alarm output of the selected camera (s).
• Remote Manual Operaon: Remotely starng/stopping manual recording, picture capturing and alarm output of the selected camera (s).
• Local Playback: Locally playing back recorded les of the selected camera (s).
• Remote Playback: Remotely playing back recorded les of the selected camera (s).
• Local PTZ Control: Locally controlling PTZ movement of the selected camera (s).
• Remote PTZ Control: Remotely controlling PTZ movement of the selected camera (s).
• Local Video Export: Locally exporng recorded les of the selected camera (s).

Local Camera Management is provided for the IP cameras only.

3) Click OK to save the sengs and exit.

15.5.2 Deleng a User

Step 1 Enter the User Management interface.

Menu >Conguraon>User

Step 2 Select the user to be deleted from the list, as shown in Figure 15-11.

Figure 15-11 User List

Step 3 Click to delete the selected user account.

15.5.3 Eding a User

Purpose

For the added user accounts, you can edit the parameters.

Step 1 Enter the User Management interface.

Menu >Conguraon>User

Step 2 Select the user to be edited from the list, as shown in Figure 15-11.

Step 3 Click the 📋 icon to enter the Edit User interface, as shown in Figure 15-12.

Figure 15-12 Edit User Interface

Step 4 Edit the corresponding parameters.

- Operator and Guest

You can edit the user informaon, including user name, password, permission level and MAC address. Check the checkbox of Change Password if you want to change the password, and input the new password in the text eld of Password and Conrm. A strong password is recommended.

- Admin

You are only allowed to edit the password and MAC address. Check the checkbox of Change Password if you want to change the password, and input the correct old password, and the new password in the text eld of Password and Conrm.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

NOTE

Hold the icon and you can see the clear text of the password. Release the mouse and the content of the password restores invisible.

Step 5 Edit the unlock paern for the admin user account.

1) Check the checkbox of Enable Unlock Paern to enable the use of unlock paern when logging in to the device.
2) Use the mouse to draw a paern among the 9 dots on the screen. Release the mouse when the paern is done.
3) Conrm the paern again with the mouse.

Please refer to Chapter 2.3.1 Conguring the Unlock Paern for detailed instrucons.

Figure 15-13 Set Unlock Paer for Admin User

Step 6 (Oponal) Click 📄 icon aer Draw Unlock Paern to modify the paern.

Step 7 (Oponal) Click icon aer Export GUID to pop up the Reset Password interface. Click Export buon to export GUID to the USB ash disk for retrieving the forgoen password. Then a GUID le will be saved in the USB ash disk.

Figure 15-14 Export GUID

You must input the correct old password of the admin before exporng GUID.

Step 8 Click the OK buon to save the sengs and exit from the menu.

Step 9 (Oponal) For the Operator or Guest user account, you can also click the the User Management interface to edit the permission.

√ bouon on

Chapter 16 Appendix

16.1 Specicaons

Model		C8XVR
Video/Audio input	Video compression	H.264+/H.264
	Analog video input	8-ch
		BNC interface (1.0 Vp-p, 75 Ω), supporng coaxitron conncon
	HDTV I input	1080p25, 1080p30, 720p25, 720p30
	AHD input	720p25, 720p30
	HDCVI input	720p25, 720p30
	CVBS input	Support
	IP video input	2-ch
		Up to 1080p resoluon
	Audio compression	G.711u
	Audio input/Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output	HDMI/VGA output	1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz 1024 × 768/60Hz
	Encoding resoluon	When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
	Frame rate	Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:4CIF/2CIF@6fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
	Video bit rate	32 Kbps to 4 Mbps
	Audio output	1-ch, RCA (Linear, 1 KΩ)
	Audio bit rate	64 Kbps
	Dual-stream	Support
	Stream type	Video, Video & Audio
	Synchronous playback	8-ch
Network management	Remote conncons	128
	Network protocols	TCP/IP, PPPoE, DHCP, Guarding Vision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
Hard disk	SATA	1 SATA interface
	Capacity	Up to 6 TB capacity for each disk
External interface	Network interface	1, RJ-45 10M/100M self-adapve Ethernet interface
	USB interface	Rear panel: 2 × USB 2.0
General	Power supply	12 VDC
	Consumpon (without HDD)	≤ 12 W
	Working temperature	-10 °C to +55 °C (14 °F to 131 °F)
	Working humidity	10% to 90%
	Dimensions (W × D × H)	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
	Weight	≤ 1 kg (2.2 lb) (without HDD)

16.2 Glossary

• Dual-Stream: Dual-stream is a technology used to record high resolution video locally while transming a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 1080P and the sub-stream having a maximum resolution of CIF.
• DVR: Acronym for Digital Video Recorder. A DVR is device that is able to accept video signals from analog cameras, compress the signal and store it on its hard drives.
• HDD: Acronym for Hard Disk Drive. A storage medium which stores digitally encoded data on plaers with magnec surfaces.
• DHCP: Dynamic Host Conguraon Protocol (DHCP) is a network applicaon protocol used by devices (DHCP clients) to obtain conguraon informaon for operaon in an Internet Protocol network.
• HTTP: Acronym for Hypertext Transfer Protocol. A protocol to transfer hypertext request and informaon between servers and browsers over a network
• PPPoE: PPPoE, Point-to-Point Protocol over Ethernet, is a network protocol for encapsulang Point-to-Point Protocol (PPP) frames inside Ethernet frames. It is used mainly with ADSL services where individual users connect to the ADSL transceiver (modem) over Ethernet and in plain Metro Ethernet networks.
• DDNS: Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device, such as a router or computer system using the Internet Protocol Suite, to nofy a domain name server to change, in real me (ad-hoc) the acve DNS conguraon of its congured hostnames, addresses or other informaon stored in DNS.
  • Hybrid DVR: A hybrid DVR is a combinaon of a DVR and NVR.
• NTP: Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of computers over a network.
• NTSC: Acronym for Naonal Television System Commiee. NTSC is an analog television standard used in such countries as the United States and Japan. Each frame of an NTSC signal contains 525 scan lines at 60Hz.
• NVR: Acronym for Network Video Recorder. An NVR can be a PC-based or embedded system used for centralized management and storage for IP cameras, IP Domes and other DVRs.
• PAL: Acronym for Phase Alternang Line. PAL is also another video standard used in broadcast televisions systems in large parts of the world. PAL signal contains 625 scan lines at 50Hz.
• PTZ: Acronym for Pan, Tilt, Zoom. PTZ cameras are motor driven systems that allow the camera to pan le and right, lt up and down and zoom in and out.
• USB: Acronym for Universal Serial Bus. USB is a plug-and-play serial bus standard to interface devices to a host computer.

16.3 Troubleshoong

- No image displayed on the monitor aer the device is starng up normally.

Possible Reasons:

— No VGA or HDMI conneccons.
— Connecon cable is damaged.
— Input mode of the monitor is incorrect.

Step 1 Verify the device is connected with the monitor via HDMI or VGA cable.

If not, please connect the device with the monitor and reboot.

Step 2 Verify the conneccon cable is good.

If there is sll no image display on the monitor aer reboong, please check if the conncon cable is good, and change a cable to connect again.

Step 3 Verify Input mode of the monitor is correct.

Please check the input mode of the monitor matches with the output mode of the device (e.g. if the output mode of DVR is HDMI output, then the input mode of monitor must be the HDMI input). And if not, please modify the input mode of monitor.

Step 4 Check if the fault is solved by the step 1 to step 3.

If it is solved, nish the process.

If not, please contact the engineer from our company to do the further process.

● There is a beep sound aer a new bought device starts up.

Possible Reasons:

— No HDD is installed in the device.
— The installed HDD has not been inialized.
— The installed HDD is not compatible with the device or is broken-down.

Step 1 Verify at least one HDD is installed in the device.

1) If not, please install the compatible HDD.

Please refer to the "Quick Installaon Guide" for the HDD installaon steps.

2) If you do not want to install a HDD, select "Menu>Conguraon > Excepons", and uncheck the Audible Warning checkbox of "HDD Error".

Step 2 Verify the HDD is inialized.

1) Select "Menu>HDD>General".
2) If the status of the HDD is "Uninialized", please check the checkbox of corresponding HDD and click the "Init" buon.

Step 3 Verify the HDD is detected or is in good condition.

1) Select "Menu>HDD>General".
2) If the HDD is not detected or the status is "Abnormal", please replace the dedicated HDD according to the requirement.

Step 4 Check if the fault is solved by the step 1 to step 3.

1) If it is solved, nish the process.
2) If not, please contact the engineer from our company to do the further process.

● Live view stuck when video outputs locally.

Possible Reasons:

— The frame rate has not reached the real-me frame rate.

Step 1 Check the parameters of Main Stream (Connnuous) and Main Stream (Event).

Select "Menu > Record > Parameters > Record", and set the resoluon of Main Stream (Event) the same as the one of Main Stream (Connuous).

Step 2 Verify the frame rate is real-me frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame Rate to Full Frame.

Step 3 Check if the fault is solved by the above steps.

If it is solved, nish the process.

If not, please contact the engineer from our company to do the further process.

- When using the device to get the live view audio, there is no sound or there is too much noise, or the volume is too low.

Possible Reasons:

— Cable between the pickup and camera is not connected well; impedance mismatches or incompatible.
— The stream type is not set as "Video & Audio".

Step 1 Verify the cable between the pickup and camera is connected well; impedance matches and compatible.

Step 2 Verify the seng parameters are correct.

Select "Menu > Record > Parameters > Record", and set the Stream Type as "Audio & Video".

Step 3 Check if the fault is solved by the above steps.

If it is solved, nish the process.

If not, please contact the engineer from our company to do the further process.

● The image gets stuck when DVR is playing back by single or mul-channel cameras.

Possible Reasons:

— The frame rate is not the real-me frame rate.

— The DVR supports up to 8-channel synchronize playback at the resoluon of 4CIF, if you want a 8-channel synchronize playback at the resoluon of 720p, the frame extracng may occur, which leads to a slight stuck.

Step 1 Verify the frame rate is real-me frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame Rate to "Full Frame".

Step 2 Verify the hardware can aord the playback.

Reduce the channel number of playback.

Select "Menu > Record > Encoding > Record", and set the resoluon and bitrate to a lower level.

Step 3 Reduce the number of local playback channel.

Select "Menu > Playback", and uncheck the checkbox of unnecessary channels.

Step 4 Check if the fault is solved by the above steps.

If it is solved, nish the process.

If not, please contact the engineer from our company to do the further process.

- No record le found in the device local HDD, and the prompt "No record le found" pops up when you search the record les.

Possible Reasons:

— The me seng of system is incorrect.
— The search condition is incorrect.
— The HDD is error or not detected.

Step 1 Verify the system me seng is correct.

Select "Menu > Conguraon > General > General", and verify the "System Time" is correct.

Step 2 Verify the search condition is correct.

Select "Playback", and verify the channel and me are correct.

Step 3 Verify the HDD status is normal.

Select "Menu > HDD > General" to view the HDD status, and verify the HDD is detected and can be read and written normally.

Step 4 Check if the fault is solved by the above steps.

If it is solved, nish the process.

If not, please contact the engineer from our company to do the further process.
