Product Type	Car Audio Monoblock Amplifier
Model	JackHammer JH15001
Brand	MTX Audio
Power Output (RMS)	1500W x 1 channel @ 1 ohm
Power Output (Max)	3000W x 1 channel @ 1 ohm
Frequency Response	10 Hz – 250 Hz
Low Pass Filter	50 Hz – 250 Hz (variable)
Subsonic Filter	15 Hz – 40 Hz (variable)
Bass Boost	0 – 18 dB @ 45 Hz
Input Sensitivity	200 mV – 8 V
Dimensions (L x W x H)	20.5 in x 8.25 in x 2.25 in
Weight	18.5 lbs
Power Supply	12V DC (10 – 16 V)
Fuse Rating	300A (external fuse recommended)
Speaker Impedance	1 – 8 ohms
Cooling	Convection cooled with heatsink
Protection Circuits	Thermal, short circuit, DC offset, overcurrent
Controls	Gain, low pass crossover, subsonic, bass boost
Connectivity	Line level inputs, speaker outputs, remote turn-on
Maintenance	Wipe with dry cloth; avoid moisture
Safety Precautions	Disconnect battery before installation; use proper gauge wiring
Spare Parts	Fuses, remote knob (available separately)
Repairability	Repair by qualified technician; no user-serviceable parts

Frequently Asked Questions - JackHammer JH15001 MTX Audio

What is the RMS power output of the MTX JackHammer JH15001?

The MTX JackHammer JH15001 delivers 1500 watts RMS at 1 ohm and up to 3000 watts max.

What impedance can this amplifier handle?

The amplifier is stable down to 1 ohm and can handle up to 8 ohms.

What size fuse is required for the JH15001?

A 300A external fuse is recommended for proper protection.

Can I use this amplifier for full-range speakers?

No, it is a monoblock subwoofer amplifier with a low-pass filter optimized for subwoofers.

How do I adjust the bass boost?

Use the bass boost control on the amplifier, adjustable from 0 to 18 dB at 45 Hz.

What are the dimensions of the JH15001?

The amplifier measures 20.5 x 8.25 x 2.25 inches (L x W x H).

Is the amplifier protected against overheating?

Yes, it has thermal protection that shuts down the amplifier if it gets too hot.

What gauge wire should I use for power and ground?

Use at least 1/0 AWG wire for power and ground connections to handle the current draw.

Can I bridge two JH15001 amplifiers?

No, these are monoblock amplifiers and cannot be bridged. Instead, use one amplifier per subwoofer.

Where can I find the user manual?

The user manual can be downloaded for free from notice-facile.com in PDF format.

USER MANUAL JackHammer JH15001 MTX Audio

JACKHAMMER SERIES AMPLIFIER

OWNER'S MANUAL

Use your smartphone to scan or visit youtube.com/user/MTXAudioUSA to learn how to properly install this amplifier.

PRODUCT INFORMATION

Model #
Serial #
Dealer's Name
Date of Purchase

INTRODUCTION

Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations and enjoy the ultimate audio experience with MTX!

FEATURES

• Double Sided PCB
  • Surface Mount Components
• MOSFET Design
  • LPF and HPF Crossover
• Adjustable Bass Boost (Mono and 5-Channel)
• Auto Turn On
• Noise Free Design
• Short, Thermal, and High/Low Voltage Protection

CONTROL FUNCTIONS

1. Speakers - Connect speakers/subwoofers to these terminals. Be sure to check wire for proper polarity. Never connect the speaker cables to the chassis ground.
2. +BATT (+12 Volt Power) - Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of the vehicle battery or the positive terminal of an isolated audio system battery. WARNING: Always protect this power cable by installing a fuse or circuit breaker of the appropriate gauge within 18 inches (45cm) of the battery terminal connection.
3. Remote - This terminal turns on the amplifier when (+) 12 volt is applied to it. Connect it to the remote turn on lead of the head unit or signal source.
4. GND - Connect this cable directly to the frame of the vehicle. Make sure the metal frame has been stripped of all paint down to the bare metal. Use the shortest distance possible. It is always a good idea to replace the factory ground at this time with a cable equal or larger than the new amplifier power cable. CAUTION: Do not connect this terminal directly to the vehicle battery ground terminal or any other factory ground points.
5. RCA Input Jacks - These RCA input jacks are for use with source units that have RCA outputs. A source unit with a minimum level of 200mV is required for proper operation. The use of high quality twisted pair cables is recommended to decrease the possibility of radiated noise entering the system.
6. Level Control - The Level, or Gain control will match the amplifier's sensitivity to the source units signal voltage. The operating range is 5V to 200mV. NOTE: This is NOT a volume control.
7. Low Pass Filter Control (Mono Block) - This control is used to select the desired low pass x-over frequency. The frequency can be adjusted from 40Hz to 250Hz for all bass mono models.
8. Subsonic Filter Control (Mono Block) - This control can filter out unwanted low frequency from 10Hz (OFF) to 50Hz. This function should only be used with vented enclosures.
9. Bass Boost Level (Mono Block) - This can boost bass level up to 18dB. The boost frequency is centered at 45Hz.
10. X-OVER (Full Range) - Selectable low pass, full range, or high pass filter controls the frequencies played for the front and rear channels.
11. X-Over Frequency Control - These controls allow control over the frequencies played for the front, rear, or subwoofer channels. In LP or HP mode, the crossover frequency can be tuned from 40Hz to 250Hz.
12. Auto Turn On Switch - Each model features auto turn on technology allowing installation without the use of a remote wire. If using a factory or aftermarket radio that does not include RCA outputs, the amplifier can be connected to the source unit using a speaker wire to RCA connection. The Remote Turn On switch when placed in the "Audio" position will allow the unit to turn itself on without the need to connect a remote wire. In the "Rem" position the unit will require a remote wire connection to turn on.
13. Input Mode - Push button switch on multi-channel models that tells the amplifier to play in either 4-CH or 5-CH mode (JH7005) or 2-CH or 4-CH mode (JH3004).
14. Input Level - Select Pre In if installing with a head unit that includes RCA outputs or Speaker Level In if installing with a factory head unit or head unit without RCA outputs.
15. EBC - Input connection for external bass control that is included with mono and 5-channel models.

PANEL LAYOUT

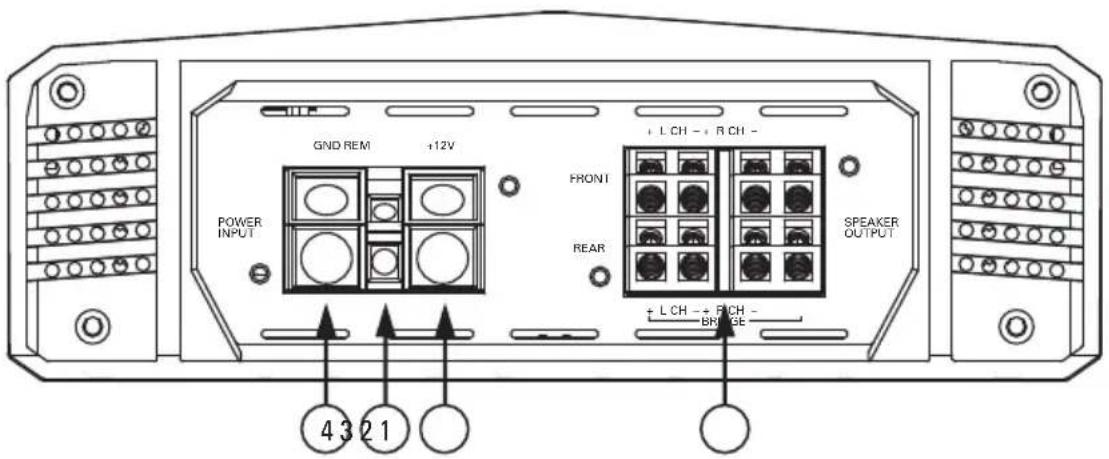

JH3004 4-Channel Amplifier Panel Layout

PANEL LAYOUT

JH7005 5-Channel Amplifier Panel Layout

PANEL LAYOUT

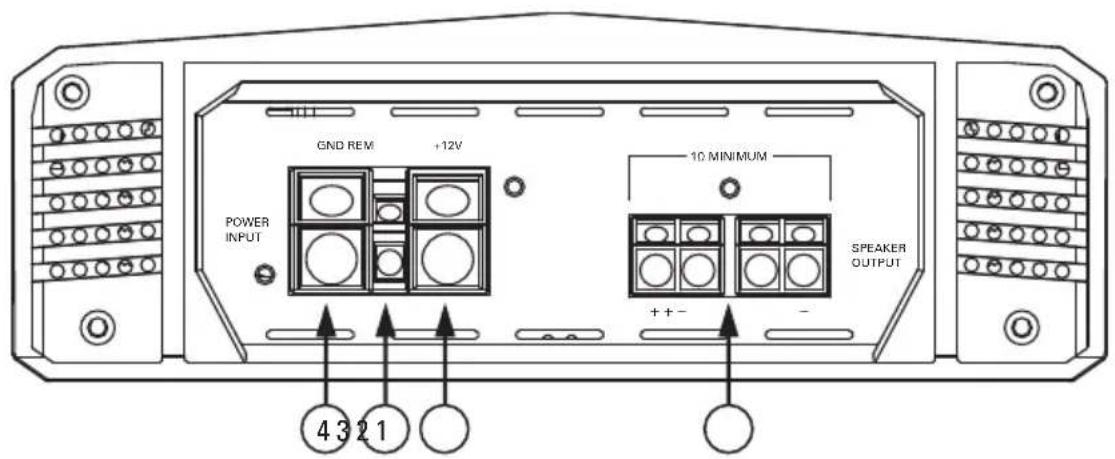

JH5001 / JH10001 / JH15001 Mono Block Amplifier Panel Layout

WIRING DIAGRAM

See page 28 for amplifier wiring diagrams.

INSTALLATION AND MOUNTING

MTX recommends your new JACKHAMMER amplifier be installed by a 12 volt installation specialist. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicle's electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to system turn on.

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX amplifier. Keep in mind there should be sufficient air flow for proper cooling. Mark the mounting holes from the amplifier to be drilled. Before drilling make sure all vehicle wires, gas lines, brake lines and gas tank are clear and will not interfere with installation. Drill the desired holes and mount the MTX amplifier.
3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier's (+BATT) terminal. Do not connect to the battery at this time. NOTE: Use only proper gauge wire for both positive and negative connections.
4. Install a circuit breaker or fuse within 18 inches of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuit breaker is switched Off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.
5. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the MTX amplifier.
6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier's (REM) terminal. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit's Power Antenna lead.
7. Supply the signal to your MTX amplifier by connecting the signal cables using high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier.
8. Connect your speakers to your MTX amplifier's speaker terminals using the correct gauge speaker wire. Your MTX amp can drive a 2Ω (JH3004 & JH7005) or 1Ω (JH5001, JH10001 & JH15001) minimum load for optimum power.
9. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker On or place the fuse in the fuse holder.

NOTE: Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

INSTALLATION

For proper performance and safety, MTX recommends installing an inline fuse per the owner's manual instructions according to the following.

JH15001 150A Fuse (External)

JH10001 100A Fuse (External)

JH5001 60A Fuse

JH7005 100A Fuse

JH3004 50A Fuse

TROUBLESHOOTING

Problem Cause Solution
No LED Indication	No +12V at Remote Connection Supply	+12V to Terminal
	No +12V at Power Connection Supply	+12V to Terminal
	Insufficient Ground Connection Verify	Ground Connection
	Blown Power Fuse Replace Fuse
Power LED On, No Output	Volume on Source Unit Off Increase Volume on Source Unit
	Speaker Connections Not Made Make	Speaker Connections
	Gain Control on Amplifier Off Turn Up Gain
	Signal Processing Units Off Apply Power to Signal Processor
	All Speakers Blown Replace Speakers
Output Distorted	Head Unit Volume Set Too High Lower	Head Unit Volume
	Amplifier Gain Set Too High	Lower Amplifier Gain
Balance Reversed	Speaker Wire L & R Reversed	Correct Speaker Wire Orientation
	RCA Inputs Reversed	Reverse RCA Inputs
Bass is Weak	Speakers Wired Out of Phase	Wire Speakers with Correct Phase
	Not Using MTX Subwoofers	Buy MTX Subwoofers
Blowing Fuses	Excessive Output Levels	Lower the Volume
	Amplifier Defective	Return for Service

SPECIFICATIONS

Model	JH15001 JH10001 JH5001 JH7005 JH3004
Description	Mono Block Class-D	Mono Block Class-D	Mono Block Class-D	Class-AB + Class-D	Class-AB
Primary Ratings
Primary Power	600W at 4Ω,20-90Hz and≤1% THD+N	400W at 4Ω,20-150Hz and≤1% THD+N	200W at 4Ω,20-165Hz and≤1% THD+N	60W x 4 from20-20kHz and250W x 1 from20-150Hz at 4Ωand ≤ 1% THD+N	60W x 4 at 4Ω,20-20kHz and≤1% THD+N
SNR Rating 70dBA	68dBA 72dBA 60dBA 63dBA
Secondary Ratings
Dynamic Power	650W at 4Ω,≤1% THD+N1100W at 2Ω,≤1% THD+N1650W at 1Ω,≤1% THD+N	450W at 4Ω,≤1% THD+N775W at 2Ω,≤1% THD+N1100W at 1Ω,≤1% THD+N	225W at 4Ω,≤1% THD+N375W at 2Ω,≤1% THD+N550W at 1Ω,≤1% THD+N	60W x 4 at 4Ω,≤1% THD+N(Front and Rear)90W x 4 at 2Ω,≤1% THD+N(Front and Rear)180W x 2 at 4Ω,≤1% THD+N(Bridged Frontand Rear)275W at 4Ω,≤1% THD+N(Subwoofer)450W at 2Ω,≤1% THD+N(Subwoofer)	60W x 4 at 4Ω,≤1% THD+N90W x 4 at 2Ω,≤1% THD+N180W x 2 at 4ΩBridged,≤1% THD+N
Frequency Response	20Hz to 250Hz 20Hz to 250Hz 20Hz to 250Hz			20Hz to 20kHz20Hz to 250Hz	20Hz to 20kHz
Maximum Input Signal	10V 10V 10V	10V 10V
Minimum Input Signal	135mV 135mV	135mV 135mV 135mV
Crossover Low Pass Filter	12dB/oct,40Hz - 250Hz	12dB/oct,40Hz - 250Hz	12dB/oct,40Hz - 250Hz	12dB/oct,40Hz - 250Hz	12dB/oct,40Hz - 250Hz
Crossover High Pass Filter	NA NA NA			12dB/oct,40Hz - 250Hz	12dB/oct,40Hz - 250Hz
Bass Boost	0 - 12dB @ 45Hz	0 - 12dB @ 45Hz	0 - 12dB @ 45Hz	0 - 12dB @ 45Hz	NA
Subsonic Filter	12dB/oct,20Hz - 50Hz	12dB/oct,20Hz - 50Hz	12dB/oct,20Hz - 50Hz	12dB/oct,20Hz - 50Hz	NA
Dimensions
Height	2.57" (65.2mm)	2.57" (65.2mm)	2.57" (65.2mm)	2.57" (65.2mm)	2.57" (65.2mm)
Width	7.61" (193.4mm)	7.61" (193.4mm)	7.61" (193.4mm)	7.61" (193.4mm)	7.61" (193.4mm)
Length	15.28" (388mm)	12.24" (311mm)	8.97" (228mm)	15.47" (393mm)	11.14" (283mm)

WIRING DIAGRAM

Mono Block Amplifier Wiring (Single Subwoofer Load)

WIRING DIAGRAM

Mono Block Amplifier Wiring (Multi-Subwoofer Load)

NOTE: Equivalent parallel woofer load cannot be less than the minimum load rating. These are monoblock amplifiers, not multi-channel amplifiers. The minimum load for the JH15001, JH10001 and JH5001 amplifier is 1Ω. The minimum load for the Sub Channel JH7005 amplifier is 2Ω.

JH3004 Amplifier Wiring (3-Channel Mode)

WIRING DIAGRAM

JH7005 Amplifier Wiring (5-Channel Mode)

NOTES:

NOTES:

WARRANTY INFORMATION

Mitek Mobile products (including MTX, Streetwires, Coustic and Magnum) purchased in the USA after 1/1/2015 from an authorized Mitek retailer are guaranteed to be free from material defects in products and workmanship for two (2) years to the original end user purchaser, subject to the terms and conditions below.

Length of Limited Warranty and Remedy

The warranty period begins the day the product is purchased by the end user, and is limited to the original retail purchaser of the product. Products found to be defective in materials or workmanship during the first 2 years will be, at Mitek's option, repaired or replaced by Mitek at no charge. When a product is replaced during first 2 years, the warranty does not renew, it continues on from the original date of purchase.

This warranty does not cover the product if it has been subject to neglect, abuse, misuse, incorrect connection, or if it has been subject to unauthorized repair or alterations of any nature, or if the serial number has been altered or removed, and the warranty does not extend to cosmetics or finish. This warranty only applies to products installed and used in the USA.

What You Must Do to Obtain Warranty Service

You must contact Mitek Warranty via our website at MTX.com, or via email at [e-mail], or by calling 800-556-2888. If you did not purchase the product directly from Mitek, a proof of purchase must be provided in order to receive warranty consideration. You will be issued a Return Authorization (RA) number which must be written on the outside of the package before returning the product to Mitek. Shipping costs are the customer's responsibility when returning product to MTX.

No Other Warranties

THE LIMITED WARRANTIES DESCRIBED ABOVE ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. MITEK DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT APPLICABLE LAW PROHIBITS THE EXCLUSION OF IMPLIED WARRANTIES, THE DURATION OF ANY APPLICABLE IMPLIED WARRANTY IS LIMITED TO THE PERIOD SPECIFIED FOR THE EXPRESS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of any Mitek product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Limitation of Liability

MITEK'S OBLIGATION TO PROVIDE A CREDIT, OR REPAIR OR REPLACE AT MITEK'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND MITEK'S SOLE AND EXCLUSIVE OBLIGATION. MITEK SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MITEK PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include, but are not limited to, such damages as loss of time and loss of use. Consequential damages include, but are not limited to, the cost of repairing or replacing other property which was damaged if the Mitek product does not work properly.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This limited warranty supersedes all prior warranties and is not transferable from the original consumer purchaser.

Any assistance Mitek provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. Mitek will not reimburse you for any expenses incurred by you in repairing or replacing any defective product, except for those incurred with Mitek's prior written permission.

© 2019 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A.

Due to continual product development, all specifications are subject to change without notice.

MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.

MTX005827 RevC 2/19 • 21A10712 • AW0015727

N535

MX® AUDIO

JACKHAMMER

Two black electronic devices with control panel and indicator lights, shown from front and side views (no visible text or symbols on the device body)

WARNING:

This product can expose you to chemicals such as Styrene, which is known to the State of California to cause cancer and M-Dimethisobutamide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P68Warnings.co.gov

© 2019 Mtak Corp. All rights reserved. MTX, Terminator, and Feel the Thunder are trademarks of Mtak Corp. Due to continual product development, all specifications are subject to change without notice. MTX Aute, 4M5 East Baseline Road, Phoenix, Arizona 60302 U.S.A. MTX005019 RevD 2/18

SPECIFICATIONS NEW CTA 2006-C

1-Channel Mono Block Class-D Power Amplifier

Primary Ratings

Primary Power Output Rating:

600W at 4Ω, 20-90Hz and ≤ 1% THD+N

SNR Rating: 70dBA

Secondary Ratings

Dynamic Power Rating:

650W at 4Ω, ≤ 1% THD+N

1100W at 2Ω, ≤ 1% THD+N

1650W at 1Ω, ≤ 1% THD+N

Frequency Response: 20Hz to 250Hz

Maximum Input Signal: 10V

Minimum Input Signal: 135mV

Crossover: Low Pass Filter 12dB/oct, 40Hz - 250Hz

Bass Boost: 0 - 12dB @ 45Hz

Subsonic Filter: 12dB/oct, 20Hz - 50Hz

Remote Bass Knob Included

Dimensions: 15.28" x 7.61" x 2.57"

ESPECIFICACIONES NUEVO CTA 2006-C

Renforcement des graves: 0 - 12 dB @ 45 Hz
