ASG-SFE - Paint gun Ozito - Free user manual and instructions

Product Type	Paint Sprayer
Brand	Ozito
Model	ASG-SFE
Power Source	Electric (Corded)
Voltage	230 V
Power Consumption	600 W
Spray Pattern	Adjustable (Horizontal, Vertical, Circular)
Max Flow Rate	800 ml/min
Container Capacity	1000 ml
Nozzle Size	2.0 mm
Viscosity Range	Up to 40 DIN-sec
Weight	1.5 kg
Dimensions	250 x 200 x 100 mm
Construction Material	Plastic Body, Metal Nozzle
Cleaning Method	Water or Solvent Cleaning
Safety Features	Double Insulation, Locking Trigger
Included Accessories	1 Nozzle, 1 Container, Cleaning Brush
Warranty	2 Years
Certifications	CE, RoHS
Repairability	Spare Parts Available, User Serviceable

Frequently Asked Questions - ASG-SFE Ozito

What type of paint can I use with the Ozito ASG-SFE?

The Ozito ASG-SFE is suitable for water-based and solvent-based paints, varnishes, and primers. Ensure the paint is thinned to the correct viscosity for optimal spray results.

How do I thin paint for the spray gun?

Add thinner gradually while stirring until the paint reaches a consistency similar to milk. Use a viscosity cup to measure 20-30 seconds flow time for best results.

How do I clean the spray gun after use?

Empty the container, rinse with warm water (for water-based paints) or solvent (for oil-based paints), flush through the system, and wipe the exterior. Use the included cleaning brush for the nozzle.

Why is the spray pattern uneven?

Uneven spray may be caused by clogged nozzle, incorrect paint viscosity, or improper air cap adjustment. Clean the nozzle, thin the paint, and adjust the spray pattern dial.

Can I use the spray gun without thinning paint?

It is not recommended. Most paints are too thick and will clog the gun. Always thin according to the manufacturer's instructions for the specific paint.

What is the maximum viscosity I can use?

The Ozito ASG-SFE can handle paint with a viscosity up to 40 DIN-sec. For thicker paints, thin them properly to avoid clogging.

How do I adjust the spray pattern?

Rotate the air cap to select horizontal, vertical, or circular pattern. Adjust the flow control knob to increase or decrease paint volume.

Is the spray gun safe to use with flammable solvents?

The gun is double insulated but still use caution. Avoid sparking areas and ensure good ventilation. Do not spray near open flames.

What spare parts are available?

Common spare parts include nozzle sets, container lids, and seals. Check the Ozito website or authorized dealers for replacements.

How do I store the spray gun long-term?

Clean thoroughly, dry all parts, and store in a dry place. Remove the battery if cordless (not applicable here). Keep out of reach of children.

USER MANUAL ASG-SFE Ozito

Air Consumption: 85-198l/min (3-7cfm)

Nozzle Size: 01.5mm

Spray Width: 40-70mm

Flow Rate: 130-210ml/min

Feed Type: Suction

Paint Pot Size: 1000ml

Air Inlet: 1/4" BSP

Weight (tool only): 0.75kg

ozito.com.au

Line drawing of a spray gun and a jar (no text or symbols)

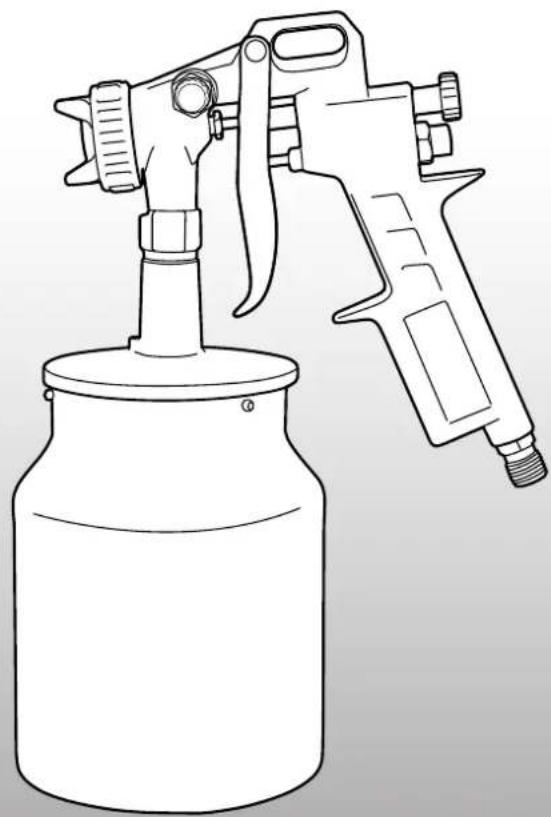

WHAT'S IN THE BOX

Line drawing of a spray gun with a clear bottle (no text or symbols)

Spray Gun

3

YEAR REPLACEMENT WARRANTY

ASG-SFE

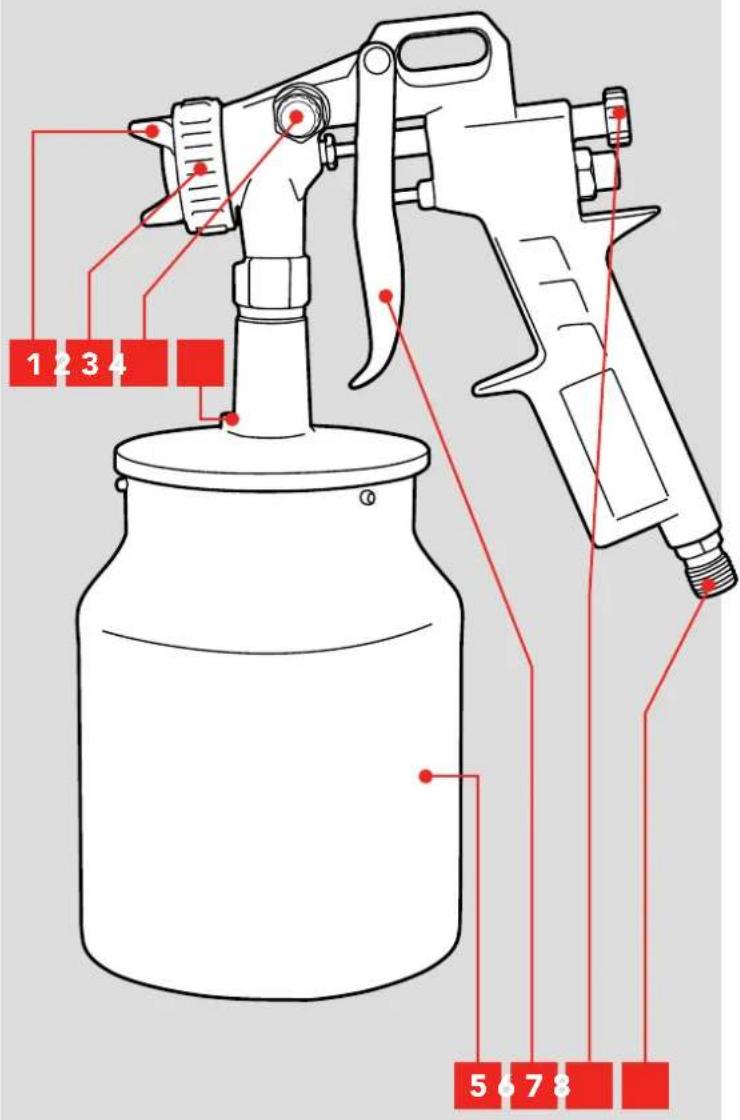

KNOW YOUR PRODUCT

SUCTION FEED SPRAY GUN

1 Nozzle

5 Paint Pot

2 Nozzle Collar

6 Variable Trigger

3 Fan Adjustment Dial

7 Fluid Adjustment Dial

4 Air Vent

8 Air Inlet

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

SETUP & PREPARATION

1. ASSEMBLY

WARNING! ENSURE THE TOOL IS DISCONNECTED FROM THE AIR SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS.

Installing the Paint Pot

1 Slide the paint pot over the suction tube an align with the head.

2 Screw the paint pot into place by rotating in a clockwise direction.

Diagram of a mechanical press or clamping device with red arrows indicating upward motion (no text or symbols present)

Illustration of a spray bottle with a red circular motion arrow indicating rotation (no text or symbols)

3 To remove, simply unscrew the paint pot in an anti-clockwise direction.

Diagram of a spray gun with red motion arrows indicating rotation (no text or symbols)

Attaching to Compressor

1 Wrap the threaded male air inlet of the spray gun with teflon tape in a clockwise direction.

2 Screw the female fitting clockwise onto the male end of the air inlet.

Close-up of a mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical component with threaded tip and hexagonal base, no text or symbols present

3 Pull back the sleeve on hose fitting, insert male end & release sleeve on hose fitting.

Diagram of a mechanical connector with two parts, one showing internal structure and the other showing a close-up of a cylindrical component (no text or symbols)

2. PREPARATION

NOTE: FOR BEST RESULTS, SURFACE PREPARATION AND PAINT THINNING ARE THE TWO MOST IMPORTANT AREAS. ENSURE ALL SURFACES ARE FREE OF DUST, DIRT AND GREASE.

Thinning

Thinning is particularly important when spraying. Most paints are supplied ready for brush application and need to be diluted sufficiently for spraying purposes.

Follow the manufacturers guide for thinning ratios which should be labelled on the paint container.

1 Before pouring any paint or thinners work out how much of each substance is needed.

2 Pour the required paint and thinners through a filter into a mixing cup and then mix thoroughly.

3 Once the correct viscosity is obtained, pour the mixture into the paint pot.

Illustration of a pipette dispensing liquid into a container with a red arrow indicating the process (no text or symbols present)

IMPORTANT! THE SPRAY GUN CANNOT BE USED WITH MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES, CAUSTIC AND ALKALINE SUBSTANCES.

3. ADJUSTING THE SPRAY GUN

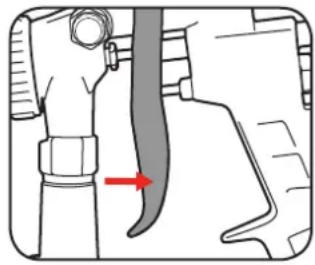

Variable Trigger

1 Press the variable trigger to allow fluid to be sprayed.

Diagram of a mechanical device with a red arrow indicating direction (no text or symbols present)

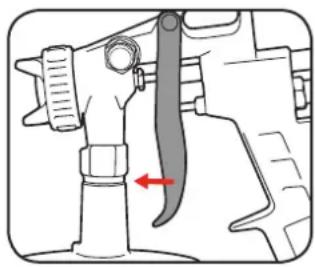

2 Release the variable trigger to stop spraying.

Mechanical assembly diagram showing a lever and shaft assembly with a red arrow indicating direction (no text or symbols)

Note: The further the variable trigger is pressed, the more fluid will flow through the gun.

Fluid Adjustment Dial

The fluid adjustment dial is a stop that limits the distance the trigger can be pressed, thereby limiting the amount of paint being sprayed.

1 Fully tighten the fluid adjustment dial.

Mechanical component diagram showing a highlighted section with red motion arrow (no text or symbols)

2 Slightly loosen the fluid adjustment dial, then test setting on a scrap piece of material.

Mechanical component diagram showing a rotating shaft with red motion arrows (no text or symbols)

3 Repeat step 2 until desired fluid output is reached.

4. ADJUSTING THE SPRAY GUN CONT. 5

Fan Adjustment Dial

The fan adjustment dial controls the distribution of paint in the fan. Turned all the way clockwise, paint is concentrated in the centre of the fan. As the dial is turned anti-clockwise more paint is distributed toward the edges.

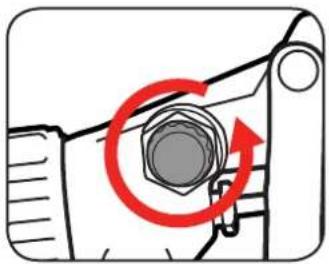

1 Start with the fan adjustment dial completely loosened.

Mechanical component diagram showing a bolt and nut assembly with red circular arrows indicating rotation (no text or symbols)

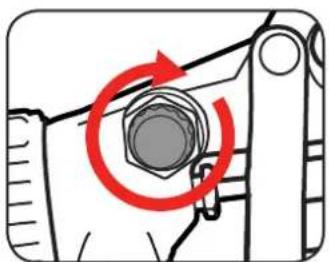

2 Partly tighten the dial then test setting on a scrap piece of material.

Diagram of a mechanical component with a red circular arrow indicating rotational motion (no text or symbols)

3 Repeat step 2 until desired fan pattern is reached.

Choosing Spray Patterns

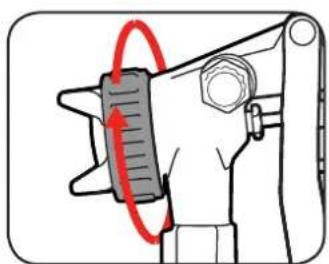

1 To change the spray pattern, loosen the nozzle collar and rotate the nozzle to the desired position. Tighten nozzle collar to secure nozzle in place.

Diagram of a mechanical device with a red circular arrow indicating rotational motion (no text or symbols)

For horizontal surfaces:

For vertical surfaces:

Simple diagram showing a circular component with vertical lines and a gray irregular shape (no text or symbols)

Simple diagram showing a circular component with three circular holes and a vertical textured shape (no text or symbols)

SPRAYING TECHNIQUE

1. Move the gun with the entire arm, not by flexing the wrist. This will keep the spray gun at right angles to the surface, keeping the pattern even.

1. Keep the spray gun perpendicular to the surface, so spray distance is consistent.

Illustration of a hand holding a device with red light rays and a green checkmark (no text or symbols)

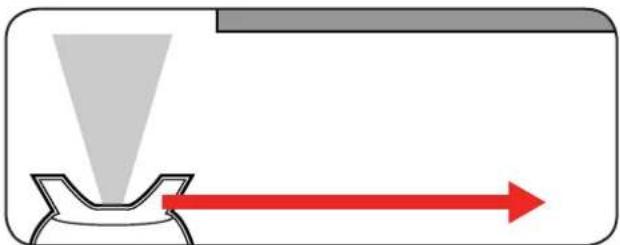

3 Begin 15cm off the edge of the area being sprayed. Start the movement of the stroke before squeezing the trigger. Release trigger once passed the opposite edge of the workpiece.

Pure diagram of a funnel and arrow without any text or symbols

IT IS CRUCIAL TO CLEAN THE SPRAY GUN AFTER EACH USE. Please refer to the cleaning procedure.

Helpful Hints

1. Maintain the same distance from workpiece (approx 15cm) throughout each pass.
2. Maintain the same speed throughout each pass.
3. Always allow a coat to completely dry before adding another coat.
4. Avoid stopping and starting in the middle of workpiece as this can lead to a patchy finish.
5. Overlap each stroke by half the width of the previous stroke for even coverage.

NOTE: After each use it is essential that the spray gun is cleaned thoroughly. Failure to do so will likely cause blockages which will prevent the tool from working. FAILURE TO CLEAN THE TOOL WILL VOID THE WARRANTY.

CLEANING PROCEDURE TROUBLI

SHOOTING

If coating material was water based (acrylic paint), use ONLY water when performing the cleaning procedure. Use of solvent based cleaning materials on water based paints will result in a new substance that will be extremely difficult to clean.

If coating material was oil based (enamel paint, lacquer etc.) use ONLY the appropriate cleaning solution. Read the cleaning instructions printed on the coating material's label to determine which cleaning material you need. The following solvent based cleaning products are safe to use in the paint sprayer:

• Diggers Easy Cleanup Turpentine Substitute (highly recommended)
- Mineral Turpentine
- Paint Thinner

1 Empty the paint pot of remaining material.

Simple line drawing of a tool interacting with a container (no text or symbols)

2 Rinse paint pot, suction tube & nozzle with cleaning solution. Wipe all parts with a clean cloth.

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

3 Fill paint pot with appropriate cleaning solution.

Simple line drawing of a container with liquid and a downward arrow indicating flow (no text or symbols)

4 Connect the spray gun to the air supply then spray solution into a bucket.

Diagram of a mechanical connector with two threaded parts and a central shaft, showing red arrows indicating movement (no text or symbols)

5 Repeat steps 3-4 until the cleaning solution runs clear from gun.

6 Unscrew and remove fluid adjustment dial, needle & spring. Clean all parts in cleaning solution.

Mechanical component diagram showing a rotating shaft with red motion arrow (no text or symbols)

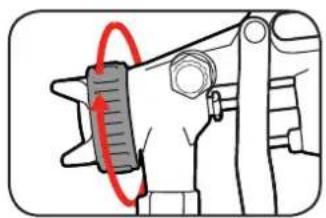

7 Unscrew and remove nozzle. Clean in cleaning solution.

Mechanical assembly diagram showing a gear or cam mechanism with a red circular annotation (no text or symbols present)

8 Take note of the 4 holes on the nozzle, if blocked clean carefully using a small needle.

Simple line drawing of a circular object with three circular holes, no text or symbols present.

Problem Cause Remedy
Little or no material flow	Fluid adjustment dial too limited Turn	fluid adjustment dial further out clockwise
	Air pressure too low	Increase air pressure at the compressor
	Material too thick	Thin material
	Nozzle clogged	Clean nozzle
Material leaking	Nozzle loose	Tighten nozzle
	Nozzle worn	Contact Ozito for replacement spare parts
Spray pattern is heavy in the middle	Fan requires adjustment Turn fan adjustment dial further out anti-clockwise
	Air pressure too low	Increase air pressure at the compressor
Spray pattern heavy at the edges	Fan requires adjustment Turn fan adjustment dial in clockwise
	Air pressure too high	Reduce air pressure at the compressor
Spray jet pulsates	Material in paint pot running out Refill paint pot
	Nozzle clogged	Clean nozzle
	Material too thick	Thin material
Pattern runs or sags	Too much material is being applied	Turn fluid adjustment dial further in clockwise
		Increase spray speed
	Material is too thin	Thicken material by adding more paint
Too much overspray	Gun too far from the spray surface	Reduce distance & turn fluid adjustment dial further in clockwise to reduce the amount of paint being applied.
Pattern is very light and splotchy	Material is too thick	Thin the material
	Moving the spray gun to fast	Decrease spray speed

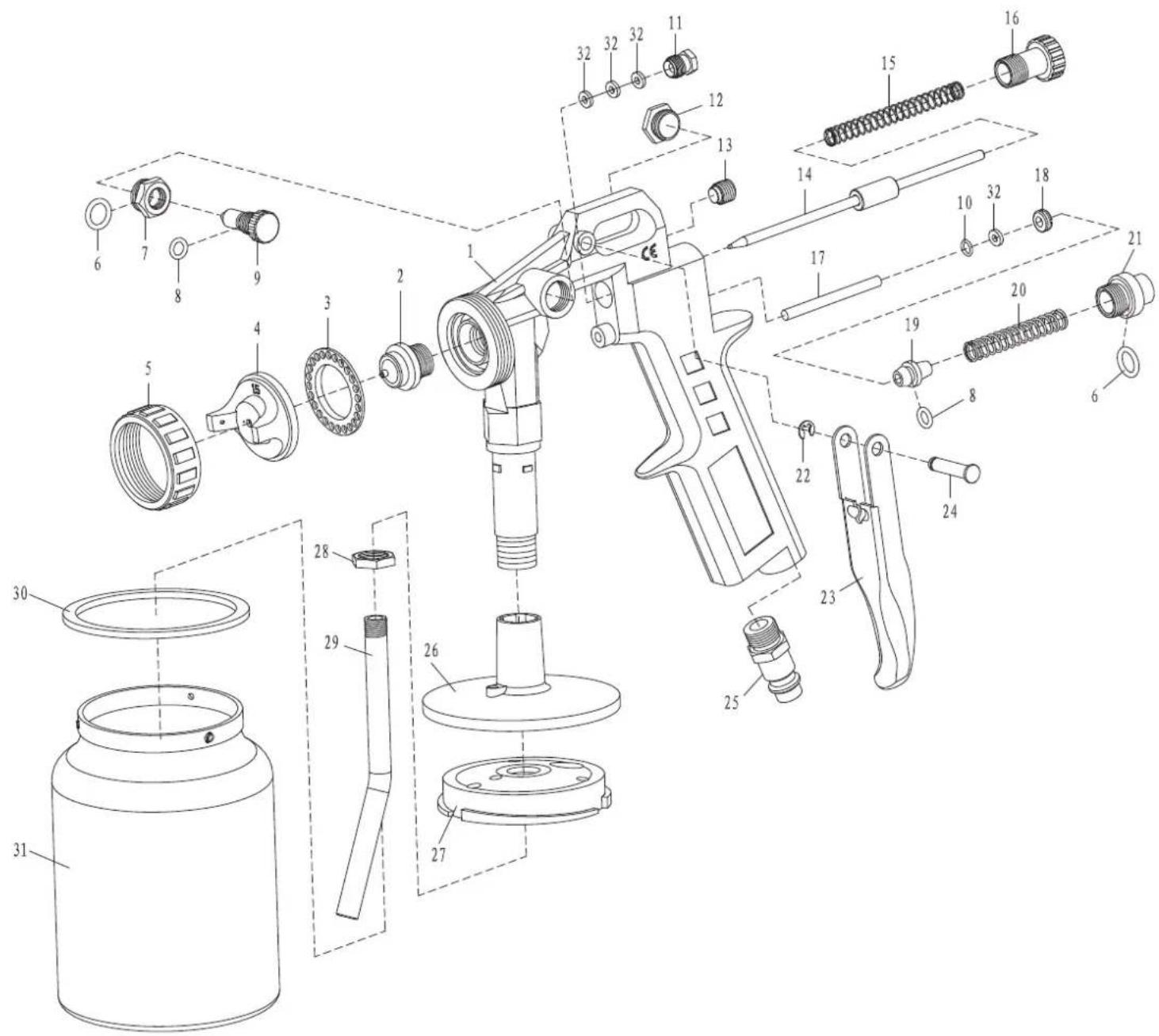

SPARE PARTS

Nozzle

Assembly

SPASGSFE-04A

Needle

Assembly

SPASGSFE-14

Paint Pot Seal

SPASGSFE-30

Paint

Pot

SPASGSFE-31

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

How To Order

Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on:

Australia: 1800 069 486

New Zealand: 0508 069 486

[e-mail]

GENERAL AIR TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the

warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

d. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

e. Check the maximum pressure rating of any tools or accessories that you intend using with the compressor. The output pressure of the air from the compressor must be regulated so that it never exceeds the rated pressure of the tool or accessory.

f. Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an accessory towards any part of your body or towards another person.

g. Use safety equipment including safety goggles or shield, ear protection, breathing or respirator mask and protective clothing.

h. The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse.

WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the compressor. A broken air line which is not supported is extremely dangerous and can whip around very quickly, both with the capability of striking people, and blowing foreign particles into the air.

• Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air supply to the hose, turn off the compressor at the On / Off button, and then remove the hose from the compressor.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given the supervision or
  instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

SPRAY GUN SAFETY WARNINGS

WARNING!

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Using an Extension Hose

Always use an approved extension hose suitable for the air input of this tool. Before use, inspect the hose for signs of damage, wear and ageing. Replace the extension hose if damaged or defective.

When using an hose on a reel, always unwind the lead completely. It is recommended that the hose is a maximum of 25m in length.

NEVER under any circumstances aim the nozzle at another person or animal.

• In the event of an injury occurring, seek medical advice immediately.
- The spray gun must not be used for spraying flammable paints and solvents with a flash point of less than 21^ .
- Always ensure there is adequate ventilation when spraying.
• The use of ear protection is recommended.
- Eye protection is recommended to keep hazardous vapours and liquids out of eyes.
- Always wear a face mask when spraying.
• Always read the paint manufacturers thinning instructions before using.
- Always keep the spray nozzle in place during use. Never allow the spray to come in direct contact with the skin.
- Never immerse the spray gun in liquid.

- The spray gun must not be cleaned by using flammable liquids with a flash point of less than 21^ .

NEVER spray near a naked flame, including an appliance pilot light.

NEVER smoke whilst spraying.

NEVER allow children to operate or play with the spray gun.

• Before cleaning, always disconnect the appliance from the air supply.
  • Always disconnect from air supply when refilling the paint pot.
  • After every use ensure you clean your spray gun thoroughly.
  NEVER use the spray gun outside when it is raining.

DESCRIPTION OF SYMBOLS CAR

	Warning		Read instruction manual
	Wear ear protection		Wear eye protection and breathing mask
ml/min	Millilitres per minute	cfm	Cubic feet per minute

ING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
  • Professional, industrial or high frequency use.
