Product Type	Upright Freezer (with refrigerator compartment)
Model	RT18DKXHW00
Brand	Roper
Total Capacity	Approximately 18 cu. ft.
Dimensions (H x W x D)	66 x 30 x 28 inches
Weight	Approximately 160 lbs
Power Supply	115 V, 60 Hz, 15-20 A grounded circuit
Refrigerant	R-134a (typical)
Temperature Controls	Separate freezer and refrigerator controls
Defrost	Automatic in both compartments
Ice Maker	Optional automatic ice maker (Kit FRKIT94)
Shelves	Adjustable wire shelves
Crisper Drawers	Two crispers with glass cover
Meat Drawer	Removable meat drawer (model RT18DK)
Door Swing	Reversible (door can be opened from left or right)
Leveling	Front leveling screws and rollers
Condenser Coils	Located on back; clean every 2 months
Lighting	Interior light, replaceable bulb
Warranty	1 year full, 5 years on sealed system
Safety Features	Child entrapment prevention, grounding plug

Frequently Asked Questions - RT18DKXHW00 Roper

How do I set the temperature controls on my Roper RT18DKXHW00?

Set the Refrigerator Control to 0 (mid) and the Freezer Control halfway between LESS COLD and MORE COLD when first plugging in. Adjust as needed. Note that changing one control affects both compartments.

Why is my ice maker not making ice?

Ensure the ice maker is turned ON (lever down), the freezer is cold enough (wait 24 hours), the water supply is connected and valve open, and the water line is not clogged. See manual for common problems.

Can I reverse the door swing on this freezer?

Yes, the door swing is reversible. Follow the instructions in the manual (pages 13-14) using a Phillips screwdriver, socket wrench, and putty knife. Keep all parts and reinstall handles on the new side.

How often should I clean the condenser coils?

Clean the condenser coils on the back of the cabinet at least every other month using a vacuum cleaner with an extended narrow attachment to ensure efficient operation.

What should I do during a power outage?

Keep doors closed. If power is off 24 hours or less, food stays frozen. If longer, remove food to a locker or use dry ice (2 lbs per cu ft). A full freezer stays cold longer.

The freezer is making unusual sounds. Is this normal?

Many sounds are normal: clicking from thermostat, gurgling water, fan hum, ice maker noises. See 'Understanding the sounds you may hear' (page 12). If sounds are new or loud, check for items on top/behind.

How do I remove and clean the shelves?

Tilt the shelf up at the front, lift the back, and pull straight out. Clean with mild detergent and warm water. Reverse to reinstall by hooking rear slots into supports.

What type of light bulb does the freezer use and how do I replace it?

The manual does not specify the bulb type, but typically it is a 40W appliance bulb. Unplug the freezer or disconnect power before removing the old bulb.

How do I prepare the freezer for vacation?

Remove all food, turn off ice maker, unplug, clean and dry, prop doors open with blocks to prevent mold. For short vacations (<4 weeks), just use up perishables and freeze items.

Where can I find replacement parts or service?

Call Roper toll-free at 1-800-44-ROPER (1-800-447-6737) for assistance or to locate authorized service. Use FSP® replacement parts for best fit and function.

USER MANUAL RT18DKXHW00 Roper

Table of Contents ..... 2 (complete)

A Note to You.... 2

Refrigerator Safety ..... 3

Parts and Features ..... 4

Before Using Your Refrigerator.... 5

Using Your Refrigerator 7

Caring for Your Refrigerator.... 15

Food Storage

Table of Contents

A Note to You 2

Refrigerator Safety 3

Parts and Features 4

Before Using Your Refrigerator .... 5

Cleaning your refrigerator 5

Plugging it in 5

Installing it properly 6

Leveling it 6

Using Your Refrigerator 7

Setting the controls 7

Changing the control settings ....8

Adjusting the refrigerator shelves......8

Removing the meat drawer and cover 9

Removing the crispers and crisper cover ....9

Using the ice cube trays.... 10

Using the optional automatic

Ice maker 10

Changing the light bulb ...... 11

Understanding the sounds you may hear. 12

You may need additional information to Saving energy 12

Reversing the door swing 13

Caring for Your Refrigerator 15

Cleaning your refrigerator 15

Vacation and moving care 17

Power interruptions 18

Food Storage Guide 19

Storing fresh food....19

Storing frozen food....20

Troubleshooting 21

Requesting Assistance or Service ..... 22

Index 23

Warranty 24

A Note to You

Thank you for buying a Roper® appliance.

Refrigerator Safety

Your safety is important to us.

This guide contains statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of the symbol.

WARNING

This symbol alerts you to such dangers as personal injury, burns, fire, and electrical shock.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

• Read all instructions before using the refrigerator.

• Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous ... even if they will "just sit in the garage a few days."
  If you are getting rid of your old refrigerator, do it safely. Please read the enclosed safety booklet from the Association of Home Appliance Manufacturers. Help prevent accidents.

• Never allow children to operate, play with, or crawl inside the refrigerator.

• Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.

• FOR YOUR SAFETY •

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

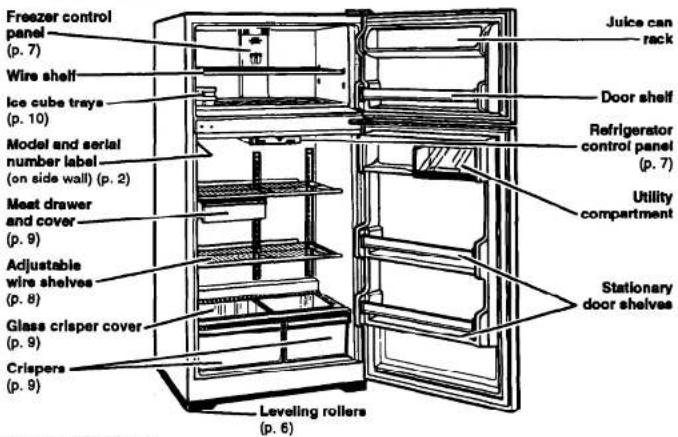

Parts and Features

Below are illustrations of your appliance with the parts and features called out. To help you find information on specific parts or features faster, page references are included.

Model RT18DK

Model RT18EK

Before Using Your Refrigerator

It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power source, install it, and level it.

Cleaning your refrigerator

Removing packaging materials Remove tape and any inside labels (except the model and serial number label) before using the refrigerator.

To remove any remaining glue:

- Rub briskly with thumb to make a ball, then remove.

OR

- Soak area with liquid hand-dishwashing detergent before removing glue as described above. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners. These can damage the material. See "Important Safety Instructions" on page 3.

NOTE: Do not remove any permanent instruction labels inside your refrigerator. Do not remove the Tech Sheet fastened under the refrigerator at the front.

Cleaning it before use

After removing all packaging materials, clean your refrigerator before using it, if necessary. See cleaning instructions on pages 15-16.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is required. It is recommended that a

3-prong grounding type wall receptacle

Installing it properly

1. Allow 12 inch (1.25 cm) air space on each side of the refrigerator for ease of installation.
2. Allow 1 inch (2.5 cm) air space behind and 3 inches (7.5 cm) air space above the refrigerator for proper circulation.
3. If installing the refrigerator with the hinge side against a wall, you might want to leave extra space so the door can be opened wider.
4. Make sure the floor below the refrigerator is level and strong enough to support a fully-loaded refrigerator.

Line drawing of a kitchen interior with cabinets and a refrigerator (no text or symbols)

Leveling it

Model RT18DK

Your refrigerator has 2 front leveling screws – one on the right and one on the left. To adjust one or both of these, follow the directions below.

1. Open refrigerator door.
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4. Check with level.
5. Close refrigerator door

Using Your Refrigerator

To obtain the best possible results from your refrigerator, it is important that you operate it properly. This sections tells you how to set the controls, remove and adjust some of the features in your refrigerator, how to save energy, and how to reverse the door swing.

Setting the controls

Refrigerator control

The Refrigerator Control is in the refrigerator. When you plug in the refrigerator for the first time:

- Set the Refrigerator Control to 0 (mid setting).

Freezer control

The Freezer Control is in the freezer. When you plug in the refrigerator for the first time: - Set the Freezer Control halfway between LESS COLD and MORE COLD.

Economy control

The Economy Control operates electric heaters around the door openings. These heaters help keep moisture from forming on

USING YOUR REFRIGERATOR

Changing the control settings

If you need to adjust the temperature in either compartment, keep these things in mind:

- Adjusting the Refrigerator Control or the Freezer Control changes the temperature in BOTH compartments.

- Setting the Refrigerator Control to OFF stops cooling in BOTH compartments.

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use your refrigerator.

Model RT18DK

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear shelf hooks into the slots in the shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into slots. Lower front of shelf to level position.

Model RT18EK

Illustration of hands using scissors to cut a metal object (no text or symbols)

USING YOUR REFRIGERATOR

Removing the meat drawer and cover

(Model RT18DK only)

Remove the meat drawer and cover for easier cleaning.

To remove the meat drawer:

1. Slide meat drawer out to the stop.

2. Lift the front slightly.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove the meat drawer.

2. Tilt front of cover up.

3. Pull cover up and out.

To replace the cover:

1. Flt bottom notches of cover over rear and center cross bars of shelf.

2. Lower cover into place.

3. Replace the meat drawer.

Pull out to the stop, lift the front, and pull again.

Removing the crispers and crisper cover

(Model RT18DK only)

Use your crispers to store fruit and vegetables.

To remove the crispers:

1. Slide crisper out to the stop.

Lift the front, then the back.

USING YOUR REFRIGERATOR

Using the ice cube trays

If cubes are not used, they may shrink. The moving cold air starts a slow evaporation.

The longer you store cubes, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Using the optional automatic ice maker

If your refrigerator has an automatic ice maker, or if you plan to add one later (Kit No. FRKIT94), here are a few things you will want to know.

- The ON/OFF lever is a wire signal arm. DOWN to make ice automatically UP to shut off the ice maker

IMPORTANT: Do not turn on the ice maker until it is connected to the water supply. Instructions for ice maker water supply hookup are attached to the back of the refrigerator cabinet.

• The dial or lever on the side of the ice maker

UP to stop ice maker.

DOWN to start ice maker.

USING YOUR REFRIGERATOR

Solving common ice maker problems

PROBLEM	POSSIBLE CAUSE/SOLUTION
Ice crescents attached at corners	This is normal. They break apart easily. Shake bin occasionally to keep cubes separated.
Ice maker will not operate or ice is not made fast enough	ON/OFF lever is in the OFF (up) position. Lower lever to the ON (down) position.Freezer is not cold enough. Adjust temperature controls and wait 24 hours. (See “Changing the control settings” on page 8.)
Off-taste or odor in ice	New plumbing connections can cause discolored or off-flavored ice. Discard the first few batches of ice.Cubes are stored too long. Throw them away and make a new supply.Foods in freezer are not wrapped properly. See “Food Storage Guide” on pages 19 and 20.Freezer and ice bin need to be cleaned. See pages 15 and 16.

Changing the light bulb

WARNING

Electrical Shock Hazard

Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to the refrigerator at the main power supply.

USING YOUR REFRIGERATOR

Understanding the sounds you may hear

Your new refrigerator may make sounds that your old one didn't. Because the sounds are new to you, you might be concerned about them. Don't be. Most of the new sounds are normal. Hard surfaces like the floor, walls, and cabinets can make the sounds seem louder.

The following describes the kinds of sounds that might be new to you, and what may be making them.

Slight hum, soft hiss

You may hear the refrigerator's fan motor and moving air.

Clicking or snapping sounds

The thermostat makes a definite click when the refrigerator stops running. It also makes a sound when the refrigerator starts. The defrost timer will click when the defrost cycle starts.

Water sounds

When the refrigerator stops running, you may hear gurgling in the tubing for a few minutes after it stops. You may also hear defrost water running into the defrost water pan.

Ice maker sounds

- trickling water

- thud (clatter of ice)

You may hear buzzing (from the water valve), trickling water, and the clatter of ice dumped into the bin.

Running sounds

Your refrigerator has a high-efficiency compressor and motor. It will run longer than older designs. It may even seem to run most of the time.

Saving energy

You can help your refrigerator use less electricity.

- Check door gaskets for a tight seal. Level the cabinet to be sure of a good seal.

- Clean the condenser coils regularly.

- Go ahead and fill up the refrigerator, but don't overcrowd it so air movement is blocked.

- It is a waste of electricity to set the refrigerator and freezer to temperatures colder

USING YOUR REFRIGERATOR

Reversing the door swing

If you wish to reverse the swing of the doors, follow the steps below.

NOTE: If removing doors to move refrigerator through a doorway, and not reversing the door swing, it may not be necessary to remove the bottom hinge.

TOOLS REQUIRED:

• Phillips™ head screwdriver
- Socket wrench set or adjustable wrench
- Putty knife

To reverse the door swing:

1. Remove the top hinge assembly as shown. Keep all parts together.

After removing top hinge assembly, lift freezer door up off center hinge.

1. Remove the center hinge assembly as shown. Outer most screw is left in place. Remove door stop from bottom of door. Keep all parts together.

After removing the center hinge assembly, lift refrigerator door up off bottom hinge.

1. Remove the bottom hinge assembly as shown. Remove door stop from bottom of door. Keep all parts together.

1. Remove cabinet screws from the center hinge holes and reinstall in opposite side holes.

USING YOUR REFRIGERATOR

1. Remove both handle assemblies as shown. Keep all parts together.

Remove hole plugs from opposite side of doors. Reinstall handles on new side. Seal all original holes with hole plugs from new side.

MODEL RT18DK

MODEL RT18EK

1. Using a putty knife, remove the black plug from the front of the cabinet base (new hinge side) and reinstall it in the old

2. Remove screws (or plugs) from the hinge holes in the top of the cabinet and reinstall them in the opposite side.

1. Remove plug from upper bearing of freezer door and reinstall on opposite side.

1. Lift freezer door up onto the center hinge assembly. Reinstall top hinge assembly while holding door in place. Do not tighten the screws.

2. Align the doors so they are parallel to each other. Adjust doors to cabinet so

Caring for Your Refrigerator

Your refrigerator is built to give you many years of dependable service. However, there are a few things you can do to help extend its product life. This section tells you how to clean your refrigerator and what to do when going on vacation, moving, or during a power outage.

Cleaning your refrigerator

Both the refrigerator and freezer sections defrost automatically. However, clean both about once a month to help prevent odors from building up. Wipe up spills

right away.

To clean your refrigerator, unplug it, take out all removable parts, and clean the refrigerator according to the following directions.

WARNING

Personal Injury Hazard

Refrigeration system tubes are near the defrost pan and can become hot. Clean defrost pan carefully.

Failure to do so could result in personal injury.

PART	WHAT TO USE	HOW TO CLEAN
Removable parts (shelves, crisper, etc.)	Sponge or cloth with mild detergent and warm water	• Hand wash, rinse, and dry thoroughly.
Outside	Sponge, cloth, or paper towel with mild detergent, warm water, and an appliance wax (or good auto paste wax)	• Wash outside of cabinet. Do not use abrasive or harsh cleaners.• Wipe and dry thoroughly.• Wax painted metal surfaces at least twice a year. Apply wax with a clean, soft cloth. Waxing painted metal surfaces provides rust

CARING FOR YOUR REFRIGERATOR

PART	WHAT TO USE	HOW TO CLEAN
Door liners and gaskets	Sponge, soft cloth, or paper towel with mild detergent and warm water	Wash, wipe, and dry thoroughly.DO NOT USE cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic parts.
Plastic parts (covers and panels)	Soft, clean sponge or soft, clean cloth with mild detergent and warm water	Wash, rinse or wipe, and dry thoroughly.DO NOT USE paper towels, window sprays, scouring cleansers, or flammable fluids. These can scratch or damage material. See “Important Safety Instructions” on page 3.
Defrost pan (behind refrigerator on top of compressor)	Sponge or cloth with mild detergent and warm water	Roll refrigerator out away from the wall.Wash defrost pan. Do not remove defrost pan to clean.Wipe and dry thoroughly.Roll refrigerator back into place.Level refrigerator.
Condenser coils (on back of cabinet)	Vacuum cleaner with extended narrow attachment	Roll refrigerator out away from the wall.Vacuum coils at least once every other month.Roll refrigerator back into place.Level refrigerator.
Floor under refrigerator	Floor cleaners	Roll refrigerator out only as far as the water supply line allows.Clean floor.Roll refrigerator back into place.Check to see if the refrigerator is level.

CARING FOR YOUR REFRIGERATOR

Vacation and moving care

Long vacations

If you will be gone a month or more:

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice maker:

- Turn off the water supply to the ice maker at least one day ahead of time.

- When the last load of ice drops, turn off the ice maker. Make sure all ice is dispensed out of the ice maker mechanism.

1. Unplug the refrigerator.

2. Clean it, rinse well, and dry.

3. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WARNING

Personal Injury Hazard

Do not allow children to climb on, play near, or climb inside the refrigerator when the doors are blocked open. They may become injured or trapped.

To restart refrigerator, see "Using Your

Short vacations

No need to shut off the refrigerator if you will be away for less than four weeks.

1. Use up any perishables.

2. Freeze other items.

3. If your refrigerator has an automatic ice maker:

- Raise the signal arm to the OFF (up) position.

- Shut off the water supply to the ice maker.

• Empty the ice bin.

Moving

When you are moving the refrigerator to a new home:

1. If your refrigerator has an automatic ice maker:

- Turn off the water supply to the ice maker at least one day ahead of time.

- Disconnect the water line.

• After the last load of ice drops, lift the signal arm to the OFF (up) position.

1. Remove all food from the refrigerator.

2. Pack all frozen food in dry ice.

3. Unplug the refrigerator.

4. Clean it thoroughly. Rinse well and dry.

CARING FOR YOUR REFRIGERATOR

Power interruptions

If electricity goes off, call the power company. Ask how long power will be off.

1. If service will be interrupted 24 hours or less, keep both doors closed. This helps foods stay frozen.
2. If service will be interrupted longer than 24 hours:

(a) Remove all frozen food and store in a frozen food locker.

OR
(b) Place 2 lbs. (0.9 kg) of dry ice in freezer for every cubic foot of freezer space. This will keep food frozen for 2 to 4 days. Wear gloves to protect your hands from dry ice burns.
OR
(c) If neither a food locker or dry ice is available, use or can perishable food at once.

1. A full freezer stays cold longer than a partly filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If food contains ice crystals, it may be safely refrozen, although the quality and flavor may be affected. If the condition of the food is poor, or if you feel it is unsafe, dispose of it.

Questions 7

Call our toll-free number, 1-800-44-ROPER.

Food Storage Guide

There is a correct way to package and store refrigerated or frozen food. To keep food fresher, longer, take the time to study these recommended steps.

Storing fresh food

Wrap or store food in the refrigerator in air-tight and moisture-proof material. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check code date to ensure freshness.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.

Vegetables with skins (carrots, peppers)

Store in crisper, plastic bags, or plastic container.

Fruit

Wash, let dry, and store in refrigerator in plastic bags or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in their original container in a crisper, or store in a loosely closed paper bag on a refrigerator shelf.

Eggs

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Leftovers

Cover leftovers with plastic wrap or alumi- num foil. Plastic containers with tight lids can also be used.

Meat

Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times.

TYPE	APPROXIMATE TIME(DAYS)*
Chicken	1 to 2
Ground beef	1 to 2
Steaks and roasts	3 to 5
Cured meats	7 to 10
Bacon	5 to 7
Cold cuts	3 to 5

FOOD STORAGE GUIDE

Storing frozen food

The freezer section is designed for storage of commercially frozen food and for freezing food at home.

NOTE: For further information about preparing food for freezing or food storage times, contact your local Cooperative Extension Service or check a freezer guide or reliable cookbook.

Packaging

The secret of successful freezing is in the packaging. The way you close and seal the package must not allow air or moisture in or out. Packaging done in any other way could cause food odor and taste transfer throughout the refrigerator and drying of frozen food.

Packaging recommended for use:

• Rigid plastic containers with tight-fitting lids
- Straight-sided canning/freezing jars
- Heavy-duty aluminum foil
- Plastic-coated paper
• Non-permeable plastic wraps (made from a saran film)

Follow package or container instructions for proper freezing methods.

Do not use:

Freezing

Do not expect your freezer to quick-freeze any large quantity of food. Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 pounds of food per cubic foot of freezer space). Leave enough space for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality of the food, the type of packaging or wrap used (airtight and moisture-proof), and the storage temperature, which should be 0°F (-17.8°C).

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their refrigerator. Please read through this chart before calling for service. It could save you the cost of a service call.

PROBLEM	CHECK THE FOLLOWING
Your refrigerator will not operate	Is the power supply cord firmly plugged into a live circuit with proper voltage?Has a household fuse or circuit breaker blown/tripped?Is the Refrigerator Control set to the OFF position?
The lights do not work	Is the power supply cord firmly plugged Into a live circuit with proper voltage?Has a household fuse or circuit breaker blown/tripped?Is a bulb burned out?
The optional ice maker does not work	Is the freezer cold enough to make ice? It could take overnight for the freezer to reach the proper temperature.Is the ON/OFF lever in the ON (down) position? (See page 10.)Is the water valve turned on?Does the water line have a clog or leak?
You hear unfamiliar sounds or a rattling/Jingling noise	Is something on top of or behind the refrigerator?Some new sounds are normal. See "Understanding the sounds you may hear" on page 12.
There is water in the defrost pan	This is normal on hot, muggy days. Make sure the refrigerator is level so the pan does not overflow.
The motor	Are the condenser coils dirty?

Requesting Assistance or Service

Before calling for assistance or service, please check "Troubleshooting" on page 21. It may save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance\* ...

Call our toll-free telephone number. Dial free from anywhere in the U.S.A.: 1-800-44-ROPER (1-800-447-6737)

and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

If you prefer, write to: Mr. William Clark

Consumer Assistance Representative Whirlpool Corporation

2000 N State Route 63

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

2. If you need service\* ...

Contact the dealer from whom you purchased the appliance or the authorized servicer in your

3. If you need FSP® replacement parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Roper® appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Roper appliance.

To locate FSP replacement parts in your area, refer to Step 2 or call our toll-free telephone number in Step 1.

4. If you are not satisfied with how the problem was solved ...

- Contact the Major Appliance Consumer Action Panel (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

- Contact MACAP only when the dealer, authorized servicer, and Whirlpool have

Index

This index is alphabetical. Look for the word or phrase you are interested in, then look for the page number.

TOPIC PAGE

CARE

Moving 17

Power interruptions 18

Vacation 17

CLEANING 5,15-16

CONTROLS

Changing settings 8

Setting 7

CRISPERS

Cover 9

Removing 9

ELECTRICAL NEEDS 5

FEATURES/PARTS 4

FOOD STORAGE

Fresh 19

Frozen 20

ICE MAKER

Common problems 11

Using 10

TOPIC PAGE

LIGHT BULB

Changing 11

PARTS/FEATURES 4

ESPONSIBILITIES

Owner 3

SAFETY 3

SERVICE

Parts 22

Requesting 22

SHELVES

Refrigerator, removing 8

SOUNDS

Normal 12

TROUBLESHOOTING 21

WARRANTY 24

ROPER® Refrigerator Warranty

LENGTH OF WARRANTY	WE WILL PAY FOR
FULL ONE-YEAR WARRANTY(from date of purchase)	FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Roper service company.
FULL FIVE-YEAR WARRANTY(from date of purchase)	FSP replacement parts and repair labor for the sealed refrigeration system (compressor, evaporator, condenser, drier, or connecting tubing) which we find to be defective in materials or workmanship. Service must be provided by an authorized Roper service company.
WE WILL NOT PAY FOR
A. Service calls to:1. Correct the installation of your refrigerator.2. Instruct you how to use your refrigerator.3. Replace house fuses or correct house wiring or plumbing.4. Replace light bulbs.B. Repairs when your refrigerator is used in other than normal, single-family household use.C. Pickup and delivery. Your refrigerator is designed to be repaired in the home.D. Damage to your refrigerator caused by accident, misuse, fire, flood, acts of God, or use of products not approved by Whirlpool.E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.5/93

This Roper appliance is warranted by Whiripool Corporation. Under no circumstances shall it be liable under this warranty for incidental or consequential damages and all implied warranties are limited to the same time period stated in the express warranties for Roper Brand Appliances. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of implied warranties, so these exclusions or limitations may not apply
