| Product Type | Television |
| Brand | Andersson |
| Model | LED4241FDC PVR |
| Screen Size | 42 inches (16:9) |
| Display Resolution | HD (1080i/720p) |
| Dimensions with Stand | 1002 x 653 x 232 mm (WxHxD) |
| Weight with Stand | 19 kg |
| Dimensions without Stand | 1002 x 611 x 40 mm (WxHxD) |
| Weight without Stand | 17 kg |
| Power Supply | 220-240V AC, 50 Hz |
| Power Consumption (Max) | 160 W |
| Tuner | DVB-T/C (MPEG2/MPEG4) |
| HDMI Inputs | Yes (multiple) |
| USB Inputs | 2 (for media playback and recording) |
| Recording Function | Yes (PVR via USB, timeshift) |
| Teletext | Digital and Analogue (FASTEXT/TOP) |
| Electronic Programme Guide (EPG) | Yes |
| Audio Output Power | 2 x 8 W (RMS) |
| Connectivity | SCART (2), Component, PC Input, Headphone, S/PDIF Coaxial |
| Energy Saving | Power Save Mode (reduces luminance) |
| Child Lock | Yes (disables front panel buttons) |
| Sleep Timer | Yes (up to 120 minutes) |
| Cleaning | Unplug, use soft dry cloth only |
| Safety | Keep away from moisture, heat, and open flames |
| Repair | Only by qualified personnel |
Frequently Asked Questions - LED4241FDC PVR Andersson
User questions about LED4241FDC PVR Andersson
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual LED4241FDC PVR - Andersson and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LED4241FDC PVR by Andersson.
USER MANUAL LED4241FDC PVR Andersson
Safety Precautions 38
Package Contents 40 Environmental Information 41
Energis Information 41
Remote Control Buttons 42
TV and Operating Buttons 43
Viewing the Connections - Back Connectors ..... 43
Viewing the Connections - Side Connectors ..... 44
Aerial Connection 44
Aerial & Cable Connection 44
Using USB Inputs 45
Connecting the TV to a PC 46
Connecting to a DVD Player....46 Using Side AV Convenetors....47
Using Other Connectors 47
Remote Control Handset 47
Inserting Batteries 47
Switching On/Off 47
To Switch the TV On 47
To Switch the TV Off 47
Digital Teletext 48
Analogue Telext....45 Input Selection....45
Recording via EPG Screen 50
Programme Options 50
First Time Installation....50
Installation 51
Auto Channel Scan Menu Operation 52
Auto Channel Scan Menu Operation ..... 52
Playing Music via USB 56
Recordings Library....56
Media Browser Settings 57 moshift Recording 57
constant Recording 57
atching Recorded Programmes 58
hanging Image Size: Picture Formats 58
onfi guring Picture Settings 59
Operating Picture Settings Menu Items 59
Picture Settings Menu Items 59 PC Picture Settings Operation 80
onfl guring Sound Settings 60
Operating Sound Settings Menu Items 60
Sound Settings Menu Items....60
omguring Your TV's Settings 61
Operating Settings Menu Items 61 Settings Menu Items 61
Setting Menu Items ...... sing a Conditional Access Module
ot included) 62
Viewing Conditional Access Menu (*) 62
onl guring Language Preferences ...... 62
Language Settings 63
Parental Settings Menu Operation (A) 62
Parental Settings Menu Operation ( ) ...... 60 mers 64
Setting Sleep Timer 64
Adding a Timer 64
Deleting a Timer 64
ecording Configuration 64
omf guring Date Time Settings 6
omf guring Source Settings .... 65
on gunng Other Settings 65
Operation 65
Features
Remote controlled colour LCD TV.
Fully integrated digital-cable TV (DVB-TC - MPEG2) * (DVB-TC - MPEG4).
HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
USB input.
Programme recording*
Programme timeshifting•
1000 programmes (analogue+digital).
On Screen Display (OSD) menu system.*
Integrated tuner DVB-T HD, MPEG2 / MPEG4 compatible.
Scart socket for external devices (such as video, video games, audio set, etc.).
Stereo sound system. (German+Nicam)*
TelelexL, fastexL. TOP text.*
Headphone connection.
Automatic programming system.+
- Forward or backward manual tuning.
- Sleep timer / Child lock.
• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
• Auto power down.
• PLL (Frequency Search)
- PC input.
Plug&Play for Windows 98, ME, 2000, XP, Vista Windows 7.
Introduction
Thank you for choosing this product. This manual will guide you through the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please keep this manual in a safe place for future reference.
This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.).
This device is only suitable for dry indoor use. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situation, please do not place any objects on top of the set. Use this device in moderate climates.
Safety Precautions
Moisture and Water
Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, etc). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top.
If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.
Cleaning
Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use a soft and dry cloth.
Ventilation
The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to open flames or sources of intense heat such as an electric heater. Ensure that no open flame sources, such as candles,
are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
Lightning
In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.
Waste Disposal
Instructions for waste disposal:
- Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as a foil bag, must be kept away from children.
heavy metal-free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally friendly manner. Find out about the legal regulations which apply in your area.
- Do not try to recharge batteries, there is a danger of explosion. Replace batteries only with the same or equivalent type.
This symbol on the product or on its packaging means that your electrical device should be disposed at the end of its service life, separately from your household wastes. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or the dealer where you purchased the product.
Disconnecting the Device
The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.
Headphone Volume
Excessive sound pressure from earphones and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
LCD Screen
The Standby / On button does not fully switch off this product. Moreover the device continues to consume power in standby mode. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to the mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. During periods of prolonged non-use, the TV should be disconnected from the mains power supply.
Electrical device not in the hands of children
Never let children use electrical devices unsupervised. Children cannot always recognize any possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of children. In case of swallowing a battery, medical aid has to be sought immediately. Also keep the packaging away from children as there is danger of suffocation.
Licence Notification (optional)
Manufactured under license from Dolby Laboratories.
TRADEMARK ACKNOWLEDGMENT
'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
DOLBY.
DIGITAL PLUS
Connection to a Television Distribution
System (Cable TV etc.) from Tuner
Devices connected to the protective earthing of the

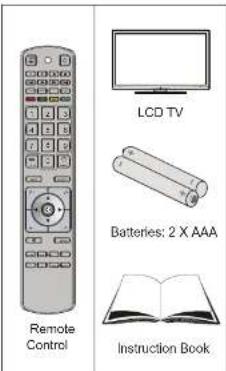

Package Contents
Environmental Information
• This television is designed to consume less energy to save the environment.
You not only help to save the environment but you can also save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:
- You can use the Power Save Mode setting, located in the Other Settings menu. If you set the Power Save Mode as On, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable when the TV is in Power Save Mode.
Power Save Mode
Off
- When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.
- Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption.
- Please helps us to save environment by following these steps.
Repair Information
Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you purchased this TV for further information.

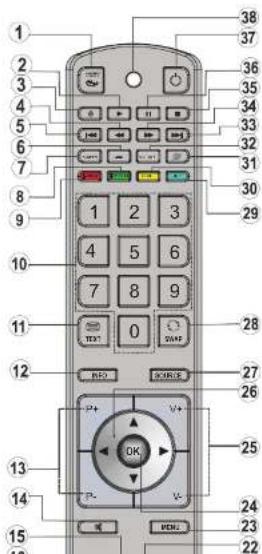

Remote Control Buttons
No function1.
Play (in Media Browser mode) 2.
Programme recording3.
Rapid reverse (in Media Browser mode)4.
No function5.
Mono/Stereo - Dual I-II / Current Language (*) / 6.
Play preview (in Media Browser mode)
Image size / Zooms videos (in Media Browser 7.
video mode)
Green button / List Schedule(in EPG) / Tag/8.
Untag All (in favourite list)
Red button9.
Numeric buttons10.
Teletext / Mix 11.
Info / Reveal (in TXT mode)12.
Programme Down - Page up / Programme Up - 1\$
Page down
Mute14.
Favourite mode selection15.
Exit (in DTV mode) / Return / Index page (in 16, TXT mode)
- No function (*)
No function18.
-
Recordings Library
-
Picture mode selection / Changes picture mode
(in Media Browser video mode)
- Electronic Programme Guide
Sleep timer22.
- Menu on/off
TV and Operating Buttons
FRONT and REAR VIEW Control buttons VIEW Control Buttons
Standby/On button1.
TV/AV button2.
Programme Up/Down 3.
buttons
Volume Up/Down buttons4.
Note: Press → ▲ and "▲+ " buttons at the same time to view main menu.
- switch is used for turning the TV on or off.
Viewing the Connections - Back Connectors
S/PDIF Coaxial Out6. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input
RF Input7. connects to an aerial antenna system.
Note: that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
PC Input8. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC
- HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of
displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets
can accept either 72up or 108up signals. No sound connection is needed for an HDMI to HDMI
Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that 1.
you subscribe to. For more information, see "Conditional Access" section.
USB Inputs. 2.
Note that programme recording feature is available via these USB inputs. You can connect
external hard disk drives to this input.
Headphone jack is used for connecting an external headphone to the system. Connect to 3
the HEADPHONE jack to listen to the TV from headphones (optional).
Side audio-video connection4. input is used for connecting video and audio signals of
external devices. To make a video connection, you must use the supplied AV connection
cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV
socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW
input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side AV
connection cable. Afterwards, insert your device's audio cable's connectors into the RED
and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks
should match.
Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound
connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.
A
Using USB Inputs
USB Connection
You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive or record programmes. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.
• To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
IMPORTANT!
- You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or dataloss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.
IMPORTANT: The TV supports only FAT32 and NTFS disk formatting. However, NTFS format is not supported for recording features. For recording, if you connect a USB disk with NTFS format, the TV will ask you to format the content. See the section, "Format Disk" in the following pages for more information on disk formatting.
Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.
USB Disk Connection
- Plug your USB device to the USB input of the TV.
CAUTION!
Quickly plugging and unplugging USB devices. + is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.
Do not pull out USB module while playing or recording a file.
Programme Recording
To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.
IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.
For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.
Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.
For more information on recording programmes, see sections "Instant Recording", "Timeshifting", "Electronic Programme Guide", "Recordings Library" or "Recording Timers" in the following parts.
Recorded programmes are split into 1GB - partitions.
Recorded programmes are stored in the following directory of the connected USB disk: DVD/PDDR
then 2 partition, crash may occur. First partition of usb disk is used for PVR ready features. And also it must be formatted as primary partition to be used for PVR ready features.
Multipartition HDDs are supported until two partitions.
Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.
Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.
Radio record is not supported.*
The TV can record programmes up to ten hours.
Connecting the TV to a PC
For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LCD TV. When the connection is made, switch to PC source. See "Input selection" section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.
Connecting to a DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.
You may also connect through the SCART 1 or • SCART 2. Use a SCART cable as shown below.
Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.
Using Side AV Connectors
You can connect a range of optional equipment to your LCD TV using side connectors of the TV.
For connecting a camcorder or camera, you should use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/ audio connection cable. Colours of the connected jacks should match. See illustration below.
- Afterwards, you should switch to Side AV source. See the section Input selection in the following sections for more information.
To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above.
Using Other Connectors
You can connect a range of optional equipment to your TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.
For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. For selecting the related source, see the section "Input selection" in the following parts.
To listen to the TV sound from headphones, connect to the HEADPHONE jack of the TV.
Remote Control Handset
Inserting Batteries
Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.
Note: Remove the batteries from the remote control handset when it will not be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.
Switching On/Off
To Switch the TV On
Connect the power cord to the 220-240V AC 50 Hz.
- Switch the "■" button to position "I" so the TV will switch to standby mode. Then the standby LED lights up.
• To switch on the TV from standby mode either:
- Press the "O" button, P+ / P- or a numeric button on the remote control.
- Press the “○” or -/ + button on the TV.
Standby Notifications
If the TV switches off while in No Signal mode, the following on-screen message will be displayed on the next switch-on:
If the TV switches off owing to the auto power down feature, the following on-screen message will be displayed on the next switch-on:
Digital Teletext
Press the button.
The digital teletext information appears.* Operate it with the coloured buttons, cursor buttons and OK button.
The operation method may differ depending on the contents of the digital teletext.
Follow the instructions displayed on digital teletext screen.
- When Press 'SELECT' button or similar message appears on the screen, press the OK button. When the 📄 button is pressed, the TV return to
Input Selection
Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.
You can operate your TV using both the remote control and onset buttons.
Operation with the Buttons on the TV
Volume Setting
Press "→" button to decrease volume or button to increase volume, a volume level scale (slider) will be displayed on the screen.
Programme Selection
- Press 'P/CH+' button to select the next programme or 'P/CH-' button to select the previous programme.
Viewing Main Menu
- Press the "V+"/"V-" button at the same time to view main menu. In the Main menu select sub-menu using "AV" button and set the sub-menu using "→" or "→" buttons. To learn the usage of the menus, refer to the menu system sections.
Programme Selection (Direct Access)
Press the numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme.
Viewing the Electronic
Programme Guide (EPG)
You can view the electronic programme guide (EPG) to see information about available programmes. To view the EPG menu please press EPG button on the remote control.
Press "▼"▲ buttons to navigate through channels.
Press "◀/▶" buttons to navigate through the programme list.
Please note that event information is updated automatically. If there is no event information data available for channels, the EPG will be displayed with blanks.
OK (Options): Displays programme options including 'Select Channel' option.
INFO (Event Details): Displays the programmes in detail.
C. 10.2.3.1. Newspaper schedule will be listed
Red button (Prev Time Slice): Displays the programmes of previous time slice.
Green button (Next Time Slice): Displays the programmes of the next time slice.
Yellow button (Prev Day): Displays the programmes of previous day.
Blue button (Next day): Displays the programmes of the next day.
Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.
OK (Options): views/records or sets timer for future programs.
Text button (Filter): Views filtering options.
INFO (Details): Displays the programmes in detail.
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Red button (Prev Day): Displays the programmes of previous day.
Green button (Next day): Displays the programmes of the next day.
Yellow button (Zoom): Expands programme information
Recording via EPG Screen
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Note: Switching to a different broadcast or source is not available during the recording.
◀ /▶ Page left / Page right.
Programme Options
In EPG menu, press the OK button to enter the "Event Options" menu.
Select Channel
In EPG menu, using this option, you can switch to the selected channel.
Record / Delete Record Timer
IMPORTANT: To record a programme, you should list connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
After you have selected a programme in EPG menu,
To cancel an already set reminder, highlight that programme and press the OK button. Then select
"Delete Timer" option. The timer will be cancelled.
Note: It is not possible to record or set timer for two or more individual events at the same time interval.
First Time Installation
IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation.
- When the TV is operated for the first time, the installation wizard will guide you through the process. First, the language selection screen will be displayed:
Use "▼" or "▲" buttons to select your language and press OK button to set selected language and continue.
After selecting the language, "Welcome!" screen will be displayed, requiring you to set Country, Search Type, Teletext Language and Scan Encrypted options.
Press 📋 button after setting Teletext Language option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations. Afterwards select the desired Teletext Language.
Press • OK button on the remote control to continue and the following message will be displayed on the screen:
To select the 'Yes' or 'No' option, highlight the item by using ▶or ▶buttons and press OK button.
Afterwards, the following OSD will be displayed on the screen:
If you select CABLE option, the following screen will be displayed:
Note: You can press "MENU" button to cancel.
After all the available stations are stored, the Channel List will be displayed on the screen. If you like the order of the channels, please select "Yes" and then press OK.
Press • OK button to quit channel list and watch TV.
Installation
HINT: Auto tuning feature will help you to return the TV set in order to store new services or stations.
Press "MENU" button on the remote control and select Installation by using ◀ or ➤ button. Press
OK button and the following menu screen will be disordered
Auto Channel Scan Menu Operation
Auto Channel Scan Menu Operation
Digital Aerial: Searches and stores aerial DVB stations.
Digital Cable: Searches and stores cable DVB stations.
Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores both analogue and aerial DVB stations.
Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations.
Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using .◀ or ▶ and OK button.
After the auto channel scan type is set and selected and confirmed, the installation process will start and the progress bar will move along. Press "MENU" button to cancel process. Located channels are not stored if the process is cancelled.
Manual Tuning
HINT: This feature can be used for direct broadcast entry.
Select • Manual Channel Scan from the Installation menu by using "▼"/"▲and OK buttons. Manual Scan options screen will be displayed.
- Select the desired Search Type using "◀" or "▶" button. Manual search options will change accordingly. Use "◀" ▶ button to highlight an item and then press "◀" or "▶" button to set an option. You can press "MENU" button to cancel.
Digital Aerial Manual Search
Digital Cable Manual Search
In cable manual scan, you can enter frequency modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.
Analogue Manual Search
After selecting search type as analogue, you can use "▼" ▲ button to highlight an item and then press "◀" or "▶" button to set an option.
Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.
If you start Digital Aerial scan process, automatic scanning will start. You can press "MENU" button to cancel.
If you start Digital Cable scan process, the following screen will be displayed.
You can select frequency ranges from this screen. For highlighting lines you see, use "or" "button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. Automatic searching screen will be displayed during the process.
Note: If you select an extended gap between Start and Plan (from one) rule, automatic search duration
Select Edit Channel List to manage all stored channels. Use "◀ or * ▶ and OK buttons to select Edit Channel List.
Operating the Channel List
Press "▼" or "▲button to select the channel that will be processed. Press "◀or "▶button to select a function on Channel List menu.
Use • P+/P- buttons to move page up or down.
Press BLUE button to view filtering options.
Press - "MENU" button to exit.
Note: The channels listed are mixed at the channel list. Channel types can be differentiated by the icons next to them: DTV (digital tv), HD (HD TV), ATV (Analogue TV), TV (TV), RD (Radio), encrypted, lock, and at the favourite list.
Listed channels can also be sorted by using the active channel list filter.
Moving a Channel
- First select the desired channel. Select Move option in the channel list and press OK button.
- Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously
Pressing "◀" or ▶ button moves to the previous/next character. Pressing ▼ or △ button toggles the current character, i.e., 'b' character becomes 'a' by '▼ and 'c' by "▲" pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the button one by one as the button is pressed.
- When finished, press the OK button to save. Press "MENU" to cancel,
Locking a Channel
You can press GREEN button to tag/untag all channels: YELLOW button to tag/untag a single channel.
Select the channel that you want to lock and select Lock option. Press OK button to continue.
You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.
- Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.
Managing Stations: Favourites
You can create a list of favourite programmes. Press • "MENU" button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.
- Select Favourites to manage favourite list. Use “▼” and OK buttons to select Favourites.
You can set various channels as favourites so that only the favourite channels are navigated.
- BLUE: Displays filtering options.
Managing Stations: Sorting the Channel List
You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use the Active channel list setting.
Select Active channel list from the Channel list menu by using “▼” /*▲button. Press OK button to continue.
You can select a broadcast type option from the list by using "▼" and OK buttons.
On-Screen Information
You can press "INFO" button to display on-screen information. Details of the station and current programme will be displayed on the information banner.
The information banner gives information on the
Media Playback Using Media Browser
If the USB stick is not recognized after power off/on or First Time Installation, unplug the USB device, turn the TV off and on again and re-insert the USB device.
To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing ◀ or ▶ button. Press OK button to continue. Media Browser menu options will be displayed.
Also, when you insert USB devices, the media browser screen will be displayed automatically:
You can play music, picture and video files from the connected USB memory stick. Use "or" button to select Videos, Photos, Music or Settings.
You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1.
When you select Videos from the main options, available video files will be filtered and listed on this screen. You can use "▼or""▲ button to select a video file and press OK button to play a video. If you select a subtitle file and press OK button, you can select or deselect that subtitle file. The following menu will be displayed while playing a video file:
Play (button): Starts the video playback.
Stop (■ button): Stops the video playback.
Pause (button): Pause the video playback.
Rewind (◀◀ button): Goes backward.
Forward (▶▶ button): Goes forward.
Subtitle/Audio (LANG. button): Sets subtitle/Audio.
Jump (GREEN button): Jumps to time. Use numeric buttons to type the desired time and press GREEN button again to proceed.
Yellow: Opens subtitle time correction menu
Press RETURN button to switch back to previous menu.
GREEN button: Views images in thumbnails.
RED button: Sorts files by date.
YELLOW button: Toggles viewing style.
BLUE button: Changes media type.
Slideshow Options
Pause (Button): Pauses the slideshow.
Continue (▶ button): Continues the slideshow.
Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.
Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.
Rotate (Up/Down buttons): Rotates the image using up/down buttons.
RETURN (Exit): Back to file list.
INFO: Displays help screen
Playing Music via USB
When you select Music from the main options, available audio files will be filtered and listed on this screen.
the end of the list is reached, it will be played again from the beginning (loop function).
If you start the playback with the OK button and activate the symbol, the same music or video file will be played in a loop (repeat function).
If you start the playback with ▶ or OK button and activate the ☒ symbol, music or video file will be played in a shuffle.
if you start the playback with ▶ or OK button and activate 📄 symbols, music or video file playback will continue randomly and the random playback will continue.
0..9 (Numeric buttons): Jumps to the selected file.
Play This (OK button): Plays the selected file.
Previous/Next (Left/Right buttons): Jumps to previous or next file to play.
YELLOW: Toggles viewing style.
BLUE: Changes media type.
Recordings Library
IMPORTANT: To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings.
- Play from offset: Specific as a playing point.
Note: Viewing main menu and menu items will not be available during the playback.
▶ (Resume): Recommences the recordings.
INFO (Details): Displays the short extended programmes in detail.
Media Browser Settings
You can set your Media Browser preferences by using the Settings dialog. Press "▼or" "▲button to highlight an item and use ◀or" "▲button to set.
View Style: Sets default browsing mode.
Music FF/FR Speed: Sets forwarding/advancing speed.
Slide Show Interval: Sets slide show interval time. Show Subtitle: Sets subtitle enabling preference.
Subtitle Position: Sets subtitle position as up or down.
Subtitle Font Size: Sets subtitle font size (max. 54pt).
Timeshift Recording
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is
(*) Simultaneous timeshifting recording's duration depends on your connected USB disk's file size and defined Max. Timeshift in the Recordings Conf guration menu. See the section, "Recordings" for more information on setting Max. Timeshift.
Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting. Standby button is ignored during the timeshifting. The TV will not switch to standby mode during the timeshifting.
Lip Sync delay may occur during the timeshifting.*
Instant Recording
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
Press (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen:
Record OSD will then be displayed for a short time • and the current event will be recorded.
You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.
Watching Recorded Programmes
In the main menu, use "◀ or *▶buttons to select Media Browser. Highlight Recordings Library item by using "◀ or *▶button and press OK button to enter. Recordings Library will then be displayed."
IMPORTANT. To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
Select a recorded item from the list (if previously recorded) by using ▼"/"▲" button. Press OK button to view Play Options. Select an option by using ▼/ "▲or OK buttons.
Changing Image Size: Picture Formats
You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.
Press "SCREEN" button repeatedly to change the image size. Available zoom modes are listed below.
Auto
When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source(if available).
The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device.
Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.
6:9
This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.
For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.
14:9 Zoom
This option zooms to the 14:9 picture.
4:3
Use to view a normal picture (4:3 aspect ratio) as this is its original size.
Panoramic
This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.
Configuring Picture Settings
You can use different picture settings in detail.
Press "MENU" button and select the Picture icon
by using ◀ or ▶ button. Press OK button to view
Picture Settings menu.
Operating Picture Settings Menu Items
Press "▼" or "▲button to highlight a menu item.
Use ◀ or ►button to set an item.
Press - "MENU" button to exit.
Picture Settings Menu Items
Mode: For your viewing requirements, you can set various screen modes. The Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast: Sets the lightness and darkness values of the screen.
Brightness: Sets the brightness value for the
reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Colour Temp: Sets the desired colour tone.
Setting Cool option gives white colours a slight blue stress.
For normal colours, select Normal option.
Setting Warm option gives white colours a slight red stress.
Picture Zoom: Sets the picture size to Auto.16:9, Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.
HDMI True Black: While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. You can set this feature as "On" for activating HDMI True Black mode.
Film Mode (optional)• Films are recorded at a different number of frames per second to normal television programmes. Press "▼" or "▲" buttons to select Film mode. Press ◀ or "▲" buttons to set this feature Auto or Off. Turn this feature to Auto when you are watching films to see the fast motion scenes clearly.
Colour Shift•
: Adjust the desired colour
Reset: Resets the picture settings to factory default settings.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
PC Picture Settings Operation
For adjusting PC picture items, do the following:
Press◄◄ or ►► button to select Picture icon. Picture menu
Autoposition: Automatically optimizes the display. Press OK to optimize.
H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position: This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
Configuring Sound Settings
Sound settings can be configured according to your personal preferences.
Press "MENU" button and select the first icon by using "◀" or "▶" button. Press OK button to view Sound Settings menu.
In the equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the "MENU" button to return to the previous menu.
Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User. Balance: This setting is used for emphasizing left or right speaker balance.
Headphone: Sets headphone volume.
Sound Mode (optional): Press ▼' or ▲button to select Sound Mode. Using◀' or ▶button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.
Surround Mode: Surround mode can be change as On or Off.
Digital Out: Sets digital out audio type.
Configuring Your TV's Settings
Detailed settings can be configured to suit your personal preferences.
Press "MENU" button and select Settings ikon by using "◀" or "▶" button. Press OK button to view Settings menu.
Operating Settings Menu Items
Press "▼" or "▲button to highlight a menu item.
Press + OK button to select an item.
Press - "MENU" button to exit.
Settings Menu Items
Conditional Access: Controls conditional access modules when available.
Language: Configures language settings.
Parental: Configures parental settings.
Timers: Sets timers for selected programmes.
Date/Time: Sets date and time
Sources: Enables or disables selected source
Using a Conditional Access Module (not included)
IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.
In order to watch certain digital channels, a conditional access module (CAM) may be necessary. This module must be inserted in the CI slot of your TV.
Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.
Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.
The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
When no module is inserted, “• No Common Interface module detected” message appears on the screen.
Refer to the module instruction manual for details of the settings.
Viewing Conditional Access Menu (\*)
(*) These menu settings may change depending on the service provider.
Press "MENU" button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼or " " Button to highlight Conditional
Confi guring Language Preferences
You can operate the TV's language settings using this menu.
Press "MENU" button and select the fifth icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "◀" or "▶" button to highlight Language and press OK to continue:
Use "▼" or "▲" button to set an item. Settings are stored automatically.
Menu: displays the system language.
Preferred
These settings will be used if available. Otherwise the current settings will be used.
Audio• : Sets the preferred audio language.
Subtitle: Sets the subtitle language. Selected language will be seen in subtitles.
- Teletext: Sets teletext language.
In the configuration menu, highlight the Language Settings item by pressing ▼ or ▲ buttons. Press OK and Language Settings submenu will be displayed on the screen:
Use "▼" or "▲" buttons to highlight the menu item that will be adjusted and then press "◀" or "▶" button to set.
System Language determines the on-screen menu language.
Audio Language is used for selecting the soundtrack of a channels.
Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.
Parental Control
To exhibit viewing of certain programmes channels
Parental Settings Menu Operation (\*)
Select an item by using "▼" or "▲button".
Use "◀ or ►button to set an item.
Press* OK button to view more options.
(*) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible. This setting is available only for EU countries.
Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.
Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.
Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.
Set PIN: Defines a new PIN number. Use numeric buttons to enter a new pin number. You will need
Timers
To view Timers menu, press "MENU" button and select Settings icon by using 🔊 or ►button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Timers and press OK to continue:
Setting Sleep Timer
This setting is used for setting the TV to turn off after a certain time.
Highlight Sleep Timer by using "▼" or "▲button. Use "◀" or "▶" button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.
Adding a Timer
- Press YELLOW button on the remote control to add a timer. The following menu appears on the screen:
Network Type: This feature is unavailable to be set. Timer Type: You can select timer type as Record or Timer.
Channel: Changes channel by using ◀ or ▶
Record Type: This item is unavailable to be set.
Date: Enter a date using the numeric buttons.
Start: Enter a starting time using the numeric buttons.
End: Enter an ending time using the numeric buttons.
Duration: Displays duration between the starting and ending time.
Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use "◀" or "▶" buttons to select an option.
Change/Delete Sets the change/delete permission
Recording Conf i guration
Select Recording Configuration item in the Settings menu to configure recording settings. The following menu is displayed for recording configuration.
The following options are available for adjustments:
Start Early (\*)
You set recording timer's starting time to start earlier by using this setting.
(*) Available only for EU country options.
End Late (\*)
You set recording timer's end time to end later by using this settings.
(\*) Available only for EU country options.
Max Timeshift
This setting allows you to set the maximum time allowed for timeshifting. Duration options are approximate and can change accordingly, depending on the broadcast received.
Format Disk
IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature.
Hard Disk Info
To view the details about the USB disk, highlight Hard Disk Info by using "▼" or "▲key and press OK. USB disk information will be displayed:
Configuring Date/Time Settings
Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.
• Use "▼" or "▲" buttons to highlight Date/Time.
Date, Time, Time Settings Mode and Time Zone Setting will be available.
Use "▲" or "▼" buttons to highlight the Time Settings Mode. Time Settings Mode is set using ◀" or "▼" buttons. It can be set to AUTO or MANUAL.
When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:
- By pressing “▲” or “▼” buttons select Time Zone. Use “◀” or “▶” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.
Change are automatically stored. Grace, "MENI!"
Configuring Source Settings
You can enable or disable selected source options. The TV will not switch to the disabled source options when "SOURCE" button is pressed.
- Select Sources in the Settings menu and press OK button.
Press▼ or ▲buttons to select a source. Use ← or → button to enable or disable the selected source. Changes are automatically stored.
Configuring Other Settings
To view general configuration preferences, select Other Settings in the Settings menu and press OK button.
Scan Encrypted Channels: When this setting is set as YES, search process will locate the encrypted channels as well. If it is set as NO, encrypted channels will not be located in automatic search or manual search.
Blue Background: Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
You can enable or disable automatic upgrade by setting Automatic Scanning option.
You can manually search for new software by selecting Scan for upgrade.
Application version: Displays the current application version.
Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track
Standby Search (optional): Use "▼or" ▲button
to select Standby Search and then press “◀ or ▶” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.
Other Features
Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.
Mute Function: Press "OK" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the first one is pressing the button and the second one is increasing the volume level.
Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.
Displaying Subtitles: If there is any subtitle information available in the broadcast, you can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function.
If "Subtitle" is On, pressing the "button" causes the following warning message display on the screen ( ^** for UK only).
Teletext
The Teletext system transmits information such as news, sports and weather on your TV. Note that if the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.
Teletext function buttons are listed below:
"Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.
"RETURN" Index: Selects the teletext index page.
"INFO" Reveal: Shows hidden information (e.g. solutions of games).
"OK" Hold: Holds a text page when convenient. Press again to resume.
◀/▶ Subcode Pages: Selects subcode pages if available when the teletext is activated.
P+/P- and numbers (0-9): Press to select a page.
Note: Most TV stations use code 100 for their index pages.
Coloured Buttons (RED/GREEN/YELLOW/BLUE)
Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletxt page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing "For" commands will request
Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletest unrecognisable? Check if you have entered the correct frequency. Please return the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.
No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
Sound: If you cannot hear any sound, check to see if the ✗ button has been pressed. If sound is coming from only one speaker, check if the balance has been set to one extreme.
Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.
Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.
Recording Unavailable: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB
Appendix A: PC Input Typical Display Modes
The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
| Index Resolution | Frequency | |
| 1 | 640x400 | 70Hz |
| 2 | 640x480 | 60Hz |
| 3 | 640x480 | 72Hz |
| 4 | 640x480 | 75Hz |
| 5 | 800x600 | 56Hz |
| 6 | 800x600 | 60Hz |
| 7 | 800x600 | 70Hz |
| 8 | 800x600 | 72Hz |
| 9 | 800x600 | 76Hz |
| 10 | 1024x768 | 60Hz |
| 11 | 1024x768 /0Hz | |
| 12 | 1024x768 | 72Hz |
| 13 | 1024x768 | 75Hz |
| 14 | 1152x864 | 75Hz |
| 15 | 1280x768 | 60Hz |
| 16 | 1360x768 | 60Hz |
| 17 | 1280x768 | 75Hz |
| 18 | 1280x960 | 60Hz |
| 19 | 1280x960 | 75Hz |
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)
| Source Supported Signals Available | ||
| EXT-1(SCART-1) | PAL 50/60 O | |
| NTSC 60 O | ||
| RGB 50 O | ||
| RGB 60 O | ||
| EXT-2(SCART-2) | PAL 50/60 O | |
| NTSC 60 O | ||
| RGB 50 X | ||
| RGB 60 X | ||
| SIDE AV | PAL 50/60 O | |
| NTSC 60 O | ||
| YPbPr | 450I 60Hz O | |
| 480P 60Hz O | ||
| 576I 50Hz O | ||
| 576P 50Hz O | ||
| 720P 50Hz O | ||
| 720P 60Hz O | ||
| 1080I 50Hz O | ||
| 1080I 60Hz O | ||
| 1080P 50Hz O | ||
| 1060P 60Hz O | ||
| 450I 60Hz O | ||
| 490P 60Hz O | ||
| 576I 50Hz O | ||
| 576P 50Hz O | ||
| 720P 50Hz O | ||
Appendix C: Supported DVI Resolutions
When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.
| Index Resolution Frequency | ||
| 1 | 640x400 | 70Hz |
| 2 | 640x480 | 60Hz |
| 3 | 640x480 | 72Hz |
| 4 | 640x480 | 75Hz |
| 5 | 800x600 | 56Hz |
| 6 | 800x600 | 60Hz |
| 7 | 800x600 | 70Hz |
| 8 | 800x600 | 72Hz |
| 9 | 800x600 | 75Hz |
| 10 | 1024x768 | 60Hz |
| 11 | 1024x768 | 70Hz |
| 12 | 1024x768 | 72Hz |
| 13 | 1024x768 | 75Hz |
| 14 | 1152x864 | 75Hz |
| 15 | 1280x768 | 60Hz |
| 16 | 1360x768 | 60Hz |
| 17 | 1280x768 | 75Hz |
| 18 | 1280x960 | 60Hz |
| 19 | 1280x960 | 75Hz |
| 20 | 1280x1024 | 60Hz |
| 21 | 1280x1024 | 75Hz |
| 22 | 1400x1050 | 60Hz |
| 23 | 1600x1200 | 60Hz |
Appendix D: Supported File Formats for USB Mode
| Media | File Extension | Format Remarks | ||
| Video Audio | (Maximum resolution/Bit rate etc.) | |||
| Movie | .mpg, .mpeg | MPEG1, 2 MPEG Layer | 1/2/3 | MAX 1920x1080 @ 30P 20Mbit/sec |
| .dat MPEG1, 2 | MPEG2 | |||
| .vob MPEG2 | ||||
| .mkv H.24 | MPEG1,2.4 EAC3 / AC3 | |||
| .mp4 | MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 | PCM/MP3 | ||
| .avi | MPEG2, MPEG4 PCM | M/MP3 | MAX 1920x1080 @ 30P 20Mbit/sec | |
| Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 | PCM | |||
| Music | .mp3 - | MPEG 1 Layer 1 / 2 (MP3) | 32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate) | |
| Photo | .jpg .jpeg | Baseline JPEG max WxH = 15360x6640 4147200bytes | ||
| Progressive JPEG max WxH = 1024x768 6291456bytes | ||||
| .bmp - max WxH = 9600x6400 3840000bytes | ||||
| Subtitle | .sub | - | - | |
| .srt | ||||
Appendix E: Software Upgrade
- Your TV is capable of finding and updating new software upgrades over broadcast channels.
• For broadcast channels search, the TV looks at the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels. - It is possible to manually check if there is a new software upgrade for your TV set.
- Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
- In Upgrade Options menu select Scan for upgrade and press OK button.
- If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When the download completes successfully a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.
1) Software upgrade search via user interface
2) 3.AM search and upgrade mode
- If Automatic scanning in Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for a new software upgrade. If new software is found and downloaded successfully, with next power up the TV opens with new software version.
Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initializations. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.
- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.
Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to restart again and can only be fixed by service personnel.
Specifications
TV BROADCASTING
PAL/SECAM BIG D/K K' U/I L/L
RECEIVING CHANNELS
VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
NUMBER OF PRESET CHANNELS
1000
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
220-240V AC, 50 Hz
AUDIO
German + Nicam Stereo
AUDIO OUTPUT POWER (W _RWA ) (10% THD)
2×8
POWER CONSUMPTION (W)
160 W (max)
PANEL
16:9 display, 42" Screen Size
DIMENSIONS (mm)
DxLxH (With foot): 232 x 1002 x 653
Weight (Kg): 19
DxLxH (Without foot): 40 x 1002 x 611
Weight (Kg): 17
Digital Reception (DVB-T)
Transmission Standards:
DVB-T, MPEG2, DVB-T, MPEG4 HD
I. DEMODULATION
Symbol rate: COFDM with 2K/8K FFT mode.*
Modulation: 16-QAM - 64-QAM FEC for all DVB
modes (automatically found)
MHEG-5 ENGINE compliant with ISO/IEC 13522-5
UK engine Profi le (UK only)
Object carousel support compliant with ISO/IEC
135818-6 and UK DTI profile(UK only)
Frequency range: 474-850 MHz for UK models
II. VIDEO
• H.264 (MPEG-4 part 10) main and high profile level
4.1/MPEG-2 MP@HL video decoder.
HD display multi format capable (1080i, 720p, •
576p)
CVBS analogue output(In HD channels, this will
not be available
III. AUDIO
MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC, *
AC3, E-AC3
Sampling frequencies supported are 32, 44.1 & ·
48 kHz
Digital Reception (DVB-C)
Transmission Standards:
DVB-C, MPEG2, DVB-C, MPEG4
I. DEMODULATION
Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s*
andersson
- Features
- Introduction
- Preparation
- Moisture and Water
- Cleaning
- Ventilation
- Heat and Flames
- Lightning
- Waste Disposal
- Disconnecting the Device
- Headphone Volume
- Installation
- LCD Screen
- Electrical device not in the hands of children
- Licence Notification (optional)
- TRADEMARK ACKNOWLEDGMENT
- DOLBY.
- DIGITAL PLUS
- Connection to a Television Distribution
- Package Contents
- Environmental Information
- Power Save Mode
- Off
- Repair Information
- Remote Control Buttons
- TV and Operating Buttons
- Viewing the Connections - Back Connectors
- Viewing the Connections - Side Connectors
- Using USB Inputs
- USB Connection
- IMPORTANT!
- USB Disk Connection
- CAUTION!
- Programme Recording
- Connecting the TV to a PC
- Connecting to a DVD Player
- Using Side AV Connectors
- Using Other Connectors
- Remote Control Handset
- Inserting Batteries
- Switching On/Off
- To Switch the TV On
- Input Selection
- Programme Selection (Direct Access)
- Viewing the Electronic
- Programme Guide (EPG)
- Recording via EPG Screen
- Programme Options
- Select Channel
- Record / Delete Record Timer
- First Time Installation
- Auto Channel Scan Menu Operation
- Manual Tuning
- Digital Cable Manual Search
- Moving a Channel
- Locking a Channel
- Managing Stations: Favourites
- Managing Stations: Sorting the Channel List
- On-Screen Information
- Media Playback Using Media Browser
- Slideshow Options
- Recordings Library
- Timeshift Recording
- Instant Recording
- Watching Recorded Programmes
- Changing Image Size: Picture Formats
- Auto
- 6:9
- 4:3
- Panoramic
- Configuring Picture Settings
- Picture Settings Menu Items
- Configuring Sound Settings
- Configuring Your TV's Settings
- Operating Settings Menu Items
- Settings Menu Items
- Using a Conditional Access Module (not included)
- Viewing Conditional Access Menu (\*)
- Confi guring Language Preferences
- Preferred
- Parental Control
- Parental Settings Menu Operation (\*)
- Timers
- Setting Sleep Timer
- Adding a Timer
- Recording Conf i guration
- Start Early (\*)
- End Late (\*)
- (\*) Available only for EU country options.
- Max Timeshift
- Format Disk
- Hard Disk Info
- Configuring Date/Time Settings
- Configuring Source Settings
- Configuring Other Settings
- Other Features
- Teletext
- Coloured Buttons (RED/GREEN/YELLOW/BLUE)
- Appendix A: PC Input Typical Display Modes
- Appendix C: Supported DVI Resolutions
- Appendix E: Software Upgrade
- 1) Software upgrade search via user interface
- 2) 3.AM search and upgrade mode
- Specifications
- TV BROADCASTING
- Digital Reception (DVB-T)
- Digital Reception (DVB-C)
Brand : Andersson
Model : LED4241FDC PVR
Category : Television
