Product Type	String Trimmer
Brand	Tanaka
Model	TCG 27EBS(SL)
Engine Displacement	27 cc
Power Output	0.9 kW (1.2 hp)
Fuel Type	Mixed gasoline (50:1 ratio)
Fuel Tank Capacity	0.5 L
Cutting Width	430 mm (17 in)
Cutting Line Diameter	2.4 mm (0.095 in)
Shaft Type	Straight
Starter Type	Recoil pull
Weight (without fuel)	5.2 kg (11.5 lb)
Dimensions (L x W x H)	1800 x 250 x 300 mm
Noise Level (at operator ear)	96 dB(A)
Vibration Level (rear handle)	8.5 m/s²
Safety Features	Stop switch, hand guard, debris shield
Maintenance	Clean air filter after 10 hours; replace spark plug annually; sharpen blade if equipped

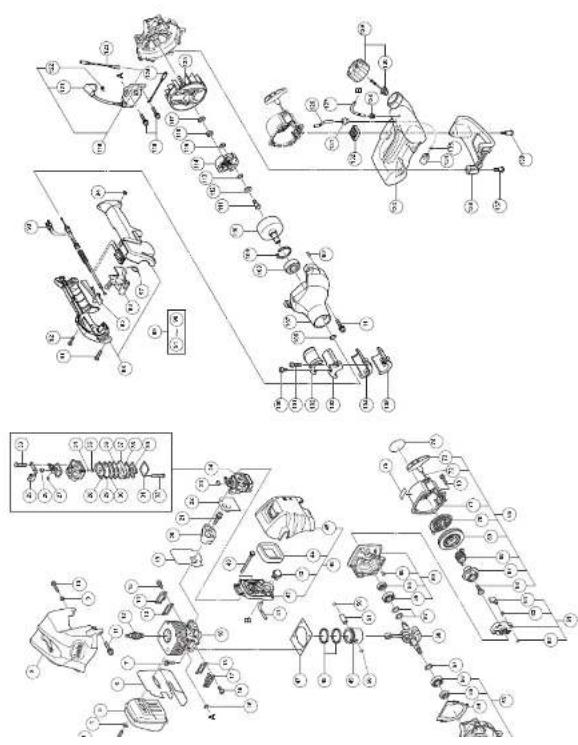

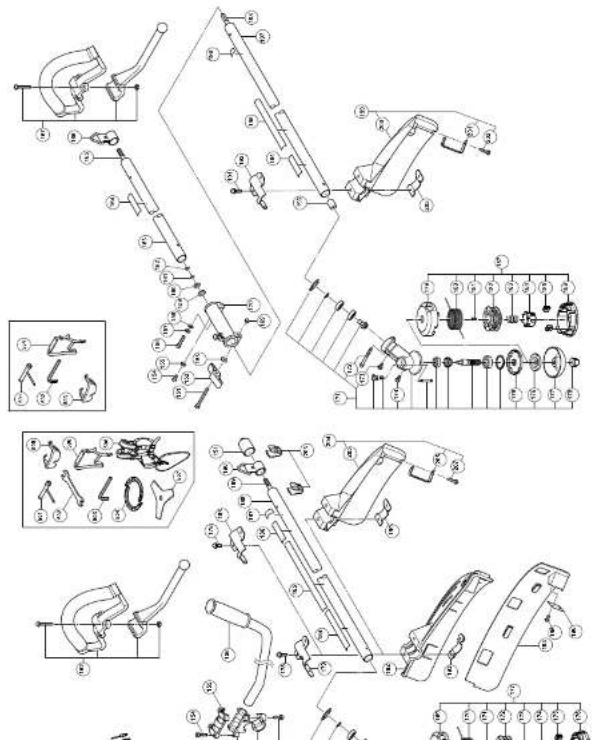

Spare Parts Availability	Air filter, spark plug, trimmer head, fuel line, bump feed mechanism

Frequently Asked Questions - TCG 27EBS(SL) Tanaka

What is the fuel mix ratio for the Tanaka TCG 27EBS(SL)?

The recommended fuel mix ratio is 50:1 (2% oil) using high-quality 2-stroke oil. Use unleaded gasoline with an octane rating of 90 or higher.

How do I start the Tanaka TCG 27EBS(SL) string trimmer?

Set the stop switch to the 'I' position. Press the primer bulb 5-7 times until fuel is visible. Pull the recoil starter slowly until resistance is felt, then pull firmly. If cold, set choke lever to 'COLD' until engine starts, then open choke.

What type of cutting line should I use?

Use a 2.4 mm (0.095 inch) diameter nylon cutting line. The trimmer head can accommodate up to 4 meters of line. Use a quality line for best durability.

How often should I clean the air filter?

Clean the air filter after every 10 hours of operation. If working in dusty conditions, clean more frequently. Wash with warm soapy water, rinse, dry, and lightly oil before reinstalling.

What is the correct spark plug gap?

The spark plug gap should be 0.6-0.7 mm (0.024-0.028 inches). Use a Champion RCJ6Y or equivalent. Replace annually.

How do I replace the trimmer line?

Turn the trimmer head to align arrows, press the tabs to open the cover. Remove remaining line, cut a 4 m length of line, insert one end into the hole and wind in the direction indicated, leaving 15 cm ends. Close cover and snap shut.

What should I do if the engine won't start?

Check fuel level and mix, ensure stop switch is on, inspect spark plug for fouling or gap, clean air filter, and verify primer bulb is working. If still no start, check fuel lines for blockage.

How do I adjust the carburetor?

The carburetor is factory set. If adjustment is needed, locate the idle speed screw (T) and high-speed mixture screw (H). Turn H screw no more than 1/4 turn at a time. Refer to the manual for exact procedure.

What safety gear should I wear?

Always wear safety goggles, ear plugs, heavy gloves, long pants, and sturdy boots. Never operate without the debris shield and hand guard installed.

Where can I find replacement parts?

Replacement parts such as air filters, spark plugs, trimmer heads, and bump knobs are available from Tanaka dealers or online stores. Use genuine parts for best performance.

USER MANUAL TCG 27EBS(SL) Tanaka

Grass Trimmer/Brush Cutter

Model TCG 24EBS (SL) / TCG 24EBS (S)

TCG 24EBD (SL) / TCG 24EBD (SLN)

TCG 27EBS (SL) / TCG 27EBS (S)

TCG 27EBD (SL) / TCG 27EBD (SLN)

Handling instructions

MEANINGS OF SYMBOLS

NOTE: Some units do not carry them.

	SymbolsWARNINGThe following share symbols used for the machine. Be sure that you understand that meaning before use.
	It is important this your read, fully undestants and observe the following safety precautions and warnings. Careless or transporter use at the unit may cause serious or fatal injury.	[TYZ3]	Choke - Run position (Open)
			Choke - Start position (Onout)
	Head, understand and follow all warnings and instructions in this manual and on the unit.		Ignition stop
	Always wear eye, head and ear protectors when using this unit.		Fuse and oil mixture
	Do not use metalrigid blades when this sign is shown on the unit.	[HWSK]	Guaranteed Sound power level
	Keep all children, bystanders and helpers 15 m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately.		Hot Surface Contact with hot surface can cause serious burns.
	Be careful of thrown objects		Blade thrust may occur when the spinning blade contacts a static object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be that already. I has reaction is called blade chrus. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Since thrust is more likely to occur in stees where it is difficult to see the material to be out.
[DD6X]	Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm.
[SYHX]	Gloves should be worn when necessary, e.g., when assembling cutting equipment.	Do not attach handle above this point	Indicate handle location. Do not attach handle above this point.
	Use anti-slip and slanty loosest.

WHAT IS WHAT

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap

2. Throttle trigger

3. Starhar hands

4. Cullion attachment gear

5. Cutting attachment

6. Drive shall tube

7. Han d lo

8. С Uzbekistan - British

9. Indian - Italian

10. Напеся

11. Throwe Ingger lockout

12. Choke love

13. EAG

14. A##

15. local mass

16. Cambi box spanner

17. Spanner (if co equipped)

18. Hex Bar wicncl

19. Change other (to be quartered)

20. Handline

WARNINGS AND SAFETY INSTRUCTIONS

Operator safety

☐ Always wear a safety lace shield or goggles.

Always wear heavy, long pants and non-slip boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.

Do not operate this tool when you are tired, if or under the Influence of alcohol, drugs or medication.

Do not operate the tool at night or under bad weather conditions when visibility is poor. And do not operate the tool when it is raining or right after it has been raining. Working an slippery ground could load to an a lose your balance.

- Never let a child or inexperienced person operate the machine. - Long-term exposure to noise can result in permanent heading impairment. Wear approved hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.

- Wear head protection. - Never start or run the coplea inside a closed room or building.

Breathing exhaust fumes can kill.

○ Keep handles free of oil and fuel.

○ Keep hands away from cutting equipment.

Do not grab or hold the unit by the culling equipment.

- Gloves should be worn when installing or removing the cutting attachment. Failure to do so may result in injury.

○ When the unit is turned off, make sure the cutting attachment

has stopped before the unit is set down.

When operation is prolonged, take a break from time to time so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

○ Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any symptoms of the above appear, see medical advice immediately.

- If you are using any medical electri/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

○ Inspect the entire unit/machina before each use. Replace damaged parts. Check for fuel lease and make sure all fasteners are in place and securely lightened.

- Replace parts that are cracked, dropped or damaged in any way before using the unit-machine. Faulty parts may increase the risk of accidents and may lead to an injury.

○ Make sure the safety guard is properly attached.

- Keep others away when making carburator adjustments.

Use only accessories as recommended for this unit/machine by the manufacturer.

WARNING

Never modify the unit/machine in any way. Do not use your unit

machine for any job except that for which it is intended.

○ Non-authorized modifications and/or accessories may result in

serious personal injury of the death of the operator of others.

Fuel safety

○ Mix and pour fuel outdoors and where there are no sparks or flames.

- Use a container approved for fuel

1. Do not ask for all any smoking rates first as then a mild smoking rate

WARNING

Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or tilling fuel.

Cutting safety

C. Do not cut any material other than grass and brush.

○ Inspect the area to be cut before each use. Remove objects

which can be thrown or become entangled.

○ For respiratory protection, wear an aerosol protection mask

when culling the grass after insecticide is scallered.

○ Keep others including children, animals, bystanders and

helpere outside the 15 m hazard zone. Stop the engine immediately are announced.

immediately if you are appreciated.

(c) Always keep the engine on the right side of your body. (d) help the will/maining firmly with both hands.

○ Hold the unimaging family with both hands. ○ Keep five feelings and beings. Do not over-

- Keep him in going and because. Do not over-reach. Losing your balance during work may lead to an injury.

○ Keep all parts of your body away from the muffler and cutting

- Keep for gains of great air by mail from the aircraft and taking attachment when the engine is running.

C. Keep cutting attachment below knee level.

C: When relocating to a new work area, be sure to shut off the

machine and ensure that all cutting attachments are stopped.

Never place the machine on the ground when running.

○ Always ensure that the engine is shut off and any cutting

attachments have completely stopped before clearing debris or

removing grass from the cutting attachment.

Always carry a first-hand kit when opening any power

equipment.

C Never start of run the engine inside a closed room or building

and/or Fear Inflammable liquids. Ordering oxidousumes can kit

(1) 15.42

(1) If this tool is operating poorly and produces strange noise or vibration, turn off the cycle immediately and occur your peace.

Violations, turn on the engine in to have it respected and repaired.

Continued use under these conditions could lead to injury or

Tool damage.

○ Use in accordance with local laws and regulations.

2.3.1.1

Maintenance sale

○ Maintain the urithmachine according to recommended

procedures

○ Disconnect the spark plug before performing maintenance

except for carburetor adjustments.

- Keep others away when making barbtoror adjustments.

- Use only genuine Tenska replacement parts as recommended by its most travelers

By the hand

Transport and storage

○ Carry the uriUmachine by hand with the engine stopped and

the mutler away from your body.

○ Allow the engine to cool empty the fuel tank, and secure the

unit/machining before storing or transporting.

○ Empty the fuel tank before storing the unit/machine. It is

recommended that the fuel be emptied after each use. If fuel is

left in the tank, store so fuel will not leak.

Store unibmachine out of the reach of children

○ Clean and maintain the unit carefully and store it in a dry place

☐ Make sure engine switch is off when transporting or storing.

○ When transporting and storing, cover blade with blade cover.

(2) You have to secure the machine during transport to prevent

loss of fuel damage or injury

it situations occur which are not covered in this manual.

- Shannis is clear when it has been covered in the first time, like cars and use common series. Contact Tarskos riable: if you need

assislance. Pay special attention to statements proceeded by the

following words:

CAUTION
Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.
SPECIFICATIONS

Model	TCG24EBS TCG24EBD
	(BL) (B) (BL) (SLN)
Engine Displacement (cm2)	23.8NGK BAH7A2830 - 320079000.8	23.8NGK BAH7A2830 - 320075300.8		23.8NGK BAH7A2830 - 320075000.8	23.8NGK BAH7A2830 - 320075000.8
Spark plug Rolling speed (min-1)
Splice of output shaft (min-1)
Max. engine output (kW)
Fuel tank capacity (cm-2)	520
Dry weight (kg): 4.95.15.15.24.3
Cutting attachment Type / Die (mm) Nylon cord Nylon cord			Metal blade(255)	Nylon card —
Sound pressure level LpA(μB (A))	(ISO22869)Equivalent*Uncertainty	853	853	823	853
Measured sound power level LaA (dB (A))	(2000/14/EC)Racing	108	108	105	108
Guaranteed sound power level LaA (dB (A))	(2000/14/EC)Racing	111	111	108	111
Vibration level (m/s-1)(ISO22867)
Equivalent (Front / Left handle)*	5.6	3.9	3.1	6.2	—
Equivalent (Rear / Right handle)*	4.0	2.7	2.6	3.4	—
Uncertainty	2.0	1.3	1.2	2.0	—
Model	TCG27EBS TCG27EBD
	(SL) (S) (SL) (SLN)
Engine
Displacement (cm)	26.8NGK DAW7A2830 - 3200		26.8NGK DAW7A2830 - 3200		26.8NGK DAW7A2830 - 3200
Spark plug
Irding spread (mW)	7900		7930		7900
Speed of output (min. Max angina output (kW)	0.6		0.9		0.9
Fuel tank capacity (cm ^3 )	520
Dry weight (kg) 5.0 5.3 5.3 5.3 4.4
Cutting attachment Type / Die (mm) Nylon cord Nylon cord			Metal blade(255)	Nylon cord —
Sound pressure level LpA(dB (A))	(ISO22889)Equivalent*Uncertainty	863	863	853	863
Measured sound power level LwA (dB (A))	(2000/14/EC)Racing	108	108	108	—
Guaranteed sound power level LwA (dB (A))	(2000/14/EC)Racing	111	111	111	—
Vibration level (m/s (ISO22867))
Equivalent (Front / Left handle)*	5.7	4.1	3.7	5.3	—
Equivalent (Free / Right handle)*	4.1	3.0	2.6	3.4	—
Uncertainty	2.0	1.2	1.2	2.0	—

NOTE
Equivalent noise level/ibration level are calculated as the time-weighted energy total for noise/ibration levels under various working conditions with the following time distribution:
1/2 Idle, 1/2 racing.
All data subject to change without notice.

ASSEMBLY PROCEDURES

Drive shaft to engine (Fig. 1)

Lessan tube locking bolt (1) about ten turns so that the bolt point will not obstruct drive shaft tube to be inserted. When inserting drive shaft tube, hold the tube locking bolt outward preventing inside filling from obstructing as well.

Insert the drive shaft into the clutch case of the engine properly until the marked position (2) (if so equipped) on the drive shaft tube meets the clutch case.

Some models may come with the drive shaft already installed.

NOTE

When it is hard to insert drive shaft up to the marked position on the drive shaft tube, turn drive shaft by the outer mounting end clockwise or counter-clockwise. Tighten tube locking bolt lining up the hole in the shaft tube. Then lighten clamp bolt securely.

Installation of attachment

1. Join the attachment in place of it.
2. Make sure the lock pin (3) fit in the location hole (4) of tube and
   that the tube will not come off. (Fig. 2)
3. Tighten the knob nut (5) securely. (Fig. 2)

Installation of handle

WARNING

Always use a border bar (6) and shoulder hamsa with the loop handle. (Fig. 3)

Fig. 3

Attach the handle to the drive shaft tube with the angle towards the engine. Adjust the location to the most comfortable position before operation.

NOTE

If your unit has handle location label or drive shaft tube, follow the illustration.

Remove the handle bracket (7) from the assembly. (Fig. 4) Place the handles and attach the handle bracket with four bolts lignily. Adjust to appropriate position. Then attach it firmly with the bolts.

Fig. 4

Attach the protection tube to the drive shaft or handle using cord stamps (8). (Fig. 5)

Fig. 5

Throttle while colon cord

Fig. 6

If the throttle outer end (10) is threaded on your unit, screw it and the earth terminal (11) (if so equipped) into the cable adjuster stay (12) at the way, and then tighten the cable end using the adjuster nut (13) against the cable adjuster stay (14). Connect throttle wire end (14) to carburetor (15) and install towel cap (16) (if so equipped) where is included in too bag, onto survival (15) (Fig. 8).

Fig. 8

Press the upper tab (8) and close the air clearer cover. (Fig. 6) Store stop cards (17) into the air cleaner cover. (Fig. 9) Some models may come with the parts installed.

Installation of cutting attachment guard (Fig. 10-1, 10-2, 11, 12)

NOTE

The guard bracket may come already mounted to the gear case on some models.

Install the cutting attachment guard on drive shaft tube against single transmission. Tighten the guard bracket firmly so that the cutting attachment guard does not swing or move down during operation.

Install the cutting attachment guard to the guard bracket, which also secures the guard to the gear case using the two guard mounting screwa.

Fig. 10-1

Fig. 10-2

WARNING

If an incorrect or faulty guard is filled, this may cause serious personal injury.

CAUTION

The cutting attachment guard is equipped with sharp line limiters. Be careful with handling it

When using a trimmer head with two piece type cutting attachment guard, attach the guard extension to the cutting attachment guard. (Fig. 11)

NOTE

When attaching the guard extension to the cutting attachment guard, the sharp line limiter must be removed from the cutting attachment guard, if so installed.

To remove the guard extension, return to the drawings. Wear gloves as the extension has a sharp line limiter, then push the four square tans on the guard one by one in order. (Fig. 12)

Fig. 12

Installation of semi-auto cutting head

1. Function

Automatically foods more nycn cutting lns when it is tapped at low rpm (not greater than 4500 min ^-1 ).

Specifications

Code No.	Type of attaching screw	Direction of rotation	Size of attaching screw
6698454	Female screw Counterclockwise M10		KP1.25-LH
6698639

Applicable version code

Cont diameter: €2.4 mm Length: 4 m

2. Prosecutions

The case must be securely allanked to the cover.

○ Check the cover case and other components for cracks or

other damage.

○ Check the case and button for wear

If the wear limit mark (18) on the case is no longer visit

there is a hole in the bottom (19) of the button, change the new

parts immediately. (Fig. 13)

Fig. 13

- This studies based most for more only one of the 100% years

1. Installation (Fig. 14)

○ install cutting head on gear case of grass 1mmans/brush cutters. The mounting nut is left-hand-threaded. Turn clockwise to loason/counterclose as to tighten.

Fig. 14

NOTE

○ Since the cutter holder cap is not used here, keep it for when a metal trade is used, if so equipped.

○ Press the stopper pin (20) of the gear case in order to lock the cutter holder.

1. Adjusted line

- Set the engine speed as low as possible and tap the head on the ground. The nylon line will be drawn out about 3 cm with each tap. (Fig. 15)

Fig. 15

Also, you can extend the nyon line by hand but the engine must be completely stopped. (Fig. 16)

Fig. 16

(1) Adjust the nylon line to the proper length at 11–14 cm before each operation.

Installation of cutting blade (Fig. 17) (if so equipped)

When installing a cutting blade, make sure that there are no cracks or any damage in it and that the cutting edges are facing the correct direction.

Fig. 17

CAUTION

Before operation, make sure the blade has been properly installed.

- If your unit is equipped with protection cover un-blade, check it for wear or cracks before damage of wear is found, replace it, as consumption.

- You have to wear gloves when handling the cutting mode.

WARNING

For Taraka heads use only flexible, non-metallic line recommended by the manufacturer. Never use zinc or nitro ropes. They can break off and become a dangerous projectile.

OPERATING PROCEDURES

Fuel (Fig. 18)

Fig. 10

WARNING

(1) The limmer is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when luding or handling fuel. ○ Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.

Fuel

- Always use branded BB octane unloaded gasoline. - Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil battle for the ratio or Tanaka dealer. - If crude oil is nor available, use an anti-oxygenated skilled quality

- In germline or 10% ethanol, use all air-fuelated fuel-based quality oil expressly labeled for air-coolize 2-cyclic engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.

Fueling

WARNING

○ Always shut off the engine before refueling.

○ Slowly open the fuel tank, when tiling up with fuel, so that

possible over-pressure disappears

○ Tighten the fuel cap carefully, after fueling.

Always move the trimmer at least 3 m from the fueling area

before starting.

Always wash any spilled fuel from clothing immediately with

806p.

(1) Be sure to check for any fuel leakage after reducing.

(五) 2017年1月1日

Before fueling, clean the tank gap area carol

no dirt falls into the bank. Make sure that the fuel is well mixed by

shaking the container, before fueling.

Starting

CAUTION

Before starting, make sure the cutting attachment does not touch anything.

1. Sol ignition switch (24) to forward away from slip position. (Fig. 19)

Fig. 19

* Push printing bulb (25) about lon times so that fuel flows into carburetor, (Fig. 20)

Fig. 20

1. Set choice lever (27) to START position (closed) (A). (Fig. 21)

1. Pull recall starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 22)

Fig. 22

1. When you hear the engine want to start, return choke lever to

RUN position (open) (5). Then pull recoil starter briefly again.

NOTE

If engine does not start, repeat procedures from 2 to 4.

1. Then allow the engine about 2-3 minutes to warm up before

subjecting it is any load.

1. Check that the cutting attachment does not rotate when the

engine is iding

Cutting (Fig. 23 - 26)

C When cutting operate engine at over 6500 min ^2 Extended

time of use allow rpm may wear out the clutch prematurely.

C. Gut grass from right to left

Blade thrust may occur when the spinning blade contacts a

sold object in the critical area.

A dangerous reaction may occur causing the entire unit and

operator to be thrust violently. This reaction I

thrust. As a result, the operator may lose control of the unit

which may cause serious or fatal injury. Blade thrust is more

likely to occur in areas where it is difficult to see the material to

LOCC

- Wear the harness as shown in the figure (if so equipped, the

Blade turns counter clockwise. Therefore, Be advised to operate

the cause from right to left for efficient cutting. Keep uncooters on

of working area at least 15 m

- Part of the Remakes and Being No Measure from the Suspension

eyel.

The following table provides the information in the United States: working position when a house from the U.S.

Working position when changes from the Kansas. Use in accordance with local laws and regulations.

Fig. 23

Fig. 25

Fig. 25

NOTE

Press the quick release button or pull emergency release load (if so equipped) in the event of emergency. (Fig. 25)

WARNING

If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and related parts are undamaged. When grass or vines wrap around attachment, stop engine and attachment and remove them.

Stopping (Fig. 27)

Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch (24).

Fig. 27

WARNING

A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

Semi-auto cutting head

(1) When cutting, operate engine at over 6500 min ^3 . Extended

MAINTENANCE

MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 28)

Fig. 20

WARNING

The cutting attachment may be spinning during carburetor adjustments.

Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal grades.

In the carburetor, fuel is mixed with air. When the engine is last run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

Idle speed adjustment (T)

Check that the air filter is clear. When the lock speed is correct, the cutting attachment will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the cutting attachment starts to rotate. Open (counter-clockwise) the screw until the cutting attachment stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate.

the cutting attachment still rotates after idle speed adjustment, contact Tanaka dealer.

NOTE

Standard idle rpm is 2800 - 3000 min

WARNING

When the engine is idling the cutting attachment must under no circumstances rotate.

Air filter (Fig. 29)

The air tiller must be cleaned from dust and dirt in order to avoid:

C Carburetor malfunctions

Starting problems

Engine power reduction

C Unnecessary wear on the engine park

C. Abnormal diet consumption

Clean the air filter daily or more often if working in exceptionally dustly areas.

Cleaning the air 1i iter

Open the air filter cover and the filter (20). Rinse it is warm soap pads. Check that the filter is dry before reassembly. An air filler that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged filler must always be replaced.

Fuel filter (Fig. 30)

Drain at fuel from fuel tank and pull fuel filter line from tank. Pull filter element out of holder assembly and rinse element in warm water with detergent.

Pine thoroughly until all traces of detergent are eliminated. Squeeze, do not wrng, away excess water and allow element to air dry.

Fig. 30

NOTE

If element is hard due to excessive dirt buildup, replace it

Spark plug (Elo. 31)

The spark plug condition is influenced by:

○ An incorrect carburel or setting

- Wrong fuel mixture (too much oil in the gasoline)

(1) A dry air filler

- Hard running conditions (such as cold weather) These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or rune poorly at spring speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

Fig. 31

NOTE

In some areas, local low requires using a resistor spark plug to suppress ignition signals. If the machine was originally

Fig. 32

Semi-auto cutting head

Nyion line replacement

(1) Remove the case (30) by firmly pushing inward the locking labs with your turnice as shown in Fig. 33.

Fig. 33

(2) After removing the case, take out the reel and discard the remaining line.

(3) Fold the new nylon line unevenly in half as shown in picture.

Hook the U-shaped end of the nylon line into the groove (31) on

the center partition of the reel. Wind both halves of the line on the rear in the same direction, keeping each half of the line on its own side of the partition. (FIG. 34)

Fig. 34

(4) Push each line into the stopper holes (32), leaving the loose ends approx. 10 cm in length. (Fig. 35)

(b) Insert both loose ends of the line through the cord guide (33) when placing the mol in the case. (Fig. 36)

NOTE

When placing a reel in the case, try to line up the stopper holes (32) with the cord guide (33) for easier line release later.

(6) Place the cover over the case so that the cap locking tube (34) on the case meet the long hole (35) on the cover. Then push the case securely until it clicks into place. (Fig. 37)

(7) The initial cutting line length should be approx. 11-14 cm and should be equal on both sladas. (Fig. 38)

Fig. 3B

When cutting edges become cut, re-sharpen or file as shown in the illustration. Incorrect sharpening may cause excessive vibration.

Discord blanks that are aunt, warped, cracked, broken or damaged in any way.

NOTE

When sharpening blade it is important to maintain an original shape of radius at the base of the tooth to avoid cracking.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact Tanaka dealer.

Daily maintenance

○ Clean the exterior of the unit.

○ Check that the harness is undamaged.

- Check the cutting attachment guard for damage or cracks. Change the guard in case of impacts or cracks. - Check that the cutting attachment is properly controlled, sharp, and without cracks. An off-centre cutting attachment induced heavy vibrations that may damage the nut.

- Check that the cutting attachment nut is sufficiently tightened. - Make sure that the blade transport guard is undamaged and that it can be securely tilted.

- Check that nuts and screws are sufficiently tightened. - Check that the unit is undamaged and free of defects.

Weekly maintenance

C. Checks the starter, especially the card and return spring

C. Clean the exterior of the spars plug.

○ Remove 1 and check the electrode use. Adjust 1 to 0.8 mm, or

change the spark plug.

○ Check that the angle gear is filled with crease up to 3/4.

C: Clean the air filter.

Monthly maintenance

C Rise the fuel tank with gasoline

Clean the exterior of the carburetor and the space around it.

○ Clean the fan and the space around it.

Blade (Fig. 37)

WARNING

Waar protective gloves when handling air performing maintenance on the blade.

List of recommended accessories

Type Name		Specification LOOP HANDLPRIKE HANDL F MULTI PURPOSE
		Diameter	Fixed System Adapter or No. of Teeth (Width)or Timmer line Diameter (mm2)	RISK HANDL F MULTI PURPOSE
					TCG2FEBS (BL)	TCG2FEBS (BL)	TCG2FEBS (E)	TCG2FEBS (G)	TCG2FEBS (SL)	TCG2FEBS (SL)
ALUMINUM HEADS	NYLON HEAD CH-100(WNYLON LINE)	4" Pre Call Line 2.2 - 5.0			●	●	●	●	●	●
	NYLON HEAD CH-100				●	●	●	●	●	●
	NYLON HEAD CH-300(WCUTTER HOLDER CAP)	5"	Manual line feed	2.2 2.7		●		●		●
	NYLON HEAD CH-300					●		●		●
TARP & SOY ON HEADS	NYLON HEAD BF-5	5"	LM/10 x 1.25Nut.LM/8 x 1.25	2.2 - 3.0●	●	●	●	●	●
BLADES	BLADE BS7/02.0	10' 32.0 ●
	BLADE BS7/23.0	12' 33.0 ●
	BLADE B4/B1.6	3' 41.6 ● ●
	BLADE B4/T01.6	10' 41.6 ● ●

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy, the problem, consult your dealer or the Tanaka dealer.

Condition Course Remedy
Engine does not start	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor) Replace with new fuel
		Too much fuel is absorbed and spark plug is wet	1. Disconnect the spark plug and allow to dry2. Pull the stamer hands for 6 times to remove the surplus fuel3. Attach the spark plug4. Set the choke lever to RUN position and pull the stamer handle
		Fuel filter is clogged with dirt	Clean the fuel tier
		Fuel pipe is bent or disconnected	Ensure that the fuel flows smoothly
		Combustor malfunction Contact Tanaka dealer
	Electrical system	Stop switch lead has short-circulled Contact Tanaka dealer
		Spark plug a dirty Replace or clean the spark plug
		Electrode gap is too big Adjust the gap to 0.6mm
		Poor connection between high tension cable and spark plug	Recommended
		Electrical system malfunction Contact Tanaka dealer
	Other	Mutter exhaust port is clogged with carbon	Contact Tanaka dealer for repair
Engine starts but cuts our straightawayEngine is opt to cut out	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor) Replace with new fuel
		Two-cycle oil has not been added	Contact Tanaka dealer
		Choke lever is in START position Set the choke lever to RUN position
		Air has got into fuel system	Reconnect the fuel pipe or joint
		Combustor malfunction Contact Tanaka dealer
	Electrical system	Ignition failure
		Spark plug failure	Replace with new spark plug
		Electrical system failure	Contact Tanaka dealer
	Other	Engine over heating
		Wrong spark plug model	Replace with designated partSee "SPH-CIRCULATIONS"
		Dirty air cleaner	Clean
		Carbon dragging (mutter exhaust port)	Clean
		Insufficient compression (piston, piston ring, cylinder)	Contact Tanaka dealer
Abnormal vibration		Cutting attachment is not properly installed	See "Installation of cutting attachment"
		Handa, handsa breaker or other fastening part is lower	Check and tighten
		Blade is bent or damaged	Replace with new blade
		Grass is wrapped round gear case	Remove grass
Engine is running but blade does not
Condition Cause: Remedy
Engine does not stop Sloo switch failure			Set the choke lever to START position to stop the engineCause use immediately and contact Tanaka dealer
Engine stops when throttle is closed idle speed is too low Contact Tanaka dealer
Blade continues rocing when throttle is closed		Idle speed is too highThrottle while is too fast	Contact Tanaka dealer

TCG24EBS (SL) / TCG24EBS (S) / TCG24EBD (SL) / TCG24EBD (SLN)

TCG27EBS (SL) / TCG27EBS (S) / TCG27EBD (SL) / TCG27EBD (SLN)

Koki Holdings Co., Ltd.
