Pro GT - Tripod Vortex - Free user manual and instructions

Product Type	Tripod
Brand	Vortex
Model	Pro GT
Material	Anodized aluminum legs
Leg Sections	3 per leg
Leg Lock Type	Flip locks
Head Type	3-way pan head
Quick-Release Plate	Included
Maximum Height	62 inches (estimated)
Folded Length	24 inches (estimated)
Weight	4.5 lbs (estimated)
Load Capacity	8 lbs (estimated)
Center Column	Adjustable with balance hook
Leg Padding	Yes, on upper sections
Warranty	Unlimited Unconditional Lifetime (VIP Warranty)
Included Accessories	Quick-release plate, handle
Care Instructions	Clean with damp cloth; avoid solvents
Safety Warning	Remove optics before moving tripod
Product Series	Pro GT

Frequently Asked Questions - Pro GT Vortex

How do I adjust the pan head?

Twist the handle counter-clockwise to free the pan head's movement. Adjust to desired position, then twist clockwise to lock.

How do I attach a camera or optic?

Flip the plate lever outward to remove the quick-release plate. Attach the plate to your device using the tripod mount bolt, then place it back into the holder and flip the lever fully to the lock position.

How do I extend the legs?

Flip the leg lever up to unlock, slide the leg section to the desired length, then flip the lever down to lock.

What is the warranty?

The VIP Warranty is an unlimited, unconditional lifetime warranty. Vortex will repair or replace your tripod at no charge. It does not cover loss, theft, deliberate damage, or cosmetic damage.

Can I use it with a spotting scope?

Yes, the quick-release plate is compatible with most spotting scopes and cameras. Additional plates can be purchased for easy switching between devices.

How do I stabilize the tripod in windy conditions?

Hang a weight from the balance hook located on the center column. This adds stability and reduces vibration.

How should I clean the tripod?

Use a damp cloth to wipe down the legs and head. Avoid using solvents or harsh chemicals that could damage the finish.

Where can I buy additional quick-release plates?

Visit the Vortex Optics website or contact customer service to purchase extra plates. They are model-specific for the Pro GT.

What is the maximum height of the tripod?

The maximum height is approximately 62 inches (157 cm) with the center column fully extended.

What should I do before moving the tripod?

Always remove your optic or camera from the tripod to prevent damage. The quick-release plate makes it quick and easy to detach your device.

USER MANUAL Pro GT Vortex

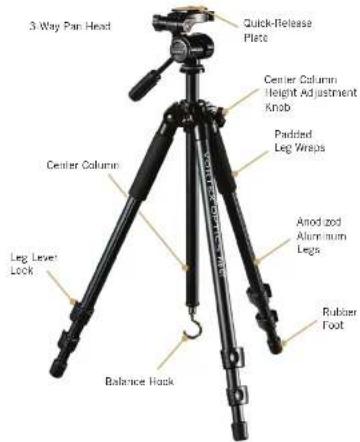

The sturdy anodized legs of the Pro GT ^™ Tripod combine with a rugged 3-way pan head to deliver smooth, solid support for your optics.

BASIC ADJUSTMENTS

Adjusting the Pan Head

The Pro GT features a 3-way pan head that allows you to quickly follow the action and easily adjust your viewing angle. For camera

use, this head allows you to choose between horizontal and vertical plate alignments.

Pan and Tilt Action

You can control all of the pan and tilt action with just one hand. To make any horizontal or vertical adjustments, twist the handle counter-clockwise to free the pan head's movement. When in desired position, twist handle clockwise to lock.

Control pan and tilt action with the handle.

Attaching Optics to the Tripod

1. Flip the plate lever lock outward to the free position and remove the quick-release plate.

2. Attach the plate to your optic or camera. Be sure to tighten the tripod mount bolt from the bottom side of the plate and fl ip the D ring so it lies fl at.

3. Place the quick-release plate back into the plate

holder. Flip the plate lever fully back to the lock position so the quick-release plate rests securely in the holder.

Flip the plate lever to lock/unlock plate.

Caution

To prevent unnecessary damage to your optics, take a few seconds to remove your optic from the tripod before you move to a new location. Spotting scopes and other optics may become damaged if carried while attached to the tripod. The quick-release plate makes this easy—and quick!

TIP: Purchase additional quick-release plates for your optics so it is easy for you to switch equipment.

EROGT

Adjusting the Tripod Legs

The Pro GT features sturdy anodized legs for reliable performance. Padded upper sections provide a comfortable grip and carry.

Center Column

Loosen the center column height adjustment knob to change the relative height of the tripod head. To help stabilize the tripod in windy conditions, hang a weight from the balance hook. (Page 3)

Leg Length

Each tripod leg extends to a maximum of three sections. To adjust the length of a leg section, flip the leg lever up to unlock. Slide the leg section out to the desired length and flip the leg lever back down to lock in place.

THE VIP WARRANTY

We build products based on our commitment to your absolute satisfaction. That's why Vortex tripods are unconditionally guaranteed and we make this Very Important Promise to you—a Very Important Person.

Rest assured that in the event your tripod becomes damaged or is defective, Vortex Optics will repair or replace it at no charge to you. If we cannot repair your tripod, we will replace it with a product in perfect working order and equal or better physical condition. Call Vortex Optics at 800-426-0048 for prompt, professional, and friendly service.

Vortex Optics

2120 West Greenview Drive

Middleton, WI 53562

[e-mail]

UNLIMITED UNCONDITIONAL Lifetime Warranty

Visit www.vortexoptics.com for more information. Canadian customers may visit www.vortexcanada.net for customer service information.

Note: The VIP Warranty does not cover loss, theft, deliberate damage, or cosmetic damage that does not hinder the performance of the product.

VORTEX®

THE FORCE OF OPTICS

WWW.VORTEXOPTICS.COM

PRO-2-14A

©Vortex Optics USA
