Product Type	Electric Food Slicer
Model	SP10060N
Brand	Swan
Power Supply	220-240V ~ 50Hz
Power Consumption	150W
Speed Settings	3 speeds (soft/thin, thick/hard, extremely thick/hard)
Slice Thickness Adjustment	Adjustable knob (clockwise for thicker, counterclockwise for thinner)
Safety Features	Safety button + ON/OFF button required simultaneously; double insulated; interlock
Blade Assembly	Removable, stainless steel, sharp
Food Pusher	Included, with thumb guard
Food Tray	Sliding, removable
Platform	Foldable
Cleaning	Blade: warm soapy water; Food Pusher, Blade Assembly, Food Tray: dishwasher safe; never use steel wool
Warranty	2 years (UK and Eire only)
Compliance	Double insulated; WEEE directive; CE marked

Frequently Asked Questions - SP10060N SWAN

How do I turn on the food slicer?

Press both the ON/OFF button and the Safety button simultaneously. The slicer will not operate if only one is pressed.

What are the speed settings for?

Speed 1 is for soft and thin foods, Speed 2 for thick and hard foods, and Speed 3 for extremely thick and hard foods. Adjust accordingly.

How do I adjust the slice thickness?

Turn the Adjust Knob clockwise for thicker slices and counterclockwise for thinner slices.

Can I wash the blade in the dishwasher?

Yes, the Blade Assembly, along with the Food Pusher and Food Tray, are dishwasher safe. However, you can also wash them in warm soapy water.

Is the food slicer safe to use?

Yes, it features a safety button that must be pressed together with the ON/OFF button to operate, plus an interlock mechanism. The blade is sharp; always keep fingers behind the food pusher.

How do I remove and replace the blade?

Ensure the slicer is OFF and UNPLUGGED. Turn the Blade Assembly clockwise to unlock and pull it out. To reinsert, line up the tabs with the slots in the small gear and turn anti-clockwise to lock.

What foods can I slice with this machine?

It is ideal for meat (boneless, chilled), fish (partially frozen), bread, vegetables, and cheese. Warm roasts should have strings removed first.

Why won't the slicer turn on?

Check that both the ON/OFF button and the Safety button are pressed together. Ensure the appliance is plugged in and the power outlet is working. If it still doesn't work, contact an authorised service agent.

How do I clean the food slicer?

Unplug and wipe all parts with a clean rag using warm soapy water and a mild anti-bacterial detergent. Never use steel wool or scouring powder. Removable parts (Food Pusher, Blade Assembly, Food Tray) can go in the dishwasher.

What is the warranty period?

The product comes with a 2-year warranty from the date of original purchase, valid in the UK and Eire only. It covers faulty materials or workmanship but not wear and tear or misuse.

USER MANUAL SP10060N SWAN

Swan

designed for life

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home

2. Incorrect operation and improper use can damage the appliance and cause injury to the user.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.

5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.

6. Never immerse the unit in water or any other liquid for cleaning purposes.

7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning

8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.

9. Do not let the cord hang over the edge of a lable or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.

10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.

11. Do not use the appliance on a gas or electric cooking top or over or near an open flame.

12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.

13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.

14. Do not carry the appliance by the power cord.

15. Do not leave the appliance unattended during use.

16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.

17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.

18. In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.

19. Your appliance must never be switched on through an external timer or any kind of separate

Parts & Assembly

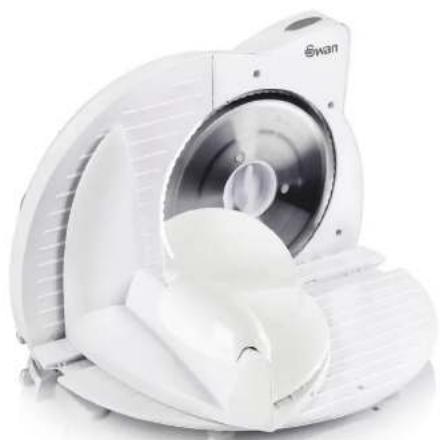

KNOW YOUR FOOD SLICER

Specification

Model No. SP10060N

220-240V\~50Hz

150W

1. ON/OFF button

2. Slice thickness gauge

3. Food tray

4. Adjusting knob

5. Main body

6. Interlock

7. Thickness guide

8. Food pusher

9. Platform

10. Blade assembly

11. Safety button

ASSEMBLY

Your Food Slicer will require assembly prior to use. It is important that you read the entire manual to become familiar with the unit before you set up the Food Slicer. Before assembling your Food Slicer, be sure that you have all parts described in the Parts List above. During Assembly, it will be helpful to refer to the Assembly Diagram.

The Food Slicer must be cleaned, before the first use and after all subsequent uses. Before assembling your Food Slicer, check for damaged parts.

Unfold the Platform (9) from the Main Body (5); please insert the interlock (6) into the slot of Platform (8) in accordance with the instruction after opening the Platform (9). Slide the Food Pusher (8) onto the Food Tray (3). The arm of the Food Pusher fits over the fence on the Food Tray-see Figure 1. The Food Tray with the attached Food Pusher (8) slides into the slot on the Platform (9).

PLEASE BE VERY CAREFUL AROUND THE BLADE ASSEMBLY. IT IS VERY SHARP.

Spares references

How to Use

REMOVING AND REPLACING THE BLADE CAUTION: USE EXTREME CAUTION WHEN HANDLING THE BLADE

1) Make certain that the Food Slicer is OFF and UNPLUGGED. Turn the Blade Assembly (10) clockwise to unlock it. Pull out the Blade Assembly.

BEFORE FIRST USE AND AFTER EVERY USE, CLEAN THE BLADE IN WARM SOAPY WATER. RINSE AND DRY THOROUGHLY

2) To reinsert the Blade Assembly (10), line up the tabs on the Blade Assembly (10) with the slots in the Small Gear. Once the Blade Assembly is seated with the Small Gear, turn the Blade Assembly anti-clockwise to lock it in position.

OPERATIONAL NOTES

1. Please choose a suitable speed range for the food that needs processing, according to its degree of thickness and/or degree of hardness.

Speed 1: the food is soft and thin

Speed 2: the food is thick and hard

Speed 3: the food is extremely thick and hard

1. Locate the Food Slicer on a non-slip counter surface. The person using the Food Slicer will be positioned in the area behind the Food Tray (3). The person's left hand will be on the Food Pusher (8) with thumb behind the thumb guard. The person's right hand will be operating the Safety Button (11) and the ON/OFF Button (1).

Set the Adjust Knob (13) for the thickness of the slice that you desire.

Turn the Adjust Knob (13) clockwise for thicker slices and counterclockwise to make the slices thinner.

Set the Adjust Knob (13) for the thickness of the slice that you desire. Tum the Adjust Knob (13) clockwise for thicker slices and counterclockwise to make the slices thinner.

Slide the Food Tray out away from the Blade and towards the operator Place

How to Use

CAUTION: KEEP FINGERS AWAY FROM THE BLADE ASSEMBLY AT ALL TIMES.

In order to slice with the Food Slicer. Both the ON/OFF Button (1) and the Safety Button (11) must be pushed down at the same time. If either is not pushed down, the Food Slicer will not operate. Use your right hand to operate the ON/OFF Button (1) and the Safety Button (11).

Your left hand should rest on the outer edge (furthest from the Blade Assembly) of the Food Pusher (8) with your thumb protected behind thumb guard. When slicing meat, the Food Pusher (8) should push the meat towards the Blade Assembly as you slide the Food Tray (3) back and forth. Move the Food Tray (3) back and forth steadily across the Blade Assembly (10). CAUTION: KEEP THE FINGERS AND HANDS ALWAYS BEHIND THE FOOD PUSHER AND CLEAR OF THE SPINNING BLADE ASSEMBLY. To turn off the Food Slicer, take fingers off of the ON/OFF button and the Safety Button.

FOR BEST RESULTS

Chill meats thoroughly before slicing.

Slice meats wafer thin.

Meats should be boneless.

Fish and thin steaks will slice better if partially frozen.

When slicing warm roasts, make certain to remove strings before slicing.

CLEANING AND MAINTENANCE

1. Never use Steel Wool or scouring powder on any part of the Food Slicer.

2. Before assembling the Food Slicer, and with the electrical plug unplugged, thoroughly wipe off all parts with a clean rag using warm soapy water and a mild anti-bacterial detergent. In addition, the following parts can be cleaned in a dishwasher, Food Pusher (8). Blade Assembly (10), and Food Tray (3). Clean the Food Slicer after every use. Failure to follow all cleaning instructions and warnings may result in serious illness due to food poisoning.

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange

to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

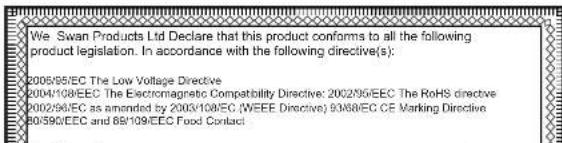

Declaration of EC Conformity

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase. The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.
