Product Type	Optional Software License
Brand	Sony
Model	HZC-PRV50
Category	Software
Compatible Cameras	HDC-3500, HDC-3100
Compatible CCUs	HDCU-3100, HDCU-3170
Supported Signal Formats	1080/59.94p, 1080/50p
Main Function	Enables progressive 59.94p/50p output on HDC-3500/HDC-3100
Upgrade to 4K HDR	With optional HKCU-UHD30 4K HDR Processor Board
License Type	Perpetual (full version)
Trial Versions Available	HZC-PRV50M (30-day), HZC-PRV50W (7-day)
Distribution	Download (license key)
Installation	Via camera menu or software update
Manual Included	Yes (CD-ROM with camera manual)
Warranty	1 year (standard Sony software warranty)
Estimated Release Year	2018
System Requirements	HDC-3500 or HDC-3100 with updated firmware
Language Support	English (manual)
Maintenance	No physical maintenance required
Safety Precautions	None specific
Spare Parts & Repairability	Not applicable (software license)

Frequently Asked Questions - HZC-PRV50 SONY

What is HZC-PRV50?

HZC-PRV50 is an optional software license for Sony HDC-3500 and HDC-3100 cameras that enables 59.94p/50p progressive signal output.

Which cameras are compatible with HZC-PRV50?

It is compatible with the Sony HDC-3500 and HDC-3100 HD cameras. It also requires a compatible CCU such as the HDCU-3100 or HDCU-3170.

What signal formats does HZC-PRV50 support?

It supports 1080/59.94p and 1080/50p progressive formats. When combined with the optional HKCU-UHD30 board, it can also output 4K UHD signals.

How is HZC-PRV50 installed?

The software is installed via the camera's menu system or through a firmware update. A license key is provided after purchase to activate the feature.

Is there a trial version available?

Yes. Sony offers a 30-day trial (HZC-PRV50M) and a 7-day trial (HZC-PRV50W) for evaluation purposes.

Is HZC-PRV50 required for 4K output?

No, but it is necessary when using the HKCU-UHD30 4K HDR Processor Board to enable 4K HDR output from the HDC-3500/HDC-3100 system.

Is HZC-PRV50 a hardware or software product?

It is purely a software license. No physical hardware is provided; the activation is done via a license key.

How can I purchase HZC-PRV50?

Contact Sony or an authorized dealer. The software is typically sold as a license for each camera head.

What is the difference between HZC-PRV50 and HZC-PRV50M?

HZC-PRV50 is a full perpetual license, while HZC-PRV50M is a 30-day limited trial version. Both provide the same functionality for the trial period.

Does HZC-PRV50 work with the HDC-3170?

The manual primarily specifies compatibility with HDC-3500 and HDC-3100. For HDC-3170, the optional software listed is HZC-PSF50 for PsF format. It is not confirmed that HZC-PRV50 works with HDC-3170.

USER MANUAL HZC-PRV50 SONY

Professional video camera with Sony logo and number 1, displayed against a blue gradient background (no text or symbols on device body)

Sony HD Cameras –

Open up a World of Creativity with this New Performance Benchmark

Over the years, Sony has established a powerful solution lineup for HD studio

operations with its HDC Series cameras along with a wide range of accessories to enhance your creative options.

Sony's flagship HDC Series cameras have been accepted as a worldwide standard, using cutting-edge technologies to realize excellent picture quality.

Now Sony proudly introduces new models designed to boost creativity with higher levels of performance along with the flexibility of continued interchangeability with existing models. The new HDC-3500, HDC-3100, HDC-3170, and point-of-view (POV)-style camera HDC-P50 are powerful tools that truly inspire innovation and enable your creative vision.

In addition, for even higher levels of creativity, Sony offers the HDC-4300 super-motion

camera with a 4K capability. Along with various camera head choices, all HDC Series

cameras also boast various options such as a stunning 7-inch OLED viewfinder

and a large lens adaptor that enables rapid attachment without fine adjustment.

With their field-proven high reliability, all HDC Series cameras are stunning acquisition tools, ideal for a broad range of HD production applications.

Person operating a professional video camera on a river with rocky banks in the background (no visible text or symbols)

HDC Series Multi-Format HD Camera System

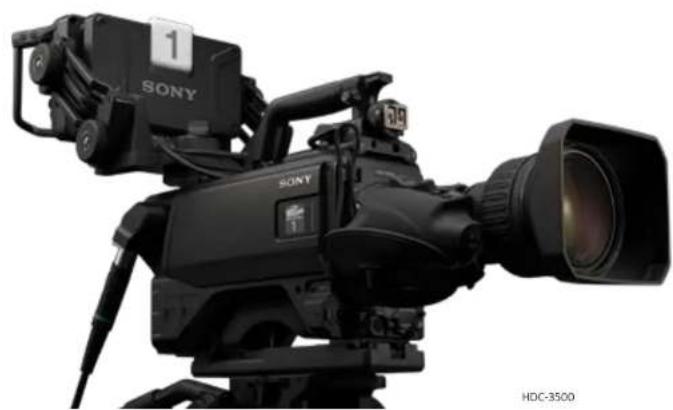

Black Sony 3500 video camera with extended lens and external frame (no visible text or symbols on device body)

Portable Cameras

HDC-3500

Optical fiber interface

1080/50i, 1080/59.94i

100A235.00= 100A738= 100A737=

HDC-3100

Optical-fiber interface

1080/50, 1080/59.94

5.6.12-5.6.13

HDC-3170

Digital triax interface

1080/50i, 1080/59.94i

[Unreadable due to severe distortion and noise]

HDC-3500

Sony has newly developed a powerful imaging device specifically for the HDC-3500. This offers high sensitivity of F10 (at 1080/59.94p) or F11 (at 1080/50p) and a superior signal-to-noise ratio. The HDC-3500*1 offers enhanced, excellent picture quality through new cutting-edge technologies. The first of these is a newly developed 4K CMOS imaging device equipped with global shutter technology. And the second is a newly developed dedicated signal processor. In addition, the HDC-3500 can be upgraded with optional software licenses to add required functions such as capturing progressive signals, progressive segmented frame (PsF) signals, and double-speed acquisition for exquisite picture-quality slow motion. The HDC-3500 is operated through fiber transmission as standard. It also has an exchangeable side panel interface and the HKC-CN50 enhances easy exchangeable operation. To satisfy your varying requirements with the HDC-3500, Sony provides exchangeable outside panels – the HKC-FB30 (for fiber transmission) and the HKC-TR37 (for triax transmission), as well as the HDC-3500H which does not have a transmission function. You can also choose the HDCU-3100 Camera Control Unit for fiber operation and the HDCU-3170 for triax operation.

HDC-3100, HDC-3170

The HDC-3100 ^® offers an optical fiber transmission capability as standard. Meanwhile, the HDC-3170 offers a digital triax transmission capability. Both deliver high sensitivity of F12 (at 1080/59.94i) or F13 (at 1080/50i) so you

HDC Series Cutting-Edge Technologies

Highly Acclaimed 4K CMOS Sensor with Global Shutter Technology (for the HDC-3500)

Based on Sony's cutting-edge imaging device technology and the latest on-chip lens structure, this 2/3-inch-type 4K CMOS sensor offers high sensitivity of F10 (at 1080/59.94p) and

F11 (at 1080/50p) at 2,000 lx and a superior signal-to-noise ratio even without digital no

In addition, there is a wide variety of available output formats including 1080/59.94i, 1080/50i, 1080/23.98p*1, 1080/24p*1, 1080/25p*1, 1080/29.97p*1, and 1080/59.94p*2 or 1080/50p*2. These formats are beyond HD picture quality made from 4K capturing images.

Double-speed acquisition for excellent slow-motion picture quality is also available in 1080/119.88l ^A3 , 1080/100l ^A3 , 720/119.88p ^A3 , and 720/100p ^A3 modes.

What's more, installing the optional HKCU-UHD30 4K HDR Processor Board to the HDCU-3100 enables the CCU to transmit ultra-high-bit-rate (UHB) signals automatically and output 4K signals (UHD/59.94p or UHD/50p) ^8 .

• Optional H/C PSFC software is required for the H/C 350C.
• Optional H7C P3950 software is required for the HDC 3520
  -3 Optional H2C DFR50 software is required for the HDC 3500

State-Of-The-Art Evolving Digital Signal Processor

The DSP LSI developed for the HDC-3500 supports 1080/59.94p and 1080/50p progressive formats, making full use of the high-clarity images captured by the

CMOS sensor. You can also capture UHD/59.94p or UHD/50p 4K resolution images and achieve high-speed signal processing – the capabilities that are

Optical Fiber Transmission

HDC-3500 and HDC-3100 cameras offer an optical fiber transmission capability as standard, enabling you to shoot in various capturing formats. These cameras are equipped with an SMPTE-standard optical fiber interface for connecting the associated camera control unit (the HDCU-3100 or HDCU-2000). While achieving exceptional quality, these cameras can also transmit all digital bi-directional video and audio signals, a control line, and a prompter line over extremely long distances.

Next-Generation Digital Triax Transmission

With these newly developed third-generation digital triax-based systems, you can transmit detailed high-quality images over a long distance - up to 1,800 meters (5,904 feet) ^4 with a 14.5 mm triax cable.

*4 Maximum cable length varies with carrera system configuration.

Network TRUNK\*5

The network TRUNK function (LAN port) allows for data transmission between the camera and the CCU at up to 1 Gbps. This supports new system configurations that are being used with various IP-based products.

1. This function can only be used with the four system

Servo-Controlled ND and CC Filters ^4

The HDC-3500 is equipped with dual optical filter wheels for ND (neutral density) and CC (color correction) which can be remotely controlled by any remote control level (DCP) or other current mode (MCU). The DCP is also directly connected by a

Compact and Lightweight Camera Body

HDC-3500, HDC-3100, and HDC-3170 cameras incorporate magnesium alloy in their bodies and the HDC-3500 also features carbon fiber reinforced plastic (CFRP) in its outside panel. With this strong yet lightweight design, these cameras are highly mobile and can be operated even in the toughest shooting conditions.

The HDC Series provides stable handling, owing to a low center of gravity. You can easily adjust the shoulder pad into a well-balanced position without needing to use a screwdriver. Also, a wide viewable area beneath the handle provides you with a broad field of view, ideal for handheld camera operation. In every carefully considered aspect, HDC Series studio cameras offer great ergonomic design to increase ease of use.

Rich Focus Assist Functions

The viewfinder detail function adds dedicated image-enhancing edge signals directly to the viewfinder, helping you to recognize a focusing point. The focus assist indicator displays an indicator for adjustment at the bottom (or another selected position) of the viewfinder frame.

In addition, the HDC-3500 and HDC-3100 are equipped with an advanced focus position meter function; the return switch can also be utilized as the focus position meter with illumination. Three focus positions can be assigned at the RGB switches of the HDLA-1500 Series Large Lens Adaptor, and the same position data can be assigned at the return switches on the camera's intercom panel. These switches can be lit in red, green, blue or others according to the functions.

This is helpful especially when shooting with a wide-viewing angle.

Person kayaking in a river with water splashing, wearing a black cap and white gear (no visible text or symbols)

Close-up of a black electronic device with multiple ports and a purple-labeled connector (no visible text or symbols)

Flexibility with the HDC Series

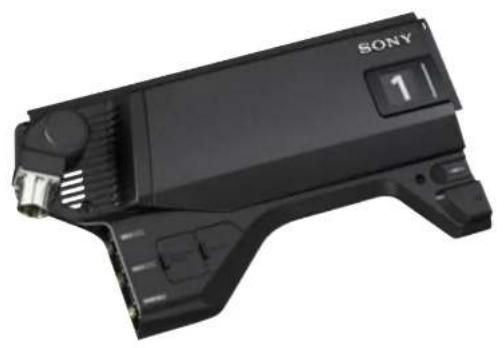

Easy Transmission Change

The transmission system can be easily changed between fiber (HKC-FB30), triax (HKC-TR37), and wireless (HKC-WL50) transmission by replacing parts assembled in the outside panels ^4 .

In addition, since all replacement connectors are located in the outside panels, camera balance is maintained.

*The optional HKC-CNSO is required to select an out-of-parel.

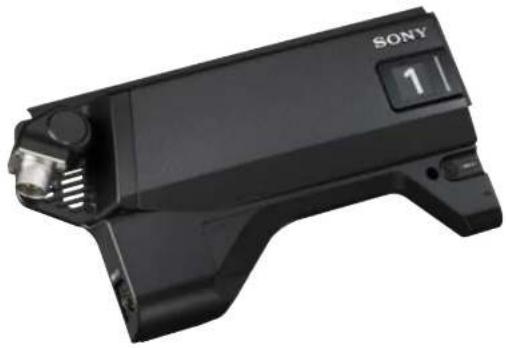

HKC-FB30: Optical Fiber Transmission Adaptor (for HDC-3500 and HDC-3500H)

Black Sony 124 remote control device with visible ports and buttons (no text or symbols beyond branding)

HKC-TR37: Digital Triax Transmission Adaptor (for HDC-3500 and HDC-3500H)

Black Sony handheld device with control panel and indicator lights (no visible text or symbols beyond branding)

Upgrade Software to Expand Creativity

An upgrade path is provided for your further creative operation. You can select your configuration with the following optional software, including special versions that operate for a limited time period, according to your needs.

HZC-PSF50: PsF-format Software

HZC-PSF50M: PsF-format Software (30-day limited period)

HZC-PSF50W: PsF-format Software (7-day limited period)

HZC-PRV50: 59.94p/50p Software

HZC-PRV50M: 59.94p/50p Software (30-day limited period)

HZC-PRV50W: 59.94p/50p Software (7-day limited period)

HZC-DFR50: Double-speed Capturing Software for Slow Motion (for HDC-3500)

HZC-DFR50M: Double-speed Capturing Software for Slow Motion (30-day limited period) (for HDC-3500)

HZC-DFR50W: Double-speed Capturing Software for Slow Motion (7-day limited period) (for HDC-3500)

HZC-UG50: User Gamma-compatible Software

HZC-UG50M: User Gamma-compatible Software (30-day limited period)

HZC-UG50W: User Gamma-compatible Software (7-day limited period)

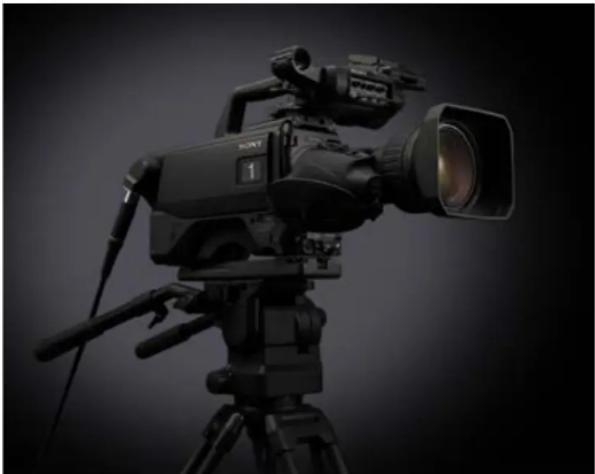

Professional video camera on tripod against dark background (no visible text or symbols)

HDC-3100

Flexibility with the HDC Series


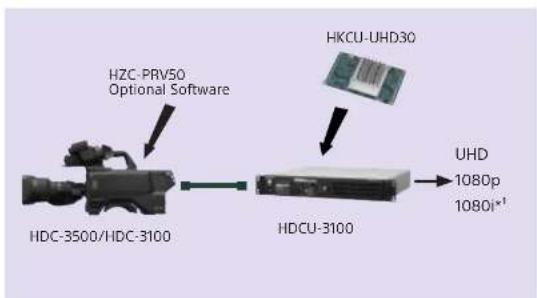


Superior Operability

Wider area for an easier handle grip

It's easy to grip the handle even with gloves on. And visibility through this area has improved. In addition, the ergonomically designed handle enables stable handling of the camera - use your index finger to tightly hold this part of the camera.

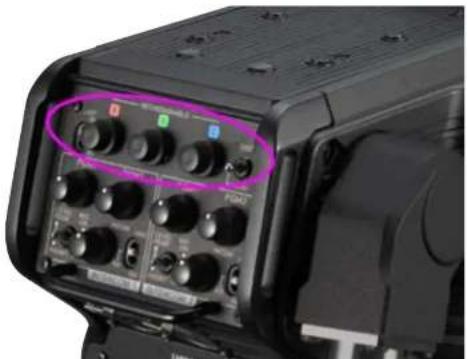

Close-up of a mechanical component with a red outline highlighting a section, showing no visible text or symbols.

Viewfinder position: easy and stylish to use

The position of the viewfinder can be adjusted with ease. You can slide the viewfinder backward or forward and lock it to set its position with just the positioning lever. Its mounting rods are perfectly retracted into the body in a minimized position. As the rods do not protrude inward,

they cannot interfere with your hand when gripping the handle.

Excellent Visibility

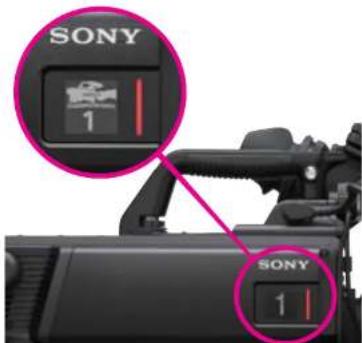

Camera numbering using electronic paper (for the HDC-3500)

An industry first, the HDC-3500 camera uses electronic paper (e-ink) type camera numbers. This numbering changes automatically when the system changes the camera number.

In addition, graphics can also be displayed with a number.

Side tally using an LED lamp (for the HDC-3500)

A tally lamp is mounted next to the camera number, improving visibility of tally status from the outside.

User-Friendly Interface

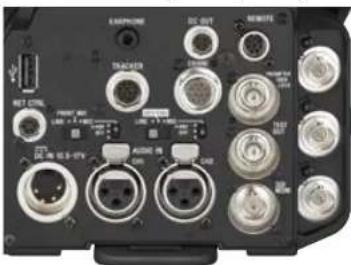

Improved layout of connectors

It's easy to pull BNC connectors out of the rear panel because of the ergonomic layout design.

Close-up of a black electronic device with multiple ports and connectors (no visible text or symbols)

Simple intercom with earphone terminal

Besides the conventional intercom system, a commercially available earphone (4-pole earphones) can be utilized to input and output the intercom audio signal.

Versatile System Components: HDCU-3100 and HDCU-3170

Sony HDCU-3100 and HDCU-3170 Camera Control Units are next-generation CCUs that perform signal processing, provide an interface to external equipment, and supply power to the camera. In a compact 1.5 RU-size, these devices provide a path for IP and 12G-SDI capabilities, including IP on HDC Series optical fiber studio cameras. These highly compact 1.5 RU-size CCUs fit a standardized 19-inch rack system, ideal for space-limited production areas.

HDCU-3100 Camera Control Unit

-Up to eight 3G-SDI/HD-SDI outputs
-Four sets of 3G-SDI/HD-SDI/SD-SDI return video inputs
-Two-channel teleprompter inputs
-Built-in LAN interface (10BASE-T/100BASE-TX)
-Two-channel data trunk lines (RS-422A or RS-232C) for easy data transmission
- Two-channel microphone outputs [two XLR connectors]

Front view of a black Sony rack-mounted server unit (no visible text or labels)

HDCU-3170 Camera Control Unit

-Up to eight 3G-SDI/HD-SDI outputs
-One-channel teleprompter input
-Built-in LAN interface (10BASE-T/100BASE-TX)
-A channel data trunk line (RS-422A/RS-232C) for easy data transmission
-Two-channel microphone outputs (two XLR connectors)
A triax transmission connector is incorporated as standard and an optical fiber connector can also be added by installing an optional HKCU-FB30 Optical Fiber Connector kit. When you are operating in an OB van, it's easy to switch signals between optical fiber and triax cables.

Front view of a black Sony rack-mounted server unit with ventilation and control panel (no visible text or labels)

HDCU-3170 standard

Upgrade Program for 4K

With the optional HKCU-UHD30 4K HDR Processor Board and HZC-PRV50 Signal Format Software, the HDC-3500 and HDC-3100 can be upgraded to create 4K images as well as 4K Live HDR (high dynamic range) images.

HKCU-UHD30: 4K/HDR Processor Board

The HKCU-UHD30 4K HDR Processor Board provides 4K HDR signals for SDI and IP output.

Electronic circuit board components including a heatsink, cooling fan, and two aligned resistors (no text or symbols visible)

HKCU-SDI30: 12G-SDI Extension Kit

The HKCU-SDI30 is an 12G-SDI expansion kit that adds two connectors for 4K 12G-SDI signals. ^1

Interface Expansion Options

HKCU-FB30: Optical Fiber Connector Kit

The HDCU-3170 Digital Triax CCU can achieve fiber transmission when you install the optional HKCU-FB30. With this new feature, the HDCU-3170 provides selectable triax and fiber transmission in one CCU body.

Collection of electronic components including thermocouple, circuit board, and connectors (no visible text or symbols)

HKCU-SM30: Single Mode Fiber Connector Kit

The HKCU-SM30 is a single mode fiber connection kit between a camera and CCU.

With the HKCU-SM30, the maximum distance extends up to 10 km.

Collection of electronic components including a circuit board, wires, and connectors (no visible text or symbols)

Optional Accessories

MSU-1000
Master Setup Unit

MSU-1500
Master Setup Unit

HDLA-1500
Large Lens Adaptor
for attachment of the

HDLA-1505
Large Lens Adaptor
for attachment of the HWF FL75/0730/b/550/c550cm

HDLA-1507
Large Viewfinder Adaptor
for arrangement of the U64-5 70/70021

RCP-1000
Remote Control Panel

RCP-1001
Remote Control Panel

RCP-1500
Remote Control Panel

RCP-3100
Remote Control Panel
*Available in 2019 January

HDVF-EL30
Full HD OLED Viewfinder with
3.5-inch LCD

HDVF-EL20
Full HD OLED Viewfinder

HDVF-EL70
7.4-inch* Color HD Viewfinder

HDVF-EL75
7.4-inch* Color HD Viewfinder

VFH-790
Outdoor Hood for
HDVF-EL70/EL75

HDVF-L750
7-inch LCD Color Viewfinder

CAC-6

Return Video Selector

CAC-12

Mic Holder

VCT-14

Triped Asaptor

HKC-FB30

Optical Fiber Transmission

Adaptor

HKC-TR37

Digital Tmax Transmission

Adaptor

HKC-WL50

Wireless Module Adaptor

*Available in 2019 January

HKC-CN50

Side Panel Attachment Kit

HDCU-3100

Fiber Cantera Control Unit

HDCU-3170

Triax Camera Control Unit

HKCU-SEP30

ST2110 Interface Kit

HKCU-UHD30

4K/HDR Processor Board

HKCU-SDI30

12G-5D Extension Kit

HKCU-SM30

Single Mode Fiber Connector Kit

HKCU-FB30

Optical Fiber Connector Kit

1-712-156-0A

Camera Test Charts

Specifications

HDC-3500/HDC-3100/HDC-3170 Specifications

	HDC-3500 HDC-3100 HDC 3970
General
Power requirements	DC 240 V, 1.4 A max., DC 240 V, 1.65 A max.)	DC 240 V, 1.65 A max., DC 240 V, 1.65 A max.)	DC 240 V, 1.65 A max.)
Operating temperature, 30°C to 45°C	4°F to 85°F
Storage in temperature - 20°C to -60°C, ≤4°F to 140°F
Mass Approx. 4.9 kg (10 L / 3 oz) (Unit: m3)	Approx. a kg (11 lb / 4 oz) (when HCC - RIO is attached)Approx. 4.5 kg (10 lb / 15 oz) (in cm / DC-7026 to attached)	Approx. 4.5 kg (10 lb / 9 oz) Approx. 5.0 kg (11 lb / 0.4 oz)
Insges
Imager	250 inch type 40 LNCOS sensor with global shuntor	250 inch type 400S sensor with glass shuntor
Method 3-CNOS, RGB
Technical characteristics
Sensitivity F1D with 10/30/59.94p	F1D with 100/50p(1x 2.00 x wth 68.9% reflector used)	F1D with 100/59.94F1D with 100/50p(1x 2.00 x wth 59.9% reflector used)
Signed for noise ratio 40 dB or higher
Geometric direction (negative) (not including lens diameter)
Optical system specifications
Spectrum system	F1A power
Built-in films	RIO films 1 CINAM, 2 74WD, 3 70WD, 4 72WD, 5 74WDCC the 5 A cross filter, 6 500K (new), C 450K, D 630K	C-CLAM, 2 74WD, 3 70WD, 4 72WD
Input/output connectors
CCU	Device-caps of connection, 2500-3000S connector (x2)		Ibox connector (x2)
LENS	12 pin (x2)
VF	DC pin (x2)
MCC 11X	KLR 2-pin, female (x2)
AUDIO INCH, O.E	KLR 3 pin, female (x2 each)AUDIO switch for KLR - 50 dB can be selected up to -20 dB in the menu, balancedAUDIO switch for IFR - 0 dB in balance
PROMON 1	KLR 5 pin, female (x2)
PROMON 2	KLR 5 pin, female (x2)
EARNICINE	4 pole wire (pack-pa) [2 pole wire 3 pole wire, 7 pole wire CTIA standard, 4 pole WMT standard]
DC N	KLR 4 pin (x2), DC 10.5 to 10 V
DC OUT	4-pin (x2), DC 10.5 to 10 V, max. 0.5 A*2 pin (x2), DC 10.5 to 10 V, Max. 2.5 A*
SD 1	BRC (x1)
SD 2	BRC (x2)	[no]
SD MON	BRC (x1)
INSOL	BRC (x1)
PWMPTEN/CALOCK	JNK (x2)PWMPTEN T1-pa, 75.0GENTLOCK HD SWEPIE SL274, tri level sync, 3.6 tbp p, 15.0 x 3D Blackburn [MISC: 0.785 to x, 7x 0.944; 0.314p, 15.0]
PWMPTENQ	BPC (x1, 14-pa, 75.0)	[no]
RET CTTR	6 pin (x1)
PANOE	8 pin (x2)
TRACER	12 pin (x2)
CPANE	12 pin (x2)	[no]
LNEUSER 2.0 type A 4 pin (x2) for connecting USB drive
NETWORK TRUNK	RF-45 type B-code (x2)	[no]
Supplied accessories
	Before using this Unit [1], Operating instructions (CC-ROM) [1], Cable clock belt (1 set), Screens (1-8N) [2], Activated label [1], Carriers number label [1]	Before using this Unit [1], Operating instructions (CC-ROM) [1], Cable clock belt (1 set), Screens (1-8N) [2], Activated label [1], Carriers number label [1]

HDCU-3100/HDCU-3170 Specifications

	HDCU-3100 HDCU-3170
General
Power requirements	100 V to 240 V AC, 5V/60 Hz
Current consumption	4.5 A/(sec.)
Operating temperatures	8°C to 40°C (°F to 104°F)
Storage temperature	20°C to 60°C (°F to 100°F)
Mass	Approx. 2.3 kg [76 in 1.5 cm²] Approx. 8.1 kg [17 is 14 cm²]
Input/output connectors
CAMERA-FIBP	Optical filter connector (x2)/x6
CAMERA-TRX	No line connector (x)
RATROM/TALLYING PORT	2-joub 50-pin connector (x)REFROM PROCEDURE, 4A W, 10 dBm RMSO dBn CC-14 dBdB,PCM, 3 systems, 0 dBu/-20dB (to HDC 3800/DC-3176),TALL* (R, G, Y)N/A6
RCPC/RJ	8-pa multi-convector (x)
RUNR	12-period*
LVD/COM	5-period*
NETTORC/TUNK	5-period*
SOHC/T to 4	5G/HD/SO-SOI/BOVC/s4HD/SMFTS STAGE/425 Level A/B, 0.8 Vp.p. 75 Ω, 2.920 GHz/2.957 GbpsHD-SD, SMFTS ST292, 0.8 Vpp.p. 75 Ω, 1.485 Gbps/1.4835 GbpsHD-SD, SMFTS ST258, 0.8 Vpp.p. 75 Ω, 2.760Gbps3G-SD/HO SO/SD-SD, character signal selectable
REFERENCE/WOUT	WFC (p2), copy through outputID: SMFTS STEM, Unave sync, 0.6 Vp.o., 75 Ω3D: Black sound [HDC, CUBX vs p. 75 O/VAC; 0.3 Vp.p. 15 Ω] or HDC TOB-BR
Input connectors
IN, IN	100 V to 240 V AC/Uo[
SOHET to 4	WFC/s4HD-SD, SMFTS STAGE/425, 2.9/0 GHz/2.95V GbpsHD-SD, SMFTS ST292, 1.485 Gbps/1.4835 GbpsHD-SD, SMFTS ST259, 270 Mio
PROMPTED IHOSE/PIE JUNES-HU	WFC (p2), loop through output during 12CH mode, terminate internally at 75 Ω during 2CH mode, analog signal, 10 Vp.p. 75 Ω
Output connectors
AUDIO CUT-UI, CF2	NC5-Pa, mix (x2, 0dB, -20 dB, -24 dB)
CHARACTER/ARG/FEL	WFC/s4HD-SD, SMFTS STAGE/425 Level A/B, 0.8 Vp.p. 75 Ω, 2.9/0 GHz/2.95V GbpsHD-SD, SMFTS ST292, 0.8 Vp.p. 75 Ω, 1.485 Gbps/1.4835 GbpsHD-SD, SMFTS ST259, 0.8 Vp.p. 75 Ω, 276 Mio3G: HD/HD SO/SD-SD, character signal selectable
SOLOUTI to 4	36/HD/SO SOU/OUTPUTWFC/s4HD-SD, SMFTS STAGE/425 Level A/B, 0.8 Vp.p. 75 Ω, 2.9/0 GHz/2.95V GbpsHD-SD, SMFTS ST292, 0.8 Vp.p. 75 Ω, 1.485 Gbps/1.4835 GbpsHD-SD, SMFT S T259, 0.8 Vp.p., 75 Ω, 276 Mio3G: HD/HD SO/SD-SD, character signal selectable
Supplied accessories
Number plates, 1 set, Before Using this Unit(1), Operating instructions (CD-ROM)[1]Optional accessoriesUnited states and Canada Power cord set [150+180-xx], Other areas: Power cord set [1-42-929-xx].

SONY

Distributed by

©2018 Sony Imaging Products & Solutions Inc. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate.
