Product Type	Tablet
Brand	Pantech
Model	Element
Operating System	Android 3.2 Honeycomb
Display	7.0-inch TFT Capacitive Touchscreen
Internal Memory	6 GB (expandable via microSD up to 32 GB)
Battery	Li-Ion 6400 mAh
Standby Time	Up to 672 hours
Usage Time	Up to 12 hours
Charging Time	Up to 5 hours
Dimensions (H x W x D)	205 x 150 x 10.3 mm
Weight	161.5 g
Rear Camera	5 MP with flash
Front Camera	0.3 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 3.0+EDR, GPS, 4G LTE
Ports	Micro USB, Micro HDMI, 3.5 mm headphone jack
Water / Dust Resistance	IP57 certified
Audio	DTS 2.0 Channel, Dolby Digital Plus
Special Features	NotePad, SketchPad, Voice Recorder, Photo Frame
Network Support	GSM/EDGE/WCDMA/HSPA+/LTE (Band 17, 4)

Frequently Asked Questions - Element (Android 3.2 Honeycomb) PANTECH

How do I turn on the Pantech Element?

Press and hold the LOCK/PWR key on the side for a few seconds until the screen lights up. Then unlock the screen by dragging the inner ring to the edge of the circle.

How do I insert a microSD card?

Open the protective cover on the bottom left side of the device. Insert the microSD card into the slot with the logo facing upward, then close the cover securely.

How do I charge the battery?

Open the protective cover on the bottom right side. Connect the USB cable to the Micro USB port and plug the charger into an electrical outlet. Charge for at least 10 minutes before first use.

How do I connect to a Wi-Fi network?

Go to Apps > Settings > Wireless & networks > Wi-Fi settings. Turn on Wi-Fi, select a network, enter the password if required, and tap Connect.

How do I reset the Element to factory settings?

Go to Apps > Settings > Privacy > Factory data reset. Tap Reset tablet and confirm. This will erase all data.

How do I update the software?

Go to Apps > Settings > About tablet > AT&T software update. Follow the on-screen instructions to check and install updates.

How do I use the camera?

Tap Apps > Camera. Aim at your subject, tap the shutter button to take a photo. Use the options menu to adjust zoom, flash, or switch to video mode.

How do I transfer files to a computer?

Connect the Element to your computer via USB cable. On the tablet, tap USB connected in the status bar, then tap Turn on USB storage. Files can be dragged and dropped.

How do I pair a Bluetooth device?

Go to Apps > Settings > Wireless & networks > Bluetooth settings. Turn on Bluetooth, then tap Scan for devices. Select the device and follow pairing instructions.

Is the Pantech Element waterproof?

The Element is IP57 certified, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it is not designed for underwater use.

USER MANUAL Element (Android 3.2 Honeycomb) PANTECH

Thank you for choosing the Pantech Element, our latest tablet. The Pantech Element has many features designed to enhance your mobile experience. With its unique and stylish design, you will enjoy the entire Element experience.

This user guide contains important, and useful information that will maximize your familiarity with all that the Partech Element has to offer.

Table of contents

Important Safety Information 4

Safety information 5

Safety precautions 5

Basic instructions....8

Getting Started 7

Inside the package 8

Checking the SIM/USIM card....0

Installing the microSD™ card 9

Charging battery 9

Turning the Element on/off 10

Unlocking/locking screen 10

Using touch screen 11

Product overview 11

Activating the Element 13

Adjusting the volume 14

Entering text 14

Understanding home screen 14

Customizing Home Screen 17

Connectivity 19

Using a Wi-Fi network 20

Connecting to a mobile network....21

Legal Disclaimer 21

Communication 22

Contacts 23

Email 24

Gmail 25

Google Talk 26

Latitude 27

NotePad 29

Sketch Pad 31

Voice Recorder 33

Entertainment 35

Camera 36

Video 38

Music 40

Photo Frame 41

Google Books 42

Net Media 44

YouTube....45

Web 46

Table of contents

Tools 49

Calculator 50

Clock 51

Clock Tools 51

Market 52

Maps 53

Navigation 54

Places 55

Search 55

Settings 57

Wireless & networks 50

Sound 58

Screen 59

Location & security 59

Applications....61

Accounts & sync....61

Privacy 62

Storage 62

Language & input 63

Accessibility....63

Date & time 64

About tablet 54

AT&T software update....65

Appendix 66

PC Suite 67

Troubleshooting checklist 67

Specifications 60

Cautions on waterproof and dustproof functions 68

FCC Regulatory Compliance 70

Warranty 71

Legal notice 74

Index 75

Important Safety Information

Safety information Safety precautions Basic instructions

Important Safety Information

Safety information

The following list shows how to maintain your tablet, together with precautions to take.

- Keep your tablet and its accessories out of the each of pets.

- Maintain your tablet in dry conditions and keep it with in normal operating temperatures. Temperatures higher than 55°C (18°F) or lower than -20°C (-4°F) may damage your tablet.

- Do not try to dry your leaflot in a microwave oven. If you do, sparks can occur and cause an explosion or fire.

• Do not use or store your tablet in dusty, dirty areas.

• Do not attempt to disassemble your tablet.

- Do not drop or cause severe impact to your tablet

- Do not use chemical products, cleaning solvents or detergents to clean your table...

- If you tablet does not work properly, contact your dealer immediately

- Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.

- Ensure that the battery charger does not come in contact with conductive objects.

Safety precautions

Using a tablet while driving may be prohibited.

Please check local laws and regulations with regard to the prohibition of tablet use while driving, and comply with them.

Use of your tablet while driving may disturb your concentration and so cause an accident. Always switch your tablet off to drive safely.

Switch off in restricted areas

Always switch your tablet off in areas where tablet use is restricted.

Switch off in explosive or dangerous areas

Always switch your tablet oil in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and copy any instructions or signs.

Switch off in aircraft

Always switch your tablet off or select Airplane mode (select Settings > Wireless & networks > Airplane mode) when you are in an aircraft. The electromagnetic waves emitted by your tab at may affect the electronic navigation equipment in the aircraft.

Switch off in hospitals and near medical equipment

Always switch your tablet off in hospitals, and obey the regulations or rules of the hospital.

Switch your tablet off when using medical equipment for private purposes, if possible. Always consult with the medical equipment's manufacturer or an expert regarding tablet use near the medical equipment.

Important Safety Information

Installing a hands free device in your vehicle

Ins all vehicle hands free devices away from the steering wheel and airbag expansion area. Otherwise, injury may result.

Tablets and other electronic devices

Tablets omit electromagnes to waves that may affect nearby electronic devices. When it is switched on, do not place your tab at close to delicate electronic equipment.

Basic instructions

Useful tips

To understand information contained in this user guide, please keep in mind the following:
- 'Words in cold type refer to the relevant action on the screen. For example, "Tap Maps" means that you have to tap Maps below the Maps icon.' Words might be placed below or next to an icon or included in that box.
- The symbol "refers to the next action. For example," Tap Settings > Language & input means that you should tap Settings first and Language & input next.
- Applications monufactors to the screen where all applications of the Element appear.
- Home screen refers to the screen that appears first in the idle mode. - Idle mode refers to the status where you stay on the home screen ready to run an application.

- Channels through which you can share items (e.g. contacts and pictures) increase as you subscribe to a service. For example, if you sign up for Facebook or Twitter, you can also share information with others through Facebook or Twitter.

Google accounts

It is recommended that you have a Google account registered to use some applications provided by Google, e.g. Calendar, I at tude, Market, Talk, and Gmail of the Element. For more information on setting up the Google account, refer to Activating the Element on page 13.

Pop-up windows

Pop-up windows can appear on the screen in the following cases and the running application(s) can stop operating.

• When the remaining battery capacity is insufficient;
• When the remaining memory space is insufficient.
  In the above cases, charge the battery or secure enough memory space and take the relevant steps.
  Please note that instructions of this user guide are written based on the default settings of the tablet. Therefore, captured images or functions may differ according to the updated Android Operating System. For more details, please contact the nearest dealer.

Default file name

When a file is automatically saved in the Element, the file name follows the file name policy of the Android Operating System: mgMM | month | 100 | day | Yr | year | bn | hour | mm | minute | ss | second |.

For example, when an image is saved automatically in the Sketon Pad, its file name should be designated as follows: image010611_220328.jpg.

Getting Started-

Inside the package

Checking the SIM/USIM card

Installing the microSD ^™ card

Charging battery

Turning the Element on/off

Unlocking/locking screen

Using touch screen

Product overview

Activating the Element

Adjusting the volume

Entering text

Understanding home screen

Customizing home screen

Getting Started

Follow the steps below before using the Element

Inside the package

The package should contain the following items:
- Tablet (The battery is integrated into the device.)
- Charger (Travel Adapter)
- USB Cable
• Quick Star Guide
• Accessories for your table are sold at all.com/Wireless/Accessories or visit your local AT&T store.

Checking the SIM/USIM card

The SIM/USIM card is already pre-installed in the Element. Should you need to replace the SIM card, please follow the steps below:

1. Open the protective cover on the down side of the Element. Note that the left one of the two covers is dedicated to the SIM/USIM card and the microSD™ card. Check the correct location of the slot on page 12.
2. Push the SIM/USIM card and withdraw it from the slot.
3. Insert another SIM/USIM card.
4. Close the protective cover

Line drawing of a smartphone with a screen and a USB cable, showing no text or symbols

About the SIM/USIM card

When you subscribe to the network operator, you receive the Subscriber Identity Module (S.M) card or the Universal Subscriber Identity Module (USIM) card that contains your registration information, PIN code, and others. Please keep a secure and handle carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.

Getting Started

Installing the microSD™ card

1. Open the protective cover on the down side of the Element and insert the microsIBM card into the slot. Note that the left one of the two covers is dedicated to the SIM card and the microsIBM card. Check the correct location of the slot on page 12. Ensure that the logo of the microsIBM card is fading upward.

2. Close the protective cover

Line drawing of a smartphone with a USB port and orange arrow pointing to the left side (no text or symbols)

About the microSD™ card

A microSIO™ card is a removable flash memory card where you can save data, save pictures and contacts, and download applications to the SIO card. A memory space of 6GB is embedded in the Element: you can expand memory by up to 32GB using the external microSIO™ card. It is recommended that you format the microSIO™ card before using the Element. For more information on formatting the microSIO™ card, refer to page 62.

Charging battery

Power might not turn on if the battery voltage is too low or battery's discharged. In that case, charge the battery with the included charger for more than 10 minutes. It is recommended that you charge the battery fully before you use the Element.

① Note Red light blinks once when you press power button in the case of not enough battery to turn on. Then, charge the battery for at least tenmin, let before you turn on power.

1. Open the protective cover on the down side of the Element and connect the USB connector to the Element. Note that the right one of the two covers is dedicated to the USB connector and HDMI port. Make sure to align the connectors as indicated in the image. Otherwise, the charging connector will be damaged and the battery will not be charged.

Correct Incorrect

1. Connect the other end of the USB data cable to the USB charger
2. Plug in the USB charger to an electrical outlet. The battery starts to be charged.
3. Disconsec, the USB charger from the Element when the battery is fully charged.

Getting Started

About battery

The Element uses a Lithium Ion (Li Ion) battery. Please use the included charger and USB cable for the plasma. Partech Element™ charging performance with higher output current rating. Maximum hours to use the Element might vary depending on application that you use, temperatures and serviced types that, the service provider offers. For more details, contact your nearest dealer

Cautions

- Please use the included charger and USD code for the optimal Perfect element™ charging performance with higher output current rating.

Turning the Element on/off

To turn on the Element.

1. Press and hold the LOCK/PWR key for a few seconds.

2. Unlock the screen with your finger.

To turn off the Element.

1. Press and hold the LOCK/PWR key

2. Tap OK. The screen will turn off in a few seconds.

Unlocking/locking screen

The screen is locked by default when you turn on power. To unlock the screen,

1. Press the LOCK;PWR key

2. Drag the inner ring to the edge of the circle to unlock the screen. Draw a pattern if the screen is protected by pattern lock. Enter a PIN or a password if the screen is locked by a PIN or a password.

Locking screen

To lock the screen, press the LOCK/PWR key, it is recommended to lock the screen to protect information in the Element and reduce battery usage. You can have the Element locked automatically in a predetermined time; refer to page 59 for screen timeout.

Using touch screen

All of the functions of the Element, except for power and volume, are performed on the touch screen. Therefore, it is essential to know how to use the touch screen.

The following finger actions might help you easily understand how to use the touch screen.

• Tap: Touch an item (e.g. application or widget) once that appears on the screen with your finger to run it or access a menu or an option
• Double tape: Tap an item twice with your finger
• Drag, Iap and hold your finger on an item and move it without losing contact with the screen.
• Flick Place a linger on an empty space of the screen and move the screen up or down, or left or right.
• Pinch: Place two fingers on the screen and move them apart to zoom in a picture, a document or a web page, or move them together to zoom out
• Select and tap Tap an item in the list of options available
• Press and hold: Press a key, button or any item for a few seconds until a list of options appears.

- Cautions

Do not use sharp drops that can scratch the touch screen.
Do not allow the touch season to earn out context with chemicals.
The screen may me function in chemicals
Do not sit on the element: the touch screen can be damaged.

Product overview

Front view

Item Description

Ambient light sensor	Adjusts text or image according to the surrounding origin
LED	Drinks light when the battery is being charged while the Element turns on green when more than 57% of the battery is charged, in red when less than 8% of the battery is charged
Ear Jack Provider sound earphone
Front camera	Tips photos
Speaker Provider sound

① Note: Make sure not to cover the sensor with the LCD protection film. If the sensor is covered, the Flamm is might not detect the surrounding brightness.

Getting Started

Side views

Item Description
Mio	Receives sound, Note that you should not prevent their digit into the role.
Volume	Adjusts all sound volumes; reboots the Element if you press and hold the two volume keys at the same time for a few seconds.
Power/lock Locks the screen turns on/off the Element
microSDTM card slot: Inports the min/0.3" card
Micro USB port	Connects the Element and your PC via the USB cable, Receives power via the USB charger
Micro HDMI port	Connects the Element and digital devices via the HDMI cable

Note: The Poverlock key comes with a rubber grommel. You can take it off from the element.

Rear view

Item Description
Rear camera Tales photos
Camera flash Provo night for pictures
Battery cover Protects the battery

Activating the Element

Go through the following steps when you turn on the Element for the first time or after you have reset it.

Learning how to use the Element

1. Press and hold the Power/Lock key to turn on the Element

2. Tap Start. If you want to change the language other than English, tap English, select and tap the language for the Element.

3. Too Next for Use Google's location services. Do select the checkbox(es) next to the option about the Wi-Fi mobile network and location if you do not want to allow the services.

4. Adjust the date and time for the Element and tap Next. If you want to use the network-provided time, tap Use network-provided time on the top right side of the screen and tap Next.

5. Tap Next for Sign in with your Google Account. Tap Skip if you want to set up the Google account later.

6. Tap Create account if you want to create a new Google account. If you have a Google account, enter your email address and password for the account and tap Sign-in. It takes a few minutes to complete the sign-in process. If the process does not proceed due to the network problems, tap Connect to Wi-Fi and take the necessary steps.

7. Select and tap Wi-Fi network available, on or the password, and tap Connect. If you want the password to be displayed, tap the checkbox in Iron Lo! Show password and tap Connect.

B. Tap Next in the screen where networks appear

1. Enter the password again for the Google account and tap Sign-In.

Creating a Google account

After finishing learning how to use the Element, create a Google account following the next steps. You can skip them if you have already your own Google account.

1. Tap Apps > Settings > Accounts & sync > + Add account.

2. Tap Google Accounts

3. Tap Create account

4. Enter the user name for the Google account, your first name and last name, and Next. The user name should be 6-30 characters long. You can select an alternative.

5. Take the necessary steps in the following cases:

Tap Connect to Wi-Fi if you have not connected the Element to the Wi-Fi network, and follow the instructions. Tap Next in the Create a new Google Account screen.

- Enter another preferred username if it is not available, and tap Next. You can select the alternative.

1. Enter a password and enter it again to confirm. You should enter at least 8 characters.

2. Tao Next.

3. Select and tap a security question and enter an answer. You can enter the recovery address if you want.

4. Tap I agree, Next for the Google Terms of Service.

5. Type the characters that appear on screen and lap Next.

6. Tap the checkbox(es) for sync. Sync options for Books, Calendar, Contacts, and Gmail are selected by default.

7. Tap Done,

Getting Started

Adjusting the volume

In the d a mode, press the right volume key of the Elemen, if you want to increase the volume. Press the left volume key if you want to decrease the volume. Refer to page 58 for setting volumes.

Customizing notification tones

1. Top Apps > Settings > Sound

2. Tap Notification ringtone.

3. School the tone and tap OK.

Setting to the silent mode

1. Top Apps > Settings > Sound > Volume.

2. Tap #1 volumes except the alarm are silenced if you select this option. You can also tap other icons for the same purpose. Tap again to activate all functions.

3. Too OK if you finish setting to the silent mode.

Entering text

Enter text for a message for SNS or type a keyword to search for in the Internet. The Element provides useful text-editing functions.

Typing in words

1. Tap on the empty space in the search box. A keyboard appears on the bottom of the screen.

2. Enter a keyword that you want to search for in the Internet. As you keep typing a word, suggested or related words appear below: tap one that you find appropriate. You can see the results right away.

3. Press and hold on the words: cursors might appear below. You can also see options available on the top of the screen.

4. Edit text with options available by moving cursors and cap Done.

5. Select all: Selects the whole phrase

- Cut-Cuts the selected phrase from a sentence

• Copy: Copies the selected phrase

+ Paste. Adds the copied phrase from the previous text. If you want to paste, place the cursor where you want to add the copied phrase, and tap Paste.

Creating a message using Swype

1. Tap the keyboard before you start entering text for a message. Ensure that Swype is the default keyboard setting for the Element. Refer to page 63.

2. Drag your finger on the keyboard for the word that you want to enter.

Understanding home screen

Home screen is the starting point to use a petal cat one of the Element. Navigate home screen and use basic functions of the Element. Tap: I you want to move to home screen any time.

Home screen overview

The Element has five home screens, and each home screen features applications for designates purpose as follows: AT&T, Social, Home, Media, and Navigation.

Icon Name Function
	Google search	Searches for information in the foot form
	Voice search Searches information with voice.
	Locator	Indicates the voice on of the screen.

Getting Started

Icon Name Function
	Add	Applications Opens the applications menu
	+	Add Add a widget shot out of wall loper to home screen
	■	Battery indicator Displays the battery status
S:10		Time Displays the current time
	-1	Recent applications Displays all the applications that are currently working
	↑	HOME key Power to home screen
	↓	BACK key Returns to the previous menu

Status Icons

loons below indicate the current status of the Element. Check them and take necessary steps.

Iord Description
	Connected to a Wi-Fi network
	The Element is set to the Airplane mode
	The GPS is acquiring information
	The GPS is on
	Sync in progress.

Getting Started

Item Description
	There is an error with sync.
	The USB debugging is connected
	The USB is connected to the element
	Bluetooth is connected
	Bluetooth is active but not connected to other devices
	Anis is mostly to be delivered from other devices
	Anis is being updated
	A file is being downloaded
	There is no memory card
	Strength of battery
	The battery is charging
	Multi-à being played

Notification icons

Icons below indicate specific notifications. Check them and take necessary shape

Item Description
	There is an upcoming event.
	The alarm uses
	There is an incoming message from Talk
	A new message has been from Email
	A new message has arrived from email
	There is an echo
	There are more notifications

Customizing home screen

Make your own home screen by adding widgets, shortcuts or changing wallpapers. Note that you have to secure enough space on home screen.

Changing the view mode

The view of the Element, a set to the landscape view by default. If you want to use the Element in the portrait view, turn it to the left or right. The view changes automatically by the embedded sensor.

Selecting language

1. Tec Apps > Settings > Language & input > Select language

2. Select and tape language that you want to use for the Element

Note: It is recommended to set the language option first before using other functions.

Adding a widget

1. In the die mode, top - the right side of the top of home screen, or press and hold on the empty space of home screen.
2. Too Widgets.
3. Press and hold a widget and release it to the screen where you want to place.
4. Tap ■ you finish adding widgets to home screen. O' you can just tap the screen that you want to access right away.
   Note: You can also make a shortcut of an application.

Deleting a widget from home screen

1. In the idle mode, press and hold a widget that you want to delete.
2. Drag it to Remove on the high side of the screen and released it.
   Note You can also delete a shortcut of an application

Creating wallpaper for home screen

1. In the idle mode, tap + the right side of the top of home screen, press and hold on the empty space of home screen
2. Tap Wallpapers, and tap Gallery, Live Wallpapers, or Wallpapers;

• If you have tapped Wallpapers, tap one.

• If you have tapped Gallery, select and tap-a photo, adjust the
frame for the portrait view and landscape view, and tap OK
• If you have tapped Live Wallpapers, select and tap wallpaper and

1. Tac you finish adding widgets to home screen.

① Note: We wallpapers consume the battery relatively quickly. Even if you select
I've wallpaper, I's recommended that you save the battery consumption by

Relocating applications

1. Tap Apps in the idle mode.

2. Tap All or My apps. My apps indicate applications that you have downloaded on the Element. All indicates applications that are installed by default on the Element plus applications of My apps.

3. Tac on the top right side of the screen.

4. Tap Show you can rearrange applications as you prefer.
5. Drag an application that you want to rearrange and move it to the
   place where you want.
6. Tap Exit if you finish relocating applications on the screen.

Getting Started

Applications menu overview

Item Function
All Disays all applications
My apps Dispays applications that you have downloaded
Search Searches for applications
Shop Accesses the Google Market
	Change in the applications you

Deleting My applications

1. Tap Apps in the id e mode.

2. Tao My apps.

3. Press and hold the application to remove form the Element, and crag

and drop it to Uninstall on the right, as of the screen

Changing applications menu view

1 Tap Apps in the die mode.

1. Tac

1. Tap you can see applications by an alphabetic order.

Tap in you want to see applications as you prefer.

Searching for applications

1. Tap Apps in the role mode.

2. Tag All or My apps

3.150

1. Tap ☐ and enter the name of the application to search.

2. Tap an application if you want to run it

3. Tap X or 📄 you want to finish searching for apol cations.

Connectivity

Using a Wi-Fi network

Connecting to a mobile network

Legal Disclaimer

Connectivity

Using a Wi-Fi network

The Element can use the Wi-Fi network to access to the Internet or run applications that need internet connection.

Connecting to a Wi-Fi network

1. Tap Apps > Settings

2. Tap Wireless & networks > Wi-Fi settings

3. Too Wi-Fi to activate the technology.

4. Select and tap a network. You should enter the password if the network is secured. 📋 indicates a secure Wi-Fi network.

5. Tap Connect: Once the network is remembered, the Element will automatically connect to it when in range.

Disconnecting to a Wi-Fi network

1. Tap Apps > Settings.

2. Tap Wireless & networks > Wi-Fi settings

3. Tap the Wi-Fi network that is connected to the Element.

4. Tap Forget to disconnect with the network

Note: You can also disconnect the Wi-Fi network easily in the home screen. Tap the status bar on the bottom of the screen and adjust the settings.

Setting Wi-Fi networks

1. Top Apps > Settings.

2. Tap Wireless & networks > Wi-Fi settings

3. Tao Wi-Fi to activate the technology.

4. Adjust the following options:

- Tap Network notification if you want to be informed when a Wi-Fi network is available. It is selected by default.

• Tap WPS button connection if you want to establish a new wireless connection using the Wi-Fi Protector Setup (WPS). Ensure that you press the WPS button on your Wi-Fi access point within two minutes.
• Tap Wi-Fi disconnect policy and tap the policy about the time to connect to the Wi-Fi network.
• Tap Wi-Fi Signal Filter and select the filter option for Wi-Fi network.

Searching for Wi-Fi networks

1. Tap Apps > Settings

2. Too Wireless & networks > Wi-Fi settings.

3. Tap Wi-Fi to activate the technology. The Element scans networks automatically every six seconds. The newly found networks appear on the bottom of the list. If you want to find Wi-Fi networks manually available around you, tap [+] and tap Scan.

About network notifications

You are informed by default when a Wi-Fi network is available around you. The icon in the status bar indicates a network is available.

Adding a Wi-Fi network

1 Tap Apps > Settings
2. Too Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to act vote the technology
4. Tap Add Wi-Fi network on the bottom of the screen.
5. Enter Network SSID and select the security type among Open, WEP, WPA/WPA2 PSK and 802.1x EAP. Aside from Open, you must enter a password for the network
6. Tap Save

Connectivity

Connecting to a mobile network

If your AT&T service was activated at the time of purchase, you will

automatically connect to the mobile network.

If you need to activate the service, tap Activate on the AT&T

Communication Manager widget

Icon Description
	Data being transformed through the JIM13 network
	Data being transferred, through the 15L1 E network
	Data being transformed through the +03E network

Note: When details transmitted over the network, sound interferences may occur near electronic products like audio players or telephones.

Legal Disclaimer

4G speeds delivered by LTE, or HSPA+ with enhanced backhaul, where available. Limited 4G LTE availability in select markets. Dep cyment ongoing. Compatible data plan required. LTE is a trademark of ETSI. Learn more at att.com/network.

Your 4G I TT wireless device will display one of the following network indicators to let you know which of AT&T's wireless networks you are connected to. A network and caron does not necessarily mean that you will experience any particular upload or down card date speeds. Actual speeds depend upon a variety of factors, including the device, network utilization, file characteristics, terrain, etc.

Learn more at: wireless.att.com/learn/articles-resources/wireless-terms, jsc, your AT&T Wireless Customer Agreement, Section 3.2 Where and How Does AT&T Service Work?

• 4G LTE Connected to AT&T's 4G LTE network.

4C. Connected to AT&T's HSPA+ network, AT&T's HSPA- network is capable of delivering 4C speeds when combined with enhanced backhaul. Your wireless device cannot distinguish between HSPA+ cell sites combined with enhanced backhaul and those without enhanced backhaul. Enhanced backhaul is available in limited areas. However, availability is increasing with ongoing backhaul deployment. Learn more at art.com/network.

• E: Connected to AT&T's EDGE/2G network

Communication

Contacts

Email

Gmail

Google Talk

Latitude

NotePad

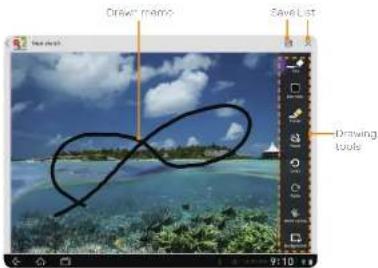

Sketch Pad

Voice Recorder

Communication

Contacts

Save contacts and manage them for your purposes.

Creating a new contact

1. Tap Apps > Contacts

2. Tao 10-14 tap the account that you want to add a new contact.

3. Enter the name if you want to add a photo for the contact, tap and
   Take the necessary steps. You can also add other information.
4. Tap Done if you are done with creating a new contact.

Contacts overview

Editing contacts

1. Tap Apps > Contacts.
2. See the contact that you want to exit information.
3. Tap
4. Edit information of the contact and tap Done if you finish editing.

Viewing contact by group

1 Tap Apps > Contacts.
2. Tao or theta is left of the screen
3. Tao the contacts group that you want to see. The list of contacts by the group appears on the left.

Renaming groups

1. Tap in the contacts screen and tap Rename group. Note that it
   appears when you are viewing contacts by group.
2. Change the group name and tap OK.

Adjusting display options

1. Tap ☐ in the contacts screen and tap Settings.
2. Tap Sort list by if you want to change the listing order of the contacts and tap First name or Last name.
3. Tac View contact names as if you want to change the view mode of the contacts and tap First name first or Last name first.

Communication

Transferring contacts

1. Tap ☐ in the contacts screen and tap Import/Export,

2. Select the way that you want to transfer contacts.

3. Tap Import from storage if you want to receive contacts from the internal storage.
4. Tap Export to storage if you want to move contacts to the internal storage.
5. Tap Share visible contacts if you want to share visible contacts.

Email

Exchange emails with your friends.

Setting up an email account

1. Tap Apps > Email.

2. Enter your email address and password for the first use.

3. Tap Manual setup or Next.

• If you tap Manual setup, tap POP3, IMAP or Exchange, set the necessary options and tap Next.

4 Give a name for the account.

1. Give your name that will be displayed on the outgoing messages

E Tap Next.

Note: The exact settings for any email may be obtained from your Internet Service Providers (ISPs).

Adding a new email account

1. Tap Apps > Email
2. Top and top Account settings.
3. Tac Add account.
4. Follow the steps to set up an email account.

Viewing incoming messages

1. Tap Apps > Email

2. Select and tap an account, and tap a message you want to check.

① Note: Make sure to secure enough internal memory space; you might experience difficult as receiving or sending emails when the memory space is low.

Sending an email

1. Top Apps > Email

2. T80

① Note if you have asked more than two email accounts, the first one is

designated as the primary account of sending an email

1. Enter the recipient's email address.

2. Enter the subject of the email and the message.

3. Tap Send.

Adding attachments to an email

1. Tap while preparing to send an email.

2. Too Pictures, Videos, Audio, vCard, vCalendar, or Documents to attach and take the necessary steps.

3. I am Send if you have attached an object and finished writing the email.

Designating emails as favorites

1. Tap Apps > Email.

2. Too in the inbox screen. The star connect to the message turns to yellow.

Marking emails as read

1. Tap Apps > Email.

2. Select and tap the message to display it as read.

3. Tao 田 and tap Mark as unread.

Removing the email account

1. Tap Apps > Email

2. Tap □ and tap Account settings in the Inbox screen.

3. Too the account that you want to remove.

4. Tap Remove account > OK.

Email settings

1. Top Apps > Email

2. Too [5] and too Account settings in the Inbox screen

3. Tao the account that you want to adjust settings

4. Adjust General settings, Notification settings, and Server settings as you prefer.

Gmail

Adding a Gmail account

1. Tap Apps > Gmail.

2. Enter your user name and password if you have a Google account.

3. Tap Sign in.

① Note for more information on adding a Gmail account, refer to Creating a

Cronis 90000000 pages

Gmail overview

Communication

Reading incoming messages

1. Tap Apps > Gmail

2. Select and tap the message to read

3. Tap if you want to preserve the message in a separate folder.

4. Tap if you want to delete the message.

Note You can read messages by label Tap [ ], in the Inbox screen and tab Changelabels

Sending an email through Gmail

1. Tap Apps > Gmail

2. Tea

3. Enter the recipient's email address, subject and message.

4. Tap Send

Designating emails as spam

1. Tap Apps > Gmail

2. Select and tap an email

3. T:11

4. Tap Report spam if you want to report the email and put it from your inbox

Setting general options

1. Tap Apps > Gmail

2. Top □ > Settings > General preferences.

3. Tap Confirm before deleting, Confirm before archiving and/or Confirm before sending to see the confirmation message for each action.

Setting personal options

1. Tap Apps > Gmail.

2. Tap > Settings

3. Tap Your Gmail account and adjust settings:

- Tap Priority Inbox if you want to make Priority Inbox your default inbox for your account

- Tap Auto-download attachments if you want the Element to download files attached to recent messages.

- Tap Email notifications if you want to see if a new mail arrives. The check box is selected by default.

Tap Notify once if you want to get noticed one time for new email

Google Talk

Connect to your friends through Google. Talk and enjoy chatting with them. You can talk with people via the embedded camera. You can meet them through audio and video chat. Note that audio and video chat are available over the Wi-Fi network only.

Setting your status

1. Tap Apps > Talk.

2. Too your Gmail address.

3. Tap the empty space in the Status message and explain your status. You can simply tap Available and tap Available, Busy or Invisible.

① Note the status message will not be displayed if your status is invalid.

1. Tap if you want to insert a photo and tap Take photo or Select photo from Gallery.

2. Select and tap a picture from your gallery, adjust the size of the picture and tap OK. Your status is displayed at the top of the screen.

Inviting a friend to chat

1. Tap Apps >Talk.
2. Too
3. Enter the email address of the friend you want to add.
4. Tap Send invitation.

Chatting with friends

1. Tap Apps × Talk.
2. Select and tap one of friends that appear on the screen
3. Enter a message and tab ▶
4. Tap and Add to chat if you want another friend to join the conversation
5. Tap: No End chat if you want to stop charting with your friend
   Note: you're during the chat, it will keep the chat running in the

background.

Enjoying a video chat

1. Tap Apps >Talk
2. Too a friend in the list on the left, indicates that the user is available for the video chat.
3. Teo
4. Meet your friend through the screen, if you do not want your friend to hear you for a while, tap on the screen and tap!
5. If you want to end the video chat, tap on the screen and tap ✗

Enjoying a voice chat

1. Tap Apps > Talk:

2. Top a line in the list on the left. Indicates that the user is available for the voice chat.

3. Tap
4. Chat with your friend using the music and speaker. If you do no want your friend to hear you for a while, tap on the screen and tap.
5. If you want to end the video chat, tap on the screen and tap.

Setting the Talk environment

1 Top Apps > Talk
2. Tap and Settings
3. Tap Sign in automatically if you want to remain signed in for Talk.
4. Tap Mobile indicator if you want your friends to see that you are on a mobile device.
5. Tap IM notifications and tap an option for notifications when a new IM arrives

Latitude

Share your location with your friends or check those of your friends. Make sure to have a Google account to use Lat Life.

Joining Latitude

1. Tap Apps > Latitude.

2. Tax OK for the tip on the updated map.

3. I sp Allow & Share if you allow your location to be informed to your friends. The latitude screen appears shortly where your personal information is displayed.

Communication

1. Tap & you want to see your location in the map.

Adding friends from contacts

1. Tap Apps > Latitude.

2. Tao and Too Add friends.

3. Tap Select from Contacts.

4. Select and tap the contact you want to add as your friend.

5. Tap Yes if you want to send sharing requests.

Adding friends from email addresses

1. Tap Apps > Latitude

2. Tap □ and tap Add friends.

3. Tao Add via email address.

4. Enter the email address of your friend and lap Add friends.

5. Tax Yes if you want to send sharing requests.

Accepting invitation from friends

1. Tap Apps > Latitude

2. Tao1 new sharing request on the top of the screen.

3. Too Accept and share back. You can see the location of your friend shortly below.

Managing friends

1. Top Apps > Latitude

2. Too one of the friends in the screen.

3. Tap Real-time updating, and select and tap the time interval for

refreshing locations

1. Tap Sharing options, and select and tap option

2. Tap Remove this friend and tap OK if you want to remove the friend

(1) 中国银行股份有限公司

Checking personal settings

1. Tap Apps > Latitude.

2. Too your name or the top of the screen. You can see your name.

Gmail account and your current location

1. Tap Change your photo, tap either Take a picture or Pick from

Adjusting privacy settings

1 Tap Apps > Latitude.

1. Tea and lap Latitude

2. Tap and tap Location reporting, and tap Detect your location,

Set your location or Do not update your location. Detect your

location is selected by default

1. Tap Enable location history if you want to store your locations in the

past and visualize them on the Practice website

1. ac Sign out of Latitude if you do not want to use Latitude. If you

① Note for Ford Hamilton on the Paper Return in Sales?

NotePad

Write notes and save them on the Element.

Creating a new note

1. Tap Apps > NotePad

2 Tea

1. Enter the text using the keypad.

2. Tap (H) if you want to save the note.

NotePad overview

Reading a memo

1. Tap Apps > NotePad.

2. Tap a folder where you have saved memos, and tap a memo in the list. The memo will be displayed on the right side of the folder. If you want to view another memo in the same folder, tap it on the left side of the screen.

① Note When the note contains a URL or email address, you can access the webpage to send an email to the recipient.

Editing a memo

1. Tap Apps > NotePad.

2. Tap a folder where you have saved memos, and tap a memo in the list.

3. Tac the body of the memo.

4. Edit the memo and tap ☐

Searching for a memo

1. Tap Apps > NotePad.

2. Test [3] while No.aPad is activated

3. Enter a word that you want to find in memos and tap + the keyboard. The results might appear

Sharing a memo

1. Tap Apps > NotePad.

2. Press and hold a memo to share, and tap Share

3. Tap Bluetooth, Email, or Gmail. Charne is might vary depending on the memo type.

Communication

Deleting a memo

1. Tap Apps > NotePad

2. Press and hold a memo to delete and tap Delete. Or tao .

3. Too OK

Folder settings

1. Tap ☐ while NotePad is activated.

2. Tap Settings and adjust settings. • If you want to create a new folder, enter the name of the folder and
   tap: The new folder appears below in the list.
   • If you want to change the folder name, say enter the new name
   and lap [M]
   • If you want to change the skin color of each letter, tap the box next
   to each folder and tap your favorite color.
   • If you want to delete a folder, too next to each folder and too OK.

About default folder

When you first use NotePad, only the Default Folder exists. You can rename it and change to skin color. The fs der is not locked by default.

Moving a memo

1. Tap ☐ while NotePad is activated.
2. Tau Move
3. So out and lap a memo to move.
4. Top a folder where you want to move the memo. The memo moves to the folder.

Setting password

1. Tap ☐ while NotePad is activated.
2. Tao Settings.
3. Tag Lock Setting and adjust the lock settings.
4. Tap ON for Password Lock
5. Tap Password and enter your password.
6. Enter the password. It should be at least 4-character long.
7. Tao Continue and enter the password again for confirmation.
   B. Tap OK
   ① Note You have to enter a password to read messages that are protected by password. If you fail to type the correct password by five times in snow, say. Forgot Password and take the necessary steps...

Resetting password

1 Tap □ while NotePad s activated
2. Tsc Settings.
3. "Too Lock Setting > Password and en, or the old password and law
Continue
4. Enter a new password and tap OK. The password should be at least
4 character long.
5. Tap OK
6. Enter the password again and tap OK.

Communication

Adding the NotePad widget

1. In the die mode, press and hold on the empty space of home screen.
2. Tap Widgets.
3. Flick the screen to the left or right and drag the NotePad widget to the screen where you want to place.

Viewing memos via the NotePad widget

1. Create the NotePad widget on the home screen. Memos appear on the screen. Types of memos might vary depending on settings.
2. Flick a memo up or down if you want to see the next or previous memo.

• Tap+if you want to create a memo.
• I do if you want to see the list of memos.
- Tap ◎ if you want to change view options: tap All List View or Default Folder. You can add a folder that you have created.

Sketch Pad

Draw and sketch on your picture and image using the big screen of the Element. Note that only the landscape view is available for Sketch Pad.

Drawing a Sketch memo

1. Tap Apps > Sketch Pad.
2. Draw a memo with your finger. If there are saved memos, tap or the top right side of the screen.
3. Tao 图 if you finish drawing a memo
4. Enter the name of the memo. The file name should not contain any of the following characters: x^2x^2× x
5. Tap OK
   Note: The message, "Memory-Full" appears on the screen if the memory card is full of contents. Secure enough specif you want to save the sketch memo.

Sketchpad overview

① Note You can be loaded an image or picture you cannot edit on it.

Communication

Drawing tools

Icon Feature	Description
	Pan thickness Changes the thickness of pan
	Pan color Changes the color of pan
	Eraser Dases the draw sketch
	Reset Resets the sketch
	Undo Unlocks the skewh
	Redo Reduces the sketch
	Pan Moves canvas
	Background Changes wellpage

Note: You can change the location of the tools, press and hold on any out of the socks and drag it to the place where you want.

Setting effects

1. Tap on the screen while an image is open.
2. Select effects and adjust the thickness, color of the pencil or remove part of the image using the eraser.
3. Tao 图 if you finish anding effect on the sketch.

Drawing an image on the background

1. Tap Apps > Sketch Pad.
2. See the right side of the screen
3. Tap Background and tap an image for the new background. If you want to import an image from the gallery, tap
4. Draw a sketch on the image
5. Tap ☒ if you finish drawing an image.

Editing an image

1. Select and tap an image to edit and tap on the right too of the screen
2. Edit the image and tap if you finish eating the image
   ① Note The - emont does not see the changing of the background and editing image. Therefore, 1 will not be activated.

Changing the image name

1. Press and hold the image that you want to change the name in the list. Or open the image and tap 📄.
2. Tao Edit Name and enter the new name.
3. Tag OK

Saving an image to the gallery

1. Tap Apps > Sketch Pad.
2. Pross and hold the image that you want to save to the gallery. Or open the image and tap ■
3. Too Save to gallery.

Deleting an image

1. Tap Apps > Sketch Pad.

2. Press and hold the image that you want to delete. On open the image and tap 3

3. Tau OK

Sharing an image

1. Tap Apps > Sketch Pad

2. Tao the desired file in the list and tap [1]. Or press and hold the desired file.

3. Too Share and Too Bluetooth, Email, Gmail, Net Media, or Picasa. Channels might vary depending on the file type.

Searching for an image

1. Top Apps > Sketch Pad.

2. Tao [3] and enter the name of file, and select the desired file.

Changing the view mode

1. Tap Apps > Sketch Pad:

2. Tap □ and tap List view. The saved images are displayed in the list with each file name shown. Tap □ again and tap Thumbnail view if you want to see images only

Voice Recorder

Record your voice as memo. You can record it within the memory capacity.

Recording Voice Memo

1 Tap Apps > Voice Recorder

1. Tap Start and record your voice. If you have recorded memos, they are displayed on the left side of the screen; tap ● rec and tap Start.

2. Tac Stop to one recording. The recorded voice is saved automatically.

3. Tap ☑ on the right top of the screen and tap Save location.

4. Tac internal media storage or SD card and tac OK.

Note: The sign is elevated while a voice memo is being recorded, a popup window appears and the Element step occurring the memo and saves automatically.

Possible recording time

When you can record for the following time	The following message appears on the screen
Up to 60 minutes Possible recording time
Less than 60 seconds "Less than one minute is possible"
The memory capacity is less than 2MB "No space for recording"

① Note when less then MD remains for the memory space, the voice served automatically.

Communication

Listening to voice memos

1. Tap Apps > Voice Recorder.

2. Select and tap a recorded memo in the list and tap Play.

Renaming recorded memos

1. Tap Apps > Voice Recorder.

2. Press and hold a memo to rename, and tap Rename

3. Enter the new name for the memo and tap Confirm.

Sharing a voice memo

1. Tap Apps > Voice Recorder.

2. Press and hold a memo to share and lap Share, or lap

3. Tao Bluetooth, Email, Gmail or Net Media.

4 Follow the relevant instructions for each action

Deleting a voice memo

1. Tap Apps > Voice Recorder.

2. Tao the memo to delete.

3. Too dry the too right side of the screen.

4 Tap OK

Entertainment-

Camera

Music

Photo Frame

Google Books

Net Media

YouTube

Web

Entertainment

Enjoy multimedia experiences with the Element. Note that a few videos, songs, and images are provided as sample; however, if you do the factory reset to the Element, those multimedia files are deleted forever.

Camera

Take pictures and record videos with the built-in camera. They can be saved and used via available applications.

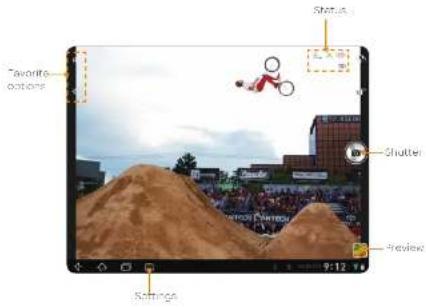

Camera screen overview

Feature Icon Description
Status		Displays the status of camera settings: GPS, ISCU, Shot mode, Front/Back carriers, Video/Camera
Focus		Focus on the corner of the picture
Shutter		Takes a picture
Preview Provides the preview of the photo
Options Provide options

Taking pictures

1. Tap Apps > Camera.

2. Too you want to adjust options or settings of the photo.

3. Focus on the object and tap ☐ the taken picture is saved

automatically:

Note Tap 📄 if you want to have pictures using the front camera Tap 📄 if you

want to take pictures using the back camera

Adjusting shooting options

1 Tap le in the camera mode.

1. Too and adjust options as you prefer

Changing capture mode

1. Tap from the camera mode.

2. Tap and change the capture mode.

Adding special effects

1. Tap ☐ role in the camera mode.

2. Too and select effects

Adjusting settings

1. Tap ■ le in the camera mode

2. Tao and adjust settings.

Camera options

Features Item Description
Options	Zoom Zooms in the object
	Brightness increases or decreases originalness
	White Balance Adjusts options for white balance
	Timer Sets time to automatic shoot
	Flash Decodes Flash options
	Resolution
	Normal Takes a picture
	Smile Holocakes picture with a white
	Instant Film Takesa Holocakes picture
	Division Takes a photo dysplipping the screen
	Matti

Feature Icon Description
Effects	Color Effect	Adjusts color effects
	Face Effect	Adjusts effects for face in the picture
	Scene Mode	Changes the scene mode
Settings	Review Screen	Decides if the taken photo appears
	Photometry	Deodes photometry
	GPS	Decides if the GPS information is displayed
	Shutter Sound	Makes around when taking pictures or movies if
	Save Location	Asigns the folder where pictures are saved

Editing pictures

1. Tap Apps > Gallery.

2. Tec a picture to edit

3. Tap ☐ and edit the selected photo

• Details: Provides information of the photo
+ Rotate Left: Rotates the photo to the left
• Rotate Right: Rotates the photo to the right
- Set picture as: Designates the photo as Contact photo or
Wallpaper
• Crop. Crop the photo where you want to edit

Entertainment

Designating favorite menus

1. Tap in the camera or camcorder mode.
2. Press and hold a menu that you want to add as favorite menus. Menus for zoom and brightness are set as favorite menus by default.
3. Drag the menu to the favorite menu.
   Note You can also delete the favorite menu, press and click menu that you want to delete and discard to the empty space of the screen.

Recording a video

1. Tap Apps > Camera.
2. Too and change to the video mode.
3. Tao You want to adjust options or settings of the video
4. Focus on the object and tap the Element starts to record a video. Maximum hours for recording might vary the storage and settings of the camera. Tap if you want to stop recording.

Checking pictures or videos from Gallery

1. Tap Apps > Gallery. You can pictures and videos by category.
2. Too a category that you want to see:

• DCIM. Includes pictures and videos that you have taken using the Element and saved them in the embedded memory
• Pictures: Includes pictures and videos that you have taken using the Element and saved them in the external memory card
- Download: Includes pictures or videos that you have downloaded in the external memory card
Note Categories of Gellers might vary depending on the types of specifications that you have installed on the Element.

Video

Enjoy videos in various formats with wide screen.

Watching videos

1 Top Apps > Gallery

1. Select video to view. An item with the video. The video changes to the full view in two seconds. If the video has been played for more than ten seconds, it will resume playing from the previous part. ① Note: The video is finished, the screen turns back to the gallery

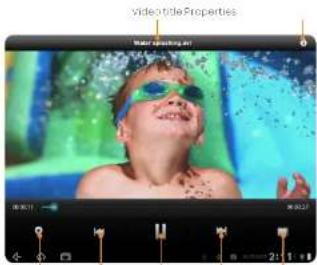

Video Player overview

Bookmark -Previous/veed; Play; Next-作品; Screen Rewind Pause Fast-forward info

Entertainment

Video Player options

If you want to Do this:
Play the video	lap ▶
Stop playing the video	Tap □
Move to the next video	lap ▶
Fast-forward the playing video	Press and hold ▶
Move to the previous video	Tap ▶
Rewind the playing video	Press and hold ▶
Provide bookmarked clips of the video	Tap ▶
Adjust the screen ratio	Tap ▶
Display information of the playing video	Tap ▶

Using Bookmark

1. Tap 📋 in playing video.

2. See the desire: chumonial image. You can see the book marked segment of the video.

Checking Properties

Tap @while in playing video. While in playing video, the video will stop playing. You can view the following information: file size, duration, format, resolution, date created, and protection information.

Watching a video on the web

Tap the video that you want to see while you are accessing the Internet.

- The video starts playing while the whole file is being downloaded. The screen will go back to the previous web page when the video is finished.

- If you move the progress bar to the part where the videos is not downloaded, the video will pause and the downloading process will resume.

① Note You can watch a video on the web while the Element is connected by a W. Hi Network.

Renting movies online

1. Tap Apps > Movies.

2. Tap a movie that you want to rent, and watch it. Note that you need to sign in for membership.

Entertainment

Music

Enjoy music on the Element. Make sure to insert a microSD™ card to transfer music to the Elements and listen to t.

Playing songs

1. Tap Apps × Music

2. Slocu and tap a song from the screen. Filos tha, the Element offers include VFS, AAC, AAC-, cAAC+ and WNA. Songs that have been now y saved in the Element are displayed by default. If you want to sort songs under the different criteria, tap New and recent on the left top of the screen, and tap Albums, Artists, Songs, Playlists or Genres.

Note: The playing bar appears or the bottom of the screen by default, if you want to hide it (so) and snap Hide now playing bar.

Music Player overview

If you want to do the followings Do this

Play a song	lap ▶
Stop playing a song	lap □
Move to the next song	Tap ▶
Fast-forward the playing song	Cross and hold ▶
Move to the previous song	lap ▶
Rewind the playing song	Cross and hold ▶
Shuffle songs	lap ▶ The con cuns green.
Repeat all songs	Tap ▶ Ice The Icon Turn green.
Repeat the current song	lap ▶ Twice, the icon turn green with the number 1, *

Creating a playlist

1 Tap Apps > Music
2. Tap New and recent > Playlists.
3. Tao + and enter the name of the play list.
4. Tap OK. You can see the new playlist on the screen.

Adding a playing song to a playlist

1. Too next to the song title of the music player. Or lap > Add to playlist.
2. Take a playlist to add the song or tap New playlist and create a new playlist
   ① Note: If you want to change the order of songs in the playlist, drag the before a song title and move it upright or downward. You can see the changed order.

Entertainment

Removing a song from a playlist

Tao on the right side of the song in the playlist and tap Remove from playlist.

Managing the songs list

1. [ap Apps > Music,
2. Top New and recent >Songs.
3. Tap on the right side of the song and tap Shop for artist if you want to shop items related with the artist. Tap More by artist if you want to see more songs or albums by the artist in your Element.
4. Tap Sort A-Z if you want to sort songs

• Sort A-Z. Sorts songs in the alphabet order

- Sort by album. Sorts songs by the album title

- Sort by artist: Sorts songs by the artist name

Transferring songs via the USB cable

1. Connect the Element and your computer via the USB cable.
2. Tap UP the status bar and tap USB connected
3. Tap Turn on USB storage > OK.
4. Find the folder in your computer where you preserve songs and move them to the Element.
5. Tap Turn off USB storage if you finish transferring songs.

Photo Frame

See your pictures and images in a slideshow with Photo Frame.

Running Photo Frame

1 Tap Apps > Photo Frame.

1. View photos by slide show. Photo Frame will tend automatically if there are no saved images in the Gallery on if the remaining battery capacity is insufficient.

Photo Frame overview

Entertainment

Feature Description
Slideshow Dep ays and piox in a slideshow
Folder	Designates the folder where photos for slideshow are saved
Weather	Provides weather information about the current location

Selecting the photo folder

1. Tap Apps > Photo Frame.

2. Tao

3. Select and tap the desired Folder Folders available might vary according to users.

Google Books

Download electronic books in the Google's library to the Element and read them.

Reading ebooks

1. Tap Apps > Books.

2. Tao a book that you want to read.

3. Flick the screen to the left if you want to read the next page. Or you can flick the screen to the right if you want to read the previous page.

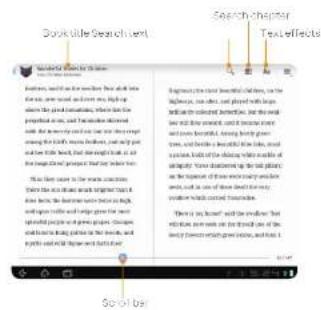

Books overview

Searching for text

1. Tap while you open the book.

2. Enter text that you want to find and tap

3. Select and tap a page in the search results. You can see the text in yellow.

Entertainment

Searching for chapters

1. Tap while you open the book.

2. Too the chapter what you want to read. The page is marked next to the chapter title. You can also access a page or chapter by moving the scroll bar on the scarcer.

Buying favorite ebooks

1. Tap Apps > Books.

2. Tao access the Android Market for books

3. Follow the instructions. Note that you cannot buy books depending on the region where you live.

Reading books offline

1. Tap ☐ while you open Books.

2. Too Make available offline.

3. Tap in the book that you can read off me. The icor turns green.

4. Tap Done if you finish selecting books to read off into.

Sharing ebooks

1. Tap ☐ while you open the book.

2. Tao Share.

3. Tao Bluetooth, Email, or Gmail. Channels might vary depending on the book type.

Adjusting the book screen

1. Tap while you open the book.

2. Adjust the book settings as you prefer:

• For BRIGHTNESS, scroll the icon to the right if you want to increase

the brightness of the screen.

+ For THEME, tap Night if you want to read text in white against the

black background.

- For Text settings, change font size

• For Line height, change the line height

① Note You cannot change text size and the height if you have tapped Scan

Checking information about books

1 Tap 问 while you open the book

1. Too About the book

2. Tac the application that you need to access the Internet.

4 Follow the instructions

Entertainment

Net Media

Use, share and enjoy media files among DLNA-enabled devices while the Wi-Fi network is activated. Make sure to activate the Wi-Fi network first. If the Element is not connected to the Wi-Fi network, Not Media will not run.

Enjoying media files on other devices

1. Tap Apps > Net Media

2. Tap My Tablet on the top right of the screen. Devices that are linked to your Element appear in the list.

3. I do the name of other device. Media files available appear below.
4. Tap the file that you want to see or play.

About Digital Living Network Alliance (DLNA)

The Digital Living Network Alliance (DLNA) is a new collaborative organization who leads commercialization of global home network services. Its goal is to build compatible platforms by using standards based technology in order to make it easier for DLNA-certified device users to share media contents through the home network.

Creating a playlist with media files

1. Tap Apps > Net Media.
2. Tao Photos, Music or Videos
3. Press and hold an item for a playstand tap Add to playlist
   Note: A playlist is created for each category. Photo, Music or Video. You cannot create a playlist with different types of media files.

Uploading media files to the server

1. Tap Apps > Net Media.
2. Tao Photos, Music or Videos.
3. Press and hold an item to share, end tap Upload
4. Tap the server and tap OK.

Dealing with many media files at a time

1. Tap ☐ while Net Media is running.
2. Top Multi select
3. Tao the checkboxes of the files to manage.
4. Tap an option for the selected files:

Icon Description
	Plays the selected files
	Adds the selected files to the playlist
	Uploads the selected files to the server

Entertainment

Managing servers

1. Tap ☐ while Not Media is running.

2. Tao Server list. A list of servers might appear.

Tap or the top of the screen if you want to refresh all servers. You

can check an individual server

Icon Description
	Available for sharing files
	Not available for sharing files

YouTube

Watch a variety of videos on YouTube. You can share yours with those who access the Internet.

Watching videos

1. Tap Apps > YouTube

2. Select and lap a video to watch.

3. Double-tap the screen to watch the video in full screen.

Sharing videos

1. Tap Apps > YouTube.

2. Select and tap a video to share.

3. Tao Share on the right top of the screen.

4. Tap Bluetooth, or Gmail. Channels might vary depending on the application type.

Creating a YouTube account

1. Tan Apps > YouTube > Your Channel.

2. Take the necessary steps to create a YouTube account.

Uploading videos

1. Tap Apps > YouTube.

2. Tag □ > Sign in.

3. Tap your account, or tap Add account and take the necessary steps.

4. Tap Upload

5. Select and tap a video to upload.

6. So a little for the video and lap Upload.

Checking upload status

1. Tap or the top of the screen and drag it down while the video is being

up caded

1. Tap Uploading. You can see the status of the upload.

2. Tac the video on the top of the screen and tap Cancel if you want to

cancel the upload

Watching videos by category

1. Tap Apps > YouTube.

2. Tag Browse

3. Select and tap a category.

4. Click the screen to scroll, select and tap a video to watch.

Entertainment

Watching videos by upload date

1. Tap Apps > YouTube.
2. Tap Browse.
3. Select and tap a category.
4. Tap This week on the top of the screen.
   b. Select and tap one among time intervals.

Viewing my account information

1. Top Apps > YouTube.
2. Tap Your Channel.
3. Too your Google account. You can lap Add account and add an account for YouTube.
4. Tap each item for your account including Uploads, Favorites, Playlists and Subscriptions

YouTube Settings

1. Tap Apps > YouTube.
2. Tao and Settings.
3. Too General settings > High quality on mobile if you want to watch high-quality videos.
4. Tap Caption font size and select and tap the font size if you want to adjust the size of the font.
5. Too Search settings > Clear search history if you want to remove search history from the search box and tap OK.
   E. Tap SafeSearch filtering if you want to block videos that contain restricted content, and select and tap the filtering option.

Web

Access the Internet if you want to search for information. Note that the Google Chrome Lite is set to the web browser software by default.

Searching for information in the Internet

1 Tap Apps > Web
2. Tap on the box and type the keyword using the keyboard. The usual home page might vary depending on the service provider.
3. Tao in the keyboard if you finish typing in the keyword.
4. Pinch two fingers apart on the screen if you want to zoom in the web page. You will not zoom in some web pages to the maximum if they are customized for mobile devices.
5. Tap the name of the tab and tap ← or → if you want to visit the previous or next web page

Refreshing a page

1. Tap the name of the tab and while the web browser is activated. You can see the updated page.
2. Tap x if you want to stop refreshing the page.

Opening a new tab

1 Tap + on the right side of the existing tab while the web browser is activated. Another tab appears. You can add up to 10 tabs.
2. Tap X on the right side of the existing tab if you want to close the tab. If you close the last tab, the web browser will be also closed.

Visiting a new page

1. Tap, he address car next to and enter a new URL, while the web browser is activated.
2. Tap Next to the address bar or tap in the keyboard.

Using voice search

1. Tap on the search box and tap while the web browser is activated.
2. Speak a keyword as clearly as you can.
3. School and tap the web page in the search result.

Changing the home page

1. Tap ☐ and Settings while the web browser is activated.
2. Tea Set home page and change the home cage.

- Enter a new URL if you want to change the home page

• Tap Current page if you want to use the current page as the home page.

• Tao Default page if you want to use the default page as the home page.

• Tap OK.

Accessing the Internet via incognito tab

1. Tap Apps > Web.
2. Tap □ and New incognito tab.
3. Search for information or type the URL where you want to visit. E next to the title of the tab indicates that this tab is activated in the incognito view mode.

Adding bookmarks

1. Tap while you are visiting a web page.
2. Enter the label and the address of the page, and select and tap Home screen. Bookmarks or Other folder. The bookmark of the page will be added to in the selected location.
3. Tac OK

Managing bookmarks

1. Tap while you are visiting a web page.
2. Tac Add bookmark... on the top of the screen and follow the instructions.
3. Press and hold a book mark to add.

Syncing with Google Chrome

1. Tap □ and Settings while the web browser is activated.
2. Tap Sync with Google Chrome. Your bookmarks will be synchronized with those of your Google account if you use the Google Chrome as the web browser for your personal computer or laptop computer.

Viewing browser history

1. Tap while you are visiting a web page.
2. Tax History on the top of the page.
3. Tac Today, or Most visited.

Entertainment

Setting search options

1. Tap Apps > Google Search.

2. Tao and Search Settings.

3. Too Google search

4. Tap Use My Location if you allow your location to be used for Google

search results.

Setting display options

1. Tap Apps > Web.

2. Tap [] and Search Settings > Advanced.

3. Tap Text size, and select and tap your preferred text size.

4. Tap Default zoom, and select and tap your preferred zoom mode.

5. Tac Block pop-up if you want to prevent pop-up windows from

appearing. The check box is selected by default.

Setting privacy options

1. Tap Apps > Web.

2. Tap ☐ and Settings > Privacy & security.

3. Too Clear all cookie data > OK if you want to delete to all cookie data

4. Tap Clear form data > OK if you want to delete all form data.

Tools

Calculator

Calendar

Clock

Clock Tools

Market

Maps

Navigation

Places

Search

Tools

Use the Element as useful tool

Calculator

Carry out mathematical calculations with the Element.

Doing calculations

1. Tap Apps > Calculator.

2. Enter a number and tap a mathematical sign you want to use

3. Tap ☐ to delete a previous number. Press and hold ☐ to delete the whole number.

Calendar

Manage your schedule with the calendar. Make sure to have a Google account. For details on Google account, refer to page 13.

Creating an event

1. Tap Apps > Calendar.

2. Tap Day, Week or Month on the top of the screen for view. The weekly view is displayed by default.

3. Press and hold the time that you want to add an event to or tap

4. Enter necessary information,

5. Tap Done,

Viewing the calendar

1. Tap Apps > Calendar

2. Top a day that you want to view events for the day. An event is displayed with blue dot for the weekly and monthly view.

3. Too Day, Week, or Month if you want to see events for a daily, weekly, or monthly basis.

4. Tap if you want to view events for today.

Setting reminders

1. Tap Apps > Calendar

2. Tap □ and Settings.

3. Tap Notifications and adjust options: • Tap Select ringtone, and select and tap one for calendar reminders.

- Tap Vibrate and tap Always. Only when silent or Never.

- Tap Pop-up notification if you want a pop-up window appears for notification.

1. Tap Default reminder time and change the default reminder time.

Editing events

1 Tap Apps > Calendar

1. See the day that you want to edit events.

2. Tap the event that you want to edit.

3. Tap Details in the information on pop-up.

4. Tap Edit and edit the details

5. Tap Done

Tools

Refreshing the calendar

1. Tap [B] who do the calendar running.

2. Tap Refresh. Use this option when you create events using your PC or laptop in synch with the Element.

Clock

Check the current time and set the alarm using the Element.

Adding a new alarm

1. Tap Apps >Clock

2. Too Sotalarm

3. Tap Add alarm

4. Enter the hour and the minute and too Set.

5. Adjust settings for alarm and tap Done. You can find the checkbox in front of the new alarm checked.

Changing an alarm

1. Tap Apps > Clock

2. Tap Alarm set that indicates the next alarm.

3. Select and tap the alarm time to change

4. Chance the time and settings and tag Done.

Note: If you want to deactivate an alarm, deselect the checkbox in front of the alarm that you want to deactivate.

Turning off the alarm

1. Tap Snooze when the alarm is activated. The alarm will run again in a fixed time.

2. Tag Dismiss if you do not want the alarm to run again.

Adjusting alarm settings

1. Tap Apps > Clock.

2. Tap Set alarm when there is no alarm set, of Alarm set

3. Tap

4. Adjust settings for a arm.

Clock Tools

Clock tools offers the current time in major cities and time zones around the world. World time is displayed first by default.

Viewing the world time

1. Tap Apps > Clock Tools.

2. Tap and enter the name of a city. Type the first letter and you can find the city more easily.

3. Select and tap the city

Rearranging the order of cities

1. Tap Apps > Clock Tools.

2. Press and hold a city and drag it up or down to rearrange the order.

Tools

Replacing main city

1. Tap Apps >Clock Tools.

2. Press and hold a city to replace and drag to the main area.

Deleting cities

1. Tap Apps > Clock Tools.

2. Tao and select X of the cities to delete

Using the timer

1. Tap Apps > Clock Tools.

2. Tap Timer.

3. Select and tap the time in the list.

4. Tap Start.

Note: You can reset the time by tapping Reset while the timer is running.

Adding the timer

1. Tap Apps > Clock Tools,

2. Tap Timer

3. Too 2 the too right side of the screen.

4. Set the time.

5. Tap Set. You can see the new timer on the list below.

Editing the timer

1. Tap Apps > Clock Tools.

2. Tao Timer.

3. Select and tap the time in the list.

4. Tap Edit Timer and set one time.

5. Tap Set:

Using the stopwatch

1 Top Apps > Clock Tools.

1. Tap Stopwatch.

2. Run the stopwatch

3. Tap Split > Lap on the top of the screen and lap Start. This function is used when you want to measure time that takes so run for a certain distance.

4. Tap Split > Split or the top of the screen and tap Start. This function is used when you want to measure the accumulated time

5. Tap Reset to restart the stopwatch.

Market

Download useful applications from the Android Market and use them for your purposes.

Downloading applications

1. Tap Apps > Market.

2. Top Next and follow the necessary stops for adding a Google account if you do not have a Google account.

3. Tac Accept on the Android Market Terms of Service if you are accessing the Android Market for the first time.

Tools

1. Select and too a category or the right side of the screen. You can tap an application that appears on the left side of the screen
2. Tap Staff Picks for Tablets, Games, or Editors' Choice. You can also flick the screen to the left or right, and select a category that you want to find. You can tap an application that appears on the screen.
3. Select and tap an application.
4. Tap Download > Accept & download for free applications. Tao the price and follow the necessary steps for paid applications.
   Note You can check downloaded applications by tapping Apps > Downloads

Searching for applications

1. Tap Apps > Market.
2. Tao [R] on the right top of the screen.
3. Type the keyword on the empty space of the search box and tap
4. Select and tan the application and install it.

Running downloaded applications

1. Tap Apps > Market

2. Tao in the right top of the screen while in the Market.

3. Tao the application that you have downloaded from the Android Market.

Deleting applications from the Android Market

1. Tap Apps > Market.
2. Tao
3. Select and tap the application to delete
   4 Top Uninstall > OK

Deleting applications from Settings

1. Tap Apps > Settings.
2. Tec Applications > Manage applications
3. Select and tap the application to delete.
4. Tap Uninstall > OK

Maps

Google Maps offers useful information based on your region. Make sure to connect the Element to a Wi-Fi, 3G or LTE network. If you turn on the GPS function, you can obtain more accurate information.

Finding places

1 Tap Apps > Maps. You can see your current location with v on the map in a few seconds.
① Note Make sure to connect to wireless networks of GPS satellites by tapping Settings > Location & security and tapping either Use wireless networks or Use GPS satellites.
2. Type the keyword on the box of Search Maps, and tap
3. Select and tap the location that you want to see, and check the related information.

Zooming in and out of the map

1. Place your fingers on the map and move them apart if you want to zoom in the map.
2. Move your fingers in if you want to zoom out of the map

Tools

Viewing in 3D

1. Place two fingers on the map where you want to see in the 3D view.
2. Drag your fingers downward vertically. You can see the map in the 3D view. If you want to see the map in the 2D view, place two fingers on the map and drag them upward vertically.

Finding directions

1. Tap Apps > Maps.
2. Too ◆
3. Enter the name of the place you want to visit.
4. Decide whether you want to go to the end point by car, public transportation or foot.
5. Tap Go.

Navigation

Find directions to your destination. The Element will help you drive safely to the place you want to go.

Searching for the destination by voice

1. Tap Apps > Navigation
2. Tao Speak Destination and speak your destination toward the Element.
3. Select and tap a destination in the list when there are many possible destinations.
   Note You can also search the destination by typing for selecting the contacts

Finding directions using Google Maps

1. Tap Apps > Maps.
2. 10
3. Enter the name of the end point.
4. Tap ☐, ☐ or ☐, and tap Go
5. Select and tap a place in the results.
   ① Note To more information on Google Maps, refer to page 52

Setting the end point manually

1 Tap Apps > Maps.
2. Tac
3. Tap to the right of End point when the window for directions appears.
4. Tap Point on map if you want to set the end point.
5. Tap a point or the map.
6. Tap Tap to select this point
7. Tap [a], [b] or [d], and tap Go
① Note You can also set your location following the same process.

Checking the traffic conditions

1. Tap Route Info while Navigation is running.
2. Flick the screen along the suggested route to the destination. Depending on the traffic conditions, the road appears in green (good), yellow (congested) or red (jammed).
3. Tap and tap the route if you want, to set an alternative route.

Tools

Places

Find places around you according to your preferences.

Finding places

1. Tap Apps > Places
2. Enter a keyword in the search box, or tap Restaurants, Coffee Bars, Attractions, ATMs, Gas Stations or Explore Nearby. You can see relevant places on the map.
3. Select and tap a place in the search results. Note: If you want to sort the result by distance or range by customers, tap Distance or Rating in the search results.

Item Description
10	Shows the location on the Google map
9	Provides directions that lead to the place
8	Provides and view from the street
6	Provides additional options

Adding a category for places

1. Top Apps > Places
2. Tap Add on the bottom of the screen and enter a category to add. The category appears on the screen.

Adding starred places

1. Tap Apps >Places.

2. So oct and tap a category.

3. Select and tap a place that you want to see.
4. Tap the star icon for each place. When selected, the icon turns yellow. Note: You can see stored places by tapping 📄 > My Places and tapping Started Places in the first screen of Places.

Search

Searching for information with Google

1 Tap Apps > Google Search.

1. Enter a keyword in the search box and tap ▶-tap ▶ in the keyboards

Setting search options

1. Tap Apps > Google Search,
2. Top and Search settings.
3. Tap Google search.
4. Adjusting search settings:

• Tap Use My Location if you allow your location to be used for Google search results.

• Tap Personalized search: I you want to search on your own.
- Tap: Always use google.com if you want to access google.com for search.
5. Tap Terms of Service if you want to check the terms of service.

Tools

Selecting items that can be searched

1. Tap Apps > Google Search.
2. Tao and Search settings.
3. Too Searchable items
4. Select and tasks come you want to include for the search result.

Managing search history

1. Tap Apps > Google Search.
2. Tap □ and Search settings.
3. Too Google search > Manage search history.
4. Enter the email address and password for your Google account.
5. Select and tap search history in the Island Tap Remove if you want to remove the search history.

Settings

Wireless & networks

Sound

Screen

Location & security

Applications

Accounts & sync

Privacy

Storage

Language & input

Accessibility

Date & time

About tablet

AT&T software update

Settings

Wireless & networks

Setting Airplane mode

1. Tap Settings > Wireless & networks > Airplane mode. If you turn on Airplane mode, Wi-Fi, Bluetooth and GPS functions are turned off at once. However, you can turn on each function for your preference.
2. Too Airplane mode again to reactivate other functions.

Setting Wi-Fi networks

1. Tap Settings > Wireless & networks
2. Tap Wi-Fi settings to manage the wireless network. Refer to page 20 for more information

Setting Bluetooth

1. Tap Settings > Wireless & networks
2. Too Bluetooth settings to manage the wireless technology option.

Setting VPN settings

1. Tao Settings > Wireless & networks > VPN settings > Add VPN.
2. Tap Add PPTP VPN, Add L2TP VPN, Add L2TP/IPSec PSK VPN or Add L2TP/IPSec CRT VPN.
3. Set up the network by entering necessary information

Setting mobile networks

1. Tap Settings > Wireless & networks > Mobile networks.

2. Tao Data Services to allow access to data over mobile network, it is selected by default.

3. Tap International Data Roaming to connect to data services when roaming and lap OK.
   ① Note you may increase significant care screening changes.

4. Tap Access Point Names and tap the dos rod access point names to edit. You can add a new APN by pressing ☐ and tapping New APN.
5. Can Network operators > Default Setup > Automatic or Manual if you want to search for networks and select one.

Sound

Setting to vibrate

1. Tao Settings > Sound > Vibrate
2. Too Always, Never, Only in Silent mode or Only when not in Silent mode.

Setting volume

1 Tao Settings > Sound > Volume.
2. Adjust the volume for ringing, notifications and alarm
3. Tag OK

Setting notification ringtone

1 Too Settings > Sound > Notification ringtone.
2. Select and tap a ringtone for notifications.
3. Tac OK

Settings

Setting feedback options

1. Tap Settings > Sound.
2. Tao Audible selection if you want to play sound when making selection on the screen.
3. Too Screen lock sounds if you want to play sound when looking and unlocking the screen.
4. Tap Haptic feedback if you want the element to vibrate when you tap soft keys. It is selected by default.

Screen

Setting brightness

1. Top Settings > Screen > Brightness
2. Drag the pointer to the right to increase the brightness. Drag is to the left to decrease the brightness. Tap Automatic brightness if you want, the Elomon to adjust brightness automatically
3. Tao OK.

Setting auto-rotate screen

1. Tap Settings > Screen > Auto-rotate screen if you want to make the screen rotate automatically when you move the Element horizontally or vertically.

Setting animation options

1. Tap Settings > Screen > Animation.
2. Tap No animations, Some animations or All animations

Setting screen timeout

1. Tan Settings > Screen > Timeout.
2. So set and tap the time interval to turn off the screen.

Location & security

Setting my location

1 Too Settings > Location & security > Use wireless networks

1. Tap Agree to allow Google's location service to collect anonymous location data.
2. Tap Use GPS satellites if you want to find street level locations.

Configuring screen lock

1. Two Settings > Location & security > Configure lock screen.
2. Tap an option for screen lock

• Tap Off if you do not want to lock the screen.
• Tap Not secured if you do not want an additional lock for the

screen.

1. Tap Pattern, PIN or Password if you want to lock the screen with pattern, PIN or password, and take the necessary steps.

Setting screen lock with a pattern

1 Tax Settings > Location & security > Configure lock screen.
2. Too Pattern.
3. Watch how you should draw a pattern and tap Next.
4: Drag your pattern on the screen and tap Continue. Make sure to connect the pattern with at least four dots. Tap Retry and draw another pattern if you want to set up another one, and tap Continue.

Settings

1. Drac the pattern again and tap Confirm.

Note I you tell to drag the correct pattern to unlock the screen for live nonproductive times, you have to wait for 30 seconds before you can try it again. If you forget your pattern lock, Snap Forgot pattern, enter your account name and password for Google and create an app pattern lock. However, Forgot pattern will not appear if you have no Google account for the Element

Forgot your password for Google account?

If you have forgotten your password for Google account, reset it at the Google website.

1. Open your web browser on your computer and go to https://www.google.com/accounts/recovery.
2. Enter the email address or username that you use to sign in to your Google account and click Submit.
3. Enter the characters that you see on the screen and click Continue.
4. Select an option about recovering your account and click Continue.
5. Take necessary steps for each option:

- Enter the answer for security quest one if you have selected. Answer your security question. This option will not be available if you have signed in to your Google account with last five days.

- Check your email account you provided when you created your Google Account and follow the instructions if you have selected. Email to ____@____

- Fill in the form for Google Accounts. Help if you have selected I no longer have access to these, and click Submit on the bottom of the window.

Note Do not select Text message to 30; You cannot receive a code to reset your password on your tablet

Locking screen with a password

1. Tap Settings > Location & security > Configure lock screen.
2. Tac Password
3. Enter your password and tap Confirm. The passwords should be at least 4 characters.
4. Enter the password again to confirm.
5. Tap OK
   ① Note Tap Settings > Location & security > Visible passwords if you want to see passwords as you type.

Locking screen with a PIN

1. Tap Settings > Location & security > Configure lock screen > PIN
2. Enter numbers as Pin and tap Continue. The PIN should be at least 4 characters.
3. Enter the numbers again to confirm.
4. Tap OK

Displaying the owner's information on the screen

1. Tap Settings > Location & security > Owner info
2. Tap Show owner info on lock screen if you want to show information on the locked screen.
   ① Note You have to configure the screen lock fire.
3. Enter a phrase on the box. The phrase will appear when you turn on the screen.

Settings

Applications

Managing applications

1. Tap Settings > Applications > Manage applications.

2. Tao an option to manage applications.

- Tap Downloaded if you want to manage downloaded applications. You can stop an application from running by force, uninstall it or clear its data.

- Tap All if you want to manage all applications installed or the Element.

- Tap On SD card if you want to manage applications installed on the external memory card.

Allowing installation of unknown applications

1. Tap Settings > Applications.

2. Tao Unknown sources if you want non-market applications to be installed on the Element.

Debugging USB

1. Top Settings > Applications > Development.

2. Tao USB debugging to allow the debug mode when the USB cable is connected;

3. Read and tap OK on the JSB debugging information page.

Note You cannot set to the USB debugging while the Element is connected to your PC via the USB data cable.

Allowing mock locations

1. Tan Settings > Applications > Development

2. Tax Allow mock locations to pretend to be in another location for development purposes

Accounts & sync

Managing background data

1 Top Settings > Accounts & sync.

1. Tap Background data if you want to sync, send and receive data any time.

Allowing background data to sync automatically

1. Tap Settings > Accounts & sync.

2. Too Auto-sync I you want to sync data automatically

Adding an account

1. Tap Settings > Accounts & sync.

2. Tac Add account.

3. Select and tap an account type, and follow the necessary steps for creating an account.

Settings

Privacy

Backing up data

1. Tap Settings > Privacy.

2. Too Back up my data if you want to back up your data.

3. Tap Back up account if you want to back up your account.

4. Tap Automatic restore if you want to restore backed up data for an application

Resetting the Element

1. Tap Settings > Privacy.

2. Tap Factory data reset if you want to erase all data from the tablet.

3. Check the item to delete

- Tap the checkbox before Erase Internal media storage if you

want to delete all data or the embedded memory.

- Tap the checkbox before Erase SD card if you want to delete all

data on the externa memory card.

1. Tap Resettablet.

2. Tax Erase everything.

Note: you do the factory reset to the Element sample videos, songs and

Images are deleted forever. You select to erase internal media storage.

Yes, here I you want to restore them.

Storage

Selecting the USB mode

1. Tap Settings > Storage.

2. Top USB Mode.

3. Tap Media Transfer or Mass storage.

Viewing the status of space

1. Tao Settings > Storage. Click the screen downward and you can see

the status of space available for the Element.

1. Too Unmount SD card > OK if you want to remove the SD card from

The Element safety Tap Mount SD card if you want to mount the card.

About the internal media storage

The Element has a space of 16GB as internal media storage. You can use the space for downloading applications and various media files, e.g. photos, songs. However, the exact memory capability could be lower than 16GB since some memory are used for system memory.

You can transfer data with the micro50 ^th card. For example, if you want to move applications that, you have downloaded to the internal media storage, lap Settings > Applications > Manage applications > Downloaded, and select the application and lap Move to media

storage. Depending on application types, you cannot move applications to the internal-media storage

Erasing data on the embedded memory

1 Tap Settings > Storage

1. Too Erase Internal media storage > Erase Internal media storage. All data on the internal memory will be erased.

Settings

Language & input

Selecting language

1. Tap Settings>Language & input>Select language

2. Select and tap language to use for the Element.

Setting input methods

1. Tap Settings > Language & input

2. Adjust the keyboard settings:

Tap Current input method and tap an option.

- Tap Input method selector

Tap Configure input methods and adjust settings for Swype and

Android keyboard

Setting to Swype

1. Tap Settings > Language & input.

2. Tao Configure input methods and tap Settings for Swype

3. Tap Preferences.

4. Tap Word suggestion if you want to see prediction words as you type in the Swype

5. Tap Auto-spacing if you want to a low spacing automaticly. The

option is selected by default

1. Tap Auto-capitalization if you want to capitalize the first letter of sentence. The option is selected by default

2. Tap Show complete trace if you want to see the whole trace of

wording.

1. Tap Speed vs. accuracy, drag the car to the left or the right if you want to adjust the response speed and tap OK.

2. Tap Rest Swype's dictionary if you want to delete all the words that:

you have added to the ordinary

Accessibility

Setting the accessibility option

1. Tap Settings > Accessibility

2. Tao OK in the No accessibility related applications found screen.

3. Select and tap related application from the Android Market and install

it.

1. Tap Accessibility when you finish installing the application

Downloading accessibility scripts

1 Tap Settings>Accessibility

1. Too Download accessibility scripts > OK if you want to download

accessibility scripts on the Element

Adjusting touchscreen gestures

1. Tap Settings>Accessibility

2. Tap Touch & hold delay

3. Tac Short, Medium or Long. This will adjust the time that the screen

needs to inferout, such as touch & hold.

Settings

Date & time

Allowing date and time to be set automatically

1. Tap Settings > Date & time.

2. Too Automatic date & time.

① Note Set date, Select time zone and Set time will not work if you tap Automatic

Setting date

1. Tap Settings > Date & time

2. Tap Set date. Make sure to deselect Automatic date & time.

3. Enter month day and year for the Element

4 Tap Set

Setting time

1. Tap Settings > Date & time

2. Tap Set time. Make sure to deselect Automatic date & time.

3. Enter the minute and the hour

4. TapSet

Setting time zone

1. Tap Settings > Date & time

2. Tap Select time zone. Make sure to deslec. Automatic time zone.

3. Select and tap a time zone in the list.

Selecting time and date format

1. Tap Settings > Date & time.

2. Too Use 24-hour format if you want to see time in a 24-hour format.

3. Tag Select date format and select a preferred date format

About tablet

Checking the status of the tablet

1. Tap Settings > About tablet.

2. Too Status if you want to check the current status of the tablet.

including battery status, battery level, and other information

Checking battery use

1. Tap Settings > About tablet.

2. Tap Battery use if you want to check how the battery is being used.

Seeing legal information

1 Tap Settings > About tablet.

1. Too Legal information if you want to see the open source licenses and Google's legal information as well as DivX® VCD and Immersion copyright.

Settings

AT&T software update

To update software

Update your software without visiting the nearest dealer.

1. Tap Settings > AT&T software update

2. Tap Check for updates to check whether you need to update the

software.

Note After the relevant software is downloaded, you will be asked whether to update the software now. If you choose to update the software now, your tablet will restart. If you want to postpone uploading the software, you can select 1 hour, 4 hours or 8 hours in Options. After you select the uploading time, your tables will go back at the stencky mode. If you want to resume the software update process, top Continue Update.

To view software version

1. Tap Settings > About tablet.

2. Scroll down the screen and you can see software version

Appendix

PC Suite

Troubleshooting checklist

Specifications

Cautions on waterproof and dustproof functions

FCC Regulatory Compliance

Warranty

Legal notice

Index

Appendix

PC Suite

PC suite is a Windows-based program that allows you to easily manage personal data and multimedia files by connecting your tablet to a PC. The application can be downloaded at www.pantech.us.com.

System requirements

• Microsoft XP family, Windows7 and Vista

• Minimum ICOM3 of free disk space

• Interface devices such as USB or W-Fi for connection with the table:

PC Suite features:

• Application Management

English, Spanish, French, Chinese, Korean

Troubleshooting checklist

When battery life is shorter than usual:

This may happen when you are in an area with low signal strength. Turn off your device when it is not a use

When you cannot turn on your device:

Make sure your device is charged. Check to sell your device works while recharging.

When you are unable to charge the device:

This may be the result of one of the following three cases.

1. You charger may be out of order. Contact your nearest dealer.

2. You may be attempting to use the device in an overly hot/cold temperature. Try changing the charging environment.

3. Your device may have not been connected to the charger properly. Check the connector.

When you are unable to select a certain function:

You may not have subscribed to the function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.

When your device stops running and all keys won't work:

Press and hold the two volume keys at the same time. You can restart your device by force.

Appendix

Specifications

Operating System

Android 3.2 (HONEYCOMB)

Web browser operating system

Google Chrome Lite

Design

Tablet (Full Touch Pad)

Displays

8.0° TFT XCA disp ay1024 x 768 Pixels, Capacitive Touch

Sound

128 Polyphonic

Camera

Back: 5MPixels A with Flash, Front: 2M for V

• Resou-ion up to 5M Pixels

• Video Encoding u: to 20f/s; decoding up to 30f/s

Sensors

- Accelerometer

• Digital compass

• Gyio

- AmbientLight

1/0

• WLAN: 802.1a/b/g/n (5 GHz)
USB 2.0HS
- Blue,oo.h3.0 + EDR
- microSD™ (up to 32GB)
- Micro USB Connector

• 3.5mm Ear Jack

- Micro-FDMI Connector

Dimensions & Weight

• Weight under 161.5g,16.28 oz

- Dimensions: 205 mm x 150 mm x 10.30 mm (8.36" x 6.12" x 0.4")

Power Management (Performance)

Battery Type Capacity		Standby Time	Use Time	Charging time
Standard Lithium ion (1-Hon)	6,400mAh	Up to 6/2 hours	Up to 12 hours	Up to 5 hours

Operating Frequency

• GPS/EDGE 850/900/1800/1900 MHz, U/V S/HSPA+850/1900/2100 MHz, LTE 700 MHz (Band 17), 1700 MHz (Band 4) MHz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported

• Automatic band switching

Cautions on waterproof and dustproof functions

This product is IP57 ^® certified according to IP code defined in the international standard IEC 80529. It is tested and certified by a test lab facility located in Korea.

*IP57. The first digit 5 of IP57 indicates the ingress of a cast at a level that will not have a harmful effect on the operation of the unit. The second digit 7 of IPX7 indicates that the tablet is protected against water immersion for 30 minutes at a death of 1 meter. The higher the number is, the more the tablet is protected.

Appendix

While this tablet has superior protection against accidental contact with water than devices with lower IP ratings, it is NOT intended to be used underwater or in the water.

Before using the tablet, read the followings carefully. If you use the tablet without following cautions below, water, dust or foreign substances can incur fire, electric shock, injury, or malfunction of the tablet.

1. Your tablet can malfunction if it is exposed to water projected at any angle through a 6.9 mm nozzle at a low rate of 12.5 liters per minute for more than 8 minutes from a distance of 2.5–3 meters.

2. Water can soak into the tablet and near malfunction if it is submerged in water at a depth of 1 meter for more than 30 minutes.

3. Your tablet can malfunction if it is exposed to equipment for more than 8 hours that emits dust with diameter less than 75 m .

4. All external connections must be properly covered.

a. If the speaker and/or microphone are physically damaged, this may undermine the waterproof function and cause malfunction or a slow down of the reaction time of your tablet.

1. Waterproof function can be undermined if external shock incurs damage to the table..

2. If your tablet is exposed to liquids other than water, e.g. soft drink, alcohol or milk, it may become sticky in time and cause malfunction of the tablet.

3. It is recommended that you replace the USB and earphone ports every 12 month to maintain the water-proof integrity of your label.

4. The touch screen may not work if the touch screen is moist, or if you tap the touch screen with wet hands.

5. The sound quality of your tablet can be adversely affected if your tablet is not dried completely. It is recommended that you completely dry your tablet before using it.

II. If your tablet contains water drops and gets exposed to below freezing conditions, the droplets will freeze and may cause malfunction.

1. Accessories are not impervious to water or any other liquids.

① Note Keep in mind the above caution when using your tablet, your tablet cannot be guaranteed under the warranty if you have incurred malfunction of the tablet because you have not followed the cautions.

About battery usage

Your tablet is powered by a Lithium Polymer battery. This means that, unlike other forms of battery technology, you can exchange your battery while some charge remains without reducing your tablet's autonomy due to the "battery memory of cost" inherent in those technologies.

• Do not use a damaged battery or charger.

- Do not a sessured or open crush, bond or deform, puncture or shred.

Do not modify or remanufacture, attempt to insert foreign objects into the battery, expose to fire, explosion or other hazard.

• Do not put your battery in a contact with conductive objects.

- Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explore.

- Make sure to use the charger and USB cable only that come together in the package. If your use the other charger and USB cable, you might incur a function or failure of the Element.

• Only use the battery for the device for which it is specified

- Only use the battery with a charging device that has been qualified with the device per th a standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.

Appendix

• Do not short circuit a battery or a low metallic conductive objects to contact battery terminals.
• Promotly dispose of used batteries in accordance with local regulations.
  • Battery usage by children should be supervised
• Avoid dropping the tablet. If the tablet is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
• The closer you are to your network's base station, the longer your lab of usage time because less battery power is consumed for the connection.
• The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use.
• Battery if inevitably shortens over time.
• Since overcharging may shorten battery life, remove the tablet from its charger once it is fully charged. Un plug the charger, once charging is complete. Leaving the tablet in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures.
• To prevent injury or burns, ensure that no metal objects come into contact with the + and - terminals of the battery.

FCC Regulatory Compliance

FCC Regulatory Compliance

This device complies with Part I of the ICC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1986, the Federal Communications Commission on (100C) adopted RF exposure guide lines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies. American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCIPF), and International Commission on Non-lobing Radiation Protection (ICNPF). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your device complies with the 'CCG guidelines.

Statement according to FCC part 15.105

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection on ege inst harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if no installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Appendix

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by this company could void the user's authority to operate the equipment

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 20 mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EL ^™ has been shown to be capable of concience for localized specific absorption rate (SAR) for uncontrolled environment/general copulation exposure limits specified in ANR/ IEEE S.p. 0051-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin GS Supplement C (2001) and IEEE Std. 1926-2008 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for cross mobile devices employs a unit of measurement, known as the Specific Absorption Rate or SAR. The SAR limit set by the FCC is 1.0W/g.

* In the U.S. and Canada, the SAR-mt for mobile devices used by the public is 1.5 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in

** This device contains 1800 MHz GSY functions that are not operational in U.S. Territories; this filing is applicable only for 824-849 MHz (GPRS/EDGE 850, WCDMA Band5)/1910-1910 MHz (GPRS)/EDGE 1900, WCDMA Band2), 710 MHz (LTE Band17), 1710-1754.9 MHz, 824-849.9 MHz, 2412-2462.0 MHz, 5180-5825 MHz (Wi-Fi) operations.

Cautions

In the United States, 100-500 MHz band is restricted to indoor-use only. During operation on this band is a strict violation of the FCC noise can cause harmful interference to commercial all other communications for our own operation channels in 5/80-52/0 M. The band must not be used. If using automatic channel assignment, add channels in this band to the Automatic channel exclusion list.

Warranty

Protect Your Warranty

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit:

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration ... mishandling, misuse, neglect or accident."

Many companies are making look alike accessories and in some cases, promoting that their products are equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with you. Pantech product and may damage the unit or cause it to malfunction.

If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not

Appendix

apply. In addition, if the unit has already suffered irreversible damage by the reason of a noncompatible accessory, the warranty will be voided. To protect your warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Partech product.

12-Month Limited Warranty

Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld device, that should this product or any part thereof during normal consumer usage and conditions, be proven perfect in material or workmanship that results in product failure with a fine first twelve (12) months period from the date of purchase, such defect(s) will be reared or realized (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s). The antenna, keypad, display, rechargeable battery and battery charger, if included, are simply warranted for twelve (12) months from date of purchase. This warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This warranty does not apply to:

(a) Products subjected to a nonormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage.
(b) Products whose mechanical serial number or electronic serial number has been removed, altered or deferred;
(c) Damage from exposure to excessive temperatures or extreme environmental conditions.
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;

(f) Products damaged from external causes such as fire, dirt, sand, battery-leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for commun cat ons range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of the Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number, and complete description of the probem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing.

To locate Pantech Authorized Service Center, call [phone] or email HandsetHelpPantech@.com. Please have the following information available when you send the device in for repair:

• A valid original Price of Purchase

• Return address
  • Day, time phone number or tax number
• Mode number

• IMI number (Look for the 15-digit MEI number behind the battery of the device.)
  • Complete description of the problem
  • Transportation prepaid

• Cautions

• All contents of the product may be devised during the process of repair. You should create a back-up copy of any contents of your product before delivering the product for warranty service.
• Any accessory or SIM card you send with the product will not be returned to you.

Appendix

Other Warranty Program

You may have other warranty program with your purchase, such as warranty exchange. If so, please refer to a procurement package or, the original point of sale.

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED "THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BELIMTED TO THE DURATION OF THIS WRITTEN WARRANTY."

ANY ACTION FOR BREAK OF ANY WARRANTY MUST BE BROUGHT WITH IN A PERIOD OF 18 MORT IS FROM DATE OF OR GINAL PURCHASE IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREAK OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER, THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces can not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidentator consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you special legal rights, and you may also have other rights which vary from state to state or province to province.

For technica support in the U.S. & Canada, call [phone]. Or email us to [e-mail]. Or visit the web site at www.pantechusa.com.

For all other inquiries, write to:

Pantech North America

5607 Glenridge Drive

Suite p00

Atlanta, GA 30942, USA

dts™ 2.0 Channel

2.0 Channel

dts™ is a trademark of DTS, Inc. With a DTS-licensed consumer electronics product, you can enjoy the state-of-the-art audio technology. Visit www.dts.com for more information.

Dolby® Digital Plus

Dolby@Digital Plus is a trademark of Dolby Laboratories. It is an advanced surround sound audio codec. From home theaters and PCs to mobile phones and online streaming. Dolby Digital Plus defines high-fidelity audio. Visit www.dolby.com for more information.

Appendix

DivX@videos

DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND

This DvX Certified device must be registered in order to play purchased DvX Video on Demane (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to view divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 720p, including premium content.

DivX®, DivX certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents:

7,295,673,7,460,888,7,515,710,7,519,274

Legal notice

Trademark

Bluetooth is a trademark of Bluetooth S.G. Inc., W--is a trademark of the Wi-Fi Alliance, Google, YouTube, Picasa, Gmail, Google Maps and Android Market are trademarks of Google, Inc. AT&T, the AT&T logo, and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained herein are the property of their respective owners.

Appendix

Index

A

Accessibility \$5

Accounts & cyre 13,67

Airplane mode 15,36

Ambient light sensor II

Android Market 13.52.83

A-T software update 85

B

Background data 61

Battery use 64

blue.co.uk 16,50,60

Bookmark 38,39

2008年5月

(1) 2018年11月30日

Brightness 37

C

Calculator 50

scindor:

Calendar 8.13.50

camcardar 38

(2018)36.37 通讯

Clock 51

Clock Tools 51, e2

contas 6,23,24,28,54

Contacts 13

D

dele forma. 64

Date & time 54

display 23.40

Displays 68

E

27,59,60

Email 16.24.25.26

Ease everything 62

F

Factory data reset: 62

FCC Regulatory Compliance 70

G

gallery 25,32

Gallery 17,26,37,38,4

Gmail 18,25,25,26

Google Books 42

Google Chrome Lite 45.68

Google search 1:

Google Search 46,55,56

GPSgate (os 53, 59)

H

home screen 15.17

Harg screen 6.14.47

1

Internal media storage 58.62

K

keyboard 14.29, 18.55.63

L

Language & purpose 6.17.53

Latitude 6.27.28

Legalinformation 54

Legalnotice /1

Lithium-Polymer 58

L Union-Polymer Battery 1C

locations 28,59

Locator & security 53, 59, 60

LTD 58.68

N

Maps 6,53.14.74

Pass storage 82

Media transfer 62

microSD ^TM card 52

Appendix

Mobile network, 58	R	U
mock locations 81	ringtons 14, 30, 68	unrecall 67
Mount SDTM card 62		Christa 13, 53
Music Player 70	S	L-mount SD.com 69
N	Safety information 5	Use debugging 15, 61
Navigation 14, 64	safety information 71	Use My Location 48, 55
Sec. Media 03, 31, 74	screenlock 59	Use time 60
VossPad 26, 30, 31	screenframe 10, 50
inc. Recisions 16, 20, 27	Get, date 64	V
	shortcuts 17	vibrates 80
Kodifications 50	silent mode 14	Vibrate 00, 50
P	Short mode 56	video 26, 27, 38, 45
password 10, 20, 27, 29, 30, 35, 60	SM card 9	Video 35
Password 50	SM/USIM card 8	Videos 24
pattern lock 10, 61	Sketch/box 31, 32, 33	voice memo 24
Personalized search 55	sound 11, 12	Voice Promo 93
Record frame 41, 42	Sound 14, 37, 58, 50, 55	Voice Recorder 33, 34
PIN 6, 10, 59, 60	stopwatch 32	voice search 17
plane 53	Skybox 14, 63	Voice search 15
Pages 55	T	volume 11, 14
Paylists 40, 46	Talk 6, 19, 26, 27	Volume 58
privacy 28	hinozone 64	VPN 58
Privacy 48, 62	time zones 51
	Touch 68

Appendix

w

wallpaper 15.32

Wallpaper 37

warranty 73

Warranty 71

Weather 42

web 39

Web 46.48

wicgct 11, 1b, 17, 31

Wi-71 13, 15, 20, 26, 39, 44, 53, 58

wireless & networks 20.58

work time 5

X

Youhuo, 64, 65

Z

zoom 11,36,48,53
