Product Type	Vertical Lacer Strip for rack
Brand	Middle Atlantic
Model	LACE-44-OP
Rack Space	44 RU
Material	Steel
Finish	Black powder coat
Dimensions (approx.)	77 in (height) x 1.5 in (width) x 0.5 in (depth)
Weight (approx.)	2.5 lbs
Mounting Points	Four mounting points (fixed hole or adjustable slot)
Compatible Power Strips	Middle Atlantic PD Series Slim & PDT Series Thin Power Strips
Cable Tie Points	Yes, for hook-and-loop straps and cable ties up to 3/4 in width
Cage Nut Mounting	Square mounting points for cage nuts
Warranty	Lifetime
Installation	Mount to rackrail brackets with included screws and rectangle nuts
Pre-bundled Cable Support	Design allows mounting pre-bundled cabling
Cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Safety	Ensure secure mounting to prevent load shifting
Spare Parts	Mounting screws and rectangle nuts included; contact manufacturer for replacements
Repairability	Not user-serviceable; warranty covers defects
Compatible Rack Series	Various Middle Atlantic racks with fixed hole or adjustable slot mounting

Frequently Asked Questions - LACE-44-OP Middle Atlantic

How do I install the LACE-44-OP vertical lacer strip?

Attach the lacer strip to the rackrail brackets using the provided mounting screws and rectangle nuts. Choose between fixed hole or adjustable slot mounting for ease of movement. Ensure all four mounting points (for 44-space strips) are secured.

What power strips are compatible with this lacer strip?

The LACE-44-OP accepts Middle Atlantic PD Series Slim and PDT Series Thin power strips. The clips and mounting hardware are included with the power strip.

Can I use cable ties with this product?

Yes, the lacer strip provides cable tie points for hook-and-loop straps and cable ties up to 3/4 inch wide. The design also supports mounting pre-bundled cabling.

What is the weight capacity of the LACE-44-OP?

The weight capacity depends on the rack and mounting. The strip itself is lightweight (approx. 2.5 lbs) but can support the weight of attached cables and power strips within the rack's load rating.

Is the LACE-44-OP compatible with all Middle Atlantic racks?

It is designed for Middle Atlantic racks with either fixed hole or adjustable slot mounting. Some series may have only one type. Check your rack's specifications.

How do I clean the lacer strip?

Wipe with a damp cloth using mild soap if needed. Avoid abrasive cleaners or solvents that may damage the finish.

What is the warranty period?

Middle Atlantic provides a lifetime warranty against defects in material or workmanship under normal use and conditions.

Can I mount the lacer strip to adjust its position?

Yes, the adjustable slot option allows horizontal adjustment for easier cable management. Use the slot mounting points instead of fixed holes.

Are spare mounting screws available?

Spare screws and rectangle nuts can be ordered from Middle Atlantic or authorized distributors. Contact customer support for replacements.

Does the lacer strip support cage nuts?

Yes, square mounting points are provided for cage nuts, offering multiple locations for mounting equipment.

USER MANUAL LACE-44-OP Middle Atlantic

Pure diagram of footprints in a row, no text or symbols present

LACE-OWP

Pure diagram of a mechanical or electrical component with four symmetrical slots and mounting holes, no text or symbols present.

Pure decorative pattern with repeating geometric shapes (no text or symbols)

THANK YOU

Thank you for purchasing the Vertical Lacer Strips. Please read these instructions thoroughly before installing this product.

PRODUCT FEATURES

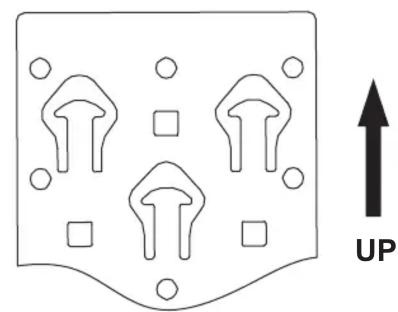

- Unique slot pattern includes tie posts for sliding on pre-assembled cable bundles

Illustration of bundled rods with a question mark and a downward arrow, no text or symbols present

• Mounting holes accept Cage Nuts as well as PD Slim and PDT Series vertical power strips
• Accepts cable ties and hook and loop straps up to 3/4" wide

I-00229

Rev B

PARTS

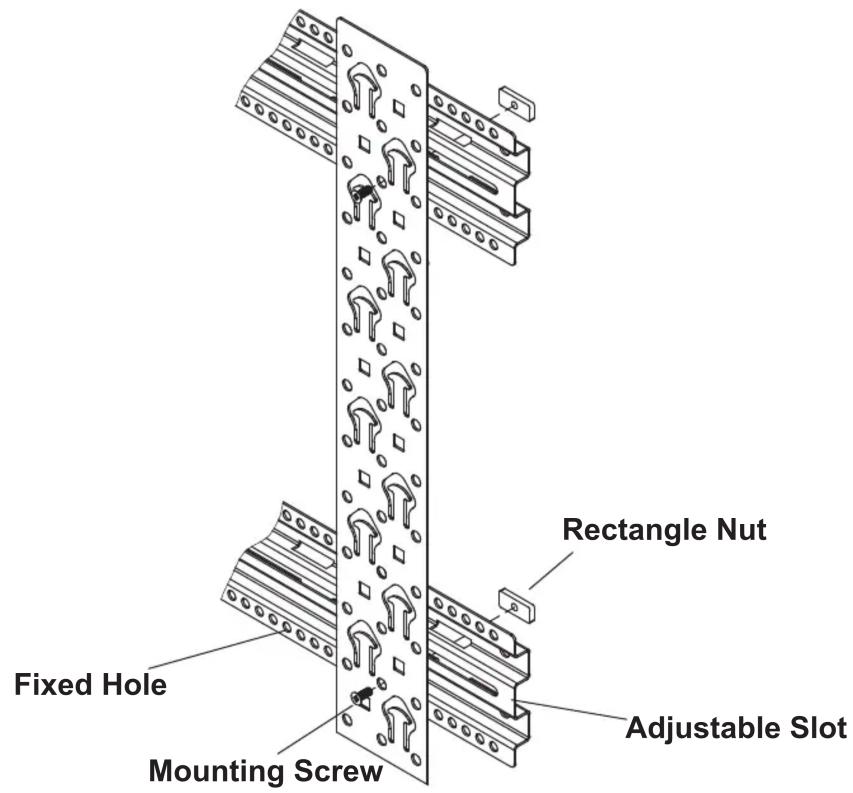

1) Mount Lacer Strip to Rackrail Brackets as shown using Mounting Screw and Rectangle Nut. Strip can be mounted to Fixed Hole, or Adjustable Slot for ease of movement. (Fixed Hole mounting shown - FIGURE A)

- 37, 40 and 44 space Lacer Strips use four mounting points

- 23 space Lacer Strips use two or three mounting points, R4 Series Rack side shown (FIGURE B) NOTE: Certain series racks have only Fixed Hole or Adjustable Slot mounting

- 13 space Lacer Strips use two mounting points (FIGURE A)

FIGURE A

Technical line drawing of a server rack cabinet with mounting holes and mounting brackets (no text or symbols)

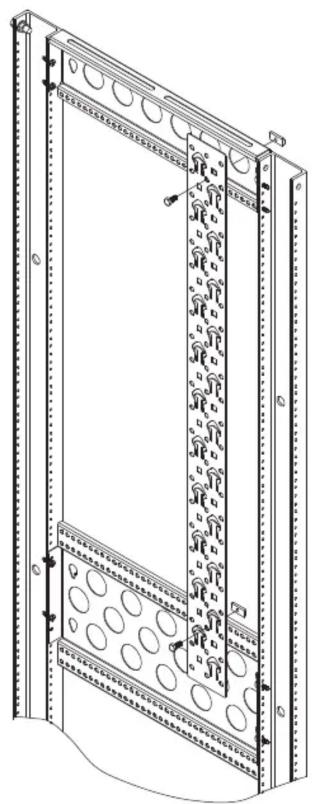

FIGURE B

MOUNTING OPTIONS

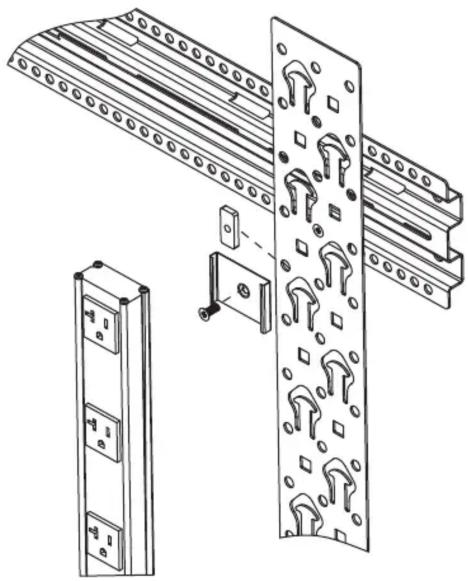

1) Accepts Middle Atlantic Products PD Series Slim Power Strips & PDT Series Thin Power Strips. Install as show. (Clips and mounting hardware included with Power Strip)

Technical line drawing of an electrical panel assembly with mounting holes and a separate view of a cabinet (no text or symbols present)

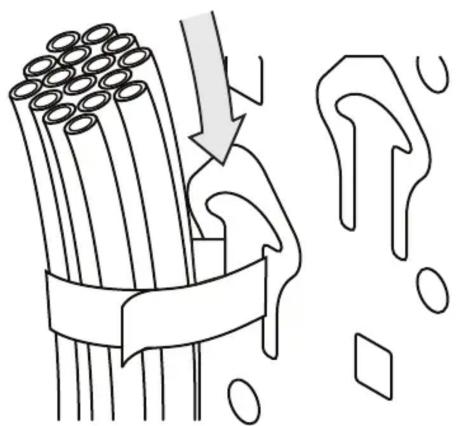

2) Cable tie points for hook and loop straps and cable ties up to 3/4" wide. Unique design allows for mounting pre-bundled cabling.

Illustration of bundled pipes with a downward arrow and question mark, no text or symbols present

(EXPLODED VIEW OF CABLE TIE POINT)

MOUNTING OPTIONS CONTINUED

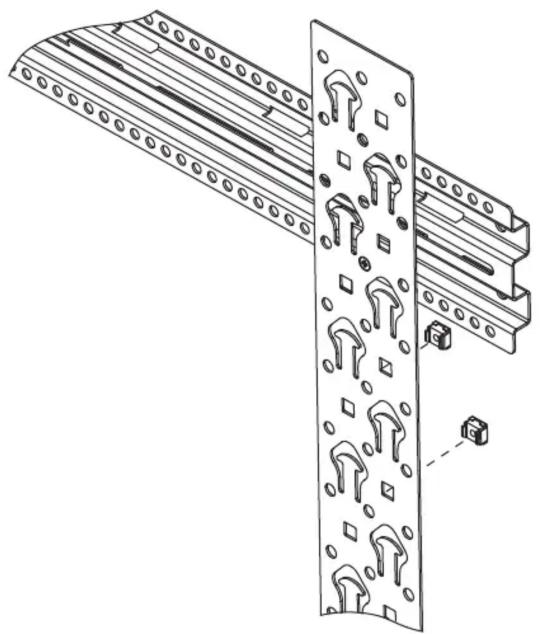

3) Square mounting points provide multiple mounting locations for Cage Nuts.

Technical line drawing of a mechanical assembly with mounting holes and internal gear-like components (no text or symbols)

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the Vertical Lacer Strip to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
