ME401X - Vidéo-projecteur NEC - Free user manual and instructions

Product Type	Video Projector
Brand / Model	NEC ME401X
Display Technology	LCD (0.63 inch with Micro Lens Array, 4:3 aspect ratio)
Native Resolution	1024 x 768 (XGA)
Light Output (Lumens)	4000 lumens (High-Bright mode)
Contrast Ratio	6000:1 (full white/full black)
Lamp Life	Up to 9000 hours (Eco mode) / 4000 hours (Normal mode)
Lens	Manual zoom (1.7x) and manual focus

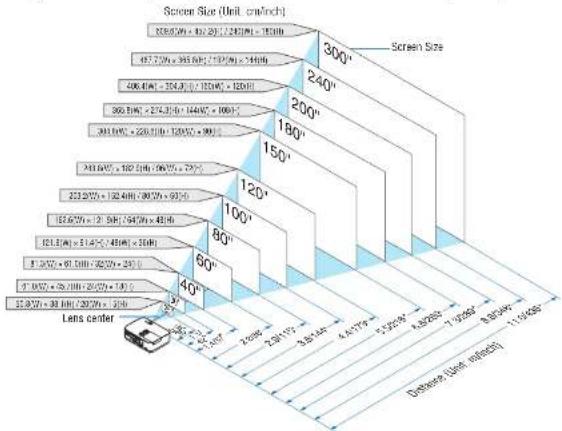

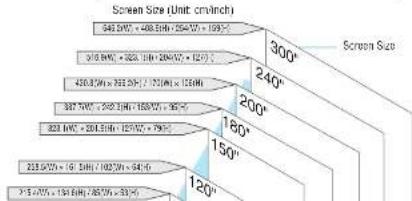

Image Size (Diagonal)	25 - 300 inches (0.6 - 7.6 m)
Projection Distance	0.6 - 13.8 m (min-max)
Keystone Correction	Vertical & horizontal (±30° max), plus 4-point corner and pincushion adjustment
Inputs	2x HDMI (Type A), 1x VGA (D-Sub 15), 1x Video (RCA), 1x Audio (stereo mini), 1x USB Type A, 1x USB Type B, 1x LAN (RJ-45)

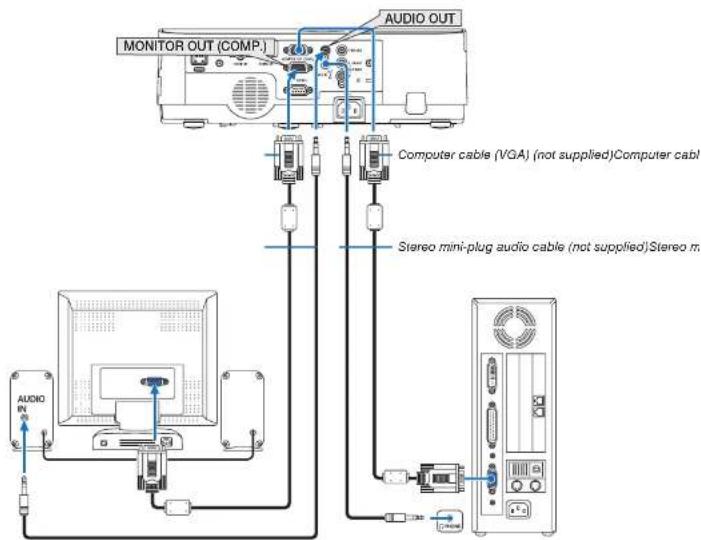

Outputs	1x VGA monitor out (D-Sub 15), 1x Audio out (stereo mini)
Built-in Speaker	20 W monaural

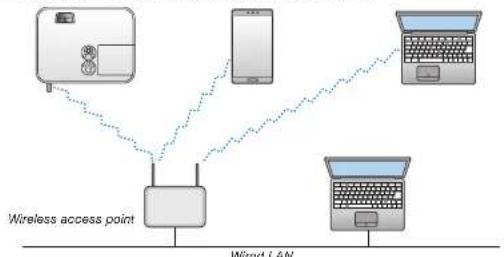

Networking	Wired (RJ-45), optional wireless LAN via USB (NP05LM series)
Power Consumption	316 W max (100-130 V) / 304 W (200-240 V)
Standby Power	0.23 W (Normal mode, 100-130 V) / 0.45 W (200-240 V)

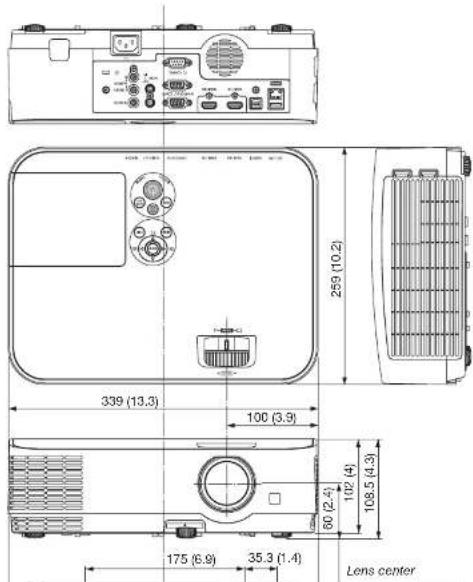

Dimensions (W x H x D)	339 x 108.5 x 259 mm (including protrusions)
Weight	2.9 kg (6.4 lbs)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Safety Features	Security keyword, control panel lock, Kensington lock slot, security chain opening
Included Accessories	Remote control (with batteries), power cord, VGA cable, lens cap, strap, CD-ROM (user manual)

Frequently Asked Questions - ME401X NEC

How do I turn on the projector?

Remove the lens cap, then press the POWER button on the projector cabinet or the POWER ON button on the remote control. The POWER indicator will blink and then stay on when ready.

How can I correct a trapezoid (keystone) image?

Press the KEYSTONE button on the remote control or the ▼ button on the cabinet to open the keystone menu. Use the arrow buttons to adjust VERTICAL and HORIZONTAL keystone, or use the CORNERSTONE option for 4-point correction.

My laptop screen is not showing on the projector. What should I do?

Ensure the projector is connected to your laptop before turning it on. Then press the SOURCE button to select the correct input (e.g., COMPUTER or HDMI). On most laptops, press Fn + F3 (or similar) to enable external display.

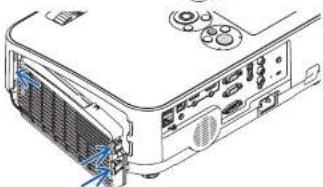

How do I clean the air filters?

Turn off the projector and unplug the power cord. Open the filter cover on the side, remove the filters, and clean them with a vacuum cleaner or wash them gently with water. Allow to dry completely before reinstalling. Replace filters if damaged.

When should I replace the lamp?

Replace the lamp when the message 'THE LAMP HAS REACHED THE END OF ITS USABLE LIFE' appears, or if the lamp indicator lights red. Let the projector cool for at least one hour, then follow the instructions in the manual (page 103). Use only specified replacement lamps.

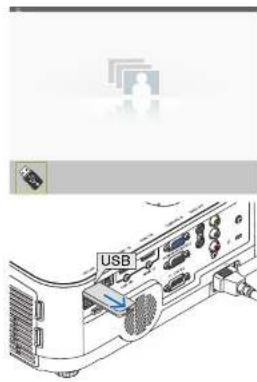

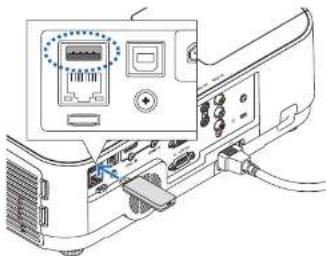

How can I project images from a USB memory?

Insert the USB memory into the USB-A port on the projector. Press SOURCE and select USB-A to start the Viewer. Use the arrow buttons to navigate thumbnails and press ENTER to display an image. Supported formats: JPEG.

How do I set a security password to prevent unauthorized use?

Go to MENU > SETUP > INSTALLATION > SECURITY and turn it ON. Then enter a keyword using the ▲▼◀▶ buttons. The projector will prompt for this keyword at startup.

What is the ECO mode and how does it save energy?

ECO mode reduces lamp brightness to extend lamp life (up to 9000 hours) and lower power consumption. Select ECO or AUTO ECO from the menu SETUP > GENERAL > ECO MODE. The Carbon Meter shows CO₂ savings.

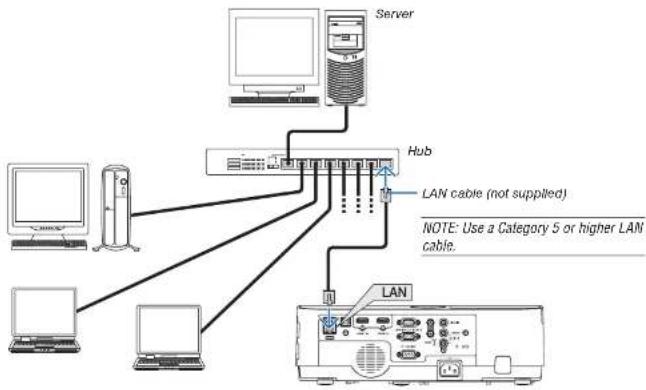

Can I control the projector over a network?

Yes. Connect an RJ-45 LAN cable to the projector and configure network settings via the on-screen menu or HTTP browser. You can then control power, input selection, and adjustments remotely. Optional wireless USB unit (NP05LM) supports wireless LAN.

What does the 'Direct Power Off' feature mean?

Direct Power Off allows you to disconnect the AC power cord immediately after turning off the projector without waiting for a cool-down period. This is possible when the STANDBY MODE is set to NORMAL.

USER MANUAL ME401X NEC

ME401W/ME361W/ME331W/ME301W

ME401X/ME361X/ME331X/ME301X

User's Manual

• Apple, Mac, Mac OS, OS X, MacBook, and iMac are trademarks of Apple Inc. registered in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
  • APP Store is a service mark of Apple Inc.
• Microsoft, Windows, Windows Vista, Internet Explorer, .NET Framework and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands in the U.S. and other countries.
• AccuBlend, NaViSet, MultiPresenter, and Virtual Remote are trademarks or registered trademarks of NEC Dispolay Solutions, Ltd. in Japan, in the United States and other countries.
• The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other
countries and areas.
- Wi-Fi, Wi-Fi Alliance ^ , and Wi-Fi Protected Access (WPA, WPA2) are registered trademarks of the Wi-Fi Alliance.
• Blu-ray is a trademark of Blu-ray Disc Association
- CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc. in the United States and other countries.
- Ethernet is either a registered trademark or trademark of Fuji Xerox Co., Ltd.
• Android and Google Play are trademarks of Google Inc.

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol wams the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus complies with Canadian ICES-003.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

CAUTION

Avoid displaying stationary images for a prolonged period of time.

Doing so can result in these images being temporarily sustained on the surface of the LCD panel. If this should happen, continue to use your projector. The static background from previous images will disappear.

Disposing of your used product

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

- Do not place the projector in the following conditions:

• on an unstable cart, stand, or table.
• near water, baths, or damp rooms.
• in direct sunlight, near heaters, or heat radiating appliances.
• in a dusty, smoky or steamy environment.

Important Information

WARNING

• Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projection window. Doing so could lead to the object melting from the heat that is emitted from the light output.

- Do not use a spray containing flammable gas to get rid of accumulated dust and dirt on the filters and the projection window. It may cause of fire.

Place the projector in a horizontal position

The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

Fire and Shock Precautions

• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
• Do not try to touch the exhaust vent as it can become heated while the projector is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector.

HOT

- Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve your objects that might fall into your projector. Do not have your metal objects such as paper or copper drives into more

Important Information

lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

• Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.
Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust.
- Do not splash water over the projector. Doing so can cause electrical shock or fire. If the projector gets wet, turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel.

- Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire.

- Do not use any power cord other than the one supplied with the projector.

- Do not bend or tug the power cord excessively.

- Do not place the power cord under the projector, or any heavy object.

- Do not cover the power cord with other soft materials such as rugs.

- Do not heat the power cord.

- Do not handle the power plug with wet hands.

- Turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the projector, or if it has been exposed to rain or water.

- If the projector does not operate normally when you follow the instructions described in this user's manual.

- If the projector has been dropped or the cabinet has been damaged.

- If the projector exhibits a distinct change in performance, indicating a need for service.

- Disconnect the power cord and any other cables before carrying the projector.

- Turn off the projector and unplug the power cord before cleaning the cabinet or replacing the lamp.

• Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of time.

- When using a LAN cable:

For safety, do not connect to the terminal for peripheral device wiring that might have excessive voltage.

CAUTION

• Do not use the adjustable tilt foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.
• Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [HIGH].)
• Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blinking blue. Doing so could cause premature lamp failure.

Remote Control Precautions

• Handle the remote control carefully.
  • If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity
• Do not short, heat, or take apart batteries.

Important Information

Note for US Residents

The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.

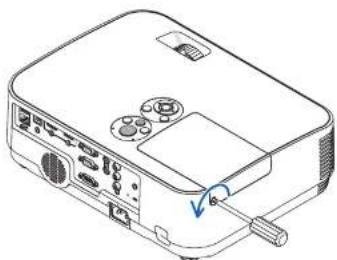

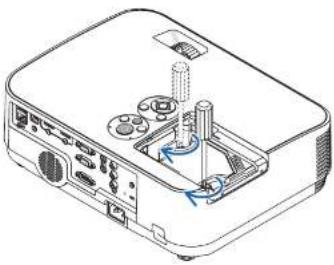

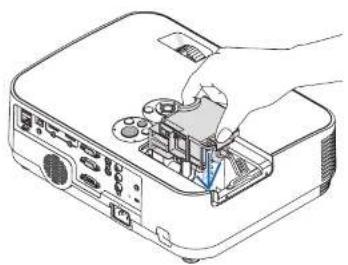

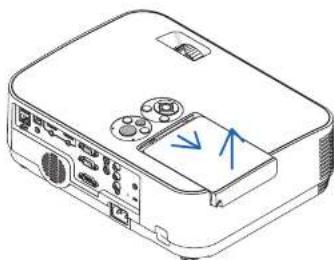

Lamp Replacement

• Use the specified lamp for safety and performance.
  • To replace the lamp, follow all instructions provided on page 103.
• Be sure to replace the lamp and filter when the message [THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP AND FILTER.] appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your dealer for lamp replacement.

A Lamp Characteristic

The projector has a discharge lamp for special purposes as a light source.

A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on

and off will increase the possibility of its lower brightness.

The actual lamp life may vary depending upon the individual lamp, the environmental conditions and usage.

CAUTION:

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off
  and then disconnect the power cord. Allow at least one hour for the lamp to cool before handling.
• When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

About High Altitude mode

• Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or higher.
  Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO].
  • Using the projector at altitudes approximately 5500 feet/1700 meters or higher can shorten the life of optical com-

Important Information

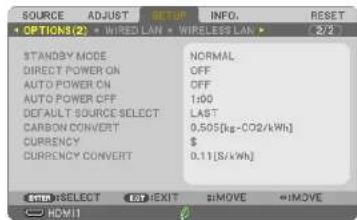

Power management function

The projector has power management functions. To reduce power consumption, the power management functions (1 and 2) are factory preset as shown below. To control the projector from an external device via a LAN or serial cable connection, use the on-screen menu to change the settings for 1 and 2.

1. STANDBY MODE (Factory preset: NORMAL)

To control the projector from an external device, select [NETWORK STANDBY] for [STANDBY MODE].

NOTE:

• When [NORMAL] is selected for [STANDBY MODE], the following terminals and functions will not work:
  MONITOR OUT terminal, AUDIO OUT terminal, USB(PC) port, LAN functions, Mail Alert function, DDC/CI (Virtual Remote Tool). Please refer to page 75 about details.
• When [NETWORK STANDBY] has been set for [STANDBY MODE] and the LAN has been in link-down condition for 3 minutes, [STANDBY MODE] will transit into [NORMAL] automatically for the purpose to save the consumption power.

2. AUTO POWER OFF (Factory preset: 1 hour)

To control the projector from an external device, select [OFF] for [AUTO POWER OFF].

NOTE:

- When [1:00] is selected for [AUTO POWER OFF], you can enable the projector to automatically turn off in 60 minutes if there is no signal received by any input or if no operation is performed.

Table of Contents

Important Information......

1. Introduction....1

① What's in the Box? 1

② Introduction to the Projector.... 2

Features you'll enjoy: 2

About this user's manual....3

③ Part Names of the Projector 4

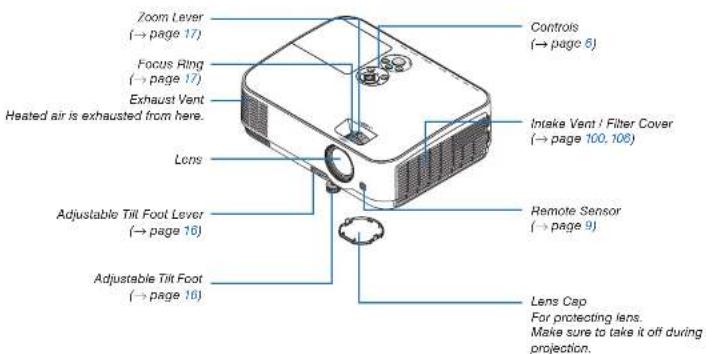

Front/Top 4

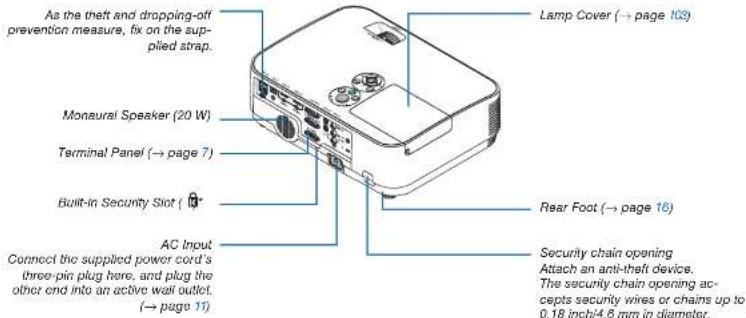

Rear 5

Top Features 6

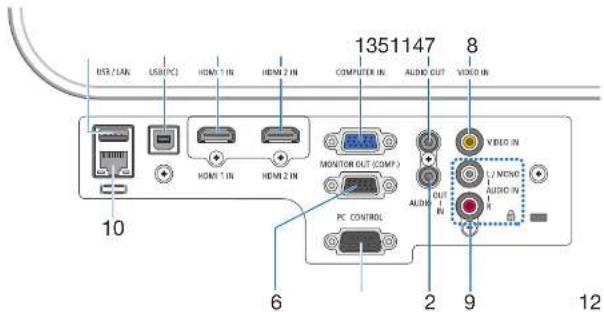

Terminal Panel Features 7

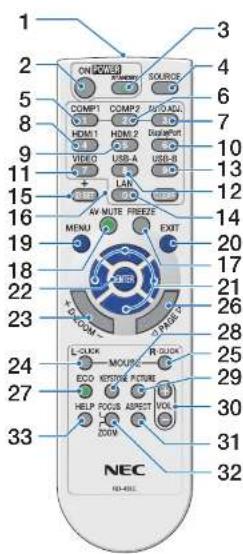

④ Part Names of the Remote Control....8

Battery Installation 9

Remote Control Precautions 9

Operating Range for Wireless Remote Control 9

1. Projecting an Image (Basic Operation) 10

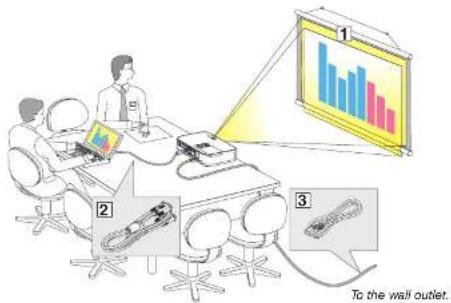

① Flow of Projecting an Image ....10

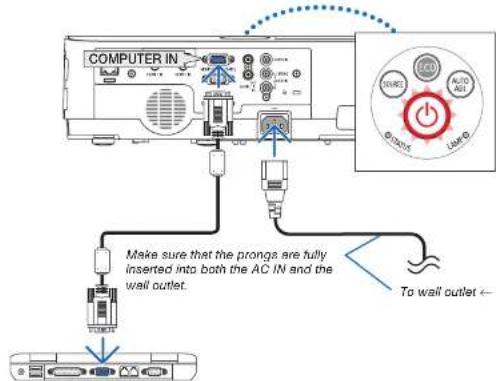

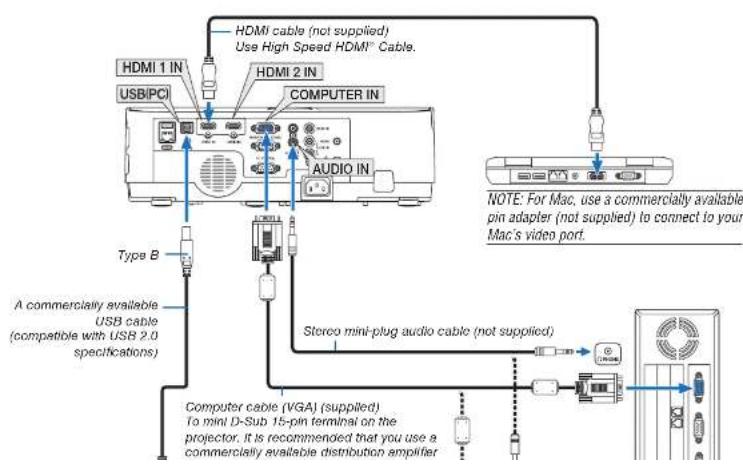

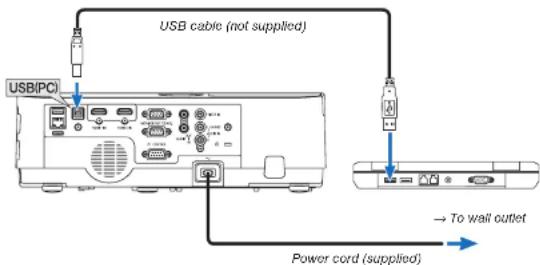

② Connecting Your Computer/Connecting the Power Cord ....11

③ Turning on the Projector....12

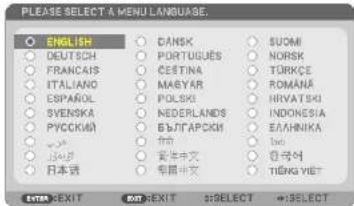

Note on Startup screen (Menu Language Select screen)....13

4 Selecting a Source 14

Selecting the computer or video source....14

⑤ Adjusting the Picture Size and Position....15

Adjust the Tilt Foot 16

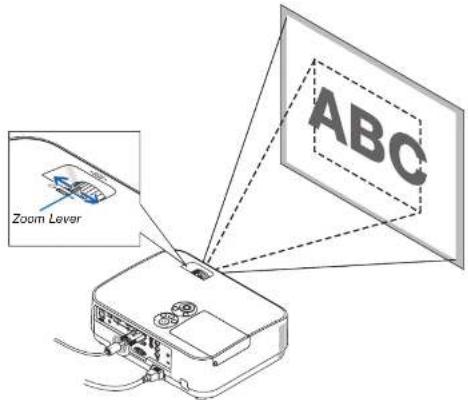

Zoom....17

Focus 17

6 Correcting Keystone Distortion [KEYSTONE]....18

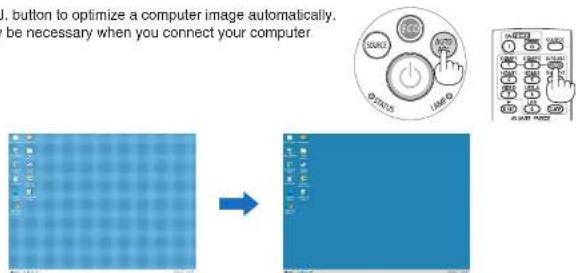

⑦ Optimizing Computer Signal Automatically 20

Adjusting the Image Using Auto Adjust 20

⑧ Turning Up or Down Volume 20

⑨ Turning off the Projector 21

A. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99.

Table of Contents

⑦ Operating Your Computer's Mouse Functions from the Projector's Remote Control via the USB Cable (Remote Mouse Function)....33

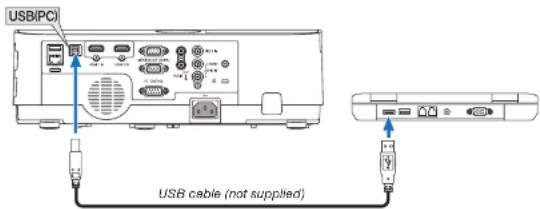

8 Projecting Your Computer's Screen Image from the Projector via the USB Cable (USB Display) 34

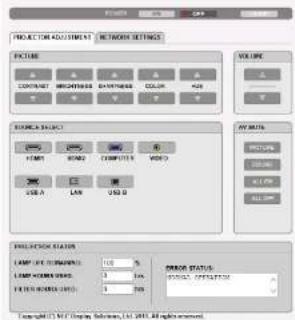

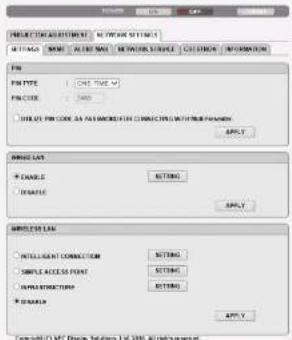

⑨ Controlling the Projector by Using an HTTP Browser 36
10 Projecting an Image from an Angle (Geometric Correction Tool in Image Express Utility Lite)....43 What you can do with GCT....43 Projecting an Image from an Angle (GCT)....43

1. Using the Viewer 45
   ① What you can do with the Viewer.... 45
   ② Projecting images stored in a USB memory device 47

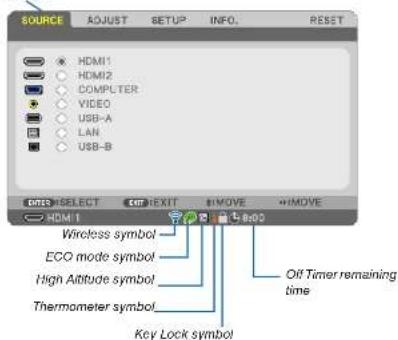

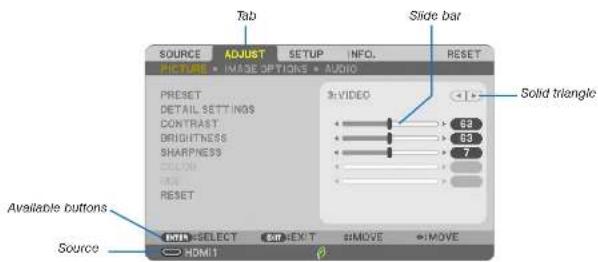

2. Using On-Screen Menu....53

① Using the Menus....53
② Menu Elements....54
③ List of Menu Items 55
4 Menu Descriptions & Functions [SOURCE]....58 HDMI1 and HDMI2....58 COMPUTER....58 VIDEO....58 USB-A....58 LAN....58 USB-B....58
③ Menu Descriptions & Functions [ADJUST]....59 [PICTURE]....59 [IMAGE OPTIONS]....62 [AUDIO]....66
Menu Descriptions & Functions [SETUP]....67 [GENERAL]....67 [MENU]....69 [INSTALLATION]....71 [OPTIONS(1)]....73

Table of Contents

6. Installation and Connections 86

① Setting Up the Screen and the Projector 86

Selecting a Location....86

Throw Distance and Screen Size 88

② Making Connections....90

Connecting Your Computer 90

Connecting an External Monitor....92

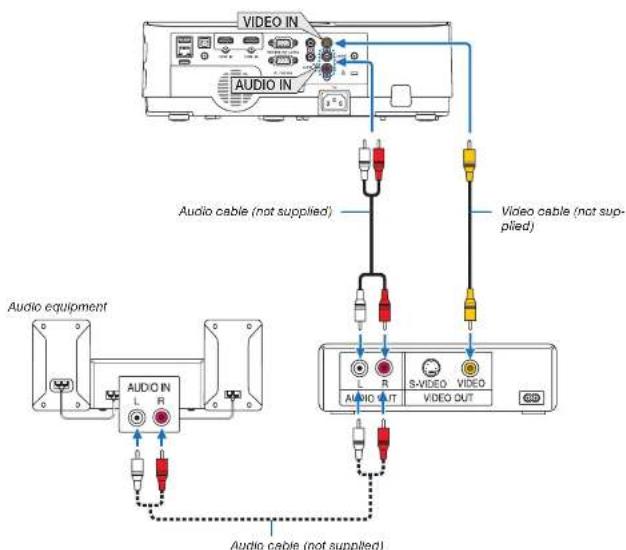

Connecting Your DVD Player or Other AV Equipment....93

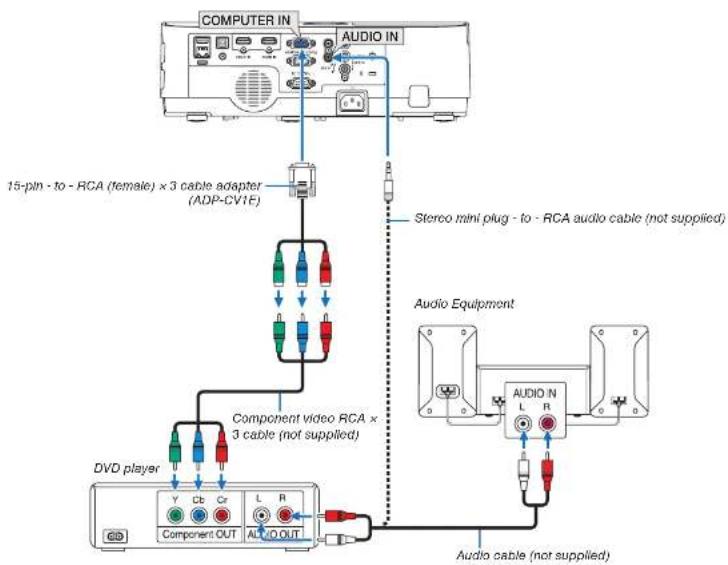

Connecting Component Input 94

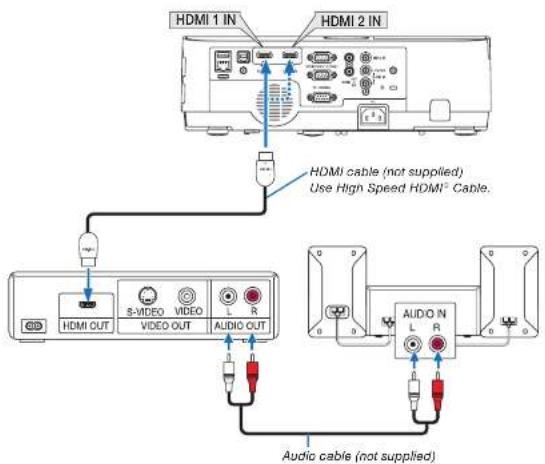

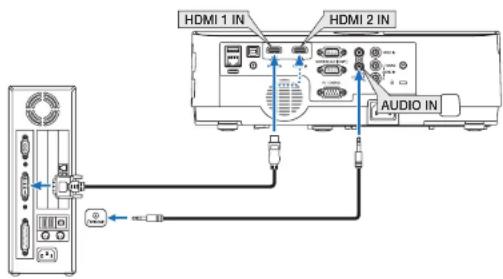

Connecting HDMI Input 95

Connecting to a Wired LAN 96

Connecting to a Wireless LAN (Optional: NP05LM series) 97

7. Maintenance ....100

① Cleaning the Filters....100

② Cleaning the Lens....102

③ Cleaning the Cabinet....102

4 Replacing the Lamp and the Filters....103

8. Appendix....108

① Troubleshooting .... 108

Indicator Messages....108

Common Problems & Solutions 109

If there is no picture, or the picture is not displayed correctly.... 110

② Specifications 111

3 Cabinet Dimensions 113

4 Pin Assignments of D-Sub COMPUTER Input Terminal.... 114

5 Compatible Input Signal List.... 115

6 PC Control Codes and Cable Connection 116

⑦ Using the Computer Cable (VGA) to Operate the Projector (Virtual Remote Tool) ..... 117

8 Troubleshooting Check List.... 119

9 REGISTER YOUR PROJECTOR! (for residents in the United States, Canada, and

Mexico) 121

1. Introduction

① What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.

Projector

Lens cap (24F53711)

Remote control (7N901053)

Batteries (AAA × 2)

Power cord (US: 7N080236/7N080242) (EU: 7N080022/7N080028)

Computer cable (VGA) (7N520089)

Strap × 1 (24J41711)

NEC Projector CD-ROM User's manual (PDF) /7N0595201

For North America only Limited warranty For customers in Europe: You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

1. Introduction

② Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

Features you'll enjoy:

- Quick start (6 seconds ^+1 ), Quick Power Off, Direct Power Off

6 seconds* 1 after turning on the power, the projector is ready to display PC or video images.

The projector can be put away immediately after the projector is powered down. No cool down period is required after the projector is turned off from the remote control or cabinet control panel.

The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image) by using the Main Power Switch or disconnecting the AC power supply.

To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.

* The quick start time is only when [STANDBY MODE] is set to [NETWORK STANDBY] in the on-screen message.

• 0.23W(100-130 V AC)/0.45W (200-240 V AC) in standby condition with energy saving technology

Selecting [NORMAL] for [STANDBY MODE] from the menu can put the projector in power-saving mode consumes only 0.23W(100-130 V AC)/0.45W (200-240 V AC).

- Carbon Meter

This feature will show energy-saving effect in terms of CO _2 emission reduction (kg) when the projector's [ECO MODE] is set to [AUTO ECO], [NORMAL], or [ECO].

The amount of CO _2 emission reduction will be displayed in the confirmation message at the time of power-off and in the INFO of the on-screen menu.

• Lamp life up to 9000 hours*2

Using in Eco Mode (ECO) allows you to prolong the projector's lamp life up to 9000 hours (up to 4000 hours in ECO MODE OFF).

• Two HDMI inputs support digital signals

The two HDMI inputs provide HDCP compatible digital signals. The HDMI input also supports audio signal.

- Integrated RJ-45 terminal for wired networking capability along with wireless networking capabilities

An RJ-45 terminal is standard. An optional USB Wireless LAN Unit is required for wireless LAN connection.

• INTELLIGENT CONNECTION

It enables easily to connect your projector to computers or smartphones, on which the application software, MultiPresenter, has been installed, by inputting PIN code.

1. Introduction

• Convenient utility software (User Supportware)

This projector supports our utility software (NaViSel Administrator 2, Virtual Remote Tool, etc.) NaViSel Administrator 2 helps you control the projector by a computer via wired LAN connection. Virtual Remote Tool helps you perform operations by a virtual remote control such as projector's power on or off and signal selection via wired LAN connection. Moreover, it has function to send an image to the projector and register it as the logo data.

Image Express Utility Lite (for Windows) can be started from a commercially available USB memory or SD card without the need of installing on your computer.

Please visit our web site for downloading each software.

URL: https://www.nec-display.com/dl/en/index.html

• AUTO POWER ON and AUTO POWER OFF features

The DIRECT POWER ON, AUTO POWER ON, AUTO POWER OFF, and OFF TIMER features eliminate the need to always use the POWER button on the remote control or projector cabinet.

• Preventing unauthorized use of the projector

Enhanced smart security settings for keyword protection, cabinet control panel lock, security slot, and security chain opening to help prevent unauthorized access, adjustments and theft deterrence.

• High resolution up to WUXGA\*3

High resolution display - up to WUXGA compatible, XGA (ME401X/ME361X/ME331X/ME301X)/WXGA (ME401W/ME361W/ME331W/ME301W) native resolution.

- An image with higher or lower resolution than the projector's native resolution (ME401W/ME361W/ME331W/ME301W: 1280 × 800 / ME401X/ME361X/ME331X/ME301X: 1024 × 768) will be displayed with Advanced AccuBlend.

* When WXGA MODE is set to ON.

• CRESTRON ROOMVIEW compatibility

The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or controller.

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.

1. Introduction

③ Part Names of the Projector

Front/Top

1. Introduction

Rear

* This security slot supports the MicroSaver® Security System.

1. Introduction

Top Features

1. (POWER) Button

(→ page 12, 21)

1. POWER Indicator

(→ page 11, 12, 21, 108)

1. STATUS Indicator

(→ page 108)

1. LAMP Indicator

(→ page 103, 108)

1. ECO Button

(→ page 24)

1. SOURCE Button

(→ page 14)

1. AUTO ADJ. Button

(→ page 20)

1. MENU Button

(→ page 53)

1. ▲▼◀▶ / Volume Buttons ◀▶ / Keystone Buttons

(→ page 18, 20, 26, 53)

1. Introduction

Terminal Panel Features

1. COMPUTER IN/ Component Input Terminal (Mini

D-Sub 15 Pin)

(→ page 90, 92, 94)

1. COMPUTER AUDIO IN Mini Jack (Stereo Mini)

(→ page 90, 91, 93)

1. HDMI 1 IN Terminal (Type A)

(→ page 90, 91, 95)

1. HDMI 2 IN Terminal (Type A)

(→ page 90, 91, 95)

1. USB (PC) Port (Type B)

(→ page 90)

1. MONITOR OUT (COMPUTER) Terminal (Mini D-

Sub 15 Pin)

(→ page 92)

1. AUDIO OUT Mini Jack (Stereo Mini)

( → page 92)

1. VIDEO IN Terminal (RCA)

1. Introduction

④ Part Names of the Remote Control

1. Infrared Transmitter ( → page 9)

2. MENU Button ( → page 53)

3. POWER ON Button ( → page 12)

4. EXIT Button ( → page 53)

5. POWER STANDBY Button 21. ▲▼◀▶ Button ( → page 21) (→ page 53)

6. SOURCE Button 22. ENTER Button ( → page 14) ( → page 53)

7. COMPUTER 1 Button ( → page 14)

8. D-ZOOM (+)(−) Button (→ page 23, 24)

9. COMPUTER 2 Button (This button does not work in this ( → page 33) series of projectors)

10. MOUSE L-CLICK Button*

11. MOUSE R-CLICK Button*

12. AUTO ADJ. Button ( → page 33) ( → page 20) 26. PAGE ▽/△ Button

13. HDMI 1 Button ( page 33) ( → page 14) 27. ECO Button

14. HDMI 2 Button ( → page 24) ( → page 14) 28. KEYSTONE Bu

15. DisplayPort Button (→ page 18, 26) (This button does not work in this PICTURE Button series of projectors) (→ page 59, 61)

16. VIDEO Button ( → page 14)

17. VOL. (+)(−) Button ( → page 20)

18. USB-A Button (→ page 14, 47, 58)

19. ASPECT Butto ( → page 64)

20. USB-B Button (→ page 14, 33, 58, 90)

21. FOCUS/ZOOM Button This does not work on this series

22. LAN Button of projectors. (→ page 14)

23. HELP Button
24. ID SET Button (→ page R1 R5 105)

1. Introduction

Battery Installation

1. Press firmly and slide the battery cover off.

2. Install new batteries (AAA). Ensure that you have the batteries' polarity (+/-) aligned correctly.

3. Slip the cover back over the batteries until it snaps into place. Do not mix different types of batteries or new and old batteries.

Remote Control Precautions

• Handle the remote control carefully.
  • If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity
• Do not short, heat, or take apart batteries.
• Do not throw batteries into fire.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.

Operating Range for Wireless Remote Control

2. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

① Flow of Projecting an Image

Step 1

- Connecting your computer / Connecting the power cord (→ page 11)

Step 2

• Turning on the projector (→ page 12)

Step 3

• Selecting a source ( page 14)

Step 4

- Adjusting the picture size and position (→ page 15)

- Correcting keystone distortion [KEYSTONE] (→ page 18)

Step 5

• Adjusting a picture and sound

- Optimizing a computer signal automatically (→ page 20)

- Turning up or down volume ( page 20)

Step 6

• Making a presentation

1. Projecting an Image (Basic Operation)

② Connecting Your Computer/Connecting the Power Cord

1. Connect your computer to the projector.

This section will show you a basic connection to a computer. For information about other connections, see "6. Installation and Connections" on page 90.

Connect the computer cable (VGA) between the projector's COMPUTER IN terminal and the computer's port (mini D-Sub 15 Pin). Turn two thumb screws of both terminals to fix the computer cable (VGA).

2. Connect the supplied power cord to the projector.

First connect the supplied power cord's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cord in the wall outlet.

The projector's power indicator will flash for a few seconds and then will light red ^2 (standby mode).

This will apply for both indicators when [NORMAL] is selected for [STANDBY MODE]. See the Power Indicator section.(→ page 108)

2. Projecting an Image (Basic Operation)

③ Turning on the Projector

1. Remove the lens cap.

Press and hold the two dent part on the lens cap and pull it toward you.

Hand inserting a component into a device (no text or symbols visible)

2. Press the (POWER) button on the projector cabinet or the POWER ON button on the remote control.

The POWER indicator will blink and the projector will become ready to use.

TIP:

- When the message "Projector is locked! Enter your password." is displayed, it means that the [SECURITY] feature is turned on. (→ page 31)

After you turn on your projector, ensure that the computer or video source is turned on.

NOTE: When no input signal is present, the no-signal guidance is displayed (factory menu setting).

Standby Blinking Power On

(→ page 108)

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 30 menu languages.

To select a menu language, follow these steps:

1. Use the ▲, ▼, ◀ or ▶ button to select one of the 30 languages from the menu.

1. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.

If you want, you can select the menu language later. (→ [LANGUAGE] on page 55 and 69)

NOTE

• If the projector is shut off by DIRECT POWER OFF (pulling out the power cord) during projection, wait for 1 second at least for reconnect the power cord for turning on the projector.
  Failing to do so could result in no power to the projector. (There will be no stand-by LED)
  Should this happen, unplug the power cord and plug it in again. Turn on the main power.
  • If one of the following things happens, the projector will not turn on.
• If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.
• When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
• If the STATUS indicator lights orange with the power button pressed, it means that the [CONTROL PANEL LOCK] is turned on. Cancel the look by turning it off ( - page 71).

2. Projecting an Image (Basic Operation)

④ Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

Detecting the Signal Automatically

Press the SOURCE button once. The projector will search for the available input source and display it. The input source will change as follows:

HDMI1 -> HDMI2 -> COMPUTER -> VIDEO -> USB-A -> LAN -> USB-B

- With the SOURCE screen displayed, you can press the SOURCE button a few times to select the input source.

TIP: If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the COMPUTER 1. HDMI1, HDMI2, VIDEO, USB-A, USB-B, or LAN buttons.

Selecting Default Source

You can so that it will be displayed each time the projector is turned on.

1. Press the MENU button.
   The menu will be displayed.
2. Press the ▶ button twice to select [SETUP] and the ▼ button or the ENTER button to select [GENERAL].
3. Press the ▶ button four times to select [OPTIONS(2)].
4. Press the ▼ button five times to select [DEFAULT SOURCE SELECT] and press the ENTER button.

The [DEFAULT SOURCE SELECT] screen will be displayed. (→ page 77)

1. Select a source as the default source, and press the ENTER button.
2. Press the EXIT button a few times to close the menu.
3. Restart the projector.

The source you selected in step 5 will be projected.

2. Projecting an Image (Basic Operation)

⑤ Adjusting the Picture Size and Position

Use the adjustable tilt foot, the zoom function or the focus ring to adjust the picture size and position. In this chapter drawings and cables are omitted for clarity.

Adjusting the throw angle (the height of an image) [Tilt foot] (→ page 16)	Adjusting the left and right tilt of an image [Rear foot] (→ page 16)
Finely adjusting the size of an image [Zoom lever] (→ page 17)	Adjusting the focus [Focus ring] (→ page 17)

Adjusting the keystone correction [KEYSTONE] ^* (→ page 18)

2. Projecting an Image (Basic Operation)

Adjust the Tilt Foot

1. Lift the front edge of the projector.

CAUTION:

Do not try to touch the exhaust vent during Tilt Foot adjustment as it can become heated while the projector is turned on and after it is turned off.

1. Push up and hold the Adjustable Tilt Foot Lever on the front of the projector to extend the adjustable tilt foot.
2. Lower the front of the projector to the desired height.
3. Release the Adjustable Tilt Foot Lever to lock the Adjustable tilt foot.

The tilt foot can be extended up to 1.6 inch/40 mm.
There is approximately 10 degrees (up) of adjustment for the front of the projector.
Rotate the rear foot to the desired height in order to square the image on the projection surface.

CAUTION:

- Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.

Diagram of a car interior showing a camera lens and a blue directional arrow (no text or symbols)

Adjustable Tilt FootAdjustable
Foot Lever

Line drawing of a car interior with a projector and a blue clip labeled 'B' (no text or symbols on the diagram itself)

Adjusting the left and right tilt of an image [Rear foot]

- Rotate the rear foot.

The rear foot can be extended up to 0.5 inch/12 mm. Rotating the rear foot allows the projector to be placed horizontally.

NOTE:

- Do not extend the rear foot beyond its height limit (0.5 inch/12 mm). Doing so may cause the rear foot to come out of the projector.

2. Projecting an Image (Basic Operation)

Zoom

Use the ZOOM lever to adjust the image size on the screen.

Focus

Use the FOCUS ring to obtain the best focus.

2. Projecting an Image (Basic Operation)

⑥ Correcting Keystone Distortion [KEYSTONE]

When the projector is not exactly perpendicular to the screen, keystone distortion occurs. For correcting this distortion, you can use the "Keystone" function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image.

The function of Automatic Keystone Correction is ON as the default factory setting. The following procedure explains how to use the [KEYSTONE] screen from the menu to correct trapezoidal distortions when the projector is placed diagonally to the screen.

- Before performing KEYSTONE correction The KEYSTONE correction has four features, KEYSTONE HORIZONTAL, KEYSTONE VERTICAL, PINCUSHION LEFT:RIGHT, PINCUSHION TOP:BOTTOM, and CORNERSTONE. If the value of either CONERSTONE or PINCUSHION has corrected, KEYSTONE HORIZONTAL and KEYSTONE VERTICAL are disabled. In this case, RESET the corrected values and restart to correct distortion.

1. Press the ▼ button on the projector cabinet.

The Keystone screen will be displayed on the screen.

• Press the KEYSTONE button when using the remote control.
  • See page for PINCUSHION.
  • See page for CORNERSTONE.
  • See page for RESET.

• Press the ▼ button to select [VERTICAL] and then use the ◀ or ▶ so that the left and right sides of the projected image are parallel.

* Adjust the vertical keystone distortion.

2. Projecting an Image (Basic Operation)

1. Press the ▲ button to select [HORIZONTAL] and then use the ◀ or ▶ so that the top and bottom sides of the projected image are parallel.
2. Adjust the horizontal keystone distortion.

1. Repeat steps 2 and 4 to correct keystone distortion.
2. After completing Keystone correction, press the EXIT button. The Keystone screen will disappear.

- To perform Keystone correction again, press the ▼ button to display the Keystone screen and repeat above steps 1 to 6.

To return the keystone adjustments to default:

1. Press the ▼ button to select [RESET] and press the ENTER button.

1. Press the ◀ or ▶ button to select [YES] and press the ENTER button.

1. Projecting an Image (Basic Operation)

⑦ Optimizing Computer Signal Automatically Adjusting the Image Using Auto Adjust

Optimizing a computer image automatically. (COMPUTER)

Press the AUTO ADJ. button to optimize a computer image automatically. This adjustment may be necessary when you connect your computer for the first time.

[Poor picture] [Adjusted picture]

NOTE:

Some signals may take time to display or may not be displayed correctly.

- If the Auto Adjust operation cannot optimize the computer signal, try to adjust [HORIZONTAL], [VERTICAL], [CLOCK], and [PHASE] manually. (→ page 62, 63)

⑧ Turning Up or Down Volume

Sound level from the speaker or audio output can be adjusted.

TIP: When no menus appear, the ◀ and ▶ buttons on the projector cabinet work as a volume control.

NOTE:

2. Projecting an Image (Basic Operation)

⑨ Turning off the Projector

To turn off the projector:

1. First, press the (POWER) button on the projector cabinet or the STANDBY button on the remote control. The confirmation message will be displayed.

1. Secondly, press the ENTER button or press the ⏻ (POWER) or the STANDBY button again.

The lamp will turn off and the projector will go into standby mode. When in standby mode, the POWER indicator will light red and the STATUS indicator will turn off when [NORMAL] is selected for [STANDBY MODE].

Power On

Standby

CAUTION:

Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector,

NOTE:

• While the power indicator is blinking blue in short cycles, the power cannot be turned off.
- You cannot turn off the power for 60 seconds immediately after turning it on and displaying an image.
- Do not disconnect the AC power supply to the projector within 10 seconds after making adjustment or settling changes and closing the menu. Doing so can cause loss of adjustments and settings.

2. Projecting an Image (Basic Operation)

⑩ When Moving the Projector

Preparation: Make sure that the projector is turned off.

1. Put on the lens cap.

2. Unplug the power cord.

3. Disconnect any other cables.

- Remove the USB memory or the wireless LAN Unit if it is inserted into the projector.

(→ page 49, 98)

3. Convenient Features

① Turning off the Image and Sound

Press the AV-MUTE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

The projector's power-saving function will work 10 seconds after the image is turned off.

As a result, the lamp power will be reduced.

NOTE:

• Even though the image is turned off, the menu still remains on the screen.
• Sound from the AUDIO OUT jack (Stereo mini) can be turned off.
- Even when the power-saving function works, the lamp power may be restored to its original level temporarily.
• To restore the image, even if you press the AV-MUTE button immediately after the start of the power-saving function, the lamp brightness may not be restored to its original level.

② Freezing a Picture

Press the FREEZE button to freeze a picture. Press again to resume motion.

NOTE: The image is frozen but the original video is still playing back.

- This feature can not be used when USB-A is selected as the input terminal.

③ Magnifying a Picture

You can enlarge the picture up to four times.

NOTE:

• The maximum magnification may be less than four times depending on the signal.
• This feature can not be used when LAN, and USB-B is selected as the input terminal.

To do so:

1. Press the D-ZOOM (+) button to magnify the picture.

To move the magnified image, use the ▲,▼,◀ or ▶ button.

3. Convenient Features

2. Press the ▲▼◀▶ button.

The area of the magnified image will be moved

Isometric illustration of a two-story house with directional arrows indicating vertical and horizontal movement (no text or symbols)

3. Press the D-ZOOM (−) button.

Each time the D-ZOOM (−) button is pressed, the image is reduced.

NOTE
• The image will be magnified or demagnified at the center of the screen.
• Displaying the menu will cancel the current magnification.

④ Changing Eco Mode/Checking Energy-Saving Effect Using Eco Mode [ECO MODE]

The ECO MODE (NORMAL and ECO) increases lamp life, while lowering power consumption and cutting down on CO _2 emissions.

Four brightness modes of the lamp can be selected: [OFF], [AUTO ECO], [NORMAL] and [ECO] modes.

[ECO MODE] Description Status of LAMP indicator
[OFF] The lamp brightness is 100%. Off
[AUTO ECO] Lamp power consumption will be changed between [OFF] and [NORMAL] automatically according picture levelNOTE: A bright gradation may be less visible depending on the image.
[NORMAL] Lamp power consumption: approx. 75%* brightness.The lamp life will extend by lowering the lamp power.* ME301W/ME301X: 80%			Steady Green light
[ECO] Lamp power consumption (approx. 60% brightness)

3. Convenient Features

NOTE:

• The [ECO MODE] can be changed by using the menu. Select [SETUP] → [GENERAL] → [ECO MODE].
- The lamp life remaining and lamp hours used can be checked in [USAGE TIME]. Select [INFO.] → [USAGE TIME].
- The projector is always in [NORMAL] for 90 seconds after the lamp is turned on and while the POWER indicator is blinking green. The lamp condition will not be affected even when [ECO MODE] is changed.
• After a lapse of 1 minute from when the projector displays no-signal guidance, a blue, black or logo screen, [ECO MODE] will automatically switch to [ECO]. The projector will return to its original setting once a signal is accepted.
- If the projector is overheated in [OFF] mode, there may be a case where the [ECO MODE] automatically changes to [NORMAL] mode to protect the projector. When the projector is in [NORMAL] mode, the picture brightness decreases. When the projector comes back to normal temperature, the [ECO MODE] returns to its original setting. Thermometer symbol [■] indicates the [ECO MODE] is automatically set to [NORMAL] mode because the internal temperature is too high.
- Immediately after [ECO MODE] is changed from [ECO] to one of [OFF], [AUTO ECO], or [NORMAL], the lamp brightness may decrease temporarily. This is not a malfunction.

Checking Energy-Saving Effect [CARBON METER]

This feature will show energy-saving effect in terms of CQ emission reduction (kg) when the projector's [ECO MODE] is set to [AUTO ECO], [NORMAL], or [ECO]. This feature is called as [CARBON METER].

There are two messages: [TOTAL CARBON SAVINGS] and [CARBON SAVINGS-SESSION]. The [TOTAL CARBON SAVINGS] message shows the total amount of CQ emission reduction from the time of shipment up to now. You can check the information on [USAGE TIME] from [INFO.] of the menu. (→ page 81)

The [CARBON SAVINGS-SESSION] message shows the amount of CO _2 emission reduction between the time of changing to ECO MODE immediately after the time of power-on and the time of power-off. The [CARBON SAVINGS-SESSION] message will be displayed in the [POWER OFF/ ARE YOU SURE?] message at the time of power-off.

1. Convenient Features

⑤ Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE]

Use the [CORNERSTONE] and [PINCUSHION] features to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular.

Before performing correction

The KEYSTONE correction has features, KEYSTONE (HORIZONTAL/VERTICAL), PINCUSHION (LEFT/RIGHT, TOP/BOTTOM), and CORNERSTONE. If the value of either CONERSTONE or PINCUSHION has corrected, KEYSTONE HORIZONTAL and KEYSTONE VERTICAL are disabled. In this case, RESET the corrected values and restart to correct distortion

Cornerstone

1. Press the KEYSTONE button with no menu displayed.

The KEYSTONE screen will be displayed.

- Press the KEYSTONE button when using the remote control.

• See page for PINCUSHION.

1. Press the ▼ button to select [CORNERSTONE] and press the ENTER button.

The drawing shows the upper left icon (▼) is selected.

The CORNERSTONE screen will be displayed

3. Convenient Features

1. Use the ▲▼◀▶ button to select one icon (▲) which points in the direction you wish to move the projected image frame.
2. Press the ENTER button.
3. Use the ▲▼◀▶ button to move the projected image frame as shown on the example.

1. Press the ENTER button.

1. Use the ▲▼◀▶ button to select another icon which points in the direction.

On the Cornerstone adjustment screen, select [EXIT] or press the EXIT button on the remote control.

The confirmation screen is displayed.

3. Convenient Features

Pincushlon

By this feature, it enables to adjust left and right side or top and bottom side independently for reforming pincushion distortion.

1. Press the KEYSTONE button with no menu displayed.

The KEYSTONE screen will be displayed.

- Press the KEYSTONE button when using the remote control.

1. Press the ▼ or ▲ button to select [PINCUSHION LEFT/RIGHT] or [PINCUSHION TOP/BOTTOM].

1. Press the ◀ or ▶ button to correct distortion.

NOTE

• The [PINCUSHION LEFT/RIGHT] or [PINCUSHION TOP/BOTTOM] item is not available when [KEYSTONE HORIZONTAL]. [KEYSTONE VERTICAL] or [CORNERSTONE] is activated.
  • Before performing correction, set the lens shift to the center position.

• Press the EXIT when PINCUSHION adjustment is completed.

NOTE:

• Even when the projector is turned on, the last used correction values are applied.
• [PINCUSHION] and [CORNERSTONE] corrections can cause the image to be slightly blurred because the correction is made

3. Convenient Features

Reset the keystone and pincushion adjustment to the default value

1. Press the KEYSTONE button with no menu displayed.

ON the displayed KEYSTONE menu, set the cursor at RESET using the ▼ button and press ENTER button.

• Confirmation message is displayed on.

1. Move the cursor onto YES using either ◀ or ▶ button and then press the ENTER.

NOTE:

- All adjusted values set in the KEYSTONE adjustment are reset to initial values.

TIP:

Adjustable range of the KEYSTONE and the CORNERSTONE:

	Horizontal Direction	Vertical Direction
CORNERSTONE	Approx. ± 30^ (Max)	Approx. ± 30^ (Max)
KEYSTONE

Adjustable range may be narrower depending on input signal.

3. Convenient Features

⑥ Preventing the Unauthorized Use of the Projector [SECURITY]

A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is set, turning on the projector will display the Keyword Input screen. Unless the correct keyword is entered, the projector cannot project an image.

• The [SECURITY] setting cannot be cancelled by using the [RESET] of the menu.

To enable the Security function:

1. Press the MENU button.
   The menu will be displayed.
2. Press the ▶ button twice to select [SETUP] and press the ▼ button or the ENTER button to select [GENERAL].
3. Press the ▶ button to select [INSTALLATION].
4. Press the ▼ button three times to select [SECURITY] and press the ENTER button.

The OFFION menu will be displayed.

1. Press the ▼ button to select [ON] and press the ENTER button.

The [SECURITY KEYWORD] screen will be displayed.

3. Convenient Features

1. Type in the same combination of ▲▼◀▶ buttons and press the ENTER button.

The confirmation screen will be displayed.

1. Select [YES] and press the ENTER button.

The SECURITY function has been enabled.

To turn on the projector when [SECURITY] is enabled:

1. Press the POWER button.

The projector will be turned on and display a message to the effect that the projector is locked.

1. Press the MENU button.

1. Type in the correct keyword and press the ENTER button. The projector will display an image.

3. Convenient Features

To disable the SECURITY function:

1. Press the MENU button.

The menu will be displayed.

1. Select [SETUP] → [INSTALLATION] → [SECURITY] and press the ENTER button.

The OFFION menu will be displayed.

1. Select [OFF] and press the ENTER button.

The SECURITY KEYWORD screen will be displayed.

1. Type in your keyword and press the ENTER button.

2. Convenient Features

⑦ Operating Your Computer's Mouse Functions from the Projector's Remote Control via the USB Cable (Remote Mouse Function)

The built-in remote mouse function enables you to operate your computer's mouse functions from the supplied remote control when the projector is connected to a computer via a commercially available USB cable (compatible with USB 2.0 specifications).

Press the USB-B button on the remote control, or select [USB-B] for the source on the On-screen menu.

• Using the USB cable to connect the projector and the computer will also start USB Display function.
- When you connect your computer and the projector by a USB cable for the first time, your computer will read in the software. It will take few minutes for starting up the USB display.

NOTE:

• A USB cable must support the USB 2.0 Specifications.
• The mouse function can be used with the following operating systems:
Windows 7, Windows XP, Windows Vista
- Wait at least 5 seconds after disconnecting the USB cable before reconnecting it and vice versa. The computer may not identify the USB cable if it is repeatedly connected and disconnected in rapid intervals.
- Connect the projector to the computer with a USB cable after starting the computer. Failure to do so may fail to start the computer.

Operating your computer's mouse from the remote control

You can operate your computer's mouse from the remote control.

PAGE ▽/△ Button ...... scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.

▲▼▲▼ Buttons

mouse the mouse cursor on your computer

1. Convenient Features

⑧ Projecting Your Computer's Screen Image from the Projector via the USB Cable (USB Display)

Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect the computer with the projector allows you to send your computer screen image to the projector for displaying. Power On/Off and source selection of the projector can be done from your computer without connecting a computer cable (VGA).

The USB Display utilizes the function of Image Express Utility Lite which is pre-installed software on the projector.

NOTE:

• To make the USB-Display available on Windows XP, the Windows user account must have "Administrator" privilege.
• USB Display will not work in [NORMAL] of [STANDBY MODE]. (→ page 75)

1. Start the computer.
2. Connect the projector's power cord to the wall outlet and put the projector into standby condition.
3. Use the USB cable to connect the computer with the projector.

The message "The projector is in standby mode. Connect it?" will be displayed on the computer screen.

- The control window of Image Express Utility Lite will be displayed on the top of the screen.

NOTE: Depending on the computer setting, the "AutoPlay" window may be displayed when the computer detects the connection to the projector. If this happens, click the "Start USB Display" window.

3. Convenient Features

5. Operate the control window.

(1) Source.....Selects an input source of the projector.
(2) (Picture) .... Turns on or off AV-MUTE (Picture mute), and turns on or off FREEZE (Freeze a picture).
(3) (Sound) ..... Turns on or off AV-MUTE (Sound mute), play the sound and turns up or down the volume.
(4) Others.....Uses "Update", "HTTP Server", "Settings" and "Information".
* The HTTP Server cannot be selected when a USB cable is connected.
(5) (Projection) Enables to change screen size for presentation, menu indication (hide/indicate), interruption prohibition/accept interruption.
(6) Help.....Displays the help of Image Express Utility Lite.

3. Convenient Features

⑨ Controlling the Projector by Using an HTTP Browser

Overview

The HTTP Server function provides settings and operations for:

1. Setting for wired/wireless network (NETWORK SETTINGS)

To use wireless LAN connection, the optional USB Wireless LAN Unit is required. (→ page 97)

To use wired/wireless LAN connection, connect the projector to the computer with a commercially available LAN cable. ( page 96)

2. Setting Alert Mail (ALERT MAIL)

When the projector is connected to a wired/wireless network, lamp replace time or error messages will be sent via e-mail.

3. Operating the projector

Power on/off, selecting input, volume control and picture adjustments are possible.

1. Setting PJLink PASSWORD, AMX BEACON, and CRESTRON

How to access to the HTTP server:

- Start the Web browser on the computer via the network connected to the projector and enter the following URL :

http:// /index.html

TIP: The factory setting IP address is {DHCP ON}.

NOTE:

• To use the projector in a network, consult with your network administrator about network settings.

• The display's or button's response can be slowed down or operation may not be accepted depending the settings of your network. Should this happen, consult your network administrator. The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can't get any response, turn off and back on the projector.
• If the PROJECTOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to refresh your web browser (or clear the cache).
• This device uses "JavaScript" and "Cookies" and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software.

Preparation before Use

Connect the projector to a commercially available LAN cable before engaging in browser operations. (→ page 96)

Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set

3. Convenient Features

Handling of the Address for Operation via a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the "HOSTS" file of the computer being used.

Example 1: When the host name of the projector has been set to "pj.nec.co.jp", access is gained to the network setting by specifying http://pj.nec.co.jp/index.html for the address or the entry column of the URL.

Example 2: When the IP address of the projector is "192.168.73.1", access is gained to the network setting by specifying http://192.168.73.1/index.html for the address or the entry column of the URL.

PROJECTOR ADJUSTMENT

POWER: This controls the power of the projector. ON....Power is switched on. OFF....Power is switched off.

3. Convenient Features

PICTURE: Controls the video adjustment of the projector.

CONTRAST ▲...... Increases the contrast adjustment value.

CONTRAST ▼...... Decreases the contrast adjustment value.

BRIGHTNESS ▲ .... Increases the brightness adjustment value.

BRIGHTNESS ▼ .... Decreases the brightness adjustment value.

SHARPNESS ▲ ..... Increases the sharpness adjustment value.

SHARPNESS ▼ ..... Decreases the sharpness adjustment value.

COLOR ▲...... Increases the color adjustment value.

COLOR ▼...... Decreases the color adjustment value.

HUE ▲......Increases the hue adjustment value.

HUE ▼...... Decreases the hue adjustment value.

- The functions that can be controlled will vary depending on the signal being input to the projector. (→ page 61)

SOURCE SELECT: This switches the input terminal of the projector.

HDMI1 ...... Switches to the HDMI 1 IN terminal

HDMI2 ...... Switches to the HDMI 2 IN terminal.

COMPUTER ...... Switches to the COMPUTER IN terminal.

VIDEO.... Switches to the VIDEO IN terminal.

USB-A.....Switches to the data on the USB memory device.

LAN....Switches to a LAN signal.

USB-B.....Switches to the USB Port (PC).

PROJECTOR STATUS: This displays the condition of the projector.

LAMP LIFE REMAINING .....Displays the remaining life of the lamp as a percentage.

LAMP HOURS USED......Displays how many hours the lamp has been used.

FILTER HOURS USED ......Displays how many hours the filter has been used.

ERROR STATUS......Displays the status of errors occurring within the projector.

LOG OFF: Logging off your projector and returning to the authentication screen (LOGON screen).

3. Convenient Features

NETWORK SETTINGS

- SETTINGS

PIN

PIN TYPE Select type of PIN code.
ONE-TIME The PIN	CODE is automatically created every time poweringON the projector. Created PIN CODE is kept unchanged untilthe projector is powered OFF.
STATIC Enables to	set up random number for the PIN CODE.
PIN CODE For the case ONE-TIME is selected as PIN TYPE, automatically created PIN CODEis displayed on (disabled to input).For the case STATIC is selected as PIN TYPE, input random 4 digits number as PINCODE.Select if you use the PIN CODE as a security password for connecting to the Multi-Presenter application. For using the PIN code as a security password, add a checkmark into the square.□............ UTILIZE PIN CODE AS PASSWORD FOR CONNECTING WITH MultiPres-enter.

1. Convenient Features

AUTO DNS ON DHCP server will automatically assign IP ADDRESS of DNS server connected to the projector.

AUTO DNS OFF Set your IP ADDRESS of DNS server connected to the projector.

APPLY Make the settings for wired LAN effective.

WIRELESS LAN

INTELLIGENT CONNECTION	Easily connect to a computer or a smart phone utilizing the application software, MultiPresenter, installed on them.
SIMPLE ACCESS POINT	Set the projector as a simple access point for connecting to a computer or a smart phone.
INFRASTRUCTURE Connect this device to an access point.
DISABLE Turn off wireless LAN connection
SETTING Set for wireless LAN.
APPLY Connect to the network wirelessly by the selected option among INTELLIGENT CONNECTION, SIMPLE ACCESS POINT, and INFRASTRUCTURE.

WIRELESS LAN (INTELLIGENT CONNECTION)

CONNEC-TION	MODE Select wireless frequency band.CHANNEL Select wireless channel.
SECURITY	SECURITY TYPE	Select if you use the PIN CODE as a security password when STATIC is selected for PIN TYPE.
	SECURITY KEY	When SECURITY is enabled, set a SECURITY KEY. SECURITY KEY must be 8 to 63 alphanumeric characters (Including a space).

WIRELESS LAN (SIMPLE ACCESS POINT)

CONNEC-TION	SSID Set SSID as an access point. SSID must be 1 to 32 alphanumeric characters (including a space).
	MODE Select wireless frequency band.
	CHANNEL Select wireless channel.
SECURITY	SECURITY TYPE	Select security type.
	SECURITY KEY	Set a SECURITY KEY. SECURITY KEY must be 8 to 63 alphanumeric characters (including a space).

WIREL FOG LAN INFRASTRUCTURE

1. Convenient Features

CONNEC-TION	SSID Enter an identifier (SSID) as an access point. SSID must be 1 to 32 alphanumeric characters (including a space).
SECURITY	SECURITY Select security type.
	INDEX When WEP 64bit or WEP 128bit is selected for SECURITY, activate the INDEX. The value for this is fixed at "1".
	SECURITY KEY	Set a SECURITY KEY. SECURITY KEY must be 8 to 63 alphanumeric characters (including a space).

• NAME

PROJECTOR NAME Enter	a name for your projector so that your computer can identify the projector. A projector name must be 16 characters or less.TIP: Projector name will not be affected even when [RESET] is done from the menu.
HOST NAME Enter the host	name of the network connected to the projector. A host name must be 16 or less.

• ALERT MAIL

ALERT MAIL (English only)	This option will notify your computer of lamp replace time or error messages via e-mail when using wireless or wired LAN.Placing a checkmark will turn on the Alert Mail feature.Clearing a checkmark will turn off the Alert Mail feature.Sample of a message to be sent from the projector:The lamp and filters are at the end of its usable life. Please replace the lamp and filters.Projector Name: NEC ProjectorLamp Hours Used: 100 [H]
SENDER'S ADDRESS Enter sender's address.
SMTP SERVER NAME Enter the SMTP server name to be connected to the projector.
RECIPIENT'S ADDRESS 1,2,3	Enter your recipient's address. Up to three addresses can be entered.
TEST MAIL Send a test mail to check whether your settings are correct or notNOTE:If you execute a test, you may not receive an Alert mail. Should this happen, check if network settings are correct.If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correct.

3. Convenient Features

• NETWORK SERVICE

PJLink PASSWORD Set a	password for PJLink*. A password must be 32 characters or less. Do not forget your password. However, if you forget your password, consult with your dealer.
HTTP PASSWORD Set a	password for HTTP server. A password must be 10 characters or less.
AMX BEACON	Turn on or off for detection from AMX Device Discovery when connecting to the network supported by AMX's NetLinx control system.TIP:When using a device that supports AMX Device Discovery, all AMX NetLinx control system will recognize the device and download the appropriate Device Discovery Module from an AMX serve.Placing a checkmark will enable detecting the projector from AMX Device Discovery.Clearing a checkmark will disable detecting the projector from AMX Device Discovery.

*What is PJLink?
PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The projector supports all the commands of PJLink Class 1. Setting of PJLink will not be affected even when [RESET] is done from the menu.

CRESTRON ROOMVIEW compatibility

The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or a controller. For more information, visit https://www.crestron.com

Access to the HTTP server, and make necessary settings for [CRESTRON] in [NETWORK SETTINGS].

• ROOMVIEW for managing from the computer.

DISABLE Disables ROOMVIEW.

ENABLE Enables ROOMVIEW.

• CRESTRON CONTROL for managing from the controller.

DISABLE Disables CRESTRON CONTROL.

ENABLE Enables CRESTRON CONTROL.

IP ADDRESS Set your IP address of CRESTRON SERVER.

IP ID Set your IP ID of CRESTRON SERVER.

⑩ Projecting an Image from an Angle (Geometric Correction Tool in Image Express Utility Lite)

The Geometric Correction Tool (GCT) that is a function of the pre-installed software on the projector "Image Express Utility Lite" allows you to correct distortion of images projected even from an angle.

What you can do with GCT

• The GCT feature includes the following three functions

- 4-point Correction: You can fit a projected image within the border of the screen easily by align the four corners of an image to the ones of the screen.

- Multi-point Correction: You can correct a distorted image on the corner of a wall or irregular shaped screen by using many separated screens to correct the image as well as 4-point Correction.

- Parameters Correction: You can correct a distorted image by using a combination of transformational rules prepared in advance.

This section will show an example for use with 4-point Correction. For information about "Multi-point Correction" and "Parameters Correction", see the help file of Image Express Utility Lite.

- Your correction data can be stored in the projector or your computer which can be restored when necessary.

Projecting an Image from an Angle (GCT)

Preparation:

(1) Connect the projector to a computer by a USB cable. (→ page 34, USB Display)
(2) Adjust the projector position or the zoom so that the projected image can cover the whole screen area.

1. Click the " (Picture) icon and then the " button.

The "4-point Correction" window will be displayed.

1. Click the "Start Correction" button and then "Start 4-point Correction" button.

A green frame and a mouse pointer ( ) will be displayed.

• Four [●] marks will be appeared at four corners.

3. Convenient Features

Illustration of a projector and a blank screen with a small screen showing text (no readable symbols or text)

(In the above example, Windows screens are omitted for clarification.)

1. Drag the selected [●] mark to the point you wish to correct and drop it.

- When you click somewhere within the project image area, the nearest corner will go to the position where the mouse cursor is.

1. Repeat Step 3 and 4 to correct the distortion of the projected image.

4. Using the Viewer

① What you can do with the Viewer

The Viewer has the following features.

• When a commercially available USB memory that stores image files is inserted into the USB port (Type A) of the projector, the Viewer allows you to view the image files on the USB memory.
  Even if no computer is available, presentations can be conducted simply with the projector.
  • Supported graphic format is JPEG.
• The Viewer displays the thumbnail screen (JPEG Exif only) on which you can jump to any specific image you wish to project.
• There are two ways of playback for slideshow: manual playback and auto playback. The interval time can be changed in auto playback.
• The order of displaying images can be set by name, date or size. Ascending or descending order can be selected.
  • Images can be rotated by 90 degrees during playback.

4. Using the Viewer

NOTE

• The USB port of the projector does not support USB hub.

- The USB port of the projector is common use for the wireless LAN unit. When the wireless LAN unit is installed on, you can not utilize the VIEWER.

- The following operations by using the buttons on the projector are not possible when the VIEWER screen such as the slide screen and the thumbnail screen is displayed.

Buttons on the cabinet

- Keystone correction by using the ▲/▼ button

- Auto Adjustment by using the AUTO ADJ. button

- Volume control with the ◀ or ▶ button To perform Keystone correction or Source selection during display of the Viewer, press the MENU button twice to display the menu and operate Viewer from the menu.

Remote control

- Auto Adjustment button

- Freeze button

- Executing [RESET] [ALL DATA] from the menu will return the settings for the Viewer toolbar to the factory default.

- USB memory

- Be sure to use a USB memory device formatted with the FAT32 or FAT16 file system.

The projector does not support NTFS formatted USB memory.

If the projector does not recognize your USB memory, check if the format is supported.

To format your USB memory in your computer, refer to the document or help file that comes with your Windows.

- We do not warrant that the USB port of the projector will support all USB memories in the market.

• Supported images

- Supported file format for Viewer are as follows.

We do not warrant all the images are supported for Viewer.

Images other than mentioned in the table may not be supported.

Image type Extension Description
JPEG JPG/JPEG	Baseline/Exif are supported

- Image can be displayed at a resolution up to 10000 × 10000 pixels.

- Even if images are met by the above conditions, there may be some images which cannot be played back.

- More than 200 icons (total number of image file icons and folder icons) cannot be displayed in a thumbnail screen.

- Long file/folder name will be limited to the specified length. This can be shown by bracket added.

- If one folder has many files, it takes some time to play back.

- If a single folder contains too many files, switching images will take time. To shorten switching time, reduce the number of images contained in a single folder.

TIP:

- Exchangeable image file format (Exif) is a standard image file format used by digital cameras with the addition of specific shooting

4. Using the Viewer

② Projecting images stored in a USB memory device

This section explains the basic operation of the Viewer.

The explanation provides the operational procedure when the Viewer toolbar (→ page 51) is set to the factory default.

• Starting the Viewer......below
• Removing the USB memory from the projector ...... page 49
• Exiting the Viewer ...... page 49

Preparation: Before starting the Viewer, store images to the USB memory using your computer.

Starting the Viewer

1. Turn on the projector. (→ page 12)

Diagram of an electronic device with ports and connectors, showing a close-up of a device's internal components (no text or symbols visible)

1. Insert the USB memory into the USB port of the projector.
2. Do not remove the USB memory from the projector while it's LED flashes. Doing so may corrupt the data.
3. Press the SOURCE button on the projector cabinet.

The Viewer start screen will be displayed.

- Press the USB-A button on the remote control.

4. Using the Viewer

4. Press the ENTER button.

The thumbnail screen will be displayed. (→ page 50)

5. Use the ▲▼◀ or ▶ button to select an icon.

- The → (arrow) symbol on the right indicates there are more pages. pressing the PAGE ∨ (page down) button will show the next page: pressing the PAGE △ (page up) will show the previous page.

6. Press the ENTER button.

The selected slide will be displayed.

- When a folder icon is selected, icons contained in the folder will be displayed.

7. Press the ▶ button to select the next slide.

The slide on the right will be displayed.

- The ◀ or ▶ button can be used to select the next (right) slide or the previous (left) slide in the thumbnail screen.

- Pressing the MENU button during display of the thumbnail screen, the slide screen, or the slideshow screen will

Two-panel image showing a snow-capped mountain range under a cloudy sky, with no visible text or symbols.

4. Using the Viewer

Removing the USB memory from the projector

1. Select the VIEWER start screen.

Press the EXIT button with no menu displayed.

2. Remove the USB memory from the projector.

Make sure that the LED on the USB memory is not flashing before removing the USB memory.

NOTE: If you remove the USB memory from the projector with a slide displayed, the projector may not operate correctly. If this happens, turn off the projector and unplug the power cord. Wait 3 minutes, then connect the power cord, and turn on the projector.

Exiting the Viewer

1. Press the MENU button with the slide screen or the thumbnail screen displayed.

The control bar or the pop-up menu will be displayed.

2. Press the MENU button again.

The on-screen menu will be displayed.

1. Using the Viewer

Parts of each screen

The Viewer has four screens.

(1) Viewer start screen (3) Thumbnail screen (9) Slide screen/

Minimalist abstract graphic with layered rectangular shapes and a small icon, no text or symbols present.

(2)

(8)

Slideshow screen showing a snow-capped mountain peak under cloudy sky (no text or symbols on the image itself)

(10) (12)

Name Description
(1) Viewer start screen This screen will be displayed first when you select the Viewer.
(2) USB icon This icon indicates that the USB memory is inserted into the projector.
(3) Thumbnail screen This screen will show a list of folders and image files stored in the USB memory. The JPEG Exif files will be displayed in thumbnail screen only.The maximum number of image files or folders within one page is different depending on the model.ME401W/ME361W/ME331W/ME301W are (6 x 4 lateral by longitudinal)ME401X/ME361X/ME331X/ME301X are (5 x 4 lateral by longitudinal)
(4) Cursor	The cursor is used to select (highlight) the folder or image file by using ▲▼◄► button.
(5) Back icon This icon is used to return to the upper (parent) folder.
(6) Folder icon This icon shows that the USB memory has folders.
(7) Page up (Page down) icon	This icon shows further folders or image files are available in the next (previous) page. Use the ► button to go to the next (previous) row. The PAGE ∇ or PAGE △ on the remote control is used to go to the next or previous page directly.
(8) Thumbnail toolbar This toolbar is used in the thumbnail screen. Pressing the MENU button will display this toolbar. (→ page 51)
(9) Slide screen	This screen is used for manual playback. The selected image will be displayed in full

4. Using the Viewer

Using the toolbar

1. Press the MENU button.

The toolbar will be displayed.

The SOURCE screen will be displayed as Viewer connection screen.

1. Use the ◀ or ▶ button to select an item and use the ▲ or ▼ button to select its available option.

When the cursor is placed, the selected item will be changed to yellow.

The ▲ or ▼ shows more available choices.

1. Press the ENTER button.

The selected item will be displayed.

1. Press the MENU button two times.

The toolbar will be closed and the SOURCE list will be displayed. Press the MENU button again to close the SOURCE list.

Thumbnail toolbar

Menu Options Description
(1) Back — Goes back to the previous image. When the cursor reaches the top left of the screen, it will go to the previous page.
(2) Forward — Goes to the next image. When the cursor reaches the bottom right of the screen, it will go to the next page.
(3) Display Closes the menu and returns to the thumbnail screen.
				Closes the menu and starts the slideshow from the highlighted item.
				Closes the menu and displays the slide screen.
(4) Order Displays the icons alphabetically by name. (number before alphabet)
				Displays the icons in descending order of file size.

4. Using the Viewer

Slide toolbar

Menu Options Description
(1) Display Closes the menu and switches to the slide screen.
				Closes the menu and displays the thumbnail screen.
				Closes the menu and starts the slideshow from the highlighted item.
(2) Image display		Closes the menu and displays the image in its actual size.
		Closes the menu and displays the image in the projector's maximum resolution.
(3) Clockwise rotation		— Close the menu and rotate the image 90°clockwise
(4) Counter-clockwise rotation		— Close the menu and rotate the image 90°counter clockwise

Slideshow toolbar

Menu Options Description
(1) Stop — Closes the menu and changes to the slide screen.
(2) Back — Goes back to the previous image.

5. Using On-Screen Menu

① Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

NOTE: The commands such as ENTER, EXIT, ▲▼, ◀▶ in the bottom show available buttons for your operation.

1. Press the ◀▶ buttons on the remote control or the projector cabinet to display the submenu.
2. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the first tab.
3. Use the ▲▼ buttons on the remote control or the projector cabinet to select the item you want to adjust or set. You can use the ◀▶ buttons on the remote control or the projector cabinet to select the tab you want.
4. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.
5. Adjust the level or turn the selected item on or off by using the ▲▼◀▶ buttons on the remote control or the projector cabinet. Changes are stored until adjusted again.

6. Repeat steps 2 -6 to adjust an additional item, or press the EXIT button on the remote control or the projec-

7. Using On-Screen Menu

② Menu Elements

Highlight

Menu windows or dialog boxes typically have the following elements:

5. Using On-Screen Menu

③ List of Menu Items

Some menu items are not available depending on the input source.

Menu Item Detail Options
SOURCE	HUNT 1 *
	HOME 2 *
	COMPUTER ́
	VIDEO ́
	USB-A ́
	LAX ́
	USB-B ́
ADJUST	PICTURE	PRESENT ́ 1-7
		DETAIL SETTINGS	GENERAL
			REFERENCE ́ + HIGH-BRIGHT, PRESENTATION: VIDEO, MOVIE, GRAPHIC, SROD, DICOM SIM.
			GRAPHIC CORRECTION DYNAMIC, NATURAL, BLACK DETAIL
			SCREEN SIZE ́ LARGE, MEDIUM, SMALL
			COLOR TEMPERATURE ́ 5000, 6500, 7500, 8500, 9500, 10500
			DYNAMIC CONTRAST ́ OFF, ON
			IMAGE MODE ́ STILL, NONE
			COLOR ENHANCEMENT ́ OFF, ON
			WHITE BALANCE
			CONTRAST B ́O
			CONTRAST G ́O
			CONTRAST B ́O
			BRIGHTNESS R ́ *	3
			BRIGHTNESS G ́ *	3
			BRIGHTNESS B ́ *	3
		CONTRAST		63
		BRIGHTNESS		63
		SHARPNESS		7
		COLOR ́31
		HUE		31
		RESET
	IMMSE OPTIONS	CLOCK		*
		PHASE		*
		HORIZONTAL		*
		VERTICAL		*
		OVERSCAN		* AUTO, O%, 5[%], 10[%]
		ASPECT RATIO		*	ME401W/ME361W/ME331W/ME301X: AUTO, 4/3, 19/9, 15/9, 16/10, LETTERBOX, NATIVE
				*	ME401W/ME361W/ME331W/ME301X: AUTO, 4/3, 19/9, 15/9, 16/10, WIDE ZOOM, NATIVE
		POSITION (NOT AVAILABLE ON ME401W/ME361W/ME301W/ME301X)		II

1. Using On-Screen Menu

Menu Item Default Options
SETUP	ADDRESS	COLOR SELECT COLOR COLOR, NONOCHROME
		SOURCE DISPLAY ON OFF. ON
		ID DISPLAY ON OFF. ON
		RGB MESSAGE OFF. OFF. ON
		DISPLAY TIME AUTO 45 SEC MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC
		BACKGROUND BLUE BLUE, BLACK, LOGO
		FILTER MESSAGE 5000/6 OFF, 100[ ], 500[ ], 1000[ ], 2000[ ], 5000[ ]
	INSTALLATION	ORIENTATION DESKTOP FRONT DESKTOP FRONT, CEILING REAR, DESKTOP REAR, CEILING FRONT
		CONTROL PANEL LOOK		OFF OFF. ON
		SECURITY		OFF OFF. ON
		COMMUNICATION SPEED		38400bps	4800bps 9800bps, 19200bps, 38400bps
		CONTROL ID	CONTROL ID NUMBER	1	1-256
			CONTROL ID	OFF OFF. ON
		TCST PATTERN
	OPTIONS(1)	AUTO ADJUST		NORMAL	OFF, NORMAL, FINE
		FAN MODE		AUTO	AUTO, HIGH, HIGH ALTITUDE
		SIGNAL SELECT	COMPUTER	POS COMPONENT	POS COMPONENT, RSR, COMPONENT
			VIDEO	AUTO	AUTO, NTSC3.5B, NTSC4.4B, PAL, PAL-M, PAL-N, PALBO, SECAM
		VIXOA MODE		NEXT WINDOW WITH INTERVIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ON NEXT VIEW ORN		OFF. ON
		DENTRPLACE		ON OFF. ON
		HOWI SETTINGS	HOM1	VIDEO LEVEL	AUTO	AUTO, NORMAL, ENHANCED
			HOM2	VIDEO LEVEL	AUTO	AUTO, NORMAL, ENHANCED
		AUDIO SELECT	HOM1	HOM1	HOM1	HOM1, COMPUTER
			HOM2	HOM2	HOM2	HOM2, COMPUTER
			LAN	LAN LAN, COMPUTER
			USB-B	USB-B	USB-B, COMPUTER
		RPHP		ON OFF. ON
	OPTIONS(2)	STANDRY NODE-NORMAL NORMAL NETWORK STANDRY
		DIRECT POWER ON		OFF OFF. ON
		AUTO POWER ON		OFF OFF. ON
		AUTO POWER OFF		1.00	OFF, 0.05, 0.10, 0.15, 0.20, 0.30, 1.00
		DEFAULT SOURCE SELECT		LAST LAST, AUTO, HOM1, HDMI2, COMPUTER, VIDEO, USB-A, LAN, USB-B
		CARRIER CONVERT
		CURRENCY		S	S, S, IPY, INKEY
		CURRENCY CONVERT
	WRED LAN	WRED LAN		ENVOLE DISABLE, ENVOLE
		SETTINGS		DHCP ON AUTO DIAS ON	DHCP, IPADDRESS, SUBNET MASK, GATEWAY, AUTO DNS, DIAS
		RECONNECT
	WIRELESS LAN	PROFILE DISABLE			DISABLE, SIMPLE ACCESS POINT, INTELLIGHT CONNECTION, INFRASTRUCTURE
		RECONNECT

1. Using On-Screen Menu

Menu Item Default Options
INFO.	USAGE TIME	LAMP LITE REMAINING
		LAMP HOURS USED
		FILTER HOURS USED
		TOTAL CARBON SWINGS
		TOTAL COST SAVINGS
	SOURCE(1)	SOURCE NAME
		SOURCE INDEX
		HORIZONTAL FREQUENCY
		VERTICAL FREQUENCY
		SYNC TYPE SEPARATE SYNC, COMPOSITE SYNC, SYNCION GREEN, SYNC ON VIDEO
		SYNC POLARITY
		SCAN TYPE
	SOURCE(2)	SIGNAL TYPE
		VIDEO TYPE
		BIT DEPTH SYMBOL, 10bit/s, 12bit/s
		VIDEO LEVEL
	INTRED LAN	IP ADDRESS
		SUBNET MASK
		CATEWAY
		MAC ADDRESS
	INWRELESS LAN	IP ADDRESS
		SUBNET MASK
		CATEWAY
		MAC ADDRESS
		SSID
		NETWORK TYPE
		SECURITY
		CHANNEL
		SIGNAL LEVEL
	CONNECTION	PROJECTOR NAME
		PIN CODE
		WRED LAN IP ADDRESS
		WIRELESS LAN	IP ADDRESS
			SSID
			SECURITY KEY (7)
	VERSION	FIRMWARE
		DATA
	OTHERS	PROJECTOR NAME
		HOST NAME
		MOCH, NO.
		SERIAL NUMBER

1. Using On-Screen Menu

④ Menu Descriptions & Functions [SOURCE]

HDMI1 and HDMI2

Selects the HDMI compatible equipment connected to your HDMI1 or 2 IN terminal.

COMPUTER

Selects the computer connected to your COMPUTER input terminal signal.

NOTE: When the component input signal is connected to the COMPUTER IN terminal, select [COMPUTER].

VIDEO

Selects what is connected to your VIDEO input-VCR, DVD player or document camera.

USB-A

This feature enables you to make presentations using a USB memory that contains slides. (→ page 45 "4. Using the Viewer")

LAN

Selects a signal from the LAN port (RJ-45) or the installed USB wireless LAN unit (optional).

USB-B

Selects the computer connected to the USB(PC) port (type B) by using a commercially available USB cable. (→ page 34)

1. Using On-Screen Menu

⑤ Menu Descriptions & Functions [ADJUST] [PICTURE]

[PRESET]

This function allows you to select optimized settings for your projected image.

You can adjust neutral tint for yellow, cyan or magenta. There are seven factory presets optimized for various types of images. You can also use [DETAIL SETTINGS] to set user adjustable settings to customize each gamma or color.

ur settings can be stored in [PRESET 1] to [PRESET 7].

HIGH-BRIGHT.....Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint file.

VIDEO......Recommended for typical TV program viewing.

MOVIE ...... Recommended for movies.

GRAPHIC ...... Recommended for graphics.

sRGB ...... Standard color values

DICOM SIM. ..... Recommended for DICOM simulation format.

NOTE

• The [DICOM SIM.] option is for training/reference only and should not be used for actual diagnosis.

• DICOM stands for Digital Imaging and Communications in Medicine. It is a standard developed by the American College of Radiology (ACR) and the National Electrical Manufacturers Association (NEMA).

The standard specifies how digital image data can be moved from system to system.

[DETAIL SETTINGS]

5. Using On-Screen Menu

[GENERAL]

Storing Your Customized Settings [REFERENCE]

This function allows you to store your customized settings in [PRESET 1] to [PRESET 7].

First, select a base preset mode from [REFERENCE], then set [GAMMA CORRECTION] and [COLOR TEMPERA-

TURE].

HIGH-BRIGHT.....Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint file.

VIDEO......Recommended for typical TV program viewing.

MOVIE ...... Recommended for movies.

GRAPHIC ...... Recommended for graphics.

sRGB .... Standard color values.

DICOM SIM. ...... Recommended for DICOM simulation format.

Selecting Gamma Correction Mode [GAMMA CORRECTION]

Each mode is recommended for:

DYNAMIC .... Creates a high-contrast picture.

NATURAL....Natural reproduction of the picture.

BLACK DETAIL.....Emphasizes detail in dark areas of the picture.

NOTE: This function is not available when [DICOM SIM.] is selected for [DETAIL SETTINGS].

Selecting Screen Size for DICOM SIM [SCREEN SIZE]

This function will perform gamma correction appropriate for the screen size.

LARGE......For screen size of 110"

MEDIUM......For screen size of 90°

SMALL......For screen size of 70'

NOTE: This function is available only when [DICOM SIM.] is selected for [DETAIL SETTINGS].

Adjusting Color Temperature [COLOR TEMPERATURE]

This option allows you to select the color temperature of your choice.

NOTE: When [PRESENTATION] or [HIGH-BRIGHT] is selected in [REFERENCE], this function is not available.

Adjusting Brightness and Contrast [DYNAMIC CONTRAST]

5. Using On-Screen Menu

Enhancing the Color [COLOR ENHANCEMENT]

This function allows you to enhance the color of image.

ON....Enhances the color.

NOTE: This function is available only when [PRESENTATION] is selected [REFERENCE].

Adjusting White Balance [WHITE BALANCE]

This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen;

Brightness for each color (RGB) is used to adjust the black level of the screen.

[CONTRAST]

Adjusts the intensity of the image according to the incoming signal.

[BRIGHTNESS]

Adjusts the brightness level or the back raster intensity.

[SHARPNESS]

Controls the detail of the image.

[COLOR]

Increases or decreases the color saturation level.

[HUE]

Varies the color level from +/- green to +/- blue. The red level is used as reference.

Input signal CONTRASTBRIGHTNESS	SHARPNESS COLORHUE
COMPUTER/HDMI (RGB) Yes Yes Yes	No No
COMPUTER/HDMI (COMPONENT) Yes	Yes Yes Yes Yes
USB-B Yes Yes Yes No No
VIDEO Yes Yes Yes Yes Yes
USB-A/LAN Yes Yes Yes No No

Yes = Adjustable, No = Not adjustable

[RESET]

The settings and adjustments for [PICTURE] will be returned to the factory settings with the exception of the following;

Preset numbers and [REFERENCE] within the [PRESET] screen.

1. Using On-Screen Menu

[IMAGE OPTIONS]

Adjusting Clock and Phase [CLOCK/PHASE]

This allows you to manually adjust CLOCK and PHASE.

Two-step diagram showing transformation from a 3D object to a 2D geometric shapes (circle, triangle, rectangle) with no text or symbols present.

CLOCK.... Use this item to fine tune the computer image or to remove any vertical banding that might appear. This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This adjustment may be necessary when you connect your computer for the first time.

Two-step diagram showing transformation from a blank canvas to a 3D geometric shapes (circle, triangle, square) in a software interface (no text or symbols)

1. Using On-Screen Menu

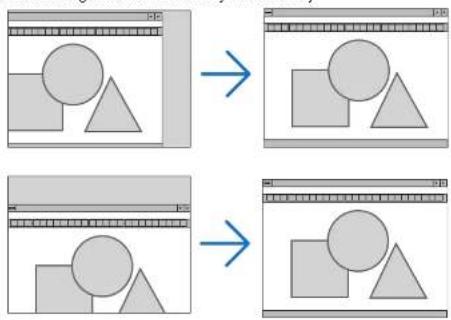

Adjusting Horizontal/Vertical Position [HORIZONTAL/VERTICAL]

Adjusts the image location horizontally and vertically.

• An image can be distorted during the adjustment of [CLOCK] and [PHASE]. This is not malfunction.
• The adjustments for [CLOCK], [PHASE], [HORIZONTAL], and [VERTICAL] will be stored in memory for the current signal. The next time you project the signal with the same resolution, horizontal and vertical frequency, its adjustments will be called up and applied.

To delete adjustments stored in memory, from the menu, you select [RESET] → [CURRENT SIGNAL] or [ALL DATA] and reset the adjustments.

Selecting Overscan Percentage [OVERSCAN]

Select overscan percentage (AUTO, 0%, 5% and 10%) for signal.

5. Using On-Screen Menu

Selecting Aspect Ratio [ASPECT RATIO]

The term "aspect ratio" refers to the ratio of width to height of a projected image.

The projector automatically determines the incoming signal and displays it in its appropriate aspect ratio.

• This table shows typical resolutions and aspect ratios that most computers support.

	Resolution	Aspect	Ratio
VGA	640 × 480	4:3
SVGA		800 × 600	4:3
XGA		1024 × 768	4:3
WXGA		1280 × 768	15:9
WXGA		1280 × 800	16:10
WXGA+		1440 × 900	16:10
SXGA		1280 × 1024	5:4
SXGA+		1400 × 1050	4:3
UXGA		1600 × 1200	4:3
WUXGA		1920 × 1200	16:10

Options Function
AUTO	The projector will automatically determine the incoming signal and display it in its aspect ratio. (→next page)The projector may erroneously determine the aspect ratio depending on its signal. If this occurs, select the appropriate aspect ratio from the following.
4:3 The image is displayed in 4:3 aspect ratio.
16:9 The image is displayed in 16:9 aspect ratio.
15:9 The image is displayed in 15:9 aspect ratio.
16:10 The image is displayed in 16:10 aspect ratio.
WIDE ZOOM(ME401X/ME361X/ME331X/ME301X)	The image is stretched left and right.Parts of the displayed image are cropped at the left and right edges and therefore not visible.
LETTERBOX(ME401W/ME361W/ME331W/ME301W)	The image of a letterbox signal is stretched equally in the horizontal and vertical directions to fit the screen. Parts of the displayed image are cropped at the top and bottom edges and therefore not visible.
NATIVE	The projector displays the current image in its true resolution when the incoming computer signal has a lower resolution than the projector's native resolution.[Example 1] When the incoming signal with the resolution of 800 × 600 is displayed on the ME401W/ME361W/ME331W/ME301W:

5. Using On-Screen Menu

Sample image when the appropriate aspect ratio is automatically determined

ME401X/ME361X/ME331X/ME301X

[Computer signal]

Aspect ratio of incoming signal	4:3	5:4	16:9	15:9	16:10
Sample image when the appropriate aspect ratio is automatically determined

ME401W/ME361W/ME331W/ME301W

[Computer signal]

Aspect ratio of incoming signal	4:3	5:4	16:9	15:9	16:10
Sample image when the appropriate aspect ratio is automatically determined

[Video signal]

Aspect ratio of Incoming signal 4:3 Letterbox Squeeze
Sample image when the aspect ratio is automatically determined		NOTE: To display a letterbox signal properly, select [LETTERBOX].	NOTE: To display a squeezed signal properly, select [16:9].

TIP:

- Image position can be adjusted vertically using [POSITION] when the [16:9], [15:9], or [16:10] aspect ratios are selected.

- The term "letterbox" refers to a more landscape-oriented image when compared to a 4:3 image, which is the standard aspect ratio for a video source.

The letterbox signal has aspect ratios with the vista size "1.85:1" or cinema scope size "2.35:1" for movie film.

The term "Nonlinear" values to the approximate images of which constant ratio is annotated from 12:0 to 3:0.

5. Using On-Screen Menu

[AUDIO]

Turning Up or Down Sound

Adjusts the volume of the projector speaker and AUDIO OUT (Stereo Mini Jack).

TIP:

- When no menus appear, the ◀ and ▶ buttons on the projector cabinet and the VOL. +/- buttons on the remote control work as a volume control. {→ page 20}

1. Using On-Screen Menu

⑥ Menu Descriptions & Functions [SETUP]

[GENERAL]

Enabling Auto Keystone [AUTO KEYSTONE]

This feature allows the projector to detect its tilt and correct vertical distortion automatically.

To turn on the AUTO KEYSTONE feature, select [ON]. To adjust the KEYSTONE feature manually, select [OFF].

NOTE:

• The [AUTO KEYSTONE] function is not available when an orientation type such as [CEILING REAR], [DESKTOP REAR], [CEILING FRONT] other than [DESKTOP/FRONT] is selected for [ORIENTATION].
• While the [AUTO KEYSTONE] is [ON], the following functions are not available, [PINCUSHION LEFT/RIGHT], [PIN CUSHION TOP/BOTTOM], and [CORNERSTONE].

TIP

• Adjustable angle range by the [AUTO KEYSTONE] is approx. 30 degrees in vertical direction.
  • During projecting image, [AUTO KEYSTONE] will be started to perform approx. 2 seconds after fixing the throw angle.

Correcting Keystone Distortion Manually [KEYSTONE]

You can correct horizontal or vertical keystone, pincushion LEFT/RIGHT or TOP/BOTTOM, or cornerstone distortion manually.

NOTE:

• [KEYSTONE HORIZONTAL] and [KEYSTONE VERTICAL] can be adjusted at once.
  • To change from one item to another item. reset the first item.

5. Using On-Screen Menu

TIP:

- Adjustable angle range in horizontal and vertical direction in the cornerstone and the keystone corrections: Approx. 30 degrees

(Max)

- Depending on input signal, the adjustable range may be narrower.

Using the Wall Color Correction [WALL COLOR]

This function allows for quick adaptive color correction in applications where the screen material is not white.

NOTE: Selecting [WHITEBOARD] reduces lamp brightness.

Setting Eco Mode [ECO MODE]

The ECO MODE increases lamp life, while lowering power consumption and cutting down on CO_2 emissions.

Four brightness modes of the lamp can be selected: [OFF], [AUTO ECO], [NORMAL] and [ECO] modes.

(→ page 24)

5. Using On-Screen Menu

Setting Closed Caption [CLOSED CAPTION]

This option sets several closed caption modes that allow text to be superimposed on the projected image of Video.

OFF.... This exits the closed caption mode.

CAPTION 1-4 ...... Text is superimposed.

TEXT 1-4......Text is displayed.

NOTE

• The closed caption is not available under the following conditions:

- when messages or menus are displayed.

- when an image is magnified, frozen, or muted.

- Portions of superimposed text or closed caption may be truncated. If that happens, try to place the superimposed text or

closed caption within the screen.

Using Off Timer [OFF TIMER]

1. Select your desired time between 30 minutes and 16 hours: OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.
2. Press the ENTER button on the remote control.
3. The remaining time starts counting down.
4. The projector will turn off after the countdown is complete.

NOTE:

• To cancel the preset time, set [OFF] for the preset time or turn off the power.

- When the remaining time reaches 3 minutes before the projector is turned off, the [THE PROJECTOR WILL TURN OFF WITHIN 3

MINUTES] message will be displayed on the bottom of the screen.

Selecting Menu Language [LANGUAGE]

You can choose one of 30 languages for on-screen instructions.

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

[MENU]

SOURCE	ADJUST	SET UP	INFO.	RESET
GENERAL	MENU	INSTALLATION	OPTIONS(1)	(1/2)
COLOR SELECT			COLOR
SOURCE DISPLAY			ON
ID DISPLAY			ON
ECC MESSAGE			OFF
DISPLAY TIME			AUTO 45 SEC
BACKGROUND			BLUE
FILTER MESSAGE			5000(H)

5. Using On-Screen Menu

Turning ON/OFF Control ID [ID DISPLAY]

This option turns on or off the ID number which is displayed when the ID SET button on the remote control is pressed.

Turning On / Off Eco Message [ECO MESSAGE]

This option turns on or off the following messages when the projector is turned on.

The Eco Message prompts the user to save energy. When [OFF] is selected for [ECO MODE], you will get a message to prompt you to select [AUTO ECO], [NORMAL], or [ECO] for [ECO MODE].

When [AUTO ECO], [NORMAL], or [ECO] is selected for [ECO MODE]

To close the message, press any one of the buttons. The message will disappear if no button operation is done for 30 seconds.

When [OFF] is selected for [ECO MODE]

Pressing the ENTER button will display the [ECO MODE] screen. (→ page 24)

To close the message, press the EXIT button.

Selecting Menu Display Time [DISPLAY TIME]

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are [MANUAL], [AUTO 5 SEC], [AUTO 15 SEC], and [AUTO 45 SEC]. The [AUTO 45 SEC] is the factory preset.

Selecting a Color or Logo for Background [BACKGROUND]

Use this feature to display a blue/black screen or logo when no signal is available. The default background is [BLUE]. NOTE:

- If the [LOGO] item is selected for [BACKGROUND] with the [LAN] or [USB-B] source selected, the [BLUE] item will be selected

1. Using On-Screen Menu

[INSTALLATION]

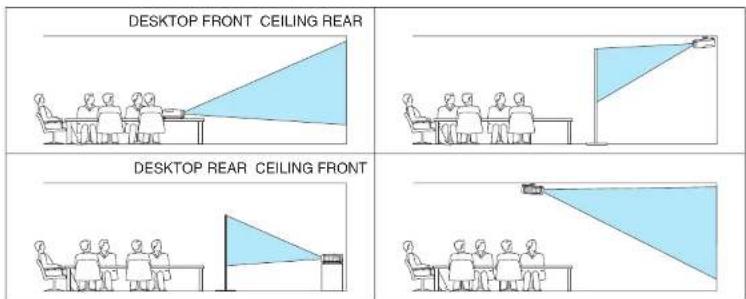

Selecting Projector Orientation [ORIENTATION]

This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Disabling the Cabinet Buttons [CONTROL PANEL LOCK]

This option turns on or off the CONTROL PANEL LOCK function.

5. Using On-Screen Menu

Selecting Communication Speed [COMMUNICATION SPEED]

This feature sets the baud rate of the PC Control port (D-Sub 9P). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

NOTE: Your selected communication speed will not be affected even when [RESET] is done from the menu.

Setting ID to the Projector [CONTROL ID]

You can operate multiple projectors separately and independently with the single remote control that has the CONTROL ID function. If you assign the same ID to all the projectors, you can conveniently operate all the projectors together using the single remote control. To do so, you have to assign an ID number to each projector.

CONTROL ID NUMBER..... Select a number from 1 to 254 you wish to assign to your projector.

CONTROL ID......Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID setting.

NOTE:

• When [ON] is selected for [CONTROL_ID], the projector cannot be operated by using the remote control that does not support the CONTROL_ID function. (In this case the buttons on the projector cabinet can be used.)
• Your setting will not be affected even when (RESET) is done from the menu.
• Pressing and holding the ENTER button on the projector cabinet for 10 seconds will display the menu for canceling the Control ID.

Assigning or Changing the Control ID

1. Turn on the projector.

2. Press the ID SET button on the remote control.

The CONTROL ID screen will be displayed.

If the projector can be operated with the current remote control ID, the [ACTIVE] will be displayed. If the projector cannot be operated with the current remote control ID, the [INACTIVE] will be displayed. To operate the inactive projector, assign the control ID used for the projector by using the following procedure (Step 3).

1. Press one of numeric keypad buttons while pressing and holding the ID SET button on the remote control.

Example:

5. Using On-Screen Menu

Using Test Pattern [TEST PATTERN]

Displays the test pattern to check for image distortion at the time of the projector setup. Press the ENTER button to display the test pattern; press the EXIT button to close the test pattern and return to the menu. Menu operation and corrections for keystone, cornerstone and pincushion are not available when the test pattern is displayed.

[OPTIONS(1)]

Setting Auto Adjust [AUTO ADJUST]

This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE].

OFF.....The computer signal will not be automatically adjusted. You can manually optimize the computer signal. NORMAL.....Default setting. The computer signal will be automatically adjusted. Normally select this option. FINE.....Select this option if fine adjustment is needed. It takes more time to switch to the source than when [NOR- MAL] is selected.

Selecting Fan Mode [FAN MÔDE]

This option allows you to select three modes for fan speed: Auto mode, High speed mode, and High Altitude mode.

AUTO.... The built-in fans automatically run at a variable speed according to the internal temperature.

HIGH.....The built-in fans run at high speed.

HIGH ALTITUDE..... The built-in fans run at a high speed. Select this option when using the projector at altitudes approximately 5500 feet/1700 meters or higher.

5. Using On-Screen Menu

Selecting Signal Format [SIGNAL SELECT]

[COMPUTER]

Allows you to choose [COMPUTER] for an RGB source such as a computer, or [COMPONENT] for a component video source such as a DVD player. Normally select [RGB/COMPONENT] and the projector automatically detects a component signal. However there may be some component signals that the projector is unable to detect. If this is the case, select [COMPONENT].

[VIDEO]

This feature enables you to select composite video standards automatically or manually.

Factory default setting is [AUTO] and the projector will automatically detect the video standard.

In the case where the projector has difficulty detecting the video standard, select the appropriate video standard from

the menu

Enabling or Disabling WXGA Mode [WXGA MODE]

Selecting [ON] will give priority to WXGA (1280 × 768)/WUXGA (1920 × 1200) signals in recognizing an input signal.

When [WXGA MODE] is set to [ON], XGA (1024 × 768)/UXGA (1600 × 1200) signals may not be recognized on

ME401X/ME361X/ME331X/ME301X. In this case, select [OFF].

NOTE:

• [OFF] is selected at the time of shipment of ME401X/ME361X/ME331X/ME301X.

• (ON) is selected at the time of shipment of ME401W/ME361W/ME331W/ME301W.

Enabling the deinterlace [DEINTERLACE]

Turns on or off the deinterlace function for a telecine signal.

OFF......Select this option if there is any jitter or artifacts in video.

ON ...... Default standard setting.

NOTE: This feature is not available for HDTV (progressive) and computer signals.

Setting HDMI1 & HDMI2 [HDMI SETTINGS]

Make the settings for each video level when connecting HDMI1 equipment such as a DVD player.

VIDEO LEVEL...... Select [AUTO] to automatically detect video level. If automatic detection may not work well, select [NORMAL] to disable the [ENHANCED] feature of your HDMI equipment or select [ENHANCED] to improve image contrast and increase detail in the dark areas.

Setting Audio [AUDIO SELECT]

5. Using On-Screen Menu

Enabling Key Sound and Error Sound [BEEP]

This feature turns on or off the button sound or alarm when an error occurs or the following operations are performed.

• Displaying the main menu
• Switching sources
• Resetting data by using [RESET]
• Pressing POWER ON or STANDBY button

TIP:

- Volume control for [BEEP] is disabled. AV-MUTE button is not effective to stop beeping sound. If you want to activate BEEP function, set [BEEP] to [OFF].

[OPTIONS(2)]

Selecting Power-saving in [STANDBY MODE]

The projector has two standby modes: [NORMAL] and [NETWORK STANDBY].

The NORMAL mode is the mode that allows you to put the projector in the power-saving condition which consumes less power than the NETWORK STANDBY mode.

NORMAL.....POWER indicator: Red light/STATUS indicator: Off

When [NORMAL] is selected, only the following buttons and feature will work:

POWER buttons on the projector cabinet and the remote control, AUTO POWER ON, and powering on from PC Control command.

NETWORK STANDBY.....POWER indicator: Orange light/STATUS indicator: Off

5. Using On-Screen Menu

Enabling Direct Power On [DIRECT POWER ON]

Turns the projector on automatically when the power cord is inserted into an active power outlet. This eliminates the need to always use the POWER button on the remote control or projector cabinet.

Turning On the Projector By Applying Computer Signal [AUTO POWER ON]

When the projector is in Standby mode, applying a computer or HDMI signal from a computer connected to the COMPUTER IN input, HDMI1, or HDMI2 input will power on the projector and simultaneously project the image.

This functionality eliminates the need to always use the POWER button on the remote control or the projector cabinet to power on the projector.

To use this function, first connect a computer to the projector and the projector to an active AC input.

NOTE:

• Disconnecting a computer signal from the computer will not power off the projector. We recommend using this function in combination of the AUTO POWER OFF function.
  • This function will not be available under the following conditions:
• when a component signal is applied to the COMPUTER IN terminal
• when a Sync on Green RGB signal or composite sync signal is applied
  • To enable the AUTO POWER ON after turning off the projector, wait 5 seconds and input a computer or HDMI signal.
  If a computer or HDMI signal is still present when the projector is turned off, the AUTO POWER ON will not work and the projector remains in standby mode.
• Depending on the projector in use, the AUTO POWER ON may not work properly. In this case, set [STANDBY MODE] to [NETWORK STANDBY].

Enabling Power Management [AUTO POWER OFF]

When this option is selected you can enable the projector to automatically turn off (at the selected time: 0:05, 0:10, 0:15, 0:20, 0:30, 1:00) if there is no signal received by any input or if no operation is performed.

5. Using On-Screen Menu

Selecting Default Source [DEFAULT SOURCE SELECT]

You can set the projector to default to any one of its inputs each time the projector is turned on.

LAST.... Sets the projector to default to the previous or last active input each time the projector is turned on.

AUTO.... Searches for an active source in order of HDMI1 → HDMI2 → COMPUTER → VIDEO → USB-A → COMPUTER and displays the first found source.

HDMI1 ...... Displays the digital source from the HDMI 1 IN terminal every time the projector is turned on.

HDMI2.... Displays the digital source from the HDMI 2 IN terminal every time the projector is turned on.

COMPUTER ...... Displays the computer signal from the COMPUTER IN terminal every time the projector is turned on.

VIDEO.... Displays the Video source from the VIDEO IN terminal every time the projector is turned on.

USB-A.... Displays slides or plays back movie files from the USB memory device every time the projector is turned on.

LAN.... Displays a signal from LAN port (RJ-45) or the USB Wireless LAN Unit.

USB-B..... Displays the computer signal from the USB (PC) terminal every time the projector is turned on.

The projector does not search signal from USB-B in AUTO. For projecting image from the USB-B port, select either USB-B or LAST.

Setting carbon footprint factor [CARBON CONVERT]

Adjusts the carbon footprint factor in the carbon saving calculation. The initial setting is 0.505[kg-CO2/kWh] based on the CO2 Emissions from Fuel Combustion (2008 Edition) published by OECD.

Selecting your currency [CURRENCY]

Displays electricity pricing (available in 4 currency units).

S......US Dollar

€

JPY......Japanese Yen

RMB¥ ...... Chinese Yuan

Changing currency setting and currency convert setting [CURRENCY CONVERT]

Changes currency setting and currency convert setting for CARBON METER.

The initial setting are as follows:

US Dollar 0.11 [\$/kWh]

EU Euro 0.19 [€/kWh]

Japanese Yen.....20 [¥/kWh]

5. Using On-Screen Menu

Setting up the Projector for a Wired LAN Connection [WIRED LAN]

Important

• Consult with your network administrator about these settings.
• When using a wired LAN connection, connect a LAN cable (Ethernet cable) to the LAN port (RJ-45) of the projector. (→ page 96)

TIP: The network settings you make will not be affected even when [RESET] is done from the menu.

[WIRED LAN] [DISABLE]	Wired LAN connection will be turned off.
	[ENABLE] Wired LAN connection will be turned on.
[SETTINGS]	[DHCP]	ON......IP address, subnet mask, and gateway will be automatically assigned to the projector from your DHCP server.OFF......Specify IP address, subnet mask, and gate-way assigned by your network administrator.
	[IP ADDRESS] Set your	IP address of the network connected to the projector.
	[SUBNET MASK] Set your	subnet mask number of the network connected to the projector.
	[GATEWAY]	Set the default gateway of the network connected to the projector.
	[AUTO DNS]	ON......DHCP server will automatically assign IP

5. Using On-Screen Menu

Setting up the Projector for a Wireless LAN Connection (with the optional USB Wireless LAN Unit equipped) [WIRLESS LAN]

Important

• Consult with your network administrator about these settings.
• When using a wireless LAN connection, attach the optional USB Wireless LAN to the projector. (→ page 97)
  • Perform detail settings for wireless LAN on the HTTP server screen.

[PROFILE] [DISABLE] Wireless LAN connection will be turned off

[SIMPLE ACCESS POINT] Set the projector as [SIMPLE ACCESS POINT] for connecting to a computer and a smart phone.

[INTELLIGENT CONNECTION] Easily connect to a computer and a smart phone utilizing the application software, MultiPresenter, installed on them.

[INFRASTRUCTURE] Connect the projector to an access point.

[RECONNECT] Retry to connect the projector to a network. Try this if you have changed [PROFILE].

When you connect with your computer to save your profile and select "Automatically connect when within range" from the Properties tab of Wireless Network in Windows for your selected profile, your wireless LAN will be accessed under the following conditions:

• at the time of turning on the computer or the projector

- when the notebook type is within the range of the projector's wireless LAN can be achieved.

Data transmission between wireless LAN and wired LAN is not possible.

When [SIMPLE ACCESS POINT] or [INTELLIGENT CONNECTION] is set, up to 20 units can be connected simultaneously. Recommend to connect approx. 10 units for normal operation.

5. Using On-Screen Menu

Hints on How to Set Up LAN Connection

To connect a DHCP server:

From the projector menu, select [SETUP] → [WIRED LAN] → [SETTINGS] → [DHCP] → [ON] and press the ENTER button. To specify IP address without using the DHCP server, use the HTTP server. (→ page 39)

To set only for wireless LAN (NETWORK TYPE and WPA2 PSK):

Access the HTTP server to display the web browser (→ page 36) and select [NETWORK SETTINGS] → [SETTINGS] → [WIRELESS LAN] → [INFRASTRUCTURE] and then click [APPLY]. Make necessary settings for [SETTINGS], click [SAVE] for storing set values and then click [APPLY] to reflect these values to wireless LAN connection.

To select an SSID:

Access the HTTP server to display the web browser ( page 36) and select [NETWORK SETTINGS] [SETTINGS] [WIRELESS LAN] [INFRASTRUCTURE] and then click [APPLY]. After completion of these steps, click [SETTING] for the INFRASTRUCTURE and then click [SITE SURVEY] on the [CONNECTION] page, finally select the SSID you want to connect on the list. If you do not use [SITE SURVEY], type the SSID in [CONNECTION]. ( page 40)

To receive lamp replacement time or error messages via e-mail:

Access the HTTP server to display the web browser (→ page 36) and select [NETWORK SETTINGS] → [ALERT MAIL], and set [SENDER'S ADDRESS], [SMTP SERVER NAME], and [RECIPIENT'S ADDRESS]. Last, c [SAVE]. (→ page 41)

1. Using On-Screen Menu

⑦ Menu Descriptions & Functions [INFO.]

Displays the status of the current signal and lamp usage. This item has six pages. The information included is as follows:

TIP: Pressing the HELP button on the remote control will show the [INFO.] menu items.

[USAGE TIME]

[LAMP LIFE REMAINING] (%)

[LAMP HOURS USED] (H)

[FILTER HOURS USED] (H)

[TOTAL CARBON SAVINGS] (kg-CO2)

[TOTAL COST SAVINGS]

The progress indicator shows the percentage of remaining bulb life.

The value informs you of the amount of lamp usage. When the remaining lamp time reaches 0, the LAMP LIFE REMAINING bar indicator changes from 0% to 100 Hours and starts counting down.

If the remaining lamp time reaches 0 hours, the projector will not turn on.

- The message to the effect that the lamp or the filters should be replaced will be displayed for one minute when the projector is turned on and when the POWER button on the projector or the remote control is pressed.

To dismiss this message, press any button on the projector or the remote control.

Lamp life(H)			Replacement lamp
ECO MODE

1. Using On-Screen Menu

[SOURCE(1)]

[SOURCE NAME] [SOURCE INDEX]

[HORIZONTAL FREQUENCY] [VERTICAL FREQUENCY]

[SYNC TYPE] [SYNC POLARITY]

[SCAN TYPE]

[SOURCE(2)]

[SIGNAL TYPE] [VIDEO TYPE]

[BIT DEPTH] [VIDEO LEVEL]

[WIRED LAN]

1. Using On-Screen Menu

[WIRELESS LAN]

[IP ADDRESS] [SUBNET MASK]

[GATEWAY] [MAC ADDRESS]

[SSID] [NETWORK TYPE]

[SECURITY] [CHANNEL]

[SIGNAL LEVEL]

[CONNECTION]

[PROJECTOR NAME] [PIN CODE]

[WIRED LAN] [IP ADDRESS]

[WIRELESS LAN] [IP ADDRESS]

[SSID] [SECURITY KEY]

IVERSION1

1. Using On-Screen Menu

[OTHERS]

[PROJECTOR NAME]

[HOST NAME]

[MODEL NO.]

[SERIAL NUMBER]

[LAN UNIT TYPE]

[CONTROL ID] (when [CONTROL ID] is set)

1. Using On-Screen Menu

⑧ Menu Descriptions & Functions [RESET]

Returning to Factory Default [RESET]

The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following:

[CURRENT SIGNAL]

Resets the adjustments for the current signal to the factory preset levels.

The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS].

[ASPECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], and [OVERSCAN].

[ALL DATA]

Reset all the adjustments and settings for all the signals to the factory preset.

All items can be reset EXCEPT [LANGUAGE], [BACKGROUND], [ORIENTATION], [FILTER MESSAGE], [SECU-

RITY], [COMMUNICATION SPEED], [CONTROL ID], [STANDBY MODE], [FAN MODE], [CARBON CONVERT]

[CURRENCY], [CURRENCY CONVERT], [LAMP LIFE REMAINING], [LAMP HOURS USED], [FILTER HOURS

USED], [TOTAL CARBON SAVINGS], [WIRED LAN], and [WIRELESS LAN]

To reset the lamp usage time, see "Clearing Lamp Hour Meter [CLEAR LAMP HOURS]" below.

Clearing Lamp Hour Meter [CLEAR LAMP HOURS]

Resets the lamp clock back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the ENTER button.

NOTE: Elapsed time of the lamp use will not be affected even when [RESET] is done from the menu.

NOTE: The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. In this condition you cannot clear the lamp hour meter on the menu. If this hoopens, press

6. Installation and Connections

This section describes how to set up your projector and how to connect video and audio sources. Your projector is simple to set up and use. But before you get started, you must first:

① Set up a screen and the projector.
② Connect your computer or video equipment to the projector. (page 90, 92, 93, 94, 95, 96, 97)
③ Connect the supplied power cord. (→ page 11)

NOTE: Ensure that the power cord and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the sliding lens cover.

① Setting Up the Screen and the Projector

Selecting a Location

[ME401W/ME361W/ME331W/ME301W]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 25" (0.64 m) measured diagonally when the projector is roughly 37 inches (0.9 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 459 inches (11.7 m) from the wall or screen.

6. Installation and Connections

[ME401X/ME361X/ME331X/ME301X]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 25" (0.64 m) measured diagonally when the projector is roughly 35 inches (0.9 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 435 inches (11.0 m) from the wall or screen.

TIP:

• The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.

• For more details on throw distance, see page 88.

6. Installation and Connections

Throw Distance and Screen Size

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distance Chart

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen bottom (top of screen for ceiling ap-
plication)
α = Throw angle

NOTE: The values in the tables are design values and

may vary.

[ME401W/ME361W/ME331W/ME301W]

Screen Size							B		C						D
Disposal Width		Height wide total width wide tie
inch	mm	inch	mm	inch	inch	inch	inch	inch	inch	inch	inch	inch	inch	inch	inch	inch	degree	degree
25	635	21	538	13	337	5	138	27	666	-	46	1171	-1	-29	11.4	-	5.6
30	782	25	646	16	404	7	167	33	833	-	56	1415	-1	-35	11.3	-	6.7
40	1916	34	862	21	538	9	277	44	1178	-	75	1937	-7	-47	11.2	-	8.7
50	1324	51	1292	32	908	13	333	67	1712	-	113	2576	-3	-71	11.0	-	9.6
72	1825	61	1551	38	969	16	490	81	2003	-	136	3460	-3	-95	11.0	-	9.6
80	2032	68	1723	42	1077	17	444	90	2298	-	152	3850	-4	-94	10.9	-	3.6
94	2134	71	1808	45	1131	18	466	95	2415	-	198	4045	-4	-98	10.9	-	3.6
90	2286	76	1938	48	1212	20	500	102	2591	-	171	4337	-4	-106	10.9	-	6.6
100	2540	85	2154	53	1348	22	555	114	2884	-	190	4824	-5	-118	10.9	-	6.6
120	3048	102	2585	64	1615	26	660	137	3470	-	228	5798	-6	-141	10.9	-	6.6
150	3810	127	3231	78	2018	33	833	171	4349	-	288	7259	-7	-177	10.8	-	6.5
180	4572	153	3877	95	2429	39	1000	206	5228	-	343	9720	-8	-212	10.8	-	6.5
200	5060	170	4306	106	2692	44	1111	226	5614	-	352	9694	-9	-236	10.8	-	6.5
210	5334	178	4523	111	2827	46	1165	240	6107	-	401	10181	-10	-247	10.8	-	6.5
240	5996	204	5189	127	3231	52	1333	275	6988	-	458	11642	-11	-283	10.8	-	6.5
270	6858	229	5816	143	3635	59	1499	310	7385	-	516	13103	-13	-318	10.8	-	6.5
300	7820	254	6482	158	4038	66	1665	344	8744	-	573	14554	-14	-353	10.8	-	6.5

[ME401X/ME361X/ME331X/ME301X]

Screen Size						B		C					D
Diagonal Width: Height wide bell wide tele
inch	min	inch	mm	inch	mm	inch	mm	inch	mm	-	inch	mm	inch	-2	-80	degree	- degree
25	635	20	508	15	381	5	131	25	649	-	44	1108	-2	71	11.4	-	5.7
26	709	24	616	16	457	6	157	24	709	-	50	1027	-2	71	11.4	-	5.7

6. Installation and Connections

WARNING

* Installing your projector on the ceiling must be done by a qualified technician. Contact your NEC dealer for more information.
* Do not attempt to install the projector yourself.
- Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.
- Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41°F (5°C) and 104°F (40°C) (Eco mode selected automatically at 95°F to 104°F/35°C to 40°C).
- Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.
- Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a much larger image when a smaller space is required. Contact your NEC dealer if you need a mirror system. If you're using a mirror system and your image is inverted, use the MENU and ▲▼◀▶ buttons on your projector cabinet or your remote control to correct the orientation. (→ page 71)

② Making Connections

Connecting Your Computer

Computer cables, HDMI and USB can be used to connect to a computer. The connection cable is not enclosed with the projector. Please get ready a suitable cable for the connection.

NOTE: Signals supported by Plug & Play (DDC2)

INPUT
COMPUTER IN HDMI 1 IN HDMI 2 IN
analog digital digital
Yes Yes Yes

6. Installation and Connections

NOTE: The projector is not compatible with video decoded outputs of the NEC ISS-6020 switcher.

NOTE: An image may not be displayed correctly when a Video source is played back via a commercially available scan converter. This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.

* When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:

Project an image to fill the screen and then press the AUTO ADJ. button on the remote control or the projector cabinet.

Enabling the computer's external display

Displaying an image on the notebook PC's screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the "Fn" key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

Cautions when using a DVI signal

- When the computer has a DVI output terminal, use a commercially available converter cable to connect the computer to the projector's HDMI 1 or HDMI 2 input terminal (only digital video signals can be input).

NOTE: When Viewing a DVI Digital Signal

• Turn off the power of the computer and projector before connecting.
- When a video deck is connected via a scan converter, etc., the display may not be correct during fast-forwarding and rewinding.

- Use a DIL-to-HDMI cable compliant with DOWC /Digital Display Working Group DIL /Digital Visual Interface revision 1.0 step.

1. Installation and Connections

Connecting an External Monitor

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you're projecting.

NOTE:

• The AUDIO OUT lack does not support headphone terminal.

- When audio equipment is connected the projector speaker is disabled

1. Installation and Connections

Connecting Your DVD Player or Other AV Equipment

Connecting Video Input

- Select the source name for its appropriate input terminal after turning on the projector.

SOURCE button on the projector

1. Installation and Connections

Connecting Component Input

A component signal will be automatically displayed. If not, from the menu, select [SETUP] → [OPTIONS(1)] → [SIGNAL SELECT] → [COMPUTER], and then place a check mark in the Component radio button.

1. Installation and Connections

Connecting HDMI Input

You can connect the HDMI output of your DVD player, hard disk player, Blu-ray player, or notebook type PC to the HDMI IN terminal of your projector.

- Select the source name for its appropriate input terminal after turning on the projector.

Input terminal	SOURCE button on the projector cabinet	Button on the remote control
HDMI 1 IN HDMI1	(HDMI1")
HDMI2 IN HDMI2	(HDMI2")

1. Installation and Connections

Connecting to a Wired LAN

The projector comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable.

To use a LAN connection, you are required to set the LAN on the projector menu. Select [SETUP] → [WIRED LAN]. (→ page 78).

Example of LAN connection (1)

Example of LAN connection (2)

Via an wireless LAN access point, it enables to easily connect to terminals by INTELLIGENT CONNECTION.

6. Installation and Connections

Connecting to a Wireless LAN (Optional: NP05LM series)

The USB Wireless LAN Unit also provides a wireless LAN connection. To use a wireless LAN connection, you are required to assign an IP address to the projector.

Important:

• If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, remove the USB Wireless LAN Unit from the projector.
  • Buy the appropriate USB Wireless LAN Unit for your country or area.

NOTE:

• The green LED on the USB Wireless LAN Unit flashes to show that the USB Wireless LAN Unit is working.
- Your computer's wireless LAN adapter (or unit) must be compiled with Wi-Fi (IEEE802.11b/g/n) standard.

Attaching the USB Wireless LAN Unit

NOTE:

• The USB Wireless LAN Unit must be inserted into the USB Wireless LAN Unit port in the correct direction. It cannot be inserted in the reverse direction. If the USB Wireless LAN Unit is inserted in the reverse direction with excessive force applied, the USB port may break.
• Before touching the USB Wireless LAN Unit, touch a metallic object (such as a door knob or aluminum window frame) to discharge the static electricity from your body.
• Always insert or remove the USB Wireless LAN unit when the main power is turned off. Failure to do so may cause projector malfunction or damage to the USB wireless LAN unit. If the projector will not work correctly, turn off the projector, disconnect the power cord, and then connect it again.

• The USB port of the projector is common use for the VIERWER. When the USB memory is installed and activate the VIEWER, you can not utilize wireless LAN.

• Press the POWER button to turn off the projector and set it into standby condition, and disconnect the power cord.

• Slowly insert the USB Wireless LAN Unit into the USB port.

Remove the cap from the USB Wireless LAN Unit, and then insert it with the surface (side of indicator) facing down. Keep the cap for later use.

NOTE:

• Do not force to insert the USB Wireless LAN Unit.
- Set the supplied strap onto the strap fixing hole for the measure of anti-theft and dropping-off.

6. Installation and Connections

Connection Example (1) [INTELLIGENT CONNECTION]

Easily connect the projector to multiple terminals as computers and smart phones by PIN code.

1. Download the application software, "MultiPresenter" from our company web site and install it onto each terminal as a computer.

https://www.nec-display.com/dlien/soft/multipresenter/index.html

1. Power ON the projector and display on the on-screen menu and then select as the bellows in order: [SETUP] → [WIRELESS LAN] → [INTELLIGENT CONNECTION] for [PROFILE]

2. Switch the source of the projector to [LAN].

The stand-by screen will be displayed on.

1. Launch the application software "MultiPresenter" on each terminal and input PIN CODE that is shown on the stand-by screen.

* For iOS, select SSID in advance and input the SECURITY KEY.

- Perform detail settings for the INTELLIGENT CONNECTION activating the HTTP Server function. (→ page 40)

- About details of the MultiPresenter application, please refer to the manual of MultiPresenter uploaded on our company web site.

Connection Example (2) [SIMPLE ACCESS POINT]

Set the projector as SIMPLE ACCESS POINT for connecting to terminals as computers and smart phones.

6. Installation and Connections

Connection Example (3) [INFRASTRUCTURE]

Connect the projector to wired/wireless LAN via wireless LAN access point.

1. Connect a computer to the projector via wired LAN. (→ page 96)
2. Use the computer's browser to display the projector's HTTP server. (→ page 36)
3. Use an HTTP server to set the wireless LAN. (→ page 40) Select either [SIMPLE ACCESS POINT] or [INFRASTRUCTURE] for [WIRELESS] in [SETTINGS] of [NETWORK SETTINGS] and then perform detail settings in [SETTING].
4. Click [APPLY] to connect to the wireless LAN.

NOTE:

• To use the HTTP server function, the projector must be connected to a network. First, connect the projector to a network by the wired LAN and then perform required settings for the wireless LAN on the HTTP server.
  • If network conflict is occurred, the STATUS Indicator starts to blink in orange. In this case, change the IP address.

If you want to change the wireless LAN setting on the projector after setting it on the HTTP server, perform setting change on the on-screen menu. (→ page 79)

7. Maintenance

This section describes the simple maintenance procedures you should follow to clean the filters, the lens, the cabinet, and to replace the lamp and the filters.

① Cleaning the Filters

The air-filter sponge keeps dust and dirt from getting inside the projector and should be frequently cleaned. If the filter is dirty or clogged, your projector may overheat.

WARNING

- Please do not use a spray containing flammable gas to remove dust attached to the filters, etc. Doing so may result in fires.

NOTE: The message for filter cleaning will be displayed for one minute after the projector is turned on or off. When the message is displayed, clean the filters. The time to clean the filters is set to (5000 H) at time of shipment. To cancel the message, press any button on the projector cabinet or the remote control.

The two-layer filter on the projector improves cooling and dust-proof capabilities compared with the conventional models. The outsides (intake side) of the first and second layer filters remove dust. To clean the filter, detach the filter unit and the filter cover.

CAUTION

- Before cleaning the filters, turn off the projector, disconnect the power cord and then allow the cabinet to cool. Failure to do so can result in electric shock or burn injuries.

1. Push two buttons to release the filter unit and pull it out.

TIP: The following explanation uses filters (fine-texture sponge and coarse-texture sponge) attached to the projector at the time of purchase as an example.

2. Remove the filter cover.

The filter cover is fixed at six separate mounting points. Row the filter cover by pushing the notch slightly until it releases

Filter unit

7. Maintenance

4. Remove dust from the filter unit and the filter cover.

Clean both outside and inside.

5. Attach the four filters to the filter unit and the filter cover.

Filter unit: Attach two coarse-texture sponge filters (large and small) to the filter unit.

Filter cover: Attach two fine-texture sponge filters (large and small) to the filter cover.

The fine-texture sponge filter has slits on it. Align these slits with the protrusions of the filter cover.

6. Attach the filter cover back to the filter unit

Align the filter unit with the filter cover and push the six protrusions into place.

• Make sure all six mounting points are aligned properly.

Technical illustration of a mechanical assembly with a tool inserted into a multi-layered plastic housing (no text or symbols visible)

Isometric line drawing of a multi-layered plastic or plastic housing component (no text or symbols)

7. Maintenance

② Cleaning the Lens

• Turn off the projector before cleaning.
• The projector has a plastic lens. Use a commercially available plastic lens cleaner.
- Do not scratch or mar the lens surface as a plastic lens is easily scratched.
- Never use alcohol or glass lens cleaner as doing so will cause damage to the plastic lens surface.

WARNING

- Please do not use a spray containing flammable gas to remove dust attached to the lens, etc. Doing so may result in fires.

Line drawing of a hand inserting a button into a projector (no text or symbols)

③ Cleaning the Cabinet

Turn off the projector, and unplug the projector before cleaning.
• Use a dry soft cloth to wipe dust off the cabinet.
If heavily soiled, use a mild detergent.
- Never use strong detergents or solvents such as alcohol or thinner.
- When cleaning the vents or the speaker using a vacuum cleaner, do not force the brush of the vacuum cleaner into the slits of the cabinet.

Pure mechanical component diagram without any text, numbers, or symbols

④ Replacing the Lamp and the Filters

When the lamp reaches the end of its life, the LAMP indicator in the cabinet will blink red and the message "THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP AND FILTER." will appear (*). Even though the lamp may still be working, replace the lamp to maintain the optimal projector performance. After replacing the lamp, be sure to clear the lamp hour meter. (→ page 85)

CAUTION

- DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off and then disconnect the power cord. Allow at least one hour for the lamp to cool before handling.

• Use the specified lamp for safety and performance.
To order the replacement s, specify your lamp type, NP43LP. NP16LP is also available If you have.
The replacement lamp comes with filters.
- DO NOT REMOVE ANY SCREWS except one lamp cover screw and two lamp housing screws. You could receive an electric shock.
- Do not break the glass on the lamp housing.
Keep finger prints off the glass surface on the lamp housing. Leaving finger prints on the glass surface might cause an unwanted shadow and poor picture quality.
- The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. If this happens, be sure to replace the lamp. If you continue to use the lamp after the lamp reaches the end of its life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

*NOTE: This message will be displayed under the following conditions:

• for one minute after the projector has been powered on
- when the (POWER) button on the projector cabinet or the POWER OFF button on the remote control is pressed

To turn off the message, press any button on the projector cabinet or the remote control.

Optional lamp and tools needed for replacement:

• Phillips screwdriver (plus-head)
- Replacement lamp

7. Maintenance

To replace the lamp:

1. Remove the lamp cover.

(1) Loosen the lamp cover screw
• The lamp cover screw is not removable.
(2) Push and slide the lamp cover off.

Line drawing of a projector device with control buttons and a scroll wheel (no text or symbols)

Line drawing of a projector device with control panel and display screen (no text or symbols)

2. Remove the lamp housing.

(1) Loosen the two screws securing the lamp housing until the phillips screwdriver goes into a freewheeling condi-

tion.

• The two screws are not removable.

- There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

(2) Remove the lamp housing by holding it.

CAUTION:

Make sure that the lamp housing is cool enough before removing it.

7. Maintenance

3. Install a new lamp housing.

(1) Insert a new lamp housing until the lamp housing is plugged into the socket.
(2) Push the top center of the lamp housing to secure it.
(3) Secure it in place with the two screws.
- Be sure to tighten the screws.

Line drawing of a projector with a hand inserting a component (no text or symbols)

Line drawing of a projector internal components with no visible text or symbols

4. Reattach the lamp cover.

(1) Slide the lamp cover back until it snaps into place.
(2) Tighten the screw to secure the lamp cover.

- Be sure to tighten the screw.

Line drawing of a projector device with control panel and display (no text or symbols)

Line drawing of a projector with control panel and buttons (no text or symbols)

7. Maintenance

To replace the filters:

Four filters are packaged with the replacement lamp, NP43LP,

Coase texture sponge filter: Large and small sizes (attached to the filter unit)

Fine texture sponge filter: Large and small sizes (attached to the filter cover)

The filter supplied with NP16LP is differed from ones' material supplied with NP43LP and that material is non-woven material.

For reading the filter replacement procedures, replace the words "fine-texture sponge and coarse-texture sponge" with "accordion soft and honeycomb hard" respectively.

NOTE:

- Replace all four filters at the same time.

• Before replacing the filters, wipe off dust and dirt from the projector cabinet.

• The projector is precision equipment. Keep out dust and dirt during filter replacement.

• Do not wash the filters with soap and water. Soap and water will damage the filter membrane.

- Put filters into place. Incorrect attachment of a filter may cause dust and dirt to get into the inside of the projector.

TIP:

While the material of filters attached to the projector at the time of purchase is different from the material of filters included with the optional lamp, there is no difference in performance between these two types.

Before replacing the filters, replace the lamp. (→ page 103)

1. Push the catch to release the filter unit and pull it out.

Illustration of a projector with ventilation grilles and control buttons (no text or symbols)

2. Detach the filter cover from the filter unit.

The filter cover is fixed at six separate mounting points. Bow the filter cover by pushing it slightly until it releases.

7. Maintenance

1. Attach new filters.

Filter unit: Attach two coarse texture sponge filters to the filter unit.

Filter cover: Attach two fine texture sponge filters to the filter cover.

The accordion filter has slits on it. Align these slits with the protrusions of the filter cover.

1. Attach the filter cover back to the filter unit

Align the filter unit with the filter cover and push the protrusions into place.

• Make sure all six mounting points are aligned properly.

1. Put the filter unit back to the projector cabinet.

Insert two catches of the tip of the filter unit into the groove of the cabinet.

Push the filter unit until it clicks into place.

Line drawing of an electronic device rear panel with ports and connectors (no text or symbols)

8. Appendix

① Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Indicator Messages

Power Indicator

Indicator Condition Projector Condition Note
Off The main power is off -
Blinking light Blue		0.5 sec On,0.5 sac Off	The projector is getting ready to turn on. Wait for a moment.
		2.5 sac On,0.5 sac Off	Off Timer is enabled. -
	Orange	0.5 sec On,0.5 sac Off	Cooling Wait for a moment
Steady light Blue			The projector is turned on. -
	Orange In Standby condition [NETWORK STANDBY] is selected for [STANDBY MODE]			-
	Red In Standby condition [NORMAL] is selected for [STANDBY MODE]			-

Status Indicator

Indicator Condition Projector Condition Note
Off Normal or Standby			-
Binking light Red		1 cycle (0.5 sec On, 2.5 sec Off)	Lamp cover error or lamp housing error	Mount the lamp cover or lamp housing correctly.
		2 cycle (0.5 sec On, 0.5 sec Off)	Temperature error	The projector is overheated. Move the projector to a cooler location.
		3 cycle (0.5 sec On, 0.5 sec Off)	Power error	Power unit is not working property. Contact your dealer.
		4 cycle (0.5 sec On, 0.5 sec Off)	Fan error	Fans will not work correctly.
		6 cycle (0.5 sec On, 0.5 sec Off)	Lamp error	Lamp fails to light. Wait a full minute and then turn on again.
	Green	1 cycle (0.5 sec On, 0.5 sec Off)	Re-firing the lamp (The projector is cooling down.)	The projector is re-firing.Wait for a moment.
	Orange	1 cycle (0.5 sec On, 2.5 sec Off)	Network conflict	Both the built-in wired LAN and the wireless LAN cannot be connected to the same network at the same time.To use both built-in wired LAN and wireless LAN at the same time, connect them to different networks.NOTE: In the Standby condition, the status indicator on the cabinet does not blink in orange even if the network conflicts
Steady light Green			Sleep mode	-
	Orange		CONTROL PANEL LOCK is on.	You have pressed cabinet button when Control Panel Lock is on.
			CONTROL ID error	Remote control ID and projector ID are not matched.

8. Appendix

Common Problems & Solutions
(→ "Power/Status/Lamp Indicator" on page 108.)

Problem Check These Items
Does not turn on or shut down	Check that the power cord is plugged in and that the power button on the projector cabinet or the remote control is on. (→ pages 11, 12)Ensure that the lamp cover is installed correctly. (→ page 105)Check to see if the projector has overheated. If there is insufficient ventilation around the projector or if the room where you are presenting is particularly warm, move the projector to a cooler location.Check to see if you continue to use the projector for another 100 hours after the lamp has reached the end of its life. If so, replace the lamp. After replacing the lamp, reset the lamp hours used. (→ page 85)The lamp may fall to light. Wait a full minute and then turn on the power again.Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or higher. Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the projector could shut down. If this happens, wait a couple minutes and turn on the projector. (→ page 73)If you turn on the projector immediately after the lamp is turned off, the fans run without displaying an image for some time and then the projector will display the image. Wait for a moment.
Will turn off	Ensure that the [OFF TIMER] or [AUTO POWER OFF] is off. (→ page 69, 76)
No picture	Use the COMPUTER1, HDMI1, HDMI2, VIDEO, USB-A, USB-B or LAN button on the remote control to select your source (COMPUTER, HDMI1, HDMI2, VIDEO, USB-A, LAN or USB-B). (→ page 14) If there is still no picture, press the button again.Ensure your cables are connected properly.Use menus to adjust the brightness and contrast. (→ page 61)Reset the settings or adjustments to factory preset levels using the [RESET] in the Menu. (→ page 85)Enter your registered keyword if the Security function is enabled. (→ page 30)Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.See also the next page.
Picture suddenly becomes dark	Check if the projector is in the Forced ECO mode because of too high ambient temperature. If this is the case, lower the internal temperature of the projector by selecting [HIGH] for [FAN MODE]. (→ page 73)
Color tone or hue is unusual	Check if an appropriate color is selected in [WALL COLOR]. If so, select an appropriate option. (→ page 68)Adjust [HUE] in [PICTURE]. (→ page 61)
Image isn't square to the screen	Reposition the projector to improve its angle to the screen. (→ page 15, 16)Use the Keystone correction function to correct the trapezoid distortion. (→ page 18)
Picture is blurred	Adjust the focus. (→ page 17)Reposition the projector to improve its angle to the screen. (→ page 15, 16)Ensure that the distance between the projector and screen is within the adjustment range. (→ page 88)Condonation may form on the lamp if the projector is sold brought into a frame line and in them turned on.

8. Appendix

If there is no picture, or the picture is not displayed correctly.

• Power on process for the projector and the PC.

Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.

NOTE: You can check the horizontal frequency of the current signal in the projector's menu under Information. If it reads "0kHz", this means there is no signal being output from the computer. (→ page 82 or go to next step)

- Enabling the computer's external display.

Displaying an image on the notebook PC's screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the "Fn" key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

• Non-standard signal output from the computer

If the output signal from a notebook PC is not an industry standard, the projected image may not be displayed correctly. Should this happen, deactivate the notebook PC's LCD screen when the projector display is in use. Each notebook PC has a different way of deactivate/reactivate the local LCD screens as described in the previous step. Refer to your computer's documentation for detailed information.

• Image displayed is incorrect when using a Mac

When using a Mac with the projector, set the DIPswitch of the Mac adapter (not supplied with the projector) according to your resolution. After setting, restart your Mac for the changes to take affect.

For setting display modes other than those supported by your Mac and the projector, changing the DIP switch on a Mac adapter may bounce an image slightly or may display nothing. Should this happen, set the DIP switch to the 13" fixed mode and then restart your Mac. After that, restore the DIP switches to a displayable mode and then restart the Mac again.

NOTE: A Video Adapter cable manufactured by Apple Inc. is needed for a MacBook which does not have a mini D-Sub 15-pin terminal.

• Mirroring on a MacBook

* When using the projector with a MacBook, output may not be set to 1024 × 768 unless "mirroring" is off on your MacBook. Refer to owner's manual supplied with your Mac computer for mirroring.

- Folders or icons are hidden on the Mac screen

Folders or icons may not be seen on the screen. Should this happen, select [View] → [Arrange] from the Apple

8. Appendix

② Specifications

This section provides technical information about projector's performance.

Optical

Model Number ME401W		ME361W	ME331W	ME301W	ME401X	ME361X	ME331X	ME301X
LCD Panel 0.59 inch LCD		with Micro Lens Array (Aspect Ratio 18:10)				0.63 inch LCD with Micro Lens Array (Aspect Ratio 4:3)
Resolution*		1280 x 800 pixels (WXGA) 1024 x 768 pixels (XGA)
Lens Manual zoom and manual focus
		Manual Zoom Ratio = 1.7F = 1.7-2.1 1 = 17.5-29.0 mm
Lamp ECO MODE		240 W 235	W 214 W	240 W 235 W	214 W
		OFF
		NORMAL 171 W
		ECO 140 W
Light Output**		4000 lumens	3600 lumens	3300 lumens	3000 lumens	4000 lumens	3600 lumens	3300 lumens	3000 lumens
		NORMAL: 75%	NORMAL: 75%	NORMAL: 75%	NORMAL: 80%	NORMAL: 75%	NORMAL: 75%	NORMAL: 75%	NORMAL: 80%
		ECO: 60%**
Contrast Ratio(1)(full white: full black)		6000:1 12000:1
Image Size (Diagonal) 25-300 inches (0.6-7.6 m) 25-300 inches (0.6-7.6 m)
Projection Distance(Min.-Max.)		27-573 inches (0.7-14.6 m)				26-543 inches (0.6-13.8 m)
Projection Angle		10.7-11.4 (wide)/6.5-6.8 (leia)

*1 Effective pixels are more than 99.99%.
*2 This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
*3 Compliance with ISO21118-2012
*4 The maximum power becomes equivalent to power in NORMAL (ECO MODE).

Electrical

Model Number ME401W	ME361W ME331W ME301W ME401X ME361X ME331X ME301X
Inputs	1 × RGB/Component (D-Sub 15 P), 2 × HDMI Type A (19P, HDMI®Terminal) HDCP supported*, 1 × Video (RCA), 1 × (L/R) RCA Audio, 1 × Stereo Mini Audio
Outputs	1 × RGB (D-Sub 15P), 1 × Stereo Mini Audio
PC Control	1 × PC Control Port (D-Sub 9P)
Wired LAN Port	1 × RJ-45 (10BASE-T/100BASE-TX)
Wireless LAN Port(Optional)	IEE 802.11 b/g/n (optional USB Wireless LAN Unit required)
USB Port	1 × Type A, 1 × Type B

Color Production 140 kb signal processing 14.67 billion colors (Ulmur Mahuve: 42.7 million colors)

1. Appendix

Model Number ME401W		ME361W ME331W ME301W ME401X ME361X ME331X ME301X
Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)Vertical: 50 Hz to 120 Hz (HDMI: 50 Hz to 85 Hz)
Sync Compatibility Separate Sync
Built-in Speaker 20 W (monaural)
Power Requirement 100-240V AC, 50/60Hz
Input Current 3.4 A–1.4 A
Power Consumption	ECO MODE OFF	316 W(100-130 V)	309 W(100-130 V)	286 W(100-130 V)	316 W(100-130 V)	309 W(100-130 V)	286 W(100-130 V)
		304 W(200-240 V)	297 W(200-240 V)	274 W(200-240 V)	304 W(200-240 V)	297 W(200-240 V)	274 W(200-240 V)
	NORMAL 241 W (100-130 V)/230 W (200-240 V)
	ECO 201 W (100-130 V)/193 W (200-240 V)
	STANDBY(NETWORK STANDBY)	1.9 W (100-130 V)/2.3 W (200-240 V)
	STANDBY(NORMAL)	0.23 W (100-130 V)/0.45 W (200-240 V)

Mechanical

Model Number ME401W	ME361W ME331W ME301W ME401X ME361X ME331X ME301X
Installation Orientation	Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions	13.3^ (W) × 4.0^ (H) × 10.2^ (D)/339 mm (W) × 102 mm (H) × 259 mm (D) (not including protrusions) 13.3^ (W) × 4.3^ (H) × 10.2^ (D)/339 mm (W) × 108.5 mm (H) × 259 mm (D) (including protrusions)
Weight 2.9 kg/6.4 lbs
Environmental Considerations	Operational Temperatures : 41^ to 104^ ( 5^ to 40^ ),(ECO mode selected automatically at 95^ to 104^ / 35^ to 40^ ) 20% to 80% humidity (non-condensing)Storage Temperatures : 14^ to 122^ ( -10^ to 50^ ), 20% to 80% humidity (non-condensing)Operating altitude: 0 to 2600 m/8500 f (Set [FAN MODE] to[HIGH ALUTITUDE] when using the projector at altitudes approximately 1700 m/5500 f) or higher.

For additional information visit:

US: https://www.necdisplay.com/

Europe : https://www.nec-display-solutions.com/

Global : https://www.nec-display.com/global/index.html

For information on our optional accessories, visit our website or see our brochure.

The specifications are subject to change without notice.

1. Appendix

③ Cabinet Dimensions

Unit: mm (inch)

1. Appendix

④ Pin Assignments of D-Sub COMPUTER Input Terminal Mini D-Sub 15 Pin Terminal

Signal Level Video signal : 0.7Vp-p (Analog) Sync signal : TTL level

Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground	Cr Ground
7 Green Ground	Y Ground
8 Blue Ground	Cb Ground
9 Hotplug
10 Sync Signal Ground
11 No Connection
12 BI-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock

COMPUTER IN NOTE: Pin Nos. 12 and 15 are required for DDC/CI.

8. Appendix

⑤ Compatible Input Signal List

Analog RGB

Signal	Resolution ( dots )	Aspect Ratio	Refresh Rate ( Hz )
VGA 540 × 480	4:3 60/72/75/65/
SVGA 800 × 500	4:3 56/60/72/75/65/
XGA 1024 × 568 *		4:3 60/70	75/65/ Mac
WXGA 1280 × 768 *		15.9 60
		16:10 60
		16.9 60
		16.9 60
Quad-VGA 1280 × 960 4:3 60/75
SXGA 1280 × 1024 5:4 60/75
SXGA+ 1400 × 1050 4:3 60
WXGA+	1440 × 900 16:0 60
WXGA++	1600 × 900 * 2	16:9 60
UXGA	1600 × 1200 * 2	4:3 60
WSXGA+	1680 × 1050	16:10	60
HD	1280 × 720	16:9 60
Full HD 1920 × 1080		16:9 60
WUXGA	1920 × 1200 * 6	16:10 60
MAC 13°	640 × 480 4.3	67
MAC 16°	832 × 624 4.3	75
MAC 19°	1024 × 768 4.3	75
MAC 21°	1152 × 870 4.3	75
MAC 23°	1280 × 1024 5	4 65

Component

Signal	Format	Aspect Ratio	Refresh Rate (Hz)
HDTV (1080p)	1320 × 1080	16:9	50/50
HDTV (1080i)	1320 × 1080	16:9	50/50
HDTV (720p)	1280 × 720	16:9	50/50
SDTV (480p)	720 × 480	4:3/16:9	60
SDTV (576p)	720 × 576	4:3/16:9	50
SDTV (480i)	720 × 480	4:3/16:9	60
SDTV (576j)	720 × 576	4:3/16:9	50

Composite Video

Signal	Aspect Ratio	Refresh Rate (Hz)
NTSC	4:3 60
PAL	4:3 50
PAL80	4:3 60
SECAM	4:3 50

HDMI

Signal	Resolution ( dots )	Aspect Ratio	Refresh Rate ( Hz )
VGA 640 × 480	4:3.60
SVGA 800 × 600	4:3.60
XGA 1024 × 768	^1	4:3.60
WXGA 1280 × 768	^2	15:9.60
	1280 × 800 * ^2	16:10.60
	1366 × 768	16:9.60
Quad-VGA 1280 × 960	4:3.60
SXGA 1280 × 1024	5:4.60
SXGA+ 1400 × 1050	4:3.60
WXGA+	1440 × 900	16:10	60
WXGA++	1600 × 900	16.9	60
WSXGA+	1680 × 1050	16:10	60
WUXGA	1920 × 1200	16:10	60**
HDTV (1080p)	1920 × 1080	16.9	50/60
HDTV (1080)	1920 × 1080	16.9	50/60
HDTV (720p)	1280 × 720	16.9	50/60
SDTV (480p)	720 × 480	4:3/16.9	60
SDTV (576p)	720 × 576	4:3/16.9	50
SDTV(480)	720 × 480	4:3/16.9	60
SDTV(576)	720 × 576	4:3/16.9	50

*1 Native resolution on XGA model (ME401X/ME361X/ME331X)
ME301X)
*2 Native resolution on WXGA model (ME401W/ME351W/ME331W/
ME301W)
*3 The projector may fail to display these signals correctly when [AUTO]
is selected for [ASPECT RATIO] in the on-screen menu.
The factory default is [AUTO] for [ASPECT RATIO]. To display these
signals, select [16:9] for [ASPECT RATIO].
*4 WYGA MODE: OFF
4 WXGA MODE: OFF 15 WXGA MODE: ON
5 WAGA MODE. ON
*8 RB (Reduced blanking signal) is effective up to 154MHz.

1. Appendix

⑥ PC Control Codes and Cable Connection PC Control Codes

Function Code Data
POWER	ON	02H	00H	00H	00H	00H	02H
POWER	OFF	02H	01H	00H	00H	00H	03H
INPUT	SELECT	COMPUTER		02H	03H	00H	00H	02H	01H	01H	09H
INPUT	SELECT	HDMI1		02H	03H	00H	00H	02H	01H	1AH	22H
INPUT	SELECT	HDMI2		02H	03H	00H	00H	02H	01H	13H	23H
INPUT	SELECT	VIDEO		02H	03H	00H	00H	02H	01H	06H	0EH
INPUT	SELECT	USB-A		02H	03H	00H	00H	02H	01H	1FH	27H
INPUT	SELECT	LAN		02H	03H	00H	00H	02H	01H	20H	28H
INPUT	SELECT	USB-B		02H	03H	00H	00H	02H	01H	22H	24H
PICTURE	MUTE	ON		02H	10H	00H	00H	00H	12H
PICTURE	MUTE	OFF		02H	11H	00H	00H	00H	13H
SOUND	MUTE	ON		02H	12H	00H	00H	00H	14H
SOUND	MUTE	OFF		02H	13H	00H	00H	00H	15H

NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.

Cable Connection

Communication Protocol
Baud rate	38400 hps
Data length	8 bits
Parity	No parity
Stop bit	One bit
X on/off	None
Communications procedure	Full duplex

NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.

PC Control Terminal (D-SUB 9P)

1. Appendix

⑦ Using the Computer Cable (VGA) to Operate the Projector (Virtual Remote Tool)

Using the utility software "Virtual Remote Tool" that is available to download from our web site, Virtual Remote screen (or toolbar) can be displayed on your computer screen.

This will help you perform operations such as projector's power on or off and signal selection via the computer cable (VGA), serial cable, or LAN connection. Only via serial or LAN connection it is also used to send an image to the projector and register it as the logo data of the projector. After registering it, you can lock the logo to prevent it from changing.

Control Functions

Power On/Off, signal selection, picture freeze, picture mute, audio mute. Logo transfer to the projector, and remote control operation on your PC.

Virtual Remote screen Toolbar

For getting the Virtual Remote Tool, please visit our web site and download it: https://www.nec-display.com/dl/en/index.html

8. Appendix

NOTE:

• When [COMPUTER] is selected from your source selection, the Virtual Remote screen or the toolbar will be displayed as well as your computer screen.
• Use the supplied computer cable (VGA) to connect the COMPUTER IN terminal directly with the monitor output terminal of the computer to use Virtual Remote Tool.

Using a switcher or other cables than the supplied computer cable (VGA) may cause failure in signal communication.

VGA cable terminal:

Pin Nos. 12 and 15 are required for DDC/CI.

• Virtual Remote Tool may not work depending on your computer's specifications and version of graphic adapters or drivers.
• To run Virtual Remote Tool on Windows 8.1, Windows 8 and Windows XP, "Microsoft .NET Framework Version 2.0" is required.
The Microsoft .NET Framework Version 2.0, 3.0 or 3.5 is available from Microsoft's web page. Download and install it on your computer.
- Logo data (graphics) that can be sent to the projector with Virtual Remote Tool has the following restrictions:

(Only via serial or LAN connection)

- File size: Less than 1 MB

- Image size (resolution):

ME401W/ME361W/ME331W/ME301W: Horizontal 1280 × vertical 800 dots or less

ME401X/ME361X/ME331X/ME301X: Horizontal 1024 × vertical 768 dots or less

- Number of colors: 256 colors or less

- To put the default "NEC logo" back in the background logo, you need to register it as the background logo by using the image file (ME401W/ME361W/ME331W/ME301W: /Logo/necpj_bbwx.bmp, ME401X/ME361X/ME331X/ME301X: /Logo/necpj_bb_x.bmp) included on the supplied NEC Projector CD-ROM.

TIP:

• Virtual Remote Tool can be used with a LAN and a serial connection. USB connection is not supported by Virtual Remote Tool.
- The projector's COMPUTER IN terminal supports DDC/CI (Display Data Channel Command Interface). DDC/CI is a standard interface for bidirectional communication between display/projector and computer.

8. Appendix

⑧ Troubleshooting Check List

Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the "Troubleshooting" section in your user's manual. This checklist below will help us solve your problem more efficiently.

Print this page and the next page for your check.

Frequency of occurrence □ always □ sometimes (How often? ____ ) □ other (____)

Power

☐ No power (POWER indicator does not light blue) See also "Status Indicator /STATUS"
Indicator (STATUS)
Power cord's plug is fully inserted into the wall outlet.
Main power switch is pressed to the ON position.
Lamp cover is installed correctly
Lamp Hours Used (lamp operation hours) was cleared after lamp replacement.
No power even though you press and hold the POWER button.

□ Shut down during operation.
Power cord's plug is fully inserted into the wall outlet.
Lamp cover is installed correctly.
□ LAMP SAVR is installed accuracy □ [AUTO POWER OFF] is turned off (only) models with the [AUTO
[ACIO POWER OFF] is a POWER OFF function).
☐ [OFF TIMER] is turned off (only models with the [OFF TIMER] function).

Video and Audio

☐ No image is displayed from your PC or video equipment to the projector.
- Still no image even though you connect the projector to the PC first, then start the PC.
Enabling your notebook PC's signal output to the projector. A combination of function keys will enable/disable the external display. Usually, the combination of the "Fn" key along with one of the 12 function keys turns the external display on or off.
☐ No image (blue or black background, no display).
- Still no image even though you press the AUTO ADJUST button. - Still no image even though you carry out [RESET] in the projector's menu.
- Signal cable's plug is fully inserted into the input terminal
-□ A message appears on the screen.
(____) —□ The source connected to the projector is active and available.
- Still no image even though you adjust the brightness and/or the contrast.
Input source's resolution and frequency are supported by the projector.

Image is too dark.

□ Parts of the image are lost
Still unchanged even though you press the AUTO ADJUST
button.
Still unchanged even though you carry out [RESET] in the projector's menu.
☐ Image is shifted in the vertical or horizontal direction.
Horizontal and vertical positions are correctly adjusted on a computer signal.
Input source's resolution and frequency are supported by the projector.
Some pixels are lost.
Image is flickering.
Still unchanged even though you press the AUTO ADJUST button.
Still unchanged even though you carry out [RESET] in the projector's menu.
Image shows flickering or color drift on a computer signal.
Still unchanged even though you change [FAN MODE] from [HIGH ALTITUDE] to [AUTO].
☐ Image appears blurry or out of focus.
Still unchanged even though you checked the signal's resolution on PC and changed it to projector's native resolution.

8. Appendix

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Model number:

Serial No.:

Date of purchase:

Lamp operating time (hours):

Eco Mode: □ OFF □ AUTO ECO

□ NORMAL □ ECO

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H □ (+) □ (−) V

Synch type □ Separate □ Composite

□ Sync on Green

STATUS In

Steady light □ Orange □ Green

Flashing light [ ] cycles

Remote control model number:

Installation environment

Screen size: inch

Screen type: □ White matte □ Beads □ Polarization

□ Wide angle □ High contrast

Throw distance: feet/inch/m

Orientation: □ Ceiling mount □ Desktop

Power outlet connection:

□ Connected directly to wall outlet

□ Connected to power cord extender or other (the

number of connected equipment____)

☐ Connected to a power cord reel or other (the number

of connected equipment

+1 □1(-)

Computer

Manufacturer:

Model number:

Notebook PC □ / Desktop □

Native resolution:

Refresh rate:

Video adapter:

Other:

Projector

1. Appendix

⑨ REGISTER YOUR PROJECTOR! (for residents in the United States, Canada, and Mexico)

Please take time to register your new projector. This will activate your limited parts and labor warranty and InstaCare service program.

Visit our web site at www.necdisplay.com, click on support center/register product and submit your completed form online.

Upon receipt, we will send a confirmation letter with all the details you will need to take advantage of fast, reliable warranty and service programs from the industry leader, NEC Display Solutions of America, Inc.

NEC
