Product Type	Marine Radar with optional GPS and plotter functions
Display	7-inch monochrome LCD, 240 x 320 dots, effective radar area 216 x 216 dots
Range Scales	0.125 to 48 nm (maximum range depends on model, 1762: 48 nm)
Antenna Type	Slotted waveguide array, 1035 mm open array
Horizontal Beamwidth	3.9°
Vertical Beamwidth	20°
Antenna Rotation Speed	24 rpm nominal
Power Output	4 kW
Power Supply	12-24 VDC, 6.3 A (12V) to 3.1 A (24V)
Receiver Tuning	Automatic or manual
Range Resolution	21 m
Bearing Resolution	3.9°
Minimum Range	30 m
Bearing Accuracy	±1°
Range Ring Accuracy	0.9% of range or 8 m, whichever greater
Plotter Functions	Mercator projection, 8000 track/mark points, 999 waypoints, 200 routes
Chart Compatibility	FURUNO, NavCharts™ (NAVIONICS), or C-MAP NT/NT+
Data Interfaces	Ethernet 10BASE-T (NavNet), NMEA 0183, memory card
Environmental Protection	Display: IPX5, Antenna: IPX6
Operating Temperature	Display: -15°C to +55°C, Antenna: -25°C to +70°C

Frequently Asked Questions - 1762 FURUNO

What is the warm-up time for the magnetron?

The magnetron takes approximately 1 minute and 30 seconds to warm up before radar transmission. The remaining time is displayed counting down from 1:30.

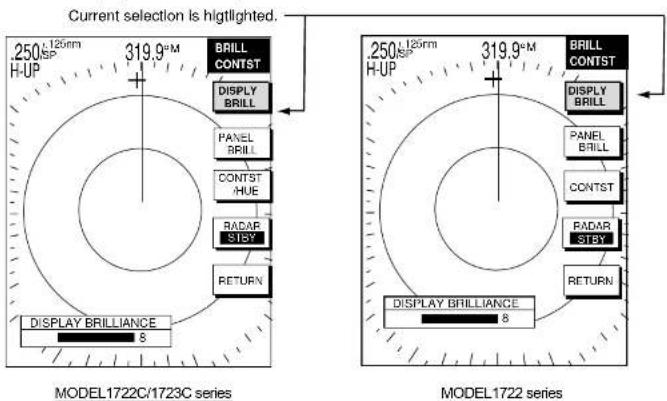

How do I adjust the display brilliance?

Press the POWER/BRILL key momentarily to show adjustment soft keys. Use the DISPLY BRILL soft key and rotate the ENTER knob to adjust. Press RETURN to finish.

Can I use the radar without a chart card?

Yes, the radar functions independently. The chart card is needed for plotter functions. Without a card, plotter features are limited.

How do I set a guard alarm zone?

Press the ALARM key, then use the cursor pad to define opposite corners of the zone. Press SET GUARD1 or SET GUARD2, then ENTER to confirm. The alarm triggers when targets enter or leave the zone.

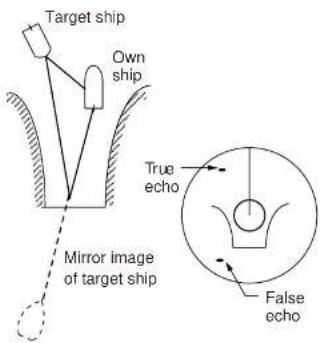

What types of false echoes can occur?

Common false echoes include multiple echoes, sidelobe echoes, virtual images (mirror effect), and shadow sectors from onboard structures. Reducing gain or adjusting clutter controls can help minimize them.

How do I perform a factory reset or clear memories?

From the main menu, go to SYSTEM CONFIGURATION > TEST & CLEAR > MEMORY CLEAR. Select the items to clear (Display Unit, GPS Sensor, Network Sounder) and confirm. Note: This erases user data.

What is the maximum number of ARP targets that can be tracked?

The ARP (Automatic Radar Plotting) function can track up to 10 targets simultaneously, either manually or automatically acquired.

How do I update the software or load new charts?

Use a formatted memory card. Save data from a PC or load chart data via the DATA TRANSFER menu. Insert the card into the slot with power on, then use SAVE DATA TO MEMORY CARD or LOAD DATA IN MEMORY CARD options.

What should I do if the display shows 'Radar source is not found'?

Ensure the network radar is powered on and the Ethernet cable is securely connected. Wait at least one minute after power-up before checking. If the issue persists, check the RADAR SOURCE setting in the DISP menu.

How often should preventive maintenance be performed?

Regularly clean the display screen with a soft cloth. Check antenna cables and connections monthly. Replace the internal battery every 2-3 years and fuses as needed. Refer to section 7.1 for detailed schedules.

USER MANUAL 1762 FURUNO

MODEL1723C/1733C/1753C/1763C

NAVnet

SAFETY INSTRUCTIONS

WARNING

ELECTRICAL SHOCK HAZARD Do not open the equipment.

Only qualified personnel should work inside the equipment.

Do not disassemble or modify the equipment.

Fire, electrical shock or serious injury can result.

Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire.

Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service.

Keep heater away from equipment.

A heater can melt the equipment's power cord, which can cause fire or electrical shock.

I see the proper fuses

WARNING

Radio Frequency Radiation Hazard

The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance.

Distances at which RF radiation levels of 100 and 10 W/m ^2 exist are given in the table below.

Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature.

MODEL	Distance to 100 W/m2 point	Distance to 10 W/m2 point
1722	...	Worst case

TABLE OF CONTENTS

FOREWORD ...... viii

SYSTEM CONFIGURATIONS .... x

WHAT IS WAAS?......xii

1.1 Operating Controls 1-2

1.1.1 Display unit controls 1-2

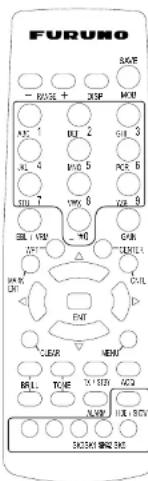

1.1.2 Remote controller 1-5

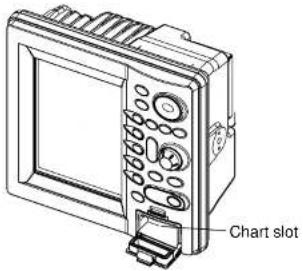

1.2 Inserting a Chart Card 1-6

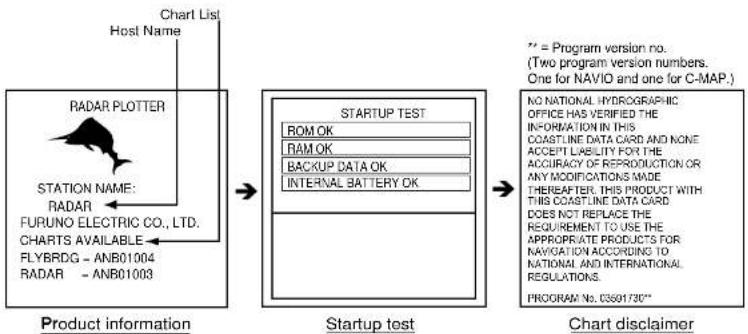

1.3 Turning the Unit On/Off 1-7

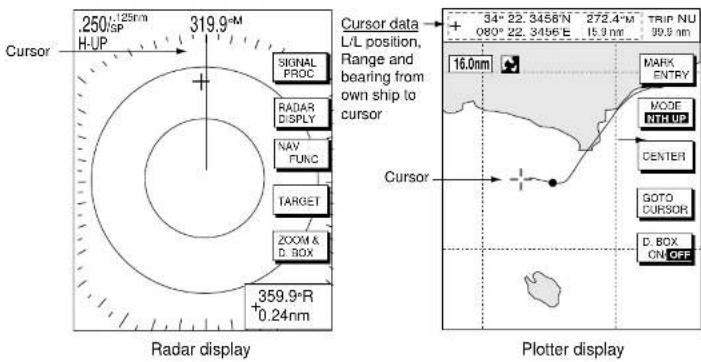

1.4 Cursor Pad, Cursor 1-8

1.5 Display Brilliance, Panel Brilliance, Contrast, Hue 1-9

1.5.1 Display brilliance, panel brilliance.... 1-9

1.5.2 Contrast.... 1-10

1.5.3 Hue (MODEL1722C/1723C series) 1-10

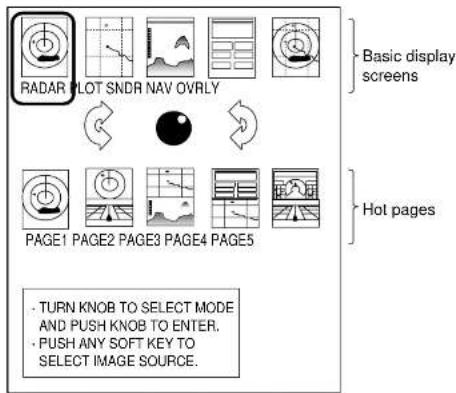

1.6 Selecting a Display....1-11

1.6.1 Display modes....1-11

1.6.2 Selecting a display.... 1-12

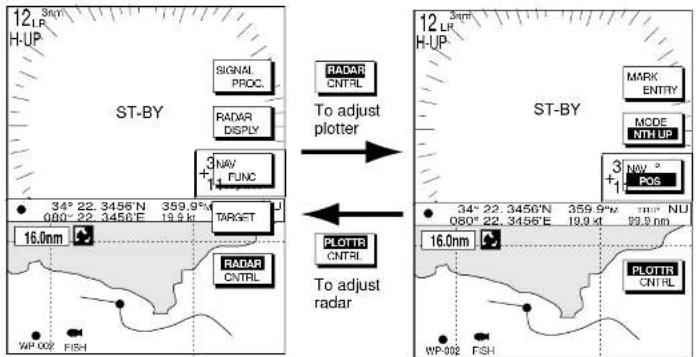

1.6.3 Switching control in combination and overlay screens.... 1-13

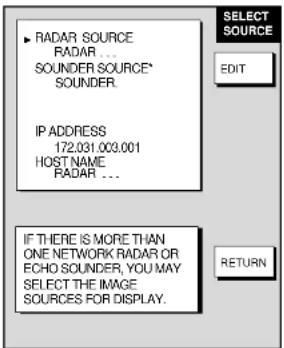

1.6.4 Selecting radar source.... 1-14

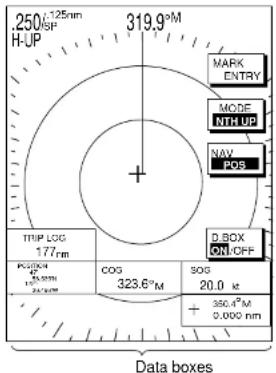

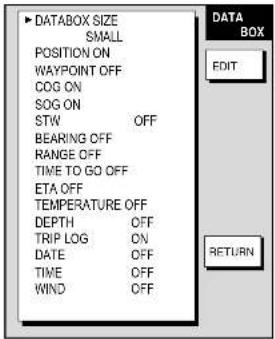

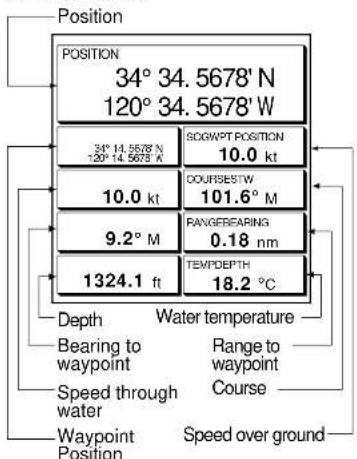

1.7 Data Boxes.... 1-15

1.7.1 Showing, hiding data boxes with soft key.... 1-15

4.7.0 Deserending data house 4.15

2.9 Presentation Mode 2-9

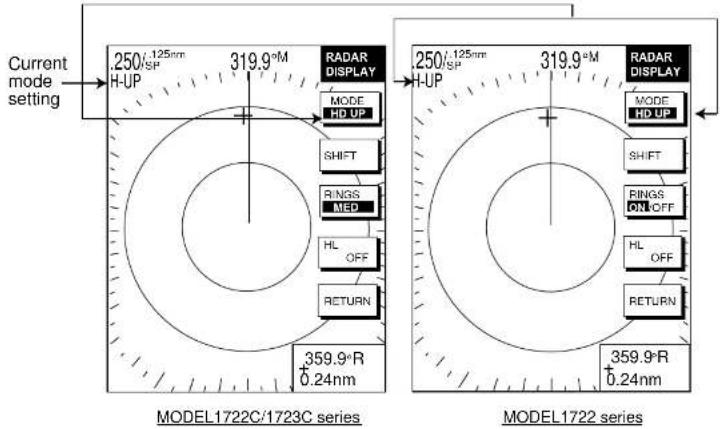

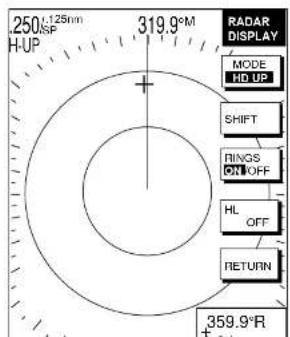

2.9.1 Selecting a presentation mode....2-9
2.9.2 Description of presentation modes....2-10

2.10 Measuring the Range....2-12

2.10.1 Measuring range by range rings....2-12
2.10.2 Measuring range by cursor....2-13

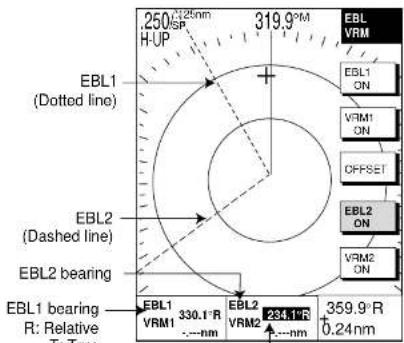

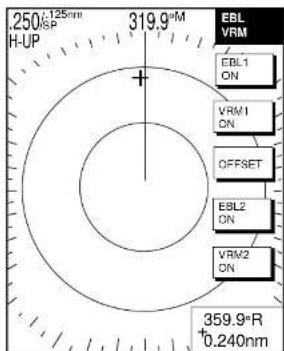

2.10.3 Measuring range by VRM 2-14
2.10.4 Erasing a VRM, VRM indication....2-15
2.10.5 Erasing EBL/VRM data boxes....2-15
2.10.6 Hiding EBL/VRM data boxes....2-15
2.10.7 Moving EBL/VRM data boxes 2-15

2.11 Measuring the Bearing 2-15

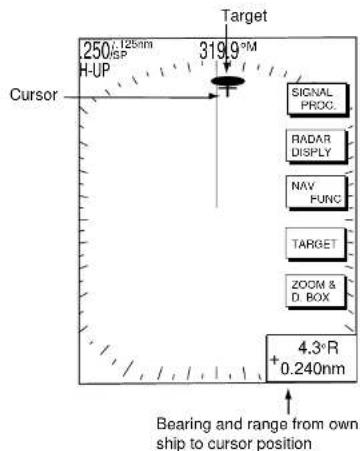

2.11.1 Measuring bearing by cursor....2-15
2.11.2 Measuring bearing by EBL....2-15
2.11.3 Erasing an EBL, EBL indication....2-16
2.11.4 Erasing EBL/VRM data boxes....2-16
2.11.5 Hiding EBL/VRM data boxes....2-16
2.11.6 Moving EBL/VRM data boxes....2-16

2.12 Erasing the Heading Line, North Marker 2-17

2.13 Reducing Noise....2-17
2.14 Reducing Radar Interference 2-18
2.15 Zoom....2-19

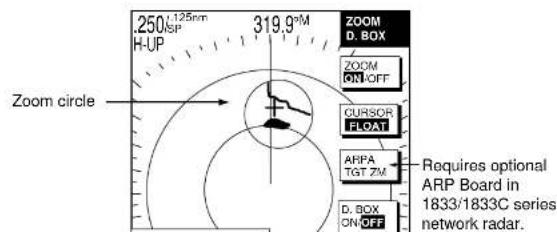

2.15.1 Zooming in on radar targets 2-19
2.15.2 Zooming ARP, TTM targets 2-19

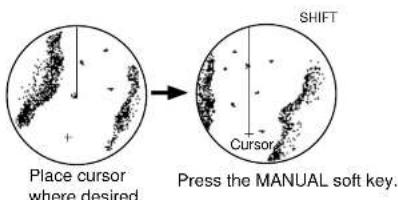

2.16 Shifting the Picture 2-20

2.16.1 Manual shift 2-20
2.16.2 Automatic shift....2-21

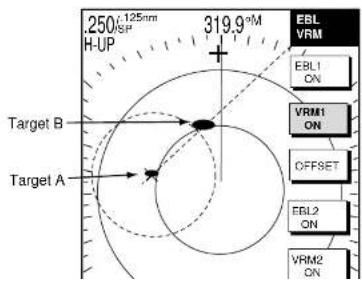

2.17 Using the Offset EBL....2-22

2.17.1 Predicting a collision course....2-22
0.47.0 Meninging sense 9 keeping between two objects 0.00

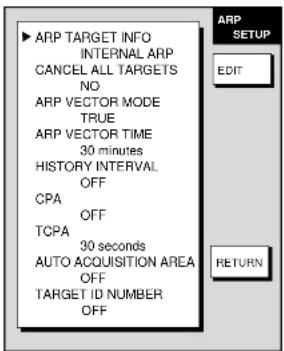

2.25 ARP (option), TTM operation 2-34

2.25.1 Activating/deactivating ARP, TTM 2-35

2.25.2 Acquiring and tracking targets (ARP only).... 2-36

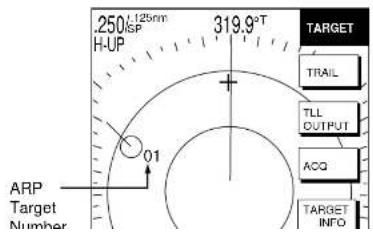

2.25.3 Displaying target number (internal, external ARP) 2-37

2.25.4 Terminating tracking of ARP targets 2-38

2.25.5 Setting vector attributes (ARP) 2-39

2.25.6 Displaying past position display (ARP) 2-40

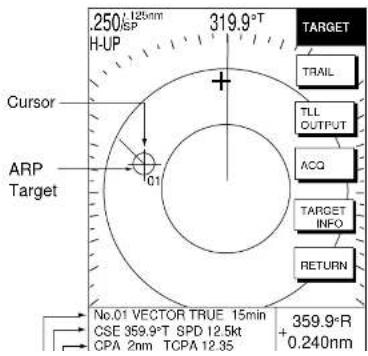

2.25.7 ARP, TTM target data.... 2-41

2.25.8 CPA/TCPA alarm (ARP) 2-42

2.25.9 Lost target alarm (ARP) 2-43

2.26 Interpreting the Radar Display 2-44

2.26.1 General 2-44

2.26.2 False echoes 2-46

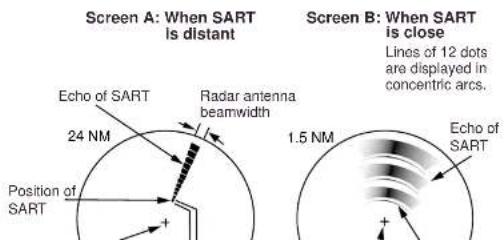

2.26.3 SART (Search and Rescue Transponder).... 2-48

2.26.4 Racon (Radar Beacon) 2-50

3. PLOTTER OPERATION....3-1

3.1 Plotter Displays.... 3-1

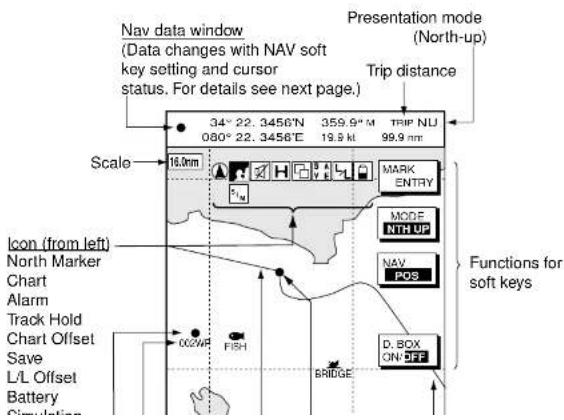

3.1.1 Full-screen plotter display.... 3-1

3.1.2 Compass display.... 3-3

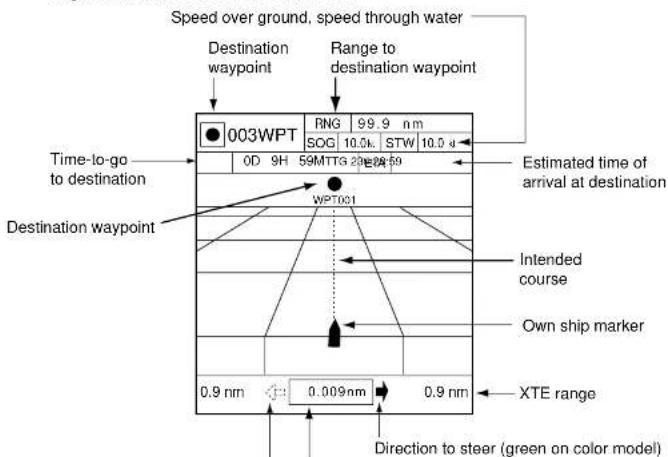

3.1.3 Highway display 3-5

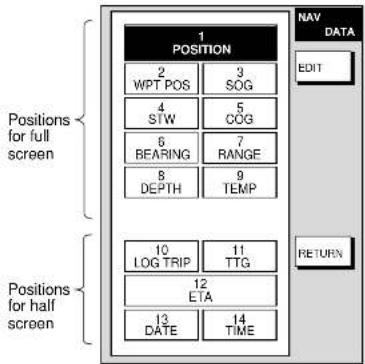

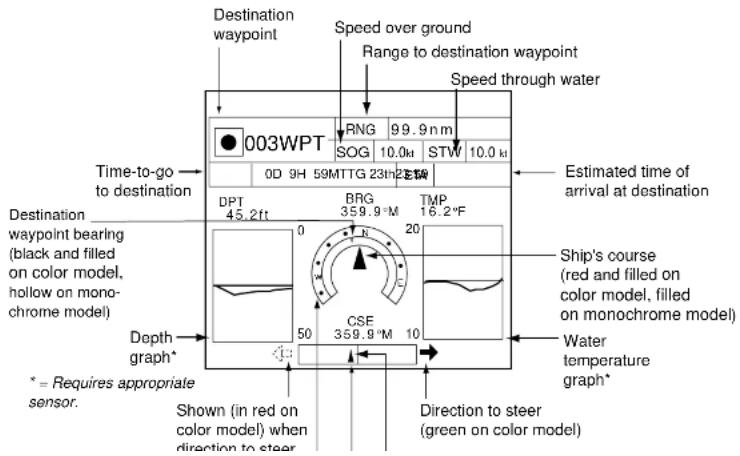

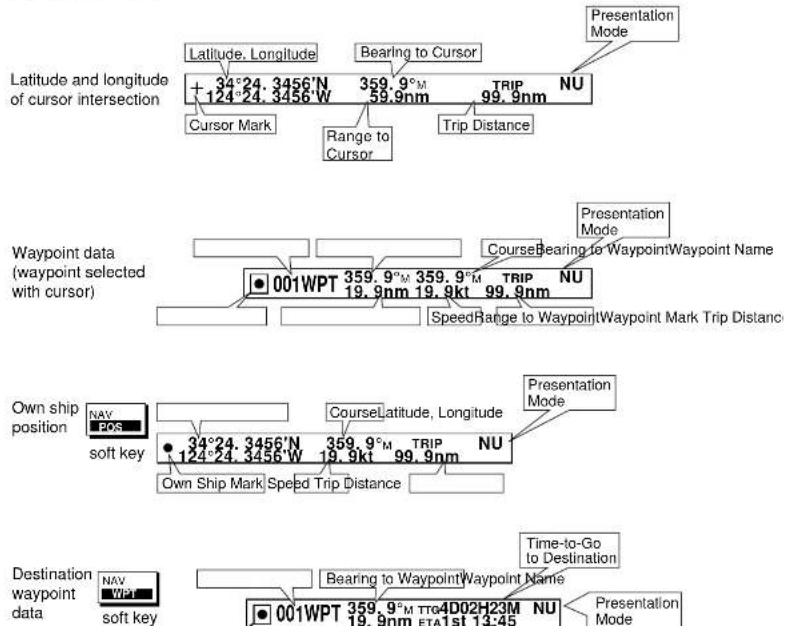

3.1.4 Nav data display.... 3-6

3.2 Presentation Mode.... 3-7

3.2.1 North-up 3-7

3.2.2 Course-up 3-8

3.2.3 Auto course-up 3-8

3.3 Shifting the Display 3-9

3.4 Chart Scale 3-9

3.5 Chart Cards 3-10

3.8.3 Erasing waypoints....3-34
3.8.4 Changing waypoint mark size (FURUNO, NavCharts™)....3-35

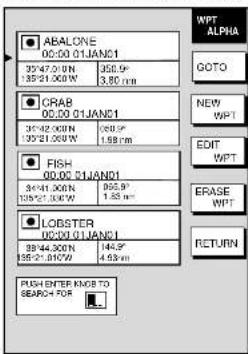

3.8.5 Searching waypoints....3-36

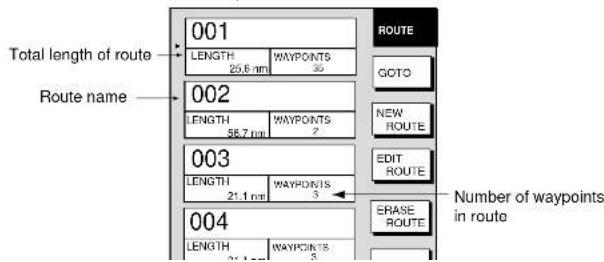

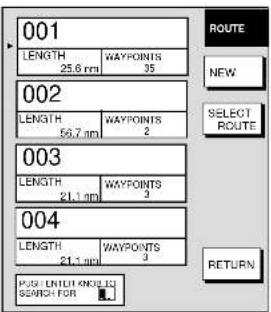

3.9 Routes 3-37

3.9.1 Creating routes 3-37

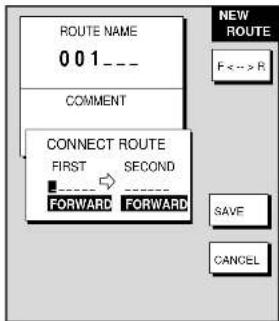

3.9.2 Connecting routes....3-41
3.9.3 Inserting waypoints 3-42
3.9.4 Removing waypoints from a route....3-44
3.9.5 Erasing routes....3-44

3.10 Navigation 3-45

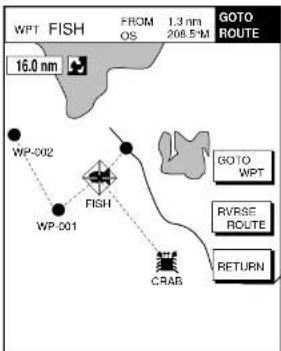

3.10.1 Navigating to a "quick point"....3-45
3.10.2 Navigating to waypoints 3-46

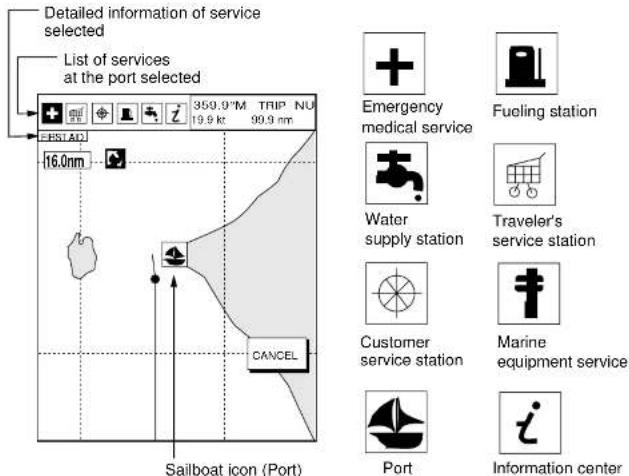

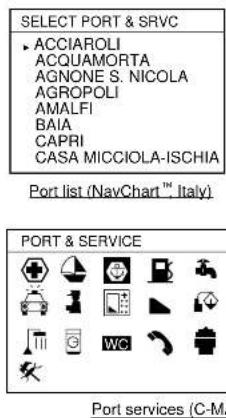

3.10.3 Navigating to ports, port services (NavCharts™ C-MAP) 3-47

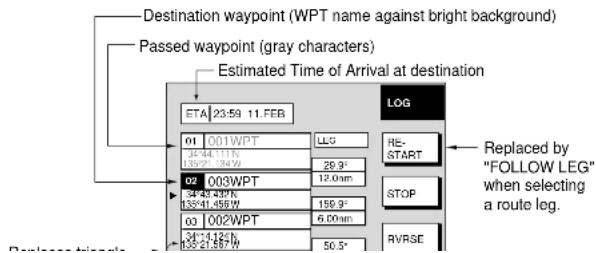

3.10.4 Following a route....3-49

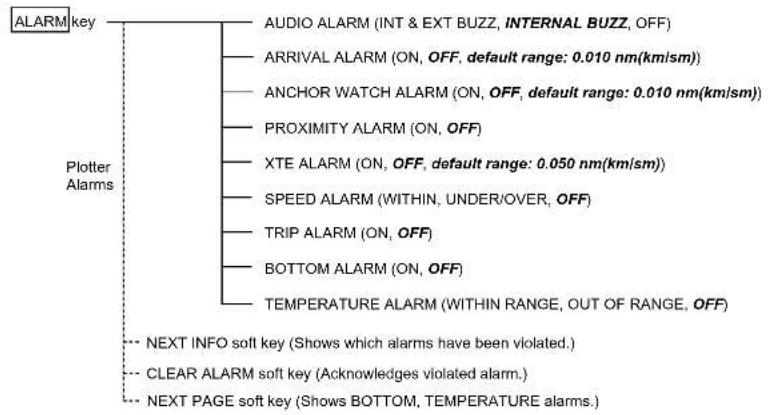

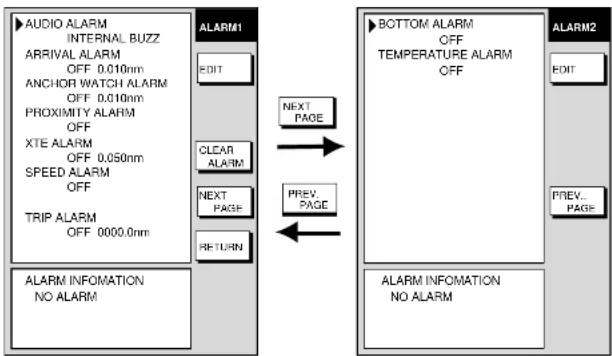

3.11 Alarms 3-53

3.11.1 Audio alarm on/off 3-53
3.11.2 Arrival alarm 3-54
3.11.3 Anchor watch alarm....3-55
3.11.4 XTE (Cross Track Error) alarm....3-56
3.11.5 Speed alarm....3-56
3.11.6 Proximity alarm 3-57
3.11.7 Trip alarm....3-58

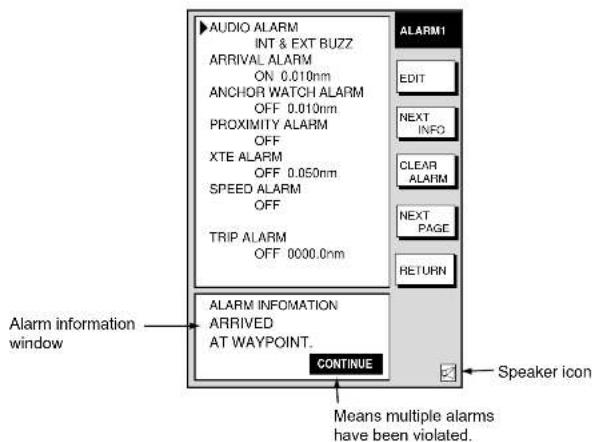

3.11.8 Alarm information 3-59

3.12 Resetting Trip Distance 3-60

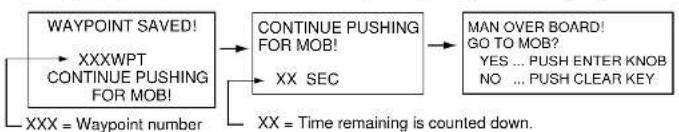

3.13 Entering the MOB Mark, Setting MOB as Destination 3-61

4.1 Principle of Operation....4-1
4.2 Sounder Displays.... 4-2
421 Selecting a sounder display 4-2

4.10 Picture Advance Speed.... 4-16

4.10.1 Advancement independent of ship's speed.... 4-16

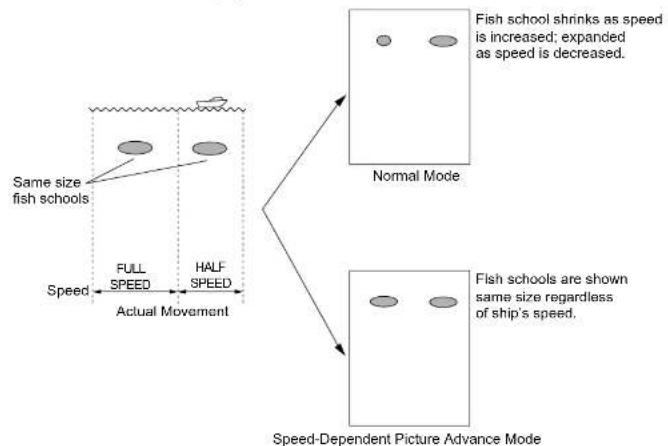

4.10.2 Advancement synchronized with ship's speed 4-17

4.11 Display Colors (MODEL1722C/1723C series) 4-18

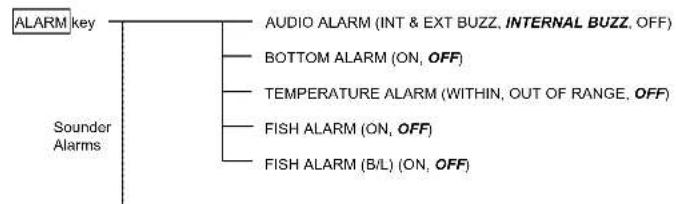

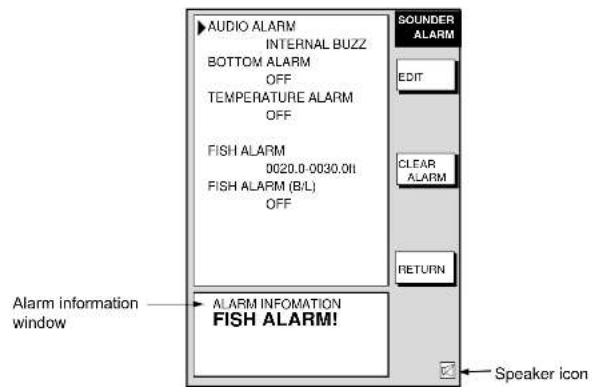

4.12 Alarms 4-19

4.12.1 Audio alarm on/off.... 4-19

4.12.2 Bottom alarm 4-20

4.12.3 Fish alarm.... 4-20

4.12.4 Fish alarm (B/L) 4-21

4.12.5 Water temperature alarm.... 4-22

4.12.6 When an alarm setting is violated.... 4-23

4.13 Water Temperature Graph 4-24

4.14 Changing Pulse Repetition Rate 4-24

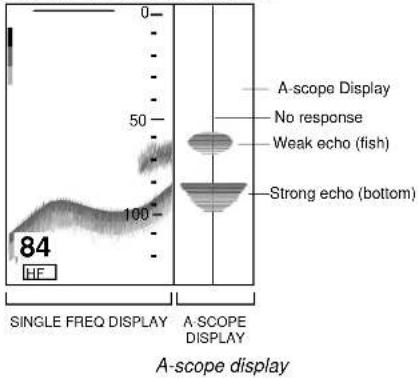

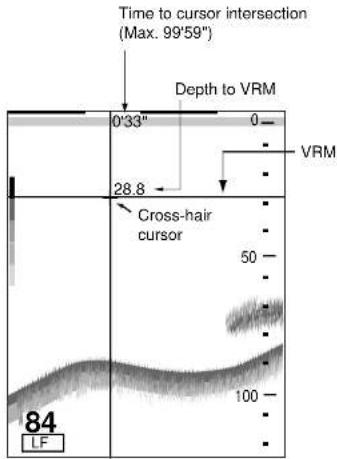

4.15 Interpreting the Sounder Display 4-25

4.15.1 Zero line 4-25

4.15.2 Bottom echo 4-25

4.15.3 Fish school echoes.... 4-26

4.15.4 Surface noise/Aeration 4-26

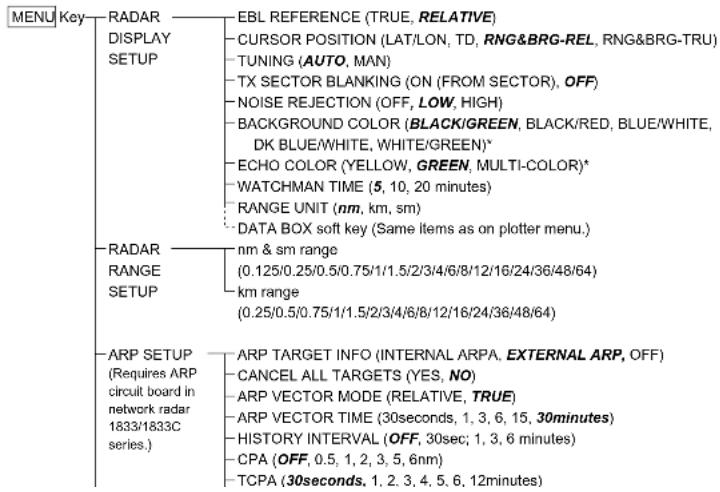

5. CUSTOMIZING YOUR UNIT....5-1

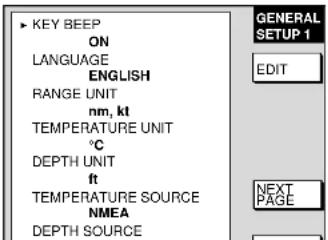

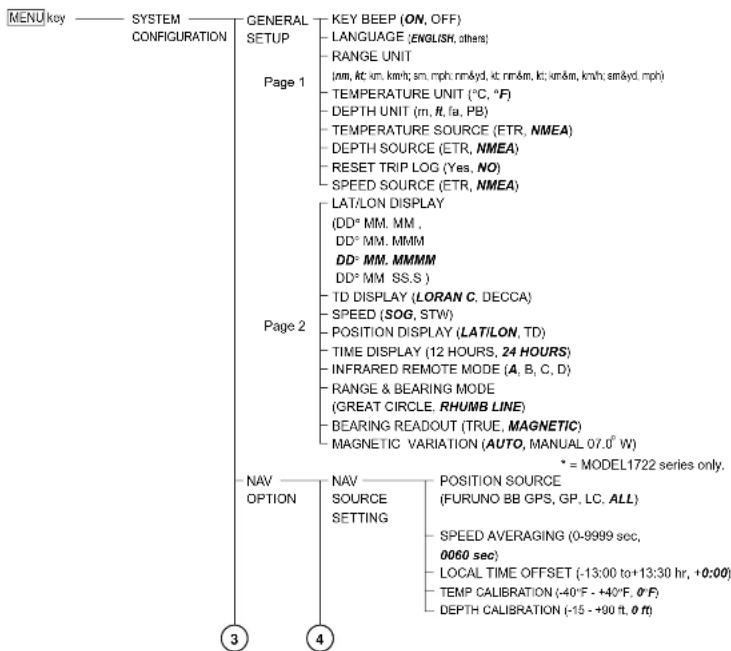

5.1 Generic Setup.... 5-1

5.2 Radar Setup 5-3

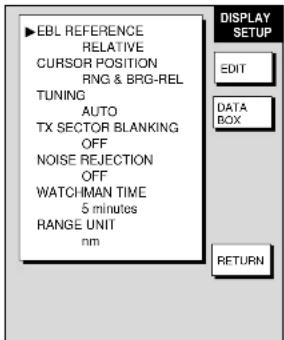

5.2.1 Radar display setup.... 5-3

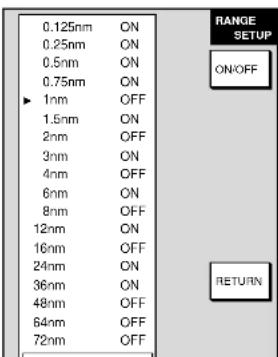

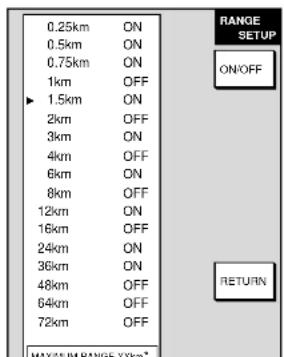

5.2.2 Radar range setup.... 5-6

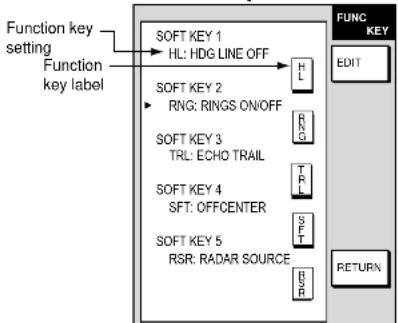

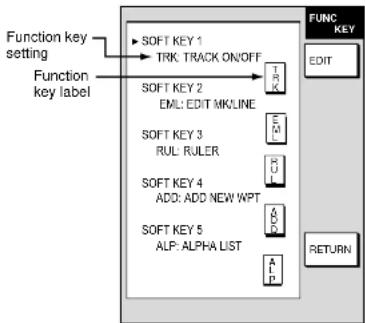

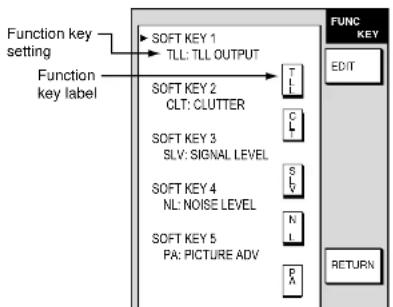

5.2.3 Function key setup 5-7

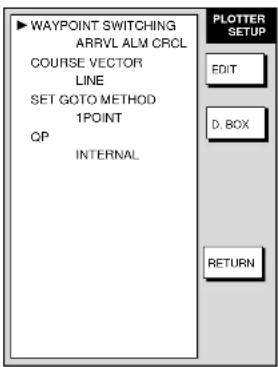

5.3 Plotter Setup 5-9

5.3.1 Navigation options.... 5-9

5.3.2 Function key setup 5-10

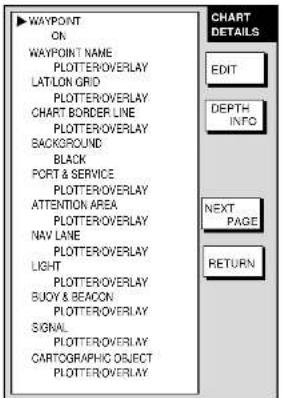

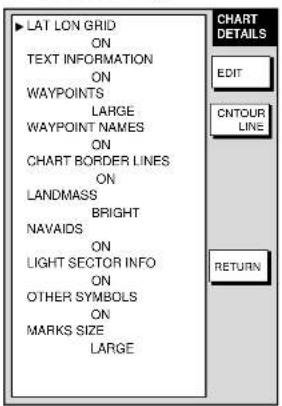

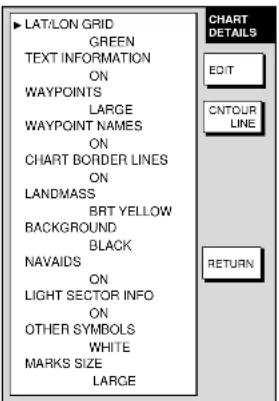

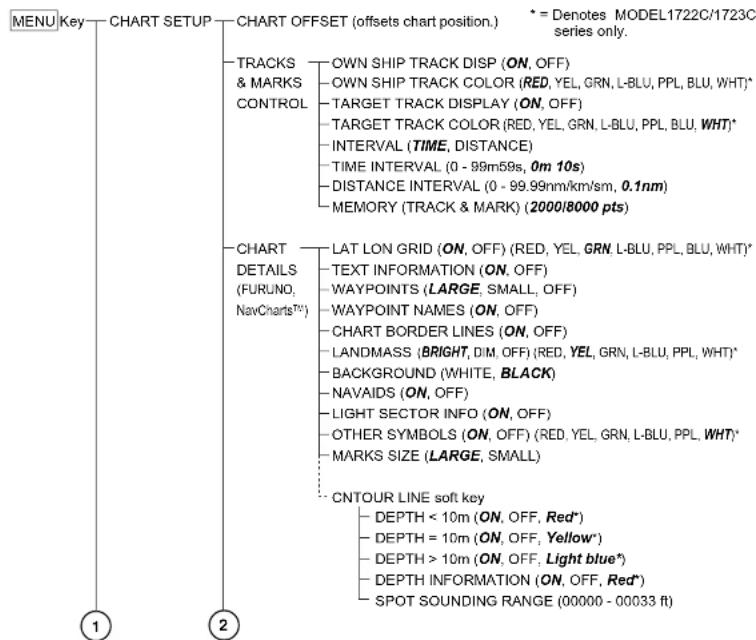

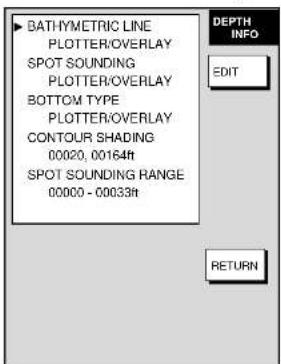

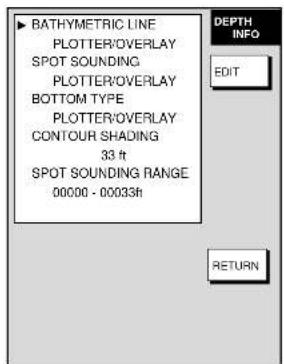

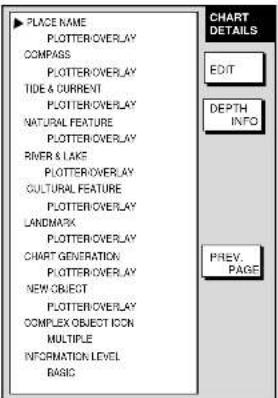

5.4 Chart Setup 5-12

6. DATA TRANSFER....6-1

6.1 Memory Card Operations....6-1
6.1.1 Formatting memory cards....6-1
6.1.2 Saving data to a memory card 6-2
6.1.3 Playing back data from a memory card 6-4
6.2 Uploading, Downloading Data....6-5
6.2.1 Setting communication software on the PC....6-5
6.2.2 Uploading or downloading data....6-5
6.3 Loading Waypoint Data from Yeoman 6-8
6.4 Receiving Data Via Network Equipment....6-9
6.5 Outputting Data Through the Network....6-10

7. MAINTENANCE, TROUBLESHOOTING ....7-1

7.1 Preventive Maintenance....7-1

7.2 Replacement of Fuse 7-2

7.3 Replacement of Battery....7-2

7.4 Simple Troubleshooting....7-3

7.4.1 General 7-3

7.4.2 Radar....7-4

7.4.3 Plotter 7-5

7.4.4 Sounder....7-6

7.5 Diagnostics 7-7

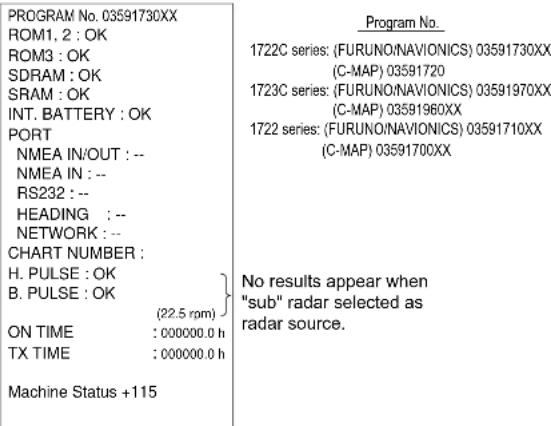

7.5.1 Memory I/O test 7-7

7.5.2 Test pattern....7-10

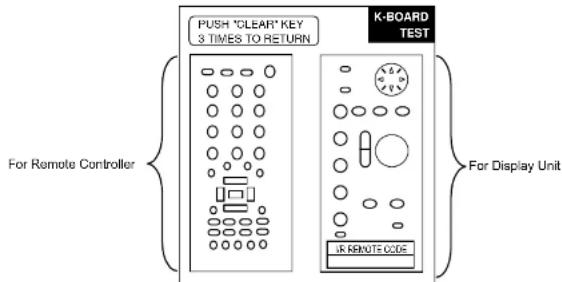

7.5.3 Keyboard, remote controller test 7-11

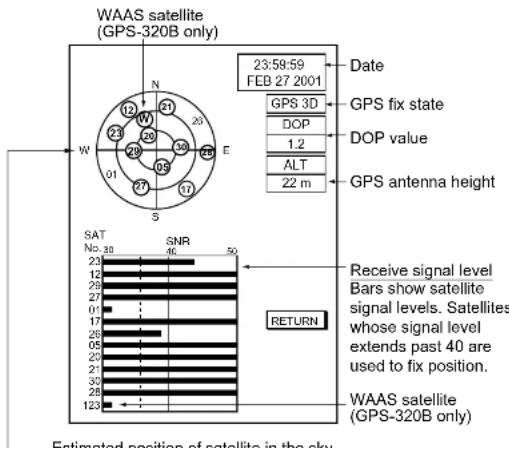

7.6 GPS Status Display 7-12

7.7 Clearing Memories....7-13

7.8 Error Messages....7-14

FOREWORD

A Word to the Owner of the MODEL1722/1722C/1723C Series Marine Radar

FURUNO Electric Company thanks you for purchasing the MODEL1722/1722C/1723C Series Marine Radar. We are confident you will discover why the FURUNO name has become synonymous with quality and reliability.

For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for quality and reliability throughout the world. This dedication to excellence is furthered by our extensive global network of agents and dealers.

Your radar is designed and constructed to meet the rigorous demands of the marine environment. However, no machine can perform its intended function unless properly installed and maintained. Please carefully read and follow the operation and maintenance procedures set forth in this manual.

We would appreciate feedback from you, the end-user, about whether we are achieving our purposes.

Thank you for considering and purchasing FURUNO.

FOREWORD

Features

The MODEL1722/1722C/1723C series work within our new product-network system called the "NavNet." Each product has an IP address to communicate with NavNet compatible products within the network, using TCP/IP protocol through an Ethernet 10 Base-T network.

The main features are

● Bright 7" screen visible even under direct sunlight.

MODEL1722 series: Monochrome LCD

MODEL1722C series: Color LCD

MODEL1723C series: High-precision color LCD

• User friendly operation with combination of discrete keys, soft keys and cursor pad.
• Accepts FURUNO and Nav-charts™ (NAVIONICS) or C-MAP NT/NT+ charts (C-MAP). All names mentioned are registered trademarks of their respective companies.
• Fast chart redraw.
  ● Built-in NavNet interface circuit board.
• 12-channel GPS Receiver GP-310B with highly accurate position fixing optionally available or GP-320B with WAAS (see the note in below.)
• User programmable function keys.
  ● Video sounder picture available with connection to optional network sounder.
  ● ARP function (when connecting with MODEL1833/1833C series)

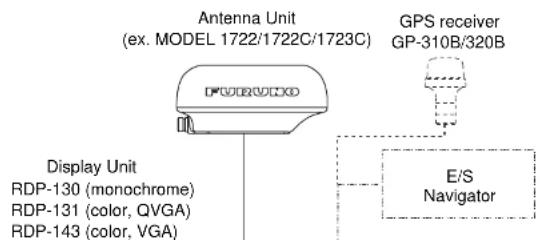

SYSTEM CONFIGURATIONS

All NavNet products incorporate a "network circuit board" to integrate each NavNet product on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is assigned an IP address to enable transfer of images between other NavNet products. For example, video plotter pictures can be transferred to a radar and vice versa. Pictures received via the NavNet may be adjusted at the receiving end.

The number of display units which may be installed depends on the number of network sounder connected. For a system incorporating three or more products, a "hub" is required to process data.

For one network sounder: one radar and three plotters For two network sounder: one radar and two plotters

NavNet system

SYSTEM CONFIGURATIONS

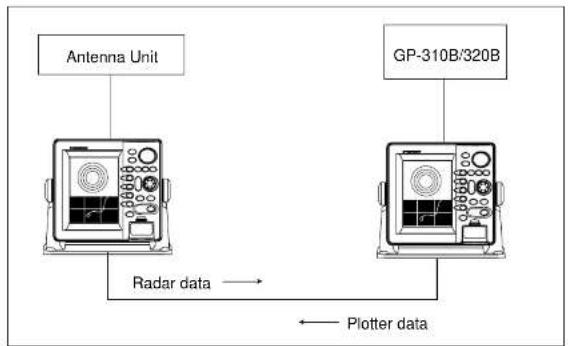

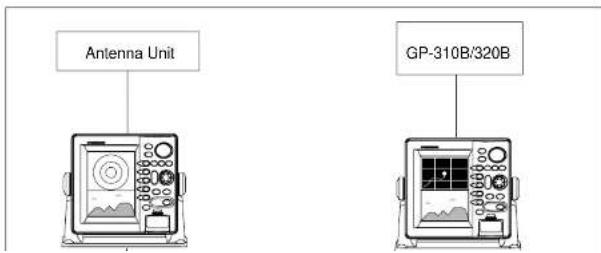

Two-unit NavNet system

Two-unit NavNet system

Three-or more unit NavNet system (Max. 4 NavNet capable display units)

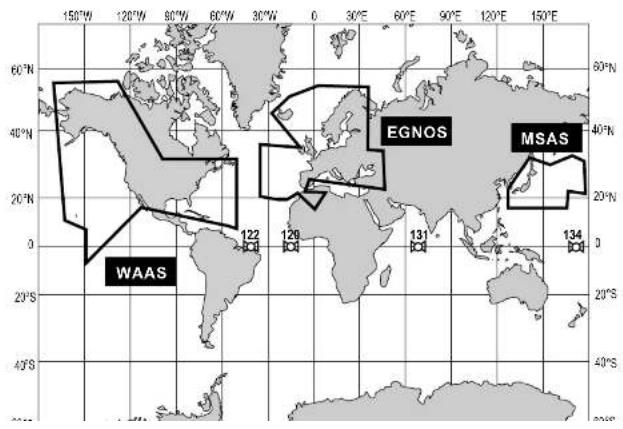

WHAT IS WAAS?

WAAS, available in North America, is a provider in the worldwide SBAS (Satellite Based Augmentation System) navigation system. SBAS provides GPS signal corrections to SBAS users, for even better position accuracy, typically better than three meters. Two more SBAS providers are also currently under development, MSAS (Multi-Functional Satellite Augmentation System) for Japan and EGNOS (Euro Geostationary Navigation Overlay Service) for Europe. All provides will be compatible with one another, thus providing "seamless" position fixes to SBAS users.

1. OPERATIONAL OVERVIEW

This chapter provides basic information needed to get you started using your radar. The follow topics are presented:

• Control overview
  • Chart card insertion
• Power on/off
• Contrast, brilliance and hue (Color series only) adjustments
• Display selection
• Data boxes
• Function keys

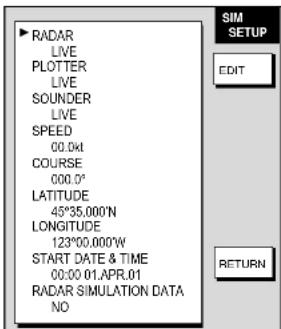

• Simulation display

NOTICE

The brilliance of the LCD is adjustable to match a wide variety of lighting conditions. However, its maximum setting may not be sufficiently bright to permit viewing of the display with polarized sunglasses.

1.1 Operating Controls

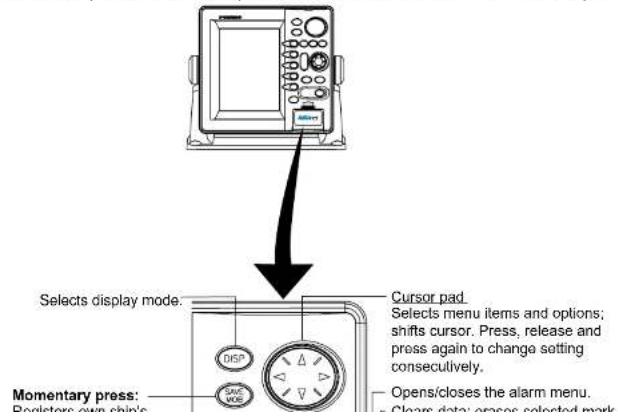

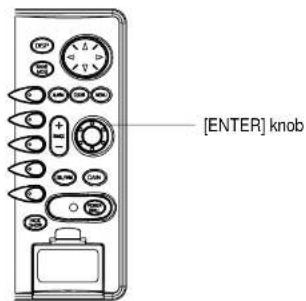

1.1.1 Display unit controls

Overview of display unit controls

The radar systems are mainly operated with controls of the display unit (and remote controller). Ten keys are labeled and they provide the function shown on their labels. The five soft keys provide various functions according to current operating mode. The [ENTER] knob mainly functions to register selections on the menu and enter alphanumeric data. The cursor pad's main function is to move the cursor across the screen. Whenever you operate a key, a single beep confirms operation. Invalid operation causes the unit to emit three beeps.

The five soft keys' functions change according to the operation. Their labels for their current functions are shown on the screen to the left of the keys. To hide or show the soft key labels, press the [HIDE/SHOW] key. Each press of the key shows preset soft keys, user function keys or turns off navigation information (at the top of the screen).

Display unit

Some soft keys show the current state of the soft key function in reverse video as shown below.

1. OPERATIONAL OVERVIEW

[ENTER] knob

The [ENTER] knob functions to

• Register data
• Enter alphanumeric data such as waypoint name
• Select menu items and options
• Adjust setting

Clockwise rotation of the knob selects an alphabet, symbol or numeric, in one of the sequences shown below. After you have selected desired alphanumeric character push the [ENTER] knob to register your selection.

ENTER knob

Alphabet, symbol, numeric

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z & _ 与 # 0 1 2 3

1. OPERATIONAL OVERVIEW

1.1.2 Remote controller

Operating distance

90°: Up to 5 m

+45°: Up to 3 m

Replace the batteries (AA) when the

distance from which the display

unit can be operated shortens.

Note: The remote controller may

become damaged if dropped.

Mishandling of the remote

controller is not covered by

the warranty.

Remote controller

Key	Function	Key	Function
RANGE	Same as RANGE key on display unit.	CLEAR	Same as CLEAR key on display unit.
DISP	Same as DISP key on display unit.	MENU	Same as MENU key on display unit.
SAVE MOB	Same as SAVE MOB key on display unit.	BRILL	Adjusts display

brilliance.

1.2 Inserting a Chart Card

Your unit reads FURUNO and Nav-Charts™ (NAVIONICS), or C-MAP chart cards, depending on its specifications. Insert the appropriate chart card for your area as follows:

1. Open the chart card slot lid.

Display unit

1. Insert desired chart card groove side up.
2. Close the lid to protect the chart drive.

Note 1: Do not insert or remove the chart card while turning power on. This may cause the equipment to freeze.
Note 2: Do not remove a card while the chart is being drawn. This may cause the equipment to freeze.
Note 3: A card remover is supplied to ease removal of chart cards. Attach the card remover to the card board side hole on the card and will be removed

1.3 Turning the Unit On/Off

Press the [POWER/BRILL] key to turn the unit on. A beep sounds and the equipment proceeds in the sequence shown below, displaying the product information screen, startup test results and the chart usage disclaimer, in that order. The startup test checks the ROM, RAM, internal battery and backup data for proper operation, displaying the results for each as OK or NG (No Good). If NG appears, an appropriate message appears on the screen. For any NG, try to press any key to go to the chart disclaimer screen, then perform the diagnostic test referring to the paragraph "7.5 Diagnostics."

The magnetron in the antenna unit takes about one minutes and thirty seconds to warm up before the radar can be operated. The time remaining for warm up of the magnetron appears at the center of the display, counting down from 1:30 to 0:01.

The cursor pad mainly functions to shift the cursor, for measurement of range and bearing to a location (radar) and latitude and longitude position (plotter). Operate the cursor pad to shift the cursor. The cursor moves in the direction of the arrow or diagonal pressed, on the cursor pad.

For the plotter display, the cursor can be turned off with the CENTER soft key. This also returns own ship marker to the screen center.

Cursor, cursor data

1.5 Display Brilliance, Panel Brilliance, Contrast, Hue

You can adjust display brilliance, panel brilliance, contrast and hue (MODEL1722C/1723C series only) as shown below.

1.5.1 Display brilliance, panel brilliance

1. Press the [POWER/BRILL] key momentarily. A set of soft keys for adjustment of brilliance, contrast and hue (MODEL1722C/1723C series only) appear. The last-used adjustment window appears. In the example below the display brilliance adjustment window is shown.

Brilliance adjustment soft keys

1. Press the [POWER/BRILL] key momentarily.
2. Press the CONTST (monochrome) or CONTST/HUE (color) soft key.
3. For MODEL1722C/1723C series, two soft keys appear at the pressing of the CONTST/HUE soft key: CONTST and HUE. Press the CONTST soft key to adjust the contrast.

Contrast window

1. Adjust the [ENTER] knob, clockwise to raise the setting or counterclockwise to decrease it. You may also use the CONTST soft key, in which case the item selected is adjusted cyclically, from low to high. 16 levels (monochrome) and 10 levels (color) of contrast are available.
2. Press the RETURN soft key to finish.

1.5.3 Hue (MODEL1722C/1723C series)

1. Press the [POWER/BRILL] key momentary.
2. Press the CONTST/HUE (MODEL1722C series) or HUE (MODEL1723C series) soft key.
3. Press the HUE soft key to show the hue setting window.

The mind

1.6 Selecting a Display

1.6.1 Display modes

If you have a navigator and network sounder connected, four full-screen displays are available: radar, plotter, and video sounder and navigation data. (MODEL1722C/1723C series have five screens, those mentioned above plus the overlay screen.) In addition to the full-screen display, you can divide the screen into half-screen combination displays to show two sets of images (data).

Full screen (Ex. radar)

Combination screen (Ex. radar + sounder)

Overlay screen (Radar and plotter, color model only. Requires L/L data)

Display screens

The table below shows the displays available with each screen type.

Screen type and available display screen

Full screen	Combination screen options	Overlay screen options (Color series only)
Radar, plotter, sounder, nav data	Radar, plotter, echo sounder, compass, highwav.	Radar + plotter

1. Press the [DISP] key to show the full-screen selection window. The icons of modes not available are marked with "X" mark. PAGE1-PAGE5 are user-arrangeable displays called "hot pages," which you can configure as you like. For further details, see "5.6 Hot Page Setup."

Full-screen selection window ("overlay" for color model)

1. Rotate the [ENTER] knob to select a basic display screen or a hot page screen.

2. Push the [ENTER] knob. If you selected a basic display screen, a set of combination display screens corresponding to the basic display screen that was selected appear. In the example below, radar combination displays are

3. OPERATIONAL OVERVIEW

1.6.3 Switching control in combination and overlay screens

A soft key is provided in relevant combination and overlay screens (color series only) to switch control between displays. In the example below, the RADAR CNTRL and PLOTTR CNTRL soft keys enable switching control between the radar and plotter screens in the plotter/radar combination display.

Radar display selected
Plotter display selected

How to switch control between modes in the plotter/radar combination display

1. OPERATIONAL OVERVIEW

1.6.4 Selecting radar source

When other network radar is connected to the equipment, you may select an image source as shown below. This is not necessary when no other network radar is connected. Select one host name for the source though there are two or three radar units on the net.

Note: Turn the power off whenever changing the source.

1. Press the [DISP] key.
2. Press any soft key to show the following display.

*: Do not change this setting.

Select source menu

1. Use the cursor pad to select RADAR SOURCE and press the EDIT key.

1.7 Data Boxes

Data boxes, providing navigation data, may be shown on any full-screen display. Up to six data boxes (two in case of large characters) may be shown, and the default data boxes are position (in latitude and longitude), course over ground, speed over ground, trip log and cursor position. The user may choose which data to display, where to locate it, and show or hide it as desired. In addition, data boxes may be set independently for each display mode (radar, plotter, sounder). For how to select data for the data boxes, see paragraph "5.5 Data Boxes Setup".

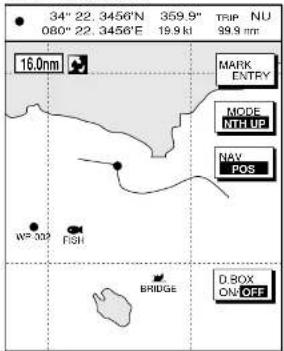

Plotter display, showing data boxes

1.7.1 Showing, hiding data boxes with soft key

The function keys provide for one-touch call up of a desired function. The default function key settings are as shown in the table below.

Function Key	Default Setting, Key Label
	Radar	Plotter	Echosounder
#1	Heading line on/off, HL	Track on/off, TRK TLL	output, TLL
#2 Rings	on/off, RNG Edit mark/line, EML Clutter, CLT
#3 Echo trail, TRL Ruler, RUL Signal level, SLV
#4	Offcenter, SFT	Add new waypoint, ADD	Noise limiter, NL
#5	Radar source,	WaypoiRSR alphanumeric list, ALP	Picture advance, PA

1.8.1 Executing a function

1. Press the [HIDE/SHOW] key to replace the preset soft key labels with the function key labels.

The simulation display, for use by service technicians for demonstration purposes, provides simulated operation to help acquaint you with the many features your unit has to offer. It allows you to view and control a simulated plotter, radar and sounder picture, without position-fixing equipment, network radar or a network sounder. Most controls are operative, thus you may practice setting destination, enter waypoints, measure range and bearing to a target, etc.

The simulation icon (S) appears when any simulation mode is active.

To start the simulation display;

1. Press the [MENU] key.
2. Press the SYSTEM CONFIGURATION, SYSTEM SETUP and SIMULATION SETUP soft keys in that order.

1. OPERATIONAL OVERVIEW

Antenna unit-generated echoes

1. Select RADAR SIMULATION DATA, then press the EDIT soft key.
2. Select YES and push the [ENTER] knob to erase simulation data and get new data. The message "Now getting demo data. Do not turn off display unit." appears while the unit is receiving radar data.

Note: If the network radar could not be found "Radar source is not found. Cannot get demo data." appears. Wait one minute after the message disappears. Actual time may be longer depending on the system configuration. And if the radar is not active, the message "Radar is not active. Cannot get demo data." is displayed. Check that the radar is plugged in and its signal cable is firmly fastened.

1. Select RADAR, then press the EDIT soft key.
2. Select SIMULATION 2, then press the [ENTER] knob.
3. Press the [MENU] key to close the menu.

Plotter

1. Select PLOTTER, then press the EDIT soft key.

1. Select SIMULATION, then press the [ENTER] knob.
2. Select SPEED and press the EDIT soft key.
3. Enter speed (setting range, 0-99 kt, default speed, 0 kt) with the alphanumeric keys and push the [ENTER] knob.

4. Select COURSE and press the EDIT key

5. OPERATIONAL OVERVIEW

Sounder

1. Select SOUNDER, then press the EDIT soft key.

1. Select SIMULATION 1 (internally generated echoes) or SIMULATION 2 (network sounder-generated echoes), then press the [ENTER] knob. Note: The depth, shift, bottom-zoom, bottom-lock and bottom discrimination displays cannot be shown at SIMULATION 1 mode.

2. Press the [MENU] key to close the menu.

1. OPERATIONAL OVERVIEW

This page is intentionally left blank.

2. RADAR OPERATION

This chapter covers radar operation, including the ARP (Automatic Radar Plotting) function. ARP requires connection of MODEL1833/1833C series network radar equipped with the ARP circuit board.

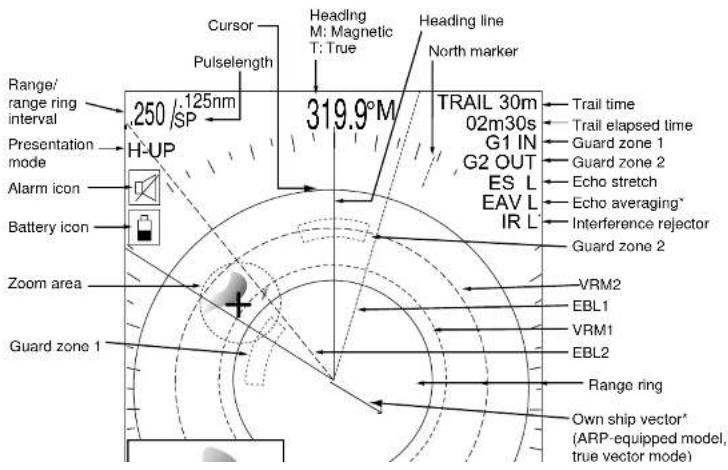

2.1 Radar Display

1. RADAR OPERATION

2.2 Transmitting, Stand-by

1. Turn the power on. The products information appears and is then followed by the radar screen. You can display the radar screen at once by pressing the any key.
2. Press the [POWER/BRILL] key momentarily.
3. Press the RADAR STBY soft key to highlight TX on its label.
4. When the radar picture is not required, but you want to keep it in a state of readiness, press the [POWER/BRILL] key momentarily followed by RADAR TX soft key.
5. Press the RETURN soft key to finish.

2.3 Tuning

The radar receiver can be tuned automatically or manually, and the default tuning method is automatic. To adjust manually or switch to automatic tuning, do the following:

1. Press the [MENU] key to display the main menu.
2. Press the RADAR DISPLAY SETUP soft key.
3. Select TUNING and press the EDIT soft key.

Tuning window

1. Choose MAN or AUTO as appropriate.
2. For manual tuning, adjust the [FNTFR] knob until the tuning bar is at its

2. RADAR OPERATION

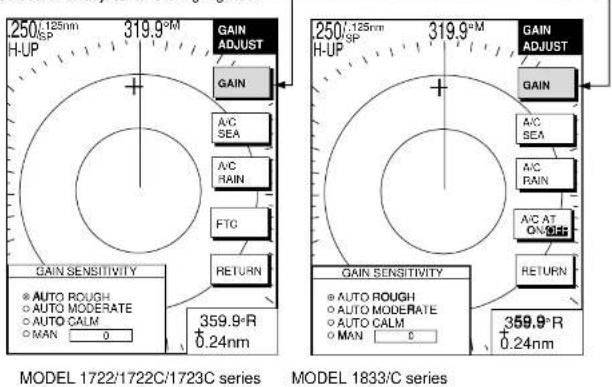

To adjust the receiver gain, transmit on long range, and then do the following:

1. Press the [GAIN] key. The last-used "adjustment window" is displayed. In the example below, the gain sensitivity adjustment is shown.

Item selected for adjustment is highlighted.

Gain adjustment soft keys

1. If the gain sensitivity window is not displayed, press the GAIN soft key to show it.

1. RADAR OPERATION

2.5 Reducing Sea Clutter

2.5.1 How the A/C SEA works

Echoes from waves can be troublesome, covering the central part of the display with random signals known as "sea clutter". The higher the waves and the higher the antenna is above the water, the further the clutter will extend. Sea clutter may affect radar performance because real targets are sometimes hidden by the echoes of small waves. (See the left-hand figure in the figure below.) When sea clutter masks the picture, adjust the A/C SEA to reduce the clutter.

The A/C SEA reduces the amplification of echoes at short ranges (where clutter is the greatest) and progressively increases amplification as the range increases, so amplification will be normal at those ranges where there is no sea clutter.

Sea clutter at screen center

A/C SEA adjusted; sea clutter suppressed

Effect of A/C SEA

2.5.2 Adjusting A/C SEA

A/C SEA should be adjusted so that the clutter is broken up into small dots, and small targets become distinguishable.

1. RADAR OPERATION

2. When the radar source is the Model 1833/C series radar, A/C SEA and A/C RAIN can be automatically adjusted. Press the A/C AT soft key to select ON or OFF as appropriate. When turned on, it overrides A/C SEA and A/C RAIN settings.

3. Press the [GAIN] key on the front panel or RETURN soft key to finish.

2.6 Reducing Precipitation Clutter

The vertical beamwidth of the antenna is designed to see surface targets even when the ship is rolling. However, by this design the unit will also detect rain clutter (rain, snow, hail, etc.) in the same manner as normal targets. Precipitation clutter shows as random dots on the screen.

2.6.1 Adjusting the A/C RAIN

When echoes from precipitation mask solid targets, adjust the A/C RAIN. This split up these unwanted echoes into a speckled pattern, making recognition of solid targets easier.

1. Press the [GAIN] key.
2. Press the A/C RAIN soft key to show the A/C RAIN window.

A/C RAIN setting window

1. Rotate the [ENTER] knob to adjust the A/C RAIN affect. The current level is shown on the A/C RAIN level bar in the A/C RAIN window, and the range of adjustment is 0 to 100. Do not overadjust the A/C RAIN – weak target echoes may be missed.

2. RADAR OPERATION

2.6.2 Adjusting the FTC

To suppress rain clutter from heavy storms or scattered rain clutter, adjust the FTC. The FTC splits up these unwanted echoes into a speckled pattern, making recognition of solid targets easier.

Note: In addition to reducing clutter, the FTC can be used in fine weather to clarify the picture when navigating in confined waters. However, with the circuit active the receiver is less sensitive. Therefore, turn off the FTC, by setting it for "0", when its function is not required.

FTC is available when the radar source is the MODEL1722/1723C series radar.

1. Press the [GAIN] key.
2. Press the FTC soft key to show the FTC window.

FTC setting window

1. Rotate the [ENTER] knob to adjust. The range of adjustment is 0-100. Do not overadjust the FTC – weak target echoes may be missed.
2. Press the [GAIN] key on the front panel or RETURN soft key to finish.

2.7 Range Scale

The range setting determines the size of the area (in nautical miles) that will appear on your display. In addition, the range setting will also automatically adjust the range ring interval so that accurate range measurements may be made while operating on any range setting.

The range, range ring interval and pulselength appear at the top left-hand corner of the display.

Press the [RANGE (+ or -)] key to change the range scale.

Range scales (nm, sm)

Range	0.125	0.25	0	5	0.75	1	1.5	2	3	4	6		8	12	16	24	36	48
Ring Interval	0.0625	0.125	0.125	0.25	0.25	0.5	0.5	1	1	2	2	3	4	6	12	12	16	18
No. of Rings	2	2	4	3	4	3	4	3	4	3	4	4	4	4	3	4	4	4

Range scales (km)

Range	0.25	0.5	0.75	1	1.5	2	3	4	6	8	12	16	24	36	48	64	72
Ring Interval	0.125	0.25	0.25	0.25	0.5	0.5	1	1	2	2	3	4	6	12	12	16	18
No. of Rings	2	2	3	4	3	4	3	4	3	4	4	4	4	3	4	4	4

Note 1: Maximum range depends on the network radar as shown below.

1. RADAR OPERATION

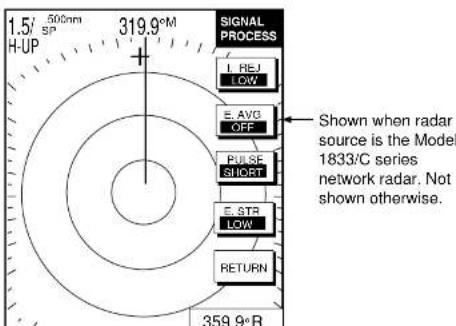

2.8 Pulselength

The pulselength in use is displayed at the upper left corner of the display. Appropriate pulselengths are preset to individual range scales. Therefore, you are not usually required to select them. If you are not satisfied with the current pulselength setting, however, it is possible to change it for the 1.5 and 3nm (sm) ranges (3 and 6 kilometer ranges) as below. Generally, select a longer pulse for longer detection range and shorter pulse for better range discrimination.

1.5 nm, 1.5 sm, 3 km: Short pulse, medium pulse 3 nm, 3 sm, 6 km: Middle pulse, long pulse

1. Press [HIDE/SHOW] key to show the radar soft keys.
2. Set the range to 1.5 or 3 nm, whichever you want to set.

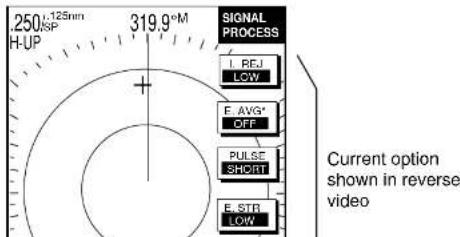

3. Press the SIGNAL PROC. soft key.

1. RADAR OPERATION

2.9 Presentation Mode

This unit provides four radar presentation modes: head-up, course-up, north-up and true motion.

Heading data is required for modes other than head-up. (When you use the network radar, input the radar source.)

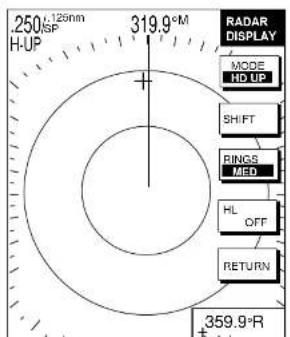

2.9.1 Selecting a presentation mode

1. Press [HIDE/SHOW] key to show the radar soft keys.
2. Press the RADAR DISPLAY soft key to show the RADAR DISPLAY soft keys.

1. RADAR OPERATION

2.9.2 Description of presentation modes

Head-up

A display without azimuth stabilization in which the line connecting the center with the top of the display indicates own ship's heading. The targets are painted at their measured distances and in their directions relative to own ship's heading.

The short line on the bearing scale is the north marker.

Head-up presentation mode

Course-up

The radar picture is stabilized and displayed with the currently selected course at the top of the screen. As you change heading, the ship's heading marker moves. If you select a new course, the picture resets to display the new course at the top of the display.

North Marker / Heading Line

2. RADAR OPERATION

North-up

In the north-up mode, targets are painted at their measured distances and in their true (compass) directions from own ship. North is maintained at the top of the screen. The heading line changes its direction according to the ship's heading.

North-up presentation mode

True motion

Fixed radar targets maintain a constant position on the screen, while your own ship moves across the radar image at the correct speed and heading. A map-like image is displayed, with all moving vessels traveling in true perspective to each other and to fixed landmasses. As your ship's position approaches the edge of the screen, the radar display is automatically reset to reveal the area ahead of your ship. You can manually reset your ship's position at any time by pressing the RADAR DISPLAY soft key followed by the SHIFT soft key.

North Heading Line

1. RADAR OPERATION

2.10 Measuring the Range

You can measure the range to a radar target three ways: by the range rings, by the cursor, and by the VRM (Variable Range Marker).

2.10.1 Measuring range by range rings

Count the number of rings between the center of the display and the target. Check the range ring interval and judge the distance of the echo from the inner edge of the nearest ring.

To turn the range rings on, do the following:

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the RADAR DISPLAY soft key.

1. RADAR OPERATION

2.10.2 Measuring range by cursor

Operate the cursor pad to place the cursor intersection on the inside edge of the radar target. The range to the target, as well as the bearing, appears to the right of "+" at the bottom of the display.

How to measure range and bearing to a target with the cursor

1. RADAR OPERATION

2.10.3 Measuring range by VRM

1. Press the [EBL/VRM] key to display the EBL/VRM soft keys.

EBL/VRM soft keys

1. Press the VRM1 ON (dotted ring VRM) or VRM2 ON (dashed ring VRM) soft key to select the desired VRM. The selected VRM's indication, at the bottom of the screen, is highlighted.
2. Rotate the [ENTER] knob the place the VRM on the inside edge of a radar target. Read the VRM indication to find range to the target.
3. You may hide the EBL/VRM soft keys by pressing the [EBL/VRM] key.

1. RADAR OPERATION

2.10.4 Erasing a VRM, VRM indication

Press appropriate VRM soft key and press the [CLEAR] key. The VRM is erased, and its indication becomes blank.

2.10.5 Erasing EBL/VRM data boxes

Press the EBL or VRM soft key associated with the EBL/VRM data box you wish to erase. Press the [CLEAR] key once or twice to erase the data box.

2.10.6 Hiding EBL/VRM data boxes

Press the ZOOM & D. BOX and D. BOX ON/OFF soft keys to show or hide the EBL/VRM data boxes.

2.10.7 Moving EBL/VRM data boxes

When an EBL/VRM data box is obscuring a target that you need to see, you can move it to another location as shown below. This cannot be done when the EBL/VRM soft keys are shown.

1. Press the [EBL/VRM] key to erase the EBL/VRM soft keys if shown.
2. Using the cursor pad, place the cursor inside the data box you wish to move. As the cursor enters the box it changes to a "hand." Push the [ENTER] knob, and the hand changes to a fist, meaning the data box is correctly selected.
3. Use the cursor pad to drag the data box to the location desired and push the [ENTER] knob.

2.11 Measuring the Bearing

2. RADAR OPERATION

Active marker is highlighted.
How to measure bearing with the EBL
Note: Bearing can be shown Relative to ship's heading (relative) or in reference to North (True). This setting may be changed by changing the EBL REFERENCE setting, which is in the RADAR DISPLAY SETUP menu. See the paragraph "5.2.1 Radar display setup."

2.11.3 Erasing an EBL, EBL indication

Press appropriate EBL soft key and press the [CLEAR] key. The EBL is erased and its indication becomes blank.

2.11.4 Erasing EBL/VRM data boxes

2.12 Erasing the Heading Line, North Marker

The heading line indicates the ship's heading in all presentation modes. The heading line is a line from the own ship position to the outer edge of the radar display area and appears at zero degrees on the bearing scale in head-up mode; it changes its orientation depending on the ship orientation in north-up, course-up and true motion modes.

The north marker appears as a short dashed line. In the head-up and course-up modes the north marker moves around the bearing scale as the ship's heading moves.

To temporarily erase the heading line and north marker, press the RADAR DISPLAY soft key followed by the HL OFF soft key. Release the key to redisplay the markers.

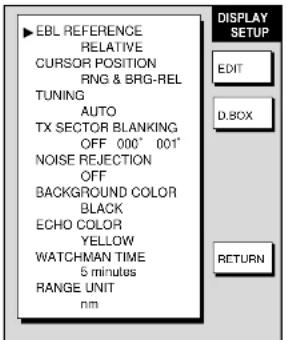

2.13 Reducing Noise

Noise, appearing on the displays as random "speckles," can be reduced as follows:

1. Press the [MENU] key to open the menu.
2. Press the RADAR DISPLAY SETUP soft key.
3. Select NOISE REJECTION and press the EDIT soft key.
4. Select OFF, HIGH or LOW as appropriate.
5. Press the ENTER soft key or the [ENTER] knob.

6. Press the [MENU] key to close the menu.

7. RADAR OPERATION

2.14 Reducing Radar Interference

Radar interference may occur when near another shipborne radar that is operating in the same frequency band as your radar. Its on-screen appearance looks like many bright dots either scattered at random or in the form of dotted lines extending from the center to the edge of the display. Interference effects are distinguishable from normal echoes because they do not appear in the same place on successive rotations of the scanner.

Be sure to turn off the interference rejection circuit when no interference exists – weak targets may be missed.

Circular diagram with radial dashed lines and a central star, no text or symbols present

Radar interference

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the SIGNAL PROC. soft key.

1. RADAR OPERATION

2.15 Zoom

The zoom feature allows you to double the size of the area selected with the zoom circle, which appears at the bottom right- or left-hand corner on the display. The zoom feature is available on any range but is inoperative in true motion and when the display is shifted.

2.15.1 Zooming in on radar targets

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the ZOOM & D. BOX soft key to show ZOOM D. BOX soft keys.
3. Press the ZOOM ON/OFF soft key to select ON. A solid circle, called the "zoom circle," appears on the display.
4. Use the cursor pad to set the cursor where you want to zoom.
5. Press the CURSOR FLOAT soft key to fix the zoom cursor position. (The solid circle changes to a dashed one.)
6. To release the cursor, press the CURSOR FLOAT soft key. (The dashed circle changes to a solid one.) Relocate the zoom cursor, then press the CURSOR LOCK key.
7. To quit the zoom function, press the ZOOM ON/OFF soft key to select OFF.

2. RADAR OPERATION

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the ZOOM/D.BOX soft key to show ZOOM D.BOX soft keys.
3. Press the ZOOM soft key to select ZOOM ON.
4. Press the ARP TGT ZM soft key.

Target no. selection window

1. Use the [ENTER] knob to select number (1-10) and then push the [ENTER] knob. If the target does not exist several beep sounds and the zoom function is cancelled.

To cancel, press the CURSOR LOCK soft key.

Note: The zoom window blends in with the background when the background color for the radar picture is white. If the window is difficult to see change the background color.

2.16 Shifting the Picture

Own ship position, or sweep origin, can be displaced manually or automatically to expand the view field without switching to a larger scale.

2.16.1 Manual shift

The sweep origin can be shifted in any presentation mode to a point specified by the cursor by up to 60% of the range in use in any direction.

1. RADAR OPERATION

Shifting the picture manually

2.16.2 Automatic shift

In the head-up mode, the amount of shift is automatically calculated with speed. The maximum shift amount is limited to 60% of the range in use. For example, if you set the shift speed setting for 15 knots and the ship is running at 10 knots, the amount of shift will be 40%. The formula for determining shift amount is as shown below.

$$ \frac {\text { Ship's speed }}{\text { Shift speed setting }} \times 0. 6 = \text { Amount of shift } (\%) $$

Setting automatic shift maximum speed

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the RADAR DISPLY soft key.
3. Press the SHIFT soft key to show the shift soft keys.
4. Press the AUTO S.SPD soft key to display the auto ship speed setting

2. RADAR OPERATION

2.17 Using the Offset EBL

The offset EBL can be used to predict a potential collision course, and can also be used to measure the range and bearing between two targets.

2.17.1 Predicting a collision course

The procedure below may be used to check if a radar target is on a collision course with your vessel.

1. Press the [EBL/VRM] key to show the EBL/VRM soft keys.
2. Press the EBL1 ON soft key to turn on the EBL1.
3. Press the OFFSET soft key. The origin of EBL1 moves to the cursor position and an "X" appears at the cursor position.
4. Use the cursor pad to place the cursor on the radar target which looks like it might be on a collision course with own ship.
5. Push the [ENTER] knob to fix the origin position.
6. After waiting for a few minutes (at least three minutes), rotate the [ENTER] knob so the EBL bisects the target at the new position. If the target tracks along the EBL towards the center of the display (your ship's position), the target may be on a collision course.
7. To cancel the offset EBL, press the OFFSET soft key.

1. RADAR OPERATION

2.17.2 Measuring range & bearing between two targets

The procedure which follows shows how to measure the range and bearing between two targets, using the targets "A" and "B" in the figure below as an example.

1. Operate the cursor pad to place the cursor on the target "A".
2. Press the [EBL/VRM] key to show the EBL/VRM soft keys.
3. Press the EBL1 ON soft key to turn on the EBL1.
4. Press the OFFSET soft key. The origin of EBL1 and VRM1 moves to the cursor position, which is marked with an "X."
5. Rotate the [ENTER] knob so the EBL bisects the target "B".
6. Press the [ENTER] knob.
7. Press the VRM1 ON soft key and then rotate the [ENTER] knob to place the VRM1 on the inner edge of the target "B".
8. Look at the indications for VRM1 and EBL1 to find the range and bearing between the two targets.
9. To cancel the offset EBL, press the OFFSET key.

1. RADAR OPERATION

2.18 Echo Trails

Echo trails are simulated afterglow of target echoes that represent their past movements relative to own ship. This function is useful for alerting you past possible collision situations.

Sample echo trails

2.18.1 Trail time

1. If not displayed, press the [HIDE/SHOW] key to show the radar soft keys.
2. Press the TARGET soft key.
3. Press the TRAIL soft key.

2. RADAR OPERATION

1. Use the cursor pad to select time desired.
2. Press the ENTER soft key to finish.

2.18.2 Starting echo trails

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the TARGET and TRAIL soft keys.
3. Press the TRAIL ON/OFF to select ON.
4. Press the RETURN soft key twice to finish.

"TRAIL," the echo trail time selected and elapsed time appear at the top right-hand corner of the display. Then, afterglow starts extending from all targets. Trails are restarted when the range or mode is changed, and zoom or shift is turned on.

For continuous trails the maximum continuous trail time is 99 minutes and 59 seconds. When the elapsed time clock counts up to that time, the elapsed time display resets to zero and trail begins again.

To turn off echo trail, press the TRAIL ON/OFF soft key to select OFF at step 3 n the above procedure.

Note: No echo trails are shown where a tx sector blanking area is set.

2.18.3 Trail brilliance (MODEL1722 series)

Trail brilliance can be selected to high or low as below.

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the TARGET and TRAIL soft keys.

2.18.3 Trail brilliance (MODEL1722 series) Trail brilliance can be selected to high or low 1. If not displayed, press the [HIDE/SHOW] 2. Press the TARGET and TRAIL soft keys

1. RADAR OPERATION

2.18.5 Trail color (MODEL1722C/1723C series)

The MODEL1722C/1723C series may be shown echo trails in blue, yellow, green or white.

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the TARGET, TRAIL and TRAIL COLOR soft keys.

Trail color window

1. Use the cursor pad to select the color desired.
2. Press the ENTER soft key
3. Press the RETURN soft key twice to finish.

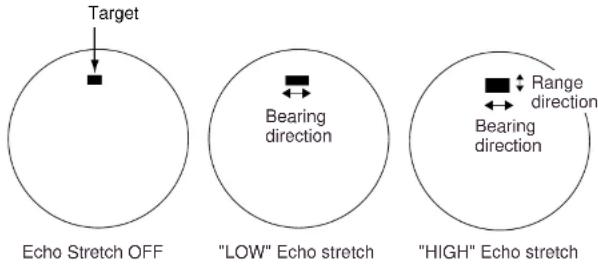

2.19 Echo Stretch

Normally, the reflected echoes from long range targets appear on the display as weaker and smaller blips even though they are compensated by the radar's internal circuitry. The echo stretch function magnifies these small blips in all ranges. Two types of echo stretch are available: ES LOW which stretches echoes in bearing direction and ES HIGH which stretches them in both range and bearing directions.

Types of echo stretch

This function magnifies not only targets but also sea clutter and radar interference. For this reason, be sure sea clutter and radar interference are properly suppressed before activating the echo stretch.

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the SIGNAL PROC. soft key.
3. Press the E. STR soft key to select HIGH, LOW or OFF as appropriate.
4. Press the RETURN soft key to finish.

2. RADAR OPERATION

2.20 Echo Averaging

The echo average feature, available with selection of a Model 1833/C series network radar as radar source, effectively suppresses sea clutter. Echoes received from stable targets such as ships appear on the screen at almost the same position during every rotation of the antenna. On the other hand, unstable echoes such as sea clutter appear at random positions.

To distinguish real target echoes from sea clutter, echo average performs scan-to-scan correlation. Correlation is made by storing and averaging echo signals over successive picture frames. If an echo is solid and stable, it is presented in its normal intensity. Sea clutter is averaged over successive scans resulting in the reduced brilliance, making it easier to discriminate real targets from sea clutter.

To properly use the echo average function, it is recommended to first suppress sea clutter with the A/C SEA control and then do the following:

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the SIGNAL PROC. soft key.
3. Press the E. AVG soft key to select desired echo averaging.

OFF: No averaging

LOW: Helps distinguish targets from sea clutter and suppresses brilliance of unstable echoes.

MED: Distinguishes small stationary targets such as navigation buoys.

HIGH: Stably displays distant targets.

The display shows EAV L, EAV M or EAV H when echo averaging is on.

1. RADAR OPERATION

2.21 Outputting TLL Data

Target position data can be output to units of the network and shown on their plotter screen, with the waypoint mark. This function requires position and heading data.

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Operate the cursor pad to place the cursor on the target whose position you wish to output.
3. Press the TARGET soft key.

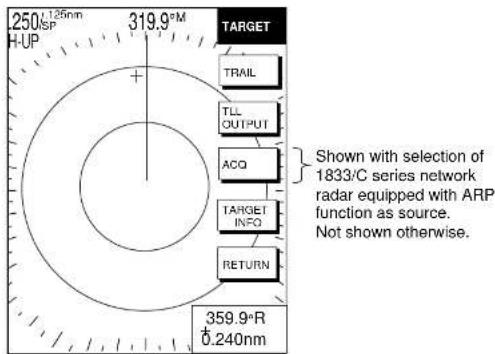

TARGET soft keys

1. Press the TLL OUTPUT soft key to output target position data.
2. Press the RETURN soft key to finish.

2. RADAR OPERATION

2.22 Guard Alarm

The guard alarm allows the operator to set the desired range and bearing for a guard zone. When ships, islands, landmasses, etc. violate the guard zone, an audio alarm sounds and the offending target blinks to call the operator's attention.

CAUTION

• The alarm should not be relied upon as the sole means for detecting possible collision situations.
• A/C SEA, A/C RAIN and GAIN controls should be properly adjusted to be sure the alarm system does not overlook target echoes.

2.22.1 Setting a guard alarm zone

To set a guard alarm zone, set the radar to transmit and do the following:

1. Press the [ALARM] key.
2. Use the cursor pad to set the cursor on the top left corner (or top right corner) of the guard zone you want to set, then press the SET GUARD1 or SET GUARD2 soft key, depending on which guard zone you want to set.

3. Use the cursor pad to set the cursor on the bottom right corner (or top left corner) of the guard zone area and push the [ENTER] knob.

4. Press RETURN soft key to finish.

2. RADAR OPERATION

The equipment then searches for targets inside the guard zone to determine the guard alarm type. If a target is found inside the guard zone the guard zone type becomes an "Outward guard alarm", and any target exiting, the guard zone will trigger an alarm. If no target is found the guard zone type becomes an "Inward guard alarm", and any targets entering the guard zone will trigger the alarm. The guard alarm type is shown as G1 (G2) IN or G1(G2) OUT.

Note 1: When the radar range is less than the guard zone range, "G1 (G2) IN" or "G1 (G2) OUT" changes to "G1 (G2) ***." The guard alarm function is not available while this indication appears.

Note 2: If the network radar is set to standby while the guard alarm is active, the guard alarm is cancelled. The guard alarm is redisplayed when the radar is set to transmit again.

2.22.2 When the alarm is violated...

Any radar target violating the guard zone will flash, the audio alarm sounds, and the alarm icon appears (red on the color model). Additionally the message "TARGET ENTERED INTO GUARD1(GUARD2)" or "TARGET LEFT FROM GUARD1(GUARD2)" is displayed at the bottom of the screen, depending on the guard zone type. Press the [CLEAR] key to silence the alarm.

2.22.3 Canceling the guard alarm

1. Press the [ALARM] key to show the ALARM menu.
2. Press the ERASE GUARD1 or ERASE GUARD2 soft key as appropriate.
3. Press the RETURN soft key to finish.

2. RADAR OPERATION

2.23 Watchman

2.23.1 How watchman works

The watchman function periodically transmits radar pulses for one minute to check for targets in a guard zone. If a target is found in the zone, watchman is cancelled, the audio alarm sounds and the radar continues transmitting. If no target is found the radar goes into standby, for the number of minutes selected on the RADAR DISPLAY SETUP menu. This feature is useful when you do not need the radar's function continuously but want to be alerted to radar targets in a specific area. "WTCH" appears at the top left corner when Watchman is active.

How watchman works

2.23.2 Turning on/off watchman

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the NAV FUNC soft key.
3. Press the W. MAN ON/OFF soft key to select ON or OFF as appropriate.
4. Press RETURN soft key to finish.

Note: When the watchman is activated and no guard zone is active, the message "PLEASE SET GUARD ZONE. PUSH ANY KEY TO CONTINUE." appears. Press any key and then set a guard zone.

1. RADAR OPERATION

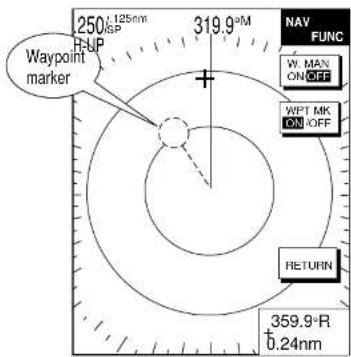

2.24 Waypoint Marker

A waypoint marker, showing waypoint position output from a navigation device, may be inscribed on the radar display. You may show or hide this marker as desired.

Waypoint marker

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the NAV FUNC soft key.
3. Press the WPT MK ON/OFF soft key to select ON or OFF as appropriate.
4. Press the RETURN soft key to finish.

2.25 ARP (option), TTM operation

When the radar source is ARP-equipped Model 1833/C series network radar, you can manually and automatically acquire and track 10 targets. Once a target is acquired automatically or manually it is automatically tracked within 0.1 to 32 nm. When the FURUNO heading sensor PG-1000 is connected, RMC sentence (NMEA) is required for true heading data.

Alternatively, you can display the tracks of other ships by receiving the data sentence "TTM" through the NETWORK or NMEA port. However, targets cannot be acquired.

Usage precautions for ARP

WARNING

No one navigational aid should be relied upon for the safety of vessel and crew. The navigator has the responsibility to check all aids available to confirm position. Electronic aids are not a substitute for basic navigational principles and common sense.

- This auto plotter automatically tracks an automatically or manually acquired radar target and calculates its course and speed, indicating them by a vector. Since the data generated by the auto plotter are based on what radar targets are

CAUTION

The plotting accuracy and response of this auto plotter meets IMO standards. Tracking accuracy is affected by the following:

• Tracking accuracy is affected by course change. One to two minutes is required to restore vectors to full accuracy after an abrupt course change. (The actual amount depends on gyrocompass specifications.)
  • The amount of tracking delay is inversely proportional to the relative speed of the target. Delay is on the order of 15-30

• RADAR OPERATION

2.25.1 Activating/deactivating ARP, TTM

1. Press the [MENU] key followed by the ARP SETUP soft key to show the ARP SETUP menu.

ARP setup menu

1. Select ARP TARGET INFO, and then press the EDIT soft key to show the ARP target info window.

ARP target info window

1. Select INTERNAL ARP, EXTERNAL ARP or OFF as appropriate.

2. RADAR OPERATION

2.25.2 Acquiring and tracking targets (ARP only)

Ten targets may be acquired and tracked manually and automatically. When you attempt to acquire an eleventh target, the message "ARP FULL - ALREADY TRACKING 10 TARGETS!" appears for five seconds. To acquire another target, terminate tracking of an unnecessary target as shown in the paragraph 2.25.4.

Manual acquisition

1. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
2. Press the TARGET soft key.
3. Place the cursor on the target to acquire and press the ACQ soft key.
4. Press the RETURN soft key.

The plot symbol changes its shape according to its status as below. A vector appears about one minute after acquisition, indicating the target's motion trend.

* = Target number shown when TARGET ID NUMBER is turned on in the ARP SETUP menu.

ARP plot symbols

Automatic acquisition

The ARP can acquire up to ten targets automatically by setting an automatic acquisition area. When automatic acquisition is selected after acquiring targets

2. RADAR OPERATION

1. Press the [MENU] key to close the menu. An acquisition area of 2.0 to 2.5 miles in range and ± 45^ on either side of the heading line in bearing appears.

Note: Targets being tracked in automatic acquisition are continuously tracked when switching to manual acquisition.

Automatic acquisition area

2.25.3 Displaying target number (internal, external ARP)

Target number can be shown for ARP and TTM targets as below.

1. RADAR OPERATION

2.25.4 Terminating tracking of ARP targets

When 10 targets have been acquired, no more targets may be acquired unless targets are cancelled. If you need to acquire additional targets, you must first cancel one or more individual targets, or all of the targets, using one of the procedures below.

Terminating tracking of selected targets

1. Place the cursor on the target to terminate tracking.
2. Press the [CLEAR] key to erase to terminate tracking and erase the target.

Terminating tracking of all targets

1. Press the [MENU] key followed by the ARP SETUP soft key.
2. Select CANCEL ALL TARGETS.
3. Press the EDIT soft key.

Cancel all targets window

1. Select YES.
2. Press the ENTER soft key.

3. Press the [MENU] key to close the menu.

4. RADAR OPERATION

2.25.5 Setting vector attributes (ARP)

What is a vector?

A vector is a line extending from a tracked target which shows speed and course of the target. The vector tip shows an estimated position of the target after the selected vector time elapses. It can be useful to extend the vector length in order to evaluate the risk of collision with any target.

Vector

Vector reference, vector time

You may reference the vectors to North (True) or ship's heading (relative) as desired. Vector time can be set to 30 seconds, 1, 3, 6, 15 or 30 minutes.

1. Press the [MENU] key followed by the ARP SETUP soft key to show the ARP SETUP menu.
2. Operate the cursor pad to select ARP VECTOR MODE.
3. Press the EDIT soft key to show the vector mode window.

Vector mode window

1. Select TRUE or RELATIVE as appropriate.

2. RADAR OPERATION

2.25.6 Displaying past position display (ARP)

This ARP can display time-spaced dots (maximum 10 dots) marking the past positions of any targets being tracked. You can evaluate a target's actions by the spacing between dots. Below are examples of dot spacing and target movement.

(a) Ship turning

(b) Ship running straight

(c) Ship reduced speed

To turn the past position display on or off:

1. Press the [MENU] key followed by the ARP SETUP soft key.
2. Operate the cursor pad to select HISTORY INTERVAL.
3. Press the EDIT soft key to show the plot interval window.

History interval window

1. Operate the cursor pad to select plotting interval among 30 sec, 1 min, 3 min

2. RADAR OPERATION

2.25.7 ARP, TTM target data

This ARP calculates motion trends (range, bearing, course, speed, CPA and TCPA) of all target been tracked. You can show this data for a tracked target as below. TARGET ID NUMBER, in the ARP SETUP menu, must be turned on to show ARP target data.

1. Place the cursor on the target whose data you want to see.
2. If not displayed, press the [HIDE/SHOW] key to display the radar soft keys.
3. Press the TARGET and TARGET INFO soft keys. The data of the selected target appears at the bottom left-hand corner of the display. (If an EBL/VRM data box is displayed the ARP data box will be under it.)
4. Press the RETURN soft key to finish.
5. To erase the ARP target data box, select the corresponding target with the cursor and press the [CLEAR] key.

2. RADAR OPERATION

2.25.8 CPA/TCPA alarm (ARP)

When the predicted CPA of any target becomes smaller than a preset CPA alarm range or its predicted TCPA less than a preset TCPA alarm limit, an audio alarm sounds, which you may silence with the [CLEAR] key. In addition, the target plot symbol of the offending target changes to a triangle and flashes together with its vector. Press the [ALARM] key and the message COLLISION ALARM appears. Press the CLEAR ALARM soft key to acknowledge the alarm. The flashing of the triangle plot symbol continues until you intentionally terminate tracking of the target. The ARP continuously monitors the predicted range at the Closest Point of Approach (CPA) and predicted time to CPA (TCPA) of each target to own ship.

Provided that this feature is used correctly, it will help prevent the risk of collision by alerting you to threatening targets. It is important that gain, A/C SEA, A/C RAIN and other radar controls are properly adjusted and the ARP is set up so that it can track targets effectively.

CPA/TCPA alarm ranges must be set up properly taking into consideration the size, tonnage, speed, turning performance and other characteristics of own ship.

CAUTION

The CPA/TCPA alarm should never be relied upon as the sole means for detecting the risk of collision. The navigator is not relieved of the responsibility to keep visual lookout for avoiding collisions, whether or not the radar or other plotting aid is in use.

2. RADAR OPERATION

TCPA window

1. Select a TCPA limit.
2. Press the ENTER soft key.
3. Press the [MENU] key to close the menu.

2.25.9 Lost target alarm (ARP)

When the system detects a lost target, the target symbol becomes a diamond and tracking is discontinued after one minute.

Lost target mark

Canceling a lost target

1. Place the cursor on the target.
2. Press the [CLEAR] key.

2.26 Interpreting the Radar Display

2.26.1 General

Minimum and maximum ranges

Minimum range

The minimum range is defined by the shortest distance at which, using a scale of 1.5 or 0.75 nm, a target having an echoing area of 10 m^2 is still shown separate from the point representing the antenna position. It is mainly dependent on the pulselength, antenna height, and signal processing such as main bang suppression and digital quantization.

Maximum range

The maximum detecting range of the radar, Rmax, varies considerably depending on several factors such as the height of the antenna above the waterline, the height of the target above the sea, the size, shape and material of the target, and atmospheric conditions.

Under normal atmospheric conditions, the maximum range is equal to the radar horizon or a little shorter. The radar horizon is longer than the optical one by about 6% because of the diffraction property of the radar signal. Rmax is given in the following equation.

$$ R _ {\max} = 2. 2 \times (\sqrt {h 1} + \sqrt {h 2}) $$

where Rmax: radar horizon (nautical miles)

h1: antenna height (m)

h2: target height (m)

2. RADAR OPERATION

Radar resolution

There are two important factors in radar resolution (discrimination): bearing resolution and range resolution.

Bearing resolution

Bearing resolution is the ability of the radar to display the echoes received from two targets, which are at the same range and close together, as separate targets. Bearing resolution is directly proportional to the antenna length, and inversely proportional to the radar's wavelength.

Range resolution

Range resolution is the ability to display the echoes received from two targets, which are on the same bearing and close to each other, as separate targets.

Bearing accuracy

One of the most important features of the radar is how accurately the bearing of a target can be measured. The accuracy of bearing measurement basically depends on the narrowness of the radar beam. However, the bearing is usually taken relative to the ship's heading, and thus, proper adjustment of the heading marker at installation is an important factor in ensuring bearing accuracy. To minimize error when measuring the bearing of a target, select a range which will put the target as far out to the edge of the radar screen as possible.

Range measurement

Measurement of the range to a target is also a very important function of the radar. Generally, there are two means of measuring range: the fixed range rings

1. RADAR OPERATION

2.26.2 False echoes

Occasionally echo signals appear on the screen at positions where there is no target, or disappear even if there are targets. False target situations may be recognized, however, if you understand why they are displayed. Typical false echoes are shown below.

Multiple echoes

Multiple echoes occur when a transmitted pulse returns from a solid object like a large ship, bridge, or breakwater. A second, a third or more echoes may be observed on the display at double, triple or other multiples of the actual range of the target as shown below. Multiple reflection echoes can be reduced and often removed by decreasing the gain (sensitivity) or properly adjusting the [A/C SEA] control.

Multiple echoes

Sidelobe echoes

Every time the radar pulse is transmitted, some radiation escapes on each side of the beam. This stray RE is called sidelobe. If a target exists where it can be

1. RADAR OPERATION

Virtual image

A relatively large target close to your ship may be shown at two positions on the screen. One of them is the true echo directly reflected by the target and the other is a false echo which is caused by the mirror effect of a large object on or close to your ship as shown in the figure below. If your ship comes close to a large metal bridge, for example, such a false echo may temporarily be seen on the screen.

Virtual image

Shadow sectors

Funnels, stacks, masts, or derricks in the path of the antenna block the radar beam. If the angle subtended at the antenna is more than a few degrees, a non-detecting sector or blind spot may be produced. Within this sector, targets can not be detected.

2. RADAR OPERATION

2.26.3 SART (Search and Rescue Transponder)

A Search and Rescue Transponder (SART) may be triggered by any X-Band (3 cm) radar within a range of approximately 8 nm. Each radar pulse received causes it to transmit a response which is swept repetitively across the complete radar frequency band. When interrogated, it first sweeps rapidly (0.4 ×s) through the band before beginning a relatively slow sweep (7.5 ×s) through the band back to the starting frequency. This process is repeated for a total of twelve complete cycles. At some point in each sweep, the SART frequency will match that of the interrogating radar and be within the pass band of the radar receiver. If the SART is within range, the frequency match during each of the 12 slow sweeps will produce a response on the radar display, thus a line of 12 dots equally spaced by about 0.64 nautical miles will be shown.

When the range to the SART is reduced to about 1nm , the radar display may show also the 12 responses generated during the fast sweeps. These additional dot responses, which also are equally spaced by 0.64nm , will be interspersed with the original line of 12 dots. They will appear slightly weaker and smaller than the original dots.

General procedure for detecting SART response

1. Use the range scale of 6 or 12 nm as the spacing between the SART responses is about 0.6 nm (1125 m) to distinguish the SART.
2. Turn off the automatic clutter suppression (if applicable).
3. Turn off the Interference Rejector.

General remarks on receiving SART

SART range errors

When responses from only the 12 low frequency sweeps are visible (when the SART is at a range greater than about 1nm ), the position at which the first dot is displayed may be as much as 0.64nm beyond the true position of the SART. When the range closes so that the fast sweep responses are seen also, the first of these will be no more than 150 meters beyond the true position.

Radar bandwidth

This is normally matched to the radar pulselength and is usually switched with the range scale and the associated pulselength. Narrow bandwidths of 3-5 MHz are used with long pulses on long range and wide bandwidths of 10-25 MHz with short pulses on short ranges.

Any radar bandwidth of less than 5 MHz will attenuate the SART signal slightly, so it is preferable to use a medium bandwidth to ensure optimum detection of the SART.

Radar side lobes

As the SART is approached, sidelobes from the radar antenna may show the SART responses as a series of arcs or concentric rings. These can be removed

2. RADAR OPERATION

A/C SEA control

For optimum range SART detection, this control should be set to the minimum. Care should be exercised as wanted target in sea clutter may be obscured. Note also that in clutter conditions the first few dots of the SART response may not be detectable, irrespective of the setting of the anti-clutter sea control. In this case, the position of the SART may be estimated by measuring 9.5 nm from the furthest dot back towards own ship.

Some sets have automatic/manual anti-clutter sea control facilities in which case the operator should switch to manual.

A/C RAIN control

This should be used normally (to break up areas of rain) when trying to detect a SART response which, being a series of dots, is not affected by the action of the anti-clutter rain circuitry. Note that racon responses, which are often in the form of a long flash, will be affected by the use of this control.

Some sets have automatic/manual anti-clutter rain control facilities in which case the operator should switch to manual.

Note: This SART information is excerpted from IMO SN/Circ 197 Operation of Marine Radar for SART Detection.

2.26.4 Bacon (Radar Beacon)

A racon is a radar transponder which emits a characteristic signal when triggered by a ship's radar (usually only the 3 centimeter band). The signal may be emitted on the same frequency as that of the triggering radar, in which case it is

You may show the plotter display over the entire screen, in the overlay screen (MODEL1722C/1723C series), or in a combination screen. Press the [DISP] key to show the screen selection window, and then rotate the [ENTER] knob to select PLOT, NAV or OVRLY (overlay) as appropriate.

3.1.1 Full-screen plotter display

The data shown in the nav data window depends on the status of the NAV soft key and the cursor.

3.1.2 Compass display

The compass display, displayed at the bottom half of the screen in the combination display, provides steering information. The compass rose shows two triangles: the black triangle (hollow on monochrome model) shows the bearing to destination waypoint and the red (solid on monochrome) triangle, which moves with ship's course, shows own ship's course.

The water temperature and depth graphs, which require appropriate sensors, show the latest 10 minutes of temperature and depth data. The range of the depth graph is 50 feet and it is automatically adjusted with depth.

Reading the XTE (cross-track error) monitor

The XTE monitor, located below the compass rose, shows the amount you are off course and the direction to steer to return to course. The own ship marker shows the direction and amount your ship is off course. It is shown in black when the amount of cross-track error is within the XTE monitor range and yellow when it is over. An arrow appears at the right or left side of the XTE monitor and it shows the direction to steer to return to intended course. (For the color model the arrow is shown in red when you should steer left, and green when you should steer right.) In the example on the previous page you would steer right to return to course. To maintain course, steer the vessel so the own ship marker stays at the center of the XTE monitor.

Soft keys

EDIT XT-LMT: Sets the range for XTE monitor scale. See the procedure below for how to set.

Setting the range for the XTE monitor

1. With the compass (or highway) display shown, press the EDIT XT-LMT soft key to display the following window.

XTE range setting window

1. Use the cursor pad to select digit to change. Note that all digits may be cleared by pressing the [C1 EAB] key

2. PLOTTER OPERATION

3.1.3 Highway display

The highway display, displayed at the lower half of the screen in the combination display, provides a graphic presentation of ship's track along intended course. It is useful for monitoring ship's progress toward a waypoint. The own ship marker shows relation between ship and intended course. The XTE monitor shows the direction and amount your vessel is off course – the arrow shows the direction to steer to return to your course and the numeric the distance you are off course. Using the figure below as an example, you would steer right 0.009 nm to return to course. To maintain course, steer the vessel so the own ship marker stays aligned with the intended course line.

The nav data display provides comprehensive navigation data. The user may select what data to display and where to display it, on the NAV DATA DISPLAY SETUP menu. For details see paragraph "5.8 Nav Data Display Setup."

Appropriate sensors are required. Bars (--) appear when corresponding sensor is not connected.

Half-screen display
Full-screen display
Nav data displays

1. PLOTTER OPERATION

3.2 Presentation Mode

Three types of presentation modes are provided for the plotter display: north-up, course-up and auto course-up. To change the presentation mode, first press the [HIDE/SHOW] key if the plotter soft keys are not displayed. Press the MODE soft key to select desired mode. Each press of the key changes the presentation mode and presentation mode indication (top right-hand corner of the screen) cyclically in the sequence of North-up, Course-up and Auto course-up.

3.2.1 North-up

North is at the top of the display and own ship, shown by a filled circle. This mode is useful for long-range navigation.

Plotter display, north-up mode

The destination is at the top of the screen when a destination is set. When no destination is set, the course or heading is at the top of the screen at the moment the course-up mode is selected. A filled triangle marks own ship's position.

Note: The data sentences GGA and VTG must be output from the NavNet display unit connected to the GPS navigator in order to correctly orient the own ship marker in the course-up mode on other NavNet display units.

Plotter display, course-up mode, destination set

3.2.3 Auto course-up

The course is at the top of screen at the moment the auto course-up mode is selected. In this mode, the current course is kept at the top of the screen when the change is within 22.5 degrees. For example, if your vessel turns larger than 22.5 degrees to port or starboard, the chart display will rotate so that your course

1. PLOTTER OPERATION

3.3 Shifting the Display

The plotter display can be shifted on the plotter display as below.

1. Press the cursor pad to display the cursor.
2. Locate the cursor at a screen edge and press and hold down the cursor pad. The screen shifts in the direction opposite of cursor location.
3. To return the cursor to the screen center, press the CENTER soft key. This also returns own ship marker to the screen center.

3.4 Chart Scale

Chart scale (range) may be selected with the [RANGE -] or [RANGE +] key. The [-] key expands the chart range; the [+] key shrinks it.

Charts scales

nm	0.125	0.25	0.5	1	2	4	8	16	32	64	128	256	512	1024	2048
km	0.23	0.46	0.93	1.85	3.70	7.41	14.8	29.6	59.3	119	237	474	948	1896	3792
sm	0.144	0.29	0.58	1.15	2.30	4.60	9.21	18.4	36.8	73.7	147	295	589	1178	2356

Note: When the display is expanded or shrunk beyond the range of the chart card in use the message "NO CHART" appears, along with the appropriate chart icon. See the illustration on the next page for details.

1. PLOTTER OPERATION

3.5 Chart Cards

3.5.1 Chart card overview

Your system reads FURUNO and NavCharts™ (NAVIONICS) charts, or C-MAP charts, depending on its specification.

When you insert a suitable chart card in the slot and your boat is near any chart graphic data, a chart appears. If a wrong card is inserted or a wrong chart scale is selected, land masses will appear hollow. Insert the proper card and select a suitable chart scale. Chart icons appear at the top of the display to help you select a suitable chart scale. The table below shows the chart icons and their meanings.

Chart icons and their meanings

Icon Meaning
	Proper card is not inserted or chart scale is too small. Operate the RANGE key to adjust chart scale.
	Chart scale is too large. Operate the RANGE key to adjust chart scale.
	Suitable chart scale is selected.

1. PLOTTER OPERATION

3.5.2 Indices and chart enlargement

When the [RANGE] key is operated, you will see several frames appear on the chart. These frames are called indices and they show you what parts of the chart can be zoomed in on.

Outline map of Japan with a highlighted rectangular region containing a grid-like structure (no text or labels)

Sample chart (Japan) showing indices

When a chart cannot be displayed

A chart will not be displayed in the following conditions:

- When the chart scale is too large or too small.

- When scrolling the chart outside the indices.

When this happens, select proper chart scale.

Note: Indices can be turned on or off with "Chart border line." See page 5-13 for FURUNO and NAVIONICS charts and 5-16 for C-MAP charts.

1. PLOTTER OPERATION

3.5.3 FURUNO and NavCharts ™

Chart symbols

The table below shows FURUNO and NavCharts™ mini chart symbols and their meanings.

Chart symbols

Symbol	Description	Symbol	Description
	Summit		Position of Sounding
	Wreck		Obstruction
	Lighthouse		Fishing Reef
	Lighted Buoy		Platform
	Buoy		Anchorage
	Radio Station

Data for aids to navigation

Selected FURUNO and NavCharts™ charts can show buoy and lighthouse data. Simply place the cursor on the lighthouse or buoy mark.

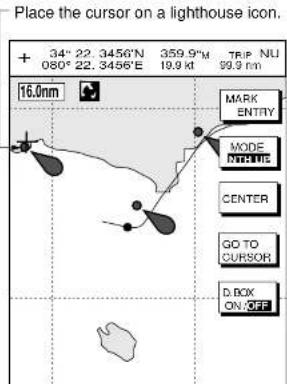

Place the cursor on a lighthouse or buoy mark.

Lighthouse mark

Port service icons (NavCharts™ only)

NavCharts™ show services available at ports, with icons. Use the cursor pad to place the cursor on the sailboat icon (denotes a port or harbor), and then push the [ENTER] knob. The services available appear at the top of the display.

Plotter display, showing port service display

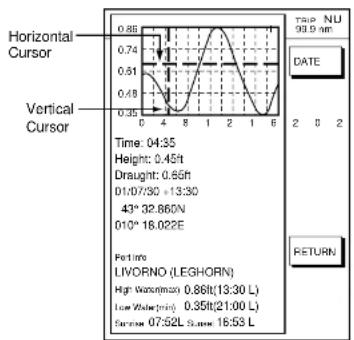

Current (or tide) data

1. PLOTTER OPERATION

3.5.4 C-MAP cards

Cursor and data display

Besides its fundamental functions of providing position data, the cursor can also show caution area, depth area, source of data, etc. on C-map charts. In addition, you can display information about an icon by placing the cursor on it.

1. Press the cursor pad to turn the cursor on.
2. Use the cursor pad to place the cursor on the position desired.
3. Push the [ENTER] knob to open the Objects window.

Objects

Spot Sounding

Depth area

Exclusive economic zone

Military practice area

Restricted area

Source of data

Objects window

1. Use the cursor pad to select the item desired.
2. Push the [ENTER] knob to display details for object selected.

Depth area

Depth range value1 0.00 Meters

1. PLOTTER OPERATION

Icon data

You may place the cursor on any icon to find information about the selected icon.

1. For example, place the cursor on a lighthouse icon.

Lighthouse icon

1. Push the [ENTER] knob to show data. For example, the following window appears for a lighthouse.

Sample lighthouse data

1. Press the RETURN soft key twice to close the Objects window.

Tide information

The C-MAP chart card provides for calculation of the tide heights for any date. Additionally it displays the times of sunrise and sunset.

1. Press the cursor pad to place the cursor on a Tide icon (T).
2. Push the [ENTER] knob to open the Objects window.

1. PLOTTER OPERATION


Tide window

1. Press the DATE soft key to open the DATE window.

CHANGE DATE

(DAY. MONTH. YEAR)01. 01. 2001

LIMIT:31.12.2099

Date window

1. Use ◀ or ▶ to position the cursor where desired and then rotate the [ENTER] knob to set. Repeat to enter complete date.
2. Push the [ENTER] knob to show the tidal graph for entered date.
3. Use ◀ or ▶ to locate the vertical cursor on the hour desired.

3.6 Working with Track

Your ship's track is plotted on the screen using navigation data fed from a navigation receiver. This section shows you what you can do with track, from turning it on or off to changing its plotting interval. Own ship's track is displayed in the default setting and on the color model it is red.

3.6.1 Displaying track

Own ship track

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.

MODEL1722 seriesMODEL1722C/1723C series

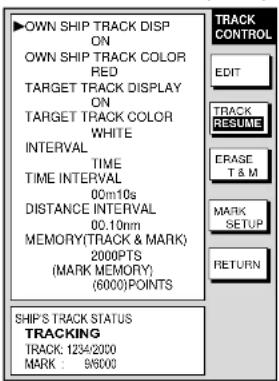

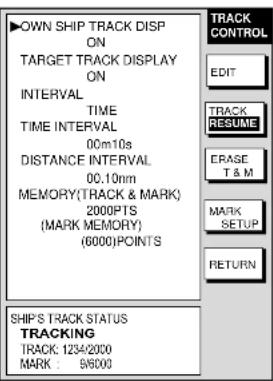

Track control men:

1. PLOTTER OPERATION

Target track

Target track, NMEA format TTM data sentence (target data fed from an ARP board-equipped MODEL1833/1833C series network radar), may be turned on or off as desired. The default setting is ON.

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.
2. Use the cursor pad to select TARGET TRACK DISPLAY.
3. Press the EDIT soft key to show the target track display window.
4. Use the cursor pad to select to ON or OFF as appropriate.
5. Press the ENTER soft key.
6. Press the [MENU] key to close the menu.

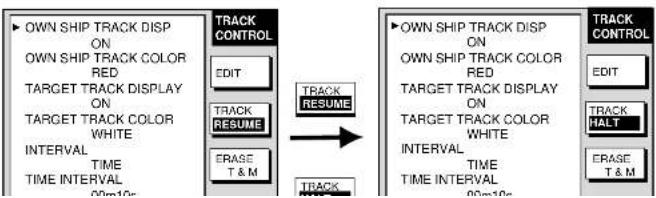

3.6.2 Stopping, restarting plotting of own ship track

When your boat is at anchor or returning to port you probably won't need to record its track. You can stop recording the track, to conserve the track memory, as follows:

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.

3.6.3 Changing track color (MODEL1722C/1723C series)

Track can be displayed in red (default setting), yellow, green, light-blue, purple, blue and white. It can be useful to change track color on a regular basis to discriminate between previous day's track, etc.

Own ship's track

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.
2. Use the cursor pad to select OWN SHIP TRACK COLOR.
3. Press the EDIT soft key to display the track color window.

Own ship track color window

1. Use the cursor pad to select the color desired.
2. Press the ENTER soft key.
3. Press the [MENU] key to close the menu.

Target track

Like own ship's track, target tracks can be displayed in red (default setting), yellow, green, light-blue, purple, blue and white.

1. PLOTTER OPERATION

3.6.4 Track plotting method and interval for own ship track

In drawing the own ship track, first the ship's position fed from a navigation receiver is stored into the unit's memory at an interval of time or distance. A shorter interval provides for better reconstruction of the track, but the storage time of the track is reduced. When the track memory becomes full, the oldest track is erased to make room for the latest.

Track plotting method

Track may be plotted by time or distance interval. The default setting is "time."

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.
2. Use the cursor pad to select INTERVAL.
3. Press the EDIT soft key to display the plot window.

Plot window

1. Use the cursor pad to select TIME or DISTANCE as appropriate. Distance is useful for conserving track memory, since no track is recorded when the boat is stationary.
2. Press the ENTER soft key.
3. Press the [MENU] key to close the menu.

Track plotting interval

1. B. II MFGHII 7 II III II ALART OFFIC I TROVA

1. Use the [ENTER] knob and the cursor pad to enter numeric data. The [CLEAR] key functions to clear an entire line of data.
2. Push the [ENTER] knob or ENTER soft key.
3. Press the [MENU] key to close the menu.

3.6.5 Changing own ship track/mark distribution setting

The equipment stores a total of 8000 points of track and marks. This amount may be distributed as desired, and the default setting is 2000 points of track and 6000 marks.

When you change the track memory setting all tracks and marks in the memory are erased. If necessary save the data to a memory card. For further details see paragraph "6.1.2 Saving data to a memory card".

1. Press the [MENU] key followed by the CHART SETUP and TRACKS & MARKS CONTROL soft keys to open the TRACK CONTROL menu.
2. Use the cursor pad to select MEMORY (TRACK & MARK).
3. Press the EDIT soft key to display the memory (track & mark) window.

Memory (track & mark) window

1. Use the cursor pad and [ENTER] knob to enter desired number of track memory points.

2. Push the ENTER soft key or [ENTER] knob. You are asked if you are sure to

3. PLOTTER OPERATION

3.6.6 Erasing track

This paragraph shows you how to erase own ship's track and target tracks. You can erase ship's track three ways: collectively, by color (color model only) and by area.

Erasing own ship track by area

You can erase own ship's track by area as below. This function is not available on the overlay display (MODEL1722C/1723C series).

1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS CONTROL and ERASE T & M soft keys to show the ERASE menu.

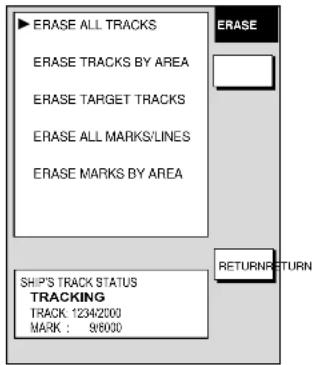

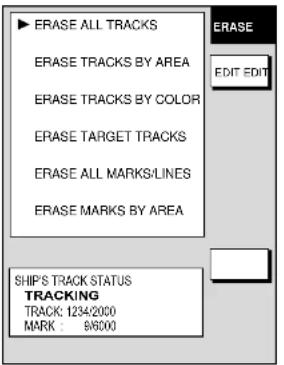

MODEL1722 seriesMODEL1722C/1723C series

Erasing own ship track by color (color model)

You may erase own ship's track by color as follows:

1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS CONTROL and ERASE T & M soft keys to show the ERASE menu.
2. Use the cursor pad to select ERASE TRACKS BY COLOR and press the EDIT soft key.

Erase track by color window

1. Use the cursor pad to select the color you want to erase and push the [ENTER] knob or ENTER soft key. You are asked if it is all right to delete the track.
2. Push the [ENTER] knob to erase track color selected.
3. Press the [MENU] key twice to close the menu.

Erasing all own ship track

1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS CONTROL and ERASE T & M soft keys to show the ERASE menu.

2. Use the cursor pad to select ERASE ALL TRACKS and press the EDIT soft key.

3. PLOTTER OPERATION

3.7 Marks, Lines

Marks are useful for denoting important points such as a good fishing spot. Marks can be inscribed in seven shapes and seven colors (MODEL1722C /1723C series): Red, yellow, green, light-blue, purple, blue and white.

Mark shapes

3.7.1 Entering a mark

1. Place the cursor on the location where you want a mark to appear.
2. Press the MARK ENTRY soft key. (Press the [HIDE/SHOW] key if the plotter soft keys are not shown.)

The mark is inscribed in the size and shape selected on the MARKS & LINES menu. The default mark attributes are size, normal; color (MODEL1722C/1723C series), yellow, and shape, hollow circle (○).

3.7.2 Changing mark attributes

You can select the shape and color for marks on the MARKS & LINES menu.

1. Press the [MENU] key to show the menu.
2. Press the CHART SETUP, TRACKS & MARKS CONTROL and MARK SETUP soft keys to show the MARKS & LINES menu.

1. Select MARKS SHAPE and press the EDIT soft key.

Mark shape window

1. Use the cursor pad to select mark shape desired and then press the ENTER soft key.
2. Select MARKS SIZE and press the EDIT soft key.
3. Use the cursor pad to select LARGE (default setting) or SMALL as appropriate.
4. Press [ENTER] knob or ENTER soft key.
5. Press the [MENU] key twice to close the menu.

3.7.3 Selecting line type

You may inscribe lines to denote good fishing spots, areas of special interest, etc. You can even construct simple charts.

1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS CONTROL and MARKS SETUP soft keys to show the MARK & LINES menu.

1. PLOTTER OPERATION

Line style window

1. Use the cursor pad to select line style desired and press the ENTER soft key. Line style "dot" disables line drawing. The edge of lines is determined by mark shape. For example, selecting the circle shape will join lines with a circle as below.

1. Press the [MENU] key twice to close the menu.

3.7.4 Erasing marks, lines

Erasing an individual mark

1. Operate the cursor pad to place the cursor on the mark you want to erase.
2. Press the [CLEAR] key to erase the mark.

Erasing an individual line

Place the cursor on an end of the line to erase and press the [CLEAR] key. Placing the cursor at the intersecting point of two line segments will erase both line segments.

Erasing all marks, lines

You can erase all marks and lines. Be absolutely sure you want to erase all marks and lines - erased marks and lines cannot be restored.

1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS CONTROL and ERASE T & M soft keys to show the ERASE menu.
2. Use the cursor pad to select ERASE ALL MARKS/LINES and press the EDIT soft key.
3. Push the [ENTER] knob to erase all marks and lines.
4. Press the [MENU] key twice to close the menu.

3.8 Waypoints

In navigation terminology, a waypoint is a particular location on a voyage whether it be a starting, intermediate or destination point. A waypoint is the simplest piece of information your equipment requires to get you to a destination, in the shortest distance possible.

This unit has 999 waypoints into which you can enter position information. You may enter a waypoint five ways: at own ship position, at MOB position (page3-61), by cursor, by range and bearing, and through the waypoint list (manual input of latitude and longitude).

3.8.1 Entering waypoints

Entering a waypoint at own ship position

Press the [SAVE/MOB] key momentarily to store your position as a waypoint. This new waypoint will automatically be saved in the waypoint list, under the youngest empty waypoint number.

Entering a waypoint with the cursor

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES, WAYPOINTS and WAYPOINT BY CURSOR soft keys. The plotter display appears.
3. Operate the cursor pad to place the cursor on the location desired.
4. Press the NEW WPT soft key. The waypoint window appears and it shows waypoint mark shape, waypoint name, comment (default: time and date), position of waypoint and proximity alarm radius.

Waypoint mark shape selection window

1. Operate the cursor pad to select shape desired.
2. Press the ENTER soft key.
3. For the MODEL1722C/1723C series, press the SELECT MARK and MARK COLOR soft keys in that order to open the waypoint mark color selection window. Select color desired and press the ENTER soft key.

Waypoint mark color selection window

Note: You cannot change the shape and color of a waypoint when the proximity alarm radius for it is other than "zero." To change shape or color, enter all zeroes as the proximity alarm radius.

1. Press the SAVE soft key to register the waypoint.
2. Enter another waypoint with the cursor, or press the [MENU] key to close the menu.

Entering a waypoint by range and bearing

This method is useful when you want to enter a waypoint using range and bearing to a target found on a radar.

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES, WAYPOINTS and WAYPOINT BY RNG & BRG soft keys.
3. An "X" (red on the MODEL1722C/1723C series) appears at own ship position, and it is the origin point for range and bearing. Operate the cursor pad to place the cursor on the location desired. Range and bearing from own ship to the cursor appear at the top of the display.
4. The origin point of range and bearing can be shifted to the location desired. Operate the cursor pad to select location, and then press the START POINT soft key.
5. Press the NEW WPT soft key. The waypoint window appears and it shows mark shape, waypoint name, comment (default: date and time), position of waypoint and proximity alarm radius.

Entering a waypoint from the waypoint list

You can manually enter waypoint position from the waypoint list as follows:

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES and WAYPOINTS soft keys.
3. Press the LOCAL LIST (lists waypoints in order from nearest to furthest) or ALPHANUMERIC LIST (lists waypoints in alphanumeric order) soft key.

Alphanumeric waypoint list

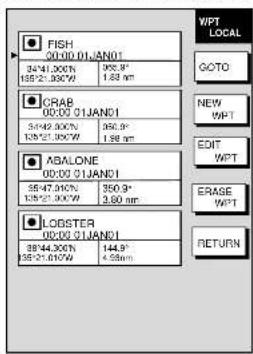

Local waypoint list

Alphanumeric and local waypoint lists

1. Press the NEW WPT soft key to show the waypoint window (see the figure on the previous page). Own ship position is shown in the position box.
2. Select the position box and enter waypoint position desired, using the cursor pad to select location and rotating the [ENTER] knob to enter digit.
3. If desired change waypoint data following the instructions from step 6 in

Editing a waypoint from the plotter display

You may change/edit waypoints from the plotter display as follows:

1. Press the [MENU] key followed by the WAYPOINTS/ROUTES and WAYPOINTS soft key to open the waypoint menu.

2. Press the WAYPOINT BY CURSOR soft key.

3. Operate the cursor pad to place the cursor on the waypoint which you want to change. A flashing diamond mark appears on the waypoint when it is correctly selected.

4. Press the EDIT/MOVE soft key. Three soft keys replace the EDIT/MOVE soft key:

EDIT WPT: Edit from the waypoint entry window.

MOVE WPT: Move waypoint to new position with the cursor.

ERASE WPT: Erase waypoint, see paragraph 3.8.3.

1. Press appropriate soft key. If you pressed the EDIT WPT soft key the waypoint entry window appears; edit data as appropriate. For MOVE WPT do the following:

a) Operate the cursor pad to place the cursor on the location desired for the waypoint. A line connects previous position and new position.

b) Push the [ENTER] knob. The waypoint moves to the cursor position and its new position is recorded on the waypoint list. If the waypoint is set as destination or is part of a route, you are asked if you are sure to move the waypoint. In this case, push the [ENTER] knob to move the waypoint, or press the [CLEAR] key to cancel.

1. Press the MENU key to finish.

Range and bearing from own ship to cursor

1. PLOTTER OPERATION

3.8.3 Erasing waypoints

Erasing a waypoint with the cursor

1. Press the cursor pad to turn on the cursor.
2. Operate the cursor pad to place the cursor on the waypoint you want to erase. A flashing diamond mark appears over the waypoint when the waypoint is correctly selected.
3. Press the [CLEAR] key. You are asked if you are sure to erase the waypoint.
4. Push the [ENTER] knob. The waypoint is erased from both the plotter screen (if it is currently displayed) and the waypoint list.

Note: You may also erase a waypoint while the waypoint entering mode ("WAYPOINT BY CURSOR") is active as follows:

a) Place the cursor on the waypoint to erase.
b) Press the EDIT/MOVE soft key.
c) Press the ERASE WPT soft key followed by the [ENTER] knob.
d) Press the RETURN soft key to finish.

Erasing a waypoint from the waypoint list

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES and WAYPOINTS soft keys.
3. Press the LOCAL LIST or ALPHANUMERIC LIST soft key.
4. Use the cursor pad to select the waypoint you want to erase.
5. Press the ERASE WPT soft key. You are asked if you are sure to erase the waypoint.
6. Push the [ENTER] knob. The waypoint is erased from both the waypoint list and the plotter screen (if it is currently displayed).

7. Press the [MENU] key to close the menu.

8. PLOTTER OPERATION

3.8.4 Changing waypoint mark size (FURUNO, NavCharts™)

You may change the size of all waypoint marks to small or large (default), or you may turn them off.

1. Press the [MENU] key to open the menu.
2. Press the CHART SETUP and CHART DETAILS soft keys.

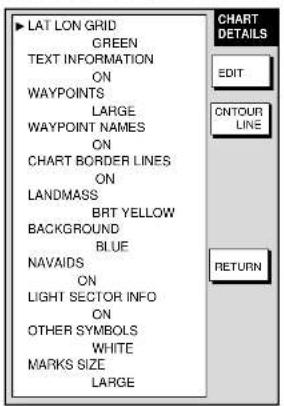

MODEL1722C/1723C series

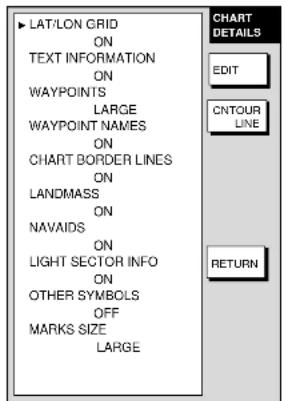

MODEL1722 series
Chart details menu

1. Use the cursor pad to select WAYPOINTS.
2. Press the EDIT soft key.

3. Use the cursor pad to select LARGE, SMALL or OFF.

4. PLOTTER OPERATION

3.8.5 Searching waypoints

You can search for a waypoint through the alphanumeric list as follows:

1. Press the [MENU] key.
2. Press the WAYPOINTS/ROUTES, WAYPOINTS and ALPHANUMERIC LIST soft keys to show the alphanumeric list.

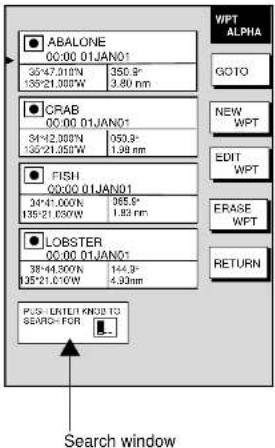

Alphanumeric list

1. Use the cursor pad and [ENTER] knob to enter up to three alphanumeric characters in the search window. Then, the waypoint searched appears at

2. PLOTTER OPERATION

3.9 Routes

Often a trip from one place to another involves several course changes, requiring a series of route points (waypoints) which you navigate to, one after another. The sequence of waypoints leading to the ultimate destination is called a route. Your unit can automatically advance to the next waypoint on a route, so you do not have to change the destination waypoint repeatedly.

You can store up to 200 routes, and a route may have 35 waypoints.

3.9.1 Creating routes

Entering a route with existing waypoints

This method constructs routes using existing waypoints.

1. Press the [MENU] key.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key to open the route menu. (No data will be shown if there is no routes created.)

1. If desired you can change the route name shown and/or add a comment. A route name may consist of six characters; comment, 13 characters.
2. Press the LOCAL LIST or ALPHA LIST soft key to open the waypoint list.
3. Use the cursor pad to select a waypoint, and press the ADD WPT soft key to add it to the route.
4. Repeat step 7 to complete the route.

Note: To clear a waypoint, press the ERASE LST WP soft key. Each pressing of this key deletes the last waypoint entered.

1. Press the SAVE soft key to register the route.
2. Press the [MENU] key to close the menu.

Entering a route with the cursor

This method allows you to construct a route directly on the plotter display, using existing waypoints or new locations. Any new location will be saved as a waypoint, under the youngest empty waypoint number.

1. Follow step 1-5 in "Entering a route from the route list" on the previous page.
2. Press the PLOT soft key to show the plotter display.
3. Operate the cursor pad to place the cursor on an existing waypoint (ADD WPT soft key appears) or new location (ADD NEW WPT soft key appears).
4. Press the ADD WPT soft key (or ADD NEW WPT soft key).
5. Repeat steps 3 and 4 to complete the route.
6. Push the [ENTER] knob to register the route.
7. Press the [MENU] key to close the menu.

Creating voyage-based routes

You can create routes based on your ship's track, and each route may contain 35 points. The route can be created automatically (by time or distance), or manually. This feature is useful when you wish to retrace previous track. The "SAVE" icon appears at the top of the screen when a voyage-based route is being created.

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the CREATE VOYAGE-BASED ROUTE soft key.

Save route menu

1. Press the NEW soft key to show the new route window.

Note: If you want to tack voyage-based points on an existing route, press the SELECT ROUTE soft key instead of the NEW soft key, then enter route number to use.

1. Choose how to record points for your route, by time, by distance or manual entry pressing by one of BCKTRK TIME, BCKTRK RANGE or MANUAL soft key as appropriate. For manual go to step 8. For BCKTRK TIME, BCKTRK DIST one of the following displays appears.

(When selecting BCKTRK TIME.)

(When selecting BCKTRK DIST.)

Displays for entry of time, distance interval

1. Enter interval desired with the cursor pad and [ENTER] knob. Press the START LOG and RETURN soft keys followed by the [MENU] key to close the menu. At this moment, voyage based route will be created.
2. For manual entry of waypoints, do the following:

a) Press the [SAVE/MOB] key momentarily to enter a waypoint mark at own ship position. A new waypoint is created under the next consecutive waypoint number and that waypoint is added to the route. (You may close the SAVE ROUTE screen by pressing the RETURN soft by followed by the MENU key.)

b) Repeat step a) as necessary. 35 waypoints may be entered.

To stop recording waypoints and save the route

You can stop recording waypoints and save the route at any time as shown in the procedure below. When 35 waypoints have been entered the message "Total 35 WPTS have been already registered in the route. Stop creating voyage based route." is displayed. In this case, automatically creating voyage-based route stops.

1. PLOTTER OPERATION

3.9.2 Connecting routes

Two routes which you have created can be connected as follows to form a new route.

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key.
4. Press the NEW ROUTE soft key.
5. If desired, enter the name for the new route and enter comment.
6. Press the CONNECT soft key
7. Use the cursor pad and the [ENTER] knob to enter the route name for the first route, beneath FIRST in the CONNECT ROUTE window.

Connect route window

1. If necessary press the F<-->R soft key to select direction to follow the waypoints of the route, forward or reverse.

3.9.3 Inserting waypoints

Waypoints can be inserted into a route as follows:

Inserting waypoint from the route list

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key.
4. Use the cursor pad to select a route.
5. Press the EDIT ROUTE soft key. The route name screen appears.
6. Press the LOCAL LIST soft key.

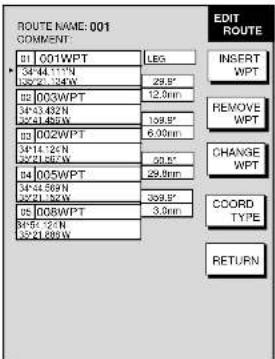

Edit route menu

1. Press ▲ or ▼ to place the cursor at the location where you want to insert a mouse pointer

1. Use the cursor pad to select the waypoint you want to insert. (You can switch between the local list and alphanumeric list by using the LOCAL LIST and ALPHA LIST soft keys.)
   When selecting INSERT WPT, this waypoint is inserted before the waypoint selected at step 7.
2. Press the SELECT WPT or CHANGE WPT soft key, whichever is displayed.
3. Press the [MENU] key to close the menu.

Inserting a waypoint from the plotter display

Inserting a waypoint before first or last waypoint in a route

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key.
4. Use the cursor pad to select a route.
5. Press the EDIT ROUTE soft key.
6. Press the PLOT soft key to show the plotter screen.
7. Operate the cursor to place the cursor on the first (or last) waypoint of the route. A flashing diamond appears when the waypoint is correctly selected.
8. Press the ADD TO START soft key or the ADD TO END soft key depending on the waypoint you selected at step 7.
9. Operate the cursor pad to place the cursor on an existing waypoint (ADD WPT soft key appears) or new location (ADD NEW WP soft key appears).
10. Press the ADD WPT soft key (ADD NEW WP soft key).
11. Press the [MENU] key to close the menu.

Inserting a waypoint in an intermediate location on a route

1. Follow steps 1 through 6 in "Inserting a route waypoint before the first or last waypoint in a route."

2. PLOTTER OPERATION

3.9.4 Removing waypoints from a route

Removing a waypoint from the route list

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key.
4. Select a route.
5. Press the EDIT ROUTE and LOCAL LIST soft keys.
6. Select the waypoint you want to remove.
7. Press the REMOVE WPT soft key.
8. Press the [MENU] key to close the menu.

Removing a waypoint from the plotter display

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key.
4. Select a route.
5. Press the EDIT ROUTE soft key.
6. Press the PLOT soft key to show the plot screen.
7. Operate the cursor pad to place the cursor on the waypoint you want to remove from the route.
8. Press the REMOVE WPT soft key. The route is redrawn, eliminating the waypoint erased.
9. Press the [MENU] key to close the menu.

3.9.5 Erasing routes

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.

a. B. II. DOUTESO

1. PLOTTER OPERATION

3.10 Navigation

This section shows you how to get to a desired destination by "quick points," waypoints, port services and routes.

Note: When the plotter data is received from other NavNet unit connected, reciprocal setting and canceling of destination is available by using ZDA sentenceReferring to "6.5 Outputting Data Through the Network".

3.10.1 Navigating to a "quick point"

The "quick point" feature allows you to navigate to point(s) without retaining the data indefinitely in your unit's memory.

Selecting quick point entry method

You need to tell your unit how to set the quick point: 1POINT, 35POINTS (up to 35 points) or 35PTS/PORT SVC. (For how to navigate to points/port services see "3.10.3 Navigating to ports, port services" on page 3-47.)

1. Press the [MENU] key.
2. Press the PLOTTER SETUP soft key.
3. Use the cursor pad to select SET GOTO METHOD and press the EDIT soft key.

Goto method window

Navigating to multiple quick points

1. Select "35 POINTS" following the procedure in "Selecting quick point entry method" on the previous page.
2. Press the GOTO soft key.
3. Place the cursor on an existing waypoint (SELECT WPT soft key appears) or a new location (ADD QP soft key appears).
4. Depending on the action taken at step 3 press the SELECT WPT or ADD QP soft key. "QP<01>" appears at the cursor location if a quick point is selected.
5. Repeat steps 3 and 4 to complete the route.
   To erase last-entered quick point (waypoint), press the ERASE LST QP (ERASE LST WP) soft key.
6. Push the [ENTER] knob to finish.

A solid line runs between own ship and first waypoint and a dashed line between other waypoints. (For the MODEL1722C/1723C series, those lines are colored light-blue and green, respectively.) Quick points are numbered in sequential order from QP<01> and are saved to the waypoint list. Range and bearing from own ship to the first destination appear at the top of screen. The quick points are saved as a route, under the name "Q>RTE" (Quick Route).

3.10.2 Navigating to waypoints

Selecting waypoint from the plotter display

1. Operate the cursor pad to select a waypoint.
2. Press the GOTO WPT soft key.

Note: GOTO method should be selected to "1 POINT" on the PLOTTER SETUP menu.

Selecting an external waypoint

You can select a waypoint (or route) entered at an external plotter connected with NMEA cable. This function requires RMB sentence.

1. Press the [MENU] key, PLOTTER SETUP soft key to show the PLOTTER SETUP menu.
2. Use the trackball to select QP.
3. Press the ENTER soft key or [ENTER] key to show the QP window.

QP window

1. Select EXT WPT (RMB).
2. On a connected external plotter, set a waypoint (or route) as the destination. Selected waypoint (route) appears on the NavNet plotter screen. (on radar screen, a lollipop appears to show the waypoint.)

3.10.3 Navigating to ports, port services (NavCharts™/C-MAP)

Some NavCharts™ and C-MAP card have a port service list which shows services available at ports or harbors. (See page 3-13.) You can use the list to set destination as follows:

1. Select "35 PTS/PORT SVC" following the procedure in "Selecting quick point entry method" on page 3-45.
2. Press the GOTO soft key. Then, soft key titles change as in the figure below.

Port services and sample port list

1. 1. If you selected PORT (NavCharts™ only) at step 3, use the trackball to select a port, then press the ENTER soft key. Make a route using the soft keys, then push the [ENTER] knob. (If you want to go directly to that port, simply press the ADD QP soft key followed by the [ENTER] knob.)

If you selected NEAR SRVC at step 3, select service mark desired with the trackball and then push the ENTER soft key or the [ENTER] knob. Then, the display shows the locations of those services nearest you. (The figure below shows the location of filling stations in an area in southern Italy.) Use the trackball to place the "hand cursor" on the port service icon desired, then press the ENTER soft key. Make a route using the soft keys. then push the

1. PLOTTER OPERATION

3.10.4 Following a route

Selecting the route to follow

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the ROUTES soft key to open the route list.
4. Select a route.
5. Press the GOTO soft key to show the plotter display. The cursor is on the route waypoint nearest own ship.

Plotter display, route selected as destination

1. Operate the cursor pad to place the cursor on the waypoint or leg in the route from where to start navigating the route.
2. Press the GOTO WPT or FOLLOW LEG soft key, depending on the action taken at step 6.

Restarting navigation

When you steer to avoid an obstacle or the vessel drifts, you may go off your intended course, as in Line 1 in the figure below. Also, if you don't need to return to the original course, you can go directly to the next waypoint, as in Line 2 in the figure below. In these cases, use the restart function to restart navigation.

Example of when to restart navigation

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the LOG soft key.

Setting speed for ETA calculation

Speed, which may be input manually or automatically, is required to calculate ETA (Estimated Time of Arrival) to a waypoint.

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key
3. Press the LOG soft key.
4. Press the SPEED soft key.

Select speed for ETA window

1. Enter speed manually in the SPD field, or use GPS speed data (if applicable) by selecting GPS AVG. SPEED.
2. Press the ENTER soft key or the [ENTER] knob to register your selection.
3. Press the [MENU] key to close the menu.

Switching waypoints

When you arrive to a waypoint on a route, you can switch to the next waypoint three ways: perpendicular to waypoint, arrival alarm circle and manual.

PERPENDICULAR: Automatically switches the TO waypoint when the boat enters the arrival alarm range or the boat passes an imaginary perpendicular line passing through the center of the destination waypoint.

To select waypoint switching method do the following:

1. Press the [MENU] key.
2. Press the PLOTTER SETUP soft key.
3. Use the cursor pad to select WAYPOINT SWITCHING.
4. Press the EDIT soft key to show the waypoint switching window.
5. Use the cursor pad to select appropriate waypoint switching method; PERPENDICULAR, ARRVL ALM CRCL (default setting), or MANUAL.
6. Press the ENTER soft key or [ENTER] knob.
7. Press the [MENU] key to close the menu.

Canceling route navigation

1. Press the [MENU] key to open the menu.
2. Press the WAYPOINTS/ROUTES soft key.
3. Press the LOG soft key.
4. Press the STOP soft key.
5. Push the [ENTER] knob.
6. Press the RELEASE soft key.
7. Push the [ENTER] knob.

When an alarm setting has been violated the buzzer sounds and the speaker icon appears (in red on the 1722C/1723C series). Press the [CLEAR] key to silence the alarm. You can see which alarm has been violated on the alarm menu display.

You may set up the plotter alarms on the ALARM menu, which may be displayed by pressing the [ALARM] key. For 1722C/1723C series, note that the alarm icon is red when an alarm setting is violated. The color does not change when another alarm is violated later.

    I["ALARM1"] --> J["CLEAR<br>ALARM"]
    J --> K["NEXT<br>PAGE"]
    K --> L["RETURN"]

    M["BOTTOM ALARM<br>OFF<br>TEMPERATURE ALARM<br>OFF"] --> N["PREV.<br>PAGE"]

    O["ALARM2"] --> P["EDIT"]
    P --> Q["PREV.<br>PAGE"]

    style A fill:#f9f,stroke:#333
    style M fill:#f9f,stroke:#333

Page 1
Page 2

Plotter alarm menu

The arrival alarm informs you that your boat is approaching a destination waypoint. The area that defines an arrival zone is that of a circle which you approach from the outside of the circle. The alarm will be released if your boat enters the circle. When the arrival alarm is active a dashed circle (red on the MODEL1722C/1723C series) marks the arrival alarm area.

How the arrival alarm works

1. Press the [ALARM] key to open the alarm menu.
2. Use the cursor pad to select ARRIVAL ALARM.
3. Press the EDIT soft key to show the arrival alarm window.

Arrival alarm window

1. PLOTTER OPERATION

3.11.3 Anchor watch alarm

The anchor watch alarm informs you that your boat is moving when it should be at rest. When the anchor watch is active, a dashed circle (red on the MODEL1722C/1723C series) with an "X" at its center marks the anchor watch area.

Your ship's position where you start the anchor watch alarm.

How the anchor watch alarm works

1. Press the [ALARM] key to open the alarm menu.
2. Use the cursor pad to select ANCHOR WATCH ALARM.
3. Press the EDIT soft key to open the anchor alarm window.

Anchor watch alarm window

1. Use the cursor pad to select ON

3.11.4 XTE (Cross Track Error) alarm

The XTE alarm warns you when your boat is off its intended course. When the XTE alarm is active two dashed lines (red on the MODEL1722C/1723C series) mark the XTE alarm area.

How the XTE alarm works

1. Press the [ALARM] key to open the alarm menu.
2. Use the cursor pad to select XTE ALARM.
3. Press the EDIT soft key to open the XTE alarm window.

XTE alarm window

1. Use the cursor pad to select ON.
2. Use the cursor pad and [ENTER] knob to enter alarm range: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value. The available XTE alarm range is 0.001 to 9.999 miles.
3. Press the ENTER soft key or push the [ENTER] knob to register setting.

1. Use the cursor pad to select WITHIN, OVER/UNDER, or OFF.
2. For WITHIN and OVER/UNDER, use the cursor pad and [ENTER] knob to enter alarm range: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value.
3. Press the ENTER soft key or push the [ENTER] knob to register setting.
4. Press the [ALARM] key to close the menu.

3.11.6 Proximity alarm

The proximity alarm alerts you when own ship nears a waypoint, which is marked with the proximity mark, by the proximity alarm radius set for that waypoint on the waypoint list. When own ship is within a waypoint's proximity alarm radius, the alarm sounds. The proximity mark remains on the screen until the waypoint is erased. (Note that the MODEL1722C/1723C series show the proximity mark and dashed circle in red.)

Proximity mark

1. Press the [ALARM] key to open the alarm menu.
2. Use the cursor pad to select PROXIMITY ALARM.
3. Press the EDIT soft key to show the proximity alarm window.

PROXIMITY ALARM

The trip alarm informs you when you traveled a certain distance.

1. Press the [ALARM] key to open the alarm menu.
2. Use the cursor pad to select TRIP ALARM.
3. Press the EDIT soft key to show the trip alarm window.

Trip alarm window

1. Select ON with the cursor.
2. Use the cursor pad and [ENTER] knob to enter alarm range: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value.
3. Press the ENTER soft key or push the [ENTER] knob to register setting.

4. Press the Press the [ALARM] key to close the menu.

5. PLOTTER OPERATION

3.11.8 Alarm information

When an alarm setting has been violated the buzzer sounds and the speaker icon appears (in red on the color model). Press the [CLEAR] key to silence the alarm. You can see which alarm has been violated on the alarm menu display. In the example below the arrival alarm has been violated.

1. Press the [ALARM] key. The name of the offending alarm appears in the ALARM INFORMATION window.

Alarm menu)

The table below shows the plotter alarm messages and their meanings

Plotter alarm messages and their meanings

Message	Meaning
ARRIVED AT XXX WAYPOINT! (XXX = waypoint number)	Arrival alarm violated.
ENTERED INTO AVOIDANCE AREA!	Proximity alarm violated.
EXCEEDED ANCHOR WATCH LIMIT!	Anchor watch alarm violated.
EXCEEDED XTE LIMIT! XTE alarm violated.
SPEED ALARM! Speed alarm violated.
TEMPERATURE ALARM! Water temperature alarm violated.
TRIP ALARM! MILEAGE EXCEEDED	Trip alarm violated.

3.12 Resetting Trip Distance

Trip distance is shown on the navigation data display. You can reset the trip distance to zero as follows:

1. Press the [MENU] key.
2. Press the SYSTEM CONFIGURATION and GENERAL SETUP soft keys in that order to show the GENERAL SETUP menu.

1. PLOTTER OPERATION

3.13 Entering the MOB Mark, Setting MOB as Destination

The MOB (Man Overboard) mark functions to mark man overboard position. You can inscribe this mark from any mode, except while playing back data or conducting a self-test. Note that this function requires position data.

MOB Data Box
Bearing and range
to MOB position

MOB concept

1. Press and hold down the [SAVE/MOB] key for about three seconds when someone falls onboard. The display shows the waypoint number being saved (youngest empty waypoint number, 001-999) followed by the MOB confirmation window.

Time remaining is counted down while pressing the [SAVE/MOB] key.

This page is intentionally left blank.

With connection of the optional network sounder you can show video sounder images on the display.

4.1 Principle of Operation

The video sounder determines the distance between its transducer and underwater objects such as fish, lake bottom or seabed and displays the results on screen. It does this by utilizing the fact that an ultrasonic wave transmitted through water travels at a nearly constant speed of 4800 feet (1500 meters) per second. When a sound wave strikes an underwater object such as fish or sea bottom, part of the sound wave is reflected back toward the source (transducer). Thus by calculating the time difference between the transmission of a sound wave and the reception of the reflected sound wave, the depth to the object can be determined.

The entire process begins in the network sounder. Transmitter power is sent to the transducer as a short pulse of electrical energy. The electrical signal produced by the transmitter is converted into an ultrasonic signal by the transducer and transmitted into the water. Any returning signals from intervening objects (such as a fish school) are received by the transducer and converted into an electrical signal. The signals are then amplified in the amplifier section, and finally, displayed on screen.

The picture displayed is made up of a series of vertical scan lines, one for each transmission. Each line represents a snapshot of what has occurred beneath the

There are seven display modes from which to choose: dual frequency, single frequency, marker zoom, bottom zoom, bottom lock, bottom discrimination, and A-scope

To select a display;

1. Press the [DISP] key and select a sounder display.
2. If not displayed, press the [HIDE/SHOW] key to show the sounder soft keys.
3. Press the DISPLAY MODE soft key to show the display mode window.

Display mode window

1. Use the cursor pad to select a display.
2. Press the RETURN soft key to close the window.

Note: On menus which show the RETURN soft key you may use it or the ENTER knob to register setting and close the window.

Indications on the single frequency display
Note 1: The water temperature display requires an appropriate water

Dual-frequency display

The dual-frequency display provides both 50 kHz and 200 kHz pictures. This display is useful for comparing the same picture with two different sounding frequencies.

Dual-frequency display

LF picture

The sounder uses ultrasonic pulses to detect bottom conditions. The lower the frequency of the pulse, the wider the detection area. Therefore, the low frequency is useful for general detection and judging bottom condition.

HF picture

The higher the frequency of the ultrasonic pulse the better the resolution. Therefore, the high frequency is ideal for detailed observation of fish school.

The marker-zoom display expands a selected area of the normal sounder picture to full vertical size of the screen on the left-half window. You may specify the portion to expand by operating the VRM (Variable Range Marker), which you can shift with the [ENTER] knob. The area between the VRM and zoom marker is expanded. The length of the segment is equal to one division of the depth scale.

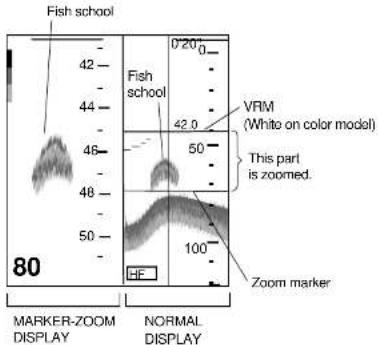

Marker-zoom display plus normal sounder display

Bottom-zoom display

The bottom-zoom display expands bottom and bottom fish echoes by the zoom range selected on the sounder range setup menu (see paragraph 5.9.3). A bottom displayed with a short echo tail usually means it is a soft, sandy bottom.

The bottom-lock display provides a compressed normal picture on the right half of the screen and a 3 or 6 meter (10 or 20 feet) wide layer in contact with the bottom is expanded onto the left half of the screen. This mode is useful for discriminating bottom fish from the bottom echo. You may select the bottom lock range from the SOUNDER RANGE SETUP menu. For details, see paragraph 5.9.3.

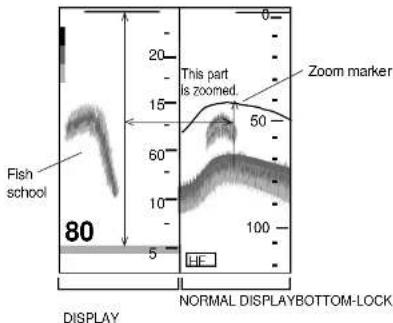

Bottom-lock display plus normal sounder display

Bottom discrimination display

The bottom discrimination mode displays the bottom echo to help you determine bottom hardness. A bottom displayed with a short echo tail usually means it is a soft, sandy bottom. A long echo tail means a hard bottom.

The A-scope display, available in all modes, shows echoes at each transmission with amplitudes and tone proportional to their intensities, on the right of the screen. It is useful for estimating fish species and seabed composition. To turn on the A-scope display, press the DISPLAY MODE soft key, select display mode desired, then press the A-SCPE soft key to turn the A-scope display on or off as appropriate. For the mode except SINGLE MODE the screen must be split horizontally to show the A-scope presentation.

4.2.3 Selecting screen split method in combination displays

On combination sounder displays you can split the screen vertically or

4.3 Automatic Sounder Operation

Automatic sounder operation is useful when you are preoccupied with other tasks and do not have the time to adjust the display.

4.3.1 How the automatic sounder works

The automatic sounder function automatically selects the proper gain, range scale and clutter suppression level according to depth. It works as follows:

• Range changes automatically to locate the bottom on the lower half of screen. The range jumps to one step shallower range when bottom echoes reach a half way point of the full scale from top and to one step deeper range when they come to the lower edge of the scale.
• The gain is automatically adjusted to display the bottom echo in reddish brown (default color arrangement).
• Clutter, which suppresses low level noise, is automatically adjusted.

4.3.2 Types of automatic sounder modes

Two types of automatic sounder modes are available: CRUISING and FISHING. CRUISING is for tracking the bottom, and FISHING is for searching fish schools. CRUISING uses a higher clutter rejection setting than FISHING therefore it is not recommended for fish detection - weak fish echoes may be erased by the clutter suppression circuit.

4.3.3 How to enable automatic sounder operation

1. If not displayed, press the [HIDE/SHOW] key to show the sounder soft keys.

4.4 Manual Sounder Operation

Manual operation is useful for observing fish schools and bottom using fixed gain setting.

The gain, range and range shifting functions used together give you the means to select the depth you can see on screen.

4.4.1 Selecting the manual mode

1. If not displayed, press the [HIDE/SHOW] key to show the sounder soft keys.
2. Press the AUTO/D. BOX soft key to show the auto mode window.
3. Select OFF (MANUAL).
4. Press the RETURN soft key.

4.4.2 Selecting display range

Press the [RANGE +] or [RANGE -] key to select a range. The default ranges in feet, meters, fathoms and passi/braza are as below. Note that range cannot be changed in the automatic sounder mode.

Default sounder ranges

Range 1 Range 2 Range 3 Range 4 Range 5 Range 6 Range 7 Range 8
15 ft	30 ft	60 ft	120 ft	200 ft	400 ft	1000 ft	1200 ft	1500 ft
5 m	10 m	20 m	40 m	80 m	150 m	300 m	4000 m	4500 m
3 fa	5 fa	10 fa	20 fa	40 fa	80 fa	150 fa	650 fa	900 fa
3 PB	5 PB	10 PB	30 PB	50 PB	100 PB	200 PB	700 P/B	900 P/B

443 Adjusting the gain

Press the [GAIN] key to show the gain window, and rotate the [ENTER] knob to set the gain. Current level is shown on the bar. Press the RETURN key to finish. The setting range is 0-100.

Gain window

Note 1: On the dual-frequency display, the gain can be independently set for LF and HF. Use the FREQ LF/HF soft key to select the frequency for which to adjust gain.
Note 2: Gain cannot be adjusted in the automatic sounder mode. The message "SOUNDER GAIN CANNOT BE CHANGED IN AUTO MODE" is displayed when you attempt to do so.

4.4.4 Range shifting

The basic range can be thought of as providing a "window" into the water column and range shifting as moving the "window" to the desired depth. The basic range may be shifted up or down as desired by pressing the SHIFT soft key followed by adjusting the [+ RANGE -] key. Press the RETURN soft key to finish.

4.5 Measuring Depth, Time

The VRM functions to measure the depth, and the time cursor measures time.

1. Rotate the [ENTER] knob to shift the VRM; counterclockwise the shift it downward, clockwise to shift it upward. You may also use the cursor pad to shift the VRM, in which case use ▲ or ▼.
2. Use ◀ or ▶ on the cursor pad to shift the cross-hair cursor to measure the elapsed time.

4.6 Reducing Interference

Interference from other acoustic equipment operating nearby or other electronic equipment on your boat may show itself on the display as shown below.

Interference from other sounder

Electrical interference

Types of interference

To reduce interference, do the following:

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select NOISE LIMITER and press the EDIT soft key to show the noise limiter window.

Noise limiter window

4.7 Reducing Low Level Noise

Dots (light-blue on the color model) may appear over most of the screen. This is mainly due to sediment in the water or noise. This noise can be suppressed by adjusting CLUTTER on the SOUNDER menu.

Appearance of clutter

When the sounder mode is Auto, the clutter suppression setting is fixed at AUTO. To reduce low level noise in manual sounder operation do the following:

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select CLUTTER and press the EDIT soft key to show the clutter window.

Clutter window

1. Use the cursor pad to select clutter rejection level desired; 0 (OFF) through 16, default setting, 9. The higher the number the higher the degree of

2. VIDEO SOUNDER OPERATION

4.8 Erasing Weak Echoes

Sediment in the water or reflections from plankton may be painted on the display in green or light blue (color display) or "spots" on the background (monochrome display). These weak echoes may be erased as below.

Weak echoes

Appearance of weak echoes

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select SIGNAL LEVEL, and press the EDIT soft key to show the signal level window.

16-color display

8-color display

Monochrome display
Signal level window

4.9 White Marker (MODEL1722C/1723C series)

The white marker functions to display a particular echo color in white. For example, you may want to display the bottom echo in white to discriminate fish echoes near the bottom.

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select WHITE MARKER, and press the EDIT soft key to open the white marker window.

White marker window

1. Use the cursor pad to select color to display in white. As you use the cursor pad, the number (corresponds to echo number) in the marker window changes, the white marker on the echo strength bar shifts and selected echo color is displayed in white.

White marker shows color currently displayed in white.

Echo strength bar (16 color) when white marker function is active

4.10 Picture Advance Speed

The picture advance speed determines how quickly the vertical scan lines run across the screen. When selecting a picture advance speed, keep in mind that a fast advance speed will expand the size of the fish school horizontally on the screen and a slow advance speed will contract it.

The advancement speed may be set independent of or synchronized with ship's speed.

4.10.1 Advancement independent of ship's speed

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select PICTURE ADVANCE, and press the EDIT soft key to open the picture advance window.

Picture advance window

1. Use the cursor pad to select speed desired. The functions in the window denote the number of scan lines produced per transmission. For example, 1/8 means one scan line is produced every eight transmissions. STOP

2. VIDEO SOUNDER OPERATION

4.10.2 Advancement synchronized with ship's speed

With speed data provided by a speed measuring device, picture advance speed may be automatically synchronized with ship's speed. As shown in the figure below the horizontal scale of the display is not influenced with the speed dependent picture advance mode active, thus it permits judgment of fish school size and abundance at any speed.

How the speed-dependent picture advance mode works

Activating/deactivating the speed-dependent picture advance mode

4.11 Display Colors (MODEL1722C/1723C series)

You can select the number of colors and background color to display as follows:

1. Press the [MENU] key.
2. Press the SOUNDER MENU soft key.
3. Select HUE, and then press the EDIT soft key to show the hue window.

HUE

▲ 1

▼

Hue window

1. Use the cursor pad to select hue number, referring to the table below. (You can see the result of your selection on the display.)

Hue no. and background and echo colors

Hue No.	Echo Color Background Color
1	16 color	Blue
2	8 color	Blue
3 16 color Dark blue
4 8 color Dark blue
5	16 color	White
6	8 color	White
7	16 color	Black
8	8 color	Black

The sounder section has five conditions which generate visual and aural alarms: bottom alarm, fish alarm (bottom lock), fish alarm (normal) and water temperature alarm (temperature sensor required). For 1722C/1723C series, note that the alarm icon is red when an alarm setting is violated, and changes to background color when the [CLEAR] key or CLEAR ALARM soft key is pressed. The color does not change when another alarm is violated.

You may set up the sounder alarms on the ALARM menu, which may be displayed by pressing the [ALARM] key.

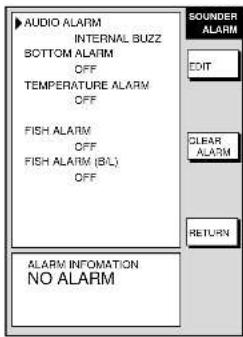

Sounder alarm menu

4.12.1 Audio alarm on/off

The bottom alarm sounds when the bottom echo is within the alarm range set. To activate the bottom alarm the depth must be displayed. Note that the bottom alarm is turned on or off reciprocally with the bottom alarm on the plotter alarm menu.

1. Press the [ALARM] key to show the ALARM menu.
2. Use the cursor pad to select BOTTOM ALARM.
3. Press the EDIT soft key to show the bottom alarm window.

BOTTOM ALARM

▲

○ ON

0000.0-0000.0 ft

◎ OFF

▼

Bottom alarm window

1. Use the cursor pad to select ON or OFF as appropriate. For ON, enter alarm range with the cursor pad and [ENTER] knob: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value.
2. Press the ENTER soft key or push the [ENTER] knob to register setting.
3. Press the [ALARM] key to finish.

4.12.3 Fish alarm

The fish alarm sounds when a fish echo is within the preset alarm range. Note that the sensitivity of the fish alarm can be set on the SOUNDER SYSTEM SETUP menu.

The bottom-lock fish alarm sounds when a fish echo is within a predetermined distance from the bottom. Note that the sensitivity of the fish alarm can be set on the SOUNDER SYSTEM SETUP menu.

1. Press the [ALARM] key to show the ALARM menu.
2. Use the cursor pad to select FISH ALARM (B/L).
3. Press the EDIT soft key to show the fish alarm (B/L) window.

Fish alarm (B/L) window

1. Use the cursor pad to select ON or OFF as appropriate. For ON, use the cursor pad and [ENTER] knob to enter alarm range: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value.
2. Press the ENTER soft key or push the [ENTER] knob to register setting.
3. Press the [ALARM] key to finish.

4.12.5 Water temperature alarm

There are two types of water temperature alarms: WITHIN RANGE and OUT OF RANGE. The WITHIN RANGE alarm sounds when the water temperature is within the range set, the OUT OF RANGE alarm sounds when the water temperature is higher or lower than the range set. This alarm requires water temperature data.

Note that the water temperature alarm is turned on or off reciprocally with the water temperature alarm on the plotter alarm menu.

1. Press the [ALARM] key to show the ALARM menu.
2. Use the cursor pad to select TEMPERATURE ALARM.
3. Press the EDIT soft key to show the temperature alarm window.

TEMPERATURE ALARM

▲

○ WITHIN RANGE-000.0 - +000.0°F

○ OUT OF RANGE-000.0 - +000.0°F

◎ OFF

▼

Water temperature alarm window

1. Use the cursor pad to select WITHIN RANGE, OUT OF RANGE or OFF as appropriate. For WITHIN RANGE and OUT OF RANGE, use the cursor pad and [ENTER] knob to enter alarm range: Use ◀ or ▶ to select digit; rotate the [ENTER] knob to set value.
2. Press the ENTER soft key or push the [ENTER] knob to register setting.

3. Press the [ALARM] key to finish.

4. VIDEO SOUNDER OPERATION

4.12.6 When an alarm setting is violated...

When an alarm setting has been violated the buzzer sounds and the speaker icon appears (in red on the color model). Press the [CLEAR] key to silence the alarm. For color models, press the [ALARM] key, CLEAR ALARM soft key to change the speaker icon from red to black. You can see which alarm has been violated on the alarm menu display. In the example below the fish alarm has been violated.

To see which alarm(s) has been violated;

1. Press the [ALARM] key. The offending alarm is shown in the ALARM INFORMATION window.

The table below shows the sounder alarm messages and their meanings

Sounder alarm messages and their meanings

Message	Meaning
DEPTH ALARM! Bottom alarm violated.
FISH ALARM! Fish alarm violated.
TEMPERATURE ALARM! Water temperature alarm violated.

4.13 Water Temperature Graph

The water temperature graph (appropriate sensor required) plots water temperature on the sounder display. (See the figure on page 4-3.) It can be turned on or off as below.

1. Press the [MENU] key to open the menu.
2. Press the SOUNDER MENU soft key.
3. Select TEMPERATURE GRAPH and press the EDIT soft key.
4. Select OFF (default setting) or ON as appropriate.
5. Press the ENTER soft key.
6. Press the [MENU] key to close the menu.

4.14 Changing Pulse Repetition Rate

Pulse repetition rate can be changed. Normally, the highest rate (20) is used. When in shallow waters, second reflection echoes may appear between surface and actual bottom echo. In this case, the RPP level. The action "RPP

4.15 Interpreting the Sounder Display

4.15.1 Zero line

The zero line (sometimes referred to as the transmission line) represents the transducer's position.

Zero line

4.15.2 Bottom echo

Echoes from the bottom are normally the strongest and are displayed in reddish-brown (color model) or darkest tone (monochrome model) but the color (tone on the monochrome model) and width will vary with bottom composition, water depth, frequency, sensitivity, etc.

In a comparatively shallow depth, a high gain setting will cause a second or sometimes a third or a fourth echo to be displayed at the same interval between them below the first echo trace. This is because the echo travels between the bottom and the surface twice or more in shallow depths.

The color (tone for monochrome model) of the bottom echo can be used to help determine the density of the bottom materials (soft or hard). The harder the

4.15.3 Fish school echoes

Fish school echoes will generally be plotted between the zero line and the bottom. Usually the fish school/fish echo is weaker than the bottom echo because its reflection property is much smaller compared to the bottom. The size of the fish school can be ascertained from the density of the display.

Fish school echoes

4.15.4 Surface noise/Aeration

When the waters are rough or the boat passes over a wake, surface noise may appear near the zero line. As surface turbulence is acoustically equivalent to running into a brick wall, the bottom echo will be displayed intermittently. Similar noise sometimes appears when a water temperature difference (thermocline) exists. Different species of fish tend to prefer different temperature zones, so the thermocline may be useful to help identify target fish. 200 kHz tends to show shallow thermoclines better than 50 kHz.

In rough waters the display is occasionally interrupted due to below-the-ship air bubbles obstructing the sound path. This also occurs when the boat makes a quick turn or reverses movement. However, reconsideration of the transducer installation may be necessary if the interruption occurs frequently.

5. CUSTOMIZING YOUR UNIT

This chapter describes the various options which allow you to set up your unit to suit your needs. For mode specific menus, e.g. radar plotter and sounder, make sure that you select the appropriate display when making changes or viewing menu option.

5.1 General Setup

This paragraph shows you how to set up functions common to the plotter, radar and sounder displays. This is done on the GENERAL SETUP menu, which you may display from any mode. These items include data, position and time formats, units of measurement, data sources, etc.

1. Show the any display and press the [MENU] key to display the main menu.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the GENERAL SETUP soft key.

5. CUSTOMIZING YOUR UNIT

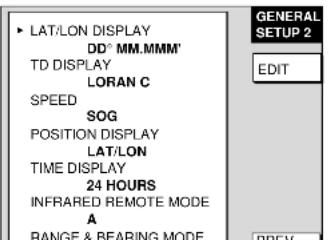

Contents of general menu

Item	Description		Settings
Key Beep Tums key operation beep on/off. On, Off On
Language Chooses menu language. English, French, German,		Italian, Portuguese, Spanish	English
Range Unit Chooses unit of range and speed measurement. nm, kt; km,		km/h; sm, mph; nm& yd, kt; nm & m, kt; km & m,km/h; sm & yd, mph	nm, kt
Temperature Unit	Chooses unit of water temperature measurement.	°C, °F	°F
Depth Unit	Chooses unit of depth measurement.	ft, m, fa, PB (Passi/Braza)	ft
Temperature Source	Chooses source of water temperature data.	ETR (network sounder), NMEA	NMEA
Depth Source	Chooses source of depth data.	ETR, NMEA.	NMEA
Reset Trip Log	Resets distance run.	Yes, No	No
Speed Source	Chooses source of own ship's speed data.	ETR, NMEA	NMEA
Lat/Lon Display	Chooses how many digits (or seconds) to display after decimal point in latitude and longitude position.	DD"MM.MM", DD"MM.MMM",DD"MM.MMMM",DD"MM'SS.S"	DD"MM.MMMM"
TD Display	Chooses TD type.	Loran C, Decca	Loran C
Speed	Chooses speed format to display.	SOG (Speed over ground),STW (Speed through water)	SOG
Position Display	Chooses position display format.	LAT/LON, TD	LAT/LON
Time Display	Chooses time notation.	12 hours, 24 hours	24 hours
Infrared Remote Mode	A remote controller can be set exclusively for use with a specific display unit, in the case of multiple NavNet display units. For further details see the Installation Manual.	A, B, C, D	A
Range & Bearing Mode	Chooses how to calculate range and bearing.	Rhumb Line: Straight line drawn between two points on a nautical chart.Great Circle: Shortest course	Rhumb Line

D

1. CUSTOMIZING YOUR UNIT

5.2 Radar Setup

This paragraph explains how to customize the radar display to suit your operational needs. Be sure to show the radar display before executing any of the procedures.

5.2.1 Radar display setup

The radar display may be set up from the RADAR DISPLAY SETUP menu, which contains items such as EBL reference and cursor position format.

1. Show the radar display, and press the [MENU] key to show the main menu.
2. Press the RADAR DISPLAY SETUP soft key.

5. CUSTOMIZING YOUR UNIT

Contents of radar setting menu

Item	Description		Settings
EBL Reference	References EBL bearing, shown in the EBL data box, to North (True) or heading (Relative)	True, Relative (True only for north-up, course-up and true motion mode)	Relative
Cursor Position	Chooses how to display cursor position.	LAT/LON: Lat/Long position of cursor TD: Loran C or Decca TDsRNG & BRG-REL: Range and bearing referenced to ship's headingRNG & BRG-TRUERange and bearing referenced to North.	RNG & BRG-REL
Tuning Selects	receiver tuning method. For further details see “2.3 Tuning.”	Auto, Manual Auto
TX Sector Blanking	Turns on/off dead sector graphic, which shows area where no echoes are transmitted. Set the blanking area.	On, Off Off
Noise Rejection	Electrical noise, appearing on the screen as “speckles,” may be suppressed with the noise rejector. Note that some forms of interference cannot be suppressed.	Off, Low, High	Low
Background Color (Color model)	Chooses colors of background, range rings and characters. Effective only when HUE soft key is set for “MANUAL.”	Black/GreenBackground: Black Rings: Green Characters: Green	Black/Green

Default

5. CUSTOMIZING YOUR UNIT

Contents of radar setting menu (con't from previous page)

Item	Description		Settings
Echo Color(Color model)	Chooses echo color.	Yellow, Green,Multi (Echoes shown in red, yellow or green in order of descending strength.)	Green
Watchman Time	Sets watchman stand-by period. For further details see paragraph 2.23 Watchman.	5, 10, 20 minutes 5 minutes
Range Unit	Sets unit of range measurement.	nm, km, sm nm

Defaul

5. CUSTOMIZING YOUR UNIT

5.2.2 Radar range setup

You may choose the radar ranges you wish to use, from the RADAR RANGE SETUP menu. (Available ranges depends on the network radar used.) After choosing the ranges desired change the range with the [RANGE] key to activate range settings.

At least two ranges (excluding maximum range) must be turned on. When less than two ranges are turned on, you cannot escape from the range setup menu. Note that the previous setting returns to the default setting when you change the unit type.

1. Press the [MENU] key to show the main menu.
2. Press the RADAR RANGE SETUP soft key to show the RADAR RANGE SETUP menu.

5.2.3 Function key setup

The function keys provide one-touch call up of a desired function. The default radar function key settings are as shown in the table below.

Function Key	Default Function	Function Key	Label
1	Turn heading line off.	HL
2	Turn range rings on/off.	RNG
3	Turn echo trail on/off.	TRL
4	Turn display ofcenter on/off.	SFT
5	Select radar source.	RSR

If the above settings are not to your liking you may change them as follows:

1. Press the [MENU] key.
2. Press the FUNCTION KEY SETUP soft key.

5. CUSTOMIZING YOUR UNIT

1. Select function desired with the cursor pad or [ENTER] knob and press the ENTER soft key or [ENTER] knob to register your selection.
2. Press the [MENU] key to close the menu.

Radar function keys

Menu Item Function Function Key Label
OFF Assigns no function. —
HL: HDG LINE OFF Tums heading line off. HL
MOD: MODE Selects presentation mode. MOD
GAI: GAIN Shows gain sensitivity adjustment window. GAI
SEA: A/C SEA Shows manual or A/C SEA adjustment window. SEA
RAI: A/C RAIN	Shows A/C RAIN adjustment window.	RAI
FTC: FTC	Displays FTC window. Adjust FTC with the [ENTER] knob.	FTC
ES: ECHO STRETCH	Tums echo stretch on/off.	ES
PLS: PULSE LENGTH	Sets pulselength (long or short).	PLS
ZOM: ZOOM	Turns zoom on/off.	ZOM
SFT: OFFCENTER	Press to shift display center to cursor location. Press again to turn shift off and return cursor to display center.	SFT
TRL: ECHO TRAIL	Starts/stops echo trails.	TRL
RNG: RINGS ON/OFF	Turns range rings on/off.	RNG
TLL: TLL OUTPUT	Outputs cursor position, in NMEA format, to navigator.	TLL
ALM: GUARD ALARM	Displays alarm soft keys.	ALM
EBL: EBL	Switches control between EBL1 and EBL2 with each press. EBL
VRM: VRM	Switches control between VRM1 and VRM2 with each press. VRM

100.100
Switches control between VDM and VDM0 with each press
VDM

1. CUSTOMIZING YOUR UNIT

5.3 Plotter Setup

This paragraph provides the information necessary for setting up the plotter display.

5.3.1 Navigation options

Navigation options, for example, waypoint switching method, may be set on the plotter setup menu.

1. Show the plotter display and press the [MENU] key open the main menu.
2. Press the PLOTTER SETUP soft key.

Display option menu

1. CUSTOMIZING YOUR UNIT

5.3.2 Function key setup

The function keys provide one-touch call up of a desired function. The default plotter function key settings are as shown in the table below.

Function Key Default Function Function Key Label
1 Start/stop recording/plotting own ship's track. TRK
2	Edit mark/line.	EML
3 Ruler (measure range and bearing between two points). RUL
4 Add new waypoint. ADD
5 Alphanumeric waypoint list. ALP

If the above settings are not to your liking you may change them as follows:

1. Press the [MENU] key.
2. Press the FUNCTION KEY SETUP soft key.
    H["SOFT KEY 3"]
    H --> I["RUL: RULER"]
    J["SOFT KEY 4"]
    J --> K["ADD: ADD NEW WPT"]
    L["SOFT KEY 5"]
    L --> M["ALP: ALPHA LIST"]
    N["FUNC KEY"] --> O["EDIT"]
    P["RETURN"] --> Q["RETURN"]

5. CUSTOMIZING YOUR UNIT

1. Select function desired with the cursor pad or [ENTER] knob and press the ENTER soft key or [ENTER] knob to register your selection.
2. Press the RETURN soft key.
3. Press the [MENU] key to close the menu.

Plotter function keys

Menu Item Function	Function Key Label
OFF	Assigns no	function.
ADD: ADD NEW WPT Registers waypoint at cursor position. Place cursor for waypoint location then press function key.		ADD
MWP: MOVE WPT Moves selected waypoint to different position. Select waypoint then press function key.		MWP
RUL: RULER Measures range and bearing between two points. Press START POINT soft key to change starting point if necessary. Range and bearing between two points appears at the top of the screen.		RUL
GWP: GOTO WPT Specify waypoint to set as destination. Enter number in window and press the ENTER soft key.		GWP
GRT: GOTO ROUTE Specify route to follow. Enter number in window and press the ENTER soft key.		GRT
EML: EDIT MK/LINE Displays mark & line menu. Press appropriate soft key to access menu item.		EML

1. CUSTOMIZING YOUR UNIT

5.4 Chart Setup

This paragraph shows you how to setup digital charts, from offsetting chart position to turning chart attributes on or off.

5.4.1 Chart offset

In some instances position may be off by a few seconds. For example, the position of the ship is shown to be at sea while it is in fact moored at a pier. You can compensate for this error by offsetting chart position as shown in the procedure below. You can execute the procedure from any display mode.

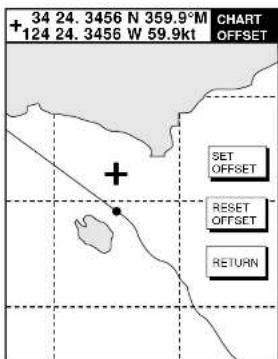

1. Show the plotter display and press the [MENU] key followed by the CHART SETUP and CHART OFFSET soft keys.

1. CUSTOMIZING YOUR UNIT

5.4.2 FURUNO, Nav-Chartshart attributes

Charts attributes may be turned on or off from the CHART DETAILS menu, which you may display as follows:

1. Press the [MENU] key.
2. Press the CHART SETUP and CHART DETAILS soft keys.

MODEL1722C/1723C series

MODEL1722 series

Chart details menu (FURUNO, Nav-Charts™)

5. CUSTOMIZING YOUR UNIT

Contents of chart details menu (FURUNO, NavCharts™)

Item	Description	Settings Default Setting Settings		Default Setting
		MODEL1722C/1723C series MODEL1722 series
Lat/Lon Grid Latitude and longitude grids		Red, yellow, green, light-blue, purple, blue, white. Off	Green	On,	Off On
Text Information	Geographic place, name	On, Off On On, Off	On
Waypoints	Waypoint size	Large, Small, Off	Large	Large, Small, Off	Large
Waypoint Names	Waypoint name	On, Off On On, Off	On
Chart Border Lines	Border lines (indices)	On, Off On On, Off	On
Landmass	Landmass brilliance (monochrome model), color (color model)	Brt, Dim: Red, yellow, green, light-blue, purple, blue, white. Off	Brt Yellow	Brt, Dim, Off	Brt
Background	Chart background color	White, Black	Black	—
Navaids	Navaid data on Nav-ChartsTM; lighthouse data on FURUNO charts	On, Off On On, Off	On
Light Sector	Lighthouse	On, Off On On, Off	On

1. CUSTOMIZING YOUR UNIT

CNTOUR LINE soft key

1. Press the [MENU] key.
2. Press the CHART SETUP and CHART DETAILS soft keys.
3. Press the CNTOUR LINE soft key.

MODEL1722C/1723C series

MODEL1722 series

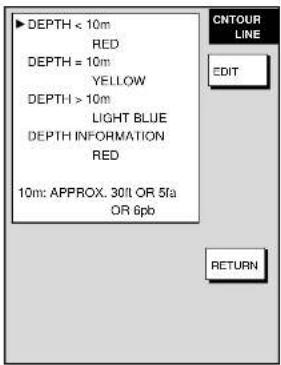

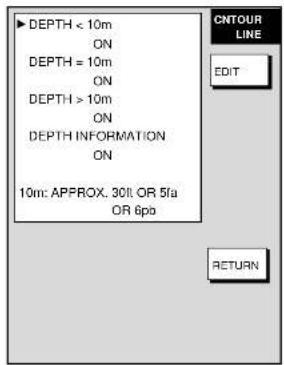

Contour line menu (FURUNO, Nav-Charts™)

1. CUSTOMIZING YOUR UNIT

5.4.3 C-MAP chart attributes

Charts attributes may be turned on or off from the CHART DETAILS menu, which you may display as follows:

1. Press the [MENU] key.
2. Press the CHART SETUP and CHART DETAILS soft keys.

Color

Page 2Page 1

Contents of chart details menu (C-map)

Item	Description	Settings	Default	Setting	Settings	Setting
		MODEL1722C/1723C series MODEL1722 series
Waypoints	Waypoint	display Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Waypoint Names	Waypoint name Plotter/Overlay, Plotter, Off	Plotter/Overlay	Plotter/Overlay	On,	Off	On
Lat/Lon Grid Latitude and longitude grids	Border lines (indices)	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Chart Border Lines	Border lines (indices)	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Background	Chart background color	White, Black Black —
Port & Service	Port services icon display	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Attention Area	Attention area icon display	Plotter/Overlay, Plotter, Plotter/Contour, Off	Plotter/Overlay	On,	Contour, Off	On
Nav Lane	Navigation lanes	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Light	Lighthouse icon, sector	Plotter/Overlay, Plotter, Plot/No Sector, Off	Plotter/Overlay	On,	No Sector, Off	On
Buoy & Beacon	Buoys, beacons display	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Signal	Signals category icon	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On

5. CUSTOMIZING YOUR UNIT

Contents of C-MAP chart details menu (continued from previous page)

Item	Description	Settings	Default	Setting	Settings	Setting
		MODEL1722C/1723C series		MODEL1722 series
Chart Generation	Chart generation category icons	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
New Object New object category icons		Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
Complex Object Icon	Single or multiple icon for object composed of several icons	Multiple, Single	Multiple Multiple, Single	Multiple
Information Level	Basic or detailed data for objects	Basic, Detailed	Basic Basic, Detailed	Basic
DEPTH INFO (soft key)See illustration on next page	Bathymetric Line	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
	Spot Sounding	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
	Bottom Type	Plotter/Overlay, Plotter, Off	Plotter/Overlay	On,	Off	On
	Contour Shading	0-99999ft (m, fa, PB)	20,164ft (6, 50m, 3, 27 fa, 4, 30PB)	0-99999ft (m, fa, PB)		20ft (6m, 3fa, 4PB)
	Spot Sounding Range	0-99999ft (m, fa, PB)	0-33ft (0-10m, 0-6fa, 0-6PB)	0-99999ft (m, fa, PB)		0-33ft (0-10m, 0-6fa, 0-6PB)

Settings description

Basic: Shows basic characteristics of objects.

Detailed: Shows detailed characteristics of objects.

Multiple: Shows multiple icons for complex objects

1. CUSTOMIZING YOUR UNIT

DEPTH INFO soft key

1. Press the [MENU] key.
2. Press the CHART SETUP and CHART DETAILS soft keys.
3. Press the DEPTH INFO soft key.

MODEL1722C/1723C series

MODEL1722 series
Depth info menu (C-map)

Note: The spot sounding range setting allows you to control the color (or shade) associated to user assigned depths. Any contour line area that contains a depth that is LOWER than the first number will be shown in dark blue (dark tone). Any contour line area that contains a depth BETWEEN the

1. CUSTOMIZING YOUR UNIT

5.5 Data Boxes Setup

You may select the data to show in the data boxes for the plotter, radar and sounder displays. Six boxes may be displayed in case of small size data box and two for large size data box.

1. Display the plotter, radar or sounder display, whichever you want to set.
2. Press the [MENU] key to open the main menu.
3. Press one of the following sets of soft keys depending on the display selected at step 1.

Radar mode: RADAR DISPLAY SETUP, D. BOX

Plotter mode: PLOTTER SETUP, D. BOX

Sounder mode: SOUNDER MENU, D. BOX

Data box menu

1. CUSTOMIZING YOUR UNIT

5.6 Hot Page Setup

Five user-arrangeable hot pages are provided for quick selection of desired display.

1. Press the [MENU] key followed by pressing the SYSTEM CONFIGURATION, SYSTEM SETUP, HOT PAGE & NAV DISP SETUP and HOT PAGE SETUP soft keys in that order.

Hot page setup menu

1. Use the cursor pad to select the hot page number to set and then press the EDIT soft key. The full-screen selection window appears.

HOT PAGE 1

5. CUSTOMIZING YOUR UNIT

1. Rotate the [ENTER] knob to select the full-screen picture desired and push the [ENTER] knob. A set of combination screens, corresponding to the full-screen selected, appears.

Combination screen selection window

1. Rotate the [ENTER] knob to select the full screen or combination screen desired and push it to set.

5.7 Navigator Setup

This section provides the information necessary for selecting the type of navigator connected to your plotter.

5.7.1 Navigation data source

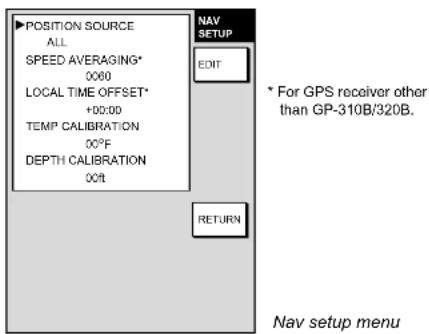

The NAV SETUP menu mainly selects the source of nav data. For GPS receiver other than the GP-310B/320B, speed averaging and local time offset (to use local time) are also available. Press the [MENU] key followed by the SYSTEM CONFIGURATION, NAV OPTION and NAV SOURCE SETTINGS soft keys to display this menu.

Contents of nav setup menu

Item	Description	Settings	Default Setting
Position Source	Chooses source of position data.	FURUNO BB GPS: GPS Receiver GP-310B/320B GP: GPS navigator via	ALL

1. CUSTOMIZING YOUR UNIT

5.7.2 GPS receiver setup (Set equipped with GP-310B/320B)

The GPS SETUP menu sets up the GPS Receiver GPS-310B/320B. Press the [MENU] key followed by the SYSTEM CONFIGURATION, NAV OPTION and GPS SENSOR SETTINGS soft keys to display this menu.

*: Only when the GP-320B is connected.

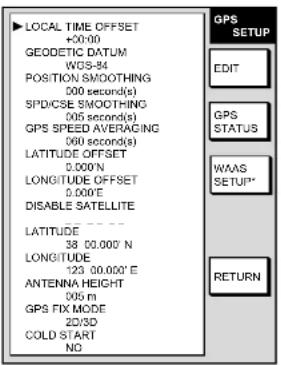

GPS sensor setup menu

Contents of GPS setup menu

Item	Description	Settings
Local Time Offset	Lets you use local time (instead of UTC time). Enter time difference between local time and UTC time. Set this item when using the GPS-310B/320B.	-13:30 to +13:30 hours	00:00
Geodetic Datum	Note: Geodetic Datum is a reference for geodetic survey	See Appendix for full	WGS-84

Default

5. CUSTOMIZING YOUR UNIT

Contents of GPS sensor setup menu (con't from previous page)

Item	Description		Settings
Spd/Cse Smoothing	During position fixing, ship's velocity (speed and course) is directly measured by receiving GPS satellite signals. The raw velocity data may vary too much depending on receiving conditions and other factors. You can reduce this variance by increasing the smoothing. Like with latitude and longitude smoothing, the higher the speed and course smoothing the higher the smoothing setting, the more the raw data will be averaged. If this setting is high, the response to speed and course changes will slow. For no smoothing, enter all zeros.	0-999 sec	5 sec
GPS Speed Averaging	Calculation of ETA is based on average ship's speed over a given period. If the period is too long or too short, calculation error will result. Change this setting if calculation error occurs. The default setting is suitable for most conditions.	0-999 sec 60 sec
Latitude, Longitude Offset	Offsets latitude position to further refine position accuracy. Use the N<--->S soft key to switch coordinate.	0.001'S - 9.999'N0.001'E - 9.999'W	0.0' (no offset)
Disable Satellite	Every GPS satellite is broadcasting abnormal satellite number(s) in its Almanac, which contains general orbital data about all GPS satellites, including those which are malfunctioning. Using this information, the GPS receiver automatically eliminates any malfunctioning satellite from the GPS satellite schedule. However, the Almanac sometimes may not contain this information. If you hear about a malfunctioning satellite from another source, you can disable it manually. Enter satellite number (two digits, max. 3 satellites) with the trackball and [ENTER] knob and press the ENTER soft key.		None

5. CUSTOMIZING YOUR UNIT

WAAS SETUP

Press the WAAS SETUP soft key to show the WAAS SETUP display.

Note: This function requires GP-320B antenna. Also, confirm that your display unit has the program version no. shown below.

NavChart type: Ver. 12 and after

C-map type: Ver.8 and after

Contents of WAAS SETUP menu

Item	Description	Settings
WAAS MODE Select ON to use the WAAS mode. On, Off Off
WAAS SEARCH WAAS satellite can be searched automatically or manually. For manual search, select MANUAL here, and enter the satellite number (s).		Auto, Manual	Auto
WAAS ALARM When the positioning mode is changed from WAAS to GPS, the audible alarm sounds with the visual message "NO WAAS SIGNAL." This audible alarm type can be changed here.On: Alarm continues to sound until the WAAS positioning mode is available again or the alarm is recognized by key operation.Off: Alarm sounds three times.		On, Off Off
CORRECTION DATA SET	Selects the type of message for WAAS correction. Use setting "02" until the	00 to 27, 99	02

Defal

5.7.3 TD display setup

The TD SETUP menu sets which Loran C or Decca chain to use to display TD position. (Connection of a Loran C or Decca navigator is not necessary to display TD position.)

1. Press the [MENU] key.
2. Press the SYSTEM CONFIGURATION, NAV OPTION and TD SETUP soft keys to display the TD SETUP menu.

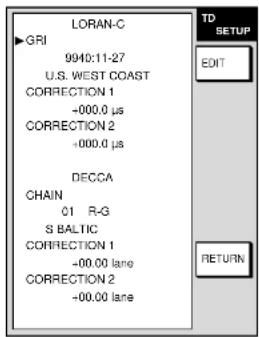

TD setup menu

Displaying Loran C TDs

1. Select GRI and press the EDIT soft key to show the GRI & station pair window.

5. CUSTOMIZING YOUR UNIT

1. Press the ENTER soft key to register your selection.
2. If necessary, you may enter a position offset to refine Loran C position accuracy. Select (GRI) CORRECTION 1 or CORRECTION 2 and press the EDIT soft key. Enter correction value with the cursor pad and [ENTER] knob and then press the ENTER soft key or the [ENTER] knob. Use the -> soft key to switch from plus to minus and vice versa.
3. Press the RETURN soft key twice.
4. Press the GENERAL SETUP soft key.
5. Press the NEXT PAGE soft key.
6. Select "LORAN C" from "TD DISPLAY", "TD" from "POSITION DISPLAY" and press the ENTER soft key.
7. Press the RETURN soft key followed by the [MENU] key to close the menu.

Displaying DECCA TDs

1. Select CHAIN and press the EDIT soft key to show the chain & station pair window.

Decca chain and station pair window

1. Use ▲ or ▼ on the cursor pad to select Decca chain number.
2. Press ▶ to enable selection of lane.

1. CUSTOMIZING YOUR UNIT

5.8 Nav Data Display Setup

The nav data display provides various navigation data, fed from a navigator, network equipment, etc. You may select the data to display and where to display it, on the NAV DATA menu.

1. Press the [MENU] key to open the main menu.
2. Press the SYSTEM CONFIGURATION, SYSTEM SETUP, HOT PAGE & NAV DISP SETUP and NAV DATA DISPLAY SETUP soft keys.

Nav data setup screen

1. Use the cursor pad to select a location

2. Press the EDIT soft key. The following display appears.

3. CUSTOMIZING YOUR UNIT

5.9 Sounder Setup

This section shows you how to customize your sounder to your liking. You can set fish alarm sensitivity, fine tune sensor data, etc.

5.9.1 System setup

1. Show the sounder display and press the [MENU] key.
2. Press the SOUNDER SYSTEM SETUP soft key.

Page 1 Page 2

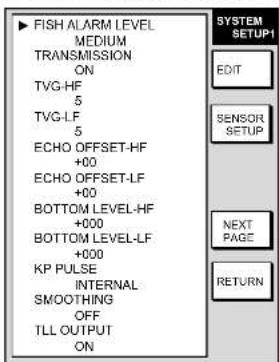

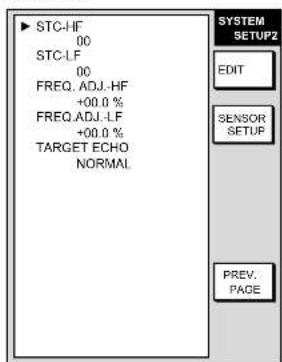

Sounder system setup menu

Sounder system setup menu description

Sounder system setup menu description (con't)

Item	Description	Settings
TVG (LF, HF)	TVG (Time Varied Gain) compensates for propagation attenuation of the ultrasonic waves. It does this by equalizing echo presentation so that fish schools of the same size appear in the same density in both shallow and deep waters. In addition, it reduces surface noise. Note that if the TVG level is set too high short range echoes may not be displayed.	0-9
Echo Offset (LF, HF)	If the on-screen echo level appears to be too weak or too strong and the level cannot be adjusted satisfactorily with the gain control, adjust echo offset to compensate for too weak or too strong echoes. The default setting for both HF and LF is zero.	-50 - +50
Bottom Level (LF, HF)	If the depth indication is unstable in automatic operation or the bottom echo cannot be displayed in reddish-brown by adjusting the gain control in manual operation, you may adjust the bottom echo level detection circuit, for both LF and HF, to stabilize the indication. Note that if the level is set too low weak echoes may be missed and if set too high the depth indication will not be displayed.	-100 - +100
KP Pulse Selects source of keying pulse. Internal, External (See		installation manual.)
Smoothing Smooths echoes to present stable display. The higher the setting the greater the smoothing.		SM1-SM4, OFF
TLL Output Outputs cursor position to external equipment. ON, OFF
STC (HF, LF)	Adjusts STC level for the high and low frequencies,	0-10

1. CUSTOMIZING YOUR UNIT

5.9.2 Sensor setup

The sensor setup menu lets you further refine speed, temperature and depth data fed from the network sounder.

1. Show the sounder display and press the [MENU] key.
2. Press the SOUNDER SYSTEM SETUP and SENSOR SETUP soft keys to show the SENSOR SETUP menu. The current ship's speed, water temperature, depth and speed of sound are shown at the bottom of the menu.

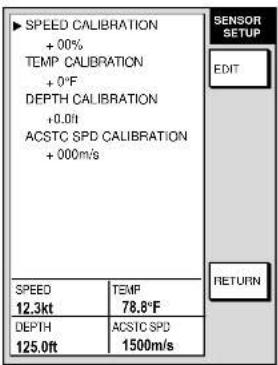

Sensor setup menu

1. Select item to adjust and press the EDIT soft key.

2. Use the cursor pad to display appropriate value as below.

3. CUSTOMIZING YOUR UNIT

5.9.3 Sounding range, zoom range, bottom lock range

This paragraph shows you how to set custom ranges for basic range, zoom range (marker and bottom zoom) and bottom lock range. All default basic ranges are restored whenever the unit of depth measurement is changed. Therefore, change the depth unit before changing the basic ranges.

1. Show the sounder display and press the [MENU] key to open the main menu.
2. Press the SOUNDER RANGE SETUP soft key to show the SOUNDER RANGE SETUP menu.

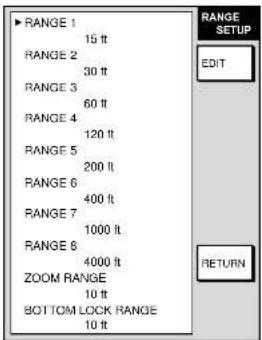

Sounder range setup menu

1. Select the range to change and press the EDIT soft key. Available settings are as below. For sounding range, set depth from lowest to highest; a range cannot be higher than its succeeding neighbor.

5. CUSTOMIZING YOUR UNIT

5.9.4 Function key setup

The function keys provide one-touch call up of a desired function. The default sounder function key settings are as shown in the table below.

Function Key Default Function Function Key Label
1 Output cursor position TLL
2	Suppress clutter.	CLT
3 Erase weak signal. SLV
4	Suppress noise.	NL
5 Set picture advancement speed. PA

If the above settings are not to your liking you may change them as follows:

1. Show the sounder display.
2. Press the [MENU] key.
3. Press the FUNCTION KEY SETUP soft key.
    G["SOFT KEY 3"]
    G --> H["SLV: SIGNAL LEVEL"]
    I["SOFT KEY 4"]
    I --> J["NL: NOISE LEVEL"]
    K["SOFT KEY 5"]
    K --> L["PA: PICTURE ADV"]
    M["FUNCTION KEY"] --> N["EDIT"]
    O["RETURN"] --> P["RETURN"]

5. CUSTOMIZING YOUR UNIT

1. Select function desired with the cursor pad or [ENTER] knob and press the ENTER soft key or [ENTER] knob to register your selection.
2. Press the ENTER soft key or the [ENTER] knob to register your selection.
3. Press the [MENU] key to close the menu.

Sounder function keys

Menu Item Function		Function Key Label
OFF Assigns no function.
MOD: AUTO MODE Display automatic mode selection window. MOD
GHF: GAIN - HF	Displays high frequency gain adjustment window.	GHF
GLF: GAIN - LF	Displays low frequency gain adjustment window.	GLF
SFT: SHIFT Shifts range in manual operation. SFT
NL: NOISE LIMITER Suppresses noise. NL
CLT: CLUTTER Suppresses clutter. CLT
WMK: WHITE MARKER	Sets white marker. (color only)	WMK
HUE: HUE	Sets hue (color model only).	HUE
SLV: SIGNAL LEVEL	Erases weak signals.	SLV
PA: PICTURE ADV	Sets picture advance speed.	PA
TG: TEMP. GRAPH	Turns temperature graph on/off.	TG
TVH: TVG - HF	Sets TVG for high frequency.	TVH
TVL: TVG - LF	Sets TVG for low frequency.	TVL

This page is intentionally left blank.

6. DATA TRANSFER

This chapter provides information for saving and replaying data to and from memory cards, and uploading and downloading data.

6.1 Memory Card Operations

The memory cards function to store data, and the following data can be saved:

• Marks/lines
• Waypoints/routes
• Track
• Setting data (plotter only)

6.1.1 Formatting memory cards

Before you can use a memory card it must be formatted. This prepares the card for use with the system. Note that formatting a memory card erases all saved data.

1. Insert a blank memory card into the card slot.
2. Press the [MENU] key followed by the SYSTEM CONFIGURATION, DATA TRANSFER, UPLOAD/DOWNLOAD DATA and SAVE DATA TO MEMORY CARD soft keys to show the SAVE DATA menu.

6. DATA TRANSFER

6.1.2 Saving data to a memory card

1. Insert a formatted memory card into the slot.
2. Press the [MENU] key followed by the SYSTEM CONFIGURATION, DATA TRANSFER, UPLOAD/DOWNLOAD DATA and SAVE DATA TO MEMORY CARD soft keys to show the SAVE DATA menu.

* = Plotter data only

Save data menu

1. Use the cursor pad to select item to save.
2. Press the EDIT soft key.
3. Use the cursor pad to select ON.
4. Press the ENTER soft key.
5. Repeat steps 3 to 6 to choose other data to save if desired.
6. Press the SAVE soft key. The message "NOW SAVING DATA TO MEMORY CARD. DO NOT TURN OFF THE DISPLAY UNIT UNTIL COMPLETED." appears.

Memory card messages

Various memory card messages appear to alert you to memory card-related error. These are tabulated below.

Memory card messages

Message	Reason	Remedy
Memory card is not inserted. Please insert card. Push ENTER knob to continue.	Memory card not inserted.	Push the [ENTER] knob to return to the SAVE DATA display and then insert card.
Memory card is not formatted. Push ENTER knob to continue.	Unformatted memory card.	Push the [ENTER] knob to return to the SAVE DATA display. Format the card referring to page 6-1.
Wrong card is inserted. Please insert correct memory card. Push ENTER knob to continue.	Chart card inserted instead of memory card.	Remove chart, and insert memory card, and then push the [ENTER] knob to continue.
Overwrite data? (Track) (Mark) (WPT) (Config)	Data type to be recorded exists on memory card. (Two or more of same type of data cannot be recorded.)	Push the [ENTER] knob to overwrite same data type on the card, or press the [CLEAR] key to escape.

6. DATA TRANSFER

6.1.3 Playing back data from a memory card

Data (track, marks, lines, waypoints, routes and setting data) can be loaded from a memory card and displayed on the screen. This feature is useful for observing past data and setting up the equipment for a specific purpose with "setup data."

1. Press the [MENU] key followed by the SYSTEM CONFIGURATION and DATA TRANSFER soft keys.
2. Press the UPLOAD/DOWNLOAD DATA soft key.
3. Press the LOAD DATA FROM MEMORY CARD soft key to show the LOAD DATA menu.

* = Plotter data only

Load data menu

1. Use the cursor pad to select item to load.
2. Press the EDIT soft key.
3. Use the [ENTER] knob to select ON. (Select OFF to not load selected data.) Press the ENTER soft key. If the memory card does not contain the item selected, the buzzer sounds and ON cannot be selected.
   7 After you select all items desired press the LOAD soft key to load data. The

6.2 Uploading, Downloading Data

You can upload waypoint and route data from a PC and download like data to a PC, through the DATA 3 port at the rear of the display unit. Note that sounder and radar data cannot be uploaded or downloaded.

6.2.1 Setting communication software on the PC

Set communication software on the PC as follows:

Baud Rate: 4800 bps

Character Length: 8 bits

Stop bit: 1 bit

Parity: None

X Control: XON/XOFF (fixed)

The following data can be downloaded/uploaded between a personal computer and this equipment:

• Waypoint data (In alphanumeric order)

- Route data (In order of route number)

Note 1: There are two kinds of data for route data: route data and route comment data.

Note 2: Wiring information appears on the UPLOAD or DOWNLOAD menu.

6.2.2 Uploading or downloading data

1. Connect the PC to the equipment.

6. DATA TRANSFER

1. To change the baud rate, press the SELECT BPS soft key.

Baud rate window

1. Select baud rate and press the ENTER soft key. Note: Select the speed among 4800, 9600 and 19200 bps.
2. Press the DWLOAD or UPLOAD soft key. You are asked if you are ready to download or upload waypoints and routes.
3. Push the [ENTER] knob to download or upload data.

Waypoint data format

Waypoint data format

1: Waypoint latitude
2: N/S
3: Waypoint longitude
4: E/W
5: Waypoint name (Number of characters is fixed to 6 and space code is placed when the number of characters are less than 6.)
6: Waypoint color
7· Wavpoint comment (1 byte for mark code + 13 characters of comment.)

Route data menu

Route data format

1: Number of sentences required for one complete route data (1 to 4). See Note 2.
2: Number of sentences currently used (1 to 4)
3: Message mode (Always set to C)
4: Route No. (001 to 300, 3 digits required)
5 through 12: Waypoint name (Max. 8 names, length of each waypoint name is fixed to 7 byte)

Note 2: A route can may contain 35 waypoints, and the GPRTE sentence for one route data may exceed 80 byte limitation. In this case, route data is divided into several GPRTE sentences (Max. 4 sentences). This value shows the number of sentences the route data has been divided.

Route comment data format

Route comment format

1: Route No. (01 to 200, 3 digits required)
2: Route comment (Max. 16 characters. variable length)

6. DATA TRANSFER

6.3 Loading Waypoint Data from Yeoman

Waypoint data can be loaded from a Yeoman to this equipment. Connect the Yeoman to any DATA port on this equipment and then follow the procedure below.

1. Press the [MENU] key.
2. Press the SYSTEM CONFIGURATION key.
3. Press the DATA TRANSFER soft key.
4. Press the RECEIVE YEOMAN DATA soft key.
5. You are asked if you are sure to receive waypoint data from Yeoman equipment. Push the [ENTER] knob to receive the data.
   The message "NOW RECEIVING YEOMAN DATA. PUSH SOFTKEY 'STOP' TO STOP RECEIVING." Is displayed. If waypoint capacity is reached the message "WAYPOINTS FULL. NO MORE WAYPOINT CAN BE RECEIVED. PUSH ANY KEY TO STOP." appears.
6. To stop receiving, press the STOP soft key.
7. After waypoints have been received, press the [MENU] key to close the menu.

6.4 Receiving Data Via Network Equipment

You can receive waypoints, routes, marks and lines from NavNet equipment.

1. Press the [MENU] key.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the DATA TRANSFER soft key.
4. Press the RECEIVE DATA VIA NETWORK soft key.

Receive data menu

1. Select HOST NAME and press the EDIT soft key.

Host name window

6. DATA TRANSFER

1. Press the RCV soft key to receive data.

The message "START RECEIVING DATA VIA NETWORK." is displayed. IF no data could be found the message "(HOST NAME)" IS NOT FOUND." appears.

1. When the transfer is completed, the message "DATA TRANSFER COMPLETED. PUSH ENTER KNOB TO CONTINUE." appears. Push the [ENTER] knob.

2. Press the [MENU] key to close the menu.

6.5 Outputting Data Through the Network

Follow the procedure below to output data through the network.

1. Press the [MENU] key to open the menu.
2. Press SYSTEM CONFIGURATION, SYSTEM SETUP, PORT SETUP and OUTPUT THROUGH NETWORK soft keys.

7. MAINTENANCE, TROUBLESHOOTING

This chapter provides information necessary for keeping your unit in good working order and remedying simple problems.

7.1 Preventive Maintenance

Regular maintenance is important for optimum performance. A maintenance schedule should be established and should at least include the items below.

Maintenance program

Item	Check	point
Display unit connectors	Check for tight connection. Tighten loosened connectors.
LCD	The LCD will, in time, accumulate a coating of dust which tends to dim the	Wipe the LCD carefully to prevent scratching, using tissue paper and an

Rel

1. MAINTENANCE, TROUBLESHOOTING

7.2 Replacement of Fuse

The fuse on the power cable protects the equipment from reverse polarity of the ship's mains and equipment fault. If the fuse blows, find out the cause before replacing it. Use the correct fuse (10A for 12 V, 5A for 24 V). Using the wrong fuse will damage the equipment and void the warranty.

7.3 Replacement of Battery

A battery fitted on a circuit board inside the display unit preserves data when the equipment is turned off, and its life is about three years. When its voltage is low the battery icon (☐) appears at the top of the display. When the icon appears, contact your dealer to request replacement of the battery.

Parts Name	Type	Code No.
Lithium battery	CR	2450-F2 ST2L 000-1	144-941

7.4 Simple Troubleshooting

This section provides simple troubleshooting procedures which the user can follow to restore normal operation. If you cannot restore normal operation do not attempt to check inside the unit. Any trouble should be referred to a qualified technician.

7.4.1 General

General troubleshooting

If...	Then...
you cannot turn on the power	• check for blown fuse.• check that the power connector is firmly fastened.• check for corrosion on the power cable connector.• check for damaged power cable.• check battery for proper voltage output (10.8 to 31.2 V).
there is no response when a key is pressed	• turn off and on the power. If there still is no response the key may be faulty. Request service.

1. MAINTENANCE, TROUBLESHOOTING

7.4.2 Radar

Requires a network radar.

Radar troubleshooting

If...	But...	TI
you pressed the [POWER/BRILL] key and the RADAR TX soft key to show the radar picture	nothing appears on the display	• check that the signal cable between the display unit and the antenna is firmly fastened.• Check that radar source is correct.
marks, legends appear	no echo appears	• check in the power cable. If it is blown, replace it.
picture not updated or picture freezes	—	• check signal cable.• turn the display unit off and on again.
tuning is adjusted	sensitivity is poor	• Magnetron may need to be replaced. Contact your dealer.
range changed	radar picture does not change	• try to hit the [-] and [-] keys again.• turn the display unit off and on again.
poor discrimination in range	—	• adjust A/C SEA.• Check heading and speed data for input.
true motion presentation not working properly	—	• reselect true motion mode.
range rings are not displayed	—	• Hit the RADAR DISPLAY and RINGS soft keys to display them.

7.4.3 Plotter

Requires GPS Receiver GP-310B/320B.

Plotter troubleshooting

If...	Then...
position is not fixed within three minutes	• check that antenna connector is firmly fastened.• Check the satellites numbers received, on the GPS status display (GPS SENSOR SETTINGS menu, GPS STATUS key see page 7-11).
position is wrong	• check that the correct geodetic chart system is selected, on the GPS SENSOR SETTINGS menu.• enter position offset on the GPS SENSOR SETTINGS menu.
track is not plotted	• plotting has been stopped. ("H" icon appears at the top of the display.) Press the TRACK HALT soft key on the TRACKS & MARKS CONTROL menu to start plotting again.
bearing is wrong	• check that correct magnetic variation is entered, on the GENERAL SETUP menu.
Loran C (or Decca) TDs do not appear	• check that LORAN C (or DECCA) is selected at TD DISPLAY on the GENERAL SETUP menu. Also, check that proper Loran C (Decca) chains codes are entered, on the TD SETUP menu.
Loran C TDs are wrong	• enter TD offset on the TD SETUP menu.
ship's speed indication is not zero after the ship is stopped	• try to decrease speed/course smoothing on the GPS SENSOR SETTINGS menu.

1. MAINTENANCE, TROUBLESHOOTING

7.4.4 Sounder

Requires Network Sounder ETR-6/10N or ETR-30N.

Sounder troubleshooting

If...	But...	Then...
If you selected a sounder display with the DISP key	no sounder display appears	• check that the signal cable between the network sounder and this equipment is firmly fastened.• check that the network sounder is plugged in. The LED of the network sounder should flash every second.• Check that sounder source is correct.
marks and characters appear	picture does not appear	• check for loosened transducer connector.
picture appears	zero line does not appear	• the picture is shifted. confirm the shift setting
picture sensitivity is too low	— • check gain setting, if using manual operation.• marine life or air bubbles may be clinging to transducer face.• bottom may be too soft to return a suitable echo.
depth is not displayed	—	• adjust gain to display the bottom echo (in reddish brown on the color model), if you are using the manual sounder mode.• correctly display bottom echo on the display, if you are using manual sounder mode.• confirm that ETR is selected at DEPTH

7.5 Diagnostics

This paragraph provides the procedures for testing the equipment for proper operation. Four tests are provided: Memory I/O test, Keyboard test, Remote controller test, and Test pattern.

7.5.1 Memory I/O test

The memory I/O test provides for individual testing of the display unit, GPS receiver GP-310B/320B, network sounder ETR-6/10N, ETR-30N and ARP, displaying program number and checking for proper operation.

1. Press the [MENU] key to show the menu.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the SYSTEM SETUP soft key.
4. Press the TEST & CLEAR soft key.
5. Press the MEMORY I/O TEST soft key.

7. MAINTENANCE, TROUBLESHOOTING

Display unit test

Press the DISPLAY UNIT TEST soft key at the MEMORY I/O TEST menu to test the display unit. The equipment displays program version number, checks devices and shows the number of the chart card inserted in the chart slot (if inserted). Results for device checks are shown as OK or NG (No Good). For any NG, request service. Test connector required to check ports. “-” appears when no test connector is no connected. Press the RETURN soft key to return to the MEMORY I/O TEST menu. Chart number shown for C-MAP cards only.

XX = Program Version No.

Display unit test results (or MODEL 17020 series)

1. MAINTENANCE, TROUBLESHOOTING

Network sounder (ETR-6/10N, ETR-30N) test

Press the NETWORK SOUNDER TEST soft key at the MEMORY I/O TEST menu to test the Network Sounder ETR-6/10N or ETR-30N. The equipment displays network sounder program version number, checks the ROM and RAM, and displays water temperature (appropriate sensor required) and depth. The results of the ROM and RAM check are shown as OK or NG (No Good). For NG request service. Press the RETURN soft key to return to the MEMORY I/O TEST menu.

Network sounder test results

ARP test

Not used.

1. MAINTENANCE, TROUBLESHOOTING

7.5.2 Test pattern

The test pattern test checks the display for proper display of colors (MODEL1722C/1723C series) or tones (MODEL1722 series).

1. Press the [MENU] key to show the menu.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the SYSTEM SETUP soft key.
4. Press the TEST & CLEAR soft key.
5. Press the TEST PATTERN soft key to show test pattern.

MODEL1722C/1723C series

MODEL1722 series

Test patterns

1. For the MODEL1722C/1723C series, push the [ENTER] knob consecutively to show white, red, green, blue and black colors.
   7 Press the RETURN soft key

7.5.3 Keyboard, remote controller test

The keyboard test checks the controls on the display unit and remote controller for proper operation.

1. Press the [MENU] key to show the menu.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the SYSTEM SETUP soft key.
4. Press the TEST & CLEAR soft key.
5. Press the KEYBOARD & REMOTE TEST soft key.

Screen for testing keyboard, remote controller

1. Operate each control on the keyboard and remote controller one by one. A key is functioning properly if its on-screen location "fills" in black (color model) or green (monochrome model) when the key is pressed. For the [ENTER] knob, rotate it to show X-Y position; push it to confirm function.

2. Press the [CLEAR] key on the display unit three times to escape from the

3. MAINTENANCE, TROUBLESHOOTING

7.6 GPS Status Display

The GPS status display provides data about the GPS satellites, and is available with connection of the GPS Receiver GP-310B/320B or a GPS navigator outputting the data sentence GSA or GSV.

1. Press the [MENU] key.
2. Press SYSTEM CONFIGURATION, NAV OPTION and GPS SENSOR SETTINGS soft keys to display the GPS SENSOR SETTINGS menu.
3. Press the GPS STATUS soft key.

1. MAINTENANCE, TROUBLESHOOTING

7.7 Clearing Memories

Your equipment has a memory for each of the plotter, radar and sounder sections. These memories can be cleared to restore the unit to default settings.

The following data are not cleared: Heading adjustment, timing adjustment, MBS level, tuning point, tuning indication (short, medium, long), dead sector, antenna type, on time, TX time.

1. Press the [MENU] key to open the menu.
2. Press the SYSTEM CONFIGURATION soft key.
3. Press the SYSTEM SETUP soft key.
4. Press the TEST & CLEAR soft key.
5. Press the MEMORY CLEAR soft key.

Memory clear menu

1. Use the cursor pad to choose the memory to clear.

2. Press the EDIT soft key.

3. MAINTENANCE, TROUBLESHOOTING

7.8 Error Messages

In addition to alarm message your equipment also displays equipment status menus.

Equipment status error messages

Error Message Meaning Remedy
Connection with the ETR was cut.	Network sounder disconnected.	· Check that display unit where the sounder is connected is turned on.· Check network sounder's cabling.
Connection with the RADAR was cut.	Radar disconnected.	· Check that display unit where the radar is connected is turned on.· Check antenna cable.
Low Voltage! Internal Battery	Voltage of battery on circuit board in display unit is low.	Have a qualified technician replace the battery.
No bearing pulse detected. No	bearing pulse from radar antenna.	Check antenna cable.
No GPS fix! GPS navigator is turned off or no GPS position data.		Check GPS navigator.
Heading data missing!	No heading pulse	Check heading connector.
No heading pulse detected.		Check heading sensor.
No GPS position! An error may occur on GP-310B/320B.		Disconnect GPS cable from the display unit, and contact with your dealer.

APPENDIX

Menu Overview

MENU key

Radar

APPENDIX

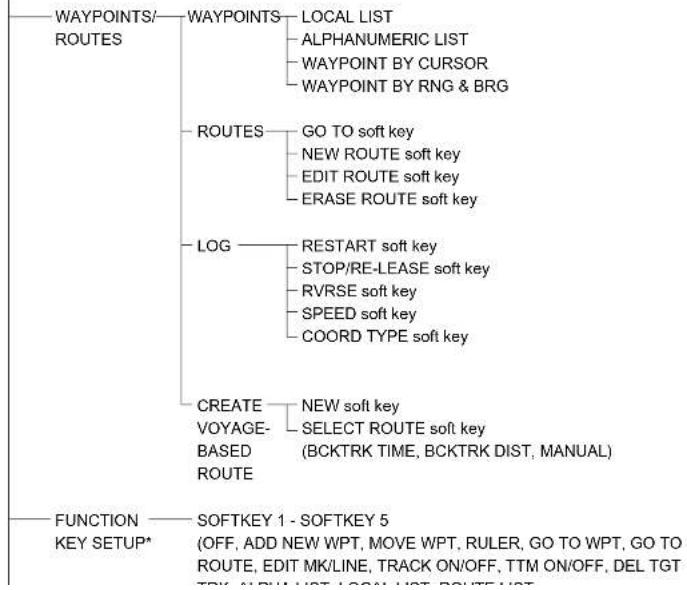

Plotter

APPENDIX

(Continued from previous page)

CHART WAYPOINTS (PLOTTER/OVERLAY, PLOTTER, OFF)*

DETAILS —WAYPOINT NAME (PLOTTER/OVERLAY, PLOTTER, OFF)*

(C-MAP -LAT/LON GRID (PLOTTER/OVERLAY, PLOTTER, OFF)*

chart) —CHART BORDER LINE (PLOTTER/OVERLAY, PLOTTER, OFF)*

- BACKGROUND (WHITE, BLACK)*

-PORT & SERVICE (PLOTTER/OVERLAY, PLOTTER, OFF)*

- ATTENTION AREA(PLOTTER/OVERLAY, PLOTTER, PLOTTER/CONTOUR, OFF)

—NAV LANE (PLOTTER/OVERLAY. PLOTTER, OFF)

LIGHT(PLOTTER/OVERLAY, PLOTTER, PLOTINO SECTOR, OFF)

BUOY & BEACON (PLOTTER/OVERLAY, PLOTTER, OFF)*

-SIGNAL (PLOTTER/OVERLAY, PLOTTER, OFF)

-CARTOGRAPHIC OBJECT (PLOTTER/OVERLAY, PLOTTER, OFF)*

- PLACE NAME (PLOTTER/OVERLAY, PLOTTER, OFF)*

COMPASS (PLOTTER/OVERLAY, PLOTTER, OFF)*

TIDE & CURRENT (PLOTTER/OVERLAY, PLOTTER, OFF)

NATURAL FEATURE (PLOTTER/OVERLAY, PLOTTER, OFF)*

—RIVER & LAKE (PLOTTERIOVERLAY, PLOTTER, OFF)

Page 2 CULTURAL FEATURE (PLOTTER/OVERLAY, PLOTTER, OFF)

—LANDMARK (PLOTTER/OVERLAY, PLOTTER, OFF)

CHART GENERATION (PLOTTER/OVERLAY, PLOTTER, OFF)

C/1723C NEW OBJECT (PLOTTER/OVERLAY, PLOTTER. OFF)*

- COMPLEX OBJECT ICON (MULTIPLE, SINGLE)

INFORMATION LEVEL (BASIC, DETAILED

(1) m = 311 ;

- DEPTH INFO soft key

BATHYMETRIC LINE (PLOTTER/OVERLAY PLOTTER OFF)*

SPOT SOUNDING (PLOTTER/OVERLAY, PLOTTER, OFF)*

- BOTTOM TYPE (PLOTTER/OVERLAY, PLOTTER, OFF)*

— DEPTH AREA LIMIT (0-99999ft, 20, 164 ft)

BATHYMETRIC RANGE (0-99999, 0-99999 ft, 0-33 ft)

PLOTTER — WAYPOINTS SWITCHING (PERPENDICULAR, ARRWL ALM CROL, MANUAL)

SETUP - COURSE VECTOR (VECTOR, LINE, OFF)

- SET GOTO METHOD (1POINT, 35POINTS, 35PTS/PORT SVC)

QP (INTERNAL, EXT (RMB))

APPENDIX

1

APPENDIX

Sounder

MENU Key	SOUNDER MENU	NOISE LIMITER (OFF, LOW, MEDIUM, HIGH) ^ = MODEL1722C/1723C series only
		CLUTTER (0 - 16(9), AUTO)
		WHITE MARKER (OFF, 1-8 (8-color), 1-16 (16 color))*
		ZOOM MARKER (ON, OFF)
		HUE (1-9, 1)*	SL1-SL2: Monochrome
			SL1-SL3: 8 color
		SIGNAL LEVEL (OFF, SL1, SL2, SL3, SL4, SL5, SL6)	SL1-SL6: 16 color
		PICTURE ADVANCE (2/1, 1/1, 1/2, 1/4, 1/8, 1/16, STOP)
		TEMPERATURE GRAPH (ON, OFF)
		PRR LEVEL (0-20, SPD SENSING PRR, 20)
		D. BOX soft key (Same items as on plotter menu.)
	SOUNDER SYSTEM SETUP	FISH ALARM LEVEL (HIGH, MEDIUM, LOW)	STC-HF (0-10, 0)
		TRANSMISSION (ON, OFF)	STC-LF (0-10, 0)
		TVG-HF (0 - 9, 3)	FREQ. ADJ.-HF (-10.0+10.0, 0)
		TVG-LF(0 - 9, 3)	FREQ. ADJ.-LF (-10.0+10.0, 0)
		ECHO OFFSET-HF(-50 - +50, 0)	TARGET ECHO (NORMAL, SURFACE)
		ECHO OFFSET-LF (-50 - +50, 0)
		BOTTOM LEVEL-HF (-100 - +100, 0)
		BOTTOM LEVEL-LF (-100 - +100, 0)
		KP PULSE (INTERNAL, EXTERNAL)
		SMOOTHING (OFF, SM1-SM4, SM3)
		TLL OUTPUT (ON, OFF)
		SENSOR SETUP soft key
		SPEED CALIBRATION (-50 - +50%, 0%)
		TEMP. CALIBRATION (20 - +20 C/-40 - +40 F, 0 F)
		DEPTH CALIBRATION (-15 - +60m/-15 - +90ft/-15 - +30fa/-15 - +30PB, 0)
		ACSTC SPD CALIBRATION (-500 - +500m/s, +0m/s)
	SOUNDER RANGE SETUP	RANGE 1 - RANGE 8*
		ZOOM RANGE (2-120 m, 10 m; 7-400 ft, 30 ft; 1-60 fa, 10 fa; 1-70 PB, 10 PB)
		BOTTOM LOCK RANGE (3 m/6 m; 10 ft/20 ft; 2 fa/3 fa, 2 PB/3 PB)
	FUNCTION	SOFTKEY 1- SOFTKEY 5

APPENDIX

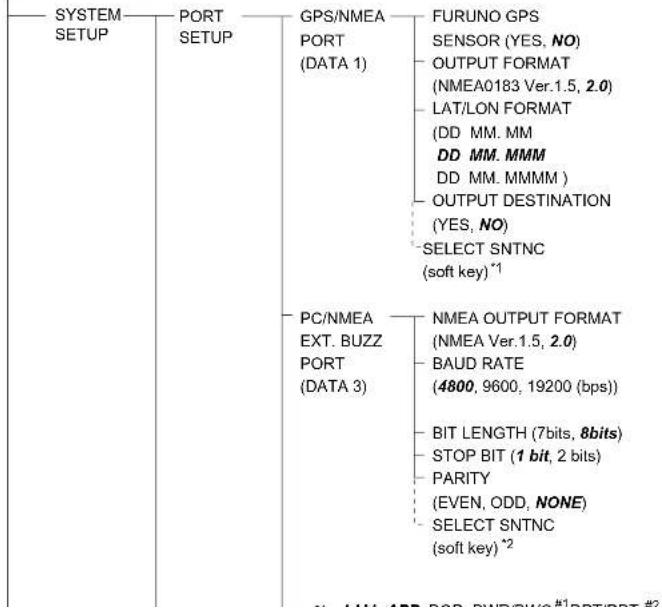

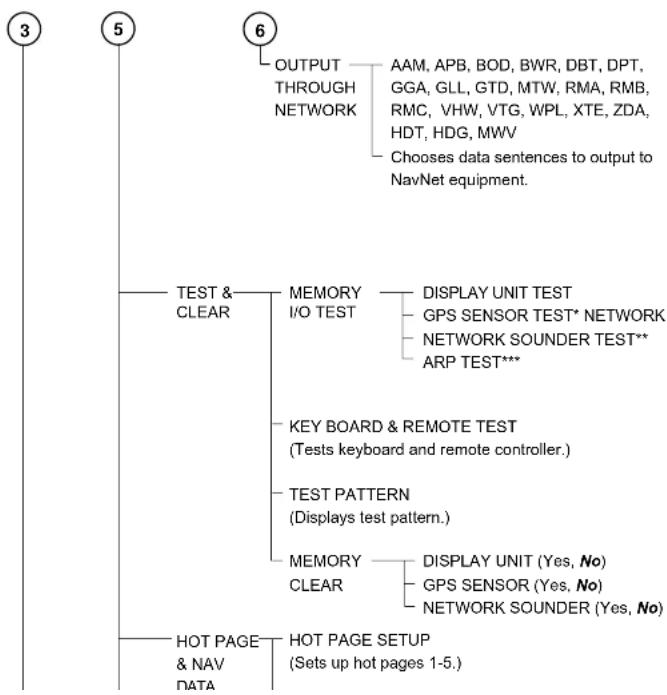

System configuration

APPENDIX

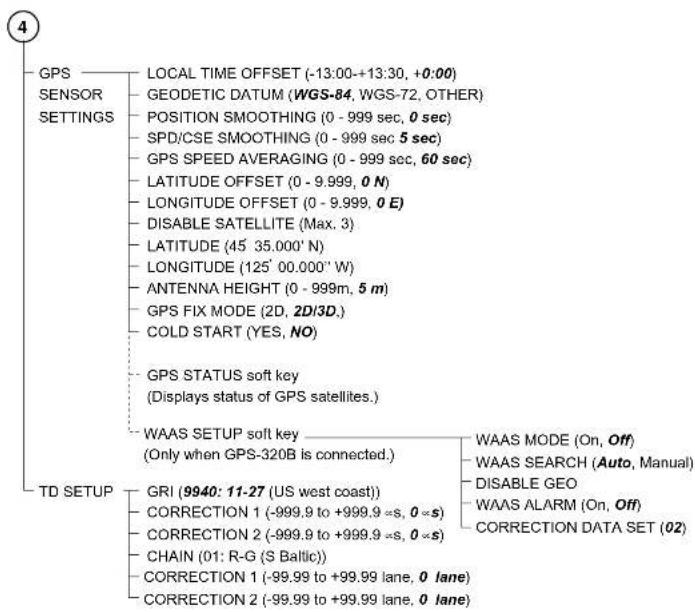

    B --> B1["LOCAL TIME OFFSET (-13:00-+13:30, +0:00)"]
    B --> B2["GEODETIC DATUM (WGS-84, WGS-72, OTHER)"]
    B --> B3["POSITION SMOOTHING (0 - 999 sec, 0 sec)"]
    B --> B4["SPD/CSE SMOOTHING (0 - 999 sec 5 sec)"]
    B --> B5["GPS SPEED AVERAGING (0 - 999 sec, 60 sec)"]
    B --> B6["LATITUDE OFFSET (0 - 9.999, 0 N)"]
    B --> B7["LONGITUDE OFFSET (0 - 9.999, 0 E)"]
    B --> B8["DISABLE SATELLITE (Max. 3)"]
    B --> B9["LATITUDE (45' 35.000' N)"]
    B --> B10["LONGITUDE (125' 00.000' W)"]
    B --> B11["ANTENNA HEIGHT (0 - 999m, 5 m)"]
    B --> B12["GPS FIX MODE (2D, 2D/3D)."]
    B --> B13["COLD START (YES, NO)"]

    C --> C1["GAAS SETUP soft key (Displays status of GPS satellites.)"]
    C --> C2["WAAS SETUP soft key (Only when GPS-320B is connected.)"]

    D --> D1["GRI (9940: 11-27 (US west coast))"]
    D --> D2["CORRECTION 1 (-999.9 to +999.9 ≈s, 0 ≈s)"]
    D --> D3["CORRECTION 2 (-999.9 to +999.9 ≈s, 0 ≈s)"]
    D --> D4["CHAIN (01: R-G (S Baltic))"]
    D --> D5["CORRECTION 1 (-99.99 to +99.99 lane, 0 lane)"]
    D --> D6["CORRECTION 2 (-99.99 to +99.99 lane, 0 lane)"]

    E --> E1["WAAAS MODE (On, Off)"]
    E --> E2["WAAS SEARCH (Auto, Manual)"]
    E --> E3["DISABLE GEO"]
    E --> E4["WAAS ALARM (On, Off)"]
    E --> E5["CORRECTION DATA SET (02)"]

APPENDIX

3

APPENDIX

APPENDIX

3

DATA

TRANSFER

UPLOAD/

DOWNLOAD

DATA

DOWNLOAD WPT/ROUTE TO PC

(WAYPOINTS & ROUTES ON, OFF,

MARKS & LINES ON, OFF)

- UPLOAD WPT/ROUTE FROM PC

(WAYPOINTS & ROUTES ON, OFF,

MARKS & LINES ON, OFF)

SAVE DATA TO MEMORY CARD

(TRACKS ON, OFF, MARKS & LINES ON, OFF,

WAYPOINTS & ROUTES ON, OFF,

SETTING DATA ON, OFF)

LOAD DATA IN MEMORY CARD

(TRACK ON, OFF, MARKS & LINES ON, OFF,

WAYPOINTS & ROUTES ON, OFF,

SETTING DATA ON, OFF)

RECEIVE YEOMAN DATA (Receives waypoint

data from Yeoman.)

RECEIVE DATA

VIA NETWORK

HOST NAME (PLOT)

MARKS & LINES (ON, OFF)

WAYPOINTS & ROUTES

(ON, OFF)

APPENDIX

ALARM key

APPENDIX

Geodetic Chart List

001: VAGS84

003: TOKYO : Mean Value (Japan, Korea, and Okinawa)

004: NORTH AMERICAN 1927 : Mean Value (CONUS)

005: EUROPEAN 1960 : Mean Value

006: AUSTRALIAN GEODETIC 1991; Australia and Tasmania, Island 007: ADINDAN - Mass. Value (Ethiopia and Suriname)

008: Ethiopia

1. : 10000 000: : Mail

01fr : Senegal

1. Sonday 011: Surko

012 AFG:Somalia

013: AIN EL ABD 1970 : Bahrain Island

014: ANNA 1 ASTRO 1965 : Coops Island

015: ARC 1960: Mean Value

016: Botswana

Q17: Lesotho

01B: Makavi

019: Swazland

020: : Zaire

021: : Zambia

022:Zimbabwe

023: ARC 1960 : Mean Value (Kenya, Tanzania)

024: Kenya

025: Tanzania

026: ASCENSION ISLAND 1958 : Ascension Island

(27): ASTRO BEACON "E": two Jima Island

028: ASTRO B4 SCR. ATOLL : Tem Island

(29) ASTROPOS 714: St. Helena Island

1. ASTRONOMIC STATION 1962: Marcus Island

031: AUSTRALIAN GEODETC 1950; AURIS and TESORTA EAND

032 BELLEVOE (IGN) : Bato and Eromango Islande 975: PERMURA 1667; Desarcho Islands

03: BERMUDA 1957; BERMUDA ISLANDS 034: BOGOTA CRESERVATORY; Grischis

1. BOGOTA OBSERVATORY, GOMINDE
2. CAMPOUNCHAUSBE - Avonlin

036: CANTONISLAND 1986 · Phoenix

000 CANTON ISLAND 1300. THICKI BANKS 037 CARE : South Africa

1. CAFE, SOUTH AVELA
2. CAFE CANAVERDA

US\$ CAFE CANAVERAL: Mean Value (Honda and Banah Islands)

1. CARTRAGE: TURNE 040 CHATHAM 1971

(4) CHATHAM 1971: CHATHAM (New Zealand) (5) CHUA AETRO : Paraguay

1. CHORASTHO, Paraguay
2. CORPESO ALFGEF, Dem

(M3: ☐10K0E7A (E9TAV10) - Sluoka Island (Indonesia)

044: DCS 1988 : Gion Island (New Georgia Island)

(15) EASTER ISLAND 1967: Eastor Island

048: EUROPEAN 1950 i Confront : Western

047: Olympus

04B: Equal

049: England Scotland Channel and Shetland Islands

050: : England, Ireland, Scotland and Shetland Islands

051: : Greece

052 : Iron

053: Italy Sardinia

054: : Italy Sicily

055: Norway and Finland

056: : Portugal and Spain

057: EUROPEAN 1979 : Mean Value

(58) GANDAIKA BASF · Renoble of Maldives

086: NAMEIA: Namibia

087: MAPARIMA, BMI : Trinidad and Tobago

088: NORTH AMERICAN 1927 : Western United States

089: : Eastern United States

090: : Alaska

091: :Bahamas (Excluding San Salvador Island)

092 : Bahamas San Salvador Islar

093: : Canada (including Newfoundland Island)

094: : Alberta and British Columbia

095: : East Canada

(98): Maricola and Ombro

097: :Northwest Territories and Saskatchewan

CHES : YUKAN

108: Mexico Central America

109: OBSERVATORIO 1966 : Corvo and Flores Islands (Azores)

110: OLD EGYPTIAN 1960: Egypt

111: OLD HAWAIIAN: Mean Value

112: Hawaii

113: :Karl

114: :Mau

115: : Oahu

116:OMAN:Oman

117: ORDNANCE SURVEY OF GREAT BRITAIN 1996 : Mean Value

119: : England

119: : England, Isle of Man, and Wales

120: Scotland and Shetland Islands

121: : Wales

122: PICO DE LAS NIMES : Canary Islands

123: PITCAIRN ASTRO 1967: Pitcaim Island

124: PROVISIONAL SOUTH CHILEAN 1963 : South Chile (near 53's)

125: PROVISIONAL SOUTH AMERICAN 1966 : Mean Value

125: Bolivia

127: Chile Northern Chile (near 19 ^th s)

125: Chile Southern Chile (near 43° s)

129: Colombia 178: Ecuador

Icon	Meaning
	North marker. Points to North.
	Correct chart and suitable scale - full chart reliability.
	Chart overenlarged.
	Chart card not inserted.Wrong chart card inserted.Chart scale too small.
	Plotter, sounder alarm setting violated.
	Track is not being recorded or plotted.
	Chart offset applied.

C

Voyage-based route being created

SPECIFICATIONS OF MARINE RADAR

MODEL 1722/1732/1742/1752/1762

MODEL 1722C/1732C/1742C/1752C/1762C

MODEL 1723C/1733C/1753C/1763C

1. GENERAL

1.1 Indication System

M1722 series PPI Daylight display, raster scan, 4 tones monochrome LCD

M1722C/1723C series PPI Daylight display, raster scan, color LCD

1.2 Range, Pulse length (PL) & Pulse Repetition Rate (PRR)

Range (nm)	Pulse length (×s) PR	R (Hz approx.)
0.125 to 1.5	0.08 2100
1.5 to 3	0.3 1200
3 to 48*	0.3 600

^a Maximum Range: M1722/C/1723C: 24nm, M1732/1742/1752 (C)/1733C/1753C: 36nm,

M1762/C/1763C: 48nm

1.3 Range Resolution All models: 21 m

1.4 Bearing Resolution M1722/C/1723C: 6.7°, M1732/C/1733C: 5.5°, M1742/C: 5.0°,

M1752/C/1753C: 4.0°, M1762/C/1763C: 3.9°

1.5 Minimum Range M1722 (C)/1723C: 27 m, M1732 (C)/1733C: 35 m,

M1742 (C): 41 m, M1752 (C)/1753C: 27 m,

M1762 (C)/1763C: 30 m

1.6 Bearing Accuracy ±1^

1.7 Range Ring Accuracy 0.9 % of range or 8 m. whichever is the greater

2.2.4 Radiator Length 60 cm

2.2.5 Horizontal Beamwidth 4°

2.2.6 Vertical Beamwidth 20°

2.2.7 Sidelobe Attenuation -18 dB

2.3 MODEL1742/1742C:

2.3.1 Radiator Slotted waveguide array

2.3.2 Polarization Horizontal

2.3.3 Antenna Rotation Speed 24 rpm nominal

2.3.4 Radiator Length 60 cm

2.3.5 Horizontal Beamwidth 3.5°

2.3.6 Vertical Beamwidth 30°

2.3.7 Sidelobe Attenuation -20 dB

2.4 MODEL1752/1752C/1753C:

2.4.1 Radiator Slotted waveguide array

2.4.2 Polarization Horizontal

2.4.3 Antenna Rotation Speed 24 rpm nominal

2.4.4 Radiator Length 70 cm

2.4.5 Horizontal Beamwidth 3.4°

2.4.6 Vertical Beamwidth 30°

2.4.7 Sidelobe Attenuation -20 dB

2.5 MODEL1762/1762C/1763C:

0.51 Dadiates Clotted waveguide assay

3.5 Tuning Automatic

3.6 Receiver Front End MIC (Microwave IC)

3.7 Bandwidth M1722/1732/1742/1762 (C)/1723C/1733C/1763C: 7 MHz M1752/1752C/1753C: 3 MHz (L)/ 10MHz (S/M)

3.8 Duplexer Circulator with diode limiter

3.9 Warming up M1722/1722C/1723C: 60 s approx. M1732/1742/1752/1762(C)/1733C/1753C/1763C: 90 s approx.

1. DISPLAY UNIT

4.1 Display

M1722/1732/1742/1752/1762:

7 inch rectangular monochrome LCD, 240(H) x 320(V) dots

Effective radar display area: 216 x 216 dots

M1722C/1732C/1742C/1752C/1762C:

7 inch rectangular color LCD, 234(H) x 320(V) dots,

Effective radar display area: 216 x 216 dots

M1723C/1733C/1753C/1763C:

7 inch rectangular color LCD, 480 (H) x 640 (V) dots

Effective radar display area: 432 x 432 dots

4.2 Range, Range Ring Interval (RRI), Number of Rings

Range (NM)	0.125	0.25	0.5	0.75	1	1.5	2	3	4	6	8	12	16	24	36	48
RRI (NM)	0.0625	0.125	0.125	0.25	0.25	0.5	0.5	1	1	2	2	3	4	6	12	12
Number of Rings	2	2	4	3	4	3	4	3	4	3	4	4	4	4	3	4

Maximum range: M1722/C/1723C: 24nm M1732/1742/1752/C/1733C/1753C: 36nm

Wind: MWV>VWT>VWR

Water Temperature: MTW

Time: ZDA

^*1 : calculated by magnetic deviation

4.6. Output Data

Alarm signal 12 VDC, 100 mA or less

NMEA 0183 Ver1.5 GGA, GLL, RMA, RMC, GTD, VTG, ZDA (GPS data required)

RMB, WPL, BWC or BWR, APB, AAM, BOD, XTE, VHW, MTW,

DPT or DBT, DBS (ETR required), TTM (ARPA required)

5. PLOTTER FUNCTION

5.1 Projection Mercator

5.2 Usable Area 85 latitude or below

5.3 Effective Area 133.4 x 97.3 mm

5.4 Display pixels 240 x 320 dots (M1722 series), 234 x 320 dots (M1722C series), 480 x 640 dots (1723C series)

5.5 Position Indication Latitude/longitude, Loran C LOP or DECCA LOP

5.6 Effective Projection Area 0.125 nm to 2,048 nm (at equatorial area)

5.7 Track Display Plot interval: by time (1 s to 99 m 59 s) or by distance (0 to 99.9 nm)

5.8 Colors Red, yellow, green purple, light-blue, blue, white

5.9 Memory Capacity Track/mark: 8000 points, Waypoint: 999 points

5.10 Storage Capacity Simple route: 200 routes with 35 waypoints each

5.11 MOB 1 point

M1742C 12-24 VDC: 5.0-2.5 A

M1752C 12-24 VDC: 5.4-2.7 A

M1762C 12-24 VDC: 6.3-3.1 A

M1723C 12-24 VDC: 4.8-2.3 A

M1733C 12-24 VDC: 4.0-2.0 A

M1753C 12-24 VDC: 6.3-3.1 A

M1763C 12-24 VDC: 5.5-2.8 A

6.2 Rectifier

PR-62 (option for M1722/1732 (C)/1723C/1733C)

100/110/115/200/220/230 VAC, 1 phase, 50/60 Hz

RU-3423 (option for M1742/1752/1762 (C)/1753C/1763C)

100/110/115/200/220/230 VAC, 1 phase, 50/60 Hz

1. ENVIRONMENTAL CONDITION

7.1 Ambient Temperature Scanner Unit: -25°C to +70°C (IEC 60945) Display Unit: -15°C to +55°C

7.2 Relative Humidity 93 % or less at +40°C

7.3 Waterproofing Scanner Unit: IPX6 (IEC 60529) Display Unit: IPX5

7.4 Bearing Vibration IEC 60945

1. COATING COLOR

8.1 Display Unit N3.0

This page is intentionally left blank.

INDEX

A

A/C RAIN....2-5

A/C SEA....2-4

ACQ soft key....2-36

ALARM key

plotter 3-53

radar....2-30

sounder 4-19

Alarms

anchor watch 3-55

arrival....3-54

audio 3-53

bottom 4-20

CPA/TCPA 2-42

fish(B/L)....4-21

fish(normal)......4-20

guard 2-30

lost target....2-43

messages....3-59

messages (sounder) 4-23

proximity....3-57

speed....3-56

trip....3-58

water temperature....4-22

XTE (cross track error)....3-56

B

Battery replacement 7-2

Bearing measurement by EBL.... 2-15

Bearing reference.... 5-2

Bottom alarm.... 4-20

Bottom discrimination display.... 4-6

Bottom echo.... 4-25

Bottom-lock display 4-6

Bottom-zoom display.... 4-5

Brilliance 1-9

C

CENTER soft key 3-9

CHART DETAILS menu.... 5-16

CHART OFFSET soft key.... 5-12

Charts

C-MAP chart attributes 5-16

cursor and data display (C-MAP).... 3-14

data for aids to navigation.... 3-12

FURUNO chart attributes.... 5-17

icon data (C-MAP) 3-15

icons 3-13

inserting 1-6

Nav-Charts™ chart attributes.... 5-13

offsetting 5-16

INDEX

Compass display 3-3

Contrast....1-9

Controls

display unit....1-2

remote controller....1-5

Course-up mode

plotter....3-8

radar....2-10

CPA/TCPA alarm....2-42

Cursor 1-8

CURSOR soft key....2-18

D

Data boxes

erasing 1-15

hiding....1-15

rearranging 1-15

setup 5-13

showing....1-15

DEPTH INFO soft key....5-16

Depth measurement 4-11

Depth source 5-2

Depth unit....5-2

Diagnostics

keyboard test....7-11

memory I/O test....7-7

test menu....7-7

test pattern....7-10

DISP key 1-12

EDIT XT-LMT soft key 3-4, 3-5

ENTER knob.... 1-4

ETA calculation....2-49

F

Fish alarm (normal)

level....5-30

setting....4-20

Fish school echo 4-26

Fish(B/L) alarm....4-21

Fix mode (GPS receiver GP-310B)....5-25

Formatting memory cards.... 6-1

FREQ LF/HF soft key 4-3

FTC (Fast Time Constant) 2-6

Function key

setup (plotter)....5-10

setup (radar).... 5-7

setup (sounder)....5-34

Function keys

function execution 1-16

Fuse replacement.... 7-2

G

GAIN key

radar 2-2

Sounder 4-9

GENERAL SETUP menu.... 5-1

Geodetic datum....5-17

Geodetic datum (GPS receiver GP-310B)....5-24

INDEX

Hue

charts, radar (MODEL-1722C/1723C series) 1-1

sounder (MODEL-1722C/1723C series)..4-18

/

I. REJ. soft key....2-18

Icons.....AP-14

Interference rejection

radar....2-18 sounder....4-12

K

Keyboard test.... 7-11

Keying pulse....5-30

L

Language....5-2

Magnetic variation....5-2

Maintenance

battery replacement 7-2

fuse replacement 7-2

preventive....7-1

Marker zoom display A E

Messages

memory cards 6-3

plotter alarms 2-57

sounder alarms.... 4-23

MOB mark.... 1-14

MODE/D. BOX soft key 4-8

Multiple echoes (radar).... 3-42

N

Nav data display.... 2-6

NAV DATA menu 5-22

Nav data source.... 5-16

NAV OPTION menu.... 5-16

Navigation

canceling route navigation.... 2-50

port, port services.... 2-44

quick point.... 2-43

restarting.... 2-48

routes....2-47

switching waypoints in a route 2-49

waypoints.... 2-44

Navigator

setup.... 5-16

NavNet

image source.... 1-13

receiving data from.... 6-9

NEXT INFO soft key....2-56, 4-22

NMEA port....5-37

Noise limiter (sounder).... 4-12

INDEX

Port, port services

icons....2-12

navigating to....2-44

Position smoothing....5-18

POWER/BRILL key....1-7, 1-8

Presentation mode

plotter 2-7

radar....3-8

Proximity alarm....3-57

Pulselength (radar) 3-7

R

Racon....3-46

RADAR SETTING menu (radar)......5-23

RADAR TX soft key....3-2

Range

measurement by cursor (plotter) 4-11

measurement by cursor (radar).... 3-11

measurement by range rings (radar) ..... 3-11

measurement by VRM (radar)....3-12

plotter 2-9

radar....3-6

setup (radar)......5-25

setup (sounder)......5-32

unit of measurement 5-2

RANGE key

plotter 2-9

radar....3-6

sounder 4-9

SAVE DATA menu.... 6-1

SAVE/MOB key....1-14

Sensor setup....5-30

SENSOR SETUP menu....5-31

SENSOR SETUP soft key 5-30

Shadow sectors....3-43

SHIFT soft key....3-19, 4-10

Sidelobe echoes....3-42

Signal level erasure (sounder) 4-14

SIM SETUP menu....1-18

Simulation display 1-18

Smoothing echoes (sounder)....5-30

Soft keys.... 1-3

Speed alarm....2-54

Speed averaging 5-16

Speed display.... 5-2

Speed/course smoothing

(GPS Receiver GP-310B)......5-18

SPLIT soft key 4-7

System configuration....xi

SYSTEM SETUP menu (sounder) 5-29

T

TARGET soft key....3-22

Target trails

brilliance (GP/GD-1700C)....3-23

color (GP/GD-1700C)....3-24

gradation (GP/GD-1700C)....3-23

start....3-23

INDEX

erasing own ship's by area....2-22

erasing own ship's by color 2-23

memory capacity....2-21

plotting interval....2-20

plotting method....2-20

plotting of own ship's....2-18

TRACK HALT soft key....2-18

TRACK RESUME soft key 2-18

TRAIL COLOR soft key....3-24

TRAIL soft key 3-23

Trip alarm 2-55

Trip distance resetting....2-16

Troubleshooting 7-3

True motion mode....3-10

Tuning 3-5

TVG....5-30

Tx sector (radar) 5-24

U

Uploading data....6-5

v

Vector (ARPA)....3-35

Virtual image....3-43

VRM (Variable Range Marker)

radar....3-12

sounder 4-11

VRM soft key 3-13

W

Water temperature alarm.... 4-21

Water temperature graph.... 4-23

Water temperature unit.... 5-2

Waypoint marker (radar).... 3-30

Waypoints

changing size 2-33

editing from waypoint list 2-30

editing waypoint position.... 2-31

editing with cursor 2-31

entering at own ship position 2-27

entering by range and bearing 2-29

entering with cursor.... 2-27

erasing from waypoint list.... 2-32

erasing with cursor 2-32

loading from Yeoman.... 6-8

navigating to.... 2-44

searching 2-34

switching in route navigation.... 2-49

White marker.... 4-15

World time chart ......A-12

WPT MK soft key 3-30

x

XTE (cross track error) alarm.... 3-56

Y

Yeoman....6-8

z

- .. ...

FURUNO

FURUNO ELECTRIC CO., LTD.

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

Tel: [phone] Fax: [phone]

Pub NO. DOC-407

Declaration of Conformity

0560

We

FURUNO ELECTRIC CO., LTD.

(Manufacturer)

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

(Address)

declare under our sole responsibility that the product

7" monochrome LCD radar Models 1722 (ø460 mm radome, 2.2 kW), 1732 (ø602 mm radome, 4 kW), 1742 (665 mm open, 2.2 kW), 1752 (700 mm open, 4 kW) and 1762 (1035 mm open, 4 kW) with optional GPS receiver GP-310B for recreational crafts

(Model name, type number(s))

are in conformity with the essential requirements as described in the Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment (R&TTE Directive) and satisfies all the technical regulations applicable to the product within this Directive

EN 60945: 1997-01 (IEC 60945 Third edition: 1996-11)

KSR 142: October 1985, Annex

ITU-RR. App. S3: ed. 1998, Appendix S3, table 2

EN 60950: August 1992 A1, A2, A3, A4, A11

(title and/or number and date of issue of the standard(s) or other normative document(s))

FURUNO

FURUNO ELECTRIC CO., LTD.

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

Tel: [phone] Fax: [phone]

Pub NO. DOC-408

Declaration of Conformity

€ 0560

We

FURUNO ELECTRIC CO., LTD.

(Manufacturer)

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

(Address)

declare under our sole responsibility that the product

7" colour LCD radar Models 1722C (ø460 mm radome, 2.2 kW), 1732C (ø602 mm radome, 4 kW), 1742C (665 mm open, 2.2 kW), 1752C (700 mm open, 4 kW) and 1762C (1035 mm open, 4 kW) with optional GPS receiver GP-310B for recreational crafts

(Model name, type number(s))

are in conformity with the essential requirements as described in the Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment (R&TTE Directive) and satisfies all the technical regulations applicable to the product within this Directive

EN 60945: 1997-01 (IEC 60945 Third edition: 1996-11)

KSR 142: October 1985, Annex 1

ITU-RR. App. S3: ed. 1998, Appendix S3, table 2

EN 60950: August 1992, A1, A2, A3, A4, A11

(title and/or number and date of issue of the standard(s) or other normative document(s))

FURUNO

FURUNO ELECTRIC CO., LTD.

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

Tel: [phone] Fax: [phone]

Pub NO. DOC-596

Declaration of Conformity

0560

We

FURUNO ELECTRIC CO., LTD.

(Manufacturer)

9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan

(Address)

declare under our sole responsibility that the product

Marine radar Model 17X3C Series: 1723C, 1733C, 1753C and 1763C

(Model name, serial number)

are in conformity with the essential requirements as described in the Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment (R&TTE Directive) and satisfies all the technical regulations applicable to the product within this Directive

EN 60945: 1997-01 (IEC 60945 Third edition: 1996-11)

IEC 60945 Fourth edition: 2002-08

EN 60950: 2000 (IEC 60950 Third edition: 1999-04)

KSR 142, Annex 1: 1985-10

ITU Radio Regulations 2001, Appendix S3

(title and/or number and date of issue of the standard(s) or other normative document(s))

For assessment, see

- Statement of Opinion N° 01214050/AA/02 of 22 July 2003 issued by Telefication, The Netherlands
