Product Type	IP Link Pro Control Processor
Brand	Extron
Model	IPL Pro S3
Mounting	Rack mountable, 1U high, quarter rack wide
Power Input	External 12 VDC power supply (included) and Power over Ethernet (PoE)
Serial Ports	3 COM ports: 1 RS-232 only, 2 selectable RS-232/422/485
IR/Serial Output Ports	2 ports for IR or unidirectional RS-232
Contact Input Ports	2 contact closure inputs (5 VDC TTL)
Relay Ports	2 relay ports (latching or pulsed)
Ethernet Port	1 RJ-45 LAN/PoE port (10/100/1000Base-T)
Supported Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH
Configuration Software	Global Configurator Professional (GC Pro) or Global Configurator Plus (GC Plus)
Password Protection	Multi-level password protection based on user roles
Embedded Web Pages	Yes, for diagnostics and monitoring
Operating Temperature	Up to 122°F (50°C)
Regulatory Compliance	FCC Class A, UL listed
Battery	Contains internal battery (not user-replaceable)
Warranty	3 years limited warranty
Safety	Safety instructions: avoid electric shock, proper grounding, use included power supply

Frequently Asked Questions - IPL Pro S3 Extron

What is the Extron IPL Pro S3?

The IPL Pro S3 is an IP Link Pro control processor that integrates Ethernet control into AV systems, allowing remote control, monitoring, and troubleshooting of devices like projectors, switchers, and sources.

How do I power the IPL Pro S3?

You can power it via an external 12 VDC power supply (included) or through Power over Ethernet (PoE) via the LAN port. Both can be connected simultaneously; it switches seamlessly.

What software is required to configure the IPL Pro S3?

Use Global Configurator Professional or Global Configurator Plus software. You need an Extron Insider account and may require certification for GC Pro.

How do I reset the IPL Pro S3?

Press the recessed Reset button on the front panel. Different hold times activate modes: Run/Stop Program (~3 sec), Reset All IP Settings (~6 sec), or Reset to Factory Defaults (~9 sec). Release and press momentarily within 1 second after the LED blink.

What types of serial communication are supported?

The IPL Pro S3 has three COM ports: COM1 supports RS-232 only; COM2 and COM3 support RS-232, RS-422, or RS-485 (selectable). Baud rate from 300 to 115200 baud.

Can I use the IPL Pro S3 with touchpanels?

Yes, it supports multiple TouchLink Pro touchpanels over Ethernet. The touchpanel GUI is designed using GUI Designer software.

How do I update the firmware?

Download the firmware .eff file from the Extron website. Use Global Configurator or Toolbelt to upload it via the network. Save your configuration first.

What should I check if a device is not responding?

Verify power connections, check network cabling (Link LED should be green), ensure correct IP/subnet settings, and disable any firewall that may block the unit. Try pinging the unit.

Is the IPL Pro S3 compatible with previous IP Link drivers?

No, you must use IP Link Pro specific drivers for serial and Ethernet control. IR drivers from previous generation are compatible.

What is the warranty period?

Extron provides a 3-year limited warranty against defects in materials and workmanship. Contact Extron for an RA number before returning.

USER MANUAL IPL Pro S3 Extron

IP Link® Pro Products

IPL Pro Series

IP Link Pro Control Processors

Safety Instructions • English

WARNING: This symbol, . . . then used on the product, is intended to select the user of the presence of uninsulated dangerous votage within the product's enclosure that may present a risk of electric shock.

ATTENTION: This symbol, △when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMEMF compatibility, accessibility, and related copies, see the Extron Safety and Regulatory Compliance Guide, part number 58-290-01, on the Extron website, www.extron.com.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the "Extron Safety and Regulatory Compliance Guide" on the Extron website.

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose of used batteries according to the instructions.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

CAUTION: Risk of minor personal injury.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B51 ^W^C

[01] R000400300004000080000600 [02] 35 [17] [03]

NOTE: For commands and examples of computer or device responses mentioned in this guide, the character "0" is used for the number zero and "0" is the capital letter "o."

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ning vvv vvv vvv vvv +

Contents

Introduction 1

Before You Begin....1

What This Guide Covers....1

Conventions Used in This Guide....1

Important Information You Need Before

Installation....1

About the IPL Pro Series 2

Features 3

Application Diagrams....4

Device Control....5

About Global Configurator (with

GC Professional and GC Plus Modes)....5

PC System Requirements....5

Hardware Features and Installation......6

Setup Checklist: How to Proceed With

Installation....6

Get Ready 6

Mount and Cable All Devices....7

Set up the Control Processor and

Touchpanels for Network Communication.....7

Configure the Control Processor and

Touchpanels 7

Test, and Troubleshoot....8

H. 10. 11. 01

Software-Based

Configuration and Control 21

Configuration and Control: an Overview.....21

Basic Setup Steps: a Guide to this Section

and Other Resources 22

Downloading the Software and Getting Started..23

Locating Software, Firmware, and

Driver Files on the Extron Website....23

Obtaining Control Drivers....24

Things to Do After Installing GC and

Before Starting a Project....24

Using GC: Helpful Tips 25

Troubleshooting....26

Power Connections 26

Data Connections....26

Device Control Connections and

Configuration 26

Reference Information 27

Network Port Requirements....27

IP Link Pro Control Processors 27

TouchLink Pro Touchpanels 28

Global Configurator Plus and Professional

Software with Toolbelt....28

5.1.1.12.13.14.15.

Introduction

This section covers the following basic information you should know about this guide and the product before installation:

• Before You Begin
• About the IPL Pro Series
• Application Diagrams
- Device Control
- About Global Configurator (with GC Professional and GC Plus Modes)
• PC System Requirements

Before You Begin

What This Guide Covers

This user guide provides instructions for an experienced installer to install an Extron IP Link Pro Control Processor. This guide provides detailed information and best practices recommendations about cabling the control processor, a brief overview of the configuration process, and reference information.

You configure the control processor using Extron Global Configurator software running in Global Configurator Professional (GC Professional) or Global Configurator Plus (GC Plus) mode. This guide does not contain instructions on detailed software-related setup steps or details of configuration within the software; those are covered in the Global Configurator Help file and help files for related programs. The software help files describe how to use each program to download drivers, add AV devices to a configuration, configure basic functions, and set up schedules, macros, e-mail alerts, touchpanel button configurations, and the like

About the IPL Pro Series

The IPL Pro Series Control Processors integrate Ethernet connection into AV systems to allow users to remotely control, monitor, and Troubleshoot AV equipment, including display devices and switchers, source devices, and various other items such as lights, a projector lift, or a screen motor. They can be used in a distributed control system environment or as stand-alone control processors.

Three gray electronic devices labeled EXTRIS, 85 P40 81, and 85 P40 94, each with ports and connectors (no visible text or symbols on the devices themselves)

Figure 1. IPL Pro S1 (left), IPL Pro S3 (center), IPL Pro S6 (right)

Two external network devices labeled FL30-CBS and FL30-HBS, showing ports and connectors (no readable text or symbols beyond branding)

Figure 2. IPL Pro CR88 (left), IPL Pro IRS8 (right)

An IPL Pro Series control processor is the centerpiece of a control system that features Extron TouchLink Pro Touchpanels. The IPL supports multiple TouchLink Pro touchpanels over a standard Ethernet network. The touchpanels provide a convenient interface for controlling the IPL, which, in turn, controls the other system components.

NOTE: GUI Designer is used to design the user interface layout of any Extron TouchLink Pro touchpanel that is used with the IPL.

Features

General features

Flexible options for device control — The various IPL Pro models all offer TCP/Ethernet control and monitoring, and, depending on the model, serial (RS-232) or infrared (IR)-based control, relay device control, and event monitoring via contact input ports.

Rack mountability — The IPL Pro S1 has a one inch high, quarter rack wide enclosure, and the other models are housed in a standard 1U high, quarter rack wide enclosure. They are easily rack mounted or can be installed in or under furniture with an optional mounting kit.

Support for Power over Ethernet (PoE) — The IPL supports power over Ethernet, which allows the control processor to receive both power and an Ethernet connection over a single connector.

Support for an external power supply — The IPL also supports connection to an external 12 VDC power supply (included).

Network and configuration features

• Global compatibility — The IPL uses industry standard Ethernet communication protocols, including DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, and UDP/IP.
• Embedded Web pages — The IPL embedded Web pages include online diagnostics and monitoring of basic features.

• Remote equipment management — The IP Link Pro connection allows you to remotely manage, monitor, and control several Ethernet-enabled products such as projectors, cameras, video conferencing equipment, switchers, and other AV equipment. The IPL provides support for the following:

• TCP, UDP, and HTTP connections

• Password protection using secure communication
• Up to 32 (GC Professional) or 8 (GC Plus) Ethernet devices at a time depending on the configuration mode
• Connection via IP address or host name

- Multi-level password protection — Allows security to be set based on user roles.

Application Diagrams

The following figures show examples of types of devices that can be connected to some of the ports on the IPL Pro Series control processors.

Figure 3. An IPL Pro S1 Application

Device Control

The IPL must be configured in one of the following ways before it can send commands to a projector, display, or other device:

• An RS-232 or Ethernet driver file can be downloaded from the Extron website (http://www.extron.com/download/index.aspx). The driver is saved to a folder and commands from the driver are incorporated into the GC configuration file for the control processor and any touchpanels that will work with it. The configuration file is built and uploaded to the IPL via GC.
• If a driver is not already available, RS-232 or Ethernet command strings can be entered directly from a host computer using Global Configurator. These can then be incorporated into controls within the GC project.

See the Global Configurator Help file (which comes with the software) for details on setting up the IPL and for downloading, programming, or learning device control commands.

About Global Configurator (with GC Professional and GC Plus Modes)

Global Configurator is the software tool for network setup and configuration of an IPL Pro control processor. Global Configurator:

• Loads device drivers for monitoring the status of and controlling devices within the AV system.
• Uploads GUI Designer layouts to touchpanels and third-party touch interfaces.
• Creates the configuration containing all the settings for the control processor and the products with which it interacts in the AV system.
• Generates a graphical user interface called GlobalViewer (GV) that is uploaded to the control processor (a GlobalViewer host device) along with the completed configuration and can be accessed as a Web page.

To obtain Global Configurator (GC Professional, GC Plus) software, you must have an Extron Insider account and contact an Extron support representative. Extron provides training to our customers on how to use the software. Access to Global Configurator Professional is available to users who successfully complete Extron Control Professional Certification.

Hardware Features and Installation

This section covers the following material:

• Setup Checklist: How to Proceed With Installation — A checklist of tasks to guide you through installation
  • Network Communication Setup — A flowchart guide to network settings configuration
• Front Panel Features — Locations and some descriptions of items on the front panel
• Mounting the IPL Pro Series — Brief guidelines for mounting
• Rear Panel Features and Connections — Locations, descriptions, and cabling notes for rear panel features and corresponding front panel indications
• Resetting the Unit — Information about the available reset modes and how to reset the IPL

The IPL Pro Series control processors work differently from the previous generation of IP Link products. Pay careful attention to the order and types of setup tasks. Follow the setup checklist in this guide or in the setup guide and keep it with you for reference throughout the installation and configuration process.

Setup Checklist: How to Proceed With Installation

Get Ready

Familiarize yourself with the features of the control processor (see Front Panel Features on page 9 and Rear Panel Features and Connections on page 11) and of any TouchLink Pro touchpanels that are part of the system.
☐ Download and install the latest version of the following:

Mount and Cable All Devices

☐ Mount the unit to a rack or furniture (see Mounting the IPL Pro Series on page 10).
☐ Cable devices to the control processor (see Rear Panel Features and Connections starting on page 11).
☐ Connect power cords and power on all the devices.

Set up the Control Processor and Touchpanels for Network Communication

☐ Connect the PC to be used for setup, the control processor, and touchpanels to the same Ethernet subnetwork. For control processor LAN connections, see LAN/PoE (IP) connectors and LEDs on page 15.
☐ Start Global Configurator and Toolbelt, and use Toolbelt to set the IP address, subnet, gateway IP address, DHCP status, and related settings (see the flowchart in Network Communication Setup on page 8).

NOTE: When setting up DHCP during network configuration or if using a host name instead of an IP address, the user must enter a qualified host name (Username.HostName.Domain). For example: somename.extron.com.

Configure the Control Processor and Touchpanels

The most basic steps are outlined below in the recommended order.

NOTES:

• See the Global Configurator Help file and GUI Designer Help file as needed for step-by-step instructions and detailed information. The help file for GC includes an introduction to the software and how to start a project and configuration.
• You must successfully complete Extron Control Professional Certification training to obtain GC Professional.

☐ If TouchLink Pro touchpanels are part of the system, start and use GUI Designer to design, save, and build the graphical user interface (GUI) layout for the touchpanels (see the GUI Designer Help file for instructions).

Test, and Troubleshoot

☐ Test the system. See the Troubleshooting section starting on page 26 for an outline of items to check during system troubleshooting.
☐ Make adjustments to wiring or configuration as needed.

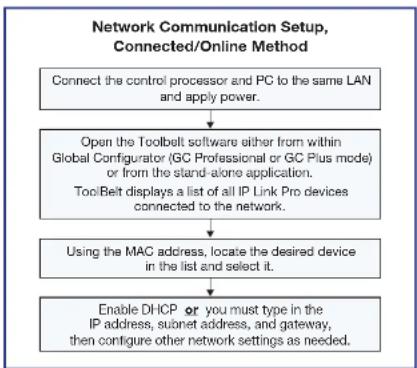

Network Communication Setup

Network setup is essential prior to configuration. Use the flowchart as a guide to setting up the control processor for network use.

Figure 5. Network Setup, Online Method

Front Panel Features

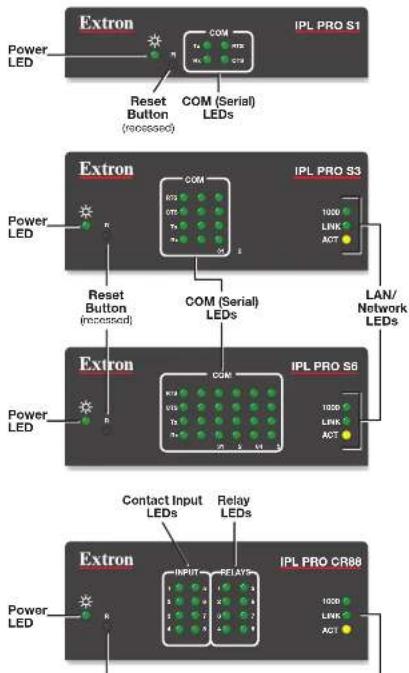

Examples of front panel features are shown at right. The quantity and location of ports and corresponding front panel LEDs differ among IPL models. However, the functions of each type of port and their LEDs are identical for all models. Most of the features and LED indications are described and shown in the "Rear Panel Features and Connections" section paired with the descriptions of the corresponding rear panel ports.

Reset Features

Reset button and LED — Pressing this recessed button

This receiver accepts infrared signals of from 30 kHz to 300 KHz. The IR remote control must be pointed directly at the receiver for best results. The diagram at right indicates the best distances and angles at which to hold the remote control.

Mounting the IPL Pro Series

Mounting Options

Optional 1U high rack shelves and a variety of rack mounting bracket kits and furniture mounting kits are available for use with the IPL. The one inch high model requires different brackets than the 1U high models. Visit the product-specific page on the Extron website for a list of compatible accessories for mounting your control processor or call a support representative to find out which kit to order for your installation. Read the instructions that are included with the rack shelf or mounting kit for installation procedures and see the UL rack mounting guidelines.

UL Rack Mounting Guidelines

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the IPL Pro Series in a rack.

1. Elevated operating ambient temperature — if installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the IPL in an environment compatible with the maximum ambient temperature (Tma = +122 °F, +50 °C) specified by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow required for safe operation of the equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven mechanical loading.
4. Circuit overloading — Connect the equipment to the supply circuit and consider the

Rear Panel Features and Connections

ATTENTION:

• Installation and service must be performed by experienced personnel.

The quantity of ports and corresponding front panel LEDs differs among IPL models, but the functions of each type of port and their LEDs are identical for any model that includes that type of port.

Figure 7 IPI Pro Series Rear Panel

Power Connections

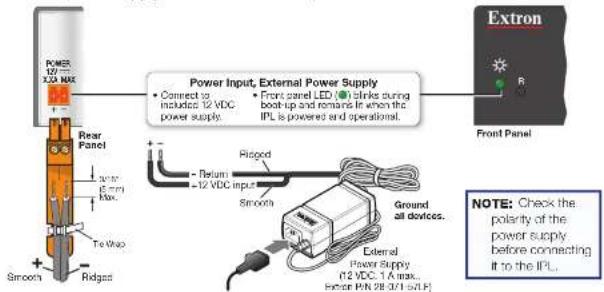

Power Input connector (external power supply) — Connect the IPL to the included 12 VDC power supply (part number 28-071-57LF) here, then connect the external power supply to a 100 to 240 VAC power source.

Figure 8. Connecting an External Power Supply

ATTENTION:

NOTE: The IPL Pro Series control processors accept power over Ethernet (PoE) through the LAN/PoE port (C) in addition to network communication (see the cabling and details information on page 15). Both an external power supply and PoE can be connected to the control processor simultaneously. The IPL uses PoE when it is available but can switch seamlessly to the external 12 VDC power supply if the PoE connection is dropped.

ATTENTION:

Bidirectional Control and Communication Connections and Features

B 5-pole COM ports, RS-232/RS-422\*/RS-485\*

Use COM ports for serial control of a display or other device and to receive status messages from the connected devices. These ports can send commands from a driver file. RS-232 is the default mode of operation.

IPL Pro Series serial protocol:

• 300 to 115200 baud (9600 baud = default)
• 8 (default) or 7 data bits
  • 1 (default) or 2 stop bits
• No parity (default), even, odd, mark, or space parity
• Flow control support (default = none): hardware and software (XON, XOFF)

*Supported serial formats vary depending on the model and the COM port, as shown at right.

Use the following diagram as a wiring guide to cable the IPL to other devices.

TIP: Comm-Link(CTL and CTLP)cable, shownat left isrecommendedfor theseconnections. Forbest results andto avoid shortcircuits, useshielded wires orwires insulatedusing heatshrink (insteadof bare wires) forthe common/drain wires.

Serial Options
Model	COM Port	RS-232 Only	RS-232, RS-422, or RS-485
IPL Pro S1	1	√
IPL Pro S3	1		√
	2, 3	√
IPL Pro S6	1		√
	2, 3, 4, 5, 6	√

LAN/PoE (IP) connectors and LEDs — To connect the IPL to an Ethernet network (so you can configure and control the IPL and the devices connected to it), plug a cable into the LAN RJ-45 socket and connect the other end of the cable to a network switch, hub, router, or PC connected to a LAN or the Internet. For details of communication protocols, ports, and services used, see Network Port Requirements on page 27 The IPL Pro Series control processors accept power over Ethernet (PoE) through the LAN port (see the Power over Ethernet (PoE) Attention statement on page 13). Both an external power supply and PoE can be connected to the control processor simultaneously. The IPL uses PoE when it is available but can switch seamlessly to the external power supply if the PoE connection is dropped.

Cabling:

• For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable.
  • For 100Base-T (max. 155 Mbps) or 1000Base-T networks, use a CAT 5 or better cable.
  You must configure this port before using it. Configure the settings via Global Configurator. See Software-Based Configuration and Control starting on page 21 of this guide for basic information on configuration.

Activity LED (connector and front panel) — This yellow LED blinks to indicate network activity.

Link LED (connector and front panel) — This green LED lights to indicate a good network connection.

1000 LED (front panel) — This green LED lights when the unit is connected to a gigabit network connection.

Straight-through Cable(for connection to a switch, hub, or router)
End 1 Pin	End 2 Wire Color Pin	Wire Color
1	white-orange 1	white-orange
2	orange	2	orange
3	white-green	3	white-green
4	blue	4	blue
5	white-blue	5	white-blue
6	green	6	green
7	white-brown	7	white-brown

Crossover Cable(for direct connection to a PC)
End 1Pin	Wire Color Pin	End 2Wire Color
1	white-orange	1 white-green
2	orange	2 green
3	white-green	3 white-orange
4	blue	4 blue
5	white-blue	5 white-blue
6	green	6 orange
7	white-brown	7 white-brown

NOTE:

DHCP

is off by

Unidirectional Control and Communication Connections

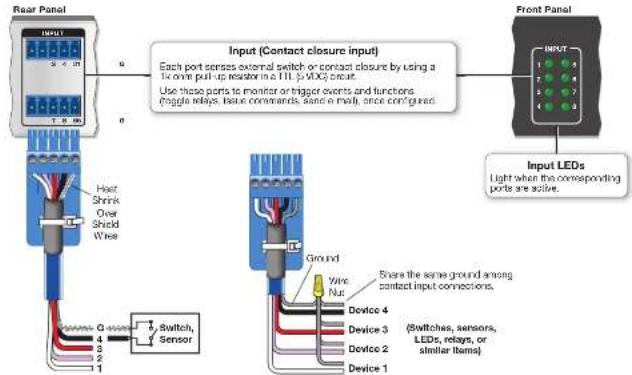

E Input (contact closure Input) ports — To allow the IPL to monitor devices to trigger events, connect a switch, sensor, or similar item to one of these ports. Wire the ports as shown below.

Figure 11. Wiring the Contact Input Ports

A 1k ohm pull-up resistor in a TTL (5 VDC) circuit senses external switch or contact closure. After these ports have been configured, when the circuit between a signal pin and a ground pin is closed, each port can trigger events (such as toggling relays, issuing commands, or sending an e-mail).

F Relay ports — Relay ports provide control for power, screen/projector lifts, window coverings, and similar items, when trigger events occur.

When activated, the open contacts close. They can be set up to operate in one of two ways:

• Latching (brief or indefinite period contact) (press to close, press to open), or
• Pulsed (timed cycle) (press to close, timeout to open, with automatic repeat). In pulse mode the default timeout period (hold time) is 12 second (500 ms). Use Global Configurator to change the length of the timeout period.

NOTE: The pulse function is absolute: it always sets the relay state to closed, times out (briefly), then opens the contact. It overrides the previously selected setting (on state, off state, or toggle).

6 IR/Serial output ports — An IPL Pro Series controller with these ports can use infrared signals or unidirectional RS-232 serial signals to control various devices (up to four per port for IR) via these ports. Set output signal type (IR or serial) during configuration. The figure below shows wiring examples.

Figure 13. Wiring the IR/Serial Ports

Serial control: Connect one of these ports to the serial control receive (Rx) and ground pins of the device to be controlled. These ports have the same serial protocol options (see page 14) as the COM ports.

ID - react. Object one of these parts directly to the mixed ID and of another device

Resetting the Unit

There are four reset modes that are available by pressing the Reset button on the front panel. The Reset button is recessed, so use a pointed stylus, ballpoint pen, or Extron Tweeker to access it. See the reset modes table below and on the next page for a summary of the modes.

ATTENTION:

NOTE: If you hold down the reset button continuously, the LED blinks every 3 seconds, and the unit enters a different mode, from the Reset all IP Settings mode through the Reset to Factory Defaults mode. For Reset to Factory Defaults mode the LED blinks three times, the third blink indicating the last mode. The modes are separate functions, not a continuation from one mode to the next.

IPL Pro Series Control Processor Reset Mode Summary
Mode	Use This Mode to...	Activation Result
ory Firmware	Temporarily boot up the unit with factory-installed firmware for a single power cycle in the event that a firmware	To start the Use Factory Firmware reset mode and replace firmware:1. On the control processor, hold down the recessed Reset button while applying power to the unit. Hold the button down until the Power LED flashes twice, then releases the button. The control processor enters factory firmware mode, and the LED blinks quickly.2. Upload new firmware to the unit as desired (see Updating the Firmware on page 32 for details).	The control processor reverts to the factory default firmware. Event scripting does not start if the unit is powered on in this mode. All user files and settings such as drivers, adjustments, and IP settings are maintained.NOTE: To return the unit to the firmware version that was running prior to the
Project Recovery	Recover project configuration and program files if passwords have been lost	For devices with firmware version 1.04 and lower
		To start the Project Recovery reset mode and recover a project:1. On the PC, open Global Configurator.2. Click the Tools menu and select Project Recovery. The Recovery Mode dialog box opens.3. Enter the IP address or host name of the target device for which you want to perform project recovery.4. Click Recover. The software allows indefinite time to establish a connection (until a connection is made or the user clicks Cancel).5. On the control processor, hold down the recessed Reset button while applying power to the unit. Hold the button down until the Power LED clinks twice, then release the button. The control processor enters project recovery mode for 20 seconds, during which time the Power LED clinks quickly GC automatically connects to the control processor, then opens and retrieves the project from the unit.6. Cycle power to the control processor to exit project recovery mode.7. Perform the Reset to Factory Defaults reset on the control processor.8. Open Toolbet, start device discovery, select the desired control processor from the list and click Manage.9. Click the Network Settings tab and set the IP address of the control processor.10. Click the User Management tab and change the password of the control processor.11. Close Toolbelt.12. In GC, add the new password to the recovered project.13. Save the project.14. Upload the project from GC to the control processor.	Project Recovery mode stops regular operation and allows a connection to be made to the unit via GC software without requiring password entry so that project files can be retrieved and saved.During product recovery mode, events are stopped, and so is communication with AV devices.While the control processor is in this mode, use the GC software to recover project fills.If the software does not initiate project recovery within 30 seconds after the control processor enters this mode, the control processor exits recovery mode.Upon exiting project recovery mode:The unit returns to its pre-recovery mode state and settings.The Power LED returns to being steadily it.
		For devices with firmware version 1.05 and higher
		To start the Project Recovery reset mode and recover a project:1. On the PC, open Global Configurator.2. Click the Tools menu and select Project Recovery. The Recovery Mode dialog box opens.3. Enter the IP address or host name of the target device for which you want to perform recent resources.	Project Recovery mode stops regular operation and allows a connection to be made to the unit via GC software without requiring password entry so that project files can be retrieved and saved.During project recovery mode, events are
Run/Stop Program	Toggle stop/start program	To stop or start a program:Hold down theResetbutton for about 3 seconds, until the Power LED blinks once.Release and press theResetbutton momentarily (for <1 second) within 1 second".Nothing happens if the momentary press does not occur within 1 second.NOTE:This reset mode is supported on firmware version 2.00.0002-b004 and higher.	The LED flashes 2 times if the program is starting.The LED flashes 3 times if the program is stopping.
Reset All IP Settings	Reset IP settings and port maps to factory defaults without affecting user-loaded files	To reset all IP settings:Hold down theResetbutton for about 6 seconds until the Power LED blinks twice (once at 3 seconds, again at 6 seconds).Release and press theResetbutton momentarily (for <1 second) within 1 second".Nothing happens if the momentary press does not occur within 1 second.	Reset All IP Settings mode:Sots the IP address back to factory default (192.168.254.250)Sets the subnet back to factory default (255.255.255.0)Sets the default gateway address to the factory default (0.0.0.0)Sets domain and host names to factory defaultSets port mapping back to factory defaultTurns DHCP offTurns events (user-created schedules, macros) off.
Reset to Factory Defaults	Start over with configuration and uploading	To reset the unit to all factory default settings:Hold down theResetbutton for about 9 seconds until the Power LED blinks three times (once at 3 seconds, again at 6 seconds, again at 9 seconds).Release and press theResetbutton momentarily (for <1 second) within 1 second".Nothing happens if the momentary press does not occur within 1 second.	Reset to Factory Defaults mode performs a complete reset to factory defaults (except the firmware).Does everything Reset All IP Settings mode doesRemoves (clears) all user-loaded files and configurations from the control processor:Clears driver-port associations (IR, serial, Ethernet) and port configurationsRemoves button/touchpanel configurationsRemoves schedules, settings, macros

Software-Based Configuration and Control

This section of the guide is divided into the following topics:

• Configuration and Control: an Overview
• Basic Setup Steps: a Guide to this Section and Other Resources
  • Downloading the Software and Getting Started
• Troubleshooting

Configuration and Control: an Overview

An IPL must be configured before use in order to recognize and accept commands and pass them on to the controlled devices. It can be configured and controlled via a host computer connected to the same network as the control processor. See LAN/PoE (IP) connectors and LEDs starting on page 15 for details about LAN port and cabling to connect the control processor to the network.

• Configure the control processor by using the Global Configurator software in GC Professional or GC Plus mode. See the Extron website for full system hardware and software requirements.
• The default Web pages embedded within the control processor provide a means to view general hardware information, network settings, and, if configured, project information. The embedded Web pages can also be used to update the IPL firmware.

Basic Setup Steps: a Guide to this Section and Other Resources

NOTE: GC projects can be created offline and uploaded to the hardware at a later date.

Follow the steps in Setup Checklist: How to Proceed With Installation starting on page 6. The overall process for setting up a control processor is as follows:

Downloading the Software and Getting Started

GC software updates and a large variety of device drivers can be downloaded from the Download page on the Extron website (http://www.extron.com/download/index.aspx). When you locate the desired software or driver package, follow the on-screen directions to download and install it.

NOTE: New RS-232 and Ethernet drivers are required. You must use serial and Ethernet drivers developed specifically for the IP Link Pro platform. With the exception of IR device drivers, drivers used for the previous generation IP Link (non-Pro) control processors are not compatible.

Locating Software, Firmware, and Driver Files on the Extron Website

There are three main ways to find software, firmware, and device drivers within www.extron.com:

• Via links from the Web page for the specific product
- Via the Download Center page (Click on the Download tab at the top of any page within the Extron website.)
• Via links from search results

NOTE: For some software you have the option to click the Download Now button to begin downloading the software file. For other software there is a link for contacting an Extron support representative who can provide you access to the latest version. To obtain Global Configurator (GC Professional, GC Plus) software, you must have an Extron Insider account and contact an Extron support representative. Extron provides training to our customers on how to use the software. Access to Global Configurator Professional is available to users who successfully complete Extron Control Professional Certification.

Via links from the Web page for the specific product

1. Navigate to the Web page for the specific product model by either...

- Typing the model name into the search field in the upper right of any Extron Web page and clicking the magnifying glass icon

1. For software, click on the link for the specific software that you need. A software product page opens that provides a description of the software package, a list of system requirements, a list of features, and access to the release notes, in addition to a download link. For drivers, select a product name from the drop-down list.
2. For some software you have the option to click the Download Now button to begin downloading the software file. For other software, such as Global Configurator in GC Professional mode, there is a link for contacting an Extron support representative who can provide you access to the latest version. For drivers, navigate through the alphabetically arranged list to select and download a driver for a specific device.

Via links from search results

1. Type the specific name of the software package (such as Global Configurator or GUI Designer) into the search field in the upper right of the page and click the magnifying glass icon. A search results page appears.
2. Click on the name of the software package. A software product page opens that provides a description of the software package, a list of system requirements, a list of features, and access to the release notes, in addition to a download link.
3. For some software you have the option to click the Download Now button to begin downloading the software file. For other software, such as Global Configurator with GC Professional mode, there may be a link for contacting an Extron support representative who can provide you access to the latest version.

Obtaining Control Drivers

Extron provides an extensive selection of device drivers available on the Extron website. Ethernet, serial, and infrared (IR) device drivers (for controlling projectors, displays, DVD players, document cameras, and so forth) are available as individual device driver files. Prior to configuration, download driver files for products to be used in the installation.

NOTE: For serial or Ethernet devices, IPL Pro Series control processors require IP Link Pro drivers. They do not support serial or Ethernet drivers that were created for IP Link (non-Pro) products. However, existing Extron IR driver files are supported.

Using GC: Helpful Tips

Resources and Notes

• The IPL Pro Series Setup Guide is shipped with the unit, and it lists available resources (software, drivers, instructions). It includes a quick reference to the front and rear panel features, and covers basic hardware installation.
• The Global Configurator Help file provides a wealth of information on settings and how to use the software, itself. The help file, included with the software, covers basic setup steps and includes examples of how to use the features of GC and stop by step instructions for typical configuration tasks.
• See Front Panel Features on page 9 and Rear Panel Features and Connections on page 11 in the "Hardware Features and Installation" section of this guide for features and settings for the ports you are configuring.
• If you will configure the IPL at the installation site, Extron recommends downloading drivers for all the devices in the installation before you go out into the field.
• The Global Configurator project file (*.gcpro or *.gcplus) contains configuration settings and it can be saved to a directory or folder for backup or for installation on another IPL Pro control processor. Saving a configuration is recommended before you perform a firmware upgrade.
• The IPL can be set up to allow configuration access only to administrators to prevent other users from making changes to settings, events, and controls.
• IP address, subnet mask, and gateway address are required during network setup of the control processor.
• The unit name is any name (for example, Room680-IPLProS6 or ConfRmSystem) that you want to use to label a specific IPL unit. The default is a combination of the product name and part of the hardware (MAC) address. This can be changed to your choice of alphanumeric characters and hyphens ( · ). The following rules apply:
• Spaces are not permitted within the name of a unit.
• Underscores ( _ ) are not permitted.
• Valid characters are A-Z, a-z, 0-9, and - (hyphen).
• The name cannot start with a number or a hyphen, and it cannot end with a

Troubleshooting

Turn on the input devices (DVD players, VCRs, PCs, and other sources), output devices (display screens, projectors), the IPL Pro control processor, and the PC and touchpanel. Touch a configured button on the touchpanel.

If an input or output AV device cannot be remotely controlled (does not respond as expected), check the following:

Power Connections

• Ensure that all devices are plugged in.
• Make sure that each device is receiving power. The IPL front panel power LED lights if the device is receiving power.

Data Connections

1. Check the cabling connections and make adjustments as needed. The Link LEDs on the IPL and on the touchpanel or PC should be lit solid green if a network connection is detected. If these LEDs are not lit, either the cable is faulty or not plugged in, or the wrong type of cable is being used (see LAN/PoE (IP) connectors and LEDs on page 15).
2. Try to "ping" the unit by entering ping 192.168.254.250 at the command prompt, or use the IP or Web address provided to you by your system administrator. If you get no response:

- Make sure your unit is using the appropriate subnet mask (check with your system administrator).

- Make sure your PC and network do not have a software firewall program that might block the IP address of the IPL unit.

1. If contact is established with the unit, but the IPL Web pages cannot be accessed by your Web browser, verify (via an Internet network options or preferences menu) that your Web browser is configured for direct network connection and is not set up to use a proxy server.

Reference Information

This section of the guide includes the following reference items:

• Network Requirements
- File Types: a Key to Extron-specific File Names
- Licensed Third-Party Software Used in the Control Processors

Full product specifications are available via the IPL Pro Series product pages at www.extron.com.

Network Port Requirements

Network administrators may find it useful to know which ports, protocols, and services are used by the IP Link Pro control processors, TouchLink Pro Touchpanels, Global Configurator Plus and Professional software, Toolbelt, and Extron Control for iPad (for IP Link Pro control systems). The following tables provide that information as a reference for network planning and troubleshooting. The following definitions apply:

• Inbound — The Extron control hardware listens for inbound traffic on the specified port.
• Outbound — The Extron control hardware sends outbound traffic to the specified port.

IP Link Pro Control Processors

Ports and Protocols for Control Processors
Inbound/Outbound	Port Protocol Service Description
Inbound 80	TCP HTTP Port redirects to HTTPS

TouchLink Pro Touchpanels

Ports and Protocols for Touchpanels
Inbound/Outbound	Port Protocol Service Description
Inbound 80 TCP HTTP Port redirects to HTTPS
Outbound 123 UDP NTP NTP service
Inbound 443 TCP HTTPS Default Web pages,				Extron Control for Web
Inbound/Outbound	4502 UDP Discovery			Broadcast network discovery
Inbound/Outbound	4503	TCP SSH		internal system messaging
Inbound	4522	TCP	SFTP	File transfer

Global Configurator Plus and Professional Software with Toolbelt

Ports and Protocols for GC
Inbound/Outbound	Port Protocol Service Description
Inbound/Outbound	4502 UDP	Discovery		Broadcast network discovery
Outbound	4503	TCP	SSH	Internal system messaging
Inbound	4504	UDP	Trace	Extron trace messages
Outbound	4522	TCP	SFTP	File transfer

Extron Control for iPad (for IP Link Pro Control Systems)

Ports and Protocols for Extron Control for iPad
Inbound/	Port Protocol Service Description

File Types: a Key to Extron-specific File Names

A basic understanding of the types of files used by the control processor is helpful in order to decide what (if anything) to do with them.

• *.eff — This is an Extron firmware update file. See the Firmware Updates section starting on page 31 for details on firmware updates.
  *.eir — These are IR driver files containing infrared commands. There is a separate .eir file for each device the IPL controls via infrared communication. This is also the type of file created during IR learning. Via Global Configurator, these files can be imported and associated with one of the IR ports on a control processor.
• *.ell — This is a LinkLicense file. It appears in systems that use a LinkLicense for using a third-party device as a control interface instead of an Extron TouchLink Pro touchpanel.
• *.gc2 or *.gcz — These are configuration files from older versions of Global Configurator (GC versions 3.x and earlier) that are used by Global Configurator only, not by the control processor. They contain configuration settings that must be processed by Global Configurator to create device configuration and event files for the IPL.
• *.gcplus — This is a Global Configurator Plus configuration file.
• *.gcpro — This is a Global Configurator Professional configuration file.
• *.gdl — This is a GUI Designer layout created for TouchLink Pro a touchpanel or third-party touch interface.
• *.glta — This is a GUI layout template.

Licensed Third-Party Software Used in the Control Processors

The control processors use various licensed third-party software packages during operation.

To view details about third-party packages and associated licensing, click the License

Information button in the internal Web pages of the control processor. A License Information window opens.

To view a copy of a listed package license, in the License Information window, click the link in the License column for the relevant package. This opens a copy of the package license in a separate window.

The following table lists the licensed third-party software packages used by the control processors.

NOTE: Licensed software packages used by the control processors are subject to change without notice.

Licensed Third-Party Software
Package License	Package License
aufs2-util GPL v2 lightpd BSD
avshi LGPL v2.1 linux-kemel GNU GPL v2
bstrib BSD linx-pam BSD
busybox GPL v2 lua MIT
bzip2	BSD luafilesystem	MIT
can-utils	GPL v2 luasocket	MIT
cjson	MIT	minicom	GPL v2
dovmom2	GPL v2 mtd	GPL v2
expat	MIT	ncurses	MIT
fcgi	fcgi	netsnmp	BSD
gnupg-1.4.7	GPL v2 ntp MIT
gpgme-1.3.0	LGPL v2.1 openssh BSD
i2c-tools GPL v2 openssl OpenSSL
ifplugd	GPL v2 pcre BSD

Firmware Updates

If the need arises, you can replace the IPL firmware without opening the unit or changing firmware chips. This section covers the following aspects of how to do that:

• Determining the Firmware Version
- Updating the Firmware

Determining the Firmware Version

There are several ways to check which version of firmware the control processor is using:

• View the device information in Toolbelt.
• View the general status information section of the IPL embedded Web pages.
- View the GlobalViewer (GV) Web pages (if the control processor has already been configured and the GV Web pages have been generated, built, and uploaded to the control processor).

Before using any of those methods, connect the control processor and the PC to the same network. For details see the Hardware Features and Installation section starting on page 6, the Software-Based Configuration and Control section starting on page 21, and the IPL Pro Series Setup Guide.

Using Global Configurator and Toolbelt

1. Start Global Configurator in either GC Professional or GC Plus mode.
2. Open the Toolbelt software.
3. Either add the desired control processor manually or start device discovery and select the desired processor from the list of discovered devices.
4. Click Manage in the row for the desired control processor and view the device

Updating the Firmware

Firmware upgrade tools require the PC and the control processor to both be connected to an Ethernet network. The instructions for each method of updating the IPL firmware assume you have installed the appropriate software on your PC first.

NOTES:

- You should save the existing configuration to a file (see the Global Configurator Help file for instructions) before replacing the firmware. If the file is saved, the configuration can be restored to the IPL later using GC.

- Check the Extron website for firmware-related documents, instructions, patch files, and new firmware files before loading new firmware into the control processor. We recommend that you read the firmware release notes (available from www.extron.com) before beginning the firmware update.

Locating and Downloading the Firmware

1. Visit the Extron website to find the latest firmware file for the control processor. The easiest way to locate files is through the Downloads tab on the Web page for the specific model.
2. Download the executable installer file (*.exe) from the website and run the installer program. The program automatically stores the firmware file on the PC in C:\Program Files\Extron\Firmware within a folder specific to that version.
3. Write down the firmware filename and location for later use. The filename ends in .eff such as 49-247-50-x.xx.xxxx-yyyy.eff where x.xx.xxxx is the version number.

NOTE: The firmware update file must have a filename extension of .eff. If the file does not have that extension, it does not work properly.

Installing Firmware

Firmware can be replaced by using one of the following:

• Global Configurator (using the link to Toolbelt)
• Toolbelt

Glossary

10/100Base-T

Ethernet which uses unshielded twisted pair (UTP - CAT 5, CAT 5e, CAT 6) cable, where the amount of data transmitted between two points in a given amount of time is equal to either 10 Mbps or 100 Mbps.

1000Base-T, gigabit Ethernet

An Ethernet standard that transmits at 1 Gbps over twisted pair wire.

Custom Web page

Any file that can be loaded into an IPL and served by the internal Web server. The IPL can be used for various Web-based tasks. The Web page provides a way to control the IPL, and other devices attached to it without use of the software, and with or without an accompanying event script. Any number and size of graphics can be used. If they are too large to fit in the nonvolatile memory of the IPL, Web pages can be created so that they can be served from another Web server using Microsoft Internet Information Services (IIS).

DHCP (Dynamic Host Configuration Protocol)

A standardized client-server communications protocol that enables a server to automatically assign unique network addresses (IP address, subnet mask, gateway) to a device using a defined range of numbers configured for the network.

DNS (Domain Name System)

DNS is the application layer protocol that locates and translates an Internet domain name (such as www.extron.com) into a numerical Internet Protocol (IP) address. A domain name is an easy-to-remember "handle" for an Internet address.

Driver

A software package that controls the interface between the control processor and peripheral devices.

Ethernet

A network protocol that uses MAC addresses instead of IP addresses to exchange data between computers. Using ARP (see above) with TCP/IP support, Ethernet devices can be connected to the Internet. An Ethernet LAN typically uses unshielded twisted pair (UTP) wires. Ethernet systems currently provide transmission speeds of 10 Mbps, 100 Mbps (fast).

ICMP (Internet Control Message Protocol)

ICMP is an Internet protocol is used by network devices (routers, switches, and the like) to send error messages or relay query messages. Typically ICMP messages are used for diagnostic or control purposes or are sent to the source IP address in response to IP operations errors. Error messages include notices that a device is not available or that a host or router could not be reached.

IP (Internet Protocol) The protocol or standard used to send information from one computer to another on the Internet.

IP address A unique, 32-bit, binary number (12 digit decimal number, xxx.xxx.xxx.xxx) that identifies each device or device port (an information sender and/or receiver) that is connected to a LAN, WAN, or the Internet. IP addresses can be static (see static IP) or dynamic (see DHCP).

IP net mask/subnet mask — See subnet mask.

MAC (Media Access Control) Address

A unique hardware number given to devices that connect to a network such as the Internet. When a computer or networking device (router, hub, interface, and the like) is connected to a LAN or the Internet, a table (which is used in ARP) relates the IP address of the device to its corresponding physical (MAC) address on the LAN. This protocol allows for several terminals or network nodes to communicate within a multi-point network, typically a local area network (LAN).

NTP (Network Time Protocol)

NTP is an Application layer networking protocol that synchronizes clocks among computers and other devices over networks.

Ping A utility/diagnostic tool that tests network connections. It is used to determine if the host has an operating connection and is able to exchange information with another host. Port number A preassigned address within a server (such as the control processor) that provides a direct route from the Application to the Transport layer or from the Transport layer to the Application of a TCP/IP system.

SFTP (Secure File Transfer Protocol)

Similar to FTP, this protocol adds encryption and requires credentials for file transfers.

SMTP (Simple Mail Transfer Protocol)

SMTP is an Internet standard for e-mail transmission. By default, SMTP uses TCP port 25. SMTP connections are used by SCL, based on SMTP, default to port 405.

Subnet mask

A 32-bit binary number (12 digit decimal number, xxx.xxx.xxx.xxx) used on subnets (smaller, local networks) to help routers determine which network traffic gets routed internally (within the subnetwork) to local computers and which network traffic goes out to the rest of the network or the Internet. It is an address mask used to identify the bits of an IP address that are used for the subnet address. Using a mask, the router does not need to examine all 32 bits, only those selected by the mask.

Subnetwork

A network that is part of a larger IP network and is identified by a subnet address. Networks can be segmented into subnetworks to provide a hierarchical, multilevel routing structure.

TCP (Transmission Control Protocol)

A connection-oriented protocol at the Transport layer of the Open Systems Interconnection (OSI, ISO/IEC 7498-1) reference model. It provides reliable end-to-end data delivery from one network device to another.

TCP/IP (Transmission Control Protocol/Internet Protocol)

The communication protocol of the Internet. Computers and devices with direct access to the Internet are provided with a copy of the TCP/IP program to allow them to send and receive information in an understandable form.

Tool tip

Text that appears when the mouse pointer hovers over a button or other item on screen.

UDP (User Datagram Protocol)

A connectionless, Internet transport layer protocol that sends packets (datagrams) of information across networks using "best-effort" delivery. It is a relatively simple protocol that does not include handshaking. It is faster than TCP and is often used for broadcast and multicast communication, but it does not include data verification to ensure that all packets arrived at their destination.

URL (Uniform Resource Locator)

The address (such as www.extron.com) that lets a resource on the internet be identified, located, and accessed.

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics

1230 South Lewis Street

Anaheim, CA 92805

U.S.A.

Japan:

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

Europe and Africa:

Extron Europe

Hanzeboulevard 10

3825 PH Amersfoort

The Netherlands

China:

Extron China

686 Ronghua Road

Songjiang District

Shanghai 201611

China

Asia:

Extron Asia Pte Ltd

135 Joo Seng Road, #04-01

PM Industrial Bldg.

Singapore 368363

Singapore

Middle East:

Extron Middle East

Dubai Airport Free Zone

F13, PO Box 293666

United Arab Emirates, Dubai

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

IEA: 714 404 1600 or 900 829 0976

Europa: 21 22 452 4040
