Product Type	Component shelf, heavy duty for network enclosures
Brand	Rittal
Model	DK 7828.971
Compatible Enclosure	TS 8
Material	Sheet steel, zinc-plated
Colour	RAL 7035
Width	507.5 mm
Height	20 mm
Depth	680 mm
Distance Between Mounting Levels	698 mm
Load Capacity (Static)	75 kg
Weight	4.5 kg per pack
Supply Includes	Assembly parts
Power Supply	Not applicable (passive component)
Main Functions	Provides a static shelf between 19" mounting levels for housing network equipment
Installation	Mount directly onto L-shaped mounting angles of TS 8 enclosures
Maintenance & Cleaning	Wipe with a dry, lint-free cloth; do not use abrasive cleaners
Safety	Ensure load does not exceed 75 kg; secure shelf properly to prevent tipping
Spare Parts & Repairability	Contact Rittal for replacement parts; shelf is not user-serviceable
Standards & Classification	EAN: 4028177233324; eCI@ss 5.1: 27189218; eCI@ss 7.0: 27189261; ETIM 6.0: EC002620
Pack Quantity	1 piece

Frequently Asked Questions - DK 7828.971 Rittal

What is the Rittal DK 7828.971?

It is a heavy-duty component shelf designed for use with Rittal TS 8 network enclosures with L-shaped mounting angles.

What are the dimensions of the shelf?

The shelf measures 507.5 mm wide, 20 mm high, and 680 mm deep, with a mounting level distance of 698 mm.

What is the load capacity?

The shelf can support a static load of up to 75 kg when properly mounted.

What material is the shelf made of?

It is made of sheet steel with a zinc-plated finish and painted in RAL 7035.

Which enclosures is it compatible with?

It is designed for Rittal TS 8 enclosures with L-shaped mounting angles.

Does it require a power supply?

No, it is a passive shelf and does not require any power connection.

How do I install the shelf?

Install it directly onto the L-shaped mounting angles between two 19" mounting levels. Assembly parts are included.

Can I use telescopic slides with this shelf?

No, the shelf is not suitable for combination with telescopic slides.

How should I clean the shelf?

Clean with a dry, lint-free cloth. Avoid using harsh or abrasive cleaners.

Where can I find spare parts or support?

Contact Rittal directly for spare parts and technical support. Manuals are available on the Rittal website.

USER MANUAL DK 7828.971 Rittal

Component shelf, heavy duty for network enclosures TS with L-shaped mounting angles – DK 7828.971

Date : Jul 26, 2016

Component shelf, heavy duty for network enclosures TS with L-shaped mounting angles – DK 7828.971

created: 26.07.2016 build on www.rittal.com/uk-en

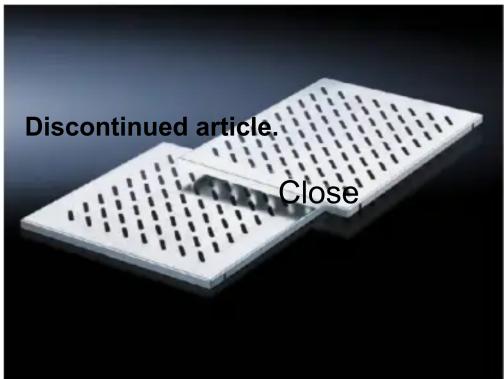

Product description

Description:	For static installation between two 482.6 mm (19") mounting levels. The component shelf is located directly onto the L-shaped mounting angles.
Material: Sheet steel
Surface finish: Zinc-plated
Colour: RAL 7035
Supply includes: Assembly parts
Note: Not suitable for combination with telescopic slides.
Packs of: 1 pc(s).
EAN: 4028177233324
Customs tariff number:	94039010
eCI@ss 5.1:	27189218
eCI@ss 7.0:	27189261
ETIM 6.0: EC002620

Product features

To fit: Enclosure type: TS 8

Dimensions: Width: 507.5 mm

Height: 20 mm

Depth: 680 mm

Distance between levels:

698 mm

Load capacity: 75 kg surface load, static

Weight/pack: 4.5 kg
