| Product Type | SDI Input Board |
| Model | AV-HS04M1 |
| Brand | Panasonic |
| Compatible Switcher | AV-HS400N/E Multi Format Live Switcher |
| Number of SDI Inputs | 2 (each with active through output) |
| Input Connectors | BNC (SDI INPUTS IN and OUT) |
| Supported SD Formats | 480/59.94i, 576/50i |
| Supported HD Formats | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Up-converter Function | Yes (converts SD signals to HD format) |
| SDI Standard | SMPTE 292M (BTA S-004B) |
| Signal Level | 0.8 Vp-p ±10% (75 Ω) |
| Input Return Loss | >15 dB (5 MHz - 750 MHz), >10 dB (750 MHz - 1.5 GHz) |
| Cable Equalization | Automatic up to 100 m (5C-FB) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Installation Slots | SLOT1 or SLOT2 of AV-HS400N/E |
| Safety Precautions | Do not expose to rain/moisture; use shielded cables; anti-static handling required |
| Disposal | Follow WEEE directive for electronic waste |
| Accessories Included | Operating instructions (1 copy) |
| Cleaning | Clean only with dry cloth |
| Maintenance | Refer servicing to qualified personnel only |
Frequently Asked Questions - AV-HS04M1 PANASONIC
User questions about AV-HS04M1 PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audiovisual Equipment in PDF format for free! Find your manual AV-HS04M1 - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AV-HS04M1 by PANASONIC.
USER MANUAL AV-HS04M1 PANASONIC
Operating Instructions
SDI Input board
Model No. AV-HS04M1
ENGLISH VERSION
Safety precautions
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (service) instructions in the literature accompanying the appliance.
WARNING:
- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
• THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL
Safety precautions
For CANADA
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Warning:
To assure continued FCC emission limit compliance, the user must use only shielded interface cables when connecting to external units. Also, any unauthorized changes or modifications to this equipment could void the user's authority to operate it.
indicates safety information.
Safety precautions
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
10) Protect the power cord form being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplua this apparatus during
Safety precautions
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to
your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Contents
Safety precautions .... 1 Mounting .... 8
Introduction 5 Connections 11
Accessory 5 Appearance 12
Precautions for use 6 Specifications 13
Name of each part 7
Introduction
When this board is installed in the AV-HS400N/E multi format line switcher, it enables two SDI input lines to be supported.
An up-converter function is also incorporated in each of the two SDI input lines for converting SD format signals into HD format signals.
Accessory
Operating instructions .... 1
Precautions for use
- Handle carefully.
Do not drop the product, or subject it to strong shock or vibration.
- Use the product in an ambient temperature of 32 °F to 104 °F ( 0 °C to 40 °C ).
Avoid using the product at a cold place below 32 °F (0 °C) or at a hot place above 104 °F (40 °C) because extremely low or high temperature will adversely affect the parts inside.
- Power off before connecting or disconnecting cables.
Before plugging or unplugging the cables, be sure to switch power off.
- Avoid humidity and dust.
Avoid using the product at a humid, dusty place because much humidity and dust will cause damage to the parts inside.
- When the product is to be discarded
When the product is to be discarded at the end of its service life, ask a specialized contractor to dispose of it properly in order to protect the environment.
Name of each part
① SDI Input connectors [SDI INPUTS]
IN: SDI signal input connector; OUT: active through output connector
When connected to the SLOT1 option input connector: INPUT5
When connected to the SLOT2 option input connector: INPUT7
② SDI Input connectors [SDI INPUTS]
IN: SDI signal input connector; OUT: active through output connector
When connected to the SLOT1 option input connector: INPUT6
When connected to the SLOT2 option input connector: INPUT8
③ Setting switches
Install this board in the multi-format live switcher AV-HS400N/E.
- Be sure to ask the store or dealer where you purchased the product for assistance with mounting and removal.
- Set to OFF and unplug the power connector before mounting and removal.
- Before handling this board, touch a metal part of the AV-HS400N/E to discharge the static electricity from the human body.
An anti-static wrist strap is recommended for safety. Failures may be caused if you touch this board while you are still charged with static electricity. - Keep the metal parts of this board free of contact with other metal parts.
- Be sure to mount the blank panel installed with the AV-HS400N/E, after removing this board.
- When installing or removing this board, take care not to hurt yourself on the edges and metal parts of the boards.
① Turn off the power of the AV-HS400N/E, and unplug the power cord.

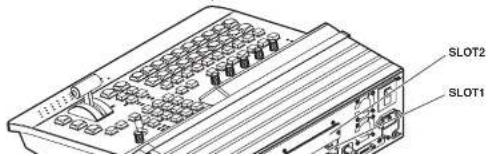

② Loosen the two screws of SLOT1 or SLOT2 on the input side at the rear of the AV-HS400N/E, and remove the blank panel.
ENGLISH
Mounting
③ Align the board with the guide rails, and insert it slowly.
Insert it all the way in. Take care not to use force to insert the board because the connectors may be damaged in the process.

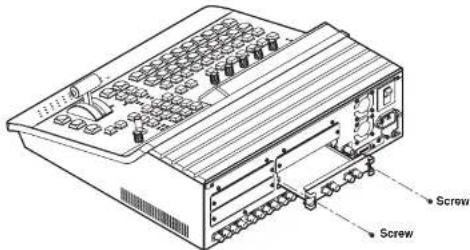

④ Attach the board using the two screws.
⑤ After connecting the necessary cables, plug in the power cord, and turn on the power.
Mounting
Checking that the board has been mounted correctly
Turn on the power of the AV-HS400N/E, and use the menu used to display the statuses of the option boards to check that the board has been mounted correctly.
① Press the [FUNC] button to light its indicator, and press the [SYSTEM] button to display the SYSTEM menu.
② Turn [F1] to display the OptVer sub menu.
Brand : PANASONIC
Model : AV-HS04M1
Category : Audiovisual Equipment
