Product Type	Portable Evaporative Air Cooler
Brand	Salton
Model	SWC 030
Power Supply	230-240V ~ 50Hz
Power Consumption	Approximately 100W
Fan Speeds	3 (Low, Medium, High)
Oscillation	Yes, vertical louvers oscillate left to right
Timer	0.5H, 1H, 2H, 4H
Remote Control Range	5 meters
Water Tank Capacity	Approximately 5 liters
Ice Compartment	Yes, for extra cooling
Anion Generator	Yes
Filter Type	Washable dust filter
Filter Cleaning Interval	Every 20-30 days of continuous use
Dimensions (Approx.)	30 x 30 x 80 cm
Weight (Approx.)	5 kg
Indoor Use Only	Yes
Safety Features	Overheat protection, earthed plug
Warranty	365 days (domestic use)

Frequently Asked Questions - SWC 030 Salton

How do I fill the water tank?

Lift the top cover and pour water into the small compartment until the water level is between 'Max' and 'Low' as shown on the water level indicator. Do not overfill. For extra cooling, place ice cubes in the large compartment.

How often should I clean the filter?

Clean the filter every 20-30 days of continuous use. To clean, unscrew the filter frame, remove the filter, tap gently or wash with mild detergent, rinse, and dry before replacing.

Does the unit come with batteries for the remote control?

No, batteries are not included. You need to insert your own batteries into the remote control before use.

Can I use perfume or air fresheners in the water?

No, only water should be used. Do not add any perfume, air fresheners, disinfectants, or similar products, as they may damage the unit.

What should I do if the air cooler does not work?

Check that the unit is plugged in and switched on. Verify the power cord is secure and the wall socket is working. If the issue persists, contact the retailer or an authorized service center.

How does the timer function work?

Press the Timer button repeatedly to select 0.5H, 1H, 2H, or 4H. The unit will automatically turn off after the selected time.

Can I use the air cooler outdoors?

No, this appliance is designed for indoor use only.

How do I clean the water reservoir?

Drain the water tank and leave the drainage plug out. Wash the reservoir with clean water whenever you clean the filter.

What is the anion function?

Press the 'ANION' button to activate the negative ion generator, which improves air quality by emitting negative ions.

Is it normal for the cooler to vibrate?

To avoid vibration, place the air cooler on a smooth, level surface. If vibration persists, ensure the unit is stable and not overloaded with water.

USER MANUAL SWC 030 Salton

INSTRUCTIONS AND WARRANTY

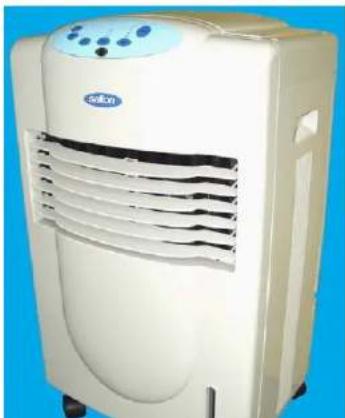

White portable air purifier with ventilation slots and a blue control panel (no visible text or symbols)

Thank you for purchasing our SALTON Portable Air-cooler. Please read the instructions carefully before using and keep safe for future reference. The following instructions will allow you to use this product to its maximum performance.

IMPORTANT SAFEGUARDS

When using your SALTON Air-Cooler, basic precautions should always be followed including the following:

• Make sure that the power used corresponds to the one indicated on the rating label.
• Only use the air-cooler for its intended use as described in this instruction manual.
• Do cover the air-cooler
• Do not immerse the unit, plug or power cord in water or allow any liquid to come into contact with any part of the fan.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug the cooler from the power supply when: not in use; when moving it from one location to another; before putting on or taking off parts and before cleaning.
• Avoid coming into contact with any moving parts.
  • To avoid vibration, place the air-cooler on a smooth level surface.
• Never operate the air-cooler with a damaged power cord or plug or after it has fallen or been damaged in any way.
• Do not allow objects to fall into the openings and do not insert objects through the guard when the air-cooler is in operation.
• Do not use outdoors.
• Do not let the cord hang over the edge of the table or counter or to touch hot surfaces.
• Do not block air circulation.
• To disconnect, grin the plug and pull from the wall outlet. Never unplug by

PRODUCT DESCRIPTION

The product you have purchased is an air-cooler. This room sized evaporative cooler is suitable for warm climate and relatively low humidity areas.

HINTS FOR BETTER COOLING

• Your air-cooler requires a supply of ventilation.
• Place the air-cooler near an open window on the shady side of your room. (Or leave the door to the room open).
• As an addition to cooling a place, place the air-cooler near the doorway. The air-cooler will draw cool air in from other parts of the house and bring the temperature down further.
• Start your air-cooler when the room is still cool. You may leave it running all day and still save money due to the lower power consumption. You will find that this system works best and keeps the room cool. Please ensure that there is always water in the cooler.

PARTS DIAGRAM

CONTROL PANEL

1. ANION button
2. COOL button
3. WIND button
4. SPEED button
5. TIMER button to
6. ON/OFF button

FILLING THE AIR COOLER

• Ensure that the drainage plug at the base of the cooler is firmly in place.
• Lift up the top cover of the unit
• Pour water into the small compartment until the water level is between "Max" and "Low" – as viewed through the window of the water level indicator situated in the lower right corner of the front panel of the cooler

Note: Do not overfill the reservoir of the water tank because water could spill over the sides of the tank and into the cooler operational mechanisms.

Do not use HOT water.

• For extra cooling, place ice cubes into the large compartment and close the cover.
• Switch the air-cooler to "ON".
• Please take care when moving the cooler while it contains water to avoid the cooler leaking.

• Place your air-cooler on a smooth, level surface.
  • Fill the air-cooler as per the instructions above.
  Note For a cooler environment, we recommend that ice be added at this point to the large compartment.
• Plug the air-cooler into a mains outlet ensuring that the power supply used matches that indicated on the rating label.
• Select the desired fan speed using the control panel or the remote control. An indicator light will reflect the chosen fan speed.
  • Three fan speed options exist – Low, Medium and High
• Select the "WIND" function on the control panel. The airflow will oscillate from left to right as the vertical louvres swing from side to side.
• To direct the airflow up or down, the front, horizontal louvres need to be adjusted manually.
• To activate the negative ion generator at the air outlet window, press the "ANION" button. This will improve the quality of the air being emitted.

Note Do not use any type of perfume, air fresheners, disinfectants or similar products in the air-cooler. This appliance is to be used with water ONLY.

TIMER FUNCTION

• There are four positions available on the control panel:
1. 0.5H - Half an hour
2. 1H - One hour
3. 2H - Two hours
4. 4H - Four hours
• Each time the Timer button is pressed, the time increases in 0.5hr increments up

IMPORTANT NOTES

• The range of the remote control is 5 metres.
- Batteries are not included and need to be inserted into the remote control before use. The remote control must be pointed directly at the air-cooler for it to function effectively.
- Do not obstruct the air outlet in any way when the unit is in operation.
• The unit is to be used indoors only.
- Please ensure that the power mains is earthed to ensure the safety and reliability of the air-cooler
- The filter must be cleaned every 20-30 days of operation if in continuous use, to ensure optimum performance. Refer instructions on Cleaning the Air-Cooler.

CLEANING THE AIR-COOLER

The filter is assembled when the unit is manufactured, but will need to be cleaned on a regular basis. To do this:

1. Unscrew the screw on the filter
2. Pull the filter frame upwards until it is released from the unit
3. Take the filter out from the filter frame. Tap the filter gently with a feather duster or other soft object to release the dust. Should the filter be very dirty, dip it into a mix of natural detergent and water, and wash it. Rinse it in fresh clean water and allow to dry.
4. Place the filter back into the filter frame and slide the frame into the unit. Replace the screw on the filter.

CLEANING THE WATER RESERVOIR

• Always wash out the water reservoir whenever you clean the filter.
- Drain the water tank and leave the drainage plus out during the cleaning process

CHANGING THE PLUG

Should the need arise to change the fitted plug, follow the instructions below:

This unit is designed to operate on 230V-240V current only. Connecting to other power sources may damage the appliance. Connect a three-pin plug as follows:

The wires in this mains lead are coloured in accordance with the following code:

Green/Yellow = Earth

Blue = Neutral

Brown = Live

WARNING: THIS APPLIANCE MUST BE EARTHED

(Always ensure the three-pin plug is connected as follows: )

TROUBLE SHOOTING

1. If the air-cooler does not work:

a. Ensure that the unit is plugged in and is switched on.
b. Check that the wire from the terminal block has not come loose
c. Ensure that the motor is not damaged.
d. If the unit is not working after changing the filter, ensure that the motor wires have been reconnected and are not loose.

c. When using ice cubes, make sure that the unit is switched to "Icy Breeze".

d. Ensure that the ice tray is not overfilled.

SERVICING THE APPLIANCE

There are no user serviceable parts in this appliance. If the heater is not operating correctly, please check the following:

• You have followed the instructions correctly
- That the unit has been wired correctly and that the wall socket is switched on.
• That the mains power supply is ON.

If the appliance still does not work after checking the above:

- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem and you need to return the appliance, make sure that:

• The unit is packed carefully back into its original packaging.
• Proof of purchase is attached.
- A reason is provided for why it is being returned.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent in order to avoid any hazard. If service becomes necessary within the warranty period, the appliance should be returned to an approved Amalgamated Appliance (Pty) Ltd service centre. Servicing outside the warranty period is still available, but will, however, be chargeable.

STORAGE OF UNIT

PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.

WARRANTY

Amalgamated Appliances (Pty) Limited ("the Supplier") warrants to the original purchaser of this product ("the Customer") that this product will be free of defects in material and workmanship which under normal, personal, family or household purpose manifest themselves within a period of 365 days from the date of purchase or in respect of commercial or professional purposes, manifest themselves within a period of 90 days from the date of purchase. Any claim in terms of the warranty must be supported by a proof of purchase. If such proof is not available, then notwithstanding anything to the contrary herein, the Supplier's normal charge for service and/or spares will be payable by the Customer upon collection of the repaired product. If a claim is made in terms of the aforesaid warranty within the first 7 days from the date of purchase, the faulty product will be exchanged (provided that the product is in its original packaging with all accessories). Failing return of the product within 7 days, the Supplier's liability shall be limited on return to the Supplier of the product or parts thereof, to the replacement or repair (in the sole discretion of the Supplier, or its duly authorised service dealer) of the product to eliminate any defect in workmanship or materials found to be due exclusively to any acts or omissions on the parts of the Suppliers, of which defects the Supplier shall have been notified in writing by the Customer within the aforesaid warranty period. The warranty provided herein and the obligations of the Supplier as aforesaid are in lieu of, and the Customer waives, all other warranties, guarantees, conditions or liabilities, express or implied, arising by law or otherwise, including without limitation, any obligation of the Supplier in respect of any injury, loss or damage (direct, indirect or consequential) arising out of the use of, or inability to use, this product and whether or not occasioned by the Supplier's negligence (gross or otherwise) or any act or omission on its part. The warranty does not include and will not be construed to cover products damaged as a result of disaster, misuse, abuse or any non-authorised modification of the product. The warranty does not include replacement of light bulbs, heater bars, paper bags or any glass, plastic bowl or jug or other expendables. During the warranty period the product should be taken to a service centre of the Supplier or one of its duly authorized service agents. The Supplier
