Product Type	Built-in Dishwasher
Model	EDI14S
Brand	Euromaid
Width	600 mm
Height	820 - 870 mm (adjustable feet)
Depth	570 - 600 mm (including door)
Place Settings	14
Electrical Connection	220-240 V, 10 A, 1900-2200 W
Heat Output	1800 W
Water Pressure Range	0.3 - 10 bar
Programs	Pre-wash, 30 Min, Eco, Quick, Intensive
Drying System	Turbo fan heat drying (depending on model)

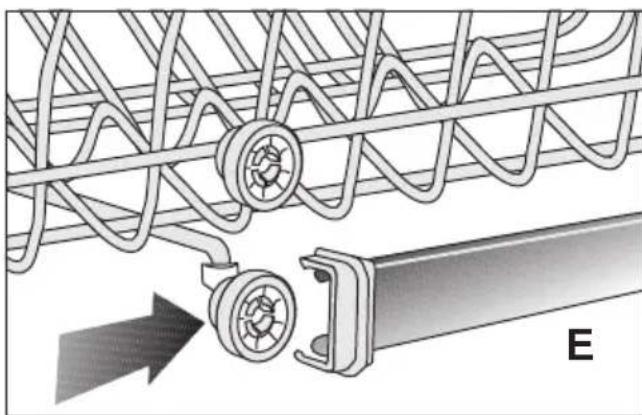

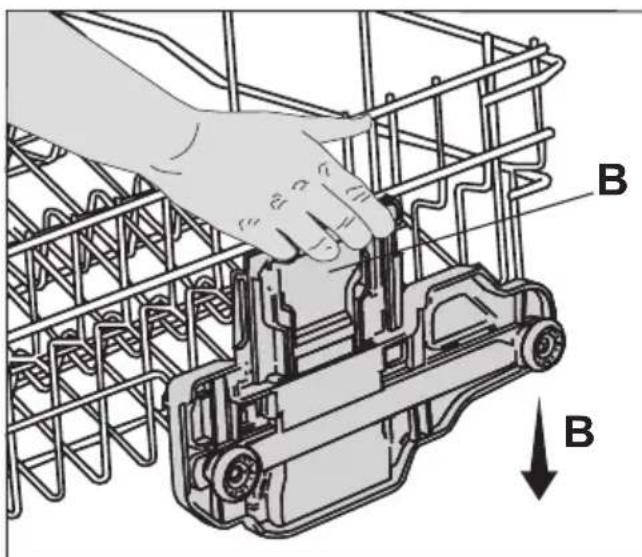

Upper Basket Adjustment	Variable height setting

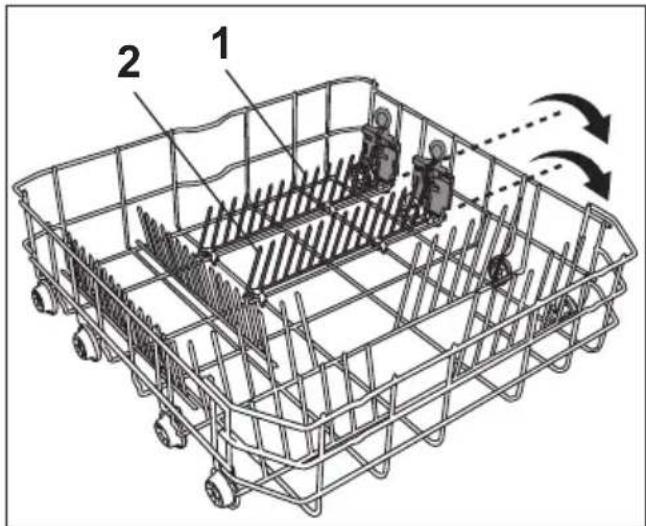

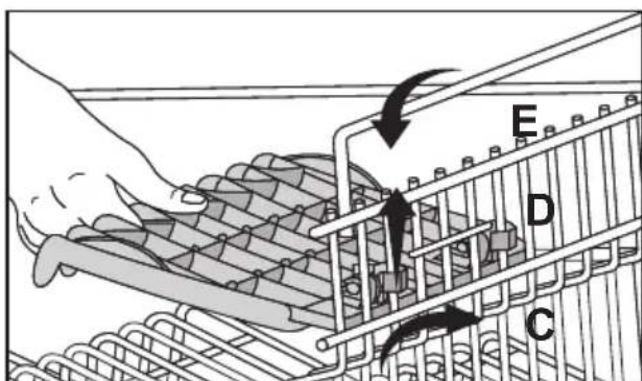

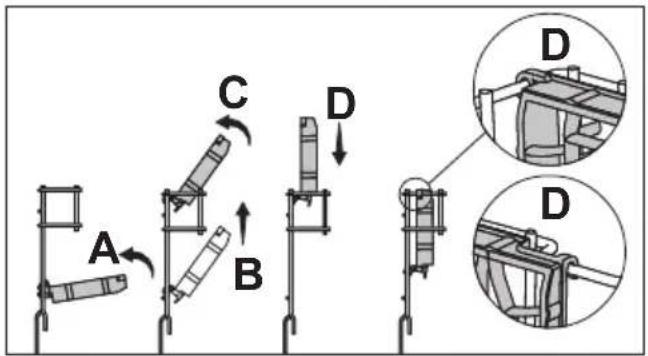

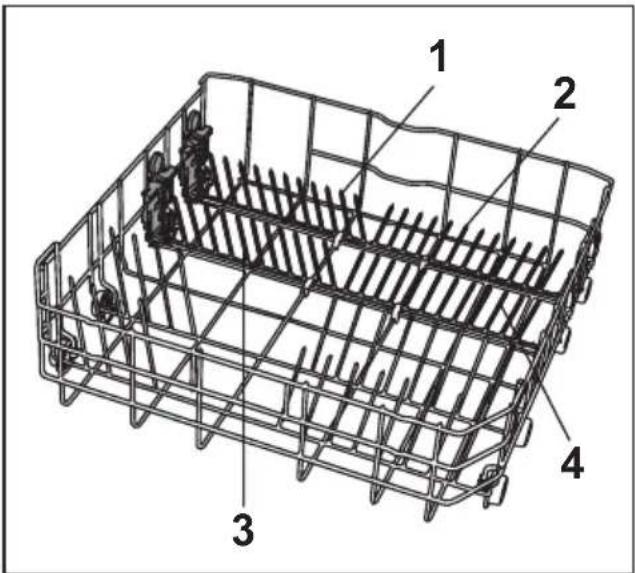

Foldable Plate Supports	4 folding rods in lower basket

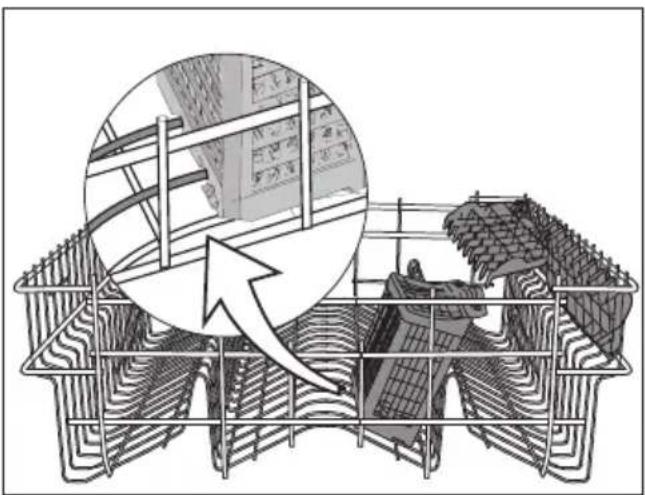

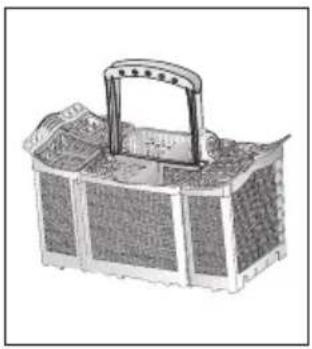

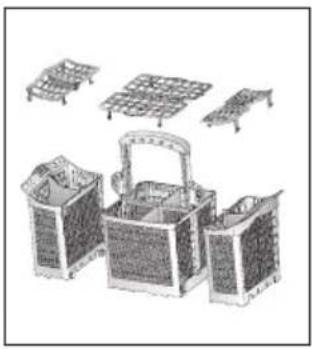

Cutlery Basket	Variable, removable, 3-part
Half Load Function	Yes
AQUASAFE+ System	Available on some models
Energy Consumption (Eco program)	0.88 kWh
Water Consumption (Eco program)	15.4 L
Noise Level	Approx. 48 dB (typical)
Safety Features	Child lock, thermal protection, grounded connection

Frequently Asked Questions - EDI14S Euromaid

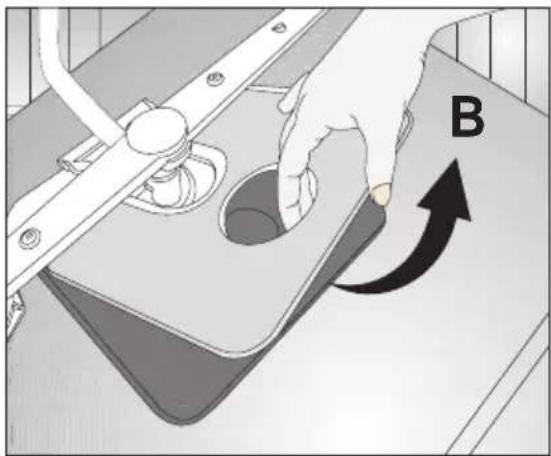

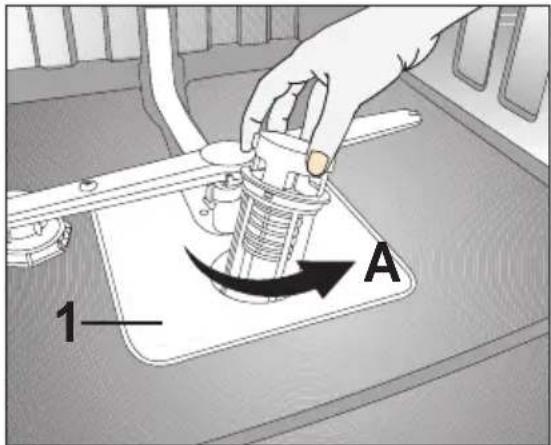

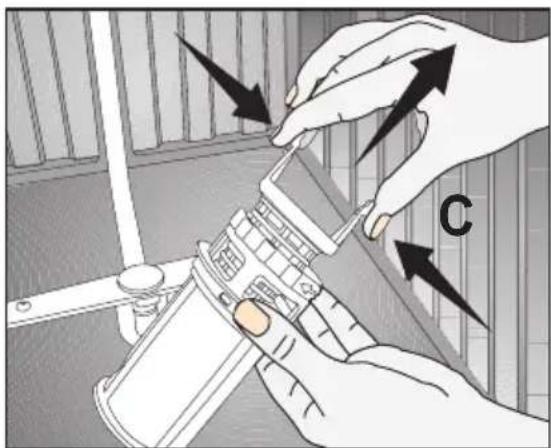

How do I clean the filters in my Euromaid EDI14S dishwasher?

Remove the lower basket, then turn the coarse filter clockwise and pull it up. Remove the main filter and press the tongues to separate the coarse and micro filters. Clean all filters under running water, replace in reverse order, and twist the coarse filter clockwise until it clicks.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser by pressing the locking lever. Use the regulator to set dosage from 1 to 6 (factory preset 3). If watermarks appear, increase dosage; if streaks appear, decrease dosage.

What type of detergent should I use?

Use only detergents formulated for dishwashers. You can use powder, gel, or tablets. For short programs without pre-wash, use powder detergent. Multipurpose tablets (2in1, 3in1, etc.) can be used but may require adjusting rinse aid and salt settings. Avoid detergents with chlorine and phosphate.

Why are my dishes not drying properly?

Check that you are using rinse aid and the dosage is correct. Ensure the rinse aid dispenser is full. Also, avoid unloading immediately after the cycle; open the door slightly to let steam escape. For better drying, use a program with higher temperature, such as Intensive.

How can I cancel a running program?

Open the door carefully (steam may escape), press the Start/Cancel button for 3 seconds until the indicator flashes, then close the door. The machine will drain for 45 seconds and cancel. The Start/Cancel light will turn off. You can then select a new program.

What items should not be washed in the dishwasher?

Do not wash items made of copper, tin, aluminium, lead crystal, wood, horn, mother of pearl, or non-heat-resistant plastic. Also avoid glued items, art, and pieces soiled with ash, wax, varnish, or paint. Silver and aluminium may discolour.

How do I connect the water inlet hose?

Use the supplied screw-on hose connector to attach the inlet hose to a water tap with 3/4 inch external thread. Ensure the hose is not bent or squeezed. Check for leaks. If your model has AQUASAFE+, do not immerse the valve box in water.

Is the dishwasher safe for children?

The appliance includes child safety features. Do not allow children to play with the dishwasher. Detergents are caustic; keep them out of reach. Never leave children unsupervised near an open dishwasher. Long sharp items should be placed with the point down or flat in the upper basket.

What should I do if the dishwasher does not start?

Check that the mains plug is connected and the fuse is working. Ensure the water supply is turned on and the door is closed firmly. Verify the On/Off button is pressed. Also check the filter on the water inlet and inside the dishwasher for clogs.

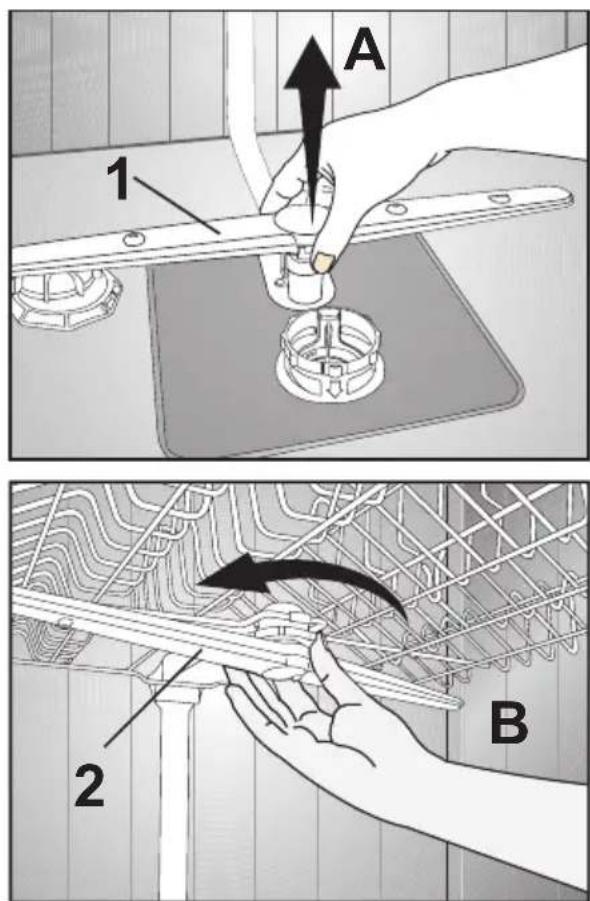

How do I clean the spray arms?

Remove the lower basket, then pull off the lower spray arm upward. Loosen the screw of the upper spray arm and pull it off. Wash both arms under running water, and replace them. Clean the nozzles regularly to prevent clogging.

USER MANUAL EDI14S Euromaid

600mm Built-In Dishwasher Manual

MODEL

EDI14S

Euromaid

Installation and Operation

Dear customer,

Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance.

Please keep these documents in a safe place for later reference.

This operating manual has been written for several different dishwashers, and some of the features mentioned here may not apply to your particular model.

TABLE OF CONTENTS

1 Getting To Know Your Machine 3

View of the Machine 3

2 Safety Instructions 4

Before Installation 4

Before First Use 4

Child Safety 4

Technical Specifications 4

For daily operation 5

Problems 5

What should not be washed in your dishwasher 5

3 Directions for Assembly 6

Safety notes for installation	6
Installing Your Dishwasher	6
Water connection	7
Connect water inlet hose	7
Water drainage	8
Electrical connection	8
Disposal	8

4 Using Your Dishwasher 10

Filling the Rinse Aid Dispenser	10
Filling the Detergent Dispenser	11
Detergent	11
Multipurpose Tablets	12
Loading the dishwasher	12
Suggestions for loading the dishwasher	13
Loading suggestions	17

5 How to clean your dishwasher 20

Cleaning the filters	20
Cleaning the spray arms	21

6 Troubleshooting: 22

What to do if the dishwasher will not run	22
The cleaning results are unsatisfactory	22
Service	28

1 Getting To Know Your Machine

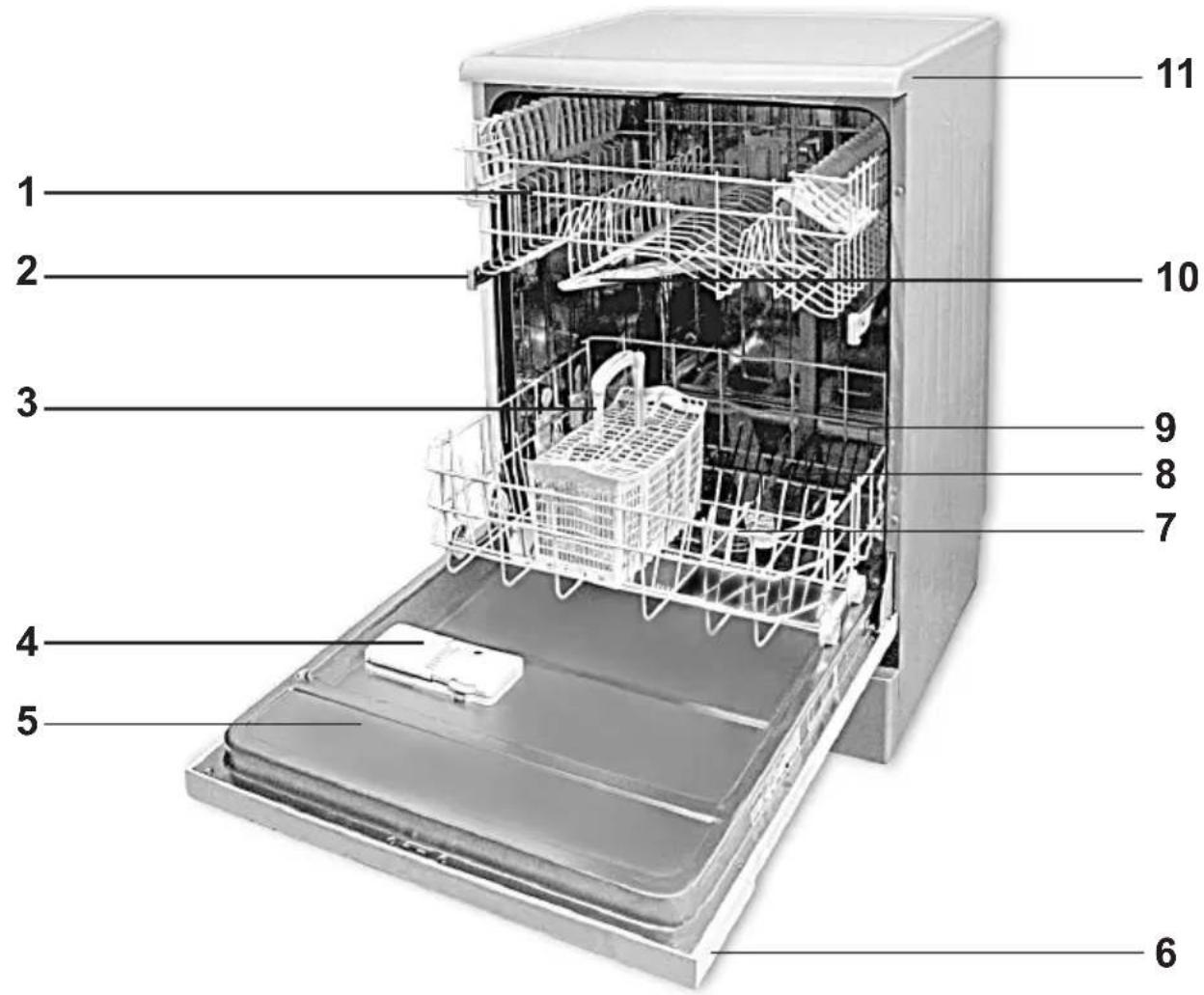

View of the Machine

1. Upper dish basket with shelf
2. Guide rail for the upper dish basket
3. Cutlery basket
4. Detergent dispenser
5. Door
6. Control panel
7. Filters
8. Lower sprayer arm
9. Lower basket
10. Upper sprayer arm
11. Housing (depends on the model)

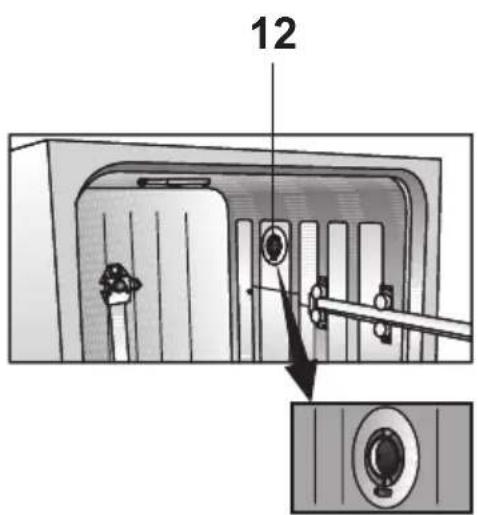

12. Turbo fan heat drying system (depends on the model)

Technical Specifications

Permitted water pressure: 0,3–10

bar (= 3 - 100 N/cm² = 0,01-1,0Mpa)

Electrical connection: 220-240 Volts,

10 Amps (see type plate)

Output: 1900-2200 W

Heat output: 1800 W

This device corresponds to the following EU directives:

2006/95/EC: Low Voltage Directive

2004/108/EC: EMV Directive

DIN EN 50242: Electrical dishwasher for home use Testing procedures for practical service conditions

Because we continually strive to improve our products, we may change

our specifications and designs without prior notice.

Note for Testing Institutes

The necessary information for performance testing will be provided upon request. The request can be done by e-mail through:

[e-mail]

Please do not forget to write the model code and stock code information of the appliance besides your contact information in the e-mail. The model code and stock code information can be found on the rating label, which is placed on the side of the door.

2 Safety Instructions

Before Installation

Check the appliance for transit damage. Never install or use damaged machines. If in doubt, contact your supplier.

△ Before First Use

See Notes for Installation on page • 6.

Have the grounding system • installed by a qualified electrician.

The manufacturer cannot be held liable for any damage caused by operating the appliance without proper grounding.

Before operating the system, ● please check that the information on the type plate corresponds to the information on your power supply.

The dishwasher must be • disconnected from the mains during installation.

The appliance must not be • connected to the mains using an extension cable. Extension cables do not provide the necessary safety (e.g. danger of overheating). Always use the original plug • delivered with the appliance. The plug must be freely accessible • after the appliance has been installed.

⚠️ Child Safety

Do not allow children to play with ● the appliance.

Dishwasher detergents are caustic and may cause injury to the eyes, mouth and throat. Please note the safety instructions provided by the manufacturers of the detergents.

Never leave children unsupervised ● while the appliance is open, as the appliance may still contain detergent leftovers.

The water in the dishwasher is not ● drinking water. Danger of caustic injuries.

Always place long and sharp/● pointed objects (e.g. serving forks, bread knives) into the cutlery basket with the pointed end down or flat on the upper basket to avoid possible injuries.

⚠ For daily operation

Use your appliance only for the ● following domestic uses: Washing household dishes.

Do not use chemical solvents in ● the appliance; there is a danger of explosion.

This appliance is not intended for ● use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not sit or stand on the opened • door or place other objects on it. The appliance may tip over.

Do not open the door while the • appliance is running, as hot water or steam may escape.

Do not leave the door open – an • open door can be a hazard.

If you need to move your • appliance, do it in upright position and hold from the rear side. Tilting the appliance onto its front side may cause the electronic parts in it to get wet and damaged.

Problems

Repairs and modifications to the • appliance may only be carried

out by qualified customer service personnel.

In the event of a problem, or ● before performing a repair, disconnect the appliance from the mains supply:

- disconnect the appliance by pulling out the mains plug

- shut off the power.

Do not pull on the cable – pull on the plug. Turn off the water supply tap.

What should not be washed in your dishwasher

Rust sensitive steel parts●

Cutlery with wooden or horn • handles

Cutlery with mother of pearl or • porcelain handles

• Non heat resistant plastic parts No glued dish or cutlery parts●
• No items made out of copper, tin or aluminium
  Sensitive decorative glasses and • porcelain parts
• Lead crystal glasses
  • Art and crafted articles
• Aluminium and silver tend to discolour
• Glass and crystal articles may lose their shine over time
  • Sponges and dishcloths

Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals.

Recommendation: When buying new dishes, note whether they are suitable for the dishwasher. (marked as dishwasher proof)

3

Directions for Assembly

Safety notes for installation

Prior to installing and using your appliance, please check it for possible transit damage.

If the appliance is damaged, please contact your supplier.

⚠️ Never install or use a damaged appliance.

The following directions must be followed to connect the dishwasher properly.

Before operating your dishwasher, please ensure that the information on the type plate corresponds to the current and voltage of your power supply.

The appliance may only be connected using a properly grounded socket. Ensure that the appliance is grounded according to regulations. The grounded socket must be easily accessible and close to the appliance.

⚠ Do not use extension cables or multiple adapters, as this can lead to overheating, which can be a fire hazard.

⚠️ Hardwiring may only be carried out by a qualified electrician.

⚠️ Check the power cable, the water inlet hose and the drainage hose. Damaged parts may only be replaced by customer service personnel or by a qualified electrical service expert.

Installing Your Dishwasher

Choose a suitable location for your ● dishwasher. Take care to ensure that the appliance is stable on a level surface.

Unevenness in the floor can be • equalised by adjusting the screw feet. When the appliance is standing correctly, the door can be closed without difficulty.

Water inlet and drainage hoses ● must be positioned so that they can move freely without bending or squeezing.

The appliance may not be installed • in a room where the temperature is below 0° Celsius.

Water connection

⚠️ Not recommended to run with hot water.

There are two different types of • water inlet hoses:

• Cold water inlet hose (up to 25°C)
• Hot water inlet hose (up to 60°C) please check which one is applicable to your model.

If you are willing to connect your machine to natural energy resources or to the central hot water supply, first check out whether your water inlet hose type is suitable by checking the temperature values written on the hose. If your hose is not suitable, apply to your authorized service to change the hose.

The dishwasher may not be ● connected to open warm water devices or flow-through water heaters.

Permitted water pressure:

Lowest permitted water pressure: 0.3 bars = 3 N/cm ^2 = 30 kPa

When the water pressure is below 1 bar, please contact your technician.

Highest permitted water pressure: 10 bar = 100N/cm ^2 = 1Mpa

When the water pressure is above 10 bars, a pressure reduction valve must be installed (available in trade supply stores).

Connect water inlet hose

Ensure that the water inlet hose is not bent or squeezed. Do not install a used hose set.

Use a screw-on hose connector to connect the water inlet hose to a water tap with a 34 inch external thread. If required, use a filter insert to filter deposits from the pipes.

Check that the connection does not leak.

For safety reasons, turn off the tap after every rinse process.


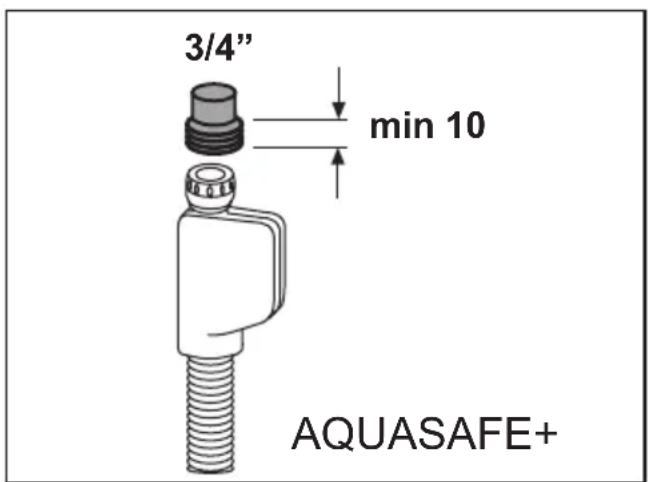

AQUASAFE+ (some models)

The AQUASAFE+ System protects against water damage which may be caused at the water inlet hose.

Do not immerse the system's valve box into water; it contains electrical components.
⚠ In case of damage, pull out the power supply plug.
Do not shorten or lengthen the hose insert as it contains electrical cables and components.

Water drainage

Connecting the drainage hose.

Take care to ensure that the drainage hose is not bent or squeezed.

Check that the drainage hose is firmly seated.

Extension hoses

If a hose extension is required, a drainage hose of equal quality must be used.

i The maximum length must not exceed 4m. Using a longer hose will produce poorer cleaning results.

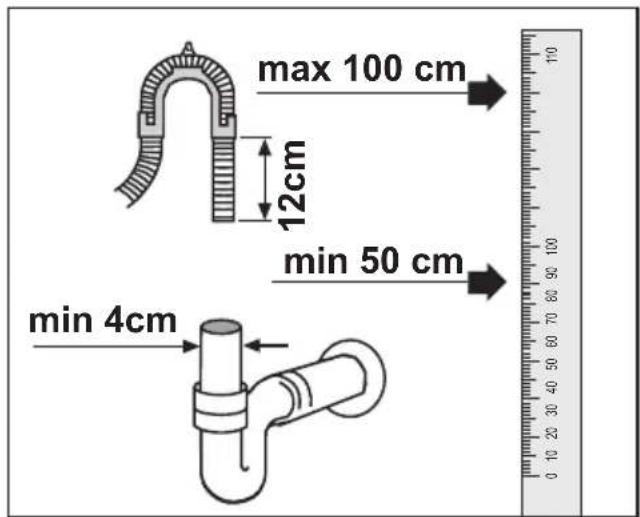

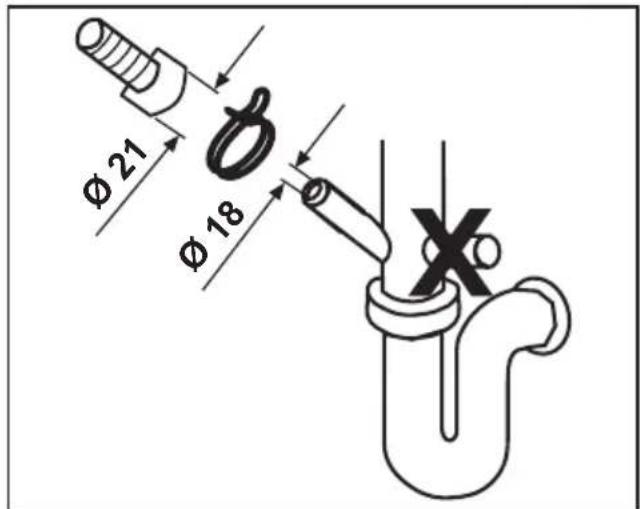

Siphon connection

i The drainage height must be between 50 and 100cm above the floor.

Use hose clamps to fasten the drainage hose to the siphon.

Electrical connection

Please refer to the type plate for information on current type, mains voltage, and fuse protection.

The type plate is located on the inside of the door.

The mains plug must be freely accessible after installation.

Power cables and insulated cables must not be accessible (exposed) after installation.

Disposal Packaging

The packaging and some parts of your appliance are made from recyclable materials. These materials are marked with the recycling symbol and the relevant material type (PE, PS, POM).

Before operating your appliance, remove the packaging material and dispose of it in accordance with regulations.

⚠️ Packaging materials may be dangerous to children. Reusable substances may be dropped off at your local disposal facilities. You may obtain further information from your local authorities and disposal facilities.

Used appliances – Environmental

notice

This product must not be disposed of with your regular household waste.

Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. This is indicated by a symbol to be found on the product, it's packaging or in the manual.

Materials used are recyclable according to their labelling. Reuse, recycling of materials and further reutilization of used products are important contributions to protect our environment.

Please ask your local town council for the nearest collection point.

⚠️ To avoid possible dangers, disable your waste appliance prior to discarding it. Pull the mains plug and cut the power cord. Disable any door locks.

4 Using Your Dishwasher

Filling the Rinse Aid Dispenser

Rinse aids allow washing water to rinse off cleaner and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers.

If you use “2 in 1” or “3 in 1” detergents / tablets, you do not need an additional rinse aid.

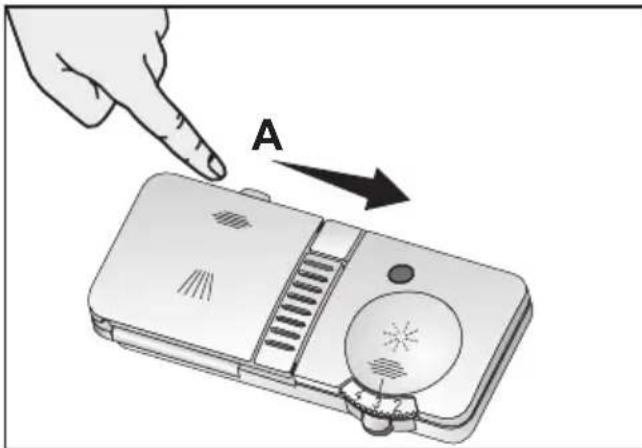

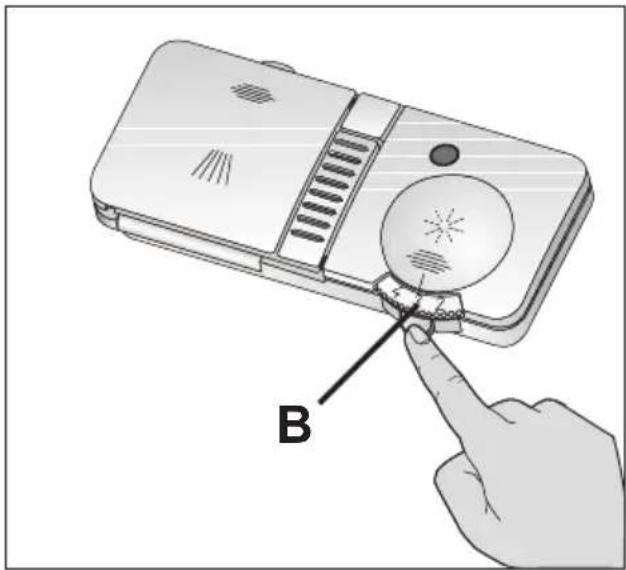

Open the rinse aid dispenser by pressing the locking lever (B)

Carefully pour in rinse aid to the MAX mark. Close the lid until it clicks (3).

Carefully wipe off spilled rinse aid. Excessive rinse aid causes excessive foam formation, which may hinder cleaning.

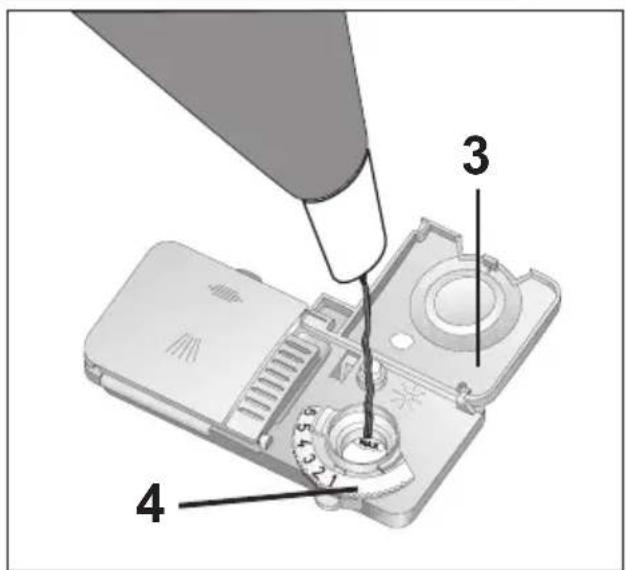

Set the dose of rinse aid

The dose of rinse aid to be used can be set by means of the dispenser regulator (between levels 1 and 6) (4). Your appliance is pre-set at the factory to level 3.

Only change the setting if the following applies after washing:

Watermarks are visible on the • dishes: Set dosage higher

Streaks are visible on the dishes: •

Set dosage lower

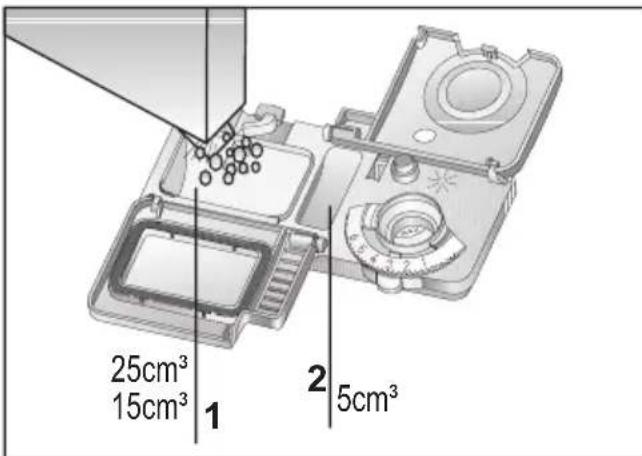

Filling the Detergent Dispenser

i Only use detergents formulated for use in dishwashers.

⚠ Do not put solvents into the washing compartment; there is the risk of explosion!

Open the detergent container by pushing the locking lever to the right (A).

The lines on the inside of the detergent container will help you measure the correct amount of detergent.

The detergent container holds a total of 40 cm ^3 of detergent (1).

When the dishwasher is fully loaded and the dishes are very dirty, we recommend filling the detergent container up to the 25 cm ^3 mark. When the dishes are less dirty, it is generally sufficient to fill the detergent up to the 15 cm ^3 mark.

If your dishes have been in the dishwasher for some time without being washed, you should also fill the small detergent container up to the line (2).

The programme table shows the amounts of detergent required for the different wash programmes.

These may differ according to how dirty the dishes are and the water hardness in your location.

Detergent

Please use detergents produced specially for the dishwashers in your machine.

⚠️ Keep the opened detergent packages in a cool and dry place where children can not reach.

⚠️ We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment. Detergents that contain enzymes are effective in temperatures below 50 °C and help to obtain the same washing efficiency as obtained at higher temperatures.

Put the detergent into the detergent dispenser just before operating the machine.

Please contact the manufacturer to get detailed information about the detergent you are using.

Always use powder detergents in short programs without pre-washing. Fill in the powder detergent into the compartment nr. 2 with a grid cover as shown in the picture and close the detergent box lid. When completely full, this compartment will contain 6 g of powder detergent.

Do not use tablet detergents in short programs since the solubility of them changes depending on the temperature and time.

In programs with pre-washing and high temperature, in which you may use tablet detergents, make sure that the detergent box lid is closed firmly.

Excessive usage of powder detergents can cause the detergent not dissolve completely and can also cause scratches on the glassware.

Multipurpose Tablets

The best washing results in dishwashers is obtained by using detergent and rinse aid individually.

“Multipurpose Tablets” can act as water softening salt and/or rinse aid in addition to acting as a detergent. Some types of these detergents can also contain special-purpose washing chemicals such as glass and stainless steel protectors.

Multipurpose tablets commonly found in the market:

2in1: Those contain detergent, rinse aid or water softening salt.

3in1: Those contain detergent, rinse aid and water softening salt.

4in1: Those containing glass protectors in addition to detergent, rinse aid and water softening salt.

5in1: Those containing glass and stainless steel protectors in addition to detergent, rinse aid and water softening salt.

Tablets give satisfying results only under certain usage conditions. Observe the instructions of the detergent manufacturer on the package when using such detergents.

Contact the detergent producer if your dishes are wet and/or if you notice lime spots particularly on your glasses after the washing program is over.

When you are not using tablets:

Make sure that rinse aid compartment is full.

Make the appropriate rinse aid settings.

Depending on the model, salt indicator and/or rinse aid indicator should be enabled again if they are disabled before.

Loading the dishwasher General:

Before you load the dishwasher with dishes

Remove coarse food leftovers Place all containers such as cups, glasses and pots into the machine with the opening facing downwards (so that no water can collect) Dishes and cutlery may not be placed above each other Glasses may not touch

The movement of the spray arms ● must not be hindered

Place all large and very dirty items • in the lower basket.

Small and light items can go into • the upper basket.

Long and narrow items are placed • in the middle of the baskets.

⚠ Knives and other utensils with sharp tips and edges must be placed horizontally into the upper basket due to risk of injury.
i Please do not overload your dishwasher and pay attention to the notes regarding dishes which are suited to the dishwasher. Only in this manner will you obtain optimal washing results with a sensible use of energy.
i Start unloading the dishes from the lower basket, then switch to the upper basket.

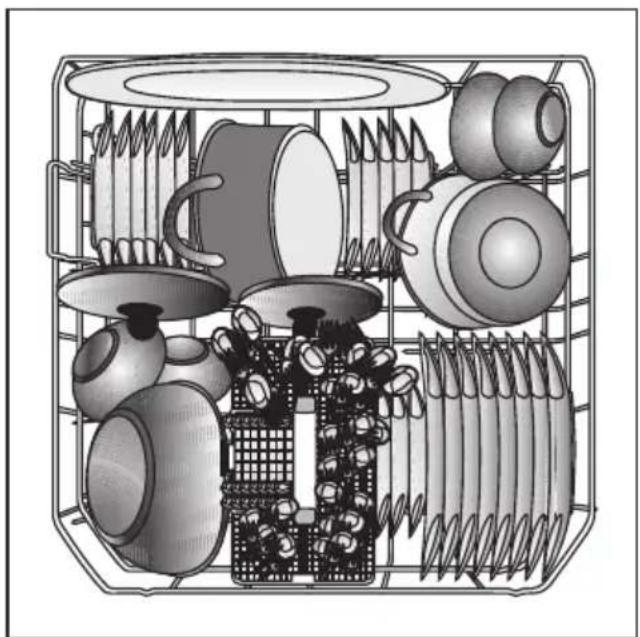

Suggestions for loading the dishwasher

Use the lower basket for plates, bowls, pots etc.

Cross-sectional diagram of a mechanical device with multiple components, no visible text or symbols

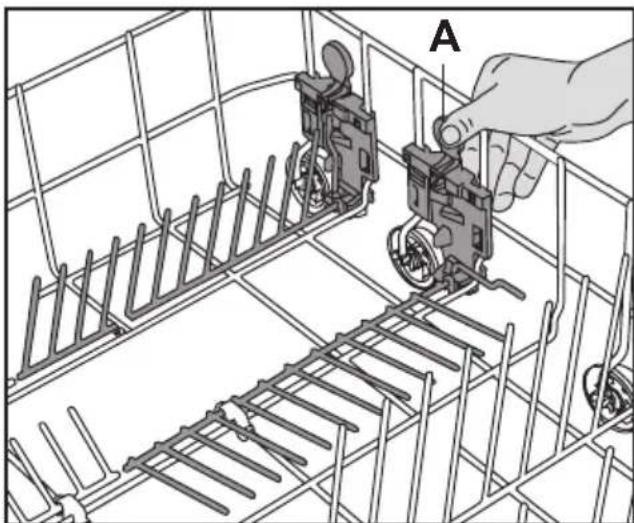

4 folding plate support rods (depending on the model)

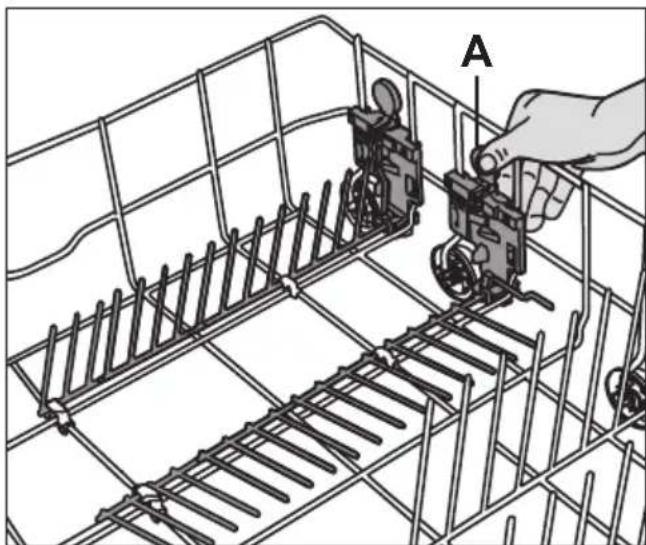

There are four separate “folding plate support rods” in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2, 3, 4) individually or, all at once, to create a large empty space. Simply press the handgrips (A) and fold them down”

Diagram of a hand operating a small mechanical device inside a wire cage (no text or symbols visible)

2 folding plate support rods (depending on the model)

There are two separate “folding plate support rods” in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2) individually or, all at once, to create a large empty space. Simply press the handgrips (A) and fold them down”

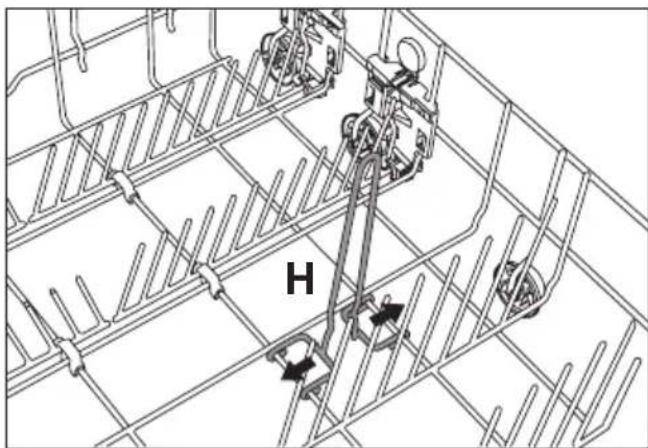

Bottle holder (depends on some models)

For cleaning your bottles. To remove, pull the holders apart in opposite directions (H).

Technical line drawing of a mechanical assembly with no visible text or symbols

Variable cutlery basket (depending on the model)

The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness.

Small cutlery basket sections also fit into the upper basket.

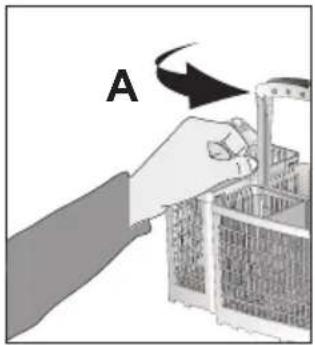

To do this, turn the lock on the handle to the right (A).

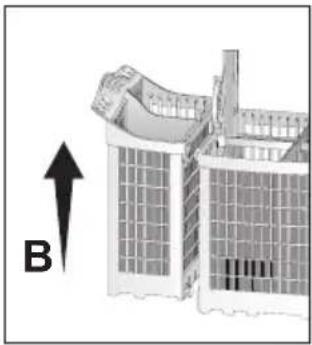

Pull the smaller cutlery basket upwards and out of its holders (B).

To put the parts together again, proceed in the opposite direction.

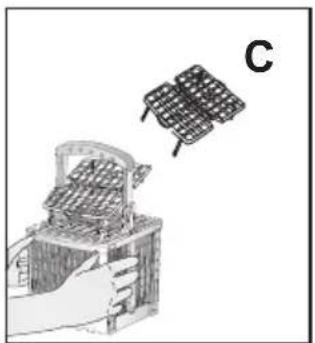

Use the basket inset (C) for your cutlery so that all items in the basket are surrounded by a sufficient water flow.

For larger items (e.g. wire whisks), the basket inset may be removed (C).

To make loading easier, the cutlery basket can be removed.

Place long items such as ladles, cooking spoons etc. on the rack in the upper basket.

Illustration of a vintage metal toolbox with handle and mesh pattern (no text or symbols)

Illustration of a multi-level industrial or construction vessel with structural components (no text or symbols visible)

Illustration of a hand using a tool to lift a container labeled 'A' (no text or symbols on the diagram itself)

Exterior view of a modern building with a curved roof and window, labeled 'B' with an upward arrow (no text or symbols on the structure itself)

Illustration of a hand holding a grid-patterned device with a small inset showing a grid-like structure, labeled 'C' (no text or symbols on the diagram itself)

Illustration of a hand holding a box with a small diagram above, no visible text or symbols

Illustration of a construction or engineering scene with scaffolding and workers, no visible text or symbols

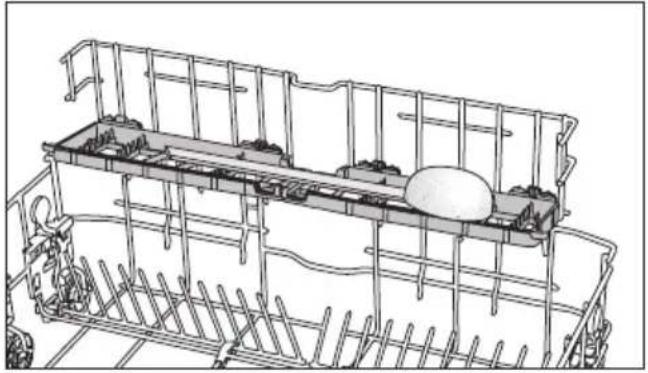

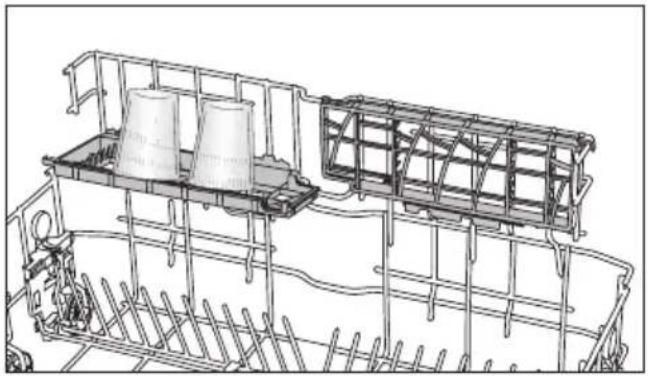

Basket insert with variable height settings (depending on some models)

You can also use this insert in the lower basket for glasses and long-handled cutlery / utensils.

If you do not need the insert, fold the rack upwards at the angle shown (A).

Push the entire insert upwards (B). Place the insert in the upright position (C). Push the insert downwards and lock it into place with the holder (D).

When you want to use the basket again, reverse the procedure.

To set the height, push the rack upwards and fold it open in position (G).

When finished, check that the sprayer arm can still move freely.

Technical line drawing of a mechanical assembly with two cylindrical components mounted on metal supports (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Loading suggestions

Load the upper basket with dessert plates, cups, glasses etc.

Illustration of a multi-tiered plastic container filled with various cylindrical and cylindrical components (no text or symbols visible)

Upper basket with variable height setting

(depends on some models)

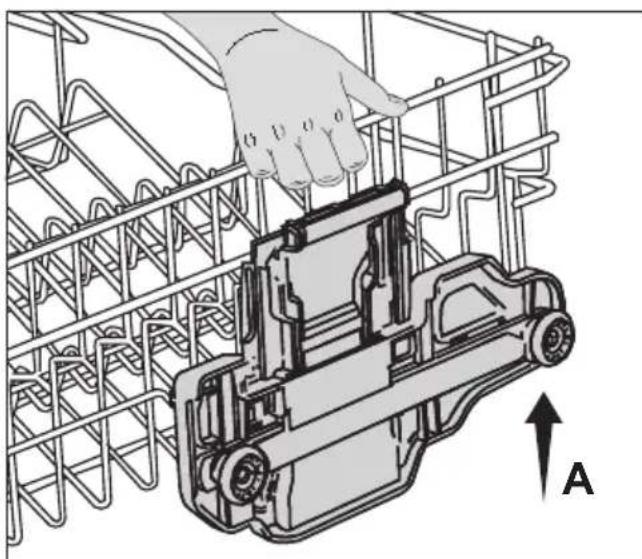

The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded.

Technical illustration of a hand operating a mechanical device inside a wire cage (no text or symbols)

The height of the upper basket was set to its lowest position at the factory. To lift the upper basket to the “high” (A) position, hold it on one side and carefully pull it upwards. To lift the opposite side of the basket, hold it and pull it upwards in the same manner (A).

To lower the upper basket, hold the basket lever on one side and carefully lower the basket without releasing the lever (B). Repeat the procedure with the lever on the opposite side of the basket. Make sure that both levers catch at the same height.

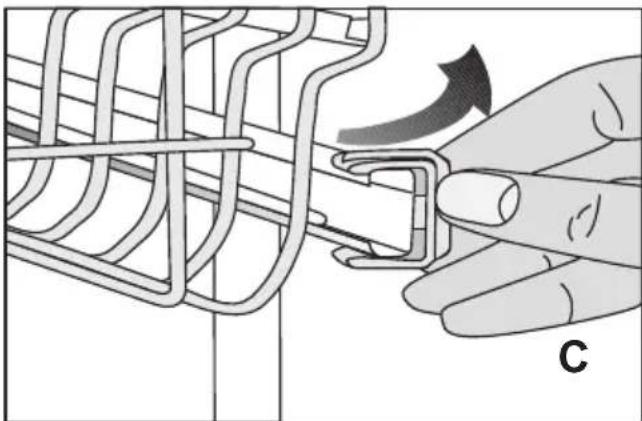

Height setting with empty basket (depends on the model)

In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights.

Release the latches on both the right and left tracks of the upper basket by pushing them outwards (C).

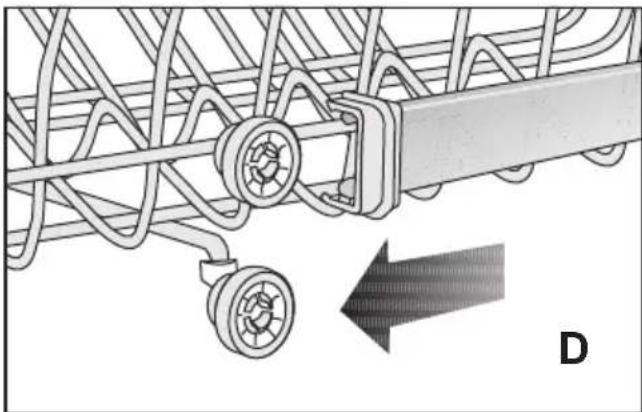

Pull out the basket out completely (D).

Place the basket back into the tracks at the desired height (E).

Push the latches back into the correct position.

Hand inserting a cable into a wire mesh, showing the cable being inserted (no text or symbols present)

Mechanical assembly diagram showing a wheel and spring mechanism with directional arrow (no text or symbols)

Technical diagram of a mechanical assembly with coiled spring and fastener components (no text or symbols)

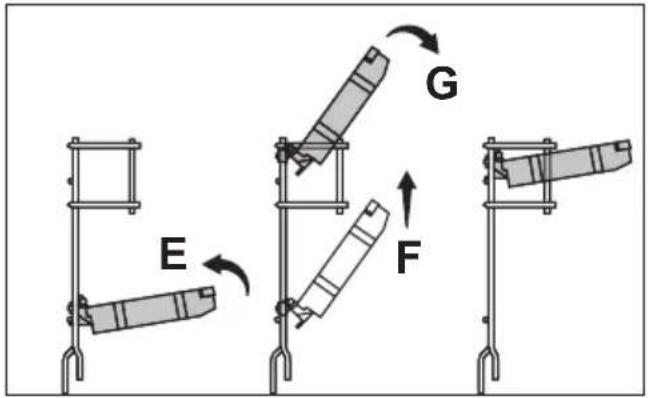

Rack (depends on the model)

Depending on the size of the glasses and cups, the rack height setting may be adjusted (C, D, E).

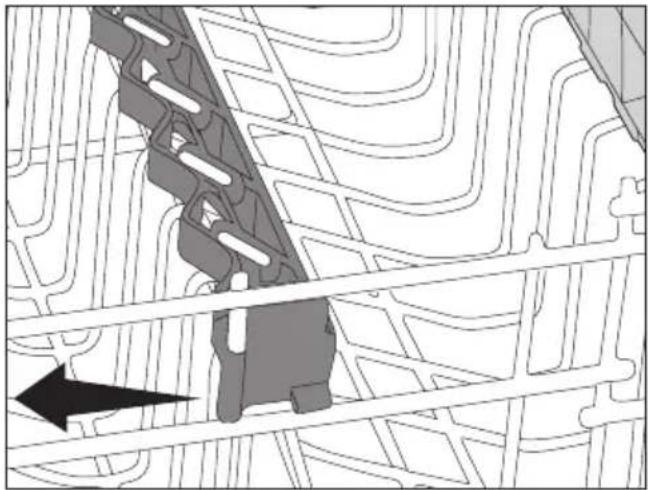

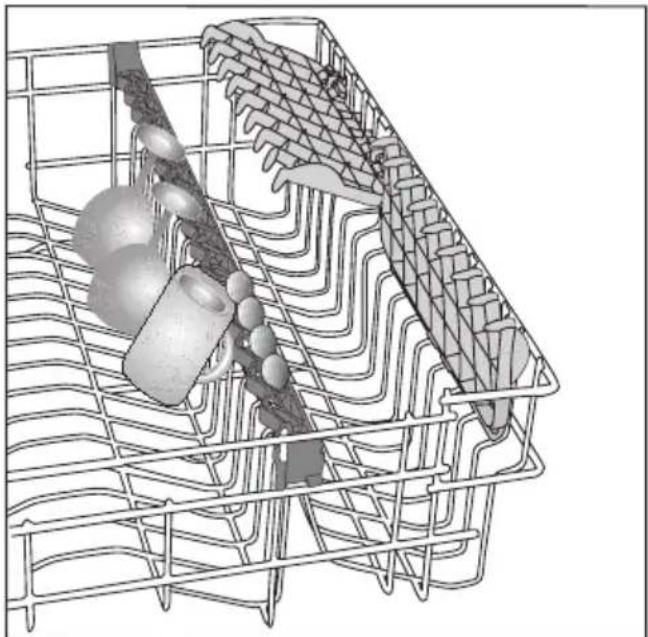

Glass Support (depends on the model)

When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle and may get damaged.

When you need to place the bulky pieces into the upper basket, disconnect the lug of the glass support from the bar of the basket where it is attached to. Thus, you will acquire a wider place.

3D wireframe diagram of a grid structure with embedded spheres and chains, no text or symbols present

Topographic map section showing road networks and a highlighted area with an arrow (no text or labels)

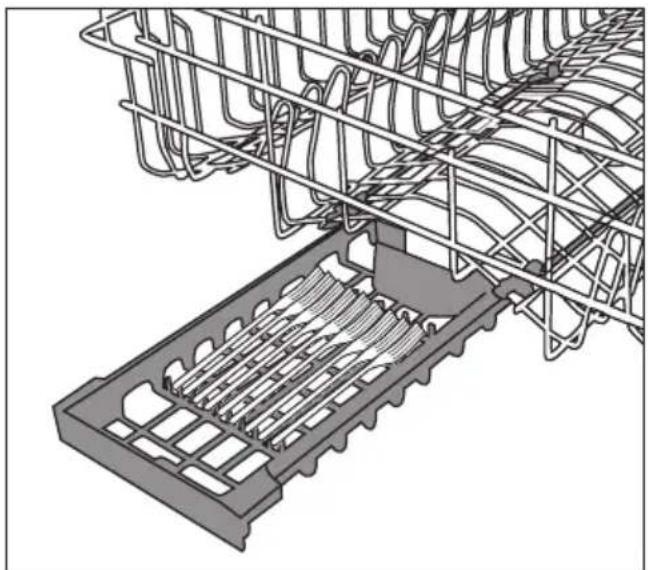

Upper Basket Drawer (depends on the model)

You can easily place additional desert spoons, small forks and knives into the drawer installed to the upper basket of your machine.

Technical illustration of a mechanical component with internal grid structure (no text or symbols)

5 How to clean your dishwasher

Cleaning your machine at regular intervals ensures longer product life and reduces the risk of recurring problems.

⚠ Always unplug the machine and turn off the water supply before cleaning. Use a gentle household cleaner for the outside and the door seals. Clean the control panel only with a moist cloth and clear water.

Cleaning the filters

Clean the filters and the spray arms regularly. A dirty machine will have a negative effect on the cleaning results.

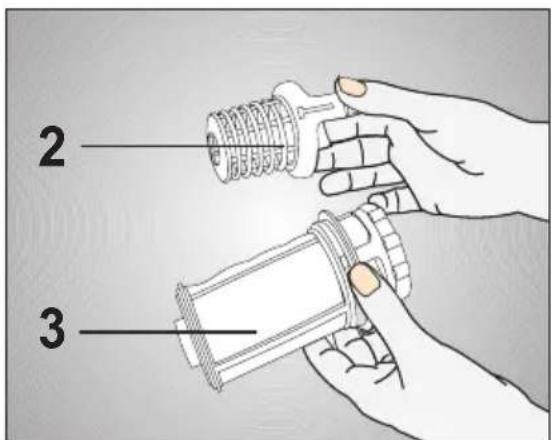

1. Main filter
2. Coarse filter

3. Micro filter

4. Remove the lower basket from the machine.

5. Turn the coarse filter to the right and pull it out in an upward direction (A).

6. Pull out the main filter (B).

7. Press on the two tongues of the coarse filter and remove the micro filter (C).

8. Clean the filters thoroughly under running water. Use a brush if necessary.

9. Replace main fitler.

10. Replace the micro filter and the coarse filter into the main filter. Twist it clockwise until it clicks in.

Do not operate your dishwasher without a filter. Ensure that your filters are correctly installed. Clean the filters regularly.

Illustration of a hand using a tool to adjust a mechanical component with a circular hole and directional arrow (no text or symbols)

Illustration of hands installing or adjusting a device component, with arrows indicating direction (no text or symbols present)

Cleaning the spray arms

Dirt or calcium residue may block the nozzles on the spray arms. For this reason, regularly check the spray nozzles.

1. Lower spray arm
2. Upper spray arm
3. Remove the lower basket from the machine.
4. Pull off the lower spray arm in an upward direction (A).
5. Loosen the fastening screw of the upper spray arm and pull off the spray arm (B).
6. Clean the spray arms under running water.
7. Replace the spray arms.

Cleaning the filter inset in the water inlet hose (depends on the model)

Dirt from deposits in the water pipes is prevented by a filter in the water inlet hose. Check the filter and the water inlet from time to time.

1. Close the water tap and unscrew the water inlet hose.
2. Take out the filter and clean it under running water.
3. Replace the cleaned filter.
4. Fasten the water inlet hose to the water tap again.

i Ensure that the fastening screws are screwed tight.

6 Troubleshooting:

What to do if the dishwasher will not run

Check that the mains plug is properly connected.

Are all fuses working?●

Is the water supply fully turned on?●

Is the dishwasher door closed firmly?●

Have you pressed the On/Off button?●

Is the filter on the water intake and dishwasher clogged?●

The cleaning results are unsatisfactory

Hand holding a white ceramic bowl with visible surface texture (no text or symbols)

Uncleaned Dishes

Disorderly placement

Load your dishes as described in the manual. -

Program selection

For products with program selecting feature, choose a longer program that - washes in higher temperatures.

Blocked impellers

Prior to starting the program, ensure by turning by hand that the upper and - lower impellers are freely rotating.

Clogged filters

From time to time, remove the complete filter system as shown in the manual - and wash it under flowing water.

Misplaced or displaced filters

After washing the filter system, replace them as shown in the manual. -

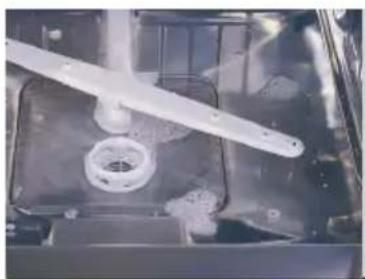

Clogged impeller holes

Take out and clean the impellers from time to time as shown in the figure. -

Overloading the baskets

Do not overload the baskets in excess of their capacity -

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Inadequate detergent

- If you are using powder detergents, adjust the amount of detergent according to the soiling degree of your dishes and/or program definitions. We recommend you to use tablet detergents for optimum results.

Inadequate rinse aid

Increase rinse aid setting or add rinse aid into rinse aid compartment. -

Unsealed detergent dispenser lid

Always ensure that the detergent compartment lid is closed tightly after every - detergent filling process.

Drying

Disorderly placement

Load your dishes as described in the manual. -

Inadequate rinse aid

Increase rinse aid setting or add rinse aid into rinse aid compartment. -

Unloading the machine right after dishwashing

Do not unload your dishwasher right after washing process is completed. - Slightly open the door and wait for evacuation of the inside steam for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket.

Program Selection

For products with program selecting feature, choose a longer program that - washes in higher temperatures.

Close-up of a hand holding a white cup filled with light-colored tea, blurred green background (no text or symbols visible)

Tea, Coffee And Lipstick Stains

Program Selection

For products with program selecting feature, choose a longer program that - washes in higher temperatures.

Detergent kept under unsuitable conditions

If you are using powder detergents, do not store them in humid places after - you open their boxes. Keep them in a closed container, if possible.

For ease-of-storing, we recommend you to use tablet detergents. -

Usage of silverware-kitchenware with corrupted surface quality

Silverware or kitchenware with corrupted surface quality should not be washed in dishwashers.

Close-up of a wine glass against a solid blue background (no text or symbols visible)

Lime Stains, Hazy Look

Inadequate rinse aid

Increase rinse aid setting or add rinse aid into rinse aid compartment. -

Insufficient water softening

In products equipped with water softening setting, water softening should be - properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Salt leakage\*

Use the supplied salt funnel while filling in softening salt. Make sure that - the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Metallic Look In Bluish Rainbow Color

Excessive rinse aid

Lower rinse aid setting. -

Close-up of a gloved hand holding a transparent glass with blue liquid, against a dark blue background (no text or symbols visible)

Hazy, Milky-Dish Look And Bluish / Rainbow Color Appearance In Glassware When They Are Hold Against Light

Glass corrosion due to soft water

In products equipped with water softening setting, water softening should - be properly set in accordance with the hardness of the supply water. If your supply water is soft (<5dH), do not use salt. For products with program selecting feature, choose programs that wash in higher temperatures (e.g. 60-65°C).

Kitchenware containing Aluminum

Kitchenware that contains aluminum should not be washed in dishwashers. -

Salt leakage\*

Use the supplied salt funnel while filling in softening salt. Make sure that - the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Low water softening setting, inadequate salt\*

In products equipped with water softening setting, water softening should be - properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Detergent kept under unsuitable conditions

If you are using powder detergents, do not store them in humid places after - you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Overloading the baskets

In order to avoid scratches and breaks in glasses and other glass tableware - because of collision with each other during washing process arising from their placement, do not overload the baskets in excess of their capacity.

Close-up of two metallic surgical instruments against a solid blue background (no text or symbols visible)

Rusts, Blackening And Corruption Of Surface

Unsealed closing of the salt box cover\*

Salt may cause oxidation on metal surfaces. Use the supplied salt funnel - while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Grounding line

Check if your dishwasher is connected to the actual grounding line. - Otherwise, the static electric created in the dishwasher may remove the protective coating on metal surfaces and cause blackening and corruption.

Close-up of a white plastic electronic component with internal components and a small circular feature (no visible text or symbols)

Detergent Remains In The Detergent Dispenser

Damp detergent compartment

Make sure that the detergent dispenser is well dried prior to filling it with - detergent.

Putting detergent in the detergent dispenser long before washing

Take care that detergent is put shortly before startup of washing. -

Blocking the opening of detergent dispenser lid dwing washing

Ensure that the lid of detergent dispenser is not blocked by improper loaded - dishes. The detergent dispenser lid should op/en without any block during washing.

Detergent kept under unsuitable conditions

If you are using powder detergents, do not store them in humid places after - you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Clogged impeller holes

Take out and clean the impellers from time to time as shown in the figure. -

Close-up of a white plastic kitchen appliance with a circular vent and handle, mounted on a metal frame (no visible text or symbols)

Water Remained In The Dishwashing Compartment After Washing

Clogged filters

From time to time, remove the complete filter system as shown in the manual - and wash it under flowing water.

Blocking / twisting of drainage hose

Connect the drainage hose as described in the manual. -

Odour

Odor of new dishwasher

A new dishwasher has a peculiar odor. It will fade out after a couple of - washing.

Clogged filters

From time to time, remove the complete filter system as shown in the manual - and wash it under flowing water.

Leaving the dishes in the dishwasher for a long time

If you are not going to run your dishwasher immediately, load the dishes into - your machine after scraping the excessive soil on them and do not tightly close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature.

Interior view of a transparent container with metal grilles and a flat surface (no text or symbols visible)

Foam

Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent.

Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes with detergent before loading the dishes into the machine.

Scraping the coarse soil on the surfaces with a tissue paper or fork will be sufficient.

Spilling rinse aid in the machine while filling

Take care that rinse aid is not spilled in the machine when you are filling it. -

Clean any spilled amount with the help of a tissue paper/towel.

Leaving the rinse aid lid open or not closing it

Rinse aid compartment should always be closed as shown in the manual - after it is filled with rinse aid.

Two decorative plates with floral patterns on a blue background (no text or symbols)

Erasing Of Decorations

Usage of decorated glasses and porcelains

Decorated glasses and decorated luster porcelains are not suitable for - dishwasher washing. Manufacturers of glassware and porcelain tableware items do not recommend washing these items in the dishwashers either.

*: In products with a salt container

Service

If your appliance ever malfunctions, check the notes and advice given in the operating manual.

If this does not fix the problem, our customer service staff are available to assist you.

! Attention: Please read the operating manual prior to operating the machine for the first time.

How to use your dishwasher:

• Open the water tap.
• Plug to the mains.
• Open the door and load the dishwasher. Check if both upper and lower spray arms move freely.
  • Pour (Put in) the detergent.
• Push in the on/off button and check that the programme light comes on.
• Check the rinse aid level indicators before you start the machine. If necessary add rinse aid.
• Use the programme selection button to choose your washing programme.
• When there are few dishes, additionally use the Half load button.
• Start the programme with the Start/Cancel button:
• Close the door then programme starts.

Attention

Avoid opening the door during the washing process. This interrupts the washing process, and hot steam will escape. When the door is closed, the programme will continue.

• An audio signal with an interval of 10 seconds warns you to switch your machine off when the selected washing program ends. This audio signal warns you for a duration of 1-2 minutes and then turns off.
• Open the door Press the on/off button after the programme is completed. The indicator lights will go off.
• Close the water tap. Pull out the plug.
• Allow your dishes to cool for 15 minutes, with the door open. Unload the dishes. Begin with the lower basket.

Programme Table
Programme number	1 2 3 Reference* 4 5
Programme name	Pre-wash	30 Min	Eco	Quick	Intensive
Cleaning temperature	-	35°C	45°C	60°C 70°C
Degree of Soiling	Suitable for removing the remnants on the soiled dishes that will be kept waiting in the machine for a few days, and thus, for preventing the bad odor buildup.	Suitable for lightly soiled daily dishes that are scraped or pre-cleaned.	Most economical washing program for the normally soiled daily dishes that are kept waiting.	Daily washing program at which heavily soiled dishes are cleaned in the fastest way.	Suitable for heavily soiled dishes, pots and pans.
	- Light Normal Heavy Heavy
Detergents A=25 cm3/15 cm3 B=5 cm3	- A A+B A+B A+B
Programme sequence (without options)	Pre-wash▼End	Wash▼Cold rinse▼Hot Rinse▼End	Pre-wash▼Wash▼Cold rinse▼Hot Rinse▼Hot Rinse▼Dry▼End	Wash▼Cold rinse▼Hot Rinse▼Dry▼End	Pre-wash▼Wash▼Cold rinse▼Hot Rinse▼Dry▼End
Duration (min)	14	30	124	58	115
Water (l)	4,20	11,80	15,40	11,80	17,50
Energy (kWh)	-	0,79	0,88	1,32	1,67

The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes according to AS/NZS 2007

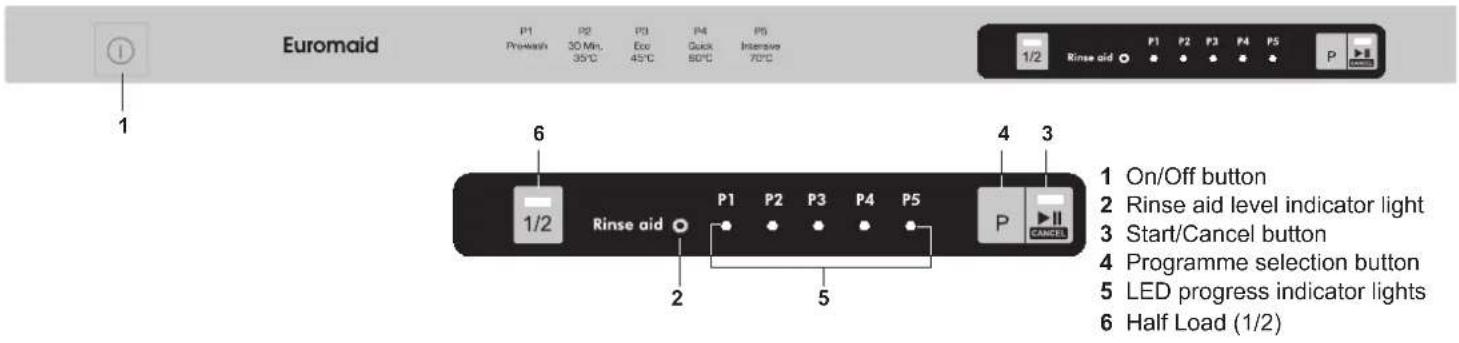

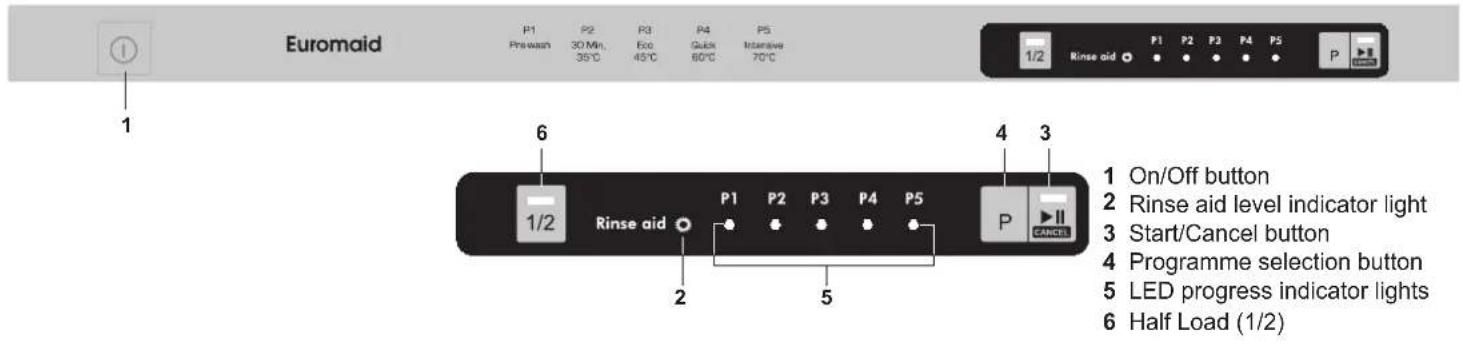

On/off button

Push in the on/off button and check that the indicator light comes on.

Rinse aid level indicator light

If the indicator light comes on, you have to refill rinse aid (If applicable).

You can also tell whether rinse aid must be refilled by looking at the rinse aid dispenser. When the visual fill indicator is dark, there is enough rinse aid in the dispenser.

When the colour is light, open the dispenser and refill rinse aid.

Program selection buttons

Use the program selection button to select the desired program. The corresponding program light lights up.

Half Load (1/2) button

When there are few dishes, you press this button after pressing the programme selection button. When turning the dishwasher on, the indicator light on the button lights up. This function helps you to save water and energy.

Start/cancel button

You use this button to start the selected program; the light on the button lights up.

Stop the program with the start / cancel button if you would like to open the door once the dishwasher's washing program is running.

How to cancel the washing program

To cancel a programme while the machine is operating: Open the door.

! Care must be taken when opening the door, as steam will escape. Press the Start/Cancel button for 3 seconds. Start/Cancel indicator light will start flashing. Close the door. The machine will drain the water inside the machine for 45 seconds. The programme is cancelled when Start/Cancel indicator light goes off. Then you can choose and start a new programme.

! Important:

Depending on the stage of the programme you have cancelled, there may be detergent residue or rinse aid inside the machine and on the load. Make sure the items in the dishwasher are not used before washing properly.

How to change the washing program

To change the program selection while the machine is operating open the door.

! Care must be taken when opening the door, as steam will escape. Press Start/Cancel button. The indicator light will go off. Select the new program. Press Start/Cancel button. The indicator light will be on and close the door new program will start.

! Important:

The new program will NOT start right from the beginning. It will start from the stage last carried out by the previous program selection.

! Warning

Depending on the length of the terminated program detergent and rinse aid may still be in the dispensers.

Improper Loading Of Dishware

Cross-sectional diagram of a geological or structural cross-section with layered rock formations and a central grid (no text or labels)

Abstract graphic with a globe and X-shaped cross over a grid background, no text or symbols present.

Line drawing of a wireframe basket with cutouts and handles (no text or symbols)
