Product Type	Elliptical Cross Trainer
Brand	York Fitness
Model	Nexus
Max User Weight	125 kg (275 lbs)
Resistance System	Speed-independent magnetic braking
Power Supply	6V DC, 500mA adapter (included)
Display	LCD with time, distance, speed, RPM, calories, pulse, temperature, age, body fat
Programs	23 programs: Manual (P1), 12 Preset (P2-P13), 4 User (P14-P17), 5 Heart Rate Control (P18-P22), 1 Body Fat (P23)

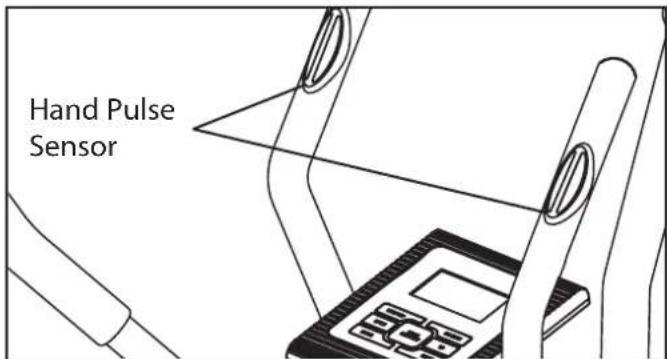

Heart Rate Monitoring	Hand pulse sensors on fixed handlebars
Body Fat Measurement	Yes, via hand sensors (calculates BMI, BMR, fat %)

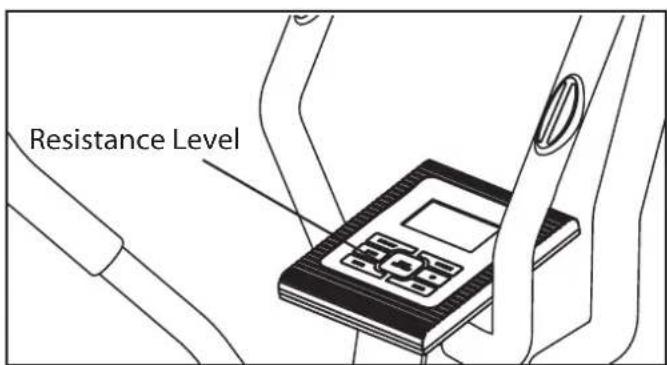

Resistance Levels	Adjustable (1-24, via UP/DOWN keys)
Frame Warranty	Lifetime (home use)
Parts/Labour Warranty	12 months (home use)
Safety Standards	EN957-1/9 Class HC, AS4092-1993
Assembly Required	Yes (detailed instructions provided)
Leveling Adjustment	Yes, via rear stabilizer height adjusters
Transport Wheels	Yes, on front base
Maintenance	Inspect weekly; wipe with damp cloth; check bolts and moving parts
Dimensions (approx.)	150 x 70 x 160 cm (L x W x H)
Product Weight (approx.)	55 kg

Frequently Asked Questions - Nexus York Fitness

What should I do if the display shows no power?

Check that the power adapter is properly plugged into the machine and the wall outlet. If still no display, unplug the adapter and re-plug it to reset the system.

How do I select a workout program?

Use the UP/DOWN keys to cycle through programs (P1 to P23). Press ENTER to confirm, then set time, distance, calories, and pulse as desired. Press START/STOP to begin.

Why is my heart rate not showing on the display?

Ensure both hands are gripping the pulse sensors firmly but not too tightly. Keep palms dry and remove rings. If problem persists, check wire connections or contact support.

How do I adjust the resistance?

Press the UP/DOWN keys during exercise to increase or decrease the magnetic resistance level (1-24). The resistance changes automatically in heart rate control programs.

What does the Body Fat program do?

After entering your height, weight, age, and gender, hold the hand sensors to measure body fat percentage, BMI, and BMR. The computer then suggests an exercise profile based on your body type.

How do I level the elliptical on an uneven floor?

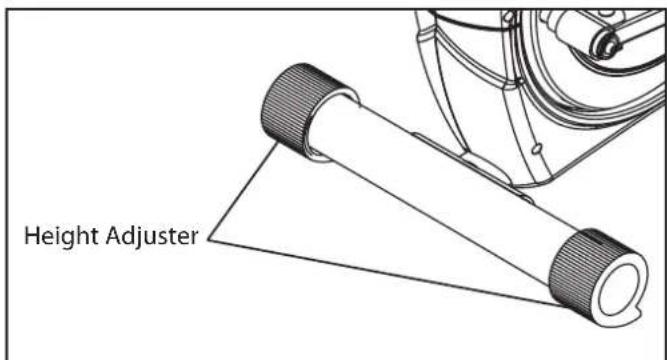

Twist the height adjusters on the rear stabilizer feet to raise or lower each side until the machine is stable.

What maintenance does the Nexus require?

Inspect the machine at least weekly for loose bolts, worn parts, or damaged wires. Clean with a warm damp cloth. Do not wet electrical components. Unplug before cleaning.

What is covered under warranty?

The frame is covered for life (home use). Parts and labour are covered for 12 months from purchase. Warranty applies to original purchaser only. Proof of purchase required.

How do I reset the computer?

Hold the ENTER key for over two seconds in stop mode to reset all values to zero. Alternatively, unplug the power adapter and re-plug.

Can I use the elliptical for upper body only?

Yes, to emphasize upper body, push with your arms on the moving handles while reducing leg effort. For lower body only, keep hands on the fixed handlebars.

USER MANUAL Nexus York Fitness

NEXUS

Cross Trainer

OWNER S MANUAL

YORK FITNESS

Congratulations on purchasing your exercise equipment from York Fitness.

You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to achieving your personal fitness goals.

Please take the time to read this owner's manual as it will help you to get the most out of your new exercise equipment. For more information visit www.yorkfitness.com

contents

safety information 04

customer support 05

assembly instructions 06

operational instruction 14

features explained 20

troubleshooting 21

fitness guide 22

warranty 25

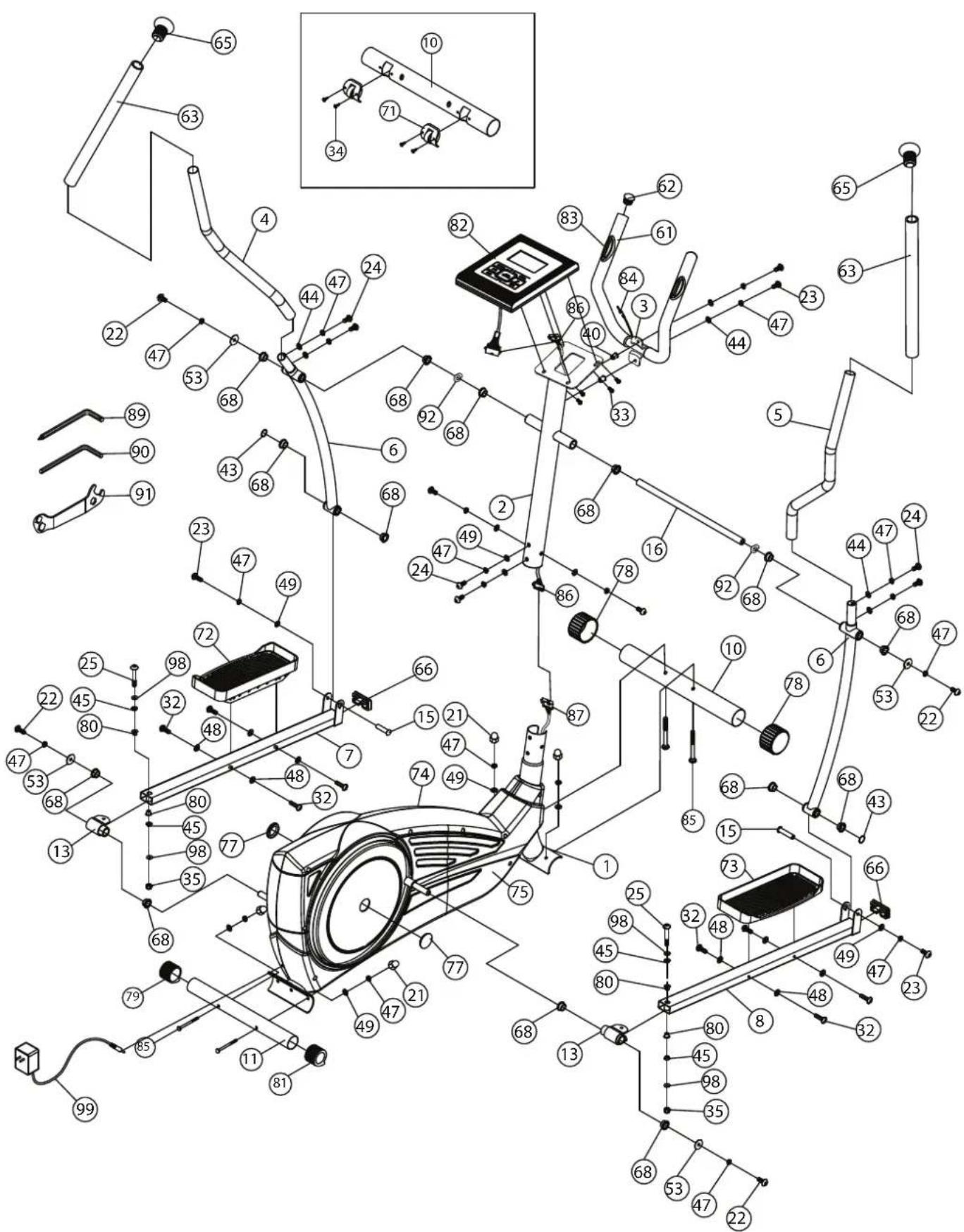

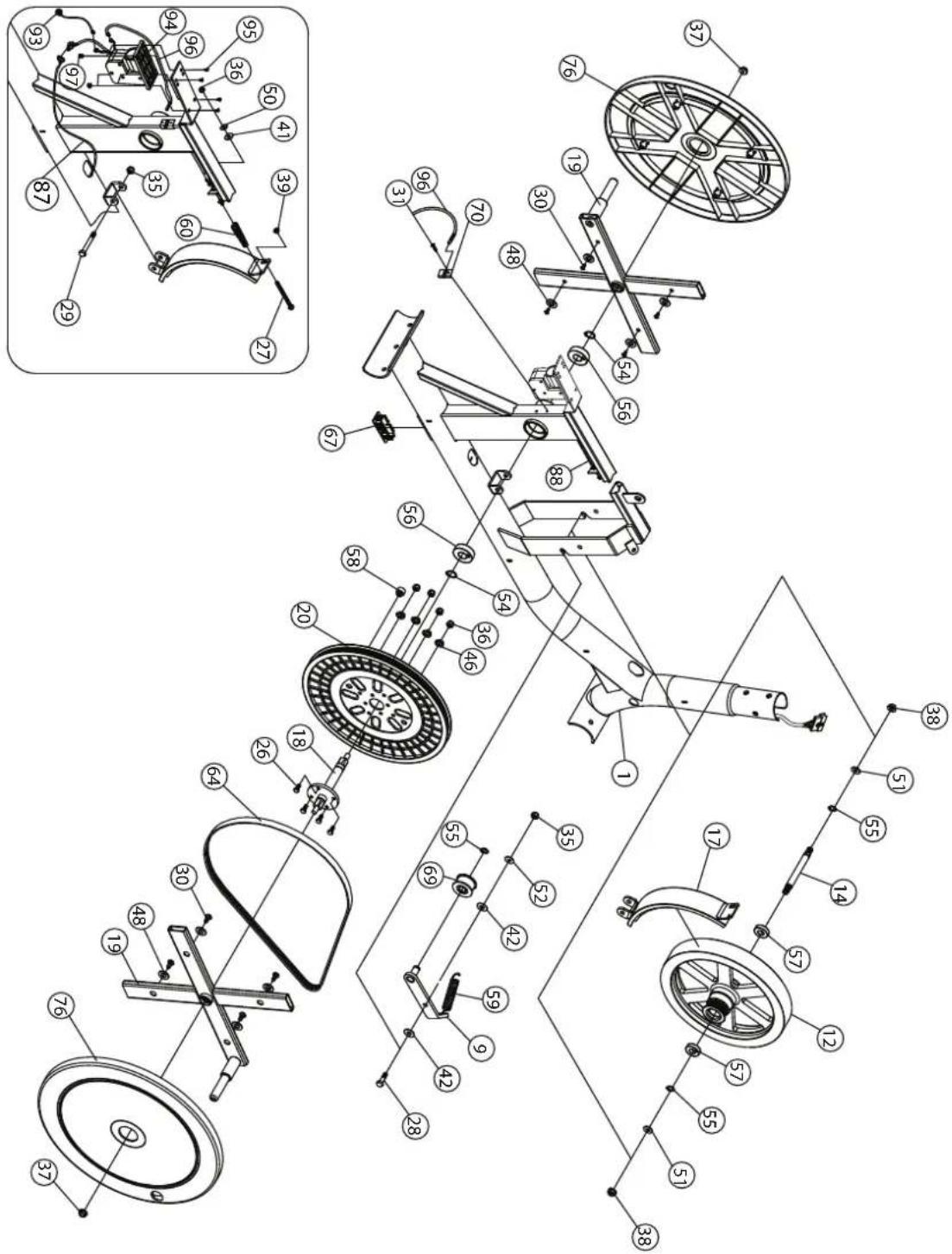

exploded drawing 26

part list 28

Please read this instruction manual before you begin assembly. Great care has been taken to design these instructions and following them will help you with quicker assembly and minimize the risk of injury.

It is important that you keep these instructions for future reference.

This list is not exhaustive - You are responsible for your own safety!

• Always assemble and operate the equipment on a level surface.
• Ensure the equipment is stable before use.
• Always ensure that the equipment has adequate space on each side.
• Try to ensure that your back is straight while exercising, especially for long periods.

- The safety level of this equipment can only be maintained if it is regularly examined for wear and tear.

- Replace defective components immediately and keep the equipment out of use until it is repaired.

- Use only the adjustment setting as described in the instructions. Always use the correct adjustment pin / fixing.

- Always check that any pins / fixings are tight and secure before use and after adjustment.

- Never leave any adjustment devices projecting from the equipment.

- Always consult your doctor before undertaking any exercise program.

- Always wear suitable clothing and footwear. (e.g. tracksuit / shorts / training shoes)

- Remove all personal jewelry before exercising.

- Ensure you warm-up well before using the equipment as this will help to prevent muscle strain.

- After eating, allow 1-2 hours before exercising as this will help to prevent muscle strain.

- Never overload the equipment. (See maximum user weight)

- Never use the equipment in any other manner other than the ways explained in these instructions and any wall-chart supplied.

- Injuries to health may result from incorrect or excessive training.

- Parents and others in charge of children should be aware of their responsibility, because the natural play instinct and the fondness of experimenting of children can lead to situations and behavior for which the training equipment is not intended.

• If children are allowed to use the equipment, their mental and physical development and above all their temperament should be taken into account. They should be controlled and instructed in the correct use of the equipment.
• The equipment is under no circumstances suitable as a children's toy.
• Children should not be allowed on or around the equipment, especially when it is not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • This product is not suitable for therapeutic purposes.
• This product has an integrated speed independent braking system without a constant power mode that is governed by magnetic resistance.
• Never remove the protective casing.

Maximum user weight: 125kg

Safety Standards

This equipment meets the requirements of the EU's EMC and Low Voltage directives (where applicable), AS4092-1993 and EN957 1&9-CLASS HC. Therefore the equipment carries the following marks:

Protect the environment by not disposing of this product or batteries with household waste. Check your local authority for recycling advice and facilities.

Customer Support

Should you require any assistance regarding this product please gather the following information and then contact us using the details below:

• Serial No. - This can be found on the sticker below, located as indicated.
  • Original purchase date
• Place of purchase
  • Information about the place and conditions of use
• Precise description of the issue / defect

IMPORTANT!! - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.

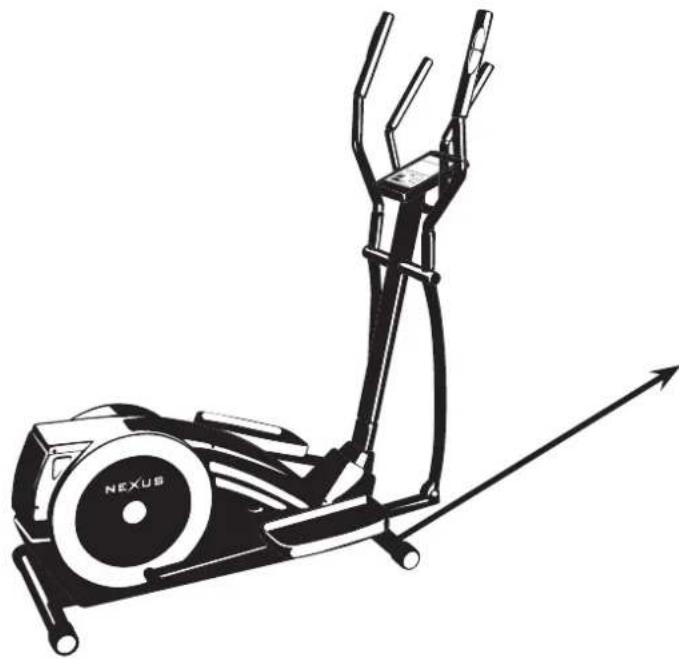

Line drawing of a NEXUS stationary exercise machine with levers and wheels (no text or symbols)

Care & Maintenance

• Always place the equipment in a dry environment.
- Use a warm, damp cloth to keep the product clean.
- No wet cleaning of electrical components. Unplug before any care and maintenance.
- The safety level of the equipment can be maintained only if it is regularly examined for damage and wear. This includes any ropes, pulleys, nuts, bolts, moving parts, bushes, chains, wheels, bearings & connection points etc.
- Ensure that you inspect the product regularly - at least once a week is recommended.
- Ensure that all fixings are tight before use.
- Always replace damaged / worn components with original parts from the manufacturer.

Contact Us

ENGLAND

The best way to contact us is via the website: www.yorkfitness.com > Select "Customer Support"

York Barbell UK Ltd.

York Way, Daventry, England, NN11 4YB

Tel: [phone]

England Warranty Registration

www.yorkfitness.com > Select "Customer Support"

AUSTRALIA

The best way to contact us is via the website: www.yorkfitness.com.au > Select "Contact Us"

York Fitness Australia

1/2 Swaffham Rd, Minto, PO Box 5130, NSW 2566

Tel: [phone]

Australia Warranty Registration

www.yorkfitness.com.au > Select "Warranty Registration"

Before You Start

1. Prepare your work area

It is important you assemble the product in a clean and uncluttered space.

2. Work with a friend

We recommend you have someone assist you with the assembly as some of the components are quite heavy.

3. Open the carton

Checking any warnings on the carton and make sure you have it the right way up.

4. Unpack the carton

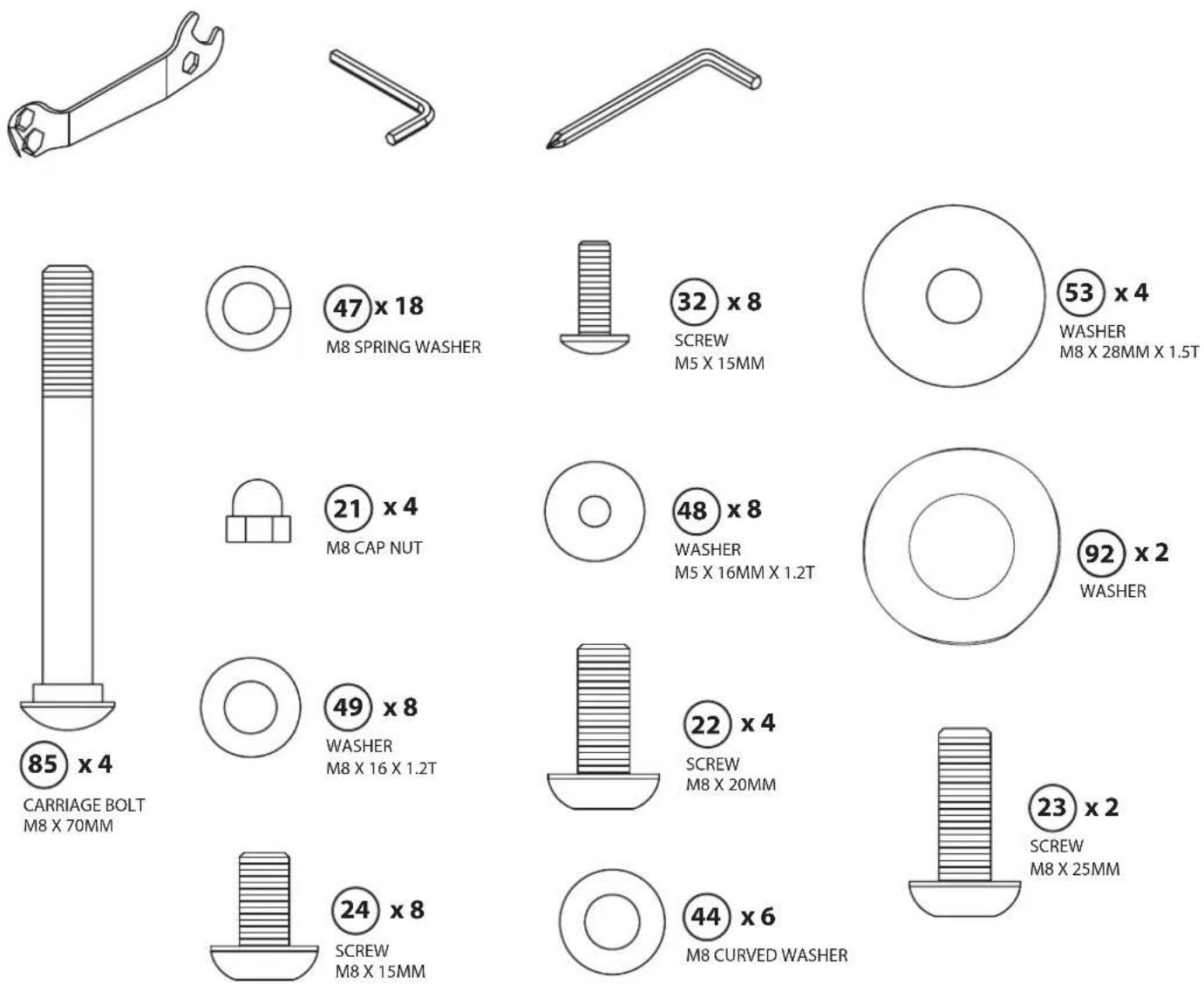

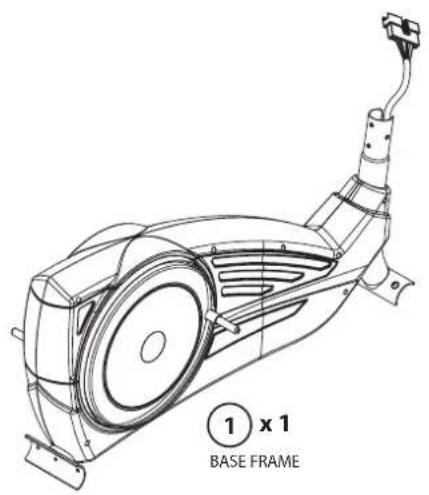

Make sure you have the following parts:

IF YOU SUSPECT YOU MAY HAVE SOME PARTS MISSING, PLEASE CONTACT US BEFORE GOING BACK TO YOUR RETAILER. REFER TO THE CUSTOMER SUPPORT SECTION FOR CONTACT DETAILS.

Simple line drawing of a bent pipe or tube with a circled number 5 (no text or symbols on the diagram itself)

HANDLE BAR (R)

REAR FOOT

FRONT FOOT

Mechanical linkage diagram with labeled dimension (7 x 1), no text or symbols present

PEDAL TUBE WELDMENT (L)

Mechanical linkage diagram with labeled components and dimension annotation (no text or symbols on the diagram itself)

PEDAL TUBE WELDMENT (R)

Technical line drawing of a mechanical component with no visible text or symbols

HANDLE BAR

⑦2 x 1
PEDAL (L)

Two identical 3D rectangular containers with mesh patterns, no text or symbols visible

73 x 1
PEDAL (R)

Illustration of a handheld electronic device with a key and screen (no text or symbols)

82 x 1
COMPUTER

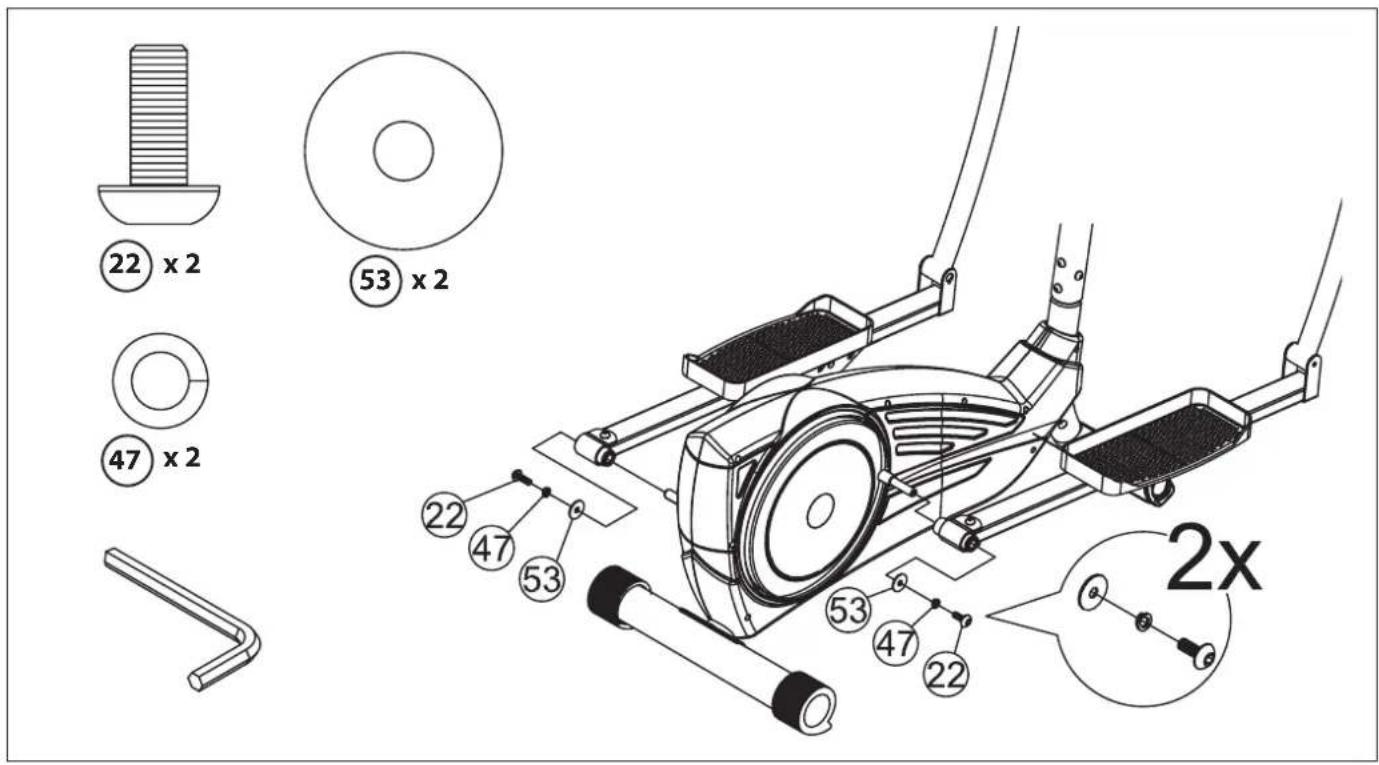

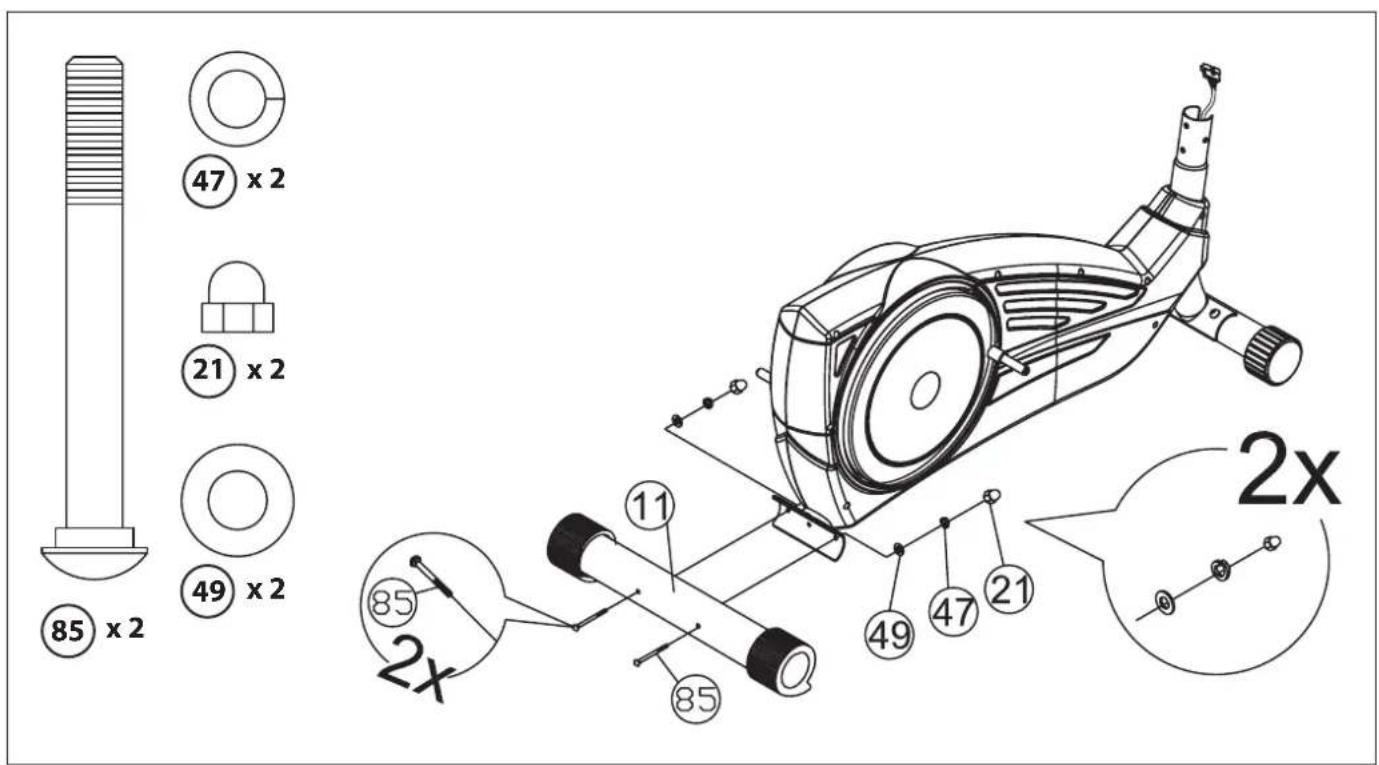

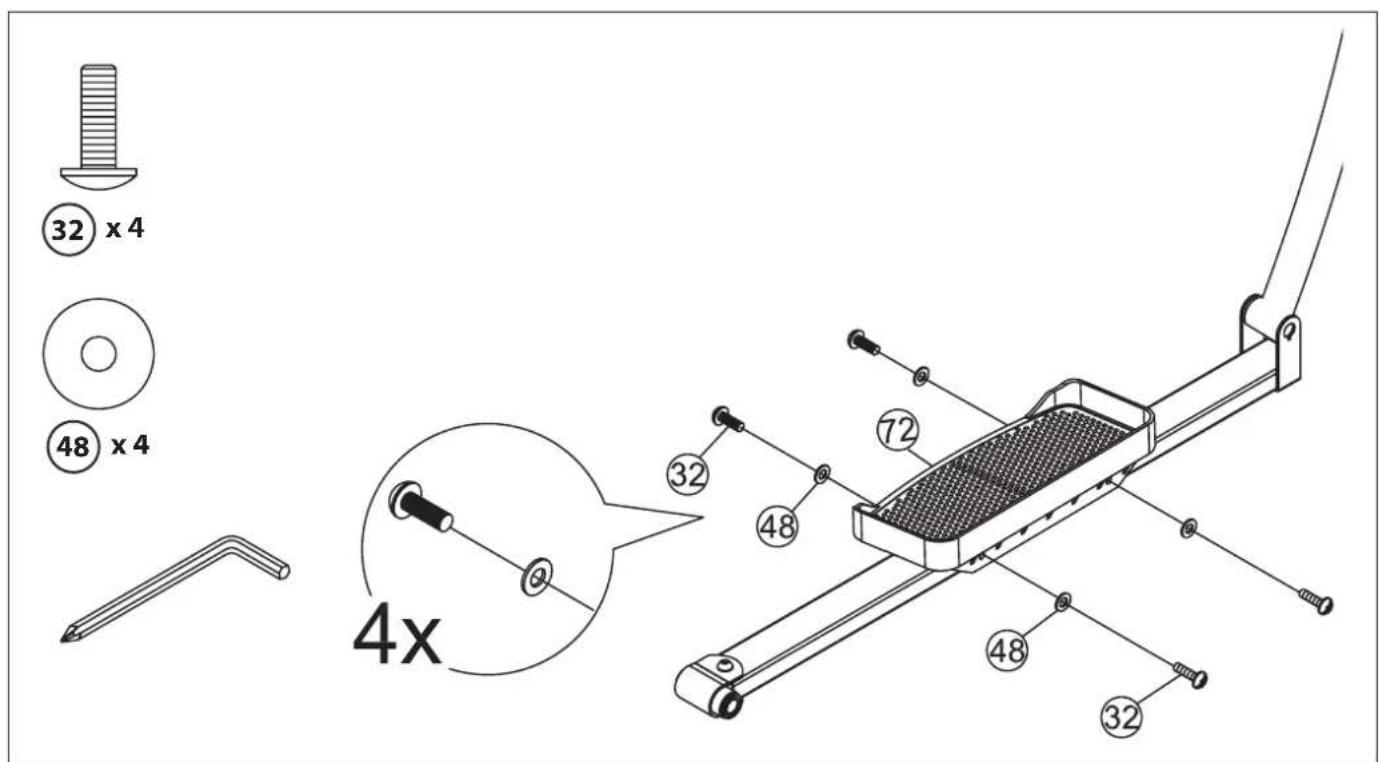

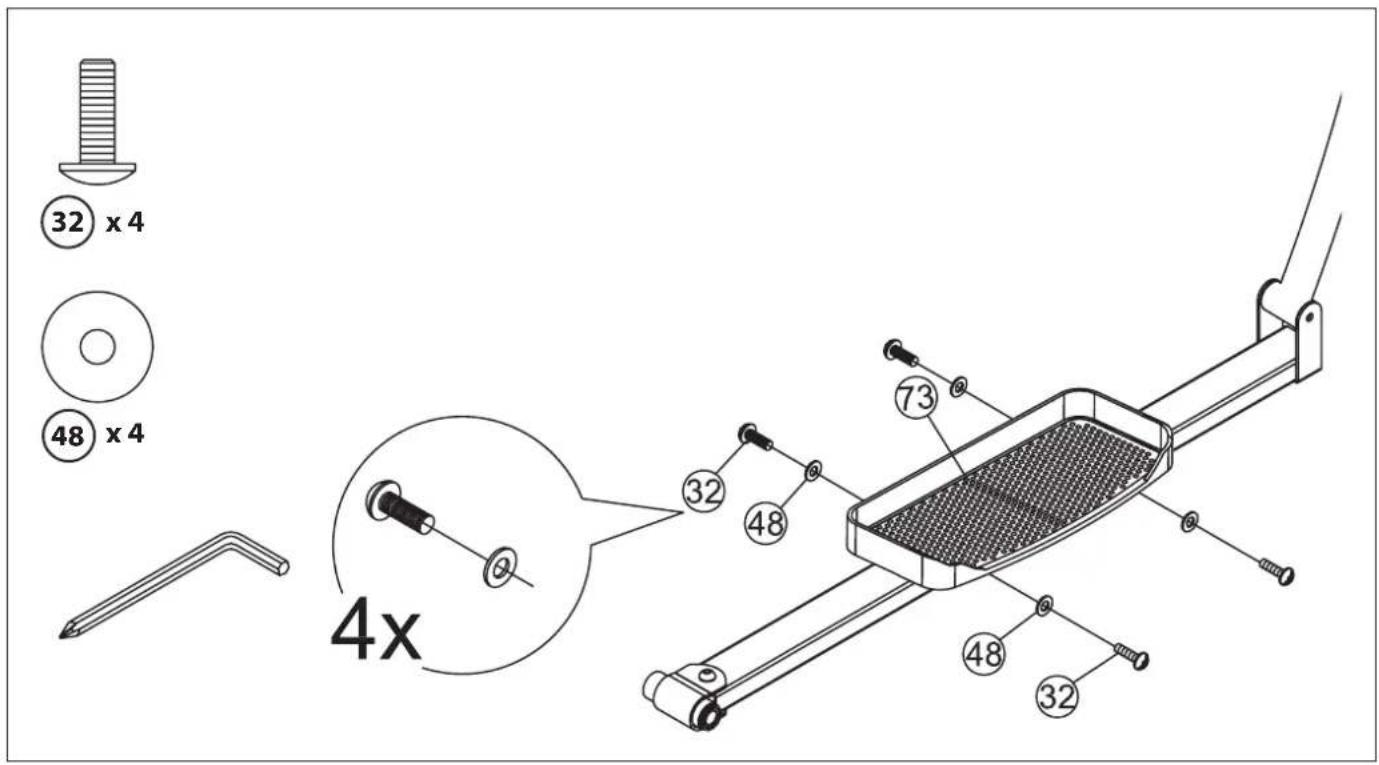

STEP 1

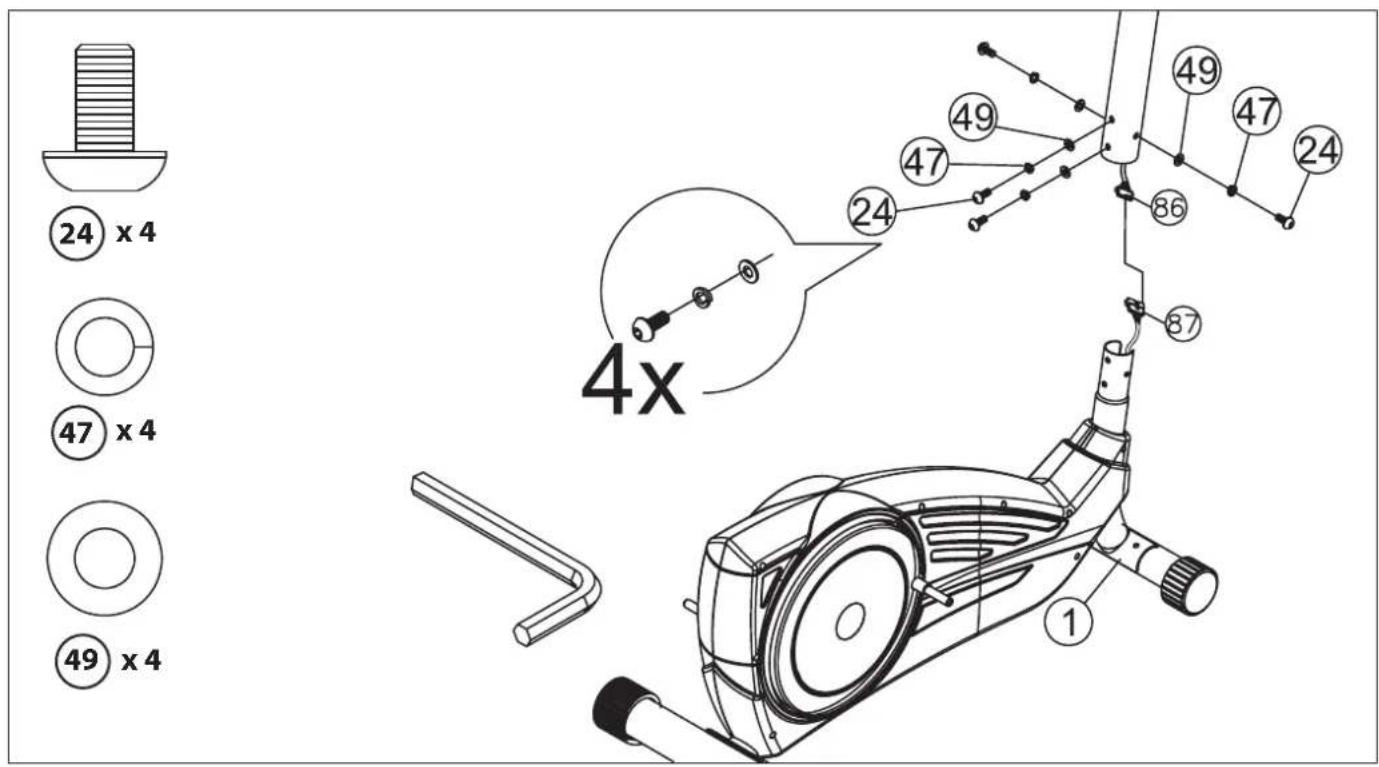

STEP 2

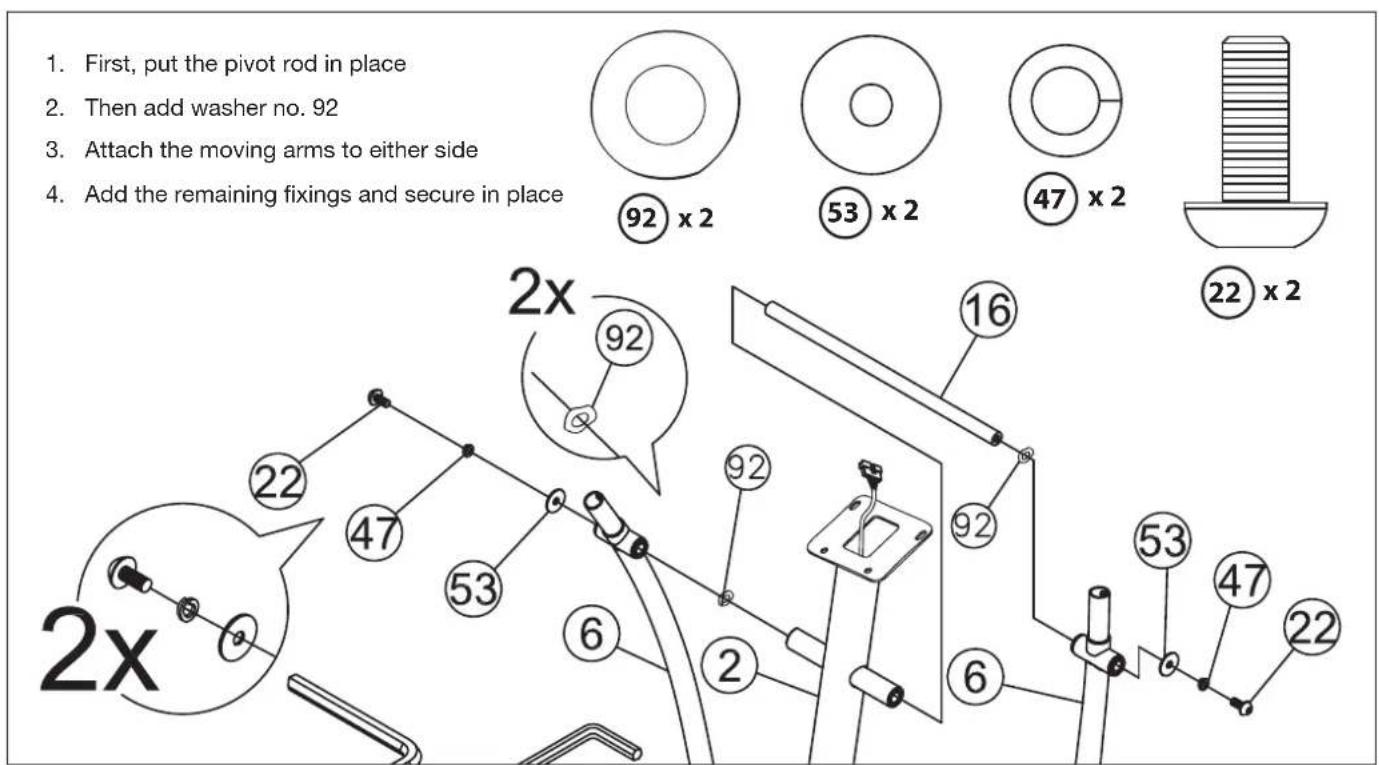

STEP 3

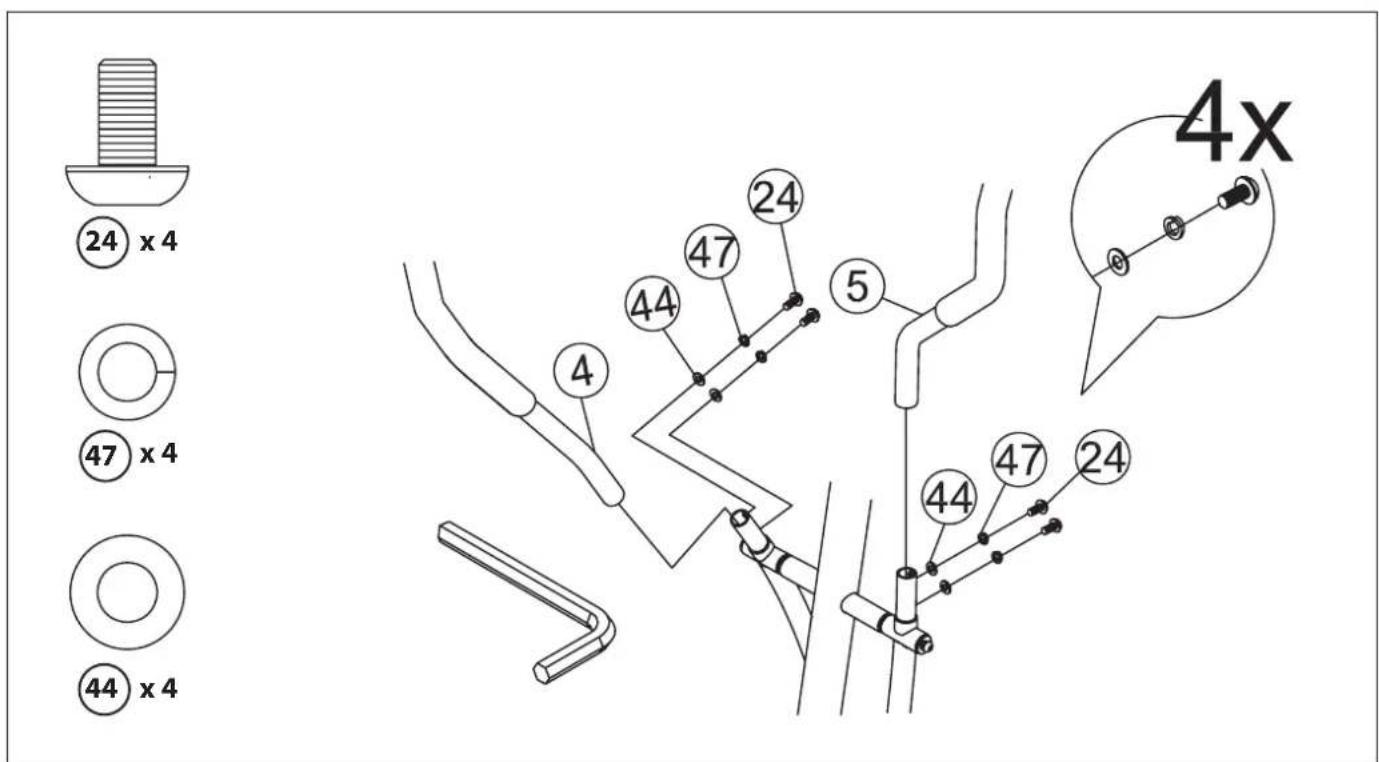

STEP 4

STEP 5

STEP 6

STEP 7

STEP 8

STEP 9

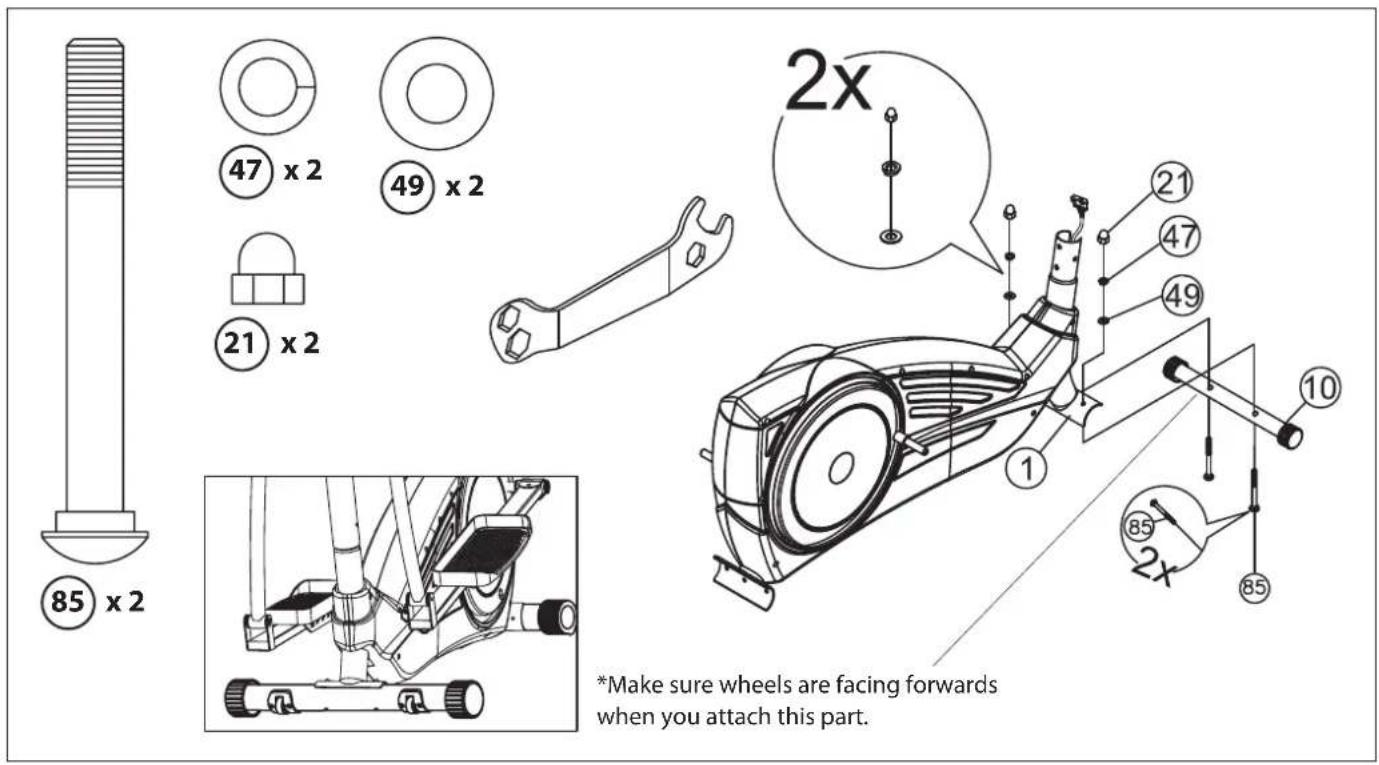

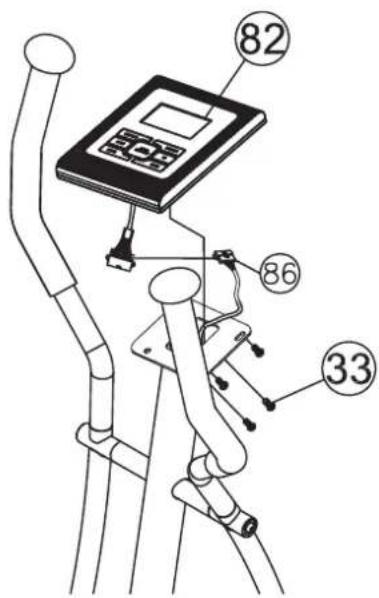

33 x 4

*Pre-installed behind computer console.

STEP 10

23 x 2

44 x 2

47 x 2

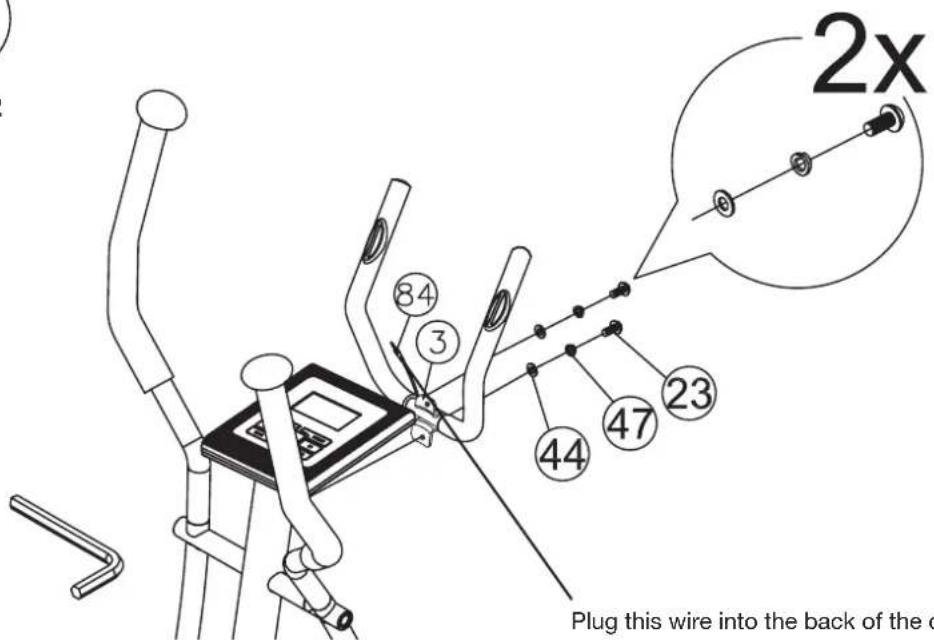

Plug this wire into the back of the console

STEP 11

Line drawing of an outdoor fitness bike with visible legs, arms, and control panel (no text or symbols)

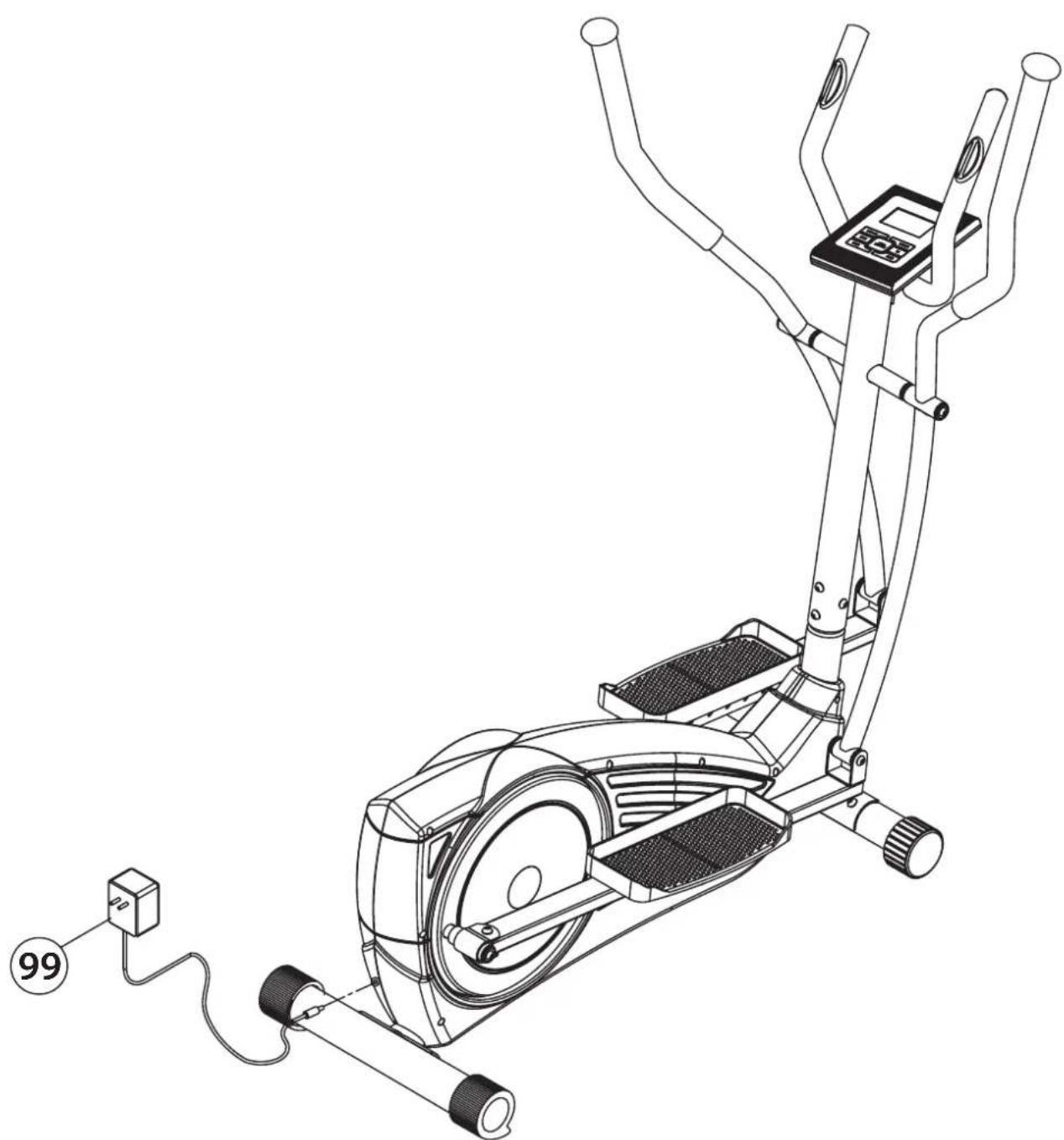

Input Power

Plug in the adaptor to the equipment then the computer will produce a beep sound and turn on the computer at the Manual mode.

Program Select and Setting Value

1. Use the UP or DOWN keys to select program mode and then press ENTER to confirm your exercise mode.
2. At the Manual mode, the computer will use the UP or DOWN keys to set up your exercise TIME, DISTANCE, CALORIES, PULSE.
3. Press the START/STOP key to start exercise.
4. When you reach the target, the computer will produce beep sounds and then stop.
5. If you set up more than one target and you would like to reach next target, press START/STOP key to keep on exercise.

Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

FUNCTIONS FEATURES
TIME Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:00 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
DISTANCE Displays the accumulative distance traveled during each workout up to a maximum of 99.0KM.
RPM Revolutions per minute - your pedal speed.
SPEED Displays your workout speed value in KM per hour.
CALORIES	Your computer will estimate the cumulative calories burned at any given time during your workout.
PULSE Your computer displays your pulse rate in beats per minute during your workout.
AGE	Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.
TARGET HEART RATE (TARGET PULSE)	The heart rate you should maintain is called your Target Hear Rate in beats per minute.
PULSE RECOVERY During the START stage, leave the hands holding on grips or leave the chest transmitter attached and then press “PULSE RECOVERY” key, time starts counting from 00:60 - 00:59 - - to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.1.0 - OUTSTANDING1.1 - 1.9 - EXCELLENT2.0 - 2.9 - GOOD3.0 - 3.9 - FAIR4.0 - 5.9 - BELOW AVERAGE6.0 - POORNote:If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR” on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached well.
TEMPERATURE	Display the current temperature.

Key Function:

There are 6 button keys and the function description as follows:

KEYS FUNCTIONS
START/STOP • Start / Stop
UP• Press the key to increase the resistance during exercise mode.	• During the setting mode, press the key to increase the value of Time, Distance, Calories, Age and select Gender and Program.
DOWN • Press the key to decrease the resistance during exercise mode.	• During the setting mode, press the key to decrease the value of Time, Distance, Calories, Age and select Gender and Program.
ENTER• During the setting mode, press the key to accept the current data entry.	• At the stop mode, by holding this key for over two seconds the user can reset all values to zero or default value.
	• During setting the Clock, press this key can accept the setting hour and setting minute.
BODY FAT • Press the key to input your HEIGHT, WEIGHT, GENDER and AGE then to measure your body fat ratio.
PULSE RECOVERY • Press the key to activate heart rate recovery function.

Manual Program: Manual

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

1. Use UP/DOWN keys to select the MANUAL (P1) program.
2. Press the ENTER key to enter MANUAL program.
3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
7. Press the START/STOP key to begin exercise.

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance:

1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
2. Press the ENTER key to enter your workout program.
3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
7. Press the START/STOP key to begin exercise.

Grid of black and white squares with no text or symbols

Grid of black and white squares with no text or symbols

Grid of black and white squares with no text or symbols

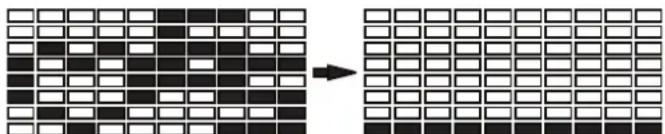

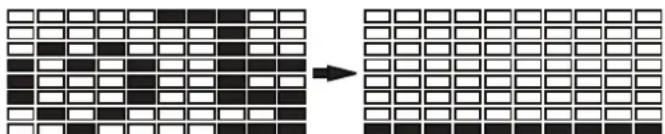

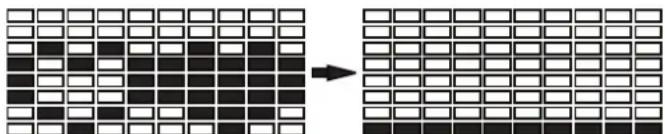

PROGRAM 1: MANUAL PROGRAM 2: STEPS PROGRAM 3: HILL PROGRAM 4: ROLLING

PROGRAM 5: VALLEY PROGRAM 6: FAT BURN PROGRAM 7: RAMP PROGRAM 8: MOUNTAIN

PROGRAM 9: INTERVALS

PROGRAM 10: RANDOM PROGRAM 11: PLATEAU PROGRAM 12: FARTLEK
PROGRAM 13: PRECIPICE

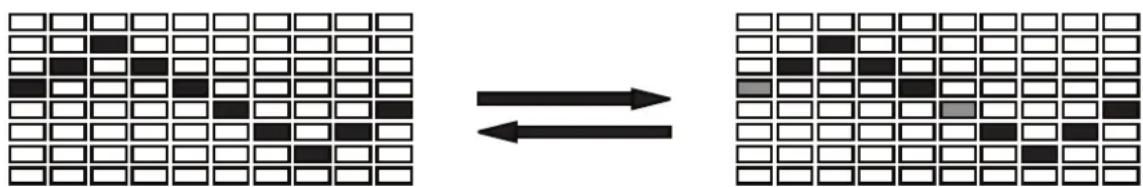

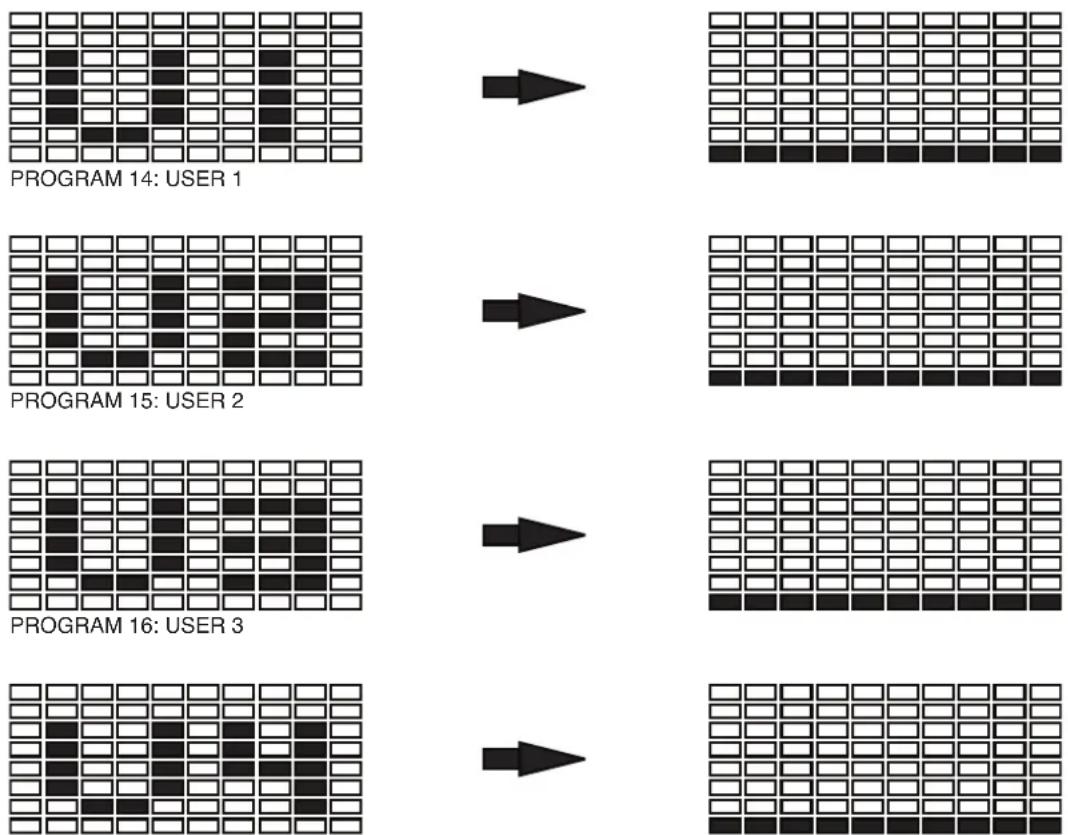

User Setting Program: User 1, User 2, User 3, User 4

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory:

1. Use UP/DOWN keys to select the USER program from P14 to P17.
2. Press the ENTER key to enter your workout program.
3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1.
4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile.
5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile.
6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
10. Press the START/STOP key to begin exercise.

PROGRAM 17: USER 4

Heart Rate Control Program:

55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

» Program 18 is the 55% Max H.R.C. -- Target H.R. = (220 - AGE) x 55%
» Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65%
» Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75%
» Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85%
» Program 22 is the Target H.R.C. -- Workout by your target heart rate value.

Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R.C. Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET H.R.C.

1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
2. Press the ENTER key to enter your workout program
3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
8. Press the START/STOP key to begin exercise.

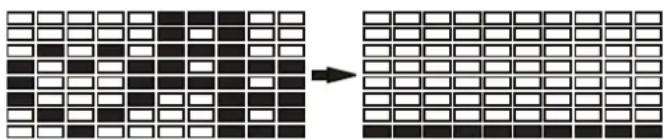

Two grid patterns with black and white squares, one increasing from right to left (no text or symbols)

PROGRAM 18: 55% H.R.C. PROGRAM 21: 85% H.R.C.

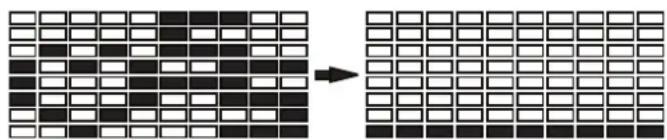

Two grid patterns with black and white squares, one increasing from the other (no text or symbols)

PROGRAM 19: 65% H.R.C.

Two grid patterns with black and white squares, one increasing from the other (no text or symbols)

PROGRAM 22: TARGET H.R.C.

PROGRAM 20: 75% H.R.C.

Body Fat Program: Body Fat

Program 23 is a special program design to calculate users' body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated.

» Type1: BODY FAT% > 27
» Type2: 27 > BODY FAT% > 20
» Type3: BODY FAT % < 20

The computer will show the test results of FAT PERCENT, BMI and BMR.

1. Use UP/DOWN keys to select the BODY FAT (P23) program.
2. Press the ENTER key to enter your workout program.
3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT. Press ENTER key to confirm your HEIGHT. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).
4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.
5. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and number 0 means female. Press ENTER key to confirm your Gender. The default sex is 1 (MAN).
6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE. The default AGE is 35.
7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key again to begin body fat measurement.
8. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD display. Furthermore, the computer will show your own exercise profile for your body type.
9. Press START/STOP key to begin exercise.

BMI (Body Mass Index):

BMI is a measure of body fat based on height and weight that applies to both adult men and women.

BMR (Basal Metabolic Rate):

Your Basal Metabolic Rate (BMR) shows the number of calories your body needs to operate. This doesn't account for any activity, it's simply the energy needed to sustain a heartbeat, breathing and normal body temperature. It measures the body at rest, not sleep, at room temperature.

BODY FAT (STOP MODE) BODY FAT (START MODE)

Monitoring Your Heart Rate

Hand Pulse Sensors

This cross trainer is fitted with 2 hand pulse sensors. To obtain a pulse reading you must have both your left and right hands on the sensors at the same time. Do not grip the hand sensors too tight and allow the computer a few seconds to display the reading.

Adjusting The Resistance

This cross trainer features a speed independent braking (resistance) system. The resistance is controlled by a magnet, which is moved closer or further away from the flywheel - the closer the magnet is to the flywheel the higher the resistance. The magnet is computer controlled, to adjust simply use the UP / DOWN keys on the console.

Levelling Your Cross Trainer

To help you level the cross trainer on uneven surface, 2 height adjusters are included on the rear stabilizers. Simply twist these around to adjust the height of the cross trainer.

IF YOU HAVE A PROBLEM WITH YOUR CROSS TRAINER, BEFORE YOU DO ANYTHING ELSE PLEASE CHECK THAT ALL THE CABLES HAVE BEEN CONNECTED CORRECTLY. LOOSE CABLES ARE VERY COMMON AND MANY PROBLEMS CAN BE SOLVED BY MAKING SURE THE CABLES ARE PROPERLY CONNECTED.

The following table details the most common problems and how to fix them. If you still have a problem after going through the troubleshooting guide please call your local YORK distributor for advice.

PROBLEM CAUSE CORRECTION
NO DISPLAY	No powerSystem halted	Make sure power cord is plugged in properlyUnplug and re-plug the power cord to reset the system
NO SPEED DISPLAY	Wires are damaged or not connected properlySpeed sensor is too far from magnet	Verify all wires are connected properlyIf problem persist, contact your local YORK distributor
PARTIAL DISPLAY	The PA board is not connected properly Unplug and re- plug the power cord to reset the systemVerify all wires are connected properlyDisconnect and re-connect all cablesIf problem persist, contact your local YORK distributor
NO PULSE SIGNAL	Wires are damaged or not connected properlyToo much hand movementPalms too wetHand Pulse Sensor is being gripped too tightlyUser is wearing rings	Verify all wires are connected properlyDry palmsGrip using moderate pressureRemove all ringsIf problem persist, contact your local YORK distributor
ERROR CODE: E1	Computer console errorMotor is non-operational or damagedWires are damaged or not connected properlyUser is over maximum weight tolerance	Verify all wires are connected properlyUnplug and re-plug the power cord to reset the systemCheck maximum user weightIf problem persist, contact your local YORK distributor
ERROR CODE: E2	Computer console error Verify all wires are connected properlyIf problem persist, contact your local YORK distributor
ERROR CODE: E3	Motor controller is non-operational or damaged Verify all wires are connected properlyIf problem persist, contact your local YORK distributor
ERROR CODE: ERR	No pulse signals received for 8 seconds during body fat program	Refer to “NO PULSE SIGNAL”
ERROR CODE: E5	Auto-tension controller error or is non-operational Verify all wires are connected properlyIf problem persist, contact your local YORK distributor

FOR YOUR OWN SAFETY, DO NOT OPEN PROTECTIVE CASING. IF ERROR PERSIST, PLEASE CONTACT YOUR LOCAL YORK DISTRIBUTOR FOR ADVICE. KEEP THE EQUIPMENT OUT OF USE UNTIL IT IS REPAIRED.

If you are having problems with your heart rate reading, please note that some fibres used in clothes eg) polyester, create static electricity that may prevent a reliable heart rate reading. Mobile phones, TV's, microwaves and other electrical appliances that generate an electromagnetic field may also interfere with heart rate measurement.

Starting Your Workout

Begin and end each workout with a Warm Up / Down session - a few minutes of stretching to help prevent strains, pulls and cramps.

• Make sure the nearest footplate to you is in the lowest position.
• Grasp the handlebars securely with both hands.
• Step on - put your feet into he pedals one by one.
• Your body should be centred over the pedals.
• Begin to stride, follow the rhythm of the machine.

Finishing Your Workout

1. Slow your elliptical motion to a gradual stop.
2. Take your feet off the footplates one at a time.

End each workout with a Warm Down session - a few minutes of stretching to help prevent strains, pulls and cramps.

Correct Exercise Form

• Stand tall and straight. Don't slump - it will put unnecessary strain on your back and will result in less effective toning in the leg muscles. Make sure the machine is adjusted properly for your height so that you don't have to slouch to reach the handlebars. Similarly, you should not be leaning on the handles or gripping them too tightly.
• Stay relaxed. Keep your shoulders, arms, legs and hips loose and unlocked while using a cross trainer. Tension could lead to injury and will almost certainly make you sore.

All Over Body Workout!

• For an all over body workout, keep your hands on the moving arms.
• To only work the lower body place the hands on the fixed handlebars.
• To put the emphasis on the upper body push with your arms on the moving arms and reduce the amount of effort you are using with your legs.
• To work different muscles in your legs, try going in reverse.

How Long Should I Exercise For?

That really depends on your current level of fitness. If you're just starting out on a new exercise program, you should start gradually and build up - do not try to do too much too quickly. 30 minutes, 3 times a week should be enough.

Don't push yourself too hard - you should never feel exhausted during or following exercise.

Heart Rate Training

To get the most out of your new piece of fitness equipment and see the best results from your training you should exercise at the right level of effort, and that means listening to your heart! Work out to a target heart rate means you can direct your workout to achieve different goals:

Good health - For those wishing to improve quality of life and general well being. Your sessions will need to be done at an intensity of between 50 - 60% of your estimated maximum heart rate, should last about 30 minutes and can be done on most days of the week.

Weight loss - To see a significant reduction in body fat, your sessions must be a little more intense - between 60 and 70% of your estimated maximum heart rate. These sessions can also be performed on most days of the week for up to 30 minutes.

Improving fitness levels - These sessions should be performed at 70 - 80% of your estimated maximum heart rate and can also involve bouts of interval training that would have your heart rate peaking for short times near your maximum heart rate level. These are intense sessions and will require at least a 48 hour rest between sessions.

Calculating Your Target Heart Rate

First, you need to find your estimated maximum heart rate using the formula “220 minus your age in years”. So, if you are 35 years old your estimated maximum heart rate is:

• 220 - 35 = 185 beats per minute (bpm)

Next, to calculate your target heart rate, simply multiply your estimated maximum heart rate (185bpm) by the applicable percentage. So, if your goal is better health:

- 185 x 60% = 111bpm

NOTE: The important issue to remember with all estimated calculations is that they are just estimates - if you don't feel comfortable exercising at your target then reduce it to a level you are comfortable with.

Heart rate training requires you to monitor your heart rate throughout the workout. For this we recommend using a chest strap (if your machine has a wireless receiver) or a heart rate monitor. For more information please get in touch using the Contact Us details.

ALWAYS CONSULT YOUR DOCTOR BEFORE UNDERTAKING A NEW EXERCISE REGIME. IF YOU EXPERIENCE NAUSEA, DIZZINESS OR OTHER ABNORMAL SYMPTOMS DURING EXERCISE, STOP AT ONCE AND CONSULT YOUR DOCTOR.

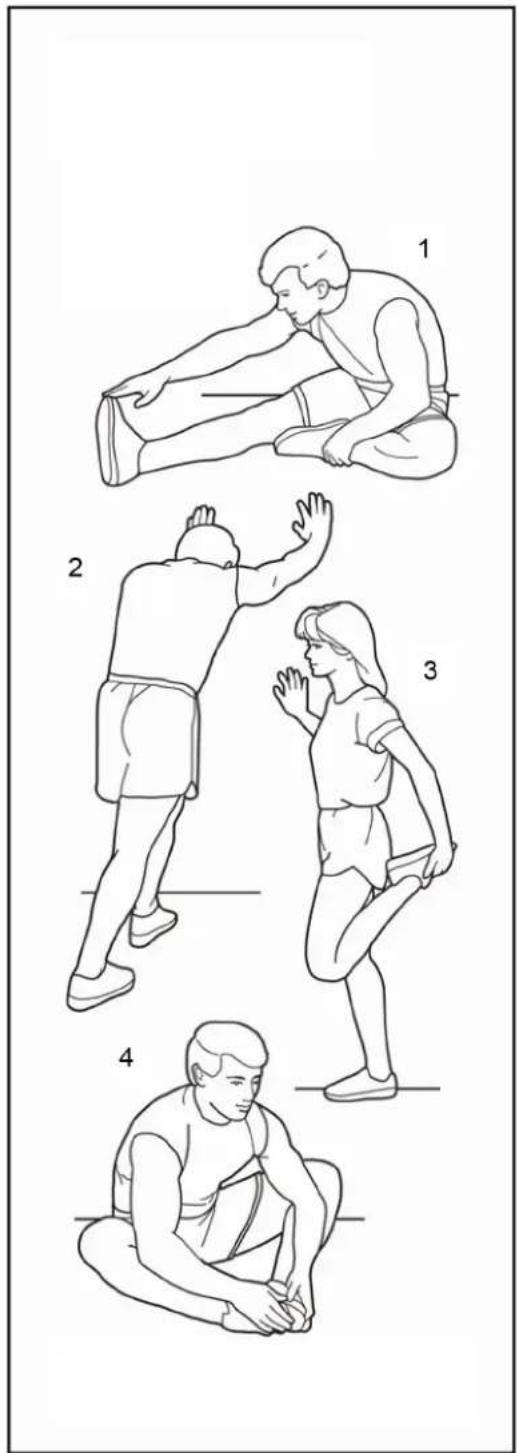

Suggested Stretches

The correct form for several basic stretches is shown at the right. Move slowly as you stretch never bounce.

1. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

2. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

3. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

4. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

This product is supplied with a standard warranty as follows:

• Lifetime frame
  • 12 months other parts
  • 12 months labour

This product is warranted for use in a home, personal, family or household environment Please Note: Warranty details may vary from one market area to another

Warranty Terms

York Fitness warrants that the Product you have purchased from an authorized York Fitness reseller is free from defects in materials and workmanship. The Warranty is valid subject to normal and reasonable use in the environment as described above, and correct assembly of the product during the warranty period. The warranty period extends to the original purchaser only. It is not transferable to anyone who subsequently purchases the Product from you.

The warranty excludes normal wear and tear on parts. Your sales receipt, showing the date of purchase of the product, is your proof of the date of purchase.

This warranty becomes valid only if the Product is assembled / installed according to the instructions / directions included with the product. This warranty does not extend to any product that has been damaged or rendered defective: (a) as a result of accident, misuse, abuse or lack of reasonable care; (b) by the use of parts not manufactured by York Fitness or sold by York Fitness; (c) by modification of the product; (d) as a result of service by anyone else other than York Fitness or an authorized York Fitness warranty service provider.

During the warranty period, York Fitness will at no additional charge provide replacement part(s) or repair the product (at York Fitness's option) if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal, non-commercial, personal, family or household use. In repairing the product, York Fitness may replace defective parts or at the option of York Fitness, use serviceable used parts that are equivalent to new parts in performance. All exchanged parts and products replaced under this warranty will become the property of York Fitness. York Fitness reserves the right to change manufacturers of any part to cover any existing warranty.

If the product must be returned, you must return the Product or defective part to York Fitness in its original container (or equivalent) with Proof of Purchase. Any evidence of alteration, erasing or forgery of proof of purchase documents will be cause to void this warranty. You must prepay any shipping charges and you are responsible for insuring any product or part that is returned. Should any product submitted for warranty service be found to be ineligible, an estimate of repair cost will be furnished and the repair will be made if requested, upon York Fitness's receipt of payment or acceptable arrangement

of payment. Under no circumstances will returns be accepted without return authorization by our Customer Service department.

To obtain warranty service you must provide the following information:

Name of Product, Product Code, Batch No, Date Purchased, and Nature of fault or part number required.

Neither dealer of this product nor any retail establishment selling this product has any authority to make any warranties or to promise remedies in addition to, or inconsistent with, those stated above. This warranty does not affect your statutory rights.

Please note that warranty terms may vary from one market area to another.

YORK REF. REF. DESCRIPTION QTY.
52037-1 1 BASE FRAME 1
52037-2 2 UPRIGHT TUBE WELDMENT 1
52037-3 3 FIX HANDLEBAR 1
52037-4 4 HANDLE BAR(L) 1
52037-5 5 HANDLE BAR(R) 1
52037-6 6 LOWER SWIVEL HANDLE BAR 2
52037-7 7 PEDAL TUBE WELDMENT (L) 1
52037-8 8 PEDAL TUBE WELDMENT (R) 1
52037-9 9 JOCKEY WHEEL BRACKET 1
52037-10 10 FRONT FOOT 1
52037-11 11 REAR FOOT 1
52037-12 12 FLYWHEEL 1
52037-13 13 PEDAL FIX BKT 2
52037-14 14 FLYWHEEL AXLE 1
52037-15 15 PEDAL TUBE WELDMENT SHAFT 2
52037-16 16 AXLE SUPPORT 1
52037-17 17 MAGNETIC HOLDER 1
52037-18 18 AXLE FOR PULLEY 1
52037-19 19 CROSS FRAME 2
52037-20 20 PULLEY 1
52037-21 21 M8 CAP NUT 4
52037-22 22 SCREW (M8*20L BK) 4
52037-23 23 SCREW (M8*25L BK) 4
52037-24 24 SCREW (M8*15L BK) 8
52037-25 25 SCREW (M8*50L BK) 2
52037-26 26 SCREW (M6*16L) 4
52037-27 27 SCREW (M6*65L) 1
52037-28 28 SCREW (M8*25 BK) 1
52037-29 29 SCREW (M8*52L) 1
52037-30 30 SCREW (M5*12L BK) 8
52037-31 31 SCREW (M3*10L) 1
52037-32 32 SCREW (M5*15L BK) 8
52037-33 33 SCREW (M5*12L) 4
52037-34 34 SCREW (#8-32*5/8"L BK) 4
52037-35 35 NYLOCK NUT (M8 BK) 4
52037-36 36 NYLOCK NUT (M6 BK) 5
52037-37 37 WH NUT (3/8" * 26 * 9MM *14L BK) 2
52037-38 38 WH NUT (3/8"*26 BK) 2
52037-39 39 SELF-LOCKING NUT (M6 BK) 1
52037-40 40 BLIND NUTS (M8*P1.25) 2
52037-41 41 PLASTIC WASHER (M6*22*1.0T) 1
52037-42 42 NYLON WASHER (10*24*0.3T) 2
52037-43 43 WAVE SPRING (∅16.5*∅21.7*0.25T BK) 2
52037-44 44 WASHER CURVE (M8 BK) 6
52037-45 45 TAPER WASHER (18*4.1H) 4
52037-46 46 SPRING WASHER (M6) 4
52037-47 47 SPRING WASHER (M8) 20
52037-48 48 WASHER (M5*∅16*1.2T BK) 16
52037-49 49 WASHER (M8*16*1.2T) 10
52037-50 50 WASHER (M6*19*1.5T) 1

YORK REF. REF. DESCRIPTION QTY.
52037-51 51	WASHER (M10*21*2T)	2
52037-52 52	WASHER (M8*22*1.5T)	1
52037-53 53	WASHER (M8*∅28*1.5T BK)	4
52037-54 54	CLIP (C17 ( ∅15.7) BK)	2
52037-55 55	CLIP (C12( ∅11.1) BK)	3
52037-56 56	BEARING (6203ZZ(ZB))	2
52037-57 57	BEARING (∅12*∅28*8T)	2
52037-58 58	MAGNET	1
52037-59 59	SPRING (3*17.8*89L 17)	1
52037-60 60	SPRING (10.2*16.5*55L)	1
52037-61 61	FIX HANDLEBAR FOAM GRIPS	2
52037-62 62	FIX HANDLEBAR END CAP	2
52037-63 63	HANDLEBAR FOAM GRIPS	2
52037-64 64	BELT	1
52037-65 65	HANDLEBAR END CAP	2
52037-66 66	END CAP	2
52037-67 67	END CAP	1
52037-68 68	BUSHING (28.58*15.99*12.7H)	14
52037-69 69	DRIVE BELT WHEEL	1
52037-70 70	SENSOR BRACKET	1
52037-71 71	MOVING WHEEL 2
52037-72 72	PEDAL (L)	1
52037-73 73	PEDAL (R)	1
52037-74 74	CHAIN COVER (L)	1
52037-75 75	CHAIN COVER (R)	1
52037-76 76	TURNING PEDAL	2
52037-77 77	CRANK COVER	2
52037-78 78	FOOT COVER 2
52037-79 79	FOOT COVER(L) 1
52037-80 80	PLASTIC PAD 4
52037-81 81	FOOT COVER(R)	1
52037-82 82	COMPUTER	1
52037-83 83	PULSE GRIP UNIT	2
52037-84 84	PULSE WIRE	1
52037-85 85	CARRIAGE BOLT M8 * 70 MM	4
52037-86 86	COMPUTER UPPER CABLE	1
52037-87 87	COMPUTER LOWER CABLE	1
52037-88 88	WIRE ROD	1
52037-89 89	TOOL	1
52037-90 90	TOOL	1
52037-91 91	TOOL	1
52037-92 92	WASHER	2
52037-93 93	CABLE	1
52037-94 94	SERVO MOTOR	1
52037-95 95	SCREW	4
52037-96 96	ADAPTOR SENSOR WIRE	1
52037-97 97	WH NUT (M5)	4
52037-98 98	WASHER (M8*18*1.2)	4
52037-99 99	ADAPTOR (6V/500MA)	1
52037-100	100	FIXINGS BLISTER PACK	1

YORK®

FITNESS
