Product Type	Slimline Dishwasher
Brand	Logik
Model	LDW45S12
Dimensions (W x D x H)	450 mm x 580 mm x 850 mm
Capacity	9 Place Settings
Water Pressure Required	0.04 - 1.00 MPa
Power Consumption	1930 W
Rated Voltage	230 V ~ 50 Hz
Energy Efficiency Class	A+
Annual Energy Consumption	222 kWh
Annual Water Consumption	2940 litres
Drying Efficiency Class	A
Noise Level	49 dB(A) re 1 pW
Programmes	3 in 1, Intensive, Normal, Eco, 1 Hour, Glass, Rapid
Standard Cleaning Cycle	Eco 50°C, 160 min
Half Load Option	Yes
Delay Start	Up to 24 hours
Adjustable Upper Basket	Yes
Hinged Cup Rack	Yes
Cutlery Basket	Included with cover
Salt Reservoir Capacity	Approx. 1.2 kg
Rinse Aid Reservoir Capacity	Approx. 110 ml
Condensation Strip	Included for worktop protection
Mounting	Free-standing or built-in (worktop removable)

Frequently Asked Questions - LDW45S12 Logik

What should I do if the dishwasher won't start?

Check that the door is properly closed, the unit is connected to the mains, and the ON/OFF button is pressed. If the drain pump is not working or fault code E4 appears, disconnect the power and water, then call a qualified technician.

How do I adjust the rinse aid dosage?

Locate the rinse aid reservoir dial. The factory setting is '4'. If dishes are spotted or not drying properly, turn the dial to a higher number (up to 6). Turn to a lower number if there is smearing.

How often should I clean the filters?

Check the filters regularly and clean them under running water when clogged. Follow the steps: turn the coarse filter anti-clockwise, lift it out, then lift out the fine filter. Rinse all parts and reassemble in reverse order. Never operate the dishwasher without filters.

What items should not be washed in the dishwasher?

Do not wash towels, sponges, crystal glasses, silverware, valuable vases, cracked china, small plastic items, cast iron pans, scratched non-stick cookware, copper pots, wooden items, or plastics not marked dishwasher-safe.

How do I use the delay start feature?

Load dishes, turn on the unit, select a programme, then press the Delay Start button repeatedly to set the delay in 1-hour increments up to 24 hours. Close the door; the dishwasher will start automatically at the set time.

What does the 'Half Load' option do?

The Half Load option saves water and electricity when you have fewer dishes. After selecting a programme, press the 1/2 button. The indicator light will illuminate, and the cycle will run with reduced consumption.

How do I add salt and adjust salt consumption?

Remove the lower basket, unscrew the salt reservoir cap, fill with approx. 500 ml water (first use only), then add about 1.2 kg dishwasher salt using the funnel. Clean any excess, screw cap on, and run a Rapid programme immediately. Adjust the consumption selector based on water hardness (see chart in manual).

Why are there water spots on my glassware?

Spots are usually caused by insufficient rinse aid or hard water. Try increasing the rinse aid dosage, refilling the rinse aid reservoir, or adjusting salt consumption. Also ensure the rinse aid dispenser is set correctly and the salt reservoir is full.

What should I do if the dishwasher displays error code E1?

E1 indicates the water tap is turned off or water pressure is too low. Turn on the water tap fully. If the problem persists, the flow meter may be broken or wire terminals loose. Disconnect from mains and call a qualified technician.

How do I clean the spray arms?

Check the spray arm jets regularly for food particles. Use a pointed object like a cocktail stick to loosen debris. Do not attempt to remove the spray arms. Ensure they rotate freely after cleaning.

USER MANUAL LDW45S12 Logik

Exterior view of a modern LOGIC appliance with control panel and display (no visible text or symbols on the device itself)

Gradient gray background with no text, symbols, or identifiable objects

Unpacking......5

Installation 6

Location 6

Product Overview....10

Front View 10

Rear View 10

Upper Basket....11

Lower Basket 11

Internal View....11

Control Panel....12

Wash Cycle Table....13

Before Operating....14

To Open the Door....14

To Close the Door 14

Items Not Suitable for Use in the Dishwasher....14

Adding Detergent or Detergent Tablet....15

Adding Rinse Aid 16

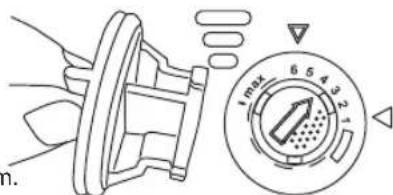

Adjusting the Rinse Aid Reservoir 16

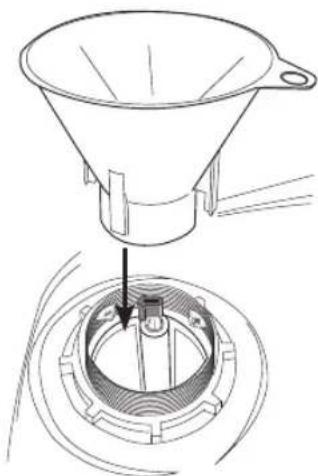

Adding Salt 17

Adjusting Salt Consumption 18

Loading the Dishwasher 19

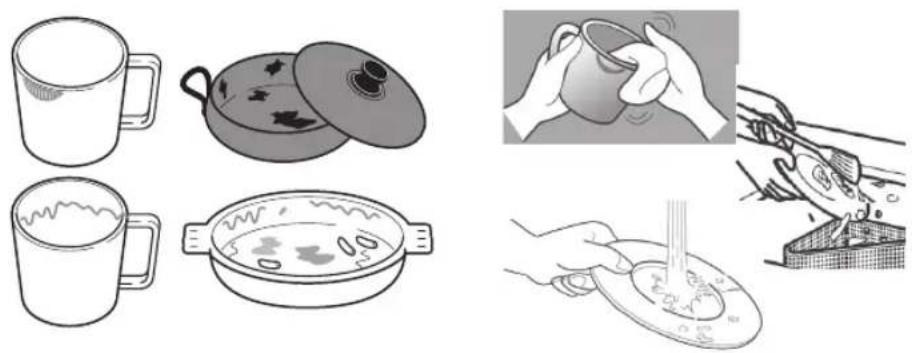

Before Loading the Dishwasher 19

Upper Basket....20

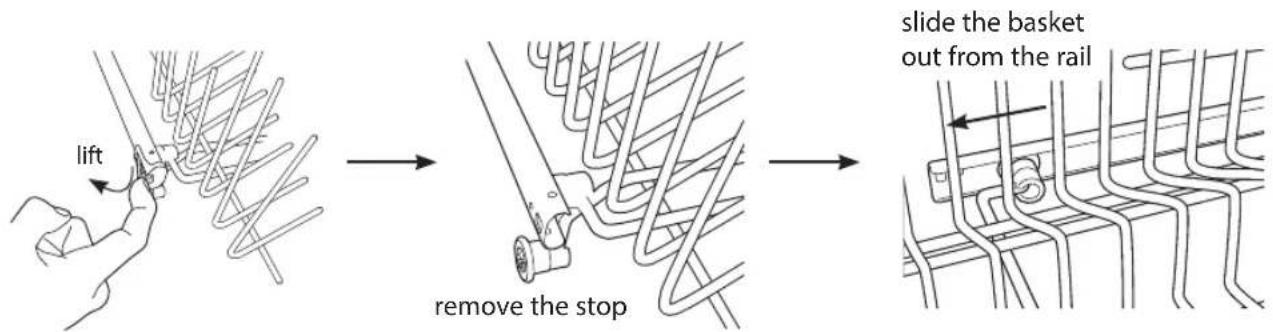

- Adjusting the Upper Basket......20

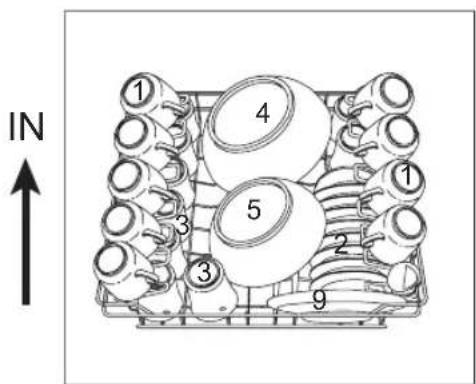

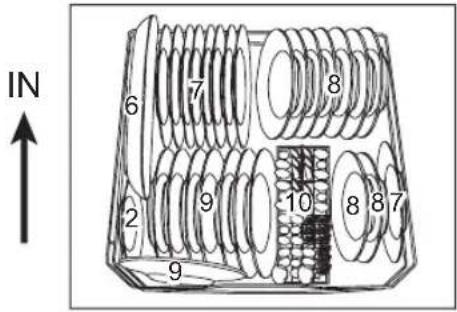

- Loading the Upper Basket for 9 Place Settings....20

- Hinged Cup Rack 21

Lower Basket 21

- Hinged Spikes....21

- Loading the Lower Basket 22

Cutlery Basket 22

- Loading the Cutlery Basket....22

Starting a Wash Cycle 23

Changing a Programme 23

At the End of a Programme....23

Switching Off the Unit 24

Unloading the Dishwasher 24

Delay Start....24

Half Load 24

Cleaning After Use....25

External Care 25

• The Door and the Door Seal 25
• The Control Panel 25

Internal Care 25

• Filtering System....25
• Spray Arms....26

Frost Precaution 26

Moving the Dishwasher 26

Maintenance After a Prolonged Period of Non-Operation 26

Hints and Tips 27

Fault Code 27

Technical Problems 27

Disposal of the Dishwasher 29

Disposal of Packing Material 29

Specifications....30

Safety Warnings....31

Thank you for purchasing your new Logik Slimline Dishwasher.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

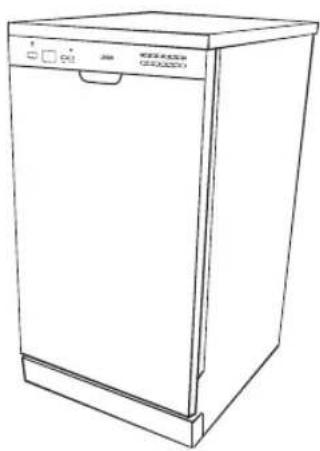

Line drawing of a single stainless steel kitchen appliance (no text or symbols)

The Main Unit

This product has been wet tested to ensure correct operation. As a result some water may remain inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.

Line drawing of a woven basket with handle and side panels (no text or symbols)

Cutlery Basket
P.N.: .673002200080

Water Supply Hose X 1
P.N.: 673000900060

Detergent Measuring Spoon x 1
1 full spoon = 20g (approx.)
P.N.: 673002200079

Measuring Cup X 1
60ml (approx)
P.N.: 673006200004

Condensation Strip X 1
P.N.: 675001300715

Salt Funnel X 1
P.N.: 673002200043

U-shape Hose Holder X 1
P.N.: 673006200003

Instruction Manual X 1
P.N.: LDW45S12-003

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Location

When selecting a position for your slimline dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This dishwasher is not designed for use in a garage or outdoor installation.

Do not drape the dishwasher with any covering. When installing, ensure that free space is left at the sides.

Illustration of an open box containing various electronic devices including a battery, switch, and ring (no text or symbols visible)

All parts removed must be saved to do the reinstallation in the future. Ensure the dishwasher is unplugged and empty. We recommend that 2 people handle the dishwasher during installation.

1. Please ensure the dishwasher is installed by a qualified technician. Refer to the tools required.

Illustration of various office tools including screwdriver, scissors, pencil, clip, and door panel (no text or symbols)

1. Ensure there is clearance each side of the unit to allow slight sideways movement for servicing when required. Good levelling is essential for correct closure and sealing of the door. When the unit is correctly levelled, the door should not catch the inner liner on either side of the cabinet. The adjustable feet may be loosened or tightened in order to obtain the optimum levelling of the unit.

INSTALLATION

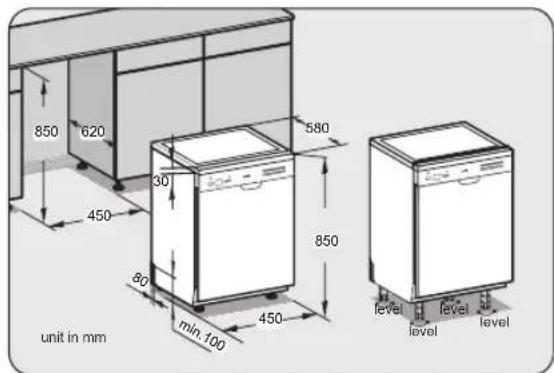

1. If required, the worktop of the dishwasher can be removed. The height without the worktop is 820 mm, the minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units.

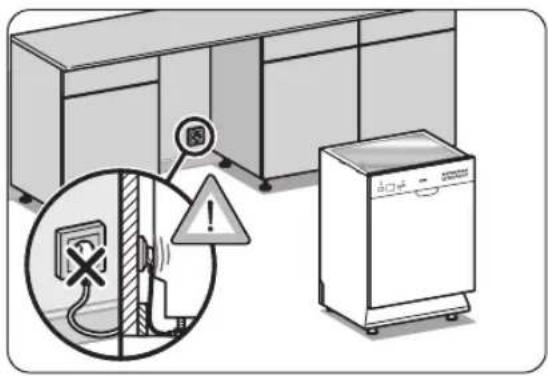

Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit.

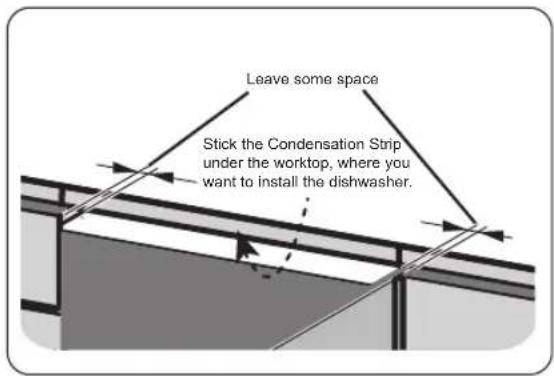

1. The condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture. Its purpose is to protect your worktop's underside from steam rising from the dishwasher.

2. Ensure the surface is clean prior to sticking the condensation strip to the underside of the worktop.

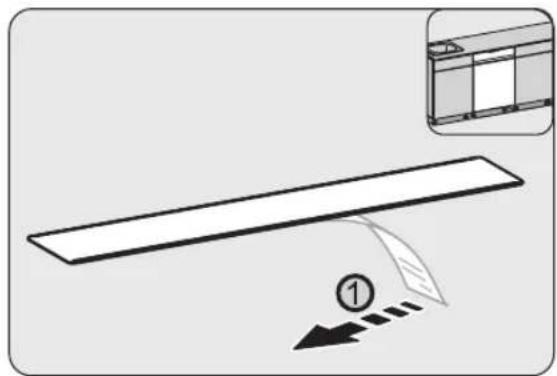

3. Remove the backing paper from the condensation strip.

- Stick the condensation strip to the underside of the worktop.

Failure to attach the condensation strip could result in damage to the underside of your worktop!

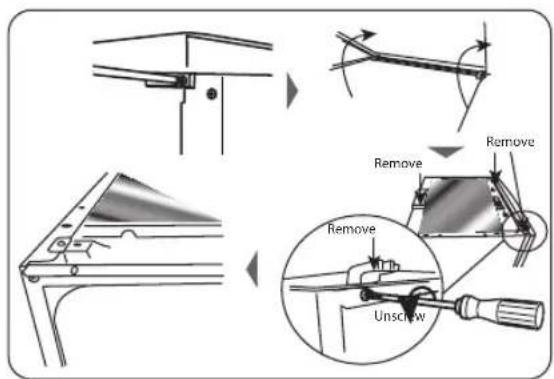

1. The worktop can be removed by removing the fixing screws located at the rear of the dishwasher. After removing the screws, lift and push the worktop forward to release the lugs from the front section of the dishwasher. The polystyrene block and the lugs should be saved for future use.

Diagram showing a rectangular object with an arrow and numbered label (1) pointing to it, with an inset diagram of a window or panel (no text or symbols present)

INSTALLATION

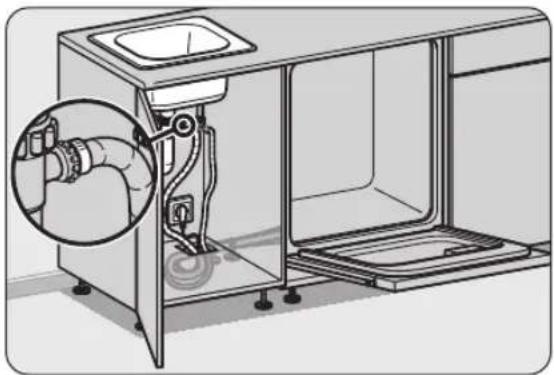

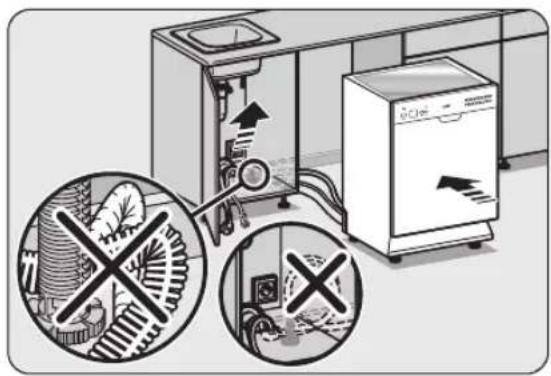

1. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable.

1. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact a qualified plumber. This unit MUST BE connected to COLD WATER MAINS using the new water inlet hose. OLD HOSE SETS MUST NOT BE RE-USED. The water pressure from the water mains needs to be at a minimum of 0.04 MPa and a maximum of 1.00MPa.

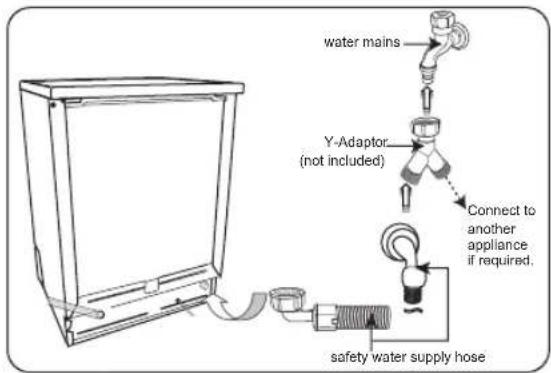

2. Connect one end of the safety water supply hose to your dishwasher, and then connect the other end of the hose to your water mains. Please ensure the black rubber seal is in place.
   • After connecting the hose, turn on your water mains and check for leaks.

3. Connect the dishwasher to the mains socket.

You may use a Y-adaptor (not included) for an additional water feed for another appliance, for example a washing machine. This is only applicable for cold water mains. A Y-adaptor is available from most DIY stores.

- Do not bend your drain hose.

Crossed construction diagram showing gear and turbine components (no text or labels)

INSTALLATION

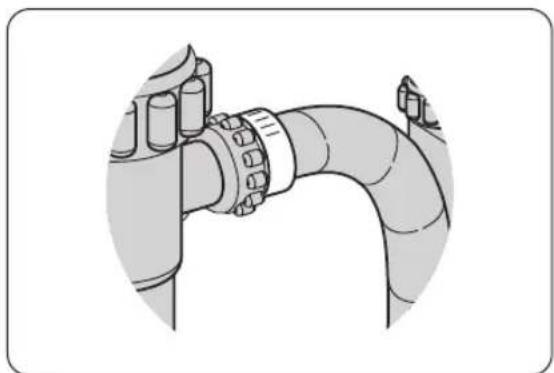

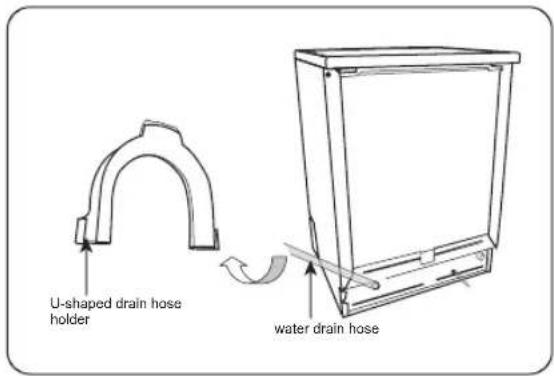

- You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it.

- Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.

Illustration of a pipe joint with bolts and fittings (no text or symbols)

Technical illustration of a kitchen appliance with a pipe fitting and housing (no text or symbols)

• The waste pipe must only be connected to the foul drains and not the surface water drainage system.
• The water drain hose should be placed between 40 cm and 100 cm from the floor level and must not be extended, otherwise the unit may not be able to expel the waste water properly.
• Please close the hydrant after use.

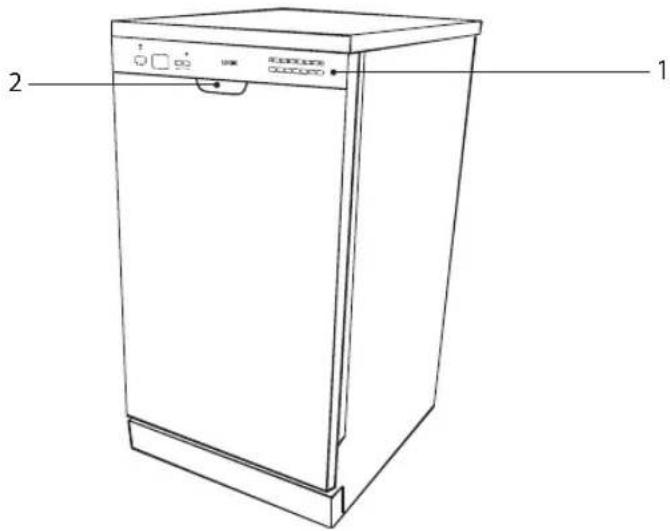

Front View

1. Control Panel
2. Door Handle

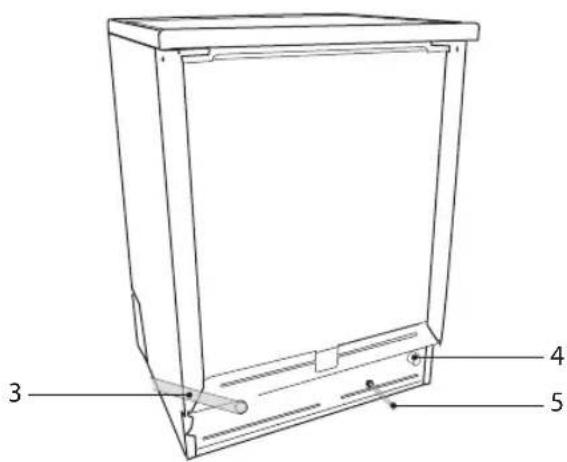

Rear View

1. Drain Hose
2. Water Inlet (Connect To Supply Hose)
3. Mains Cable (Connect To Electrical Mains Outlet)

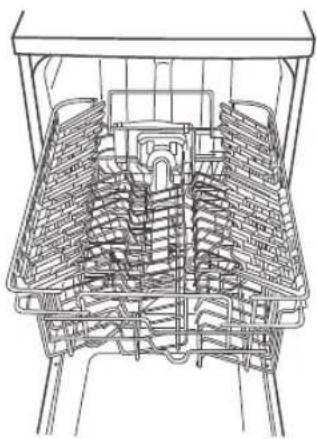

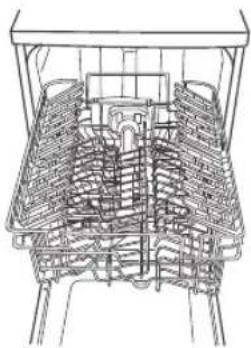

Upper Basket

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

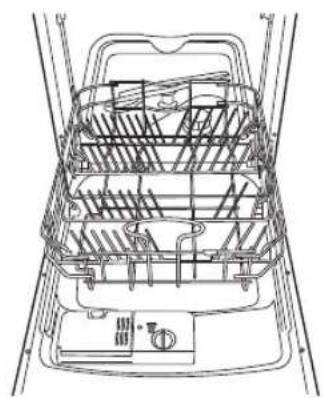

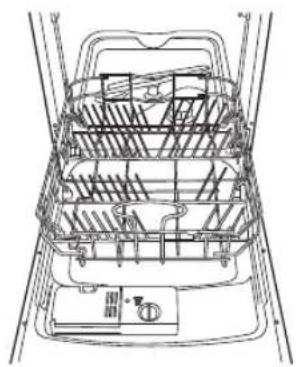

Lower Basket

Technical line drawing of a vehicle rear view showing internal compartments and structural elements (no text or symbols)

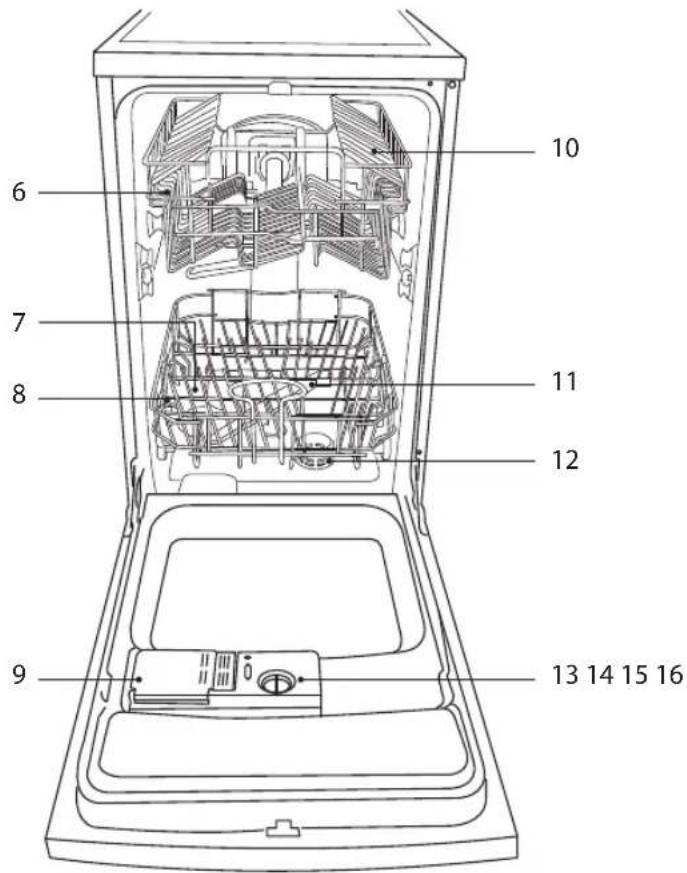

Internal View

1. Upper Basket

2. Salt Reservoir

3. Lower Basket

4. Detergent Dispenser

5. Cup Rack

6. Spray Arm

7. Filter

8. Rinse Aid Reservoir

Technical line drawing of a mechanical assembly inside a vehicle frame (no text or symbols)

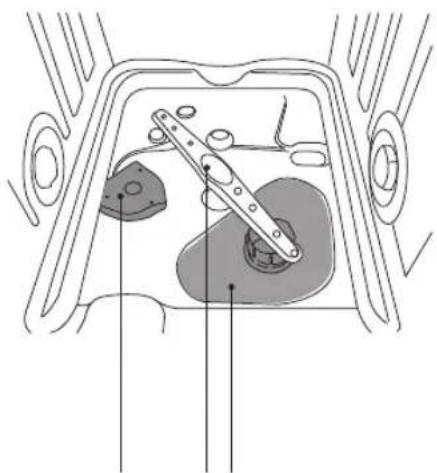

1. Salt Reservoir

2. Spray Arm

3. Filtering System

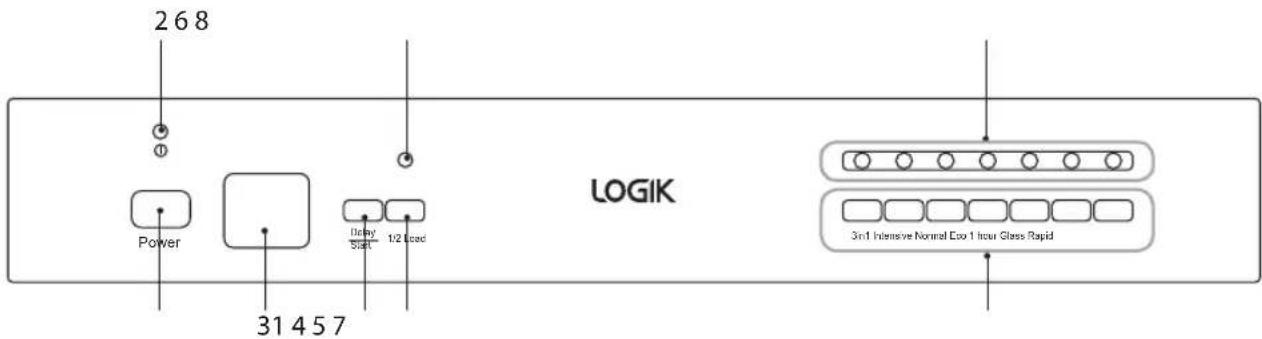

Control Panel

1. ON / OFF Button

• To turn the dishwasher on and off.

2. Power On Light

- Illuminates when On/Off button is pressed.

3. Display Window (Control Panel)

- Programme remaining time, delay time and fault codes etc.

4. Delay Start Button

- Press to preset the wash timer and delay the starting time by up to 24 hours.

• Each press of this button increases the delay start time by 1 hour intervals.

5. Half Load Washing Button

- Press this button to select the half load washing cycle.

6. Half Load Indicator Light

- Illuminates when the half load washing cycle is selected.

7. Programme Button

- Press to select your required washing programme.

8. Programme Indicator Light

- Illuminates when the programme is selected.

Programme	Cycle Selection Information	Process	Detergent Amount (Pre-wash/ Main wash)	Running Time (min.)	Energy Consumption (Kwh)	Water Consumption (l)	Rinse Aid
3 In 1 • Pots, utensils and cutlery. • Normally soiled loads. • Use multifunctional detergent.		• Pre-wash (50°C) • Wash (55°C) • Rinse • Rinse (65°C) • Drying	• 3 in 1 150 1.08	13.5			×
Intensive • Pots, pans, casserole dishes. Dishes that have been sitting with dried food on them for a while. • Heavily soiled crockery and normally soiled pots, pans, dishes, etc.		• Pre-wash (50°C) • Wash (65°C) • Rinse • Rinse (55°C) • Drying	• Pre-wash (4g) • Main wash (23g)	120 1.13	16		√
Normal • Pots, plates, glasses and lightly soiled pans. • Normally soiled.		• Pre-wash (50°C) • Wash (55°C) • Rinse • Rinse (65°C) • Drying	• Pre-wash (4g) • Main wash (23g)	155 1.09	13		√
Eco* (EN50242)	• Plates, glasses, bowls. • Lightly soiled.	• Pre-wash • Wash (50°C) • Rinse (60°C) • Drying	• Pre-wash (4g) • Main wash (23g)	160 0.77	10.5		√
1 hour • For dishes that need to be rinsed and do not need excellent drying efficiency. • Lightly soiled.		• Wash (60°C) • Rinse • Rinse (50°C) • Drying	• Main wash (27g)	60 0.77	10		√
Glass • Glasses, crystal and fine china. • A shorter wash for lightly soiled loads.		• Pre-wash • Wash (40°C) • Rinse • Rinse (60°C) • Drying	• Main wash (15g)	95 0.71	13		×
Rapid	• A shorter wash for lightly soiled loads that do not need drying.	• Wash (40°C) • Rinse • Rinse (40°C)	• Main wash (15g)	30 0.50	9		×

* To comply with Standards of Performance, i.e. EN50242, please ensure to use economy washing cycle for the test.

Condensing dry technology

• Energy is saved by drying the dishes using the remaining heat after the last rinse cycle.
- Wash cycle times are extended due to this drying method.
- Some wash programmes do not have a drying function, please refer to the Wash Cycle Table for more details.

To Open the Door

• Pull the door handle.
• If the door is opened during operation all functions are automatically interrupted.

To Close the Door

• After loading the dishes, push the baskets fully into the dishwasher.
- Lift the door upwards and push until it clicks into position.
- Do not slam the dishwasher door.

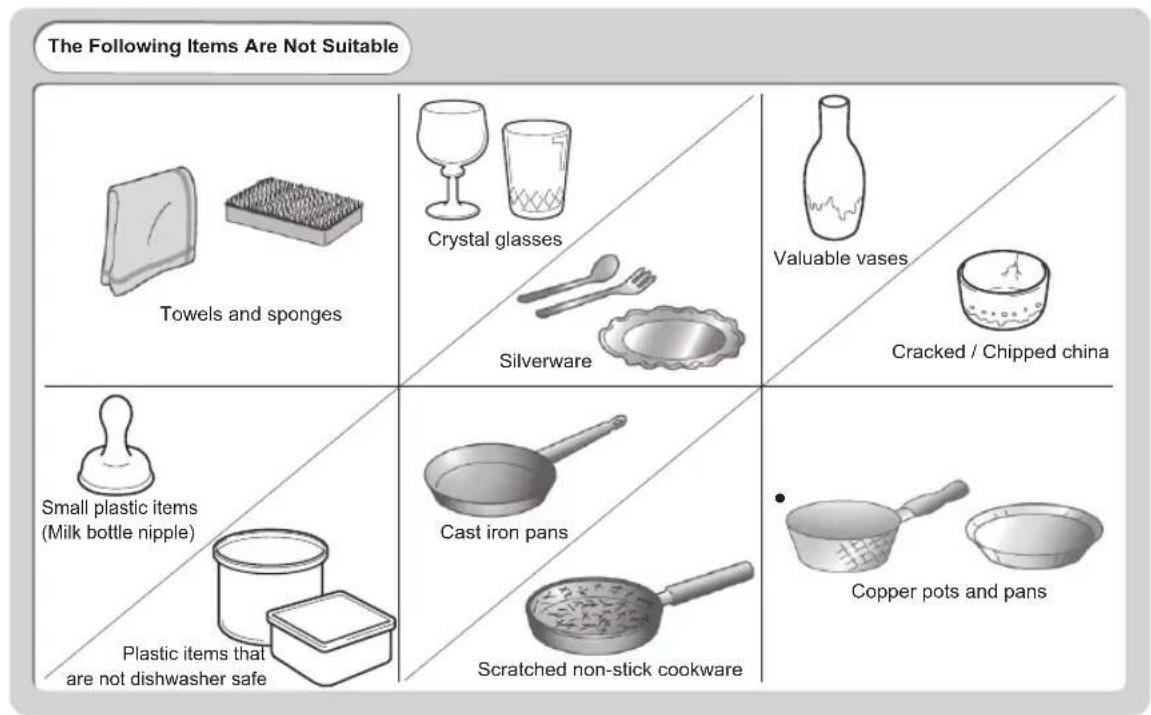

Items Not Suitable for Use in the Dishwasher

When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are not suitable for dishwashers.

• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.
  • Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or loose shape due to the high temperature in the dishwasher.
  • Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher. Wash delicate glassware by hand instead.
  • Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues from silver immediately after use.
  * All images are for reference only; please refer to your individual unit for actual item.

Adding Detergent or Detergent Tablet

Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent.

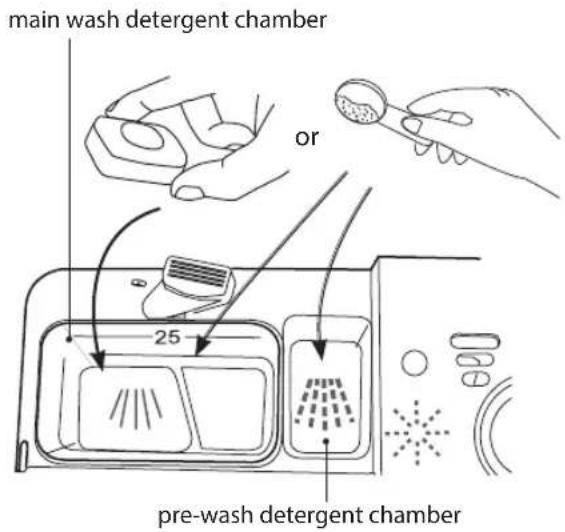

Please follow the steps below to fill the detergent dispenser.

• Keep out of the reach of children
• Irritating to eyes.

• Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
  • If swallowed, seek medical advice immediately.

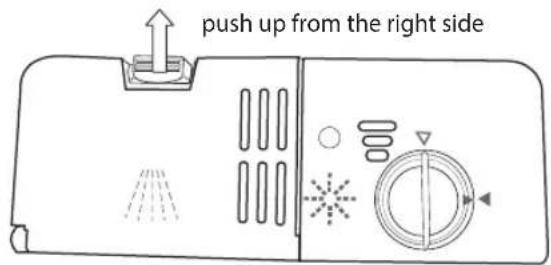

• Push the button on the lid of the detergent dispenser in the direction of the arrow until the flap springs open.

• Fill the detergent dispenser with detergent powder or insert the detergent tablet. The marking indicates the filling level.

• Close the lid firmly so that it clicks into place.

You can choose to add a detergent tablet alone or to add detergent powder to both the main wash detergent chamber and the pre-wash detergent chamber for your selected wash cycle. All programmes with pre-wash need an additional detergent dosage that must be placed in the pre-wash detergent chamber (please refer to the wash cycle table). This detergent will take effect during the pre-wash phase.

* All images are for reference only; please refer to your individual unit for actual item.

Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only.

Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically.

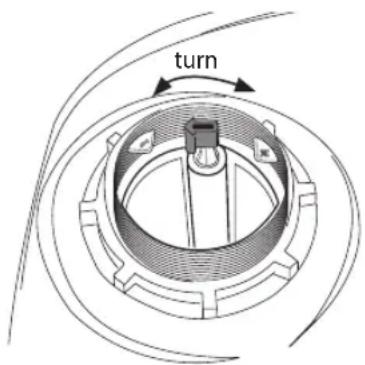

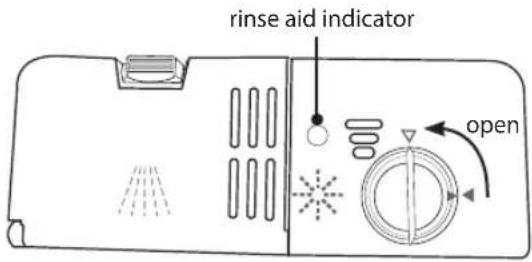

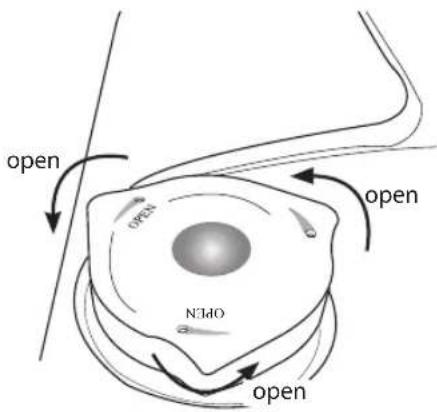

1. Turn the cap and open as indicated.

1. When the cap open marking is aligned, you may lift the cap up.

1. Pour the rinse aid in until the level indicator turns completely black in colour and close the cap.

Line drawing of a kitchen appliance with ventilation slots and control knob (no text or symbols)

1. Be careful not to overfill the reservoir. Wipe up any spills. The approximate volume of the rinse aid reservoir is 110ml.

If the water hardness in your area is soft, you may not need rinse aid as it may cause white film to develop on your dishes.

Rinse aid warning light will illuminate when the reservoir is running out of rinse aid and requires refilling.

Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator right next to the reservoir's cap. When the indicator is black, it means it is full. When it is clear, it means it is almost empty.

Adjusting the Rinse Aid Reservoir

The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is "4." If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

* All images are for reference only; please refer to your individual unit for actual item.

Adding Salt

If the water in your area is hard, deposits will form on your dishes and utensils. This appliance contains a salt reservoir for you to reduce the hardness of the water.

Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area.

1. Remove the lower basket and unscrew the reservoir cap.

1. Fill the reservoir with approximately 500ml of water (first use only).
2. Place the funnel provided over the salt reservoir.

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

1. Pour in approximately 1.2kg of dishwasher salt depending on the brand used.
2. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
3. Run the "rapid" wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt from the compartment.

The salt warning light will illuminate when the reservoir is running out of salt and requires re-filling.

The salt warning light will cease to illuminate within a few days depending on how quickly the salt dissolves.

* All images are for reference only; please refer to your individual unit for actual item.

Adjusting Salt Consumption

Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don't know how hard the water in your home is, please ask the company that supplies water in your area. It is recommended that adjustments should be made in accordance with the following chart.

Water Hardness				Selector Position	Salt Consumption (gram/cycle)	Number of cycle / 1.2 kgs
°dh °fh	Clark mmol/l
0-8 0-14	0-10 0-1.4	/0/
8-22 14-39	10-28 1.4	-3.9 - 20 60
22-45 39-80	28-56 3.9	-8 Mid		40 30
>45	>80	>56	>8	+	60	20

1 °dh (German degree) = 0.178mmol/l
1 °fh (French degree) = 0.1 mmol/l
1 °Clark (British degree) = 0.142mmol/l

• Do not use everyday table salt or cooking salt as they contain insoluble substances which could damage the dishwasher.
• Do not pour detergent into the salt container. This will damage the dishwasher.

To optimise and customise the level of salt consumption, please follow the steps below to adjust the salt consumption.

1. Remove the lower basket and unscrew the reservoir cap.

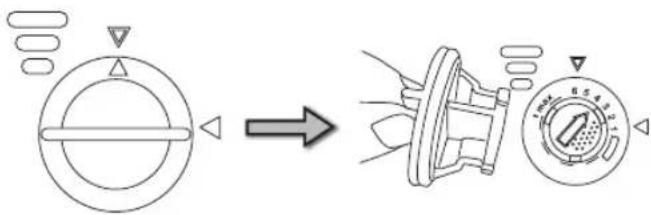

2. There is an arrow-shaped indicator in the reservoir, which you can turn. You may turn it to the "-" or "+" settings based on the water hardness in your area.

* All images are for reference only; please refer to your individual unit for actual item.

Before Loading the Dishwasher

Please observe the following notes before loading your cutlery and crockery into the basket.

- Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary.

Illustration showing various cooking and cooking steps: cup, pot, bowl, spoon, and dish (no text or symbols)

- Dishes and cutlery must not lay inside one another, or cover each other.

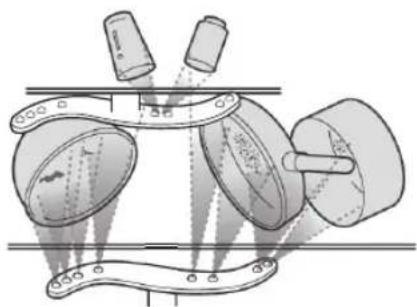

- Load your cutlery and crockery so that water can access all surfaces.

Diagram of a mechanical assembly with rollers and shafts, no visible text or symbols

- Ensure all items are securely positioned.

- Hollow items such as cups, glasses, pans, etc. must be placed upside down in the basket.

- Wide based items should be placed at an angle so that water can run off them freely.

- The spray arms must not be blocked by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.

- Ensure that small items cannot fall through the holders in the baskets.

Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and can distribute in the dishwasher. Wax, sand, lubricating grease and paint can cause damage to the dishwasher.

* All images are for reference only; please refer to your individual unit for actual item.

Upper Basket

Please use the upper basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket.

Line drawings of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Adjusting the Upper Basket

More space can be created for large items on the upper or lower baskets by adjusting the height of the upper basket.

Ensure that the rail stop is placed back properly after the height adjustment.

Loading the Upper Basket for 9 Place Settings

For optimum loading of the upper basket, please refer to the table below.

Number Item
1 Cups
2 Saucers
3 Glasses
4 Large serving bowl
5 Medium serving bowl
9 Dessert dishes

Hinged Cup Rack

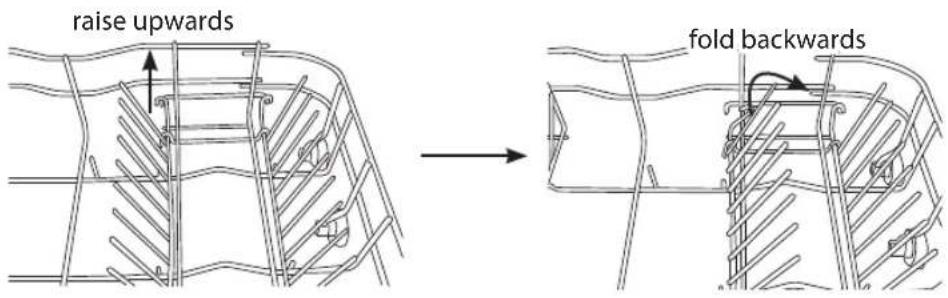

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

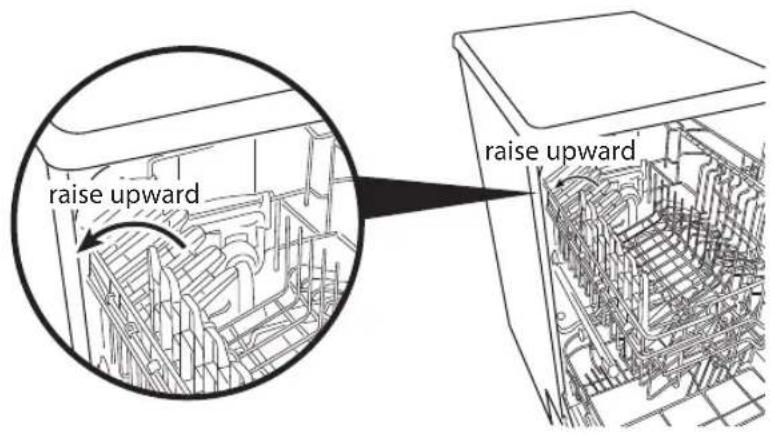

To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Lower Basket

We recommend that large and the most difficult to clean items are placed in the lower basket, such as plates, serving platters, saucepans, serving bowls, pots, pans, lids etc. We recommend placing serving dishes and lids at the side of the basket to avoid blocking the rotation of the spray arms.

Technical line drawing of a multi-level mechanical or electrical component with no visible text or symbols

Hinged Spikes

The spikes are used for holding plates and a platter. They can be lowered to make more room for large items. Please refer below for the steps to lower the spikes.

* All images are for reference only; please refer to your individual unit for actual item.

Loading the Lower Basket

For the optimum loading of the lower basket, please refer to the table below.

Number Item

6 Oval platter

7 Dinner plates

8 Soup plates

9 Dessert dishes

10 Cutlery basket

Cutlery Basket

Loading the Cutlery Basket

To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. Please refer to the table below for placement method.

Number Item
1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Serving forks

• Do not let any items extend through the bottom of baskets.
• To avoid the risk of injury, please load your knives and forks with handles upwards. Do not hold them by their sharp edges.

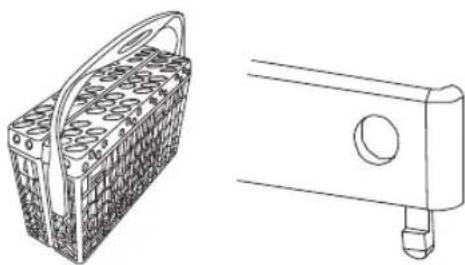

• The cutlery basket comes with covers, and they are designed for you to load the cutlery into the appropriate slots. If you use the basket without the cover, it may reduce the washing results of your cutlery.
• Please ensure the cover is securely locked to the basket before operation.
• To comply with Standards of Performance, i.e. EN50242, all cutlery must be loaded according to the instructions in this manual.

Circular icon with a cross symbol crossed over a grid of black lines, no text or symbols present.

Line drawings of a woven basket and a mechanical device (no text or symbols)

Starting a Wash Cycle

Please follow the steps below to start a wash cycle.

1. Ensure the unit is connected to the mains power and the water supply is on (water pressure between 0.04MPa and 1.00MPa).
2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket.
3. Pour in the detergent or place the detergent tablet in the detergent compartment and close firmly afterwards.
4. Close the dishwasher door. A click should be heard when the door is closed correctly. Do not slam the door.
5. Press the ON/OFF button, and the ON/OFF indicator light will illuminate.
6. Select the wash cycle programme based on the loading and soil requirements. Please refer to the "Wash Cycle Table" (page 13).
7. The indicator light of the selected programme will illuminate.
8. The washing cycle will begin shortly.

If you open the dishwasher door during the washing cycle and then close it, the dishwasher will continue the current washing programme after 10 seconds. However, if the door is not closed correctly after 1 minute, the dishwasher will make an audible sound at 1 minute intervals.

Changing a Programme

To change the programme if the washing cycle has already started, follow the steps below.

1. Open the door slightly to check if the unit has dispensed the detergent or detergent tablet. This will depend on how long the washing cycle was running for.
2. If the detergent dispenser lid is opened, we suggest that you allow the wash cycle to finish.
3. If the detergent dispenser lid is still closed, shut the door and press and hold down the programme button for 3 or more seconds to cancel the programme. You can then press the required new programme button. The unit will start the new the washing cycle shortly.
   OR

Press the required new programme button for more than 3 seconds to change the running programme. The unit will start the new washing cycle shortly.

1. The display window shows the state of the dishwasher.

a. “--:--” means the unit is on stand by mode.
b. "H:MM" and not flashing means the unit is on pause.
c. "H:MM" and flashing means the unit is running.

At the End of a Programme

At the end of a programme, the dishwasher will beep.

The condensation strip helps to prevent the risk of steam damage to the worktop edging above the dishwasher, it is advisable to leave the door closed until you are ready to unload the crockery. However, you can also open the dishwasher door fully and wait until the dishes and crockery are cool enough to unload. Do not leave the door only partially open.

Switching Off the Unit

To save energy, remember to switch the dishwasher off using the ON/OFF button. The dishwasher will continue to use electricity until it is switched off with the ON/OFF button.

If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply.

Unloading the Dishwasher

Allowing dishes to cool down before unloading is important as dishes tend to break and chip more easily when they are hot. Therefore, if you open the dishwasher door fully after switching off, it will allow the dishes to cool down much faster.

We suggest:

Unload the lower basket first, followed by the cutlery basket and then the upper basket.

This will prevent water drops from the upper basket from falling onto the dishes in the lower basket.

Delay Start

The starting time of a washing programme can be delayed and adjusted. Please follow the steps below.

1. Open the dishwasher door and load your soiled dishes and crockery.
2. Press the ON/OFF button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the Delay / Start button.
5. Set the required delay start time using the Delay / Start button.
6. Close the door and the unit will start the programme at the assigned time automatically.

Each press of this button increases the delay start time by 1 hour increments.

Half Load

In case you do not have enough dishes for a full load, the half load option can be selected for washing. This will save hot water and electricity usage. Please follow the steps below.

1. Open the dishwasher door and load your soiled dishes and crockery.
2. Close the dishwasher door and then press the ON/OFF button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the 1/2 button.
5. The unit will start the programme shortly.

* All images are for reference only; please refer to your individual unit for actual item.

External Care

The Door and the Door Seal

1. Clean the door seals regularly with a soft damp cloth to remove food deposits.
2. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The Control Panel

If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering System

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.

Follow the steps below to clean the filters in the wash cabinet.

1. Ensure the dishwasher is switched off.

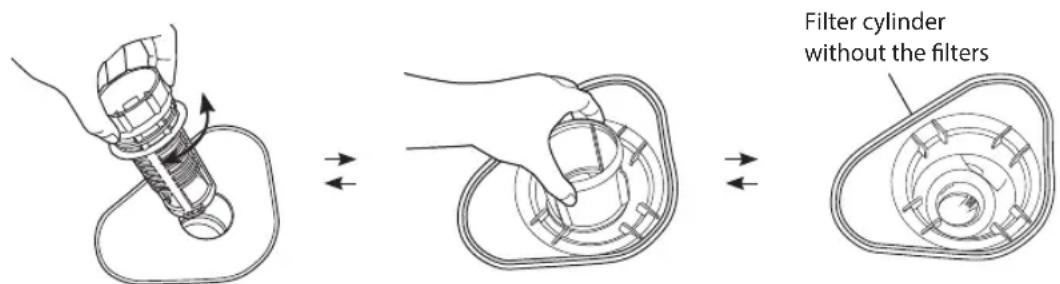

2. Turn the coarse filter anti-clockwise and gently lift it out.
3. Gently lift the fine filter with care.
4. Rinse all the filters under running water, including the filter cylinder, and then refit all filters in the reverse order.
5. Gently refit the main filter back with care.
6. Gently rescrew the coarse filter in clockwise direction. There will be a slight click when located correctly.

• Do not over tighten the filters. Put the filters back in the filter cylinder in sequence securely, otherwise the residue could get into the system and cause a blockage.
• NEVER use the dishwasher without the filters in place. Improper replacement of the filters may reduce the performance level of the appliance and damage dishes and utensils.

Spray Arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly.

- Use a pointed object, eg. a cocktail stick, to loosen food particles in the spray arms' jets.

Technical line drawing of a mechanical lever or support structure with mounting flange (no text or symbols)

Do not attempt to remove the spray arms.

Frost Precaution

Avoid placing the dishwasher in a location where the temperature is below 0^ C. If your appliance is left in an unheated place over the winter, you are advised to:

1. Disconnect the unit from the water inlet.
2. Turn on the unit. Select any washing cycle and let it run for 1 minute only. This will allow all the excessive water that remains in the unit to drain out.
3. Disconnect from the mains.
4. Empty the dishwasher.
5. Close the dishwasher's door.
6. Disconnect the unit from the water drain. Use a suitable receptacle to catch the water.

Should you encounter any difficulties with the above steps, please ask a service technician for assistance.

Moving the Dishwasher

If you have to move the unit, for instance due to moving house, you are advised to:

1. Disconnect the dishwasher from the mains.
2. Disconnect the unit from the water inlet and drain. Use a suitable receptacle to catch the water.
3. Remove the unit from the current location with the hoses discharged.
4. Pull the unit out together with the hoses.

• Avoid over tilting the unit during transportation.
  • We recommend that 2 people handle the dishwasher during installation.

Maintenance After a Prolonged Period of Non-Operation

If you are not going to use the unit for a prolonged period of time, you are advised to:

1. Disconnect the dishwasher from the mains.
2. Disconnect the unit from the water inlet and drain. Use a suitable receptacle to catch the water.
3. Open the door slightly to prevent unpleasant smells building up in the compartment.
4. Ensure the washing compartment of the dishwasher is clean.

Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit.

Fault Code

Codes Possible Causes Remedy
E1	Water tap is not turned on. Turn on the water tap.
	Low water pressure (<0.04MPa) Turn on the water tap and ensure it is in full position.
	Flow meter is broken.	· Disconnect from the mains.· Disconnect the water inlet.· Call a qualified technician.
	The wire terminals which connect the flow meter are loose.
E4	The tank is leaking.
	The hose is leaking.
	The float switch is broken or PCB is faulty.

Technical Problems

Technical Problems
Problem Possible Causes Remedy
The dishwasher does not start.	The door is not properly closed.	Close the door firmly.
	The unit is not connected to the mains.	Connect the plug to the mains.
	The unit is not switched on. Press the “on” button and select a programme.
The drain pump is not working properly.	Fault code E4 - The anti-flooding system has operated.	· Disconnect from the mains.· Disconnect the water inlet.· Call a qualified technician.
General Problems
Problem Possible Causes Remedy
Detergent residue is left in the dispenser at the end of the programme.	The detergent dispenser was still damp when detergent was added.	Make sure the dispenser is dry before adding detergent.
The detergent dispenser lid cannot be closed properly.	Clogged detergent residue is blocking the catch.	Clean the catch.
Knocking noise in the wash cabinet.	A spray arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm. See the section “loading the dishwasher”.
Smearing appears on glassware and cutlery.	The rinse aid dosage is set too high.	Adjust the dial of the rinse aid dispenser to a lower setting.
Dishes, cutlery and glasses are not dry.	The amount of rinse aid may be insufficient, or the rinse aid reservoir is almost empty.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	Crockery was taken out of the dishwasher too soon.	Leave the crockery in the dishwasher until you hear an audible sound.
White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.	Not enough rinse aid was used.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	There is not enough salt in the salt reservoir.	Fill the salt reservoir.
	The salt reservoir cap has not been screwed on correctly.	Ensure that it is screwed back on correctly.
	Unsuitable detergent has been used.	Change your detergent. Use a dishwasher standard powder detergent.
	The salt consumption setting is too low.	Select a higher salt consumption setting.
Glassware is dull and discoloured; film cannot be wiped off.	The glassware is not dishwasher proof. The surfaces are affected.	Wash the non-dishwasher proof glassware by hand.
Tea or lipstick stains have not been completely removed.	The wash temperature of the selected programme was too low.	Select a programme with a higher wash temperature.
	The bleaching effect of the detergent used is too low.	Change your detergent.
	Forgot to pre-rinse or remove the stains with a napkin prior to washing.	Pre-rinse or remove the stains with a napkin prior to washing.

Disposal of the Dishwasher

• When disposing your old dishwasher, first make it unusable. Disconnect the hoses and unplug the mains cable. Cut off the mains cable from the dishwasher. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher.
• At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately the product is marked with a crossed out wheeled dustbin.
• Please ensure that it presents no danger to children while being stored for disposal.

Disposal of Packing Material

Please dispose of the plastic wrappings and bags safely and keep out of the reach of babies and young children.

Model LDW45S12
Dimensions 450 mm (W) x 580 mm (D) x 850 mm (H)
Capacity 9 Place Settings
Water Pressure Required 0.04 - 1.00MPa
Power Consumption 1930W
Rated Voltage 230V~50Hz
Off Mode Power Consumption 0W
Left-on Mode Power Consumption 0.75W
Energy Efficiency Class 1	A+
Annual Energy Consumption 2	222 kWh
Energy Consumption of the Standard Cleaning Cycle 0.77 kWh
Annual Water Consumption 2	2940 litres
Drying Efficiency Class 3	A
Standard Cleaning Cycle 4	ECO 50°C
Program Duration of the Standard Cleaning Cycle 160 min
Noise Level 49 dB(A) re 1 pW
Mounting Free-standing
Could be built-in Yes

Features and specifications are subject to change without prior notice.

Note:

1 A + + + (highest efficiency) to D (lowest efficiency)
2 Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 A (most efficient) to G (least efficient)
4 This is the program used for the Energy label information and is suitable for cleaning soiled normally soiled tableware. It is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

• The device meets the European standards and the directives in the current version at delivery:
- LVD 2006/95/EC
- EMC2004/108/EC
- ERP 2009/125/EC

- The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.detergent, etc.amount of detergent, etc.

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the dishwasher and keep them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of obstructions.
• Choose a location for your dishwasher away from heat sources such as radiators or fires.
• Young children should be supervised to ensure that they do not play with the dishwasher.

- Keep mains cable out of reach from children.

- This dishwasher is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the dishwasher by a person responsible for their safety.

- Keep children away from detergents and rinse aids. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.

- Keep children away from the dishwasher when the door is open.

- Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.

- Keep your fingers away from moving parts and fitted attachments.

- Never use a damaged machine.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Keep the power unit, mains cable or plug away from water.

- Never exceed the maximum capacities.

• 2 people are required to lift this dishwasher.

- Only use the dishwasher for its intended domestic use.

- This appliance is intended to be used in households and similar places such as:

- Staff kitchen areas in shops, offices and other work places.

- By clients in motels, hotels and Bed & Breakfast establishments.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges. Hold the dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully when there is a programme running as there is a risk of hot water spraying out of the appliance.
• Do not place any heavy objects on the open door. The appliance could tip.

- When loading items to be washed:

1. Locate sharp items so that they will not damage the door seal;
2. Warning: Knives and other utensils with sharp points must be loaded in the basket with the points downwards or placed horizontally.

- Do not allow plastic items to come into contact with heating element.

- Check that the detergent receptacle is empty after completion of the wash cycle.

- Do not wash plastic items unless they are marked dishwasher safe or equivalent.

- Use only detergent and rinse aids designed for an automatic dishwasher.

- Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.

• The door should not be left in the open position since this could present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
  • During installation, the power supply cord must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets.
• The maximum number of place settings to be washed is 9.
• The maximum permissible inlet water pressure is 1Mpa, and the minimum permissible inlet water pressure is 0.04Mpa.

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.

• Improper connection of the equipment-earthing conductor could result in a risk of electric shock.
• The wires in the cord are coloured as follows:
• Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed or the plug does not fit correctly.
• Never modify the plug provided with the appliance.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Cutlery Basket 673002200080
Water Supply Hose 673000900060
Detergent Measuring Spoon 673002200079
Measuring Cup 673006200004
Salt Funnel 673002200043
U-shape Hose Holder 673006200003

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Gradient gray background with no text, symbols, or identifiable objects

Gradient gray background with no text, symbols, or identifiable objects
