BT332 - Speaker Stand B-Tech - Free user manual and instructions

Type	Speaker Stand
Brand	B-Tech
Model	BT332
Height Range	600 to 900 mm (adjustable)
Base Plate Dimensions	300 x 230 mm
Top Plate Dimensions	150 x 150 mm
Weight Capacity	Up to 15 kg per stand
Material	Steel with black powder coating
Weight (per stand)	4.5 kg
Package Contents	2 stands, screws, Allen key, foam pads
Adjustment Method	Lifting column with locking knobs
Cable Management	Internal cable routing
Usage	Bookshelf speakers, surround sound speakers
Maintenance	Wipe with damp cloth; avoid harsh chemicals
Safety	Ensure screws are tight; do not exceed weight limit
Spare Parts Availability	Contact B-Tech customer service for replacement parts
Repair	Repair only by qualified personnel
General Information	Designed for stable speaker positioning

Frequently Asked Questions - BT332 B-Tech

What is the weight capacity of the B-Tech BT332 speaker stand?

Each B-Tech BT332 speaker stand can support up to 15 kg.

Can I use the BT332 for floor-standing speakers?

The BT332 is designed for bookshelf speakers and small to medium satellites. For larger floor-standing speakers, consider a sturdier stand.

How do I adjust the height of the stand?

Loosen the locking knobs on the column, set the desired height between 600 and 900 mm, then retighten the knobs.

Does the stand come with assembly tools?

Yes, a hex key (Allen wrench) and all necessary screws are included.

How can I hide speaker cables?

The stand features internal cable routing. Feed the cable through the column for a clean look.

What is the size of the top plate?

The top plate measures 150 x 150 mm, suitable for most bookshelf speakers.

Are the stands sold in pairs?

Yes, the package includes two identical stands for a stereo setup.

How do I clean the stands?

Wipe with a damp cloth and mild detergent; avoid abrasive cleaners.

Can I replace parts if something breaks?

Yes, contact B-Tech support for spare screws, knobs, or rubber feet.

Is the BT332 stand stable on carpet?

The base is wide and includes non-slip pads. For deeper carpet, you may need to adjust the spikes (if provided) or purchase additional floor protectors.

USER MANUAL BT332 B-Tech

HOME CINEMA SPEAKER WALL MOUNT

INSTALLATION GUIDE & PARTS LIST

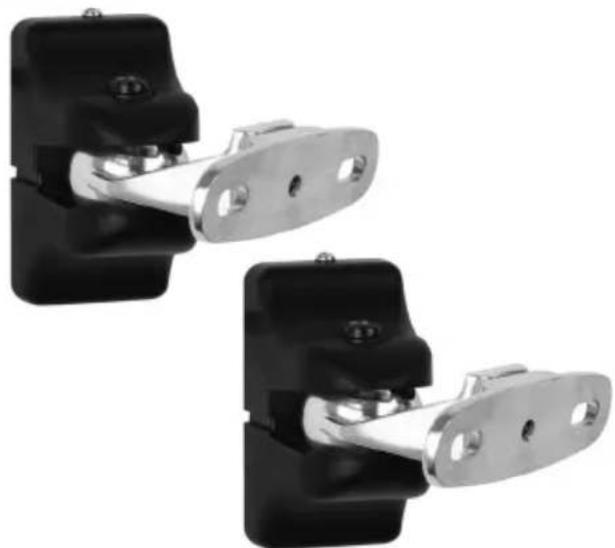

This Pack Contains 2 Speaker Mounts

PLEASE KEEP THIS FOR FUTURE REFERENCE

mountlogic® range

Two identical black metal bracket components with metallic plates and mounting holes, shown against a white background (no text or symbols visible)

REG DESIGN NO: 3007645
PATENT NO: 1546599
US PATENT NO: 7523906

FEATURES

• Designed for small home cinema speakers weighing up to 5kg (11lbs)
• Mounts speaker only 72mm (2.8") from wall
• Suitable for single point, dual point and keyhole fixings
• Distance between dual point fixings: 51 - 67mm (2" - 2.6")
• Suitable for speakers using M5, M6, UNC 1/4" & Wood Screws
• Simple installation with all mounting hardware included

CONTENTS

Installation Safety Instructions....2
Parts List....4
Installation Instructions....6
Product Dimensions....11
B-Tech Contact Details....12

INSTALLATION TOOLS REQUIRED

Crosshead / Flathead screwdriver

Drill

6mm (1/4") masonry bit or 3mm (1/8") wood bit

Pencil

Level (optional)

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights indicated. Use with speakers heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Technical line drawing of two mechanical bracket components (no text or symbols)

2 speaker mounts included

Mechanical assembly diagram showing a valve mechanism with arrows indicating direction (no text or labels)

Suitable for loads up to

5Kg (11lbs)

per speaker mount

WALL FIXING KIT
(FOR FIXING MOUNT TO WALL)

SPEAKER INTERFACE KIT

(FOR ATTACHING MOUNT TO BACK OF SPEAKER)


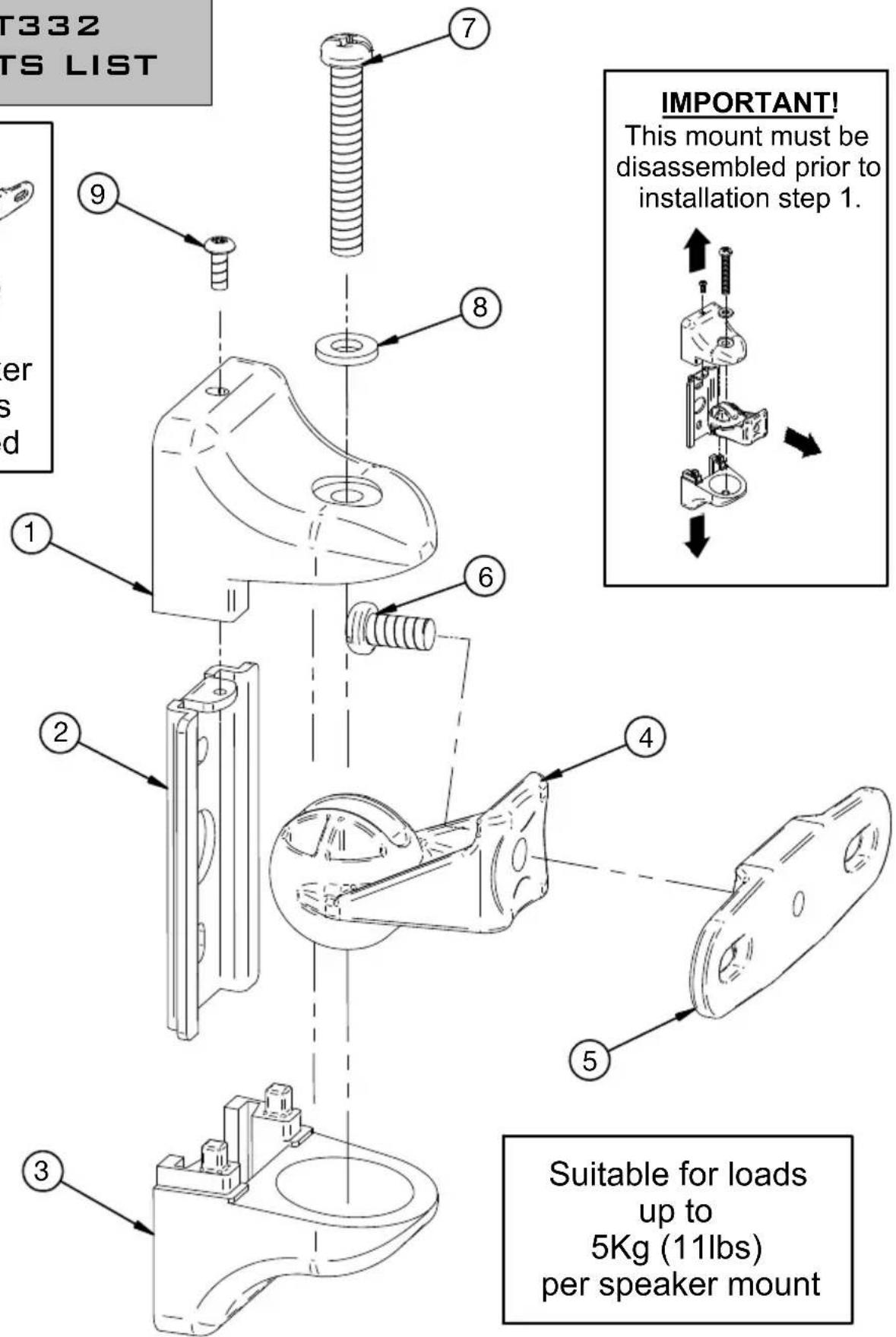

REF	PART NAME QTY
1	TOP BALL CLAMP 2
2	WALL PLATE 2
3	BOTTOM BALL CLAMP 2
4	BALL INTERFACE 2
5	ADAPTOR INTERFACE 2
6 M6	x 12mm SCREW (FOR PART 5) 2
7 M6	x 40mm SCREW 2
8 M6	METAL WASHER (FOR PART 7) 2
9 M3	x 8mm SCREW 2

INTERFACE KIT

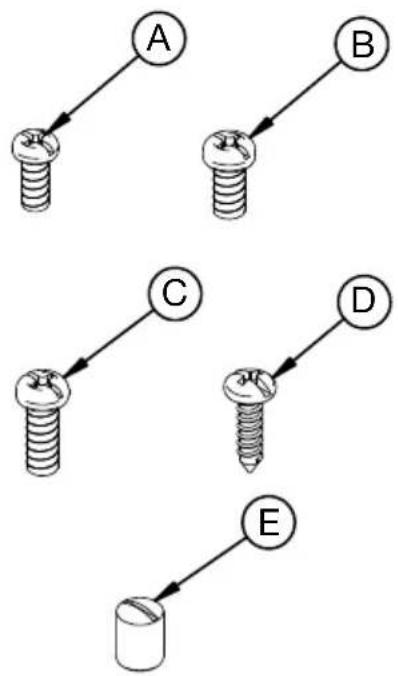

A	M5 x 12mm SCREW 4
B	M6 x 12mm SCREW 4
C	UNC 1/4" x 5/8" SCREW	4
D	M4.2 x 19mm WOOD SCREW (No.8 X 3/4")	4
E	KEYHOLE INSERT	2

FIXING KIT

A1	M4.8 x 32mm WOOD SCREW	4
A2	No 6 WALL PLUG(FOR PART A1)	4

INSTALLATION INSTRUCTIONS

1

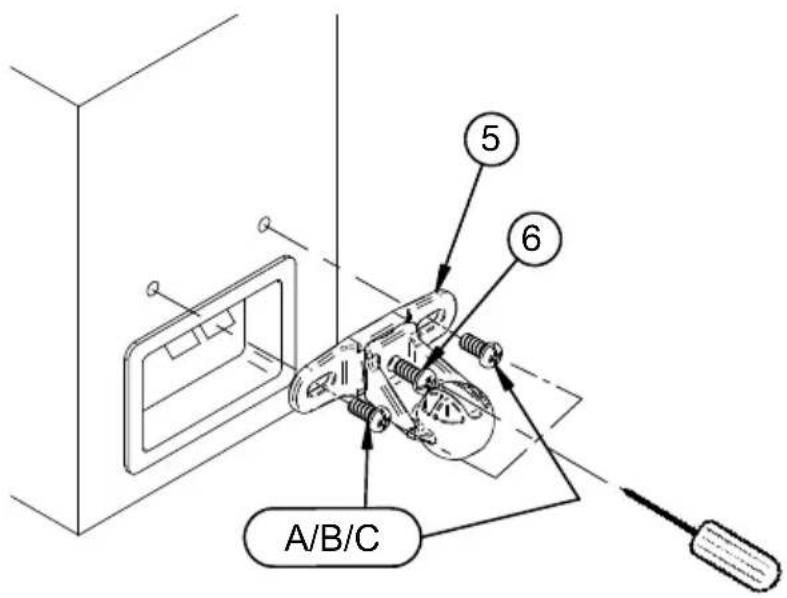

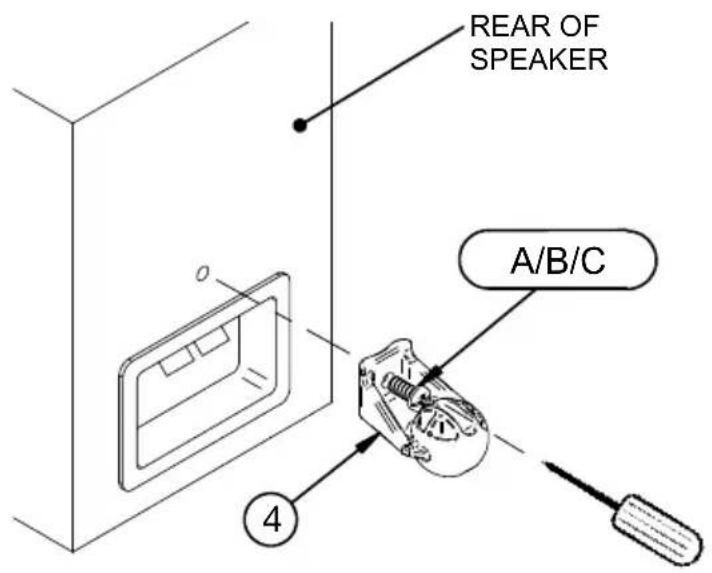

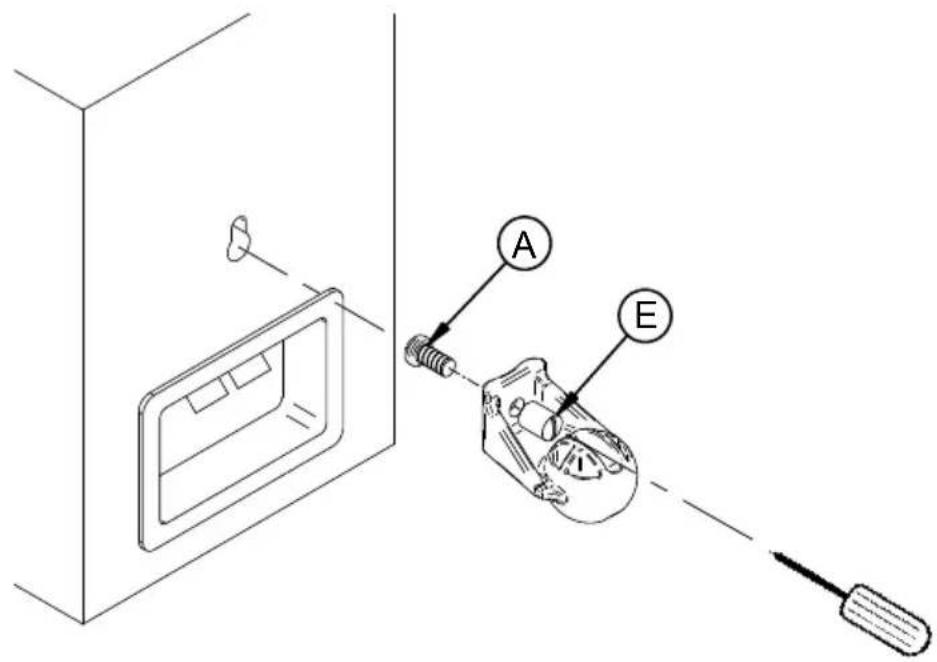

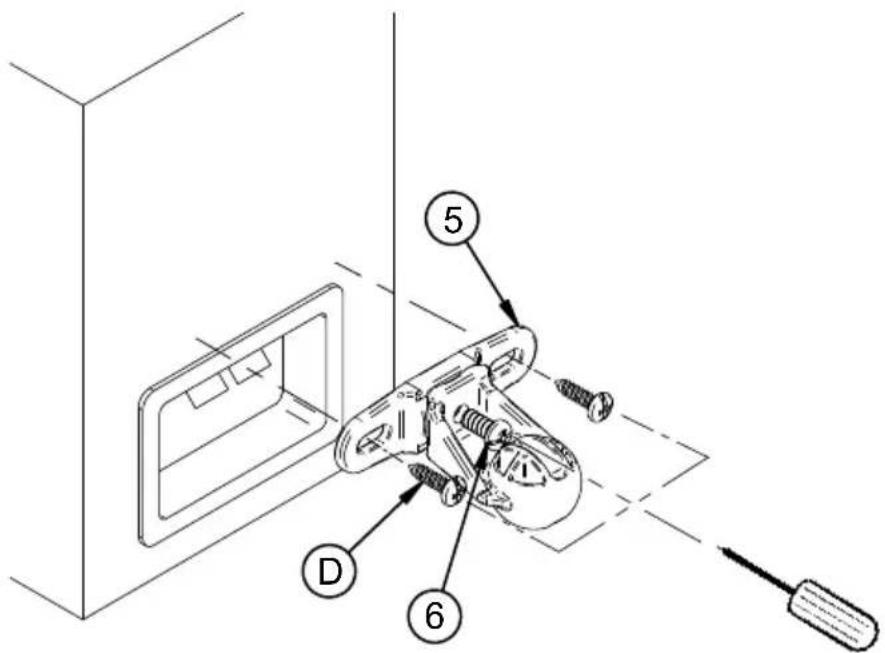

Choose one of the four fixing methods shown that suits your speaker fixings. Attach part 4 to the speaker using screws A, B, C or D, or for keyhole fixings use screw A and part E.

i. Single threaded insert.

ii. Dual threaded insert.

iii. Keyhole insert.

iv. No insert.

z

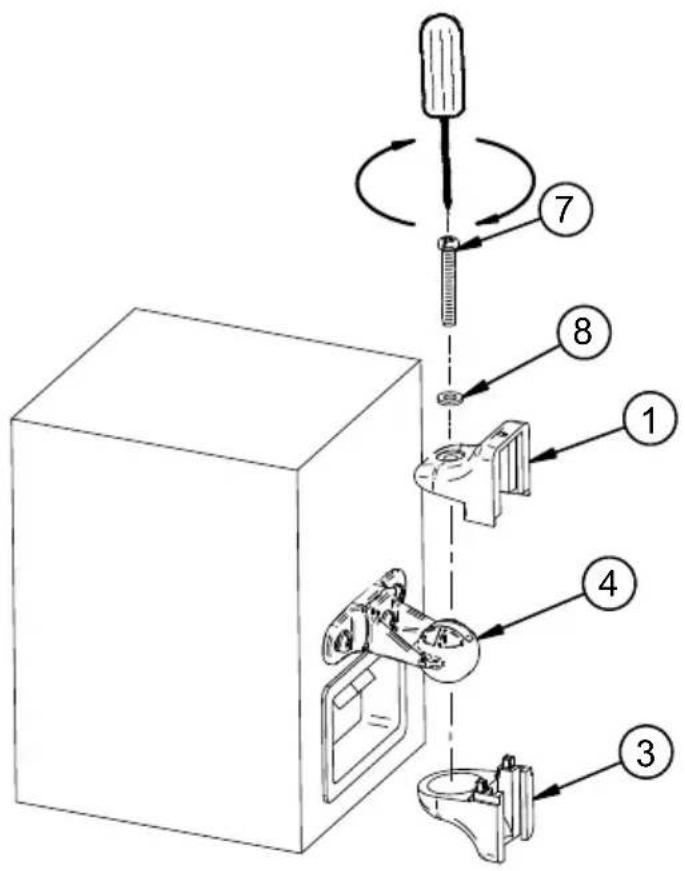

Attach parts 1 & 3 to part 4 using parts 7 & 8.

8

3

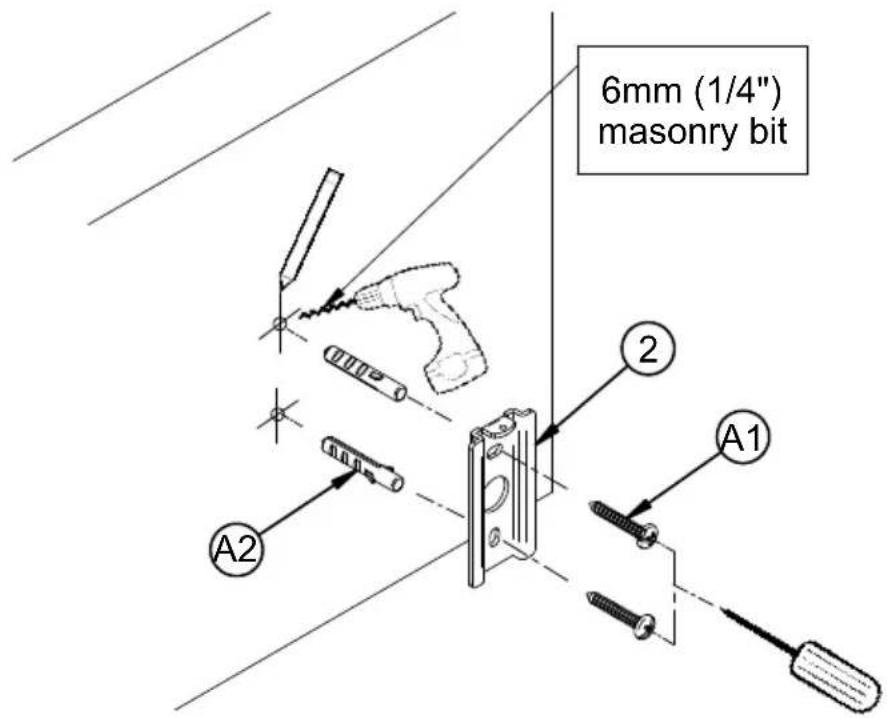

Fix part 2 to the wall using one of the two methods shown.

i. Brick / concrete walls.

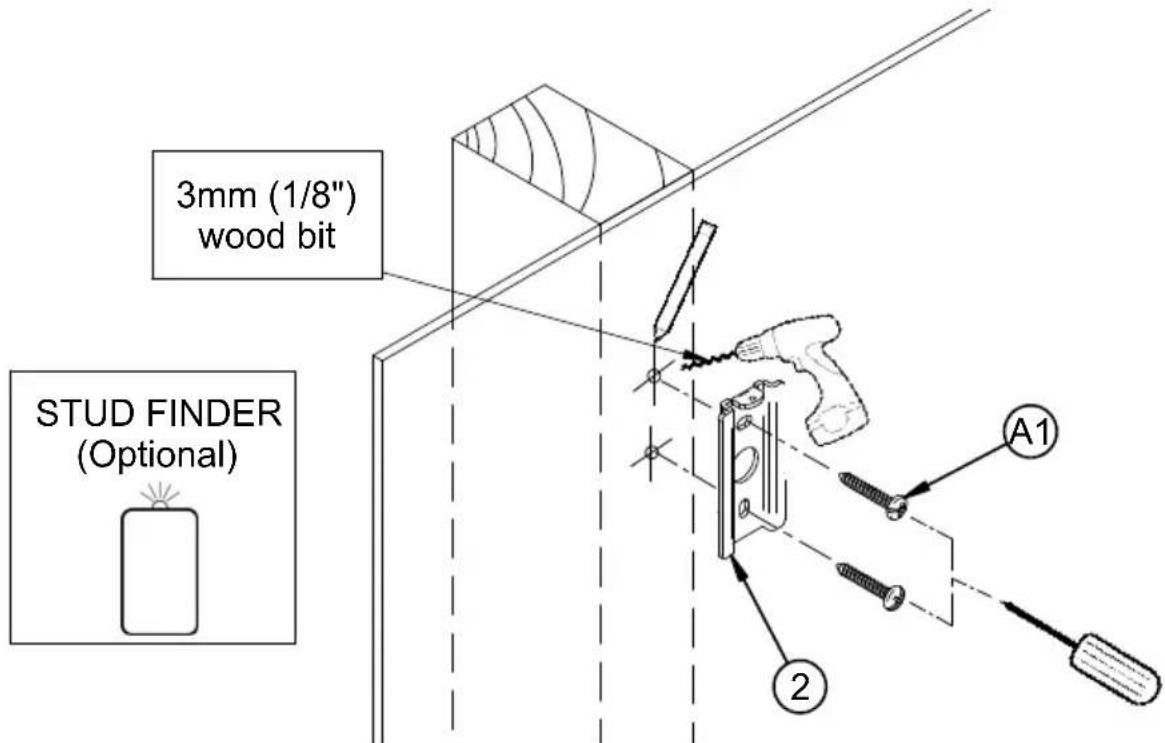

ii. Wood / wood stud walls.

4

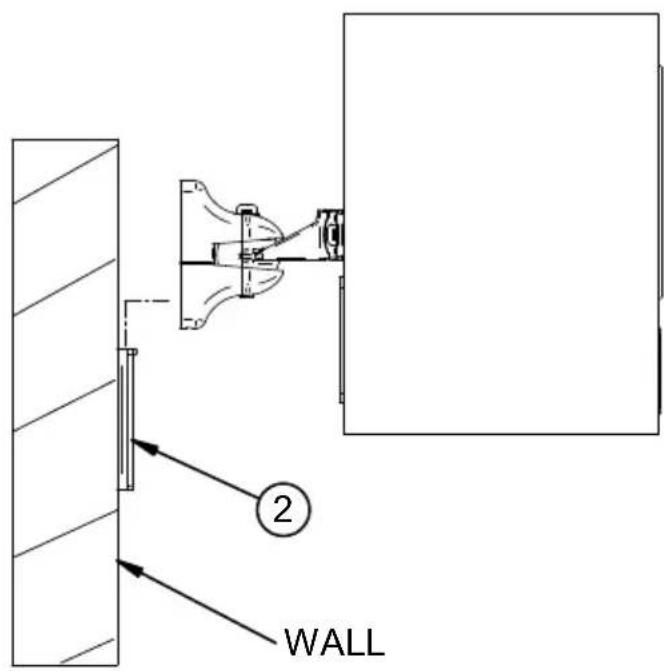

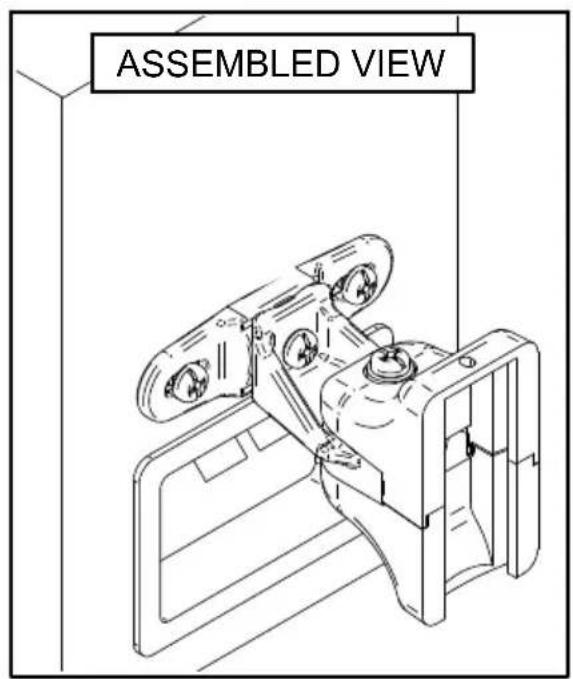

Hook the mount onto part 2.

5

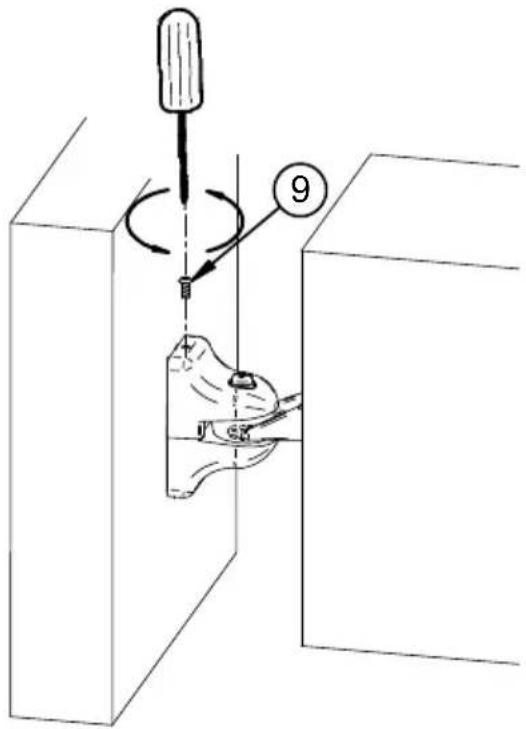

Secure the mount to part 2 using part 9.

6

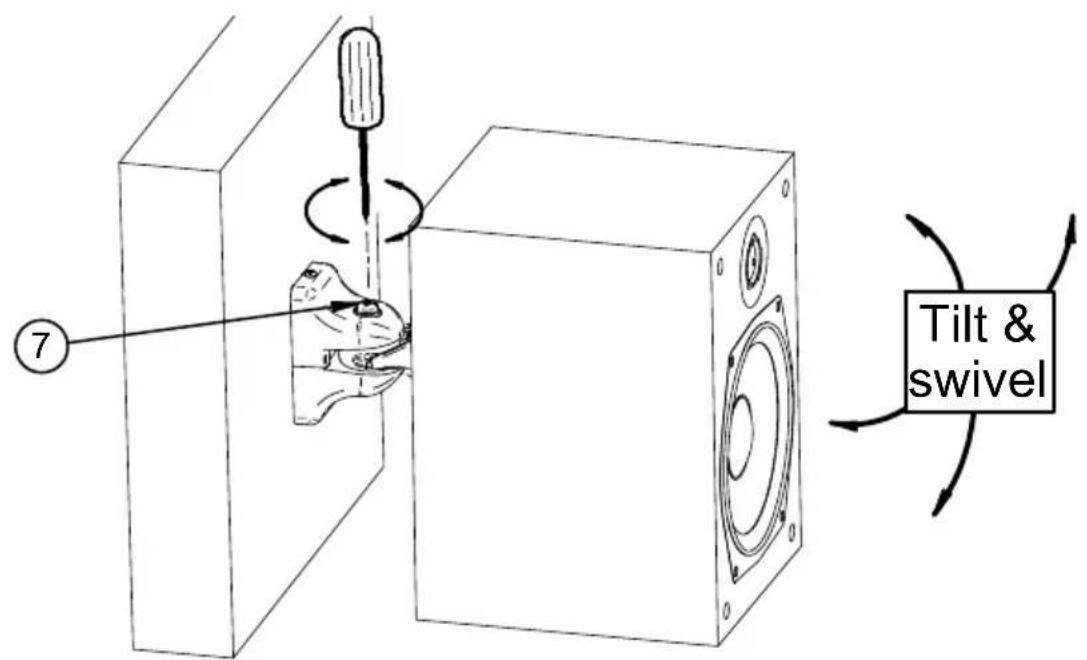

To adjust the tilt and swivel, slightly loosen part 7 then adjust the speaker position. Finally, retighten part 7 to fix the speaker position.

10

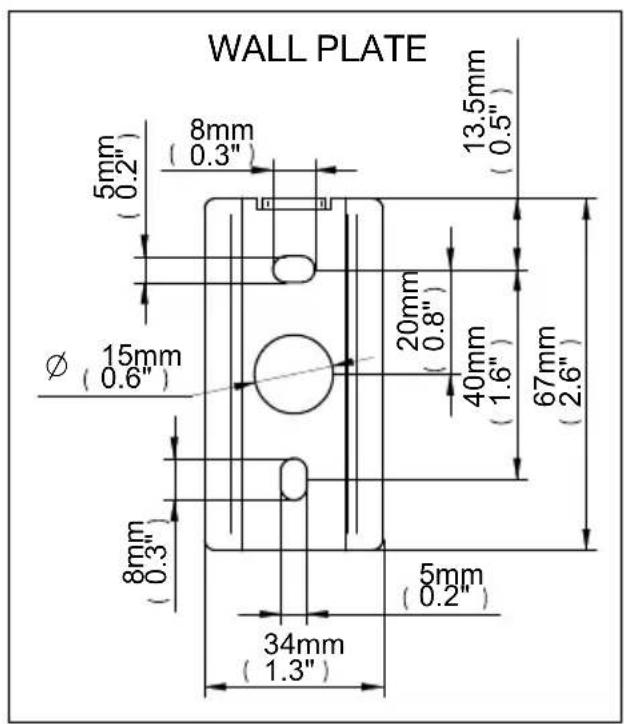

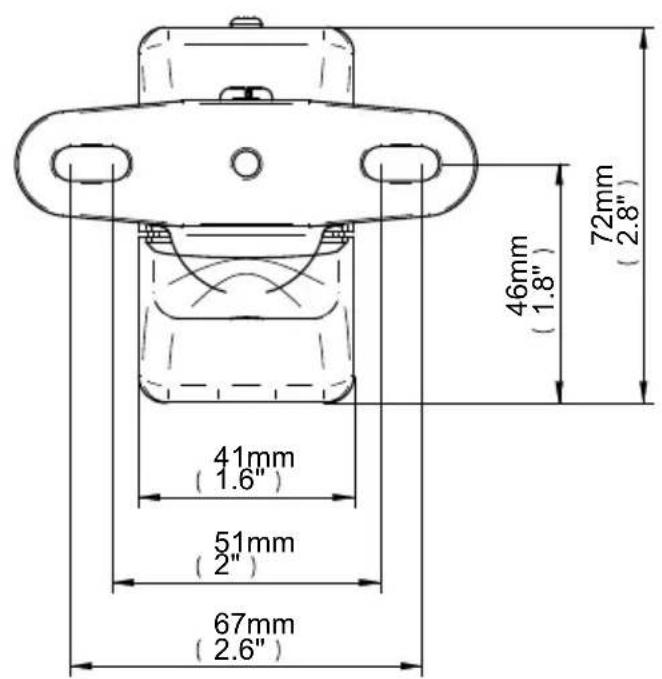

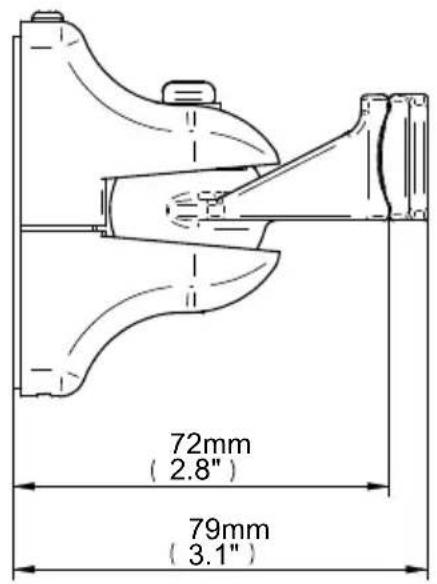

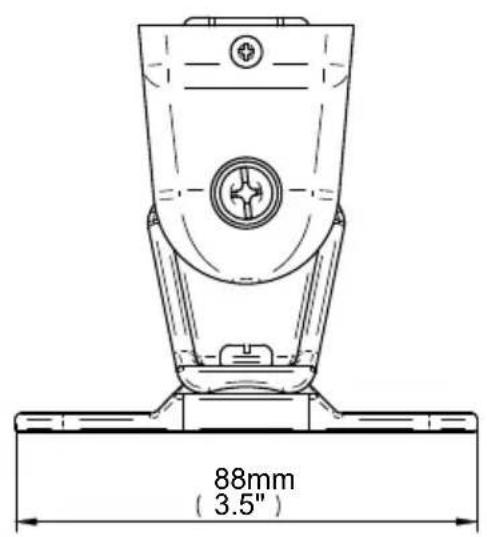

BT332 PRODUCT DIMENSIONS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
