JE1912LED - Television JENSEN - Free user manual and instructions

Product Type	LED Television
Brand	Jensen
Model	JE1912LED
Screen Size	19 inches (48 cm)
Resolution	1366 x 768 pixels (HD Ready)
Backlight Type	LED
Dimensions (with stand)	44.2 cm x 28.0 cm x 16.5 cm
Dimensions (without stand)	44.2 cm x 26.2 cm x 6.0 cm
Weight (with stand)	2.5 kg
Power Consumption (typical)	30 W
Standby Power Consumption	< 0.5 W
Power Supply	AC 100-240V, 50/60Hz
Connectivity	HDMI (1), USB (1), VGA (1), RF Input, Composite AV, Headphone Out
Video Modes	NTSC, PAL, SECAM
Audio Output	2 x 3 W speakers
Wall Mount Compatible	VESA 100 x 100 mm
Remote Control	Included (batteries not included)
Cleaning Instructions	Wipe with soft, dry cloth. Do not use chemicals.
Safety Warnings	Do not expose to rain or moisture. Do not block ventilation. Use only with approved accessories.
Spare Parts & Repairability	Replacement remote available. Service by qualified personnel only.
General Information	Free user manual available in PDF at notice-facile.com

Frequently Asked Questions - JE1912LED JENSEN

How do I connect external devices to my Jensen JE1912LED TV?

Use the HDMI port for HD devices like Blu-ray players or game consoles. For older devices, use the composite AV input (yellow, white, red). Connect a USB drive to the USB port for media playback.

Why is my remote control not working?

First, check the batteries and replace them if needed. Ensure there are no obstructions between the remote and the TV's sensor. If still not working, try resetting the remote by removing batteries and pressing any button for 10 seconds.

Can I mount this TV on a wall?

Yes, the JE1912LED supports VESA 100x100 mm wall mounts. Purchase a compatible mount and follow the installation instructions. Ensure the wall can support the TV's weight (2.5 kg).

What should I do if there is no sound?

Check the volume level and mute settings. Ensure the audio output is not set to external speakers. If using an external device, verify its audio output settings. Try a different input source or restart the TV.

How do I clean the screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not spray any liquid directly on the screen or use abrasive cleaners.

What is the best picture mode for this TV?

For general viewing, use 'Standard' mode. For movies, select 'Cinema' mode for warmer colors. 'Dynamic' mode increases brightness but may reduce color accuracy. Adjust brightness, contrast, and color to your preference.

How do I update the TV firmware?

This model does not support automatic firmware updates via the internet. Check the Jensen support website for any updates. If available, download to a USB drive, insert into the TV, and follow the on-screen instructions.

Why does the TV display 'No Signal'?

Ensure the correct input source is selected using the Source button on the remote. Check that the external device is powered on and connected properly. Try a different cable or port.

Can I use the TV as a computer monitor?

Yes, connect your computer via HDMI or VGA input. Set the computer's resolution to 1366x768 for best results. Use the 'PC' picture mode for reduced input lag.

Where can I find the full user manual?

The complete user manual is available for free download at notice-facile.com. Search for 'Jensen JE1912LED' to access the PDF version.

USER MANUAL JE1912LED JENSEN

19"LED TV User's Guide

• Please observe all safety precautions when using this product.
  • Please read this manual careful

• Names of each part(Front View) / Accessories, 6.
• Names of each part(Back View) 7.
• Mounting on a Desktop / Installation Precautions.8
  • Power Input Connections / Installing an Antenna 9
• Remote control....10\~11
• Precautions / How to use remote control 12.

Connection

• VCR Connections / Digital Amplifier Connections / Watching Video Tape 13.
- Satellite/Cable TV Set-Top Box Connections / Watching Cable TV.14
- External Audio Amplifier / SERVICE USB Connections.15
• JENSEN DVD Connections for IR / PC Connections / How to use as PC monitor 16

Basic Use

- Selecting input source / Initial Setup Wizard 17

Application

• Menu Operation 18.
• Customizing the PICTURE Settings 19
• Customizing the AUDIO Settings 20
• Customizing the TIMER Settings 21
• Customizing the SETUP Settings 22\~23
• Customizing the LOCK Settings 24\~26
• Customizing the CHANNEL Settings 27\~28

Maintenance and Service

• Trouble shooting 29
• Specifications 30.

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION-To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

FCC STATEMENT

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC CAUTION:

Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this monitor not expressly approved by the manufacturer could cause harmful interference and would void the user's authority to operate this device.

WARNING:

This is a CLASS B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures to counter interference.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this product near water.

Apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Before using your TV, please read these instructions completely, and keep this manual for future reference. Carefully observe and comply with all warnings, cautions and instructions placed on the unit or described in the operating instructions or service manual.

WARNING

To guard against injury, the following basic safety precautions should be observed in the installation, use and servicing of the unit.

Power Sources

This unit should be operated only from the type of power source indicated on the information label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company.

Grounding or Polarization

This unit is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or a DC power connection, for use in a vehicle. Follow the instructions below:

For the unit with a polarized AC power cord plug

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

For the unit with a DC power connector

For installation in a vehicle, connect the red wire to the 12V accessory line and the black wire to a ground terminal.

Wall outlet

Do not use a poor fitting outlet. Insert the plug fully into the outlet. If it is loose, it may cause arcing and result in fire. Contact your electrician to have the outlet changed.

Wiring

For your safety, unplug the power cord when wiring cables.

Electric shock

Do not touch the AC power cord or the unit with a wet hand. If you plug/unplug the AC power cord from the unit with a wet hand, it may cause electric shock. Never attempt to move the unit unless the AC power cord is disconnected.

Cleaning

• Clean the power plug regularly.
• If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in fire. Unplug the power plug and clean it regularly.

● Unplug the power cord when cleaning this unit. If not, it may result in electric shock.

- Clean the cabinet of the TV with a dry soft cloth. To remove dust from the screen, wipe it gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly dampened with a solution of mild soap and warm water. Never use strong solvents such as thinner or benzine for cleaning.
• If using a chemically pre-treated cloth, please follow the instructions provided on the package.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Power

Always turn the unit off when it is not being used.

When the unit is left unattended and unused for long periods of time, unplug it from the wall outlet as a precaution against the possibility of an internal malfunction that could create a fire hazard.

Sound

If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for TV's to make occasional snapping or popping sounds, particularly when being turned on or off.

Power Cord

If you damage the power cord, it may result in fire or electric shock.

• Do not pinch, bend, or twist the cord excessively. The core lines may be bared and cut and cause short-circuit, resulting in fire or electric shock.
• Do not convert or damage the power cord.
• Do not put anything heavy on the power cord. Do not pull the power cord.
• Keep the power cord away from heat sources.
• Be sure to grasp the plug when disconnecting the power cord. If the power cord is damaged, stop using it and replace with a new one.

Ventilation

The slots and openings in the TV are provided for necessary ventilation. To ensure reliable operation of the unit, and to protect it from overheating, these slots and openings must never be blocked or covered. Unless proper ventilation is provided, the unit may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the unit turned backward or sideways.
• Do not install the unit turned over or upside down.
  ● Never cover the slots and openings with a cloth or other materials.
• Never block the slots and openings by placing the unit on a bed, sofa, rug or other similar surface.
• Never place the unit in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.
• Leave some space around the unit. Otherwise, adequate air-circulation may be blocked, causing overheating, and may cause fire or damage the unit.

Heat sources

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not use this product near water

Do not use near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.

This product should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

Entering of objects and liquids

Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

Lightning

Unplug this apparatus during lightning storms or when unused for long periods of time.

For added protection during a lightning storm, or when left unattended and unused for long periods of time, unplug the product from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

Servicing

Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Replacement parts

In case the product needs replacement parts, make sure the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

Attachments

Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.

Damage requiring service

If any of the following conditions occurs, unplug the power cord from the AC outlet and request a qualified service person to perform repairs.

a. The power cord or plug is damaged.

b. Liquid is spilled on the product or when objects have fallen into the product.

c. The product has been exposed to rain or water.

d. The product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. The product has been dropped or the cabinet has been damaged in any way.

f. The product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality in the product indicates that the product needs servicing.

Safety checks

Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

Wall or ceiling mounting

When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature.

Panel protection

The panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces if the panel breaks.

Pixel defect

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA and Section 54 of the Canadian Electrical Code in Canada provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code, ANSI/NFPA 70

Names of each part

Front View

Front view of a flat-screen television displaying (no visible text or symbols)

1 SOURCE Button

④ VOL-/VOL+ Button

② MENU Button-OSD Menu Display Button

⑤ POWER Button

③ CH-/CH+ Button

Accessories

- The configuration of the components may look different from the following illustration.

AV Cable

Battery 1.5V(AAA ×2)

Power CableCable

User's Guide

Remote Control

Names of each part

Back View

1 DC 12V
4 HDMI 1 jack
7 AV1 IN (VIDEO and AUDIO)
10 SPDIF

2 AV2 IN (VIDEO and AUDIO)
5 HDMI2 jack
8 PC AUDIO
11 AUDIO(L/R) OUT

3 SERVICE jack
6 VGA
9 IR jack
12 RF(ATSC/NTSC)

Mounting on a Desktop

Front view of a flat-screen computer monitor with no visible text or symbols on the screen or side.

• Your LED TV can be mounted on a Desktop as shown in the figure above.
  ● This is not floor-standing unit.

Installation Precautions

Wall Mounting

• Please ensure enough space for safe use. (Please refer to A and B.)
• Installation of the LED TV in an improperly ventilated location can cause damage to the LED TV due to increased temperature.

* Contact your dealer to purchase the "Adjustable-angle wall mount" required for wall-mounted installation.

Using the Stand

• Do not install on an unstable location with support area smaller than the LED TV.
• Please refer to the desktop stand user's manual for details of installation.

B
(Using the Stand)

POWER input Connections

● Connecting to POWER INPUT +12V

NOTE: Optional AC/DC adapter available. Optional Cigarette adapter available.

Installing an Antenna

For connecting to ATSC or NTSC broadcasts

Press SOURCE button on the remote control to select TV, then press RIGHT button to confirm. Then you can receive the ATSC/NTSC signal.

Remote Control

●Functions of remote control buttons

1	TV Activate TV Mode
2	POWER On / off for TV and DVD
3	DVD Activate DVD Mode
4	PREVIOUS(DVD)
5	FAST REVERSE(DVD)
6	FAST FORWARD(DVD)
7	NEXT(DVD)
8	EJECT(DVD)
9	STOP(DVD)
10	PAUSE(DVD)
11	RPT(DVD) Repeat Selection
12	T/F(DVD)
13	ZOOM(DVD)
14	SUB-T(DVD)
15	DISP(DVD) Display Time or Chapter information
16	SET UP(DVD)
17	AUDIO(DVD)
18	EQ(DVD)
19	TITLE(DVD)
20	C-LIST Press C-LIST button to display the channel list
21	F-LIST Press this button to display the favourite list
22	MTS/SAP Press MTS/RPT to select Stereo,SAP or Mono
23	SOUND Press SOUND to cycle select sound types:Standard/ Music/ Movie/ Personal
24	SLEEP Cycles through the LCD TV sleep time:off/5/10/15/30/45/60/90/120/180/240 minutes
25	CC Close Caption
26	SCALE Cycles among scale mode:Wide,Cinemal,Normal,Zoom.
27	PICTURE Press PICTURE to cycle select picture types: Standard/ Dynamic/ Soft/ Personal
28	MENU Displays the OSD menu on the screen
29	NAVIGATION Move up , down , left or right
30	INFORMATION Press INFO to display a variety of information about current channel.
31	ENTER Press ENTER to confirm your opeartion
32	EPG Displays the program guide
33	EXIT
34	CH+/CH- Increase or Decrease channel
35	SOURCE Displays AV Inputs
36	MUTE Press once mutes audio,press again to restore audio
37	VOL+/VOL- Increase or Decrease volume
38	NUMERIC KEYS
39	+ - Digital channel selection
40	RETURN Return to previously viewed channel

Remote Control

BUTTON	TV-FUNCTION	DVD-FUNCTION	BUTTON	TV-FUNCTION	DVD-FUNCTION	BUTTON	TV-FUNCTION	DVD-FUNCTION
POWER	POWER POWER		EPG	EPG		■		STOP
CH-	CH+CH-		TF		T-F	▶		PLAY-PAUSE
VOL-	VOL+VOL-	VOL+VOL-	▲		EJECT	◀		PREVIOUS
RETURN	RETURN		+ -	- / -		◀		FAST-REVERSE
MUTE	MUTE		1	1	1	▶		FAST-FORWARD
MENU	MENU		2	2	2	▶		NEXT
INFO	INFO		3	3	3	RPT		RPT
▲	UP UP		4	4	4	ZOOM		ZOOM
▼	DOWN DOWN		5	5	5	SUB-T		SUB-T
	LEFT LEFT		6	6	6	DISP		DISP
	RIGHT RIGHT		7	7	7	SETUP		SETUP
ENTER	ENTER OK		8	8	8	AUDIO		AUDIO
SOURCE	SOURCE SOURCE		9	9	9	EQ		EQ
EXIT	EXIT		0	0	0	TITLE		TITLE
MISSAP	MTS-SAP		SCALE	SCALE		CC	CC
F-LIST	F-LIST		C-LIST	C-LIST		SLEEP	SLEEP
PICTURE	PICTURE		SOUND	SOUND

NOTE: DVD functions are intended for JENSEN DVD players only. See your JENSEN DVD manual for more information.

Precautions

Avoiding Remote Control Problems

1. Check the polarity (+,-) of the batteries in the remote control.
2. Check that the batteries are good.

Inserting Batteries in the Remote Control

1. Open the cover completely.
2. Insert the two supplied batteries (AA, 1.5V). Ensure that the polarities (+ and -) of the batteries are aligned correctly.
3. Silde back the cover.

CAUTION : Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the national code (Recycling program).

How to use remote control

The remote control should be operated within 30 feet (7m) and 30° to the left and the right of the IR receiver at the front of the LED TV.
• Used batteries should be disposed properly.

VCR Connections

● Connecting to the Composite terminal

* Terminals vary by manufacturer

Connect the LED TV'S Composite In terminal to VCR's Composite OUT terminal using the included Composite cable. (Make sure the color of the terminals and the color of the cable are the same)

Digital Amplifier Connections

● Connecting to a Digital Amplifier
* Terminals vary by manufacturer.

Watching Video Tape

1. Turn on the LED TV and press

on the remote control.

1. Use to move to "AV 1 or 2".
2. Press ENTER to confirm the source selection or stop operation a few seconds,

will automatically enter the selection mode.

1. Turn on the VCR, insert the tape and press play button.

Satellite/Cable TV Set-TOP Box Connections

● Connecting to the Composite terminal
※ In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate receiver(Set-Top-Box)
※ Terminals vary by manufacturer

Connect the LED TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the Composite cable. (Make sure the color of the terminals and the color of cable are the same)

● Connecting to the HDMI terminal

Watching Cable TV

1. Turn on the LED TV and press
2. Use
3. Press
4. Turn on the cable broadcasting receiver and select the channel you wish to view.
   on the remote control.
   to move to "AV 1 or 2". If HDMI has been connected, select "HDMI".
   to confirm the source selection or stop operation a few seconds,

SOURCE

External Audio Amplifier

• Connecting to an amplifier or home theater system.
  * Terminals vary by manufacturer.

• Connect LED TV's AUDIO(L/R) output terminal to Audio Amplifier using an audio patch cable.
  Note: The speakers of LED TV still have output audio signal at this time.
• You can use the Volume +/- buttons to adjust the audio output level.

SERVICE USB Connections

※ Connection to SERVICE USB.

Note: This USB connection is for software upgrades only.

Does not support any other USB function.

JENSEN DVD Connections for IR

* Connection to 12 volt JENSEN DVD player IR control.

- All JENSEN Remote Control DVD Functions can be controlled Via the TV IR receiver.

You do not need to point the remote control at the JENSEN DVD player when this option is used.

NOTE: DVD IR control is intended for JENSEN DVD players only.

See your JENSEN DVD manual for more information.

PC Connections

* Terminals vary by manufacturer.

• Connect LED TV's PC Input terminal to PC's VGA terminal using a VGA cable.
• Connect LED TV's PC Audio terminal to PC's Audio terminal using a 3.5mm (Headphone) audio cable.

(Only for PC's with Audio terminal)

How to use as PC monitor

1. Turn on the LED TV and press

on the remote control.

1. Use

to move to "VGA".

1. Press

to confirm the source selection or stop operation a few seconds, will automatically ion mode..

Selecting Input Source

• You can select between the TV signal and the input signal of other equipment connected to the TV.
• Use this function to switch to the input source you wish to view.

Press

button on the remote control.

Use

to move to the desired input source.

Press

to select.

Note: After you selected the desired input sorce, if stop operation a few seconds, then will automatically enter the selection mode.

Initial Setup Wizard

After connecting your TV antenna or cable wire, turn the television ON.

The quick setup wizard will display on-screen. Select your preferred picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory.

The wizard will direct you to the TV menu to select antenna options and run Channel Auto Scan. Channels found will be stored in the TV tuner memory.

How to Navigate:

Press the ▲▼ arrow button to highlight Menu Language and then press ◀▶ button to select OSD Language.

Press the ◀▶ arrow button to highlight CABLE or AIR based on your antenna connection.

- Press the ▼ arrow button to select Auto Scan and press ENTER (when Cable is selected, 'AUTO' is recommended). Otherwise, press the ◀ arrow button to select Cable System: STD > IRC > HRC > Auto.

Application

Menu Operation

1. Press the POWER button to turn the LED TV on.
2. Press the MENU button on the remote control, the on-screen menu will appear.
3. Use the LEFT and RIGHT buttons to select your main menu option.

PICTURE MENU:

Allows you to make adjustments to your picture settings

(select TV source for example)

AUDIO MENU

Allows you to customize the sound options and effects.

(Select TV source for example)

TIMER MENU:

Allows you to set up a variety of time options.

(Select TV source)

SETUP MENU

Allows you to set up a variety of setup options.

(Select TV source)

LOCK MENU:

Allows you to set up a variety of lock options.

(Select TV source)

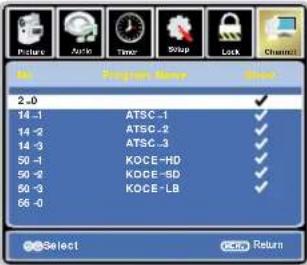

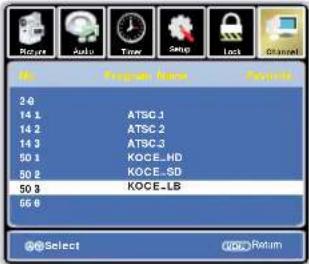

CHANNEL MENU:

Allows you to search channels and set up a variety of channel options.

(Select TV source)

Customizing the PICTURE Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the PICTURE.
3. Use the UP and DOWN buttons to highlight an individual PICTURE option, use the LEFT and RIGHT buttons to change the setting, and press the MENU or EXIT button to exit.

The PICTURE menu includes the following options :

Picture Mode	Cycles through picture display modes: Standard, Dynamic, Mild, User.
Contrast	Controls the difference between the brightest and darkest regions of the picture.
Brightness	Controls the overall brightness of the picture
Color	Controls the color.
Tint	Controls the tint.
Sharpness	Increase this setting to see crisp edges in the picture; decrease it for soft edges .
Color Temp	Cycles through color modes: Normal, Cool, Warm.

HDMI CEC

If you turn off the CEC Mode then the following items(TV Auto Power, TV Auto Switch, Device Auto Standby) will not be used.

TV Auto Power	On-TV will turn on when compatible CEC device is activated on HDMI connection.
TV Auto Switch	On-TV will switch to HDMI inputs when compatible CEC device is activated on HDMI connection.
Device Auto Standby	On-When TV turned off, any connected, compatible CEC device will also turn off.

Customizing the Audio Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on
2. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the Audio
3. Use the UP and DOWN buttons to highlight an individual Audio option, use the LEFT and RIGHT buttons to change the setting, and press the MENU or EXIT button to exit

The SOUND menu includes the following options :

Sound Mode	Cycles through sound modes: Standard, Music, Movie and User.
Bass	Controls the relative intensity of lower pitched sounds.
Treble	Controls the relative intensity of higher pitched sounds
Balance	To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track.
TV Speaker	Allows you to select between ON and OFF.
AVC	On or off (Automatic Volume Control) keep volume level steady.
SPDIF Type	Allows you to select between PCM and RAW (Digital connection to Home Theater system)
Audio Language	Allows you to select audio languages: English, French and Spanish.

Customizing the TIMER Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the TIMER.
3. Use the UP and DOWN buttons to highlight an individual TIMER option, use the LEFT and RIGHT buttons to change the setting, and press the MENU or EXIT button to exit.

The TIMER menu includes the following options :

Sleep Timer	Allows you to set up the sleep timer : 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min and off.
Time Zone	Allows you to select correct time zone: Pacific, Alaska, Hawaii, Eastern, Central and Mountain.
Daylight Saving Time	Allows you to turn on or off the daylight saving time.

Customizing the SETUP Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the LEFT or RIGHT button to select the SETUP.
3. Use the UP and DOWN buttons to highlight an individual SETUP option, use the LEFT and RIGHT buttons to change the setting, and press the MENU or EXIT button to exit.

The SETUP menu includes the following options:

Menu Language	Allows you to select menu languages: English, Français and Español.
Transparency	Allows you turn on or off the transparency function of on screen menu.
Zoom Mode	Allows you to select the zoom modes: Normal, Cinema, Wide and Zoom.
Noise Reduction	Allows you to select the noise reduction modes: Strong, Off, Weak, Middle.

Customizing the SETUP Settings

Close Caption

Use Down button to highlight "Close Caption", then press RIGHT button or ENTER to enter into the following menu.

CC Mode

Allows you to select the CC Modes: On, Off and CC on Mute.

Basic Selection

Allows you to select the basic selections: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4.

Advanced Selection

Allows you to select the advanced services: Service1, Service2, Service3, Service4, Service 5 and Service 6.

Option

Use Down button to highlight the "Option" item, then press RIGHT button to enter into the following menu.

Use UP and DOWN buttons to highlight the desired item, and use LEFT and RIGHT buttons to select.

Audio Out

Allows you to select between Variable and Fixed.

Restore Default

Restores all settings in SETUP menu to factory settings.

Customizing the LOCK Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on

2. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the LOCK

3. Use the DOWN button to highlight "Enter Password", use the numeric keys to input 4-digit password. After that, the screen will display the next menu. After setting, press menu or exit button to exit. NOTE: The factory password is 0000.

The LOCK menu includes the following options :

Change Password

Use DOWN button to select "Change Password", then press RIGHT or ENTER button to enter into the following menu.

Input the new 4-digit password and confirm it.

System Lock

Allows you to turn On or Off the system lock. If you turn off the system lock, then the following items(US, Canada, RRT Setting and Reset RRT) will not be used.

Customizing the LOCK Settings

US

Use Down button to highlight "US", then press RIGHT or ENTER button to enter into the following menu.

TV

Use Down button to highlight "TV", then press RIGHT or ENTER button to enter into the following menu.

Use UP and DOWN buttons to select the desired rating and press ENTER button to block or unblock rating.

MPAA

The Movie rating (MPAA) is used for original movies rated by the Motion Picture Association of America (MPAA) as broadcasted on cable TV and not edited for television. Use UP or DOWN button to select N/A, G, PG, PG-13, R, NC-17 or X.

RATING	DESCRIPTION
G General Audiences. Movie is appropriate for all ages.
PG Parental Guidance Suggested. May contain material not suited for younger viewers.
PG-13 Contains content that may not be appropriate for viewers under the age of 13.
R Restricted. Contains adult content, no one under 17 admitted without parent.
NC-17 No one 17 and under admitted.
X Adults only.

Customizing the LOCK Settings

Canada

Use Down button to highlight "Canada", then press RIGHT or ENTER button to enter into the following menu.

Canada English

Use LEFT and RIGHT buttons to select among: E, C, C8+, G, PG, 14+ and 18+

Canada French

Use LEFT and RIGHT buttons to select among: E, G, 8ans+, 13ans+, 16ans+ and 18ans+

RRT Setting

Reset RRT

Allows you to reset the RRT setting.

Application

Customizing the CHANNEL Settings

Select TV source for example. (Press SOURCE button to select TV mode)

1. Press the POWER button to turn the LED TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the CHANNEL.
3. Use the UP and DOWN buttons to highlight an individual CHANNEL option, use the LEFT and RIGHT buttons to change the setting, and press the MENU or EXIT button to exit.

The CHANNEL menu includes the following options

Air/Cable

Allows you to select between Air and Cable.

Auto Scan

Use Down button to highlight "Auto Scan", then press RIGHT or ENTER button to enter into the following menu.

Customizing the CHANNEL Settings

	If you select “Cable” as input signal in Antenna then you can select Cable Systems: Auto, STD, IRC and HRC.Use DOWN button to highlight “Start to Scan”, then press RIGHT or ENTER button to search the channels automatically.The receivable channels will be stored automatically.When searching channels, press MENU to stop.
Favorite	Allows you to add these channels as the favorite channels.Use UP or DOWN button to highlight “Favorite”, then press RIGHT or ENTER button to enter into the following menu.Use UP and DOWN button to highlight the desired channel, then press ENTER button to add or remove the highlighted channel as favorite.
Show / Hide	Allows you to show or hide the channels.Use UP or DOWN button to highlight “Show / Hide”, then press RIGHT or ENTER button to enter into the following menu.Use UP and DOWN button to highlight the desired channel, then press ENTER button to show or hide the highlighted channel.
Channel No.	Displays the number of current channel.
Channel Label	Displays the label of current channel.
DTV Signal	Displays the quality of current DTV signal.

Trouble shooting

• In case a problem occurs with your LED TV, please take the following steps first.
• If you still have the problem, turn the power off and contact your dealer or an authorized service center.

Problem Action
The screen does not appear.	Is the power plug connected? Insert the power plug.Press the power button of the remote control.
The screen appears tooslowly after the power is turned on.	This problem occurs for a brief time in the process ofimage elimination processing in order to hide temporary screen noisethat occurs when the power is turned on. But if the screen does notcome after 1 minute contact your dealer or an authorized servicecenter.
Screen is too bright or too dark. P	erform brightness adjustment or Contrast adjustment.
Screen is too large or too small. A	djust the screen size.
Stripes appear on the screenand it shakes.	Stop using wireless telephones, hair dryers and electric drills.
The screen does not move. P	ress the PAUSE button. Check if the Pause button is pressed onexternal equipment.
Screen appears, Voice is not heard	1. Press the "MUTE"button.2. Increase the sound level by pressing volume adjustment button.3. Check if sound terminal of external input is connected properly.4. Check if audio cables are connected properly.5. Select and check the other input.If the sound still does not work and the other channels are thesame after you have done as the above, contact your dealer oran authorized service center.
Remote control does not work	1. Check if main power is On.2. Check that the batteries of the remote controller were loadedproperly.3. Check to see if any obstacle exists between the LED TV andthe remote control , then remove it, if any.4. If the batteries are low, replace them with two newbatteries.

Specifications

LED Panel	Panel Size	19" TFT LED
	Brightness	250
	Contrast Ratio	1000:1
	Viewing Angle	170^/160^
Max. Resolution		1366 x 768
INPUT	VIDEO	2
	AUDIO (L/R)	2
	PC/AUDIO(L/R)	1
	HDMI	2
	RF	1
OUTPUT	IR	1
	AUDIO (L/R)	1
	SPDIF	1
Power Source		DC 12V 3.3A
Power Consumption		28W
Dimension		458W x 307H x 52.5D mm
Weight		5 Kg

• The cabinet design and electronics specifications will be modified without prior notice for performance improvement.
  • Weight and dimensions are approximate
