DWC06E3W - Dishwasher Ardo - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Ardo
Model	DWC06E3W
Capacity	6 Place Settings
Energy Efficiency Class	A+
Annual Energy Consumption	174 kWh/annum
Annual Water Consumption	1960 liters/annum
Drying Efficiency Class	A
Standard Cleaning Cycle	Eco 50°C
Program Duration (Eco)	170 minutes
Noise Level	55 dB(A)
Power Consumption (Max)	1280 W
Voltage / Frequency	220-240 V ~ 50 Hz
Water Pressure (Flow)	0.04 - 1.0 MPa

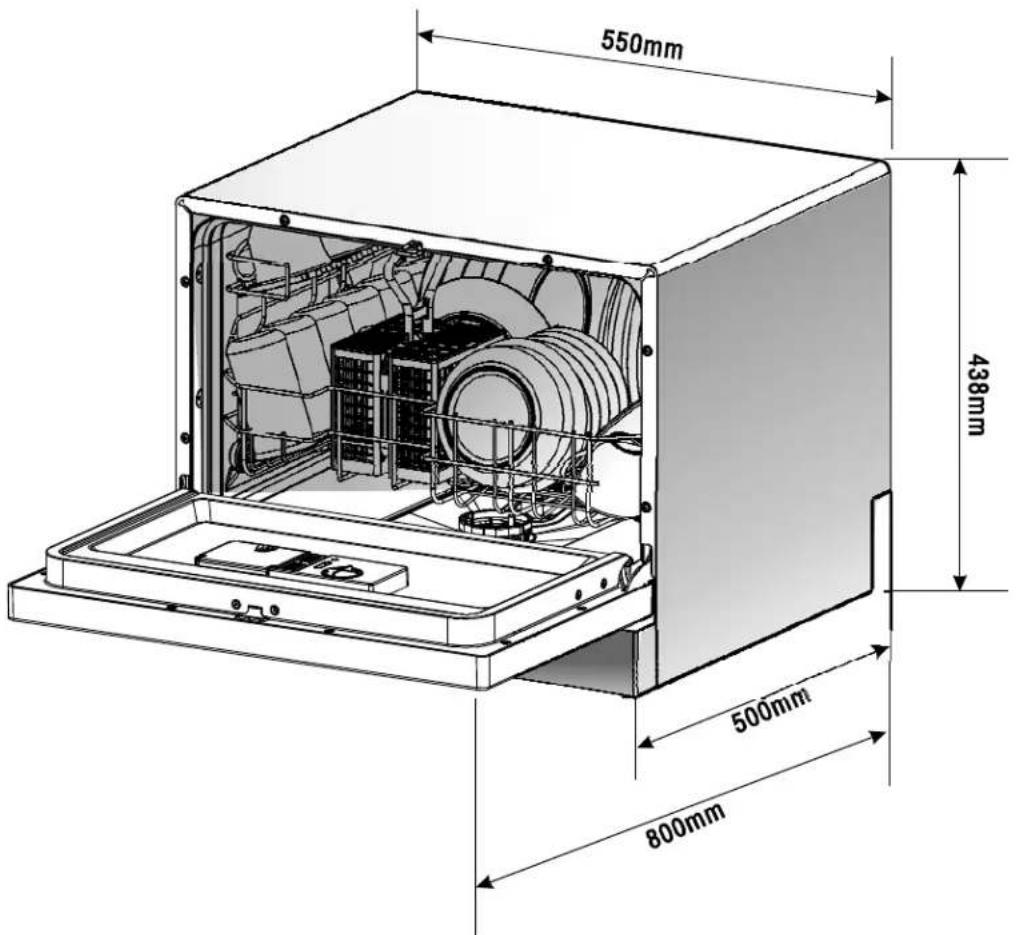

Dimensions (H x W x D)	438 x 550 x 511.5 mm
Weight	Approximately 40 kg
Water Softener	Yes (Salt refill required)
Rinse Aid Capacity	110 ml
Filter System	Three-stage (Coarse, Fine, Micro)
Spray Arms	2 (Removable top arm)
Programmes	Normal, Eco, Rapid
Control Panel	Electronic with indicator lights
Installation Type	Freestanding (built-in possible)
Safety Features	Grounding, door safety, child safety warnings
Included Accessories	Cutlery basket, cup shelf, salt funnel

Frequently Asked Questions - DWC06E3W Ardo

How do I install the dishwasher?

Refer to the installation section in the manual. Ensure the appliance is level near water inlet and drain, connect hoses, and plug into a grounded outlet. The drain hose must not exceed 75 cm height. Use a new hose set.

How do I fill the salt and rinse aid?

For salt, remove the bottom basket, unscrew the salt container cap, add 1 liter of water before first use, then about 1 kg of dishwasher salt. For rinse aid, open the dispenser cap inside the door and pour until the indicator turns dark. Only use products specifically for dishwashers.

What washing programmes are available?

The dishwasher offers three programmes: Normal (for normally soiled loads, 60°C wash), Eco (50°C, energy-saving standard cycle), and Rapid (40°C, quick wash for lightly soiled items).

How do I clean the filters?

Turn the filter assembly counterclockwise and lift it out. Disassemble the coarse, fine, and micro filters. Rinse under running water and use a brush if needed. Reassemble and reinstall. Clean weekly to maintain performance.

What should I do if the dishwasher does not start?

Check if the door is closed securely, the power cord is plugged in, and the circuit breaker has not tripped. Also ensure the water supply is open. If the problem persists, consult the troubleshooting section.

Can I change the programme after starting?

Yes, if done early. Press the Start/Pause button, then hold the desired programme button for more than 3 seconds to switch. Note that detergent may have already been released, so you may need to refill the dispenser.

How much detergent should I use?

Use one tablespoon of powder detergent for a normal load. For heavily soiled items, add extra. Always add detergent just before starting the cycle. Refer to the dosing markings in the dispenser cup. Use only dishwasher-specific detergent.

What do the error codes mean?

Error codes include 'longer inlet time' (faucet closed or low water pressure) and 'overflow' (water leak). If overflow occurs, turn off main water supply before calling service. Detailed troubleshooting is in the manual.

Can I wash plastic items?

Only if they are marked dishwasher-safe. For unmarked plastics, check manufacturer recommendations. Avoid contact with heating elements. Load plastic items securely so they do not tip over.

What are the dimensions and capacity?

The dishwasher has dimensions of 438 mm height, 550 mm width, and 511.5 mm depth. It has a capacity of 6 place settings. Maximum plate diameter is 270 mm.

USER MANUAL DWC06E3W Ardo

Read this Manual

Dear Customer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential typeenvironments;

-bed and breakfast type environments.

Please carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.

■ Passitonto any subsequent owner of the appliance.

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

- To review the section on Troubleshooting Tips will help you to solve some common problems by yourself.

If you can not resolve the troubles by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Disposal....2

3) Operating Instructions....3

Control Panel....3 Dishwasher Features....3

4) Prior using for the first time....4

A、Loading the Salt into the Softener....5

Adjusting Salt Consumption....5

B Fill the RinseAid Dispenser....4、

CFunctionofDetergent....5

5) Loading the Dishwasher Basket......7

Attentionbefore or afterloading the Dishwasher Baskets....8

Loading the Basket......8

Cutlery Basket...... 9

WhenloadbiggerDinnerPlates....10

6) Starting a washing programme....11

Wash Cycle Table....11

Turning on the Appliance....11

Change the Programme....12

At the End of the Wash Cycle....12

7) Maintenance and cleaning....13

Filtering System....13

Caringforthe Dishwasher....14.

8) Installation instruction....15

Positioning the Appliance....16

AboutPowerConnection....16

Water Connection....16

Connection of Drain Hoses....17

Start of dishwasher....18

9) Troubleshooting Tips....19

Before calling for service....19

Error codes....20

10) Technical information....21

1. IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith allocalcodesandordinances.

▲ WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultinariskofelectricshock.
Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitisnotfitfor theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donotplaceanyheavyobjectsofstandonthe doorwhenitisopen.Theappliancecouldtip forward.
■ When loading items to be washed: 1) Locatesharpitems so that they are not likely to damagethedoor seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent receptible is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keepchildrenawayfromdetergentandrinseaid,keep childrenawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been supervisory or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ Thedoorshould not be left in the open position sincethis could present atripping hazards.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.
  ■ During installation, the powersupply must not be excessively ordangerously bent or flattened. Donottamperwithcontrols.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
  ■ The maximum size of the dishesis is 260 mm.
  ■ The maximum permissible inlet water pressure is 1MPa.
  ■ The minimum permissible inlet water pressure is 0.04MPa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY SAVE THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE — for polyethylene, e.g. sheet wrapping material
■ PSforpolystyrene, e.g. padding material
■ POM —polyoxymethylene, e.g. plastic clips
■ PP — polypropylene, e.g. Salt filler
■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut off the powersupplycable and makethe doorclosing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT Togethebestperformancefromyourdishwasher,readalloperatinginstructions before using it for the first time.

Control Panel

1 Poweronlight: TocomeonwhenPowerON/05 buttonispresseddown.

5 Program indicator light: when you select washing program, the correspond light will display.

2 ON/OFF Button: To turn on/off the power supply.

6 Program indicator button: when you press washing program button, the correspond light will display.

3 RinseAidWarningLight: Tobeonwhenthe rinse aid dispenser needs to be refilled.

7 Start/Pause Button: Press this button to start or pause the dishwasher, the process pilot lamp will be blinking when starting.

4 SaltWarningLight:Tobeonwhenthesoftener needstoberefilled.

Dishwasher Features

Back View

1 SaltContainer

3 CutleryBasket

5 Rinse Aid Dispenser

7 Cup Shelf

9 Drainpipeconnector

2 Detergent Dispenser

4 Filter assembly

6 SprayArms

8 Basket

10 Inletpipeconnector

4. Prior using for the first time

NOTE: If your model have no water softener, you may skip this section.

A. Loading the Salt Into the Softener

Alwaysusesaltintendedforusewithdishwasher.

The salt container is located beneath the basket and should be filled as follows:

Attention!

■ Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
■ Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.

A Remove the basket and then unscrew and remove the cap from the salt container. 1
B Before first wash, add 1 lt. of water in the salt container of your machine.
C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt. It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise.
E Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing programme should be started (Suggest choose rapid programme). Otherwise filtersystem, pumper other important parts of the machine may be damaged by salty water. It is outof warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even though the saltcontainerisfilled. If there is no salt warning light in the control panel (For some Models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.

B. Fill the Rinse Aid Dispenser

RinseAid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any others substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Whento Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

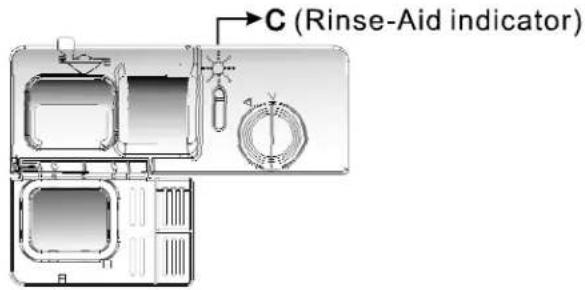

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2 full
1 / 4 full - Should refill to eliminate spotting
Empty

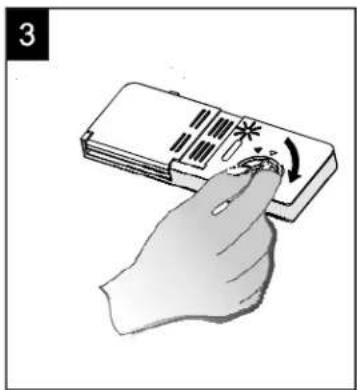

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

C. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chloride

Normally new pulverised detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a programme with higher Temperature.

ConcentratedDetergent

Based on their chemical composition, dishwasher can be split into wobasictypes:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

NOTE:

■ If the lid is closed: press release button. The lid springs open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Don't put powder detergent into the dispenser until you're ready to wash dishes.

Fill indetergent

Fill the detergent dispenser with detergent.

The marking indicates the dosing levels, as illustrated on right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional

detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further information from detergent manufacturers.
■ For particular items, select a programme with as low a temperature.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plastic items that are not heatresistant
■ Older cutlery with glued parts that is not temperatureresistant
■ Bonded cutlery items or dishes
■ Pewterorcooperitems
■ crystalglass
■ Steel items subject to rusting
■ Woodenplatters
■ Itemsmadefromsyntheticfibres

Areoflimitedsuitability

■ Sometypes of glasses can become dull after a large number of washes

■ Silverandaluminiumpartshave a tendency to discolour during washing

■ Glazed patterns may fade if machine washedfrequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are face down.
2. Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3. Allutensils are stacked securely and cannot tip over.
4. All utensils are placed in the way that the spray arms can rotated freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Loadlargeitemswhicharemostdifficulttocleanintothebasket.
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
  ■ Please do not overload your dishwasher.

Loading the Basket

Position the dishes and cookware so that they will not get moved by the spray of water.

Plateracksof Basket

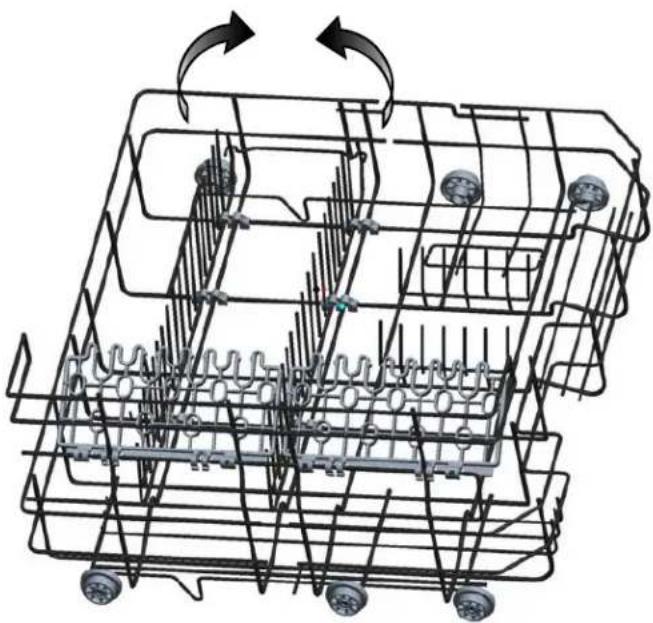

The basket is fitted with plate racks which can best bewed horizontal if required.

Cutlery Basket

Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown.

▲ WARNING!

Donotletanyitemextendthroughbottom.

■ Always load sharp utensils with the sharp point down!

For personal safety and a top quality clean, place the silverware in the basket:

■ They do not nest together.
■ Place silverware with handles-down.
■ But place knives and other potentially dangerous utensils handles-up.

When load bigger Dinner Plates

Plateracksof Basket

When load bigger Dinner plates, please fold the ackto left picture showed location.

The maximum plate can be loaded is 270mm(10 inches) diameter.

Loading the Basket

Position the dishes and cookware so that they will not get moved by the spray of water.

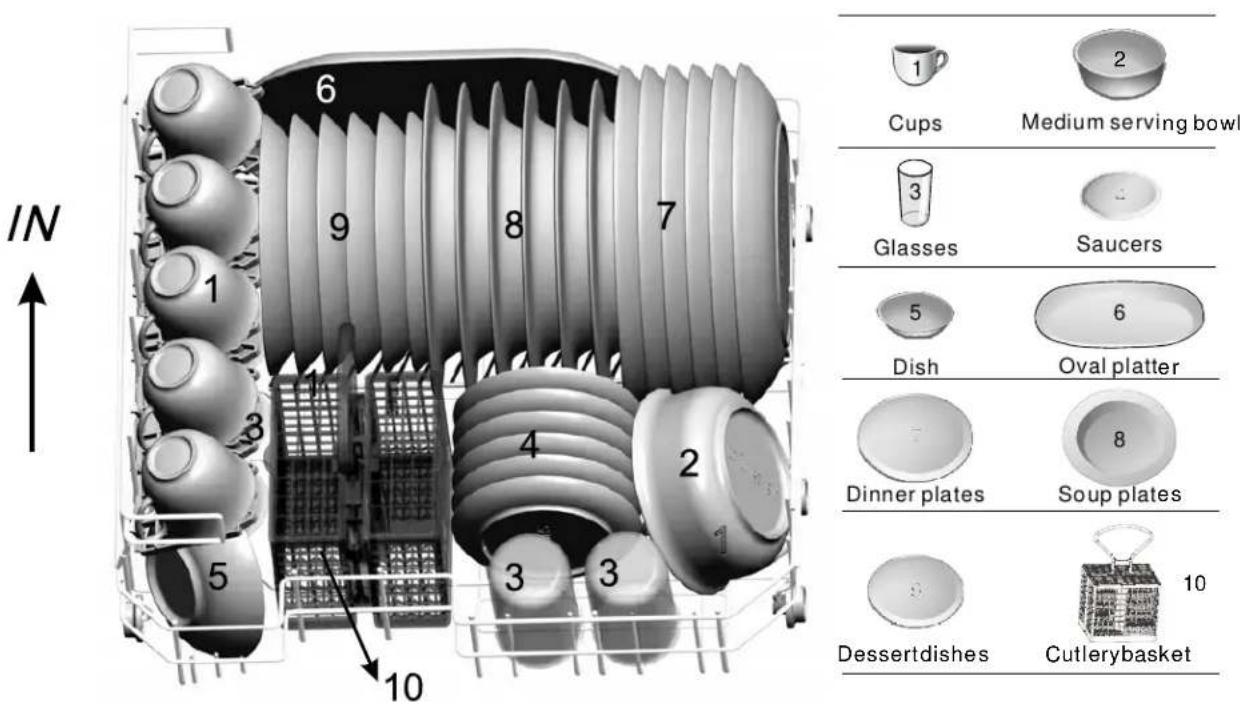

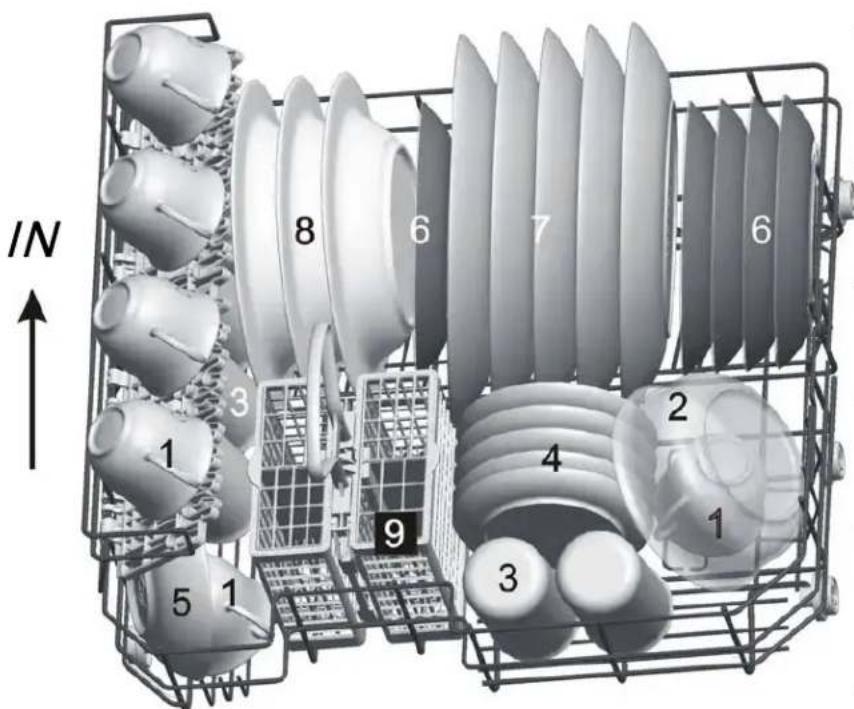

Cups

Largeservingbowl

Glasses

Saucers

Dish

Dessertdishes

Dinnerplates

Soupplates

Cutlery basket

6. Starting a washing programme

Wash Cycle Table

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Normal	Fornormallysoiledloads,such aspots、plates、glassesand lightly soiledpans.	Pre-wash Wash(60)°C Rinse Rinse(70)°C Drying	3/15g.	1250.708.4
Eco (EN 50242)	Standarddailycyclefornormally soiledloads,suchaspots、plates、glasses.	Pre-wash Wash(50)°C Rinse Rinse(70)°C Drying	3/15g.	170	0.61	7.0
[ocsc] Rapid	Ashorterwashforlightlysoile dloads and quickwash	Wash(40)°C Rinse Rinse	15g.	306.00.30

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity:6setting
■ Rinseaidsetting:6
■ The power consumption of off-mode is 0.3W

left-onmodeis0.4W

Turning On the Appliance

Startingawashcycle...

1. Draw out the basket (see the section entitled Loading the Dishwasher).

2. Pour in the detergent (see these section entitled Detergent and Rinse Aid).

3. Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, the specification of the socket is 10 A 250 VAC.

4. Make sure that the water supply is turned on to full pressure.

5. Turn on the power button, press the program button that you want, the response light will light. Then press the Start/Pause button, the dishwasher begins to start.

NOTE:

When you press the Start/Pause button to pause during washing, the program light will stop blinking and the dishwasher will mooring every minute unless you press the Start/Reset button to start.

Change the Programme

Premise: You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (seeth section entitled "Loading the Detergent").

If the machine operation, you want to convert program, press the Start/Pause button, and then click Program Button that you want to choose more than 3 seconds, can be turned to the program, enter standby (see the section entitled "Starting a wash cycle...").

The program lights show the state of the dishwasher:

a) One of the program lights on----stand by
b) One of the program lightson----pause
c) One of the program lights blinking----run

NOTE: If you open the door when washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

Forget to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 PresstheStart/Pausebutton
2 Afterthesprayarmsstopworking,youcanopenthe doorcompletely.
3 Addforgottendishes.

4 Closethedoor
5 PresstheStart/Pausebutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turnoffthewatertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

Mainfilter 1

Food and soil particle trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

Finefilter 2

This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Coarsefilter 3

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeezethetaponthetopofthis filter and liftout.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be re-cyclated during the cycle. For best performance and results, the filter assembly must be regularly. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction.

WARNING!

■ Never run the dishwasher without the filters in place.
■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

Step 1: Turn the filter in anti-clockwise direction,

Step 2: lift the filter assy up

NOTE: When following this procedure from step 1 to step 2, the filter system will be installed when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and cleanthefilters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning The Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures in the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

WARNING!

Whencleaningthefilters, don'tknockonthem. Otherwise, thefilters could be contorted and the performance of dishwasher could be debased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.

The exterior use a good appliance polish wax.

Neverusesharp objects, scouring padsor harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agent or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on dishwasher in winter. Each time after washing cycles, please operate as follows:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

Thespray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

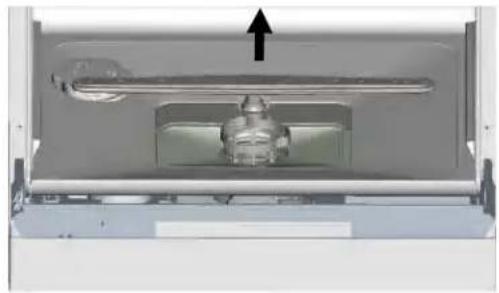

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray armsturn freely. Otherwise, check that they have been installed correctly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solventsor Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.

■ Whenitis not in need for a long time

It is recommend that you run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to ast longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odor to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

▲Attention:

The installation of the pipes and electricalequipments should be done by professionals.

! Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure todosocanresultindeath orelectricalshock.

Installation preparation

The installation position of dishwashers should be near the existing inlet and drain hoses and power cord.

One side of the cabinetsink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

About Power Connection

WARNING!

Forpersonalsafety:

■ DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliancemustbeearthed. Intheeventofamalfunctionorbreakdown, earthingwillreducetheriskof electric shock by providing a path of least resistance for the electric current. This appliance is equipped with acordhavinganequipment-earthingconductorandanearthingplug. The plugmustbepluggedintoan appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

WARNING!

Pleaseclosethehydrantafterusing.

Connection of drain hoses

Insert the drain hose into a drain pip with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the spe plastics support that comes with the appliance. The free end of the hose must be at a height lower than 75 cm and must not be immersed in water to avoid the back flow of it.

Attention:

The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, observe to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Start of dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 Allpacking materials and printings should be taken out from the dishwasher

Attention: Afterinstallation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

	Problem	Possible Causes	What To Do
Technical problems	Dishwasher doesn't start	Fuseblown,orthe circuitbreakertripped.	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon.	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
		Doorofdishwasher notproperlyclosed.	Closeddishwashermakingsurethatdoorlatches.
	Water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged.	Checkcoarsethefilter.(see section titled " Cleaning The Filter ")
		Kitchensinkclogged.	Checkkitchensinktomakesureitisdrainingwell.Ifproblemiskitchensinknotdraining,youmayneed aplumberratherthanaservicemanfordishwasher.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher,thenStartanywash cyletodrainoutthewater.Repeatifnecessary.
		Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused.	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
		Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gotintothewashcycle.c	AlwaysruntheQuickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
		Thelidofsofter isloose.	Checkthelip.Ensurethefixisfine.
Noise	Knocking noise in the wash cabinet	Thespayarmis knockingagainst aniteminabasket.	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
	Rattling noise in the wash cabinet	Itemofcrockery areinsecure inthewashcabinet.	Interrupttheprogramme,andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceondishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminateethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/Refilltherinse-aid dispenser.
		Dishesareremoved toosoon.	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogramme selection	Inshortprogrammesthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choosea programmewithalongwashingtime.
		Usingcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes			Meanings	Possible Causes
The	light flicker fleetly		Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted,orwaterpressureistoolow.
The	light flicker fleetly		Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, thewater shouldberemovedbeforerestartingthe dishwasher.

10. Technical Information

Height : 438mm
Width : 550mm
Depth : 511.5mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 6 Place settings

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	ARDO
Type/Description	DWC06E3W
Standardplacesettings	6
Energy efficiency class 1	A+
Annualenergyconsumption 2	174kWh
Energy consumption of the standard cleaning cycle	0.61kWh
Power consumption of off-mode	0.3W
Powerconsumptionofleft-onmode	0.4W
Annualwaterconsumption 3	1960liter
Drying efficiency class 4	A
Standardcleaningcycle 5	Eco50 °C
Program duration of the standard cleaning cycle	170min
Noise level	55dB(A)re1pW
Mounting	Freestanding
Couldbebuilt-in	Yes
Height	43.8cm
Width	55cm
Depth (with connectors)	51.15cm
Power consumption	1280W
Ratedvoltage/frequency	220-240V~50Hz
Waterpressure (flowpressure)	0.4-10bar=0.04-1MPa

NOTE:

1 A+++ (highest efficiency) to D (lowest efficiency)
2 Energy consumption “174” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “1960” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A(highest efficiency) to G(lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

-LVD2006/95/EC
- EMC2004/108/EC
-EUP2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.
