Superchassis 847DE2C - Disk array Supermicro - Free user manual and instructions

Product Type	Disk Array (JBOD)
Model	Supermicro Superchassis 847DE2C (SC847E2C-R1K28JBOD)
Form Factor	4U Rackmount
Drive Bays	44x 3.5" hot-swap (24 front + 20 rear)
Supported Drives	SAS3 (12Gb/s), SAS2, SATA3
Power Supply	1280W redundant (Platinum Level) hot-swap, auto-switching 100-240V
Cooling	7x hot-swap redundant heavy-duty fans
Backplanes	Front: BPN-SAS3-846EL1/EL2; Rear: BPN-SAS3-847EL1/EL2
Management	IPMI 2.0 via CSE-PTJBOD-CB3 power board; remote power control, fan speed, temperature monitoring
Expansion	Mini-SAS HD connectors for cascading; supports single/dual HBA, failover
Dimensions (approx.)	4U height (7") x 17.2" width x 25.5" depth
Weight (approx.)	45 lbs (20 kg) without drives
Certifications	Platinum efficiency, RoHS, safety compliant
Hot-swap Components	Drives, fans, power supplies, backplanes
Rack Installation	Supports standard 4-post racks; includes rail kit, adjustable depth 26.5" to 36.4"
Control Panel	Power button, UID button, status LEDs (power, NIC, overheating, fan/power failure)
Operating Environment	Temperature: 10°C to 35°C; humidity: 20% to 80% non-condensing

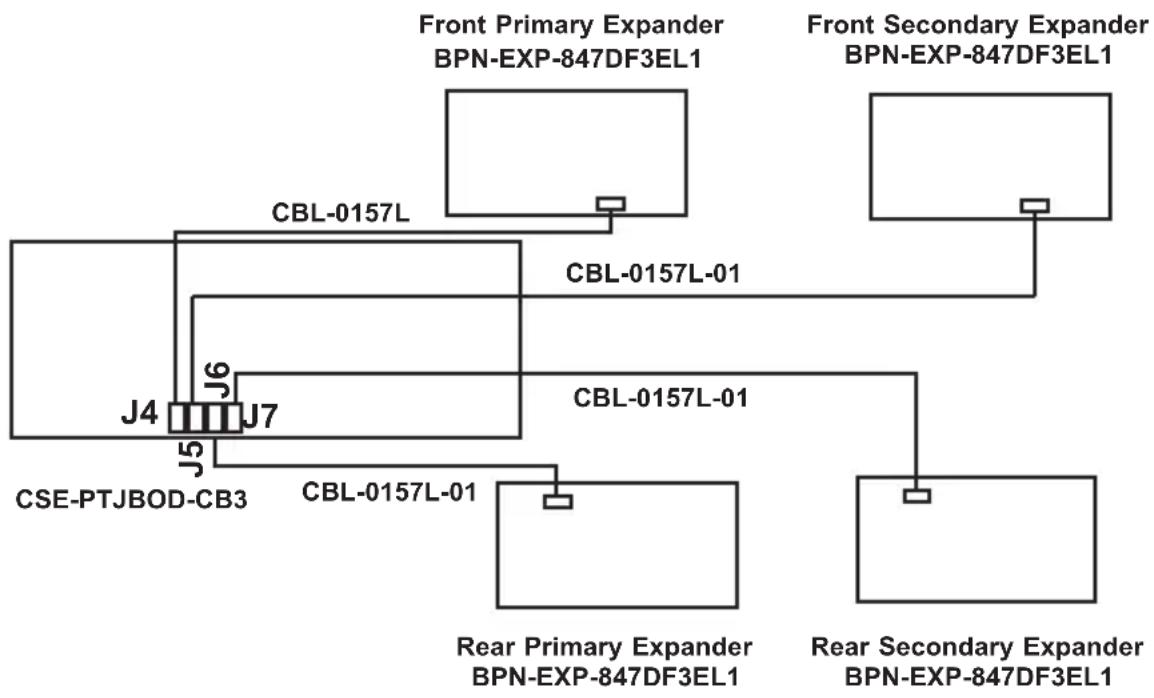

Included Accessories	I2C cables, SAS cables, power cords, rail kit, screws
Spare Parts Availability	Authorized Supermicro distributors; refer to Supermicro website for RMA
Warranty	Limited warranty; contact vendor for details

Frequently Asked Questions - Superchassis 847DE2C Supermicro

How many hard drives can the Supermicro SC847DE2C chassis support?

The chassis supports up to 44 hot-swap 3.5-inch drives: 24 in the front and 20 in the rear. It is compatible with SAS3 (12Gb/s), SAS2, and SATA3 drives.

What is the power supply configuration?

It features a 1280W redundant (Platinum Level) power supply with two hot-swappable modules. It auto-switches between 100V and 240V input.

How do I replace a failed fan?

The fans are hot-swappable. While the system is running, locate the failed fan (check LEDs). Press the release tab, pull out the fan, insert a new one ensuring airflow direction matches the arrows, then reconnect the power cord.

Can I use SATA drives with this JBOD?

Yes, SATA3 drives are supported. Note that the backplane LEDs indicate drive type: blue LED steady on for SAS, off for SATA.

How do I configure IPMI for remote management?

The CSE-PTJBOD-CB3 power board provides IPMI. The default static IP is 192.168.1.99. You can change to DHCP via the IPMI web interface or using the 'findit' utility. Press and hold the UID button for 10 seconds to reset to factory defaults.

What are the dimensions and weight of the chassis?

The SC847DE2C is a 4U rackmount unit, approximately 7 inches high, 17.2 inches wide, and 25.5 inches deep. Weight is about 45 lbs (20 kg) without drives.

Is the chassis compatible with my existing rack?

It fits standard 4-post racks with rack depth between 26.5 and 36.4 inches. The included rail kit supports square and round holes.

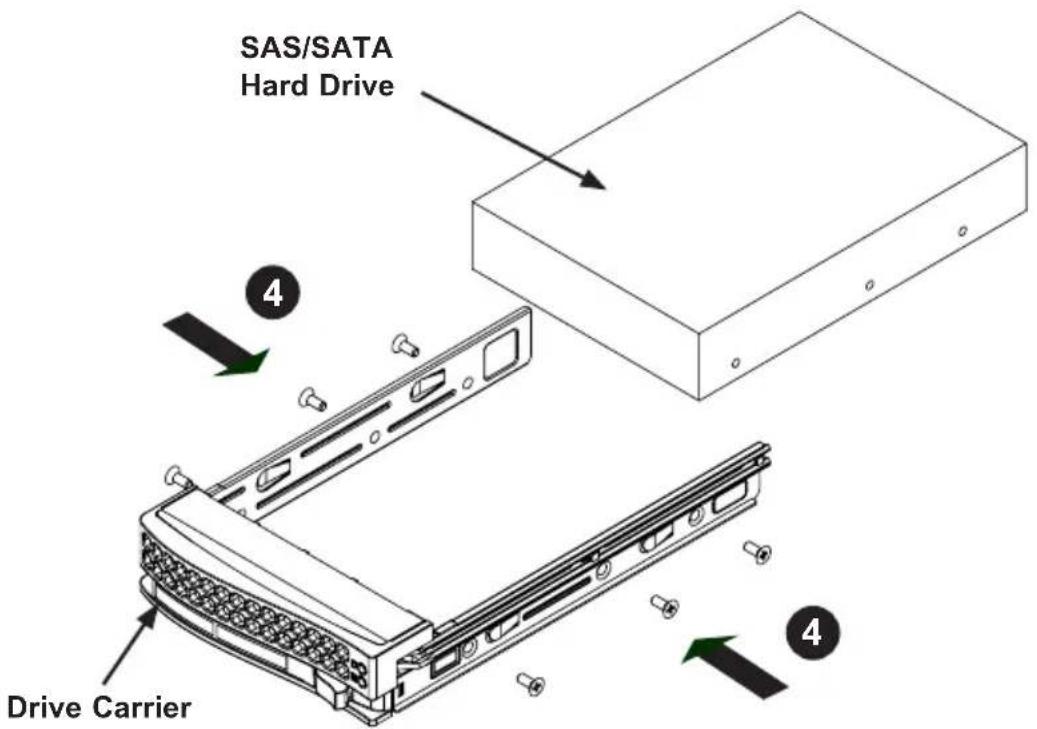

How do I install a hard drive in the carrier?

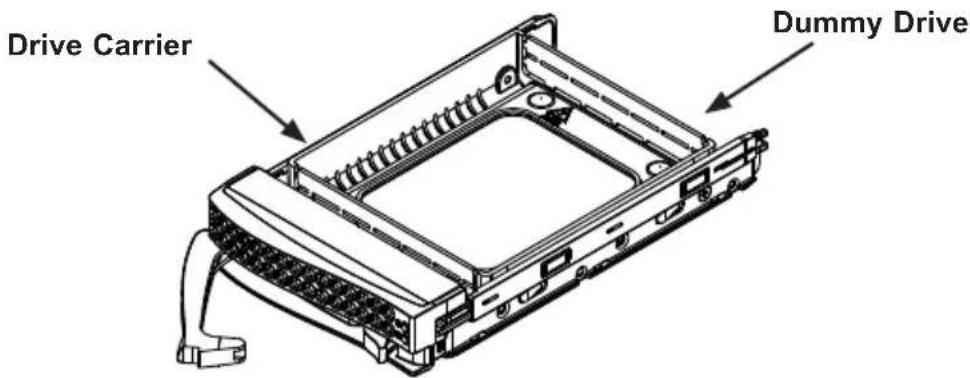

Remove the dummy drive by unscrewing it, slide the hard drive into the carrier with the PCB facing down, align mounting holes, and secure with six screws. Then insert the carrier into the bay and close the handle to lock.

What do the control panel LEDs indicate?

Power LED is on when powered. NIC1 blinks with network activity. The Informational LED shows: solid red for overheating, 1Hz blink for fan failure, 0.25Hz blink for power failure, solid blue for local UID, blinking blue for remote UID or system ready to power up.

Can I cascade multiple JBOD units?

Yes, the backplanes support cascading using Mini-SAS HD cables. Single or dual port expanders allow connection to multiple HBAs and failover configurations.

USER MANUAL Superchassis 847DE2C Supermicro

Front view of a server rack with multiple drive bays and ventilation grilles (no visible text or labels)

SC847E1C-R1K28JBOD SC847E2C-R1K28JBOD

USER'S MANUAL

1.0a

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0a Release Date: February 12, 2015

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2015 by Super Micro Computer, Inc. All rights reserved.

Printed in the United States of America

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC847EC1/C2 JBOD chassis. Installation and maintenance should be performed by experienced technicians only.

This manual lists compatible parts available when this document was published. Always refer to the our website for updates on supported parts and configurations.

Manual Organization

Chapter 1: Introduction

The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC847EC1/C2 chassis. This chapter also includes contact information.

Chapter 2: Standardized Warning Statements for AC/DC Systems

This chapter lists warnings, precautions, and system safety. It is recommended that you thoroughly familiarize yourself with installing and servicing the chassis and all safety precautions.

Chapter 3: Chassis Components

Refer here for details on this chassis components including the fans, hard drives, air shrouds, and other components.

Chapter 4: System Interface

Refer to this chapter for details on the system interface, which includes the functions and information provided by the chassis control panel, as well as other LEDs located throughout the system.

Chapter 5: Chassis Setup and Maintenance

Follow the procedures given in this chapter when installing, removing, or reconfiguring components in your chassis.

Chapter 6: Rack Installation

Refer to this chapter for detailed information on chassis rack installation. You should follow the procedures given in this chapter when installing, removing or reconfiguring your chassis into a rack environment.

This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes are listed. Refer to our website for the latest compatible backplane information.

Appendix A: Cables and Hardware

This section provides information on cabling, and other hardware which is compatible with your chassis. For complete information on supported cables and hardware, refer to the Supermico website at www.supermicro.com.

Appendix B: Power Supply Specifications

This chapter lists the specifications of the power supply provided with your chassis. For additional information, refer to the Supermicro website at www.supermicro.com.

Appendix C: BPN-SAS3-846EL Backplane Specifications

This chapter contains information on the BPN-SAS3-846EL1 and BPN-SAS3-EL2 backplanes. Additional information can be found on the Supermicro website at www.supermicro.com.

Appendix D: BPN-SAS3-847EL Backplane Specifications

This section covers the BPN-SAS3-847EL1 and BPN-SAS3-847EL2 backplane specifications. Additional information can be found on the Supermicro website at www.supermicro.com

Appendix E: CSE-PTJBOD-CB3 Power Board Specifications

This chapter provides information on the CSE-PTJBOD-CB3 power board. Additional information can be found on the Supermicro website at www.supermicro.com.

Table of Contents

Contacting Supermicro....iii

Chapter 1 Introduction

1-1 Overview 1-1
1-2 Shipping List.... 1-1
1-3 Where to get Replacement Components.... 1-2
1-4 Returning Merchandise for Service.... 1-3

Chapter 2 Standardized Warning Statements for AC/DC Systems

2-1 About Standardized Warning Statements.... 2-1

Warning Definition....2-1

Installation Instructions....2-4

Circuit Breaker 2-5

Power Disconnection Warning 2-6

Equipment Installation....2-8

Restricted Area....2-9

Battery Handling....2-10

Redundant Power Supplies 2-12

Backplane Voltage 2-13

Comply with Local and National Electrical Codes 2-14

Product Disposal 2-15

Hot Swap Fan Warning....2-16

DC Power Supply 2-18

DC Power Disconnection 2-20

Hazardous Voltage or Energy Present on DC Power Terminals 2-21

Chapter 3 System Interface

3-1 Overview 3-1

3-2 Control Panel Buttons 3-2

3-3 Control Panel LEDs 3-2

3-4 Drive Carrier LEDs....3-4

SAS/SATA Drives 3-4

SCSI Drives....3-4

Chapter 4 Chassis Setup and Maintenance

4-1 Overview 4-1

4-2 Removing the Chassis Cover 4-2

4-3 Installing Removable Hard Drives....4-3

4-4 System Fans 4-6
4-5 Power Supply 4-8
4-6 Installing the Power Card....4-10

Chapter 5 Rack Installation

5-1 Overview 5-1
5-2 Unpacking the System 5-1
5-3 Preparing for Setup.... 5-1

Choosing a Setup Location....5-1

5-4 Warnings and Precautions 5-2

Rack Precautions 5-2
General Server Precautions....5-2
Rack Mounting Considerations 5-3

Ambient Operating Temperature 5-3
Reduced Airflow 5-3
Mechanical Loading 5-3
Circuit Overloading....5-3
Reliable Ground 5-3

5-5 Rack Mounting Instructions.... 5-4

Identifying the Sections of the Rack Rails 5-4
Locking Tabs 5-5

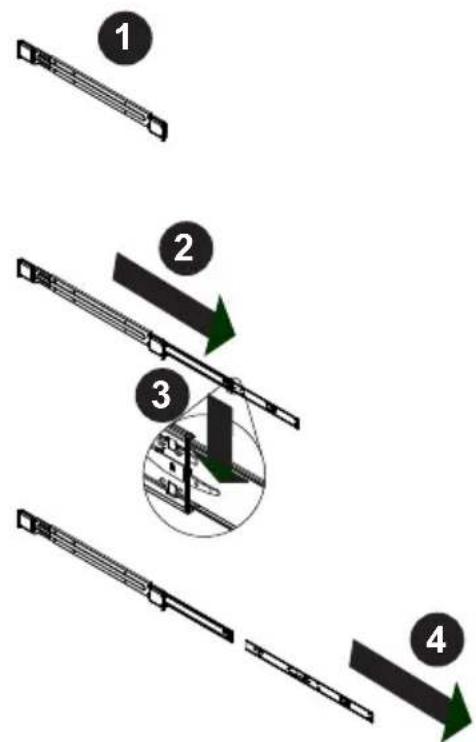

Releasing the Inner Rail 5-5
Installing The Inner Rails on the Chassis 5-6

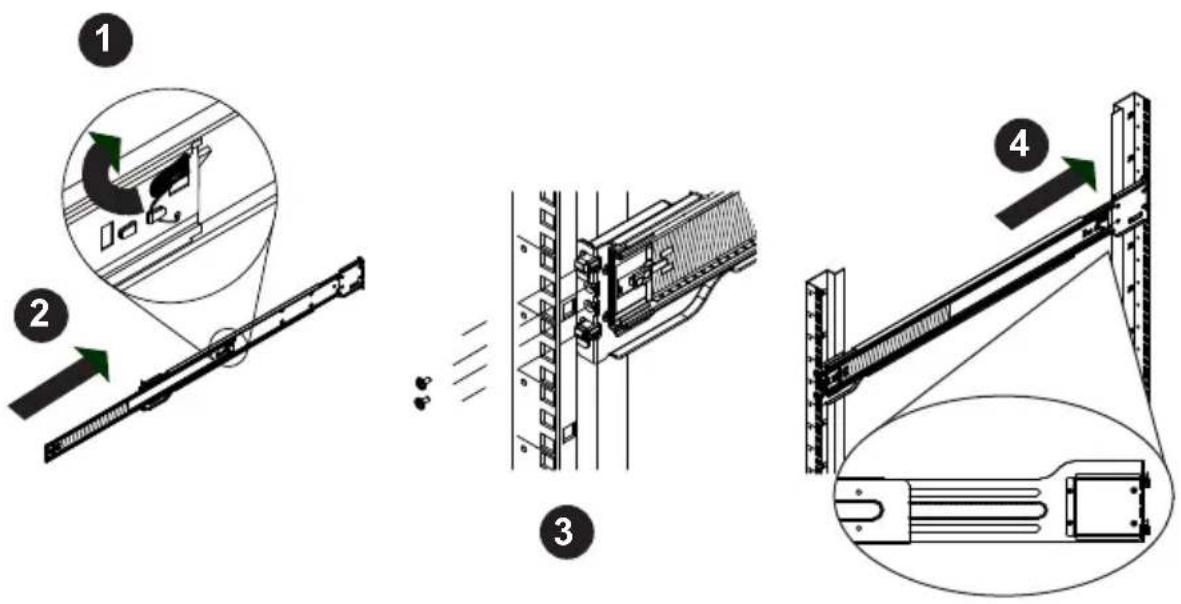

Installing the Outer Rails on the Rack....5-7
Standard Chassis Installation 5-8
Optional Quick Installation Method 5-9

Appendix A SC847E1C/2C JBOD Cables and Hardware

Appendix B SC847E1C/2C JBOD Power Supply Specifications

Appendix C BPN-SAS3-846EL Backplane Specifications

Appendix D BPN-SAS3-847EL Backplane Specifications

Appendix E CSE-PTJBOD-CB3 Power Board Specifications

Chapter 1

Introduction

1-1 Overview

Optimized for enterprise-level heavy-capacity storage applications, Supermicro's SC847EC1/C2 JBOD chassis features up to 44x (24 front + 20 rear) 3.5" hot-swap HDD bays.

The SC847EC1/C2 JBOD design provides high-density storage in a 4U form factor, with high power efficiency, optimized HDD signal trace routing and improved HDD carrier design to dampen vibration and maximize performance. Equipped with a 1280W (Platinum Level) high-efficiency redundant power supply and seven hot-plug redundant cooling fans, the SC847EC1/C2 JBOD is a reliable, high-quality storage workhorse system.

1-2 Shipping List

Please visit the Supermicro website for the latest shipping lists and part numbers for your particular chassis model at www.supermicro.com.

SC847E1C/2C JBOD Chassis
Model HDD Power Supply
SC847E1C-R1K28JBOD	44x (JBOD) SAS3/SAS2 or SATA3 support	1280W redundant(Platinum Level)
SC847E2C-R1K28JBOD	44x (JBOD) SAS3/SAS2 or SATA3 support	1280W redundant(Platinum Level)

1-3 Where to get Replacement Components

Though not frequently, you may need replacement parts for your system. To ensure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list of Supermicro Authorized Distributors/System Integrators/Resellers can be found at: http://www.supermicro.com. Click the Where to Buy link.

1-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Notes

Chapter 2

Standardized Warning Statements for AC/DC Systems

2-1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning!

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source. 設置手順書

This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 60VDC, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning!

The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning!

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning!

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

The fans might still be turning when you remove the fan assembly from the chassis.

Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

When stranded wiring is required, use approved wiring terminations, such as closedloop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor.

警告

DC Power Disconnection

Warning!

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

警告

Hazardous Voltage or Energy Present on DC Power Terminals

Warning!

Hazardous voltage or energy may be present on DC power terminals. Always replace cover when terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in place.

警告

There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. SC847EC1/C2 JBOD models have two buttons on the chassis control panel, a UID button and a power on/off button. This chapter explains the meanings of all of the chassis LED indicators and the appropriate responses you may need to take.

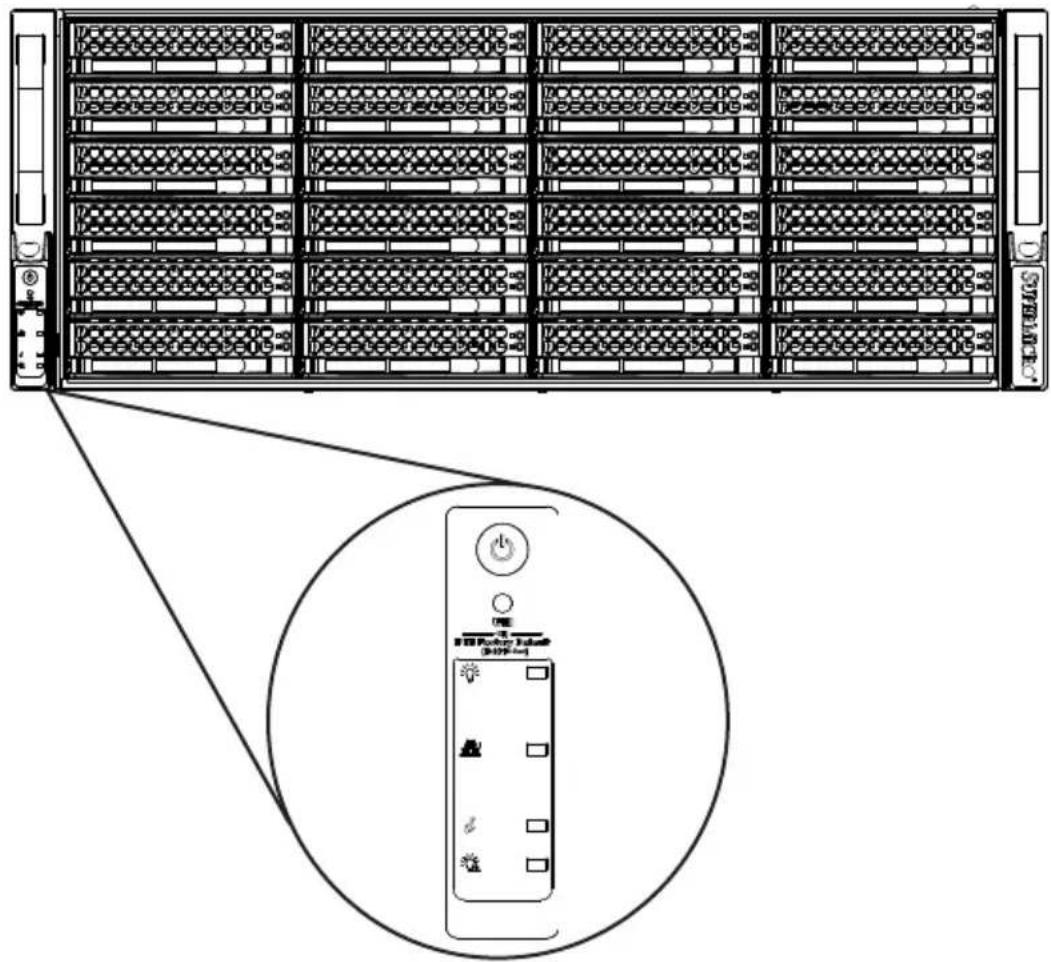

Figure 3-1: Control Panel

3-2 Control Panel Buttons

There are two push-buttons located on the left handle of the chassis. These are (in order from top to bottom) a power on/off button and a reset button.

Power: The main power button is used to apply or remove power from the power supply to the server system. Turning off system power with this button removes the main power but keeps standby power supplied to the system. Therefore, you must unplug system before servicing.

UID: Press this button to toggle the UID function on and off. To activate the IPMI IP factory default, press and hold this button for ten seconds.

3-3 Control Panel LEDs

The control panel located on the left handle of the SC847EC1/C2 JBOD chassis has four LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

NIC1: Indicates network activity on GLAN1 when flashing.

Informational LED
Status Description
Solid red	An overheat condition has occurred. (This may be caused by cable congestion).
Blinking red (1Hz)	Fan failure, check for an inoperative fan.
Blinking red (0.25Hz)	Power failure, check for a non-operational power supply.
Solid blue	Local UID has been activated. Use this function to locate the server in a rack mount environment.
Blinking blue (300 msec)	Remote UID is on. Use this function to identify the server from a remote location.
Blinking blue (500 msec)	System is ready to power up. See Section 4-4 of this manual.

Power Failure: When this LED flashes, it indicates a failure in the redundant power supply.

3-4 Drive Carrier LEDs

The SC847E1C/2C JBOD chassis uses SAS or SATA drives.

SAS/SATA Drives

Each SAS/SATA drive carrier has one set of LEDs, with one blue and red LED indicator for each drive. The LEDs function as follows:

Blue Drive Carrier LED Indicator
Color Status Description
Blue Steady on Indicates a SAS drive
Blue Off Indicates a SATA drive
Blue Blinking Drive is actively being accessed

Each drive carrier has a blue LED. When illuminated in a steady on state, this blue LED (on the front of the SAS/SATA drive carrier) indicates a SAS drive. A connection to the SAS/SATA backplane enables this LED to blink on and off when that particular drive is being accessed.

Red Drive Carrier LED Indicator
Color Status Description
Red Steady on	Drive failure
Red Blinking	RAID activity

When the red LED is blinking, it indicates that the system is either building, initializing or rebuilding RAID.

SCSI Drives

This chassis does not support SCSI drives at this time.

Chapter 4

Chassis Setup and Maintenance

4-1 Overview

This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver. Print this chapter to use as a reference while setting up your chassis.

Review the warnings and precautions listed in the manual before setting up or servicing this chassis. These include information in Chapter 2: System Safety and the warnings/precautions listed in the setup instructions.

Safety Warning: Before performing any chassis setup or maintenance, it is recommended that the chassis be removed from the rack and placed on a stable bench or table. For instructions on how to uninstall the chassis from the rack, refer to Chapter 5 Rack Installation in this manual.

4-2 Removing the Chassis Cover

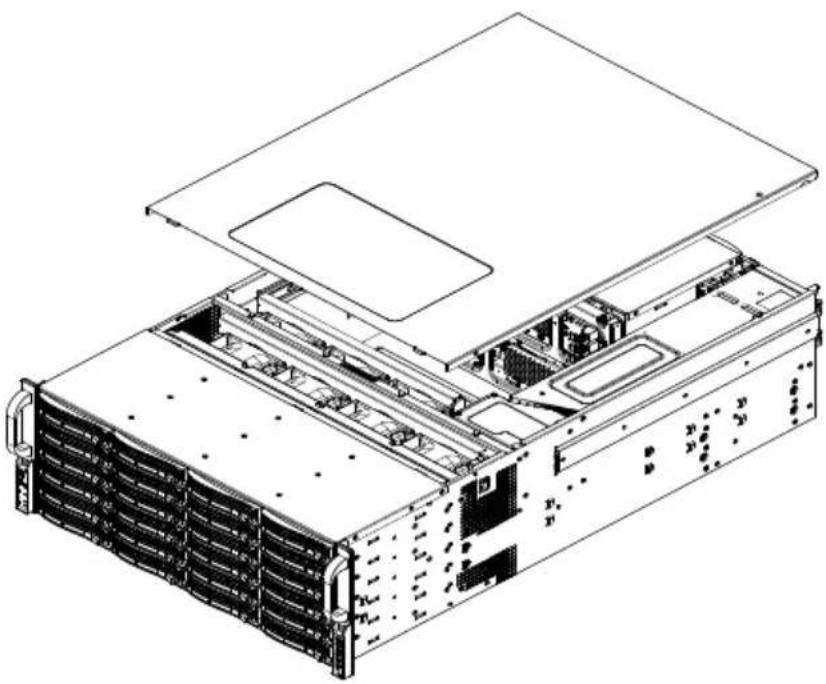

Technical line drawing of an internal server rack with visible expansion and internal components (no text or labels)

Figure 4-1: Removing the Chassis Cover

Removing the Chassis Cover

1. Power down the system and remove the power cords from the rear of the power supplies.
2. Remove the screws securing the cover to the chassis.
3. Lift the cover up and off the chassis.

Warning: Except for short periods of time, do NOT operate the server without the cover in place. The chassis cover must be in place to allow proper airflow and prevent overheating.

4-3 Installing Removable Hard Drives

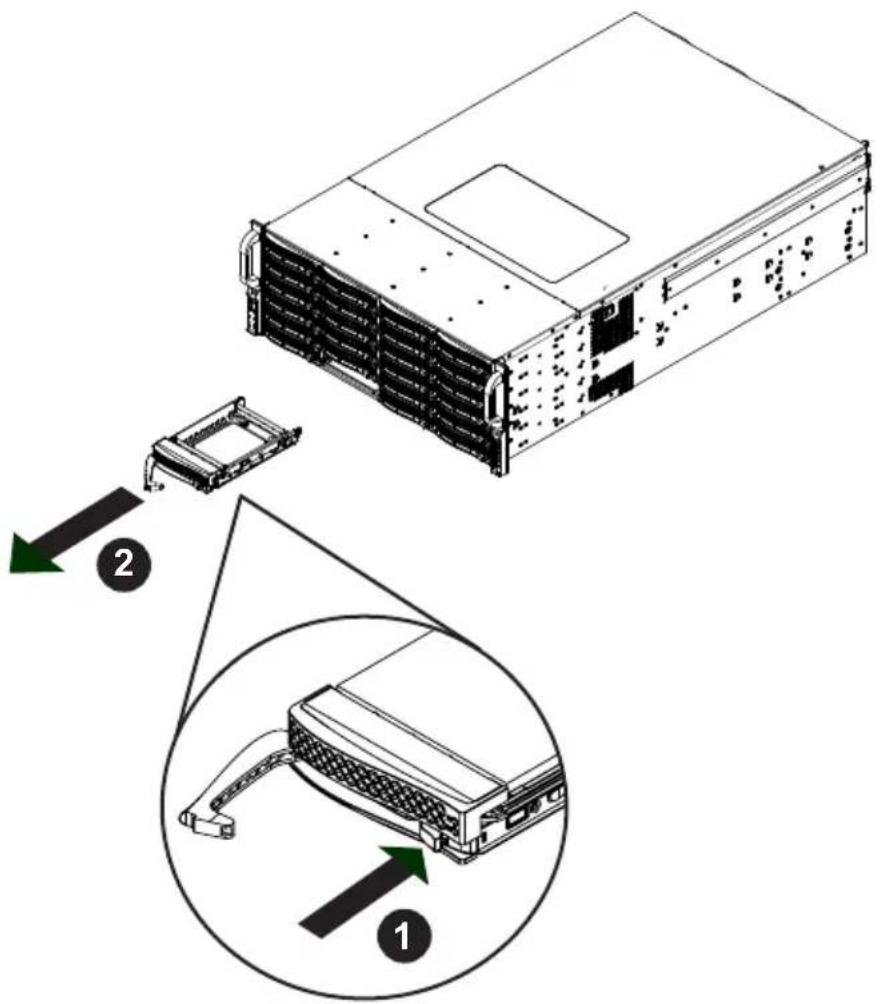

Figure 4-2: Removing a Hard Drive Carrier

The SC847EC1/C2 JBOD chassis has hot-swappable hard drives which may be removed from the chassis without powering down the system.

Removing Hard Drive Carriers from the Chassis

1. Press the release button on the drive carrier. This extends the drive carrier handle.
2. Use the handle to pull the drive carrier out of the chassis.

Figure 4-3: Chassis Drive Carrier

The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help to promote proper airflow for the drive bays.

Warning: Except for short periods of time (while swapping hard drives), do not operate the server with the drives removed from the chassis drive bays.

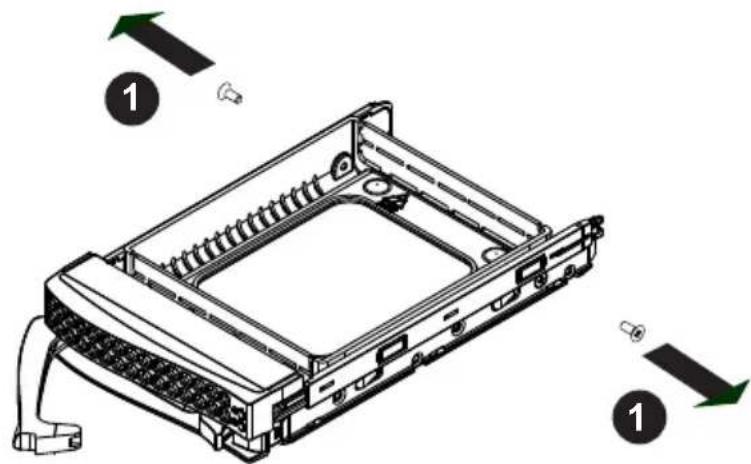

Figure 4-4: Removing the Dummy Drive from the Carrier

Warning! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/storage.cfm

Installing a Hard Drive to the Hard Drive Carrier

1. Remove the two screws securing the dummy drive to the drive carrier and remove the dummy drive. Place the hard drive carrier on a flat surface such as a desk, table or work bench.

Figure 4-5: Installing the Hard Drive into the Carrier

1. Slide the hard drive into the carrier with the printed circuit board side facing down.
2. Carefully align the mounting holes in both the drive carrier and the hard drive.
3. Secure the hard drive to the carrier using six screws.
4. Replace the drive tray into the chassis. Make sure to close the drive carrier handle to lock the drive carrier into place.

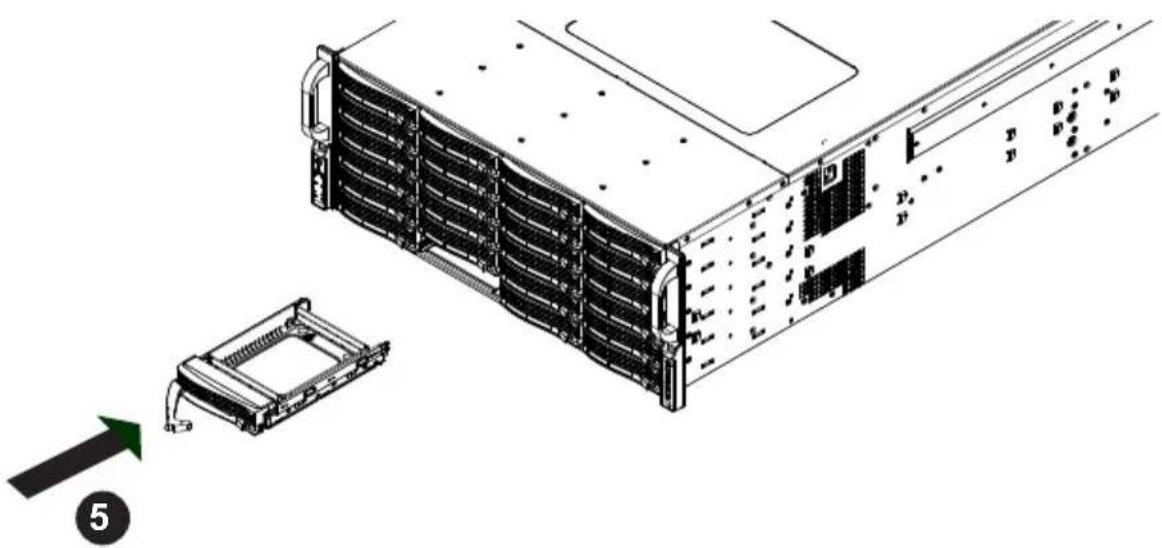

Diagram of a server rack with an attached rack unit and a directional arrow indicating orientation (no text or symbols present)

Figure 4-6: Installing the Hard Drive

4-4 System Fans

Seven hot-swappable, heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis thereby lowering the chassis internal temperature.

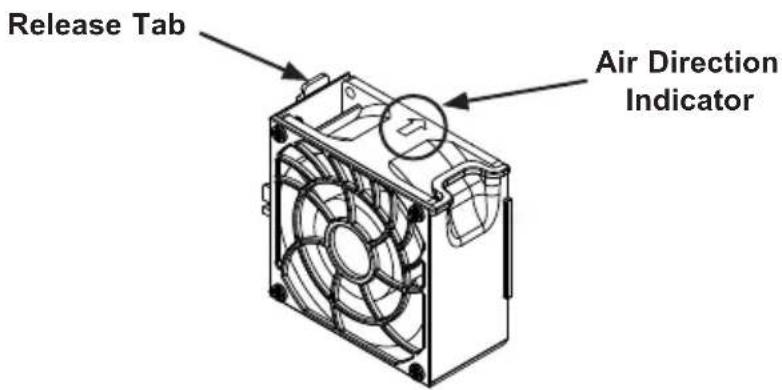

Figure 4-7: System Fan

Replacing a System Fan

1. Open the chassis while the power is running to determine which fan has failed. (Never run the server for an extended period of time with the chassis cover open.)
2. Remove the failed fan's power cord from the serverboard.
3. Press the fan release tab to lift the failed fan from the chassis and pull it completely out of the chassis.
4. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.
5. Check that the fan is working properly before replacing the chassis cover.
6. Plug the power cords into the rear of the power supplies and power up the system.

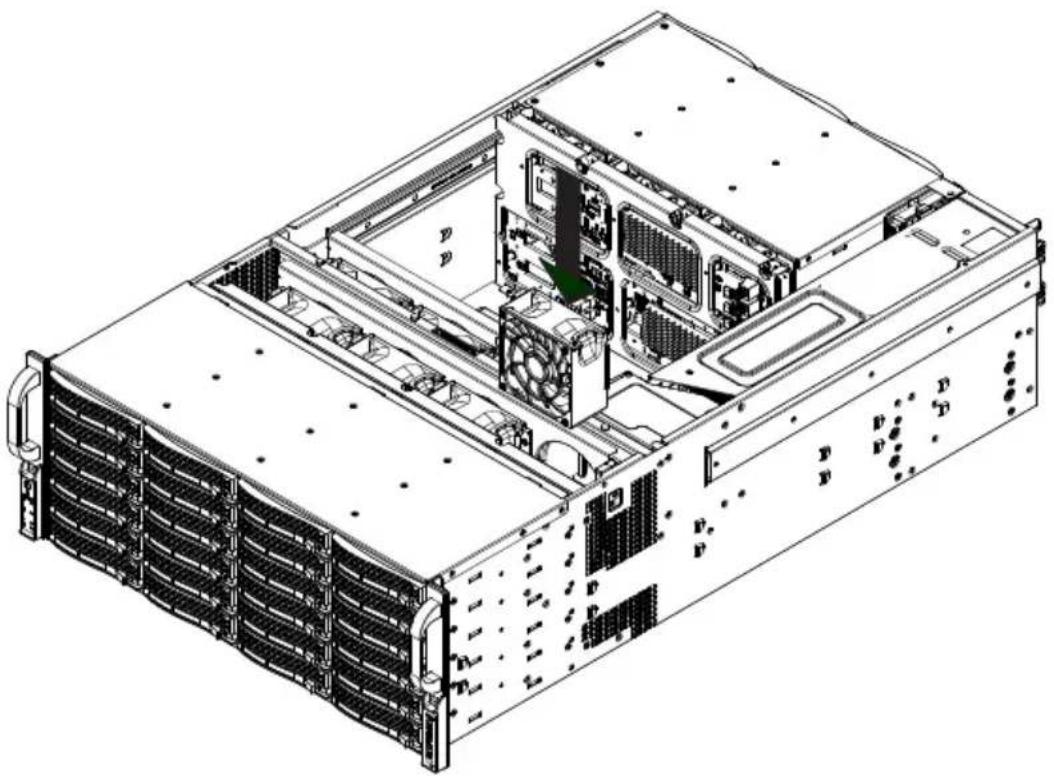

Technical line drawing of a server rack with internal components and ventilation ducts (no text or labels)

Figure 4-8: Placing a System Fan in the Chassis

4-5 Power Supply

The SC847EC1/C2 JBOD chassis has a 1280 Watt high-efficiency redundant power supply. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.

Redundant power supplies are hot-swappable, and can be changed without powering down the system. New units can be ordered directly from Supermicro (see contact information in the Preface).

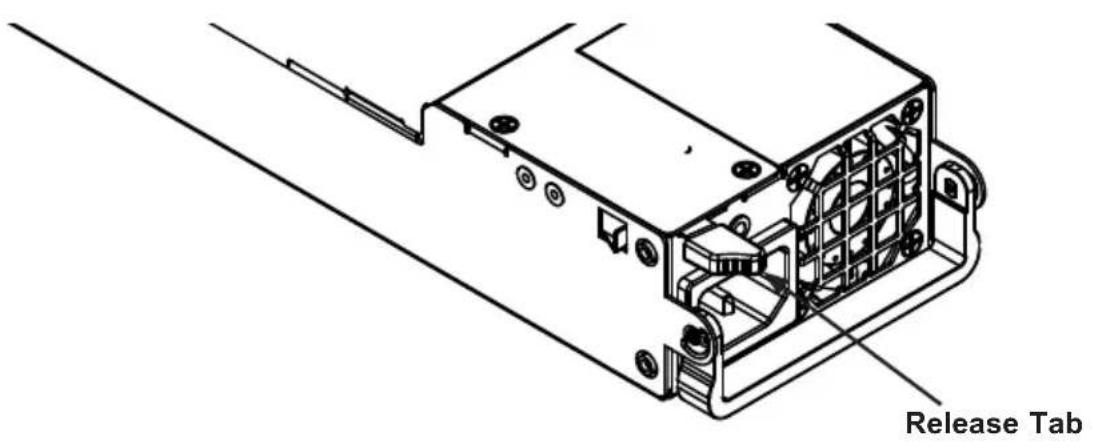

Figure 4-9: Power Supply Release Tab

Changing the Power Supply:

1. If your chassis includes a redundant power supply (at least two power modules), you can leave the server running and remove only one power supply. If your server has only one power supply, you must power down the server and unplug the power cord.
2. Push the release tab (on the back of the power supply) as illustrated.
3. Pull the power supply out using the handle provided.

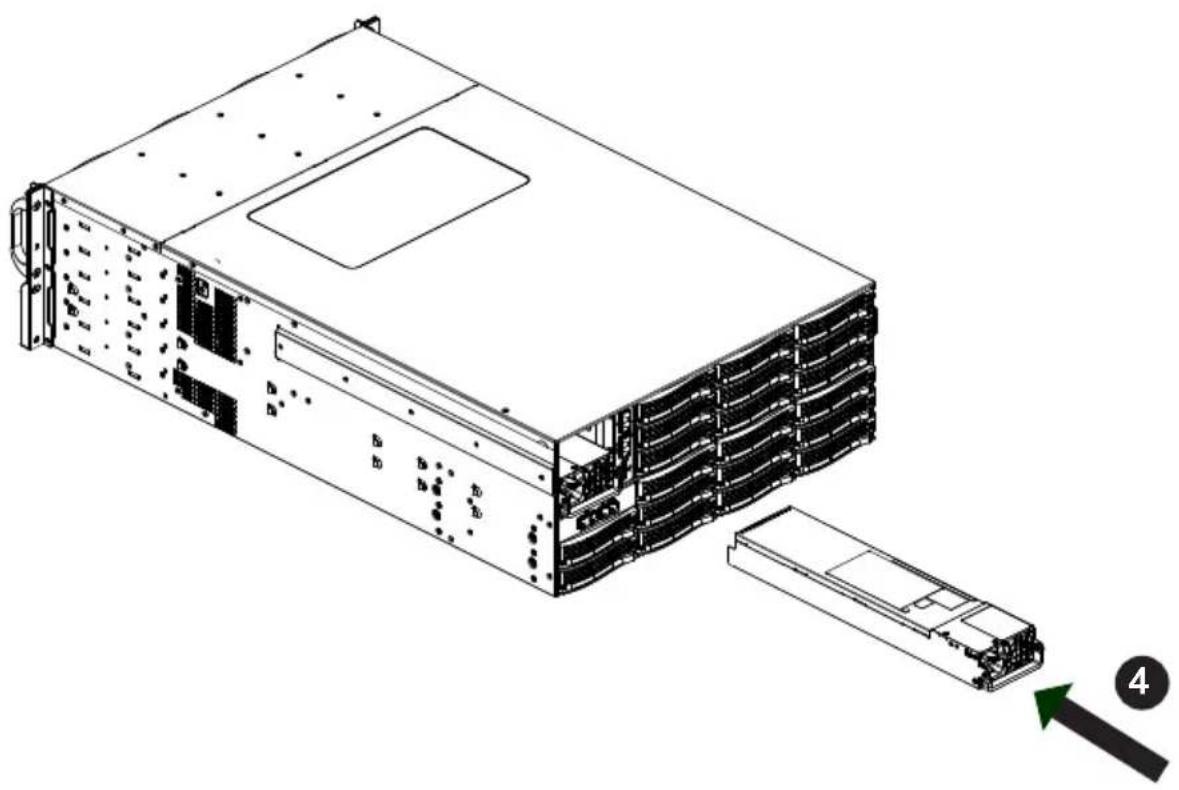

Technical line drawing of a server rack with internal components and an external connector (no text or symbols)

Figure 4-10: Power Supply Release Tab

1. Replace the failed power module with the same model.
2. Push the new power supply module into the power bay until you hear a click.
3. If using only one power supply, plug the AC power cord back into the module and power up the server.

4-6 Removing and Installing the Backplanes

The SC847E1C/2C chassis comes equipped with a BPN-SAS3-846EL1/EL2 front backplane and a BPN-SAS3-826EL1/EL2 rear backplane. For detailed infomation and instructions on how to change the backplane settings, see Appendices C and D of this manual.

Removing the Front Backplane

1. Power down the system and remove the power cords from the rear of the power supplies. Remove the chassis cover as described in Section 4-2.
2. Remove the two side screws securing the front backplane to the chassis.
3. Remove the four horizontal screws along the top of the front backplane.
4. Remove the five horizontal screws that go through the bottom of the backplane.

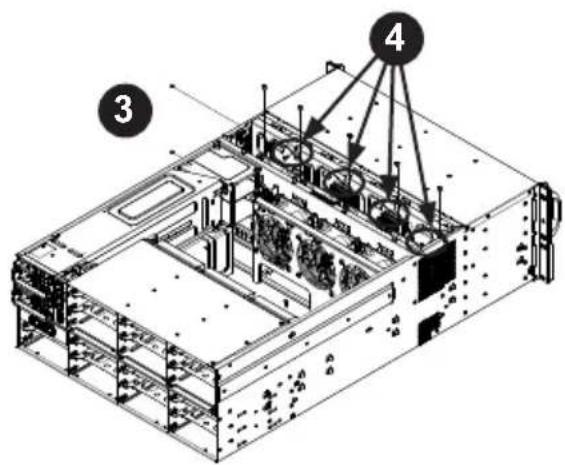

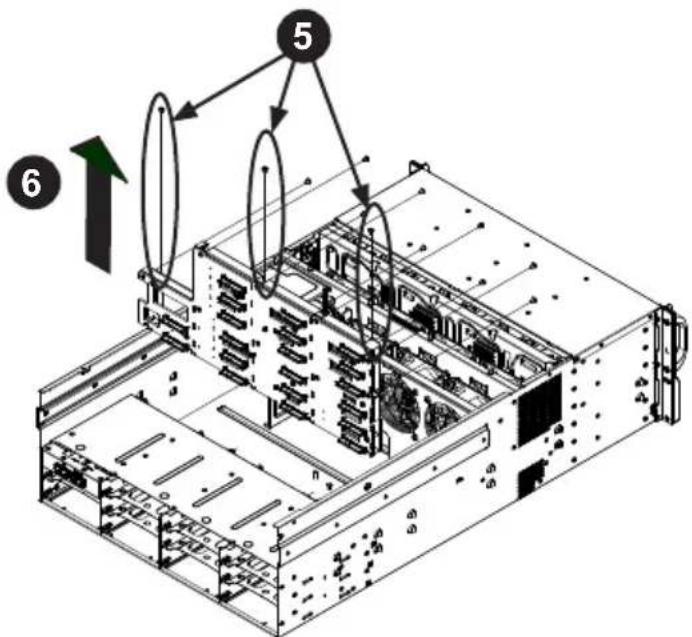

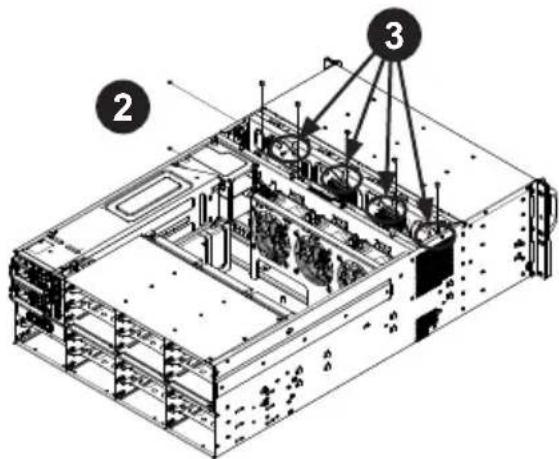

Figure 4-11: Removing the Screws Securing the Front Backplane

1. Lift the front backplane up and out of the chassis.

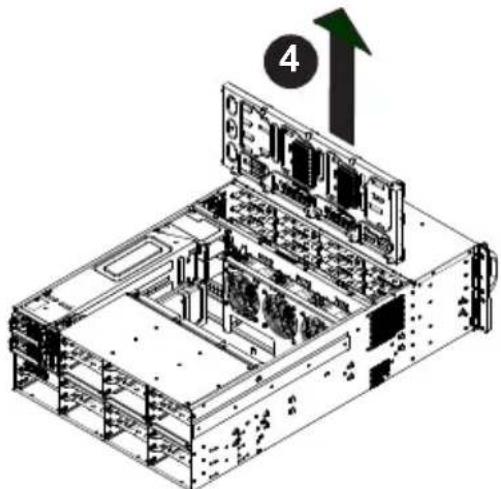

Figure 4-12: Removing the Front Backplane

Removing the Rear Backplane

1. Power down the system and remove the power cords from the rear of the power supplies. Remove the chassis cover as described in Section 4-2.
2. Remove the two side screws (one on each side of the chassis) which secure the rear tray to the chassis.

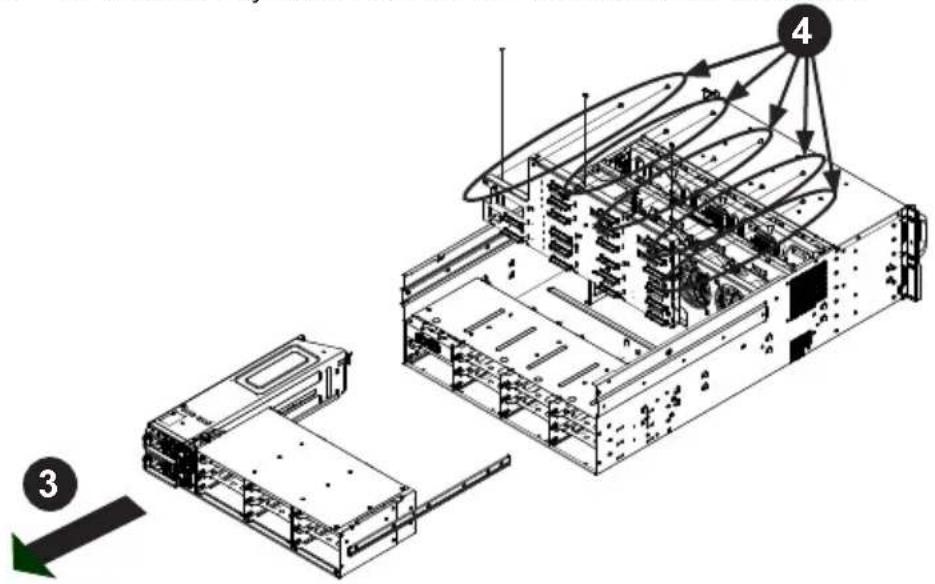

3. Pull the rear tray out of the back of the chassis as illustrated.

Figure 4-13: Removing the Screws Securing the Rear Backplane

1. Remove the nine horizontal screws going through the rear backplane.
2. Remove the three vertical screws securing the backplane to the chassis floor.
3. Lift the backplane up and out of the chassis.

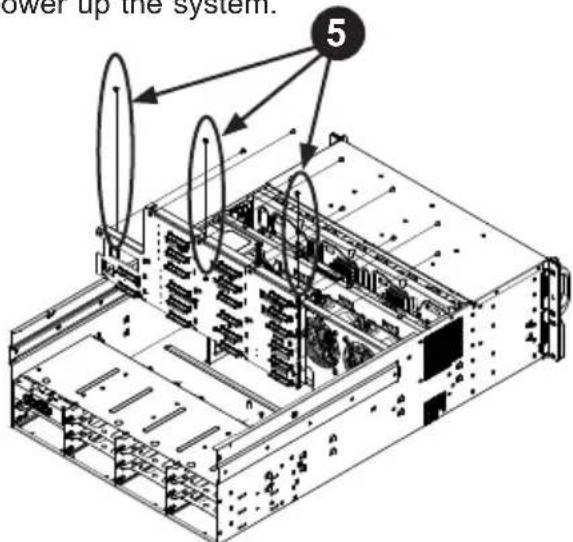

Figure 4-14: Removing the Three Screws Securing the Backplane

Installing the Front Backplane

1. Confirm that the power cords are still disconnected from the power supplies.
2. Place the front backplane in the chassis.

Figure 4-15: Installing the Front Backplane

1. Install the two side screws to secure the front backplane to the chassis.
2. Install the four horizontal screws along the top of the front backplane.
3. Install the five horizontal screws along the bottom of the front backplane.

Figure 4-16: Installing the Screws Securing the Front Backplane

1. Plug the power cords into the rear of the power supply, replace the chassis cover and power up the system.

Installing the Rear Backplane

1. Confirm that the power cords are still disconnected from the power supplies.
2. Slide the rear tray out of the back of the chassis.

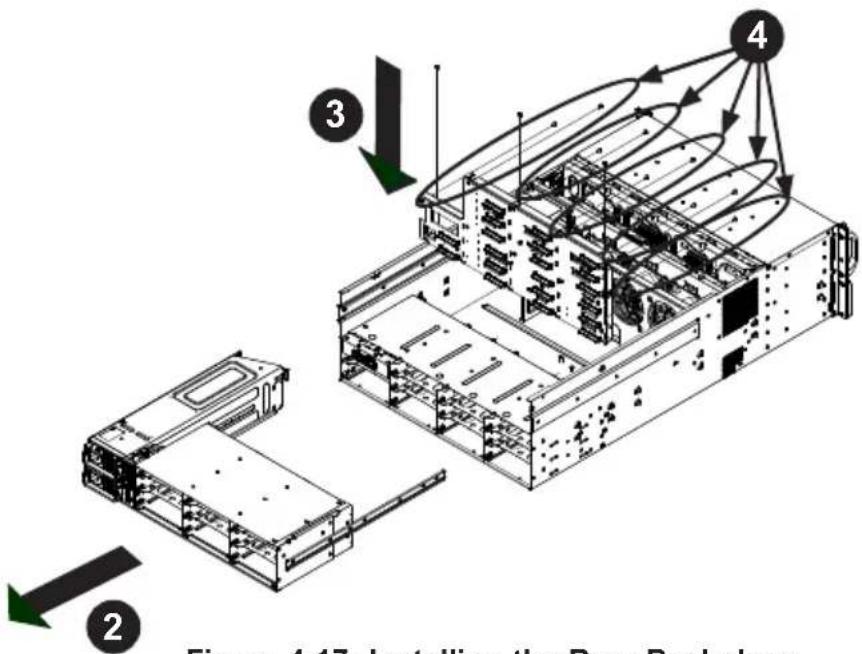

Figure 4-17: Installing the Rear Backplane

1. Place the rear backplane in the chassis and secure it with the three vertical screws along the top of the backplane.
2. Secure the backplane with nine horizontal screws through the backplane.
3. Plug the power cords into the rear of the power supply, replace the chassis cover and power up the system.

Figure 4-18: Installing the Screws Securing the Rear Backplane

4-7 Installing the Power Card

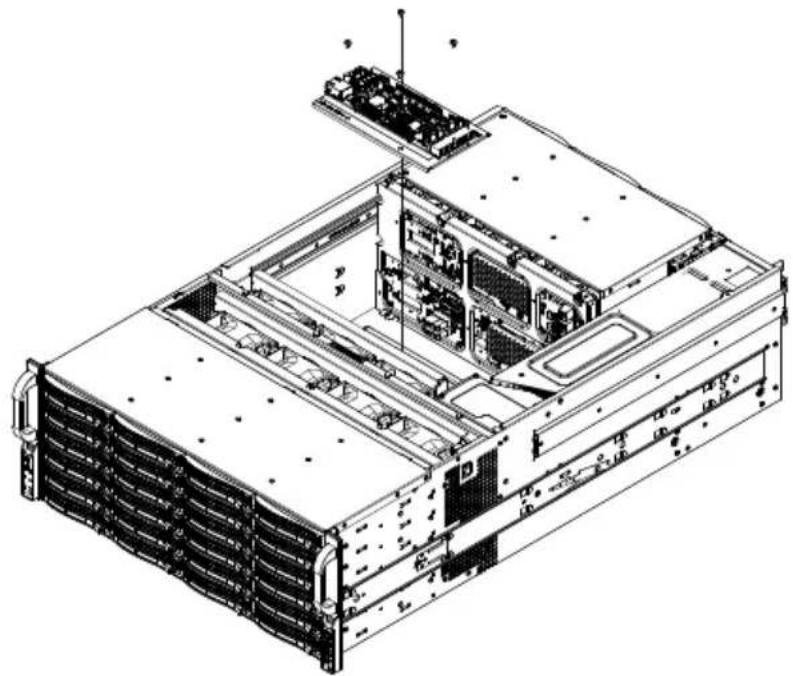

Technical line drawing of a server rack with internal components and mounting hardware (no text or labels)

Figure 4-19: Installing the CSE-PTJBOD-CB3 Power Card into the Chassis

Removing the Power Card From the Chassis

1. Power down the system and remove the power cords from the rear of the power supplies. Remove the chassis cover as described in Section 4-2 of this manual.
2. Remove the four screws securing the power card to the chassis.
3. Lift the power card up and out of the chassis.

Installing the Power Card into the Chassis

1. Power down the system and remove the power cords from the rear of the power supplies. Remove the chassis cover as described in Section 4-2 of this manual.

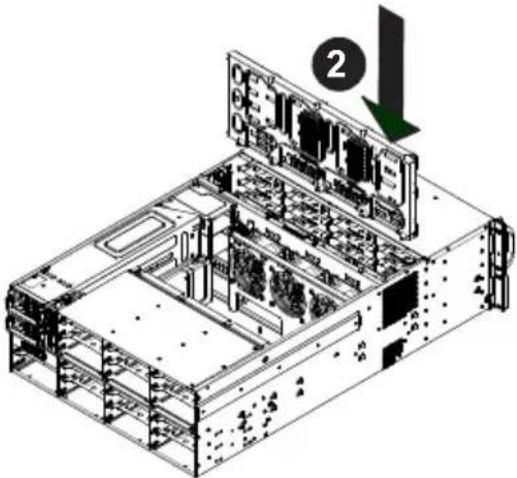

2. Place the CSE-PTJBOD-CB3 power card into the chassis as illustrated above.

3. Secure the power card to the chassis using the four screws provided.

4. Plug the power cords into the rear of the power supply, replace the chassis cover and power up the system.

Chapter 5

Rack Installation

5-1 Overview

This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimal amount of time.

5-2 Unpacking the System

You should inspect the box which the chassis was shipped in and note if it was damaged in any way. If the chassis itself shows damage, you should file a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold your chassis. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. The system needs to be placed near a grounded power outlet. Be sure to read the Rack and Server Precautions in the next section.

5-3 Preparing for Setup

The box your chassis was shipped in should include two sets of rail assemblies and the mounting screws needed for installing the system into the rack. Also included is an optional square hole to round hole converter bracket, for use in racks with round mounting holes. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front door completely (\~25 inches).
• Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.
• This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

5-4 Warnings and Precautions

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.
• In single rack installations, stabilizers should be attached to the rack.
• In multiple rack installations, the racks should be coupled together.
• Always make sure that the rack is stable before extending a component from the rack.
• You should extend only one component at a time - extending two or more simultaneously may cause the rack to become unstable.

General Server Precautions

• Review the electrical and general safety precautions that came with the components you are adding to your chassis.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components on the bottom of the rack first, and then work upwards.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges, voltage spikes and to keep your system operating in case of a power failure.
• Allow the hot plug hard drives and power supply modules to cool before touching them.
• Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (TMRA).

Reduced Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

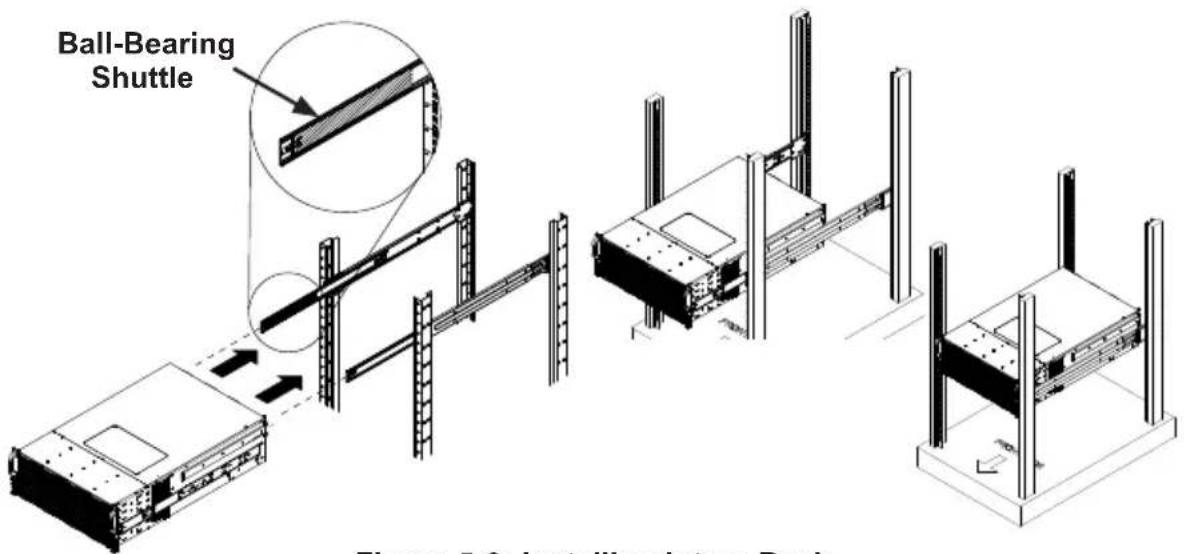

5-5 Rack Mounting Instructions

This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using. NOTE: This rail will fit a rack between 26.5" and 36.4" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rail assemblies in the rack mounting kit. Each assembly consists of three sections: An inner chassis rail which secures directly to the chassis, an outer rail that secures to the rack, and a middle rail which extends from the outer rail. These assemblies are specifically designed for the left and right side of the chassis.

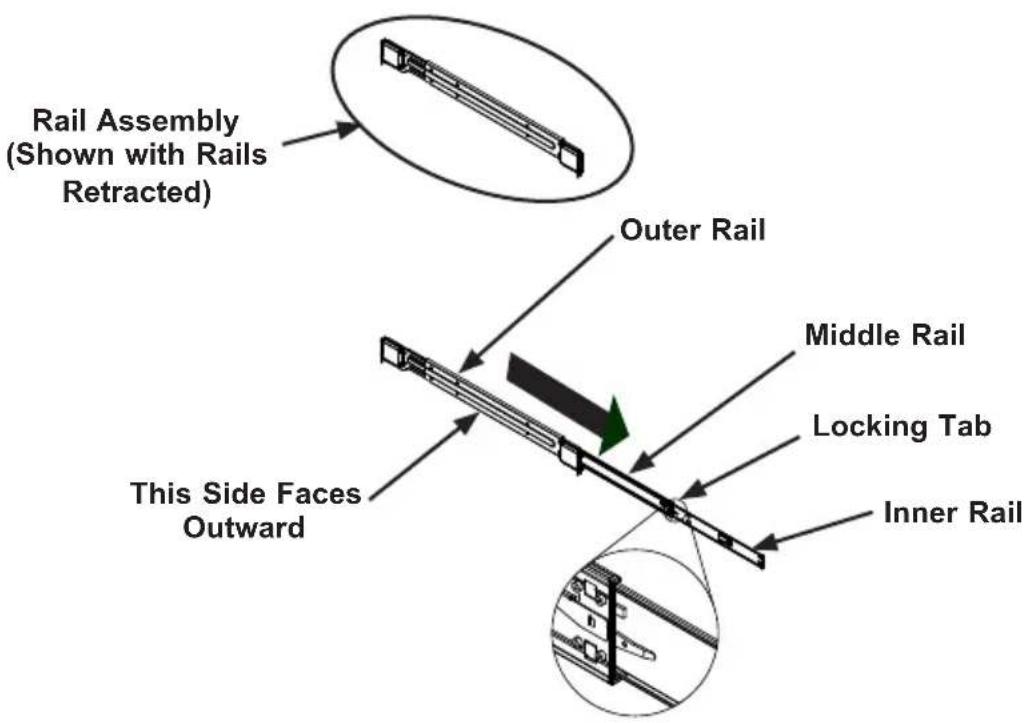

Figure 5-1: Identifying the Outer Rail, Middle Rail and Inner Rails (Left Rail Assembly Shown)

Locking Tabs

Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

Releasing the Inner Rail

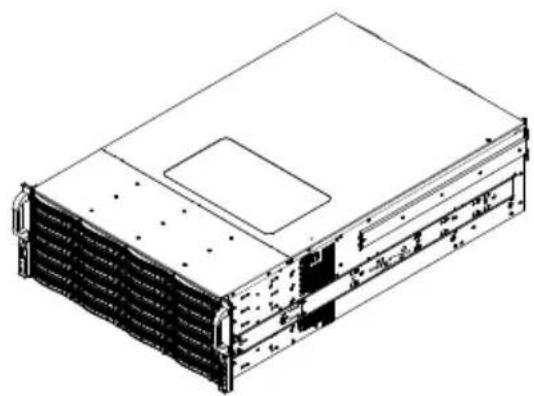

Releasing Inner Rail from the Outer Rails

1. Identify the left and right outer rail assemblies as described on page 5-4.
2. Pull the inner rail out of the outer rail until it is fully extended as illustrated below.
3. Press the locking tab down to release the inner rail.
4. Pull the inner rail all the way out.
5. Repeat steps 1-3 for the second outer rail.

Figure 5-2: Extending and Releasing the Inner Rail

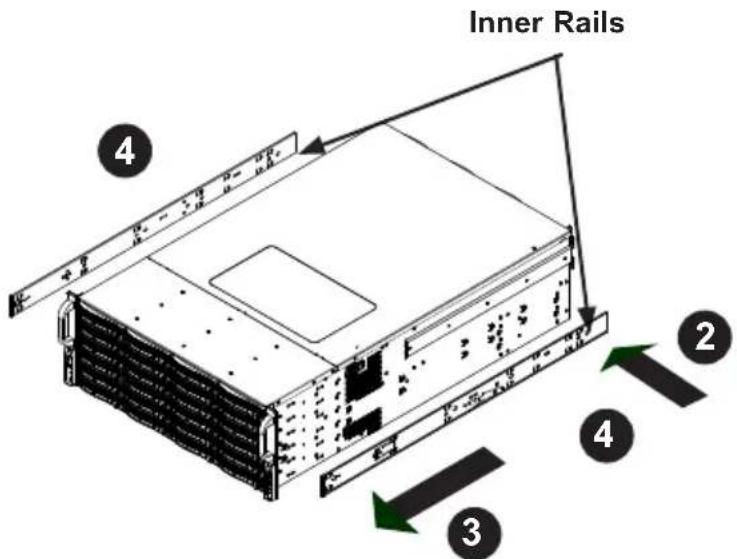

Figure 5-3: Installing the Inner Rails

Technical line drawing of a server rack unit with mounting flanges and internal components (no text or symbols)

Figure 5-4: Inner Rails Installed on the Chassis

Installing The Inner Rails on the Chassis

Installing the Inner Rails

1. Confirm that the left and right inner rails have been correctly identified.
2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the rail clicks into the locked position, which secures the inner rail to the chassis.
4. Secure the inner rail to the chassis with the screws provided.
5. Repeat steps 1 through 4 above for the other inner rail.

Warning: do not pick up the server by the front handles. They are designed to pull the system from a rack only.

Figure 5-5: Extending and Releasing the Outer Rails

Installing the Outer Rails on the Rack

Installing the Outer Rails

1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks of the front of the outer rail onto the slots on the front of the rack. If necessary, use screws to secure the outer rails to the rack, as illustrated above.
4. Pull out the rear of the outer rail, adjusting the length until it fits within the posts of the rack.
5. Hang the hooks of the rear portion of the outer rail onto the slots on the rear of the rack. If necessary, use screws to secure the rear of the outer rail to the rear of the rack.
6. Repeat steps 1-5 for the remaining outer rail.

Figure 5-6: Installing into a Rack

Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up.

Standard Chassis Installation

Installing the Chassis into a Rack

1. Confirm that the inner rails are properly installed on the chassis.

2. Confirm that the outer rails are correctly installed on the rack.

3. Pull the middle rail out from the front of the outer rail and make sure that the ball-bearing shuttle is at the front locking position of the middle rail.

4. Align the chassis inner rails with the front of the middle rails.

5. Slide the inner rails on the chassis into the middle rails, keeping the pressure even on both sides, until the locking tab of the inner rail clicks into the front of the middle rail, locking the chassis into the fully extended position.

6. Depress the locking tabs of both sides at the same time and push the chassis all the way into the rear of the rack.

7. If necessary for security purposes, use screws to secure the chassis handles to the front of the rack.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

Warning: When initially installing the server into a rack, test that the rail locking tabs engage to prevent the server from being overextended. Have a rack lift in place as a precaution in case the test fails.

Optional Quick Installation Method

The following quick installation method may be used to install the chassis onto a rack.

Installing the Chassis into a Rack

1. Install the whole rail assembly onto the rack as described on page 5-7.
2. Release the inner rail without retracting the middle rail.
3. Install the inner rails on the chassis as previously described on page 5-6.
4. Install the chassis onto the middle rail as described in the previous section.

Notes

Appendix A

SC847E1C/2C JBOD Cables and Hardware

A-1 Overview

This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com.

A-2 Cables Included with SC847E1C/2C JBOD Chassis

SC847E1C/2C-R1K28JBOD
Part # Type Qty Length Description
CBL-CDAT-0601 Cable	2 50 cm			4-pin to 4-pin I2C cable, 26 AWG.
CBL-NTWK-0587 Cable	1 ---			CAT 5e RJ45 extension cable for SC847D JBOD internal male to female adapter with PCBA 500 mm, 24 AWG, HF.
CBL-SAST-0568 Cable	2 35 cm			Internal Mini-SAS HD to Mini-SAS HD,12Gb/s, HF.
CBL-SAST-0593-01 Cable	4 60 cm			Internal Mini-SAS HD to Mini-SAS HD 60 cm, 30AWG,12 Gb/s [FCI].
CBL-0160L Cable 2	6'			NEMA5-15P to C13 US power cord 16 AW, PBF (default for high Watt)
CBL-0071L Cable 1 ---				Round 16-pin to 16-pin ribbon FP CABLE 30

Extending Power Cables

Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas.

To use these motherboards you may have to extend the power cables to the mother boards. To do this, use the following chart as a guide.

Power Cable Extenders
Number of Pins Cable Part # Length
24-pin CBL-0042	7.9"(20 CM)
20-pin CBL-0059	7.9"(20 CM)
8-pin CBL-0062	7.9"(20 CM)
4-pin CBL-0060	7.9"(20 CM)

Front Panel to the Motherboard

The SC847E1C/2C JBOD chassis includes a cable to connect the chassis front panel to the motherboard. If your motherboard uses a different connector, use the following list to find a compatible cable.

Front Panel to Motherboard Cable (Ribbon Cable)
Number of Pins(Front Panel)	Number of Pins(Motherboard)	Cable Part #
16-pin 16-pin CBL-0049
16-pin 20-pin CBL-0048
20-pin 20-pin CBL-0047
16-pin various* CBL-0068
20-pin various* CBL-0067

* Split cables: Use these cable if your motherboard requires several different connections from the front panel.

A-3 Chassis Screws

The accessory box includes all the screws needed to set up your chassis. This section lists and describes the most common screws used. Your chassis may not require all the parts listed.

M/B

Pan head 6-32 x 5 mm [0.197]

HARD DRIVE

Flat head 6-32 x 5 mm [0.197]

DVD-ROM, CD-ROM, and FLOPPY DRIVE

Pan head 6-32 x 5 mm [0.197]

Flat head 6-32 x 5 mm [0.197]

Round head M3 x 5 mm [0.197]

Round head M2.6 x 5 mm [0.197]

RAIL

Flat head M4 x 4 mm [0.157]

Round head M4 x 4 mm [0.157]

Flat head M5 x 12 mm[0.472] Washer for M5

M/B STANDOFFS

M/B standoff 6-32 to 6-32

M/B (CPU) standoff M5 to 6-32

Thumb screw 6-32 x 5 mm [0.197]

1/U M/B standoff 6-32 x 5 mm [0.197]

Notes

Appendix B

SC847E1C/2C JBOD Power Supply Specifications

This appendix lists power supply specifications for your chassis system.

SC847E1C/2C-R1K28JBOD
	1280W
MFR Part # PWS-1K28P-SQ
AC Input	1000W Output @ 100-140V, 12-8A, 50-60Hz1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output	1000W: +12V/83A; +5Vsb/4A1280W: +12V/106.7A, +5Vsb/4A

Notes

Appendix C

BPN-SAS3-846EL Backplane Specifications

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

C-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the backplane by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

C-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components from the computer, including the BPN-SAS3-846EL series backplane.
• Make sure that the backplane is properly and securely on the motherboard to prevent damage to the system due to power outages.

C-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest backplane revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

C-4 Introduction to the BPN-SAS3-846EL Backplane

The BPN-SAS3-846EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects BPN-SAS3-846EL Revision 1.01, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

C-5 Overview of the BPN-SAS3-846EL1/EL2 Backplanes

The BPN-SAS3-846EL1 and BPN-SAS3-846EL2 model backplanes are identical, except that the BPN-SAS3-846EL2 backplane has duplicate secondary components which are not found on the BPN-SAS3-846EL1. The BPN-SAS3-846EL2 is divided into a two sections, with the primary components on the right side of the board and the secondary components on the left. SAS3 backplanes are not compatible with legacy SAS (3 Gbps), SATA (1.5 Gbps) backplanes or lower.

C-6 Front Connectors

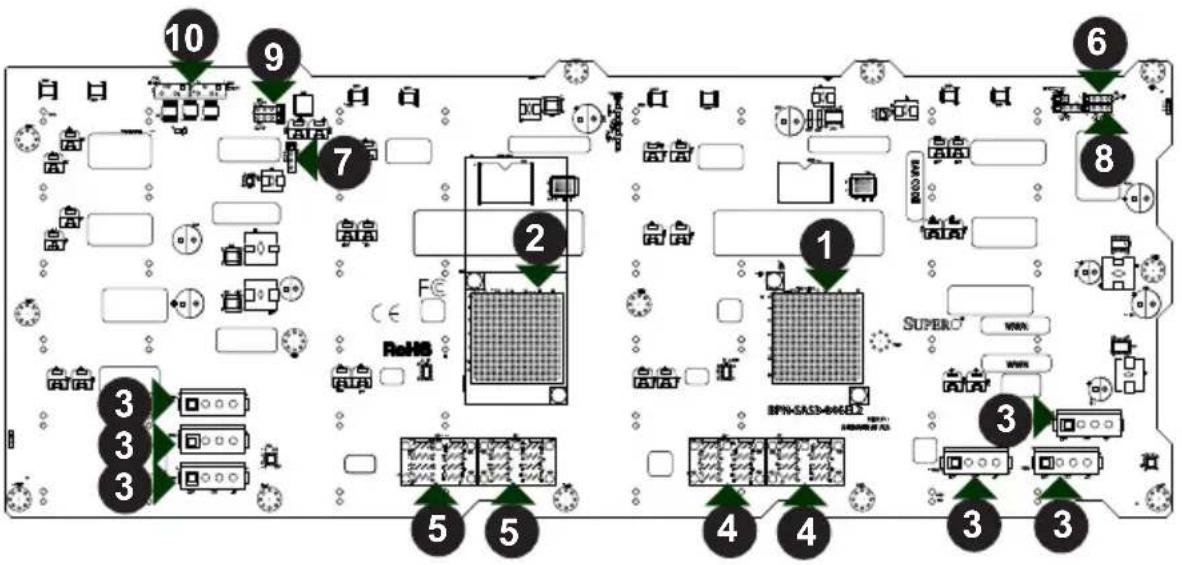

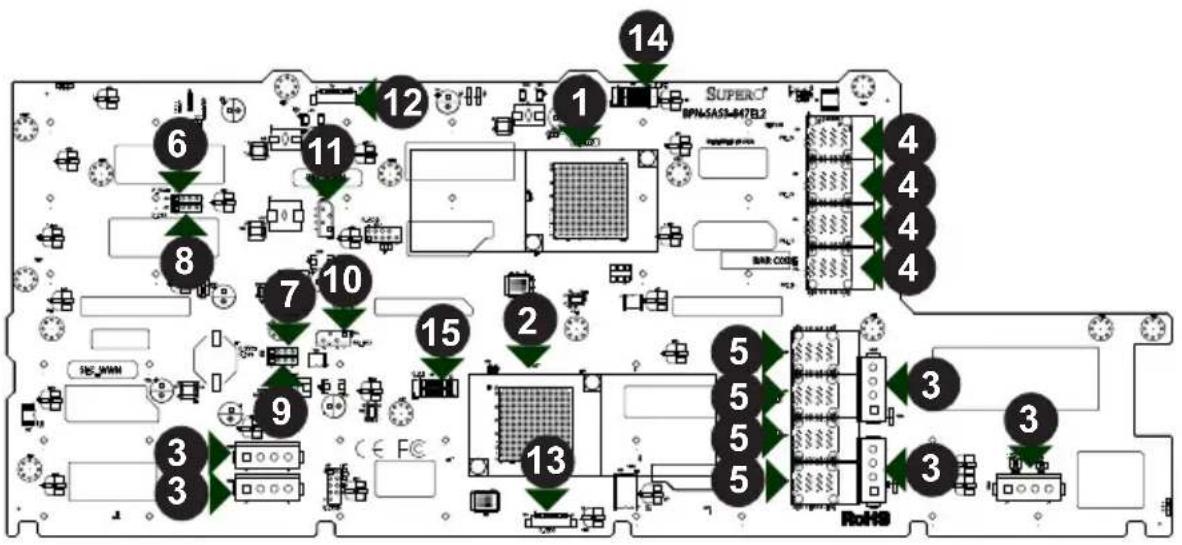

Figure C-1: BPN-SAS3-846EL1/EL2 Connectors and Components

1. Primary Expander Chip.
2. Secondary Expander Chip (not present on EL1 single port backplanes).
3. Backplane Power Connectors: PWR1 through PWR6.
4. Primary SAS Ports: J49, J50.
5. Secondary SAS Ports: J51, J52. (not present on EL1 single port backplanes).

6. Primary UART Connector: PRI-UART (J30) for manufacturer's use only.

7. Secondary UART Connector: SEC-UART(J24) for manufacturer's use only, not present on EL1 backplanes.

8. Primary SDB Connector: PRI-SDB (J31), for manufacturer's use only.
9. Secondary SDB Connector: SEC-SDB (J29), for manufacturer's use only, not present on EL1 backplanes.
10. I²C Connector, EXP I2C0 (J48).

C-7 Front Connector and Pin Definitions

1. - 2. Primary and Secondary Expander Chips

The primary and secondary expander chips allow the backplane to support dual port, cascading, and failover configurations.

3. Backplane Power Connectors

The 4-pin connectors, designated PWR1 - PWR6 provide power to the backplane. See the table on the right for pin definitions.

4. - 5. Primary and Secondary SAS Ports

The primary SAS connectors are designated J49 and J50. The secondary SAS Ports are designated J51 through J52 and are not present on EL1 single port backplanes.

6. - 7. Primary and Secondary UART Connectors

The primary UART connector is designated PRI-UART and J30. The secondary UART connector is designated SEC-UART and J24 and is not present on BPN-SAS3-846EL1. UART connectors are used for manufacturer's diagnostic purposes only.

8. - 9. SDB Connectors

The Primary SDB connector is designated PRI-SDB and J31. The secondary SDB connector is designated SEC-SDB and J29. (Not present on BPN-SAS3-846EL1 backplanes) These are debug connectors used for the manufacturer's diagnostic purposes only.

10. I²C Connectors

The I²C connector. is designated EXP I2C0.

BackplaneMain Power4-Pin Connector
Pin#	Definition
1	+12V
2 and 3 Ground
4 +5V

C-8 Front Jumper Location and Settings

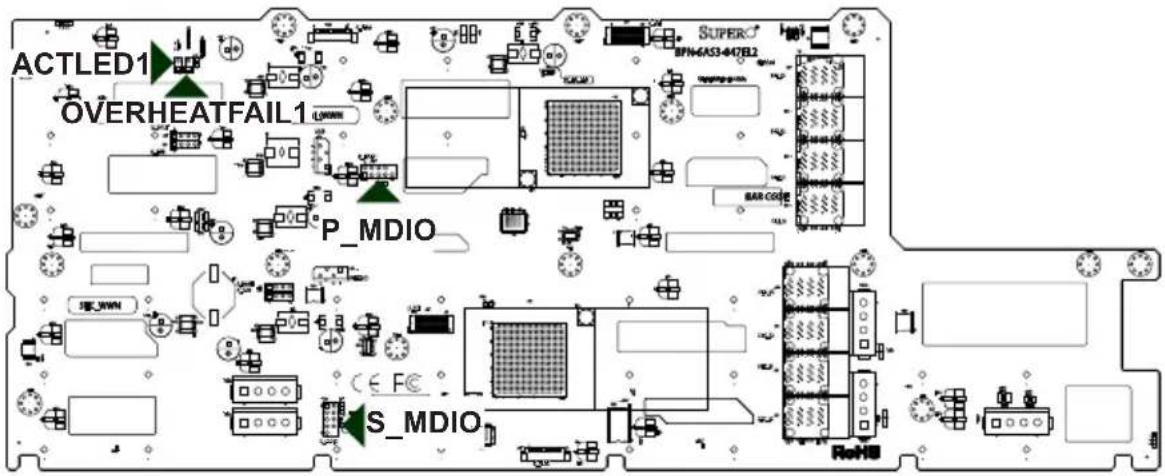

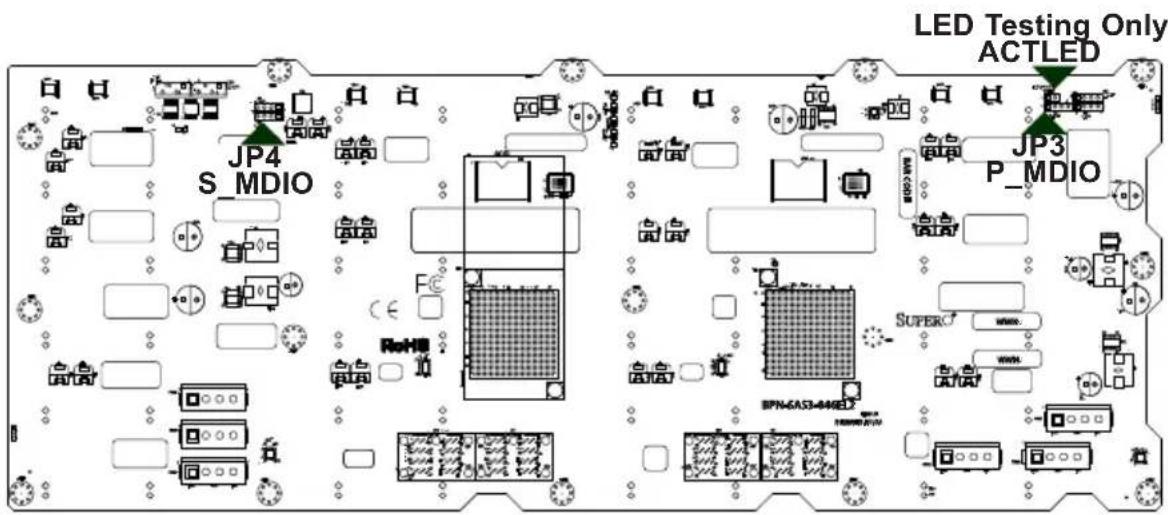

Figure C-2: Front Jumpers

Explanation of Jumpers

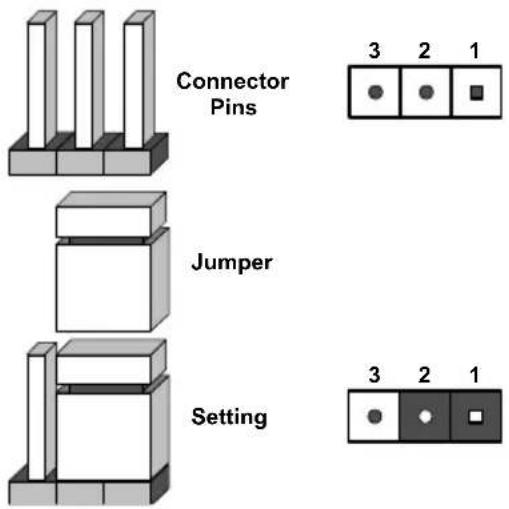

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

General Jumper Settings
Jumper	Jumper Settings	Note
LED Testing Only ACTLED	Open: Disabled (Default) Closed: Enabled	Activity LED test.
JP3 P_MDIO	Open: Disabled (Default) Closed: Enabled	Primary management data in/out. For manufacturer's use only
JP4 S-MDIO	Open: Disabled (Default) Closed: Enabled	Secondary management data in/out. For manufacturer's use only

C-9 Front LED Indicators

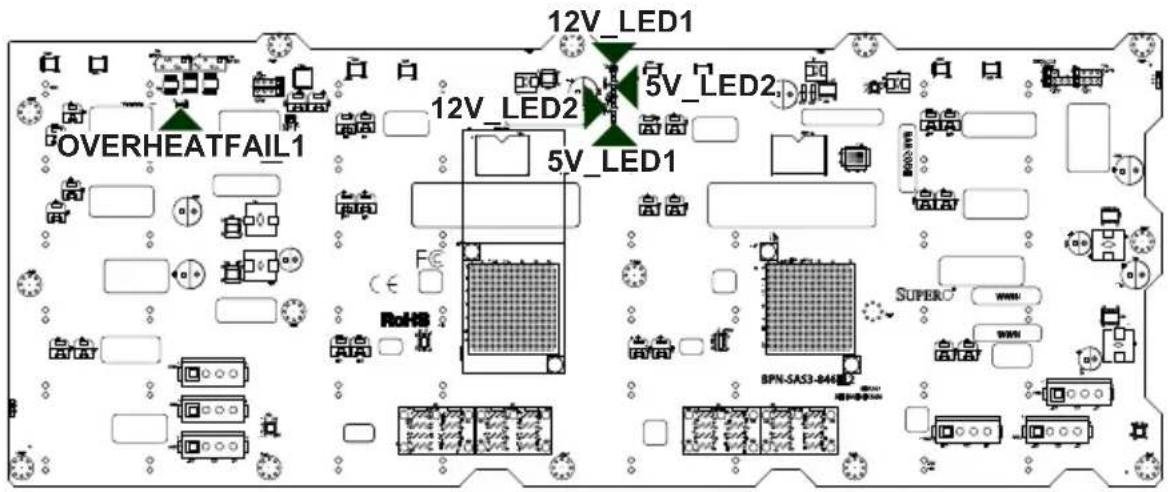

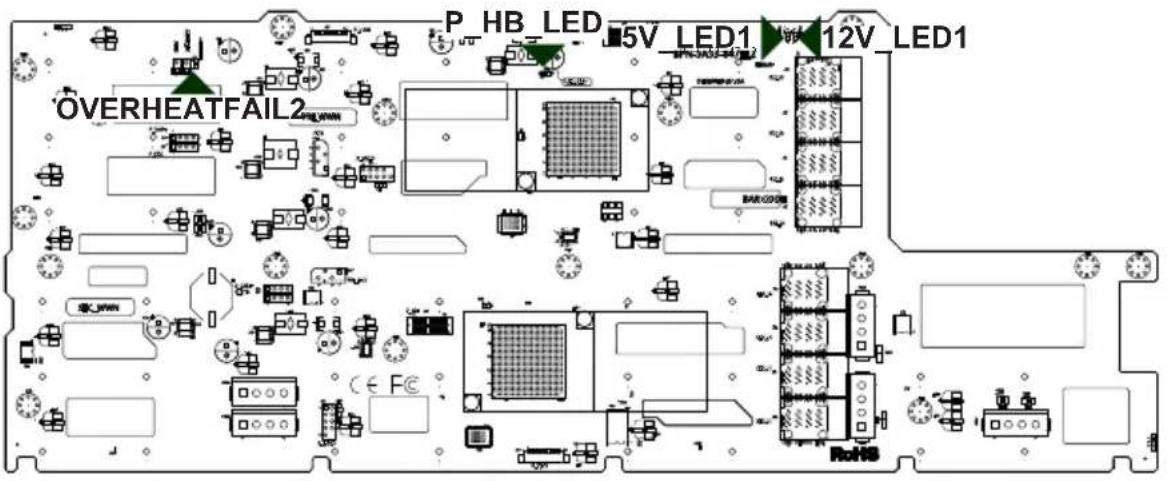

Figure C-3: Front LEDs

Backplane LEDs
LED	Normal State	Abnormal State	Specification
12V_LED1 On Off 1	2V power status
12V_LED2 Blinking		Steady on, or off	Primary expander heartbeat indicator
5V_LED1 On Off 5V power status
5V_LED2 Blinking		Steady on, or off	Secondary expander heartbeat indicator (not present on BPN-SAS3-846EL1 backplanes).
OVERHEATFAIL1 Off On System overheat/failure LED

C-10 Rear Connectors and LED Indicators

    B --> M["SAS #11 J11"]
    D --> N["SAS #10 J10"]
    F --> O["SAS #9 J9"]
    H --> P["SAS #8 J8"]
    J --> Q["SAS #7 J7"]
    L --> R["SAS #6 J6"]

    M --> S["SAS #17 J17"]
    N --> T["SAS #16 J16"]
    O --> U["SAS #15 J15"]
    P --> V["SAS #14 J14"]
    Q --> W["SAS #13 J13"]
    R --> X["SAS #12 J12"]

    S --> Y["SAS #23 J23"]
    T --> Z["SAS #22 J22"]
    U --> AA["SAS #21 J21"]
    V --> AB["SAS #20 J20"]
    W --> AC["SAS #19 J19"]

    Y --> AD["SAS #23 FAIL23"]
    Z --> AE["SAS #22 FAIL22"]
    AA --> AF["SAS #21 FAIL21"]

    AC --> AG["SAS #18 J18"]

    AD --> AH["SAS #19 FAIL19"]
    AE --> AI["SAS #18 FAIL18"]

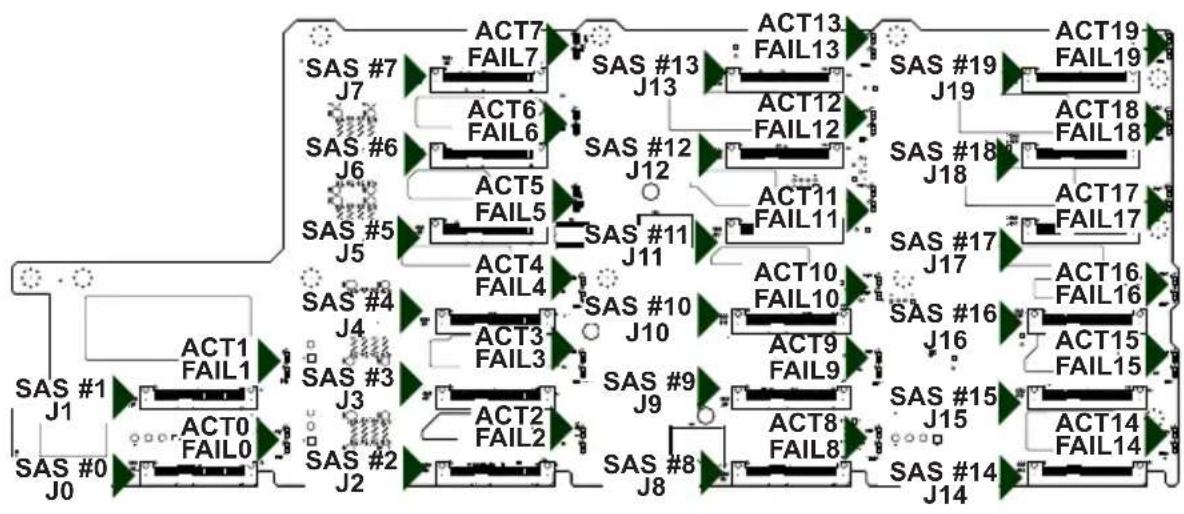

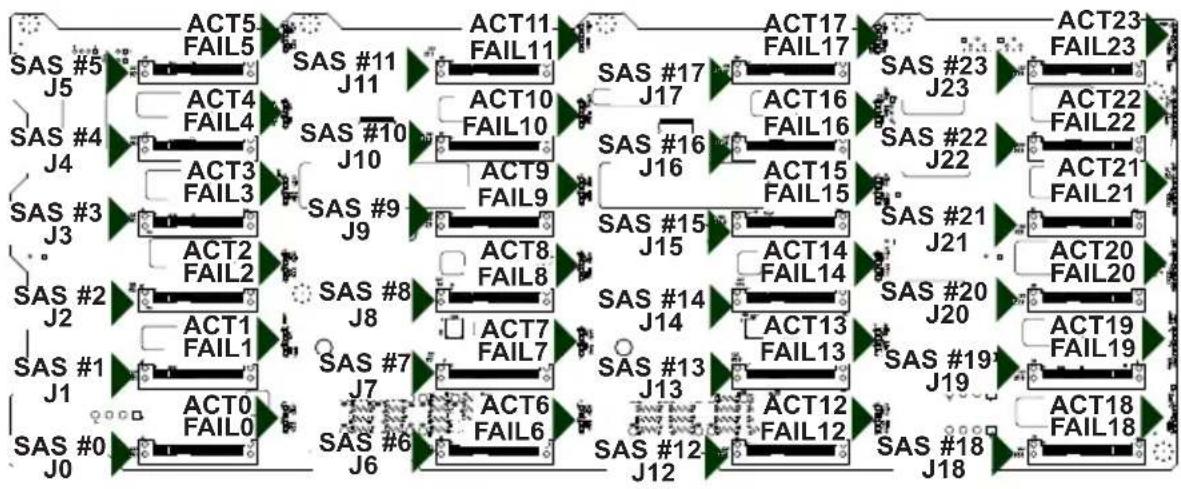

Figure C-4: Rear Connectors and LEDs

Rear SAS Connectors
Rear Connector	SAS Drive Number	Rear Connector	SAS Drive Number
SAS #0	SAS HDD #0	SAS #12	SAS HDD #12
SAS #1	SAS HDD #1	SAS #13	SAS HDD #13
SAS #2	SAS HDD #2	SAS #14	SAS HDD #14
SAS #3	SAS HDD #3	SAS #15	SAS HDD #15
SAS #4	SAS HDD #4	SAS #16	SAS HDD #16
SAS #5	SAS HDD #5	SAS #17	SAS HDD #17
SAS #6	SAS HDD #6	SAS #18	SAS HDD #18
SAS #7	SAS HDD #7	SAS #19	SAS HDD #19
SAS #8	SAS HDD #8	SAS #20	SAS HDD #20
SAS #9	SAS HDD #9	SAS #21	SAS HDD #21
SAS #10	SAS HDD #10	SAS #22	SAS HDD #22
SAS #11	SAS HDD #11	SAS #23	SAS HDD #23

Rear LED Indicators
Rear LED Hard Drive Activity Failure LED
SAS #0 ACT0 FAIL0
SAS #1 ACT1 FAIL1
SAS #2 ACT 2 FAIL2
SAS #3 ACT3 FAIL3
SAS #4 ACT4 FAIL4
SAS #5 ACT5 FAIL5
SAS #6 ACT6 FAIL6
SAS #7 ACT7 FAIL7
SAS #8 ACT8 FAIL8
SAS #9 ACT 9 FAIL9
SAS #10 ACT10	FAIL10
SAS #11 ACT11	FAIL11
SAS #12 ACT12	FAIL12
SAS #13 ACT13	FAIL13
SAS #14 ACT14	FAIL14
SAS #15 ACT15	FAIL15
SAS #16 ACT16	FAIL16
SAS #17 ACT17	FAIL17
SAS #18 ACT18	FAIL18
SAS #19 ACT19	FAIL19
SAS #20 ACT20	FAIL20
SAS #21 ACT21	FAIL21
SAS #22 ACT22	FAIL22
SAS #23 ACT23	FAIL23

C-11 Single and Dual Port Expanders

SAS primary connectors J49 to J50 and secondary connectors J51 to J52 are bidirectional and can be treated as input or output.

Single Ports

BPN-SAS3-846EL1 backplanes have a single port expander that accesses all of the drives and supports cascading.

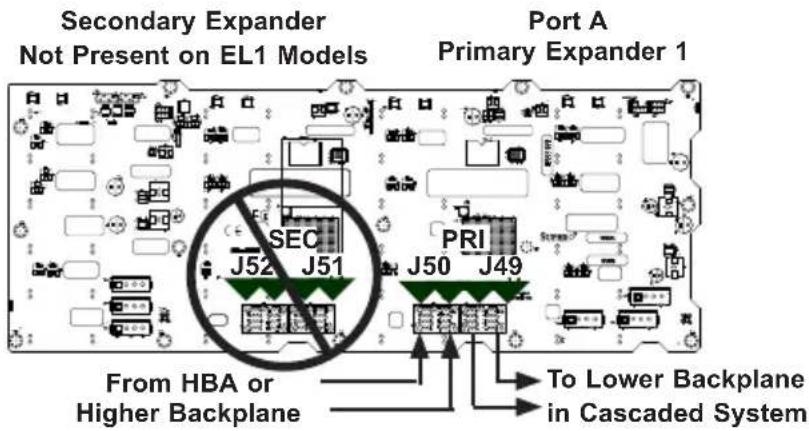

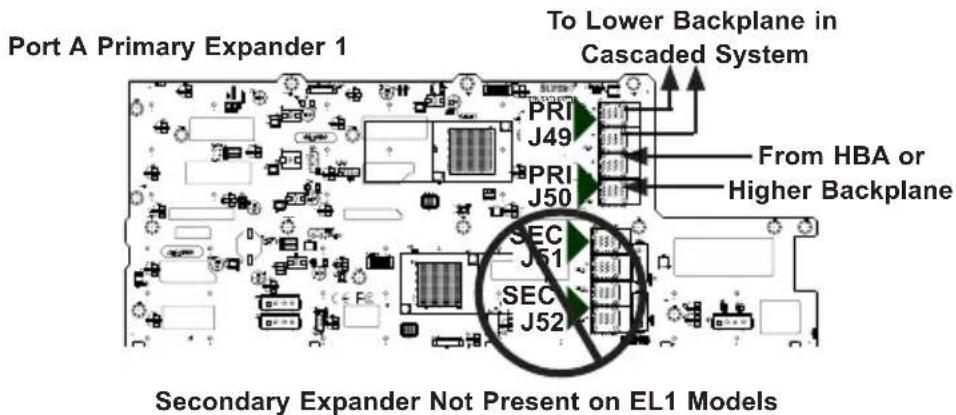

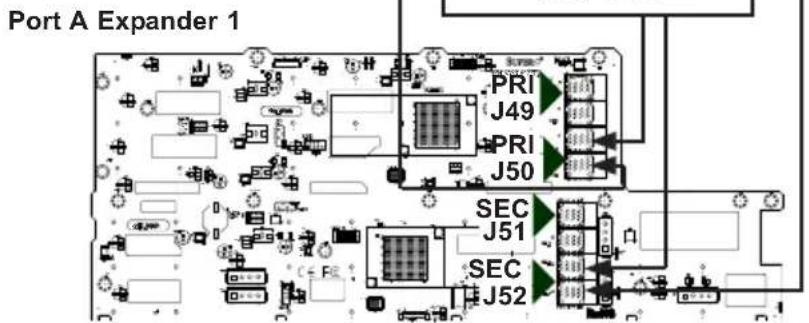

Figure E-5: BPN-SAS3-846EL1 Single Port Configuration

Dual Ports

BPN-SAS3-846EL2 model backplanes have dual-port expanders that access all of the hard drives. These dual-port expanders support cascading, failover, and recovery.

Figure C-6: BPN-SAS3-846EL2 Dual Port Configuration

C-12 Failover

The BPN-SAS3-846EL2 model backplane has two expanders which enable effective failover and recovery.

Single Host Bus Adapter

In a single host bus configuration, the backplane connects to one host bus adapter.

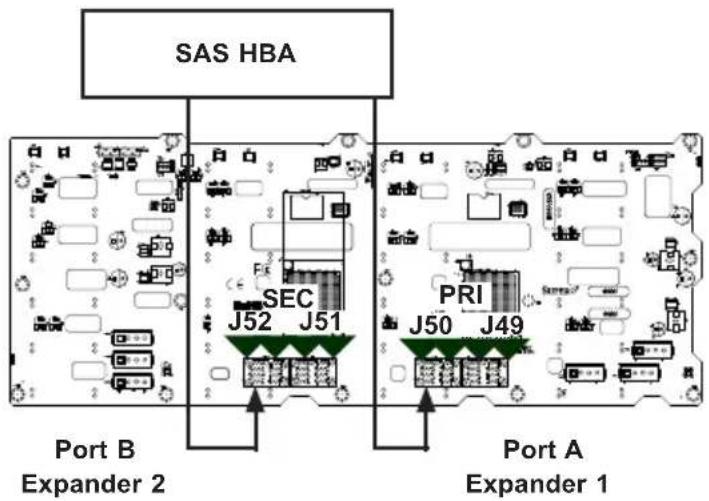

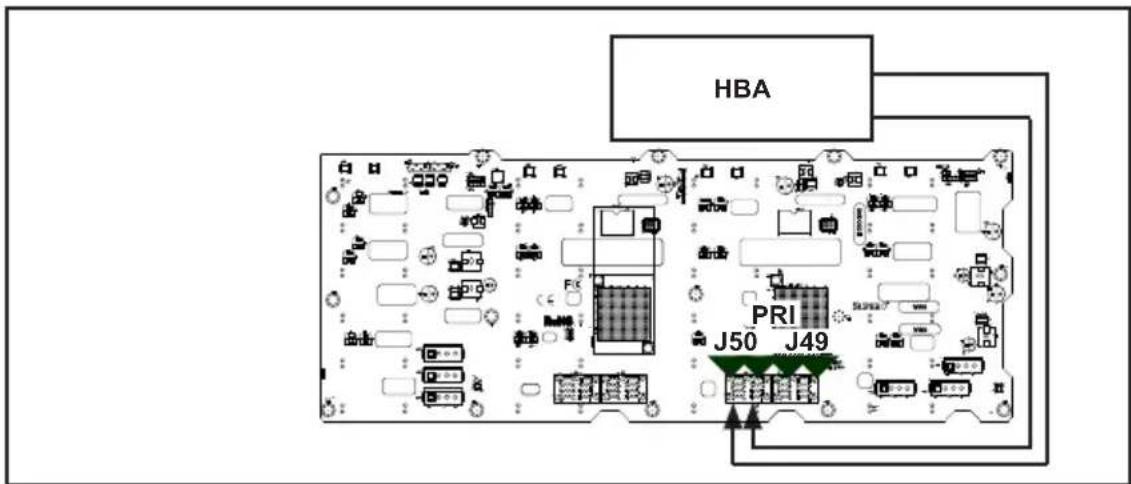

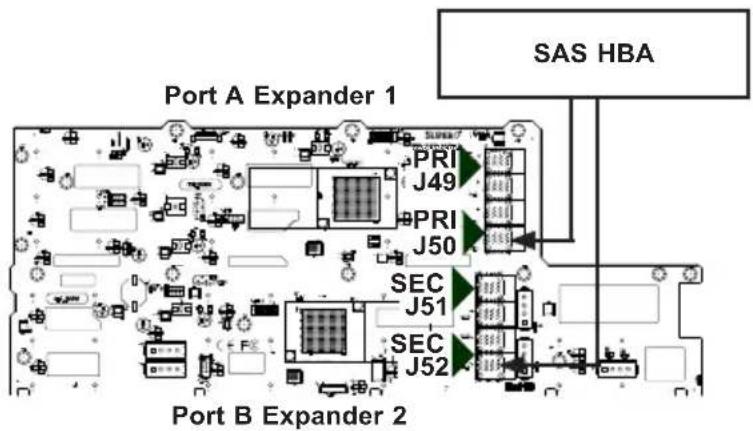

Figure C-7: Single HBA

Single Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B with application software or failover support.

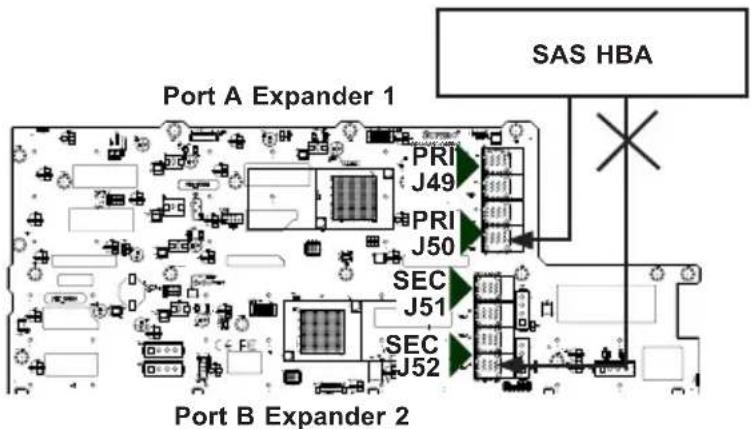

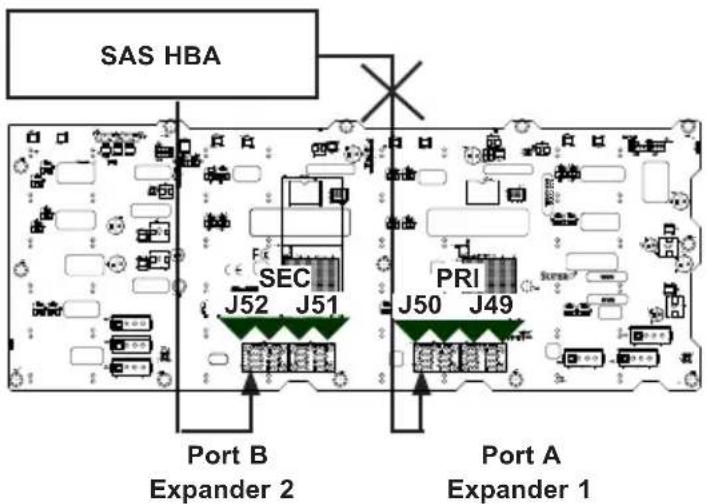

Figure C-8: Single HBA Failover

C-13 Failover with RAID Cards and Multiple HBAs

The BPN-SAS3-846EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to achieve failover protection.

RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.

HBAs: If multiple HBAs are used to achieve failover protection and load balancing, Linux MPIO software must be installed and correctly configured to perform the load balancing and failover tasks.

Dual Host Bus Adapter

In a dual host bus configuration, the backplane connects to two HBA's.

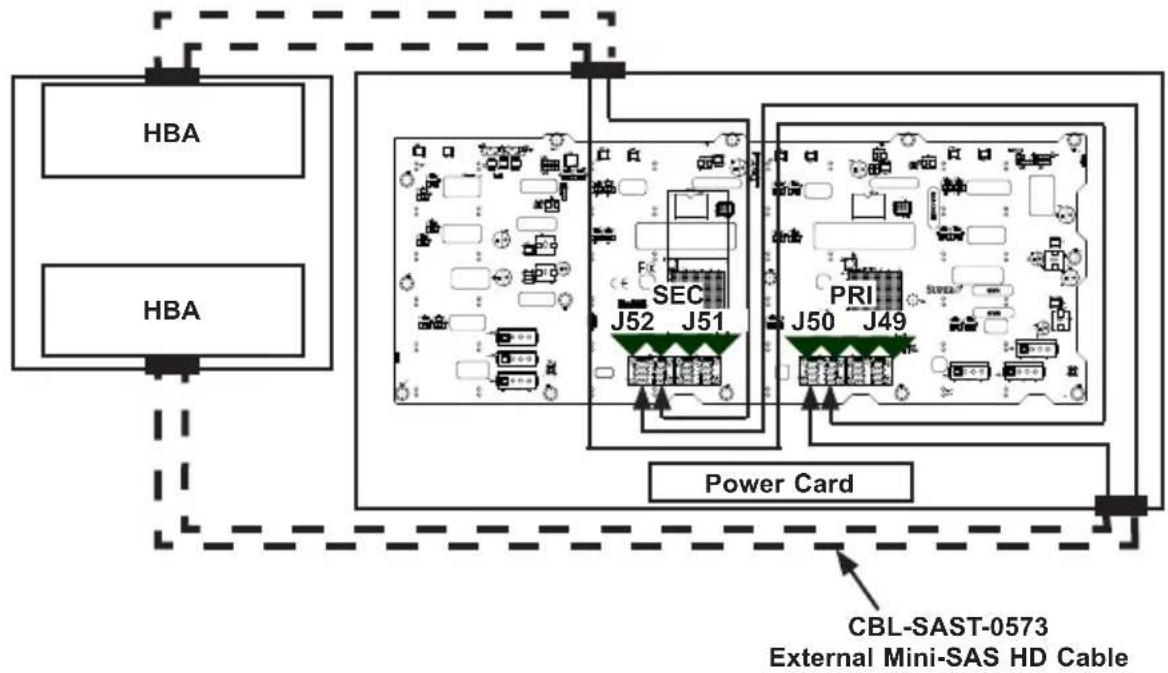

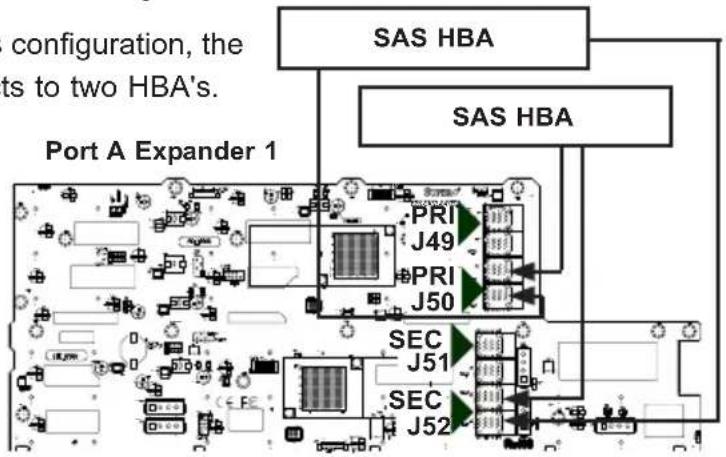

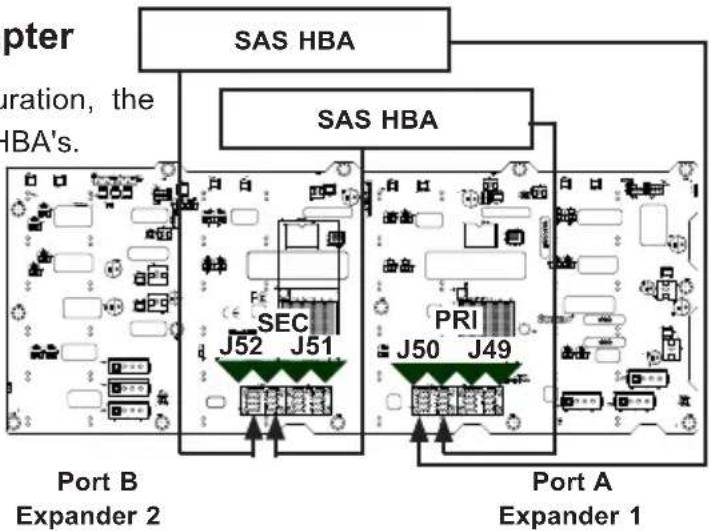

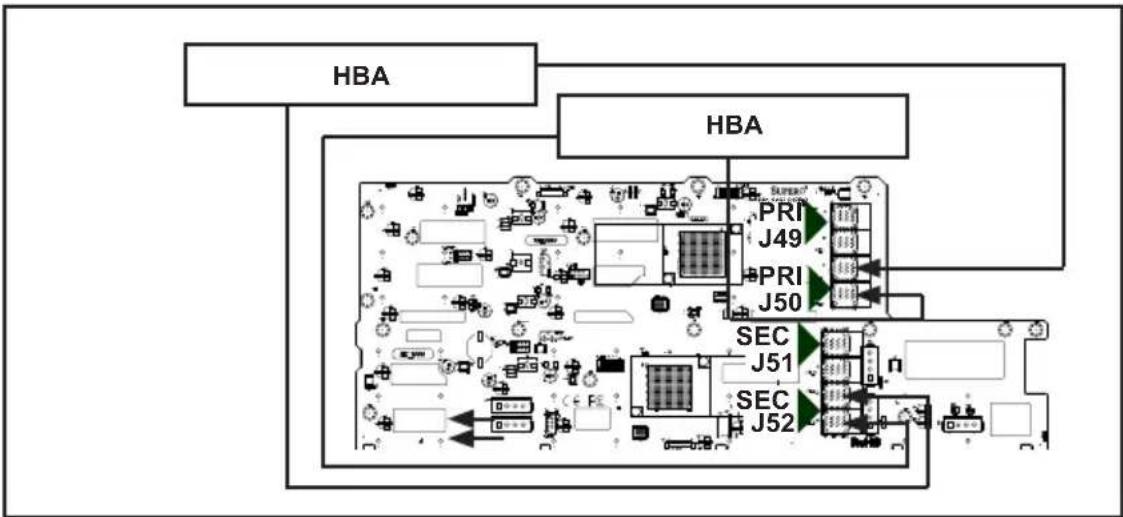

Figure C-9: Dual HBA

Dual Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B. This maintains a full connection to all drives.


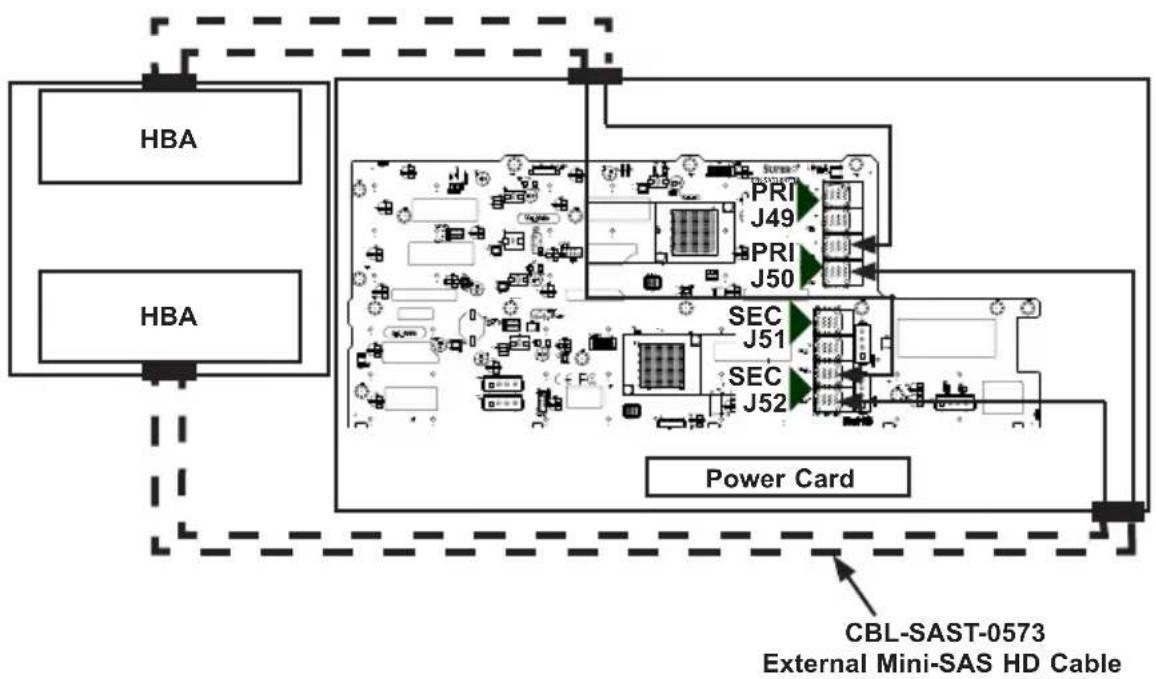

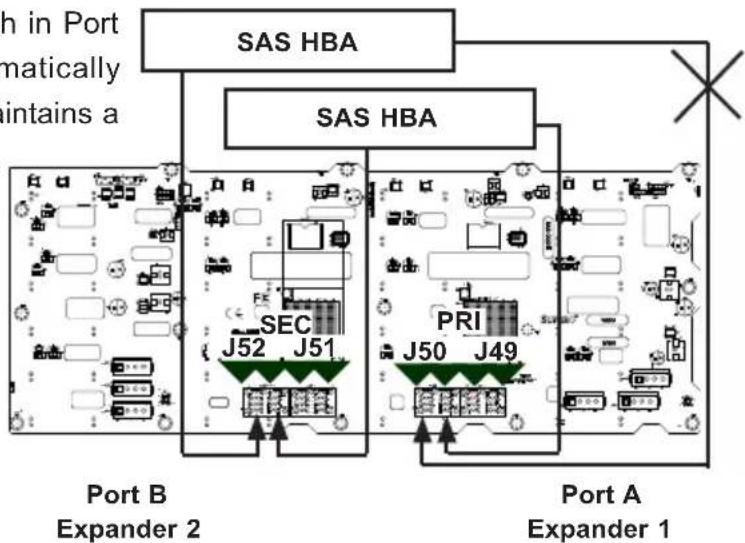

Figure C-10: Dual HBA Failover

IMPORTANT: For RAID controllers, redundancy is achieved through port failover. For multiple HBAs MPIO software is required to achieve failover protection.

C-14 Connecting HBAs to the Backplane

Connecting an Internal HBA to the Backplane

The following section lists the most common cables used to connect the HBA to the backplane.

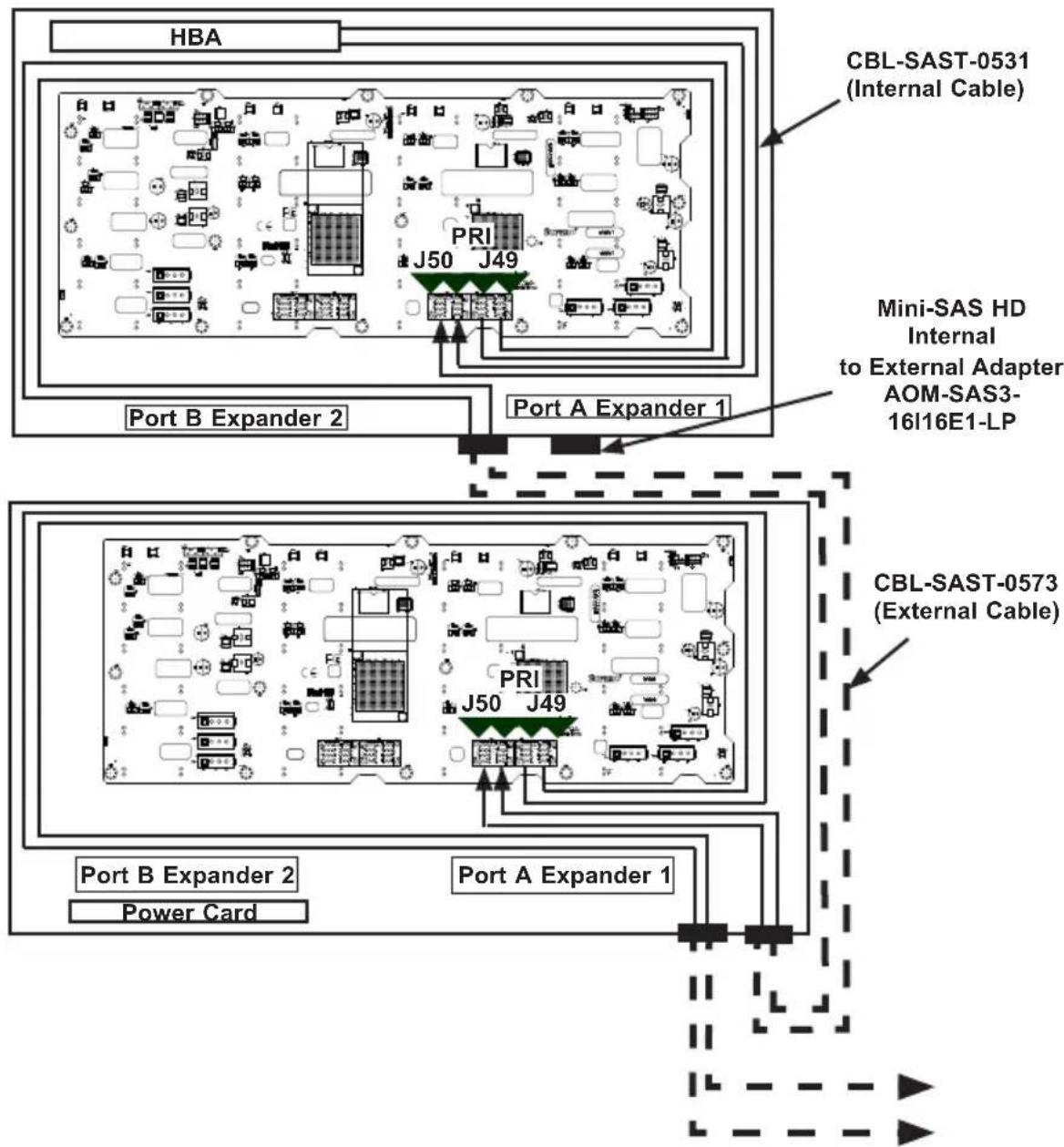

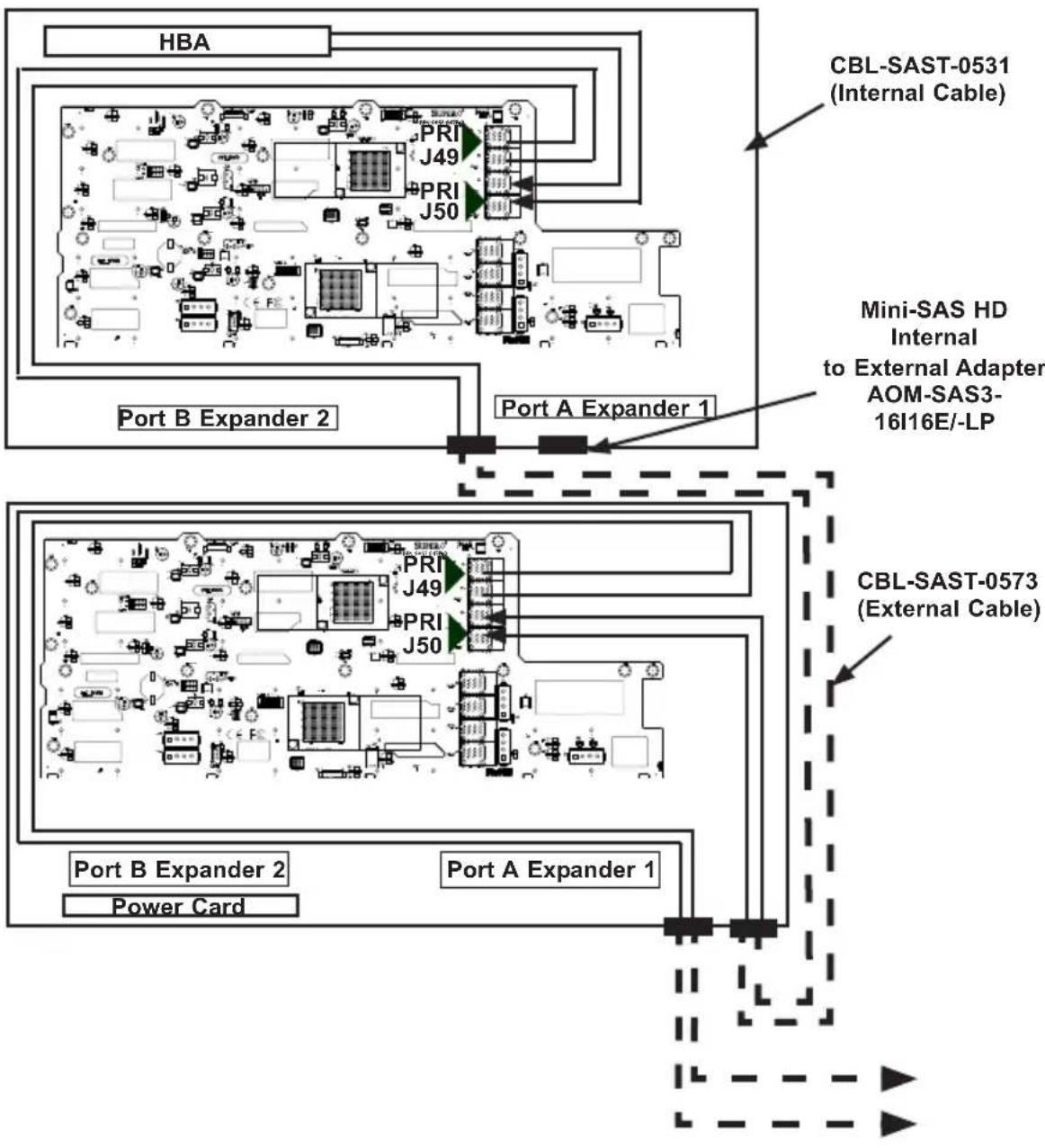

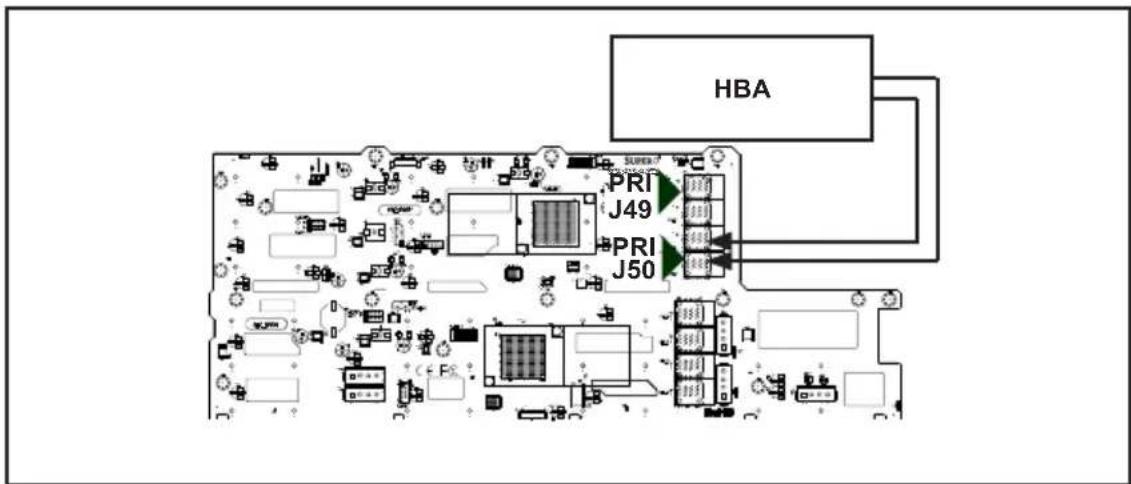

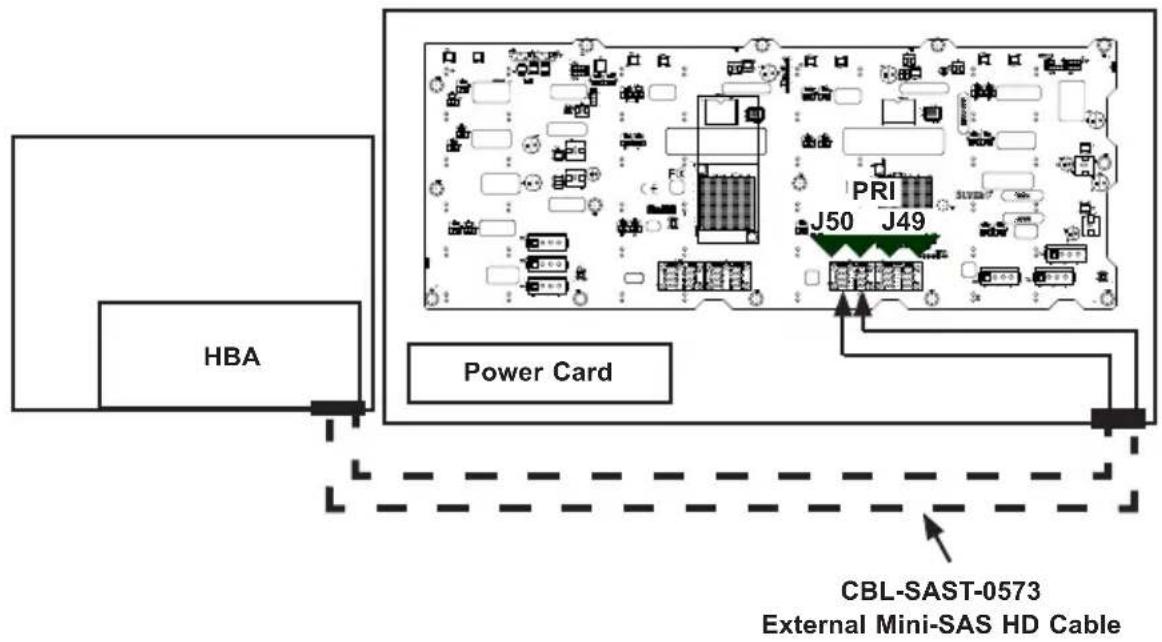

Figure C-11: Single Internal Host Bus Adapter

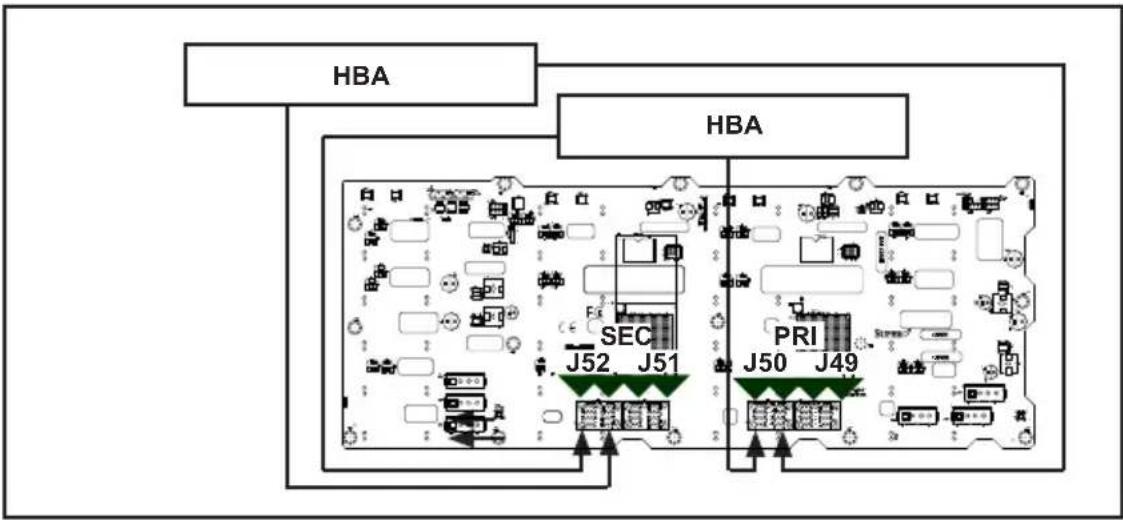

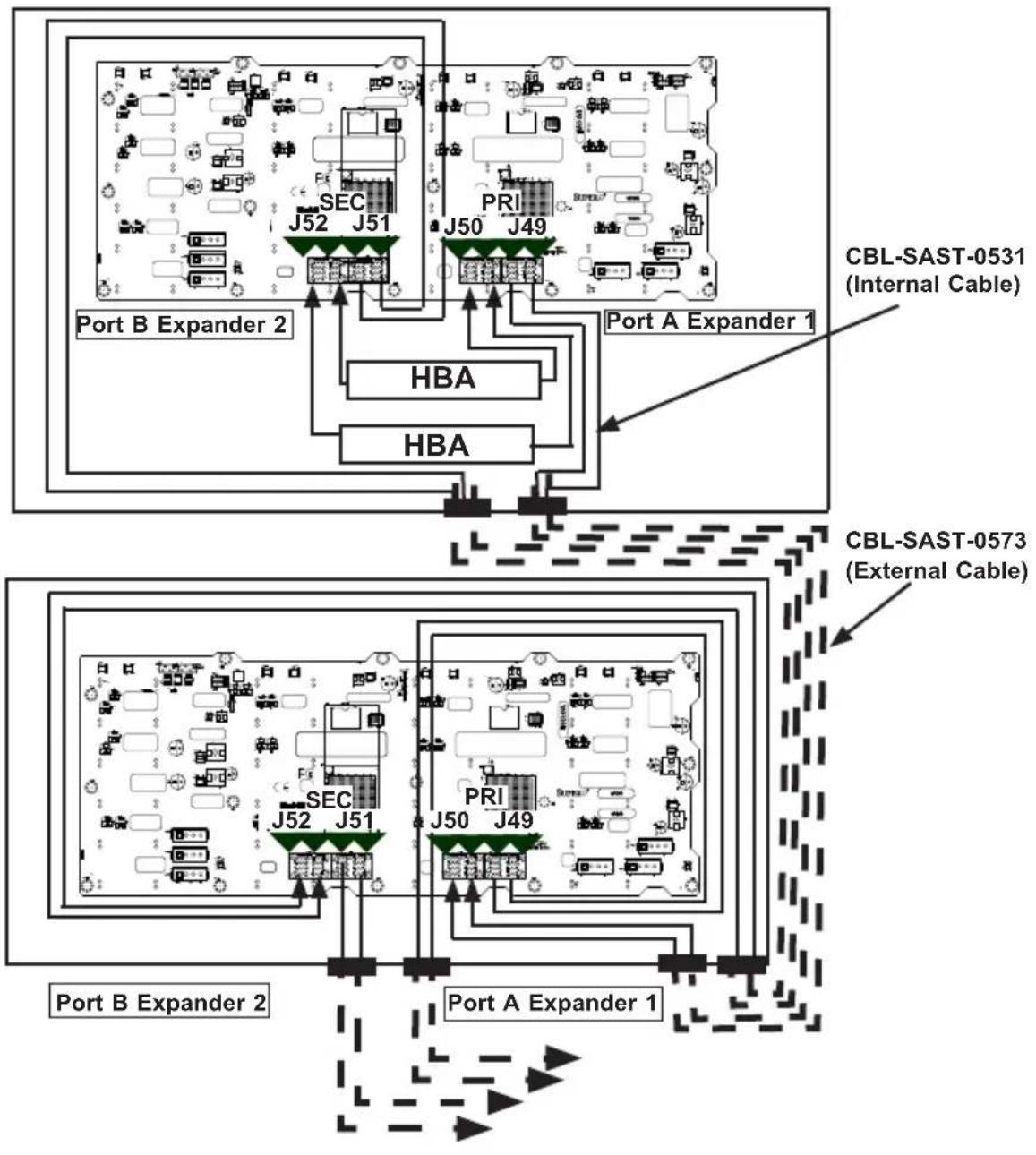

Figure C-12: Dual Internal Host Bus Adapter

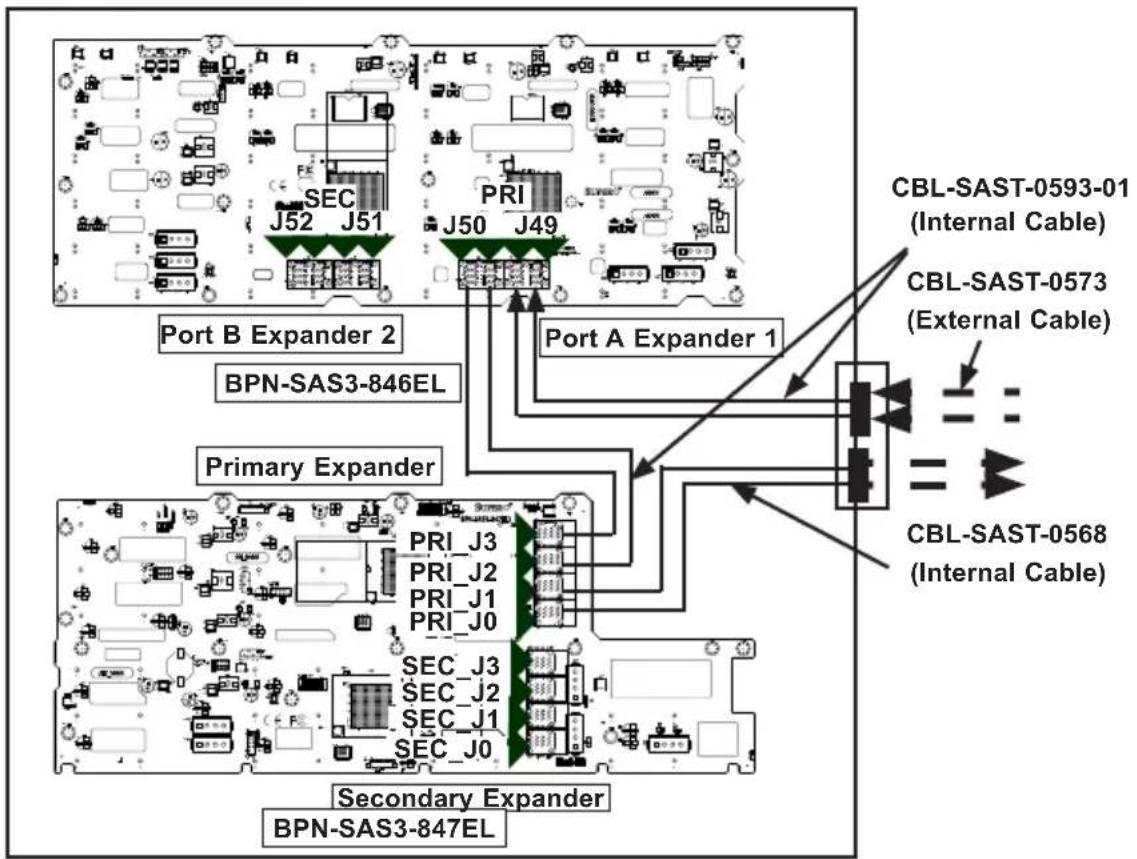

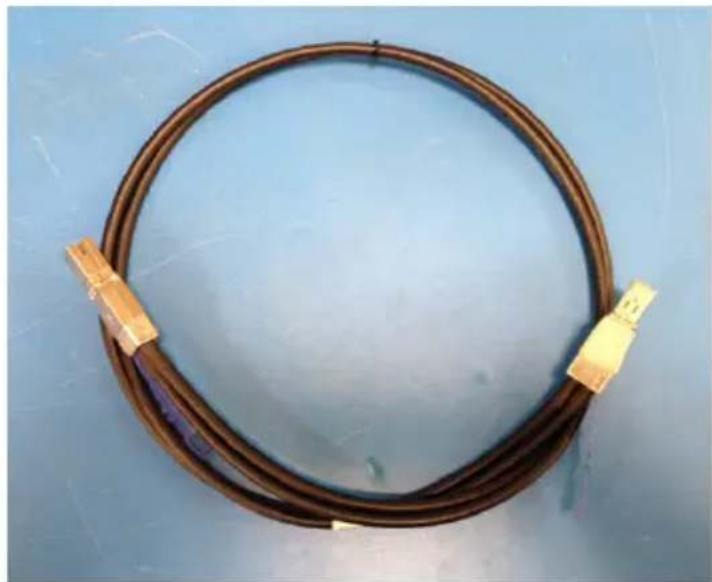

Supported Internal HBA Cables

Use the following cables to create connections between the internal HBA and BPN-SAS3-846EL model backplane. The cables required depend upon the HBA connector.

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cable Name: Internal iPass (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0508-01 Length: 50 cm (19 inches)

Part #: CBL-SAST-0507-01 Length: 80 cm (31 inches)

Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at one end and a Mini-SAS HD (SFF-8643) connector at the other end. It connects from the SAS2 HBA to the BPN-SAS3-846EL model backplane.

Cable name: Internal HD (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0568 Length: 35 cm (13 inches)

Part #: CBL-SAST-0593-01 Length: 60 cm (23 inches)

Part #: CBL-SAST-0531 Length: 80 cm (31 inches)

Description: This cable has a Mini-SAS HD (SFF-8643) connector at both ends. It connects from the SAS3 HBA to the BPN-SAS3-846EL model backplane.

Connecting an External HBA to the Backplane

This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.

Single External Host Bus Adapter

Figure C-9: Single External Host Adapter

Dual External Host Bus Adapter

Figure C-13: Dual External Host Bus Adapter

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Connecting Multiple Backplanes in a Single Channel Environment

This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables.


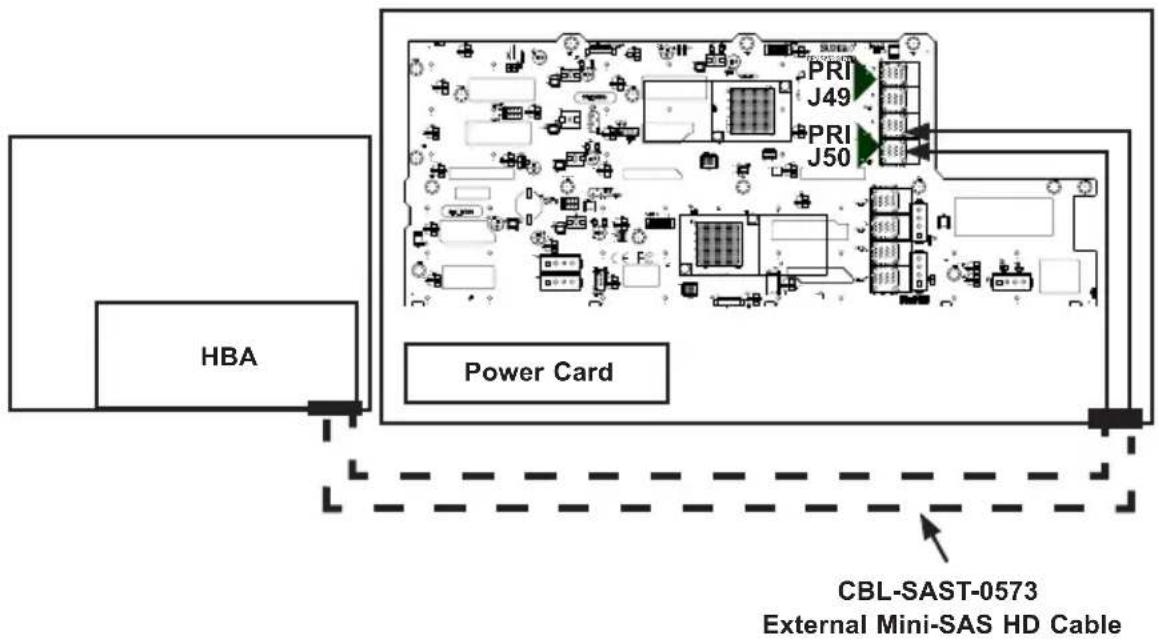

Figure C-14: Single HBA Configuration

Single HBA Configuration Cables

Coiled brown cable with yellow connectors, lying on a plain blue surface (no text or symbols visible)

Figure C-15: External Mini-SAS HD to External Mini-SAS HD Cable

Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable

Part #: CBL-SAST-0573

Ports: Single

Placement: External Cable

Description: External cascading cable, connects ports between servers and JBODs.

Close-up of a metal hardware component with green circuit board and black connectors, placed on a wooden surface (no text or symbols visible)

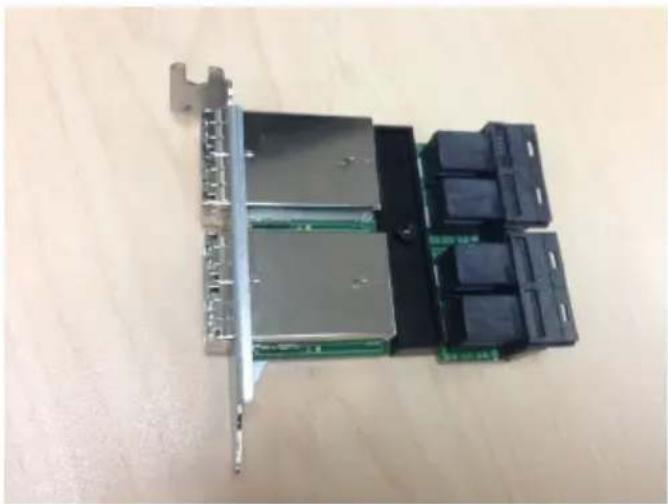

Figure C-16: Mini-SAS HD Internal to External Adapter

Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP Bracket

Part #: AOM-SAS3-16I16E-LP

Ports: Four wide-ports (sixteen ports total)

Placement: Internal cable with adapter

Description: Internal cable, connects the SAS3 backplane to external ports.

Connecting Multiple Backplanes in a Dual Channel Environment

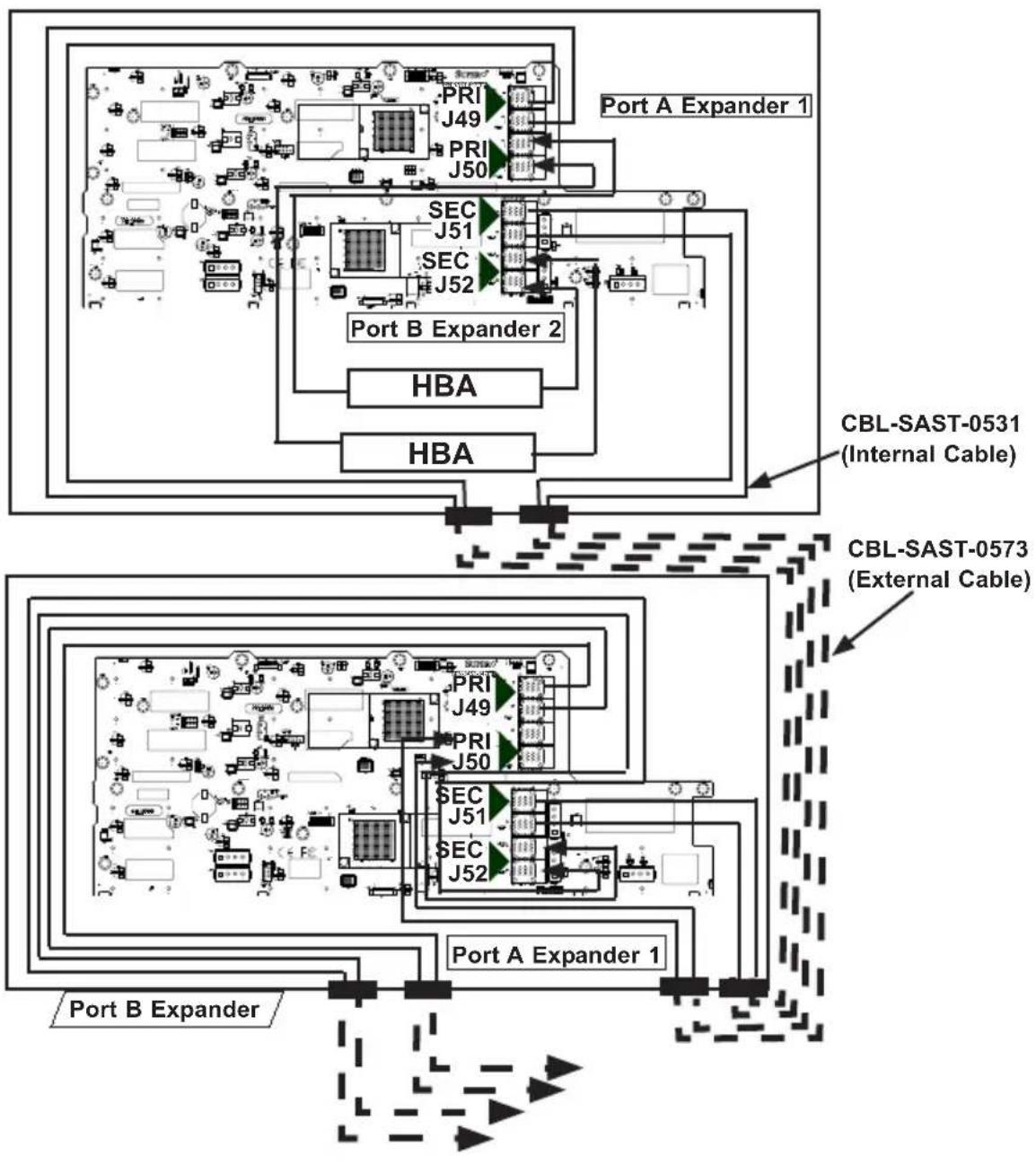

This section describes the cables used when cascading from dual HBAs. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables.
    subgraph_Port_A_Expander_1["Port A Expander 1"]
        A1["SEC J52"] -->|J51| B1["J50"]
        A2["PRI J49"] -->|J49| B2["J50"]
    end
    subgraph_Port_B_Expander_2["Port B Expander 2"]
        B1 -->|J52| C1["J51"]
        B2 -->|J49| C2["J50"]
    end
    subgraph_CBL_SAST-0531["(CBL-SAST-0531 (Internal Cable))"]
        C1 --> D1["HBA"]
        C2 --> D2["HBA"]
    end
    D1 --> E1["External Cable"]
    D2 --> E2["External Cable"]
    style Port_A_Expander_1 fill:#f9f,stroke:#333
    style Port_B_Expander_2 fill:#ccf,stroke:#333
    style CBL_SAST-0531 fill:#dfd,stroke:#333

Figure C-17: Dual HBA Configuration

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cascading BPN-SAS3-846EL and BPN-SAS3-847EL

This section describes the cables used when cascading with the BPN-SAS3-846EL and BPN-SAS3-847EL backplanes together.

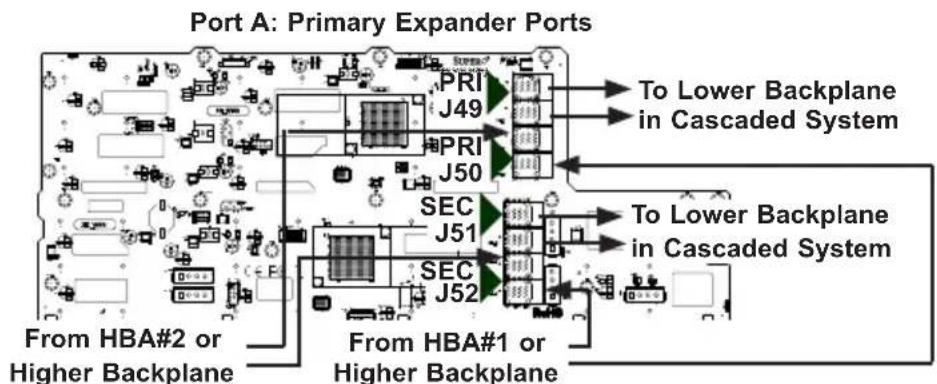

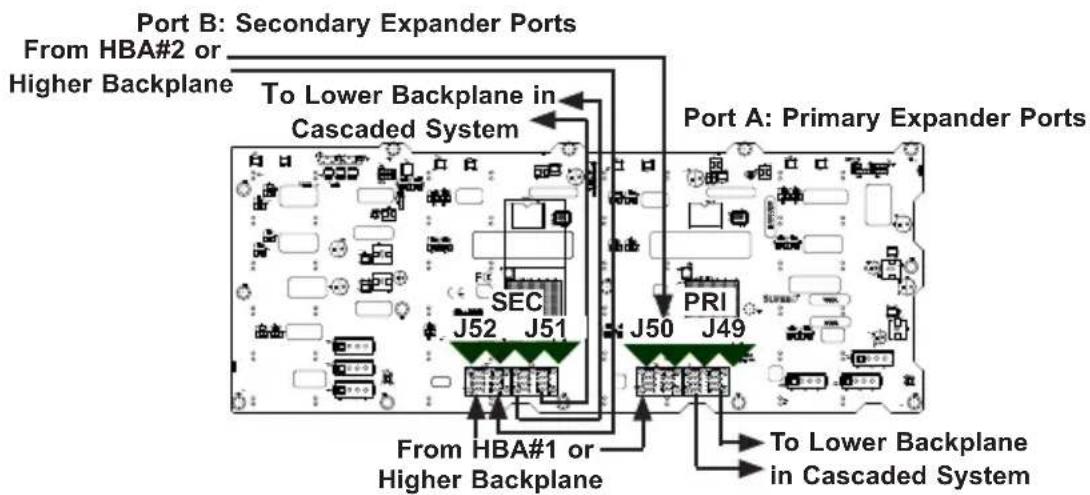

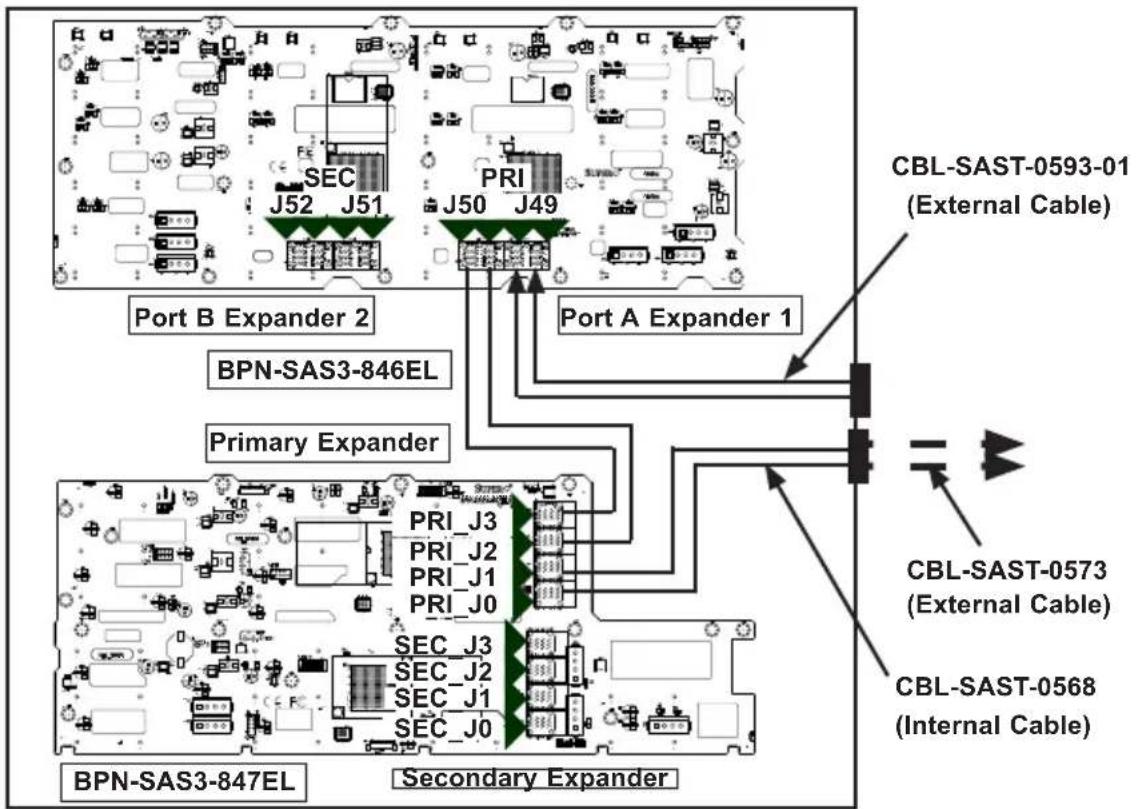

Figure C-18: BPN-SAS3-846EL and BPN-SAS3-847EL Cascading Configuration

Appendix D

BPN-SAS3-847EL Backplane Specifications

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

D-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the backplane by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

D-2 General Safety Guidelines

- Always disconnect power cables before installing or removing any components from the computer, including the BPN-SAS3-847EL series backplane.

- Make sure that the backplane is properly and securely on the motherboard to prevent damage to the system due to power outages.

D-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest backplane revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

D-4 Introduction to the BPN-SAS3-847EL Backplane

The BPN-SAS3-847EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects BPN-SAS3-847EL Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

D-5 Overview of the BPN-SAS3-847EL1/EL2 Backplanes

The BPN-SAS3-847EL1 and BPN-SAS3-847EL2 model backplanes are identical, except that the BPN-SAS3-847EL2 backplane has duplicate secondary components which are not found on the BPN-SAS3-847EL1. The BPN-SAS3-847EL2 is divided into a two sections, with the primary components on the upper portion of the board and the secondary components on the lower portion. SAS3 backplanes are not compatible with legacy SAS (3 Gbps), SATA (1.5 Gbps) backplanes or lower.

D-6 Front Connectors

Figure D-1: BPN-SAS3-847EL1/EL2 Connectors and Components

1. Primary Expander Chip.
2. Secondary Expander Chip (not present on EL1 single port backplanes).
3. Backplane Power Connectors: PWR1 through PWR5.
4. Primary SAS Ports: PRI_J0 (J20), PRI_J1 (J21), PRI_J2 (J22) and PRI_J3 (J23)
5. Secondary SAS Ports: SEC_J0 (J30), SEC_J1 (J31), SEC_J2 (J32. (not present on EL1 single port backplanes).
6. Primary UART Connector: P_UART (J26) for manufacturer's use only.

7. Secondary UART Connector: S_UART(J36) for manufacturer's use, not present on EL1 backplanes.

8. Primary SDB Connector: P_SDB (J27), for manufacturer's use.

9. Secondary SDB Connector: S_SDB (J37), for manufacturer's use only, not present on EL1 backplanes.
10. I²C Connector: PRI_I2C1 (J29).
11. SMB Connector: SMB (J28).
12. Primary JTAG Connector: P_JTAG (J25), for manufacturer's use.
13. Secondary JTAG Connector: S_JTAG (J35), for manufacturer's use, (not present on EL1 single port backplanes).
14. Primary ICE connector: P_ICE (J24), for manufacturer's use.
15. Secondary ICE connector: S_ICE (J34), for manufacturer's use.

D-7 Front Connector and Pin Definitions

1. - 2. Primary and Secondary Expander Chips

The primary and secondary expander chips allow the backplane to support dual port, cascading, and failover configurations.

3. Backplane Power Connectors

The 4-pin connectors, designated PWR1 - PWR5 provide power to the backplane. See the table on the right for pin definitions.

4. - 5. Primary and Secondary SAS Ports

The primary SAS connectors are designated PRI_J0 (J20), PRI_J1 (J21), PRI_J2 (J22) and PRI_J3 (J23). The secondary SAS Ports are designated SEC_J0 (J30), SEC_J1 (J31), SEC_J2 (J32). and are not present on EL1 single port backplanes.

6. - 7. Primary and Secondary UART Connectors

The primary UART connector is designated P_UART (J26). The secondary UART connector is designated S_UART(J36) and is not present on BPN-SAS3-847EL1. UART connectors are used for manufacturer's diagnostic purposes only.

8. - 9. SDB Connectors

The Primary SDB connector is designated P_SDB (J27). The secondary SDB connector is designated S_SDB (J37). (Not present on BPN-SAS3-847EL1 backplanes) These are debug connectors used for the manufacturer's diagnostic purposes only.

10. I²C Connector

The I2C connector. is designated PRI_I2C1 (J29). The secondary I2C connector is designated I2C4 and J47. (Not present on BPN-SAS3-847EL1 backplanes)

BackplaneMain Power4-Pin Connector
Pin#	Definition
1	+12V
2 and 3 Ground
4 +5V

11. SMB Connector

The SMB connector. is designated SMB (J28).

12. - 13. JTAG Connectors

The Primary JTAG connector is designated P_JTAG (J25). The secondary JTAG connector is designated S_JTAG (J35) and is not present on BPN-SAS3-847EL1 backplanes. These are connectors for the manufacturer's test purposes only.

14. - 15. ICE Connectors

The Primary ICE connector is designated P_ICE (J26). The secondary ICE connector is designated S_ICE (J35) and is not present on BPN-SAS3-847EL1 backplanes. These are connectors for the manufacturer's test purposes only.

D-8 Front Jumper Location and Settings

Figure D-2: Front Jumpers

Explanation of Jumpers

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

General Jumper Settings
Jumper	Jumper Settings	Note
ACTLED1	Open: Disabled (Default)Closed: Enabled	Activity LED test.
OVERHEATFAIL1	Open: Disabled (Default)Closed: Enabled	Indicates an overheated condition (primary section)
P_MDIO	Open: Disabled (Default)Closed: Enabled	Primary management data in/out (J38). For manufacturer's use only
S-MDIO	Open: Disabled (Default)Closed: Enabled	Secondary management data in/out. (J39). For manufacturer's use only

D-9 Front LED Indicators

Figure D-3: Front LEDs

Backplane LEDs
LED	Normal State	Abnormal State	Specification
12V_LED1 On Off 1	2V power status
P_HB_LED Blinking	Off Primary expander	heartbeat indicator
5V_LED1 Off On 5V	power status
OVERHEATFAIL2	Off On System overheat	failure LED

D-10 Rear Connectors and LED Indicators

Figure D-4: Rear Connectors and LEDs

Rear SAS Connectors
Rear Connector	SAS Drive Number		Rear Connector	SAS Drive Number
SAS #0 SAS HDD #0		SAS #10	SAS HDD #10
SAS #1 SAS HDD #1		SAS #11	SAS HDD #12
SAS #2 SAS HDD #2		SAS #12	SAS HDD #12
SAS #3 SAS HDD #3		SAS #13	SAS HDD #13
SAS #4	SAS HDD #4		SAS #14	SAS HDD #14
SAS #5 SAS HDD #5		SAS #15	SAS HDD #15
SAS #6 SAS HDD #6		SAS #16	SAS HDD #16
SAS #7 SAS HDD #7		SAS #17	SAS HDD #17
SAS #8 SAS HDD #8		SAS #18	SAS HDD #18
SAS #9 SAS HDD #9		SAS #19	SAS HDD #19

Rear LED Indicators
Rear LED Hard Drive Activity Failure LED
SAS #0 ACT0 FAIL0
SAS #1 ACT1 FAIL1
SAS #2 ACT 2 FAIL2
SAS #3 ACT3 FAIL3
SAS #4 ACT4 FAIL4
SAS #5 ACT5 FAIL5
SAS #6 ACT6 FAIL6
SAS #7 ACT7 FAIL7
SAS #8 ACT8 FAIL8
SAS #9 ACT 9 FAIL9
SAS #10 ACT10	FAIL10
SAS #11 ACT11	FAIL11
SAS #12 ACT12	FAIL12
SAS #13 ACT13	FAIL13
SAS #14 ACT14	FAIL14
SAS #15 ACT15	FAIL15
SAS #16 ACT16	FAIL16
SAS #17 ACT17	FAIL17
SAS #18 ACT18	FAIL18
SAS #19 ACT19	FAIL19

Notes

D-11 Single and Dual Port Expanders

SAS connectors PRI-J1 to J4 and SEC-J1 to J4 are bidirectional and can be treated as input or output.

Single Ports

BPN-SAS3-847EL1 backplanes have a single port expander that accesses all of the drives and supports cascading.

Figure D-5: BPN-SAS3-847EL1 Single Port Configuration

Dual Ports

BPN-SAS3-847EL2 model backplanes have dual-port expanders that access all of the hard drives. These dual-port expanders support cascading, failover, and recovery.

Port B: Secondary Expander Ports
Figure D-6: BPN-SAS3-847EL2 Dual Port Configuration

D-12 Failover

The BPN-SAS3-847EL2 model backplane has two expanders which enable effective failover and recovery.

Single Host Bus Adapter

In a single host bus configuration, the backplane connects to one host bus adapter.

Figure D-7: Single HBA

Single Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B with application software or failover support.

Figure D-8: Single HBA Failover

D-13 Failover with RAID Cards and Multiple HBAs

The BPN-SAS3-847EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to achieve failover protection.

RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.

HBAs: If multiple HBAs are used to achieve failover protection and load balancing, Linux MPIO software must be installed and correctly configured to perform the load balancing and failover tasks.

Dual Host Bus Adapter

In a dual host bus configuration, the backplane connects to two HBA's.

Port B Expander 2
Figure D-9: Dual HBA

Dual Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B. This maintains a full connection to all drives.

Port B Expander 2
Figure D-10: Dual HBA Failover

IMPORTANT: For RAID controllers, redundancy is achieved through port failover. For multiple HBAs MPIO software is required to achieve failover protection.

D-14 Connecting HBAs to the Backplane

Connecting an Internal HBA to the Backplane

The following section lists the most common cables used to connect the HBA to the backplane.

Figure D-11: Single Internal Host Bus Adapter

Figure D-12: Dual Internal Host Bus Adapter

Supported Internal HBA Cables

Use the following cables to create connections between the internal HBA and BPN-SAS3-847EL model backplane. The cables required depend upon the HBA connector.

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cable Name: Internal iPass (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0508-01 Length: 50 cm (19 inches)

Part #: CBL-SAST-0507-01 Length: 80 cm (31 inches)

Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at one end and a Mini-SAS HD (SFF-8643) connector at the other end. It connects from the SAS2 HBA to the BPN-SAS3-847EL model backplane.

Cable name: Internal HD (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0568 Length: 35 cm (13 inches)

Part #: CBL-SAST-0593-01 Length: 60 cm (23 inches)

Part #: CBL-SAST-0531 Length: 80 cm (31 inches)

Description: This cable has a Mini-SAS HD (SFF-8643) connector at both ends. It connects from the SAS3 HBA to the BPN-SAS3-847EL model backplane.

Connecting an External HBA to the Backplane

This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.

Single External Host Bus Adapter

Figure D-13: Single External Host Adapter

Dual External Host Bus Adapter

Figure D-14: Dual External Host Bus Adapter

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Connecting Multiple Backplanes in a Single Channel Environment

This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables.

Figure D-15: Single HBA Configuration

Single HBA Configuration Cables

Coiled brown cable with yellow connectors, lying on a plain blue surface (no text or symbols visible)

Figure D-16: External Mini-SAS HD to External Mini-SAS HD Cable

Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable

Part #: CBL-SAST-0573

Ports: Single

Placement: External Cable

Description: External cascading cable, connects ports between servers and JBODs.

Close-up of a metal hardware component with green circuit board and black connectors, placed on a wooden surface (no text or symbols visible)

Figure D-17: Mini-SAS HD Internal to External Adapter

Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP Bracket

Part #: AOM-SAS3-16I16E-LP

Ports: Four wide-ports (sixteen ports total)

Placement: Internal cable with adapter

Description: Internal cable, connects the SAS3 backplane to external ports. Also available without the LP bracket, part number AOM-SAS3-16I16E.

Connecting Multiple Backplanes in a Dual Channel Environment
    subgraph_Port_A_Expander_1["Port A Expander 1"]
        A1["PRI J49"] --> A2["PRI J50"]
        A2 --> A3["SEC J51"]
        A3 --> A4["SEC J52"]
        A4 --> A5["Port B Expander 2"]
        A5 --> A6["HBA"]
        A6 --> A7["HBA"]
    end

    subgraph_Port_B_Expander_1["Port B Expander"]
        B1["PRI J49"] --> B2["PRI J50"]
        B2 --> B3["SEC J51"]
        B3 --> B4["SEC J52"]
        B4 --> B5["Port A Expander 1"]
        B5 --> B6["Port A Expander"]
    end

    A1 --> B1
    A2 --> B2
    A3 --> B3
    A4 --> B4
    A5 --> B5
    A6 --> B6
    B1 --> C1["CBL-SAST-0531 (Internal Cable)"]
    B2 --> C2["CBL-SAST-0573 (External Cable)"]
    B3 --> C3["Port A Expander 1"]
    B4 --> C4["Port A Expander"]
    B5 --> C5["Port A Expander"]
    B6 --> C6["Port A Expander"]

Figure D-18: Dual HBA Configuration

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cascading BPN-SAS3-846EL and BPN-SAS3-847EL

For instructions on cascading BPN-SAS3-846EL and BPN-SAS3-847EL see page C-18 of this manual.

Appendix E

CSE-PTJBOD-CB3 Power Board Specifications

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

E-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle the backplane very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the power board the edges only; do not touch the components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the power board and peripherals back into their antistatic bags when not in use.

E-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

E-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

E-4 Introduction to the CSE-PTJBOD-CB3 Power Board

The CSE-PTJBOD-CB3 model power board has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

The CSE-PTJBOD-CB3 allows the user to remotely control their jobs via IPMI, such as powering on/off the server, controlling fan speeds and reading temperature data from the backplane.

This manual reflects the CSE-PTJBOD-CB3 Revision 1.02 power board, the most current release available at the time of publication. Always refer to the Supermicro web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

E-5 Components and Connectors

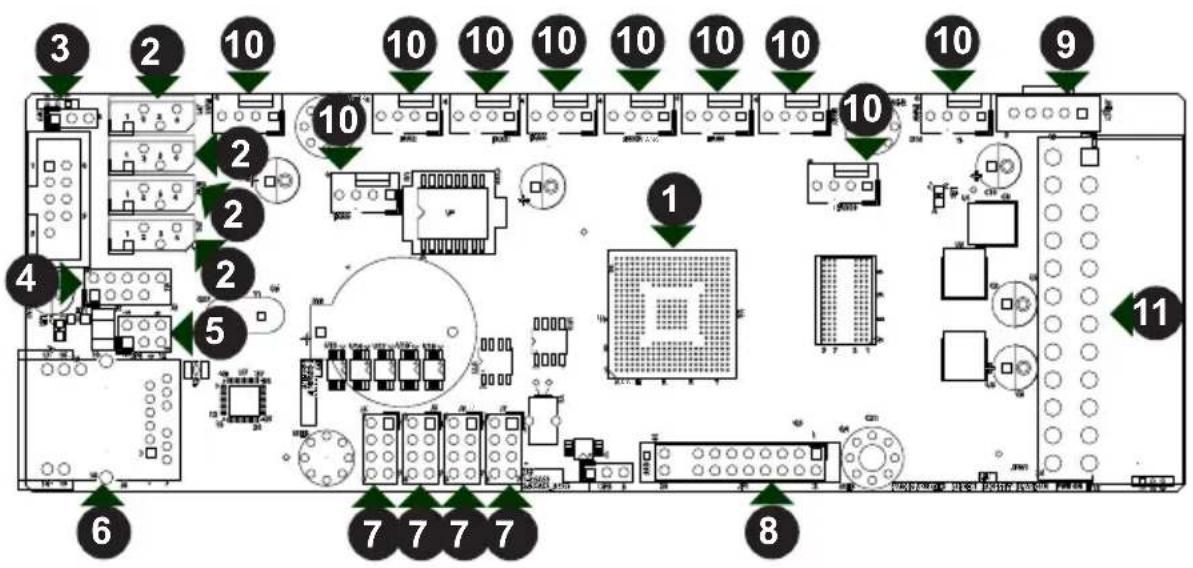

Figure E-1: Components and Connectors on the CSE-PTJBOD-CB3

Components and Connectors

1. BMC Chip
2. SAS2/SAS3 I²C Connectors JP1-JP4
3. Manufacturing Test Connector: J3
4. Manufacturer's USB Test Connector: FB1
5. IPMI LAN LED Header: JP6
6. IPMI LAN Connector: J8
7. SC847D SAS2 PC Connectors: J4 - J7
8. Control Panel Connector: JF1
9. PMBus Connector: JPI ^2 C1

10. Fan Connectors: FAN1 - FAN10

11. ATX Power Connector: JPW1

E-6 Component and Connector Definitions

1. BMC Chip

The Baseboard Management Controller (BMC) chip monitors the physical state of a system and provides communication with the system administrator through an independent connection.

2. SAS2/SAS3 I²C Connectors

These connectors are designated JP1-JP4 and allow the power board to be connected to up to four SAS2/SAS3 backplanes.

3. Manufacturing Test Connector

This connector is designated J3 and is for Supermicro manufacturing use only.

4. Manufacturer's USB Test Connector

This connector is designated FB1 and is for Supermicro manufacturing use only.

5. IPMI LAN LED Header

This connector is designated JP6 and is used to connect to the LED indicators on the chassis using cable CBL-NTWK-0584 or CBL-NTWK-0587.

6. IPMI LAN Connector

The Intelligent Platform Management Interface (IPMI) LAN connector is designated J8 and supports connectivity with a local network using cable CBL-NTWK-0584 or CBL-NTWK-0587.

7. SC847D SAS2 I2C Connectors

The backplane connectors are designated J4-J7 and allow the power board to be connected to up to four SC847D expanders.

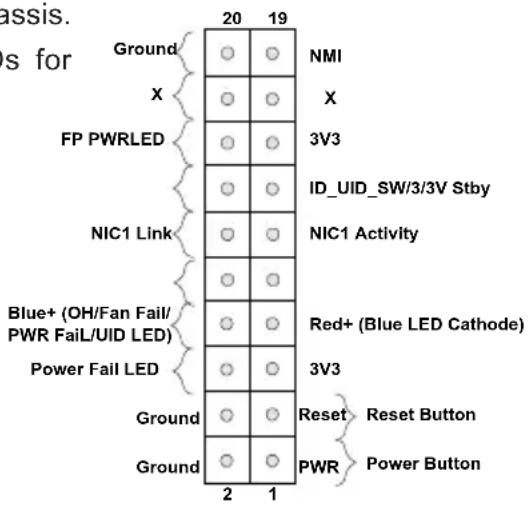

8. Control Panel Connector

This connector is designated JF1 and connects to the control panel on the chassis. See Section 4-3 Control Panel LEDs for additional information

9. PMBus Connector

This connector is designated JPI2C1 and connects the power distributor to the Power Management Bus (PMBus).

10. Fan Connectors

The fan connectors supply power to the fans and are designated FAN1-FAN10.

11. ATX Power Connector

The ATX power connector is designated JPW1.

E-7 Connectors Jumpers and LED Indicators

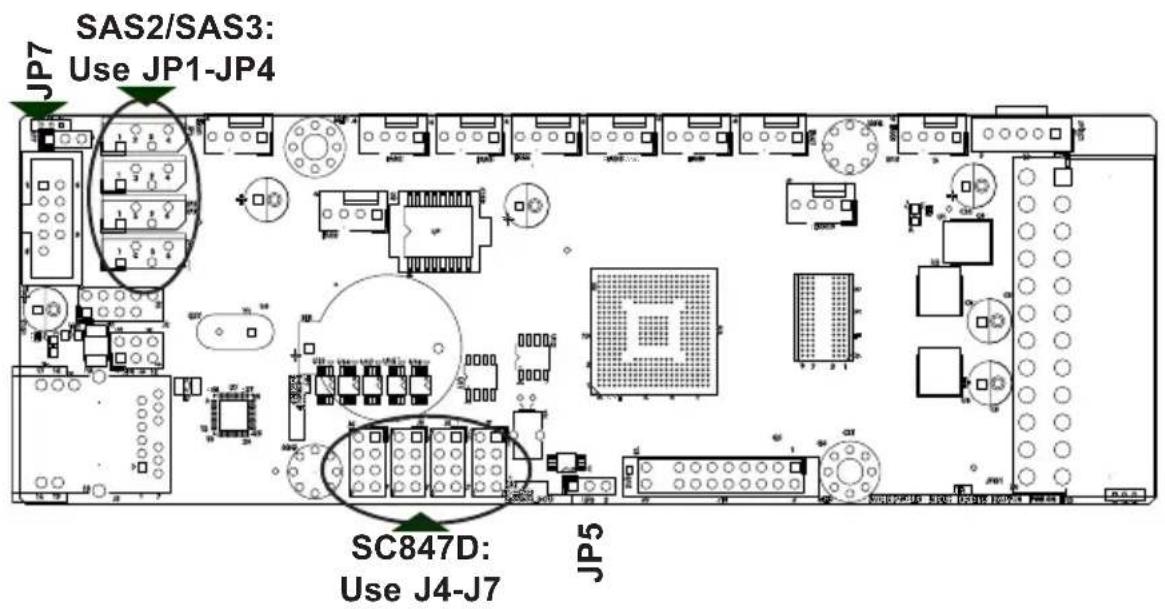

Figure E-2: CSE-PTJBOD-CB3 Connectors and Jumpers

Front SAS2/SAS3 and SC847D Jumpers
Jumper Description
JP7	Pins 1-2: IPMI factory mode, IP 192.168.1.99Pins 2-3: User mode (static/DHCP)
JP5	Pins 1-2: SAS3 enabledPins 2-3: SAS2 enabled and SC847D

When enabling SAS2/SAS3 functionality, use connectors JP1-JP4, and set the JP5 jumper to pins 1-2 (SAS3) or pins 3-4 (SAS2).

When an SC847D chassis is being used, use connectors J4-J7 and set the JP5 jumper to pins 2-3.

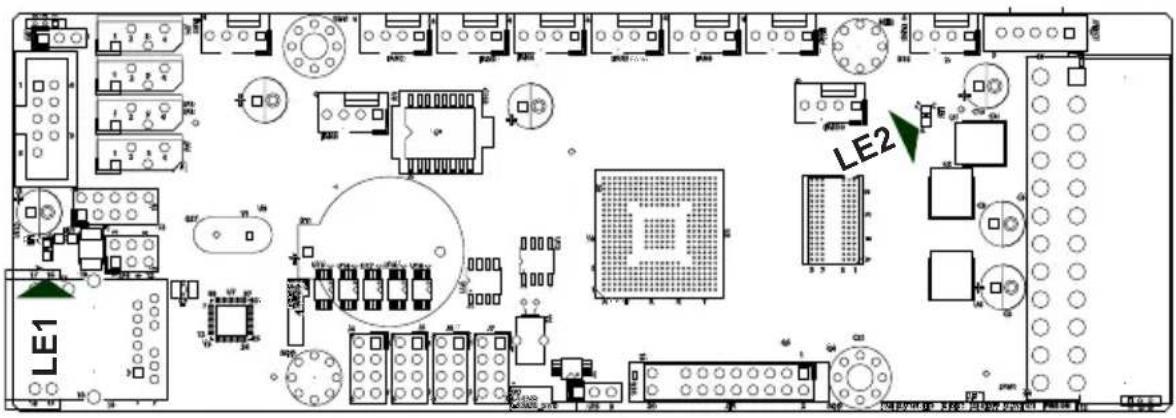

Figure E-3: CSE-PTJBOD-CB3 LED Indicators

LED Indicators
LED Description
LE1	Heartbeat LED: A blinking LED indicates BMC activity
LE2	Power LED: DC power indicator

Notes

E-8 SC847D JBOD Cabling

E16 I²C Cabling

Use the following diagram to connect the CSE-PTJBOD-CB3 to the front and rear backplanes in SC847D JBOD E16 model chassis.

Jumper Settings
Jumper Setting
JP5	Pins 1-2: SAS3 enabledPins 2-3: SAS2 enabled and SC847

When enabling SAS2/SAS3 functionality, use connectors JP1-JP4, (see Page 2-4) and set the JP5 jumper to pins 1-2 (SAS3) or pins 3-4 (SAS2).

When an SC847D chassis is being used, use connectors J4-J7 (see Page 2-4) and set the JP5 jumper to pins 2-3.

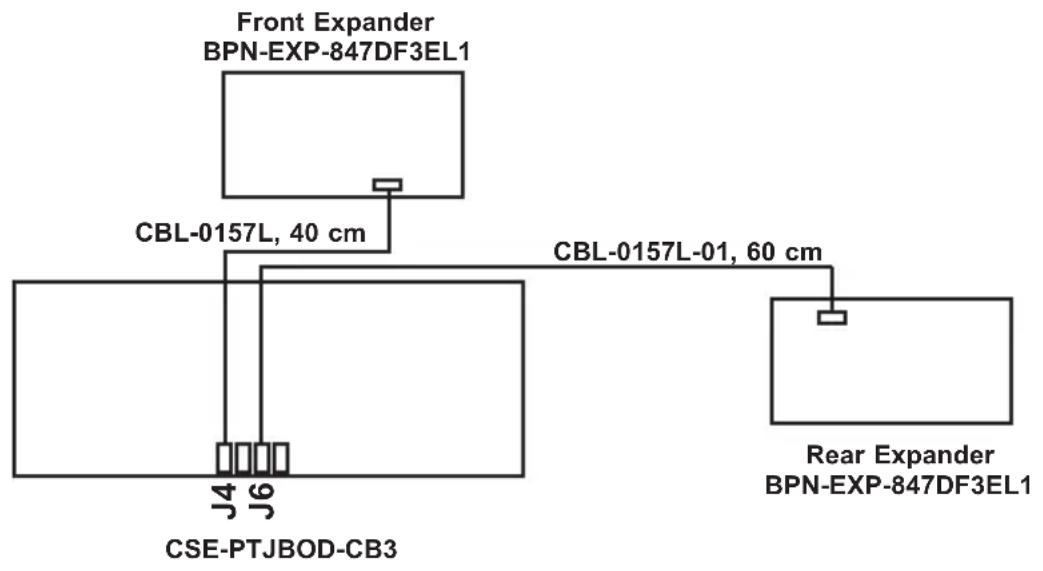

Figure E-4: E16 I²C Cabling

E26 I²C Cabling

Use the following diagram to connect the CSE-PTJBOD-CB3 to the front and rear backplanes in SC847D-JBOD-E26 model chassis.

Figure E-5: E26 I²C Cabling

E-9 SC847 JBOD Cabling

SAS3 I²C Cabling in the SC847 JBOD Chassis

Use the diagram below to connect the CSE-PTJBOD-CB3 to the front and rear backplanes in the SC847 JBOD chassis.

Jumper Settings
Jumper Setting
JP5	Pins 1-2: SAS3 enabledPins 2-3: SAS2 enabled and SC847D

When enabling SAS2/SAS3 functionality, use connectors JP1-JP4, (see Page 2-4) and set the JP5 jumper to pins 1-2 (SAS3) or pins 3-4 (SAS2).

When an SC847D chassis is being used, use connectors J4-J7 (see Page 2-4) and set the JP5 jumper to pins 2-3.

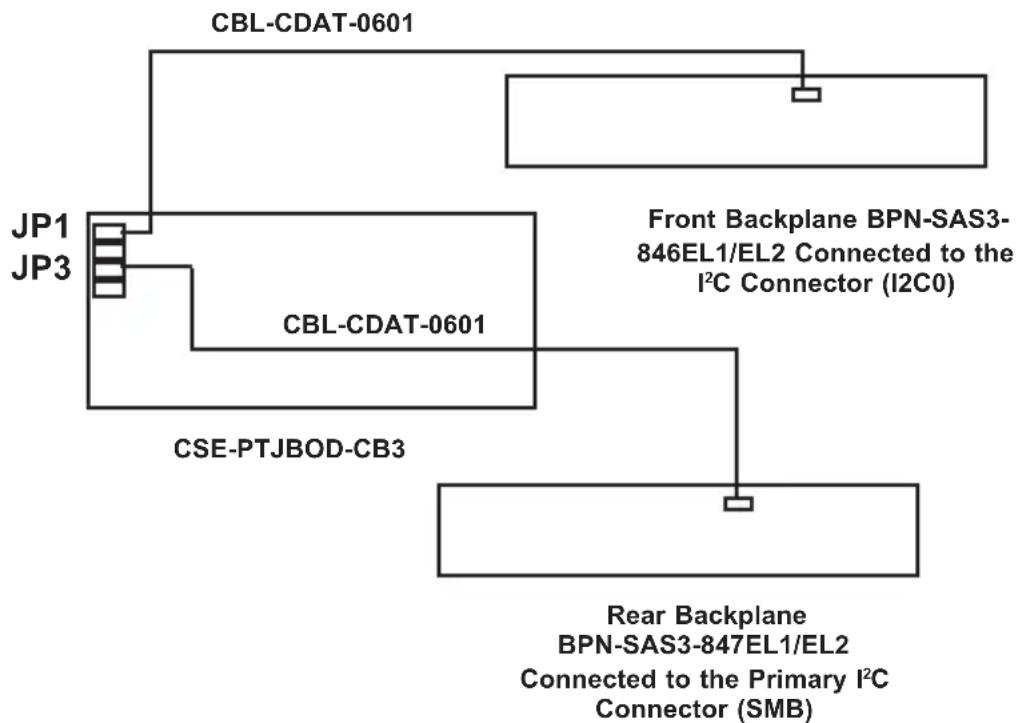

Figure E-6: SAS3 I²C Cabling in the SC847 JBOD Chassis

E-10 SC847 Cabling

SAS3 I²C Cabling in the SC847B Chassis

Use the diagram below to connect the I ^2 C cabling. Ensure that the JP5 jumper on the CSE-PTJBOD-CB3 is cabled correctly according to the table below.

Jumper Settings
Jumper Setting
JP5	Pins 1-2: SAS3 setting (Default)Pins 2-3: SAS2 and SC847D setting

When enabling SAS2/SAS3 functionality, use the connectors on the upper left of the CSE-PTJBOD-CB3 power board (See Page 2-4) and set the JP5 jumper as shown in the chart above.

When an SC847D chassis is being used, use the connectors along the bottom edge fo the power board (See Page 2-4) and set the JP5 jumper as shown in the chart above.

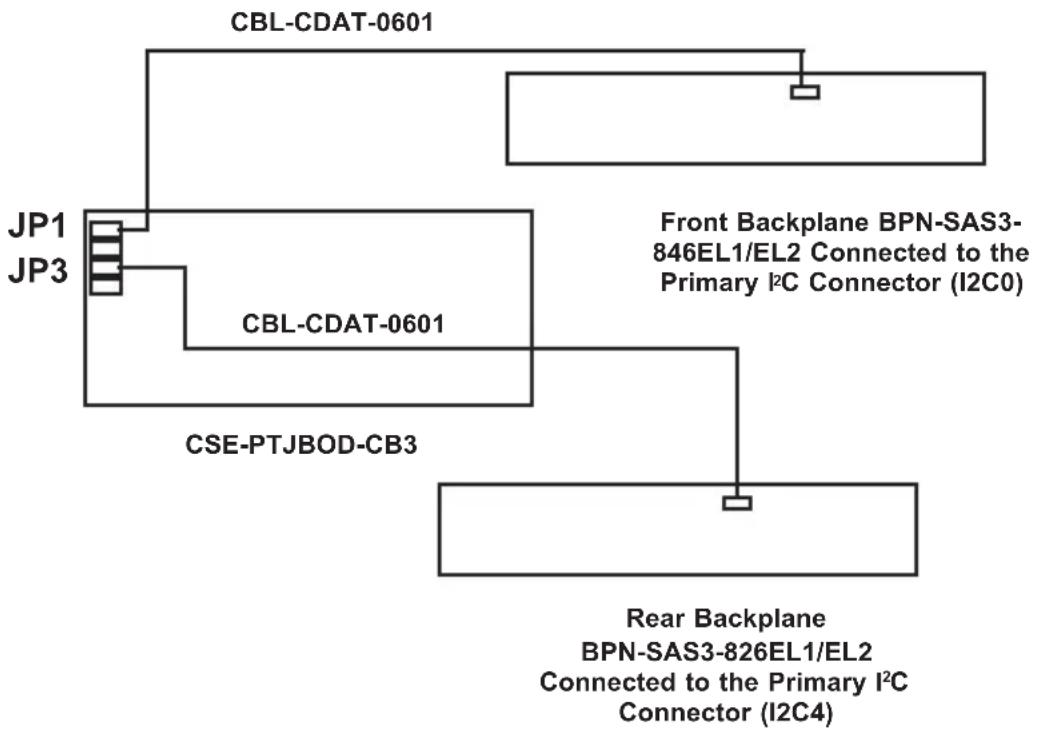

Figure E-7: SAS3 I²C Cabling in the SC847B Chassis

E-11 SC417B Cabling

SAS3 I²C Cabling in the SC417B Chassis

Use the diagram below to connect the I^2C cabling. Ensure that the JP5 jumper on the CSE-PTJBOD-CB3 is cabled correctly according to the table below.

Jumper Settings
Jumper Setting
JP5	Pins 1-2: SAS3 setting (Default)Pins 2-3: SAS2 and SC847D setting

When enabling SAS2/SAS3 functionality, use the connectors on the upper left of the CSE-PTJBOD-CB3 power board (See Page 2-4) and set the JP5 jumper as shown in the chart above.

When an SC847D chassis is being used, use the connectors along the bottom edge fo the power board (See Page 2-4) and set the JP5 jumper as shown in the chart above.

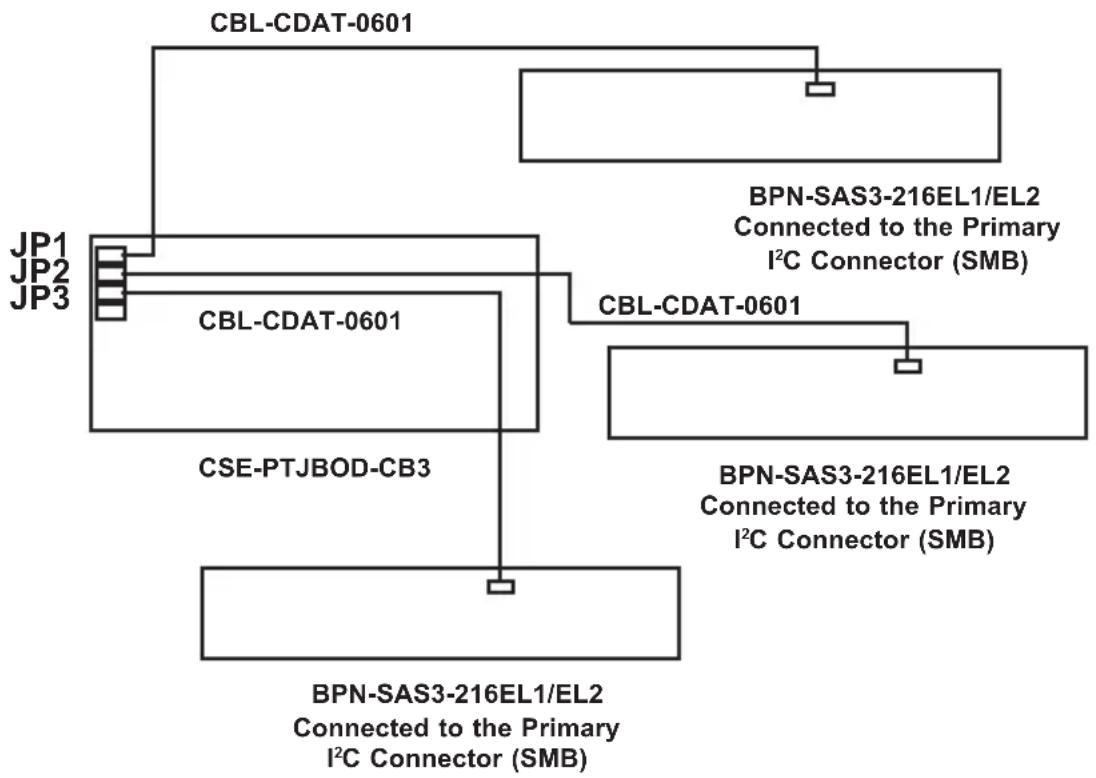

Figure E-8: SAS3 I²C Cabling in the SC417B Chassis

Notes

E-12 System Details Overview

This chapter provides information on system components which are directly affected by the CSE-PTJBOD-CB3 power board. Topics covered are the control panel, power up and power down sequences and IPMI.

E-13 Control Panel

Control Panel Buttons

There are two push-buttons located on the left handle of the chassis. These are (in order from top to bottom) a power on/off button and a UID/IP combination reset button.

Power: The main power button is used to apply or remove power from the power supply to the server system. Turning off system power with this button removes the main power but keeps standby power supplied to the system. Therefore, you must unplug system before servicing.

UID: Press to toggle the UID function on and off. IPMI IP factory default: Press and hold for ten seconds.

E-14 Control Panel LEDs

The control panel is located on the left handle of the SC847DJ chassis and has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

NIC1: Indicates network activity on GLAN1 when flashing.

Information LED:

Informational LED
Status Description
Solid red	An overheat condition has occurred. (This may be caused by cable congestion).
Blinking red (1Hz)	Fan failure, check for an inoperative fan.
Blinking red (0.25Hz)	Power failure, check for a non-operational power supply.
Solid blue	Local UID has been activated. Use this function to locate the server in a rack mount environment.
Blinking blue (300 msec)	Remote UID is on. Use this function to identify the server from a remote location.
Blinking blue (500 msec)	System is ready to power up. See Section 4-4 of this manual.

Power Failure: When this LED flashes, it indicates a failure in the redundant power supply.

E-15 JBOD Power Up/Power Down Sequences

Power Up Sequences

First Use or Power Cord Plug-In

1. Plug the power cords into the rear of the power supplies
2. Wait until blue Information LED starts to blink
3. Press the power button once*
4. The CSE-PTJBOD-CB3 will initiate the power up sequence in three seconds
   * If the CSE-PTJBOD-CB3 already has power, the user may power up the chassis without waiting for the Blue UID LED

After Normal Shutdown by IPMI or Power Button

1. Press the power button once
2. The CSE-PTJBOD-CB3 will initiate the power up sequence in three seconds

After a Power Loss

The system will power up automatically approximately fifteen seconds after the power returns

Power Down Sequence

1. Hold down the power button. The blue UID LED will begin blinking. Continue to hold the power button
2. Release power button after blue LED stops blinking and goes dark
3. The shutdown sequence will begin and shut down the system within ten seconds

E-16 CSE-PTJBOD-CB3 IPMI Static IP to DHCP Setting

IP Address to DHCP Setting

1. Download the utility from the Supermicro website or technical support
2. Extract the file to a known folder.
3. By default, the CSE-PTJBOD-CB3 will be configured in static IP 192.168.1.99

4. Change the host to static IP as 192.168.1.10

5. Go to the IPMI website and select the Configuration tab and then select the Network page

6. Change the setting from Static to DHCP mode If default website is not responding, press the reset button for more than ten seconds to reset to default. You will observe that the fan speed will slow and then return to normal. Continue to change to DHCP mode when the fan reaches normal speed

7. Save the new setting

8. Change the host IP back to DHCP mode

9. Determine the DHCP IP address of the host, for example 10.1.1.50

10. Run the command prompt with administrative privileges

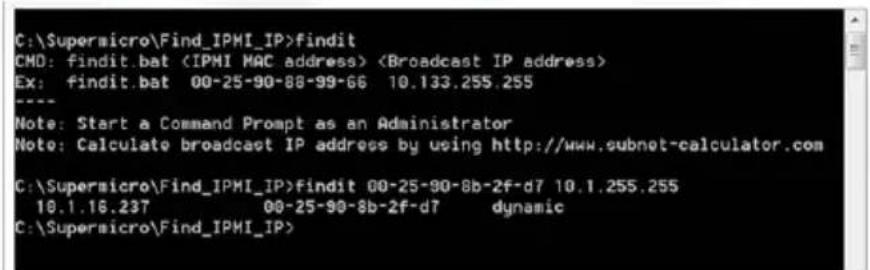

11. Go to the utility folder and type in: findit 00-25-90-xx-xx-xx yy.zz.255.255 Where: xx-xx-xx is, enter the CSE-PTJBOD-CB3 MAC ID. yy.zz represents the first two octets of your host IP. Example: findit 00-25-90-xx-xx-xx 10.1.255.255

12. The utility will return the IP address of the CSE-PTJBOD-CB3. Enter the IP in browser and access the IPMI web GUI

E-18 CSE-PTJBOD-CB3 Power Card

For information on installing the CSE-PTJBOD-CB3 power card into the chassis, see Section 4-7 Installing the Power Card.

Notes

Disclaimer (cont.)

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
