RMT2004 - Multifunction tool RYOBI - Free user manual and instructions

Product Type	Multifunction tool (oscillating tool)
Brand	RYOBI
Model	RMT2004
Power Input	200 W
Voltage	230 V ~ 50 Hz
No-Load Speed	10000 - 20000 min^-1
Oscillation Angle	3°
Weight	0.9 kg
Intended Use	Plunge-cutting and sawing wood, drywall, plastic, and non-ferrous metals; dry sanding hard-to-reach areas; removing grout; scraping small areas
Material Applications	Wood, non-ferrous metals, plastic, drywall, concrete, glue, tile (dry materials only)
Safety Class	Class II (double insulated)
Compliance	AS/NZS 60745
Recommended RCD	Residual current device with rated residual current ≤30 mA
Personal Protective Equipment	Safety goggles, ear protection, dust mask, non-skid shoes, hard hat as needed
Environmental Protection	Recycle machine, accessories, and packaging; do not dispose with household waste
Symbols	Safety Alert, V, Hz, ~, W, n0, min^-1, RCM, Class II, material symbols, read manual, ear protection, eye protection, waste electrical recycling
Maintenance	Use only identical replacement parts; clean with clean cloths, avoid solvents; disconnect power before cleaning
Storage	Store out of reach of children; keep away from untrained persons
Service	Have serviced by qualified repair person using identical replacement parts

Frequently Asked Questions - RMT2004 RYOBI

What materials can the RYOBI RMT2004 cut?

The tool is intended for plunge-cutting and sawing wood, drywall, plastic, and non-ferrous metals. It can also sand, scrape, and remove grout on dry surfaces only.

Can I use this tool on wet materials?

No. The product is designed for dry materials only. Using it on wet surfaces increases the risk of electric shock.

What safety equipment should I wear?

Always wear safety goggles and ear protection. Use a dust mask when sanding or cutting dusty materials. Non-skid shoes and hard hat are recommended if needed.

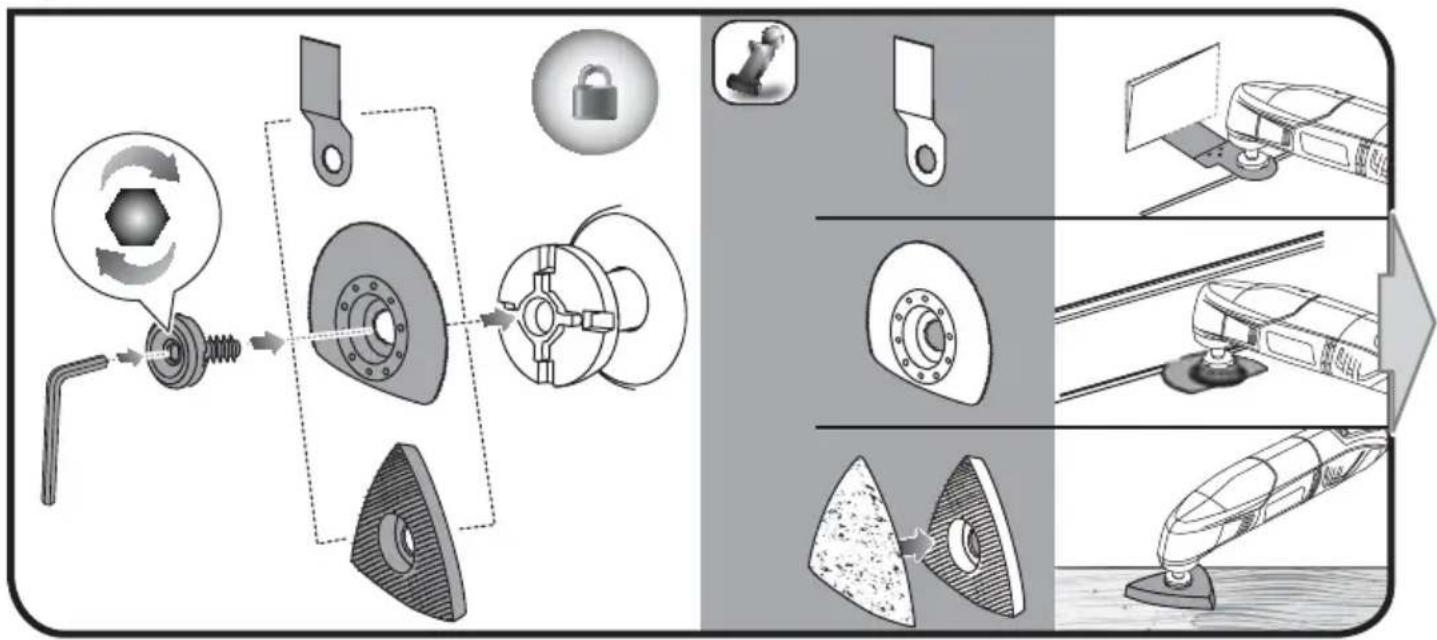

How do I change accessories on the RMT2004?

Always disconnect the tool from the power source before changing accessories. Use the appropriate wrench or key (if provided) and follow the instructions in the manual. Make sure the accessory is securely tightened.

What is the no-load speed range?

The tool operates at 10,000 to 20,000 oscillations per minute (min^-1). Adjust the speed according to the material being worked on.

Is the RMT2004 double insulated?

Yes, it is Class II double insulated, meaning it does not require a ground connection for safety.

How should I maintain the tool?

Keep cutting tools sharp and clean. After use, wipe off dust and debris with a clean cloth. Avoid solvents on plastic parts. Periodically check for alignment and binding of moving parts.

What does the RCM symbol mean?

The Regulatory Compliance Mark (RCM) indicates the product meets applicable Australian and New Zealand regulatory requirements.

Can I use this tool for sanding overhead?

Yes, but always wear safety goggles and a dust mask when sanding overhead to protect your eyes and lungs from falling debris.

Where can I recycle the tool or its packaging?

Do not dispose of electrical products with household waste. Check with your local authority or retailer for recycling facilities. Separate packaging materials for environmentally friendly recycling.

USER MANUAL RMT2004 RYOBI

RyoBI power tool with circular base and two triangular cutting inserts, no visible text or symbols on the tool itself.

Important!

It is essential that you read the instructions in this manual before operating this machine.

Subject to technical modifications.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating power tools in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. POWER TOOL USE AND CARE

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.

5. SERVICE

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIAL SAFETY RULES

• Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
  ■ Protect your lungs. Wear a face or dust mask if the operation is dusty.
  ■ Always wear safety goggles and a dust mask when sanding, especially sanding overhead.
  A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid breathing the harmful/toxic dust or air.
• When not in use, all tools should be disconnected from power source.

■ Do not touch moving parts.

WARNING

The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the product.

• Keep children and visitors away. Visitors should wear safety glasses and be kept at a safe distance from the work area. Do not let visitors contact the product or extension cord.
  It is recommended that the product be always supplied via a residual current device with a rated residual current of 30mA or less.

■ Complies with AS/NZS 60745.

INTENDED USE

■ Plunge-cutting and sawing wooden, dry wall, and plastic materials and non-ferrous metals.
■ Dry sanding hard-to-reach areas, edges, and corners
■ Removing grout
■ Scraping small areas

The product is not intended to be used on wet materials and surfaces. For use on dry materials only.

MAINTENANCE

• When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
  ■ Always wear safety goggles or safety glasses with side shields during power product operation or when blowing dust. If operation is dusty, also wear a dust mask.
  ■ To avoid serious personal injury, always disconnect from the power source when cleaning or performing any maintenance.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling.

SYMBOLS

Safety Alert

V Volts

Hz Hertz

\~ Alternating current

Watts

n. No-load speed

min ^-1 Revolutions or reciprocations per minute

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

Class II, double insulated

Wood

Non-ferrous metals

Plastic

Drywall

Concrete

Glue

Tile

Please read the instructions carefully before starting the product.

Wear ear protection

Wear eye protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

1

2

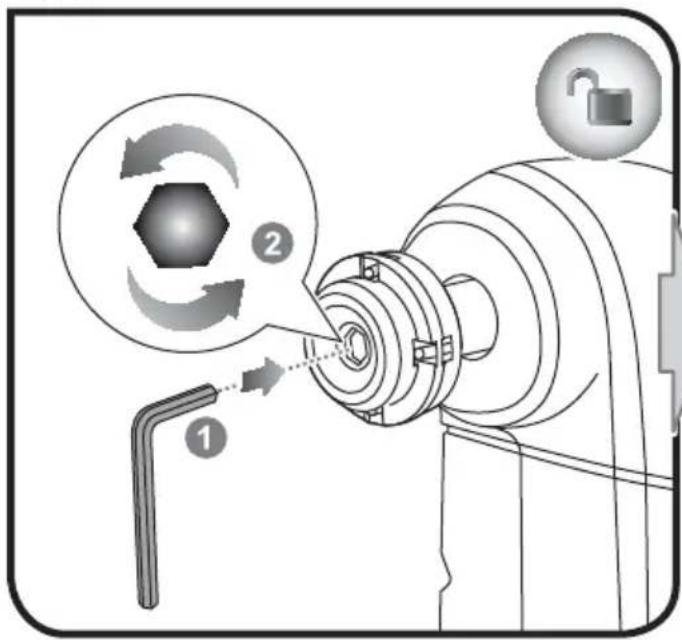

Technical illustration of a mechanical assembly with a screw and shaft, showing motion direction (no text or symbols)

4

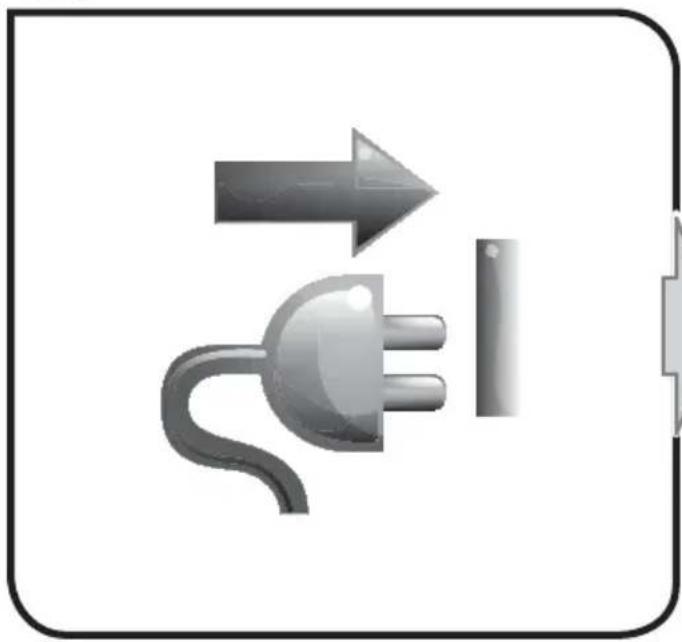

Pure electrical plug icon with arrow and vertical line, no text or symbols present

5

3


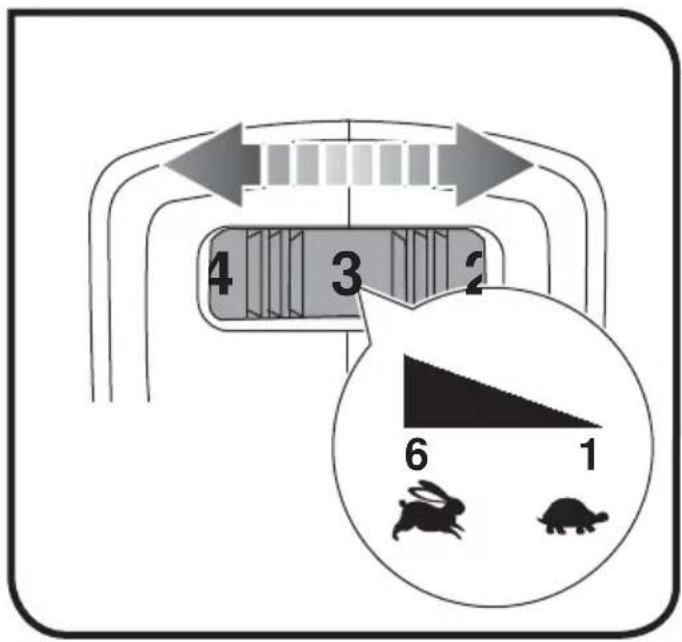

6
        G["6"]
        H["1"]
        I["Rabbit"]
        J["Turtle"]
    end

PRODUCT SPECIFICATIONS

Model RMT2004

Input 200 W

Voltage 230 V

\~ 50 Hz

No-load speed

10000 - 20000 min ^-1

Oscillation angle 3°

Weight 0.9 kg

Techtronic Industries (Australia) Pty. Ltd.

Level 1,660 Doncaster Road

Doncaster, VIC 3108, Australia

Techtronic Industries New Zealand Ltd.

18-26 Amelia Earhart Avenue

Mangere, Auckland 2022, New Zealand
