TEG-PCITXRL - Network card TRENDNET - Free user manual and instructions

Product Type	Network Card
Model	TEG-PCITXRL
Brand	TRENDnet
Interface	PCI Express x1
Data Rate	10/100/1000 Mbps Gigabit Ethernet
Connector Type	RJ-45
Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supported Operating Systems	Windows, Linux, macOS
Dimensions (L x W x H)	120 x 80 x 20 mm (approx.)
Weight	50 g (approx.)
Power Consumption	2.5 W (max)
Power Source	PCIe bus power
LED Indicators	Link/Activity, Speed
Wake-on-LAN	Supported
Jumbo Frame Support	Up to 9K bytes
Auto-MDI/MDIX	Supported
Flow Control	IEEE 802.3x
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 70°C
Humidity	10% to 90% (non-condensing)
Safety Certifications	CE, FCC
Maintenance	Keep dry and clean; avoid dust
Spare Parts & Repairability	Not user-serviceable; contact support for replacement

Frequently Asked Questions - TEG-PCITXRL TRENDNET

What is the TRENDnet TEG-PCITXRL?

The TRENDnet TEG-PCITXRL is a Gigabit Ethernet PCIe network card that adds a high-speed wired network interface to a desktop computer.

Is the TEG-PCITXRL compatible with Windows 10?

Yes, the TEG-PCITXRL supports Windows 10 as well as earlier versions. Drivers are available on the TRENDnet website.

How do I install the TEG-PCITXRL?

1. Power off your computer and unplug it. 2. Open the case and insert the card into a PCI Express x1 slot. 3. Secure the bracket. 4. Close the case, power on, and install drivers.

Does the TEG-PCITXRL support Wake-on-LAN?

Yes, it supports Wake-on-LAN. You may need to enable it in the operating system's network settings.

What is the maximum data transfer speed?

The card supports 10/100/1000 Mbps (Gigabit Ethernet) speeds, providing up to 1 Gbps data rate.

Can I use this card with Linux?

Yes, the TEG-PCITXRL works with Linux. Most distributions include the necessary driver (e.g., r8169).

Does it support jumbo frames?

Yes, it supports jumbo frames up to 9K bytes, which can improve network performance for large transfers.

What should I do if the card is not detected?

Ensure the card is seated properly in the PCIe slot. Check that the slot is enabled in BIOS. Update drivers from TRENDnet's website.

Is the TEG-PCITXRL compatible with PCIe x4 or x16 slots?

Yes, it is backward compatible and will work in PCIe x4, x8, or x16 slots, but it uses only x1 lanes.

Where can I find the latest drivers?

Drivers can be downloaded from the TRENDnet support page for the TEG-PCITXRL model.

USER MANUAL TEG-PCITXRL TRENDNET

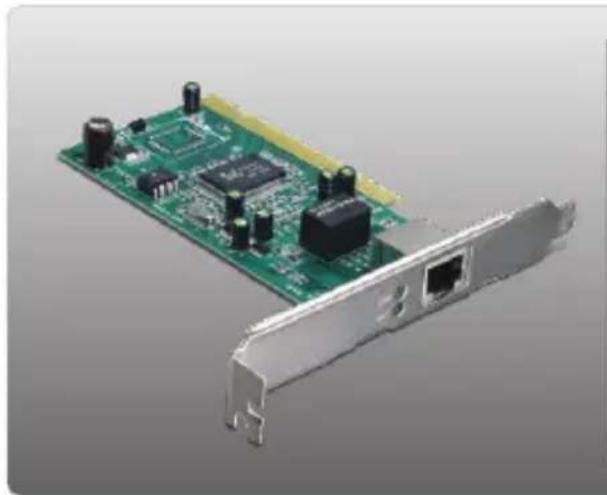

Close-up of a green PCI expansion card with visible internal components and port socket (no text or symbols)

Quick Installation Guide

Table of Contents

English 1

1. Before You Start 1
2. How to Install 2

Troubleshooting 5

Green PCI expansion card with attached network ports and connectors (no visible text or symbols)

Package Contents

• TEG-PCITXR/TEG-PCITXRL
• CD-ROM (Driver)
• Multi-Language Quick Installation Guide

System Requirements

• 32-bit PCI 2.1 slot
• CD-ROM Drive
• CPU: 1GHz or above (Windows 7) / 800MHz or above (Windows Vista) / 300Mhz or above (Windows XP/2000/ME/98)
• Memory: 1GB RAM or above (Windows 7) / 512MB RAM or above (Windows Vista) / 256MB RAM or above (Windows XP/2000/ME/98)
• Windows 7(32/64-bit) / Vista(32/64-bit) / XP(32/64-bit) / 2000/ME/98
• A RJ-45 Ethernet cable

Note:

1. For Windows 98SE and Me driver installation, refer to the user guide on the Driver CD-ROM.

2. Do not insert the TEG-PCITXR/TEG-PCITXRL until instructed to do so.

3. Insert the Driver CD-ROM into your computer's CD-ROM Drive (Windows Vista/XP/2000).

4. Click Run autorun.exe (Windows Vista only)
5. Click Install Driver (Windows Vista/XP/2000).
6. Follow the InstallShield Wizard instructions (Windows Vista/XP/2000).
7. Click Yes (Windows 2000 only)

1. Click Finish (Windows Vista/XP/2000).
2. Shutdown your computer and then open your computer's Case.
3. Insert PCI Card firmly into an available PCI slot, and then turn ON the computer and wait until the Windows desktop appears.
4. Drivers will install automatically.
5. Click Yes (Windows 2000 only).

Illustration of a desktop computer tower (no text or symbols visible)

Interior view of a computer motherboard with visible RAM slots and circuitry (no text or symbols)

1. Connect a RJ-45 network cable from the computer to an available Ethernet port on your router or switch.

Front view of a black network switch device with four ports and a red indicator light (no visible text or symbols)

Your Installation is complete

For detailed information regarding the TEG-PCITXR/TEG-PCITXRL's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.

Register Your Product

To ensure the highest level of customer service and support, please take a moment to register your product Online at: www.trendnet.com/register Thank you for choosing TRENDnet

1. I inserted the Driver CD-ROM into my computer's CD-ROM drive and the installation menu does not appear automatically. What should I do?

2. For Windows Vista, if the installation menu does not appear automatically, click Start, click the Start Search box, and type D:\autorun.exe where "D" in "D:\autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the ENTER key on your keyboard.

3. For Windows 2000/XP, if the installation menu does not appear automatically, click Start, click Run, and type D:\autorun where "D" in "D:\autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the ENTER key on your keyboard.

4. Windows doesn't recognize my new hardware. What should I do?

5. Verify that your computer meets the system requirements as specified in Section 1.

6. Access your device manager to make sure the adapter is installed properly. If you see a networking device with a yellow question mark or exclamation point, you will need to reinstall the device and/or the drivers. To access the device manager on Windows 2000/XP, right-click My Computer, click Properties, click the Hardware tab, and then click Device Manager. To access the device manager on Windows 7/Vista, right-click Computer, click Properties and then click Device Manager.
7. If the device manager fails to recognize the presence of a new networking adapter, verify that the network adapter is firmly seated in the PCI slot.

8. Plug the adapter into another PCI slot on your computer.

9. Windows recognizes my new hardware, but I'm unable to connect to my network. What should I do?

10. Verify that the RJ-45 Ethernet Cable is securely connected from your switch or router to your network adapter.

11. Verify that the LEDs on your network card are lit.
    Verify that the TCP/IP settings are set to Obtain an IP address automatically (see the steps below).

Windows 7

1. Go into the Control Panel, click Network and Internet, click Network and Sharing Center, click Change Adapter Settings and then right-click the Local Area Connection icon and then click Properties.

Local Area Connection

Identifyin NVIDIA nI

Disable

Status

Diagnose

Bridge Connections

Create Shortcut

Delete

Rename

Properties

Obtain an IP address automatically
○ Use the following IP address:

1. Click Internet Protocol Version 4(TCP/IPv4) and then click Properties. Then click on Obtain an IP address automatically.

Windows Vista

1. Go into the Control Panel, click Network and Internet, click Network and Sharing Center, click Manage Network Connections and then right-click the Local Area Connection icon and then click Properties.

Local Area Connection

Identifying NVIDIA n

Disable

Status

Diagnose

Bridge Connections

Create Shortcut

Delete

Rename

Properties

© Ditan on IP address automatically
○ Use the following IP address:

1. Click Internet Protocol Version 4(TCP/IPv4) and then click Properties. Then click on Obtain an IP address automatically.

Windows XP/2000/2003Server

1. Go into the Control Panel, double-click the Network Connections icon and then right-click the Local Area Connection icon and then click Properties.

Local Conne

Disable

Status

Repair

Bridge Connections

Create Shortcut

Delete

Rename

Properties

© Upon an IP address automatically
○ Use the following IP address:

1. Click Internet Protocol (TCP/IP) and then click Properties. Then click on Obtain an IP address automatically.

4. How do I install the drivers on Windows 98 or ME?

Please refer to the User's Guide included on the Driver CD-ROM.

5. Why am I only getting a network connection speed of 100Mbps instead of 1000Mbps?

1. Check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6 Ethernet Cables. Some CAT-5 cables are not rated to run in Gigabit.
2. Make sure you are connected to a 1000Mbps switch.

If you still encounter problems or have any questions regarding the TEG-PCITXR/TEG-PCITXRL, please refer to the User's Guide included on the Driver CD-ROM or contact Trendnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

ADVERTENCIA

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register
