Product Type	Personal Media Player / MP3 Player
Display	3.0-inch TFT Color Display
Resolution	400 x 240 pixels
Supported Audio Formats	MP3 (64Kbps-320Kbps), WMA (64Kbps-384Kbps), and most common audio formats
Supported Video Formats	AVI (max 800x480), RM/RMVB (max 720x576), FLV
Supported Image Formats	JPEG, BMP, GIF
Storage Expansion	Micro SD Card Slot
Internal Memory	512MB to 8GB (varies by model)
Battery Type	Rechargeable Lithium-Ion (Li-ion) Battery
Battery Life (Video Playback)	3-4 hours (headphone output)
Battery Life (Audio Playback)	Up to 15 hours (power-saving mode, headphone output)
Recording	Built-in Microphone, Voice Recording (WAV format)
Recording Quality	Sampling rate 8KHz/16KHz, bitrate 32Kbps/64Kbps
FM Radio	Yes, with presets and recording
Connectivity	High-Speed USB 2.0
Output Power	10mW (L) + 10mW (R) @ 32Ω
Signal-to-Noise Ratio (SNR)	>90 dB
Distortion	0.03%
Frequency Response	20Hz - 20KHz
Supported Operating Systems	Windows 2000/XP/Vista, Mac (as removable drive)
Languages	Multiple languages supported
Working Temperature	-5°C to 40°C
Additional Features	E-book reader (TXT ANSI), Photo viewer with zoom/slideshow, Games, Custom EQ, Energy-saving settings

Frequently Asked Questions - TRIO-V430 Mach Speed

How do I turn on/off the Mach Speed TRIO-V430?

To power on, set the power switch to ON, then press and hold the PLAY button for 5 seconds. To power off, press and hold PLAY for 5 seconds, then set the switch to OFF.

How long does the battery last?

Battery life is approximately 3-4 hours for video playback and up to 15 hours for audio playback in power-saving mode with headphone output.

What audio and video formats are supported?

Supports audio: MP3 (64-320Kbps), WMA (64-384Kbps). Supports video: AVI (max 800x480), RM/RMVB (max 720x576), and FLV.

Can I expand the storage?

Yes, the player has a Micro SD card slot to expand storage capacity.

How do I transfer music to the player?

You can transfer files using Windows Media Player 10 or later (sync feature) or simply drag and drop files when connected as a removable drive (also works on Mac).

How do I record audio?

Select Record Mode from the main menu. Press PLAY to start recording, press again to pause, and briefly press MODE to save. Recordings are saved as WAV files.

How do I set the equalizer?

In Music Mode, press and hold MODE to open the submenu. Select EQ Sel for 8 presets or User EQ Setup to customize frequencies (50Hz, 200Hz, 1KHz, 3KHz, 14KHz) using V-/V+ buttons.

How do I use the FM radio?

Plug in headphones (they act as antenna). Select Radio Mode. Use Next/Previous to tune manually (0.1MHz steps). Press and hold MODE for submenu: Auto Search, Preset Mode, Save/Delete Channel, etc.

How do I read e-books?

Select Ebook Mode, then choose a TXT file. Press PLAY to enter submenu with options like Page Jump, Save/Load Mark, Set Font/Color, and Auto Browse. Note: only ANSI-encoded TXT files are supported.

What should I do if the player freezes or does not respond?

Try a hard reset by pressing and holding the PLAY button for 5 seconds to power off, then turn it back on. If that fails, connect to a computer and check for file system errors. Avoid disconnecting during file transfers to prevent corruption.

USER MANUAL TRIO-V430 Mach Speed

●3.0-inch supporting 400*240 resolution
●Supports MP3, WMA, and most other common audio formats
●Supports Micro SD cards, to expand your storage
●Support for AVI, RM, RMVB, and FLV video formats
●Supports JPEG, BMP, GIF format images
●Built-in microphone for long recordings at high quality
●Energy-saving settings, brightness adjustment, automatic shutdown
●A variety of sound and equalizer options
●Supports FM radio
●Support multiple languages
●High-speed USB2.0 interface

Congratulations on purchasing your Trio Personal Media Player! To get the most out of your purchase, please take the time to carefully read through this manual.

Foreword

If any problems occur during while using your Trio, please feel free to contact Mach Speed technical support at 580-272-0035. Thank you for your support and cooperation!

Mach Speed Technologies bears no responsibility for any damage or loss of personal data due to misuse of software and/or hardware, damage to the player caused by human factors, replacement of battery, or other unforeseen circumstances. To prevent loss of your data, please backup your data regularly.

Information in the manual is subject to any change without notice and is subject to copyright protection. Copying or otherwise reproducing this material without prior written consent is prohibited.

Due to Firmware changes, some of the pictures and functions described in this manual may not be the same as are included with your player.

Precautions

• Avoid using your Trio under extremely hot, cold, dusty or wet environments.
• Striking, dropping, or severe jolts to your Trio may cause physical damage, battery loosening, or other hardware damage.

• The following conditions indicates a low battery level and signifies that the player should be charged:

• The battery icon displays in normal operation with low battery prompt.

• Where there is no response when pressing keys and the battery icon displays
• The player turns off automatically.

• Static electricity may cause damage to interior hardware of the player.
- Do not disconnect the player while formatting, uploading, or downloading files to the player, as it may cause program errors, or cause the unit to be unable to power on.
- When the player is used as a removable hard disk, users should store files following correct file management methods. We are not liable for any data loss or damage.
• Do not disassemble the unit in any way as this will void all warranties. Please contact your place of purchase if you experience any problems with your unit.
• Ensure that your player is powered off before connecting or removing your Micro SD card.
• The player may warm slightly when charging. This is normal.

Button explanation:

1. Mode Button
2. Volume Adjustment
3. Previous/Next buttons
4. Play/Pause buttons
5. USB port
6. Micro SD card slot
7. Earphone jack
8. Power switch
9. Microphone

Basic operations:

●Power on/off:

To power the player on, set the power switch to the ON position, then press and hold the

PLAY button for 5 seconds. To power the player off, Press and hold the PLAY button for 5 seconds, then set the power switch to the OFF position.

• Volume control:

In the music player and video player, pressing the V- or V+ buttons will decrease or increase the volume.

• Fast forward and rewind:

When playing a file in Music Mode or Video Mode, pressing and holding the Previous or next buttons will rewind or fast forward the current file.

- Menu Navigation

When in a menu, use the Next and Previous buttons to select different items in the menu. Briefly press the PLAY button to access that item, and briefly press the Mode button to go back one menu level. Pressing the mode button several times will return you to the main menu.

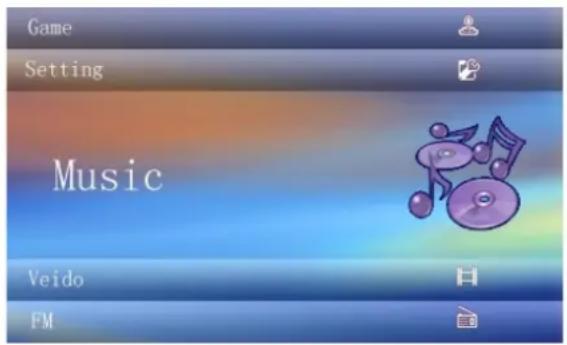

- Main Menu:

After powering the player on, you will enter the main menu interface, which allows you to access the functions of the player. Use the Next and Previous buttons to select function you would like to access, and press the PLAY button to enter it.

Music Mode:

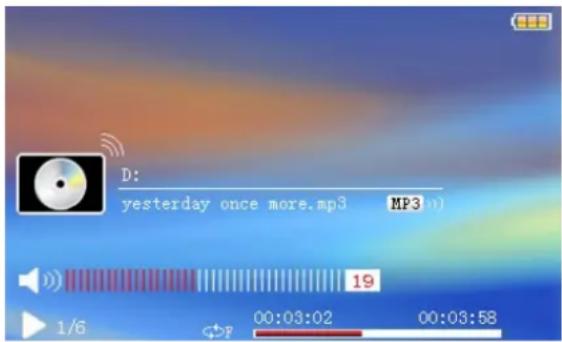

Once you select the Music Mode, you will enter the Media Library, which allows you to select the file you wish to play. Once you have selected a file, press the PLAY button to begin playing the file. While a file is playing, press the PLAY button to pause it, or quickly press the Mode button to return to your media library. Pressing and holding the Mode button will open the Music Mode Submenu as displayed blow.

1. Repeat Mode- Allows you to set your repeat mode. Select from Once, Repeat, All, All Repeat, and Intro
2. Play Mode- Allows you to select to play your files in order, or in a shuffle mode.
3. MSEQ- Allows you to select one of three specialized equalizer settings.
4. EQ Selection- Allows you to select one of 8 general equalizer settings

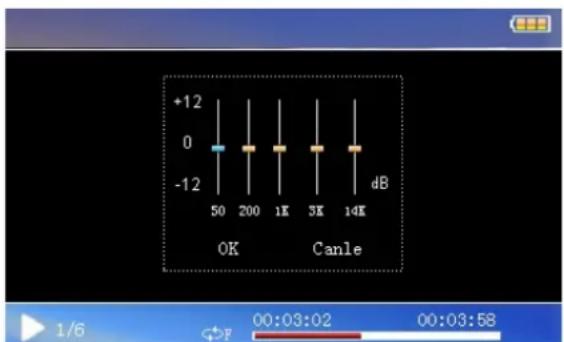

5. User EQ setup- Allows you to create a custom equalizer setting. Use the Next and Previous buttons to select the item to change, and use the V- and V+ buttons to adjust the setting. Pressing the PLAY button will save your changes and return you to the Music Mode Submenu, while pressing the Mode button will exit without saving.

1. Display- Allows you to display the ID3 information for files, the lyrics, or a frequency chart.

Video Mode:

Once you select the Video Mode, you will enter the Media Library, which allows you to select the file you wish to play. Once you have selected a file, it will begin to play automatically. While a file is playing, press the PLAY button to pause it, or quickly press the Mode button to return to your media library.

Group photo of adults and a baby sitting together, with a video player interface at bottom (no readable text or symbols in main image)

Note 1: The maximum supported resolution for RM/RMVB video files is 720*576. Files with a larger resolution will not play.

Note 2: The maximum supported resolution for AVI video files is 800*480. Files with a larger resolution will not play.

Note 3: Whenever you convert a video file, please ensure that the converted file will play on your computer before loading to the player, to prevent damage.

Photo Mode:

Once you select the Photo Mode, you will enter the Media Library, which allows you to select the file you wish to view. Once you have selected a file, it will display automatically. While viewing a picture, press the PLAY button to enter the Photo Mode Submenu.

1. Rotate Right- Rotates the current photo 90 degrees to the right
2. Rotate Left- Rotates the current photo 90 degrees to the left
3. Zoom In-Zoom in to the current photo
4. Zoom Out- Zoom out of the current photo
5. Browse- Allows you to have pictures automatically scroll, similar to a slideshow

Note: The zoom function will only work on pictures which are 430*234 or higher resolution.

EBook Mode:

Once you select the eBook Mode, you will enter the Media Library, which allows you to select the file you wish to view. Once you have selected a file, it will display automatically. While viewing a file, press the PLAY button to enter the Photo Mode Submenu.

While in your text viewer, pressing the Next or Previous buttons will skip to the next or previous page, while using the V- or V+ buttons will advance by line.

1. Page Jump- Allows you to jump to a page in the current file
2. Save Mark- save the current page as a bookmark
3. Load Mark- Return to a saved bookmark
4. Del Mark- Delete a bookmark
5. Set Font- Set your font size
6. Set Color- Set your font color
7. Browser Mode- Allows you to select between manual page turning, or having the player do it for you, like a slideshow
8. Flip Time- Allows you to set the time between "page turns" in auto browsing mode
9. Mode- Allows you to select one of three backgrounds for your text reader

Note: This player only supports files coded in "ANSI" format. If your txt file will not display, open it on your computer in notepad, and select "save as" Make sure that the encoding line is set to "ANSI"

Radio:

Before selecting Radio Mode, Please insert your headphones, as they will act as the player's antenna. Once you select the Radio Mode, you will automatically begin receiving a radio signal. Use the Previous and Next buttons to advance your station by 0.1MHz. Pressing and holding the Mode button will enter the Radio submenu.

1. Search by hand- Allows you to search manually through frequencies. This is the default search mode.

2. Auto Search- Automatically scans all channels and saves any w9ith a strong channel as a preset. You will then enter preset mode.

3. Preset Mode- Switched your scan mode to preset mode. Pressing the Next or Previous buttons will switch between saved presets.

4. Save Channel- Saves the current channel as a preset

5. Delete Channel- Delete a Preset channel

6. Stereo switch- Enable or disable automatic stereo switching

7. Receive area- Set your region for radio reception.

8. FM Record- Begin recording your FM channel

Record:

Once you select the Record Mode, the player will be ready to record your voice notes. Press PLAY to begin recording, when recording, press PLAY again to pause the file. Briefly pressing the Mode button will save the recording

SETTINGS

1. Display settings- Adjust your display settings
2. System Settings- Adjust your system settings
3. Desktop- Select one of several desktop pictures
4. Language- Select your display language.
5. System Information- Displays your system information.
6. Auto Shut time- Set up t a timer to power the player down

COMPUTER COMMUNICATION

Using Windows Media Player

(Note: you must use Windows Media Player 10 or later to use this feature.)

(Note: this player does not support DRM encrypted audio files, such as those downloaded from the Windows Media Player download service.)

1. Open Windows Media Player and connect the MP3 player to a working USB port. Windows Media player will prompt you with a setup screen asking you to name the MP3 player.

1. Once you have named your MP3 player, select Finish, and your Windows Media Player will open to the Sync tab.

1. Drag your music to the sync list (on the right of the screen) from the list on the left. Once you have selected the music you wish to add to the player, press Sync.

1. Windows Media player will load the songs on to your MP3 player.

1. Once all the songs you have added are synced to the unit, and Windows Media Player says that is safe to disconnect your MP3 player, disconnect the device.

1. Connect the MP3 player to a working USB port.
2. When the unit is connected to your computer, it will create a gray and green icon in the system tray (lower right hand corner of your desktop). The icon will be called safely remove hardware.

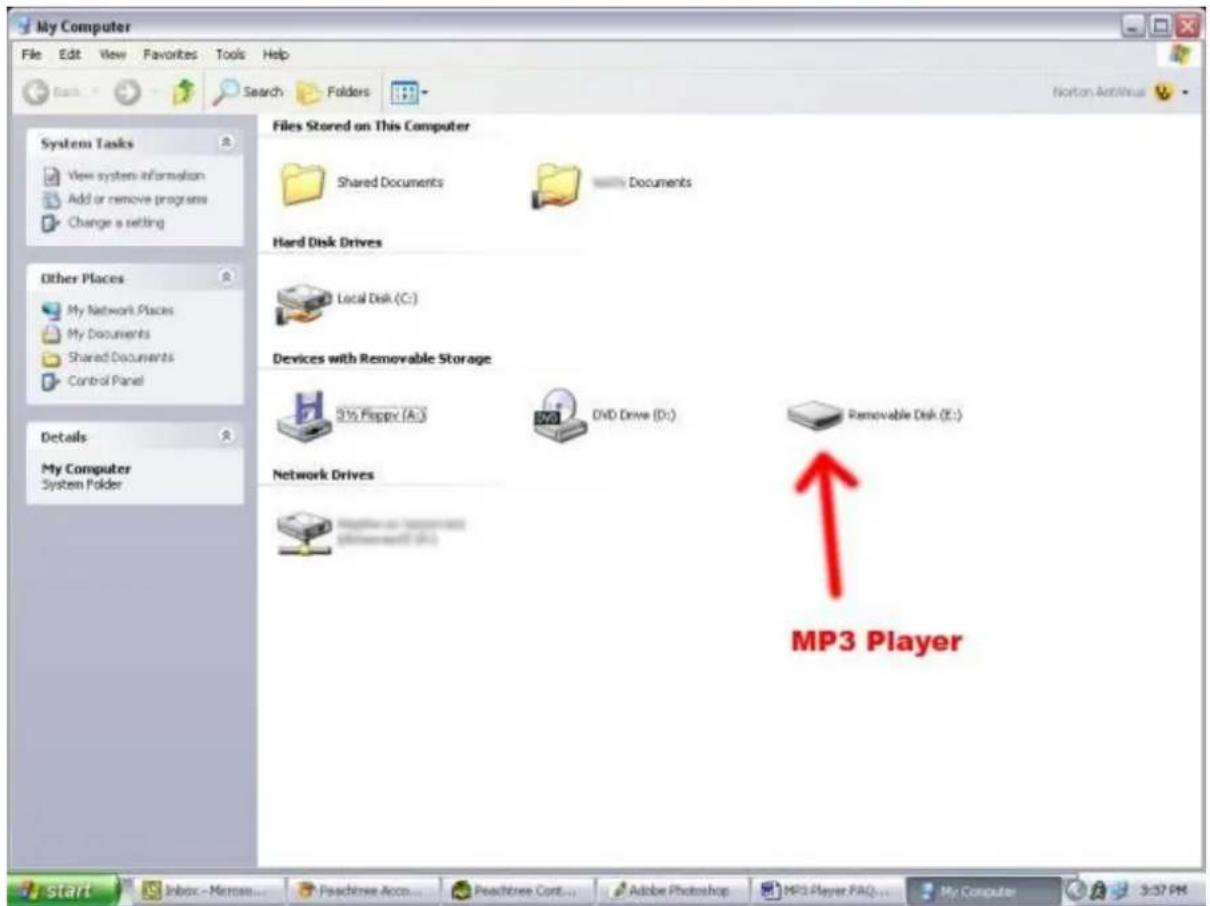

1. Go to the "My Computer" section of your computer. In there you will find a section called "devices with removable storage"

1. Locate the drive created by the unit, generally just called Removable Disk, with a letter in Parenthesis. Drive letters vary depending on your system configuration.
2. Open the drive by either double left clicking on the drive itself, or by right clicking to open the option menu then left click on the desired drive.

Removable Disk (E:)

Open

Explore

Search...

AutoPlay

Sharing and Security...

Scan with Norton AntiVirus

Open as Portable Media Device...

Format...

Eject

Cut

Copy

Create Shortcut

Rename

Properties

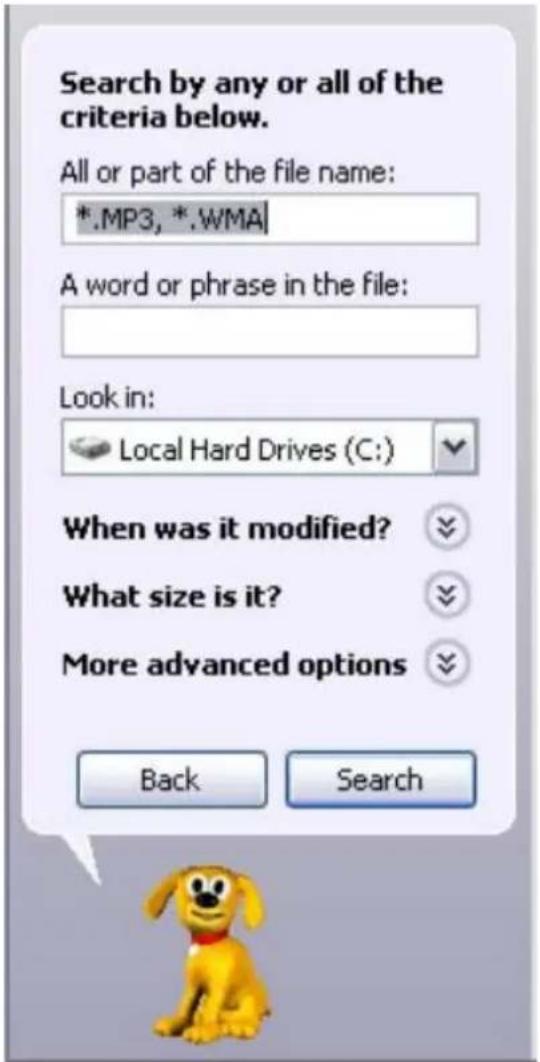

1. Locate the music stored on your computer. Generally this is stored in the "My Music" folder of your computer. NOTE: if you are unable to locate the music on your computer, click on start, search, files and folders, then search for "*.MP3, *.WMA".

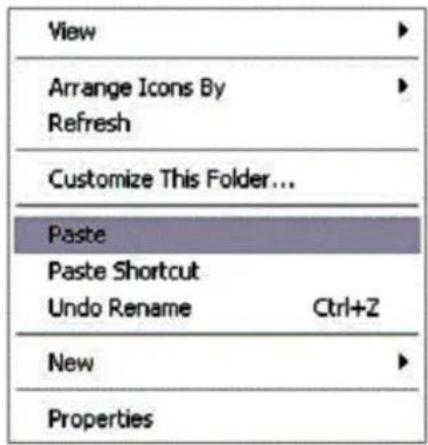

1. Once you have located the song files, you can right click on the song itself, and select "copy". Open the removable disk drive, right click on in the empty space, and select Paste. This will transfer the song on to your MP3 player.

1. Repeat step 7 for as many songs as you want to copy on to the unit.

NOTE: MAC Computers

When connected to your MAC computer, the device will act as a removable drive. Simply drag your MP3 files to the device.

Product specifications:

TFT colored display	3.0 TFT, diagram(400*240)
Date transmission speed High	speed USB 2.0 (HIGH SPEED)
Storage media 512MB—8GB
Usable time of battery	li-ion battery
	Video player : 3-4 hours (headphone output)
	Audio player f:15 hours (power-saving clearance screen, headphone output)
Record	Sampling rate 8KHZ/16KHZ
	MIC WAV(32K bps/64Kbps)
	MIC time 64 hours(1GB)

Music player	Max.output power (L)	10mw+(R)10mw(32ohm)
	MP3 bit rate 64Kbps	320Kbps
	WMA bit rate 64k bps	384k bps
	Frequency response	20Hz---20KHz
	SNR >90DB
	Distortion rate 0.03%
Working temperature -5 to 40°C
Language support Multiple languages
Supporting operating system Windows 2000/XP/Vista
