Product Type	Built-in Dishwasher
Brand	Belling
Model	IDW450 MK2
Place Settings	12
Energy Efficiency Class	A+
Annual Energy Consumption	220 kWh
Annual Water Consumption	3360 L
Width	448 mm
Height	815 mm
Depth	550 mm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Current	10 A
Noise Level	44 dB(A)
Programmes	6 (Eco, Intensive, Normal, Quick, Glass, Rinse)
Drying System	Condenser drying
Water Connection	Cold water only
Interior Light	No
Delay Start	Yes (1-24 hours)
Child Lock	Yes
Salt and Rinse Aid Indicator	Yes
Self-Cleaning Filter	Yes
Manufacturer Warranty	2 years

Frequently Asked Questions - IDW450 MK2 BELLING

How do I properly load the dishwasher for optimal cleaning?

Place larger items like plates and pots on the bottom rack, facing the spray arms. Put cups, glasses, and small items on the top rack. Ensure nothing blocks the spray arms and that cutlery is separated for thorough washing.

What should I do if the dishwasher doesn't start?

Check that the door is fully closed and latched. Ensure the power cord is plugged in and the circuit breaker hasn't tripped. Verify the water supply is turned on and the delay start isn't active.

Why is my dishwasher leaving dishes wet?

This may be due to low rinse aid levels or a faulty drying system. Refill rinse aid and select a drying cycle. Also, ensure the rinse aid dispenser is not clogged and the dishwasher is not overloaded.

How often should I clean the filter?

Clean the filter every 1-2 months to prevent clogs and maintain performance. Remove it according to the manual, rinse under running water, and scrub gently if needed.

What does error code E1 mean?

Error code E1 typically indicates a water intake problem. Check that the water supply tap is fully open and the inlet hose is not kinked or frozen. If the issue persists, inspect the water inlet valve.

Can I use regular dish soap in the dishwasher?

No, never. Use only dishwasher detergent (powder, gel, or tablets) designed for automatic dishwashers. Regular soap creates excessive suds and can damage the machine.

How do I descale my dishwasher?

Use a descaling product specifically for dishwashers, or run a cycle with diluted vinegar (1 cup). Follow the manufacturer's instructions. For best results, descale every 3-6 months depending on water hardness.

What is the recommended water hardness setting?

Set the water hardness according to your local water supply. Refer to the manual to adjust the setting using the controls. This ensures optimal salt and detergent use.

Why is the dishwasher making unusual noises?

Noises can be caused by items hitting the spray arms, loose cutlery, or a blocked filter. Check for obstructions and ensure items are properly arranged. Also, verify the dishwasher is level.

How do I reset the dishwasher?

To reset, press and hold the Start button for 3-5 seconds, or turn off the power at the wall for 10 seconds and turn back on. Consult the manual for model-specific reset procedures.

USER MANUAL IDW450 MK2 BELLING

Technical line drawing of a multi-level cleaning machine with visible dish compartments and wheels (no text or labels)

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switchontheappliance

PresstheOn/Offbuttontoswitchontheappliance, Openthedoor.

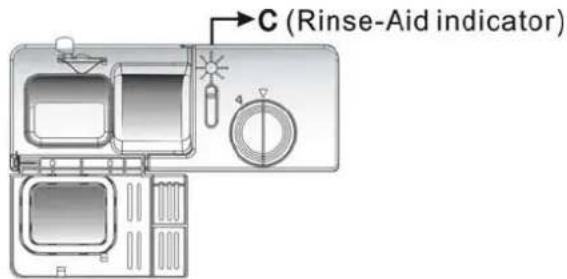

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclethedishwasherhasrun.

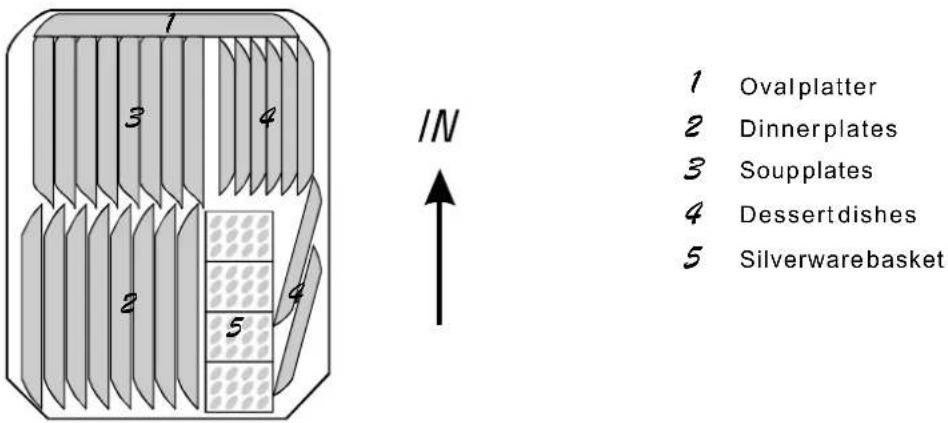

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

thenloadthebaskets.Refertothedishwasherloadinginstructions.

Selectaprogramme

PresstheProgrammebuttonuntiltheselectedprogrammelightsup.

( See the section entitled "Operationg instruction" )

Runningthedishwasher

Closethedoor, turnonthewatertap. Themachinewillstartworkingafterabout10seconds.

- Changingtheprogramme

- 1. Arunningcyclecanonlybemodifiedifithasbeenrunningforashorttime. Otherwisethedetergent mayhavealreadybeenreleasedandthewateralreadydrained.Ifthisisthecase,thedetergent dispensermustberefilled.

1. Open the dooral little to stop the washing, then press the Program button from more than 3 second to cancel the running programme.

2. Selectanewprogramme, thenclosethedoor. Themachinewillrestartafterabout10seconds.

- Addforgottendishesinthe dishwasher.

• 1. Openthodooralittletostopthedishwasher.

1. After the spray arms stop working, you can open the door completely.

3.Addtheforgottendishes.

1. Close the door, the dishwasher will start running again after 10 seconds.

WARNING!

Open the door carefully.

Hotsteammayescape

when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched during a wash cycle, when switched

onagain, pleasere-select the washing cycle and operate the dish washer

accordingtotheoriginalPower-onstate).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the

dishwasherwillsound8times,thenstop.

Turnoff the appliance using the ON/OFF button.

Tues

unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptible to break.

Theywillalsodrybetter.Unloadtheappliance,startingfromthelowerbasket.

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepittorefertoitatalaterdate.
■ Passitontoanysubsequentowneroftheappliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and TroubleshootingTips, etc.

Before Calling for Service

■ TareviewthesectiontroubleshootingTips
will help you to solve some common problems by yourself.
If you cannot solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Disposal....2

3) Operating Instructions....3 Control Panel....3 DishwasherFeatures....3

4) Prior using for the first time....4 A、Water Softener....4 B、Loading the Salt into the Softener....5 C、Fill the Rinse Aid Dispenser....5 D、Function of Detergent....6 How to use the 3 in 1 function....8

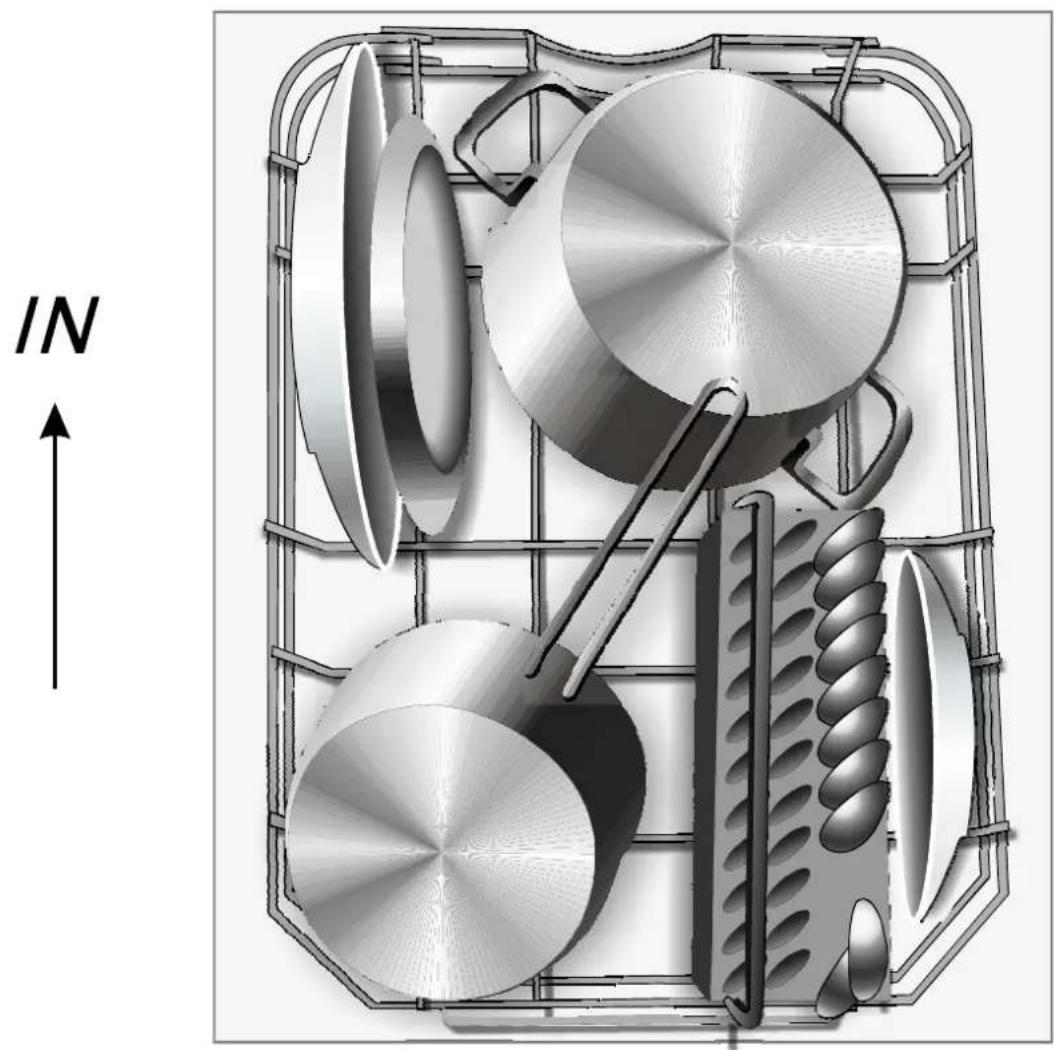

5) Loading the Dishwasher Basket....9 Attention before or after loading the Dishwasher Baskets....9 Loading the upper Basket....10 Loading the Lower Basket....10 The recommended method loading big dishware....11 Cutlery Basket....12

6) Starting a washing programme....13 Wash Cycle Table....13 Turning on the Appliance....14 Change the Programme....14 At the End of the Wash Cycle....14

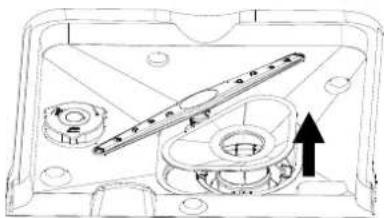

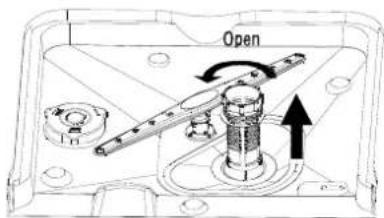

7) Maintenance and cleaning....15 Filtering System....15 Caring for the Dishwasher....16

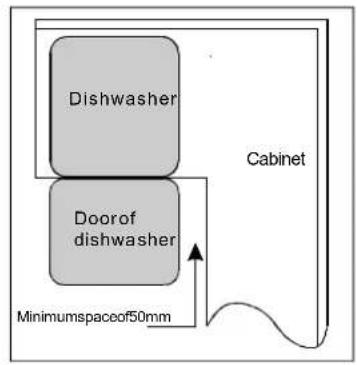

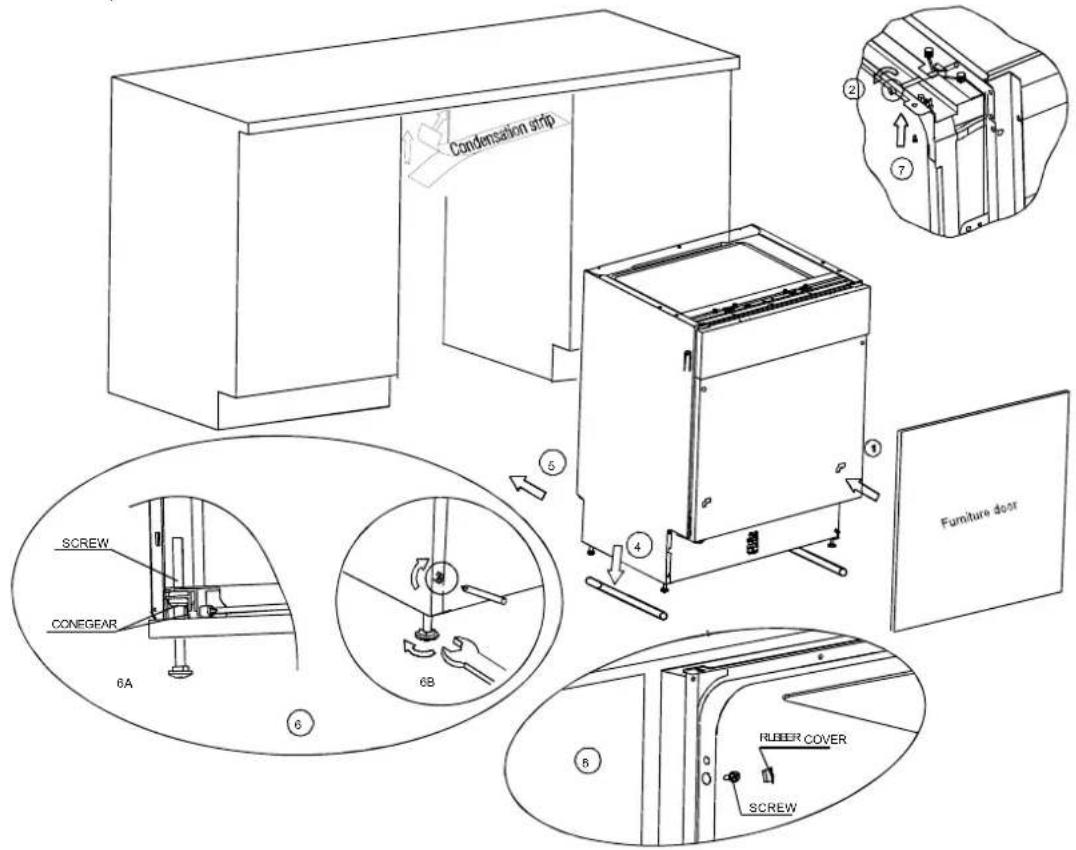

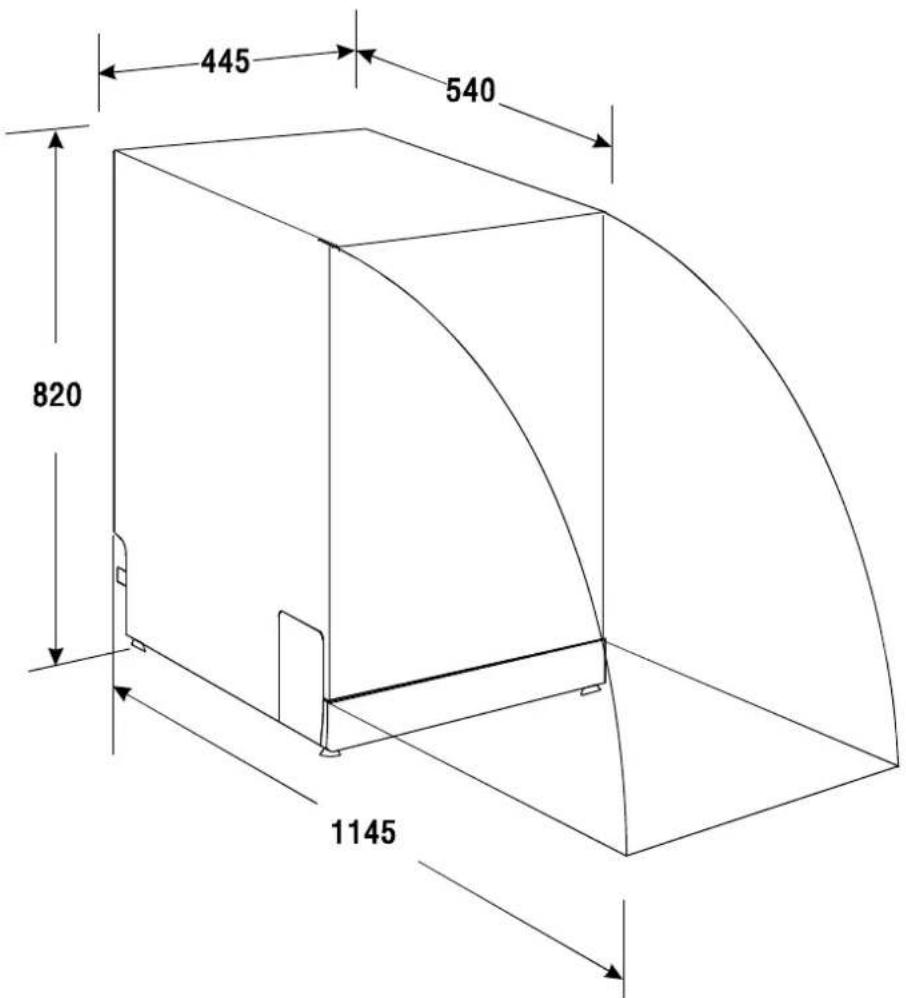

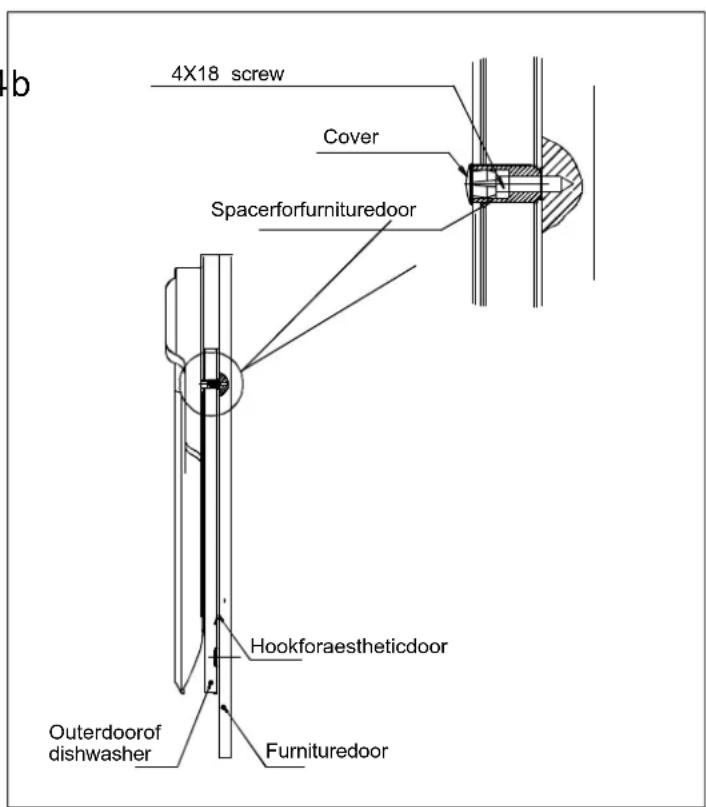

8) Installation instruction....17 Installation preparation....17 Aesthetic panel's dimensions and installation...18 Tension adjustment of the door spring....20 Connection of drain hoses....20 Dishwasher installation steps....21 About Electricity Connecting....22 Cold Water Connection....23 Hot Water Connection....23

9) Troubleshooting Tips....24 Before calling for service....24 Error codes....25 Technical information....26

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

⚠ WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith allocalcodesandordinances.

▲ WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsthe onorstandon doorwhenitisopen.Theappliancecouldtip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keepchildrenawayfromdetergentandrinseaid,keep childawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.
  ■ During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
  ■ Themaximumnumberofplacesettingstobe washedis8.
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material

■ PS——for polystyrene, e.g. padding material

■ POM — polyoxymethylene, e.g. plastic clips

■ PP — polypropylene, e.g. Salt filler

■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

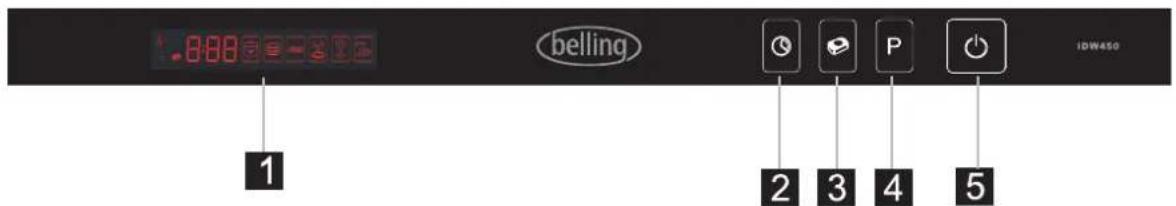

Control Panel

1 running indicator, Program indicator, Salt and rinse aid indicator, Errorcodes, etc.
2 Delayed Start Button: Topreset the washtimer and delay the starting time up to 24 hours. Every press of this button increases the time by one hour. (for example: one press for an hour, two for two hours.....)
3 3in1 button: To select and show 3in1 functions.
4 Program button: To select one of the six programs.
5 Power switch: To turn on/off the power supply.

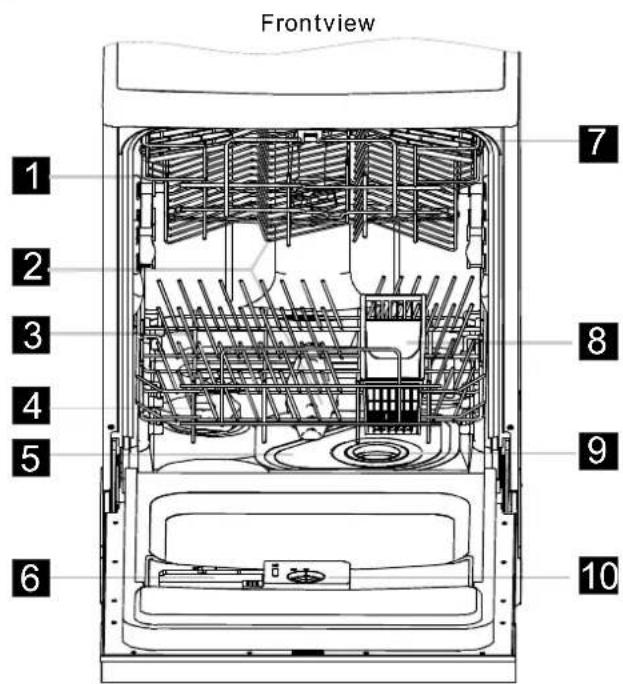

Dishwasher Features

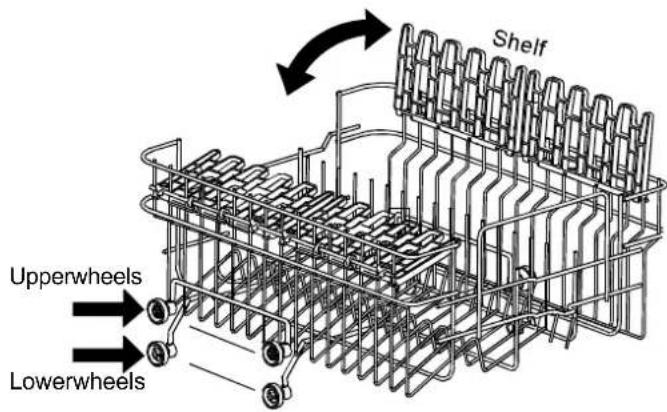

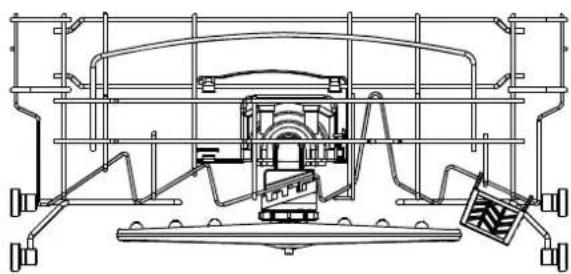

1 Upper Basket
2 SprayArms
3 LowerBasket

4 SaltContainer

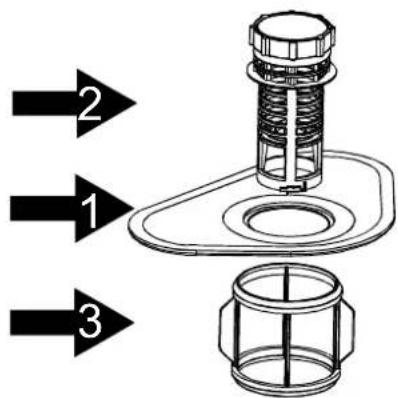

5 MainFilter

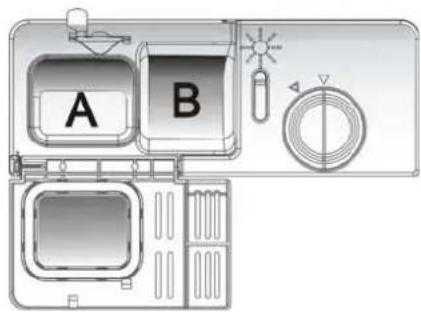

6 DetergentDispenser

7 Cup Shelf
8 Cutlery Basket
9 Coarse Filter

10 RinseAidDispenser
11 Drainpipeconnector
12 Inlet pipe connector

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener
B. Pour 1/2 litre of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser

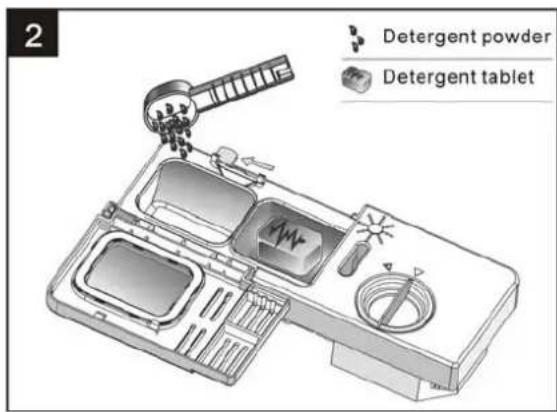

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

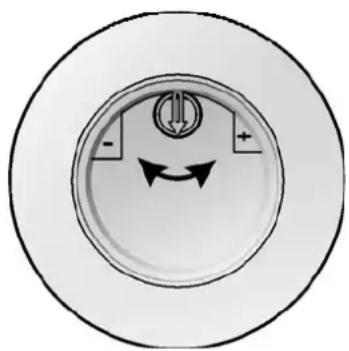

Circular diagram with a central symbol and directional arrows, no readable text or labels

Please follow the steps below for adjustment in salt consumption.

1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see figure on the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following scheme:

WATERHARDNESS				SelectorPosition	Saltconsumption (gram/cycle)	Autonomy (cycles/1kgs)
^- dH	^- fH	Clarke	mmol/l
0~8	0~14	0~10	0~1.4	/	0	/
8~22	14~39	10~28	1.4~3.9	-	20	50
22~45	39~80	28~56	3.9~8	Mid	40	25
45~60	80~107	56~75	8~11	+	60	16

Note:1

1^ = 1.25^ = 1.78^ = 0.178mmol / l

^ DH: Germandegree

°fH: Frenchdegree

°Clark: British degree

Note:2

"/"	No salt need added
"- "	Setting toward the"- " sign
"+ "	Setting toward the"+ " sign
"Mid"	Setting toward between the"- "sign and" + " sign

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will formonthedishesandutensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Diagram of a mechanical device with a hand operating the top part, showing internal components like gears and a shaft (no text or symbols)

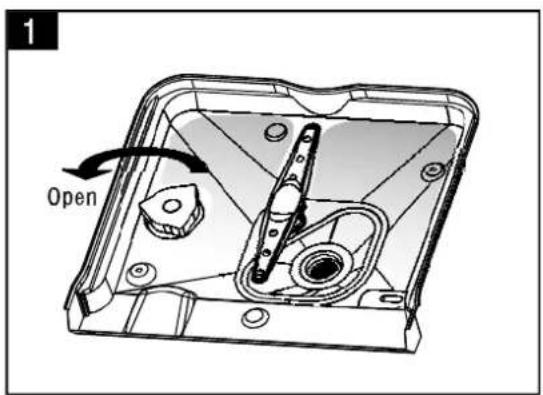

A Remove the lower basket and then unscrew and remove the cap from the salt container. 1
B Before the first wash, fill 1lt. of water in the salt container of your machine.

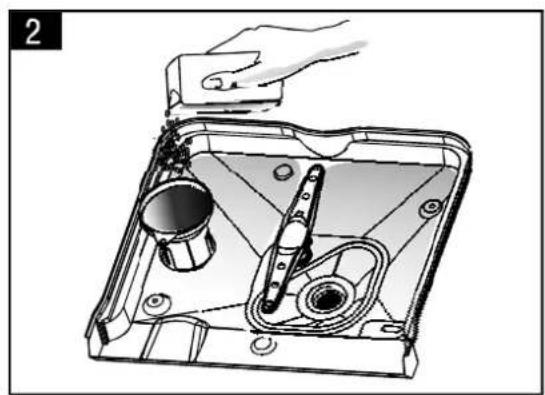

C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
It is normal for a small amount of water to come out of the salt container. 2
D After filling the container, screw the cap tightly back clockwise.
Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (We suggesttous the soakor rapid program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be one even though the salt container is filled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

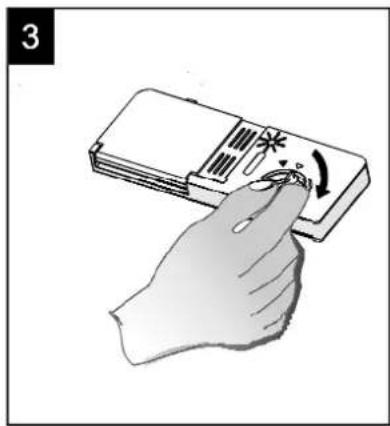

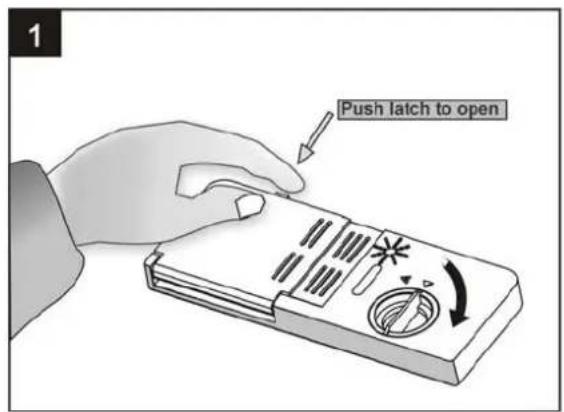

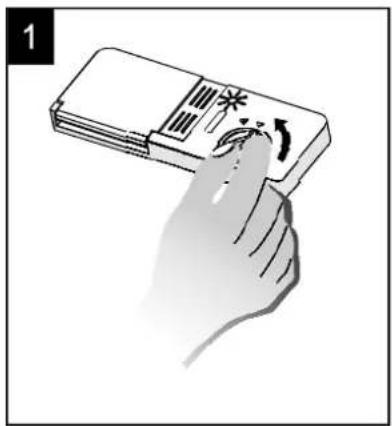

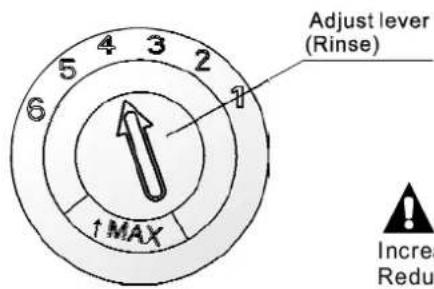

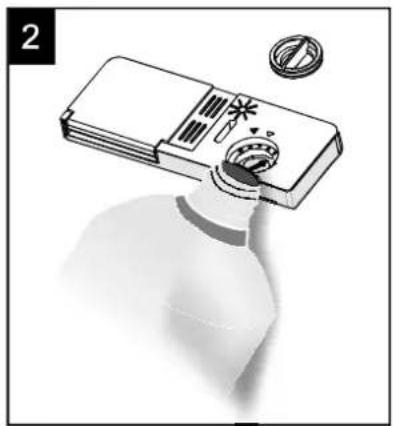

C. Fill the Rinse Aid Dispenser

RinseAid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of RinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty

Hand holding a card with a hand gesture indicating left-hand rule (no text or symbols visible)

Illustration of a cleaning tool with a bottle and cleaning cap (no text or symbols)

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventionaldishwasher.Generally,onlyonetablespoonofdetergentisneededfor a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolveproperly.

AmountofDetergenttoUse

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Onlyusebrandeddetergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

FillinDetergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed, MIN means approximately 20g of detergent.
B The place of pre-wash cycle detergent placed, approximately 5g of detergent

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethelidandpressuntilitlocksinplace.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ Youfindinformationabouttheamountofdetergentforthesingleprogrammeonthelastpage.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

How To Use The 3IN1 Function

Your dishwasher has a 3in1 function which needs no salt and rinse aid but a 3In1 tablet. This dishwasher comes with a 3in1 tablet container as an accessory.

NOTE: Only the 3in1 function (for the program: intensive/Normal/Eco.) Can be used with 3in1 tablets. If you use 3in1 tablets in other programs, the appliance will not achieve a good performance.

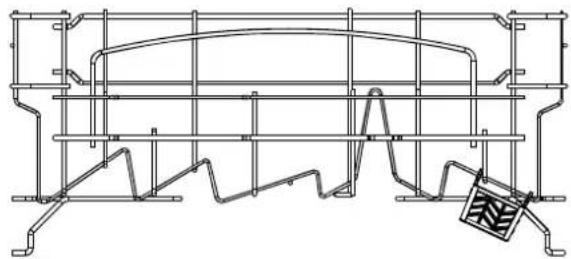

1. The figure below shows how to hang the 3in1 tablet container on the upper basket.

Technical line drawing of a structural frame with supports and a hanging tag (no text or symbols)

1. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not obstructed by the 3in 1 tablet container. Refer to the figure below for reference.

Technical line drawing of a vehicle chassis frame with structural supports and a central motor (no text or symbols)

1. Put the 3in1 tablet into the container, then start the 3in1 program.

NOTE:

When using 3in1 combination / compact Detergents, please pay attention to make sure that the size of the combination detergents fits to the dispensers so that combination detergents can be easily put into the dispenser, and the dispenser would not be broken.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamilddetergentthatisdescribedas'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ Topreventdamage, donottakeglass and cutlery out of the dish washer immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlerywithwooden,hornchinaor mother-of-pearlhandles

- Plastic items that are not heat resistant - Older cutlery with glued parts that are not temperature resistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Wooden platters

■ Items made from synthetic fibres

Areoflimited suitability

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes underrunning water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Verysmallitemsshouldnotbewashedthedishwasherastheycouldeasilyfalloutofthebasket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ Toavoiddamagetoglasses,theymustnottouch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Longbladedknivesstoredinanuprightpositionareapotentialhazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

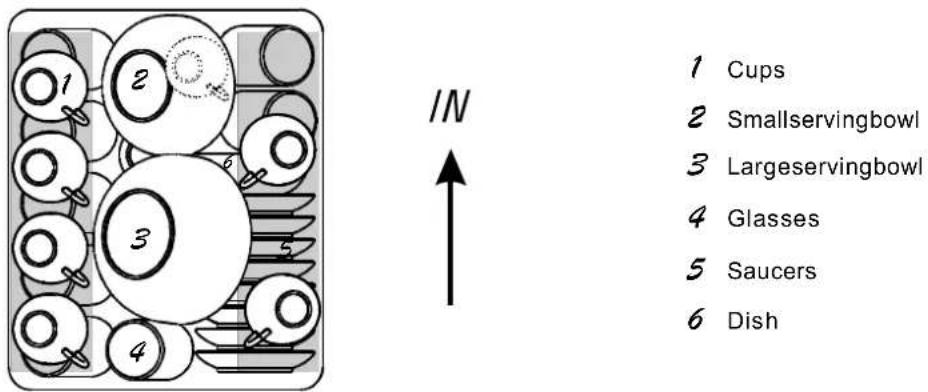

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are nottoodirty).

Position the dishes and cookware so that they will not get moved by the spray of water.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the topspray arm.

Please be reminded that:

■ Pots, serving bowls, etc, must always be placed top down.
■ Deeppotsshouldbeslantedtoallowwatertoflowout.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

■ Special dishware: e.g. big pans or plates are to be placed in the lower rack. The recommended loading can be see below:

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

Close-up of a mechanical component with a white arrow pointing to a cylindrical part (no visible text or symbols)

Close-up of a mechanical component with a curved arm and a directional arrow pointing to a small component (no text or symbols visible)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Close-up of a wire cage with metal grating and a hand adjusting it (no text or symbols visible)

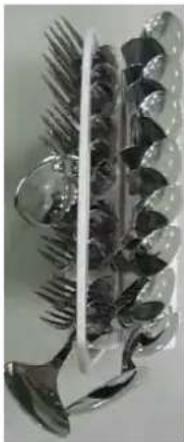

Cutlery Basket

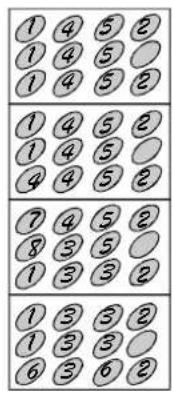

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

Close-up of a transparent glass object with metallic blades and a spherical top, resembling a decorative object (no text or symbols visible)

1 Forks

5 Knife

2 Soupspoons

6 Servingspoon

3 Dessertspoons

7 Gravyladle

4 Teaspoons

8 Servingfork

▲ WARNING!

Do not let any item extend through bottom.

For personal safety and a top quality cleaning, place the silverware in the basket makingsurethat:

■ Theydonotnesttogether.
■ Silverware is placed with the handles-down.
■ Butplaceknives and other potentially dangerous utensils are placed handles-up.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	Fortheheaviestsoiled loads, such as pots, pans, casseroledishesanddishes that have been sitting with dried food on them for a while.	Pre-wash(50°C) Pre-wash Wash (65°C) Rinse Rinse Rinse (55°C) Drying	4/23g(or)3in1	120	1.2	18
Normal	Fornormallysoiledloads, such as plates, glasses and lightly soiled pans. standard daily cycle.	Pre-wash(50°C) Wash (50°C) Rinse Rinse(65°C) Drying	4/23g(or)3in1	150	0.95	13
Eco. (*EN50242)	For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.	Pre-wash Wash (55°C) Rinse (65°C) Drying	4/23g(or)3in1	160	0.74	12
Rinse	Fordishesthatneedtobe rinsed and dried only.	Wash(40°C) Rinse(70°C) Drying		80	0.65	7
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-wash Wash (40°C) Rinse Rinse (60°C) Drying	15 g.	95	0.65	12
Rapid	A shorter wash for lightly soiled load that donot need drying.	Wash (40°C) Rinse Rinse (45°C)	15 g.	30	0.4	10

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity:8 setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6

Turning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
■ Pour in the detergent (see the section entitled “Salt, Detergent and Rinse Aid”).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A250VAC. Make sure that the watersupply is turned onto full pressure.
Press the ON/OFF button, and the ON/OFF light or the display will turn on. Press the program button to select a desired wash cycle Close the door, after 10 seconds, the machine will work.

Change the Program...

Premise

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
Open the door a little to stop the washing. Press the programme button more than 3 seconds to cancel the running programme. Then you can select other programmes (see the section entitled " Starting a wash cycle...").
When you select Intensive/Normal/Eco.Programmes, you can select the 3in1 function.

NOTE: If you open the door during a wash cycle, the machine will pause. When you close the door, the machine will working after 10 seconds. continue

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1 Openthedoor alittletostopthewashing.

4 Closethedoor

2 Afterthesprayarmsstopworking, you can open the door completely.

5 Thedishwasherwillrunafter10seconds.

3 Addforgottendishes.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The program has ended, only if there appears a "-:-" in the digital display (remaining program time).

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dish washer is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

The filtersystem consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilte 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ Thedishwashermustneverbeusedwithoutthefilters.
■ Improperreplacementofthefiltermayreducetheperformanceleveloftheapplianceanddamagedishesandutensils.

1

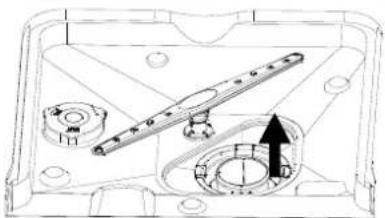

Step 1 Turn the filter in anti-clockwise direction, then lift it up.

2

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 2: lift the Main filter up

3

Technical line drawing of a mechanical assembly with gears and a shaft (no text or symbols)

Step 3 lift the Fine filter up

NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed.

Remarks:

• Inspectthefiltersforblockingaftereverytimethedishwasherhasbeenused.
• By unscrewing the coarse filter, you can remove the filters system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

Aftercleaning, makesuretodryitthoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Diagram of a vehicle interior showing a rectangular frame with a small car and a hand pointing to the lower side (no text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time washing cycles, please operate as follows:

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the watervalve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ AfterEveryWash

After every wash, turn off the watersupply to the appliance and leave the doors slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ NoSolventsorAbrasiveCleaning

Tocleantheexteriorandrubberpartsofthedishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. Toremovespotsorstainsfromthesurfaceofthe interior, use a cloth dampened with water analittle vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that your unawash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliances slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

▲Attention:

The installation of the pipes and electricalequipments should be done by professionals.

! Warning

ElectricalShockHazard Disconnectelectricalpower before installingdishwasher.

Failuretodosocanresultin deathorelectricalshock.

• Installationpreparation

The installation position of dishwashers should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories (hook for aesthetic panel, screw)

【 】

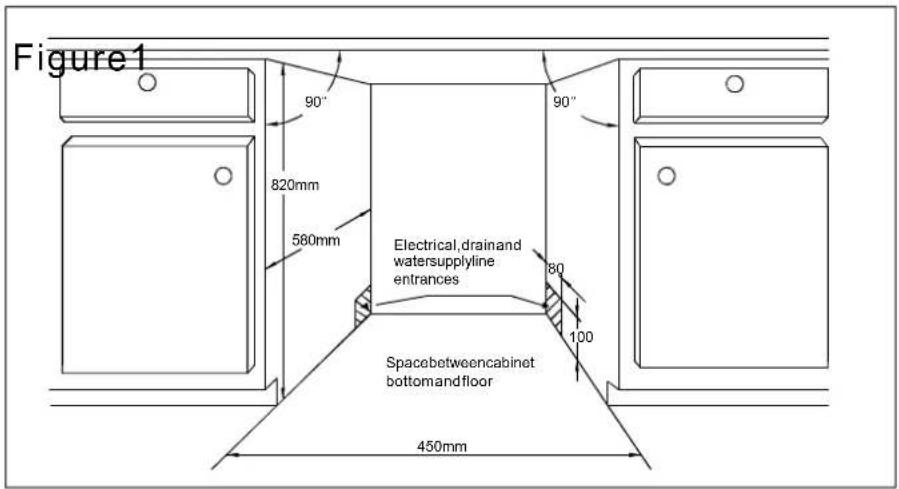

Cabinetdimensions Less than 5mm between the top of dishwasher and cabinet and the outer dooraligned to cabinet.

【 】

Minimumspacewhen thedoorisopened

Figure2

● Aesthetic panel's dimensions and installation

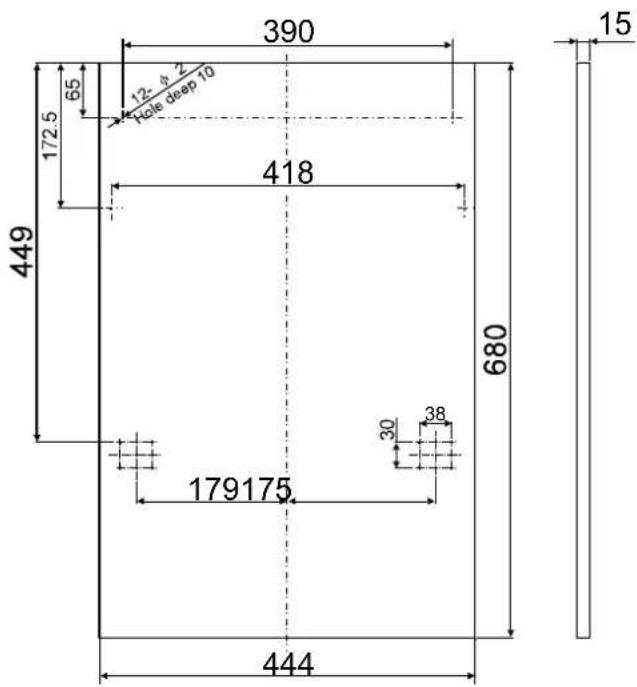

1 The aesthetic wooden panel could be processed according to the Figure 3.

【 】

Figure3

Theaestheticpanel should be processed in accordance with the illustrated dimensions

(Unit:mm)

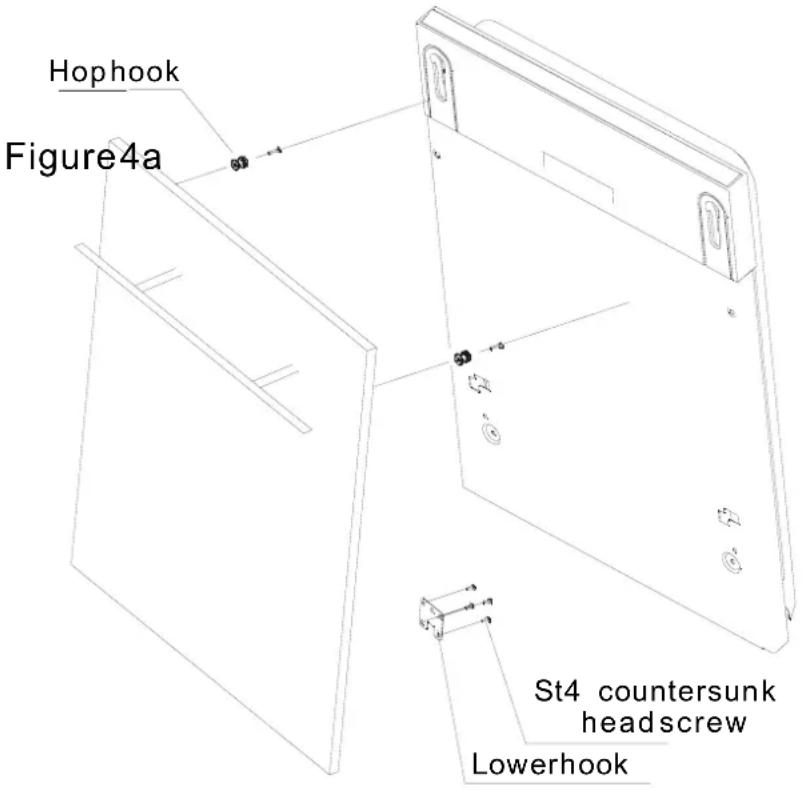

2 Install the hook on the aesthetic wooden panel and put the hook into the outer door of dishwasher (see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure 4b).

【 】 Installation of aesthetic panel

【 】 Installation of aesthetic wooden panel

1. Takeaway thecover
2. Pinupthescrew
3. Getback thecover

Figure4b

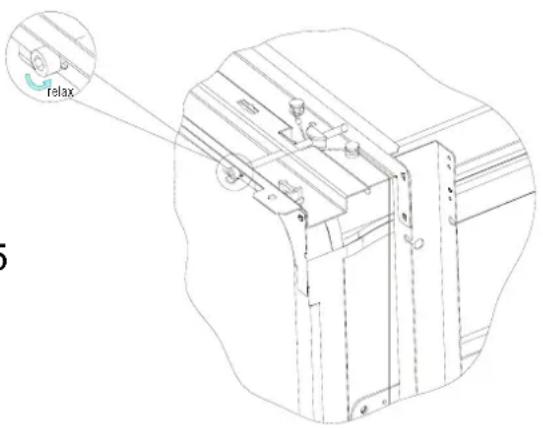

- Tensionadjustmentofthedoorspring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the doorspring tension. Rotate the adjusting screw to drive the adjustorto strain or relax the steel cable (see figure 5).

Adjust the doorspring tension until the door remains balance in the fully-opened position.

【 】

Tensionadjustment of the doorspring

Figure5

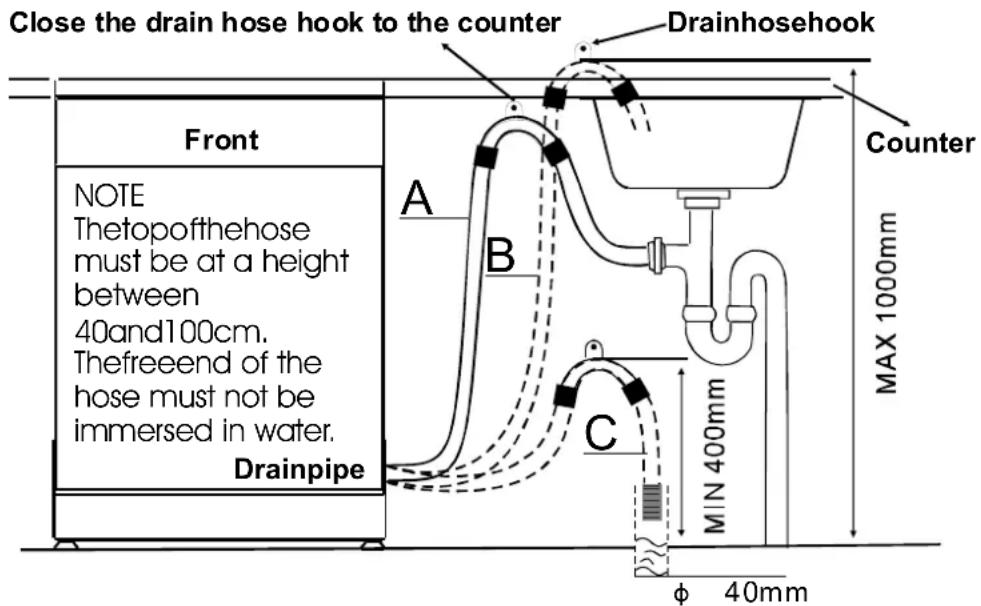

- Connectionofdrain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastics support that comes with the appliance (figure 6). The top of the hose must beat a height between 40 and 100cm. The free end of the hose must not be immersed in water to avoid the backflow of it.: TAT SPAD TO PASTICHose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

【 】

Figure6

Drainpipeconnection

- Dishwasherinstallationsteps

1 Install the furniture doortotheouterdo provided. Referto the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).
3 Connect the inlet hose to the cold water supply.
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connect the power cord.
6 Put the dishwasher to slide rails(Illustration4).
7 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
8 Place the dishwasher into position.
9 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the screws on the left and right hand side of the cabinet (Illustration 6A).

To adjust the front feet, use a wrench and turn the front feet until the dishwasher is level (Illustration6B).

10 The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface-secure to the work surface by using two woodscrews ensuring the dishwasher weight is not being hit by the surface (Illustration 7).
B. Marble or granite work top-secure the bracket to the side panel of the dishwasher and secure the dishwasher to the furniture housing. Put the rubber cap over the screw (Illustration 8).

【 】
Figure 7

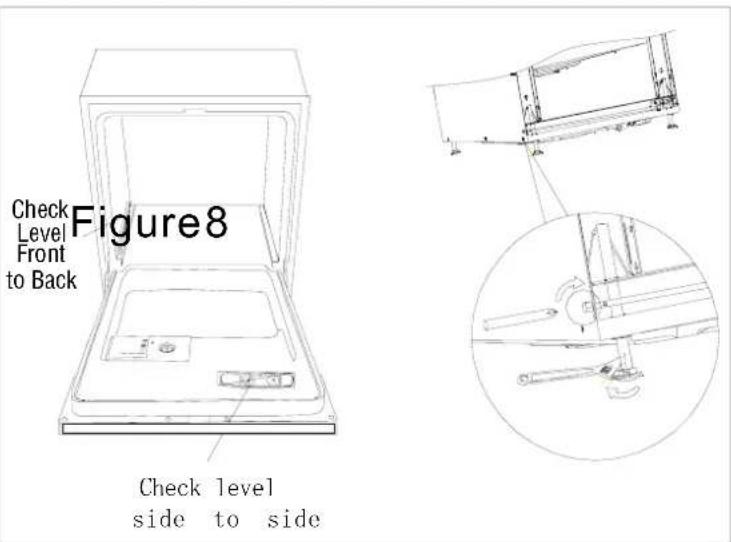

Dishwasher must be level for proper dish rack operation and wash performance.

1 Placelevelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the four leveling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwashertipover.

【 】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 60 mm.

About Electricity Connecting

WARNING!

Forpersonalsafety:

■ DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANY CIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwash to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

▲WARNING!

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or servicerepresentative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.

▲ WARNING!

In order to avoid that there is more water staying in the inlethose, please close the hydrant after using. (For the models: no safety inlethose.)

Cold Water Connection

Line drawing of a hand holding a faucet with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Hot Water Connection

The water supply to the appliance can also be connected to the household hot water line (such as, centralsystem, heating system), as long as it does not exceed a temperature of 60^ C. In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced. The connection must be made to the hot waterline following the same procedures as described in the section for the connection to the cold waterline.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

HowtoDrainExcessWaterFromHoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2Theinletvalveisopen
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Errorcode:E1; Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Check coarsethefilter (see section titled " Cleaning The Filter ")
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay need aplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher, thenStartthe"soak"wash cyletodrainoutthewater.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tobertheinterusedamppongwh dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	A pro gr a m m e w a s n runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwash programme. without any crockery in the dishwasher and without selecting the Turbo function (if present), afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p ay a r m i s knockingagainst aniteminabasket	Interrupt the programme, and rearrange the items whichareobstructingthespayarm.
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthewashcabinet	Interrupttheprogramme, andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction. if in doubt, contact a suitably qualified plumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas not powerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination inthebaseofwash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect a shortestcycletowash the glassware and to themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Todlitterinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedsorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram has beenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose a program with along washing time.
		Useofcutlerywith a low - quality coating	Water drainage is more difficult with these items.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Tap is not opened, or water intake is restricted,or water pressure istoolow.
E4	Overfilled.	Too much inlet water.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height:820mm(adjustable+60mm)
Width:445mm
Depth:540mm
VoltageconnectedLoad:seeratinglabel
Waterpressure:0.04-1.0MPa
Hotwaterconnection:max60°C
Powersupply:seeratinglabel
Capacity:	8Placesettings

Additional features of this dishwasher are:

Overflowprotection

Your dishwasher has an overfill protection program which automatically shuts off the inlet valve and starts the drain pump if the water is overflowing.

6 wash programs

You can choose desired program according to the soiled level.

Timedelayfeature

This allows the start of the programme to be delay between 1 and 24 hours, enabling you to benefit fully from cheaper electricity! Or just to benefit from the convenience of the programming finishing when you want to.

8 placesettings

Besufficientfornormaluse.

Erroralarm

To alert you can any errors or problems with the program while it is running.

Adjustable upper basket

Flexibledishloading available. Adjust the upper basket for large or awkward loads.

Stainlesssteeltub

.Noneedtoworryaboutstaining

Salt Warning Indicator

If the salt is running low, the warning indicator will light on the panel, alerting you to top it up. This ensures the best results from your machine.

Broad applied voltage

The broad scope of the applied voltage, reduce the code of electric condition.

Rinse aid Warning Indicator

If the rinse aid is running low, the warning indicator will light on the panel, alerting you to top it up. This ensures the best results from your machine.

Stoney lane, prescot, Merseyside, L352XW

Customer Care

In case of difficulty within the UK and Northern Ireland, please

call the customer care help line on 0844 815 3746

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

Formore information, please contact the local authority or your retailer where you purchased the product.
