Product Type	LED Wash Light
Model	Mini-B Aqua PX
Brand	Claypaky
Light Source	RGBW LED
Power Consumption	200 W
IP Rating	IP65
Beam Angle	10° - 60° (motorized zoom)
Control Protocols	DMX512, RDM
DMX Channels	16 / 24 / 32
Color Mixing	RGBW + linear color temperature
Strobe	0 - 25 Hz
Dimming	16-bit smooth dimming
Dimensions (L x W x H)	320 x 250 x 400 mm
Weight	8.5 kg
Power Input	100-240 V AC, 50/60 Hz
Connectors	PowerCON TRUE1, XLR 5-pin in/out
Operating Temperature	-10°C to 45°C
Housing Material	Aluminum alloy, tempered glass
Cooling	Convection + low-noise fan
Features	Motorized zoom, pixel control, silent operation
Included Accessories	Omega bracket, power cable, user manual

Frequently Asked Questions - Mini-B Aqua PX Claypaky

How do I set the DMX address on the Mini-B Aqua PX?

Press the Menu button to enter the control panel. Use the arrow keys to navigate to DMX Address, then use the Up/Down buttons to set the desired address. Press Enter to confirm.

What is the IP rating and can it be used outdoors?

The Mini-B Aqua PX has an IP65 rating, meaning it is dust-tight and protected against water jets. It is suitable for outdoor use but should not be submerged.

How do I clean the lens and housing?

Disconnect the fixture from power. Use a soft, lint-free cloth slightly dampened with water or a mild glass cleaner. Avoid abrasive materials. Clean the air vents regularly to prevent overheating.

What is the recommended safety distance from flammable materials?

Maintain a minimum distance of 0.5 meters (20 inches) from any flammable surface. Ensure adequate ventilation around the fixture.

Can I use the fixture with batteries?

The Mini-B Aqua PX is designed for AC power input (100-240 V). It is not battery-powered. For portable use, connect to a suitable generator or inverter.

How do I update the firmware?

Use the USB port on the fixture. Download the latest firmware from the Claypaky website, copy to a FAT32 USB drive, insert into the fixture, and follow the Update menu instructions.

What should I do if the fixture stops responding?

Check power and DMX cable connections. Perform a factory reset via the menu: Settings > Reset to Default. If the issue persists, contact Claypaky support.

Can the Mini-B Aqua PX be hung upside down?

Yes, it is equipped with dual hanging brackets for mounting in any orientation. Always use safety cables as a secondary attachment.

What is the maximum ambient temperature for safe operation?

The fixture can operate in ambient temperatures up to 45°C (113°F). Do not use in environments exceeding this limit to avoid overheating.

How do I replace a fuse?

Disconnect power. Locate the fuse holder next to the power input. Use a flat-head screwdriver to open. Replace with a fuse of the same rating (e.g., T5A/250V). Close the holder and reconnect power.

USER MANUAL Mini-B Aqua PX Claypaky

Technical line drawing of a ClayPakt industrial device with attached wiring and ports (no text or symbols)

INDEX
Page	Contents
2	1. Safety information
3	2. Unpacking and preparation
4	3. Installation and start-up
4	3.1 Installing the fixture
5	3.2 Connecting to manis supply
5	3.3 Connecting the control signal line: DMX / Art-Net
5	3.4 Switching on the fixture and basic setup
7	4. Maintenance
7	4.1 Maintenance and Caution
8	4.2 Battery removal
9	4.3 Opening the covers
10	5. Dimensions
11	6. Cause and solution of problems

Congratulations on choosing a Claypaky product! We thank you for your custom.

Please note that this product, as all the others in the rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

1. SAFETY INFORMATION

EN

SAFETY INFORMATION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link:

www.claypaky.com

Ref: [FIS02U - Safety information Mini-B Aqua PX]

IT

Rif: [FIS02U - Safety information Mini-B Aqua PX]

DE

Ref: [FIS02U - Safety information Mini-B Aqua PX]

ES

Ref: [FIS02U - Safety information Mini-B Aqua PX]

FR

CONSIGNES DE SÉCURITÉ

Line drawing of a coiled cable or hose with a connector (no text or symbols)

Packing contents - Fig. 1

3. INSTALLATION AND START-UP

3.1 Installing the fixture

2

Technical line drawings of three different camera mounting devices with wiring and mounting brackets (no text or symbols)

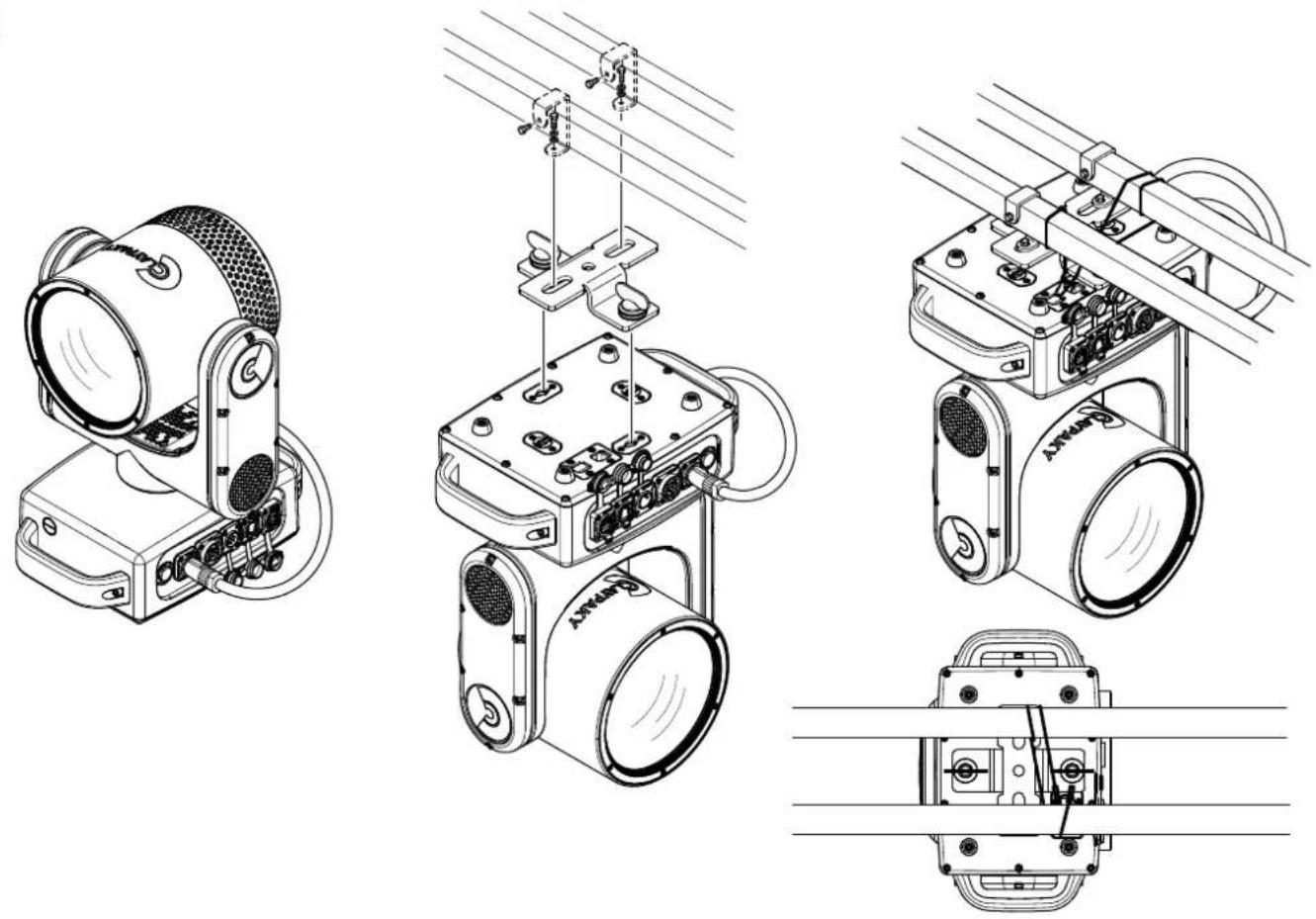

Installing the projector - Fig. 2
The projector can be installed on the floor on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105015/802 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point.

3

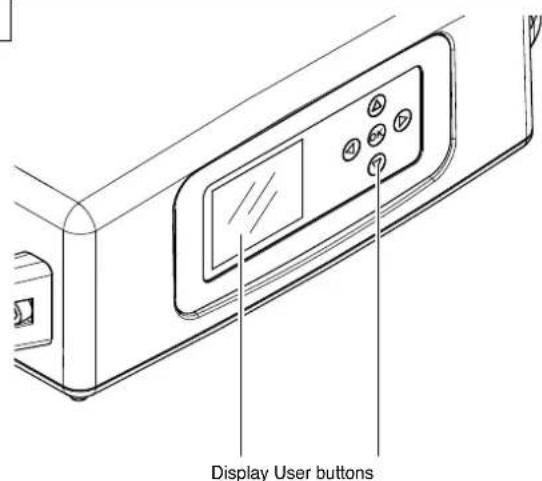

Control panel - Fig. 3

3.2 Connecting to manis supply

4

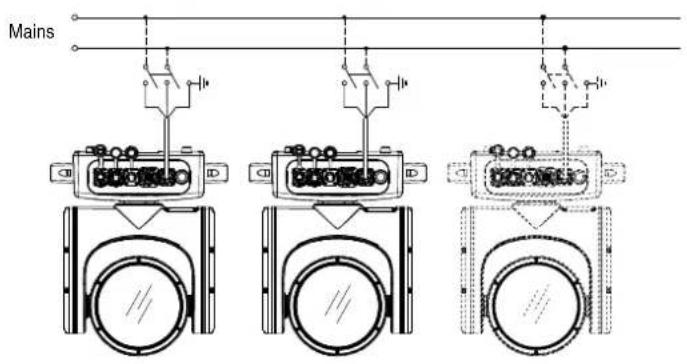

Connecting to the mains supply - Fig. 4

3.3 Connecting the control signal line: DMX / Art-Net

5

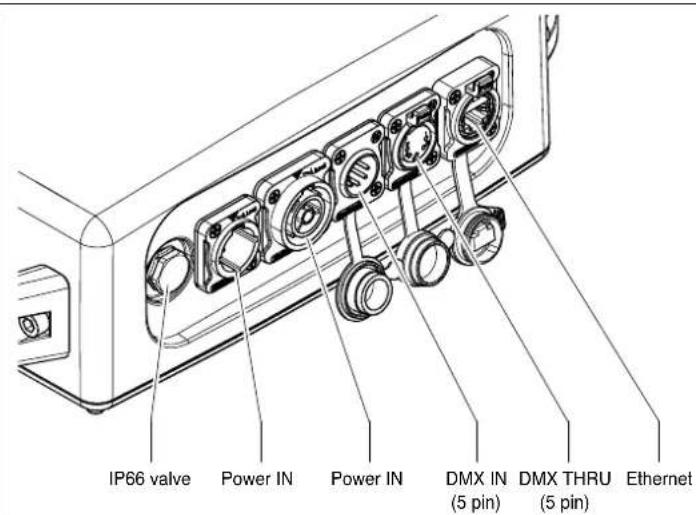

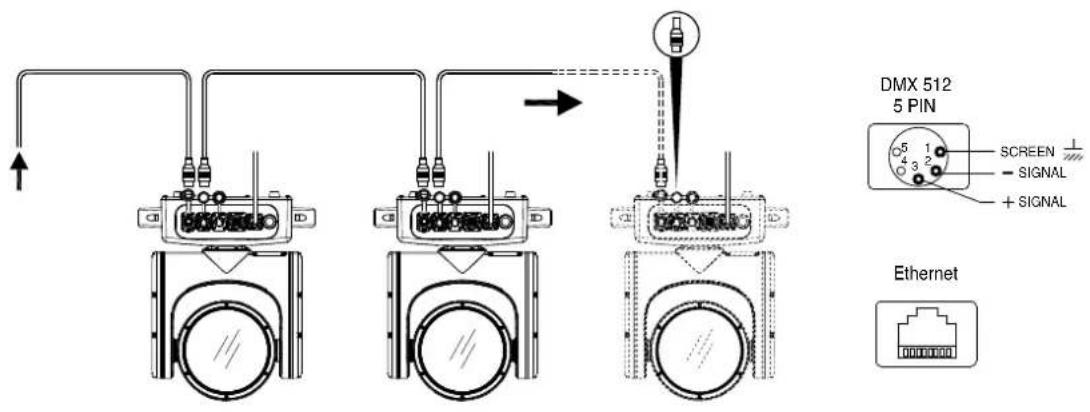

Connecting to the control signal line (DMX) - Fig. 5

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.

IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the shield braid and to pin 1 of the connectors.

3.4 Switching on the fixture and basic setup

6

Switching on the projector - Fig. 6

Plug the power connector. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

AYPAKY

Model

Mini-B Aqua PX

Firmware

Version X.X.X

Date - Hour

Dmx Address xxx

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit). The control panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions: rest status and setting status. When it is in the rest status, the display shows the projector's DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted that when this condition occurs, any possible value that has been modified but not yet confirmed with the OK key will be cancelled.

7

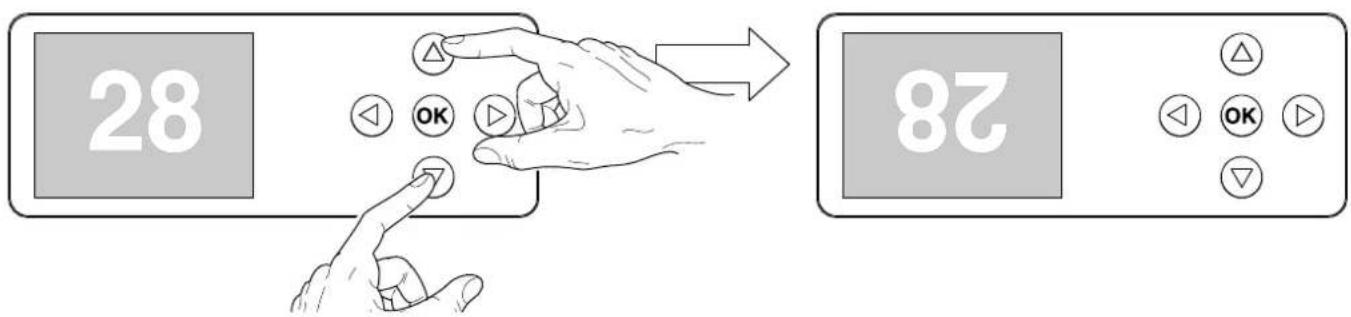

Reversal of the display - Fig. 7

To activate this function, press UP ⬆ and DOWN ⬇ keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the projector switched off.

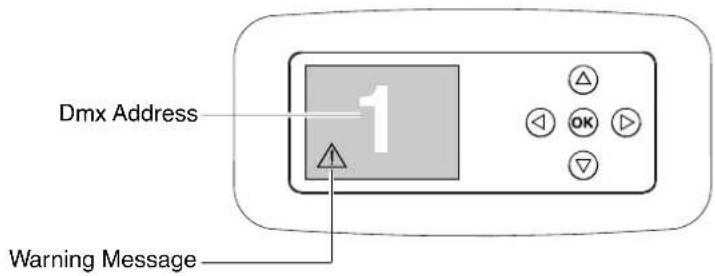

IMPORTANT: If there is no DMX input signal the address displayed blinks.

Functions of the buttons - Using the menu

	OK Confirms the displayed value, or activates the displayed function,or enters the successive menu.
	DOWN Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
	UP Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
	MODE Return to the top level.
	ENTER Enters the successive menu.

USING THE MENU:

1) Press MODE once – “Main Menu” appears on the display.
2) Use the UP ⬆ and DOWN ⬇ keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
  • Information (Information Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functioning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for trained technical personnel.

3) Press Ⓞ to display the first item in the selected menu.

4) Use the UP ▲ and DOWN ▼ keys to select the MENU items.

Setting addresses and options with the projector disconnected

The projector DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press ENTER to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds.

4. MAINTENANCE

4.1 Maintenance and Caution

8

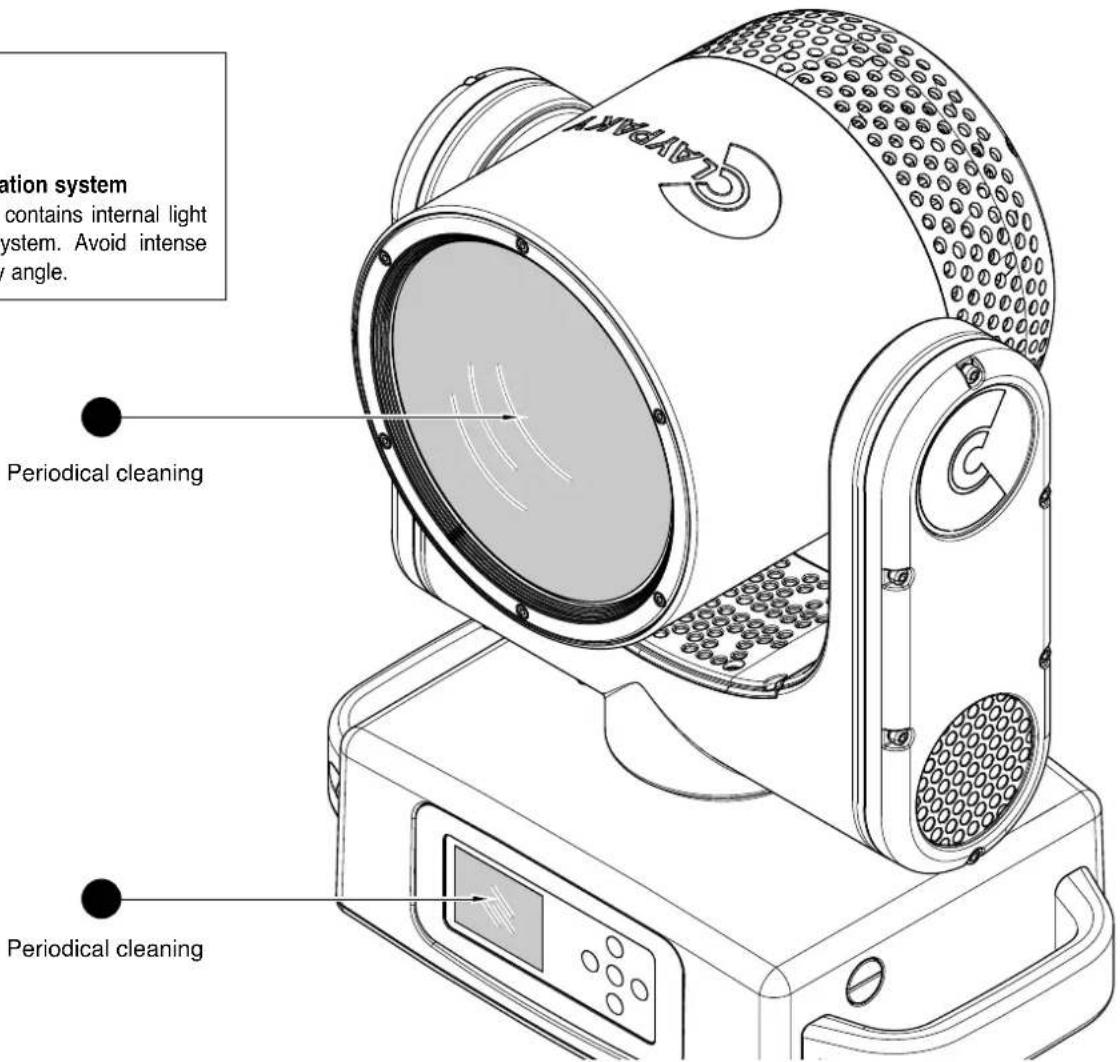

Light collimation system

This product contains internal light collimation system. Avoid intense light from any angle.

WARNING

• IP 66 fixture
• Failure to completely remove power from fixture prior to servicing can lead to serious injury or death.

For additional service information please contact [e-mail]

IMPORTANT

The screws to be removed have rubber sleeve gaskets at the threaded end of the screw. DO NOT LOOSE these. They must be reinstalled when reassembly is done. If these rubber sleeve gaskets are damaged, they must be replaced with exact original equipment (OE) parts, we also suggest to replace the rubber sleeve gasket every 2 years.

To maintain IP66 rating each covers have rubber gasket on it, If any rubber gasket is lost or damaged, they must be replaced by an original equipment (OE) parts, we also suggest to replace the rubber sleeve gasket every 2 years.

CAUTION:

• It is recommended not to use compressed air with more than 4 atmospheres for cleaning the internal parts of the fixture, led board area. This is to avoid damaging electronic components.
• To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the working environment (air humidity, presence of dust, salinity, etc.).

It is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs.

Cleaning the lenses

Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARNING: the use of alcohol or any other detergent could damage the lenses).

9

Line drawing of a gray industrial machine with perforated top and control panel (no text or symbols)

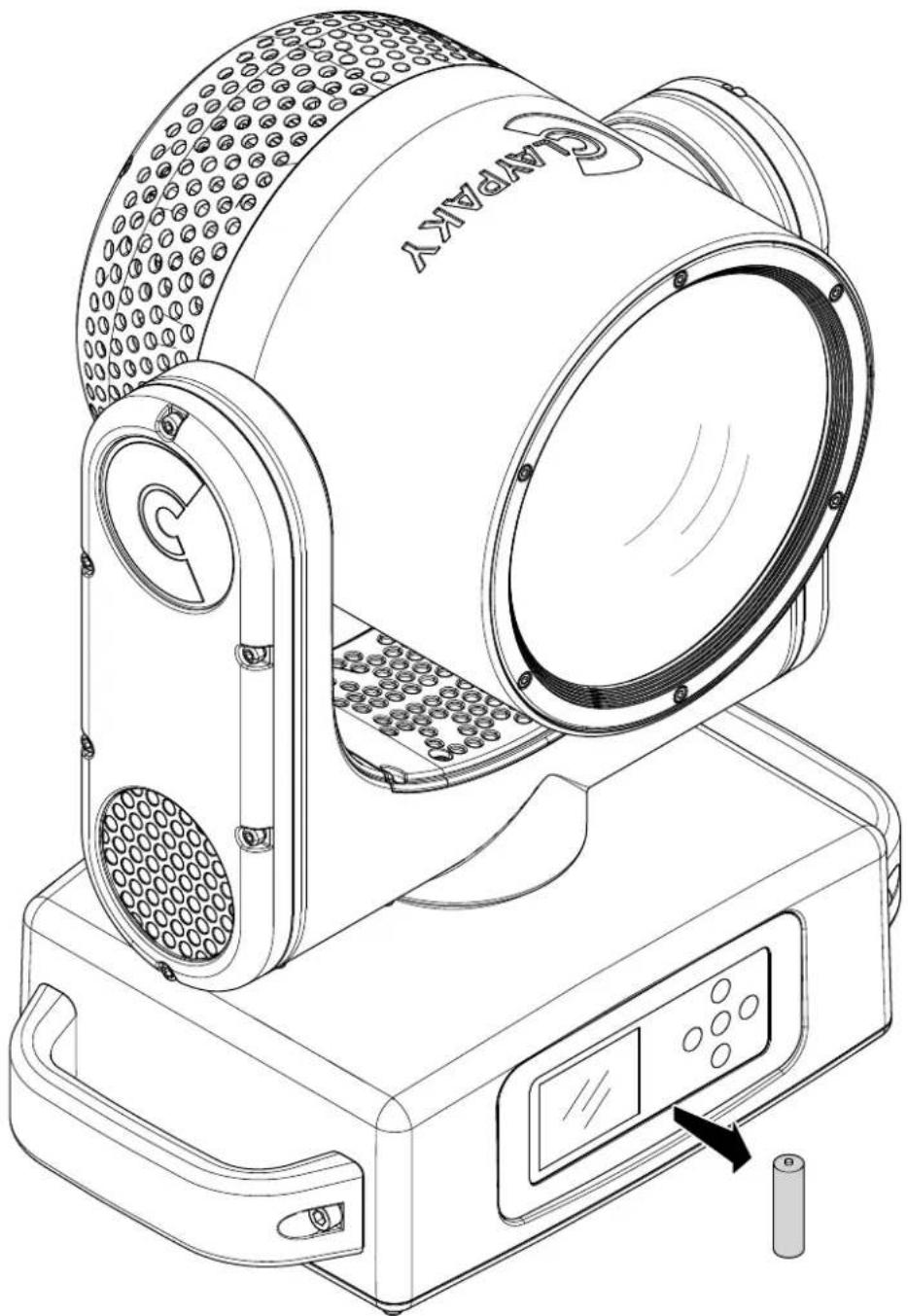

Battery removal - Fig. 9

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.

10

Line drawing of a washing machine with a circular component inserted, showing internal components and a control panel (no text or symbols)

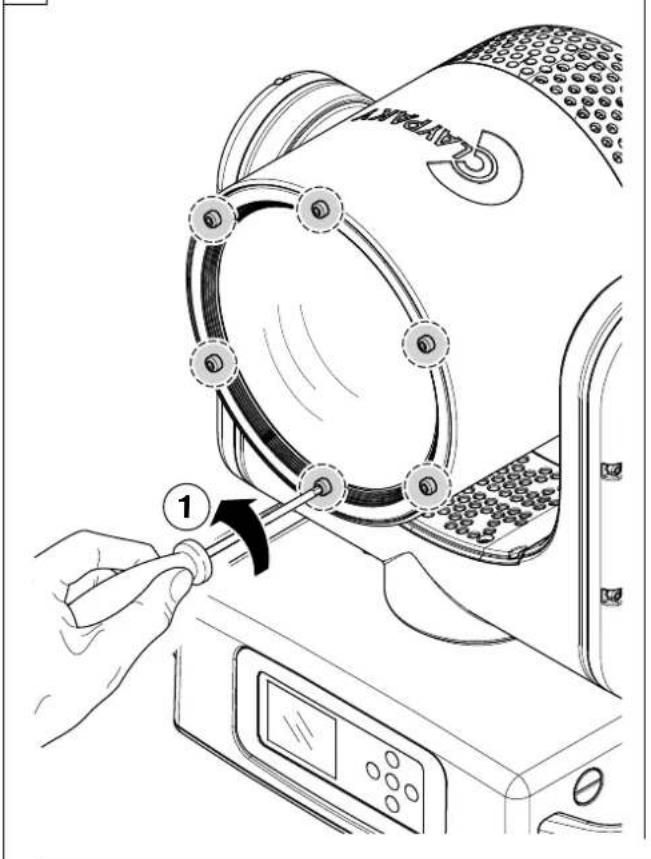

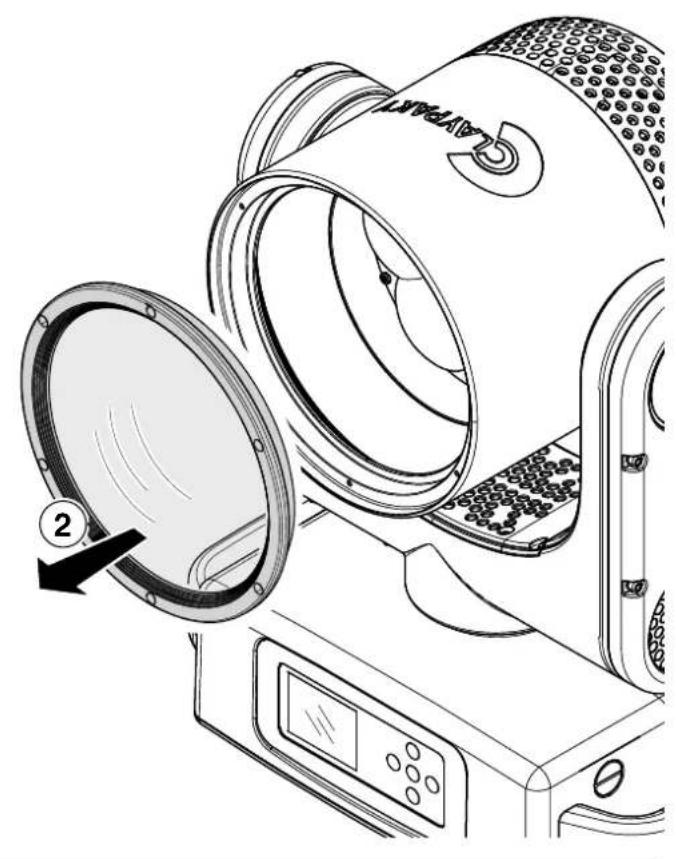

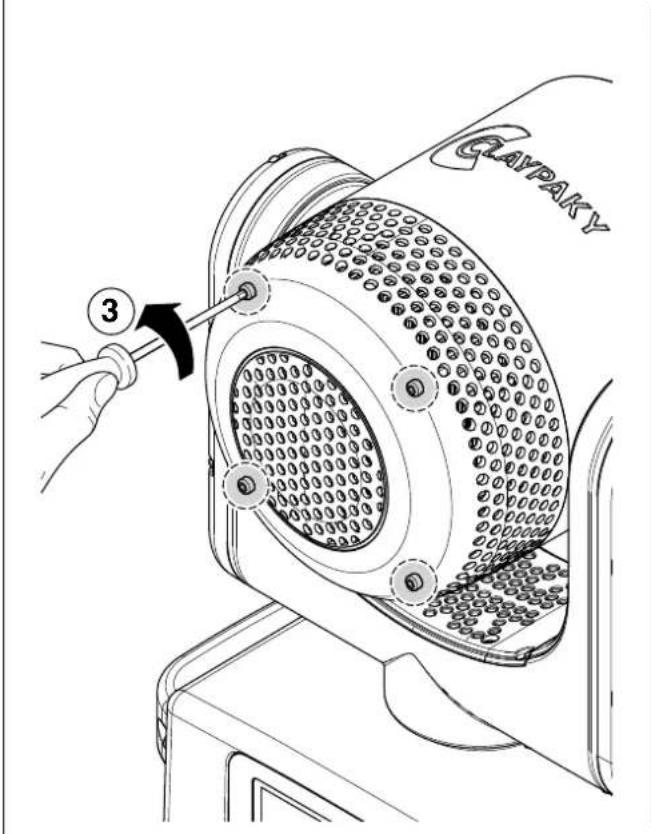

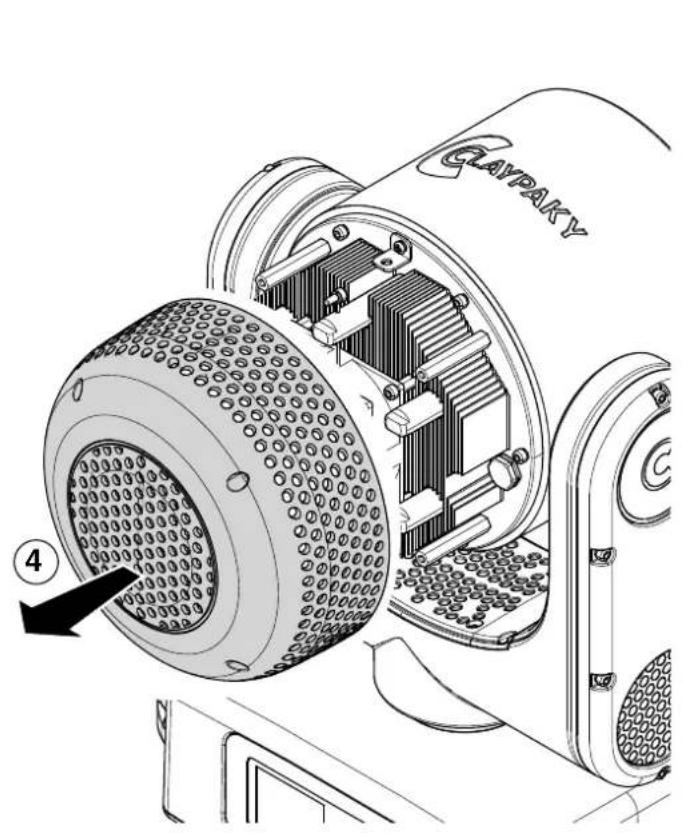

Opening the covers - Fig. 10

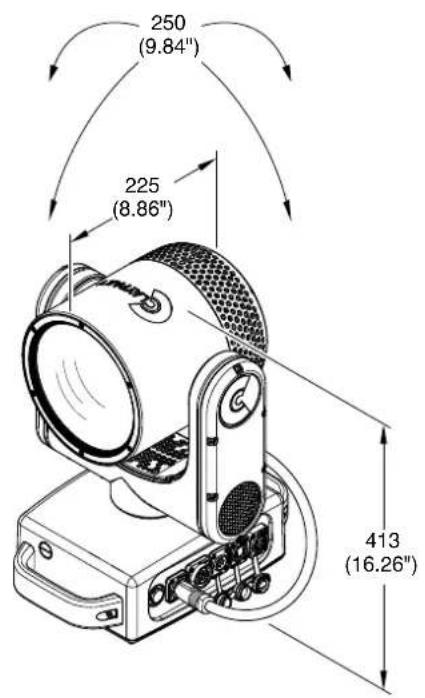

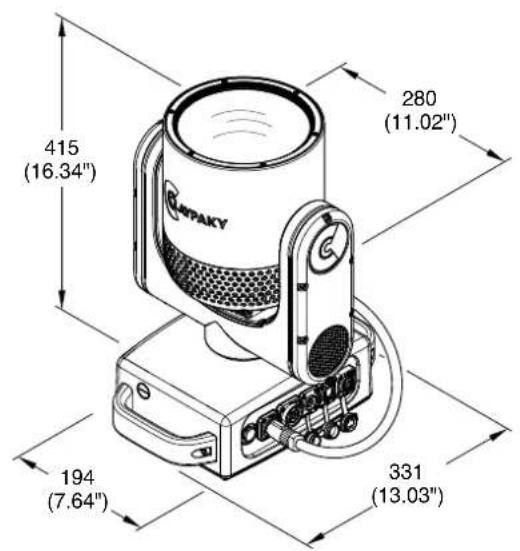

5. DIMENSIONS

Mini-B Aqua PX

1. CAUSE AND SOLUTION OF PROBLEMS

THE PROJECTOR WILL NOT SWITCH ON					PROBLEMS
	ELECTRONICS NON-OPERATIONAL
		DEFECTIVE PROJECTION
			REDUCED LUMINOSITY
			POSSIBLE CAUSES CHECKS AND REMEDIES
●			No mains supply.	Check the power supply voltage.
●			LED exhausted or defective.	Call an authorised technician.
	●		Signal transmission cable faulty or disconnected.	Replace the cables.
	●		Incorrect addressing.	Check addresses (see instructions).
	●		Fault in the electronic circuits.	Call an authorised technician.
		●	Lenses broken	Call an authorised technician.
		●	Dust or grease deposited.	Clean (see instructions).
