| Product Type | Espresso Machine |
| Brand | Sunbeam |
| Model | Origins Slimline EMM4500 |
| Dimensions (approx.) | Compact slimline design; fits standard countertop |
| Water Reservoir Capacity | 1.1 Liters (removable) |
| Pump Pressure | 15 BAR (with pressure relief system) |
| Heating System | Thermoblock with PID controller for precise temperature |
| Group Head Size | 58 mm (commercial size) |
| Filter Baskets Included | Dual Wall: one cup (13-14g) and two cup (19-20g) |
| Volumetric Control | Auto Shot: one cup (30 mL) and two cup (60 mL) presets |
| Steam Wand | Ball joint with silicone cover; hot water function included |
| Warming Plate | Yes, with integrated tamper home |
| Pre-Infusion | Yes, releases small water amount before full flow |
| Power Requirements | 230-240V AC, 50Hz (Australia/New Zealand) |
| Safety Features | Auto shut-off after 20 min; over-pressure relief; child safety |

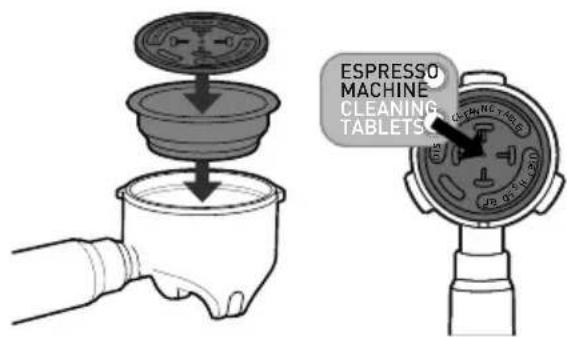

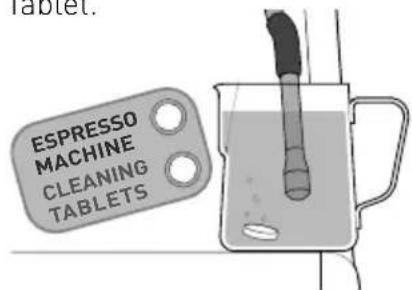

| Cleaning Cycle | Programmed clean cycle using Sunbeam cleaning tablets (EMA0025CL) |
| Descaling Program | Built-in 10-minute descaling cycle; uses tablets, liquid descaler, or vinegar |
| Warranty | 12 months replacement or repair (Australia/New Zealand) |

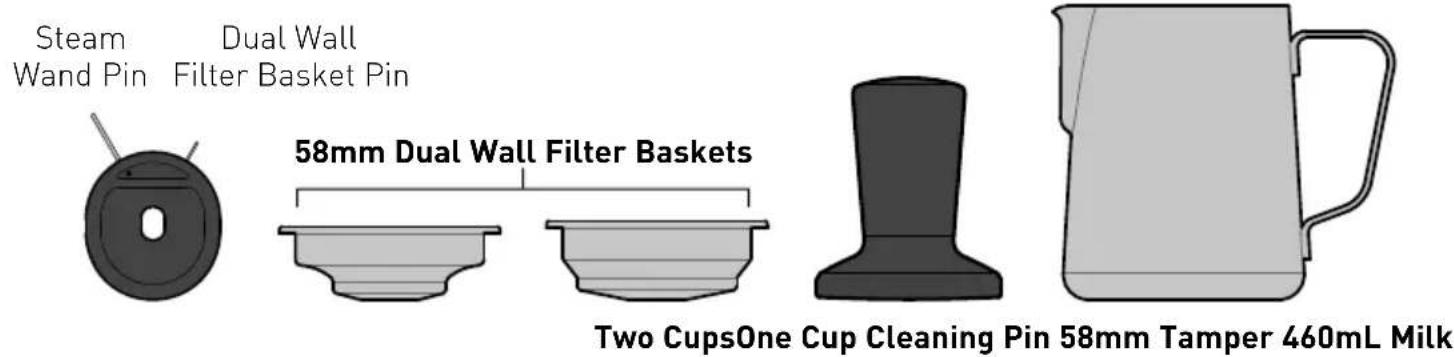

| Accessories Included | Stainless steel milk jug, tamper, cleaning pin, cleaning disc, drip tray with level indicator |
| Repairability | Group head seal replaceable; steam wand tip removable; Sunbeam service centers available |
Frequently Asked Questions - Origins Slimline EMM4500 SUNBEAM
User questions about Origins Slimline EMM4500 SUNBEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual Origins Slimline EMM4500 - SUNBEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Origins Slimline EMM4500 by SUNBEAM.
USER MANUAL Origins Slimline EMM4500 SUNBEAM
2 - 3 Sunbeam's Safety Precautions
4 - 6 Features of your Origins Slimline Espresso Machine
7 Before First Use of the Origins Slimline Espresso Machine
8 - 11 Coffee Making Guide for the Origins Slimline Espresso Machine
12 - 13 Tips for Making the Perfect Cup
14 - 15 Tips for Milk Texturing
16 - 17 Coffee Styles to Try
18 - 20 Care & Cleaning
21 - 22 Descaling: Group Head & Steam Wand
23 - 24 Troubleshooting Guide
25 Notes
26 Warranty

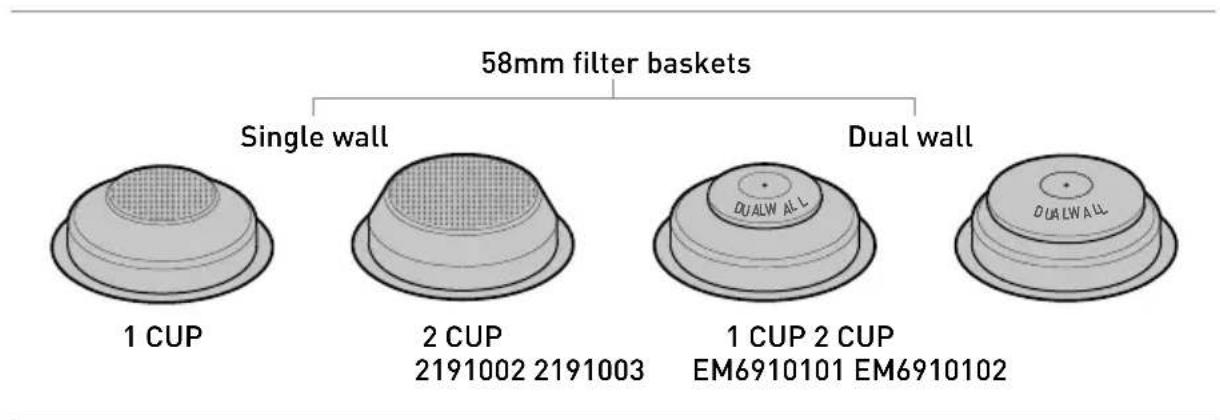

27 Espresso Machine Accessories Available for Purchase
Sunbeam's Safety Precautions
SAFETY PRECAUTIONS FOR YOUR SUNBEAM ORIGINS SLIMLINE MACHINE
- Read carefully and save all the instructions provided with an appliance.
- Do not remove the Group Handle during the espresso pour or water flow as the unit is under pressure. Removing the Group Handle during either of these operations can lead to a scalding or injury.
-
The Steam & Hot Water Wand becomes very hot during texturing milk and water flow. This may cause burns in case of contact, therefore avoid any direct contact with the wand.
-
Always disconnect the plug from the power outlet prior to cleaning the espresso machine or if there is any problem during the coffee making process.
- Do not place hands directly under the steam, hot water or espresso pour as this can lead to a scalding or injury.
- The temperature of accessible surfaces may be high when the appliance is operating. Even after use, the heating element surface is subject to residual heat after use.
- Do not use an appliance for any purpose other than its intended use. Injury could occur from misuse.
Sunbeam's Safety Precautions
- CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and mild detergent.
- Do not immerse the appliance or power cord and plug in water or any other liquid. Wash the following 10 parts in warm water with a mild detergent; milk jug, drip tray grill, one cup and two cup filter baskets, group handle, drip tray, tamper and water reservoir. Rinse and dry each part thoroughly before replacing. Wipe the steam wand with a damp cloth. See Care & Cleaning section for full details.
- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
- This appliance shall not be used by children.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand
the hazards involved.
- Cleaning and maintenance shall not be made by children. Keep the appliance and its cord out of the reach of children. Children shall not play with the appliance.
• Always place the unit on a flat, level surface. - Do not operate without water in reservoir. Fill reservoir with only clean and cold water. Observe the maximum filling volume is 1.1 litres.
- Do not allow the Power Cord to come into contact with the hot parts of the espresso machine, including the Cup Warming Plate and the Steam and Hot Water Wand.
- Do not operate this appliance with a damaged cord or plug or if the appliance has been damaged in any manner. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Appliances are not intended to be operated by means of an external timer or separate remote control system.
- This appliance incorporates an earth connection for functional purposes only.
Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance
- Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
- Turn the power off and remove the plug when the appliance is not in use and before assembling, disassembling or cleaning.
- Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
- Never leave an appliance unattended while in use.
- Do not use an appliance for any purpose other than its intended use.
- Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
-
Do not place on top of any other appliance.
-
Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
- The coffee-maker shall not be placed in a cabinet when in use.
- If you have any concerns regarding the performance and use of your appliance, please visit the Sunbeam Website or contact Sunbeam Consumer Care - details are on the back page. Ensure the above safety precautions are understood.
- Do not use any accessory not recommended by the manufacturer as this may result in injury or damage to the appliance.

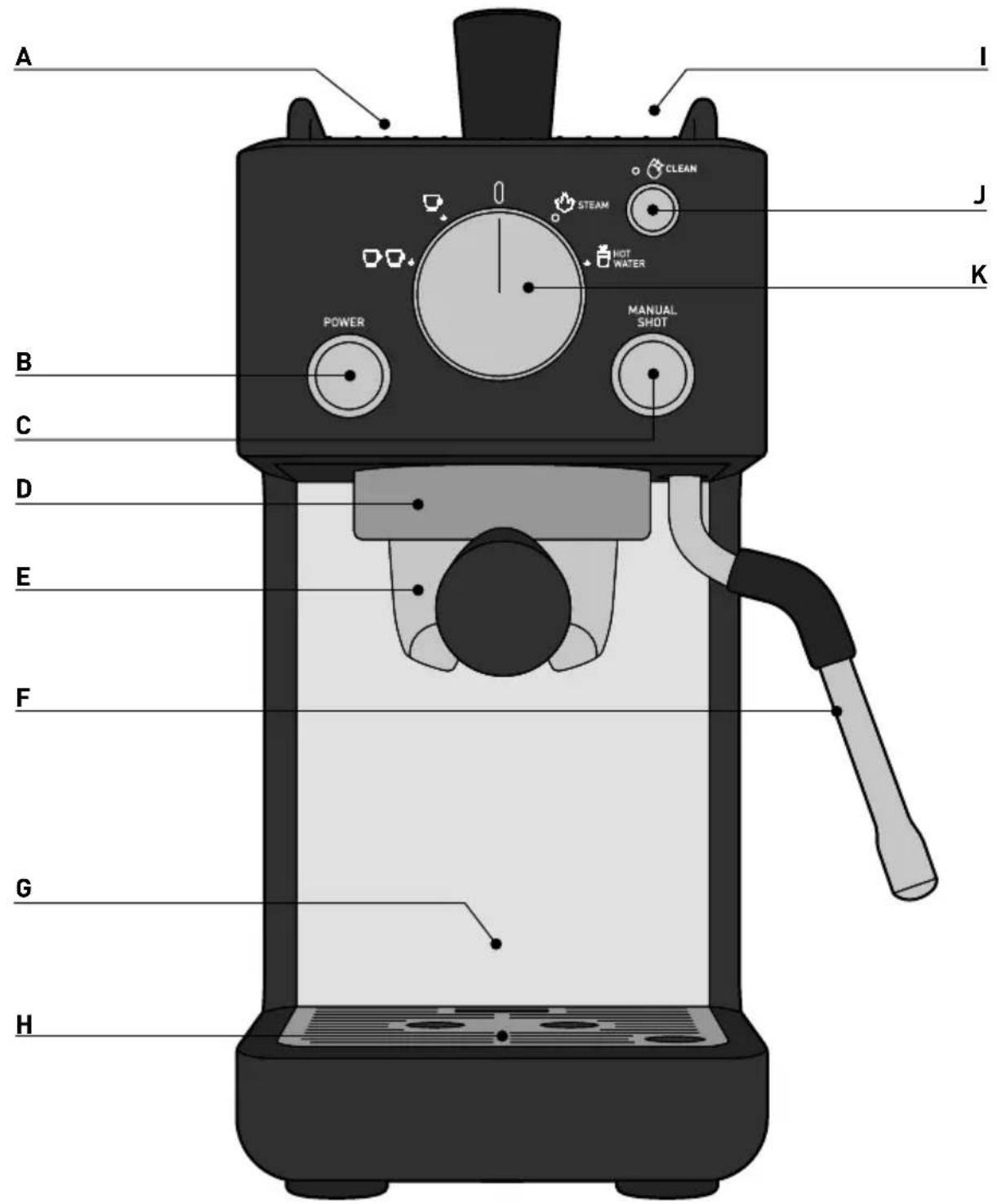

Features of your Origins Slimline Espresso Machine


Features of your Origins Slimline Espresso Machine
A. Warming Plate with Tamper Home
Preheat cups and glasses which helps retain the essential characteristics of true espresso; aroma and a rich, sweet taste.
B. ON/OFF Button & Light
The ON/OFF LIGHT will illuminate & pulse to indicate it is warming up. The ON/OFF LIGHT stays fully illuminated when ready. The machine will go to sleep after 20 mins, the ON/OFF LIGHT is off.
C. Manual Shot Button
For manual extraction, press the MANUAL button to start extraction. When desired volume is reached, press button again to stop.
D. Group Head - 58mm Commercial Size
The larger size accepts more grinds, so you can have a true café tasting coffee at home.
E. Group Handle - 58mm Commercial Size
The wide size used in cafés for a more even water flow & improved extraction taste.
F. Steam and Hot Water Wand
Ball joint movement with silicone cover, so you can move the wand to your desired position without burning your fingers.
G. Accessories Storage Home
Area behind the Drip Tray, for storing the Cleaning Pin.
H. Removable Drip Tray & Grill
Includes a Water Level Indicator which floats through the Grill indicating when the tray is full and requires emptying.
I. Removable 1.1L Water Reservoir
Push back the Lid & fill with room temperature water, or remove the Water Reservoir by opening the Lid, & lifting upwards using the Handle located inside.

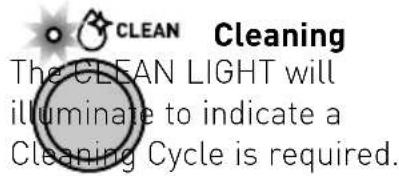

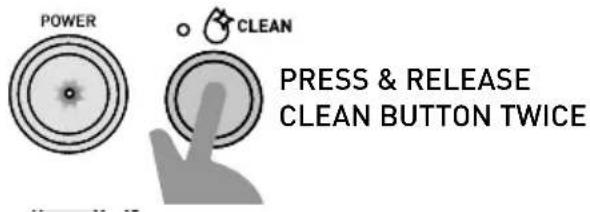

J. Clean Button
Clean icon illuminates when the cleaning cycle needs to be performed.

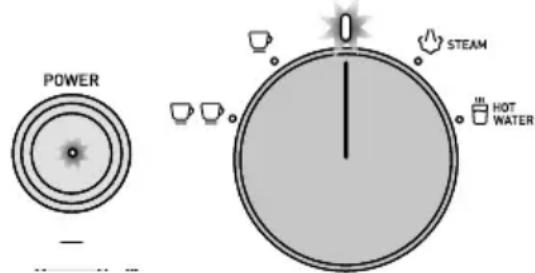

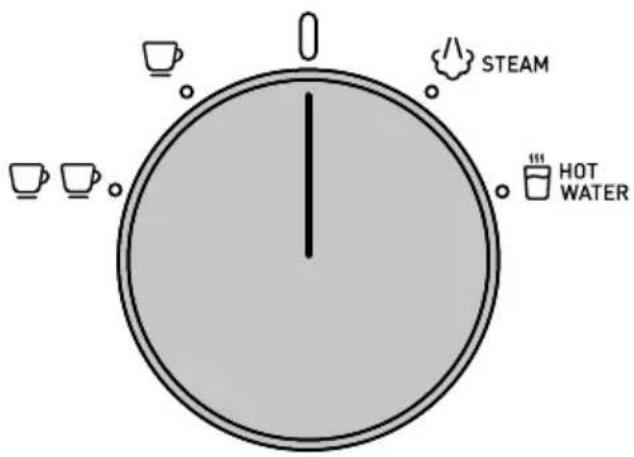

K. Dial with Auto Shot Control


Ready Light
Fully illuminated when ready.

Flashes when DIAL needs to be returned to the vertical position.

One Cup
Pours 1 Shot Espresso - 30mL then automatically stops.

Two Cup
Pours 2 Shots Espresso - 60mL then automatically stops.

Steam Light
Fully illuminated when ready to steam. Flashes when warming up to steam temperature & when cooling down (purging water) to coffee temperature.

STEAM
Steam
Use to steam & texture milk.

HOT WATER
Hot Water
Use manually for long black coffee & hot drinks such as tea, instant soups & to heat your cups prior to making espresso.
Features of your Origins Slimline Espresso Machine
Thermoblock Fast Heating System
The thermoblock is fitted with a
PID controller which continually monitors the water temperature to ensure water is always delivered to the coffee grinds at the precise temperature needed.
An espresso is made with hot rather than boiling water. The thermoblock heats the water so that the espresso extracts at 92^ C (just below boiling point) for optimum extraction of oils from the coffee grinds. Temperatures above this will burn the grinds resulting in a bitter taste.
15 BAR Pump

The thermoblock works in conjunction with the pump to deliver the correct water temperature at the correct pressure for complete extraction of oils, coffee solids and aroma.
The 15 BAR pump is fitted with a pressure relief system, to limit the pressure to 15 bar (for protection from over-pressure). After extraction, when the DIAL is returned to the vertical READY position, any remaining pressure will be released (purged) into the Drip Tray.
Pre-Infusion
Small amounts of water are released onto the tamped coffee grinds prior to the steady flow of water, for a richer flavoured espresso.

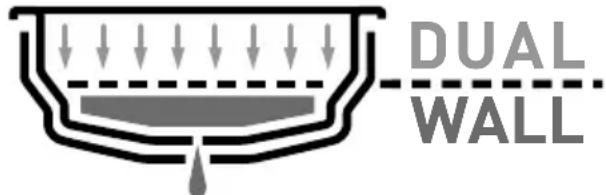

Italian Crema System

Dual Wall Filter Baskets create additional back pressure creating a subtle aeration for a great espresso extraction and steady pour. They ensure a rich velvety espresso with a signature layer of golden crema.
Dual Wall Filter Baskets are designed for use with pre-ground grinds, however they can also be used with freshly ground grinds.
Auto Shot Volumetric Control
Café 58mm Group Head & Handle

The Group Head and the Group Handle are commercial sized, 58mm, just like your local café.
The larger 58mm Group Handle holds more coffee grinds, resulting in a true café tasting coffee. The wider size ensures the grinds are more evenly spread and easier to fill, for improved flavour extraction.
The larger 58mm Filter Baskets allow a more consistent grind compaction, resulting in a better tasting coffee, and an easier to empty spent coffee cake.
Before First Use of the Origins Slimline Espresso Machine
Step 1. Remove Packaging
Ensure all packaging has been removed.
Important: Remove the red Plug found at the base of the Water Reservoir.
Step 2. Position Machine
Ensure the espresso machine is always positioned onto a dry, stable, flat horizontal bench top.
Step 3. Wash Parts
Wash the 8 parts listed below in warm water with a mild detergent.
- Stainless Steel Milk Jug
- Stainless Steel Drip Tray Grill
- Stainless Steel One Cup Filter Basket
- Stainless Steel Two Cup Filter Basket
Important: Below 4 parts are NOT DISHWASHER SAFE:
- Group Handle
- Drip Tray
- Tamper
- Water Reservoir
Rinse and dry each part thoroughly then place on the machine.
Step 4. Prime the Machine
Important: Priming must be completed prior to first use.
- Fill Water Reservoir
- Push back the Lid to open.
- Fill with room temperature water. or
- Remove the reservoir by opening the Lid, & lifting upwards using the Handle inside.
- Fill with room temperature water from the tap.
- Replace the Water Reservoir firmly into position & close the Lid.
Note: Make sure that the Water Reservoir is clean and free of any debris, as any fine particles can block the water flow.
- Power
Ensure that:
- DIAL is in the vertical READY position.
- Insert the Power Plug into a 230-240V AC power outlet & turn the power on.
- Press the ON/OFF BUTTON to start the machine.
The ON/OFF LIGHT will illuminate & pulse to indicate it is warming up.
When both the ON/OFF & READY LIGHTS are fully illuminated, the machine is ready.

- Insert Group Handle
- Place the Two Cup Filter Basket in the Group Handle.
- Insert the Group Handle into the Group Head.

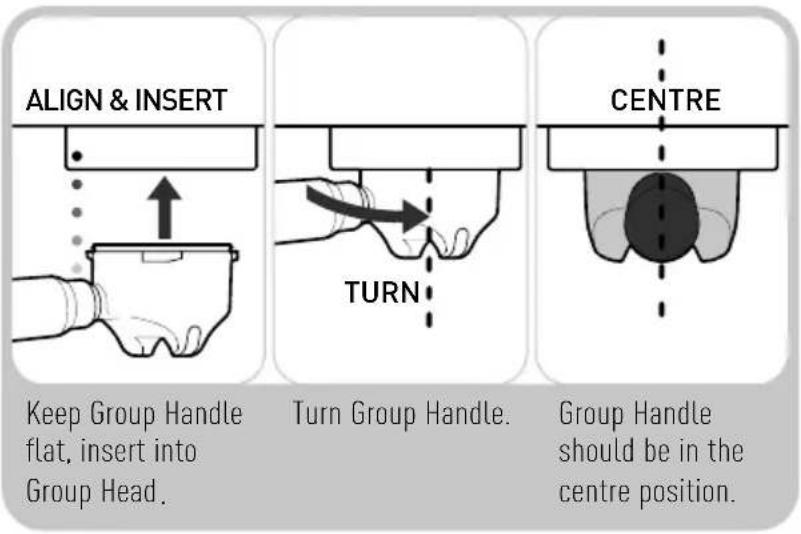

To ensure that the Group Handle is in the correct position, align the Group Handle with the 'INSERT' position located on the left of the Group Head.
Insert the Group Handle flat against the Group Head, then turn the Group Handle right all the way to the centre position.
- Prime the Machine
- Press the MANUAL button and allow the water to run through.
- Press the MANUAL button to stop.
- Repeat once more.
Now the machine should be thoroughly primed and ready to use.
If water does not run through the Group Head, contact Sunbeam Customer Care. Details are on the back page.
Coffee Making Guide for the Origins Slimline Espresso Machine
1. Start Up

Turn on.

ON/OFF LIGHT pulses = Heating up.

ON/OFF & READY LIGHTS are both fully illuminated = Ready.
2. Warm Cup


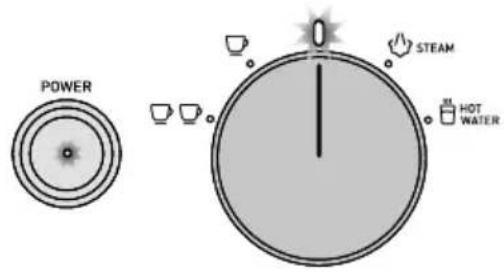

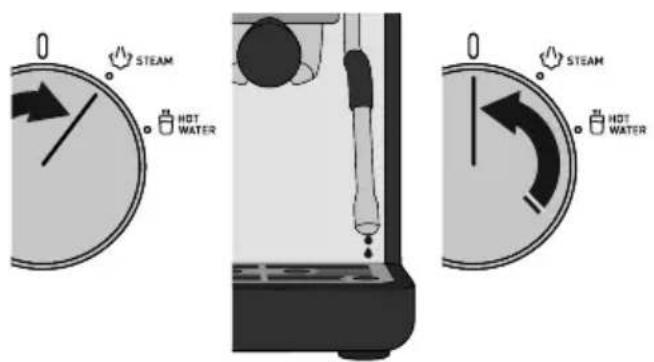

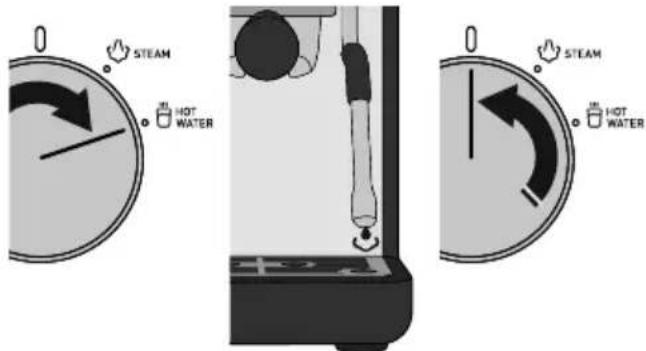

Turn DIAL to HOT WATER.

Return DIAL to vertical position.

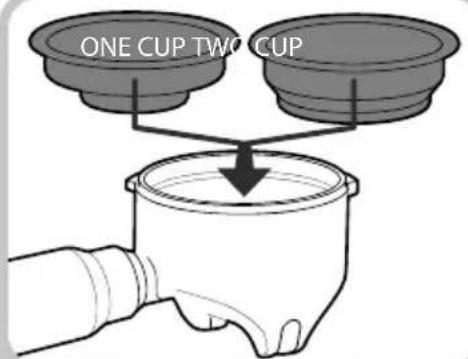

3. Select Filter Baskets 4. Warm Group Head, Handle & Filter Basket

Select either:
- One Cup Filter Basket.
- Two Cup Filter Basket.

Place Group Handle under Group Head and press the MANUAL button.

Press Manual button again when finished.
Coffee Making Guide for the Origins Slimline Espresso Machine

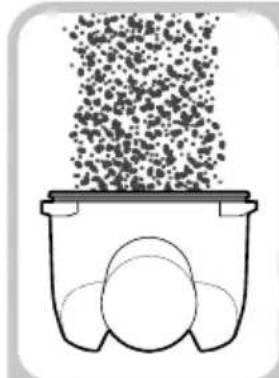

5. Dry Basket 6. Dose & Tamp


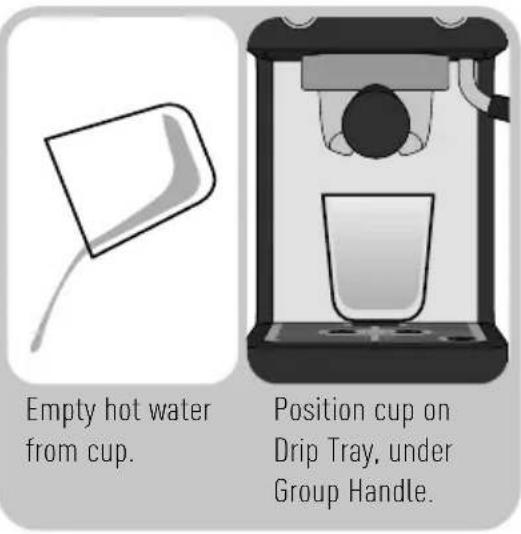

8. Position Cup7. Insert Group Handle in

9. Extraction

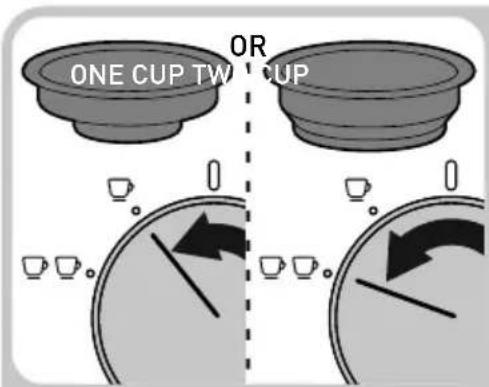

Turn DIAL to either:
= Pour finished. Return DIAL to centre position,
Coffee Making Guide for the Origins Slimline Espresso Machine

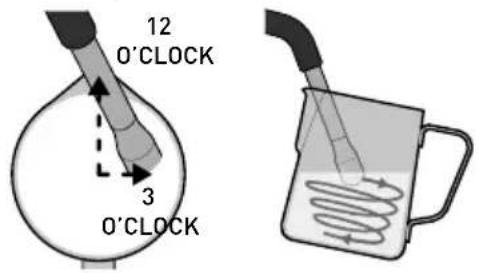

10. Prep Milk Jug 11. Before Texturing Milk

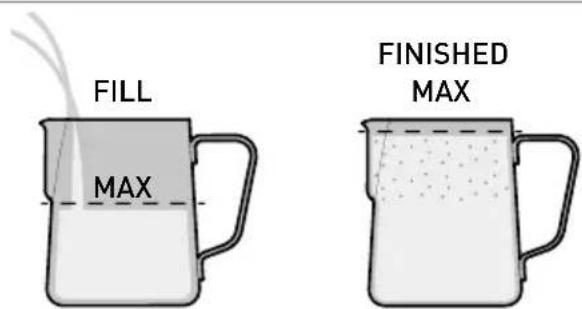

Fill Jug with cold milk to just below the bottom of the spout.

Turn DIAL to STEAM. STEAM LIGHT flashes = Warming up.

STEAM LIGHT is ON = Steam Ready. Pause steam by returning DIAL. Note: Unit will pause at steam temp for 10 seconds, otherwise will return to coffee temp.
Pro Tip:
For best milk texturing results, ensure steam has first warmed up (STEAM LIGHT fully ON). You will hear the Pump start.
12. Start Texturing Milk


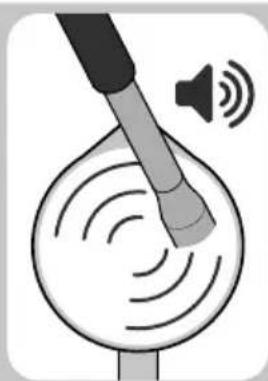

Steam Wand position: - Arm at 12 o'clock. - Tip at 3 o'clock.

Turn DIAL back to STEAM position to start texturing milk.
13. Milk Texturing

Milk ready when Jug is too hot to touch for 3 secs.

Return DIAL to vertical position.
Coffee Making Guide for the Origins Slimline Espresso Machine
14. Purge and Clean Steam Wand

Position steam wand over drip tray. Turn DIAL to HOT WATER.

Return DIAL to the vertical position.
Pro Tip:
To keep optimum Steam Wand performance, always purge & clean the Steam Wand after texturing milk.
15. Milk Finishing Touches 16. Thermoblock Auto Purge

When cooling to espresso temp, STEAM LIGHT flashes & water purges into Drip Tray. Keep Drip Tray in place. You will see steam coming from drip tray during cooling.

Turn Group Handle & remove from Group Head.

remove from

Remove spent cake from Group Handle.

Check if the Drip Tray needs emptying.
Tips for Making the Perfect Cup
The way the espresso pours will tell you everything. Look out for:
1. Extraction Time
Extraction time provides a good indicator of the quality of the pour. The optimum time per shot varies between different bean types and between freshly & pre-ground coffee grinds. However, in general, the time will be between 20-30 seconds for both One & Two Cup shots.
2. Type of Extraction
- Optimum Extraction
A quality pour has a steady flow with a consistency similar to that of warm honey. The resulting crema is dark golden. The sweetest flavours and oils have been extracted creating a rich tasting espresso.
- Under Extraction
The pour is quick and light in colour, the resulting crema is thin with a creamy light brown colour which quickly dissipates. This occurs when too little of the essential oils, flavours and colours from the coffee grinds have been extracted. This creates a sour tasting espresso.
• Over Extraction
There may be no pour, or it may be slow and drip throughout the entire pour. The resulting crema is very dark. This occurs when too much of the essential oils, flavours and colours from the coffee grinds have been extracted. This creates a bitter tasting espresso.
3. Look for Colour Change
The optimum shot contains 3 elements:
Heart: At the base - starts out dark brown.
Body: Blends with the heart - becomes a rich caramel with reddish reflections.
Crema: The layer on top of the body - dark golden.
Crema - Body - Heart -

4. Grinds
You may need to vary the coffee grind size when using different beans.
Important: Ensure beans or pre-ground grinds are fresh. Old pre-ground grinds and old beans, no matter the grind size, will not produce a good tasting espresso.
5. Grind Dosage
For best results, grind dosage should remain consistent:
One Cup: 13-14g - about 2 Tbsp.
Two Cups: 19-20g - about 1/4 metric cup.


Note: When using pre-ground bagged grinds, try using a 2 step dose & tamp method: Dose in half the grinds then tamp & repeat.
6. Tamp Force
For best results, evenly tamp (press) grinds to the level indicated.
Freshly Ground Tamp Force 10-15kg
Pre-ground Tamp Force 15-20kg
Tips for Making the Perfect Cup
7. Filter Baskets
• Dual Wall Filter Baskets
Supplied with the Origins Slimline, these work well with both pre-ground bagged grinds & freshly ground grinds.
- Single Wall Filter Baskets
Are available for purchase from Sunbeam. Details are on the back page.
Note: If using Single Wall Filter Baskets (not supplied with the Origins Slimline), pre-ground bagged grinds are too coarse.
Extraction Guide
There are extraction variations from bean to bean, and everyone's taste is different. Use the below as a guide to improve your espresso technique, so it's just right for you.
UNDER EXTRACTION![]() | OPTIMUM EXTRACTION![]() | OVER EXTRACTION![]() | |
| Pour ^ | Quick flowUnder 15 sec | Steady flow20-30 sec | No flow-dripsOver 35 sec |
| Colour | Pale brownCrema-light brown | Rich caramelCrema-dark golden | Very dark brownCrema-dark brown |
| Taste | Sour, Acidic, Watery | Rich, Sweet, Vibrant | Bitter, Dry, Grainy |
| Grind ^^ | Too coarseUse a finer grind | Just right | Too fineUse a coarser grind |
| Dosage | Not enough grindsUse more grinds | One Cup: 13-14gTwo Cups: 19-20g | Too many grindsUse less grinds |
| Tamp | Not enough tamp forceTamp firmer* | Just right-firm pressure10-15Kg of force** | Too much tamp forceTamp lighter |
^ When using pre-ground bagged grinds, use the Dual Wall Filter Baskets.
^^ Ensure beans or pre-ground grinds are fresh. Old pre-ground grinds & old beans, no matter the grind size, will not produce a good tasting espresso.
* When using pre-ground bagged grinds, try using a 2 step dose & tamp method: Dose in half the grinds then tamp & repeat.
** When using pre-ground bagged grinds try tamping a little harder, 15-20Kg of force.
Remember practice makes perfect.
Visit our Coffee Hub to see more - sunbeam.com.au/coffeehub
Tips for Milk Texturing
Milk texturing is the steaming of milk.
Key Elements to Textured Milk
The steam only heats the milk. The milk also needs to be aerated (add air) to create the micro-foam, and needs to be blended well together. Milk that has been textured correctly has been heated to between 60-65°C, and has a thick, rich micro-foam with a silky sheen. It's all about the temperature, positioning of the Steam Wand and when you move the Milk Jug.
1. Fill Milk Jug
Add cold milk around 4°C into a chilled clean Stainless Steel Jug. Fill to the bottom of the spout.
Note: The volume of milk will increase or 'stretch' during texturing, so don't overfill the Jug.

A larger capacity Milk Jug is available for purchase from Sunbeam. Details are on the back page.
2. Steam Warm Up
For best milk texturing results every time, ensure steam has warmed up before texturing milk. Steam is ready when STEAM LIGHT is fully ON. You will also hear the Pump start.

3. Position
Place the Steam Wand Arm in the Jug spout at the 12 o'clock position, with the Steam Wand Tip in the milk at the 3 o'clock position. Keep the Steam Wand Tip just under the surface of the milk. This will create a whirlpool action.

4. Sound
How air is introduced to the milk determines the consistency of the foam. If large gulps of air are added to the milk, the foam will have large bubbles. Introducing air to the milk in a controlled, gentle fashion indicated by a gentle hissing sound, will ensure the milk has fine aerated micro-foam.
Pro Tip: Milk Texturing Sounds
- Screeching - Tip too deep, lower Jug.
- Smooth Hissing - Just right for latte.
• Gurgling - Tip not deep enough, raise Jug.
5. Keeping Steam Tip Position
As the steam heats and textures the milk, the milk will stretch causing the level of the milk in the Jug to rise. As this happens follow the level of the milk by lowering the
Jug, keeping the Steam Wand Tip just below the surface.
Create the amount of micro-foam you want. Cappuccinos traditionally have more micro-foam than a flat white.
(See Coffee Styles on the next page)
Tips for Milk Texturing
7. Immerse Tip
After you have created the amount of foam you want, immerse the Steam Wand half way down the milk level. This heats all the milk and pulls in milk instead of air.
This ensures the milk and foam is blended together, making it denser and smoother.
An indication of reaching correct milk temperature is when the Milk Jug base can only be touched comfortably for approximately 3 seconds.
Barista Tip: Milk Temperature
Under - If not heated long enough, it will be warm with little texture.
Optimum - See below table.
Over - If heated for too long it will start to boil around 72°C and will have a burnt taste with all texture lost.
| Milk | Temperature |
| Plant based and alternative milks | 60°C |
| Dairy based milks 65°C | |

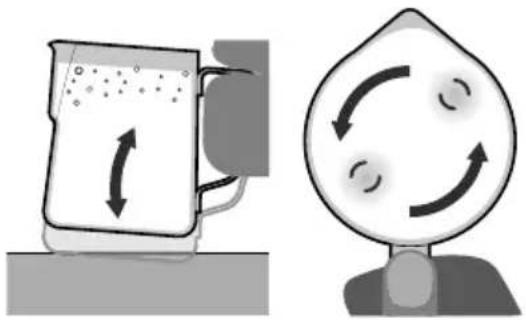

9. Tap & Swirl the Jug
Gently tapping the Jug on the benchtop helps release larger trapped air bubbles.
Swirling helps the milk and froth to combine for an even consistency and a silky appearance.
Pour from the Milk Jug into your cup in one steady motion.
11. Purging the Steam Wand
After turning the DIAL to the vertical READY position and removing the Jug from the Steam Wand, place the Steam Wand over the Drip Tray and purge the Steam Wand to remove any milk that has been sucked up.
To purge turn the DIAL to the HOT WATER position and run hot water for a few seconds, then return the DIAL to the vertical READY position.

12. Wipe Steam Wand
Wipe the Steam Wand Arm and Tip with a clean damp cloth to remove any milk residue.
Coffee Styles to Try
Espresso is a concentrated, full bodied coffee with a stable layer of 'crema' on top. An espresso is the foundation of all café coffee.
- Espresso glass (90mL)
- Single or double shot of espresso (30mL-60mL)
A ristretto is an extremely short espresso, distinguished by its intense flavour and aftertaste.
- Espresso cup (30mL)
• Half a single shot of espresso (15mL)
A standard espresso with hot water added. The hot water is added first so that the 'crema' is maintained.
- Cup (190mL)
• Hot Water (to preference) - Single or double shot of espresso (30mL-60mL)
Con Panna, Italian for 'with cream', made up of an espresso topped with lightly whipped cream. It can also be dusted with cinnamon or drinking chocolate.
- Cup (190mL)
- Single or double shot of espresso (30mL-60mL)
- Lightly whipped cream - dusted cinnamon.
Macchiato, Italian for 'to stain or mark'. Traditionally served as a standard espresso with a dash of cold or textured milk and a small dollop of textured foam into the middle of the 'crema'.
- Espresso glass (90mL)
- Single or double shot of espresso (30mL-60mL)
- Dash of cold or textured milk & small dollop of textured foam.
Coffee Styles to Try
An espresso with textured milk and a thin layer of textured foam milk on top. The wider cup will create the slim layer of foam, the signature of the flat white.
- Wide cup (190mL)
- Single or double shot of espresso (30mL-60mL)
- Textured milk & foam.
An espresso with textured milk and a finger width layer of textured foam milk on top. The narrower cup will create the thicker layer of foam.
- Glass or Cup (220mL)
- Single or double shot of espresso (30mL-60mL)
- Textured milk & foam.
An espresso with 13 steamed textured milk, topped with 13 creamy foam and a dusting of chocolate.
- Cup (190-240mL)
- Single or double shot of espresso (30mL-60mL)
- 1/3 Textured milk, 1/3 textured foam - dusted with chocolate.
Made in a similar way to a cappuccino but with the addition of drinking chocolate. Simply stir the chocolate into the espresso prior to adding the steamed textured milk and foam.
- Cup or tall glass (190-240mL)
- Single or double shot of espresso (30mL-60mL)
- Drinking chocolate (to preference)
- 1/3 Textured milk, 1/3 textured foam.
Steamed textured milk with a layer of foamed milk. It can also be dusted with chocolate.
- Small cup (90mL)
- No shot of espresso
- Textured milk & textured foam - dusted with chocolate.
Care & Cleaning
The espresso making process involves extracting oils out of coffee grinds. Deposits of grinds and oils build up over time affecting the taste of the coffee and operation of the espresso machine.
Purging water through the Group Head and Steam Wand, before and after making each coffee, is the easiest way to keep your machine clean.
(See Operating Guide page 7)
Important: Below parts are NOT DISHWASHER SAFE:
- Group Handle
- Drip Tray
- Tamper
- Water Reservoir
CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning the exterior. Use a soft cloth and a mild detergent.
Cleaning Tablets
Sunbeam Espresso Machine Cleaning Tablets (EMA0025CL) are available for purchase from Sunbeam. Details are on the back page.
Cleaning Drip Tray
Empty the Drip Tray when required, if the red Water Level Indicator appears through the Grill, empty the Drip Tray immediately.
- Weekly
Clean the Drip Tray and Grill with warm water and a little non-abrasive washing up liquid, rinse and dry.
Note: Over time it is normal for the inside of the Drip Tray to be stained by the oils in the coffee grinds.
Cleaning Warming Plate & Exterior
Wipe over the machine with a damp cloth and wipe dry. Do not use alkaline cleaning agents, abrasives or metal scourers, as these will scratch the exterior surface.
Important: Do not immerse the machine in water.
Cleaning Group Handle & Filter Basket
- Every Time
Wash after each use by rinsing them with warm water under the tap.
- Regular Intervals
In warm soapy water using a mild detergent.
Cleaning Group Head
- Every Time
Run water through before making an espresso. (See Operating Guide page 11)
- Weekly
- Purge water through by turning the DIAL to the ONE CUP setting.
- Return DIAL when it has finished running.
- Wipe around the inside rim with a damp cloth & brush.
• 2-3 Months
- Soak the Filter Basket overnight in the Milk Jug with warm water & add one Sunbeam Cleaning Tablet.

- In the morning rinse the Jug & Filter Basket under running water ensuring all traces of the cleaning tablet has been removed.
- Place Filter Basket into Group Handle (without coffee) & insert into Group Head.
-Turn the DIAL to the ONE CUP setting. Water will pour through. - Return DIAL to the vertical position.
- Unblocking Filter Baskets
If the Dual Wall Filter Basket becomes clogged with coffee grinds:
- Insert the 'Filter' Cleaning Pin in the exit hole. (Cleaning Pin located in the 'Accessories' storage area behind the Drip Tray).
Care & Cleaning

- Place Filter Basket into Group Handle (without coffee) & insert into Group Head.
- Turn the DIAL to the ONE CUP setting. Water will pour through.
- Return DIAL when finished.
- Repeat if needed.
Cleaning Steam Wand
- Every time
- After texturing milk purge the Steam Wand by turning the DIAL to HOT WATER for just 1-2 secs.
- Wipe the Steam Wand with a damp cloth. (See Operating Guide page 9)
• 2-3 Months
- Soak the Steam Wand overnight in the Milk Jug with warm water & add one Sunbeam Cleaning Tablet.

- In the morning remove the Jug & rinse ensuring that all traces of the solution have been removed.
- Wipe Steam Wand & Tip with a damp cloth ensuring that all traces of the cleaning tablet have been removed.
- Run Hot Water through the Steam Wand for 40 secs.
- Unblocking Steam Wand
- Insert the 'Steam' Cleaning Pin up the Steam Wand Tip hole. (Cleaning Pin located in the 'Accessories' storage area behind the Drip Tray).
- Run Hot Water through the Steam Wand.

- Steam Wand Remains Blocked:
- Unscrew the Steam Wand Tip & soak overnight in the Milk Jug with warm water & add one Sunbeam Cleaning Tablet.

- In the morning rinse the Jug & Steam Wand Tip under running water ensuring all traces of the cleaning tablet have been removed.
- Use the Cleaning Pin to clean the Steam Tip.
- Screw the Steam Wand Tip back into the Steam Wand Arm.
- Run Hot Water through the Steam Wand for 40 secs.
Group Head Rubber Seal
A rubber seal is located in the Group Head and creates a seal against the Filter Basket when making an espresso.
Important: When your espresso machine is not being used, we recommend that you do not leave the Group Handle inserted into the Group Head, as this will reduce the life of the seal.
Over time this seal loses its elasticity and may require replacement. The seal may need replacing when watery espresso leaks from around the Group Head, or if the Group Handle feels loose when fully rotated to the centre position.
Note: Contact Sunbeam should you think that the Group Head seal needs replacing. Do not attempt to change the seal without first consulting Sunbeam.
Clean Cycle
Sunbeam Cleaning Tablets
Sunbeam Espresso Machine Cleaning Tablets (EMA0025CL) are available for purchase from Sunbeam. Details are on the back page.

Cycle
The cleaning cycle takes approximately 5 minutes to complete.
• Preparing for cleaning cycle
Ensure the:
- Machine is plugged in and switched on at the power outlet.
- Machine is on and in the READY state.
- Water tank is full and the drip tray is empty.
- Place the 2 CUP filter basket and the cleaning disc into the group handle.
- Place one Sunbeam Cleaning Tablet in the middle of the cleaning disc in the space provided.

- Insert group handle into the group head.
- Place a large container under the group head.
- Press and Release the Clean Button Two times within 3 seconds.

- The CLEAN LIGHT will begin to pulse.
- The machine will beep 1 Time and the cleaning cycle will start.
- Water will purge into the drip tray and small amounts of water will pour from the group handle spout.
Note:
- During the cleaning cycle, all other functions will be locked until the cleaning cycle is completed.
- The cleaning cycle can be stopped at any point by pressing the MANUAL button.
- Cleaning cycle complete
- When the cleaning cycle is completed, the clean light will stop pulsing and the machine will beep 3 times.
- The machine will now be in the READY state.
- Remove the group handle from the group head.
- Check tablet has fully dissolved.
- If the tablet has not been dissolved, repeat the cleaning cycle.
- Cleaning cycle clean up
- Empty the container from under the group handle.
- Refill water tank.
- Purge the group head by turning the dial to the ONE CUP setting.
- Allow water to run through until it stops.
- The machine is now ready for use.
Descaling: Group Head & Steam Wand
After continued use, your espresso machine may develop a build-up of mineral deposits, and therefore require occasional 'descaling'.
We recommend descaling your machine every 4-6 months, although this period will depend on the hardness of water and frequency of use.
Descaling Solution
You have 3 options:
A. Sunbeam Espresso Machine Descaling Tablets (EMA0015CL).
or
B. Sunbeam Liquid Descaler (KE0100).
A & B Descaling options are available for purchase from Sunbeam. Details are on the back page.
or
C. White vinegar & warm water.
Descaling Program
The Descaling Program takes approximately 10 minutes to complete.
Important: If the Descaling Program is not completed or stopped part way through any of the Descaling Steps, then you will need to start the Descaling Program again from the beginning.
Preparing for Descaling
• Fill Water Reservoir with Solution
A. Fill Water Reservoir with 1 Litre of warm water add one Sunbeam Descaling Tablet. Allow tablet to fully dissolve.
or
B. In an empty Water Reservoir add half a cap full of Sunbeam Liquid Descaler. Fill Water Reservoir with 1 Litre of warm water. Allow solution to mix thoroughly.
or
C. In an empty Water Reservoir add 1½ tablespoons of white vinegar. Fill Water Reservoir with 1 Litre of warm water. Allow solution to mix thoroughly.
- Place the Water Reservoir into position.
- Place Containers

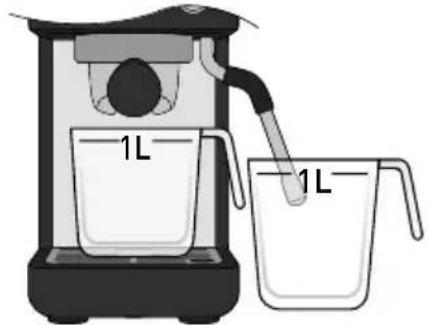

Place a 1 Litre container under Group Head and another 1 Litre container under the Steam Wand.

- Power
Ensure that:
- Operating DIAL is in the vertical READY position.
- The Power Plug is inserted into the outlet and turned on.
- The machine is ON and in the Ready state.

- Access the Descaling Program
- Press and hold the clean button for 3 seconds, the unit will beep 3 times and the clean light will begin to pulse.
- The clean light will Pulse throughout the duration of the Descaling cycle.

PRESS & HOLD
FOR 3 SEC
Important: Descale cycle will start automatically after "Clean" button has been pressed for 3 seconds
Important: The Descaling Program can be exited at any point by pressing the MANUAL button
Descaling: Group Head & Steam Wand
Step 1. Unit will start automatically after Clean button pressed for 3 seconds
- 250ml of Hot water/Descale solution will flow through group head,
- Next 250ml of Hot water/Descale solution will flow through steam wand
- Unit will beep once and Pause for 2 minutes
- Unit will repeat steps 1, 2 and 3, then 3 beeps will be heard when finished.
- Move to Preparing for Purge section.
Preparing for Purge
The Steam Wand and Group Head now need to be purged clean with fresh water to remove descaling solution.
- Rinse Water Reservoir
Remove the Water Reservoir & rinse thoroughly under running water, ensuring that all traces of the descaling solution have been removed.
- Fill Water Reservoir
Fill the Water Reservoir to the 'MAX' line with clean water and replace.
- Empty Containers
Empty water from the containers and replace.
- Move to Step 2.
Step 2. Start Purge
Fill Tank with clean water and empty the collecting containers.
- Press "Clean" button once. Unit will now purge Espresso machine with clean water.
- 500ml of Hot water/Descale solution will flow through group head,
- Next 500ml of Hot water/Descale solution will flow through steam wand
- Unit will beep once and descale is complete.
Descaling Cycle Complete
- To indicate the completion of the Descaling Cycle the machine will beep and the CLEAN LIGHT will stop flashing.
Descaling Cycle Clean Up
- Empty water from the containers and clean, ensuring that all traces of the descaling solution have been removed.
- Reinstall the water reservoir.
Troubleshooting Guide
| PROBLEM Possible Cause What To Do | ||
| Group Handle comes off during espresso pour. | Group Handle is not attached correctly, or has not been tightened sufficiently. | Ensure all three tabs of the Group Handle are fully inserted into the Group Head, & rotated to the centre position. See Operating Guide Section, page 7. |
| Espresso squirts out of the Group Head during pour | Coffee grind is too fine. Change | to a coarser grind. |
| Coffee grinds tamped too hard. | Tamp the grinds more lightly. | |
| Top edge of filter is not free of coffee grinds. | Clean around the top edge of the filter and wipe the Group Head clean. | |
| Espresso trickles down the side of the Group Handle | The Group Head is dirty. Wipe with a damp cloth. Clean the seal including the bayonet corner areas with a brush to remove grinds. | |
| Group Head rubber seal is damaged or worn. | Contact Sunbeam Customer Care. Details are on the back page. | |
| No coffee pours No water in the Water Reservoir. | Fill reservoir with water. Run water through the machine without a Filter Basket to ensure it is fully primed. | |
| See Descaling Section, pages 20-21. | ||
| Use the Cleaning Pin to unblock the Filter Basket. | ||
| Empty the Filter Basket and rinse under water to clean. Wipe the group head with a cloth. Refill the filter with grinds and tamp. | ||
| Coffee pours out in drips (Over Extracted) | Grinds are too fine. Change to a coarser grind. | |
| Coffee tamped too hard. Tamp the grinds more lightly. | ||
| Machine has scale build up. | See Descaling Section, pages 20-21. | |
| Espresso does not have any Crema (Under Extracted) | Beans are old or pre-ground grinds are dry. | Use fresh beans and grinds. Be sure to store pre-ground grinds in an airtight container. |
| Grinds not compacted enough. | Tamp more firmly. | |
| Grinds too coarse. Use a finer grind coffee. | ||
| Uneven cup filling | Uneven tamping or obstruction in the pouring spouts. | Ensure coffee is tamped evenly and check there is nothing obstructing the pouring spouts. |
| Spent Coffee Cake is wet | Dual Wall Filter Baskets can keep the Coffee Cake wet. | Keep Group Handle in Group Head until milk texturing is finished. This will give more time for the water to dissipate. |
Troubleshooting Guide
| PROBLEM Possible Cause What To Do | ||
| Espresso tastes burnt | Type of coffee being used. Try different brands of coffee. | |
| Using steam function just before pouring an espresso shot. | Allow time for the thermoblock to purge steam and cool down before pouring a shot of espresso.The STEAM LIGHT should have finished flashing & the READY LIGHT should be fully illuminated. | |
| Coffee is too cold | Milk may not be heated enough. | Ensure that milk is heated properly during texturing, but be sure not to heat too much and boil the milk.See Milk Texturing Section pages 12-13. |
| No steam from the Steam Wand | Steam Wand Tip is blocked. See Care & Cleaning, pages 18-19. | |
| No water in the Water Reservoir. | Fill reservoir with water. Run Hot Water through the Steam Wand to ensure water flows. | |
| Not enough froth when texturing | Milk may not be fresh. Ensure the milk being used is fresh. | |
| Milk temperature is too warm. | Ensure you start texturing with milk that is around 4°C. | |
| Type of Jug being used. For best texturing results use a chilled Stainless Steel Milk Jug. | ||
| Milk has been boiled. Start again with fresh, chilled milk.Heat till the Jug can only be held for approximately 3 second, 60-65°C. | ||
| The milk is making bubbles rather than micro-foam. | Ensure the Steam Wand Tip is positioned correctly. It should be just below the surface of the milk.Tap the Jug on the benchtop when finished to release larger trapped air bubbles. | |
| Milk is not taking in enough air. | Keep the Steam Wand Tip just under the surface of the milk. This will help to introduce air to the milk to create micro-foam. | |
| Pump makes an unusual noise | No water in reservoir. Fill the Water Reservoir. | |
| Water Reservoir not correctly positioned. | Place the Water Reservoir firmly into the back of the unit. | |
| Red Plug from the packaging may still be inserted. | Remove the red Plug found at the base of the Water Reservoir. | |
Troubleshooting Guide
| PROBLEM Possible Cause What To Do | ||
| All the control panel lights are flashing slowly, unit is not working. | Unit has stopped heating due to excess use. This is a safety feature, which is normal. May be due to no water in the water tank. | Turn off unit for 5min to let unit cool down. Make sure there is water in the water tank. |
If this guide does not solve your query, contact Sunbeam Customer Care. Details are on the back page.

This Sunbeam product is covered by a 12 month replacement or repair warranty, which is in addition to your rights under the Australian Consumer Law (if your product was purchased in Australia) or New Zealand Consumer Guarantees Act (if your product was purchased in New Zealand).
Should you experience any difficulties with your product during the warranty period, please contact our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.
Australia
www.sunbeam.com.au 1300 881 861
New Zealand
www.sunbeam.co.nz 0800 786 232
Upon receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the product is defective, advise you on how to obtain a replacement or refund.
To assist us in managing warranty claims, we recommend you register your product as soon as practicable after purchase, on our Sunbeam website and uploading a copy of your original receipt. View the Support section of the Sunbeam website.
In order to make a claim under our warranty, you must have the original proof of purchase documentation for the product and present it when requested (if not already uploaded to our website).
Under our warranty, should your product develop any defect within 12 months of purchase because of faulty materials or workmanship, we will replace or repair it, at our discretion, free of charge. A product presented for repair may be replaced by a refurbished product of the same type rather than being repaired. Refurbished parts may be used to repair the product.
Our replacement or repair warranty only applies where a defect arises as a result of faulty material or workmanship during the warranty period. Our warranty does not cover misuse or negligent handling (including damage caused by failing to use the product in accordance with this instruction booklet), accidental damage, or normal wear and tear.
Our warranty does not:
• cover freight or any other costs incurred in making a claim, consumable items, accessories that by their nature and limited lifespan require periodic renewal (such as filters and seals) or any consequential loss or damage; or
• cover damage caused by: - power surges, power dips, voltage supply problems, or use of the product on incorrect voltage;
- servicing or modification of the product other than by Sunbeam or an authorised Sunbeam service centre;
- use of the product with other accessories, attachments, product supplies, parts or devices that do not conform to Sunbeam specifications; or
- exposure of the product to abnormally corrosive conditions; or
- extend beyond 3 months if the product is used in commercial, industrial, educational or applications (other than for internal or own use in an office environment).
The benefits given to you by our warranty are in addition to other rights and remedies under law in relation to the product.
In Australia our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Our goods also come with guarantees that cannot be excluded under the New Zealand Consumer Guarantees Act.
If your warranty claim is not accepted, we will inform you and if requested to do so by you, repair the product provided you pay the usual charges for such repair. You will also be responsible for all freight and other costs.
Should your product require repair or service after the warranty period, contact your nearest Sunbeam service centre. For a complete list of Sunbeam's service centres, visit our website or call our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.
SPARES

Cleaning PinCleaning Disc

EM69102

EM43006
Premium TamperMilk JugGroup Handle

2198996
ACCESSORIES
Mini Bang Bang
Coffee grinds disposal bin
Descaling Sachets

EMA0015CL
Cleaning Tablets

EMA0025CL
Need help with your appliance?
Contact our customer service team or visit our website for information and tips on getting the most from your appliance.
Australia | visit www.sunbeam.com.au
phone 1300 881 861
New Zealand | visit www.sunbeam.co.nz
phone 0800 786 232
Newell Australia Pty Ltd. ABN 68 075 071 233
Sunbeam is a registered trade mark.
Ellise is a registered trade mark.
Made in China to Sunbeam's specification.
Due to minor changes in design or otherwise,
the product you buy may differ slightly from the one shown here.
Approved by the appropriate electrical regulatory authorities.
©Copyright Sunbeam 2025.
02/25
