Product Type	Optical bubble sensor
Model	BE-A301P
Output Type	PNP (source type)
Applicable Tube Size	Outer diameter 3 mm (1/8 in), Inner diameter 2 mm (1/16 in)
Applicable Tube Material	Transparent resin tube (PFA equivalent)
Detectable Air Gap	0.8 mm or more
Response Time (Bubble)	20 μs or less
Response Time (Liquid)	80 μs or less
Supply Voltage	5 to 24 V DC ±10%
Current Consumption	15 mA or less
Output Configuration	2 outputs: Liquid-absent-ON, Liquid-present-ON
Protection Circuits	Short-circuit protection, Reverse polarity protection
Operation Indicator	Orange LED (lights up when liquid absent)
Environmental Protection	IP40 (IEC)
Ambient Temperature (Operation)	-25 to +55 °C
Ambient Temperature (Storage)	-30 to +80 °C
Ambient Humidity	35 to 85% RH (operation and storage)
Enclosure Material	PBT
Tube Holder Material	Polyamide
Indicator Material	Polycarbonate
Cable	0.09 mm² 4-core cabtyre cable, 1 m length
Net Weight	15 g approx
Gross Weight	25 g approx
Compliance	EMC Directive, RoHS Directive
Special Features	One-touch attachment, no sensitivity adjustment, ultra compact, high speed detection

Frequently Asked Questions - BE-A301P PANASONIC

What type of tubes are compatible with the BE-A301P?

The BE-A301P is designed for transparent resin tubes (PFA equivalent) with an outer diameter of 3 mm (1/8 in) and inner diameter of 2 mm (1/16 in). It ensures a perfect fit without obstructing flow rate.

What is the response time for detecting air bubbles and liquid?

The response time for detecting air bubbles is 20 μs or less, and for liquid detection it is 80 μs or less. This high-speed detection ensures reliable operation in precision dispensing.

How do I install the sensor onto a tube?

For the BE-A301P, simply push the tube into the sensor using a one-touch attachment. No tools are required. The tube holder securely holds the tube.

What is the output configuration?

The sensor has two outputs: Liquid-absent-ON and Liquid-present-ON. You can switch between these output operations as needed.

What power supply is required?

The sensor operates on a supply voltage of 5 to 24 V DC ±10%, with a current consumption of 15 mA or less. It can be powered directly from a PC board.

Does the sensor require sensitivity adjustment?

No, the built-in amplifier eliminates the need for sensitivity adjustment. It can be used immediately after installation.

What are the environmental operating conditions?

The sensor can operate in ambient temperatures from -25 to +55 °C and humidity from 35 to 85% RH. It has an IP40 protection rating.

Can the sensor detect very small air bubbles?

The sensor can detect air gaps of 0.8 mm or more. Very small bubbles may not be detected. Ensure the bubble occupies the entire inner diameter of the tube.

How do I clean and maintain the sensor?

The sensor requires minimal maintenance. Keep the tube clean to avoid sensing errors. The tube holder is made of polyamide and can be wiped with a soft cloth if needed.

Is the sensor compatible with flexible PVC tubes?

The BE-A301P is designed for PFA equivalent tubes. For 4 mm tube types (BE-A401), flexible PVC is specified. Always use the correct tube material as per the model.

USER MANUAL BE-A301P PANASONIC

Fits perfectly with applicable tube sizes!

Detects liquid and air bubbles without fail!

Experience its ease of use!

Optical bubble sensor is handy, simple, and precise!

New proposals for ease of use

One-touch attachment

Simply attach the sensor with your hand!

Hassle-free one-touch attachment without using tools!

In the case of BE-A201□ / BE-A301□

• Push down the tube into the sensor.

In the case of BE-A401□

Stretch the tube and insert it into the sensor. *ø4 tube: Equivalent to flexible PVC

New proposals for ease of use

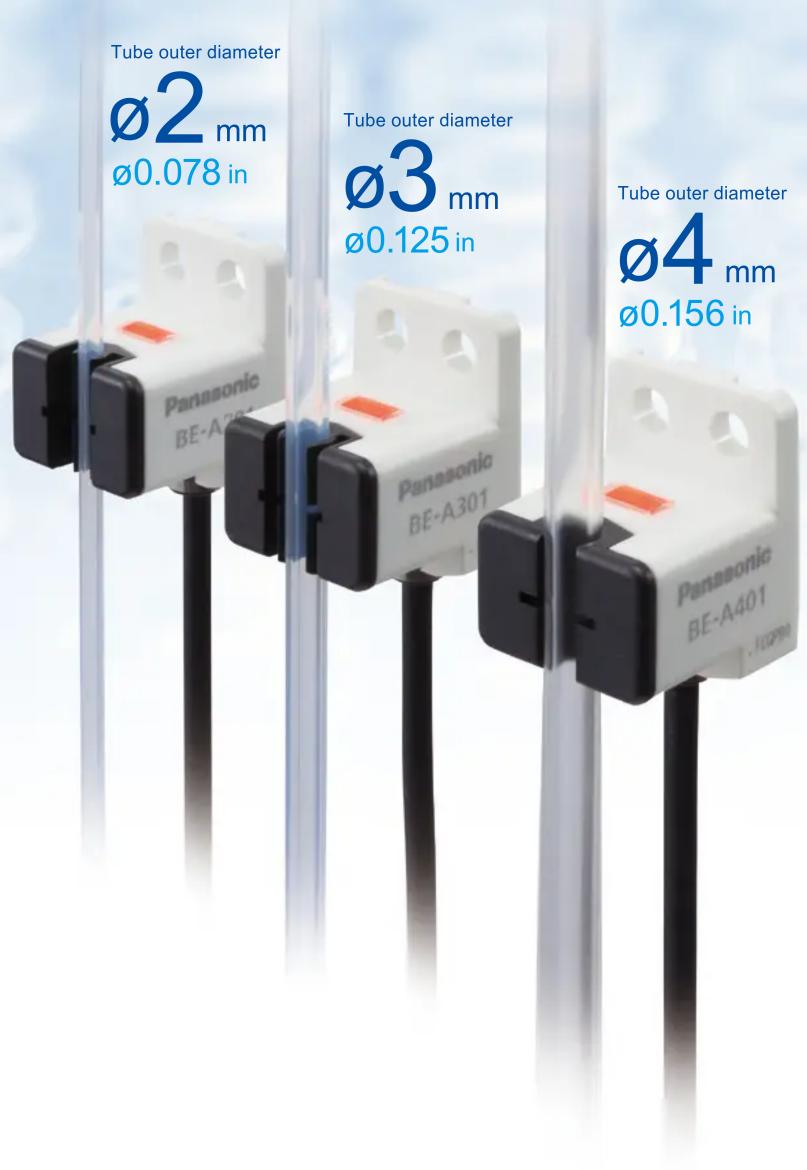

For small diameter tubes

For 2 mm, 3 mm, 4 mm tubes

Perfect fit into applicable tubes without obstructing flow rate. Compatible with tubes in inch size

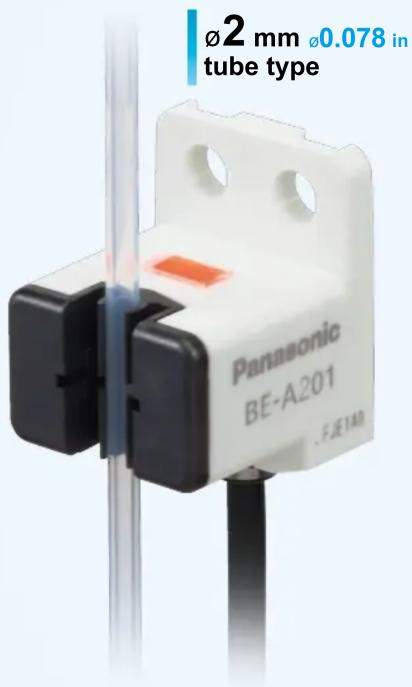

∅2 mm tube type

Close-up of a white electronic component with a red square and black outline, labeled 'BE-A201' below (no other text or symbols visible)

∅3 mm tube type

Close-up of a beige electronic component with a red square and black outline, labeled 'BE-A301' below (no other text or symbols visible)

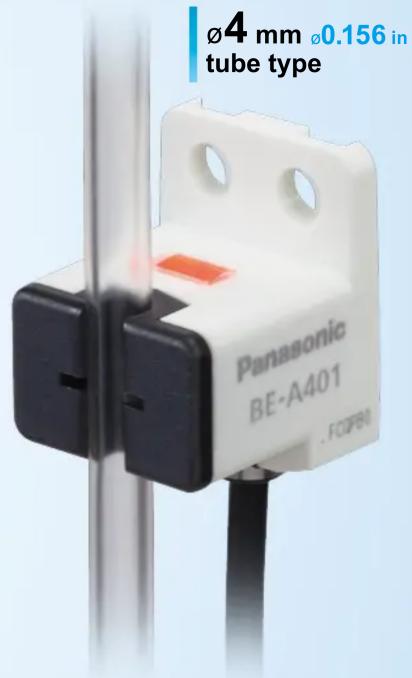

∅4 mm tube type

Close-up of a white electronic component with a black T-shaped top and orange square on the left, labeled 'BE-A401' below (no other text or symbols visible)

Model No. : BE-A201 (NPN output type) BE-A201P (PNP output type)
Applicable tube : Transparent resin tube (PFA equivalent) Outer diameter 2 mm 0.078 in × inner diameter 1 mm 0.039 in Output operation: Liquid-absent-ON / Liquid-present-ON (equipped with two outputs)

New proposals for ease of use

High speed response time

New proposals for ease of use

Ultra compact

New proposals for ease of use

For a wide-range of power supply voltages

High speed detection Fingertip size 5 to 24 V DC compliant

0.8 mm 0.032 in air gaps are reliably detected by optical technology at a response time of 20 s^* . Ideal for traceability of the analysis process.

*Refer to the specifications for detection conditions, BE-A201□ has a response time of 30 μs.

Allows for installation in a narrow space.

Close-up of a hand holding a small white and black electronic component (no visible text or symbols)

Allows for direct power supply from PC board.

New proposals for ease of use

Built-in Amplifier

No requirement of sensitivity adjustment

Can be used immediately after installation by built-in amplifier. Equipped with two outputs, Liquid-absent-ON and Liquid-present-ON.

Allows for close proximity attachment

Staggered pattern

(10 mm 0.394 in pitch)

Close-up of black and white electrical connectors with metal pins (no visible text or symbols)

Parallel pattern

(15.5 mm 0.610 in pitch)

Close-up of multiple black and white electrical connectors with metal pins (no visible text or symbols)

Model No. : BE-A301 (NPN output type)
BE-A301P (PNP output type)

Applicable tube : Transparent resin tube (PFA equivalent)

Outer diameter 3 mm 1/8 in × inner diameter 2 mm 1/16 in

Output operation: Liquid-absent-ON / Liquid-present-ON (equipped with two outputs)

Model No. : BE-A401 (NPN output type) BE-A401P (PNP output type)

Applicable tube : Transparent resin tube (equivalent to flexible PVC) Outer diameter 4 mm 5/32 in × inner diameter 2.4 mm 3/32 in

Output operation: Liquid-absent-ON / Liquid-present-ON (equipped with two outputs)

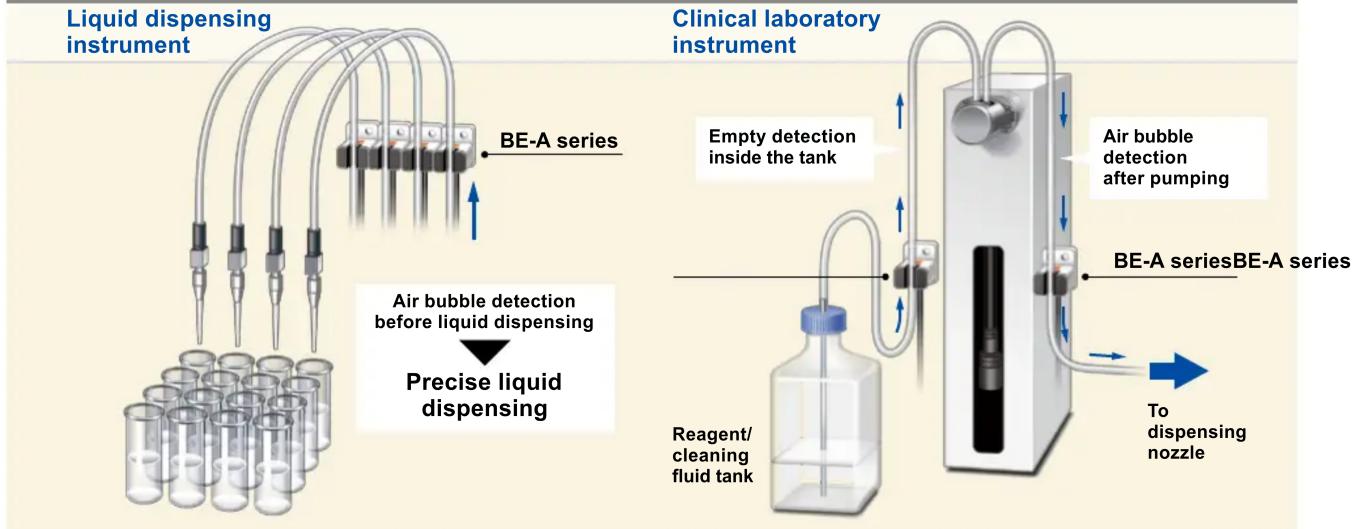

Applications

SPECIFICATIONS

Item\No.	Type		for ø2 mmø0.078 in tube	for ø3 mmø0.125 in tube	for ø4 mmø0.156 in tube
	NPN output		BE-A201	BE-A301	BE-A401
	PNP output		BE-A201P	BE-A301P	BE-A401P
Detectable air gap (Note 2) 0.8 mm 0.032 in or more
Sensing object Liquid (Note 3)
Applicable tube dia.(OD×ID)(Note 4)			ø2 mm × ø1 mmø0.078 in ×ø0.039 in	ø3 mm × ø2 mmø1/8 in ×ø1/16 in	ø4 mm × ø2.4 mmø5/32 in ×ø3/32 in
Applicable tube type (Note 4)			Transparent resin tube (equivalent to PFA)		Transparent resin tube (equivalent to flexible PVC)
Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output(Incorporated with 2 outputs)
			NPN open-collector transistor•Maximum sink current: 50 mA•Applied voltage: 30 V DC or less (between output and 0 V)•Residual voltage: 2 V or less (sink current at 50 mA) 1 V or less (sink current at 16 mA)	PNP open-collector transistor•Maximum source current: 50 mA•Applied voltage: 30 V DC or less (between output and + V)•Residual voltage: 2 V or less (source current at 50 mA) 1 V or less (source current at 16 mA)
			Output operation	Switchable either Liquid-absent-ON or Liquid-present-ON
			Short-circuit protection	Incorporated
Response time(Note 5)			When detecting bubble	30 μs or less 20 μs or less
			When detecting liquid	80 μs or less
Operation indicator Orange LED (lights up with absent liquid)
Protection circuits			Power supply reverse polarity protection, Output reverse polarity protection
Environmental resistance	Protection IP40 (IEC)
	Ambient temperature (Note 6)		-25 to +55 °C -13 to +131 °F (No dew condensation or icing allowed), Storage: -30 to +80 °C -22 to +176 °F
	Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
	Ambient illuminance Fluorescent light: 1,000 fx at the light-receiving face
	Voltage withstandability		1,000 V AC for between one min. between all supply terminals connected together and enclosure
	Insulation resistance		20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
	Vibration resistance		10 to 150 Hz frequency, 0.75 mm0.030 in double amplitude or maximum acceleration49 m/s2, in X, Y and Z directions for two hours each
	Shock resistance		100 m/s2acceleration in X, Y, and Z directions three times each
Emitter element			Infrared LED(Peak emission wavelength: 855 nm0.034 mil, non-modulated)
Material Enclosure: PBT, Tube holder: Polyamide, Indicator: Polycarbonate
Cable			0.09 mm24-core cabtyre cable 1 m3.280 ft
Cable extension (Note 7)			Extension up to total 100 m328.084 ft is possible with 0.3 mm2, or more, cable.
Clamping torque			0.5N·m or less
Weight			Net weight: 15 g approx., Gross weight: 25 g approx.
Compliant regulation			EMC Directive compliance, RoHS Directive compliance

Notes: 1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F.
2) Sensing air gap refers to the width of an air bubble formed in the entire area of the inner diameter of the tube. Please note that this product cannot sense very small air bubbles or water drops. Refer to the figure 1 and 2.
3) Sensing is affected by dirt or residues adhered to the inner wall of the tube. Please maintain the tube regularly.
4) When using a tube out of specifications or it doesn't have a smooth surface, please test sensing on the actual machine before use.
5) Actual response time may differ from specification (typical example using applicable tube) due to dimension, light transmission or surface state of test tube in use.
6) Liquid being detected should also be kept within the rated ambient temperature range.
7) Confirm that the power supply voltage at the end of cable is more than 4.5V when using an extension of over 20m65.167ft .

fig.1

fig.2

DIMENSIONS (Unit: mm in)

The CAD data can be downloaded from our website.

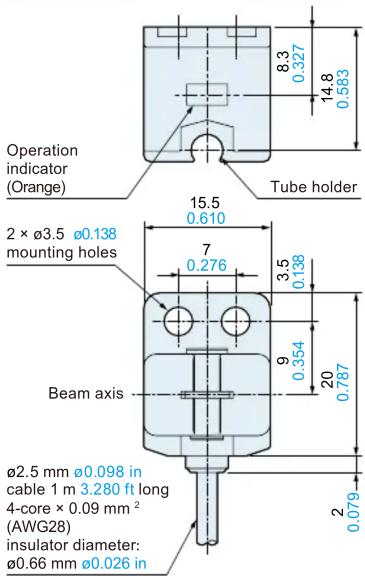

BE-A201□
For 2 mm 0.078 in tube

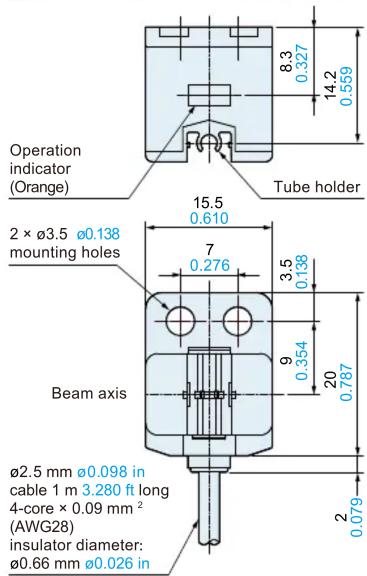

BE-A301□
For 3 mm 0.125 in tube

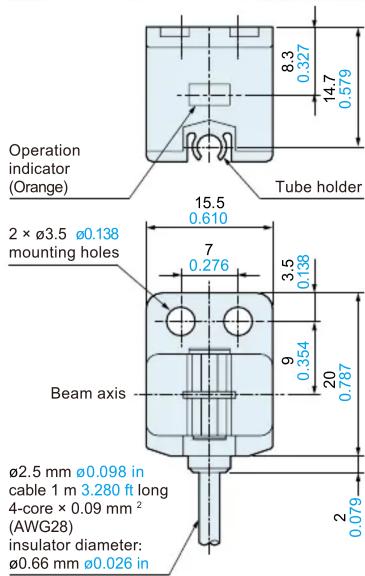

BE-A401□
For 4 mm 0.156 in tube

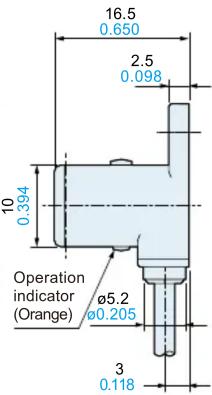

Right side dimension (in common)
