| Product Type | Server Motherboard |
| Form Factor | ATX (12" x 9.6") |
| Weight | Approximately 2.5 lbs (1.13 kg) |
| Power Supply | ATX 24-pin + 8-pin EPS 12V |
| CPU Socket | AM4 (up to 105W TDP) |
| Chipset | AMD X570 |
| Memory Support | 4x DDR4 ECC/Non-ECC UDIMM, up to 128GB |
| Expansion Slots | 2x PCIe 4.0 x16, 1x PCIe 4.0 x1 |
| Storage Interfaces | 8x SATA III, 2x M.2 (2280, PCIe 4.0) |
| Network | 2x Intel I210AT Gigabit LAN |
| Remote Management | BMC with IPMI 2.0 |
| Safety Features | TPM header, Secure Boot support |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 85% non-condensing |
| Maintenance and Cleaning | Use compressed air to remove dust; avoid liquids |
| Repairability | Not user-serviceable; contact ASRock Rack support |
| General Information | ASRock Rack X570D4U, AMD X570, DDR4, IPMI |
Frequently Asked Questions - Rack X570D4U ASROCK
What processors are compatible with the ASRock Rack X570D4U?
The motherboard supports AMD Ryzen (Matisse, Vermeer, Renoir, Picasso, Summit Ridge) and Ryzen Pro processors with AM4 socket, up to 105W TDP.
Does the X570D4U support ECC memory?
Yes, it supports both ECC and non-ECC DDR4 UDIMM memory modules. For ECC, use unbuffered ECC DIMMs.
How many M.2 slots are available and what speeds?
It has two M.2 slots (2280) supporting PCIe 4.0 x4 and SATA modes. Both are connected to the CPU for high-speed NVMe.
Does the motherboard have onboard graphics?
No, the X570D4U relies on a discrete GPU. If your CPU has integrated graphics (e.g., Ryzen G-series), you can use the PCIe slot for display output.
What is the maximum supported RAM capacity?
It supports up to 128GB using four 32GB DDR4 UDIMM modules (ECC or non-ECC).

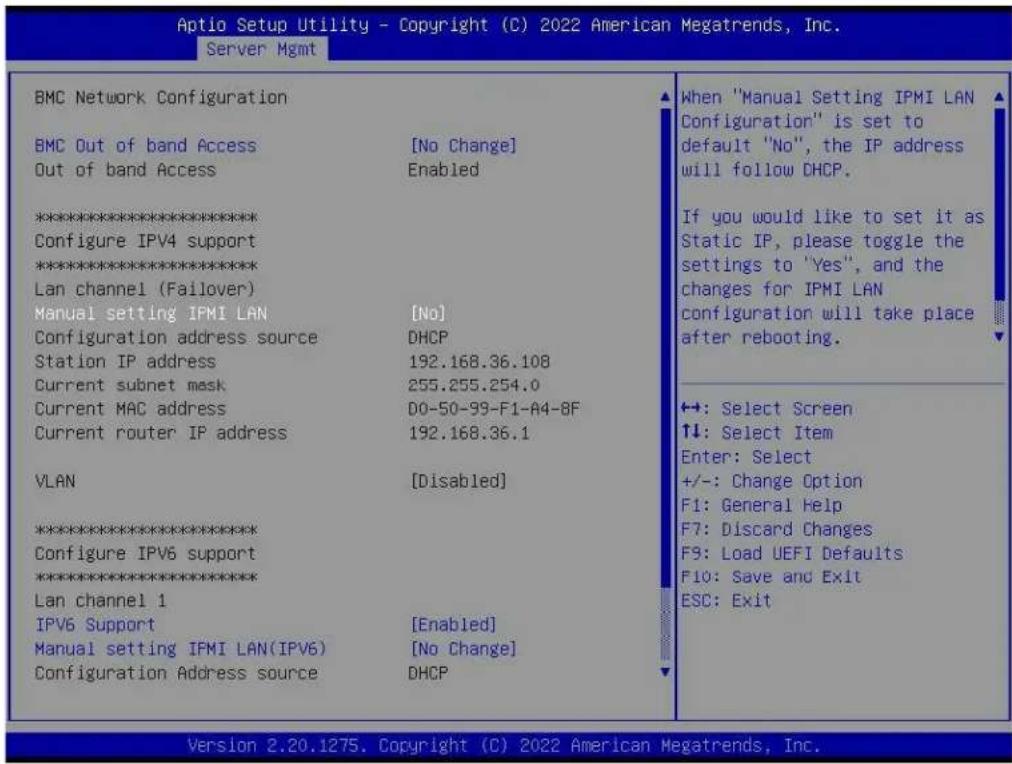

Does it support IPMI for remote management?

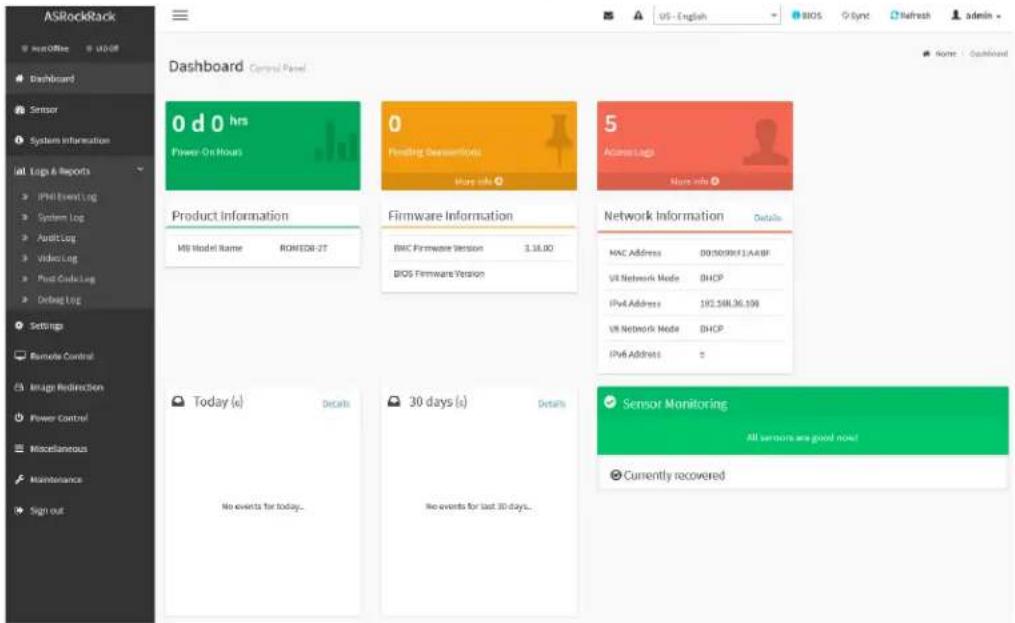

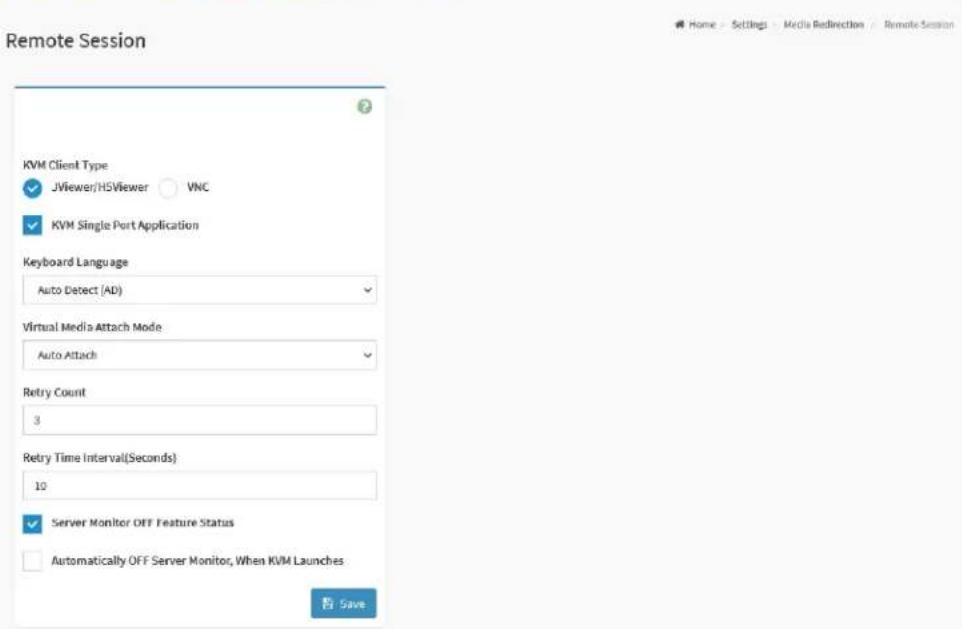

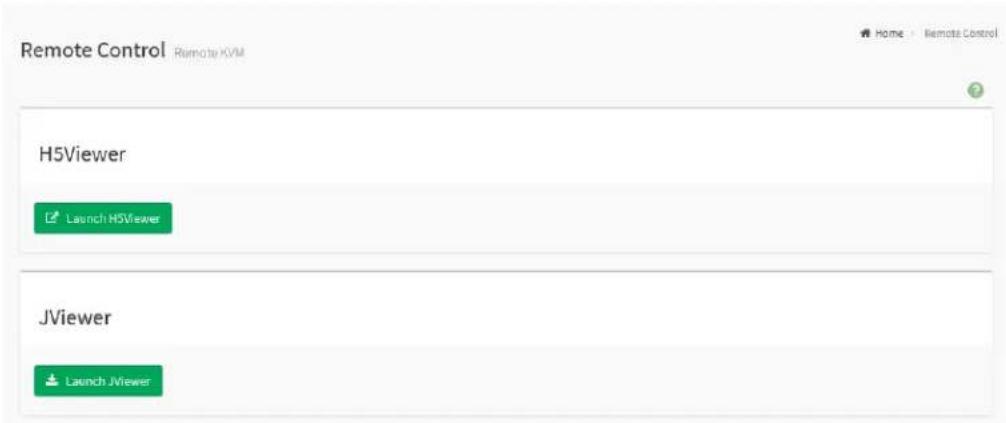

Yes, it includes a BMC chip with dedicated IPMI 2.0 port for remote KVM and management via the Aspeed AST2500 controller.
What are the dimensions of the X570D4U?
It is a standard ATX motherboard, measuring 12 inches x 9.6 inches (30.5 cm x 24.4 cm).
Can I use standard ATX power supply with this board?
Yes, a standard ATX power supply with a 24-pin main connector and an 8-pin EPS 12V CPU connector is required.
How many SATA ports are available?
The motherboard provides 8 SATA III (6 Gbps) ports via the AMD X570 chipset.
Does the X570D4U support PCIe 4.0?
Yes, with Ryzen 3000 and 5000 series CPUs, the PCIe x16 slots and M.2 slots operate at PCIe 4.0 speeds.
