Product Type	Folding LCD Ceiling Mount
Brand	DQ
Model	LCD-CM222
VESA Compatibility	75x75, 100x100, 200x100, 200x200 mm
Maximum Load Capacity	Up to 50 lbs (22.7 kg) – verify with manual
Mount Type	Ceiling mount with foldable design
Adjustment Options	Height adjustable; fold to save space
Installation Surface	Wooden ceiling, solid brick, or concrete
Hardware Included	Ceiling plate, VESA plate, screws (M4, M5, M6, M8), washers, spacers, concrete anchors, Allen keys (4mm, 6mm)
Tools Required	Allen keys (included), drill, screwdriver, level
Material	Steel
Color	Black (typical)
Indoor Use Only	Yes – not for outdoor installation
Safety Warning	Do not exceed rated weight; ensure secure mounting
Maintenance	Check bracket security every 3 months
Package Contents	Ceiling mount (x1), 4mm Allen key (x1), 6mm Allen key (x1), screws and washers in two packages (M and W)
Professional Installation Recommended	Yes – requires good mechanical ability
Compliance	May. 2013 issue date

Frequently Asked Questions - LCD-CM222 DQ

What VESA patterns does the DQ LCD-CM222 ceiling mount support?

The LCD-CM222 supports VESA patterns: 75x75, 100x100, 200x100, and 200x200 mm.

What is the maximum weight capacity of this ceiling mount?

The manual warns do not exceed rated listed weight. Typically, such mounts support up to 50 lbs (22.7 kg). Always verify with your specific unit.

Can the mount be adjusted after installation?

Yes, the mount is height adjustable. You can loosen the adjustment screws with the provided Allen key, set the desired height, and tighten them back. It also folds to save space.

What tools are included with the mount?

The package includes: a 4mm Allen key and a 6mm Allen key. You will also need your own drill, screwdriver, and level for installation.

What types of ceilings can this mount be installed on?

It can be installed on wooden ceilings, solid brick, and concrete. For other surfaces, you must supply appropriate hardware.

How do I separate the VESA plate from the ceiling mount?

Use the 4mm Allen key to loosen the screws that hold the VESA plate to the ceiling mount. Once loosened, the plate can be detached.

Does the mount tilt or swivel?

The LCD-CM222 is a folding and height adjustable ceiling mount. It does not provide tilt or swivel functionality based on the manual.

What safety precautions should I take during installation?

Always use an assistant for heavy displays. Do not exceed the rated weight. Ensure the ceiling can support the total weight. Tighten screws firmly but do not over tighten. Check the mount every three months.

Can this mount be used outdoors?

No, this product is intended for indoor use only. Outdoor use may lead to product failure and personal injury.

What are the screw sizes included?

The package includes: M4x14, M5x14, M6x14, M8x20 screws, along with D5 and D8 washers and spacers. Use the appropriate combination for your display.

USER MANUAL LCD-CM222 DQ

Adjust to the desired position.

Technical line drawing of a mechanical assembly with mounting base and support components (no text or symbols)

For saving the space, you can fold the display by pushing the display back until it fits in place.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please contact your distributor if you have any questions.

INSTALLATION MANUAL

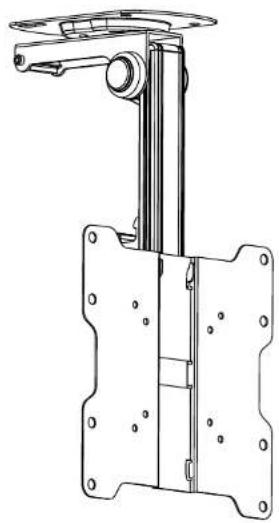

Folding LCD Ceiling Mount

Technical line drawing of a mechanical assembly with mounting flanges and a vertical shaft (no text or symbols)

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT, SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

LCD-CM222

75x75 100x100 200x100 200x200

ISSUED: MAY. 2013

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone with good mechanical ability who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.

Package M

Package W

1. Separating the VESA Plate


Use a proper Allen key to loosen the screws in order to separate the VESA plate from the ceiling mount.

1. Opening the Mount


Open the mount for installing. Press the ceiling plate down, then lift it up till fully open.

3a. For Wooden Ceiling Mounting

Align the both holes of ceiling plate to the screws in ceiling and move the ceiling plate until the both screws are seated in upper area of tear-drop mounting holes.

Fix the ceiling plate using the two other screws and then tighten all screws.

WARNING

• Installers are responsible to provide hardware for other types of mounting situations.
- Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

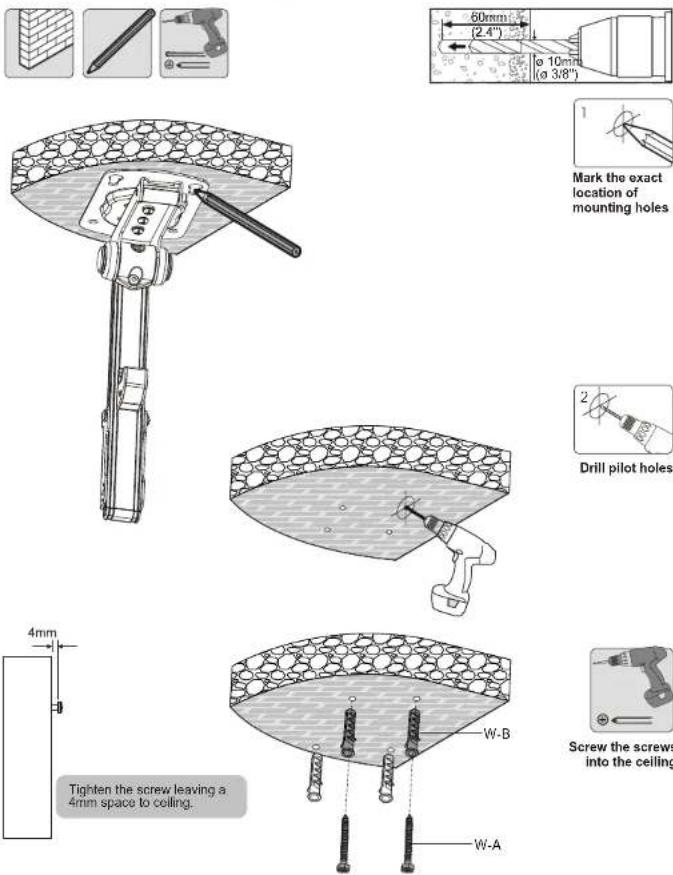

3b. For Solid Brick and Concrete Mounting

Mark the exact location of mounting holes

Drill pilot holes

Screw the screws into the ceiling

Fix the ceiling plate using the two other screws and then tighten all screws.

WARNING

Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

1. Installing the VESA Plate


Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen. - Screw the VESA plate onto the display.

Tighten all screws but do not over tighten.

1. Hooking the Display onto the Ceiling Mount


1. Adjustment


Loosen screws(but not remove) and adjust the display to desired height as needed, then tighten screws.
