EB640 - Heated blanket N'oveen - Free user manual and instructions

Product Type	Heated Blanket
Brand	N'oveen
Model	EB640
Dimensions	Approx. 180 x 130 cm (71 x 51 in)
Weight	Approx. 1.5 kg (3.3 lbs)
Power Supply	120V ~ 60 Hz (or 230V depending on region)
Power Consumption	Max. 150 W
Heat Settings	Multiple adjustable levels (e.g., 6-10 settings)
Auto Shut-Off	Yes, 2-hour or 4-hour timer
Material	Soft fleece or microplush polyester
Care	Machine washable and dryer safe (remove controller)
Safety Certifications	UL/ETL or CE listed, overheat protection
Controller	Detachable LED controller with backlight
Spare Parts	Controller and power cord available
Warranty	1-2 years limited

Frequently Asked Questions - EB640 N'oveen

How do I wash the N'oveen EB640 heated blanket?

Unplug the blanket and remove the controller. Machine wash on a gentle cold cycle with mild detergent. Tumble dry on low heat or air dry. Do not bleach or iron.

Is the EB640 safe for overnight use?

Yes, it features an auto shut-off timer (typically 2-4 hours) and overheat protection for safe continuous use.

Can I use the heated blanket with a memory foam mattress?

Yes, it is safe for use over memory foam. Ensure the blanket is flat and not bunched to avoid overheating.

What are the dimensions of the EB640?

The blanket measures approximately 180 x 130 cm (71 x 51 inches), suitable for a twin or full-size bed.

How much electricity does the heated blanket consume?

It uses up to 150 watts, making it energy-efficient. On lower settings, consumption is even less.

What should I do if the blanket does not heat?

Check that the controller is properly connected and the outlet is working. Ensure the timer has not expired. If still not working, contact customer support.

Can I use a different controller for the EB640?

Only use the original N'oveen controller designed for this model to avoid damage or safety hazards.

Is the blanket safe for pets?

It is generally safe, but pets may chew the cord. Supervise pets and keep the cord out of reach to prevent damage.

How do I store the heated blanket?

Allow it to cool, fold loosely, and store in a dry place. Avoid placing heavy objects on top.

What is the warranty on the EB640?

N'oveen offers a 2-year limited warranty covering defects in materials and workmanship. Register online for details.

USER MANUAL EB640 N'oveen

Folded gray medical blanket with a handheld digital thermometer placed on top (no visible text or symbols)

Folded brown fabric with a handheld medical device on top (no visible text or symbols)

Folded blanket with star pattern and thermometer on top (no text or symbols visible)

KOC ELEKTRYCZNY

EB650

EB651

EB655

EB750

ELECTRIC BLANKET | ELEKTRISCHE HEIZDECKE | MANTA ELÉCTRICA | COBERTOR

ELÉTRICO | ELEKTRICKÁ DEKA | ELEKTRICKÁ PŘIKRÝVKA | HΛEKTPIKH KOYBEPTA |

MANUAL DE INSTRUÇÕES

POUŽÍVATELŠKÁ PRÍRUČKA

NÁVOD K OBSLUZE

ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗ

Technical line drawing of a mechanical component and a circular component (no text or symbols)

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE IT

Thank you for choosing our product. Read carefully before assembling, installing, turning on or maintaining this device. Protect yourself and others by following the safety instructions.

• Not suitable for children under 3 years
- Don't puncture the electric blanket!
- Do not use a folded or broken blanket
- Do not tumble dry
- Do not chemically clean
- Do not iron
- Do not bleach
• Machine wash, 30 °C

SAFETY PRECAUTIONS

- Check the blanket carefully before each use.

- If you notice visible damage on the blanket, do not use and return to the manufacturer or dealer.

- The blanket can only be operated with the controller (SS18) supplied.

- Before plugging the blanket to the power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.

- During use, the controller switch and cable must not be placed on or under the blanket or be covered in any way.

- Neither pierce the blanket with, nor attach safety pins or other spiky or sharp objects to the blanket.

- Do not use the electric blanket with the infirm, infants or persons insensitive to heat.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Examine the appliance frequently for signs of wear or damage. If there are such signs, if the appliance has been misused or does not work, return it to the supplier before switching it on again.

- This appliance is not intended for medical use in hospitals.

- The appliance is not to be used by young children over the age of three unless the controls have been pre-set by a parent or guardian, and unless the child has been adequately instructed on how to operate the controls safely.

• This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.
• Not to be used by very young children (0-3 years). Children under the age of three are not to use this appliance due to their ability to react to overheating.

• Children shall not play with the blanket.

- Cleaning and user maintenance shall not be performed by children without supervision.

- Never use the blanket unsupervised.

- Prolonged use of the blanket at a high setting could lead to skin burns.

- Never touch a blanket that has fallen into water. Unplug the blanket from the mains outlet immediately.

- Keep the mains cable away from hot surfaces.

- Never carry, pull or turn the blanket by the mains cable and do not let the cable get tangled.

- Do not use the blanket when wet and only use it in dry environments (not in the bathroom or similar environments).

- The controller and cable must not be exposed to any kind of moisture.

- If a fault occurs, do not attempt to repair the blanket by yourself. Repairs must only be carried out by an authorized service specialist or other suitably qualified personnel.

- If the power supply cable is damaged, it may only be replaced by, an authorised service specialist or by qualified electricians. In order to prevent hazards, always send the blanket to the service centre.

- Let the blanket cool down completely before folding and storing it. Do not fold it too tight.

- When not in use, store the blanket as follows:

- Store the blanket in its original packaging and keep it in a clean, dry place.

- Fold the power cable carefully to avoid cable breaks.

- Do not crease the blanket by placing items on top of it during storage.

- Should you have any concerns about health issues, consult your doctor before using the blanket.

- The appliance can be used by children older than 3 years and younger than 8 years under supervision and with the control always set to minimum temperature value.

- The cable and control unit of the appliance can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall make sure that excess ties and electric cords shall be arranged in a safe way.

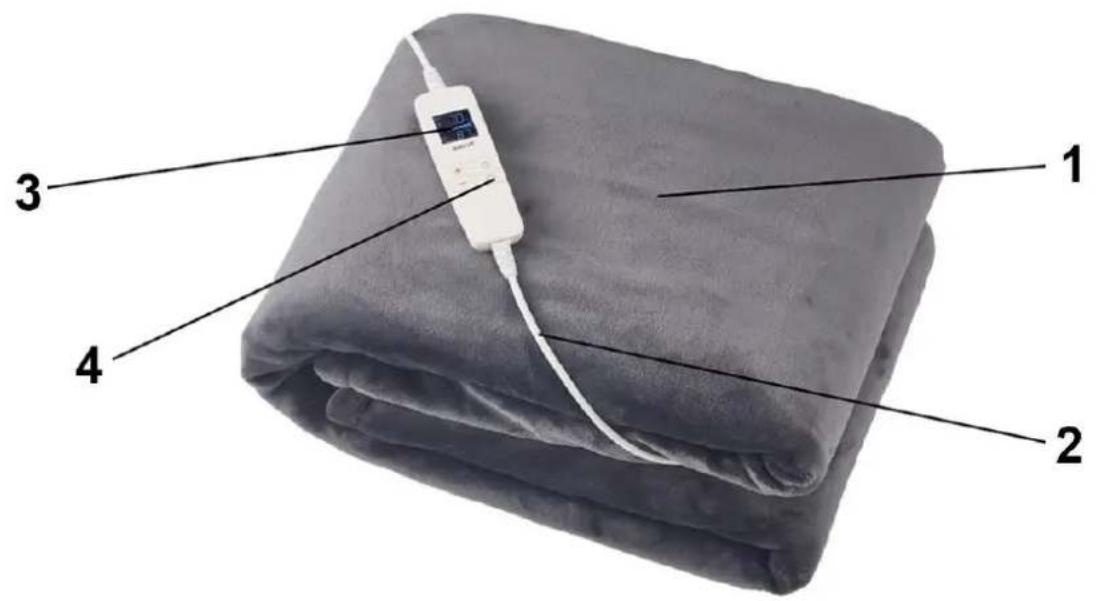

DEVICE DESCRIPTION

1. Electric blanket
2. Power cable
3. SMART LCD controller
4. On/off button

OPERATION

Before each use, always inspect the product to ensure there is no damage to the power cord, controller, or the Pad.

Diagram showing a pin-like object and a circular object with internal structure, labeled Fig.1 (no text or symbols on the diagram itself)

Press the On/Off button on the controller. The indicator (LCD) and the indicator of the auto power off (LCD) light up. After a few minutes, you will be able to feel the blanket warming significantly. If you need a higher temperature setting, press the button and the switch moves to the next 2-stage, or to the maximum heat setting 10-stage. If the heating blanket is too hot for you, please press the button to return the gear to the 2nd or 1st step. After a while, the heating blanket will cool down. Please set the gear to 1 level before falling asleep or using it for a long time.

Press the button to adjust the product's automatic shutdown time, the automatic shutdown is 1-10 hours cycle adjustable. If you want to continue using the product after the automatic shutdown, please press the button, and then return to the desired gear and automatic shutdown time. Turn the product off by pressing the button and unplug it when it is not in use.

CLEANING AND MAINTENANCE

• Before cleaning the blanket, unplug it from the mains outlet and let it cool down completely or for at least ten minutes.
• The blanket is equipped with a detachable cable. Disconnect the plug and remove the cable from the blanket.
• You may machine wash, 30^ C.
• Do not use hair dryer to dry this product, have to dry naturally, stretch the blanket out on a flat surface.
• Rinse the blanket several times to remove all the detergent.
• Store the blanket in a clean and dry place, laid out flat with nothing covering or resting on top of it.
• Only use the blanket once it is completely dry.
• You may also wash the blanket in a washing machine at a maximum temperature of 30^ C with low mechanical action and spin. It’s advisable to wash it by hand in order to prolong the life of the product.

Key functions

• Super soft, delicate blanket
Modern SMART LED controller

Automatic timer from 1 to 10 hours

Convenient temperature setting - +

A range of 10 different temperatures to choose from

• The heat is already noticeable after 1 minute
• Detachable cable with controller for easy washing in the washing machine (max. temperature 30°C)

Model	Power	Dimensions
EB650	160W	180 x 130 cm
EB651	160W	180 x 130 cm
EB655	160W	180 x 130 cm
EB750	160W	180 x 160 cm
