IKN824 - Tueur d'insectes N'oveen - Free user manual and instructions

Brand	N'oveen
Model	IKN824
Product Type	Insect Killer Bulb with Lighting Function
Power	5 W
Grid Voltage	1000 V
Effective Area	40 m²
Dimensions (H x W x D)	140 mm x 90 mm x 90 mm
Weight	240 g
Power Source	Built-in rechargeable battery, charged via USB cable (adapter not included)
Light Source	Non-replaceable LED bulb
Functions	Insect killer (UV black light) and lighting bulb (3 brightness levels + blink mode)
Operation	Two buttons: insect killer on/off, lighting on/off/brightness/blink
Usage Location	Indoor and outdoor (protected from rain)
Installation	Can be hung via hook or placed with light point upwards
Cleaning	Use included brush; turn off and wait 10 minutes before cleaning; clean at least once a month
Safety Features	High voltage grid with protective cover; keep away from children and flammable materials
Attracted Insects	Flies, moths, mosquitoes, and other light-sensitive flying insects
Accessories Included	USB cable, cleaning brush, silicone cover
Warranty	Does not cover batteries/built-in batteries

Frequently Asked Questions - IKN824 N'oveen

How does the N'oveen IKN824 insect killer work?

The device uses UV black light to attract flying insects. When insects come near, they are electrocuted by the high-voltage metal grid (1000 V). It is chemical-free and harmless to humans and pets.

Can I use the IKN824 outdoors?

Yes, the device is suitable for both indoor and outdoor use. However, it should be protected from direct rain and moisture.

How do I charge the IKN824?

Connect the provided USB cable to the device and a USB power adapter (not included). The built-in rechargeable battery will charge. The manual does not specify charging time.

Is the LED bulb replaceable?

No, the light source is non-replaceable LEDs. Attempting to replace or disassemble the device may result in eye damage and void the warranty.

How do I clean the insect killer?

Turn off the device and wait about 10 minutes for the grid to discharge. Use the included brush to gently clean the high voltage grid and outer casing. Clean at least once a month for optimal performance.

What insects does the IKN824 attract?

It attracts light-sensitive flying insects such as flies, moths, mosquitoes, and similar pests.

How many brightness modes does the lighting bulb have?

The lighting bulb has three modes: maximum brightness, reduced brightness, and blink mode. Press the lighting button repeatedly to cycle through them.

Can children use this device?

The device can be used by children aged 8 and above under supervision. Cleaning and maintenance should not be performed by children without adult supervision.

Can I use the IKN824 in a barn or stable?

No, the manual explicitly states that the insect killer cannot be used in barns, stables, or similar locations due to safety concerns.

What should I do if the device does not charge?

Check the USB cable and power source. Ensure the device is turned off during charging. If issues persist, contact customer support. Note that the warranty does not cover the built-in battery.

USER MANUAL IKN824 N'oveen

Close-up of a white LED light bulb with metallic blades and a 'N'OVEEN label on its side (no other text or symbols visible)

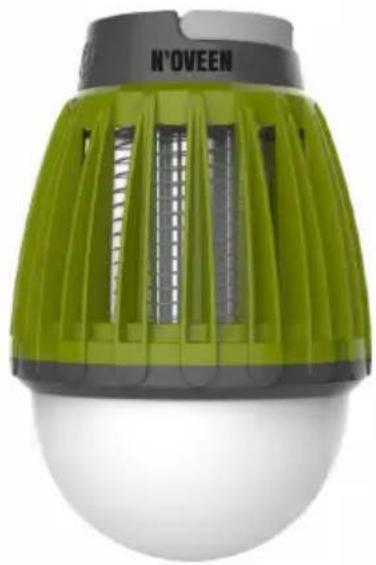

Green and white light bulb device with ventilation slots, no visible text or symbols on body

IKN823 IKN824

ŻARÓWKA Z FUNKCJĄ LAMPY OWADOBÓJCZEJ – INSTRUKCJA OBSŁUGI

LIGHTING+MOSQUITO KILLER BULB - USER MANUAL

Line drawing of a decorative lamp or horn with internal blades and a central handle, labeled with numbers 1 and 2 (no text or symbols on the diagram itself)

1

2

POLSKI PL

Close-up of a black plastic electronic component with coiled pins and connectors (no visible text or symbols)

Moc: 6 W (IKN823), 5 W (IKN824)

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS

Thank you for choosing our product. Read carefully before submitting, installing, switching on or maintaining this device. Protect yourself and others by following the safety instructions. The Electronic Insect Killer utilizes the black light (ultra-violet rays) of the wave length, which is proven to be the most effective lure for light sensitive flying insects, such as flies, moths, mosquitoes and other flying insects. These insects are electrocuted by the electrically-charge metal grids. No chemicals, no smell, no sprays, no mess, pollution free and harmless to humans and pets. It is ideal for using in houses, factories, food outlets, restaurant, canteen, office, hospitals, etc.

Warnings and general information:

1. Suitable for indoor & outdoor use.
2. High voltage! Do not touch the inner electric grids
3. Never put metal objects inside the grids while in operation.
4. Keep away from flammables.
5. Make sure that the voltage and frequency of the current are suitable for this device. Check the local voltage before operating.
6. Use in a place where children cannot reach.
7. Keep the appliance and its cord out of reach of children.
8. Children cannot play with the device.
9. The Insect Killer cannot be used in barns, stables and similar locations.
10. The appliance is not to be used in locations where flammable vapor or explosive dust is likely to exist.
11. Unplug the appliance before cleaning. Clean the plastic enclosure/ grille with dry clothes.
12. This device may be used by children from 8 years and above and persons with limited physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed regarding the use of the device in a safe and understandable manner related hazards.
    Cleaning and maintenance should not be carried out by children without supervision.

NOTE: The light source in this device are non-replaceable LEDs. Attempts to replace or disassemble the device may result in eye damage.

NOTE: THE WARRANTY DOES NOT INCLUDE BATTERIES AND BUILT-IN BATTERIES!

DEVICE DESCRIPTION IKN823:

1. Handle
2. Battery compartment
3. Outer Casing
4. High voltage grid
5. PC Cover

DEVICE DESCRIPTION IKN824:

1. Handle
2. USB Connector
3. Outer Casing
4. High voltage grid
5. Base
6. Lighting bulb
7. Silicone cover

OPERATION MANUAL IKN823: See picture 1

1. Unscrew the handle with the hook, remove the battery compartment. Use 3 pcs of AAA batteries.

Close-up of a black cylindrical electronic component with metallic pins and mounting holes (no visible text or symbols)

1. Press the insect button (1) to activate the insect killer lamp function.
2. Press the lighting button (2) to turn on the bulb. The bulb will light up with the maximum light, pressing the button (2) again, it will reduce the brightness of the bulb. The third press causes the light bulb to blink. Another press of the button (2) turns the bulb off.
3. The functions of the bulb and insecticide lamp can be activated simultaneously or separately.
4. The included brush is used to clean the high voltage grid. Use a brush to clean the insects form grid only when the device is turned off!
5. The efficiency of the lamp will be higher at night. For the best effect, it is recommended to keep the device away from other light sources.
6. For both indoor and outdoor use.
7. The bulb can be hung with a hook or placed with a light point upwards.

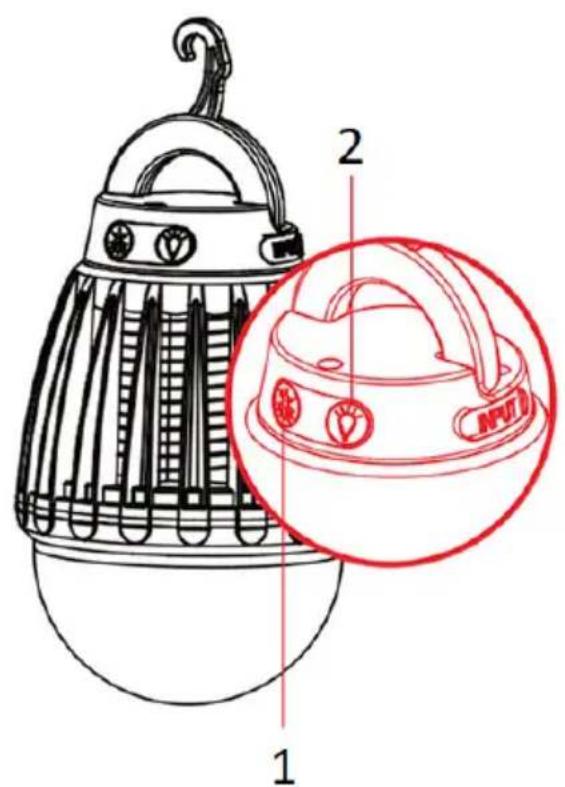

OPERATION MANUAL IKN824: →See picture 2

1. Charge the device with a USB cable (included, no adapter).
2. Press the insect button (1) to activate the insect killer lamp function.
3. Press the lighting button (2) to turn on the bulb. The bulb will light up with the maximum light, pressing the button (2) again will reduce the brightness of the lamp. The third press causes the light bulb to blink. Another press of the button (2) turns the bulb off.
4. The functions of the bulb and insecticide lamp can be activated simultaneously or separately.
5. The included brush is used to clean the high voltage grid. Use a brush to clean the insects from only when the device is turned off!
6. The efficiency of the lamp will be higher at night. For the best effect, it is recommended to keep the device away from other light sources.
7. For both indoor and outdoor use.
8. The bulb can be hung with a hook or placed with a light point upwards.

CLEANING

Frequent cleaning will extend the life of the device.

1. Remember to clean the device at least once a month.
2. Turn off the device and wait about 10 minutes to discharge the grid before cleaning.
3. The brush is used to clean the lamp in a safe and efficient manner.

TECHNICAL DATA

Power: 6 W (IKN823), 5 W (IKN824)

Operation area: 40 m2

Grid voltage: 800 V (IKN823), 1000 V (IKN824)

Dimensions: 88 x 88 x 130 mm (IKN823), 90 x 90 x 140 mm (IKN824)

Weight: 160g (IKN823), 240g (IKN824)
