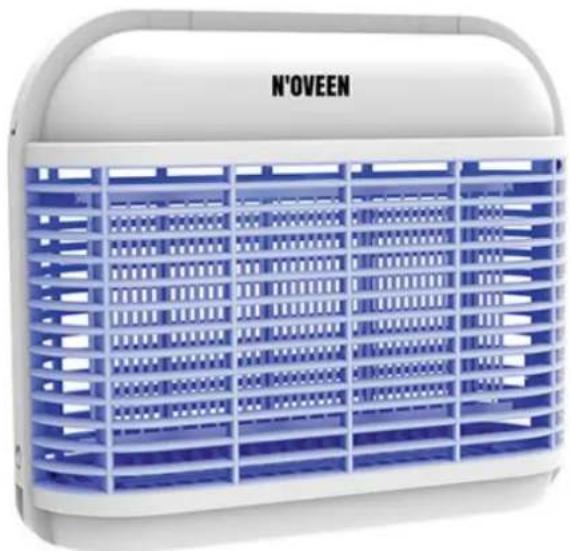

IKN911 - Electric insecticide N'oveen - Free user manual and instructions

Product Type	Electric Insect Killer Lamp
Model	IKN911
Brand	N'oveen
Dimensions (H x W x D)	47 x 10 x 26.3 cm
Weight	Approx. 1.5 kg
Power Supply	230V ~ 50Hz
Power Consumption	13 W
Grid Voltage	4000 V
Working Area	Up to 100 m²
Light Source	UVA LED (non-replaceable)
Attraction Method	Ultraviolet light
Insect Elimination	High-voltage electric grid
Collection Tray	Detachable, easy to empty
Protection	Protective mesh outer cover
Safety	Indoor use only; keep away from children; do not touch grids; avoid flammable materials
Cleaning	Unplug before cleaning; use dry cloth; do not use liquids; empty tray weekly
Operating Noise	Quiet operation
Material	Metal and fireproof ABS plastic
Usage	Houses, restaurants, offices, hospitals, etc.
Warranty	Refer to manual

Frequently Asked Questions - IKN911 N'oveen

How does the N'oveen IKN911 electric insect killer work?

It uses UVA LED light to attract flying insects and then electrocutes them on a high-voltage metal grid (4000 V). No chemicals or sprays are needed.

Is this device safe for humans and pets?

Yes, it is safe as long as you follow safety instructions. Do not touch the inner electric grids. The protective mesh prevents accidental contact. It emits no harmful substances and is quiet.

Can I use the insect killer outdoors?

No, it is designed for indoor use only. Exposure to moisture or extreme weather can damage the device and create hazards.

How do I clean the collection tray?

Unplug the device, remove the tray located at the bottom, and empty it. Clean with a dry cloth. Do not use liquids or water to avoid electric shock.

What types of insects does it attract?

It attracts light-sensitive flying insects such as flies, moths, mosquitoes, and other small flying pests.

What is the working area of the IKN911?

It covers up to 100 m² in an open indoor space. Walls and barriers may reduce effectiveness.

Can I replace the LED light?

No, the LEDs are non-replaceable. Attempting to replace or disassemble the light source may cause eye damage. The LEDs have a lifespan of up to 20,000 hours.

What should I do if the power cord is damaged?

Stop using the device immediately. The cord must be replaced by the manufacturer, service agent, or a qualified person to avoid hazard.

Can children use this device?

Children aged 8 and above can use it under supervision. Cleaning and maintenance should not be done by children without supervision. Keep the device out of reach of younger children.

How often should I empty the collection tray?

Empty the tray every week or when needed. Regular cleaning ensures optimal performance and hygiene.

USER MANUAL IKN911 N'oveen

Black N°OVEEN electric insect larva with blue mesh filter (no text or symbols visible)

Exterior view of a white and blue N'OVEEN air purifier unit (no text or symbols on the device itself)

IKN910/911 LED

IKN920/921 LED

LAMPA OWADOBÓJCZA – INSTRUKCJA OBSŁUGI

INSECT KILLER LAMP - INSTRUCTION MANUAL

LÁMPARA ANTI-INSECTOS - MANUAL DE INSTRUCCIONES

LÂMPADA MATA-INSETOS - MANUAL DE INSTRUÇÕES

LAMPA PROTI HMYZU - NÁVOD K OBSLUZE

LAMPA PROTI HMYZU – POUŽÍVATELŠKÁ PRÍRUČKA

IKN910/911

IKN920/921

POLSKI PL

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS

Thank you for choosing our product. Read carefully before submitting, installing, switching on or maintaining this device. Protect yourself and others by following the safety instructions. The Electronic Insect Killer utilizes the black light (ultra-violet rays) of the wave length, which is proven to be the most effective lure for light sensitive flying insects, such as flies, moths, mosquitoes and other flying insects. These insects are electrocuted by the electrically-charge metal grids. No chemicals, no smell, no sprays, no mess, pollution free and harmless to humans and pets. It is ideal for using in houses, factories, food outlets, restaurant, canteen, office, hospitals, etc.

Warnings and general information:

1. Suitable for indoor use.
2. High voltage: Do not touch the inner electric grids
3. Never put metal objects inside the grids while in operation.
4. Keep away from flammables.
5. Make sure that the voltage and frequency of the current are suitable for this device.
   Check the local voltage before operating.
6. Use in a place where children cannot reach.
7. Keep the appliance and its cord out of reach of children.
8. Children cannot play with the device.
9. The Insect Killer cannot be used in barns, stables and similar locations.
10. The appliance is not to be used in locations where flammable vapor or explosive dust is likely to exist.
11. The device can be placed or moved using the installed handle.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. Unplug the appliance before cleaning. Clean the plastic enclosure/ grille with dry clothes empty the collection tray every week or when need.
14. This device may be used by children from 8 years and above and persons with limited physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed regarding the use of the device in a safe and understandable manner related hazards. Cleaning and maintenance should not be carried out by children without supervision.

NOTE: The light source in this device are non-replaceable LEDs. Attempts to replace or disassemble the device may result in eye damage.

IKN910/911 DESCRIPTION:

1. Protective mesh
2. High voltage grids
3. LED
4. LED
5. Upper slot
6. Accessories
7. Transformer
8. Top cover
9. LED driver
10. Accessories
11. Switch
12. Power cable
13. Protective mesh
14. Bottom lid
15. Collection tray

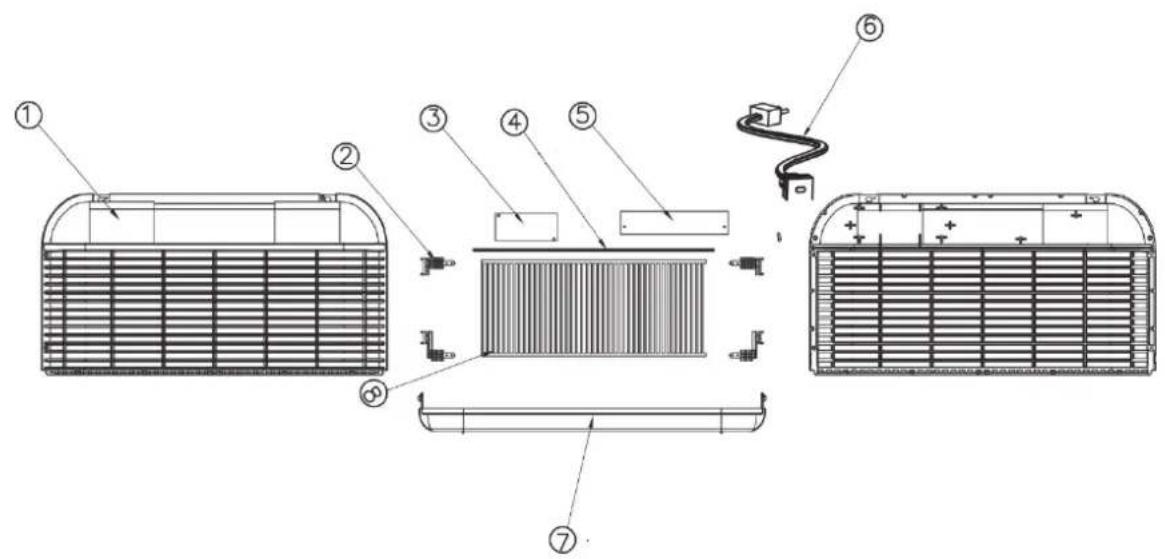

IKN920/921 DESCRIPTION:

1. Outer cover
2. HV grids supporter
3. HV transformer
4. LED panel
5. LED drive
6. Power cord
7. Collection tray
8. HV grids

CLEANING AND MAINTENANCE:

Before emptying the tray, remove the plug from the wall socket. If there are insects present on the mesh, they must be removed with a soft brush. Due to safety during cleaning do not use any liquids, even water! To empty the tray, remove it, the tray is located at the bottom of the device.

The device's area of operation depends on different conditions and the room in which it is used. It must not be partitioned by walls or other barrier elements that reduce the operating range of the device. Work time of the fluorescent lamps: up to 20,000 hours.

Specification:

• for indoor use
• A special UVA lamp for better insect attracting
• safe for humans and animals (works without chemicals, does not emit harmful substances)
• quiet operation,
• solid construction made of metal and high quality fireproof ABS plastic,
• easier removal of insects through a detachable tray

TECHNICAL DATA:

Model Lamp		Supply voltage	Grid voltage V	Power consumption	Working area	Dimensions
				Watt (m2)	cm
IKN910	JVA LED 230V~5	0Hz 4000 11	50 33 x 10	x 26.3
IKN911	JVA LED 230V~5	0Hz 4000 13	00 47 x 10	x 26.3
IKN920	UVA LED	230V~50Hz	2500	6	100	30.5 x 10.8 x 26
IKN921	JVA LED 230V~5	0Hz 2500	8	200 45 x	10.8 x 26
