IKN910 - Anti-insectes N'oveen - Free user manual and instructions

Product Type	Electronic Insect Killer
Model	IKN910
Brand	N'oveen
Supply Voltage	230V~50Hz
Grid Voltage	4000 V
Power Consumption	11 W
Working Area	50 m²
Dimensions (W x D x H)	33 x 10 x 26.3 cm
Lamp Type	JVA LED (UV-A) – non-replaceable
Lamp Lifespan	20,000 hours
Material	Metal and fireproof ABS plastic
Operation Type	Indoor use only
Insect Attraction Method	UV-A light
Killing Method	Electrocution via high-voltage metal grids
Safety Features	Protective mesh; high voltage warning; child safety (keep out of reach)
Cleaning Method	Unplug; empty collection tray weekly; use dry cloth only; no liquids
Collection Tray	Detachable for easy insect removal
Installation	Place on flat surface; use handle for moving; avoid obstructions
Environmental Impact	Chemical-free, odorless, no sprays, pollution-free
Recommended Use Areas	Homes, offices, restaurants, hospitals, factories, canteens, food outlets
Not Suitable For	Barns, stables, areas with flammable vapor or explosive dust

Frequently Asked Questions - IKN910 N'oveen

How does the insect killer attract and kill insects?

The device uses a UV-A LED light to attract flying insects like flies, mosquitoes, and moths. When they come close, they are electrocuted by the high-voltage metal grids (4000 V). No chemicals are used.

Is the insect killer safe for humans and pets?

Yes, when used as directed. The high-voltage grids are enclosed behind a protective mesh to prevent accidental contact. However, keep the device out of reach of children and do not insert metal objects. It is safe for indoor use around humans and pets.

How should I clean the device?

Always unplug the device before cleaning. Empty the collection tray weekly or when needed. Use a dry cloth or soft brush to clean the protective mesh and grids. Never use liquids or water due to electrical safety.

What is the effective coverage area?

The IKN910 covers up to 50 m² (approximately 540 sq ft). For best results, place the device in an open area free from walls or barriers that could block the UV light.

Can I replace the LED lamp?

No. The LED lamp is non-replaceable. Attempting to replace or disassemble the LED may cause eye damage and void the warranty. The lamp has a lifespan of up to 20,000 hours.

Where should I place the insect killer?

Place it on a flat, stable surface indoors. Use the built-in handle for positioning. Avoid areas with drafts or obstructions that could reduce the light range. Do not use in barns, stables, or locations with flammable vapors.

What insects does it kill?

The UV-A light attracts a wide range of light-sensitive flying insects, including mosquitoes, flies, moths, gnats, and other similar pests.

Is the device noisy?

No. The insect killer operates silently (no fan, no buzzing). The only sound is occasional crackling when insects are electrocuted.

What are the electrical specifications?

The IKN910 requires a 230V~50Hz power supply. It consumes 11W and has a grid voltage of 4000V. Always check local voltage before use.

Can I use the device outdoors?

No. This device is designed for indoor use only. It is not weatherproof and could be damaged by moisture or rain.

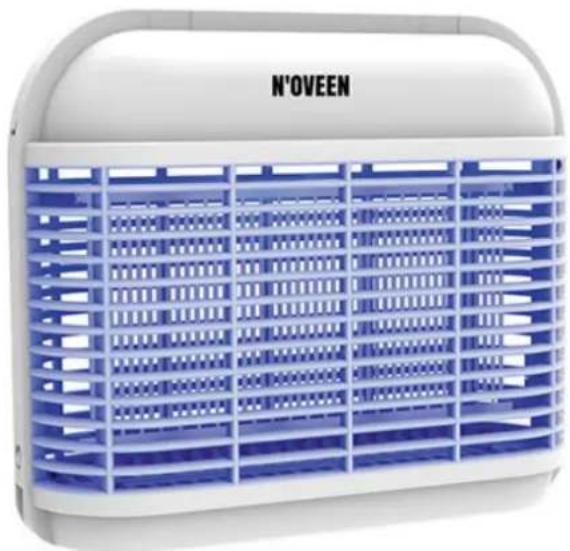

USER MANUAL IKN910 N'oveen

Black N°OVEEN electric insect larva with blue filter array (no text or symbols visible)

Exterior view of a white and blue N'OVEEN air purifier unit (no text or symbols on the device itself)

IKN910/911 LED

IKN920/921 LED

LAMPA OWADOBÓJCZA – INSTRUKCJA OBSŁUGI

INSECT KILLER LAMP - INSTRUCTION MANUAL

LÁMPARA ANTI-INSECTOS - MANUAL DE INSTRUCCIONES

LÂMPADA MATA-INSETOS - MANUAL DE INSTRUÇÕES

LAMPA PROTI HMYZU - NÁVOD K OBSLUZE

LAMPA PROTI HMYZU – POUŽÍVATELŠKÁ PRÍRUČKA

IKN910/911

IKN920/921

POLSKI PL

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS

Thank you for choosing our product. Read carefully before submitting, installing, switching on or maintaining this device. Protect yourself and others by following the safety instructions. The Electronic Insect Killer utilizes the black light (ultra-violet rays) of the wave length, which is proven to be the most effective lure for light sensitive flying insects, such as flies, moths, mosquitoes and other flying insects. These insects are electrocuted by the electrically-charge metal grids. No chemicals, no smell, no sprays, no mess, pollution free and harmless to humans and pets. It is ideal for using in houses, factories, food outlets, restaurant, canteen, office, hospitals, etc.

Warnings and general information:

1. Suitable for indoor use.
2. High voltage: Do not touch the inner electric grids
3. Never put metal objects inside the grids while in operation.
4. Keep away from flammables.
5. Make sure that the voltage and frequency of the current are suitable for this device.
   Check the local voltage before operating.
6. Use in a place where children cannot reach.
7. Keep the appliance and its cord out of reach of children.
8. Children cannot play with the device.
9. The Insect Killer cannot be used in barns, stables and similar locations.
10. The appliance is not to be used in locations where flammable vapor or explosive dust is likely to exist.
11. The device can be placed or moved using the installed handle.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. Unplug the appliance before cleaning. Clean the plastic enclosure/ grille with dry clothes empty the collection tray every week or when need.
14. This device may be used by children from 8 years and above and persons with limited physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed regarding the use of the device in a safe and understandable manner related hazards. Cleaning and maintenance should not be carried out by children without supervision.

NOTE: The light source in this device are non-replaceable LEDs. Attempts to replace or disassemble the device may result in eye damage.

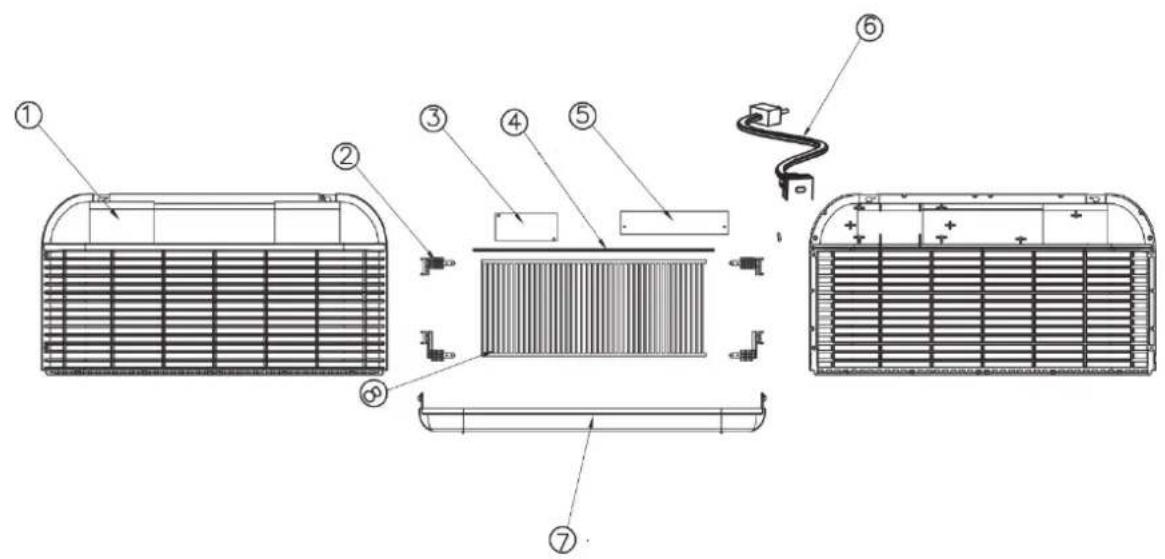

IKN910/911 DESCRIPTION:

1. Protective mesh
2. High voltage grids
3. LED
4. LED
5. Upper slot
6. Accessories
7. Transformer
8. Top cover
9. LED driver
10. Accessories
11. Switch
12. Power cable
13. Protective mesh
14. Bottom lid
15. Collection tray

IKN920/921 DESCRIPTION:

1. Outer cover
2. HV grids supporter
3. HV transformer
4. LED panel
5. LED drive
6. Power cord
7. Collection tray
8. HV grids

CLEANING AND MAINTENANCE:

Before emptying the tray, remove the plug from the wall socket. If there are insects present on the mesh, they must be removed with a soft brush. Due to safety during cleaning do not use any liquids, even water! To empty the tray, remove it, the tray is located at the bottom of the device.

The device's area of operation depends on different conditions and the room in which it is used. It must not be partitioned by walls or other barrier elements that reduce the operating range of the device. Work time of the fluorescent lamps: up to 20,000 hours.

Specification:

• for indoor use
• A special UVA lamp for better insect attracting
• safe for humans and animals (works without chemicals, does not emit harmful substances)
• quiet operation,
• solid construction made of metal and high quality fireproof ABS plastic,
• easier removal of insects through a detachable tray

TECHNICAL DATA:

Model Lamp		Supply voltage	Grid voltage V	Power consumption	Working area	Dimensions
				Watt (m2)	cm
IKN910	JVA LED 230V~5	0Hz 4000 11	50 33 x 10	x 26.3
IKN911	JVA LED 230V~5	0Hz 4000 13	00 47 x 10	x 26.3
IKN920	UVA LED	230V~50Hz	2500	6	100	30.5 x 10.8 x 26
IKN921	JVA LED 230V~5	0Hz 2500	8	200 45 x	10.8 x 26
