LB410 - Food storage box N'oveen - Free user manual and instructions

Product Type	Electric Lunch Box
Brand	N'oveen
Model	LB410
Power Supply	230V AC (mains) / 12V DC (car adapter included)
Power Consumption	40W
Main Container Capacity	1.1 L (stainless steel)
Additional Container Capacity	0.5 L (plastic with lid)
Main Container Material	Stainless steel (inox)
Body Material	Plastic (BPA-free)
Sealing Ring Material	Silicone
Heating Element	Flat heating element with PTC thermostat
Heating Time	20-30 minutes to reach 60°C (depending on food amount and ambient temperature)
Closure Type	4 latches (secure transport)
Handle	Foldable, integrated into lid
Ventilation	Venting valve (open when heating, closed during transport)
Power Indicator	Yes (lights when connected to power)
Included Accessories	Spoon, thermal bag, detachable power cable, 12V adapter, additional 0.5L container
Cleaning	Removable containers dishwasher safe; body wipe with damp cloth; do not immerse in water
Safety Features	Thermostat with PTC element, overheat protection, BPA-free materials
Use	For heating pre-cooked food at home, office, or in car (12V)

Frequently Asked Questions - LB410 N'oveen

How do I heat food in the LB410 lunch box?

Fill the removable container with food and place it in the device body. Close the lid with the latches. Make sure the venting valve is open (press the rubber element so edges rise) for heating. Connect the power cable to the socket and plug into a power source (230V mains or 12V car adapter). The power indicator will light up. The food will heat in 20-30 minutes. After heating, disconnect the power, close the valve if transporting, and enjoy.

Can I put the entire lunch box in the microwave or refrigerator?

No, do not place the entire device in a microwave or refrigerator. Only the removable containers can be heated separately in a microwave (check if marked microwave-safe) or refrigerated. The heating body and lid are electrical components and must not be immersed or microwaved.

How should I clean the lunch box?

Clean immediately after use to avoid odors. The removable containers are dishwasher safe. For the body and lid, use a soft cloth with warm water and mild detergent. Do not use abrasive cleaners, scouring pads, or immerse the device body in water. Ensure the power socket cover is closed before cleaning.

What is the capacity of the lunch box?

The main container has a capacity of 1.1 liters (stainless steel). There is also an additional 0.5 liter plastic container with a lid, perfect for sauces or salads. The total capacity allows for a generous meal.

Can I use the LB410 in my car?

Yes, the LB410 (part of LB4 series) includes a 12V car adapter. Simply connect the 12V power cable to the socket on the device and plug the adapter into your car's cigarette lighter socket. The heating time may be slightly longer due to lower power, but it works perfectly for road trips.

How long does it take to heat the food?

It typically takes 20-30 minutes to reach 60°C, depending on the amount and initial temperature of the food as well as ambient temperature. If food is from the refrigerator or it's cold, extend the heating time. The device should not be left on for more than the recommended period.

Is the lunch box safe to use?

Yes, it has multiple safety features: thermostat with PTC element for temperature control, overheat protection, BPA-free materials, and a design that prevents electrical hazards if used correctly. Always follow the safety instructions: do not use near flammable materials, keep ventilation open during heating, and unplug before cleaning.

Can I wash the stainless steel container in the dishwasher?

Yes, the removable stainless steel container (1.1L) and the additional plastic container (0.5L) are both dishwasher safe. However, the lid, body, and electrical components must be wiped clean with a damp cloth and not submerged.

What should I do if the lunch box does not heat up?

First, check that the power cord is properly connected to the device and the wall outlet or car adapter. Ensure the power indicator is lit. If not, check if the outlet is working. If the indicator is on but no heat, the heating element may be damaged; contact the manufacturer or service center. Do not attempt self-repair, as it voids warranty.

How should I store the lunch box when not in use?

Clean and dry the device thoroughly. Close the lid and secure the latches. The handle can be folded into the lid for compact storage. Place the device in the included thermal bag or in a cool, dry place. Store the detachable cable separately. Make sure the power socket cover is closed to protect it.

USER MANUAL LB410 N'oveen

Three colorful electric food containers with green and pink designs, displayed side by side (no visible text or symbols)

• LUNCH BOX NOVEEN 12/230 Volt LB410 GREY, LB420 MINT, LB430 DARK BLUE

Three types of electric food containers with green, gray, and blue coloring (no visible text or symbols)

LUNCH BOX NOVEEN 12/230 Volt LB510 GREY, LB520 BLUE

Two white and blue electric food containers (no visible text or symbols)

POLSKI....s.7

ENGLISH....p. 12

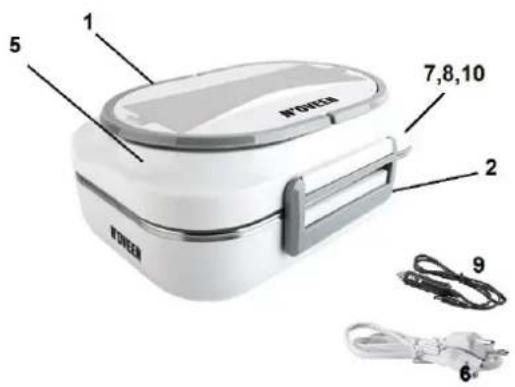

ENGLISH: 1. Spoon cover, 2. Handle, 3. Lunch Box Cover, 4. Silicone sealing ring, 5. Fastener, 6. Stainless steel food plate, 7. Power indicator

Thank you for purchasing our product.

Thank you for purchasing our product. Before use, read the instruction manual provided with it. Keep this manual in case you need to use it again. We believe that the Lunch Box will bring comfort and convenience to you and your family thanks to its excellent functionality. If necessary, we encourage you to contact us or our service outlets, we will be happy to help you!

You can find more Noveen brand products at www.noveen.pl

Read all safety information before use and keep this user manual for later reference

1. Never disassemble the device housing without consulting qualified personnel.
2. If the power cord or other component is damaged, it must be replaced by the manufacturer, service representative or qualified person to avoid any danger. A self-repair attempt will result in warranty loss.
3. Check if the rated voltage is the same as the voltage you are using.
4. Do not use near flammable materials.
5. Do not touch the power plug with wet hands - risk of electric shock.
6. Only professional service personnel can repair the device.
7. Do not heat the food for longer than the period indicated by the producer.
8. Do not place the device in a microwave oven or refrigerator, only the containers can be heated or cooled separately.
9. In the event of an unusual odor during normal operation, turn off the device, disconnect the power supply and contact the service center.
10. Never turn the device on when there is no food in the container
11. Unplug the appliance before cleaning and maintaining it.
12. This device is meant to be operated by adults, or under their supervision.
13. In case of any doubts as to the full efficiency of the device, contact the service center.

Note: The ventilation opening must be open when connected to electricity.

Note: During the operation of the device, and after heating, the food in the container may be hot - be careful, avoid burns.

FIRST USE

Remove the lunch box from the packaging, clean the containers, covers and gasket. Dry and wipe the device before use. Never immerse device body in water.

DEVICE DESCRIPTION - detailed description

COVER

HANDLE - used in transport of the Lunch Box, handle can be hidden in the lid's body, making the container easier to store.

LATCH - the device has 4 latches (LB5 2 latches) by which the container can be closed and moved safely, without worrying that the content of the Lunch Box will get out.

SPOON CONTAINER AND SPOON (LB3, LB4 series) CUTLERY STORE (LB5 series) - there is a lockable place for a spoon and a spoon in the lid's body. You do not have to worry about cutlery wherever you are.

VENTILATION OPEN (LB3, LB4 series) - the excess of warm air escapes during operation.

VENTING VALVE (LB3, LB4 series) - opened (during heating) and closed (during transport).

WARNING (LB3, LB4 series) - Indicates that the vent must be open and the user should add some water to the box before heating the food so that the device can run smoothly.

SILICONE GASKET - prevents liquid food from leaking outside

BODY AND EQUIPMENT

REMOVABLE CONTAINER - Plastic container (LB3 series), inox (LB4 series) with a capacity of 1.1l, 3 chamber 1l INOX container (LB5 series) can be removed from the body so you can wash it in the dishwasher, or consume food from it, without having a plate or bowl. The container (LB3 series) has two chambers, so you can carry two different food types, without the possibility of mixing.

REMOVABLE CONTAINER 0.5l and COVER (LB3, LB4 series) - A plastic, removable container with a capacity of 0.5l with lid, perfectly matching one of the parts of a large container. The container does not move around the Lunch Box and its closing guarantees no penetration of odors from the large chamber. Intended for sauces, salads etc.

CONTAINER - It is an integral part of the device, you can not carry food in it. It is used to heat the remaining containers by a flat heating element on its bottom for equal heat distribution.

POWER SOCKET, CABLE - The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or stored in the bag (included).

POWER SOCKET 12V, CABLE (LB4, LB5 series)- The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or

stored in the bag (included).

The set includes a personalized thermal bag, which helps in easy device transport.

POWER SUPPLY COVER - When transporting or storing the device, you can close the socket with a lid to protect the socket.

POWER INDICATOR - After connecting the device to mains socket, the indicator on the device will turn on.

DESCRIPTION:

• 230 volt mains power supply
• 12 volt power supply (LB4, LB5 series) - adapter included
• High power of 40 watts
• Comfortable meals heating in short time: 60 degrees in 20-30 minutes!

- Removable containers, easy to wash in the dishwasher: - main container plastic (LB3 series), inox (LB4, LB5 series) - an additional 0.5 liter container with a cap; e.g. for soup, sauce (LB3, LB4 series)

- Additional storage for a spoon (spoon provided LB3, LB4 series), cutlery (metal spoon and fork included LB5 series)

- Foldable handle for easy carrying

- Lid with clips for easy closing

- Power indicator

- Unique heating structure, homogeneous distribution of temperature.

- Thermostat with PTC element, better safety

- Container made of a special BPA-free material

- Unbreakable and resistant to high temperatures material

Note: The heating time depends on the amount of food, food temperature and ambient temperature.

- Food can be consumed 20-30 minutes after turning the power on at an ambient temperature of 25^ . (depends on the type of heated meal)

- The heating time should be increased if the ambient temperature is low or the food has been removed from the refrigerator.

- Separate the containers before eating food.

OPERATING THE DEVICE:

Remember to use the device in accordance with the manufacturer's recommendations. Make sure that the device is properly cleaned before use and has no signs of damage. If you have any doubts about the technical condition - contact the service.

1. Place the device on a flat surface,
2. To remove the cover (5), release the four latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series).
3. Fill the containers with food, place the containers in the body of the device.
4. Close the lid (5) with latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series), make sure that the food does not come out.
5. Device should be transported so that the lid is always on top.
6. To start the device and heat the contents, press the rubber venting element on the cover so that its edges rise (LB3, LB4 series).
7. Connect the power cable 220-240 V (6) to power socket (7) and the plug to electric socket. In case of 12V power supply (LB4 series) - insert 12V power cable (9) into socket (10) and the adapter to the cigarette lighter socket in the car.
8. After connecting to the power supply, the indicator (8) will light up.
9. After obtaining the desired temperature and pulling out the heated content, disconnect the power cord from the power supply.

Cleaning and maintenance

1. Wash the device immediately after use to avoid unpleasant odors.
2. Do not use scouring powders, hard or wire cleaning brushes
3. Put some warm water after use in a container or use a soft cleaning cloth.
4. Clean the Lunch Box and put it in the packaging if won't use it for a long time; place in a cool and dry place to avoid problems caused by moisture.
5. If there is any problem with the device, please contact our technical service department - do not try to repair the device by yourself.

TROUBLESHOOTING

Symptom	Cause	Remedy
Heater does not heat Heating lights is off	1. Power supply is not connected2. Power cord is damaged	Check the plug and socket, power cord is fine and connected
Heater does not heat Heating light is on	1. The heater is damaged	Maintenance department to repair
The food is still cold after heating	1. Heating time too short2. Low ambient temperature and low temperature of food	Extend the heating time
