Product Type	Electric Lunch Box / Food Storage Container
Brand	N'oveen
Model	LB310
Power Consumption	40 W
Voltage	220-240 V AC (mains)
Capacity	1.1 L (main container) + 0.5 L (additional container with lid)
Main Container Material	BPA-free plastic
Additional Container Material	BPA-free plastic
Heating Plate Material	Stainless steel
Sealing Ring Material	Silicone
Heating Time	Approximately 20-30 minutes to reach 60°C (depends on food quantity and ambient temperature)
Features	Removable containers, foldable handle, 4 latches for secure closure, power indicator, venting valve (must be open during heating), detachable power cable, thermal bag included, spoon and spoon cover included
Safety Features	PTC thermostat for overheat protection, ventilation opening to release steam, silicone gasket to prevent leaks
Cleaning & Maintenance	Removable containers dishwasher safe; body and lid wipe clean with damp cloth; do not immerse device body in water
Included Accessories	Removable 0.5 L container with lid, spoon, spoon cover, detachable power cable, thermal carrying bag
Additional Information	Not suitable for microwave or refrigerator (only containers can be heated/cooled separately); do not use without food inside

Frequently Asked Questions - LB310 N'oveen

How long does it take to heat food in the N'oveen LB310?

Heating typically takes 20-30 minutes to reach around 60°C, depending on the amount and initial temperature of the food. For refrigerated food or colder ambient temperatures, increase the heating time.

Can I put the N'oveen LB310 in the microwave or dishwasher?

Do not place the entire device in a microwave or dishwasher. However, the removable plastic containers (both 1.1L and 0.5L) are dishwasher safe. The outer body and lid should be wiped clean with a damp cloth.

Is the N'oveen LB310 suitable for use in a car?

No, the LB310 model operates only on 220-240 V AC mains power. It does not have a 12V adapter. For car use, consider the LB4 or LB5 series which include a 12V cigarette lighter adapter.

How do I use the venting valve on the lid?

Before heating, press the rubber venting element so that its edges rise, opening the vent. This allows steam to escape. After heating, close the vent by pressing it down before transporting. Always keep the vent open during operation to avoid pressure buildup.

Can I heat liquids like soup or sauce?

Yes, the main container and the additional 0.5L container with lid are suitable for liquids. Make sure the silicone gasket is properly seated to prevent leaks. Also, open the vent during heating to release steam.

What materials are used in the N'oveen LB310?

The main and additional containers are made of BPA-free plastic. The heating plate is stainless steel, and the sealing ring is silicone. The outer body is plastic.

How should I clean the N'oveen LB310?

After use, wash the removable containers in warm soapy water or in the dishwasher. Wipe the device body, lid, and heating plate with a soft damp cloth. Do not use abrasive cleaners or scouring pads. Dry thoroughly before storage.

What should I do if the device does not heat up?

First, check that the power cable is securely connected to both the device and the wall socket. Ensure the power indicator light is on. If the light is on but no heat, the heating element may be faulty - contact customer service. If the light is off, the cable or socket may be damaged.

Can I freeze the containers of the N'oveen LB310?

Yes, the removable plastic containers can be placed in a freezer. However, do not put the entire device or the body in the freezer. When ready to heat, transfer the frozen container into the device and heat as usual, increasing the heating time.

Is the N'oveen LB310 safe for children to use?

The device should be operated by adults or under adult supervision. The food and surfaces can become hot during use. Keep out of reach of young children to avoid burns. Supervise older children if they use it.

USER MANUAL LB310 N'oveen

Three colorful electric food containers with green and pink designs, displayed side by side (no visible text or symbols)

• LUNCH BOX NOVEEN 12/230 Volt LB410 GREY, LB420 MINT, LB430 DARK BLUE

Three types of electric food containers with green, gray, and blue coloring (no visible text or symbols)

LUNCH BOX NOVEEN 12/230 Volt LB510 GREY, LB520 BLUE

Two white and blue electric food containers (no visible text or symbols)

POLSKI....s.7

ENGLISH....p. 12

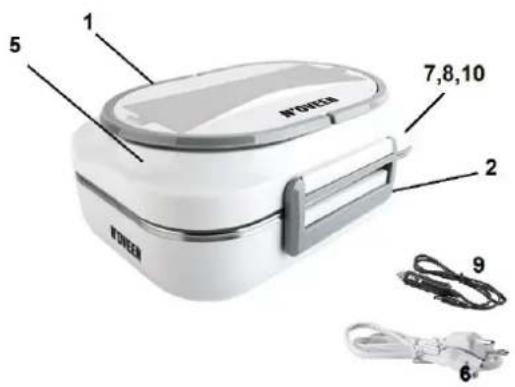

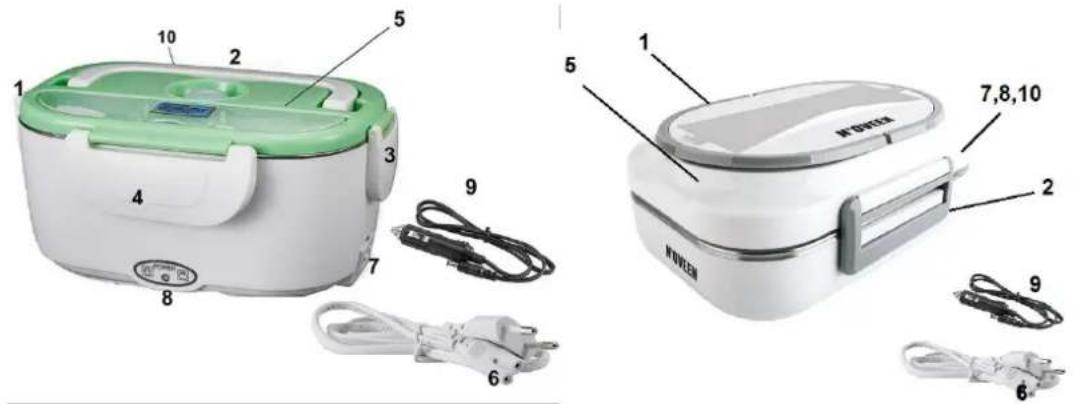

ENGLISH: 1.Spoon cover, 2.Handle, 3.Lunch Box Cover, 4.Silicone sealing ring, 5.Fastener, 6.Stainless steel food plate, 7.Power indicator

Thank you for purchasing our product.

Thank you for purchasing our product. Before use, read the instruction manual provided with it. Keep this manual in case you need to use it again. We believe that the Lunch Box will bring comfort and convenience to you and your family thanks to its excellent functionality. If necessary, we encourage you to contact us or our service outlets, we will be happy to help you!

You can find more Noveen brand products at www.noveen.pl

Read all safety information before use and keep this user manual for later reference

1. Never disassemble the device housing without consulting qualified personnel.
2. If the power cord or other component is damaged, it must be replaced by the manufacturer, service representative or qualified person to avoid any danger. A self-repair attempt will result in warranty loss.
3. Check if the rated voltage is the same as the voltage you are using.
4. Do not use near flammable materials.
5. Do not touch the power plug with wet hands - risk of electric shock.
6. Only professional service personnel can repair the device.
7. Do not heat the food for longer than the period indicated by the producer.
8. Do not place the device in a microwave oven or refrigerator, only the containers can be heated or cooled separately.
9. In the event of an unusual odor during normal operation, turn off the device, disconnect the power supply and contact the service center.
10. Never turn the device on when there is no food in the container
11. Unplug the appliance before cleaning and maintaining it.
12. This device is meant to be operated by adults, or under their supervision.
13. In case of any doubts as to the full efficiency of the device, contact the service center.

Note: The ventilation opening must be open when connected to electricity.

Note: During the operation of the device, and after heating, the food in the container may be hot - be careful, avoid burns.

FIRST USE

Remove the lunch box from the packaging, clean the containers, covers and gasket. Dry and wipe the device before use. Never immerse device body in water.

DEVICE DESCRIPTION - detailed description

COVER

HANDLE - used in transport of the Lunch Box, handle can be hidden in the lid's body, making the container easier to store.

LATCH - the device has 4 latches (LB5 2 latches) by which the container can be closed and moved safely, without worrying that the content of the Lunch Box will get out.

SPOON CONTAINER AND SPOON (LB3, LB4 series) CUTLERY STORE (LB5 series) - there is a lockable place for a spoon and a spoon in the lid's body. You do not have to worry about cutlery wherever you are.

VENTILATION OPEN (LB3, LB4 series) - the excess of warm air escapes during operation.

VENTING VALVE (LB3, LB4 series) - opened (during heating) and closed (during transport).

WARNING (LB3, LB4 series) - Indicates that the vent must be open and the user should add some water to the box before heating the food so that the device can run smoothly.

SILICONE GASKET - prevents liquid food from leaking outside

BODY AND EQUIPMENT

REMOVABLE CONTAINER - Plastic container (LB3 series), inox (LB4 series) with a capacity of 1.1l, 3 chamber 1l INOX container (LB5 series) can be removed from the body so you can wash it in the dishwasher, or consume food from it, without having a plate or bowl. The container (LB3 series) has two chambers, so you can carry two different food types, without the possibility of mixing.

REMOVABLE CONTAINER 0.5l and COVER (LB3, LB4 series) - A plastic, removable container with a capacity of 0.5l with lid, perfectly matching one of the parts of a large container. The container does not move around the Lunch Box and its closing guarantees no penetration of odors from the large chamber. Intended for sauces, salads etc.

CONTAINER - It is an integral part of the device, you can not carry food in it. It is used to heat the remaining containers by a flat heating element on its bottom for equal heat distribution.

POWER SOCKET, CABLE - The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or stored in the bag (included).

POWER SOCKET 12V, CABLE (LB4, LB5 series)- The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or

stored in the bag (included).

The set includes a personalized thermal bag, which helps in easy device transport.

POWER SUPPLY COVER - When transporting or storing the device, you can close the socket with a lid to protect the socket.

POWER INDICATOR - After connecting the device to mains socket, the indicator on the device will turn on.

DESCRIPTION:

• 230 volt mains power supply
• 12 volt power supply (LB4, LB5 series) - adapter included
• High power of 40 watts
• Comfortable meals heating in short time: 60 degrees in 20-30 minutes!

- Removable containers, easy to wash in the dishwasher: - main container plastic (LB3 series), inox (LB4, LB5 series) - an additional 0.5 liter container with a cap; e.g. for soup, sauce (LB3, LB4 series)

- Additional storage for a spoon (spoon provided LB3, LB4 series), cutlery (metal spoon and fork included LB5 series)

- Foldable handle for easy carrying

- Lid with clips for easy closing

- Power indicator

- Unique heating structure, homogeneous distribution of temperature.

- Thermostat with PTC element, better safety

- Container made of a special BPA-free material

- Unbreakable and resistant to high temperatures material

Note: The heating time depends on the amount of food, food temperature and ambient temperature.

- Food can be consumed 20-30 minutes after turning the power on at an ambient temperature of 25^ . (depends on the type of heated meal)

- The heating time should be increased if the ambient temperature is low or the food has been removed from the refrigerator.

- Separate the containers before eating food.

OPERATING THE DEVICE:

Remember to use the device in accordance with the manufacturer's recommendations. Make sure that the device is properly cleaned before use and has no signs of damage. If you have any doubts about the technical condition - contact the service.

1. Place the device on a flat surface,
2. To remove the cover (5), release the four latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series).
3. Fill the containers with food, place the containers in the body of the device.
4. Close the lid (5) with latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series), make sure that the food does not come out.
5. Device should be transported so that the lid is always on top.
6. To start the device and heat the contents, press the rubber venting element on the cover so that its edges rise (LB3, LB4 series).
7. Connect the power cable 220-240 V (6) to power socket (7) and the plug to electric socket. In case of 12V power supply (LB4 series) - insert 12V power cable (9) into socket (10) and the adapter to the cigarette lighter socket in the car.
8. After connecting to the power supply, the indicator (8) will light up.
9. After obtaining the desired temperature and pulling out the heated content, disconnect the power cord from the power supply.

Cleaning and maintenance

1. Wash the device immediately after use to avoid unpleasant odors.
2. Do not use scouring powders, hard or wire cleaning brushes
3. Put some warm water after use in a container or use a soft cleaning cloth.
4. Clean the Lunch Box and put it in the packaging if won't use it for a long time; place in a cool and dry place to avoid problems caused by moisture.
5. If there is any problem with the device, please contact our technical service department - do not try to repair the device by yourself.

TROUBLESHOOTING

Symptom	Cause	Remedy
Heater does not heat Heating lights is off	1. Power supply is not connected2. Power cord is damaged	Check the plug and socket, power cord is fine and connected
Heater does not heat Heating light is on	1. The heater is damaged	Maintenance department to repair
The food is still cold after heating	1. Heating time too short2. Low ambient temperature and low temperature of food	Extend the heating time
