Product Type	Electric Lawn Mower
Model	HYM3313E
Brand	Hyundai
Power Source	Corded Electric
Motor Power	1300 W
Cutting Width	33 cm
Cutting Height Range	20 – 60 mm
Cutting Height Adjustment	Centralized, 6 positions
Grass Collector Capacity	40 L
Mowing Mode	Mulching, rear discharge, grass collection
Handle Type	Folding, ergonomic
Wheel Size	Front: 180 mm, Rear: 230 mm
Sound Power Level (LwA)	96 dB(A)
Vibration Level (ah)	4.6 m/s²
Safety Features	Double switch system, motor brake, cable holder
Protection Class	IPX1
Dimensions (L x W x H)	800 x 450 x 400 mm
Weight	12.5 kg
Replacement Parts Availability	Blade, grass bag, handle parts
Maintenance	Clean after use, sharpen blade annually

Frequently Asked Questions - HYM3313E HYUNDAI

How do I adjust the cutting height on the Hyundai HYM3313E?

The cutting height is adjusted centrally using a lever on the mower deck. There are 6 positions ranging from 20 mm to 60 mm. Always turn off the mower and wait for the blade to stop before adjusting.

What type of extension cord should I use with this electric lawn mower?

Use a heavy-duty outdoor extension cord rated for at least 1300 W (10 A). The cord should be no longer than 30 meters to avoid voltage drop. Ensure the cord has a grounded plug and a cable holder to prevent disconnection.

How do I empty the grass collector?

To empty the grass collector, stop the mower and unplug the power cord. Lift the discharge flap and remove the grass bag by its handle. Empty the bag into a compost bin or waste container. Reattach the bag securely before resuming mowing.

Can I use the Hyundai HYM3313E for mulching?

Yes, the mower supports mulching. To mulch, remove the grass collector and insert the mulch plug (if provided) into the discharge chute. Mulching recycles grass clippings into fine particles that fertilize the lawn.

What maintenance does the blade require?

The blade should be sharpened at least once per mowing season. Remove the blade by tilting the mower on its side (fuel tank empty for petrol models, but for this electric mower ensure it is unplugged). Use a file or grinder to sharpen the cutting edge. Balance the blade before reinstalling. Replace if damaged.

How do I start the mower?

The Hyundai HYM3313E has a safety start system. First, plug the mower into a power outlet. Hold down the safety button on the handle, then pull the bail lever towards the handle. Release the safety button and keep the bail lever pressed to continue operation. Release the bail lever to stop the motor.

What should I do if the mower vibrates excessively?

Excessive vibration usually indicates an unbalanced or damaged blade. Stop the mower immediately and unplug it. Check the blade for damage or imbalance. Clean any debris from the blade and shaft. If the blade is bent or worn, replace it. Also check that all nuts and bolts are tight.

How do I store the lawn mower during winter?

Clean the mower thoroughly, especially the underside and grass discharge chute. Remove any grass clippings. Store in a dry, frost-free place. Fold the handle to save space. For corded models, coil the power cord loosely. Consider applying a light oil to the blade to prevent rust.

Is the grass collector easy to attach and remove?

Yes, the 40 L grass collector is designed for quick attachment. Lift the rear discharge flap and hook the bag onto the chute. Ensure it clicks into place. To remove, lift the flap and unhook the bag. The bag has a handle for easy carrying.

What is the warranty period for the Hyundai HYM3313E?

Hyundai typically offers a 2-year warranty for domestic use. For commercial use, the warranty may be reduced to 1 year. Warranty covers manufacturing defects but not wear parts like blades or grass bags. Register your product on the Hyundai website to activate warranty.

USER MANUAL HYM3313E HYUNDAI

Electric Lawn Mower HYM3313E

Instruction Manual

GENUINE PRODUCT OF HYUNDAI CORPORATION

Line drawing of a lawn mower with attached bucket, shown in isometric view (no text or symbols)

Contents

Introduction......3

Safety Information....4-13

Understand Your Machine......4

Personal Safety......4-5

Inspect Your Machine....5

Work Area....6

During Use....7

Vibrations....8

Noise....8

Residual Risks....8

Electricity....9

Double Insulated Devices....10

Lawnmower Specific Safety......10

Personal Protective Equipment .....11

Symbols on the Machine......12

Intended Use....13

Unboxing....14

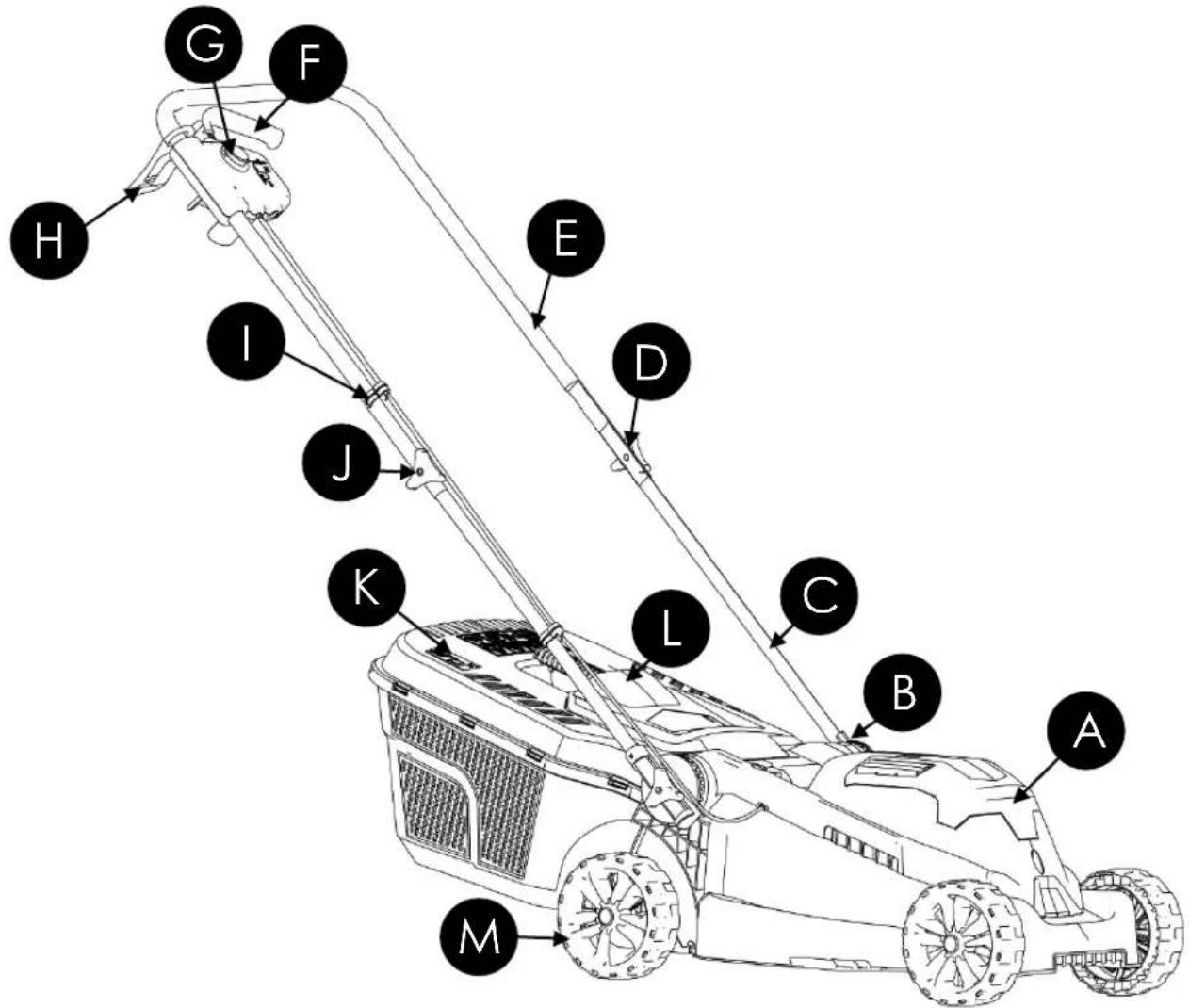

Features....15

Assembly....16-20

Assembly Safety....16

Lower Handles....16

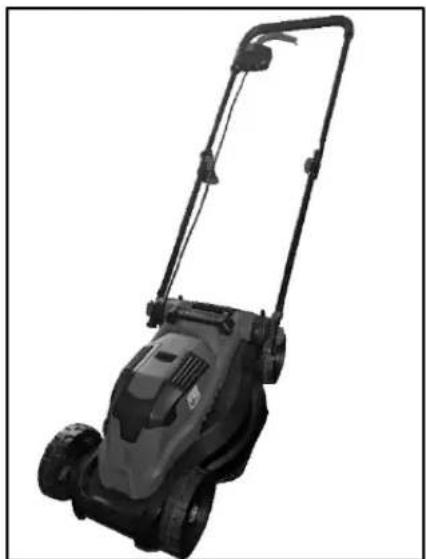

Upper Handles....17

Handle Position Adjustment......17

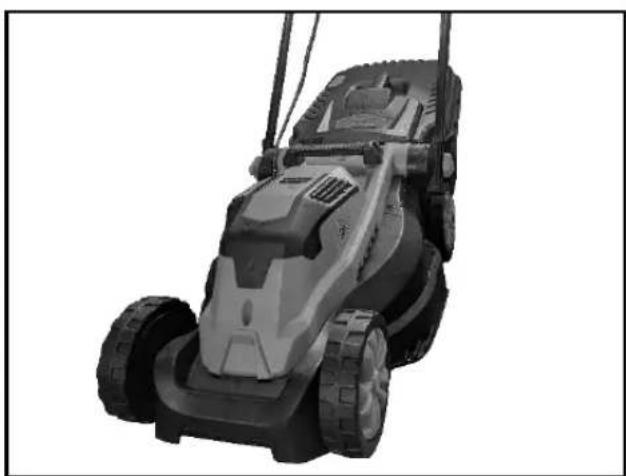

Grass Collection Box....18

Power Cable....19

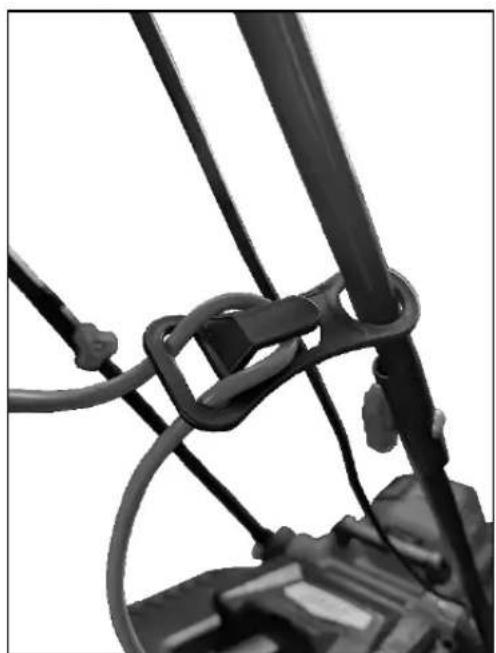

Cable Strain Reliever....19

Cable Clips....20

Operation....21-23

Starting....21

Stopping....21

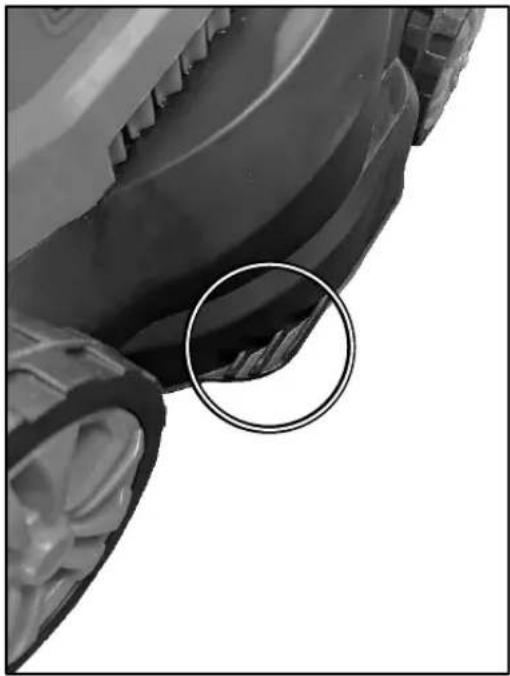

Mower Deck Grass Fins......21

Cutting Height Adjustment......22

Grass Indicator....23

Collection Box Emptying....23

Lawn Care....24

Maintenance & Care....25-32

General Maintenance....25

Replacement Parts/Spares Info......26

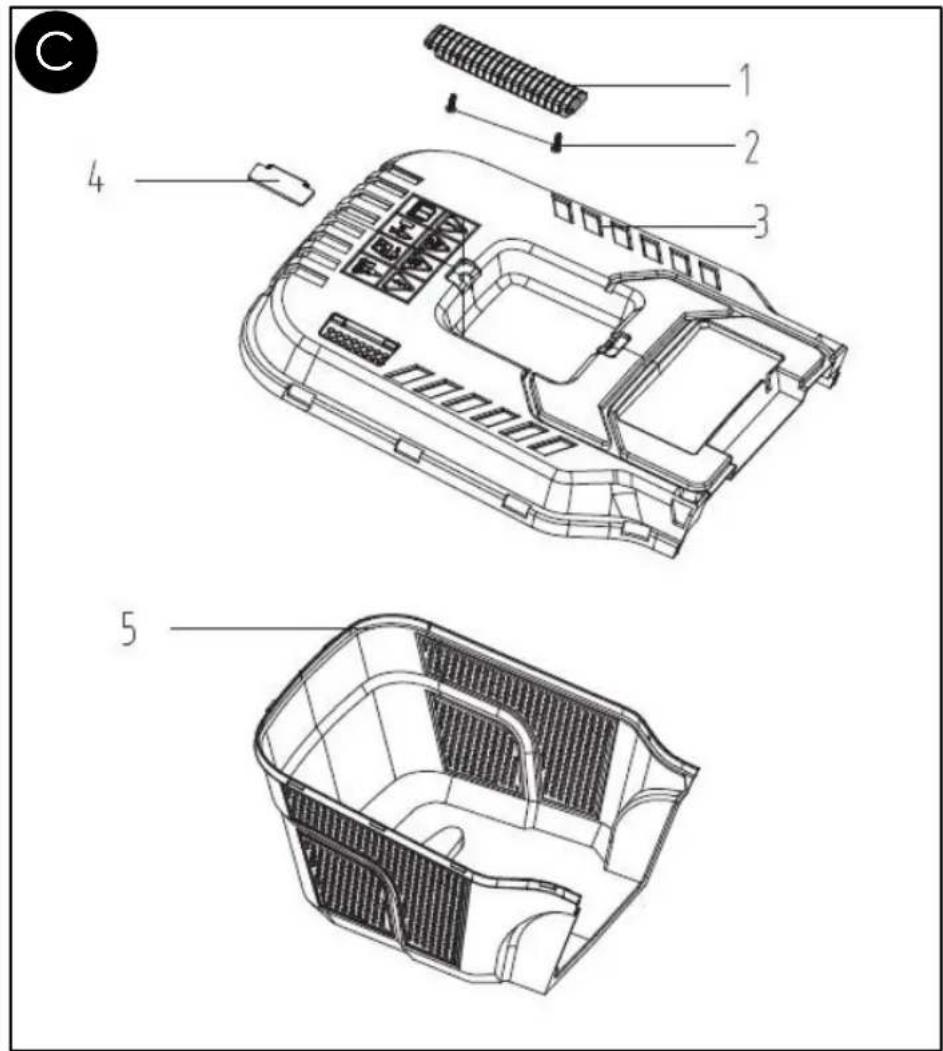

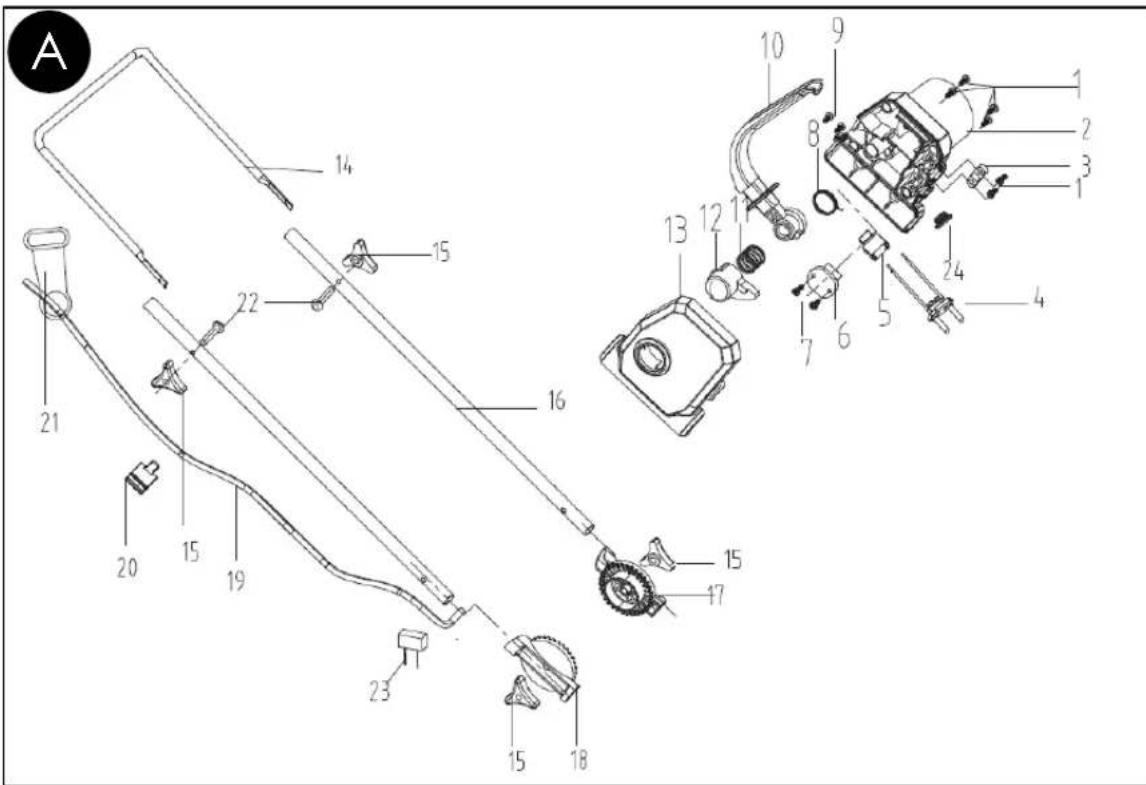

Exploded Parts Diagrams & Lists.....27-30

Blade Maintenance....31

Cleaning....31

Troubleshooting....32

Technical Data....33

Machine Specification....33

Recycling And Disposal....34

Declaration Of Conformity....35

Useful Information......36

Our YouTube Channel......36

Warranty....36

Manual Updates....36

Returning Your Product......36

Leaving A Review....36

Ordering Spare Parts....36

Product Record....37

Notes......38

Contact Us....39

Introduction

Thank You For Purchasing Your HYUNDAI Product

We work very hard to give all of our customers the best possible service. If you have any problems, before leaving negative feedback, please contact us to give us a chance to resolve the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this product.

Important!

WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user.

This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.

The safety precautions and warnings are to ensure your safety and protect you from harm or damage to the product.

The information contained in this manual was accurate at the time of production, however HYUNDAI Power Products may make modifications to the product without notification.

Safety Information

Understand Your Machine

• WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations and potential hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or sold, always provide this manual and any needed safety training before operation. The user can prevent and is responsible for accidents or injuries that may occur to themselves, to other people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your application.
• Know how to stop the machine quickly in case of emergency. Understand the use of all controls.

Personal Safety

• ALL MAINTENANCE other than that listed in this manual, should be carried out by professionally trained and certified personnel.
• WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area. Be alert and shut off the unit if anyone enters work area. Keep children under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine. Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or any substances which may slow your reflexes and compromise judgment. A moment of inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers while using the machine. Do not use the machine when barefoot, wearing sandals or similar lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be thrown from the unit. Always wear safety goggles or safety glasses with side shields when operating.

Safety Information

Personal Safety (Continued)

• Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts.
  • Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. Extending your body too far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected events involving the machine that occur to other people or their property. It is the responsibility of the user to assess the potential risk of the area where work is being carried out. The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes or rough, slippery and unstable ground.
• Always keep a safe distance from the rotary blade, given by the length of the handle.

⚠️ Inspect Your Machine

• Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it. Do not use the machine if the machine's switch does not turn off when running.

Safety Information

Work Area

• Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the machine (branches, stones, wire, toys, etc.). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility conditions. Keep people, children and animals away from the working area. Distractions can cause you to lose control.
• Operate on flat, level ground.
• Use the unit in dry conditions only. Protect it from rain and moisture. If there has been heavy rain on the working site, wait until the ground has dried up.
• Never park the machine in a place with unstable ground which could give way.
• You must pay special attention when approaching obstacles that could compromise visibility.
• When mowing on slopes, you must mow across the slope and not up and down it. When changing direction, you need to be careful that the wheels do not hit any obstacles (such as roots, branches, stones, etc.) that can cause the lawnmower to slide sideways or make you lose control of it. Make sure on slopes you have a steady foothold.
• The lawnmower must never be used on slopes of over 20^ , regardless of the mowing direction.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves, bases for washing lines etc. Make sure that you check for hidden electrical cables or similar on the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run the machine over foreign objects.
• Pay the utmost attention when working on frozen ground as the machine may tend to skid.
• Do not work in the rain or when there is a thunderstorm or lightning risk. If there is bad weather conditions, do not use the machine.
• Never run over gravel while the motor is running. There is a risk of being hit by stones.
• Switch the lawnmower off before tilting or transporting it, e.g. from/to lawn or over paths

Safety Information

During Use

• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
- Be aware that the machine may unexpectedly bounce upward or jump forward if the machine should strike buried obstacles such as large rocks or roots. Maintain a safe distance as provided by the handle frame.
- Walk, never run with the machine.
- Use extreme caution when in reverse or pulling the machine towards you.
- Do not operate the machine in confined areas where there may be a risk of trapping the operator between the machine and another object.
- Be very careful when pulling the machine toward you. You must look behind you to make sure there are no obstacles.
- Do not allow the machine to pull you along, you must walk and never run..
- WARNING! If something breaks or an accident happens whilst working, you must turn off the machine immediately and move the machine away to prevent further damage. If an accident happens with injuries or third parties are injured, carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not be seen.
- Do not switch on the motor until your feet are at a safe distance from the blade. Be careful and never reach into the rotating blade.
- Ensure that you have a firm footing and mow slowly. Be particularly careful when changing direction. There is a risk of tripping!
- The excessive speed of movement or the absence of maintenance have a significant influence on noise emissions and vibrations. It is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration. You must maintain the machine well, wear ear protection and take breaks from working.
- Never open the discharge flap while the motor is running.
- Do not tilt the lawnmower when switching on the motor. If the lawnmower is running, do not lift whilst the motor is running either.
- Stop the machine and allow all moving parts stop before removing the grass collection box or adjusting the cutting height.
- After striking a foreign object, you must inspect the machine for damage and make repairs before using it again. Any inspection or repairs must be carried out with the machine unplugged.
- After emptying the grass catcher, carefully re-attach it and ensure that the grass catcher is attached securely to the lawnmower.
- Do not switch on the unit if there are persons (particularly children) or animals in the immediate vicinity. Ensure that children do not play with the unit. Stop working if you notice that persons (particularly children) or pets are nearby. When stopping work, never leave the unit unattended and keep it in a safe place.
- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch invites accidents

Always ensure the machine is unplugged from the power source and all moving parts are stationary before:

• Checking or working on the machine.
• Cleaning the machine.
• Before clearing blockages or unclogging the discharge chute.
• When lifting or transporting the machine.
• Whenever you leave the machine unattended.
  • If the unit starts vibrating excessively.

Safety Information

! Vibrations (Where Applicable)

• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud's phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other diseases that affect blood vessels and blood circulation as well as large and long-lasting impact of shocks are considered factors in the formation of white finger. Note the following to reduce the risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
  • Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur.

⚠ Noise (Where Applicable)

• The operating noise of the machine can damage your hearing. When wearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and for certain periods. Limit the working time to a minimum. For your personal protection and protection of people working nearby it is also advisable for them to wear hearing protection.

See Certificate of Conformity section for Outdoor Noise declaration of conformity.

!Residual Risks

Even when tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool's construction and design:

1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.

Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.

▲WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

Electricity (Where Applicable)

DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT.

• Prior to carrying out any maintenance work you MUST identify electrical tion methods and isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all

electrical cables, plugs and connectors for the following;

• Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts and loose wiring.
• If there are any signs of damage, the damaged item MUST be taken out of service until the damage has been repaired by an electrically competent person.
• All trailing cables should be routed so as not to cause any kind of trip hazard.

• NEVER work on or near electricity with wet hands, wet clothing and wet gloves.

• Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• DO NOT expose this power tool to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. DO NOT abuse the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil and sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• IMPORTANT: Make sure that the electric circuit is fused, and that the power, voltage and frequency of the motor is supported by your mains supply. Also, make sure that your power supply is earthed. Connect your machine to earth. Never open the ON/OFF switchbox. However, if it should become necessary to do so, contact a qualified electrician. Make sure that you will never touch live contacts, specifically when you plug or unplug your machine. This machine and its power cord must never get into contact with water.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• To prevent electric shock, use only with an extension cord suitable for outdoor use. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable.
• Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
• Do not allow any part of the machine to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting. Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.
• Before use, check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. If the supply cord is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid a hazard.

Safety Information

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation are provided instead of grounding. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they replace.

Lawnmower Specific Safety

There's specific hazards and danger when using a lawn mower. These hazards are a result of using the machine within it's intended use. Additional hazards can result if the machine is not used correctly. These are but not limited to:

• Moving Blade Hazard – Due to the nature of the lawn mower, a rotational blade is part of it's operation. The user should NEVER tilt the machine during use, this will increase the chance of harm or injury.
• Projectile Hazard – Because of the high speed of the mower blade, the machine can propel small objects like rocks, sticks, toys and other debris which can be found in a garden environment. It's important to wear correct PPE to protect the body from these potential projectiles. You must keep this in mind when operating the machine with other persons present. They must be a safe distance away from the machine.
• Trip & Fall Hazard – Operating a lawn mower requires stability and balance during operation. Not every lawn is perfectly flat, so it’s important to be aware of the terrain as pushing a lawn mower can lead to losing balance. Trips and falls can lead to fractures, sprains and even head injuries. To prevent this wear suitable footwear, operate at a comfortable speed and be mindful of slippery and uneven surfaces.
• Physical Competency – A push mower requires a level of strength and coordination to maneuverer and control effectively. Insufficient capability can lead to accidents such as losing control of the mower or running over obstacles.

Personal Protective Equipment

Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection.

When selecting PPE, make sure it's CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. wearing safety glasses may disturb the seal of a respirator, causing air leaks.

Hand Protection Must Be Worn

Protective electrically non-conductive gloves are highly recommended when working.

Foot Protection Must Be Worn

Non-skid heavy duty footwear are highly recommended when working.

Hearing Protection Must Be Worn

Suitable safety hearing protection is recommended.

Eye Protection Must Be Worn

Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have only impact resistant lenses; they are not safety glasses/goggles.

Protective Clothing Must Be Worn

Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in moving parts.

Head Protection Must Be Worn

Wear a safety helmet with a safety visor.

Face Shield Must Be Worn

Wear a face shield to protect your face.

Safety Information

Symbols On The Machine

We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement.

Symbol Description Symbol Description

	Safety alert – Indicates a precaution, a warning or a danger.		Keep away from the danger area.
	Read operator's manual. Keep all bystanders and		animals at least 15 metres away from the machine during operation. If approached, stop the machine immediately.
	Hand protection must be worn Do		product to rain or wet conditions.
	Sharp blades can cut limbs. Keep hands and feet away		from cutting parts.
	This product should not be disposed of in domestic waste. Please contact your local recycling centre for disposal service.		This product complies with the European directives and an evaluation method of conformity for these directives was done
	The UKCA (UK Conformity Assessed) marking is a UK product marking that is required for goods being placed on the market in Great Britain (England, Wales and Scotland).

Safety Information

Intended Use

The HYM3313E is an electric lawnmower from HYUNDAI. The HYM3313E has a cutting width of 330mm and is powered by a 1300W Motor

The HYM3313E is a garden tool and precisely a pedestrian controlled lawnmower. The machine is essentially composed of a motor which drives a blade enclosed in a casing, equipped with wheels and a handle. The operator is able to operate the machine and use the main controls, always staying behind the handle at a safe distance from the rotating blade.

If the operator leaves the machine, the machine will stop within a few seconds.

The lawnmower is manufactured according to the latest safety requirements. These include a blade brake that stops the machine and blade when you let go of the OPC lever. Every precaution is only effective when it is followed exactly.

Intended Use

This machine was designed and manufactured for cutting and collecting grass in gardens and grassy areas, in areas in proportion to its cutting capacity, controlled by a pedestrian operator.

User Types

This machine is intended for use by consumers, i.e. non professional operators. The machine is intended for "DIY" and domestic use only.

This garden tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Never allow children or people unfamiliar with these instructions to use the garden tool.

Supervise children. This will ensure that children do not play with the unit.

Any other use is not as intended. Improper use is not covered by the warranty and the manufacturer will reject any liability. The user is liable for all injuries to third parties and damage to their property. Operate the unit only in the technical condition as stipulated and delivered by the manufacturer. Arbitrary changes to the unit will exclude the manufacturer from any liability for resulting injury and/or damage.

Improper Use

Any other usage not in keeping with the above mentioned ones may be hazardous and harm persons and/or damage things. Examples of improper use may include, but are not limited to:

-transporting people, children or animals on the machine

-letting yourself be transported by the machine

-using the machine to tow or push loads

-using the machine for leaf or debris collection

-using the machine to trim hedges, or cutting anything other than grass

-use of the machine by more than one person

-using the blade on surfaces other than grass

Unboxing

WARNING : Unboxing and assembling the machine should be done on a flat, surface with enough room. Disposal of the packaging should be done in accordance with the local regulations in force.
WARNING: Some of the packaging material may be harmful to children. Keep out of reach of children.

1. Carefully remove the product from the packaging and examine it for any sign of damage caused during shipping.
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.
3. You must keep the packaging material in case the machine needs to be returned or repaired.
4. Ensure that you have all the accessories and tools you need for assembly and operation including the suitable personal protective equipment.

We recommend that you fill out the information in the 'Product Record' section. If you need to contact an authorised dealer or customer service, you may need to provide this information.

Features

*Not To Scale

A. Main Body – The main deck of the machine, this houses the motor and the blade

B. Handle Position Adjustment Indicator – Shows Handle current angle

C. Lower Handle

D. Bolt

E. Upper Handle

F. Operator Presence Control Lever – A lever put into place for safety, to ensure no accidental operation

G. On/Off safety button

H. Cable Strain Reliever – helps support the power cable/

I. Cable Clip

J. Wing Nut

K. Grass Level Indicator Flap – When the grass collection box is full, the indicator flap will be closed.

L. Grass Collection Box

M. Wheel

Assembly

HYM3313E Assembly – Safety

CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation.

NOTE - Images may vary depending on model.

WARNING - Before assembly ensure the machine isn't plugged into a power source to avoid accidental starting.

HYM3313E Assembly – Lower Handles

1. Loosen the wingnut by turning it anti-clockwise. Do not remove the wingnut.
2. Move the lower handle toward the rear of the machine, and then tighten the wingnut by turning it clockwise.
3. Repeat on both sides.

Close-up of a hand using a screwdriver to adjust or install a mechanical component, no visible text or symbols.

Hand using a black-handled lawn mower to lift a lawn (no text or symbols visible)

Top-down view of a black lawn mower with extended blades and antenna (no text or symbols visible)

Assembly

HYM3313E Assembly – Upper Handle

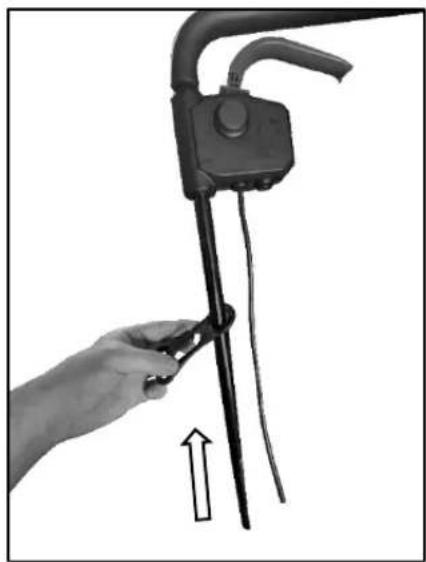

1. Place the Cable Reliever on Upper Handle (E) as shown below.

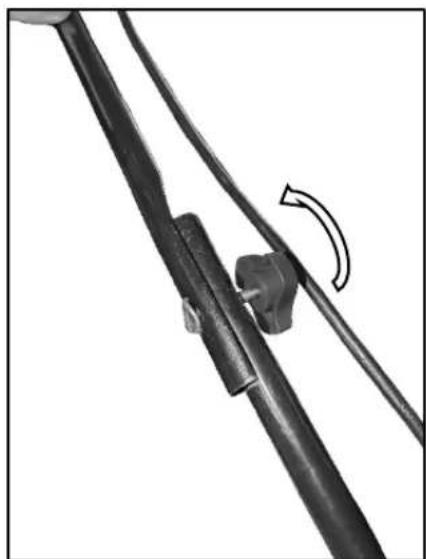

2. Secure the Upper handles (E) by placing a Bolt (D) through both the lower and upper handles. Secure with a Wing-Nut (H).

3. Your machine should look the same as below.

Hand holding a cable with a device attached, showing a right-hand rule to the cable (no text or symbols visible)

Close-up of a black metal rod with a white arrow pointing to a small component, attached to a wire (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Black lawn mower with adjustable arm and wheels (no text or symbols visible)

HYM3313E Handle Position Adjustment

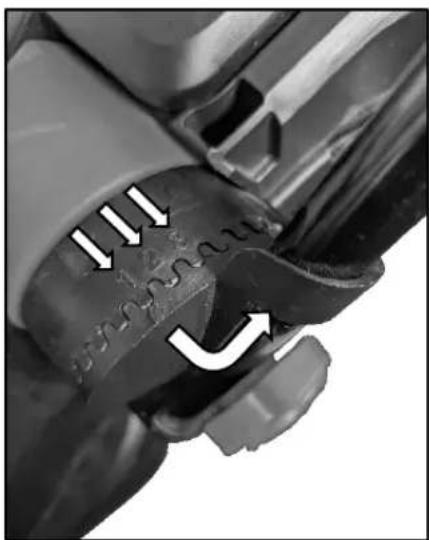

The handles have 3 available positions to aid operator comfort.

To select the height simply slacken off the wing-nut attached to lower handles. This will allow you move the locator out and select another position.

Close-up of a mechanical component with internal wavy lines and directional arrows indicating movement or force (no text or symbols)

Assembly

HYM3313E Assembly – Grass Collection Box

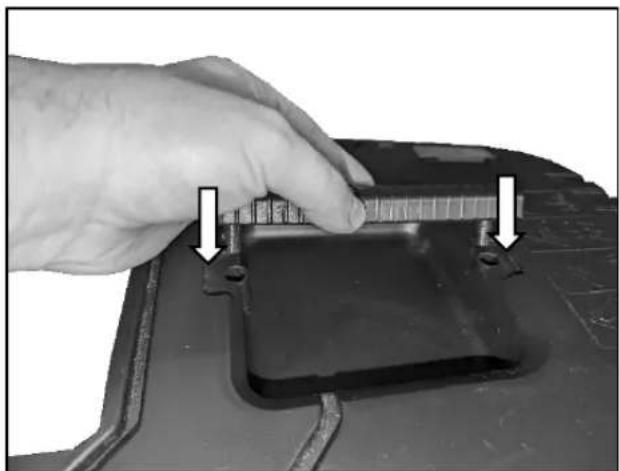

1. Place the handle into location at the top Grass Collection box (L). Turn over and secure by installing the screws included.

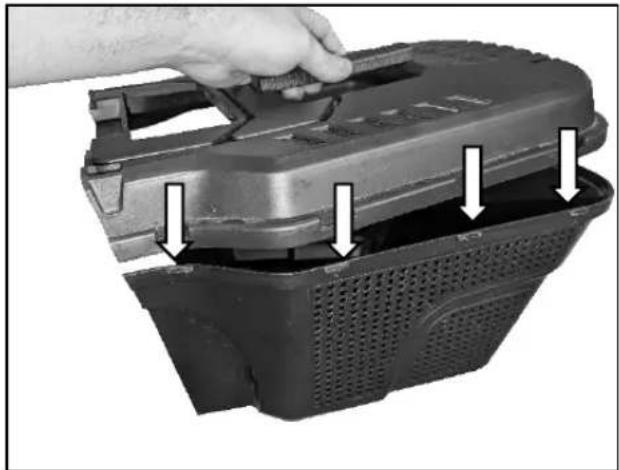

2. Combine the top and bottom halves of the Grass Collection box. There's clips around the edges of both which need to be clicked into place.
3. The Grass Collection is fitted to the hooks at the rear of the machine. Lift the Rear Discharge Flap and then hook on the Grass Collection box.

Close-up of a hand pressing a component on a black plastic housing (no text or symbols visible)

Close-up of a hand adjusting a black mechanical component with an arrow indicating rotation (no text or symbols visible)

Close-up of a hand adjusting a black plastic container with arrows pointing to internal components (no text or symbols visible)

Close-up of a black plastic mechanical component with internal cavities and mounting holes (no text or symbols visible)

Close-up of a mechanical device with visible gears and a tool, marked by two circled points of interest (no text or symbols present)

Black-and-white photo of a lawn mower with visible tracks and wheels (no text or symbols)

Assembly

HYM3313E Assembly – Power Cable

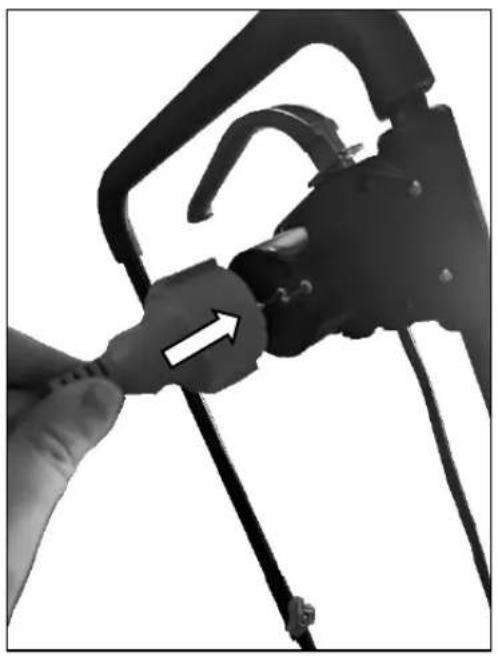

This machine comes equipped with a removable power cable. Simply push the power cable into place as shown below.

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a black cable connector with a plug, no visible text or symbols

HYM3313E Assembly – Cable Strain Reliever

CAUTION – To safely operate this machine you must use the cable strain reliever. This will prevent the power cable from detaching during operation

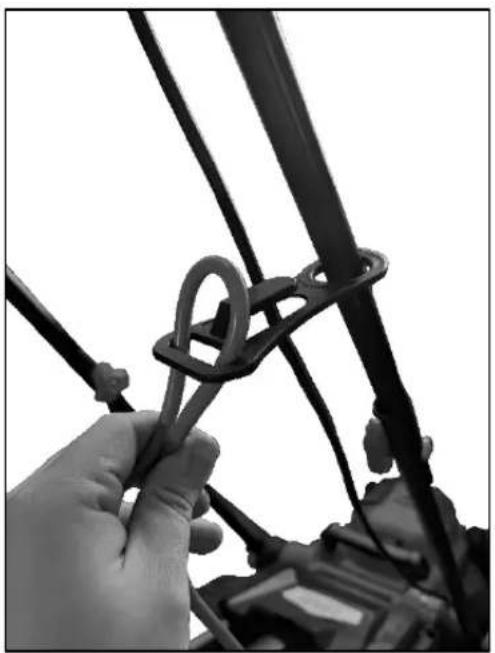

Simply create a loop in the power cable and pass it through the lower hole of the cable strain reliever. Then pass the loop over the hook and pull slightly to secure into place.

Close-up of a hand adjusting a black rope knot with a loop, against a plain background (no text or symbols visible)

Close-up of a bicycle climbing rope with visible knots and suspension (no text or symbols)

Assembly

HYM3313E Assembly – Cable Clips

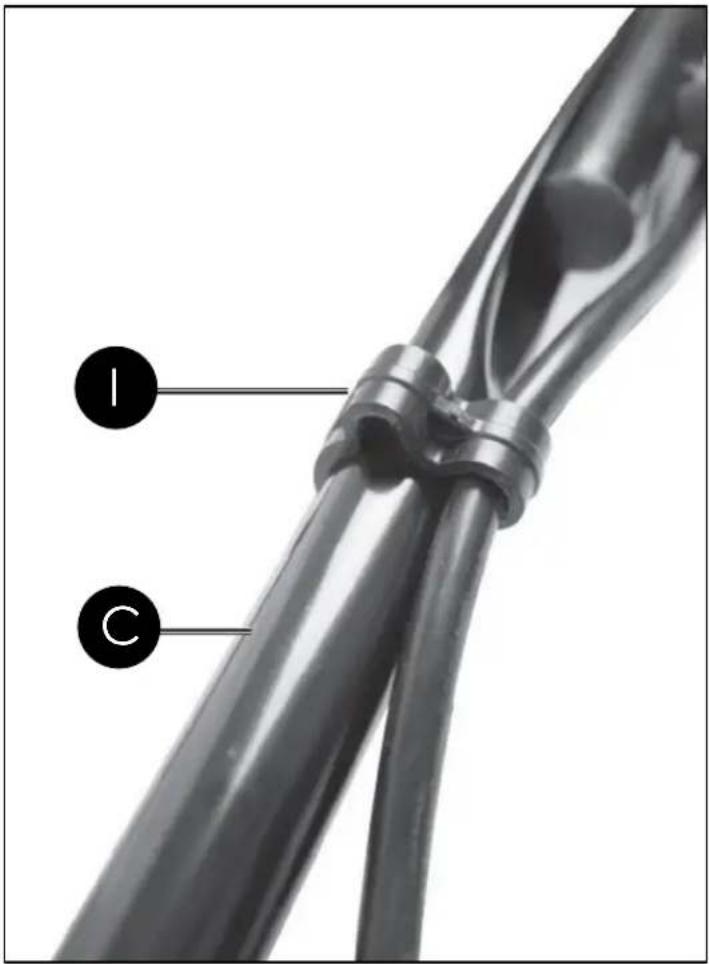

Attach the cable onto the right-hand Lower Handle (C) using the Cable Clips (I) provided. This will keep the cable secure and tight to the machine

Operation

HYM3313E Starting

WARNING - Before Operation you MUST read and fully understand the whole user manual

1. To Start the Machine hold the Safety On/Off Safety Button (2) down.
2. At the same time, pull the OPC Lever (1). The machine should start.
3. When the machine has started, you can release the Safety Start Button.

HYM3313E Stopping

To Stop the machine release the Start/Stop Trigger. The machine should stop.

WARNING – After stopping the machine, for a few seconds the blade beneath the machine will keep rotating. Allowing time for this to stop before any other Operation or Maintenance

HYM3313E Mower Deck Grass Fins

The HYM3313E's deck features grass fins, which help to channel grass on the edges of lawns, close to fences & walls into the mower blade. The deck is wider than the wheel base; this paired with the grass fins helps ensure a clean cut on the edge of your lawns minimising stray blades of grass.

Close-up of a robotic arm with visible mesh and tire, circled area indicating a specific part (no text or symbols)

Operation

HYM3313E Cutting Height Adjustment

WARNING – When adjusting the cutting height, ALWAYS ensure the machine is off and the cutting blade is not spinning

1. To adjust the cutting height, turn the machine on it's side.
2. The Axle is spring loaded into position. You must pull the Axle out of it's location, and move up or down to select a different position/cutting height.
3. The method of height adjustment is the same on both front and back wheels. For an optimal cutting result, match the height setting on both axles.

Close-up of a mechanical component with a threaded rod inserted into a circular housing (no visible text or symbols)

Lowest Height = 20mm

Side view of a black lawn mower with visible blades and wheels (no text or symbols)

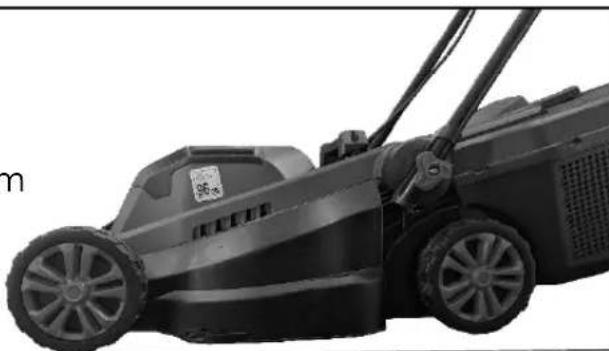

Middle Height = 40mm

Highest Height = 60mm

Side view of a black lawn mower with visible wheels and headrest (no text or symbols)

Operation

HYM3313E Grass Indicator

The Grass Collection Box has a Grass level indicator Flap (K). This allows the user to know at a glance if the Collection Box needs emptying.

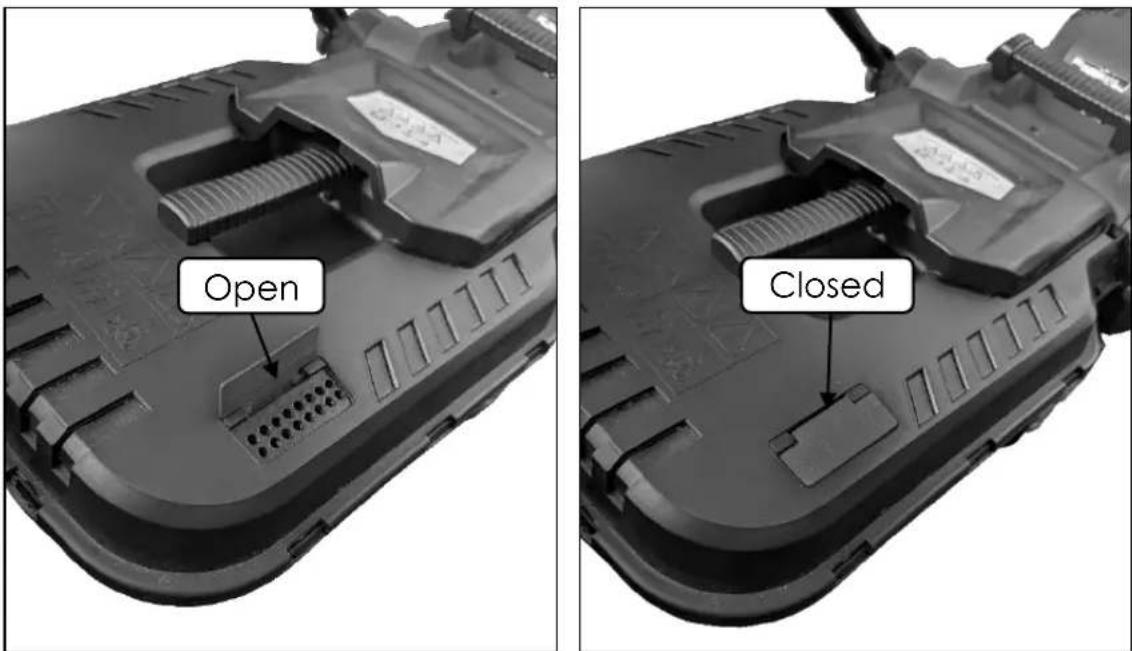

If the grass level indicator flap is open allowing air through it (as shown below) it isn't yet full.

If it is closed, this indicated the Grass Collection Box needs to be emptied

HYM3313E Grass Collection Box Emptying

Empty the grass collector frequently during use. Do not wait until it is completely full. We recommend emptying it when it is half full.

1. Switch the motor off.
2. Wait until the blade stops.
3. Lift the Rear Discharge Flap.
4. Remove the Grass Collection Box.
5. Lower the Rear Outlet Guard down again.
6. Empty the grass collector.
7. Before re-fitting, remove any obstructions from the rear discharge chute.

Lawn Care

General Tips

• Maintain a constant cutting height. Do not shorten the grass to less than half its original height.
• Under certain conditions, such as very tall grass, it may be necessary to raise the height of cut to reduce pushing effort, prevent overloading of the motor and leaving clumps of grass clippings.
• It may also be necessary to reduce ground speed and/or push the lawnmower over the area a second time. For extremely heavy cutting, reduce the width of cut by overlapping the previously cut path and mow slowly.

How Often Should I Mow?

Spring (March, April & May)

Mow once a week on a high to medium height setting.

Summer (June, July & August)

Mow twice a week under good growing conditions on a low setting. In dry conditions, mow once a week on a medium to high height setting.

Autumn (September, October & November)

Mow once a week on a medium height setting.

Winter (December, January & February)

Mow as required on a high height setting.

General Maintenance

WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk.

• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working condition.
• Replace worn or damaged parts for safety. Only use manufacturer-recommended parts and accessories.
  • Lubricate the Wheel every 100 hours
• Periodically check the wires around the machines for damage and loose connections.
  • Always check the brakes of the machines are working correctly
  • Regularly examine the batteries, ensure they are clean and dry.
  • Always Charge your batteries to full charge before use

Storage

Keep the machine stored in a dry, level area away from damp, moisture and rain fall. Allow the machine to cool down before storing.

• Make sure the machine is clean and dry before storing.
- Ensure the machine is stored in a position, where any persons cannot step on, to attempt to reach items up high, due to risk of movement.
- DO NOT store the machine near an ignition source, such as a wood stove, gas or electric heater, or an appliance or heater with a pilot light.
- Store the machine out of reach of children or anyone who is not familiar with operation.
• DO NOT stack other items on top of the machine when in storage.
- Make sure the machine is stored away from direct sunlight. Store indoors or in a safe, frost-free area during severe weather and winter months.

POWERSPARES

Same Day Dispatch*No Hasst Over 10,000 Spare Parts

QR Code – Scan the QR code for a direct link to our website

Our Website : power-squares.co.uk

Call us : 01646 404406

Email us : [e-mail]

To maintain your machine in peak operating condition, proper maintenance and care are crucial. Some machines have consumable parts that will need replacement to ensure they continue operating at their full potential. Power-Spares provide manufacturer parts for all your machines, ensuring they remain in peak condition.

About Power Spares

Power-Spares has your back if you damage your lawn mower blade, find your spark plugs not sparking, or snap your recoil. Power-Spares operates under the trading name of Genpower Limited.

As part of the Genpower family, Power-Spares offers you the expertise, efficiency, and quality assurance of a large organisation. We leverage the latest warehousing, distribution, customer service, and inventory management technology to ensure you receive your parts as quickly as possible.

With extensive stock-holding of spare parts in our UK warehouses, Power-Spares is ready to assist you promptly when your machine needs repair. We're Committed to help you get back up and running as quickly as possible.

Technical Data

Exploded Diagram

Image Reference	Description	Quantity
A1 Tapping screw 10
A2	Switch box lower cover	1
A3 Cord clamping plate 1
A4 Connector 1
A5 Rocker switch 1
A6 Waterproof plug 1
A7 Tapping screw 2
A8 Trigger spring 1
A9 Tapping screw 2
A10 Trigger 1
A11 Button spring 1
A12 Safety button 1
A13	Switch box upper cover	1
A14	Upper handrail	1
A15	Knob	4
A16	Lower handrail	2
A17	Left handrail seat	1
A18	Right handrail seat	1
A19	Cord	1
A20	Cord clip	1
A21	Cord hook	1
A22	Bolt 2
A23	Capacitor	1
A24	Rubber plug	1

Technical Data

Exploded Diagram

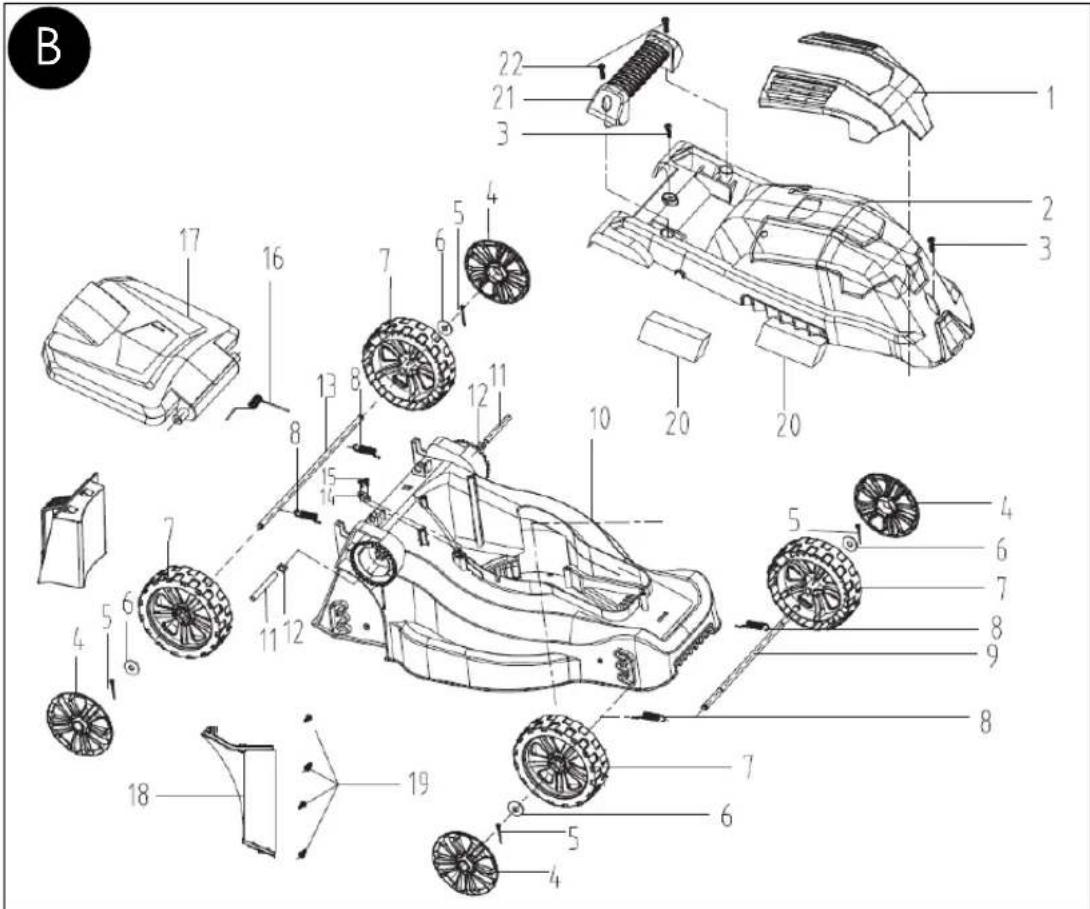

Image Reference	Description Quantity
B1	Motor cover decorative sheet	1
B2 Motor cover 1
B3 Tapping screw 3
B4 Wheel cover 4
B5 Elastic dotter pin 4
B6 Flat washer 4
B7 Wheel 4
B8 Axle spring 4
B9	Front axle	1
B10	Chassis	1
B11	Double-end bolt 1
B12	Nut	2
B13	Rear axle	2
B14	Cord clamping plate	1
B15	Tapping screw 1
B16 Torsional spring 2
B17	Grass box cover	1
B18	Chassis baffle	1
B19	Tapping screw 1
B20	Dust sponge	4
B21	Carry handle	3
B22	Tapping screw 1

Technical Data

Exploded Diagram

Image Reference	Description Quantity
C1 Carry handle 1
C2 Tapping screw 2
C3 Upper cover 1
C4 Air handling panel	1
C5 Lower cover 1

Technical Data

Exploded Diagram

Image Reference	Description	Quantity
D1 Motor 1
D2	Small belt pulley	1
D3	Tapping screw	10
D4 Flat washer 4
D5 Motor bracket 1
D6 Nylon nut 1
D7 Bearing 609Z 1
D8 Bearing 6002Z 1
D9 Ribbed belt 1
D10 Belt sheave 1
D11 Balde holder 1
D12	Balde	1
D13	Flat washer 1
D14	Flange bolt 1
D15 Dust sponge 1

Maintenance & Care

Blade Maintenance

WARNING - To prevent injury from the blade, have a specialist perform all work such as replacing or sharpening the blade (special tools and skills required).

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardise the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible.

Cleaning

WARNING - Only Damp Clothes/Sponges should be used to clean. Using Running Water or Liquid Detergents can cause damage and unsafe operation.

1. Clean the equipment immediately after use with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents; these may damage the plastic parts in the equipment. Ensure that no water penetrates the equipment's interior.
2. Remove grass and mud from inside the deck to prevent it from drying. This could cause problems the next time the lawnmower is used.
3. Keep all safety devices, air vents and the motor housing free of dirt and dust as much as possible.
4. Dry the machine completely. Keep the handles dry, clean and free of oil and grease.
5. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage

Maintenance & Care

Troubleshooting

Fault	Possible Remedy
Motor won’t start	Check the fuse in the plug.Check the cable for damage.Make sure you are holding in the Stop/Start Safety button while pulling the OPC lever.If the motor is hot, leave to cool down and try again.Check underneath for excessive build-up of grass clippings which may be jamming the blade.
Mower not collecting grass	Make sure deck around the blade is clean and no debris is presentEnsure the rear chute between the deck and grass collection box has no grass build up or debris
Mower does not cut grass cleanly	Replace or re-sharpen the blade; contact an authorized service centerCorrect the cutting height

Technical Data

Machine Specification

Model	HYM3313E
Voltage (V)	230-240
Frequency (Hz)	50-60
Rated Power (W)	1300
Cutting Width (cm)	33
No-Load Speed (rpm)	3600
Blade Type	Steel
Cutting Heights (mm)	20, 40, 60
Grass Collection Box Capacity (L)	30
Wheel Size (Inches)	5.5
Box Dimensions LxWxH	600*370*290
Net Weight (Kg)	7.5
Gross Weight (Kg)	8.5
Vibrations (m/s2)	2.79 (k=1.5)
Sound Pressure Level LpA (dBA)	79.3
Pressure Level Uncertainty KpA (dBA)	3
Sound Power Level LwA (dBA)	90.3
Power Level Uncertainty KwA (dBA)	3

Recycling & Disposal

Recycling & Disposal

We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us.

So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. For further information please contact your local Authority for disposal advice.

You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand or at your local Civic Amenity Site.

• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling centre.
• Certain products contain batteries which should not be disposed of in your domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling centre.
• Unwanted packaging and materials should be stored and taken to a recycling centre so it can be disposed of in a manner which is compatible with the environment.

We are a Member of the VALPAK National Compliance Scheme and our registration number is RM08660. For further information about disposal please contact your Local Authority.

You can also get more advice and guidance about recycling at the following website http://www.recycle-more.co.uk

Should you pass this product on to another user either sold or loaned, you MUST pass on this user manual. This will make sure that all other users can use and maintain this machine safely.

Environmental Protection

1. Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of packaging, oils, fuel, filters, damaged parts or any elements which have a strong impact on the environment. This waste must not be disposed of as normal waste. It needs to be separated and taken to specified waste disposal centres where the material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after mowing.
4. When disposing, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force.

EU Declaration Of Conformity

Importer and Authorised Representative

Genpower LtdIsaac Way, Pembroke Dock, SA72 4RWCountry of Origin: ChinaDescription: Electric Lawn MowerSKU Code: HYM3313EDate of Issue: 01/12/2023

Regulations and Directives of Compliance

• 2006/42/EC The Machinery Directive• 2014/30/EU Annex II Electromagnetic Compatibility Directive• 2011/65/EU RoHS• 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors

Conforming to the Following Requirements and Documents

• EN 60335-2-77:2010• EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019• Delclaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.

Statement of Declaration

We the importer and authorised representative of the product described confirm conformity within the provisions of applicable regulations and directives listed within this document.

Signed on Behalf of Genpower Ltd

Place of Issue: Genpower LtdSignatory Name: Roland LlewellinPosition: Managing Director

Useful Information

Check Out Our YouTube Channel

Our videos on YouTube include:

• Unboxing
  • Assembly of your machine
  • How to service your machine
• Products in use
• 'How To' videos
• Product features

Go to YouTube and search 'Hyundai Power Products'.

Warranty

Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk

Manual Updates

Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. We reserve the right to make any modifications without prior notice whenever necessary. Our latest manuals are also placed online. All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk

Returning Your Product

If you are returning your product, please contact the dealer for their returns policy.

Leaving A Review

We work very hard to give all of our customers the best possible service. If you have any problems, before leaving negative feedback, please contact us to give us a chance to resolve the issue. We would be delighted if you left us positive feedback! To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk

Ordering Spare Parts

You can find the spare part you are looking for at power-spares.co.uk

Product Record

Information

As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information.

Date Of Purchase:

Dealer Name:

Dealer Phone:

Model Number:

Serial/Batch Number:

Notes

Contact Us

Need Help? Talk To Our Experts

Our friendly aftersales team will be more than happy to help you.

Phone

Call our team on 01646 687 880

Email

[e-mail]

Online Live Chat

Go to www.hyundaipowerproducts.co.uk

Post

Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.

Hyundai Support Website

Go to hyundaisupport.co.uk

GENUINE PRODUCT OF HYUNDAI CORPORATION

For Inquiries, Please Contact:

GENPOWER LTD

Isaac Way, London Road,

Pembroke Dock, UK, SA72 4RW.

T: [phone]

E: [e-mail]

www.hyundaipowerproducts.co.uk
