Tekturon - Audio software D16 Group - Free user manual and instructions

Product Type	Audio Software (VST2/VST3/AU/AAX Plugin)
Developer	D16 Group
Platform Support	Windows 7 or newer, macOS 10.13 or newer (Intel or Apple M1)
Supported Formats	VST2, VST3, AU, AAX (64-bit on Mac)
Minimum CPU	2.8 GHz SSE (Multi-core 3.2 GHz recommended)
Minimum RAM	8 GB (16 GB recommended)
Number of Delay Lines	16 independent delay lines
Time Grid Range	1 to 500 ms (or host-synced note values: 1/8, 1/16, 1/32, 1/64 with tri/dot modifiers)
Shuffle	Yes, adds swing by shifting even/odd taps
Feedback	Global and per-delay line control (0-100%)
Filter Types	Low-pass, Band-pass, High-pass, Off (global and per-line)
Filter Parameters	Cutoff (20 Hz - 20 kHz), Resonance (0 to max)
Panning	Per delay line, -100% to +100%
Stereo Spread	Per delay line, -100% to +100% (phase shift)
Mixing Bus	Volume control per delay line (0-100%) with VU meter
Mute Function	Per delay line with IN/OUT mode selection
Dry/Wet Control	Yes, with lockable FX padlock
Output Volume	-inf to +12 dB with meter
Preset Management	Factory and user presets with search, filtering by groups/tags, favorites, pins, export/import
MIDI Learn	Assignable MIDI CC per parameter, save/load maps
Quality Settings	Real-time and Offline quality modes
GUI Options	Size, system scale, theme (light/dark)
Default State	Save/restore factory defaults for new instances

Frequently Asked Questions - Tekturon D16 Group

What are the system requirements for Tekturon?

Tekturon requires Windows 7 or newer (2.8 GHz SSE CPU, 8 GB RAM) or macOS 10.13 or newer (Intel 2.8 GHz or Apple M1, 8 GB RAM). 16 GB RAM and multi-core 3.2 GHz are recommended. It runs as a VST2/VST3/AU/AAX plugin in a compatible host.

How do I set the delay time manually?

Use the Time Grid parameter in the Master section. In sync-off mode, adjust from 1 to 500 ms by dragging the digits. Alternatively, use the Tap button to tap in a rhythm; the plug-in averages the intervals to set the delay.

Can I synchronize delays to my DAW tempo?

Yes, enable the Sync toggle. When active, the Time Grid displays note values (1/8, 1/16, 1/32, 1/64) with rhythmic modifiers: Full, Tri (2/3 duration), or Dot (3/2 duration).

How do I adjust feedback for individual delay lines?

Select the Feedb view using the View Selector. Drag the vertical bars for each delay line (1-16). The effective feedback is the global Feedback value limited by the local bar setting.

What filter types are available and how are they applied?

Each delay line has a multimode filter with types: LP (low-pass), BP (band-pass), HP (high-pass), Off (bypass), or MF (follow Master Filter type). Global Cutoff and Resonance set the base, while per-line bars provide relative offsets.

How do I save and manage presets?

Click the Save button in the Preset section. The Preset Browser allows browsing, searching, filtering by groups/tags, marking favorites (global) or pins (per-instance). Right-click for rename, delete, export (drag-and-drop), and import (drag files into browser).

Can I assign MIDI controllers to parameters?

Yes, right-click any parameter and choose MIDI CC > Learn, then move a controller on your MIDI device. Confirm with OK. To clear, use the Clear button. Save/load MIDI CC maps from the cog menu.

What is the Shuffle parameter?

Shuffle adds a swing effect by increasing delay on even-numbered taps and decreasing on odd-numbered taps by the same amount. The strength is controlled from 0 to max.

How does the Mute function work?

Each delay line has a mute button (toggle). The In/Out switch determines whether the mute cuts the signal before (IN) or after (OUT) the delay line. Muted lines are indicated by dimmed bars.

What are the GUI customization options?

From the cog menu, under GUI, you can adjust Size (multiple skin sizes), System Scale (match to screen resolution), and Theme (color variant). Also save a default state so new instances load with your preferred settings.

USER MANUAL Tekturon D16 Group

Preliminary information....4

Overview 5

Signal Flow 6

Bi-level control of the effect....7

Unit delay value – the Time grid 8

Tap function....8

Host tempo synchronization....9

Note values ...... 9

Rhythmic modifiers....9

Delay lines....10

Delay value in the feedback loop....10

Shuffle....11

Feedback 12

Mute Tap 1 Direct Signal 13

Delay line's effect chain 14

Multimode filter....15

Filter cutoff 16

Resonance 16

Filter type 17

Panning....18

Stereo spread....19

Mute buttons....20

In / Out 20

Mixing bus....21

Audible lines 21

Master section....22

Preset Management 21

Preset storage....21

Browsing presets 22

Sources 23

Filter 23

Groups and tags....23

Results 24

Preset filtering using Groups and Tags 25

Basic Actions 25

Group operator 25

Filter enable / disable 26

Other types of filtering 26

Searching by name 26

Filtering Favorite presets....26

Filtering Pinned presets....27

Info pane....28

Browser's visual adjustments....29

Folding sections....29

Resizing columns....29

Editing presets 30

Preset selection for Edit....30

Preset renaming 30

Preset deletion 31

Tags editing 31

Author editing....33

Description editing 33

Setting presets as Favorites 34

Pinning presets....34

Preset exchange....35

Export 35

Import 36

Importing Patterns 36

Creating custom Tags and Groups structure....36

Adding custom Tags 36

Editing custom Tags....37

Adding custom Groups 37

Editing custom Groups 38

Unassigned Tags 38

Configuration....39

MIDI Learn 39

Linking a parameter to MIDI CC 39

Unlinking a parameter from MIDI CC 40

Loading / Saving a MIDI CC Map....40

Quality settings 40

GUI 41

Size 41

System Scale 41

Theme 41

Default Settings 41

Changing default settings....41

Restoring factory defaults 42

Requirements

Software and hardware requirements of the product

Windows PC

OS version Windows 7 or newer

CPU 2.8 GHz SSE (Multicore 3.2 GHz recommended)

RAM 8 GB (16 GB Recommended)

Software VST2 / VST3 /AAX compatible host application (32bit or 64bit)

Apple Mac

OS version OS X 10.13 or newer

CPU Intel based 2.8 GHz (3.2 GHz recommended), Apple M1

RAM 8 GB (16 GB Recommended)

Software AU / VST2 / VST3 / AAX compatible host application (64bit!)

Hardware requirements / recommendations are based on estimates performed on available computers at D16 Group HQ, and therefore cannot cover all possible configurations available on the market. CPU usage may vary widely depending on the manner in which the product is used. Factors that may contribute to variance in CPU usage include particular patch and its complexity, the global quality setting, project sample rate. In order to form a better understanding of how a plug-in will behave within your current setup, we highly recommend downloading the demo and giving it a try.

Preliminary information

This chapter contains general advice for using the plug-in's interface.

To do a right-click on macOS with single button mice:

Either use your mouse click while holding the CTRL key on your keyboard or use two fingers on your touchpad.

Checking the value of a parameter

Right-click on any parameter to check its value in its context menu:

A parameter's context menu

Note: It's currently not possible to enter a precise value in the input box; it's just to check the value.

Fine-tuning continuous parameters

Tweak a control (knob) while holding the CTRL key (on Windows) or Apple CMD key (on macOS) - this will make the tweaking more precise while moving the mouse pointer up and down.

Double-click to reset a continuous parameter's value

Double-clicking on a parameter restores its value to the initial state, either default (right after loading the plug-in / loading it along a project file) or from the most recently loaded preset.

Overview

Tekturon is a multi-tap delay effect with 16 independent delay lines.

When the plug-in is loaded, its graphic interface appears:

Tekturon's graphic interface

There are two main sections on the interface:

- Configuration and Preset management section:

Configuration and Preset management section

- All the remaining controls are in the Signal processing.

Signal Flow

At the core of Tekturon are 16 delay lines. The time delay between subsequent taps is equal and controlled by a single parameter – the Time Grid. The taps are labeled by numbers 1 to 16. The signal flowing into tap 1 is not delayed relative to the dry signal. Tap number 2 is delayed by the value of the Time Grid and tap number 3 is delayed by twice the value of the Time grid and so on up to tap 16 (which is delayed by 15 times the Time grid value).

Each delay line also has its own independent feedback loop and an effect chain processing the signal output from the loop.

A delay line FX chain consists of:

• Multimode filter with adjustable Cutoff and Resonance
- Stereo Panning
- Stereo Spread

    I["DELAY LINE 1"] --> J["TAP"]
    J --> K["TIME IN OUT DELAY"]
    K --> L["+"]
    L --> M["TIME IN OUT DELAY"]
    M --> N["+"]
    N --> O["FX CHAIN"]

    P["DELAY LINE 2"] --> Q["TAP"]
    Q --> R["TIME IN OUT DELAY"]
    R --> S["+"]
    S --> T["TIME IN OUT DELAY"]
    T --> U["+"]
    U --> V["FX CHAIN"]

    W["DELAY LINE 16"] --> X["TAP"]
    X --> Y["TIME IN OUT DELAY"]
    Y --> Z["+"]
    Z --> AA["TIME IN OUT DELAY"]
    AA --> AB["+"]
    AB --> AC["FX CHAIN"]

    AD["WET IN OUT FX"] --> AE["OUT"]
    AF["OUT"] --> AG["FX"]

Schematic diagram of processing path in Tekturon

Bi-level control of the effect

The plug-in is controlled hierarchically:

• Globally - From the Master section, where the delay lines are all altered at once

Master section

- Locally - By adjusting each of the delay line parameters individually using the bar graph display situated on the left side of the GUI.

The Bar graph display

The parameters set globally from the Master section are:

- Base value – A reference point for the relative values (offsets) set locally and individually for each delay line. This is the case for:

• Multimode filter Cutoff
• Multimode filter Resonance
• Delay loop Feedback value

- Parent value – A default value, which can be overridden by the local value; specific for the particular delay line. This happens for

- Multimode filter type

Some of the delay line parameters do not have global counterparts in the Master section. They are controlled individually per delay line from the bar graph display. This applies to:

• Stereo Panning
• Stereo Spread

Certain parameters can only be controlled globally (they cannot be adjusted per delay line). These are:

• Shuffle
• Time grid

Unit delay value – the Time grid

The Time grid is a global parameter which controls:

- The delay time between subsequent Taps – their time spread.

- It is also the base value of the delay time for all delay line feedback loops. Effective delay time for a delay line is defined as multiple of the Time grid in a range x1 to x16:

Effective Loop Delay= N*Time Grid

Delay time in an individual delay line

The parameter value is controlled from the Time grid section on GUI:

The Time grid parameter

It is expressed in milliseconds and controlled in a range from 1 to 500 [ms] (when Sync mode is disabled). The value can be adjusted by dragging the up-down mouse pointer above the digits representing the consecutive decimal positions on the display.

Tap function

Tap is used to set the delay time "by ear" by clicking Tap rhythmically. The plug-in measures the time between the consecutive clicks, averages it and sets it as a new delay time. This function is also available when tempo Sync is enabled or disabled.

Tap button

Host tempo synchronization

Sync toggle button:

Sync button

This activates / deactivates the synchronization of the Time grid with the host (DAW) application tempo. When enabled, the delay is represented as a Rhythmic value (in tempo-dependent units) consisting of a Note value and a Rhythmic modifier. Note, when this mode is active the Time grid value is controlled in a different manner and the look of the Time grid display changes slightly.

Time Grid section when Sync is active

Note values

The Time Grid Note value can be adjusted by dragging the up-down mouse pointer over it;

Available values are: 1/8, 1/16, 1/32 and 1/64

Rhythmic modifiers

Clicking a Rhythmic modifier selects it:

There are 3 possible values to choose from:

• Full – Effective delay value is equal to set Note value.
  • Tri - Effective delay value is equal to 2/3rds the duration of set Note value.
  • Dot - Effective delay value is equal to 3/2nds the duration of set Note value.

Delay lines

Tekturon has 16 delay lines - each with its own feedback loop and effect chain processing the signal output from the loop:

Individual Delay line in Tekturon

A single delay line is fed from the Tap. This is delayed with respect to the Dry signal by a value proportional to Tap's index value (subsequent Taps are delayed from each other by the value of the Time grid).

Delay value in the feedback loop

The feedback loop delay is expressed as the multiple of the unit delay value (the Time grid). It is set for each of the 16 delay lines independently using the bar graph display to the left:

The Bar graph display

To edit delay values first switch to the Delay view using View Selector:

View Selector

The adjustment is performed by mouse clicking / dragging the vertical bars corresponding to the particular delay lines. The vertical position of the click represents the value. The bars are arranged so the delay lines' indexes corresponding to them start from the left side of the display (1 to 16):

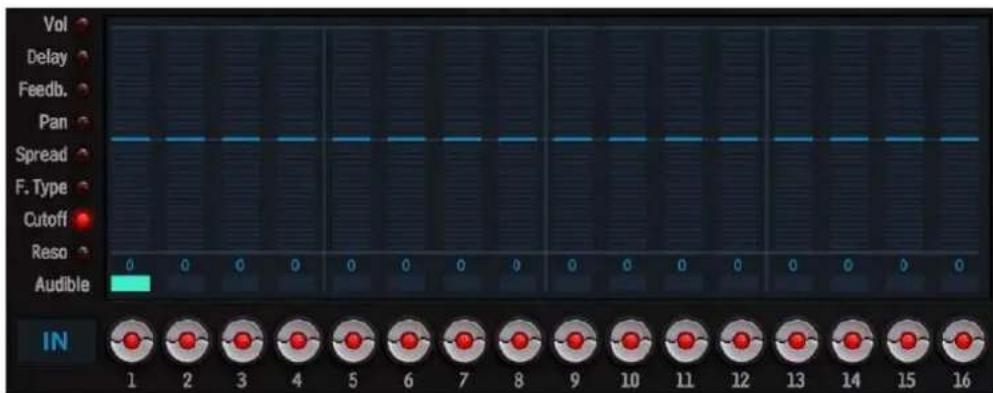

Delay values for all delay lines

The numeric representation of each bar is shown in the bottom row:

Delay values for all delay lines

Delay value (the multiple of the unit delay value - Time grid) can be picked from the range x1 to x16.

Shuffle

Shuffle parameter

The Shuffle parameter introduces additional delay before each even numbered Taps and reduces the delay before odd numbered Taps by the same amount:
    subgraph_ODD_DELAY_LINE["ODD DELAY LINE"]
        A1["IN"] --> B1["TAP"]
        B1 --> C1["TIME IN OUT DELAY"]
        C1 --> D1["+"]
        D1 --> E1["FX CHAIN"]
        E1 --> F1["FX CHAIN"]
        F1 --> G1["+"]
    end

    subgraph_EVEN_DELAY_LINE["Even DELAY LINE"]
        H1["TAP"] --> I1["TIME IN OUT DELAY"]
        I1 --> J1["+"]
        J1 --> K1["FX CHAIN"]
        K1 --> L1["FX CHAIN"]
        L1 --> M1["+"]
        M1 --> N1["FX CHAIN"]
        N1 --> O1["FX CHAIN"]
        O1 --> P1["FX CHAIN"]
        P1 --> Q1["FX CHAIN"]
        Q1 --> R1["FX CHAIN"]
        R1 --> S1["FX CHAIN"]
        S1 --> T1["FX CHAIN"]
        T1 --> U1["FX CHAIN"]
        U1 --> V1["FX CHAIN"]
        V1 --> W1["FX CHAIN"]
        W1 --> X1["FX CHAIN"]
        X1 --> Y1["FX CHAIN"]
        Y1 --> Z1["FX CHAIN"]
        Z1 --> AA1["FX CHAIN"]
        AA1 --> AB1["FX CHAIN"]
        AB1 --> AC1["FX CHAIN"]
        AC1 --> AD1["FX CHAIN"]
        AD1 --> AE1["FX CHAIN"]
        AE1 --> AF1["FX CHAIN"]
        AF1 --> AG1["FX CHAIN"]
        AG1 --> AH1["FX CHAIN"]
        AH1 --> AI1["FX CHAIN"]
        AI1 --> AJ1["FX CHAIN"]
        AJ1 --> AK1["FX CHAIN"]
        AK1 --> AL1["FX CHAIN"]
        AL1 --> AM1["FX CHAIN"]
        AM1 --> AN["FX CHAIN"]
        AN --> AO["FX CHAIN"]
        AO --> AP1["FX CHAIN"]
        AP1 --> AQ1["FX CHAIN"]
        AQ1 --> AR1["FX CHAIN"]
        AR1 --> AS1["FX CHAIN"]
        AS1 --> AT1["FX CHAIN"]
        AT1 --> AU["FX CHAIN"]
        AU --> AV["FX CHAIN"]
        AV --> AW["FX CHAIN"]
    end

    A2["SHUFFLE TIME GRID FROM PRECEDING DELAY LINE"] -.-> A3["ODD DELAY LINE"]
    A4["TO SUBSEQUENT DELAY LINE"] -.-> A5["Even DELAY LINE"]

    B5["TIME GRID"] -.-> B6["TIME GRID OUT DELAY"]
    B7["TIME GRID OUT DELAY"] -.-> B8["TIME GRID OUT DELAY"]
    B9["TIME GRID OUT DELAY"] -.-> B10["TIME GRID OUT DELAY"]
    B12["TIME GRID OUT DELAY"] -.-> B13["TIME GRID OUT DELAY"]
    B14["TIME GRID OUT DELAY"] -.-> B15["TIME GRID OUT DELAY"]
    B16["TIME GRID OUT DELAY"] -.-> B17["TIME GRID OUT DELAY"]
    B18["TIME GRID OUT DELAY"] -.-> B19["TIME GRID OUT DELAY"]
    B20["TIME GRID OUT DELAY"] -.-> B21["TIME GRID OUT DELAY"]
    B22["TIME GRID OUT DELAY"] -.-> B23["TIME GRID OUT DELAY"]
    B24["TIME GRID OUT DELAY"] -.-> B25["TIME GRID OUT DELAY"]
    B26["TIME GRID OUT DELAY"] -.-> B27["TIME GRID OUT DELAY"]
    B28["TIME GRID OUT DELAY"] -.-> B29["TIME GRID OUT DELAY"]
    B30["TIME GRID OUT DELAY"] -.-> B31["TIME GRID OUT DELAY"]
    B32["TIME GRID OUT DELAY"] -.-> B33["TIME GRID OUT DELAY"]
    B34["TIME GRID OUT DELAY"] -.-> B35["TIME GRID OUT DELAY"]
    B36["TIME GRID OUT DELAY"] -.-> B37["TIME GRID OUT DELAY"]
    B38["TIME GRID OUT DELAY"] -.-> B39["TIME GRID OUT DELAY"]
    B40["TIME GRID OUT DELAY"] -.-> B41["TIME GRID OUT DELAY"]
    B42["TIME GRID OUT DELAY"] -.-> B43["TIME GRID OUT DELAY"]
    B44["TIME GRID OUT DELAY"] -.-> B45["TIME GRID OUT DELAY"]
    B46["TIME GRID OUT DELAY"] -.-> B47["TIME GRID OUT DELAY"]
    B48["TIME GRID OUT DELAY"] -.-> B49["TIME GRID OUT DELAY"]
    B50["TIME GRID OUT DELAY"] -.-> B51["TIME GRID OUT DELAY"]
    B52["TIME GRID OUT DELAY"] -.-> B53["TIME GRID OUT DELAY"]
    B54["TIME GRID OUT DELAY"] -.-> B55["TIME GRID OUT DELAY"]
    B56["TIME GRID OUT DELAY"] -.-> B57["TIME GRID OUT DELAY"]
    B58["TIME GRID OUT DELAY"] -.-> B59["TIME GRID OUT DELAY"]
    B60["TIME GRID OUT DELAY"] -.-> B61["TIME GRID OUT DELAY"]
    B62["TIME GRID OUT DELAY"] -.-> B63["TIME GRID OUT DELAY"]
    B64["TIME GRID OUT DELAY"] -.-> B65["TIME GRID OUT DELAY"]
    B66["TIME GRID OUT DELAY"] -.-> B67["TIME GRID OUT DELAY"]
    B68["TIME GRID OUT DELAY"] -.-> B69["TIME GRID OUT DELAY"]
    B70["TIME GRID OUT DELAY"] -.-> B71["TIME GRID OUT DELAY"]
    B72["TIME GRID OUT DELAY"] -.-> B73["TIME GRID OUT DELAY"]
    B74["TIME GRID OUT DELAY"] -.-> B75["TIME GRID OUT DELAY"]
    B76["TIME GRID OUT DELAY"] -.-> B77["TIME GRID OUT DELAY"]
    B78["TIME GRID OUT DELAY"] -.-> B79["TIME GRID OUT DELAY"]
    B80["TIME GRID OUT DELAY"] -.-> B81["TIME GRID OUT DELAY"]
    B82["TIME GRID OUT DELAY"] -.-> B83["TIME GRID OUT DELAY"]
    B84["TIME GRID OUT DELAY"] -.-> B85["TIME GRID OUT DELAY"]
    B86["TIME GRID OUT DELAY"] -.-> B87["TIME GRID OUT DELAY"]
    B88["TIME GRID OUT DELAY"] -.-> B89["TIME GRID OUT DELAY"]
    B90["TIME GRID OUT DELAY"] -.-> B91["TIME GRID OUT DELAY"]
    B92["TIME GRID OUT DELAY"] -.-> B93["TIME GRID OUT DELAY"]
    B94["TIME GRID OUT DELAY"] -.-> B95["TIME GRID OUT DELAY"]
    B96["TIME GRID OUT DELAY"] -.-> B97["TIME GRID OUT DELAY"]
    B98["TIME GRID OUT DELAY"] -.-> B99["TIME GRID OUT DELAY"]

Influence of the Shuffle parameter on the delay times.

This causes a swing effect between the bounces output from consecutive delay lines. The Shuffle parameter controls the strength of the effect.

Feedback

Feedback is controlled hierarchically. At a global level, using the Feedback parameter in the Master section affects the Feedback value in all delay lines at once:

Global Feedback parameter

It can also be adjusted locally using the Bar graph display by selecting Feedb using the View Selector:

View Selector

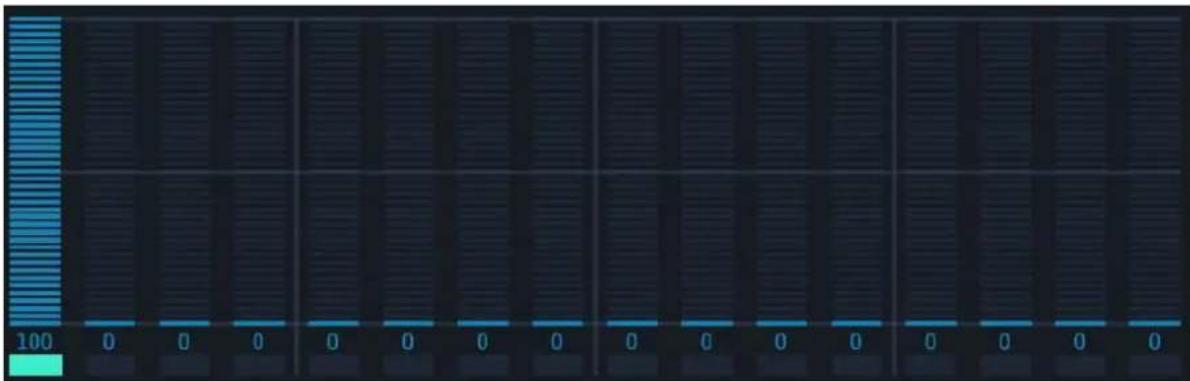

The local Feedback values in the delay lines can then be adjusted individually:

Individual Feedback values

The effective (actual) feedback value for a particular delay line is equal to the value of the global Feedback parameter (from the Master section) limited by the amount set locally using the Bar graph display.

Feedback value in a single delay line

Mute Tap 1 Direct Signal

Mute Tap 1 Direct Signal switch:

Mute Tap 1 Direct Signal

When enabled, the zero numbered bounce (non-delayed signal) output from the first delay line is muted. This prevents overlapping it with the unprocessed (Dry) signal. This is a useful option when Tekturon is used as insert effect in situations where the FX (dry->wet) value sets the Dry signal as well as for cases where the plug-in is used on FX send track.

    L["FILTER, SPREAD, PANNING"] --> M["N"]
    M --> N["TAP"]
    N --> O["TIME IN OUT DELAY"]
    O --> P["+"]
    P --> Q["TIME IN OUT DELAY"]
    Q --> R["+"]
    R --> S["FILTER, SPREAD, PANNING"]
    S --> T["..."]

    style A fill:#f9f,stroke:#333
    style L fill:#f9f,stroke:#333

The effect of Mute Tap 1 Direct Signal parameter on the signal flow in the first delay line

Delay line's effect chain

The effect chain that is part of each delay line processes the signal when it leaves the feedback loop. The modules in the effect chain are:

• Multimode filter
• Stereo Panning
• Stereo Spread

GLOBAL PARAMETERS

    J["CUTOFF"] --> K["+"]
    L["RESO"] --> K
    M["FLT.TYPE"] --> K
    K --> N["LOCAL PARAMS"]
    N --> O["PANNING"]
    N --> P["ST.Spread"]
    N --> Q["FLT.TYPE"]
    N --> R["RESONAN."]
    N --> S["CUTOFF"]

Effect chain of a delay line

Multimode filter

Multimode filter is the first effect in the chain. It is controlled hierarchically:

- Globally – Influencing all delay lines simultaneously from the Master filter section where the following parameters can be edited:

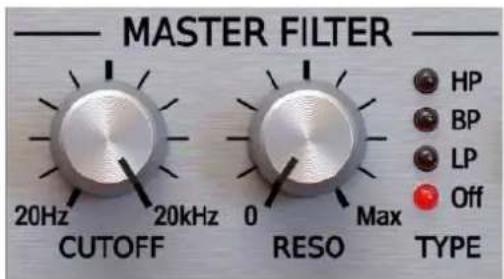

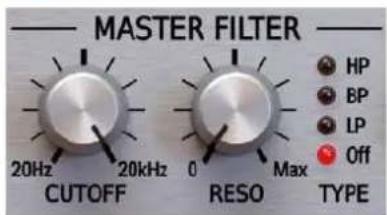

Master filter section

• Cutoff frequency
• Filter Resonance
• Filter Type – Where we have following values to choose from:
• LP - Low pass filter
• BP – Band pass filter
• HP – High pass filter
• Off - Filter inactive

- Locally – Influencing each delay line individually using the bar graph display on the left side of GUI

The Bar graph display

Filter cutoff

Local (per delay line) value of the Cutoff parameter is controlled via the bar graph display from the Cutoff view selected by the View Selector

View Selector

A single bar represents the delay line's relative cutoff frequency value, a deviation from the value of Cutoff parameter in the Master section:

Digital waveform display showing a constant blue line across multiple channels with no visible text or symbols

Relative values of the Cutoff for all delay lines

Resonance

The local (per delay line) value of the Resonance parameter is controlled via the bar graph display from the Reso view selected by the View Selector:

View Selector

A single bar represents the delay line's relative Resonance value, a deviation from the value of Resonance parameter in the Master section:

Digital audio waveform display showing a constant blue line across multiple channels (no text or symbols)

Relative values of the Resonance for all delay lines

Filter type

Selecting the Filter type locally (per delay line) is performed using the bar graph display from the F.Type view selected with View Selector:

View Selector

Per delay line Filter Type

The following types can be selected:

• / HP - High pass filter
  • /BP Band pass filter
• /LP=low pass filter
• / OFF—Filter inactive

• / MF – Delay line filter type is the same as filter type selected in the Master Filter section.

Master filter section

Panning

Stereo Panning is controlled only locally – per delay line. Editing is done via the Bar graph delay from the Pan view selected with View Selector:

View Selector

Panning is controlled in the range -100% to 100% (where 0% means center of the stereo stage):

Digital signal waveform display with alternating blue and black lines over a 12-bit time axis (no text or symbols)

Panning values

Stereo spread

Stereo Spread, which is a phase shift between stereo channels, and creates the impression of widening the stereo image. It is controlled only locally – per delay line. Editing is done via the Bar graph delay from the Spread view selected with View Selector:

View Selector

Spread is controlled in range of -100% to 100%, where 0% means no spread at all.

-100% delays the left channel by 12 of the Time grid value with respect to the right channel and for 100% the right channel is delayed by 12 of the Time grid's value with respect to left channel.

Digital waveform display showing a constant blue line across multiple channels with no visible text or symbols

Stereo spread values

Mute buttons

Working in toggle mode, allow for quick muting of selected delay line.

Mute buttons

In / Out

IN / OUT affects how the Mute buttons work.

• IN mode – a signal gets muted before it enters a delay line.
• OUT mode – a signal gets muted after it leaves a delay line.

In / Out display

Toggles between In and Out modes for Mute buttons

Mixing bus

The Mixing Bus is the final module of the Tekturon signal processing path. It is responsible for controlling the volume of each signal leaving all 16 delay lines and then mixing them together.

Mixing bus signal flow

The delay line outgoing signal Volume is adjusted via Bar graph display (the Vol view selected with View Selector parameter):

View Selector

Volume is in a range from 0% to 100% for each delay line independently:

The delay lines' output volume values

Additionally, each bar also serves as a stereo VU-meter indicating (with a pale blue color) the level of the delay line output signal.

Audible lines

At the bottom of the display is the Audible row. This shows the active delay lines (with illuminated rectangles).

Audible controls

The prerequisite for a line to be considered as active is its Volume being set to a value greater than 0%. The row is constantly displayed.

Master section

Master section

The Master Section is the final part of the processing path of Tekturon.

The Output volume controls the amplification of the output signal (in the range from -inf do +12 [dB]) The Output meter shows volume level visually. FX controls the dry/wet ratio of the unprocessed to processed signal.

Padlock allows the FX setting to be locked so the Dry/Wet ratio stays the same when loading presets. It works in toggle mode: one click locks the parameter, a second click unlocks it.

FX padlock

Preset Management

Preset storage

Presets, both from Factory content and user ones, are stored as files in proper locations on the disc. Each time a plug-in instance is loaded into a project, these locations are scanned and the presets found there are consolidated into a single linear structure (list) in the Preset Browser.

Browsing presets

The Preset management section (no matter what kind of preset it concerns) enables quick navigation and browsing of the preset structure:

The Preset management section

• PRESET - Displays the name of the currently loaded preset. Clicking the display opens the Preset Browser panel, allowing you to browse factory / user presets.
  • Prev / Next - Hovering over right side of the Preset display exposes the Prev / Next buttons: They allow for linear browsing of the presets list (depending on currently set filters - see sections below).
• Save ▶ - Saves current parameters as a new preset or allows for overwriting of the existing one (see sections below).

Right-clicking over the Preset display opens a context menu with two or three additional options:

• Init - Restores initial settings of plug-in parameters.
• Reload - Reloads the most recently loaded preset.
• Save - See description above.

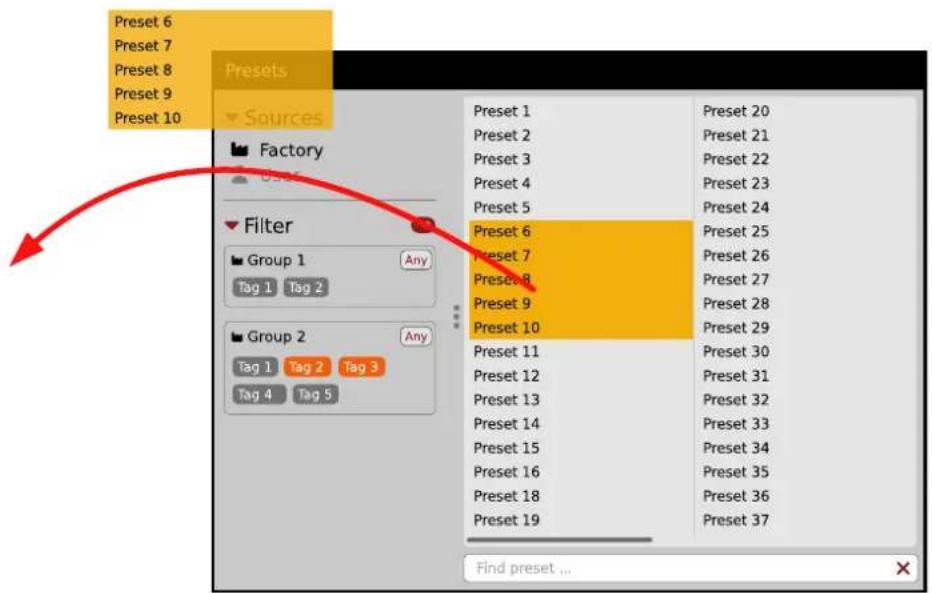

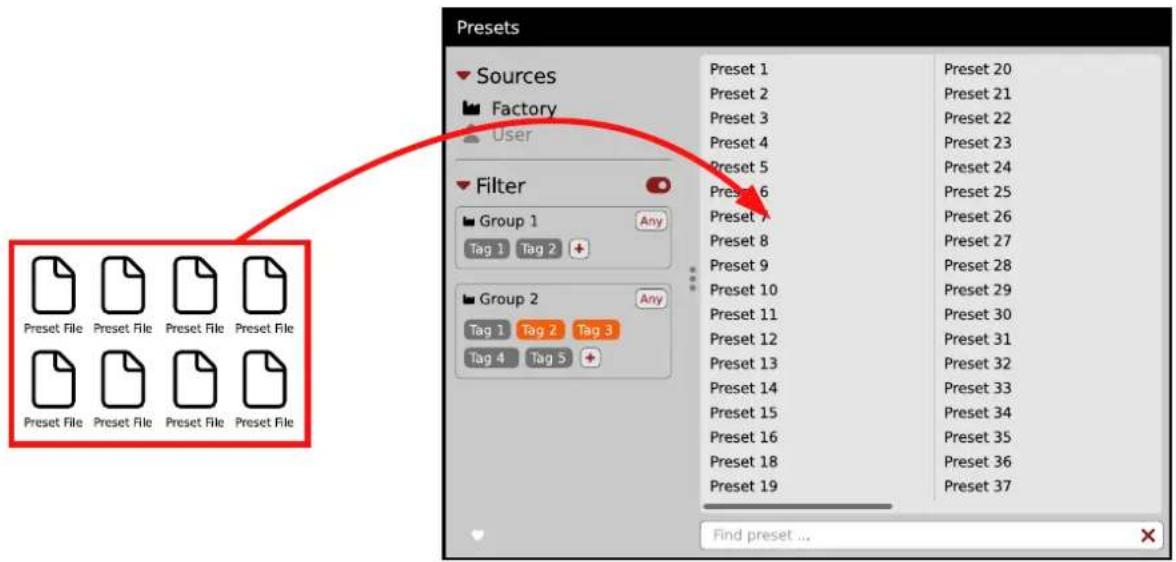

The Preset Browser looks as follows:

The Preset Browser

There are four main parts:

• Sources - Situated in the left column, filter content Sources for displayed presets.
  • Filter - Below Sources, a preset Filter that uses the Tags system.
  • Results - List of presets (shown in the middle column) from Sources that meet criteria set in the Filter.

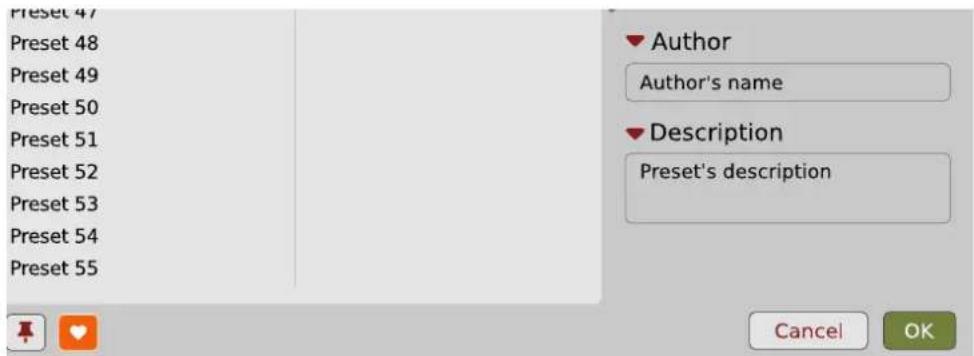

  • Info pane - The right column shows information about the currently selected preset(s), divided into several subsections.

If available - For some preset types this button can be hidden and accessible from the contextual menu (accessible via right mouse-click on Preset display)
If available

Sources

In this section, you can choose a Source / Source(s) that you want to browse presets from.

Preset Sources

There are two resources to choose from:

• Factory - Delivered together with the plug-in and cannot be modified (read-only).
• User - Created by the user and can be freely modified or shared with other users.

Choosing any of them will cause the results to narrow to the presets from one resource.

Filter

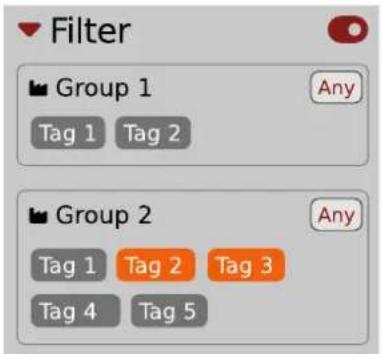

The section below is the Filter, which represents a preset filtering system using Groups and Tags to browse the content.

The Filter section

Groups and tags

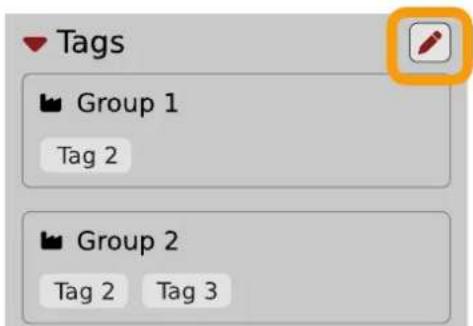

Each Preset is described by a few common Groups. Within each of them there may be one or more Tags from a particular set.

The Filter group

Presets from the Factory resource were assigned Groups and Tags when they were created.

Groups and Tags describe the content clearly, taking into account the plug-in's purpose.

Editing of the Groups and Tags for Factory content is limited. User presets can be described with the same Groups and Tags as Factory content, or you may define additional Tags within factory Groups and even create your own Groups with your own Tags to describe your own presets.

The only limitation is that a user cannot remove factory Groups or Tags from Factory content.

Results

This is a list of presets from chosen Sources that meet the filtering criteria. The basic function of this section is to browse and load presets. It can also be used for editing, which is described later.

Preset 1	Preset 20	Preset 38	Preset 56
Preset 2	Preset 21	Preset 39	Preset 57
Preset 3	Preset 22	Preset 40	Preset 58
Preset 4	Preset 23	Preset 41	Preset 59
Preset 5	Preset 24	Preset 42	Preset 60
Preset 6	Preset 25	Preset 43
Preset 7	Preset 26	Preset 44
Preset 8	Preset 27	Preset 45
Preset 9	Preset 28	Preset 46
Preset 10	Preset 29	Preset 47
Preset 11	Preset 30	Preset 48
Preset 12	Preset 31	Preset 49
Preset 13	Preset 32	Preset 50
Preset 14	Preset 33	Preset 51
Preset 15	Preset 34	Preset 52
Preset 16	Preset 35	Preset 53
Preset 18	Preset 36	Preset 54
Preset 19	Preset 37	Preset 55

The Results list

• Click any name to choose and load the preset.
• Double-click the name to choose, load the preset and close the browser.

Hitting the OK button confirms loading a preset and closes the browser. Using Cancel closes the browser but reverts all parameter changes that loading a new preset might have caused.

The OK and Cancel buttons in the browser

Using the X icon has the same effect as the OK button:

Close Browser window

Preset filtering using Groups and Tags

The Filter section contains Groups of Tags. Each Group is represented by a rectangle with the Group name + set of Tags inside.

Group 2 with two tags set (Tag 2 and Tag 3)

The filtering process cascades from top to bottom. This means that all presets available in the selected Sources are filtered by selected Tags from the first Group (uppermost one), then the Group below and so on, until filtered by the last active Group (the bottom one).

Preset Filtering with the use of Groups

The result of the cascade filtering process is listed in the middle column, the Results / presets list section. You can also consider the Results list as an intersection of preset sets, found by filtering through every individual Group.

Basic Actions

Tags work as toggle buttons. Click to activate / deactivate a Tag; a gray background color means that the Tag is inactive, and orange means that the Tag is active.

Group 2 with two tags set (Tag 2 and Tag 3)

If at least one Tag in a Group is active, then the Group (filter) also becomes active, otherwise the Group chosen doesn't affect the filtering process at all.

Group operator

When a single Tag is active in a Group, only presets having that Tag set are displayed in the Results.

If two or more Tags in a Group are active, the Results depend on the Operator chosen for the Group:

A Group operator

The Operator button works in toggle mode and offers a choice of two alternative Operators for the Group:

• Any ▶- Means that a preset is shown in the Results when the preset includes at least one of the active Tags from the Group.
  • All ▶ - Means that a preset is shown in the Results only when the preset includes all active Tags from the Group.

Filter enable / disable

You can quickly enable / disable the Filter using the toggle switch in the top-most section of the Filter:

An On/Off switch for a Group Filter

Other types of filtering

Searching by name

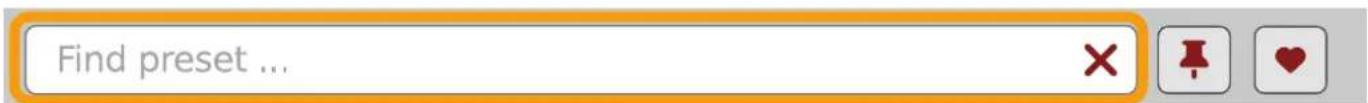

Alternatively, you can look for a preset by entering its name or just a piece of its name into the Find preset field:

The Find preset input

The Results are refreshed on-the-fly and they work together with the other filters.

Using the X icon clears the entire field:

Clearing the search field

Filtering Favorite presets

You can mark presets as a Favorite by clicking the Heart icon while hovering on preset name ▶. You can unmark presets by clicking the icon again (toggle mode):

Setting a preset as a Favorite on the list

Logical OR between Tags in the Group
Logical AND between Tags in the Group
It's allowed for every source (factory or user)

The flag is stored globally, meaning that a Favorite preset will be accessible as such from every other instance of the plug-in ▶

Once you have your Favorite presets flagged, you can quickly filter them using the toggle button with a Heart icon on it:

Find preset ...

Favorite presets filtering

If the button is active, then only Favorite presets will be shown (considering all remaining filters).

Filtering Pinned presets

You can Pin one or more presets using the Pin icon while hovering over a preset name ☐. You can unpin a preset by clicking the icon again (toggle mode):

Preset 6

Pinning a preset on the list

Unlike Favorites, this flag works locally and it's stored with the project file (not global config), so Pins are stored individually for every instance (with total recall, so a plug-in state is recalled if saved in the context of a project).

But, similarly to Favorites, you can easily filter presets using the toggle button with the Pin symbol on it:

Find preset ...

Pinned presets filtering

If the button is active, then only Pinned presets will be shown (considering all remaining filters).

Info pane

The column to the right shows information about the selected preset or presets. It also provides access to some of the preset editing functions.

The Info pane

There's a preset name at the top.

The Preset name in the Info pane

Additionally, if you've selected more than one preset there's information about how many more have been selected:

Selecting more than one preset

Below the preset(s) name there are few common sections describing selected presets:

• Tags
  • Author
• Description

Browser's visual adjustments

Folding sections

If you don't need to see the contents of every section / subsection, you can fold some of them up using the Caret icons:

Sections folded up

Resizing columns

You can use the three-dotted handles to change a column's width to your preference.

Resizing Browser columns

Editing presets

You can perform certain actions on presets, such as adjusting Groups and Tags, deletion, renaming the presets as well as their export or import. One should bear in mind, however, that some operations are only allowed on user presets but not on Factory content.

Preset selection for Edit

Some operations can be done on more than one preset, so you're allowed to select more than one preset at once; in the Results section, you can choose a preset or a set of presets in the following ways:

• Click a preset - Selects (and loads) one preset from the list.
• Win ( Ctrl + Click the preset ), Mac ( Cmd + Click the preset ) - Adds another preset to an already chosen preset or a set of presets.
• Shift + Click the preset - Selects a range of presets from the last chosen preset to the preset clicked with the Shift key.
  • Right-Click on any Preset in the Results section and choose the Select All option - this selects all presets:

Selecting all presets

Preset renaming

On a selected preset ,night-click to open the context menu and select the Rename option:

Preset renaming

Preset deletion

Once you have selected one or more presets, right-click to open the context menu and select the Delete items ▶ option:

Deleting presets

Alternatively, you can use the Trash bin button in the Info pane to delete selected presets:

The Trash bin button

Tags editing

When you select a preset or presets to change their tags, click the Pencil button next the Tags section in the Info pane to enter Edit mode for the Tags:

Entering the Tag edit mode

With the Edit mode enabled, you will see all possible Groups and Tags available for the preset(s):

The Tag Edit mode

Tag buttons work in toggle mode, much like filtering. Clicking them either sets or erases a Tag for a chosen preset. If a Tag is set for a preset, it is indicated by an orange background color, whereas if a Tag is not set, it has a gray background color.

If you choose multiple presets with existing tags, Tag buttons will appear orange if a specific Tag appears in all selected presets, and gray if it appears in none.

When a specific Tag is set only for a few of the selected presets, it appears as half-gray and half-orange.

Tags appearing only in part of selection

Changing the Tag status for one or more chosen presets sets or erases this Tag in all these presets. A status change is signaled by an Asterisk to the left of a Tag.

A Tag with a status change

Tag buttons highlighted in half-gray and half-orange color (where Tag values across the highlighted presets aren't all the same) work in a three-state system when switching between states; they turn gray if you erase the Tag for all selected presets, orange if you set the Tag for all selected presets, and return to half-gray and half-orange if the selected items remain unchanged or are returned to their initial state.

Potential changes have to be confirmed using the OK / Cancel buttons at the top part of the Tags section:

Confirmation buttons in the Tags section

Author editing

When you select a preset or presets to change the Author, click the Pencil button next the Author section in the Info pane to enter the Edit mode for the Author field:

Editing Author

Once you've finished editing the field, confirm the operation using the OK / Cancel buttons:

Confirming Author editing

This operation is possible for user content only.

Description editing

When you select a preset or presets to change the Description, click the Pencil button next the Description section in the Info pane to enter the Edit mode for the Description field:

Editing Description

Once you've finished editing the field, confirm the operation using the OK / Cancel buttons:

Confirming Description editing

This operation is possible for user content only.

Setting presets as Favorites

As described in the chapters above, you can mark a preset as a Favorite by clicking the Heart icon while hovering over the preset name:

Setting a preset as a Favorite

The flag is stored globally, meaning that a Favorite preset will be accessible as such from every other instance of the plug-in.

It's also possible to perform the operation for a selection of presets. After you select the desired presets in the Results window, right-click on the presets to open a context menu:

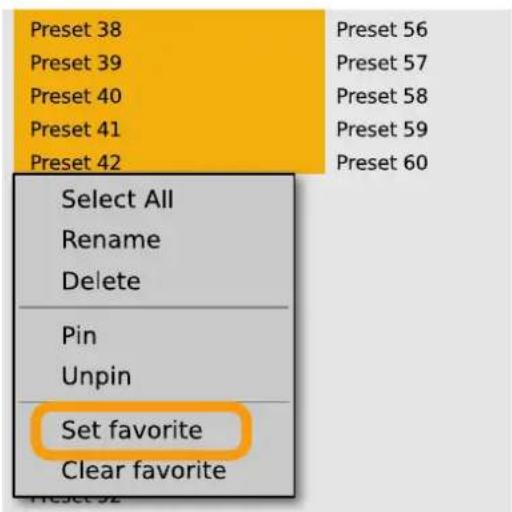

Setting Favorite presets from the context menu

And select the Set favorite option.

To clear Favorite flags for the selection of presets, use the Clear favorite option instead.

Pinning presets

You can Pin one or more presets using the Pin icon while hovering over the preset name:

Pinning a preset

Unlike Favorites, this flag works locally and it's stored with the project file (not globally). This means the Pins are stored individually for every instance (with total recall, so a plug-in state is recalled if saved in the context of a project).

It's also possible to perform the operation for a selection of presets. After selecting the desired presets in the Results window, right-click on the presets list to open the context menu:

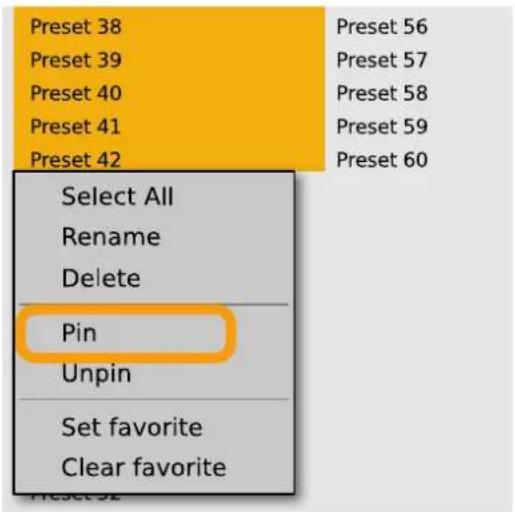

Pinning presets from selection

And select the Pin option.

To clear the Pin flag for a selection of presets, use the Unpin option instead.

Preset exchange

If you want to make a backup, or exchange a preset with a collaborator, you can export / import selected presets.

Export

Select a preset or presets that you're going to export and drag-and-drop them outside your DAW into a location you'd like to store them:

Exporting presets

The presets will be saved as individual files (one per preset) in the plug-in's native format.

Import

If you'd like to import preset files, you can drag-and-drop preset files from where they're stored, into the preset browser:

Importing presets

They will be automatically imported as user presets.

Importing Patterns

Specifically within the Pattern browser, it's possible to import:

• Native Phoscyon 2 patterns.
- Banks from legacy versions of the plug-in (Phoscyon 1.x) - which will be accessible as alternative Sources, after you drag-and-drop them into the Browser.
• Patterns from Audiorealism ABL 2 or 3 instruments - which will be included in User patterns after import.

Creating custom Tags and Groups structure

Adding custom Tags

Users are allowed to add their own custom Tags to both their own content and factory content. To add a new Tag to an existing filter Group, click over the Group's name to pull down a menu and select the Add Tag option □:

Adding a new Tag

You can do this either in the Info Pane (right column, while the Tag edit mode is enabled) or Filter (left column).

Editing custom Tags

There are a few edit options available for a user to perform on their own Tags, which are available by right-clicking a Tag's name in the Filter section:

The Filter section

You will see a context menu with all the available options:

Editing options for a user Tag

• Rename - Changes the name of a Tag.
  • Move to - Moves a Tag to another Group.
• Remove - Deletes a Tag.

The menu is accessible only for a user's own Tags.

Adding custom Groups

You can add a custom filter to Groups by clicking the Filter label and selecting the Add Group option from the pull-down menu:

Adding a user Group

From here, you can add Tags to that newly created Group (see above), or move ▶ Tags from other Groups.

You can also add a custom filter to Groups in the Info Pane (right column) or Filter (left column).

Editing custom Groups

There are a few edit options available for a user to perform on their own Groups. Click on a Group's name in the Filter section:

The Filter section

You will see a context menu with the following options:

Edit options for a user Group

• Add Tag - Adds a new tag to the Group (described earlier).
• Rename - Changes the Group's name.
• Remove - Deletes the Group, possible only when all Tags in the Group have also been removed.
• Move up - Moves a Group up in the Filter. Possible unless the Group is already the topmost one.
• Move down - Moves a Group down in the Filter. Possible unless the Group is the last one.

These operations are possible only on user Groups.

Groups in the Filter are ordered with Groups from Factory content first, then user groups below.

You can edit user Groups in either the Info Pane (right column, while Edit mode for Tags is enabled) or Filter (left column).

Unassigned Tags

When you receive content from a collaborator who uses different Tags and Groups, some Tags may show as Unassigned. This happens if the filter structure made by a preset's author is different.

Unassigned Tags

You can move the Tags across your Groups to make them fit your scheme, or re-tag the collaborator content entirely.

Configuration

MIDI Learn

Right-click any plug-in parameter to open the context menu:

A context menu

Left-clicking outside the menu area closes it automatically.

Clicking the bottom arrow expands the menu and displays all available options:

An expanded context menu

Linking a parameter to MIDI CC

The Learn function enables a quick assignment of physical controllers (from a MIDI controller) to plug-in parameters.

1. Click the Learn button to put the plug-in into a pending state before moving any MIDI CC controller.
2. Once the CC is recognized, click OK to save the change or click the Cancel button to restore the previous setting.

Linking a parameter to MIDI CC

Unlinking a parameter from MIDI CC

You can also delete a MIDI CC code attributed to a parameter from the context menu:

1. From the context menu, click the Clear button:

The Clear MIDI CC button

1. Then confirm using the OK button.

Loading / Saving a MIDI CC Map

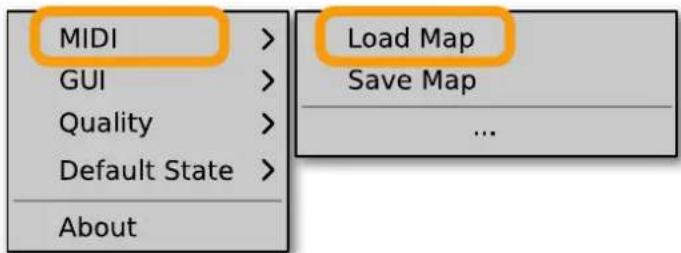

These options are available in the MIDI submenu, accessible under Cog icon in the left-upper corner:

The Load Map and Save Map options

• Save Map - Saves the current MIDI CC map to a file.
• Load Map - Loads a MIDI CC map from a stored file.

Quality settings

The Quality submenu under Cog icon in upper-left corner allows to choose sound quality for Real-time or Offline modes.

Quality settings

The higher the quality, the bigger the impact on the CPU.

GUI

The Size, System Scale and Theme options are accessible from GUI submenu under Cog icon in upper-left corner of the plug-in. With these, you can adjust look of the plug-in, according to the pixel density and resolution of your screen:

The GUI Size and System Scale options

Size

This option lets you choose one of several default skin sizes to best match the plugin to the resolution of your computer monitor.

System Scale

System Scale controls the rescale factor for the whole plug-in. For the best visual results, you should set it to the exact value from your system settings (screen properties).

Theme

The Theme allows you to choose skin color variant according to your preference

Default Settings

You can save your current settings so that the plug-in will default to them for each new instance, or restore the plug-in to load with its factory settings.

Changing default settings

1. Click the Cog icon in the left-upper corner of the plugin.
2. Go to the Default State submenu and choose the Save current option.

Changing the default state of the plug-in

With this option, the current plug-in state will be saved as the default / initial state for when you insert a new instance of the plug-in.

The plug-in state includes: sound parameters (default preset), views, preset filters, sound quality settings, loaded / created MIDI CC map and GUI settings.

Restoring factory defaults

To return the default state for new instances to factory settings:

1. Click the Cog icon in the left-upper corner of the plugin.
2. Go to the Default State submenu and choose the Restore factory option.
