Product Type	Embedded Computer / Industrial PC
Model	ASUS EBS-S110W Series
Motherboard Form Factor	3.5\" (146 mm x 105 mm)
Power Input (DC)	9 Vdc – 36 Vdc, 90 W max
AC Adapter	Input: 100-240 Vac, 50-60 Hz; Output: 12 Vdc, 7.5 A
Operating Temperature	0°C to 60°C (with 0.1 m/s airflow)
Memory	1 x SO-DIMM slot, DDR5 (not specified capacity, typically up to 32GB or 64GB)
Storage Support	1 x M.2 M-key (SATA/PCIe, 2242/2280); 1 x 2.5\" SATA 6Gb/s bay (7mm height); 1 x M.2 B-key (PCIe/USB, 2242/3042/3052)
Display Outputs	1 x HDMI 2.0 (up to 4096x2160 @ 60 Hz); 1 x DisplayPort 1.4 (up to 4096x2304 @ 60 Hz); 1 x LVDS/eDP header
USB Ports	Front: 1 x USB 5Gbps (USB 3.2 Gen 1), 1 x USB 10Gbps (USB 3.2 Gen 2); Rear: 2 x USB 2.0
Ethernet	2 x RJ-45: LAN1 10/100/1000/2500 Mbps, LAN2 10/100/1000 Mbps; both support WOL and PXE
Serial Ports	Front: 1 x DB9 (RS-232/422/485, switchable); Rear: 1 x DB9 (RS-232, also supports GPIO); Internal headers for 4 additional COM ports
Wireless Expansion	1 x M.2 E-key (Wi-Fi); 1 x M.2 B-key (4G LTE / 5G NR); 6 antenna holes
Audio	Rear: Mic-in, Line-out; Internal header for front panel audio (HD Audio)
Other I/O	GPIO header (8 bits); I2C; SMBus; SPI TPM; Chassis intrusion; Watchdog timer (programmable)
Mounting	Wall mount bracket (included); VESA mount (optional, compatible with monitors up to 4.97 kg)
Regulatory	FCC Part 15 Class A; ISED; CE; RoHS; REACH; designed for Restricted Access Area
Included Accessories	AC power adapter, power cord, wall mount kit, VESA mount, terminal block (power connector)
Motherboard Layout Highlights	Jumpers for Clear RTC, panel VCC selection, COM voltage, AT/ATX mode; Connectors for SATA power, fan, battery, etc.

Frequently Asked Questions - EBS-S110W ASUS

What is the ASUS EBS-S110W?

The ASUS EBS-S110W is an embedded computer (industrial PC) designed for edge computing, IoT, and commercial applications. It features a compact 3.5" motherboard, multiple I/O ports, and flexible expansion options.

How do I power on the EBS-S110W?

Connect the AC power adapter to the DC input (9-36 Vdc) and press the power switch on the front panel. The power indicator will light up. For sleep mode, press the switch once; for force shutdown, hold for 4 seconds.

What memory (RAM) is supported?

The EBS-S110W has one SO-DIMM slot supporting DDR5 memory modules. The exact capacity is not specified but typically up to 32 GB or 64 GB. Ensure the module is compatible with DDR5 voltage.

Can I install a 2.5" SSD or M.2 SSD?

Yes. It supports one 2.5" SATA SSD (7 mm height) and one M.2 M-key SSD (2242/2280, SATA or PCIe). For M.2, use the slot labeled M.2_M. A separate SATA cable is required for the 2.5" drive.

How do I connect a display?

Use the HDMI port (up to 4K @ 60 Hz) or DisplayPort (up to 4K @ 60 Hz). You can also connect an LVDS panel via the internal LVDS/eDP header (requires compatible cable and BIOS configuration).

What wireless modules can I install?

The EBS-S110W has an M.2 E-key slot for Wi-Fi modules and an M.2 B-key slot for 4G LTE or 5G NR modules. Six antenna holes are provided for external antennas.

How do I enter the BIOS?

During boot (POST screen), press F2 or Del to enter BIOS Setup. You can load optimized defaults from the Exit menu. Be cautious when changing settings.

What is the Watchdog Timer and how do I program it?

The Watchdog Timer (WDT) is a POST watchdog that can be enabled/disabled via BIOS. For custom WDT programming, use the NCT6116D SuperIO with I/O ports 0x2E/0x2F. The manual provides pseudo-code for setting time, enabling/disabling, and selecting second or minute mode.

Is the EBS-S110W suitable for outdoor use?

No. The device is rated for indoor use only. Operating temperature is 0°C to 60°C with airflow. It should be installed in a Restricted Access Area and not connected to outdoor Ethernet networks.

What safety precautions should I follow?

Always use the provided UL-certified power adapter. Do not disable the grounding plug. Keep the device away from water and heat sources. Disconnect power before cleaning. For battery (CMOS), replace only with the same type. Do not disassemble the unit yourself.

USER MANUAL EBS-S110W ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2024 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language website at https://www.asus.com/support/.

Contents

Package contents ....7

Chapter 1: Getting to know your Embedded Computer

1.1 Features....10

1.1.1 Front view....10
1.1.2 Rear view....15
1.1.3 Right view....17

1.2 Motherboard Overview....18

1.2.1 Motherboard layout....18
1.2.2 Onboard jumpers....20
1.2.3 Internal slots and connectors....23

Chapter 2: Using your Embedded Computer

2.1 Getting started....42

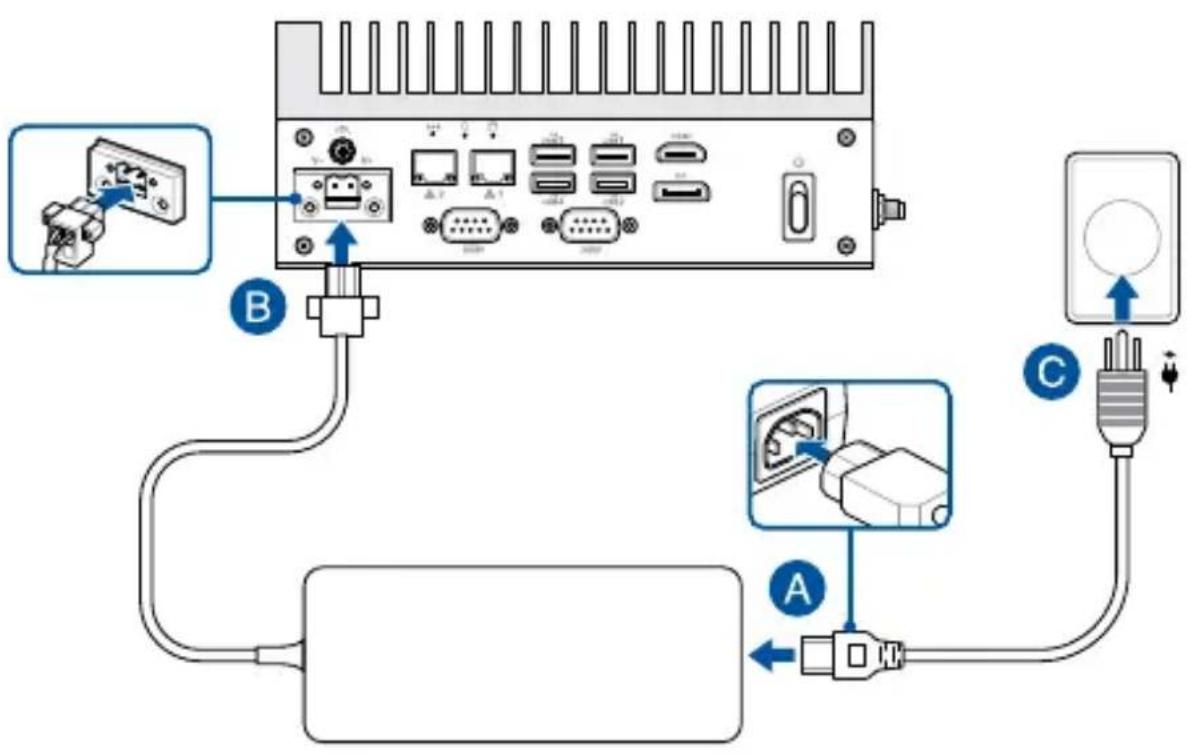

2.1.1 Connect the AC power adapter to your Embedded Computer ....42

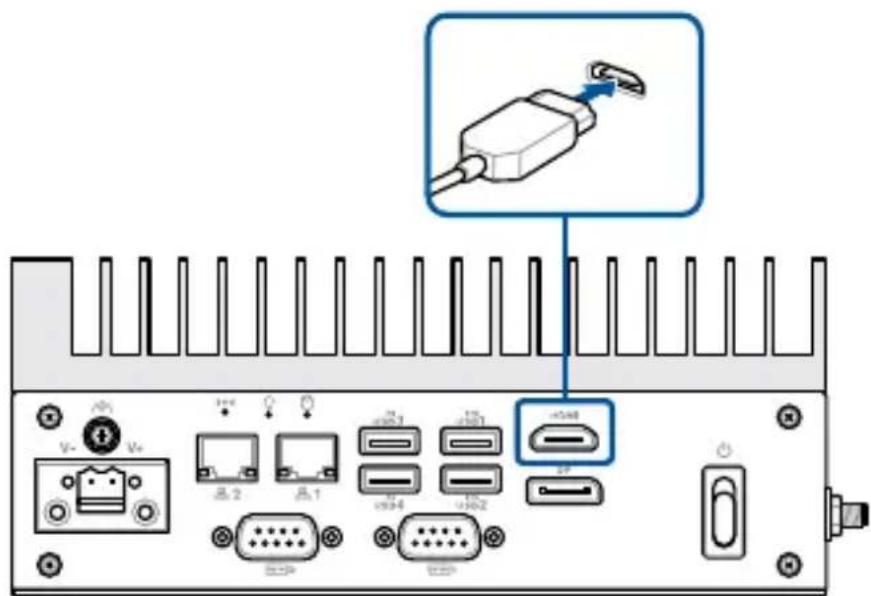

2.1.2 Connect a display panel to your Embedded Computer ....45

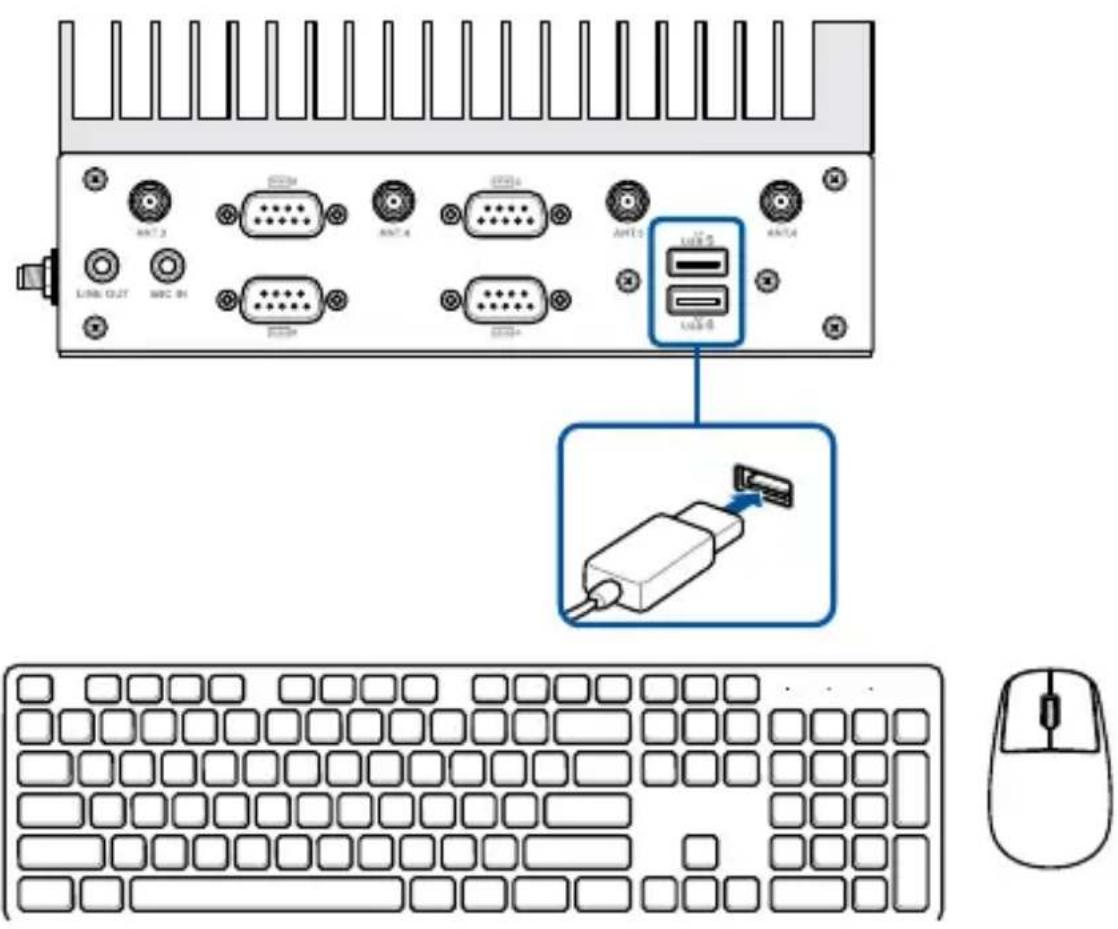

2.1.3 Connect the USB cable from keyboard or mouse....47
2.1.4 Turn on your Embedded Computer....48

2.2 Turning off your Embedded Computer....49

2.3 Putting your Embedded Computer to sleep....49

2.4 Entering the BIOS Setup....49

Chapter 3: Upgrading your Embedded Computer

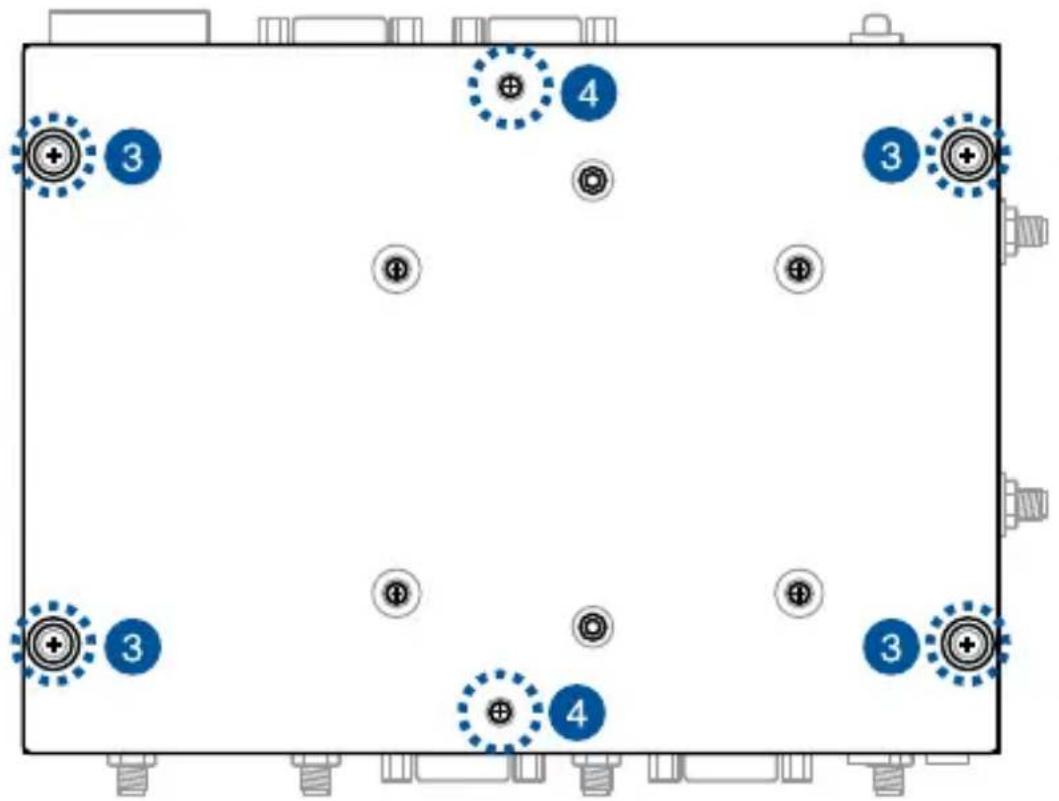

3.1 Removing the bottom cover....52
3.2 Replacing the bottom cover ....54
3.3 Installing memory modules....55
3.4 Installing 2.5-inch storage device ....56
3.5 Installing an M.2 SSD....58
3.6 Installing a nano SIM card....61

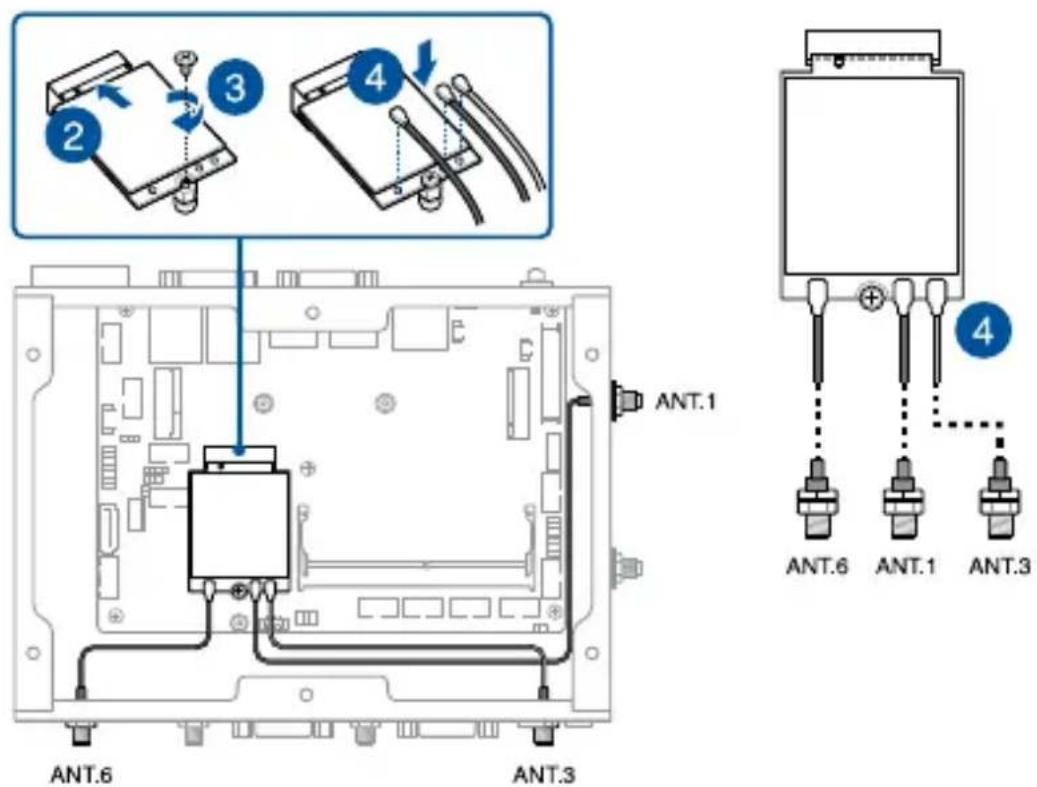

3.7 Installing a wireless card to the M.2 (E-key) slot 63
3.8 Installing an M.2 B-key module....65

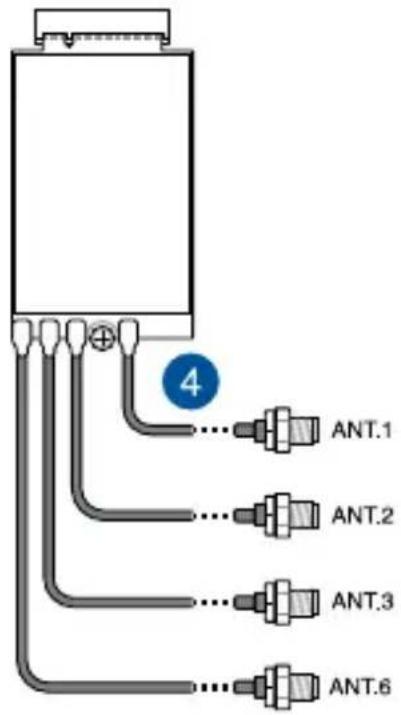

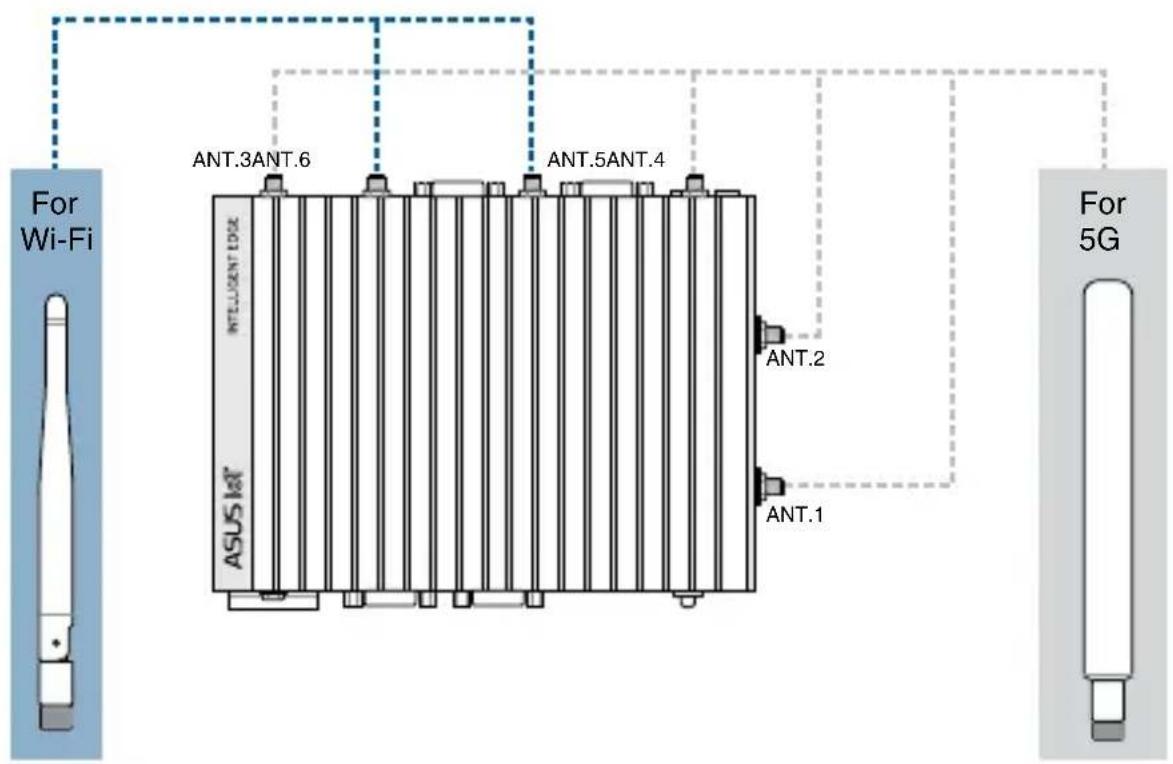

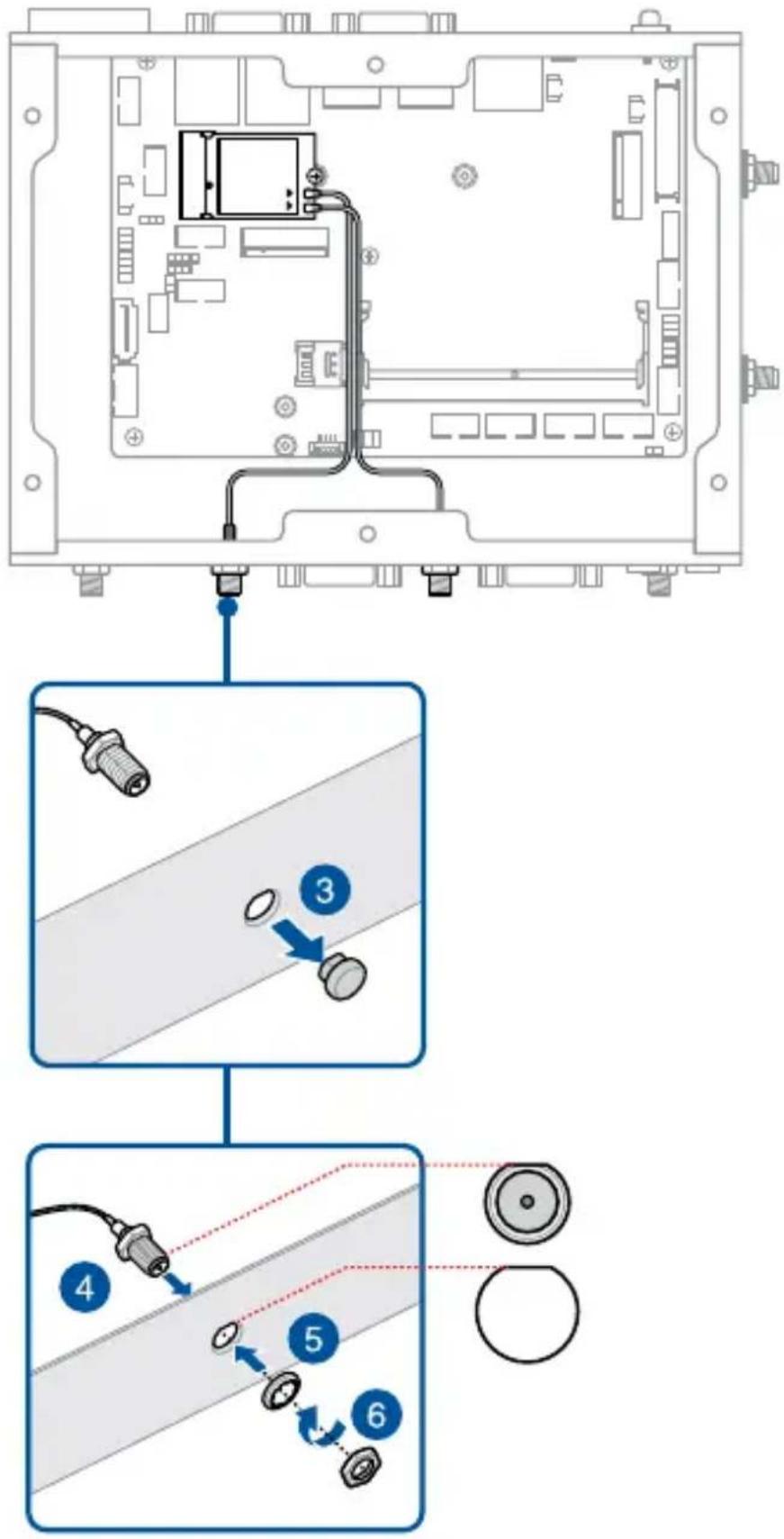

3.9 Installing antennas (optional)....69

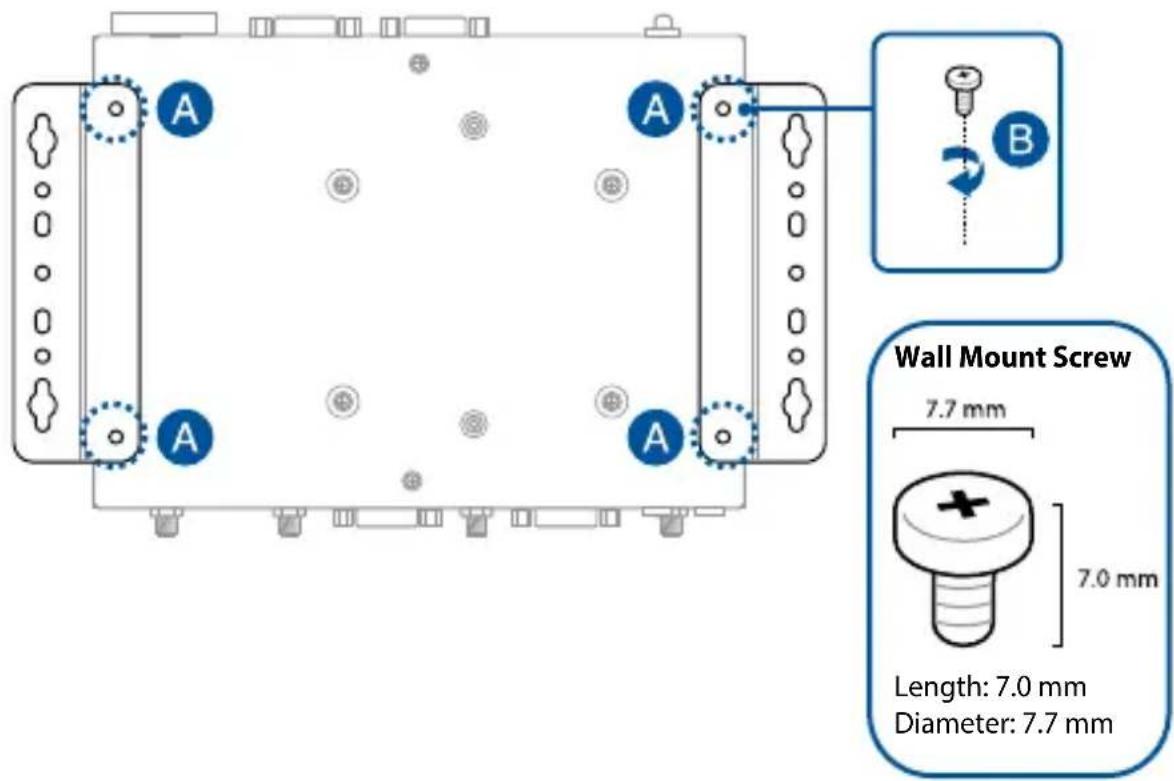

3.10 Installing wall mount brackets (optional)....73

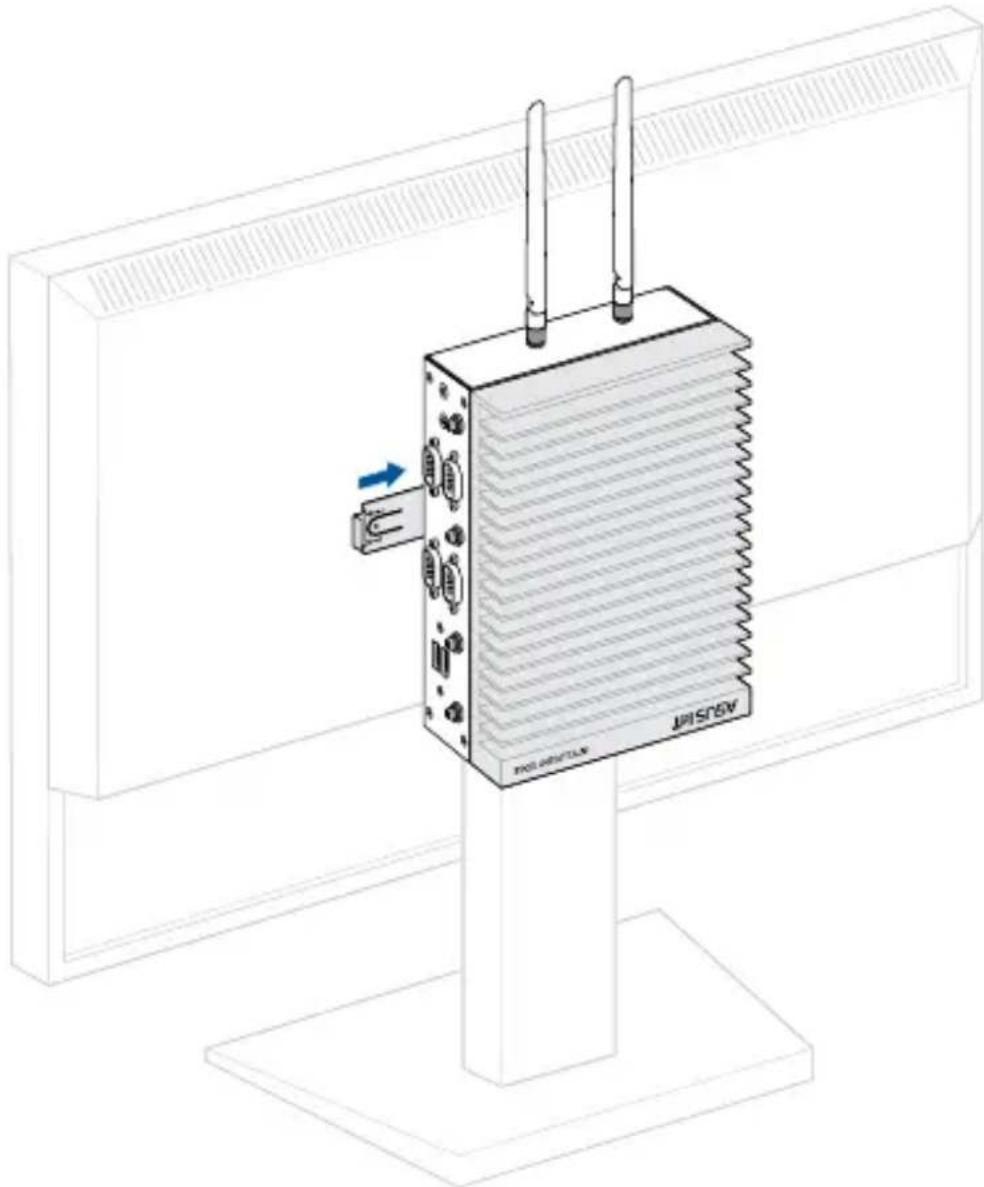

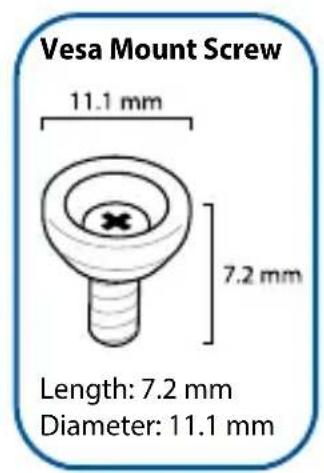

3.11 Installing the VESA mount (optional)....75

Chapter 4: Watchdog Timer

4.1 Watchdog Timer implementation....80
4.2 Watchdog Timer flowchart....81
4.3 Watchdog Timer Programming....82

Appendix

Safety information....86

Setting up your system....86

Care during use....87

Regulatory notices....88

Service and Support....95

About this manual

This manual provides information about the hardware and software features of your Embedded Computer, organized through the following chapters:

Chapter 1: Getting to know your Embedded Computer

This chapter details the hardware components of your Embedded Computer.

Chapter 2: Using your Embedded Computer

This chapter provides you with information on using your Embedded Computer.

Chapter 3: Upgrading your Embedded Computer

This chapter provides you with information on how to upgrade the memory modules, wireless modules, and hard disk drive / solid state drive of your Embedded Computer.

Chapter 4: Watchdog Timer

This chapter will guide you in implementing and programming the Watchdog Timer to allow you to monitor and manage system reliability.

Appendix

This section includes notices and safety statements for your Embedded Computer.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your Embedded Computer's data and components.

Package contents

Your Embedded Computer package contains the following items:

EBS-S110W Series

Line drawing of a rectangular electronic device with a cable and connector (no text or symbols)

Line drawing of a cable with two leads, no text or symbols present

AC power adapter* Power cord*

Optional item(s)

Two identical mechanical component plates with mounting holes, shown side by side without any text or symbols.

Wall mount kit VESA mount

Technical line drawing of a mechanical bracket with mounting holes and internal features (no text or symbols)

NOTE:

*The bundled power adapter and power cord may vary depending on model and country (or region) of sale.

- Some bundled accessories may vary depending on model. For details on these accessories, refer to their respective user manuals.

- The device illustration is for reference only. Actual product specifications may vary depending on model.

- If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.

1

Getting to know your Embedded Computer

1.1 Features

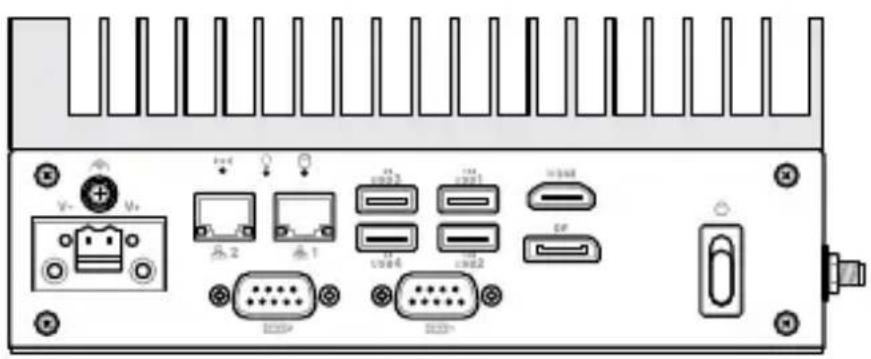

1.1.1 Front view

Functional Earth Ground

The Functional Earth Ground provides you with a grounding point.

System reset pinhole

The hard reset pinhole allows you to reboot your Embedded Computer.

Power indicator

The power indicator lights up when your Embedded Computer is turned on and blinks slowly when in sleep mode.

Drive activity indicator

This indicator lights up when your Embedded Computer is accessing the internal storage drive.

USB 5Gbps port

The USB (Universal Serial Bus) 5Gbps port provides a transfer rate up to 5 Gbit/s.

USB 10Gbps port

The USB (Universal Serial Bus) 10Gbps port provides a transfer rate up to 10 Gbit/s.

HDMI™ port

The HDMI (High Definition Multimedia Interface) port can support resolutions up to 4096 x 2160 @ 60 Hz on external display devices.

Power switch

The power switch allows you to turn the Embedded Computer on or off. You can use the power switch to put your Embedded Computer to sleep mode or press it for four (4) seconds to force shutdown your Embedded Computer.

DisplayPort

This DisplayPort 1.4 port can support resolutions up to 4096 x 2304 @ 60 Hz on external display devices.

Serial (COM) connector

The 9-pin DB9 connector allows you to connect RS-232/422/485 serial (COM) devices, such as bar code scanners, modems, and printers. Please refer to the table below for the pin definitions of the different COM connectors.

NOTE: Default set to RS-232. Setting can be changed through the BIOS.

Pin RS-232 RS-422 RS-485
1 DCD# TX- D-
2 RXD TX+ D+
3 TXD RX+ NA
4 DTR RX- NA
5 GND GND GND
6 DSR NA NA
7 RTS NA NA
8 CTS NA NA
9 RI NA NA

LAN port

The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000/2500 Mbps connection to a local network. It further supports Wake-on-LAN (WOL) and Preboot Execution Environment (PXE) to enable remote wake-up and the loading of an operating system over a network connection.

LAN port 1 LED indications

Activity Link LED
Status Description
Off No link
Green Linked
Green (blinking) Data activity
Green (blinking then steady)	Ready to wake up from suspend mode

Speed LED
Status Description
Off	10/100 Mbps connection
Orange 1 Gbps connection
Green 2.5 Gbps connection

LAN port

The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000 Mbps connection to a local network. It further supports Wake-on-LAN (WOL) and Preboot Execution Environment (PXE) to enable remote wake-up and the loading of an operating system over a network connection.

LAN port 2 LED indications

Activity Link LED
Status Description
Off No link
Yellow Linked
Yellow (blinking) Data activity
Yellow (blinking then steady)	Ready to wake up from suspend mode

Speed LED

Status Description

Off 10 Mbps connection

Orange 100 Mbps connection

Green 1 Gbps connection

Power input

The supplied terminal block power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Embedded Computer.

WARNING! The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

1.1.2 Rear view

1 ANT. 3 Antenna hole

ANT. 4 The antenna hole allows you to connect a wireless ANT. 5 antenna to enhance wireless signal reception.

ANT. 6

2 USB 5 2.0 USB 2.0 port

The USB (Universal Serial Bus) port is compatible with USB 2.0 and USB 1.1 devices, such as keyboards, pointing devices, flash disk drives, external HDDs, speakers, cameras, and printers.

3 Serial (COM) connector

The 9-pin RS-232 serial (COM) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers.

NOTE: This port also supports General Purpose Iput/Output (GPIO) for customizing digital input/output.

Serial (COM) connector

The 9-pin RS-232 serial (COM) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers. Refer to the table below for the pin definitions of the connector.

Pin RS-232

1 DCD#

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

MIC IN

Microphone

The built-in microphone can be used for video conferencing, voice narrations, or simple audio recording.

LINE OUT

Headphone jack

This port allows you to connect amplified speakers or headphones.

1.1.3 Right view

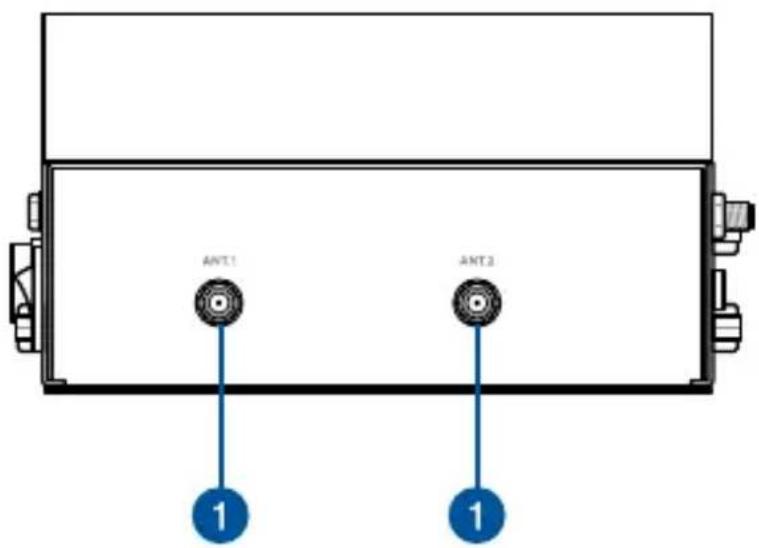

ANT. 1 Antenna hole

ANT. 2 The antenna hole allows you to connect a wireless antenna to enhance wireless signal reception.

1.2 Motherboard Overview

1.2.1 Motherboard layout

The EBS-S110W Series is an Embedded Computer based on a 3.5" motherboard (146 mm x 105 mm). Refer to the table on the next page for the page numbers corresponding to the numbered items.

Jumpers Page
1. Clear RTC RAM jumper 20
2. Display Panel VCC Power Selection jumper 21
3. COM +5V/+12V Selection jumper 21
4. AT/ATX Mode Configuration jumper 22

Connectors/slots Page

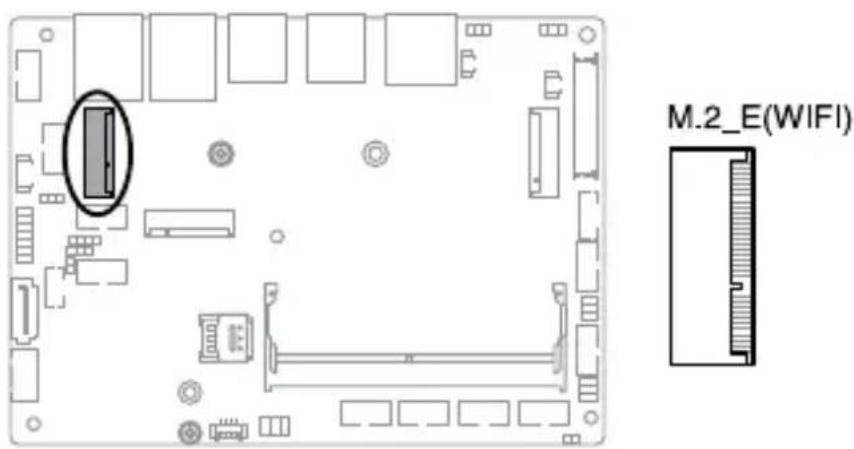

1. M.2 (E-key) Wi-Fi slot 23
2. M.2 (B-key) slot 24

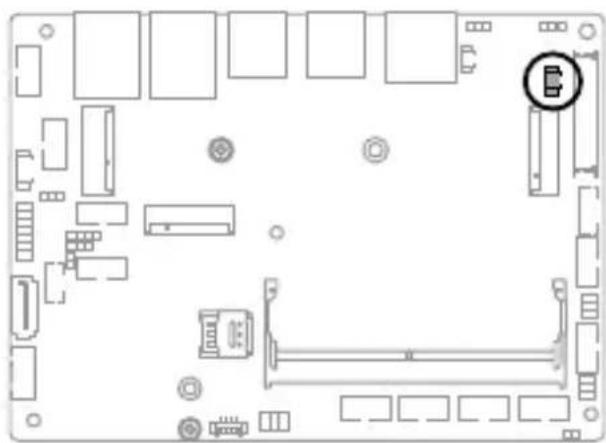

3. Battery connector 25
4. LVDS EDP Signal connector 25
5. M.2 (M-key) slot 26
6. Backlight Inverter Power connector 27
7. Serial (COM) Port connector 28
8. Chassis Intrusion connector	29
9. DIMM slot	29

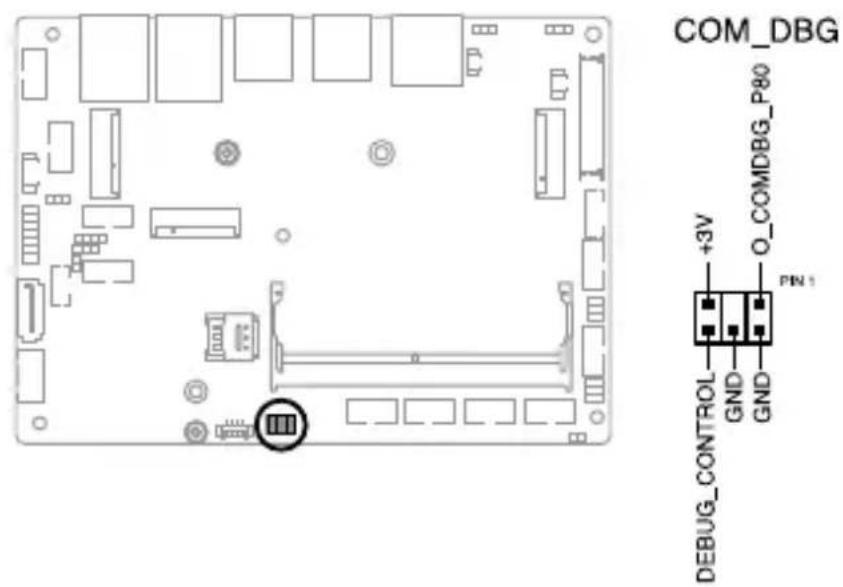

10. COM Debug connector		30
11. Nano SIM Card slot		30
12. Chassis Fan connector		31
13. USB 2.0 connector		32
14. DC-in 4-pin Power connector		33
15. SATA 6Gb/s & SATA Power connector		34
16. I2C connector		35
17. SMBus connector		36

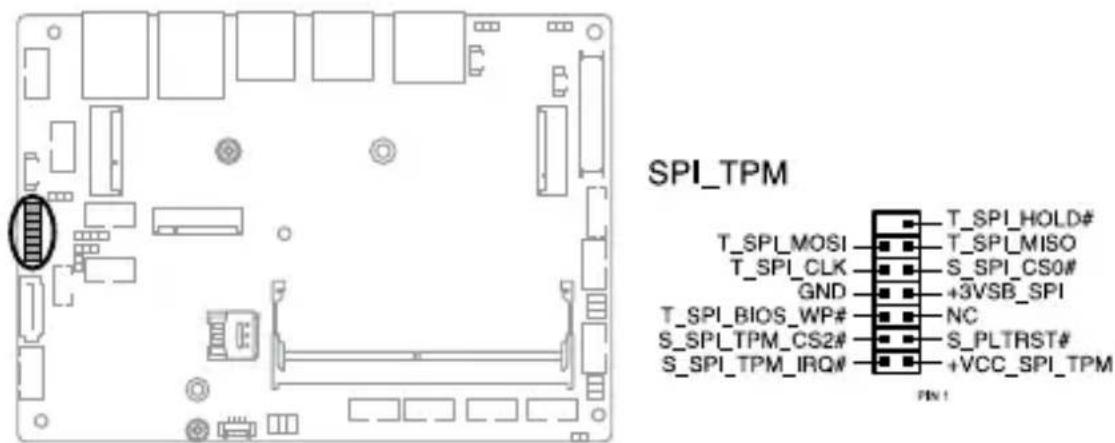

18. SPI TPM connector		36
19. GPIO connector 37
20. Stereo Speaker connector		37

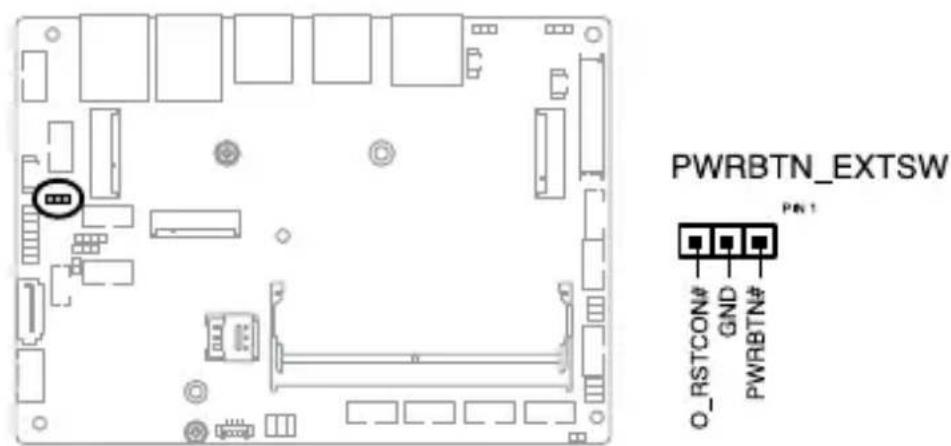

21. Power Button connector		38
22. Front Panel connector		39

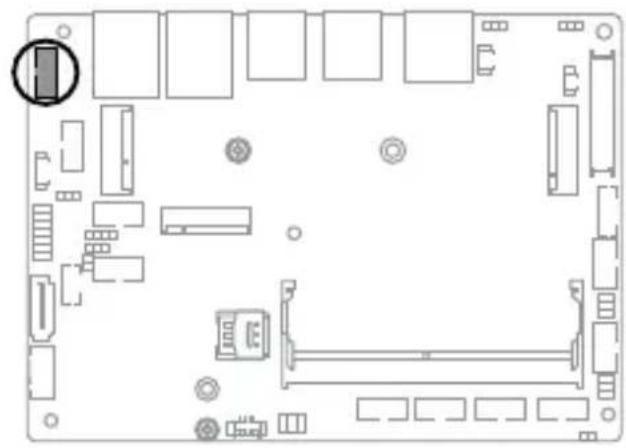

23. Front Panel Audio (Line Out / Mic) connector		40

1.2.2 Onboard jumpers

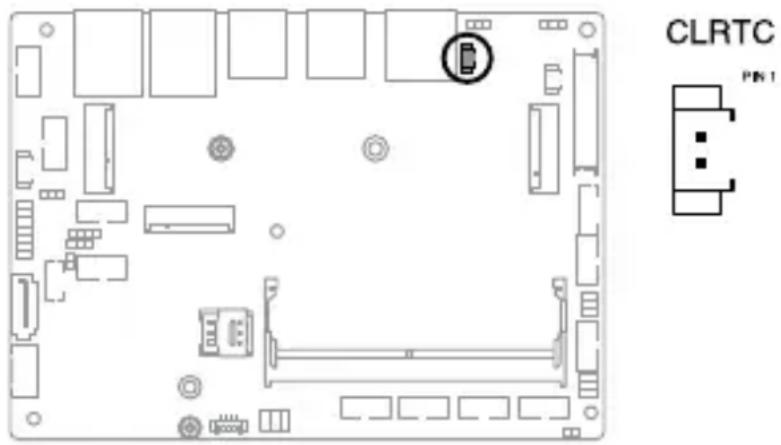

1. Clear RTC RAM jumper

The Clear RTC RAM jumper allows you to clear the Real Time Clock (RTC) RAM in the CMOS, which contains the date, time, system passwords, and system setup parameters.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about 5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

NOTE: If the steps above do not help, disconnect the CMOS battery cable from the motherboard and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reconnect the cable to the motherboard's battery connector. Refer to the Motherboard layout section for the location of the battery connector.

2. Display Panel VCC Power Selection jumper

The Display Panel VCC Power Selection jumper allows you to select the voltage for the LVDS panel.

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and connectors (no text or labels)

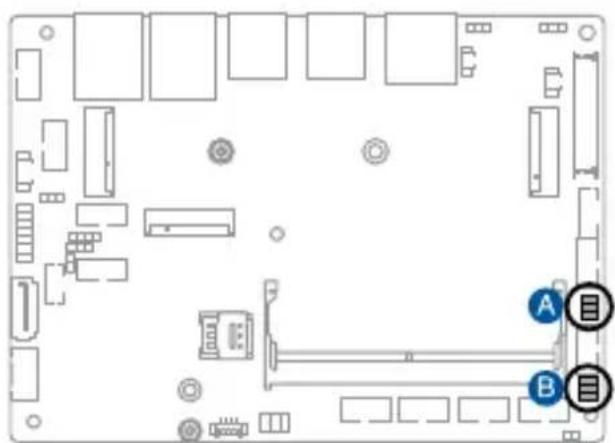

3. COM +5V/+12V Selection jumper

The COM +5V/+12V Selection jumper allows you to select the voltage for the COM1 and COM2 ports.

Top-down schematic of a computer motherboard with labeled ports (A and B) and internal components (no text or symbols beyond labels)

4. AT/ATX Mode Configuration jumper

The AT/ATX Mode Configuration jumper allows you to switch between AT and ATX modes. The default setting for this jumper is set to ATX mode with a jumper cap attached. To switch to AT mode, remove the jumper cap.

1.2.3 Internal slots and connectors

1. M.2 (E-key) Wi-Fi slot

The M.2 Wi-Fi slot allows you to install an M.2 Wi-Fi module (E-key, type 2230).

NOTE:

• The M.2 Wi-Fi module is purchased separately.
• We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

2. M.2 (B-key) slot

The M.2 (B-key) slot allows you to install a B-key (PCIe/USB2.0/USB3.2 Gen 2) type 2242/3042/3052 M.2 device, such as a 4G LTE or 5G NR module.

NOTE:

• The M.2 4G LTE or 5G NR module is purchased separately.

• We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

3. Battery connector

The Battery connector allows you to connect a lithium CMOS battery.

Top-down schematic of a computer motherboard layout with no visible text or symbols

BATTERY

4. LVDS EDP Signal connector

The LVDS EDP Signal connector allows you to connect an LCD monitor that supports a Low-voltage Differential Signaling (LVDS) interface.

Top-down schematic of a computer motherboard with labeled components and a highlighted rectangular area (no text or symbols)

LVDS_EDP

Connector type

WtoB 2x20p, 1.25mm pitch

5. M.2 (M-key) slot

The M.2 slot allows you to install an M-key (SATA/PCIe) type 2242/2280 M.2 device, such as a M.2 SSD module.

NOTE:

• The M.2 SSD module is purchased separately.
• We recommend using a PH1/sleeve screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw/standoff.

6. Backlight Inverter Power connector

The Backlight Inverter Power connector allows you to power the backlight inverter on a display panel via a backlight inverter module.

IMPORTANT! The Backlight Inverter Power connector supports a maximum current of 2 A.

Connector type

Header 1x5p, K6, 2.0mm pitch

7. Serial (COM) Port connector

The Serial (COM) Port connector allows you to connect a serial cable. Connect the 2x5p connector from the serial cable to this connector, then align and secure the DB-9 connector to the cut-out on the system chassis panel.

Connector type

BOX header 2x10p, K10, 2.0mm pitch

NOTE:

- The serial port module is purchased separately.

• COM1 and COM2 support RS-232/422/485.

8. Chassis Intrusion connector

The Chassis Intrusion connector allows you to connect a intrusion sensor or microswitch for the chassis intrusion detection feature. When you remove any chassis component, the sensor or microswitch triggers and sends a high level signal and records a chassis intrusion event.

NOTE: By default, a jumper cap that disables the intrusion detection feature is installed on the connector to prevent accidental triggers.

9. DIMM slot

The motherboard comes with a Small Outline Dual Inline Memory Module (SODIMM) slot designed for DDR5 (Double Data Rate 5) memory modules.

Technical diagram of a computer motherboard layout and its SODIMM_A1 connector (no text or symbols on the diagram itself)

10. COM Debug connector

The COM Debug connector allows you to connect a COM debug card.

Connector type

Header 2x3p, 2.54mm pitch

11. Nano SIM Card slot

The Nano SIM Card slot allows you to install a Nano SIM card.

NOTE: The Nano SIM card is purchased separately.

12. Chassis Fan connector

The Chassis Fan connector allows you to connect a fan to actively cool the system.

Connector type

WtoB CON 4P, 1.25mm pitch, R/A

13. USB 2.0 connector

The USB 2.0 connector allows you to connect a USB module for additional USB 2.0 ports. The USB 2.0 connector provides data transfer speeds of up to 480 MB/s connection speed.

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and memory compartment (no text or labels)

Connector type

BOX header 2x5p, K9, 2.0mm pitch

WARNING! DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

NOTE: The USB 2.0 module is purchased separately.

14. DC-in 4-Pin Power connector

The DC-in 4-pin Power connector is for DC power input. Using a compatible power cable, you may connect a suitable power supply with DC-in jacks.

Connector type

POWER CON 4P, S/T

15. SATA 6Gb/s & SATA Power connector

The SATA 6Gb/s and SATA Power connectors allow you to connect SATA devices such as optical disc drives and hard disk drives via a SATA cable and power cable.

Connector type

Wafer HD 4P, 2.0mm pitch & Wafer HD 7p, 1.27mm pitch

NOTE: Ensure to use the bundled cable when connecting a storage device to this connector.

16. I2C connector

The I2C (Inter-Integrated Circuit) connector allows you to connect an I2C-compatible IoT security module.

Connector type

Header 1x3p, K6, 2.0mm pitch

17. SMBus connector

The System Management Bus (SMBus) connector allows you to connect SMBus devices. This connector is generally used for communication with system and power management-related tasks.

Connector type

Header 1x4p, 2.0mm pitch

18. SPI TPM connector

The SPI TPM connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Connector type

Header 2x7p, K14, 2.0mm pitch

19. GPIO connector

The GPIO connector allows you to connect a general purpose input/output module to customize digital signal input/output.

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and connectors (no text or labels)

Connector type

BOX header 2x5p, K9, 2.0mm pitch

20. Stereo Speaker connector

The Stereo Speaker connector allows you to connect a stereo speaker. This connector supports 2 W at 4 Ω stereo speakers.

Top-down schematic of a computer motherboard showing internal components and connectors (no text or labels)

21. Power Button connector

The Power Button connector allows you to connect an external power button.

22. Front Panel connector

The Front Panel connector supports several chassis-mounted functions.

Connector type

BOX header 2x5p 2.0mm pitch

• System Power LED connector (PLED)

The 2-pin connector allow you to connect the System Power LED. The System Power LED lights up when the system is connected to a power source, or when you turn on the system power, and blinks when the system is in sleep mode.

• Storage Device Activity LED connector (HDLED)

The 2-pin connector allows you to connect the Storage Device Activity LED. The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device or storage device add-on card.

• Power button/Soft-off button connector (PWRBTN)

The 3-1 pin connector allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings).

- Reset button connector (O\_RSTCON)

The 2-pin connector allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system.

23. Front Panel Audio (Line Out / Mic) connector

The Front Panel Audio connector is for a line out /microphone module that supports HD Audio. Connect one end of the line out / mic module cable to this connector.

Top-down schematic of a computer motherboard showing internal components and connectors (no text or labels)

Connector type

BOX header 2x5p, K8, 2.0mm pitch

NOTE: We recommend that you connect a high-definition line out / mic module to this connector to avail of the motherboard's high-definition audio capability.

Using your Embedded Computer

2

2.1 Getting started

2.1.1 Connect the AC power adapter to your Embedded Computer

To connect the AC power adapter to your Embedded Computer:

A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector to your Embedded Computer's power (DC) input.
C. Plug the AC power adapter into a 100 V - 240 V power source.

NOTE:

The power adapter may vary in appearance, depending on model and country (or region) of sale. Refer to the following for more information on the different power adapters, as well as the system:

90 W Power adapter

• Input voltage: 100 - 240 Vac
• Input frequency: 50 - 60 Hz
• Rated output current: 7.5 A max (90 W)
• Rated output voltage: 12.0 Vdc

System

• Rated input current: 10 A - 2.5 A (90 W)
• Rated input voltage: 9 - 36 Vdc
• Operating temperature: -20 \~ 60°C

IMPORTANT!

• We strongly recommend that you use only the AC power adapter and cable that came with your Embedded Computer.
- We strongly recommend that you use a grounded wall socket while using your Embedded Computer.
- The socket outlet must be easily accessible and near your Embedded Computer.
- To disconnect your Embedded Computer from its main power supply, unplug your Embedded Computer from the power socket.

WARNING!

• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.
• Do not disable or remove the power cord grounding plug, the grounding is an important safety feature.
• Ensure to plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

2.1.2 Connect a display panel to your Embedded Computer

You can connect a display panel or projector to your Embedded Computer that has the following connectors:

• HDMI™ connector
• DisplayPort

To connect a display panel to your Embedded Computer:

Connect one end of an HDMI™, or a DisplayPort cable to an external display, and the other end of the cable to your Embedded Computer's HDMI™ port, or DisplayPort.

Connect display via HDMI™ port

Connect display via DisplayPort

2.1.3 Connect the USB cable from keyboard or mouse

You can connect generally any USB keyboard and mouse to your Embedded Computer. You can also connect a USB dongle for a wireless keyboard and mouse set.

To connect a keyboard and mouse to your Embedded Computer:

Connect the USB cable from your keyboard and mouse to any of the USB ports of your Embedded Computer.

NOTE:

• The keyboard varies with country or region.
- The keyboard and mouse are purchased separately.

2.1.4 Turn on your Embedded Computer

Press the power switch to turn on your Embedded Computer.

2.2 Turning off your Embedded Computer

If your Embedded Computer is unresponsive, press and hold the power switch for at least four (4) seconds until your Embedded Computer turns off.

2.3 Putting your Embedded Computer to sleep

To put your Embedded Computer in Sleep mode, press the power switch once.

2.4 Entering the BIOS Setup

BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the Embedded Computer.

In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or update.

WARNING! Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

Load default BIOS settings

To load the default values for each of the parameters in your BIOS:

1. Enter the BIOS by pressing or on the POST screen.

NOTE: POST (Power-On Self Test) is a series of software controlled diagnostic tests that run when you turn on your Embedded Computer.

1. Navigate to the Exit menu.
2. Select the Load Optimized Defaults option, or you may press .
3. Select OK to load the default BIOS values.

3

Upgrading your Embedded Computer

IMPORTANT!

• Ensure that your hands are dry before proceeding with the rest of the installation process. Before installing any of the features in this guide, use a grounded wrist strap or touch a safely grounded object or metal object to avoid damaging them due to static electricity.
• Turn off the power of your Embedded Computer, and allow it to cool for at least 10 minutes before performing any installation/uninstallation process.

NOTE: The illustrations in this section are for reference only. The slots may vary depending on model.

3.1 Removing the bottom cover

1. Turn off your Embedded Computer then disconnect all cables and peripherals.
2. Place the Embedded Computer on a flat stable surface, with its top side facing down.
3. Remove the four (4) rubber feet screws from the bottom cover.
4. Remove the two (2) screws securing the bottom cover.
5. After removing the screws, remove the bottom cover and place it aside.

3.2 Replacing the bottom cover

1. Align the bottom cover with the screw holes, then replace the bottom cover onto the Embedded Computer.
2. Secure the bottom cover using the two (2) screws removed previously.
3. Replace the four (4) rubber feet screws removed previously.

3.3 Installing memory modules

Your Embedded Computer comes with an SO-DIMM slot that allows you to install DDR5 SO-DIMMs.

WARNING! Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the Single Board Computer and its components.

Align and insert the memory module into the slot (A), and press it down (B) until it is securely seated in place.

3.4 Installing 2.5-inch storage device

1. Remove the four (4) screw hole covers from the bottom cover, if they exist.

2. Prepare your 2.5-inch storage device, then position it within the two diagonally opposite laser-etched marks on the bottom cover of your Embedded Computer.

3. Align the four (4) screw holes on the storage device with the ones on the bottom cover.

4. Secure the storage device to the storage bay using four (4) screws.

1. Connect the storage device cable to the storage device.

IMPORTANT! This device only supports 7mm 2.5-inch SSD.

1. Connect the storage device cable to the SATA6G and SATA_PWR connectors on the motherboard.

2. Replace the bottom cover, then secure the bottom cover using the two (2) screws removed previously.

3. Replace the four (4) rubber feet screws removed previously.

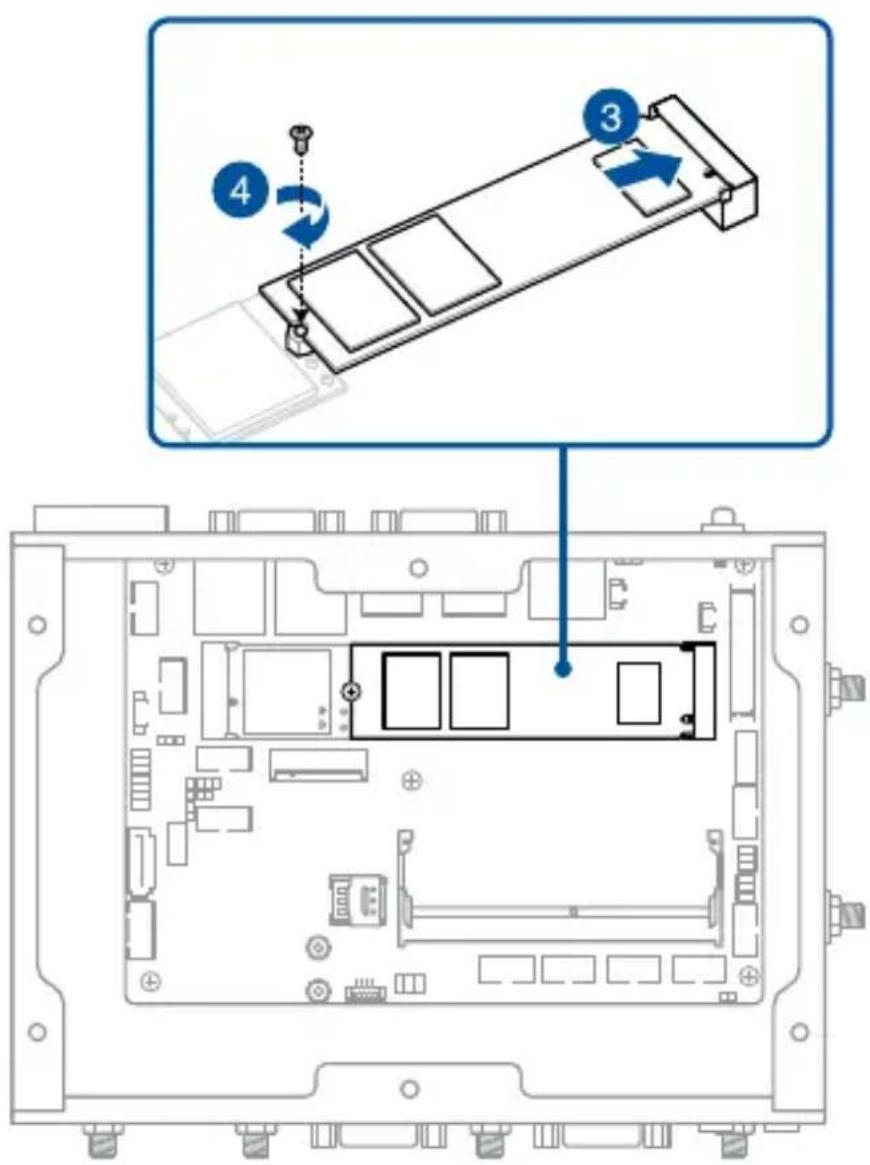

3.5 Installing an M.2 SSD

To install an M.2 2242 SSD:

1. (Optional) Replace the standoff if it was removed.

NOTE: We recommend using a PH1/sleeve screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw/standoff.

1. Align and insert the M.2 SSD into its slot inside the Embedded Computer.

2. Gently push down the M.2 SSD on top of the standoff and fasten it using a screw.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

To install an M.2 2280 SSD:

1. (Optional) If a wireless card is installed, remove the screw holding it in place (A), replace it with a standoff (B), and skip to step 3.

NOTE: We recommend using a PH1/sleeve screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the standoff.

1. (Optional) Replace the standoff if it was removed.

NOTE: We recommend using a PH1/sleeve screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the standoff.

1. Align and insert the M.2 SSD into its slot inside the Embedded Computer.

2. Gently push down the M.2 SSD on top of the standoff and fasten it using a screw.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

3.6 Installing a nano SIM card

1. (Optional) Remove the M.2 module from the M.2 B-key slot, if one is installed, by first removing the screw securing the module, and then removing the module.
2. Push the nano SIM cover in the direction away from the SO-DIMM slots.
3. Lift the nano SIM cover.
4. Place the nano SIM into the nano SIM slot.
5. Close the nano SIM cover.
6. Push the nano SIM cover towards the SO-DIMM slots to secure the nano SIM card.

3.7 Installing a wireless card to the M.2 (E-key) slot

1. Remove the M.2 screw.

2. Align and insert the wireless card into the M.2 slot inside the Embedded Computer.

3. Gently push down the wireless card on top of the standoff, and then fasten it using the previously removed screw.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your wireless card. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

• Please refer to the Installing antennas section for more information on installing the antennas.
• Connecting antennas to your wireless card may strengthen the wireless signal.
• A soft clicking sound indicates that the antenna has been securely attached on the wireless card.

WARNING! RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

3.8 Installing an M.2 B-key module

Your Embedded Computer comes with an M.2 (B-key) slot that allows you to install a B-key (PCIe/USB2.0/USB3.2 Gen 2) type 2242/3042/3052 device, such as a 4G LTE or 5G NR module.

To install a 4G LTE module:

1. Remove the screw from the M.2 standoff.
2. Align and insert the module into the slot.
3. Press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by following chart on the next page.

NOTE:

• Refer to Installing antennas for more information on installing the antennas.
- Connecting antennas to your module may strengthen the signal.
- A soft clicking sound indicates that the antenna has been securely attached on the module.

For 4G LTE modules with two (2) RF connectors

For 4G LTE modules with three (3) RF connectors

To install a 5G NR module:

1. Remove the screw from the M.2 standoff.
2. Align and insert the module into the slot.
3. Press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by following chart on the next page.

NOTE:

• Refer to Installing antennas for more information on installing the antennas.
- Connecting antennas to your module may strengthen the signal.
- A soft clicking sound indicates that the antenna has been securely attached on the module.

WARNING! RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

3.9 Installing antennas (optional)

You may install antennas to the antenna jacks located on the right and rear panels. The installed antennas can be connected to a 4G LTE or 5G NR module installed in the M.2 B-key slot or to a wireless card installed in the M.2 E-key (Wi-Fi) slot.

4G module with two RF connectors and wireless card

4G module with three RF connectors and wireless card

5G module and wireless card

To install an antenna:

NOTE: If your Embedded Computer came pre-installed with wireless card antenna jacks, skip to step 9.

1. Remove the bottom cover. Refer to Removing the bottom cover for details.
2. Prepare the RF connector and cable.
3. Remove the rubber caps from the antenna holes.
4. Insert the antenna jack end of the RF connector and cable into the antenna hole from within the chassis outwards, ensuring that the flat edge of the jack is properly aligned to the flat edge of the hole.
5. Insert the bundled O-ring over the antenna jack.
6. Secure the antenna jack using one of the bundled hex screws.
7. Connect the other end of the RF connector and cable to your wireless card (refer to Installing a wireless card to the M.2 (E-key) slot for details) or to your 4G LTE / 5G NR module (refer to Installing an M.2 B-key module for details).
8. Replace the bottom cover. Refer to Replacing the bottom cover for details.
9. Screw the external Wi-Fi antennas onto their corresponding antenna jacks on the front and rear panels by turning them in a clockwise direction.
10. Position the antennas for optimal signal reception.

3.10 Installing wall mount brackets (optional)

1. Remove the four (4) rubber feet screws (A), and then remove the rubber feet from the rubber feet screws (B).

1. Align the wall mount with the rubber feet screw holes (A), and then secure the wall mount brackets to your Embedded Computer using the rubber feet screws (B).

NOTE: The rubber feet and wall mount screws are the same screws.

3.11 Installing the VESA mount (optional)

You may install a VESA mount to your Embedded Computer, which allows you to install your Embedded Computer to a VESA mount-compatible device, such as a monitor.

IMPORTANT! When installing your Embedded Computer to a VESA mount-compatible device, such as a monitor, ensure to first consider the stability of the setup. This is especially critical for VESA mount-compatible devices that weigh less than 4.97 kg.

1. Place your Embedded Computer upside down on a flat and stable surface.
2. Attach the bundled two (2) 12mm screws into the screw holes at the bottom of your Embedded Computer.

Pure electrical circuit lines without any symbols

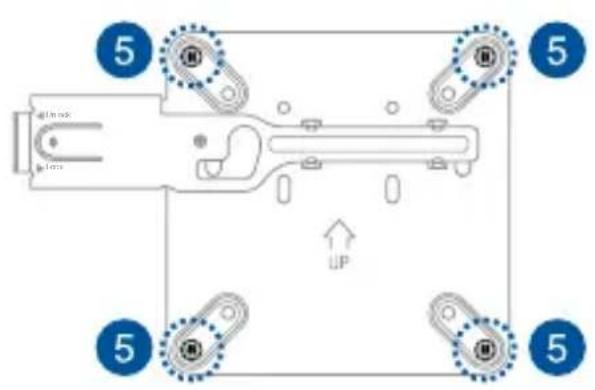

1. Remove the screw hole covers at the back of your VESA mount-compatible device, if they exist.

2. With the arrow on the VESA mounting plate pointing upward, align its screw holes to the screw holes of the VESA mount-compatible device.

3. Secure the VESA mounting plate to the VESA mount-compatible device using the bundled screws.

WARNING! Do not overtighten the screws as it may cause damage to your VESA mount-compatible device.

1. Pull the metal lock on the VESA mounting plate outwards.

1. Position the Embedded Computer and insert the screws attached on the Embedded Computer to the mounting holes of the VESA mounting plate (A), then gently push the Embedded Computer down in the angle shown in the illustration to secure it in place (B).

A

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

B

1. Push the metal lock back towards the Embedded Computer until it securely snaps in place.

Technical line drawing of an ASUSTR device mounted on a stand, showing internal components and wiring (no text or symbols)

Watchdog Timer

4

4.1 Watchdog Timer implementation

The Watchdog Timer used in this Embedded Computer is the POST Watchdog Timer. The Watchdog Timer circuit is in SuperIO and can be controlled by the BIOS setup menu through the system BIOS for different boot phases.

Please refer to the table below for more details on the implementation of the Watchdog Timer.

Watchdog Timer Implementation Default Timeout
POST Watchdog Timer	This Watchdog Timer is for recovering the system from crashes during BIOS takeover to OS.	The timeout value is determined by the BIOS settings.
	NOTE: The default setting for the BIOS item is set to enabled.
*OS Watchdog Timer	No implementation. User needs to write software in OS to keep updating the watchdog timer to prevent it from timing out. The application is executed on payload.	N/A
	NOTE: Please refer to the section Watchdog Timer Programming for more information.

4.2 Watchdog Timer flowchart

Please refer to the Watchdog Timer initialization flowchart below:

    subgraph Security (SEC)
        A
        B
        C
        D
    end

    subgraph Pre EFI Initialization (PEI)
        B
        C
        D
    end

    subgraph Driver Execution Environment (DXE)
        E
        F
    end

    subgraph Boot Dev Select (BDS)
        G
        H
        I
        J
        K
    end

    subgraph Transient System Load (TSL)
        K
        L
        M
    end

    subgraph Run Time (RT)
        M
        N
    end

    subgraph After Life (AL)
        N
    end

    note1[""Power on → [.. Platform initialization .."] --> [.... OS boot ....] --> Shutdown"]
    note2["+OS WDT"]
    note3["+OS WDT"]

4.3 Watchdog Timer Programming

Please refer to the pseudo code for the NCT6116D watchdog timer programming below:

SIO_INDEX_PORT is 0x2E

SIO_DATA_PORT is 0x2F

1. Set WDT Time Unit

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);

Outportb(SIO_DATA_PORT, 0x08);

Outportb(SIO_INDEX_PORT, 0xF0);

val = Inportb(SIO_DATA_PORT) // Read current WDT setting

val = val | 0x08; // minute mode, val = val & 0xF7 if second mode

Outportb(SIO_INDEX_PORT, 0xF0);

Outportb(SIO_DATA_PORT, val); // Write back WDT setting

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

2. Set WDT Time

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x07);
Outportb(SIO_DATA_PORT, 0x08);
Outportb(SIO_INDEX_PORT, 0xF1);
Outportb(SIO_DATA_PORT, Time); // Write WDT time, value 1 to 255
Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

3. Enable WDT

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);
Outportb(SIO_DATA_PORT, 0x08);
Outportb(SIO_INDEX_PORT, 0x30);
val = Inportb(SIO_DATA_PORT) // Read current WDT status

val = val | 0x01; // Enable WDT Timer

Outportb(SIO_INDEX_PORT, 0x30);
Outportb(SIO_DATA_PORT, val); // Write back WDT status

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

4. Disable WDT

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);

Outportb(SIO_DATA_PORT, 0x08);

Outportb(SIO_INDEX_PORT, 0xF1);

Outportb(SIO_DATA_PORT, 0x00); // Clear WDT time, it means WDT Time-Out disable

Outportb(SIO_INDEX_PORT, 0x30);

val = Inportb(SIO_DATA_PORT) // Read current WDT status

val = val & 0xFE; // Disable WDT Timer

Outportb(SIO_INDEX_PORT, 0x30);

Outportb(SIO_DATA_PORT, val); // Write back WDT status

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

Appendix

4

Safety information

Your Embedded Computer is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source.
• Set up the system on a stable surface.
• Peripherals with extended tolerance (such as industrial grade mSATA and micro SD card) will allow this product to be used in environments with ambient temperatures between 0°C and 60°C with 0.1 m/s air flow.
• The product should be used in environments with an ambient temperature of 40^ircC when using the 90 W power adapter.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
• This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
• Restricted Access Area:

The equipment should only be installed in a Restricted Access Area where both these conditions apply:

- access can only be gained by skilled or instructed persons who have been instructed about the reasons for the restrictions applied to the area and about any precautions that shall be taken; and

- access is through the use of a TOOL or lock and key, or other means of security, and is controlled by the authority responsible for the area.

- This device shall not be connected to an Ethernet network with outside plant routing.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned off, a small amount of electrical current still flows. Always unplug the power cord from the power outlets before cleaning the system.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.
• The power cord or plug is damaged.
  – Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.

Safety Precautions

Accessories that came with this product have been designed and verified for the use in connection with this product. Never use accessories for other products to prevent the risk of electric shock or fire.

Lithium-Metal Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

Regulatory notices

COATING NOTICE

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IMPORTANT! Outdoor operations in the 5.15\~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250\~5350 and 5470\~5725 MHz.

CAUTION! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid.

FCC 5.925-7.125 GHz Caution Statement

Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

ISED 5.925-7.125 GHz Caution Statement

RLAN devices:

ISED Radiation Exposure Statement for Canada

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with ISED RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(A)/NMB-003(A)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

KC: Korea Warning Statement

Class A:

사용자 안내문

Japan RF Equipment Statement

屋外での使用について

RF Module Warning Statement

RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users.

HDMI Trademark Notice

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress, and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to https://esg.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with.

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at https://esg.asus.com/Compliance.htm

EU RoHS

This product complies with the EU RoHS Directive. For more details, see https://esg.asus.com/Compliance.htm

Japan JIS-C-0950 Material Declarations

Information on Japan RoHS (JIS-C-0950) chemical disclosures is available on https://esg.asus.com/Compliance.htm

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to https://esg.asus.com/en/Takeback.htm for detailed recycling information in different regions.

Ecodesign Directive

The European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific implementing measures are aimed at improving environmental performance of specific products or across multiple product types. ASUS provides product information at https://esg.asus.com/Compliance.htm.

低功率電波輻射性電機管理辦法

Taiwan NCC Warning Statement

Article 12: Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristic and functions of the original design of the certified lower power frequency electric machinery.

Article 14: The application of lower power frequency electric machineries shall not affect the navigation safety nor interfere alegal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists.

甲類警語

Visit our multi-language website at https://www.asus.com/support/.
