| Product Type | Switched Power Distribution Unit (PDU) |
| Model | PDU32SWHVCEE18ATNET |
| Brand | CyberPower |
| Rated Input Current | 32 A |
| Input Voltage | 230 V (3-phase) |
| Output Outlets | 18 CEE 7/5 sockets (Schuko) |
| Switching Control | Individual outlet switching via network |
| Dimensions (H x W x D) | 44 x 483 x 250 mm (1U rackmount) |
| Weight | 5.2 kg |
| Power Cord | CEE 7/5 plug to C13 or hardwired |
| Network Management | Ethernet interface, SNMP, web GUI |
| Monitoring Features | Load meter, current monitoring, environmental sensors (optional) |
| Overload Protection | Built-in circuit breaker |
| Surge Protection | Yes, rated for line noise filtering |
| Operating Temperature | 0°C to 45°C |
| Humidity Range | 20% to 80% non-condensing |

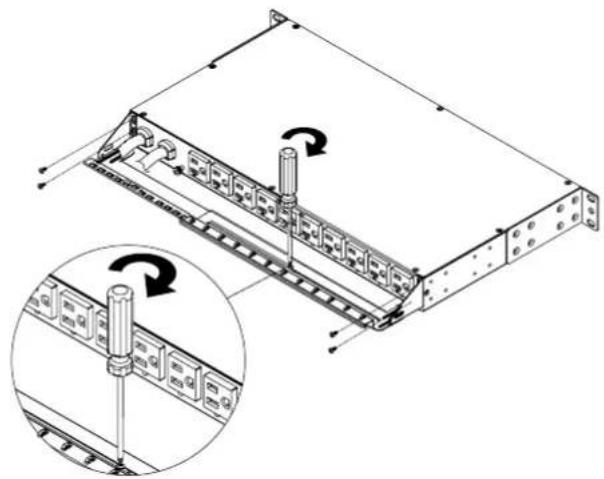

| Mounting | Horizontal 1U rackmount, brackets included |
| Certifications | CE, RoHS |
| Maintenance | Wipe with dry cloth; no user-serviceable parts |
| Safety | Overload protection, grounding, surge suppression |
| Spare Parts / Repairability | Non-repairable by user; contact CyberPower support |
Frequently Asked Questions - PDU32SWHVCEE18ATNET CyberPower
What is the input voltage and current rating of the PDU32SWHVCEE18ATNET?
The PDU is rated for 32 A input current at 230 V (3-phase).

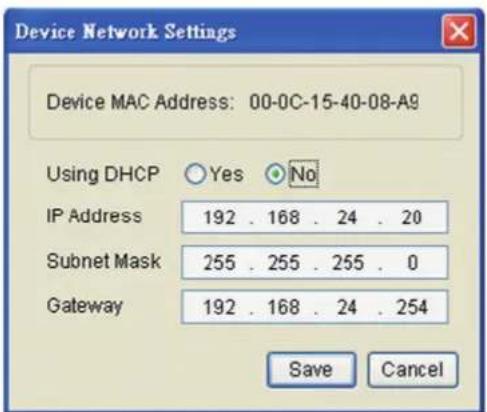

How do I set up the PDU on my network?

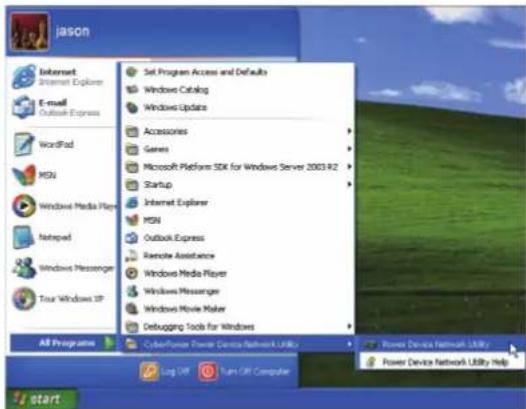

Connect the PDU to your network via Ethernet. The default IP can be found via DHCP, or use the CyberPower PowerPanel software to discover and configure the device.
Can I control individual outlets remotely?
Yes, each of the 18 outlets can be switched on/off individually via the web interface or SNMP commands.
What type of plug is used for input? Does it require a special cable?
The input is a CEE 7/5 (Schuko) 32 A plug. A compatible power cord is included.
How do I reset the PDU to factory defaults?
Press and hold the reset button on the front panel for 10 seconds until the LED blinks. The device will reboot with factory settings.
Does the PDU provide surge protection?
Yes, the unit includes surge protection and line noise filtering to protect connected equipment.
What is the warranty period for this PDU?
CyberPower typically offers a 3-year limited warranty. Check your specific region's warranty terms.
Can I mount this PDU horizontally in a rack?
Yes, it is 1U high and comes with mounting brackets for horizontal installation in a standard 19-inch rack.
What monitoring features are available?
The PDU provides real-time current monitoring, load level, and can support optional environmental sensors (temperature/humidity) via the sensor port.
How do I clean or maintain the PDU?
Disconnect power and wipe with a dry cloth. Do not use liquids or sprays. No user-serviceable parts inside.
