Product Type	Audio/video extender (HDMI Line Transmitter)
Model	TP-580T
Brand	Kramer
Inputs	1 HDMI connector
Outputs	1 RJ-45 connector (HDBT OUT)
Ports	1 IR on 3.5mm mini jack, 1 RS-232 on 9-pin D-sub
Max Data Rate	Up to 10.2 Gbps (3.4 Gbps per graphic channel)
Range	70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions
HDMI Support	Deep color, x.v.Color, lip sync, uncompressed audio, Dolby TrueHD, DTS-HD, CEC, 2K, 4K, 3D
HDCP Compliance	Yes
EDID Pass-through	Yes
RS-232 Baud Rate	115200
Power Consumption	12V DC, 275mA
Dimensions (W x D x H)	12cm x 7.15cm x 2.44cm (4.7" x 2.8" x 1.0")
Weight	0.2kg (0.44lbs)
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	-40° to +70°C (-40° to 158°F)
Humidity	10% to 90%, RHL non-condensing
Included Accessories	2 Power supply units 12V/1.25A
Optional Accessories	RK-3T rack mount, Kramer IR sensor (P/N: 95-0104050), IR emitter cable (P/N: C-A35/IRE-10), BC-HDKat6a cable
LED Indicators	IN (green), OUT (green), LINK (green), ON (green)
Enclosure Type	Compact DigiTOOLS

Frequently Asked Questions - TP-580T Kramer

What is the maximum transmission range of the TP-580T?

The TP-580T supports up to 70m (230ft) at 2K resolution and 40m (130ft) at 4K UHD resolutions when using recommended Kramer cables.

How do I connect IR control for remote operation?

Connect an external IR sensor to the IR 3.5mm mini jack on one end (e.g., TP-580R) and an IR emitter cable to the other end (e.g., TP-580T). The IR signal passes bidirectionally through the HDBaseT link.

Can the TP-580T be used with other HDBaseT devices?

Yes, the TP-580T is HDBaseT certified and can connect to any other certified HDBaseT receiver, such as the Kramer TP-580R or WP-580R.

How do I update the firmware on the TP-580T?

Slide the PROG/NORMAL switch to PROG, connect via RS-232 to a PC, and use Kramer's firmware upgrade tool. After upgrade, slide back to NORMAL for normal operation.

What type of cable is recommended for best performance?

Kramer recommends using shielded twisted pair cable, specifically the Kramer BC-HDKat6a (CAT 6 23 AWG) for optimum range and performance.

Does the TP-580T support 4K resolution?

Yes, it supports 4K UHD resolution with up to 10.2 Gbps bandwidth (3.4 Gbps per graphic channel) and HDCP compliance.

How can I mount the TP-580T in a rack?

Use the optional RK-3T (or RK-6T/RK-9T) universal rack adapter to mount one or more units side-by-side in a 1U rack space.

What power supply does the TP-580T require?

It requires a 12V DC power adapter (275mA). Two 12V/1.25A power supplies are included in the box.

How do I connect RS-232 for bidirectional control?

Connect a 9-wire straight cable (pins 2, 3, and 5 only) from the TP-580T RS-232 port to a PC. The RS-232 signals pass bidirectionally through the HDBaseT link to control devices at either end.

What is included in the box with the TP-580T?

The box includes: the TP-580T unit, 2 power adapters (12V DC), mounting brackets, 4 rubber feet, and a quick start guide.

USER MANUAL TP-580T Kramer

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerav.com/manual/PT-580T to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

The PT-580T HDMI Line Transmitter or TP-580T

HDMI Line Transmitter or the TP-580R HDMI Line Receiver

1 Power adapter (12V DC input for TP-580T/R

and 5V DC for PT-580T)

Mounting Brackets

4 Rubber feet

1 Quick start guide

Save the original box and packaging materials in case you need to return your product for service.

Step 2: Install the PT-580, TP-580T, TP-580R

Mount the devices in racks using the optional RK-T2B rack adapter for TP-580T and TP-580R and the optional RK-1T2PT rack adapter for PT-580T (available for purchase) or place them on shelves.

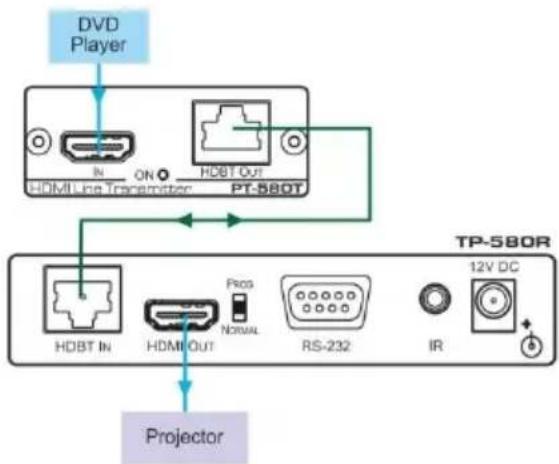

Step 3: Connect the inputs and outputs

After mounting the units, connect the inputs and outputs. Always switch OFF the power on each device before connecting it to your PT-580T/TP-580T and TP-580R.


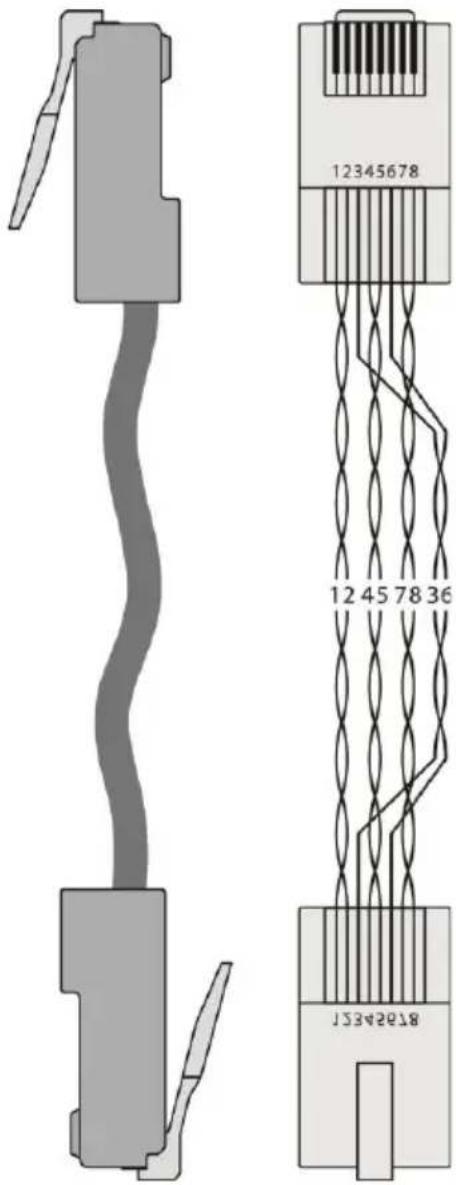

Twisted Pair Pinout

For the HDBaseT connectors, see the wiring diagram below

EIA / TIA 568B
PIN	Wine Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

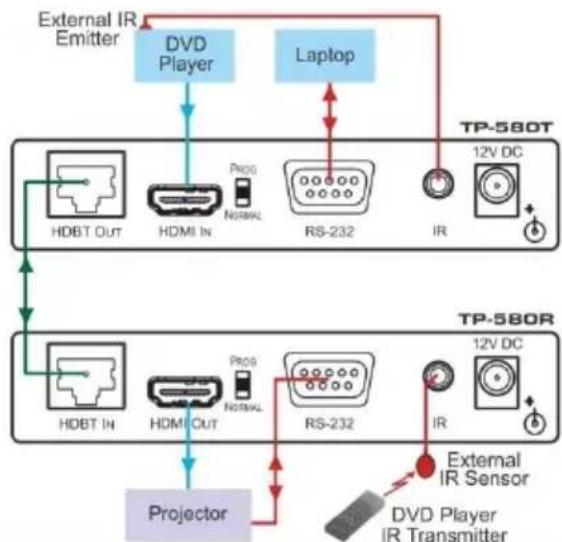

For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the PT-580T/TP-580T and TP-580R. For optimum range and performance use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

Step 4: Connect the power

Connect the power adapters to the PT-580T/TP-580T and TP-580R and plug the adapter/s into the mains electricity.

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 TP-580T and TP-580R Overview 4
3.2 PT-580T Overview 5
3.3 About HDBaseT™ Technology 6
3.4 Using Twisted Pair Cable 6
3.5 Defining the TP-580T HDMI Line Transmitter 7
3.6 Defining the TP-580R HDMI Line Receiver 8

3.7 Defining the PT-580T 9

3.8 Connecting vis RS-232 9

4 Connecting the TP-580T and TP-580R 10

4.1 Controlling the A/V Equipment via an IR Transmitter 12
4.2 Connecting to a PC 14

5 Connecting the PT-580T 15

6 Wiring the RJ-45 Connectors 16

7 Technical Specifications 17

Figures

Figure 1: TP-580T HDMI Line Transmitter 7
Figure 2: TP-580R HDMI Line Receiver 8
Figure 3: PT-580T HDMI Line Transmitter 9
Figure 3: RS-232 Pinout 9
Figure 4: Connecting the TP-580T/TP-580R Transmitter/Receiver Pair 11

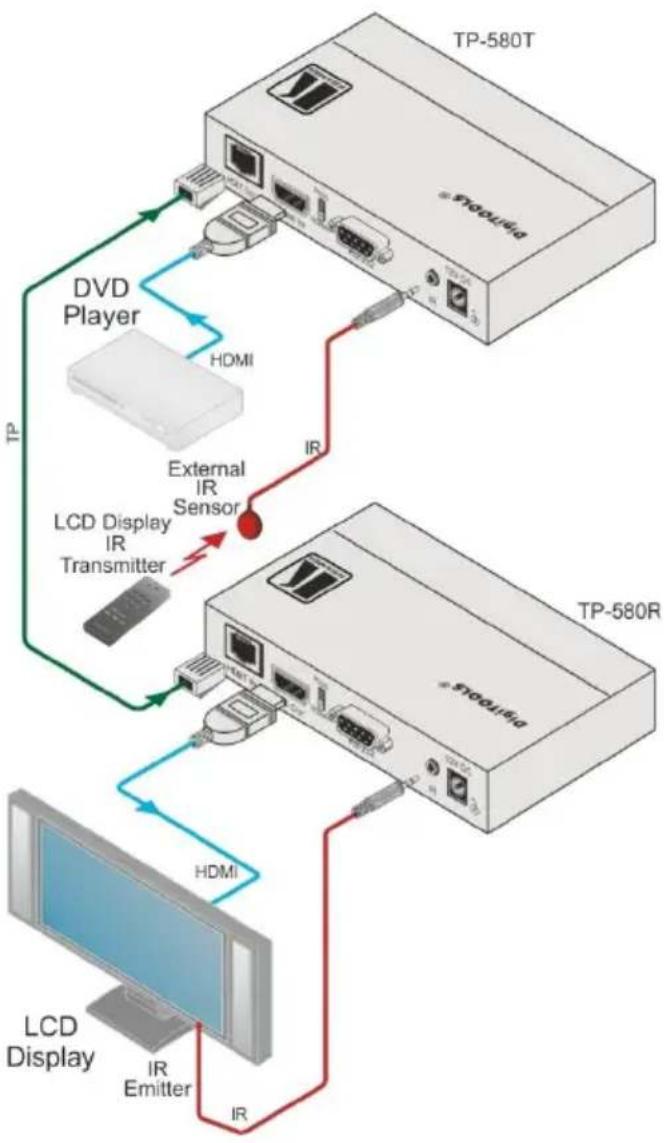

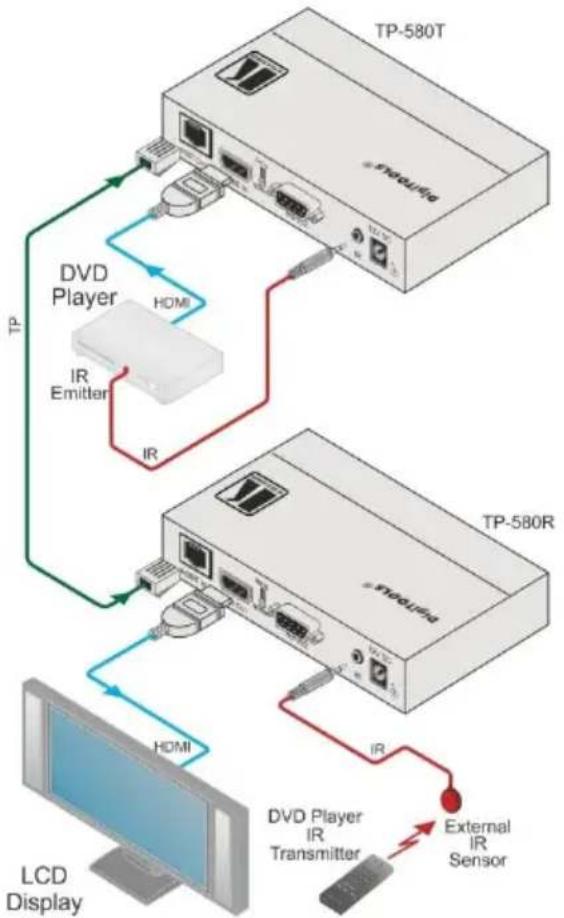

Figure 5: Controlling a DVD Player via the TP-580R 12
Figure 6: Controlling an LCD Display via the TP-580T 13
Figure 7: RS-232 Control 14

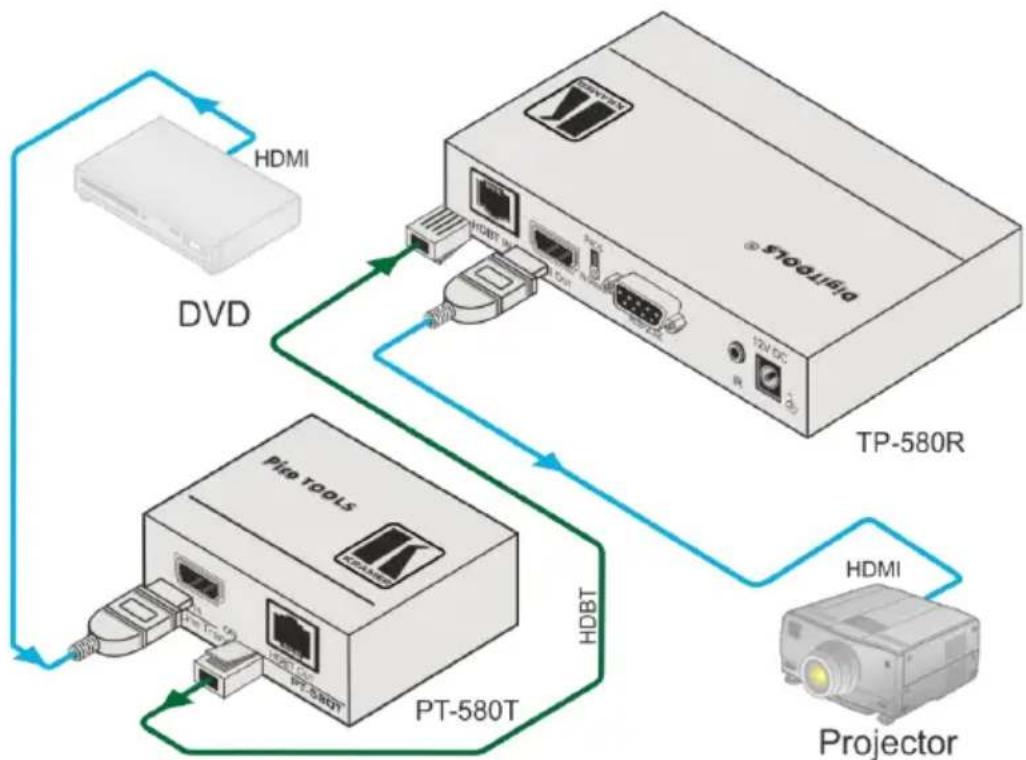

Figure 8: Connecting the PT-580T/TP-580R Transmitter/Receiver Pair 15
Figure 9: TP PINOUT 16

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration.

Congratulations on purchasing your Kramer PT-580T or TP-580T or TP-580R transmitter/receiver pair, which is ideal for the following typical applications:

• Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios
• Rental and staging

Note that PT-580T, TP-580T and TP-580R are purchased separately, and can be connected to other HDBaseT certified transmitters and receivers, respectively.

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to www.kramerav.com/downloads/PT-580T

to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer PT-580T, TP-580T and TP-580R transmitter/receiver pair away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerAV.com/support/recycling/.

3 Overview

This section describes the PT-580, TP-580T and TP-580R features.

3.1 TP-580T and TP-580R Overview

The TP-580T and TP-580R are a high-performance, HDBaseT technology twisted pair transmitter and receiver for HDMI, bidirectional RS-232 and IR signals. The TP-580T converts the HDMI signal, RS-232 and IR input signals to a twisted pair signal. The TP-580R converts the twisted pair signal back into HDMI, RS-232, and IR signals.

The TP-580T and the TP-580R can form a transmission and reception system either together or each device separately with another certified HDBaseT device. For example, the transmitter and receiver system can be composed of the TP-580T that connects to the Kramer TP-580R to form a transmitter receiver pair.

The TP-580T transmitter and TP-580R receiver feature:

• A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel), supporting 4K resolution
• A range of 70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions

For optimum range and performance using HDBaseT ^™ , use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.

• HDBaseT™ technology
  • HDTV compatibility and HDCP compliance
• HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, 2k, 4k, 3D)
  • EDID pass through, passes EDID/HDCP signals from the source to the display

• Bidirectional RS-232 interface - commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit

• Bidirectional infrared interface for remote control of peripheral devices (see Section 4.1)

• LED status indicators for input selection, output, link and power
• Compact DigiTOOLS ^ enclosures, and these can be rack mounted side-by-side in a 1U rack space with the optional RK-3T, RK-6T or RK-9T universal rack adapters

3.2 PT-580T Overview

The PT-580T is a high-performance, HDBaseT technology Twisted Pair transmitter for HDMI signals and converts it to a twisted pair signal. An HDBaseT receiver (for example the TP-580R or WP-580R) converts the twisted pair signal back into an HDMI signal and together they form a transmitter receiver pair.

The PT-580T transmitter features:

• A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel), supporting 4K resolution
  • A range of up to 70 meters (230 feet)
• HDBaseT technology
  • HDTV compatibility and HDCP compliance
• HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, 2k, 4k, 3D)
  • EDID pass-through - passes EDID signals from the source to the display
  • LED status indicator for power
• Ultra-Compact PicoTOOLS™ – 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.

3.3 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (supported by the HDBaseT Alliance). It is particularly suitable in the consumer home environment as a digital home networking alternative where it enables you to replace numerous cables and connectors by a single LAN cable used to transmit, for example, uncompressed full high-definition video, audio, IR, as well as various control signals.

The products described in this user manual are HDBaseT certified.

3.4 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer BC-HDKat6a (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

3.5 Defining the TP-580T HDMI Line Transmitter

Figure 1: TP-580T HDMI Line Transmitter

#	Feature	Function
1	HDBT OUT RJ-45 Connector	Connects to the HDBT IN RJ-45 connector on the TP-580R
2	HDMI IN Connector	Connects to the HDMI source
3	PROG/NORMAL Switch	Slide to PROG to upgrade to the latest Kramer firmware via RS-232, or slide to NORMAL for normal operation
4	RS-232 9-pin D-sub Connector	Connects to an RS-232 port for firmware upgrade and control of the destination unit
5	IR 3.5mm Mini Jack Connector	Connects to an external infrared transmitter / sensor (receiver)
6	12V DC	+12V DC connector for powering the unit
7	IN LED	Lights green when an HDMI input device is connected
8	OUT LED	Lights green when an HDMI output device is detected
9	LINK LED	Lights green when the TP connection is active
10	ON LED	Lights when receiving power

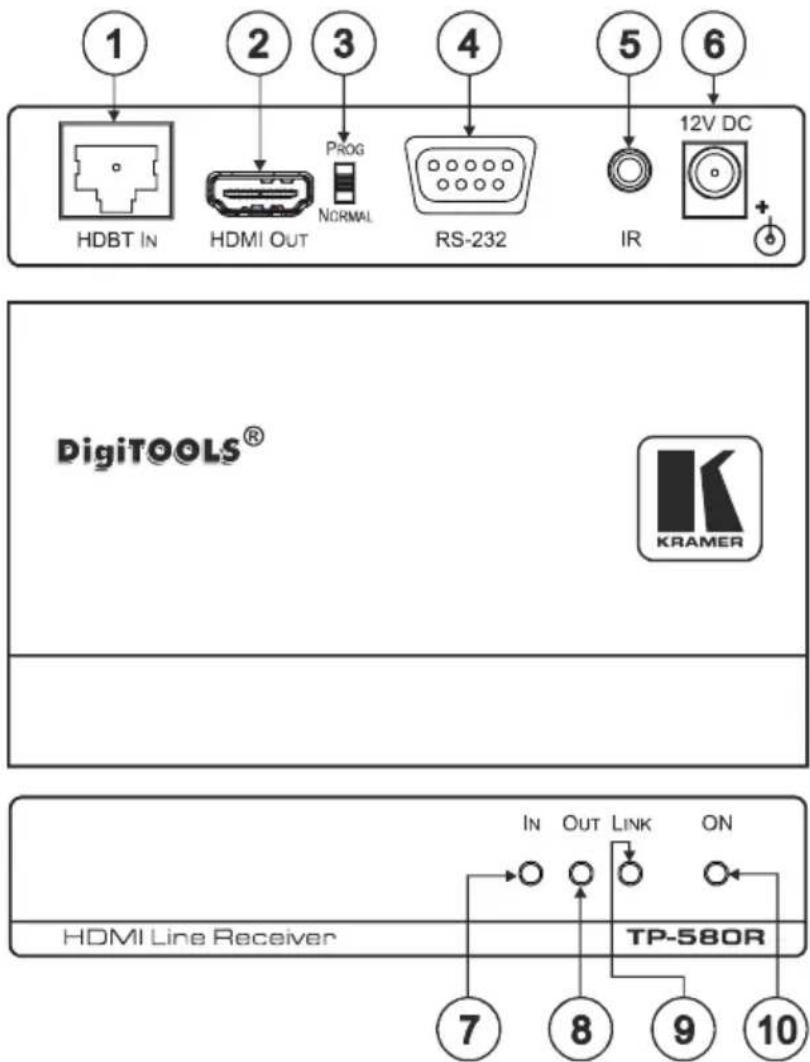

3.6 Defining the TP-580R HDMI Line Receiver

Figure 2: TP-580R HDMI Line Receiver

#	Feature	Function
1	HDBT IN RJ-45 Connector	Connects to the HDBT OUT RJ-45 connector on the TP-580T
2	HDMI OUT Connector	Connects to the HDMI acceptor
3	PROG/NORMAL Button	Slide to PROG to upgrade to the latest Kramer firmware via RS-232, or slide to NORMAL for normal operation
4	RS-232 9-pin D-sub Connector	Connects to an RS-232 port for firmware upgrade and control of the destination unit
5	IR 3.5mm Mini Jack Connector	Connects to an external infrared transmitter / sensor (receiver)
6	12V DC	+12V DC connector for powering the unit
7	IN LED	Lights green when an HDMI input device is connected
8	OUT LED	Lights green when an HDMI output device is detected
9	LINK LED	Lights green when the TP connection is active
10	ON LED	Lights green when receiving power

3.7 Defining the PT-580T

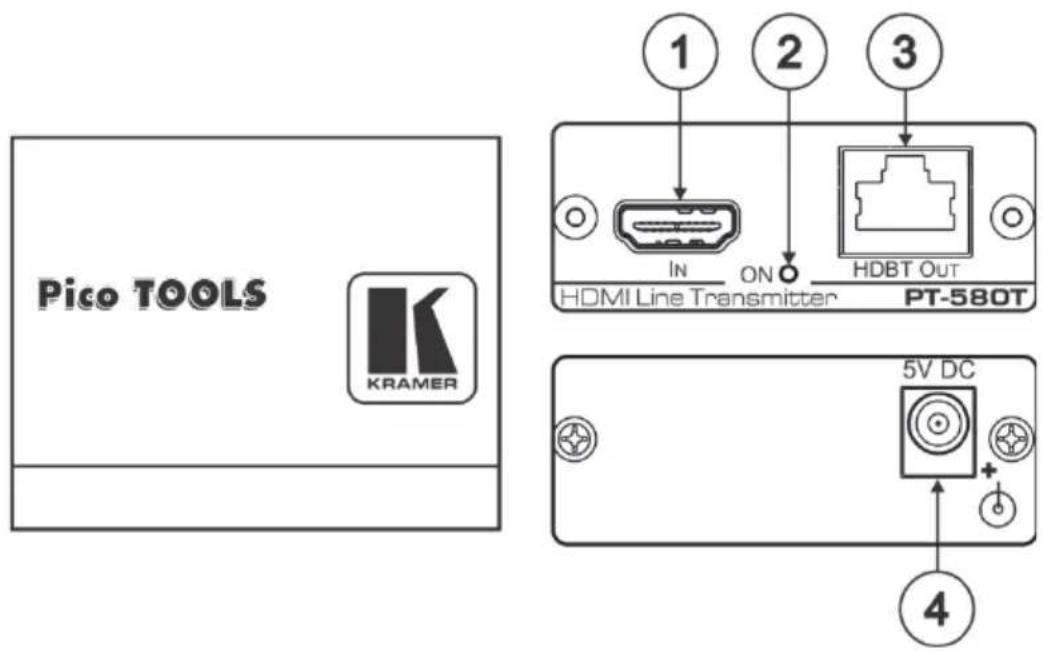

Figure 3: PT-580T HDMI Line Transmitter

#	Feature	Function
1	IN HDMI Connector	Connects to the HDMI source
2	ON LED	Lights when receiving power
3	HDBT OUT RJ-45 Connector	Connects to the HDBT IN RJ-45 connector on the TP-580R
4	5V DC	+5V DC connector for powering the unit

Note that Section 5 shows how to connect the PT-580T.

3.8 Connecting vis RS-232

Figure 4 defines the RS-232 pinout.

Figure 4: RS-232 Pinout

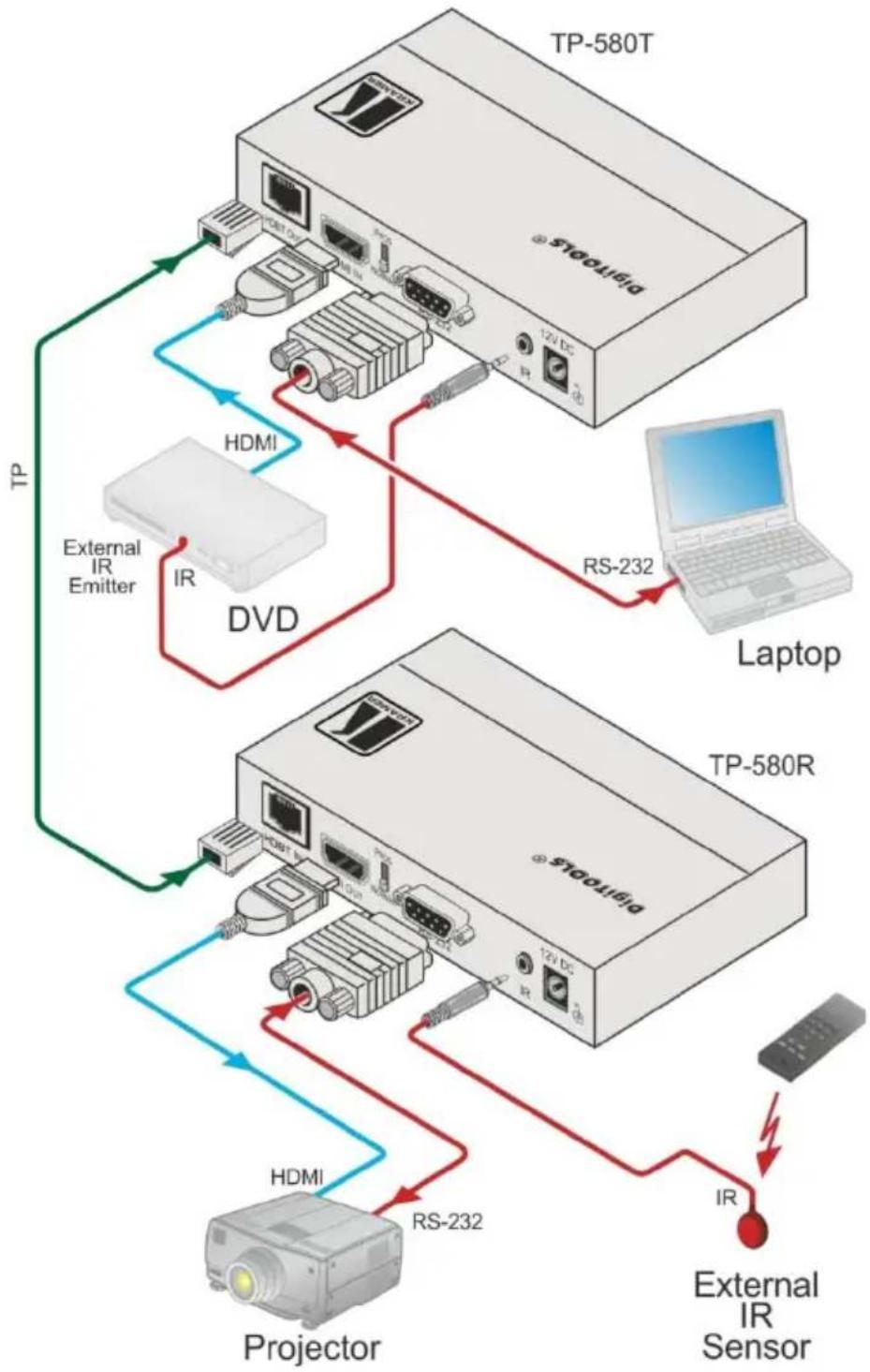

4 Connecting the TP-580T and TP-580R

Always switch off the power to each device before connecting it to your Transmitter and Receiver. After connecting your Transmitter and Receiver, connect their power and then switch on the power to each device.

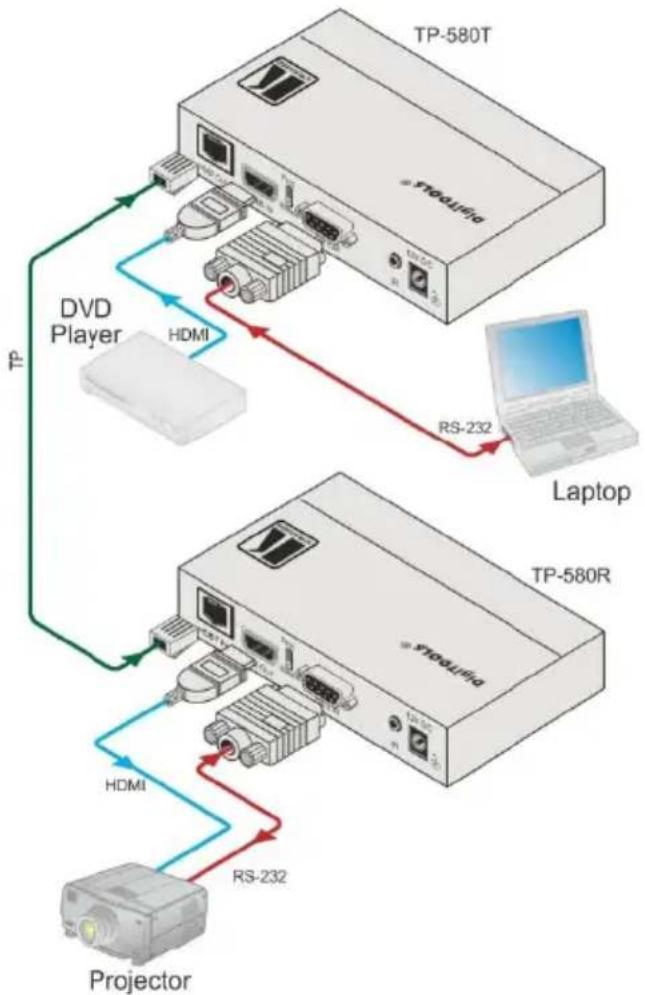

You can use the TP-580T HDMI Line Transmitter and the TP-580R HDMI Line Receiver to configure an HDMI transmitter/receiver system, as shown in the example in Figure 5.

To connect the TP-580T, connect the:

1. HDMI source (for example, a DVD player) to the HDMI IN connector.
2. RS-232 9-pin D-sub connector to a computer (for example, a laptop to control the projector).
3. IR 3.5mm mini jack to an IR emitter.
4. HDBT OUT RJ-45 connector over twisted pair to the TP-580R HDBT IN connector.
   Alternatively, you can use any other certified HDBaseT receiver device (for example, the Kramer WP-580R)
5. 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 5).

To connect the TP-580R, connect the:

1. HDMI OUT connector to the HDMI acceptor (for example, a projector).
2. RS-232 9-pin D-sub connector to an RS-232 port (for example, a projector that is controlled by the laptop connected to TP-580T).

3. IR 3.5mm mini jack to an IR sensor.

4. HDBT IN RJ-45 connector over twisted pair to the TP-580T HDBT OUT connector.

Alternatively, you can use any other certified HDBaseT transmitter device (for example, the Kramer WP-580T)

1. 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 5).

Figure 5: Connecting the TP-580T/TP-580R Transmitter/Receiver Pair

4.1 Controlling the A/V Equipment via an IR Transmitter

Since the IR signal on the TP-580T/TP-580R transmitter/receiver pair is bidirectional, you can use a remote control transmitter (that is used for controlling a peripheral device, for example, a DVD player) to send commands (to the A/V equipment) from either end of the transmitter /receiver system. To do so, you have to use the Kramer external IR sensor on one end (P/N: 95-0104050) and the Kramer IR emitter cable on the other end (P/N: C-A35/IRE-10)

Two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable.

The example in Figure 6 illustrates how to control the DVD player that is connected to TP-580T using a remote control, via the TP-580R. In this example, the External IR Sensor is connected to the IR connector of the TP-580R and an IR Emitter is connected between the TP-580T and the DVD player. The DVD remote control sends a command while pointing towards the External IR Sensor. The IR signal passes through the TP cable and the IR Emitter to the DVD player, which responds to the command sent.

Figure 6: Controlling a DVD Player via the TP-580R

The example in Figure 7 illustrates how to control the LCD display that is connected to TP-580R using a remote control, via the TP-580T. In this example, the External IR Sensor is connected to the IR connector of the TP-580T and an IR Emitter is connected between the TP-580R and the LCD display. The LCD display remote control sends a command while pointing towards the External IR Sensor. The IR signal passes through the TP cable and the IR Emitter to the LCD display, which responds to the command sent.

Figure 7: Controlling an LCD Display via the TP-580T

4.2 Connecting to a PC

You can connect to the transmitter/receiver system via an RS-232 connection using, for example, a PC. Note that a null-modem adapter/connection is not required.

To connect a PC via RS-232, connect the RS-232 9-pin D-sub rear panel port on the transmitter/receiver system unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.

Figure 8 shows RS-232 bidirectional control of the projector that is connected to TP-580R, via a PC connected to the TP-580T:

Figure 8: RS-232 Control

5 Connecting the PT-580T

Always switch off the power to each device before connecting it to your PT-580T and the receiver. After connecting your PT-580T/receiver, connect the power and then switch on the power to each device.

To connect the PT-580T to a receiver (for example, the TP-580R), as illustrated in the example in Figure 9, do the following:

1. Connect an HDMI source (for example, a DVD player) to the HDMI IN connector.
2. Connect the HDBT OUT RJ-45 connector over twisted pair to the TP-580R HDBT IN connector.

Alternatively, you can use any other certified HDBaseT receiver device (for example, the Kramer WP-580R)

1. On the TP-580R, connect the HDMI OUT connector to an HDMI acceptor (for example, a projector).
2. Connect the 5V DC power adapter to the power socket on the PT-580T and the 12V DC power adapter to the power socket on the TP-580R and connect the adapter to the mains electricity (not shown in Figure 9).

Figure 9: Connecting the PT-580T/TP-580R Transmitter/Receiver Pair

6 Wiring the RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

Note, that the cable Ground shielding must be connected / soldered to the connector shield.

EIA /TIA 568B
PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

Figure 10: TP PINOUT

7 Technical Specifications

	TP-580T	TP-580R
INPUTS:	1 HDMI connector	1 RJ-45 connector
OUTPUTS:	1 RJ-45 connector	1 HDMI connector
PORTS:	1 IR on a 3.5mm mini jack (for emitter or sensor)1 RS-232 on a 9-pin D-sub connector	1 IR on a 3.5mm mini jack (for emitter or sensor)1 RS-232 on a 9-pin D-sub connector
MAX. DATA RATE:	Up to 10.2Gbps (3.4Gbps per graphic channel)
RANGE:	70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions
RS-232 BAUD RATE:	115200
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
POWER CONSUMPTION:	12V DC, 275mA	12V DC, 430mA
DIMENSIONS:	12cm x 7.15cm x 2.44cm (4.7" x 2.8" x 1.0") W, D, H.
WEIGHT:	0.2kg (0.44lbs)
SHIPPING DIMENSIONS:	15.7cm x 12cm x 8.7cm (6.2" x 4.7" x 3.4") W, D, H.
SHIPPING WEIGHT:	0.72kg (1.6lbs).
INCLUDED ACCESSORIES:	2 Power supply units 12V/1.25A
OPTIONS:	RK-3T 19" rack mount; Kramer external IR sensor (P/N: 95-0104050), Kramer IR emitter cable (P/N: C-A35/IRE-10); Kramer BC-HDKat6a cable
Specifications are subject to change without noticeGo to our Web site at http://www.kramerav.com to access the list of resolutions

	PT-580T
INPUTS:	1 HDMI connector
OUTPUTS:	1 RJ-45 connector
BANDWIDTH:	Supports up to 3.4Gbps bandwidth per graphic channel
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
POWER CONSUMPTION:	5V DC, 570mA
DIMENSIONS:	6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H
WEIGHT:	0.14kg (0.3lbs)
SHIPPING DIMENSIONS:	15.7cm x 12cm x 8.7cm (6.2" x 4.7" x 3.4") W, D, H.
SHIPPING WEIGHT:	0.4kg (0.88lbs)
INCLUDED ACCESSORIES:	5V DC power supply
OPTIONS:	19" RK-4PT rack adapter; Kramer BC-HDKat6a cable
Specifications are subject to change without noticeGo to our Web site at http://www.kramerav.com to access the list of resolutions

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW. THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

All brand names, product names, and trademarks are the property of their respective owners.

We welcome your questions, comments, and feedback.

Web site: www.KramerAV.com

E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N:

2900-300340

Rev:

4
