Product Type	Active Optical UHD Pluggable HDMI Cable
Model Numbers	CLS-AOCH/60-XX (LSHF) / CP-AOCH/60-XX (Plenum)
Video Resolution	Up to 4K@60Hz (4:4:4), 3D, Deep Color
Audio Support	Multi-channel PCM 8ch, Dolby True HD, DTS-HD Master Audio
HDMI Compliance	EDID, CEC, HDCP 2.2, HDR
EMI/RFI Reduction	Yes, reduced electromagnetic and radio frequency interference
Cable Type	Hybrid optical fiber with 4 optical fibers and 6 AWG 28 wires
Available Lengths	33ft (10m) to 328ft (100m) in 10 increments
Connector Types	Micro HDMI (Type D) on source end, HDMI Type A on display end; includes adapters with locking screws
Connector Dimensions (Micro HDMI)	1.23cm x 4.9cm x 0.8cm (W x D x H)
Connector Dimensions (Type A HDMI)	3.1cm x 4cm x 0.95cm (W x D x H)
Assembly Dimensions	2.22cm x 7.1cm x 0.99cm (W x D x H)
Cable Diameter	3.4mm
Minimum Bending Radius	6mm
Pulling Strength	500N (50kg / 110lbs)
External Power	Via micro-USB on display side, 5V (optional, if required)
Power Consumption	0.75W max
Operating Temperature	0° to +50°C (32° to 122°F)
Storage Temperature	-30° to +70°C (-22° to 158°F)
Operating Humidity	5% to 85% RH, non-condensing
Jacket Material	LSHF (Low Smoke Halogen Free) or UL Plenum (CMP-OF)
Jacket Color	Black (both versions)
In the Box	Main cable assembly, HDMI adapters (source & display), pulling tool, locking screws, micro-USB power cable

Frequently Asked Questions - CLS-AOCH/60 Kramer

What is the maximum video resolution supported by the Kramer CLS-AOCH/60?

The cable supports resolutions up to 4K@60Hz (4:4:4), including 3D and Deep Color.

How long is the cable available in?

Lengths range from 33ft (10m) to 328ft (100m) in increments of 10m or 33ft.

Do I need external power for the cable?

Power is typically drawn from the HDMI port, but if a stronger signal is required, an external 5V power supply can be connected via the micro-USB port on the display side.

Which end connects to the source and which to the display?

The connectors are clearly marked: SOURCE must be connected to the source device (e.g., Blu-ray player) and DISPLAY to the display device (e.g., TV or projector). Reversing them may cause damage.

What HDMI features are supported?

The cable supports EDID, CEC, HDCP 2.2, and HDR (High Dynamic Range).

Can I pull the cable through conduits?

Yes, the cable is designed with a pulling tool and high pulling strength (500N) for installation in conduits. Ensure the bending radius is at least 6mm to avoid damage.

What audio formats does the cable support?

It supports multi-channel PCM (up to 8 channels), Dolby True HD, and DTS-HD Master Audio.

Is the cable suitable for outdoor digital signage?

Yes, it is ideal for indoor and outdoor installations, including digital signage, kiosks, and surgical theaters, thanks to its robust design and reduced EMI/RFI.

How do I clean the cable connectors?

Use a soft, dry cloth to gently clean the connectors. Avoid using liquids or abrasive materials that might damage the gold-plated contacts.

What should I do if there is no video signal?

First, ensure both source and display are powered on. Check that the connectors are fully plugged in and that the cable is not bent or damaged. Confirm that the SOURCE and DISPLAY ends are correctly oriented. If using external power, verify the micro-USB connection.

USER MANUAL CLS-AOCH/60 Kramer

Installation Instructions

MODELS:

CLS-AOCH/60-XX (Low Smoke & Halogen Free Version)

CP-AOCH/60-XX (Plenum Version)

Active Optical UHD Pluggable HDMI Cable

P/N:

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

www.kramerAV.com

[e-mail]

CLS-AOCH/60-XX / CP-AOCH/60-XX Active Optical UHD Pluggable HDMI Cable

Congratulations on purchasing your Kramer CLS-AOCH/60-XX / CP-AOCH/60-XX Plug and Play active Active Optical UHD Pluggable HDMI Cable which is suited for critical and versatile installations.

The CLS-AOCH/60-XX / CP-AOCH/60-XX provides an extremely high quality signal over a wide range of resolutions, up to 4K@60Hz (4:4:4). This cable is available in different lengths from 33ft (10m) to 328ft (100m). The CLS-AOCH/60-XX / CP-AOCH/60-XX has a slim design to let you pull the cables easily (together with the supplied pulling tool) through small-sized conduits.

Two black USB connectors with gold connectors, one labeled 'HDMI' and the other 'HDMI 40-100', shown without any text or symbols on the devices themselves.

Figure 1: HDMI Connector plugs (Source and Display)

The CLS-AOCH/60-XX / CP-AOCH/60-XX is ideal for long distance transmission in professional AV systems, indoor and outdoor digital signage and kiosks, home theater systems, surgical theaters, facility automation systems and whenever high resolution video and audio are required.

Features

The CLS-AOCH/60-XX / CP-AOCH/60-XX:

• Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep Color.
• Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio.
• Is HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range).
- Reduced EMI and RFI.
- Includes a micro USB port to optionally connect an external 5V power supply (if required, this is typically connected on the display side).
- Has high pulling strength and compression load.
- Has Source / Display clearly printed on the connector as well as tagged on the cable for easy identification.

Cable Dimensions

The CLS-AOCH/60-XX / CP-AOCH/60-XX includes four optical fibers and six AWG 28 wires with compact size HDMI connectors. On the source side, the micro HDMI connector enables smooth pulling of the cable. The SOURCE end connects to the source (for example, a DVD, Blu-ray or game console box) and the DISPLAY end to the acceptor (for example, a projector, an LCD display or a tablet device), see Figure 2 (note that SOURCE appears here as an example).

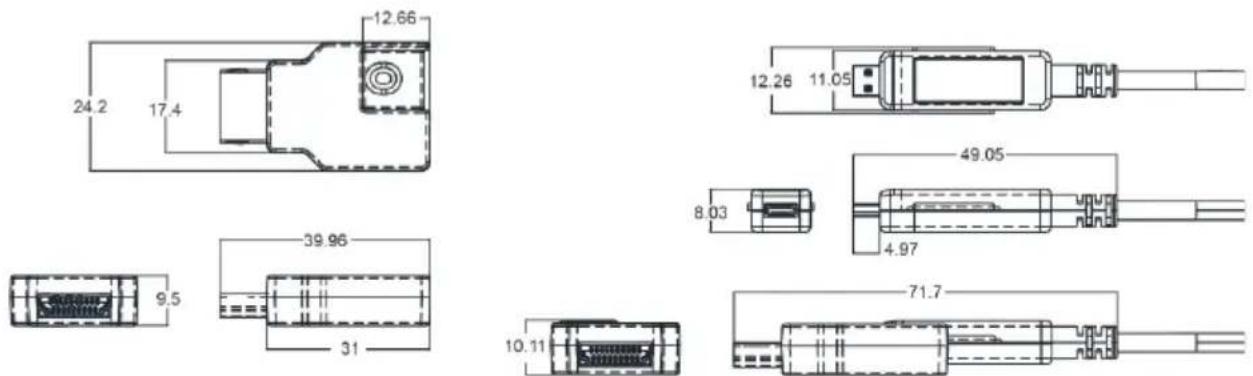

Figure 2: HDMI Connectors – SOURCE and DISPLAY (with Dimensions in mm)

CLS-AOCH/60-XX / CP-AOCH/60-XX Plug and Play Installation

Before installing the cable, make sure that you have an HDMI graphic card or devices with an HDMI port (for example, a PC, laptop, DVD/Blue-ray player or any other video/audio signal source device).

Optical fiber cable is not robust physically compared to conventional copper cable materials. Even though this cable is designed to be resistant to artificial strengths on the cable, CLS-AOCH/60-XX / CP-AOCH/60-XX can be damaged if it is excessively pinched, twisted or kinked when being installed and after being installed. Take care not to bend or twist the cable tightly.

When CLS-AOCH/60-XX / CP-AOCH/60-XX is installed into the conduit, the fiber pulling strength and the bending radius are the key conditions to safe installation of the cable.

Do not disassemble or modify the products, especially the HDMI connector head parts.

To install the CLS-AOCH/60-XX / CP-AOCH/60-XX:

1. Unpack the cable from the package with care and remove the cable tie.
2. Place the micro-HDMI (Type D) connector inside the Pulling Tool and close its cover.

Note that you can pull the cable either from the display side or the source side (as shown in Figure 3), but you have to make sure that the cable polarity is correct (tagged Source if pulling the source side or Display if pulling the display side).

1. Attach the pulling cable to the Pulling Tool.

Close-up of a black electronic device labeled 'SOURCE' with a gold connector and cable (no readable text beyond label)

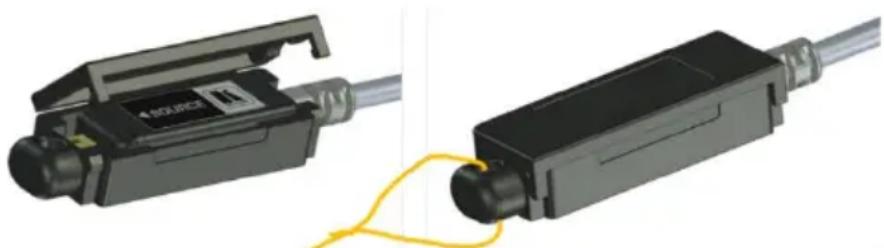

I: Place the micro HDMI connector inside the Pulling Tool.

Two black electronic components with connectors and wires, one connected by a yellow wire (no visible text or symbols)

II: Close the Pulling Tool cover.
III: Insert the pulling cable through the Pulling Tool ring.
Figure 3: Attaching the Pulling Tool

1. Carefully install the cable (for example, in the wall or conduit or under the floor).

2. Connect the:

3. SOURCE HDMI adaptor to the micro-HDMI connector SOURCE end of the cable.

4. DISPLAY HDMI adaptor to the micro-HDMI connector DISPLAY end of the cable.

HDMI adapters in this box are not interchangeable!

You must connect the adapter marked SOURCE to the SOURCE connector head of the cable and the adapter marked DISPLAY to the DISPLAY connector head of the cable.

Connecting an adapter to the wrong end of the cable could cause damage to the cable, adapter, and connected AV equipment.

1. Secure the connection on each side using the supplied locking screws.

2. Plug the SOURCE connector head of the cable into the source devices.
   Do not plug the SOURCE connector to the display device.

3. Plug the DISPLAY connector head of the cable into the display devices.

Do not plug the DISPLAY connector to the source device.

1. Switch on the power of the source and display devices.

2. If required, connect an external power source via the micro-USB connector on the DISPLAY side.

Troubleshooting

If you have encountered a problem, check that:

• The source and display devices are both switched on
• Both HDMI connector heads are fully plugged into the devices
- The cable or its jacket is not physically damaged
- The cable is not bent or kinked

Note that it is important to connect the cable correctly as marked on the end of each connector: SOURCE to the source side and DISPLAY to the acceptor side.

Specifications

Audio and Power
Video Resolution:	Up to 4K@60Hz (4:4:4)
Embedded Audio Support:	PCM 8ch, Dolby Digital True HD, DTS-HD Master Audio
HDMI Support:	HDCP 2.2, HDR, EDID, CEC
Cable Assembly
HDMI Connector:	Male HDMI Type A Connector
Dimensions:	Micro HDMI port: 1.23cm x 4.9cm x 0.8cm (0.484" x 1.93" x 0.31") W, D, HType A HDMI port: 3.1cm x 4cm x 0.95cm (1.22" x 1.57" x 0.37") W, D, HAssembly: 2.22cm x 7.1cm x 0.99cm (0.874" x 2.79" x 0.39") W, D, H
Cable Structure:	Hybrid Optical Fiber Cable
Cable Jacket Material:	UL Plenum (CMP-OF) and LSHF (Low Smoke Halogen Free)
Cable Jacket Color:	UL Plenum: black; LSHF: black
Cable Diameter:	3.4mm	Cable Bending Radius:	6mm
Cable Pulling Strength:	500N (50kg, 110lbs)	Micro USB Cable	External 5V power supply cable
Power
Power Supply HDMI:	Power is supplied from an external USB connector on the display side
Power Consumption:	0.75W max.
General
Operating Temperature:	0° to +50°C (32° to 122°F)	Storage Temperature:	-30° to +70°C (-22° to 158°F)
Operating Humidity:	5% to 85%, RHL non-condensing
Available Length:	33ft (10m), 50ft (15m), 66ft (20m), 98ft (30m), 131ft (40m), 164ft (50m), 197ft (60m), 230ft (70m), 262ft (80m), 295ft (90m) and 328ft (100m)
