Product Type	Video Matrix Switcher
Model	VSM-4x4A
Brand	Kramer
Inputs	4 composite video (BNC), 4 stereo audio (RCA)
Outputs	4 composite video (BNC), 4 stereo audio (RCA)
Video Formats	NTSC, PAL, SECAM
Bandwidth	100 MHz (-3dB)
Control Interface	Front panel buttons, RS-232, IR remote (optional)
Rack Mountable	Yes, 19" 1U
Dimensions (W x D x H)	483 x 180 x 44 mm (19" x 7" x 1.73")
Weight	2.5 kg (5.5 lbs)
Power Supply	100-240V AC, 50/60 Hz, 15W
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% (non-condensing)
Included Accessories	Power cord, IR remote control, rack ears, user manual
Maintenance	Wipe with a dry soft cloth. Do not use liquids or solvents.
Safety	Indoor use only. Do not expose to moisture. Use included power adapter.
Spare Parts & Repairability	Contact Kramer support for spare parts. Device should be serviced by qualified personnel.

Frequently Asked Questions - VSM-4x4A Kramer

How do I route an input to an output on the VSM-4x4A?

Press the Input button, then press the desired input number (1-4). Press the Output button, then the output number. The LED will indicate the connection.

What video formats does the VSM-4x4A support?

The switcher supports composite video in NTSC, PAL, and SECAM formats.

Can I control the VSM-4x4A via computer?

Yes, via RS-232 serial connection. Use Kramer's control software or send ASCII commands.

How many inputs and outputs does it have?

It has 4 video inputs and 4 video outputs, plus corresponding stereo audio connections.

Does the VSM-4x4A come with a remote control?

Yes, an IR remote control is included for basic switching functions.

What is the bandwidth of the video signal?

The bandwidth is 100 MHz (-3dB), suitable for composite video signals.

Can I mount the VSM-4x4A in a rack?

Yes, it is 19-inch rack mountable (1U height). Rack ears are included.

How do I reset the VSM-4x4A to factory defaults?

Press and hold the Reset button on the front panel for 5 seconds until all LEDs flash.

What power supply does it need?

It uses an internal power supply with 100-240V AC, 50/60 Hz. The power cord is included.

Why is there no picture on the output?

Check that the input source is active and properly connected. Ensure the correct input-output routing is selected. Try a different cable or input.

USER MANUAL VSM-4x4A Kramer

4x4 Seamless AV Matrix Switcher/Multi-Scaler

Step 1: Check what's in the box

VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler

1 Set of rack ears

4 Rubber feet

IR remote control transmitter with batteries

1 Power cord

1 Quick start guide

Step 2: Get to know your VSM-4x4A

#	Feature		Function
1	IR LED		Lights when the unit accepts IR remote commands
	IR Receiver		Receives signals from the remote control transmitter
2	OUTPUT/WINDOW Selector Buttons		MATRIX mode: select the output to which the input is switched (A, B, C or D)VIDEO WALL mode: not usedDUAL mode: select one of the two DUAL windows: A or B for DUAL A; C or D for DUAL BQUAD mode: not used
3	INPUT Selector Buttons		Press to select an HDMI input (from 1 to 4) to switch to the output
4	ALL Button		Press ALL followed by an INPUT button to connect that input to all the outputs (not available for the video wall mode)
5	OFF Button		Press after pressing an output button to disconnect the selected output from the inputs. To disconnect all the outputs, press ALL followed by OFF
6	TAKE Button		Press to toggle between the Confirm mode (when in the Confirm mode, the TAKE button lights ) and the At Once mode. When in TAKE mode, front panel buttons actions are implemented after pressing the TAKE button
7	MODE Buttons	MATRIX	Press to operate the system as a matrix switcher
8		VIDEO WALL	Press to operate as a 2x2 or 1x4 video wall

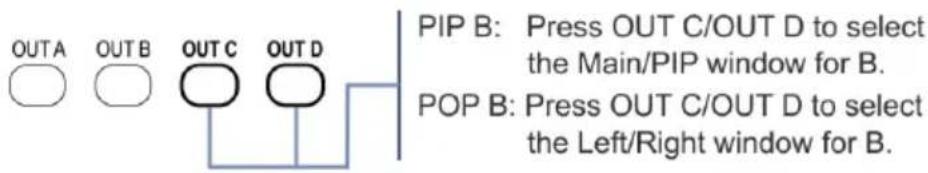

9		DUAL	Press to operate as a 4x2 switcher with PIP capabilities
10		QUAD	Press to display all four inputs on each of the outputs
11	STO Button		Press to store a configuration
12	RCL Button		Press to recall a configuration
13	IDENTIFY Button		Press to indicate on each output, which input is displayed on the output. The display time is set via the OSD menu
14	MENU		Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the previous level in the OSD screen
15	Navigation Buttons	ENTER	Press to access sub-menu items and select from several settings
		◀	Press to decrease numerical values or select from several definitions
		▲	Press to move up the menu list values
		▶	Press to increase numerical values or select from several definitions
		▼	Press to move down the menu list
16	RESET TO XGA/1080p Button		Press and hold for about 4 seconds to toggle resetting the video resolution to XGA or 1080p
17	PANEL LOCK Button		Press and hold for about 2 seconds to lock/unlock the front panel buttons

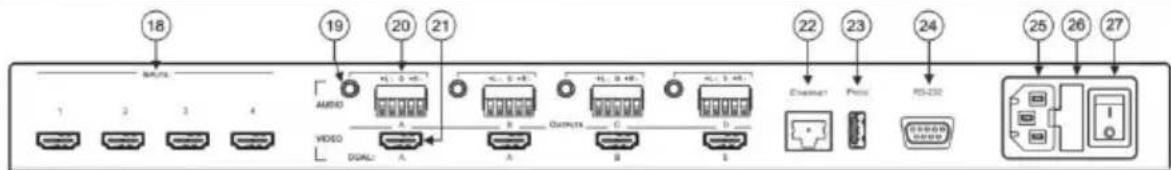

#	Feature	Function
18	INPUT HDMI Connectors	Connect to the HDMI sources (from 1 to 4)
19	AUDIO OUTPUT 3.5mm Mini Jack	Connect to an unbalanced audio acceptor (from A to D)
20	AUDIO OUTPUT 5-pin Terminal Block Connector	Connect to a balanced audio acceptor (from A to D)
21	OUTPUT HDMI Connectors	Connect to the HDMI acceptors (from A to D); DUAL: when in the dual operation mode, A, A and B, B
22	ETHERNET Connector	Connects to the PC or other Serial Controller through computer networking
23	PROG USB Connector	Connect to upgrade the unit
24	RS-232 9-pin D-sub Port	Connect to the PC or a remote controller
25	Mains Socket	Connect the mains power cord
26	Mains Fuse Holder	Fuse for protecting the device
27	Power Switch	Switch for turning the unit ON or OFF

Step 3: Install the VSM-4x4A

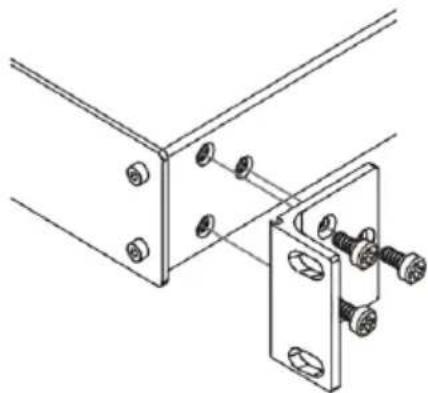

To rack mount the machine attach both ear brackets to the machine (by removing the three screws from each side of the machine and replacing those screws through the ear brackets) or place the machine on a table.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Step 4: Connect one of the four operation modes

Always switch OFF the power on each device before connecting it to your VSM-4x4A. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the VSM-4x4A.

The VSM-4x4A is a four-in-one-box device and can operate as a matrix switcher, video wall, dual switcher or quad switcher.

Each of these modes includes several setup options as follows.

Mode	Optional Setups
MATRIX	Seamless Matrix – 4x4 matrix switcher. The same output resolution is set for all the outputs and video switching transitions are seamless (zero-time video cuts).Independent Matrix – 4x4 matrix switcher. Each output resolution is set independently and video switching transitions are done via a clean, fade-through-black mechanism.
VIDEO WALL	2x2 – The output is displayed on a set of 4 monitors tiled in a 2x2 setting to form a large display. Each output shows one quarter of the image.1x4 – The output is displayed on a set of 4 monitors tiled in a 1x4 (1 column x 4 rows). The image can be cropped and positioned as desired.
DUAL	4x2 switcher that outputs 2 identical A outputs and 2 identical B outputs.POP (side-by-side) – Each A and B type outputs shows 2 images side-by-side (left and right).PiP (picture-in-picture) – Each A and B type outputs shows 2 images one over the other (main and pip).
QUAD	Any four inputs on one screen for each of the four outputs. Each quarter of a screen shows a selected input.

VIDEO WALL Mode: 2x2

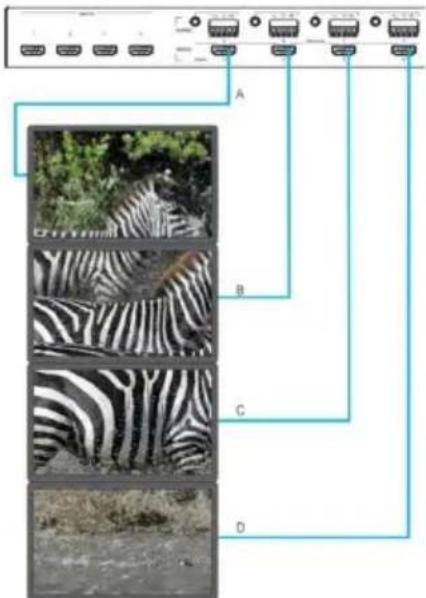

VIDEO WALL Mode: 1x4

RJ-45 Pinout:
For the Ethernet and HDBaseT connectors, see the proper wiring diagram below

Pure mechanical component diagram without any text, numbers, or symbols

PIN EIA/TIA 568B

PIN
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

Connect the audio output:

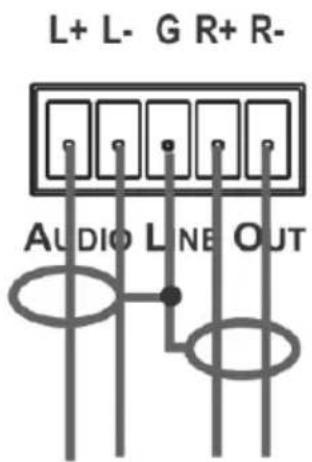

To a balanced stereo audio acceptor

To an unbalanced stereo audio acceptor

Step 5: Connect the power

Connect AC power to the rear of the VSM-4x4A, switch on its power and then switch on the power on each device.

Safety Instructions

Caution: There are no operator serviceable parts inside the unit.
Warning: Use only the power cord that is supplied with the unit.
Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only
Warning: Disconnect the power and unplug the unit from the wall before installing.
See www.KramerAV.com for updated safety information

Step 6: Set operation parameters via OSD menu

Enter the OSD menu via the MENU button on the front panel or the IR remote control transmitter. Select a menu item and set parameters as required. By default, the output resolution is set to Native, the VSM-4x4A is triggered to read the EDID of OUTPUT A and change the output resolution value according to the native resolution of the display.

If you cannot see any images, verify that the display, TV, or projector is in good working order and is connected to the VSM-4x4A. If you still do not see an image, press and hold the RESET TO XGA/1080p button for about 4 seconds to reset the outputs to XGA or 1080p resolution.

Menu	Function
Mode	Set the operation mode: matrix switcher (seamless or independent), video wall (2x2 or 1x4), Dual (POP or PIP) or Quad mode.
Picture	Set the picture parameters per operation mode (contrast, brightness saturation and hue): matrix mode (same for all outputs), video wall (separate for each output), DUAL (separate for left (main) and right (PIP), QUAD (separate for each QUAD).
Output	Set the output parameters: resolution, aspect ratio, border color, input and output labels, bezel correction, and so on.

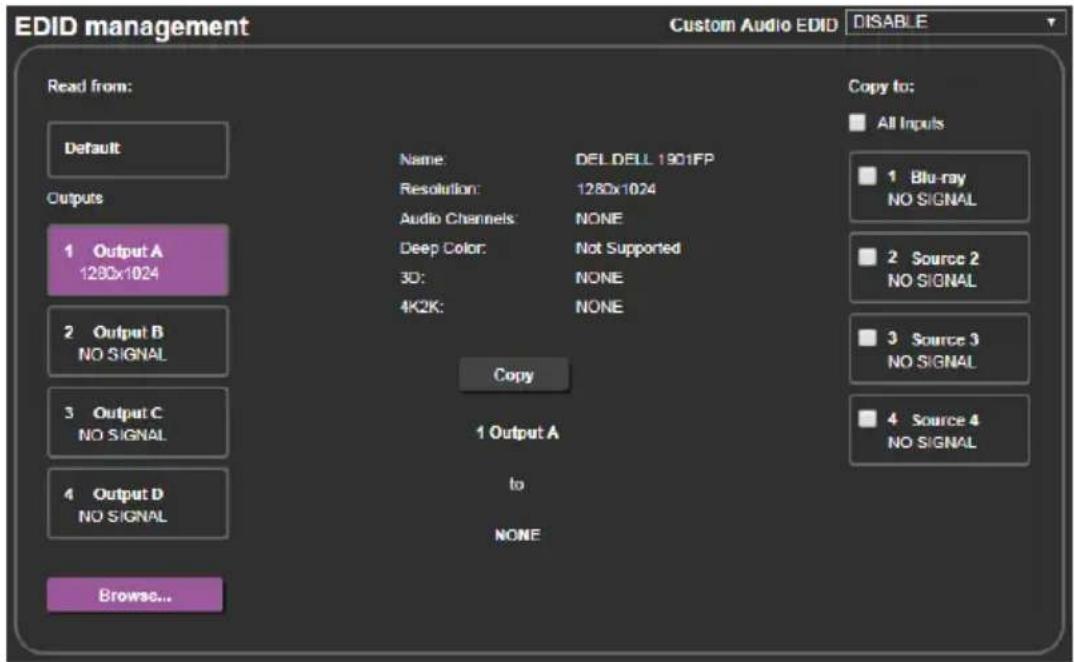

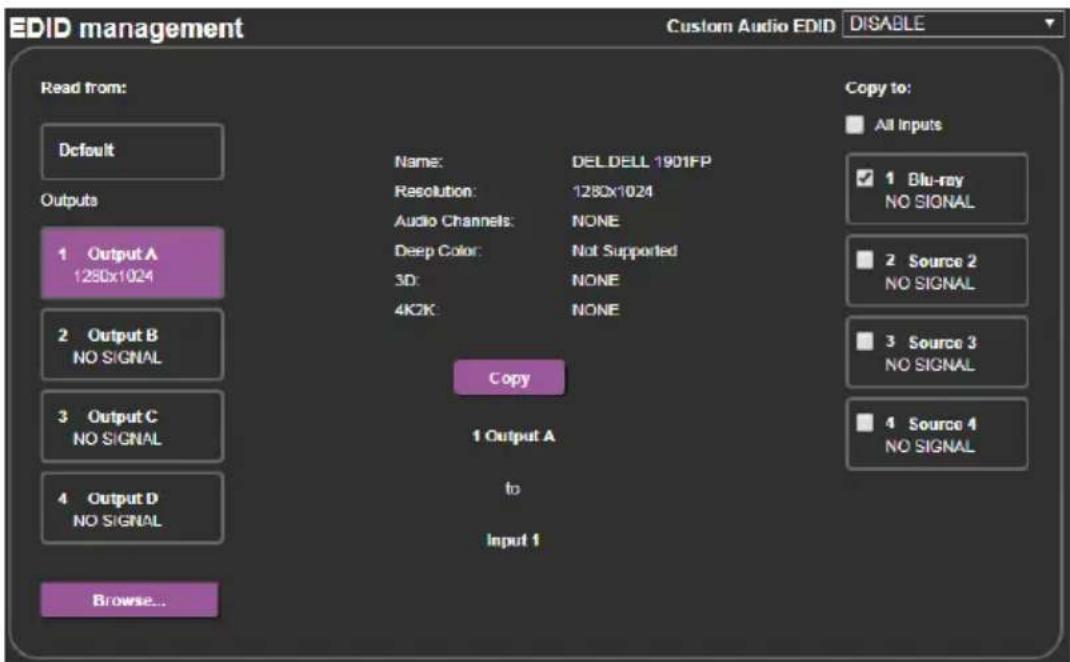

EDID	Manage EDID: per video input as well as audio EDID.
Source	Set the input source parameters: matrix mode (any input to any output), video wall (one input to all outputs), DUAL (an input for left (main) and an input for right (PIP), QUAD (any input for each QUAD).
Recall/ Store	Store and recall setups: store/recall up to 4 setups for each operation mode.
HDCP	Set the HDCP: for each input and each output.
Other settings: set the power-save mode, the output audio level, the OSD definitions and Ethernet parameters; perform reset to factory default values and view device information.

Step 7: Operate via the front panel buttons, Web pages and via the:

IR remote controller:

RS-232 and Ethernet:

RS-232
Protocol 3000
Baud Rate:		115,200	Stop Bits:		1
Data Bits:		8	Parity:		None
TCP/IP Parameters

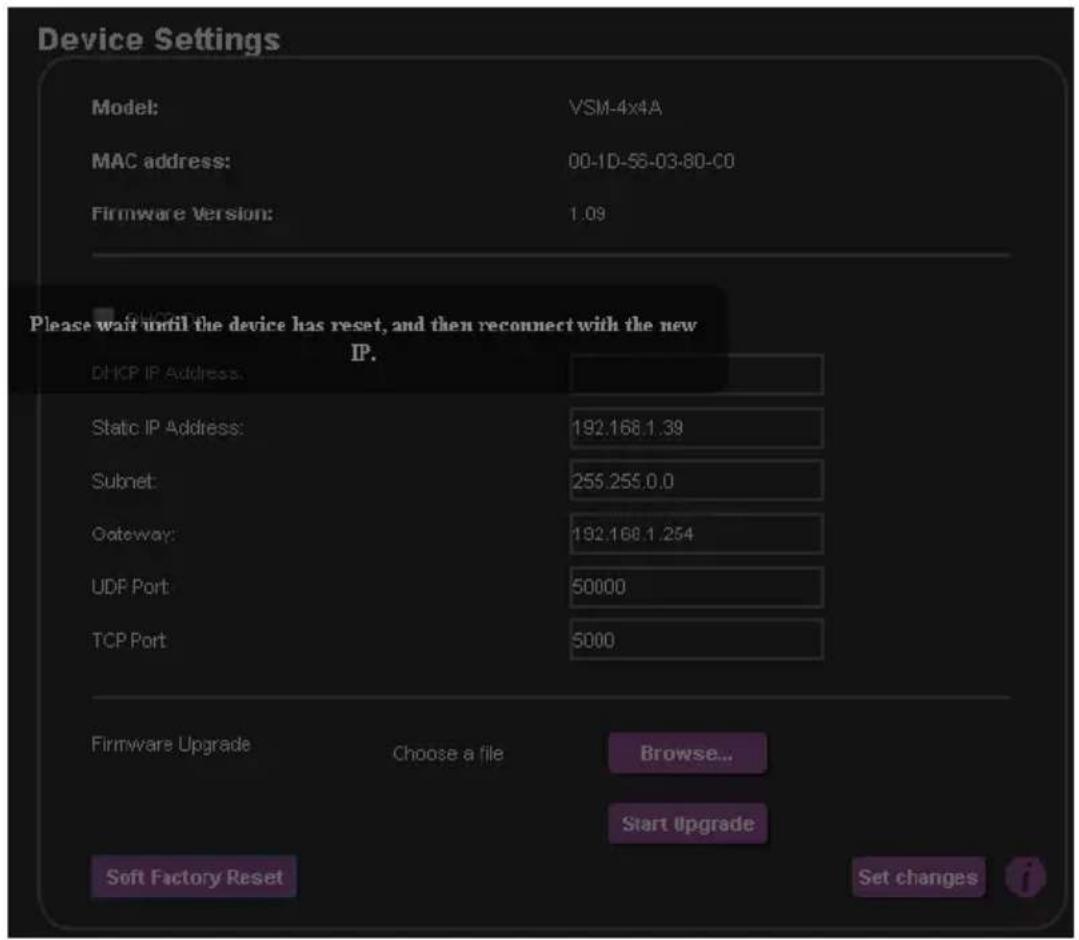

To reset the IP settings to the factory reset values go to : Menu-> Factory-> RESET->Change the option to YES and press Enter
IP Address:	192.168.1.39		TCP Port #:	5000	Max. TCP Ports:	4
Subnet mask:	255.255.255.0		Default UDP Port #:	50000	Max. UDP Ports:	4
Default gateway:	192.168.1.254

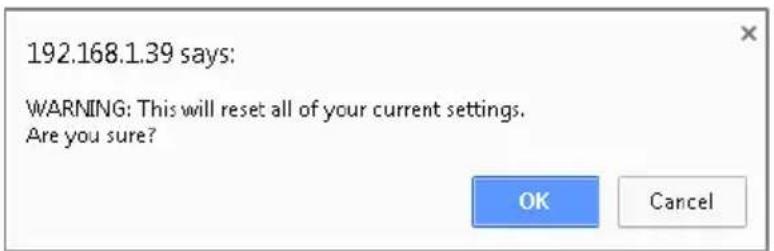

Full Factory Reset
OSD		Go to : Menu-> FACTORY DEFAULT -> Change the option to YES and press Enter
P3000		Use "FACTORY" command
Front panel buttons		Press the MENU Button while plugging the power to reset the machine
RS-232/Ethernet (UDP) Command Protocol
Command Format:					ASCII
Example (Route the video from the HDMI2 input to the HDMI A output port in the Matrix mode):					#ROUTE 1,1,2

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Defining the VSM-4x4A 6

4 Installing in a Rack 8

5 Connecting and Operating the VSM-4x4A 9

5.1 Matrix Mode 10

5.2 Video Wall Mode 11

5.3 Dual Mode 15

5.4 Quad Mode 17

5.5 Wiring the RJ-45 Connectors 19

5.6 Connecting the Balanced Stereo Audio Line Output 19

6 Controlling the VSM-4x4A 20

6.1 Controlling via the Front Panel Buttons 20

6.2 Using the OSD Menu 25

6.3 Connecting to the VSM-4x4A via RS-232 33

6.4 Operating the VSM-4x4A via Ethernet 34

6.5 Controlling via the IR Remote Control 38

6.6 Using the IR Remote Control in Dual Mode 39

7 Firmware Upgrade 44

8 Using the Embedded Web Pages 45

8.1 Browsing the VSM-4x4A Web Pages 45

8.2 Routing & Scaling Page 46

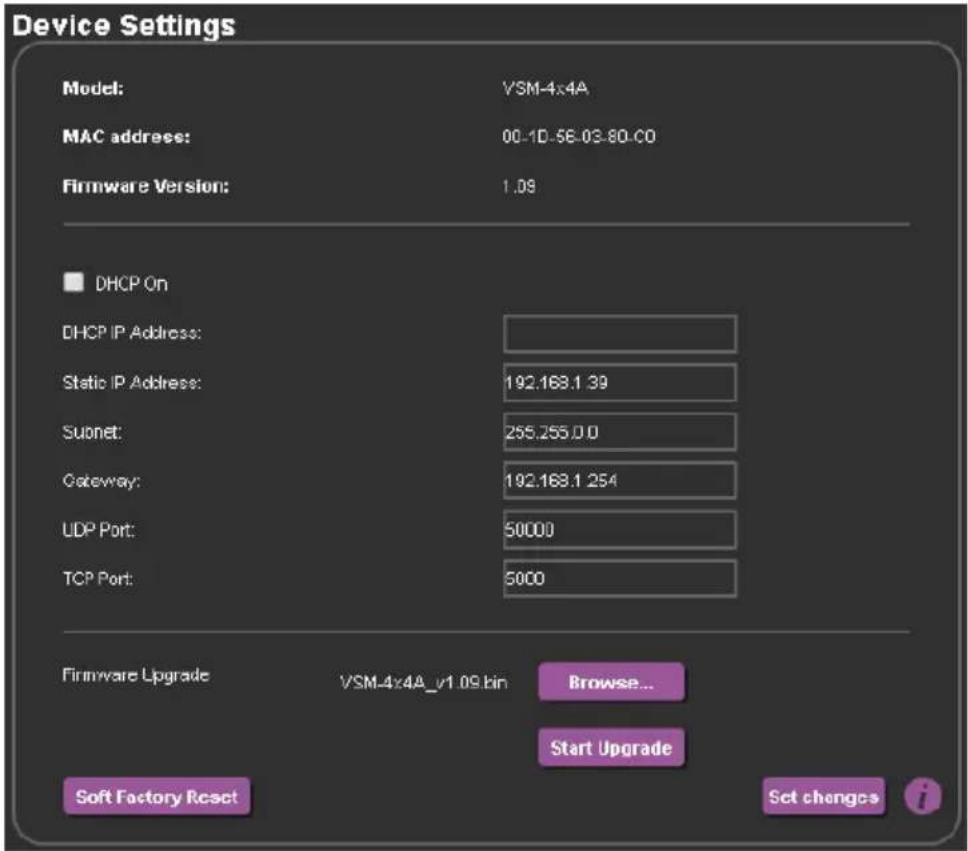

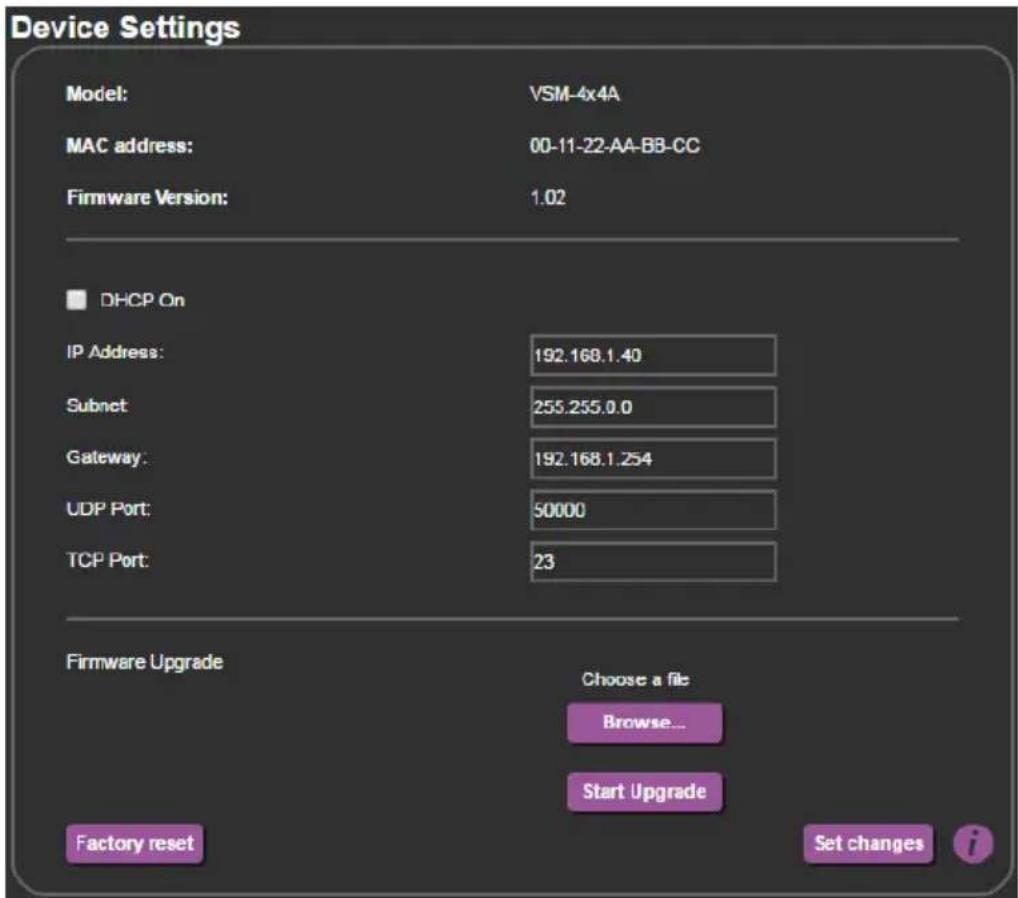

8.3 Device Settings Page 55

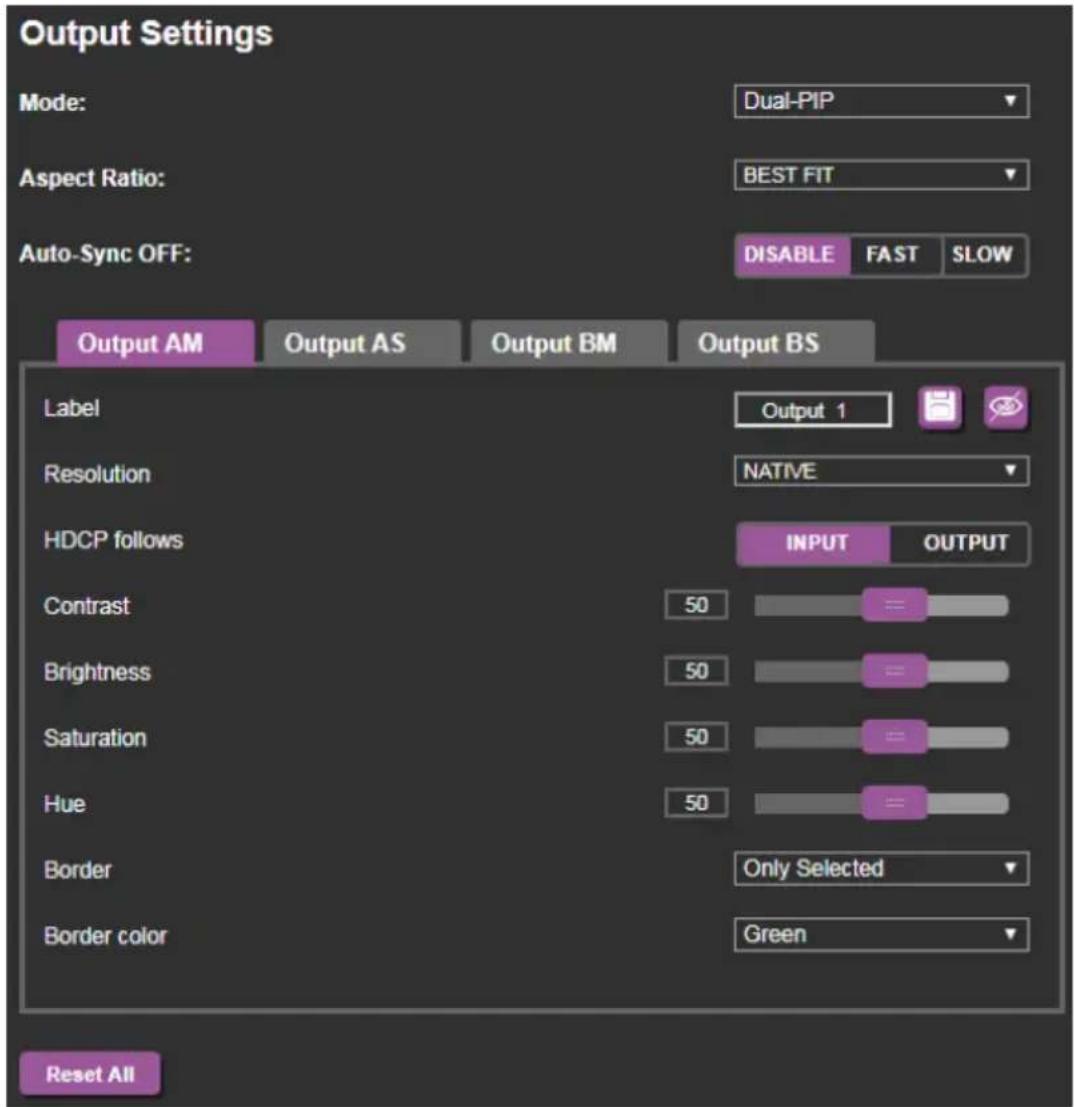

8.4 Output Settings Page 62

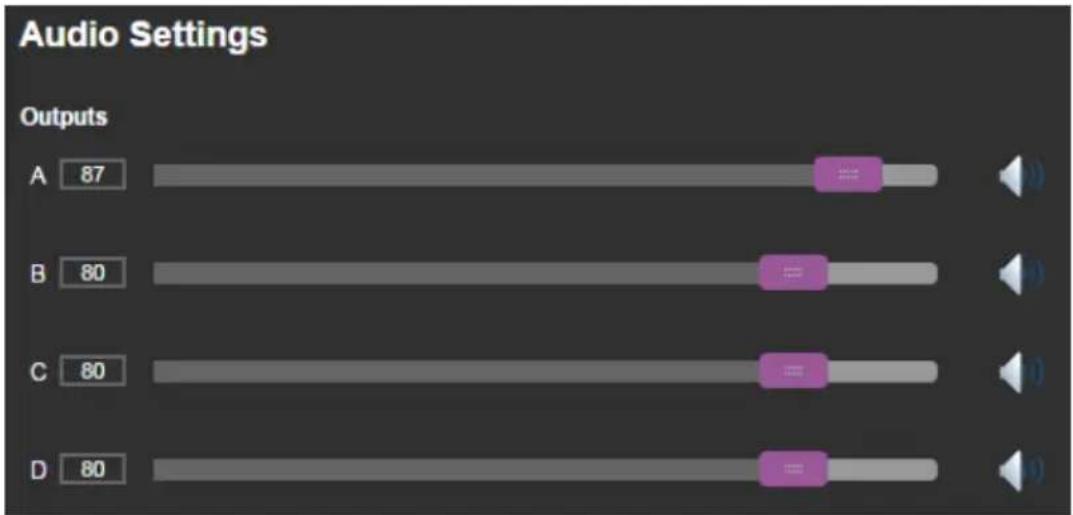

8.5 Audio Settings Page 66

8.6 HDCP Settings Page 67

8.7 EDID Management Page 68

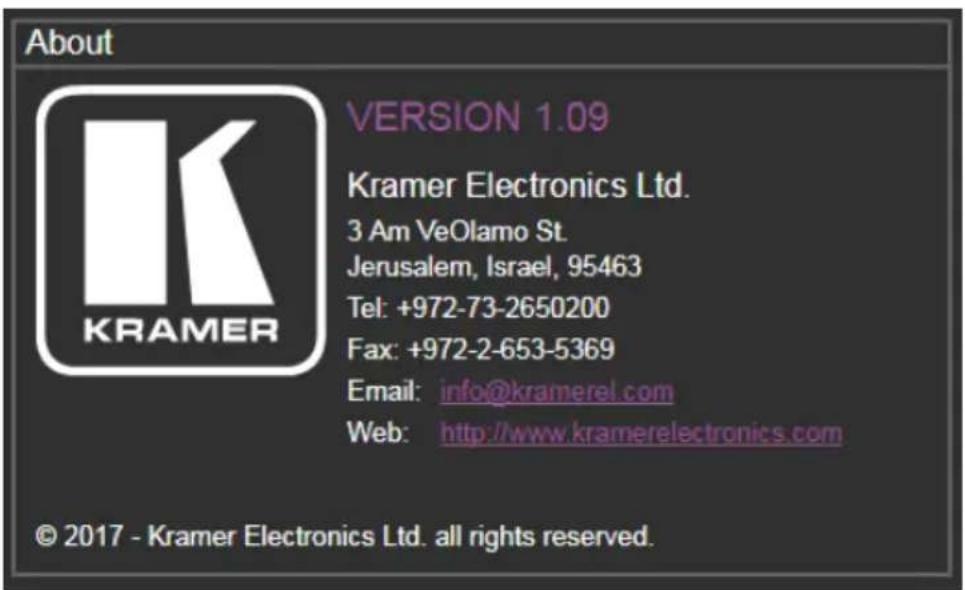

8.8 About Page 70

8.9 Saving and Uploading Configurations 70

9 Technical Specifications 71

9.1 Default Communication Parameters 71

9.2 Supported Input Resolutions 72

9.3 Supported Output Resolutions 72

10 VSM-4x4A RS-232/Ethernet Communication Protocol 73

10.1 Understanding Protocol 3000 74

10.2 Kramer Protocol 3000 Syntax 75

10.3 Protocol 3000 Commands 76

Figures

Figure 1: VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler Front Panel 6

Figure 2: VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler Rear Panel 7

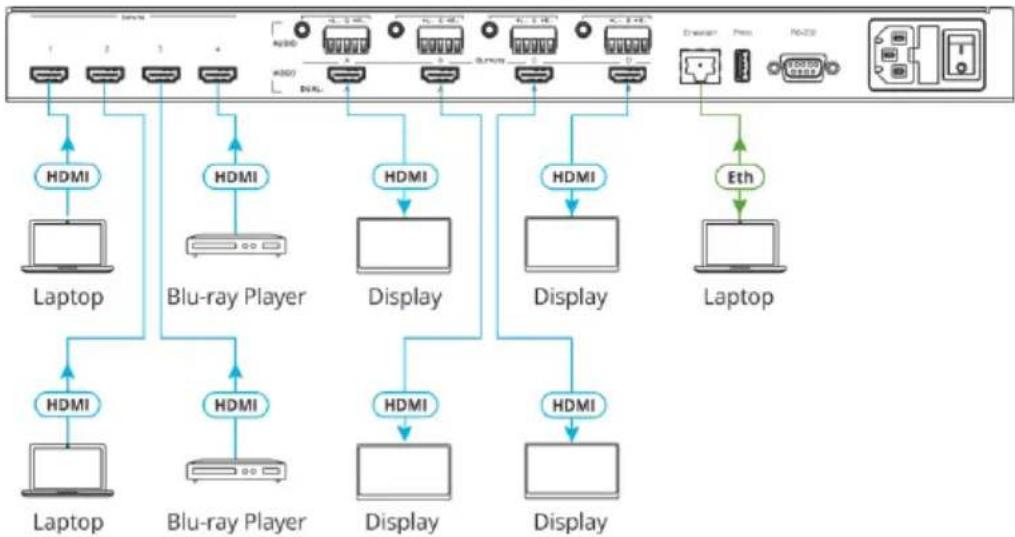

Figure 3: Connecting the VSM-4x4A Presentation Switcher / Scaler 10

Figure 4: VSM-4x4A Video Wall Operation Mode 11

Figure 5: Connecting the VSM-4x4A in 2x2 Video Wall Operation Mode 12

Figure 6: Connecting the VSM-4x4A in 1x4 Video Wall Operation Mode 13

Figure 7: VSM-4x4A Bezel Correction 14

Figure 8: Connecting the VSM-4x4A in Dual Operation Mode 16

Figure 9: the VSM-4x4A QUAD Operation Mode Input Orientation 17

Figure 10: Connecting the VSM-4x4A in Quad Operation Mode 18

Figure 11: TP PINOUT 19

Figure 12: Connecting the Balanced Stereo Audio Output 19

Figure 13: Connecting an Unbalanced Stereo Audio Acceptor to the Balanced Output 19

Figure 14: Local Area Connection Properties Window 35

Figure 15: Internet Protocol Version 4 Properties Window 36

Figure 16: Internet Protocol Version 6 Properties Window 36

Figure 17: Internet Protocol Properties Window 37

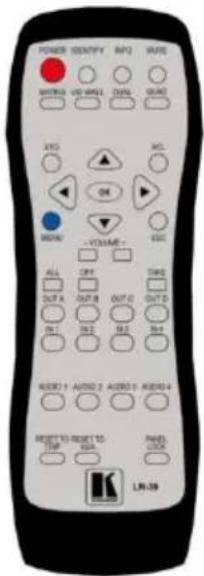

Figure 18: Infrared Remote Control Transmitter 38

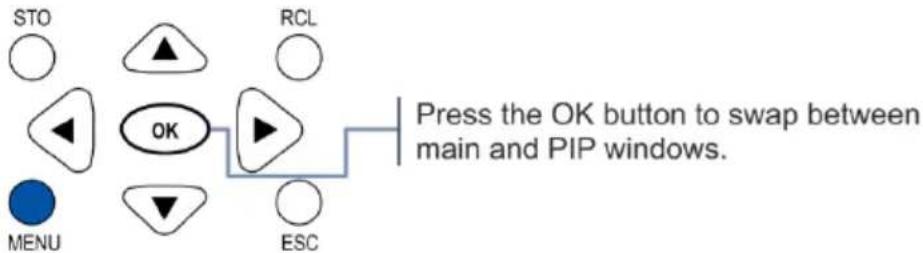

Figure 19: IR Remote Control Transmitter Dual Mode Shortcuts 39

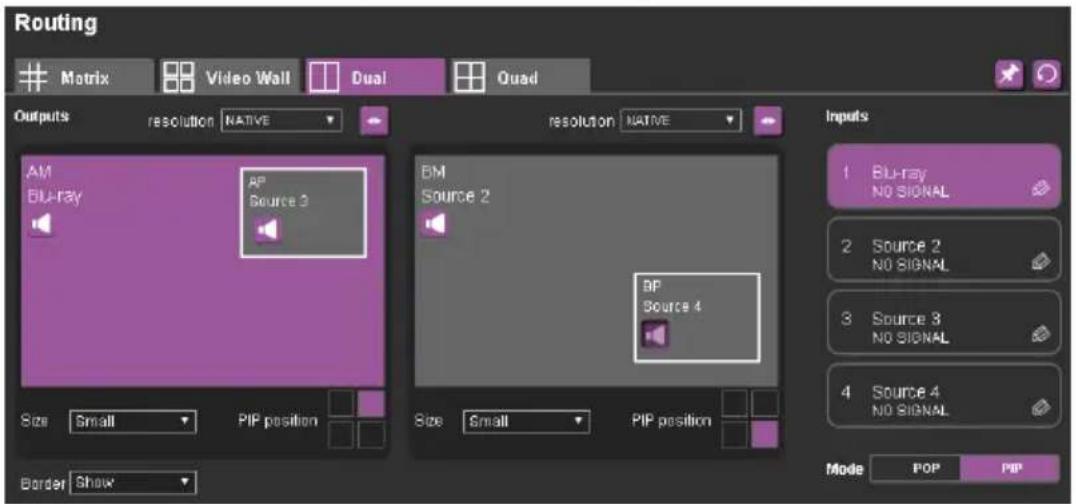

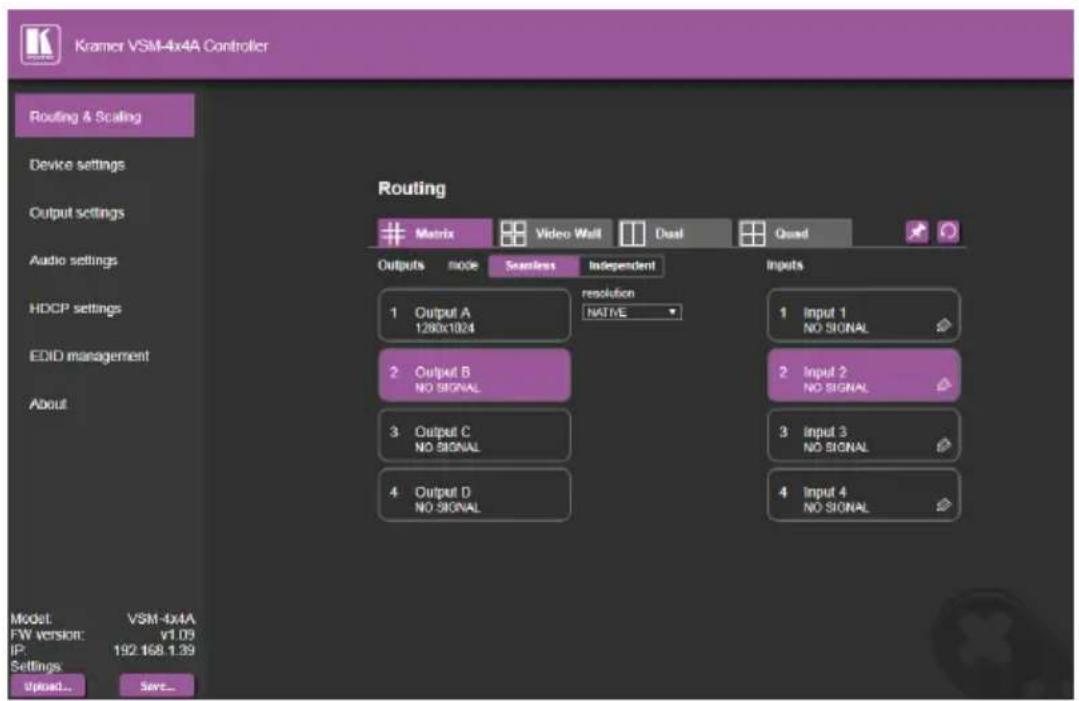

Figure 20: The Routing & Scaling Page 46

Figure 21: The Matrix Tab output Resolution (Seamless Mode) 47

Figure 22: Matrix Tab output Resolution (Independent Mode) 48

Figure 23: 2x2 Video Wall Tab 49

Figure 24: 1x4 Video Wall Tab 49

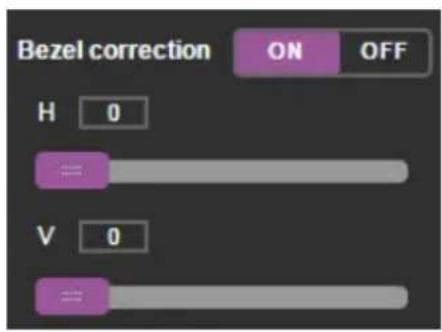

Figure 25: The Video Wall Tab – Bezel Correction 50

Figure 26: The Video Wall Tab – Crop/Position Correction 50

Figure 27: The Dual Tab – POP Mode 51

Figure 28: The Dual Tab – PIP Mode 51

Figure 29: The Dual Tab – PIP Position and Size 52

Figure 30: The Quad Tab 53

Figure 31: The Matrix Tab – Store a Configuration 53

Figure 32: The Matrix Tab – Recall a Configuration 54

Figure 33: Matrix Tab – Input Edit Window 54

Figure 34: The Matrix Tab – Typing the New Label 54

Figure 35: The Matrix Tab – Viewing the Label 55

Figure 36: The Device Settings Page 56

Figure 37: The Device Settings Page – Ethernet Settings 57

Figure 38: The Device Settings Page – IP Number Settings 57

Figure 39: Device Settings Page – Information Window 58

Figure 40: Device Settings Page – Uploading the Firmware File 59

Figure 41: Device Settings Page – Firmware Upgrade Message 59

Figure 42: Device Settings Page – Firmware Upgrade Complete 60

Figure 43: The Device Settings Page – Factory Reset Message 61

Figure 44: The Device Settings Page – Factory Reset 61

Figure 45: The Output Settings Page – Matrix and Video Wall Modes 62

Figure 46: Output Settings Page – Dual-POP Mode 63

Figure 47: Output Settings Page – Dual PIP Mode 64

Figure 48: Output Settings Page – Quad Mode 65

Figure 49: The Audio Settings Page 66

Figure 50: HDCP Settings Page 67

Figure 51: EDID Management Page 68

Figure 52: EDID Management Page – selecting an Output 68

Figure 53: EDID Management Page – Copying the Native Timing 69

Figure 54: EDID Management Page – Copy EDID Results 69

Figure 55: The About Page 70

Figure 56: Loading a Configuration 70

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 15 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders & Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters; GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; GROUP 14: Collaboration; and GROUP 15: KM & KVM Switches.

Congratulations on purchasing your Kramer VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler.

The VSM-4x4A incorporates HDMI ^™ technology and is ideal for:

• Conference room presentations
- Advertising applications, shopping malls and museums
• Post production applications
- Rental and staging
• Security applications
- Video-wall scaling
- Applications with multiple inputs and outputs
- Applications where quick, sleek, seamless switching is required
- Any application requiring 4 scalers in a single 1RU rack space

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to www.kramerav.com/downloads/VSM-4x4A to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer VSM-4x4A away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the power cord that is supplied with the unit

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/.

3 Overview

The VSM-4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi-viewers. The unit enables switching between inputs with a clean video cut (frame-to-frame switching with no glitches).

The VSM-4x4A supports HDMI resolutions with deep color, up to eight channels of audio and includes per-port HDCP and EDID settings. The unit has 4 inputs and 4 outputs on HDMI connectors. The audio output signals are embedded in the HDMI outputs and are also output via mirrored unbalanced and balanced analog signals for each output.

The VSM-4x4A features:

- PixPerfect™ scaling technology – Kramer's precision pixel mapping and high quality scaling technology

- HDTV compatibility

- HDCP compliance – The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI outputs

• 4 HDMI inputs and four scaled HDMI outputs

- 4 balanced and 4 unbalanced audio outputs with independent volume settings per output as well as embedded audio on the HDMI outputs

- Selectable operation modes – seamless matrix switcher (seamless or independent setup), video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display

- Bezel correction options – in the video wall mode

- Independent switching mode allows for separate output resolutions. Input switching is not via seamless video cuts in this mode, but the switching is still clean (outputs do retain constant sync during the switch transition)

- HDMI support for Deep Color, Dolby Digital Plus, DTS, DTS-HD®, LPCM 2CH/6CH/8CH, AC3

• HDCP and EDID settings per port

• VGA to WUXGA and 480i to 1080p input resolution range
• 480p to 1080p output resolution range
- Multiple aspect ratio selections – full, 4:3, 16:9 and best fit
• Built-in ProcAmp – color, hue, sharpness, noise, contrast and brightness
- Front panel control – operation mode, TAKE button, and menu buttons
- 4 preset memory locations for each operation mode for quick access to common IN-OUT configurations
- Front panel lockout
• Non-volatile memory – saves final settings
• Additional internal memory (to support larger F/W code)
- Firmware upgrade via Ethernet or via the program mini USB connector

Control your VSM-4x4A:

• Directly, via the front panel push buttons
• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller
• Remotely, from the infrared remote control transmitter with OSD (on-screen display)
  • Via the Ethernet with built-in Web pages

The VSM-4x4A is housed in a 19" 1U rack mountable enclosure, with rack ears included, and is fed from a 100-240 VAC universal switching power supply.

3.1 Defining the VSM-4x4A

This section defines the VSM-4x4A.

Figure 1: VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler Front Panel

#	Feature			Function
1	IR LED			Lights when the unit accepts IR remote commands
	IR Receiver			Receives signals from the remote control transmitter
2	OUTPUT/WINDOW Selector Buttons			In the MATRIX mode: select the output to which the input is switched (A, B, C or D) In the VIDEO WALL mode: not used In the DUAL mode: select one of the two DUAL windows: A or B for DUAL A; C or D for DUAL B (see Section 5.3) In the QUAD mode: not used
3	INPUT Selector Buttons			Press to select an HDMI input (from 1 to 4) to switch to the output
4	ALL Button			Press ALL followed by an INPUT button to connect that input to all the outputs (not available for the video wall mode)
5	OFF Button			Press after pressing an output button to disconnect the selected output from the inputs. To disconnect all the outputs, press ALL followed by OFF
6	TAKE Button			Press to toggle between the Confirm mode (when in the Confirm mode, the TAKE button lights) and the At Once mode. When in TAKE mode, front panel buttons actions are implemented after pressing the TAKE button (see Section 6.1.2)
7	MODE Buttons	MATRIX		Press to operate the system as a matrix switcher (see Section 5.1)
8		VIDEO WALL		Press to operate as a 2x2 or 1x4 video wall (see Section 5.2)
9		DUAL		Press to operate as a 4x2 switcher with PIP capabilities (see Section 5.3)
10		QUAD		Press to display all four inputs on each of the outputs (see Section 5.4)
11	STO Button			Press to store a configuration (see Section 6.1.3)
12	RCL Button			Press to recall a configuration (see Section 6.1.3)
13	IDENTIFY Button			Press to indicate on each output, which input is displayed on the output. The display time is set via the OSD menu (see Section 6.2.1)
14	MENU			Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the previous level in the OSD screen (see Section 6.1.2)
15	Navigation Buttons		ENTER	Press to access sub-menu items and select from several settings (see Section 6.1.2)
			◀	Press to decrease numerical values or select from several definitions
			▲	Press to move up the menu list values (see Section 6.1.2)
			▶	Press to increase numerical values or select from several definitions
			▼	Press to move down the menu list (see Section 6.1.2)
16	RESET TO XGA/1080p Button			Press and hold for about 4 seconds to toggle resetting the video resolution to XGA or 1080p
17	PANEL LOCK Button			Press and hold for about 2 seconds to lock/unlock the front panel buttons

Figure 2: VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler Rear Panel

#	Feature	Function
18	INPUT HDMI Connectors	Connect to the HDMI sources (from 1 to 4)
19	AUDIO OUTPUT 3.5mm Mini Jack	Connect to an unbalanced audio acceptor (from A to D)
20	AUDIO OUTPUT 5-pin Terminal Block Connector	Connect to a balanced audio acceptor (from A to D)
21	OUTPUT HDMI Connectors	Connect to the HDMI acceptors (from A to D); DUAL: when in the dual operation mode, A, A and B, B
22	ETHERNET Connector	Connects to the PC or other Serial Controller through computer networking
23	PROG USB Connector	Connect to upgrade the unit
24	RS-232 9-pin D-sub Port	Connect to the PC or a remote controller
25	Mains Socket	Connect the mains power cord
26	Mains Fuse Holder	Fuse for protecting the device
27	Power Switch	Switch for turning the unit ON or OFF

4 Installing in a Rack

This section provides instructions for rack mounting the unit.

Before installing in a rack, be sure that the environment is within the recommended range:

OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing

CAUTION!

When installing on a 19" rack, avoid hazards by taking care that:

1. It is located within the recommended environmental conditions, as the operating ambient temperature of a closed or multi unit rack assembly may exceed the room ambient temperature.
2. Once rack mounted, enough air will still flow around the machine.
3. The machine is placed straight in the correct horizontal position.
4. You do not overload the circuit(s). When connecting the machine to the supply circuit, overloading the circuits might have a detrimental effect on overcurrent protection and supply wiring. Refer to the appropriate nameplate ratings for information. For example, for fuse replacement, see the value printed on the product label.
5. The machine is earthed (grounded) in a reliable way and is connected only to an electricity socket with grounding. Pay particular attention to situations where electricity is supplied indirectly (when the power cord is not plugged directly into the socket in the wall), for example, when using an extension cable or a power strip, and that you use only the power cord that is supplied with the machine.

To rack-mount a machine:

1. Attach both ear brackets to the machine. To do so, remove the screws from each side of the machine (3 on each side), and replace those screws through the ear brackets.

Technical line drawing of a mechanical bracket assembly with bolts and mounting holes (no text or symbols)

1. Place the ears of the machine against the rack rails, and insert the proper screws (not provided) through each of the four holes in the rack ears.

Note:

• In some models, the front panel may feature built-in rack ears
- Detachable rack ears can be removed for desktop use
• Always mount the machine in the rack before you attach any cables or connect the machine to the power
- If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack Adapters user manual for installation instructions available from our Web site

5 Connecting and Operating the VSM-4x4A

The VSM-4x4A is a four-in-one box device. It can operate as a:

• Matrix switcher
• Video wall
• Dual switcher
• Quad switcher

You can select the different operation modes via front panel buttons, the IR remote control transmitter and OSD menu or via the Web pages.

This section describes how to connect and operate the VSM-4x4A in each of the four operation modes.

Always switch off the power to each device before connecting it to your VSM-4x4A. After connecting your VSM-4x4A, connect its power and then switch on the power to each device.

This section describes selecting inputs via the front panel buttons.

To select the inputs via the OSD, use the SOURCE menu item (see Section 6.2.1).

To select the inputs via the IR remote control transmitter, see Section 6.6.

You do not have to connect all the inputs and outputs, connect only those that are required.

5.1 Matrix Mode

The VSM-4x4A matrix switcher mode is the default operation mode. Any of the four inputs can be switched to any of the four outputs. Switching is immediate and seamless.

5.1.1 Connecting the VSM-4x4A in Matrix Mode

To connect the VSM-4x4A in Matrix mode, as illustrated in the example in Figure 3:

1. Connect up to four HDMI sources (for example, laptops and/or Blu-ray disk players) to the HDMI INPUT connectors (from INPUT 1 to INPUT 4).
2. Connect the four HDMI OUTPUT connectors (from OUTPUT A to OUTPUT D) to up to four HDMI acceptors (for example, displays and/or projectors).

3. Connect the four OUTPUT unbalanced stereo audio 3.5mm mini jacks and/or the four balanced stereo audio terminal block connectors (see Section 5.6) to up to four audio acceptors (for example, active speakers or audio power amplifiers).

4. Connect the power cord.

5. If required, connect:

■ A PC via RS-232, see Section 6.3
■ The ETHERNET port, see Section 6.4

    subgraph HDIs
        D1["HDMI"] --> D2["Laptop"]
        D3["HDMI"] --> D4["Laptop"]
        D5["HDMI"] --> D6["Laptop"]
        D7["HDMI"] --> D8["Laptop"]
        D9["HDMI"] --> D10["Laptop"]
        D11["HDMI"] --> D12["Laptop"]
        D13["HDMI"] --> D14["Laptop"]
        D15["HDMI"] --> D16["Laptop"]
        D17["HDMI"] --> D18["Laptop"]
        D19["HDMI"] --> D20["Laptop"]
        D21["HDMI"] --> D22["Laptop"]
        D23["HDMI"] --> D24["Laptop"]
        D25["HDMI"] --> D26["Laptop"]
        D27["HDMI"] --> D28["Laptop"]
        D29["HDMI"] --> D30["Laptop"]
        D31["HDMI"] --> D32["Laptop"]
        D33["HDMI"] --> D34["Laptop"]
        D35["HDMI"] --> D36["Laptop"]
        D37["HDMI"] --> D38["Laptop"]
        D39["HDMI"] --> D40["Laptop"]
        D41["HDMI"] --> D42["Laptop"]
        D43["HDMI"] --> D44["Laptop"]
        D45["HDMI"] --> D46["Laptop"]
        D47["HDMI"] --> D48["Laptop"]
        D49["HDMI"] --> D50["Laptop"]
        D51["HDMI"] --> D52["Laptop"]
        D53["HDMI"] --> D54["Laptop"]
        D55["HDMI"] --> D56["Laptop"]
        D57["HDMI"] --> D58["Laptop"]
        D59["HDMI"] --> D60["Laptop"]
        D61["HDMI"] --> D62["Laptop"]
        D63["HDMI"] --> D64["Laptop"]
        D65["HDMI"] --> D66["Laptop"]
        D67["HDMI"] --> D68["Laptop"]
        D69["HDMI"] --> D70["Laptop"]
        D71["HDMI"] --> D72["Laptop"]
        D73["HDMI"] --> D74["Laptop"]
        D75["HDMI"] --> D76["Laptop"]
        D77["HDMI"] --> D78["Laptop"]
        D79["HDMI"] --> D80["Laptop"]

Figure 3: Connecting the VSM-4x4A Presentation Switcher / Scaler

5.1.2 Operating the VSM-4x4A in Matrix Mode

To select the inputs via the front panel buttons/IR remote control transmitter:

1. Press MATRIX MODE on the front panel to select the Matrix operation mode.
2. Press MENU on the front panel to display the OSD menu (see Section 6.2) and define the matrix switcher option (seamless or independent).
3. Press an output (A to D) button and then an input button (1 to 4) to switch to the selected output.
4. If required, press TAKE to switch several inputs and outputs at once (see Section 6.1.2).

5.2 Video Wall Mode

In Video Wall mode, you can display the output on a set of four monitors / projectors / TV sets that are tiled together in a 2x2 or 1x4 setting to form one large display. Each output shows one quarter of the image as shown in the example in Figure 4.

In Video Wall mode, the audio of the selected input is routed to one of the outputs.

Figure 4: VSM-4x4A Video Wall Operation Mode

5.2.1 Connecting the VSM-4x4A in Video Wall Mode

To connect the video wall as illustrated in Figure 5 and Figure 6:

1. Connect the inputs, not shown in Figure 5 and Figure 6.

2. Connect the HDMI output connectors to the video wall screens, as follows:

For a 2x2 setup, connect:

• OUTPUT A to the top left screen
• OUTPUT B to the top right screen
• OUTPUT C to the bottom left screen
• OUTPUT D to the bottom right screen

For a 1x4 setup, connect OUTPUT A to the top screen, outputs B and C below in sequence, and OUTPUT D to the lowest screen.

1. Connect the power cord.

2. If required, connect:

■ A PC via RS-232, see Section 6.3
■ The ETHERNET port, see Section 6.4

Figure 5 shows a 2x2 video wall layout:

Figure 5: Connecting the VSM-4x4A in 2x2 Video Wall Operation Mode

Figure 6 shows a 2x2 video wall layout:

Figure 6: Connecting the VSM-4x4A in 1x4 Video Wall Operation Mode

5.2.2 Operating the VSM-4x4A in Video Wall Mode

To select the inputs via the front panel buttons/IR remote control transmitter:

1. Press VIDEO WALL on the front panel to select the Video Wall operation mode.
2. Press MENU on the front panel to open the OSD menu (see Section 6.2) and define the video wall setup (2x2 or 1x4).
3. Press an input button (1 to 4) to switch to the output.

5.2.3 Bezel Correction

Set bezel correction via the OUTPUT menu (see Section 6.2.1) to make up for the rims around the displays used for creating the video wall, thus creating one smooth picture. In the example in Figure 7 the top photo shows the video wall before bezel correction and the lower photo shows the corrected image on the video wall.

Figure 7: VSM-4x4A Bezel Correction

5.3 Dual Mode

In Dual mode, VSM-4x4A is set as a 4x2 switcher with picture-in-picture capabilities that outputs two identical A outputs and two identical B outputs (see Figure 8).

The dual outputs display any two selected input signals together on one screen. You can set the Dual mode to POP (side-by-side) or PIP (picture-in-picture) configurations.

5.3.1 Connecting the VSM-4x4A in Dual Mode

To connect in the Dual mode as illustrated in Figure 8:

1. Connect the inputs (1 to 4) to HDMI sources, not shown in Figure 8.
2. Connect each of the HDMI output connectors (A to D) to separate acceptors (for example, displays).
3. Connect the power cord.
4. If required, connect:

■ A PC via RS-232, see Section 6.3
■ The ETHERNET port, see Section 6.4

In the following example, "Show" is selected in the BORDER menu item (see Section 6.2.1) to display all the borders.

Figure 8: Connecting the VSM-4x4A in Dual Operation Mode

5.3.2 Operating the VSM-4x4A in Dual Mode

To select the inputs via the front panel buttons/IR remote control transmitter:

1. Press DUAL on the front panel to select the Dual operation mode.
2. Press one of the dual output buttons:

■ For the A outputs, press A or B
■ For the B outputs, press C or D

1. Press any two input buttons in sequence:

2. In the POP mode, the first The first press is assigned to the LEFT image and the second press is assigned to the RIGHT image

3. in the PIP mode, the first press is assigned to the MAIN image and the second press is assigned to the PIP image

5.4 Quad Mode

The Quad mode shows any four inputs on one screen (each quarter of a screen can show any selected input) and outputs it identically to all four outputs (OUTPUT A to OUTPUT D). Figure 9 shows the order in which the outputs are set in the QUAD mode (this order cannot be configured):

OUT A	OUT B
OUT C	OUT D

Figure 9: the VSM-4x4A QUAD Operation Mode Input Orientation

5.4.1 Connecting the VSM-4x4A in Quad Mode

To connect the VSM-4x4A in Quad mode as illustrated in Figure 10:

1. Connect an HDMI source to up to four inputs, not shown in Figure 10.
2. Connect the HDMI output connectors OUTPUT A, OUTPUT B, OUTPUT C and OUTPUT D to an HDMI acceptor (for example, to displays).

3. Connect the power cord.

4. If required, connect:

■ A PC via RS-232, see Section 6.3
■ The ETHERNET port, see Section 6.4

Figure 10: Connecting the VSM-4x4A in Quad Operation Mode

In this example “Only Selected” is selected in the BORDER menu item (see Section 6.2.1) to display only the border of the selected output.

All four inputs are displayed on each of the output displays.

5.4.2 Operating the VSM-4x4A in Quad Mode

Press QUAD on the front panel to operate the VSM-4x4A in Quad Mode.

5.5 Wiring the RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B
PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

Figure 11: TP PINOUT

Pure electrical connector diagram without any text or symbols

5.6 Connecting the Balanced Stereo Audio Line Output

Figure 12: Connecting the Balanced Stereo Audio Output

Figure 13: Connecting an Unbalanced Stereo Audio Acceptor to the Balanced Output

6 Controlling the VSM-4x4A

The VSM-4x4A can be controlled via:

• Front panel buttons (see Section 6.1)
  • OSD menu (see Section 6.2)
• RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller (see Section 6.3)
  • The ETHERNET (see Section 6.4), via the Web pages
  • The infrared remote control transmitter (see Section 6.5)

6.1 Controlling via the Front Panel Buttons

VSM-4x4A includes the following front panel buttons:

• Input selector buttons for selecting the required INPUT, HDMI (1 to 4) and OUTPUT/WINDOW selector buttons (A to D)
• ALL (to connect a selected input to all the outputs) and OFF (to disconnect a selected output from the inputs) buttons
• MODE buttons: MATRIX, VIDEO WALL, DUAL and QUAD
• TAKE button
• STO and RCL buttons
• IDENTIFY button to identify the inputs connected to the outputs
• MENU, ENTER, and up, down, left and right arrow buttons for the OSD menu
• RESET TO XGA/720p and PANEL LOCK buttons

6.1.1 Switching Inputs to Outputs

Inputs are routed to outputs differently for each of the four operation modes.

Incomplete operations on the VSM-4x4A timeout after 15 seconds.

Matrix Mode

To switch an input to an output in Matrix mode:

1. Press the required OUTPUT/WINDOW button (A to D).

The selected button illuminates.

1. Press an INPUT button (1 to 4) to select the input to switch to the output.

You can also switch several inputs and outputs using the TAKE button (see Section 6.1.2).

Video Wall Mode (2x2 or 1x4)

To switch an input to the output, press an INPUT button (1 to 4). The selected image appears on the video wall.

The audio input signal is routed to one of the four displays.

Dual Mode

POP Mode: select the inputs to switch to the LEFT and RIGHT images for each of the two dual groups (two A outputs and two B outputs).

PIP Mode: select the INPUT buttons (1 to 4) to switch to the MAIN and PIP images for each of the two dual groups (two A outputs and two B outputs).

To select the images for group A (POP/PIP) using the front panel buttons:

1. Press OUTPUT A or OUTPUT B.

The selected button illuminates.

1. Press an INPUT button (from 1 to 4) to select the left/main image on the output.

2. Press an INPUT button (from 1 to 4) to select the right/PIP image on the output.

To select the images for group B (POP/PIP) using the front panel buttons:

1. Press OUTPUT C or OUTPUT D. The selected button illuminates.
2. Press an INPUT button (from 1 to 4) to select the left/main image on the output.
3. Press an INPUT button (from 1 to 4) to select the right/PIP image on the output.

The audio signal of the input selected first (the left/main image) will be routed to the output.

Quad Mode

In Quad mode there are no input/output switching operations since all the inputs appear on each output in a preset order.

6.1.1.1 Switching an Input to All the Outputs

This feature is available for all operation modes except the video wall mode.

To switch an input to all the outputs:

1. Press ALL.
2. Press an INPUT button (1 to 4) to select the input to switch to all outputs. The selected input is switched to all outputs.

6.1.1.2 Disconnecting an Input from an Output

To disconnect an input from an output:

1. Press the required OUTPUT button (A to D).
   The selected output Illuminates.

2. Press OFF.
   The selected output is disconnected.

6.1.1.3 Disconnecting All the Inputs from the Outputs

This feature is available for all operation modes except the video wall mode.

To disconnect all the inputs from the outputs:

1. Press ALL.

2. Press OFF.

All the inputs are disconnected from all the outputs.

6.1.2 Using the TAKE Button

You can choose to work in the At Once or the Confirm mode:

• In the At Once mode, pressing an output-input combination implements the action immediately
• In the Confirm mode, pressing the TAKE button activates the switching operation

The At Once Mode

In the At Once mode, execution is immediate and actions require no user confirmation. However, no protection is offered against changing an action in error.

The Confirm Mode

In the Confirm mode:

• You can enter several actions and then confirm them by pressing the TAKE button to simultaneously activate the multiple switches
• Every action requires user confirmation which protects against erroneous switching
• Execution is delayed until the user confirms the action

If the TAKE button is not pressed within 60 seconds, this action is aborted.

6.1.2.1 Toggling between the At Once and Confirm Modes

To toggle between the At Once and Confirm modes:

1. Press TAKE to toggle from the At Once mode (TAKE button is not illuminated) to the Confirm mode (TAKE button lights). Actions now require user confirmation and the TAKE button lights.
2. Press TAKE to toggle from the Confirm mode back to the At Once mode. Actions no longer require user confirmation and the TAKE button no longer lights.

6.1.2.2 Confirming a Switching Action

To confirm a switching action (in the Confirm mode):

1. Press an output-input combination. The TAKE button flashes.
2. Press the flashing TAKE button to confirm the action. The TAKE button lights.

To confirm several switching actions (in the Confirm mode):

1. Press each output-input combination in sequence. The TAKE button flashes.
2. Press the flashing TAKE button to confirm all the actions. The TAKE button lights.

6.1.3 Storing/Recalling In/Out Configurations

You can store and recall up to four input/output configuration setups via the four INPUT buttons. The stored setups are saved in the non-volatile memory.

Note that you can also store and recall a setup via the OSD menu (see Section 6.2.1) and the Web pages (see Section 7).

6.1.3.1 Storing an Input/Output Configuration

To store the current status in memory:

1. Press STO.

The STO button lights.

1. Press one of the INPUT buttons (1 to 4, this will be the setup # in which the current status is stored). If in the Confirm mode, press the flashing TAKE button to confirm the action.

The data is stored to the selected setup number.

6.1.3.2 Recalling an In/Out Configuration

To recall an input/output configuration:

1. Press RCL.

The RCL button lights.

1. Press the appropriate INPUT button (the button # corresponding to the setup #). If in the Confirm mode, that setup configuration will only be implemented after pressing the TAKE button.

The memory recalls the stored data from that setup.

6.1.4 Front Panel Button Shortcuts

This section defines several front panel button shortcuts:

• Selecting an audio source – Press and hold (for 3 seconds) an output (OUTPUT A to OUTPUT D) to select the audio source
• Muting the audio output – Press and hold the ALL button (for 3 seconds) to toggle between muting (blocking out the sound) and enabling the audio output

6.2 Using the OSD Menu

Use the front panel control buttons to control the VSM-4x4A via the OSD menu.

Press:

- MENU to enter the menu

The default timeout is set to 10 seconds

• ENTER to accept changes and to change the menu settings
- Arrow buttons to move through the OSD menu, which is displayed on the video output

In the OSD menu, select EXIT to exit the menu.

6.2.1 Configuring the Operation Mode (MODE Menu)

Mode	Function
SEAMLESS MATRIX	Select the 4x4 matrix switcher mode – the same output resolution is set for all the outputs
INDEPENDENT MATRIX	Select the 4x4 matrix switcher mode – each output resolution is set independently
VIDEO WALL 2x2	Select the 2x2 video wall mode
VIDEO WALL 1x4	Select the 1x4 video wall mode1x4 means 1 column x 4 rows. Note that you cannot rotate the image by 90°. The source should be pan and scan so as to get the correct aspect ratio
DUAL - POP	Select the 4x2 dual POP operation mode: both A outputs display two selected inputs that appear as side by side images identically. In the same way both B outputs display two selected inputs that appear as side by side images identically
DUAL - PIP	Select the 4x2 dual PIP operation mode: both A outputs display two selected inputs that appear as one PIP image over a main screen image, identically. In the same way, both B outputs display two selected inputs that appear as one PIP image over a main screen image, identically
QUAD	Select the QUAD operation mode: All four outputs show all the four input images each of which appears on one quarter of the screen

6.2.2 Configuring Picture Parameters for each Mode (PICTURE Menu)

Mode	Function
Note that the PICTURE menu changes in accordance with the operation mode
In SEAMLESS MATRIX Mode	For both Matrix modes, set the CONTRAST, BRIGHTNESS, SATURATION and HUE on all the outputs (the settings are the same for all the outputs)RESET ALL the PICTURE parameters to their default values
In INDEPENDENT MATRIX Mode	For both Matrix modes, set the CONTRAST, BRIGHTNESS, SATURATION and HUE separately for OUT A, OUT B, OUT C and OUT DRESET each parameter (CONTRAST, BRIGHTNESS, SATURATION or HUE) for all the outputs. RESET ALL the PICTURE parameters to their default values
In VIDEO WALL Mode	For both Video Wall modes, set the CONTRAST, BRIGHTNESS, SATURATION and HUE separately for OUT A, OUT B, OUT C and OUT DRESET each parameter (CONTRAST, BRIGHTNESS, SATURATION or HUE) for all the outputs RESET ALL the PICTURE parameters to their default values
In DUAL POP Mode	Set the CONTRAST, BRIGHTNESS, SATURATION and HUE separately for the LEFT and RIGHT images of the A outputs, and the LEFT and RIGHT images of B outputsRESET each parameter for all the outputs RESET ALL the PICTURE parameters to their default values
In DUAL PIP Mode	Set the CONTRAST, BRIGHTNESS, SATURATION and HUE separately for the MAIN and PIP images of the A outputs and the MAIN and PIP images of B outputsRESET each parameter for all the outputs RESET ALL the PICTURE parameters to their default values
In QUAD Mode	Set the CONTRAST, BRIGHTNESS, SATURATION and HUE separately for QUAD 1, QUAD 2, QUAD 3 and QUAD 4RESET each parameter for all the QUADs RESET ALL the PICTURE parameters to their default values

6.2.3 Configuring Output Parameters (OUTPUT Menu)

Mode	Function
RESOLUTIONA to D	Set the output resolution to NATIVE (default), 480p, 576p, 720p50, 720p59, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1680x1050 or 1920x1200
		The NATIVE resolution is read from OUT A. If the FW cannot detect the OUT A native resolution or if it is not supported, the resolution defaults to 1080p60
	Seamless Matrix mode	Set resolution on AApplies to outputs A, B, C and D
	Independent Matrix mode	Set resolution separately for A, B, C and D
	Dual PIP mode	Set resolution A for dual A (outputs A and B)Set resolution C for dual B (outputs C and D)
	Dual POP mode	Set resolution A for dual A (outputs A and B)Set resolution C for dual B (outputs C and D)
	Video wall 4x4, 1x4	Set resolution on A.Applies to outputs A, B, C and D
	QUAD mode	Set resolution on A.Applies to outputs A, B, C and D
ASPECT RATIO	Set to Full, 4:3, 16:9 or Best Fit(default)
BORDERS	Available only for the DUAL and QUAD operation modesSet to Show (all the borders), Only Selected (only the selected output, default) or OFFIf Show is selected (a border around each image), the selected output's border appears slightly thicker
BORDER COLOR	Select RED, GREEN (default), BLUE, YELLOW, MAGENTA or GREY
INPUT LABELS	Set input labels to ON or OFF (default)By default the label is set to Source 1 for input 1, Source 2 for input 2 and so onNote that the labels can be changed via the Web pages or RS-232 commands
OUTPUT LABELS	Set output labels to ON or OFF (default)By default, labels are set to Output1, Output 2 and so onNote that the labels (up to 12 characters) can be changed via the Web pages or RS-232 commands
BEZELCORRECTION	In the Video Wall operation mode, use bezel correction to compensate for the video wall monitor rims which create a non-continuous image across the video wallSet to OFF (default) or ON for the Video Wall operation mode only
H BEZELCORRECTION	Set the horizontal bezel correctionNote that output resolutions 480p and 576p do not support bezel correction
V BEZELCORRECTION	Set the vertical bezel correctionNote that output resolutions 480p and 576p do not support bezel correctionNote that the 1x4 video wall setup supports V BEZEL correction only
IDENTIFY	Identify each input/output as well as the audio source (for DUAL and QUAD modes)

6.2.4 Configuring EDID for each Input (EDID Menu)

Mode		Function
INPUT 1		Set the output from which the EDID is read to input 1: OUT A, OUT B, OUT C, OUT D, Default (default) or FILE
INPUT 2		Set the output from which the EDID is read to input 2: OUT A, OUT B, OUT C, OUT D, Default (default) or FILE
INPUT 3		Set the output from which the EDID is read to input 3: OUT A, OUT B, OUT C, OUT D, Default (default) or FILE
INPUT 4		Set the output from which the EDID is read to input 4: OUT A, OUT B, OUT C, OUT D, Default (default) or FILE
	Note that EDID does not support 4k2k and 3DThe FILE option is set from the Web pages (see Section 8.7)
CUSTOM AUDIO EDID		Set the audio format to Disable (audio EDID is not selected when copying an output EDID to an input, default), LPCM 2CH (accepts LPCM 2CH), LPCM 6CH (accepts LPCM 2CH/6CH), LPCM 8CH (accepts LPCM 2CH/6CH/8CH), BITSTREAM ((accepts LPCM 2CH, AC3, DTS) or HD (accepts LPCM 2CH/6CH/8CH, AC3, DTS, Dolby Digital Plus, DTS-HD)

6.2.5 Configuring Source Parameters for each Mode (SOURCE Menu)

Mode	Function
In MATRIX Mode	Set the input source for each of the outputs:From VIDEO OUT A to VIDEO OUT D, select IN 1 (default), IN 2, IN 3 or IN 4 for eachThe audio source follows the video source
In 2x2 VIDEO WALL Mode	Select the video wall input source (IN1 to IN 4). The audio source follows the video source
In 1x4 VIDEO WALL Mode	Select the video wall input source (IN1 to IN 4). The audio source follows the video sourceSet CROP/POSITION parameters to ON or OFFSet H CROP to horizontally pan and scan the image (from 0% to 400%)Set H POSITION to set the horizontal position of the image (-999 to 0 to +999). The (-) values indicate a shift to the left. (0) means the center position and (+) indicates a shift to the right
In DUAL POP Mode	Select the input sources for the left and right sides of outputs A and the left and right sides of outputs B:VIDEO OUT A LEFT: IN 1, IN 2, IN 3 or IN 4VIDEO OUT A RIGHT: IN 1, IN 2, IN 3 or IN 4VIDEO OUT B LEFT: IN 1, IN 2, IN 3 or IN 4VIDEO OUT B RIGHT: IN 1, IN 2, IN 3 or IN 4Set the audio source for outputs A and outputs B (left or right for each set):AUDIO OUT A: LEFT or RIGHTAUDIO OUT B: LEFT or RIGHT
In DUAL PIP Mode	Select the input sources for the MAIN and PIP sides of outputs A and the MAIN and PIP sides of outputs B:VIDEO OUT A MAIN: IN 1, IN 2, IN 3 or IN 4VIDEO OUT A PIP: IN 1, IN 2, IN 3 or IN 4VIDEO OUT B MAIN: IN 1, IN 2, IN 3 or IN 4VIDEO OUT B PIP: IN 1, IN 2, IN 3 or IN 4Set the audio source for outputs A and outputs B (MAIN or PIP for each set):AUDIO OUT A: MAIN or PIPAUDIO OUT B: MAIN or PIPSet the PIP parameters for outputs A and outputs B separately:PIP A SIZE: SMALL, MEDIUM or LARGEPIP A POSITION: RIGHT TOP, RIGHT BOTTOM, LEFT BOTTOM or LEFT TOPPIP A SWAP: swap the MAIN and PIP images (including the audio signal)PIP B SIZE: SMALL, MEDIUM or LARGEPIP B POSITION: RIGHT TOP, RIGHT BOTTOM, LEFT BOTTOM or LEFT TOPPIP B SWAP: swap the MAIN and PIP images (including the audio signal)
In QUAD Mode	Set the input source for each QUAD:VIDEO QUAD 1: IN 1, IN 2, IN 3 or IN 4VIDEO QUAD 2: IN 1, IN 2, IN 3 or IN 4VIDEO QUAD 3: IN 1, IN 2, IN 3 or IN 4VIDEO QUAD 4: IN 1, IN 2, IN 3 or IN 4Select the AUDIO SOURCE: IN 1, IN 2, IN 3 or IN 4

6.2.6 Storing and Recalling Setups (RECALL/STORE Menu)

Mode	Function
RECALL/STORE	STORE up to four input/output setups and RECALL them (all the parameters are stored excluding the input/output labels and the OSD setup)The stored setups for each memory are also shown (FAV. 1 to FAV. 4)Use STORE to store the current setup to one of the four memories (FAV. 1 to FAV. 4)Use RECALL to select a stored setupNOW (current status) shows the current setup for all four outputs

6.2.7 Configuring HDCP for Inputs and Outputs (HDCP Menu)

Menu Item	Function
INPUT 1 to INPUT 4	Select the HDCP option for the HDMI input: either ON (the default) or OFF:Setting HDCP support to disabled (OFF) on the HDMI input allows the source to transmit a non-HDCP signal if required (for example, when working with a Mac computer)
OUTPUT A to OUTPUT D	Select FOLLOW INPUT or FOLLOW OUTPUT to define whether the HDCP will follow the input or the outputWhen FOLLOW INPUT is selected, it changes its HDCP output setting (for the HDMI output) according to the HDCP of the input. This option is recommended when the HDMI output is connected to a splitter/switcherWhen FOLLOW OUTPUT is selected, the scaler matches its HDCP output to the HDCP setting of the HDMI acceptor to which it is connected

6.2.8 Configuring Analog Audio Level (VOLUME Menu)

Menu Item	Function
ANALOG OUTPUT A	Set OUTPUT A volume
ANALOG OUTPUT B	Set OUTPUT B volume
ANALOG OUTPUT C	Set OUTPUT C volume
ANALOG OUTPUT D	Set OUTPUT D volume
The default volume level is for a 0 dB volume gain (the output volume is the same as the input volume)

6.2.9 Configuring Ethernet Parameters (ETHERNET Menu)

Menu Item	Function
IP MODE	Set to DHCP or STATIC
STATIC SET	Set to IP number, netmask or gateway to change their numerals
BYTE (1 to 4)	Set the IP, MASK and GATE addresses via these 4 bytesBy default: IP = 192.168.1.39; Gateway = 192.168.1.254; and Netmask = 255.255.255.0NOW shows the current link status and the current IP, MASK and GATE addresses

6.2.10 Configuring OSD Parameters (OSD SETTINGS Menu)

Mode	Function
POSITION	Set the position of the OSD to LEFT TOP, RIGHT TOP, LEFT BOTTOM or RIGHT BOTTOM
H OFFSET	Shift the horizontal position of the OSD
V OFFSET	Shift the vertical position of the OSD
VIDEO WALL OSD	Set to Single Output to have the OSD appear on one of the video wall outputs or set to All Outputs to have the OSD appear on all four outputs.
TRANSPARENCY	Set the OSD background between 9 (opaque) and 0 (transparent)
IDENT. TIMEOUT	Set the “Identify” label timeout period in seconds or set it to OFF so it will appear continuously
MENU TIMEOUT	Set the menu timeout period in seconds or set it to OFF so it will appear continuously
INFO. TIMEOUT	Set the “INFO” display timeout period in seconds or set it to OFF so it will appear continuously
INFO. DISPLAY	Set the display of information ON or OFF
BRIEF INFO.	Set the display of brief information ON or OFF
VOLUME INFO.	Set the display of volume information ON or OFF
EXIT	Click to exit this menu

6.2.11 Configuring Power Saving Settings (ADVANCED > AUTO SYNC OFF Menu)

Turn the auto sync off to DISABLE (default), FAST or SLOW. This feature is useful, for example, when the output is connected to a projector, and the projector automatically shuts down when it has no input.

Mode	Function
DISABLE	The power save mode is disabled
FAST	Auto sync off is enabled, and the output is de-activated after 10 seconds if no input is present
SLOW	Auto sync off is enabled, and the output is de-activated after 2 minutes if no input is present

6.2.12 Configuring Lock Mode (ADVANCED > LOCK MODE Menu)

Mode	Function
ALL	Lock all the front panel buttons
MENU ONLY	Lock the MENU (and navigation) front panel buttons only
ALL & SAVE	Lock all the front panel buttonsThe lock status is saved when the VSM-4x4A is powered down
MENU ONLY & SAVE	Lock the MENU (and navigation) front panel buttons onlyThe lock status is saved when the VSM-4x4A is powered down

6.2.13 Upgrading Firmware (ADVANCED > FW USB UPGRADE Menu)

Select ON to enable firmware upgrade via the USB port or OFF (default) to disable firmware upgrade. Press [MENU] or [ESC] to abort upgrade.

See Section 7 for firmware upgrade instructions.

6.2.14 Resetting to Factory Default Settings (FACTORY DEFAULT Menu)

Select NO or YES to reset to the factory default parameters (including the Ethernet parameters).

6.2.15 Viewing Device Status (INFORMATION Menu)

The INFORMATION menu shows the:

• Source HDCP
• Source audio format (if there is no audio-shows MUTE)
• Input and output resolutions
  • OUT A, B, C and D native resolutions
• OUT mode
• Firmware version
• Kramer logo

6.3 Connecting to the VSM-4x4A via RS-232

You can connect to the VSM-4x4A via an RS-232 connection using, for example, a PC. Note that a null-modem adapter/connection is not required.

To connect to the VSM-4x4A via RS-232, connect the RS-232 9-pin D-sub rear panel port on the product unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.

6.4 Operating the VSM-4x4A via Ethernet

You can connect to the VSM-4x4A via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Section 6.4.1)
• Via a network hub, switch, or router, using a straight-through cable (see Section 6.4.2)

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

6.4.1 Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the VSM-4x4A directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the VSM-4x4A with the factory configured default IP address.

After connecting the VSM-4x4A to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.
   The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 14.

Figure 14: Local Area Connection Properties Window

1. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet

Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT system.

1. Click Properties.

The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 15 or Figure 16.

Figure 15: Internet Protocol Version 4 Properties Window

Figure 16: Internet Protocol Version 6 Properties Window

1. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 17.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.

Figure 17: Internet Protocol Properties Window

1. Click OK.
2. Click Close.

6.4.2 Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VSM-4x4A to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

6.4.3 Configuring the Ethernet Port

You can set the Ethernet parameters via the embedded Web pages (see Section 8.3.1).

6.5 Controlling via the IR Remote Control

You can control the VSM-4x4A from the infrared remote control transmitter:

Figure 18: Infrared Remote Control Transmitter

Keys	Function
POWER	Toggle the power save mode ON or OFF
IDENTIFY	Identify the inputs on each output
INFO	Indicate on each output, which input is displayed on the output
MUTE	Toggle between muting (blocking out the sound) and enabling the audio output
MATRIX	Set to Matrix mode (see Section 5.1)
VID WALL	Set to video wall mode (see Section 5.2)
DUAL	Set to dual mode (see Section 5.3)
QUAD	Set to quad mode (see Section 5.4)
STO	Store a configuration
RCL	Recall a configuration
	Four navigation keys
OK	Accept changes
MENU	Enter the OSD menu
ESC	EXIT the menu
ALL	Select all the outputs
OFF	Disconnect a selected input
TAKE	Carry out a setup
OUT	Select an output (A to D)
IN	Select an input (1 to 4)
AUDIO	Select the audio source (1 to 4)For Dual and Quad modes only
1080pReset	Reset the resolution to 1080p
XGA Reset	Reset the resolution to XGA
Panel Lock	Lock/unlock the front panel buttons

6.6 Using the IR Remote Control in Dual Mode

This section describes how to use the IR remote control transmitter in the DUAL operation mode.

6.6.1 Using the Transmitter in Dual Mode (1)

When in Dual operation mode, you can use the IR remote control transmitter shortcuts to perform additional actions. Figure 19 shows the remote control with dual mode operation instructions. Note that these instructions are further detailed in the following pages.

Figure 19: IR Remote Control Transmitter Dual Mode Shortcuts

Note that the letters that appear in brackets in the following pages refer to the same letters that appear in brackets in Figure 19.

To use the Dual mode shortcuts:

1. Press the DUAL button to select the DUAL operation button (c).
2. Press the DUAL button again to select the PIP or POP mode (d).

To select the inputs to switch to the outputs:

1. Select an output:

2. PIP A: press OUT A/OUT B to select the Main/PIP window for A (e)

3. PIP B: press OUT B/OUT C to select the Main/PIP window for B (f)

4. POP A: press OUT A/OUT B to select the Left/Right window for A (e)
   ■ POP B: press OUT C/OUT D to select the Left/Right window for B (f)

5. Select the input to switch to the output:

- Press one of the inputs (IN 1 to IN 4) to switch to the selected output (g)

For PIP/POP A:

For PIP/POP B:

To set the audio source:

• PIP A: press AUDIO 1/AUDIO 2 to select the Main/PIP audio source for A (h)
• PIP B: press the AUDIO 3/AUDIO 4 to select the Main/PIP audio source for B (i)
• POP A: press AUDIO 1/AUDIO 2 to select the Left/Right audio source for A (h)
• POP B: press the AUDIO 3/AUDIO 4 to select the Left/Right audio source for B (i)

For PIP/POP A:

PIP A: Press AUDIO 1/AUDIO 2 to select the Main/PIP audio source for A.

POP A: Press AUDIO 1/AUDIO 2 to select the Left/Right audio source for A.

For PIP/POP B:

PIP B: Press AUDIO 3/AUDIO 4 to select the Main/PIP audio source for B.

POP B: Press AUDIO 3/AUDIO 4 to select the Left/Right audio source for B.

To perform various PIP mode operations:

1. Make sure you are in the PIP mode.

2. Select the PIP output:

3. Press OUT A to select PIP A (j)
   ■ Press OUT B to select PIP B (k)

4. Perform any of the following operations.

- Press up/down arrow to select the PIP window size (I)

- Press the left/right arrow to select the PIP window position (m)

• Press the OK button to swap between main and PIP windows (n)

7 Firmware Upgrade

You can upgrade the VSM-4x4A via the USB port on the rear panel or via the Device Settings web pages (see Section 8.3.2).

The latest firmware version can be downloaded from the Kramer Web site at www.kramerav.com/downloads/VSM-4x4A.

To upgrade the firmware via the USB port:

1. Click Save on the lower part of the screen to save the device's current configurations (see Section 8.9).
2. Download the VSM-4X4A_vx.xx.BIN firmware and copy it to the root folder of a memory stick, formatted with FAT32 system.
3. Disconnect the power from the VSM-4x4A.
4. Connect the memory stick to the USB port on the rear panel of the VSM-4x4A.
5. Power the VSM-4x4A.
6. Press MENU on the front panel of the device.
7. Select ADVANCED>FIRMWARE USB UPGRADE>ON.
8. Press ENTER.
9. Wait until the device restarts following the upgrade process.
10. Disconnect the memory stick.
11. Perform factory reset.
12. Click Upload on the lower part of the screen to load device configurations saved in step 1 (see Section 8.9).
13. Check that the firmware was updated.

8 Using the Embedded Web Pages

The Web pages let you control the VSM-4x4A via the Ethernet. The Web pages include all the OSD items and more, and are accessed using a Web browser and an Ethernet connection.

Before attempting to connect:

• Perform the procedures in Section 6.4
- Ensure that your browser is supported

The following operating systems and Web browsers are supported:

OS	Version	Browser	Version
Windows	Up to Windows 10	IE	11
		FireFox	47
		Chrome	50
Mac		Chrome	51
iOS		Safari	9.1.1
		Chrome	45
Android		Chrome	51

8.1 Browsing the VSM-4x4A Web Pages

To browse the VSM-4x4A Web pages:

1. Open your Internet browser.
2. Type the IP address of the device in the Address bar of your browser. For example, the default IP address:

The Routing & Scaling (first) page loads (see Figure 20).

The list of Web pages appears to the left of each page. Click a page from the list to open it. VSM-4x4A includes seven Web pages:

• The Routing & Scaling page (see Section 8.2)
• The Device settings page (See Section 8.3)
• The Output settings page (see Section 8.4)
• The Audio settings page (see Section 8.5)
• The HDCP settings page (see Section 8.6)
• The EDID management page (see Section 8.7)
• The About page (see Section 8.8)

8.2 Routing & Scaling Page

Figure 20 shows the Routing & Scaling page that is also the first page that appears following the loading page. The routing page includes a tab for each of the four operation modes.

Figure 20: The Routing & Scaling Page

Click Upload / Save on the lower part of the screen to upload a saved configuration / save a configuration (see Section 8.9). The model name, FW version and IP number appear on the lower left side.

The Routing & Scaling page lets you route the input/s to the outputs in each of the operation modes as follows for the:

• Matrix mode, see Section 8.2.1
• Video Wall mode, see Section 8.2.2
• Dual Mode, see Section 8.2.3
- Quad mode, see Section 8.2.4

8.2.1 Matrix Operation Mode

Click Matrix to display the Matrix mode window. In the Matrix mode, switch inputs 1 to 4 to any or all the outputs.

Select one of the following switching configurations:

- Click Seamless for zero-time switching (resolution on all the outputs is the same) and select the resolution from the drop-down list

Figure 21: The Matrix Tab output Resolution (Seamless Mode)

- Click Independent for fade-through-black switching (enabling independent resolutions on each output) and select the resolution on each output from the drop-down list

Figure 22: Matrix Tab output Resolution (Independent Mode)

The Output buttons show the resolution and the input buttons show the signal type (or NO SIGNAL in this example).

To switch an Input to an Output in the Matrix Mode:

1. Click an output.
2. Click an input button to switch to that output.

8.2.2 Video Wall Operation Mode

Click Video Wall to display the Video Wall mode window and select either a 2x2 (see Figure 23) or a 1x4 (see Figure 24) wall:

Figure 23: 2x2 Video Wall Tab

Figure 24: 1x4 Video Wall Tab

The video wall tab displays four outputs in a video wall display (2x2 or 1x4, selectable). Click one of the four input buttons to switch an input to the video wall. You can edit the input label (see Section 8.2.5.1), store and recall a video wall configuration (see Section 8.2.5) and set the output resolution.

8.2.2.1 Bezel Correction

Set the horizontal and vertical bezel correction (see Section 5.2) via the Video Wall tab:

Figure 25: The Video Wall Tab – Bezel Correction

8.2.2.2 Crop and Position the Image

Crop and/or position the image on the 1x4 video wall (see Section 5.2) via the Video Wall tab:

Figure 26: The Video Wall Tab – Crop/Position Correction

8.2.3 Dual Operation Mode

Click Dual to display the Dual mode window and set Mode to one of the following configurations:

- POP – Side-by-side images on the output (Left and Right)

Figure 27: The Dual Tab – POP Mode

- PIP – A PIP image over the main image on the output

Figure 28: The Dual Tab – PIP Mode

In the DUAL mode you can perform the following operations:

• Switch an input to an output – see Section 8.2.3.1
• Set the borders of an image to Show, Only Selected or Off
  • Edit the input label (see Section 8.2.5.1)
  • Store and recall a setup (see Section 8.2.5)

- Set the output resolution separately for A and B via the resolution drop-down box.

- Select the audio source

- In the PIP mode, click a PIP position box to set the PIP location (top left, top right, lower left or lower right) and the PIP Size drop-down box (Large, Medium, Small or Off)

Figure 29: The Dual Tab – PIP Position and Size

8.2.3.1 Switching an Input to an Output

To switch an input to an output:

• For POP: select the Left or Right on the A or B outputs
• For PIP: select the MAIN or PIP on the A or B outputs

Click an input button to switch to the output.

8.2.4 Quad Mode

Click Quad to display the Quad mode window.

Figure 30: The Quad Tab

You can perform the following operations:

• Switch an input to an output – Click one of the 4 images (outputs) and then click an input to switch to the selected output
  • Edit the input label (see Section 8.2.5.1)
  • Store and recall a configuration (see Section 8.2.5)
• Set the borders of an image to Show, Only Selected or Off
• Set the output resolution via the resolution drop-down box

8.2.5 Storing and Recalling a Configuration

Click the Store button to store a configuration:

Figure 31: The Matrix Tab – Store a Configuration

1. Select one of the four presets.

The configuration is saved.

Click the Recall button to recall a configuration:

Figure 32: The Matrix Tab – Recall a Configuration

1. Select one of the four presets.

The configuration is uploaded.

Click the icon to exit the preset window.

8.2.5.1 Editing the Input Window

Click the edit icon to edit the input button. This window lets you edit the input label:

Figure 33: Matrix Tab – Input Edit Window

Type a label name (for example, Blu-ray):

Figure 34: The Matrix Tab – Typing the New Label

Click to save the new Label. The following message appears:

Click OK to save the label name.

Toggle / to view the label in the Web pages:

Figure 35: The Matrix Tab – Viewing the Label

Click to exit the input editing window.

8.3 Device Settings Page

In the navigation pane, select Device settings to access the Output Settings page. The Device Settings page (in Figure 36) displays the firmware version and lets you

set the Ethernet parameters, perform a factory reset and show the information window.

Figure 36: The Device Settings Page

8.3.1 Changing Ethernet Settings

You can change the Ethernet parameters by typing the changing and clicking the Set changes button.

When changing the IP address, the change is immediate and the Web page reloads with the new IP address (see Figure 38).

Figure 37: The Device Settings Page – Ethernet Settings

Figure 38: The Device Settings Page – IP Number Settings

To view the device information, click the icon on the lower right side of the page.

Figure 39: Device Settings Page – Information Window

8.3.2 Upgrading Firmware

To upgrade the firmware:

1. Click Save on the lower part of the screen to save the device's current configurations (see Section 8.9).

2. Click Browse and select the file.

Figure 40: Device Settings Page – Uploading the Firmware File

1. Click Start Upgrade. The following window appears:

Figure 41: Device Settings Page – Firmware Upgrade Message

1. Click OK and wait for firmware upgrade completion.

Figure 42: Device Settings Page – Firmware Upgrade Complete

1. Reboot the device and then refresh the Web page.
2. Perform factory reset.
3. Click Upload on the lower part of the screen to load device configurations saved in step 1 (see Section 8.9).

8.3.3 Factory Reset

Click Soft Factory Reset to reset the device. The following message appears:

Figure 43: The Device Settings Page – Factory Reset Message

Click OK to proceed with factory reset:

Figure 44: The Device Settings Page – Factory Reset

Following reset, type the new IP into your URL.

8.4 Output Settings Page

In the navigation pane, select Output settings to access the Output Settings page. Use Output Settings page to set the Mode, Resolution and Aspect Ratio and also enable/disable Auto-Sync Off.

Figure 45 shows the Output Settings page for output A in the Matrix and Video Wall operation modes.

Figure 45: The Output Settings Page – Matrix and Video Wall Modes

Figure 46 shows the Output Settings page for output A in the Dual-POP operation mode.

Figure 46: Output Settings Page – Dual-POP Mode

Figure 47 shows the Output Settings page for output A in the Dual-PIP operation mode.

Figure 47: Output Settings Page – Dual PIP Mode

Figure 48 shows the Output Settings page for output A in the Quad operation mode.

Figure 48: Output Settings Page – Quad Mode

You can perform the following operations:

• Open the Mode drop-down box to define the operation mode
• Open the Aspect Ratio drop-down box to set the aspect ratio
• Set Auto-Sync OFF to DISABLE, FAST or SLOW

For each output (labelled according to the current operation mode) you can:

- Edit the output Label – Type the new name and toggle / to view the

label in the Web pages

• Set the output resolution via the resolution drop-down box
  • Set HDCP to follow INPUT or OUTPUT
• Adjust the Contrast, Brightness, Saturation and Hue

Click the Reset All buttons to reset the output settings for all outputs.

8.5 Audio Settings Page

In the navigation pane, select Audio settings to access the Audio Settings page. Set the output audio levels for each of the outputs:

Figure 49: The Audio Settings Page

8.6 HDCP Settings Page

In the navigation pane, select HDCP settings to access the HDCP Settings page. Use HDCP settings page to view the HDCP data for the inputs and outputs and you change their settings to ON or OFF.

Figure 50: HDCP Settings Page

8.7 EDID Management Page

In the navigation pane, select EDID management to access the EDID

Management page. Use the EDID management page to copy a selected resolution, the default resolution or a customized EDID file to one or more selected inputs.

Figure 51: EDID Management Page

To read the EDID from an output (or Default):

1. Click an output (or Default).

Figure 52: EDID Management Page – selecting an Output

The EDID page displays the machine name, selected resolution, the audio channels and deep color support.

1. Select an input, several inputs or check the All Inputs box to select all the inputs.

Figure 53: EDID Management Page – Copying the Native Timing

1. Click Copy and wait until EDID is copied.

Figure 54: EDID Management Page – Copy EDID Results

To read the EDID from a file, Click Browse..., select the file and then click Copy.

8.8 About Page

The VSM-4x4A About page lets you view the Web page version and Kramer Electronics Ltd details.

Figure 55: The About Page

8.9 Saving and Uploading Configurations

The VSM-4x4A Web page lets you upload a saved configuration or save a configuration. To do so, click the Upload and buttons which are located at the lower part of the menu list, respectively.

When saving a configuration, the file automatically saves it to the Downloads. When loading a configuration the following message appears:

Figure 56: Loading a Configuration

9 Technical Specifications

Inputs	4 HDMI connectors (HDMI, HDCP version 1.1)
Outputs	4 HDMI connectors (HDMI, HDCP version 1.1)4 balanced stereo audio on terminal block connectors4 unbalanced audio on 3.5mm mini jacks
Output Resolutions	NATIVE, 480p, 576p, 720p50, 720p59, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1680x1050 or 1920x1200
Video Latency	Progressive input: 30ms (typical)
Controls	Front panel buttons, IR with customized remote control, RS-232, Ethernet with built-in Web pages, USB port for programming
Power Source	100-240V AC, 29VA max.
Regulatory Compliance	Safety: CE, UL, FCCEnvironmental: RoHS, WEEE
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	-40° to +70°C (-40° to 158°F)
Humidity	10% to 90%, RHL non-condensing
Net Dimensions	19" x 7" x 1U (W, D, H) rack mountable
Shipping Dimensions	52.5cm x 33cm x 10.7cm (20.7" x 13" x 4.2") W, D, H
Net Weight	1.8kg (4lbs) approx.
Shipping Weight	2.7kg (6lbs) approx.
Included Accessories	Power cord, rack ears, IR remote control
Specifications are subject to change without notice at www.kramerav.com

9.1 Default Communication Parameters

RS-232

Baud Rate:	115,200	Stop Bits:	1
Data Bits:	8	Parity:	None

Ethernet

To reset the IP settings to the factory reset values go to : Menu-> Factory-> RESET->Change the option to YES and press Enter
IP Address:	192.168.1.39	Default TCP Port #:	5000
Subnet Mask:	255.255.255.0	Maximum TCP Ports:	4
Default Gateway:	192.168.1.254	Default UDP Port #:	50000
		Maximum UDP Ports:	4

Full Factory Reset

OSD	Go to : Menu-> FACTORY DEFAULT -> Change the option to YES and press Enter
P3000	Use “FACTORY” command
Front Panel Buttons	Press the MENU Button while plugging the power to reset the machine
RS-232/Ethernet Command Protocol
Command Format:		ASCII
Example (Route the video from the HDMI2 input to the HDMI A output port in the Matrix mode):		#ROUTE 0,1,2

9.2 Supported Input Resolutions

Resolution	Resolution	Resolution
No signal	1152x864p75	1400x1050p60
640x480p59	1280x720p25 (720p25)	1440x900p60RB
640x480p72	1280x720p29 (720p29)	1440x900p60
640x480p75	1280x720p30 (720p30)	1440x900p75
640x480p85	1280x720p50 (720p50)	1600x900p60RB
720x400p70	1280x720p59 (720p59)	1600x1200p60
720x480i59 (480i59)	1280x720p60 (720p60)	1680x1050p60RB
720x480i60 (480i60)	1280x720p60CVT	1680x1050p60
720x480p59 (480p59)	1280x768p60RB	1920x1080p23 (1080p23)
720x480p60 (480p60)	1280x768p60	1920x1080p24 (1080p24)
720x576i50 (576i)	1280x768p75	1920x1080p25 (1080p25)
720x576p50 (576p)	1280x800p60RB	1920x1080p29 (1080p29)
800x600p56	1280x800p60	1920x1080p30 (1080p30)
800x600p60	1280x800p75	1920x1080i50 (1080i50)
800x600p72	1280x960p60	1920x1080p50 (1080p50)
800x600p75	1280x1024p60	1920x1080i59 (1080i59)
800x600p85	1280x1024p60CVT	1920x1080i60 (1080i60)
1024x768p60	1280x1024p75	1920x1080p59 (1080p59)
1024x768p70	1360x768p60	1920x1080p60 (1080p60)
1024x768p75	1366x768p60RB	1920x1200p60RB
1024x768p85	1366x768p60
1152x864p70	1400x1050p60RB

9.3 Supported Output Resolutions

Resolution	Resolution	Resolution
Native	1080p24	1366x768
480p	1080p50	1440x900
576p	1080p60	1600x900
720p50	1024x768	1680x1050
720p59	1280x800	1920x1200
720p60	1280x1024

10 VSM-4x4A RS-232/Ethernet Communication Protocol

The VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler can be operated using the Kramer Protocol 3000 serial commands. The command framing varies according to how you interface with the VSM-4x4A. In the following example, a basic video input switching command that routes a layer 1 video signal to HDBT out 1 from HDMI input 2 (ROUTE 1, 1, 2), is entered as follows:

• Terminal communication software, such as Hercules:

The framing of the command varies according to the terminal communication software. This command is used for demonstration purposes only and its syntax may vary per device.

• K-Touch Builder (Kramer software):

• K-Config (Kramer configuration software):

Command Syntax

Display Command as ○ Hex ○ Decimal ◎ ASCII

"#ROUTE 1,1,2",0x0D

Set Clear

All the examples provided in this section are based on using the Kramer K-Config software.

You can enter commands directly using terminal communication software (e.g., Hercules) by connecting a PC to the serial or Ethernet port on the VSM-4x4A. To enter CR press the Enter key (LF is also sent but is ignored by the command parser).

Commands sent from various non-Kramer controllers (e.g., Crestron) may require special coding for some characters (such as, /x##). For more information, refer to your controller's documentation.

For more information about:

• Using Protocol 3000 commands, see Section 10.1
- General syntax used for Protocol 3000 commands, see Section 10.2
- Protocol 3000 commands available for the VSM-4x4A, see Section 10.3

10.1 Understanding Protocol 3000

Protocol 3000 commands are structured according to the following:

• Command – A sequence of ASCII letters (A-Z, a-z and -). A command and its parameters must be separated by at least one space
• Parameters – A sequence of alphanumeric ASCII characters (0–9, A–Z, a–z and some special characters for specific commands). Parameters are separated by commas
• Message string – Every command entered as part of a message string begins with a message starting character and ends with a message closing character

A string can contain more than one command. Commands are separated by a pipe ( | ) character.

The maximum string length is 64 characters.

• Message starting character:

• – For host command/query

• \~ – For device response

• Device address – K-NET Device ID followed by @ (optional, K-NET only)
- Query sign – ? follows some commands to define a query request
- Message closing character:

- CR – Carriage return for host messages (ASCII 13)

- CR LF – Carriage return for device messages (ASCII 13) and line-feed (ASCII 10)

- Command chain separator character – Multiple commands can be chained in the same string. Each command is delimited by a pipe character (1). When chaining commands, enter the message starting character and the message closing character only at the beginning and end of the string.

Spaces between parameters or command terms are ignored. Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain.

10.2 Kramer Protocol 3000 Syntax

The Kramer Protocol 3000 syntax uses the following delimiters:

• CR = Carriage return (ASCII 13 = 0x0D)
- L _F = Line feed (ASCII 10 = 0x0A)
- SP = Space (ASCII 32 = 0x20)

Some commands have short name syntax in addition to long name syntax to enable faster typing. The response is always in long syntax.

The Protocol 3000 syntax is in the following format:

Host Message Format:

Start	Address (optional)	Body	Delimiter
#	Device_id@	Message	CR

Simple Command – Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SP Parameter_1,Parameter_2,...	CR

Command String – Formal syntax with command concatenation and addressing:

Start	Address	Body	Delimiter
#	Device_id@	Command_1 Parameter1_1,Parameter1_2,...|Command_2 Parameter2_1,Parameter2_2,...|Command_3 Parameter3_1,Parameter3_2,...|...	CR

• Device Message Format:

Start	Address (optional)	Body	Delimiter
~	Device_id@	Message	CR LF

• Device Long Response – Echoing command:

Start	Address (optional)	Body	Delimiter
~	Device_id@	Command SP [Param1,Param2 ...] result	CR LF

10.3 Protocol 3000 Commands

This section includes the following commands:

• Mandatory System Commands (see Section 10.3.1)
• System Commands (see Section 10.3.2)
- Switching/Routing Commands (see Section 10.3.3)
• Video Commands (see Section 10.3.4)
• Audio Commands (see Section 10.3.5)
• Communication Commands (see Section 10.3.6)
• Multiviewer/Scaler Commands (see Section 10.3.7)
• Custom Commands (see Section 10.3.8)

10.3.1 Mandatory System Commands

Command	Description
#	Protocol handshaking (system mandatory)
BUILD-DATE	Get device build date (system mandatory)
FACTORY	Reset to factory default configuration
HELP	Get command list (system mandatory)
MODEL	Get device model (system mandatory)
PROT-VER	Get device protocol version (system mandatory)
RESET	Reset device (system mandatory)
SN	Get device serial number (system mandatory)
VERSION	Get device firmware version (system mandatory)

10.3.1.1 #

Functions		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
~nn@SPOKCR LF
Notes
Validates the Protocol 3000 connection and gets the machine numberStep-in master products use this command to identify the availability of a device
K-Config Example
“#”, 0x0D

10.3.1.2 BUILD-DATE

Functions		Permission	Transparency
Set:	BUILD-DATE	End User	-
Get:	-	-	-
Description		Syntax
Set:
Get:	get device build date	#BUILD-DATE:CR
Response
~nn@BUILD-DATE SP date SP time CR LF
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Daytime - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
K-Config Example
Read the device build date:"#BUILD-DATE?", 0x0D

10.3.1.3 FACTORY

Functions		Permission	Transparency
Set:	FACTORY	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory defaults configuration	#FACTORYCR
Get:	-	-
Response
~nn@FACTORYSPOKCR LF
Notes
This command deletes all user data from the device. The deletion can take some time.Your device may require powering off and powering on for the changes to take effect.
K-Config Example
Reset the device to its factory default configuration:"#FACTORY", 0x0D

10.3.1.4 HELP

Functions		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	1. #HELPCR2. #HELPSPCOMMAND_NAME CR
Response
1. Multi-line: ~nn@Device available protocol 3000 commands:CR LFcommand, SP command...CR LF2. Multi-line: ~nn@HELP SP command:CR LF description CR LF USAGE:usage CR LF
Parameters
COMMAND_NAME – name of a specific command
Notes
To get help for a specific command use: HELP SP COMMAND_NAME CR LF
K-Config Example
“#HELP”, 0x0D

10.3.1.5 MODEL

Functions		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~hn@MODEL$Pmodel_nameCR LF
Parameters
model_name - String of up to 19 printable ASCII chars
Notes
This command identifies equipment connected to Step-in master products and notifies of identity changes to the connected equipment. The Matrix saves this data in memory to answer REMOTE-INFO requests
K-Config Example
Get device model:"#MODEL?",0x0D

10.3.1.6 PROTV-ER

Functions		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version – Format: XX.XX where X is a decimal digit
K-Config Example
Get the protocol version:"#PROT-VER?", 0x0D

10.3.1.7 RESET

Functions		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
~nn@RESET SPOK CR LF
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.
K-Config Example
Reset the device:“#RESET”, 0x0D

10.3.1.8 SN

Functions		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device serial number	#SN?CR
Response
~nn@SNSPserial_numberCR LF
Parameters
serial_number - 14 decimal digits, factory assigned
K-Config Example
Get device serial number:"#SN?", 0x0D

10.3.1.9 VERSION

Functions		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get version number	#VERSION?CR
Response
~nn@VERSION$Pfirmware_versionCR LF
Parameters
firmware_version - Format: XX.XX.XXXX where the digits group are: major.minor.build version
K-Config Example
Get the firmware version number:"#VERSION?", 0x0D

10.3.2 System Commands

Command	Description
CPEDID	Copy EDID data from the output to the input EEPROM
DISPLAY	Get output HPD status
HDCP-MOD	Set/get HDCP mode
HDCP-STAT	Get HDCP signal status
INFO-IO	Get IN/OUT count (port)
INFO-PRST	Get maximum preset count
LOCK-FP	Get front panel lock state
PRST-LST	Get saved preset list
PRST-RCL	Recall saved preset
PRST-STO	Store current connections
PRST-VID	Get video connections from saved preset
SIGNAL	Get input signal lock status

10.3.2.1 CPEDID

Functions		Permission	Transparency
Set:	CPEDID	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Copy EDID data from the output to the input EEPROM	#CPEDIDSPsrc_type, src_id, dst_type, dest _ bitmapCR
Get:	-	-
Response
~hn@CPEDIDSPsrc_type, src_id, dst_type, dest_bitmapCR LF
Parameters
src_type - EDID source type: 1 (Output)src_id - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), 5 (Default), 6 (Upload file)dst_type - 0 (input)dest_bitmap-bit0 (IN 1), bit1 (IN 2), bit2 (IN 3), bit3 (IN 4) bitmap representing destination IDs. Format: XXXX...X, where X is hex digit. The binary form of every hex digit represents corresponding destinations. Setting '1' indicates that EDID data is copied to this destination. Setting '0' indicates that EDID data is not copied
Response Triggers
Response is sent to the com port from which the Set was received (before execution)
Notes
Destination bitmap size depends on device properties (for 4 inputs it is a 4-bit word)Example: bitmap 0x09 means inputs 1 and 4 are loaded with the new EDID
K-Config Example

Copy the EDID data from the Output 1 (EDID source) to the Input:

“#CPEDID 1,1,0,0x1”,0x0D

Copy the EDID data from the default EDID source to the Input:

“#CPEDID 2,0,0,0x1”,0x0D

10.3.2.2 DISPLAY

Functions		Permission	Transparency
Set:	-	-	-
Get	DISPLAY?	End User	System
Description		Syntax
Set:	-	-
Get:	Get output HPD status	#DISPLAY?Spout_idCR
Response
~nn@DISPLAYSpout_id,statusCR LF
Parameters
Out_id - Output number: 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (ALL)status - Output number: 0 (Sink is not valid), 1 (Sink is valid), 2 (Sink and good EDID are valid)
Response triggers
After execution, response is sent to the com port from which the Get was receivedResponse is sent after every change in output HPD status ON to OFFResponse is sent after every change in output HPD status OFF to ON and ALL parameters (new EDID, etc.) are stable and valid
K-Config Example
Get the output HPD status:"#DISPLAY?", 0x0D

10.3.2.3 HDCP-MOD

Functions		Permission	Transparency
Set:	HDCP-MOD	Administrator	Public
Get:	HDCP-MOD?	End User	System
Description		Syntax
Set:	Set HDCP mode	#HDCP-MODSPstage, stage_id, modeCR
Get:	Get HDCP mode	#HDCP-MOD?SPstage, stage_idCR
Response
Set / Get: ~nn@HDCP-MODSPstage, stage_id, modeCR LF
Parameters
stage - Input or Output: 0 (Input), 1 (Output)stage_id - For Input: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), * (ALL); for output: 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (ALL)mode - status for Input: 0 (Off), 1 (On) and status for Output: 2 (Follow In), 3 (Follow Out)
Response triggers
• Response is sent to the com port from which the Set (before execution) / Get command was received• Response is sent to all com ports after execution if HDCP-MOD was set any other external control device (button press, device menu and similar) or genlock status changed
Notes
Set HDCP working mode on device input:HDCP supported - HDCP_ON [default]HDCP not supported - HDCP OFFHDCP support changes following detected sink - MIRROR OUTPUT
K-Config Example
Set HDCP mode on HDMI 1 output to Follow out:"#HDCP-MOD 1,0,3",0x0D

10.3.2.4 HDCP-STAT

Functions		Permission	Transparency
Set:	-	-	-
Get:	HDCP-STAT?	End User	Public
Description		Syntax
Set:	None	-
Get:	Get HDCP signal status	#HDCP-STAT?SPstage, stage_idCR
Response
~nn@HDCP-STATSPstage, stage_id, modeCR LF
Parameters
stage - 0 (input), 1 (output)stage_id - for input: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), * (All); for output: 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)mode - signal encryption On/Off status: 0 (Off), 1 (On)
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was received Response is sent to all com ports after execution if HDCP-STAT was set by any other external control device (button press, device menu and similar) or HDCP mode changed.
Notes
On output - sink status; On input - signal status. On Video outputs the HDCP-STAT response will tell us if the SINK supports HDCP (and not if the actual signal is HDCP protected) and just in case a signal is sent to the output. In case no Signal is routed to this specific output the status could be inaccurate or missing at all.
K-Config Example
Get the output HDCP-STATUS of IN 1:"#HDCP-STAT? 0,1",0x0D

10.3.2.5 INFO-IO

Functions		Permission	Transparency
Set:
Get:	INFO-IO?	End User	Public
Description		Syntax
Set:
Get:	Get IN/OUT count	#INFO-IO?CR
Response
~nn@INFO-IO?SPINSPinputs_count,OUTSPoutputs_countCR LF
Parameters
inputs_count - 4 outputs_count - 4
K-Config Example
Get the number of ports: "#INFO-IO?",0x0D

10.3.2.6 INFO-PRST

Functions		Permission	Transparency
Set:
Get:	INFO-PRST?	End User	Public
Description		Syntax
Set:
Get:	Get maximum preset count	#INFO-PRST:CR
Response
~nn@INFO-PRST?SPVIDSPreset_video_count,AUDSPreset_audio_countCR LF
Parameters
video_count - 4audio_count - 0 (does not support audio preset)
K-Config Example
Get the maximum preset count:"#INFO-PRST?",0x0D

10.3.2.7 LOCK-FP

Functions		Permission	Transparency
Set:	LOCK-FP	End User	-
Get:	LOCK-FP?	End User	System
Description		Syntax
Set:	Lock front panel	#LOCK-FPSFlock_modeCR
Get:	Get front panel lock state	#LOCK-FP?CR
Response
~nn@LOCK-FPSFlock_modeSPOKCR LF
Parameters
lock_mode - 0 (Off - unlock) 1 (On - lock)
K-Config Example
Lock front panel:"#LOCK-FP 1", 0x0D

10.3.2.8 PRST-LST

Functions		Permission	Transparency
Set:
Get:	PRST-LST?	End User	Public
Description		Syntax
Set:	-
Get:	Get saved preset list	#PRST-LST?CR
Response
~nn@PRST-LSTSPpreset,preset,...CR LF
Parameters
preset - 1,2,3,4
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
K-Config Example
Get saved preset list:"#PRST-LST?",0x0D

10.3.2.9 PRST-RCL

Functions		Permission	Transparency
Set:	PRST-RCL	End User	Public
Get:
Description		Syntax
Set:	Recall saved preset	#PRST-RCLSPresetCR
Get:
Response
~nn@PRST-RCLSPresetCR LF
Parameters
preset - 1,2,3 or 4
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
K-Config Example
Recall preset 2:“#PRST-RCL 2”,0x0D

10.3.2.10 PRST-STO

Functions		Permission	Transparency
Set:	PRST-STO	End User	Public
Get:
Description		Syntax
Set:	Store current connections	#PRST-STOSPresetCR
Get:
Response
~nn@PRST-STOSPresetCR LF
Parameters
preset - 1,2,3 or 4
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
K-Config Example
Store preset 2:“#PRST-STO 2”,0x0D

10.3.2.11 PRST-VID

Functions		Permission	Transparency
Set:
Get:	PRST-VID?	End User	Public
Description		Syntax
Set:
Get:	Get video connections from saved preset	#PRST-VID? SP preset, out CR#PRST-VID? SP preset, *CR
Response
~nn@PRST-VID$P preset, in>outCR LF~nn@PRST-VID SP preset, in>1, in>2, in>3...CR LF
Parameters
preset - 1,2,3 or 4in - 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (Off)out - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
K-Config Example
Get video connections of output 3 from preset 4:"#PRST-LST? 4,3",0x0D

10.3.2.12 SIGNAL

Functions		Permission	Transparency
Set:	-	-	-
Get:	SIGNAL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get input signal lock status	#SIGNAL?SPinp_idCR
Response
~nn@SIGNAL$Pinp_id,statusCR LF
Parameters
inp_id-1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), * (All)status-0 (Signal is not valid), 1 (Signal is valid)
Notes
After execution, a response is sent to the com port from which the Get was receivedA response is sent after every change in input signal status from On to Off or from Off to On
K-Config Example
Get the signal lock status of IN 1:"#SIGNAL? 1", 0x0D

10.3.3 Switching/Routing Commands

Command	Description
ROUTE	Set/get layer routing

10.3.3.1 ROUTE

Functions		Permission	Transparency
Set:	ROUTE	End User	-
Get:	ROUTE?	End User	Switching
Description		Syntax
Set:	Set layer routing	#ROUTE , dest, srcCR
Get:	Get layer routing	#ROUTE? , destCR
Response
~nn@ROUTE , dest, srcCR LF
Parameters
layer - Layer number: 1 (Video), 2 (Audio for Dual and Quad modes only)dest - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)src - 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (Off - not for audio)Audio for Dual mode:dest - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D)src - for dual A: 1 (IN 1), 2 (IN 2); for dual B: 3 (IN 3), 4 (IN 4)
Notes
This command replaces all other routing commands.

K-Config Example

Select the IN 2 video input to route output 1:

"#ROUTE 1,1,2",0x0D

10.3.4 Video Commands

Command	Description
VID-RES	Set/get video resolution
VMUTE	Set/get video on output mute

10.3.4.1 VID-RES

Functions		Permission	Transparency
Set:	VID-RES	End User	Public
Get	VID-RES?	End User	Video
Description		Syntax
Set:	Set video resolution	#VID-RES stage, stage_id, is_native, resolution
Get:	Get video resolution	#VID-RES? stage, stage_id, is_native
Response
~nn@VID-RES stage, stage_id, is_native, resolution LF
Parameters
stage - 0 (Input), 1 (Output); under SET, stage 1 onlystage_id - For Input: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4); for output: 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (ALL);NOTE: for the Seamless Matrix, Video Wall and Quad modes, the resolution on all the outputs is the same; for the Independent Matrix mode, each output can have a different resolution; for the Dual mode, Dual A and Dual B can have different resolutionsis_native - 0 (Off), 1 (On)NOTE: Under SET is_native is ignoredresolution -:0-63 (see Section 10.3.10)
Response triggers
After execution, response is sent to the com port from which the Set /Get was receivedAfter execution, response is sent to all com ports if VID-RES was set by any other external control device (button press, device menu and similar)
Notes
The “Set” command is only applicable when stage = 1 (Output)The “Set” command with is_native = 1 (On), sets the native resolution on the selected output (resolution index sent = 0). The device sends as an answer the actual VIC ID of native resolution.The “Get” command with is_native = 1 (On) returns the native resolution VIC;when is_native = 1 (Off), it returns the current resolution
K-Config Example
Set video resolution on output to 1400x1050 @60Hz:#VID-RES 1,1,0,44",0x0D

10.3.4.2 VMUTE

Functions		Permission	Transparency
Set:	VMUTE	End User	Public
Get:	VMUTE?	End User	Video
Description		Syntax
Set:	Set enable/disable video on output	#VMUTESPoutput_id,flagCR
Get:	Get video on output status	#VMUTE?SPoutput_idSP CR
Response
Set / Get: ~nn@VMUTESPoutput_id,flagCR LF
Parameters
Output_id - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)flag -video mute status: 0 (Disable video, TMDS and 5V out are off), 1 (Enable video), 2 (blank screen)
K-Config Example
Set Mute video on output A to off:"#VMUTE 1,0",0x0D

10.3.5 Audio Commands

Command	Description
AUD-LVL	Set/get input/output volume
MUTE	Mute the output

10.3.5.1 AUD-LVL

Functions		Permission	Transparency
Set:	AUD-LVL	End User	-
Get:	AUD-LVL?	End User	Audio
Description		Syntax
Set:	Set audio level in specific amplifier stage	#AUD-LVlSPstage, channel, volumeCR
Get:	Get audio level in specific amplifier stage	#AUD-LVL?SPstage, channelCR
Response
~nn@AUD-LVlSPstage, channelCR LF
Parameters
stage - 2 (Analog output)channel - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)volume - 0-100 (audio level) minus sign precedes negative values.++ (+1, increase current value by one step)-- (-1, decrease current value by one step)
K-Config Example
Set OUT B audio level to 75:“#AUD-LVL 2,2,75”, 0x0D

10.3.5.2 MUTE

Functions		Permission	Transparency
Set:	MUTE	End User	Public
Get:	MUTE?	End User	Audio
Description		Syntax
Set:	Mute the selected output	#MUTESPchannel,mute_modeCR
Get:	Mute the selected output	#MUTE?SPchannelCR
Response
Set / Get: ~ nn@MUTESPchannel,mute_modeCR LF
Parameters
channel - * (All)mute_mode - mute the output: 0 (Off, unmute), 1 (On, mute)
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
Mutes the audio output
K-Config Example
Mute the outputs:"#MUTE *,1",0x0D

10.3.6 Communication Commands

Command	Description
NET-MAC	Get MAC address
NET-IP	Set/get IP address
NET-GATE	Set/get gateway IP
NET-MASK	Set/get subnet mask
NET-DHCP	Set/get DHCP mode
ETH-PORT	Set/get Ethernet port protocol

10.3.6.1 NET-MAC

Functions		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Communication
Description		Syntax
Set:
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCR LF
Parameters
mac_address – Unique MAC address. Format: XX-XX-XX-XX-XX-XX where X is hex digit.
K-Config Example
Get the MAC address:"#NET-MAC? XX-XX-XX-XX-XX-XX", 0x0D

10.3.6.2 NET IP

Functions		Permission	Transparency
Set:	NET-IP	Administrator	-
Get:	NET-IP?	End User	Communication
Description		Syntax
Set:	Set device IP address	#NET-IPSPP1CR
Get:	Get device IP address	#NET-IP?CR
Response
Set: ~nn@NET-IPSPip_addressSPOKCRLF
Get: ~nn@NET-IPSPip_addressCR LF
Parameters
P1 – IP address, in the following format: xxx.xxx.xxx.xxx
Notes
For proper settings consult your network administrator.
K-Config Example
Set the IP address to 192.168.1.39:“#NET-IP 192.168.001.039”,0x0D

10.3.6.3 NET-GATE

Functions		Permission	Transparency
Set:	NET-GATE	Administrator	-
Get:	NET-GATE?	End User	Communication
Description		Syntax
Set:	Set Gateway IP	#NET-GATESPP1CR
Get:	Get Gateway IP	#NET-GATE?CR
Response
Set: ~nn@NET-GATESPP1SPOKCR LF
Get: ~nn@NET-GATESPIP_addressCR LF
Parameters
P1 – gateway IP address, in the following format:
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator
K-Config Example
Set the gateway IP address to 192.168.0.1:“#NET-GATE 192.168.000.001”,0x0D

10.3.6.4 NET-MASK

Functions		Permission	Transparency
Set:	NET-MASK	Administrator	-
Get:	NET-MASK?	End User	Communication
Description		Syntax
Set:	Set device subnet mask	#NET-MASKSPnet_maskCR
Get:	Get device subnet mask	#NET-MASK?CR
Response
Set: ~nn@NET-MASKSPP1SPOKCR LF
Get: ~nn@NET-MASKSPnet_maskCR LF
Parameters
P1 – net-mask format: xxx.xxx.xxx.xxx
Response triggers
The subnet mask limits the Ethernet connection within the local network.For proper settings consult your network administrator.
K-Config Example
Set the subnet mask to 255.255.0.0:"#NET-MASK 255.255.000.000",0x0D

10.3.6.5 NET-DHCP

Functions		Permission	Transparency
Set:	NET-DHCP	Administrator	-
Get:	NET-DHCP?	End User	Communication
Description		Syntax
Set:	Set DHCP mode	#NET-DHCP SPP1 CR
Get:	Get DHCP mode	#NET-DHCP? CR
Response
Set: ~nn@NET-DHCP SPP1 SPOKCR LF
Get: ~nn@NET-DHCP SPmode CR LF
Parameters
P1 - use static IP: 0 (Static IP) or use DHCP: 1 (DHCP). If DHCP is unavailable, use the IP address set by the factory or the NET-IP command
Notes
Connecting Ethernet to devices with DHCP may take more time in some networks.To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if available.For proper settings consult your network administrator.
K-Config Example
Set the DHCP mode to static:"#NET-DHCP 0", 0x0D

10.3.6.6 ETH-PORT

Functions		Permission	Transparency
Set:	ETH-PORT	Administrator	Public
Get:	ETH-PORT?	End User	Public
Description		Syntax
Set:	Set Ethernet port protocol	#ETH-PORTSPporttype,ethportCR
Get:	Get Ethernet port protocol	#ETH-PORT?SPporttypeCR
Response
Set: ~nn@ETH-PORTSPporttype,ethportCR LF
Parameters
porttype - 0 (TCP)ethport - 1 to 65535
K-Config Example
Set TCP to 2:"#ETH-PORT 0,2",0x0D

10.3.7 Multiviewer/Scaler Commands

Command	Description
BRIGHTNESS	Set/get window brightness
CONTRAST	Set/get window contrast
IMAGE-PROP	Set/get the image size
SCLR-AS	Set/get the auto sync off timer
SHOW-OSD	Set the OSD of the selected channel
W-BRD	Set/get window border
W-HUE	Set/get picture hue
W-SATURATION	Set/get picture saturation
VW-POS	Set/get 1x4 video wall position-H value

10.3.7.1 BRIGHTNESS

Functions		Permission	Transparency
Set:	BRIGHTNESS	End User	Public
Get:	BRIGHTNESS?	End User	Public
Description		Syntax
Set:	Set window brightness	#BRIGHTNESS SPwin_num, value CR
Get:	Get window brightness	#BRIGHTNESS? SPwin_num CR
Response
Set / Get: ~nn@CONTRAST SPwin_num, value CR LF
Parameters
win_num - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All) value - 0~100
K-Config Example
Set brightness of OUT A to 56: "#BRIGHTNESS 1,56", 0x0D

10.3.7.2 CONTRAST

Functions		Permission	Transparency
Set:	CONTRAST	End User	Public
Get:	CONTRAST?	End User	Public
Description		Syntax
Set:	Set window contrast	#CONTRASTSPwin_num,valueCR
Get:	Get window contrast	#CONTRAST?SPwin_numCR
Response
Set / Get: ~nn@CONTRASTSPwin_num,valueCR LF
Parameters
win_num-1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All) value-0~100
K-Config Example
Set contrast of OUT A to 65: "#CONTRAST 1,65",0x0D

10.3.7.3 IMAGE PROP

Functions		Permission	Transparency
Set:	IMAGE-PROP	End User	Public
Get:	IMAGE-PROP?	End User	Video
Description		Syntax
Set:	Set the image size	#IMAGE-PROPSEP1, p2CR
Get:	Get the image size	#IMAGE-PROP?SEP1CR
Response
Set / Get: ~nn@IMAGE-PROPSEP1, P2CR LF
Parameters
P1 - * (All)P2 - Aspect ratio: 1 (Full), 2 (Best Fit), 3 (PanScan, 4:3), 4 (Letter Box. 16:9)
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
All 4 scalers have the same aspect ratio
K-Config Example
Set the image size to PanScan:"#IMAGE-PROP *, 3", 0x0D

10.3.7.4 SCALER-AS

Functions		Permission	Transparency
Set:	SCLR-AS	End User	Public
Get:	SCLR-AS?	End User	Audio
Description		Syntax
Set:	Set the auto sync off timer	#SCLR-AS SPP1, P2 CR
Get:	Get the auto sync off timer definition	#SCLR-AS? SPP1 CR
Response
Set / Get: ~nn@SCLR-AS SPP1, P2 CR LF
Parameters
P1 - * (All)P2 - For setting the auto sync timer: 0 (Disable), 1 (Fast, 10sec), 2 (Slow, 2min)
Response triggers
The auto-sync feature determines whether the outputs are turned off when no video is detected on the selected input
Notes
All 4 scalers have the same auto sync off timer
K-Config Example
Set the auto sync off timer to slow:"#SCLR-AS *, 2", 0x0D

10.3.7.5 SHOW-OSD

Functions		Permission	Transparency
Set:	SHOW-OSD	End User	Public
Get:	SHOW-OSD?	End User	Public
Description		Syntax
Set:	Set the OSD of the selected channel	#SHOW-OSDSEP1, P2CR
Get:		#SHOW-OSD?SEP1CR
Response
Set / Get: ~nn@SHOW-OSDSEP1, P2CR LF
Parameters
P1 - * (All)P2 - 1 (Off), 1 (On)
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if SHOW-OSD was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
All 4 scalers have the same aspect ratio

K-Config Example

Show the OSD:
" #SHOW-OSD *, 1", 0x0D

10.3.7.6 W-BRD

Functions		Permission	Transparency
Set:	W-BRD	End User	Public
Get:	W-BRD?	End User	Public
Description		Syntax
Set:	Set window border	#W-BRD SPid, switch, ColSpace, p1, p2, p3CR
Get:	Get window border status	#W-BRD? SPid CR
Response
Set / Get: ~nn@W-BRD SPid, switch, ColSpace, p1, p2, p3 CR LF
Parameters
id-1switch - 0 (Show), 1 (Only selected), 2 (Off)ColSpace - 0 (RGB)P1, p2, p3 - 1, 0, 0 (Red), 0, 1, 0 (Green), 0, 0, 1 (Blue), 1, 1, 0 (Yellow), 1, 0, 1 (Magenta), 1, 1, 1 (Grey)
Response triggers
After execution, response is sent to the com port from which the Set/Get was receivedAfter execution, response is sent to all com ports if W-BRD was set by any other external control device (button press, device menu and similar)
Notes
For Dual and Quad modes only
K-Config Example
Show red border:"#W-BRD 1, 0, 0, 1, 0, 0", 0x0D

10.3.7.7 W-HUE

Functions		Permission	Transparency
Set:	W-HUE	End User	Public
Get:	W-HUE?	End User	Public
Description		Syntax
Set:	Set picture hue	#W-HUE SP win_num, value CR
Get:	Get picture hue	#W-HUE? SP win_num CR
Response
Set / Get: ~nn@W-HUE SP win_num, value CR LF
Parameters
win_num - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All) value - 0~100
Response Triggers
After execution, response is sent to the com port from which the Set/Get was received After execution, response is sent to all com ports if W-HUE was set by any other external control device (button press, device menu and similar)
Notes
Value limits can vary for different devices Value is a property of input connected to current window. Changing window input source might cause changes in this value (refer device definitions)
K-Config Example
Set OUT A hue to 65: "#W-HUE 1,65", 0x0D

10.3.7.8 W-SATURATION

Functions		Permission	Transparency
Set:	W-SATURATION	End User	Public
Get:	W-SATURATION?	End User	Public
Description		Syntax
Set:	Set window contrast	#W-SATURATION SP win_num, value CR
Get:	Get window contrast	#W-SATURATION? SP win_num CR
Response
Set / Get: ~nn@W-SATURATION SP win_num, value CR LF
Parameters
win_num - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All) value - 0~100
K-Config Example
Set OUT A saturation to 65:“#W-SATURATION 1, 65”, 0x0D

10.3.7.9 VW-POS?

Functions		Permission	Transparency
Set:	VW-POS	End User	Public
Get:	VW-POS?
Description		Syntax
Set:	Set 1x4 video wall position-H value	#VW-POS SPposCR
Get:	Get 1x4 video wall position-H value	#VW-POS? CR
Response
~hn@VW-POS SPposCR LF
Parameters
pos--999~0~999
K-Config Example
Set 1x4 video wall horizontal position to 45:“#VW-POS 45”,0x0D

10.3.8 Custom Commands

Command	Description
BEZEL	Set/get video resolution
EDID-AUDIO	Set/get EDID audio mode
IDV	Set visual indication from the device
LABEL	Set/get input/output label
VIEW-MOD	Set/get view mode

10.3.8.1 BEZEL

Functions		Permission	Transparency
Set:	BEZEL	End User	Public
Get:	BEZEL?	End User	Audio
Description		Syntax
Set:	Set video wall bezel on/off H/V correction	#BEZEL SPid, type, switch, H, VCR
Get:	Get video wall bezel switch H,/V correction status	#BEZEL? SPid, type CR
Response
~nn@BEZEL SPid, type, switch, H, VCR LF
Parameters
id-1type-0 (Current H/V value), 1 (Max. H/V value),switch-0 (Off), 1 (On)H, V-0~Max
Notes
Setting bezel H/V to type=1 results in an error. Bezel is not supported for 480p/576p outputIgnore bezel-H when in the 1x4 video wall mode
K-Config Example

Set the bezel to on and to 3: “#BEZEL 1,0,1,3,3”, 0x0D

10.3.8.2 EDID-AUDIO

Functions		Permission	Transparency
Set:	EDID-AUDIO	End User	Public
Get:	EDID-AUDIO?	End User	Public
Description		Syntax
Set:	Set EDID audio mode	#EDID-AUDIO SPmode CR
Get:	Get EDID audio mode	#EDID-AUDIO? SP
Response
Set / Get: ~nn@EDID-AUDIO SPmode CR LF
Parameters
mode - 0 (LPCM 2CH), 1 (LPCM 6CH), 2 (LPCM 8CH), 3 (BITSTREAM), 4 (HD), 5 (DISABLE)
K-Config Example
Set audio EDID mode to HD:“#EDID-AUDIO 4”, 0x0D

10.3.8.3 IDV

Functions		Permission	Transparency
Set:	IDV	End User	Public
Get:
Description		Syntax
Set:	Set visual indication from the device	#IDVCR
Get:
Response
~nn@IDVSPOKCR LF
Notes
Using this command, some devices can light a sequence of buttons or LEDs to allow identification of a specific device from similar devices
K-Config Example
Set audio visual indication from the device:“#IDV”, 0x0D

10.3.8.4 LABEL

Functions		Permission	Transparency
Set:	LABEL	End User	Public
Get:	LABEL?	End User	Public
Description		Syntax
Set:	Set input/output label	#LABELSPstage, stage_id, switch, labelCR
Get:	Get input/output label	#LABEL?SPstage, stage_idCR
Response
~nn@LABELSPstage, stage_id, switch, labelCR LF
Parameters
stage - 0 (input), 1 (output)stage_id - for input: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4); for output: 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D)switch -0 (Off), 1 (On)label - A string of up to 12 characters
Notes
If stage_id is ignored and label string is empty, only do label on/off switch
K-Config Example
Set the IN 1 label to Blu-ray and turn it on:"#LABEL 0,1,1,Blu-ray",0x0D

10.3.8.5 VIEW-MOD

Functions		Permission	Transparency
Set:	VIEW-MOD	End User	Public
Get:	VIEW-MOD?	End User	Public
Description		Syntax
Set:	Set view mode	#VIEW-MOD SPmode CR
Get:	Get view mode	#VIEW-MOD?SP
Response
~nn@VIEW-MOD SPmode CR LF
Parameters
mode - 0 (Seamless matrix), 1 (Dual PIP), 2 (N/A), 3 (Quad), 4 (2x2 Video wall), 5 (Dual POP), 6 (1x4 Video wall), 7 (Independent matrix)
K-Config Example
Set view mode to Quad:“#VIEW-MOD 3”, 0x0D

10.3.9 Miscellaneous Commands

Command	Description
CROP-POS	Set/get 1x4 video wall crop/position On/Off
CROP	Set/get 1x4 video wall crop-H value
MUTE-ANA	Set/get analog audio output mute
PICTURE-RST	Reset all the picture settings
PIP-POS	Set/get PIP sub-window position
PIP-SIZE	Set/get PIP sub-window size
PIP-SWAP	Swap PIP main/sub windows

10.3.9.1 CROP-POS

Functions		Permission	Transparency
Set:	CROP-POS	End User	Public
Get:	CROP-POS?	End User	Audio
Description		Syntax
Set:	Set 1x4 video wall crop/position On/Off	#CROP-POS SP switch CR
Get:	Get 1x4 video wall crop/position On/Off	#CROP-POS?CR
Response
~nn@CROP-POS SP switch CR LF
Parameters
switch - 0 (Off), 1 (On)
K-Config Example
Set crop to on:"#CROP-POS 1", 0x0D

10.3.9.2 CROP

Functions		Permission	Transparency
Set:	CROP	End User	Public
Get:	CROP?	End User	Audio
Description		Syntax
Set:	Set 1x4 video wall crop-H value	#CROPSPcropCR
Get:	Get 1x4 video wall crop-H value	#CROPCR
Response
~nn@CROPSPcropCR LF
Parameters
crop - 0~400
K-Config Example
Set 1x4 video wall H crop value to 32:“#CROP 32”, 0x0D

10.3.9.3 MUTE-ANA

Functions		Permission	Transparency
Set:	MUTE-ANA	End User	Public
Get:	MUTE-ANA?	End User	Audio
Description		Syntax
Set:	Set analog audio output mute	#MUTE-ANASPchannel,mute_modeCR
Get:	Get analog audio output mute	#MUTE-ANA?SPchannelCR
Response
~nn@MUTE-ANASPchannel,mute_modeCR LF
Parameters
channel - 1 (OUT A), 2 (OUT B), 3 (OUT C), 4 (OUT D), * (All)mute_mode - 0 (Off, unmute), 1 (On, mute)
Notes
#MUTE has higher priority than #MUTE-ANA
K-Config Example
Set OUT B analog audio to mute:"#MUTE-ANA 2,1",0x0D

10.3.9.4 PICTURE-RST

Functions		Permission	Transparency
Set:	PICTURE-RST	End User	Public
Get:
Description		Syntax
Set:	Reset all the picture settings	#PICTURE-RSTCR
Get:
Response
~nn@PICTURE-RSTSPOKCR LF
K-Config Example
Reset all picture settings:"#PICTURE-RST", 0x0D

10.3.9.5 PIP-POS

Functions		Permission	Transparency
Set:	PIP-POS	End User	Public
Get:	PIP-POS?	End User	Public
Description		Syntax
Set:	Set PIP sub-window position	#PIP-POS SP pip_no, pos CR
Get:	Get PIP sub-window position	#PIP-POS? SP pip_no CR
Response
Set / Get: ~nn@PIP-POS SP pip_no, pos CR LF
Parameters
pip_no - 1 (PIP A), 2 (PIP B)pos - 1 (Left top), 2 (Right top), 3 (Right bottom), 4 (Left bottom)
K-Config Example
Set PIP A position to left top:"#PIP-POS 1,1", 0x0D

10.3.9.6 PIP-SIZE

Functions		Permission	Transparency
Set:	PIP-SIZE	End User	Public
Get:	PIP-SIZE?	End User	Public
Description		Syntax
Set:	Set PIP sub-window size	#PIP-SIZE SP pip_no, size CR
Get:	Get PIP sub-window size	#PIP-SIZE? SP pip_no CR
Response
Set / Get: ~nn@PIP-SIZE SP pip_no, size CR LF
Parameters
pip_no-1 (PIP A), 2 (PIP B)size-1 (Large), 2 (Medium), 3 (Small), 4 (Off)
K-Config Example
Set PIP A size to large:"#PIP-SIZE 1,1",0x0D

10.3.9.7 PIP-SWAP

Functions		Permission	Transparency
Set:	PIP-SWAP	End User	Public
Get:
Description		Syntax
Set:	Swap PIP main/sub windows	#PIP-SWAP SP pip_no CR
Get:
Response
~hn@PIP-SWAP SP pip_no CR LF
Parameters
pip_no - 1 (PIP A), 2 (PIP B)
K-Config Example
Swap Main and PIP windows A:“#PIP-SWAP 1”, 0x0D

10.3.10 Input/Output Resolutions Key

#	Resolution	#	Resolution
0	No signal (for input)Native (for output)	32	1280x768p75
1	640x480p59	33	1280x800p60RB
2	640x480p72	34	1280x800p60
3	640x480p75	35	1280x800p75
4	640x480p85	36	1280x960p60
5	720x400p70	37	1280x1024p60
6	720x480i59 (480i59)	38	1280x1024p60CVT
7	720x480i60 (480i60)	39	1280x1024p75
8	720x480p59 (480p59)	40	1360x768p60
9	720x480p60 (480p60)	41	1366x768p60RB
10	720x576i50 (576i)	42	1366x768p60
11	720x576p50 (576p)	43	1400x1050p60RB
12	800x600p56	44	1400x1050p60
13	800x600p60	45	1440x900p60RB
14	800x600p72	46	1440x900p60
15	800x600p75	47	1440x900p75
16	800x600p85	48	1600x900p60RB
17	1024x768p60	49	1600x1200p60
18	1024x768p70	50	1680x1050p60RB
19	1024x768p75	51	1680x1050p60
20	1024x768p85	52	1920x1080p23 (1080p23)
21	1152x864p70	53	1920x1080p24 (1080p24)
22	1152x864p75	54	1920x1080p25 (1080p25)
23	1280x720p25 (720p25)	55	1920x1080p29 (1080p29)
24	1280x720p29 (720p29)	56	1920x1080p30 (1080p30)
25	1280x720p30 (720p30)	57	1920x1080i50 (1080i50)
26	1280x720p50 (720p50)	58	1920x1080p50 (1080p50)
27	1280x720p59 (720p59)	59	1920x1080i59 (1080i59)
28	1280x720p60 (720p60)	60	1920x1080i60 (1080i60)
29	1280x720p60CVT	61	1920x1080p59 (1080p59)
30	1280x768p60RB	62	1920x1080p60 (1080p60)
31	1280x768p60	63	1920x1200p60RB

10.3.11 Error Codes

Error	Description
0	No error
1	Protocol syntax error, 1st char isn't '#'
2	Command not available in command list
3	Parameter is out of range
4
5
6	Protocol busy, UART ring buffer is overflow
7
8
9	Command is not available in current status

Limited Warranty

The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates.
2. All Kramer fiber optic cables and adapters, active cables, cable retractors, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.
4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).
6. K-Touch software is covered by a standard one (1) year warranty for software updates.
7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction

KRAMER

P/N:

2900-300668

Rev:

4

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.
