USER MANUAL Pyramid L Azza

INNOVATIVE TREMPERED GLASS GAMING CASE

CSAZ-804L-v.3

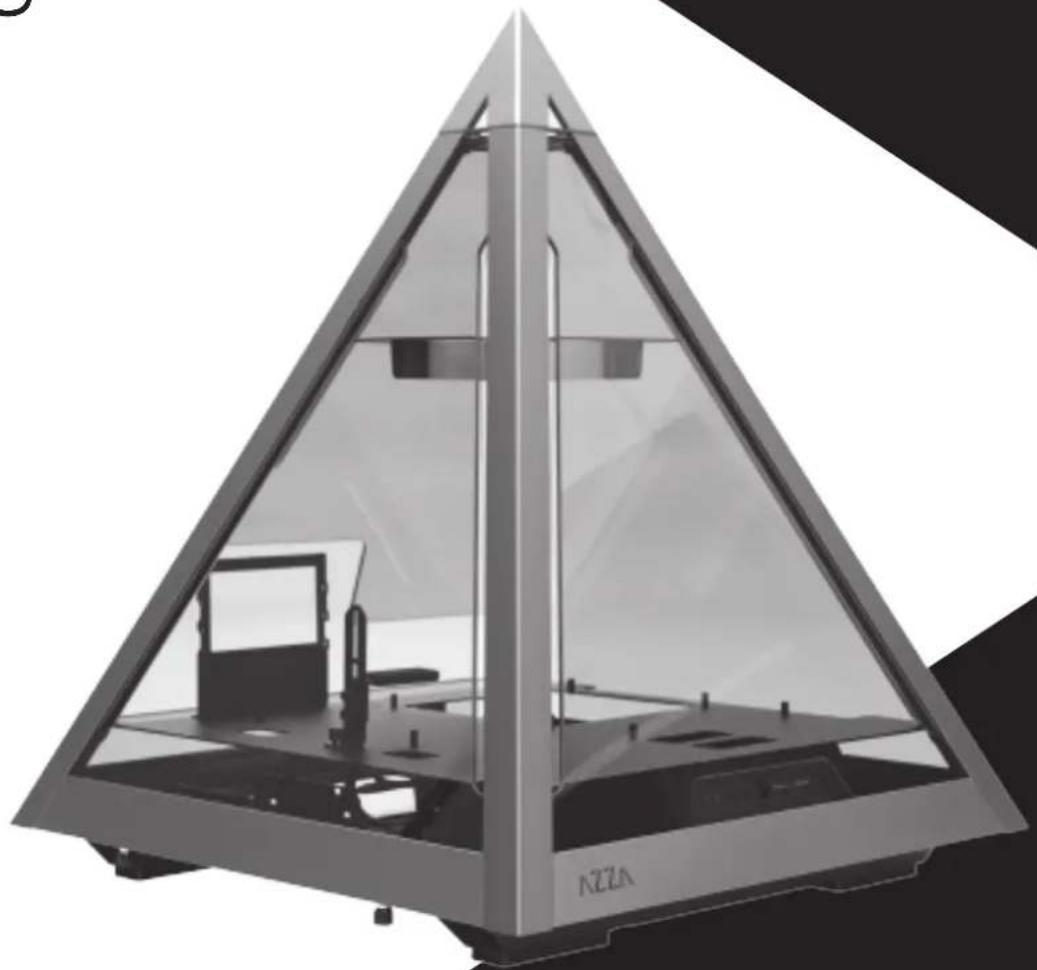

Exterior view of a modern triangular industrial machine with internal components and control panel (no visible text or symbols)

V.3
USER MANUAL

1. Specifications
2. Chassis Parts
3. Removing The Top Glass Panel
4. Overview
5. Power Supply Installation
6. 2.5"SSD / 3.5"HDD Installation
7. PCI-E Cable
8. PCI-E 4.0 Version
9. Fan Installation
10. Digital RGB Fan Installation For Motherboard

Model
Model Name:	PYRAMID 804L
Model Number:	CSAZ-804L-v.3
Specifications
Type:	ATX Tower
Color: 1.5~2.0mm SPCC+ 2.5mm Aluminum
Side Panel Window: 4 sides panel are tem	pered glass
Max. CPU Cooler Height:	UP to 95mm
Max. GPU Length:	L=330 mm / W=150 mm / H=70 mm (Horizontal)
Power Supply: ATX
Motherboard Compatibility:	<305x280mm E-ATX、ATX、Micro ATX、Mini-ITX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 2
Internal 3.5" Drive Bays: Up to 1 (Convertible with 2.5"SSDx1)
Expansion Slots: 3
Front Ports:	2xUSB 3.0、HD Audio、Type C、Metal power button
Physical Specifications
Metal Chassis Dimensions (HxWxD) 558x	490x490/22x19.3x19.3 inch
	585x490x490mm/23x19.3x19.3 inch Dimensions with Case Stand(HxWxD)
Weight:	14.1kg /31.1lbs
Features
Tempered Glass Side Window: High-quality tempered glass side window allows for clear visuals to inner components.
Available Fan Ports:	1 x 120mm or 1x140 fan ports in the top(1 x 120mm Hurricane II Digital RGB Fan included)
Water Cooling:	Supports radiators up to 360 mm on the bottom.
Isolated Chamber:	ATX Power supply inside its own isolated chamber, preventing its heat from affecting other components.
Easy Installation Cooler:	A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard.
Accessories:	20cm PCI-E 3.0 extension cable for VGA card(Support EATX、ATX MB)Adjustable video card holder

※PWM Fan:The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.

1	TOP tempered glass panel cover	7	Horizontal PCIe slot
2	Pyramid structure	8	I/O Ports: USB 3.0 x 2 , Type C, HD Audio
3	120mm/140mm fan bracket	9	Spring bolt screw of top panel cover
4	12cm ARGB Fan	10	Fan cable management cover
5	Adjustable video card holder	11	2.5"SSD brackets X1
6	Power supply rack	12	3.5"HDD /2.5"SSD spring bolt tray X1

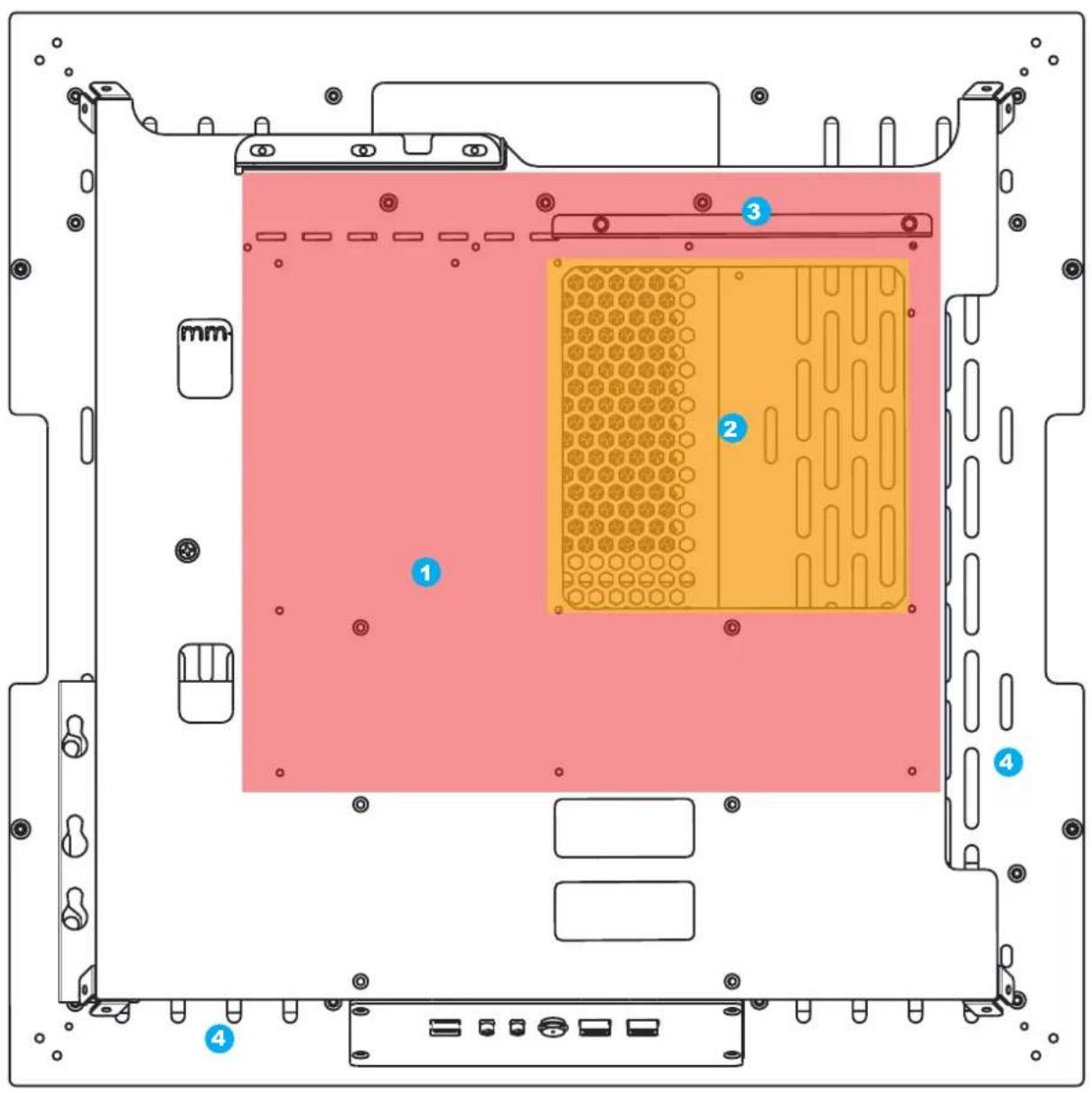

1 motherboard mount
2 Pre-cut hole for CPU cooling
3 Power cord management hole
4 Water radiator management hole

Technical line drawing of a computer motherboard showing internal fan structures and drive bays (no text or labels)

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

(I) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2
(II) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1 (also compatible with a 2.5" SSD)

Technical line drawing of a mechanical device frame with ports and connectors (no text or symbols)

200 mm PCI-E 3.0 Cable(Support EATX、ATX Motherboard)

To fix potential compatibility issues with PCI-e Gen 4.0, please connect your graphics card directly to the motherboard, enter the BIOS, and change the PCI-e x16 mode to 3.0 before using the RGB PCI-e cable.

4.0 The latest 4.0 version provides faster transmission speed

This extension cable supports the following graphics cards: RTX 3000 series, RTX 3080, RTX 3090 FE, RX 5700XT and RX 6000 GPUs.
■ Please note before use:

1. Measure the distance between your motherboard, PCI-E slot and GPU connection to confirm whether the length of this 4.0 cable is sufficient.
2. Update your motherboard BIOS to the latest version.
3. Update your GPU software to the latest version.
4. Check whether the motherboard BIOS setting is 4.0. Some software will not switch automatically. If the switching fails, the PC will not start normally.

Exterior view of a black heat exchanger or cooling unit with a gold connector, shown from top and side (no text or symbols visible)

The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI ^TM , ASUS ^TM , Gigabyte ^TM and AsRock ^TM .

Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.

Please check your motherboard's specifications before use. Do not go past the motherboard's allowed limits on power rating and LED count when connecting multiple fans/LED strips.

AZZA

ONE VISION. ONE MISSION

PYRAMID

INNOVATIVE TREMPERED GLASS GAMING CASE

CSAZ-804L

Exterior view of a modern triangular industrial machine with internal components and control panel (no visible text or symbols)

USER MANUAL

1. Specifications
2. Chassis Parts

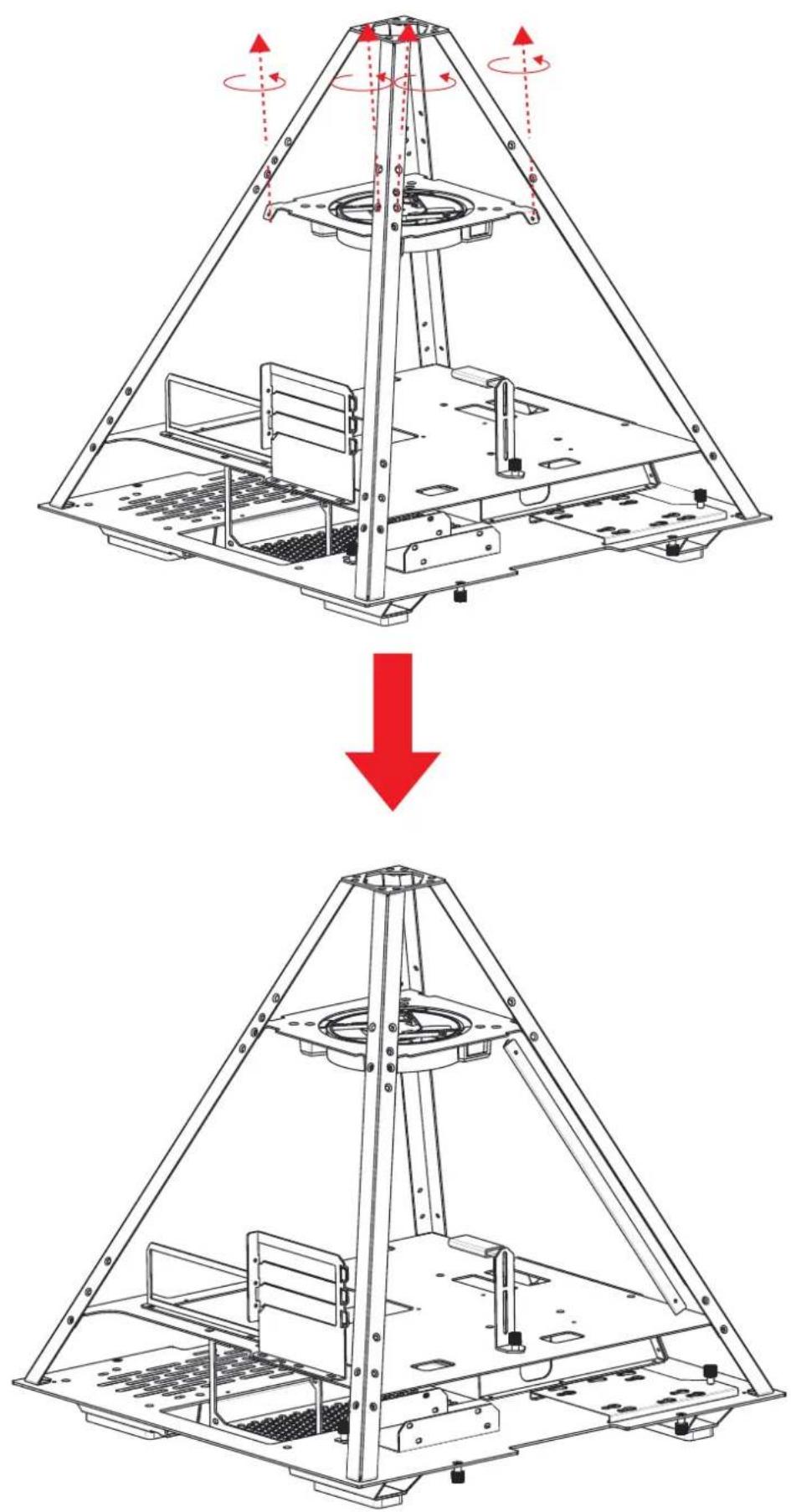

3. Removing The Top Glass Panel
4. Overview

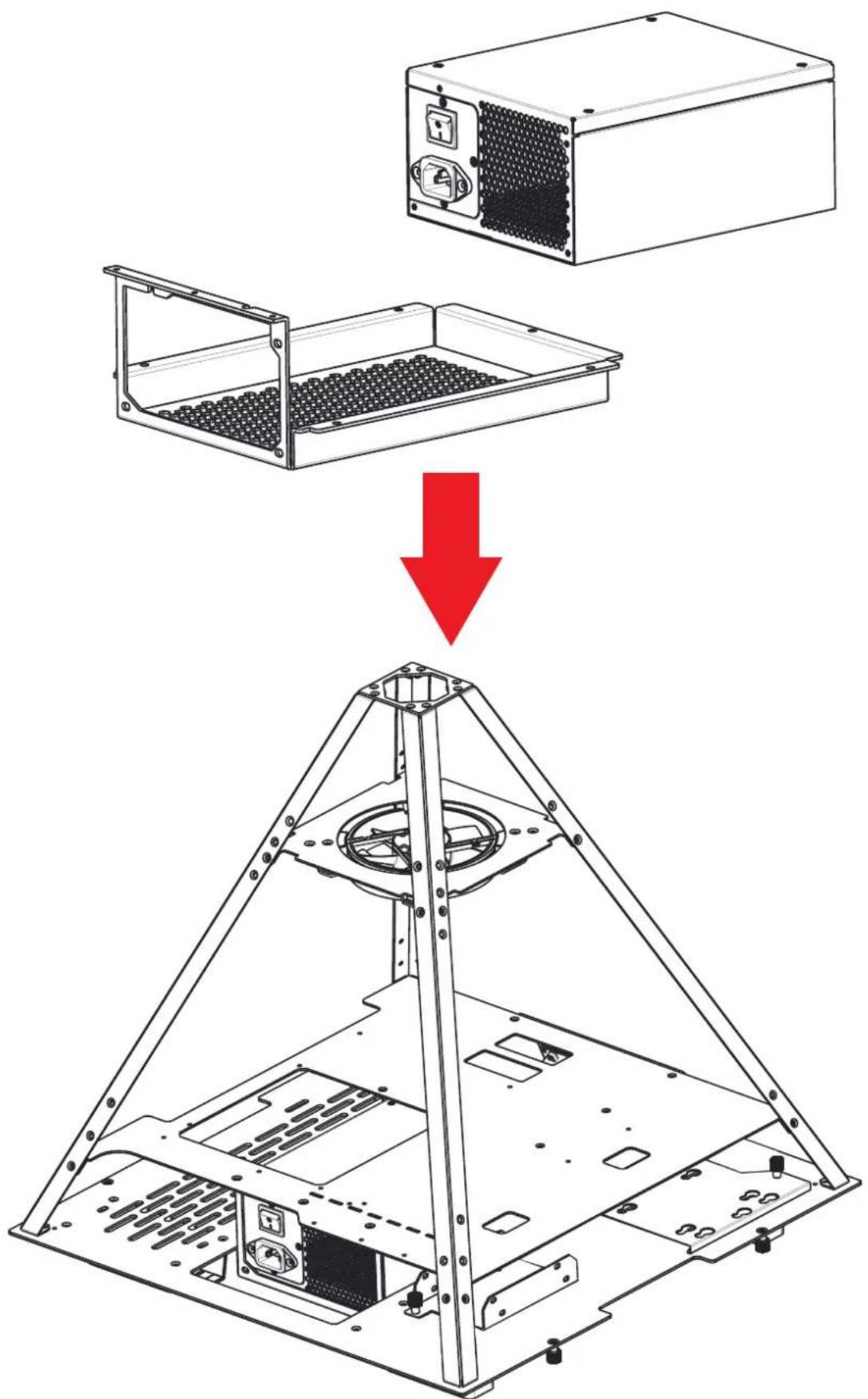

5. Power Supply Installation
6. 2.5"SSD / 3.5"HDD Installation
7. PCI-E Cable
8. PCI-E 4.0 Version

9. Fan Installation

10. Digital RGB Fan Installation For Motherboard

2022 Update

Model
Model Name:	PYRAMID 804L
Model Number:	CSAZ-804L
Specifications
Type:	ATX Tower
Color: 1.5~2.0mm SPCC+ 2.5mm Aluminum
Side Panel Window: 4 sides panel are tempered glass
Max. CPU Cooler Height:	UP to 95mm
Max. GPU Length:	Up to 330mm long Video card (Horizontal)
Power Supply: ATX
Motherboard Compatibility:	<305x280mm E-ATX、ATX、Micro ATX、Mini-ITX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 2
Internal 3.5" Drive Bays: Up to 1 (Convertible with 2.5"SSDx1)
Expansion Slots: 3
Front Ports:	2xUSB 3.0、HD Audio、Type C、Metal power button
Physical Specifications
Metal Chassis Dimensions (HxWxD) 558x490x490/22x19.3x19.3 inch
	585x490x490mm/23x19.3x19.3 inch Dimensions with Case Stand(HxWxD)
Weight:	14.1kg /31.1lbs
Features
Tempered Glass Side Window: High-quality tempered glass side window allows for clear visuals to inner components.
Available Fan Ports:	1x120mm Fan port in the Top(1x 120mm Hurricane III Digital RGB Fan included)5x120mm fan ports on the bottom
Water Cooling:	Supports radiator up to 360mm on the bottom right.
Isolated Chamber:	ATX Power supply inside its own isolated chamber, preventing its heat from affecting other components.
Easy Installation Cooler:	A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard.
Accessories:	20cm PCI-E3.0 Extend cable for VGA card (included)Adjustable video card holderAnother 20cm PCI-e 4.0 extension cable version is available

※PWM Fan:The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.

1	TOP tempered glass panel cover	7	Horizontal PCIe slot
2	Pyramid structure	8	I/O Ports: USB 3.0 x 2 , Type C, HD Audio
3	120mm/140mm fan bracket	9	Spring bolt screw of top panel cover
4	12cm ARGB Fan	10	Fan cable management cover
5	Adjustable video card holder	11	2.5"SSD brackets X1
6	Power supply rack	12	3.5"HDD /2.5"SSD spring bolt tray X1

1 motherboard mount
2 Pre-cut hole for CPU cooling
3 Power cord management hole
4 Water radiator management hole

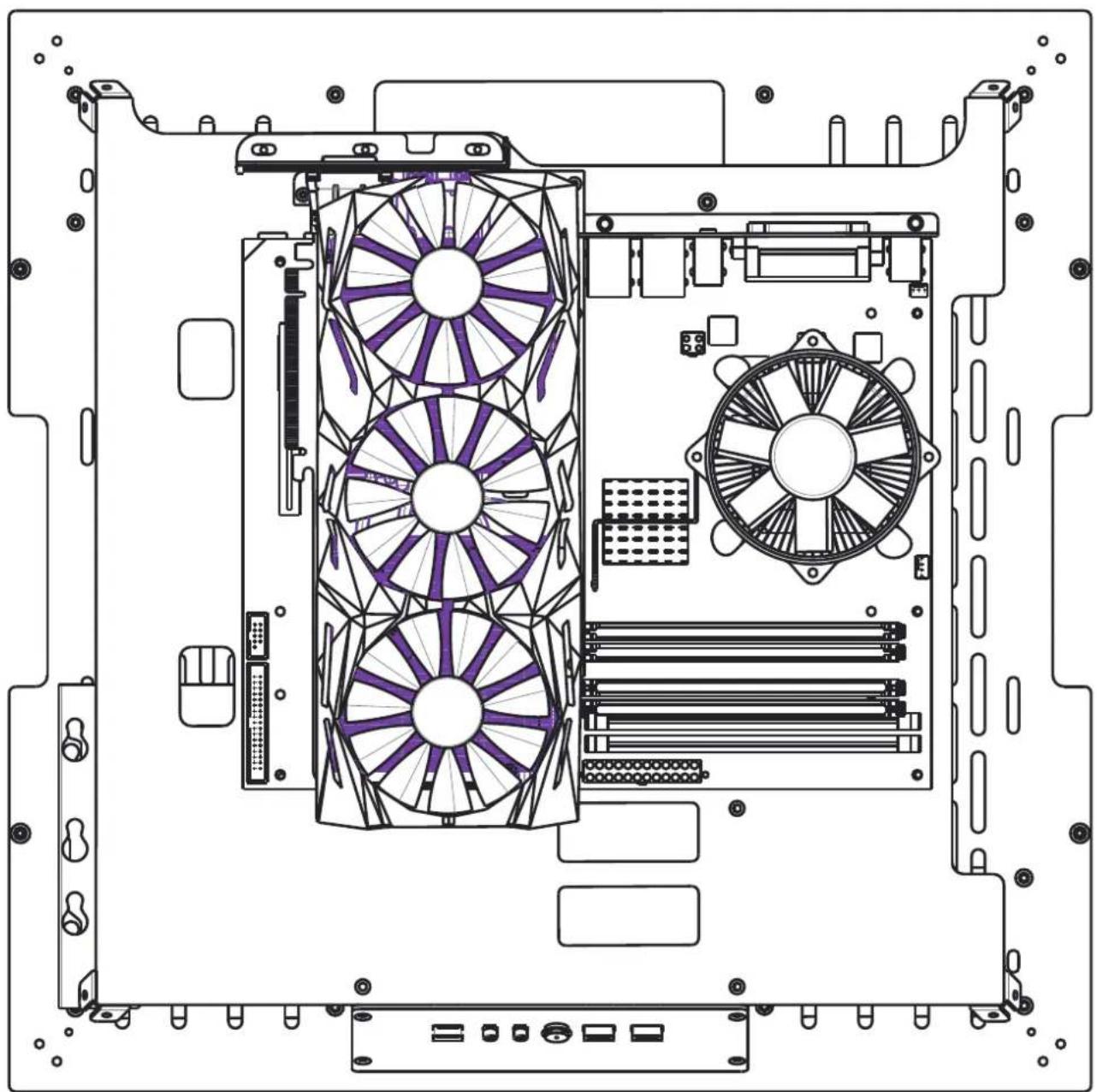

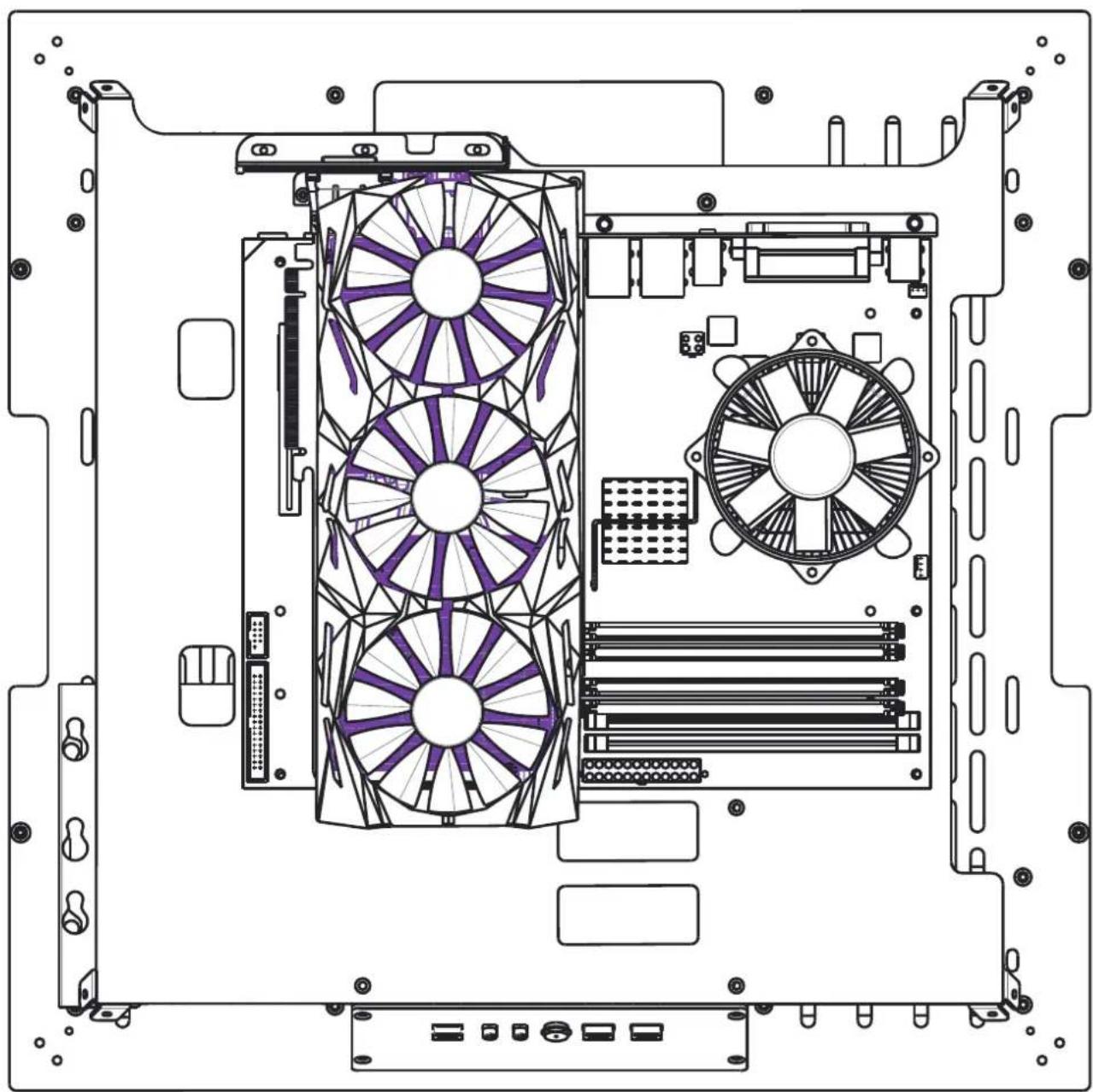

Technical line drawing of a computer motherboard showing internal fan structures and drive bays (no text or labels)

Technical line drawing of a mechanical assembly with a conical frame and internal components (no text or symbols)

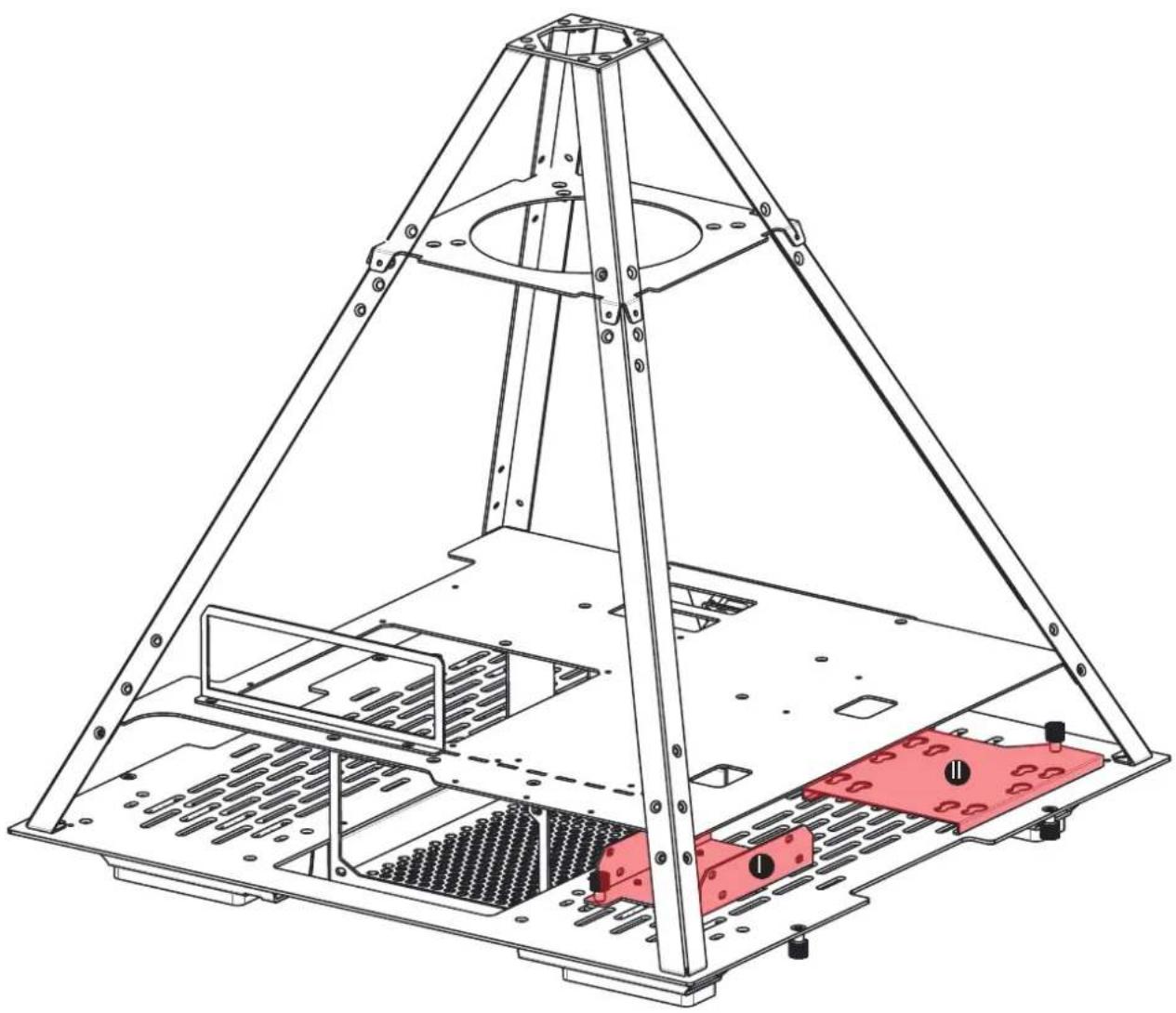

(I) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2

(II) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1 (also compatible with a 2.5" SSD)

Supports up to 2 x 120mm fan on the hard drive bay

Technical line drawing of a mechanical or electronic component assembly with no visible text or symbols

200 mm PCI-E 3.0 Cable(Support EATX、ATX Motherboard)

To fix potential compatibility issues with PCI-e Gen 4.0, please connect your graphics card directly to the motherboard, enter the BIOS, and change the PCI-e x16 mode to 3.0 before using the RGB PCI-e cable.

Another 20cm PCI-e 4.0 extension cable version is available

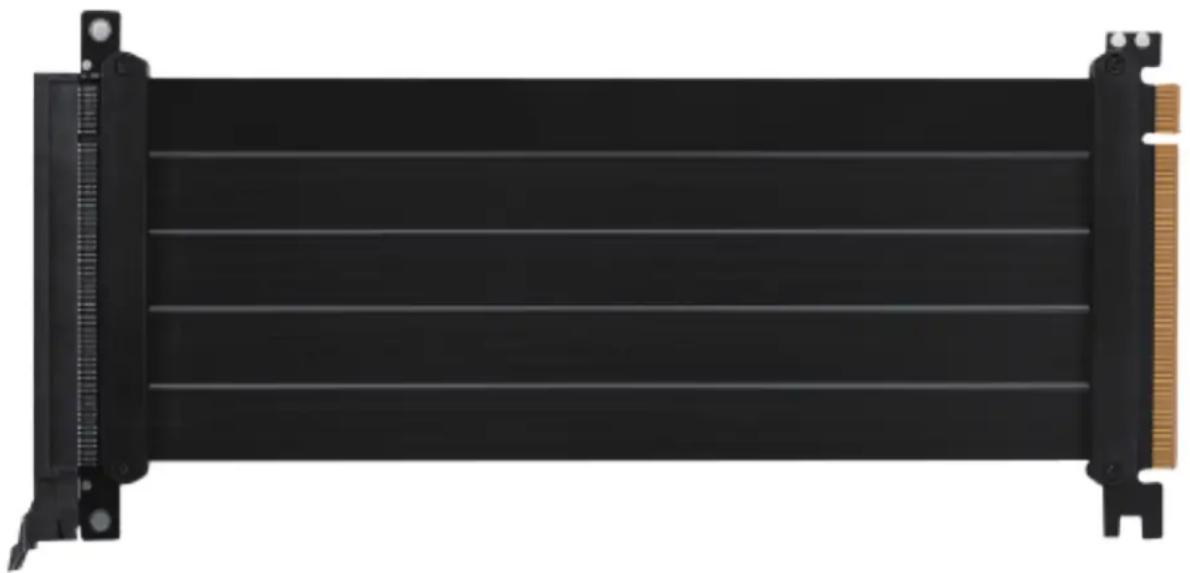

4.0 The latest 4.0 version provides faster transmission speed

■ This extension cable supports the following graphics cards: RTX 3000 series, RTX 3080, RTX 3090 FE, RX 5700XT and RX 6000 GPUs.
■ Please note before use:

1. Measure the distance between your motherboard, PCI-E slot and GPU connection to confirm whether the length of this 4.0 cable is sufficient.
2. Update your motherboard BIOS to the latest version.
3. Update your GPU software to the latest version.
4. Check whether the motherboard BIOS setting is 4.0. Some software will not switch automatically. If the switching fails, the PC will not start normally.

Black rectangular electronic component with gold connector and mounting bracket (no visible text or symbols)

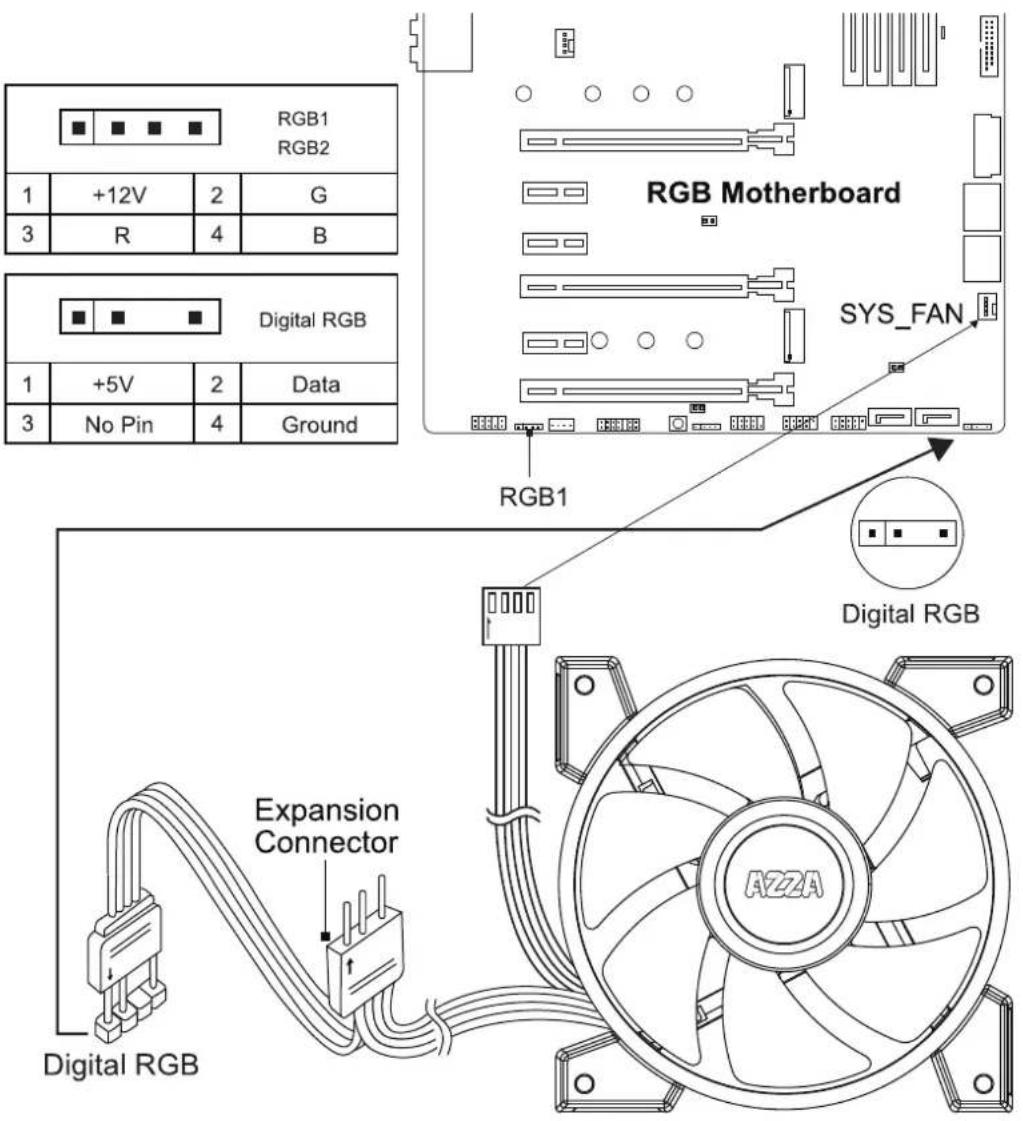

The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI ^TM , ASUS ^TM , Gigabyte ^TM and AsRock ^TM .

Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.

Please check your motherboard's specifications before use. Do not go past the motherboard's allowed limits on power rating and LED count when connecting multiple fans/LED strips.
