EVM0100 - Car charger LOGILINK - Free user manual and instructions

Product Type	Car Charger
Brand	LogiLink
Model	EVM0100
Input Voltage	12-24V DC
Output	2x USB-A, 5V/2.4A total
Total Output Power	24W
Charging Technology	Smart IC, compatible with Apple and Android
Dimensions (LxWxH)	Approx. 30 x 30 x 70 mm
Weight	Approx. 30 g
Material	ABS plastic, metal contacts
LED Indicator	Yes, blue LED for power status
Protection Features	Overcurrent, short circuit, overheat protection
Compatibility	12V or 24V vehicle cigar lighter sockets
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Certifications	CE, RoHS
Maintenance	Wipe with a dry, soft cloth. Do not use liquids.
Spare Parts	Not available as separate parts; integrated unit
Repairability	Non-repairable; replace if faulty

Frequently Asked Questions - EVM0100 LOGILINK

What is the LogiLink EVM0100 car charger?

The LogiLink EVM0100 is a dual USB car charger that plugs into your vehicle's 12V or 24V cigar lighter socket, providing up to 2.4A total output to charge smartphones, tablets, and other USB devices.

How many devices can I charge at once?

You can charge two devices simultaneously using the two USB-A ports. The total output is shared, so charging two devices may reduce individual charging speed.

Is the EVM0100 compatible with fast charging?

The EVM0100 supports standard 5V charging up to 2.4A. It is compatible with devices that support 5V charging, but does not support Quick Charge or USB Power Delivery.

Can I use this charger with a 24V truck system?

Yes, the EVM0100 is designed to work with both 12V and 24V vehicle electrical systems, making it suitable for cars, trucks, boats, and RVs.

Is the charger safe to use?

Yes, it includes protection against overcurrent, short circuits, and overheating, ensuring safe operation for your devices.

How do I clean the car charger?

Unplug the charger and wipe it with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners.

What should I do if the charger stops working?

First, check the vehicle's fuse and ensure the socket is working. If the charger is defective, it should be replaced as it is not repairable.

Does the charger have an LED indicator?

Yes, there is a blue LED that lights up when the charger is connected to power, indicating it is ready to use.

What is the warranty period for the EVM0100?

LogiLink typically offers a 2-year warranty. Please check the packaging or contact LogiLink support for exact details.

Can I use this charger while the car is off?

Yes, as long as your vehicle's cigarette lighter socket remains powered when the ignition is off. Some vehicles may cut power after a certain time.

USER MANUAL EVM0100 LOGILINK

3D rendering of a black LogLink device housing with a central lens and mounting brackets (no text or symbols on the device itself)

LogiLink®

Universal EV Charging Nozzle and Cable Dock

Art. No.: EVM0100

Exterior view of a black electric vehicle charging station with coiled cable (no text or symbols visible)

Keep Your Space Organized

Mount the Universal EV Charging Dock in your home, garage or charging post to organize and protect EV charging cable and nozzle from dust or scratches.

European Standard

Wall Mountable

Max. 10 KG

Easy Installation

Side profile of a modern car with visible headlights and grille, set against a textured wall (no text or symbols)

Side view of a dark electric vehicle charging at a station, no visible text or symbols

Close-up of a LogiLink device with a circular sensor or connector (no visible text or symbols)

European Standard

Fits all EV nozzle (connectors) and mounts.

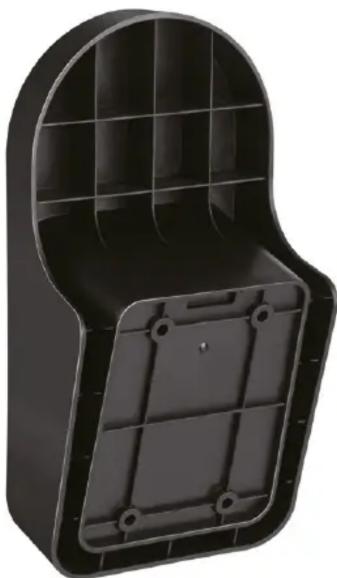

3D rendering of a black plastic enclosure with internal compartments and mounting holes (no text or symbols)

Easy Installation

Can be wall-mounted, or install on a EV charging post.

3D rendering of a black LogLink device housing with a circular lens and mounting holes (no text or symbols on the device itself)

Heavy Duty

Extremely durable and be able to hold up the weight of the EV charging nozzle and cable up to 10 kg.

Specification:

Material	Plastic
Weight Capacity	10 kg
Color	Black

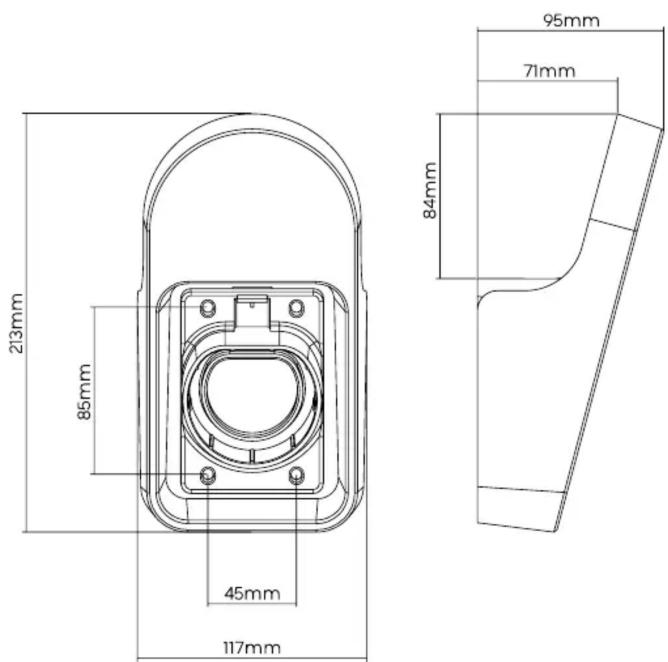

Dimensions	21.3 x 11.7 x 9.5 cm

Package Contents:

» 1x Universal EV Charging Nozzle and Cable Dock
» 1x Screw Package
» 1x User Manual

Package Information:

» Packing Dimension: 227 x 125 x 78 mm
» Packing Weight: 0.43 kg
» Carton Dimension: 520 x 410 x 475 mm
» Carton Q'ty: 40 pcs
» Carton Weight: 18 kg
