Product Type Process Calibrator (Multimeter function)
Brand PCE Instruments
Model 123
Dimensions 88 x 168 x 26 mm (3.46" x 6.61" x 1.03")
Weight 330 g (11.63 oz)
Power Supply 9V alkaline battery; optional AC adapter 9-15V; external battery pack (6xAA)
Display 4 and 5 digits LCD
Basic Accuracy (mA) ±0.025% ± 3 µA
Basic Accuracy (mV/V) ±0.05% ± 30 µV (0-100mV), ±0.05% ± 3mV (0-1V), ±0.05% ± 300 µV (0-12V)
MA Output Ranges 4-20mA, 0-20mA, 0-24mA (selectable)
MV/V Output Ranges 0-100.00mV, 0-1.0000V, 0-12.000V (selectable)
Frequency Output Range 1-62500 Hz (accuracy ±0.01% ±0.04Hz for 126-62500Hz)
Thermocouple Types K, J, E, T (selectable)
Thermocouple Temperature Range K: -200 to 1370°C; J: -100 to 760°C; E: -100 to 700°C; T: -200 to 400°C
Special Functions Easy Step, Auto Ramp, Percentage Input, Negative Output (via lead reversal)
Operating Temperature 0 to 50°C (32 to 122°F)
Operating Humidity <85% relative humidity
Storage Temperature -20 to 60°C (-4 to 140°F)
Included Accessories Carrying case, user manual, K-type thermocouple connector, external battery pack holder, 6xAA batteries, test leads with alligator clips
Safety Warnings Beeper when output is open (mA) or short (mV/V)

Frequently Asked Questions - 123 PCE Instruments

How do I set the mA output to 4-20mA?
Turn on the calibrator, wait for the STBY symbol to disappear. Plug test leads. Set the sliding switch to mA position. Enter the value directly using the keypad, then press ENTER if less than 5 digits. The default range is 4-20mA.
How can I select a different thermocouple type?
Press the SHIFT button to enter SHIFT mode. Press NUMBER 6 button repeatedly to cycle through K, J, E, T. Press SHIFT again to exit.
How do I use the auto ramp function?
In mA, mV, or V function, press SHIFT to enter SHIFT mode. Press NUMBER 7 to start auto ramp. It cycles from 0% to 100% and back. Press NUMBER 7 again to stop; press SHIFT to return to regular output.
What does the STBY symbol mean?
STBY (Standby) indicates the calibrator is performing internal calibration. Wait until the symbol disappears (about 1-2 minutes) before operating.

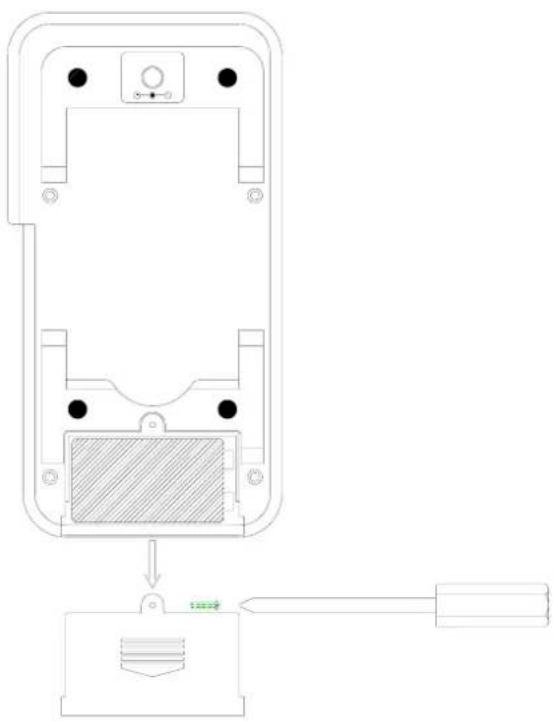

How do I replace the battery?
Turn off the calibrator. Remove the screw on the battery compartment cover. Replace the old 9V battery with a new alkaline 9V battery. Replace the cover and fasten the screw.

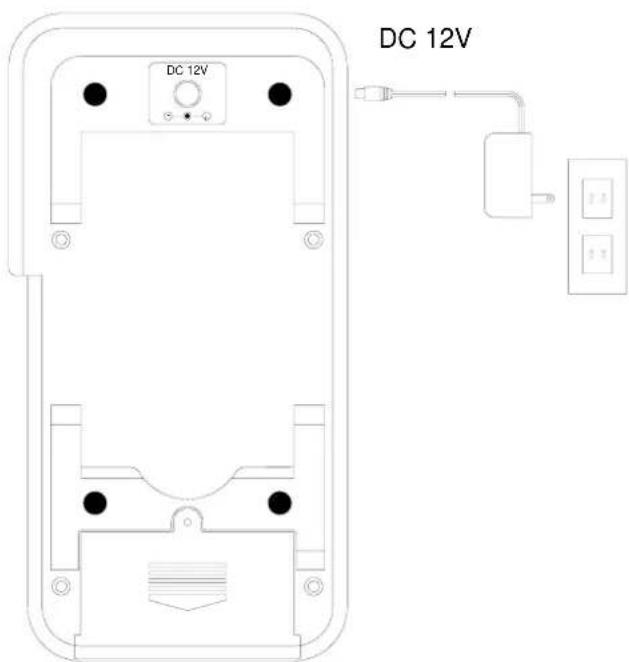

Can I use an AC adapter instead of battery?
Yes. The 12V AC adapter input is located on the back. Use a regulated 9-15V AC adapter for long-term usage.
What is the accuracy of the mA output?
The mA output has a basic accuracy of ±0.025% ± 3 µA at 23°C ±5°C, 5 minutes after power-on.
How do I enter a negative temperature for thermocouple calibration?
In °C or °F function, press the minus '-' button first, then enter the numeric value. The decimal point is used as the minus sign, and resolution is 1 degree.
How do I use the percentage input mode?
In mA, mV, or V function, press SHIFT. Press '%' button, then enter a number (0-100). The upper LCD shows percentage, lower shows corresponding value. Press SHIFT to exit.
What accessories come with the calibrator?
The package includes: carrying case, user manual, K-type thermocouple connector, external battery pack holder, 6xAA batteries, and test leads with alligator clips.

User questions about 123 PCE Instruments

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Multimeter in PDF format for free! Find your manual 123 - PCE Instruments and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 123 by PCE Instruments.

USER MANUAL 123 PCE Instruments

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

info@pce-instruments.com

www.pce-instruments.com/english

www.pce-instruments.com

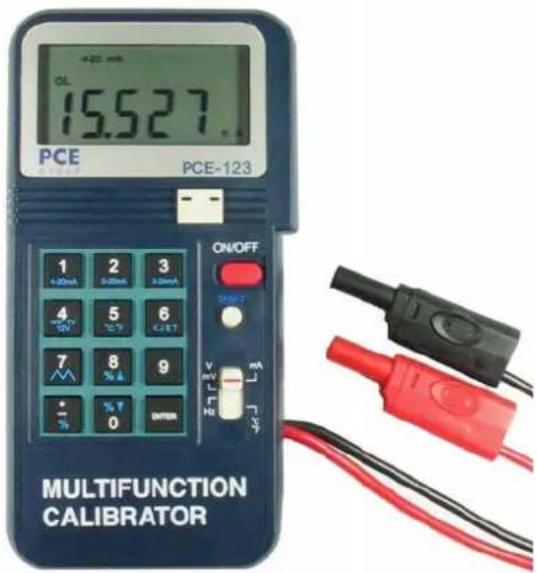

PCE Instruments 123 - 1

  1. 4-20mA (1KΩ load, 24V Loop Supply)
  2. 0-100.00mV, 0-1.000V, 0-12.000V
  3. K, J, E, T Thermocouple (° C and ° F)
  4. Frequency 1-62500 Hz
  5. 0.025% Basic Accuracy
  6. Easy Key-pad Operation
  7. Easy Step and Auto Ramp Functions
  8. 0-20mA, 0-24mA selectable
  9. 0-100% Input (mA, mV, V)

  10. Beeper warning when output is open (mA) or short (mV,V)

Table of Contents

I. PANEL DESCRIPTION ....1

II. OPERATING INSTRUCTION ....6

  1. MA OUTPUT ....6

1a. General Operation 4 - 20mA....6
1b. Select 0 - 20mA or 0 - 24mA 7
1c. Enter a value less than 1....8

  1. MV, V OUTPUT....9

2a. General Operation 0 - 100mV....9
2b. Select 0 - 1V or 0 - 12V ....10
2c. Enter a value less than 1....11

  1. Hz, FREQUENCY OUTPUT 12

4a. General Operation....13
4b. Select °C, or °F 15
4c. Select K, J, E, or T type Thermocouple....17
4d. Enter a Negative Temperature....18

  1. % INPUT IN THE MA, MV, V FUNCTIONS .....19

  2. EASY STEP IN THE MA, MV, AND V FUNCTIONS .....21

  3. AUTO RAMP IN THE MA, MV, AND V FUNCTION....23

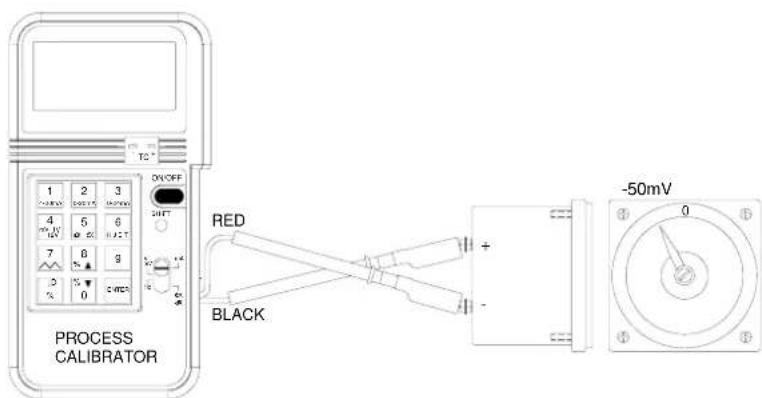

  4. HOW TO GET NEGATIVE OUTPUT....26

III. ELECTRICAL SPECIFICATION....27

IV. USE THE AC ADAPTER....32

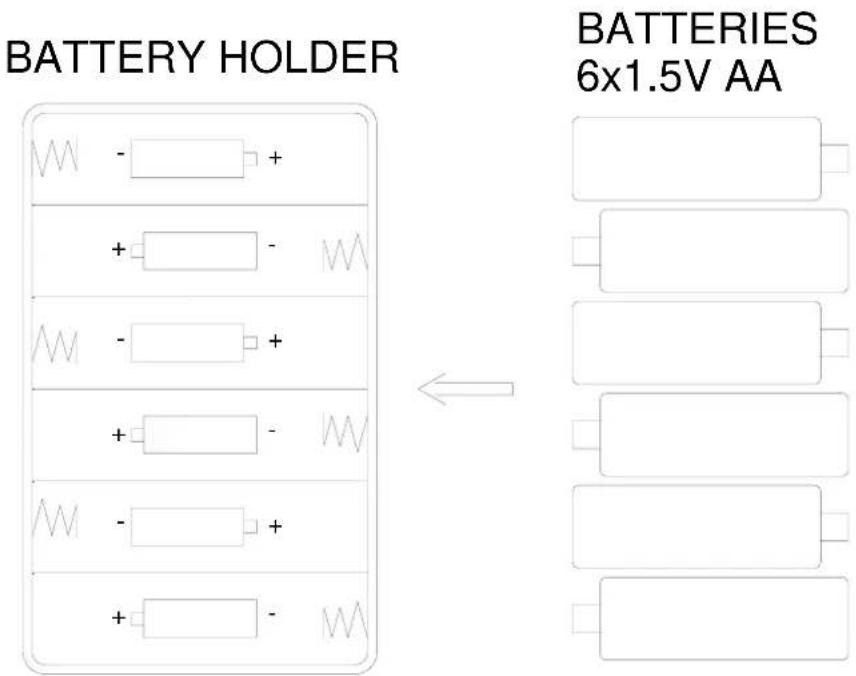

V. USE EXTERNAL BATTERY PACK....33

VI. BATTERY REPLACEMENT....34

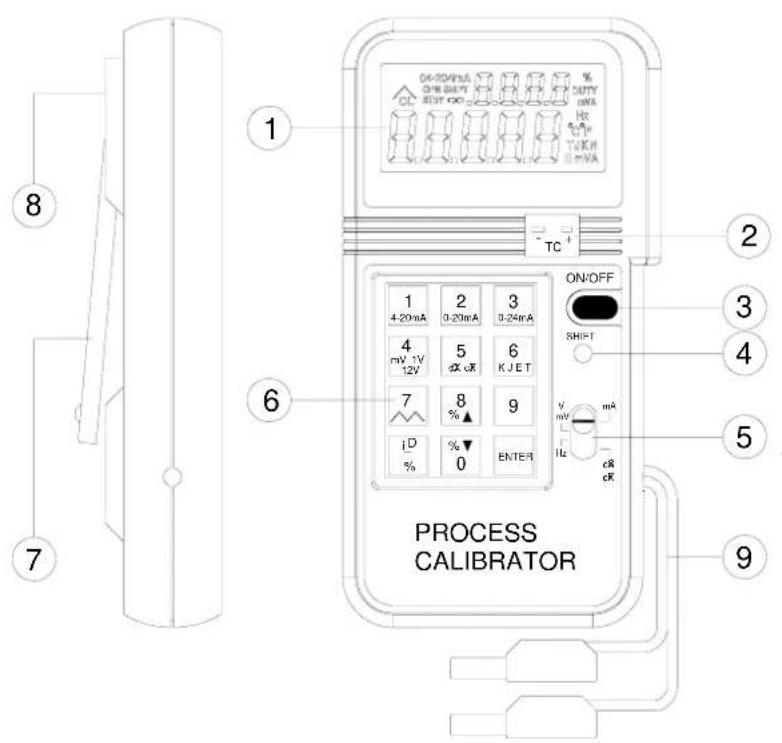

I. Panel Description

04-20mA OUT OUTY UHNA Hz %V TJKH mA TC 1 2 3 4 5 6 7 8 9 iD % 0 ON/OFF SHIFT mV mA Hz eR eK PROCESS CALIBRATOR 8 7 6 9

  1. LCD DISPLAY 6. NUMERICAL & FUNCTION KEYPAD
  2. THERMOCOUPLE SOCKET 7. STAND
  3. ON/OFF BUTTON 8. AC ADAPTOR INPUT SOCKET
  4. SHIFT BUTTON 9. OUTPUT LEADS
  5. FUNCTION SELECT SWITCH

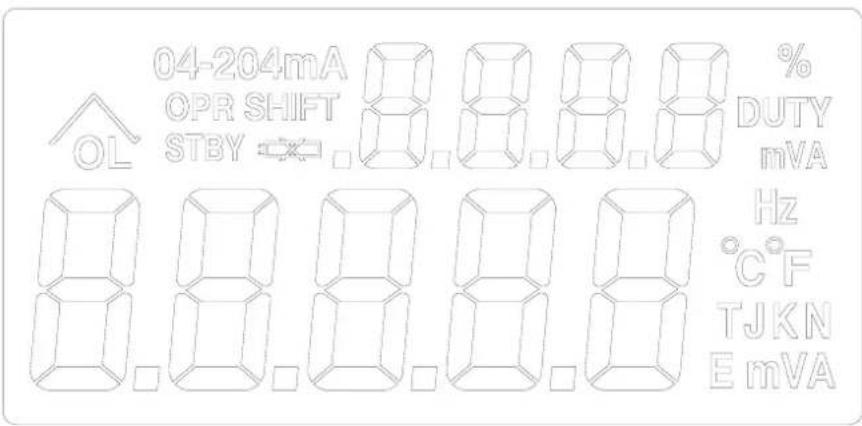

04-204mA OPR SHIFT 8.8.8.8 % STBY 8.8.8.8 mVA Hz °C F TJKN E mVA

1.mVAHz:Units
2. 04-204mA : Range of mA
3. %: Percentage
4.JKET: Thermocouple type
5. ^ : Ramp
6. OPR : Operate, Output, Normal
7. OL: Overload, Output, Abnormal
8. STBY: Standby, Internal Calibration in Progress
9. SHIFT: Select SHIFT functions

  1. : Battery low

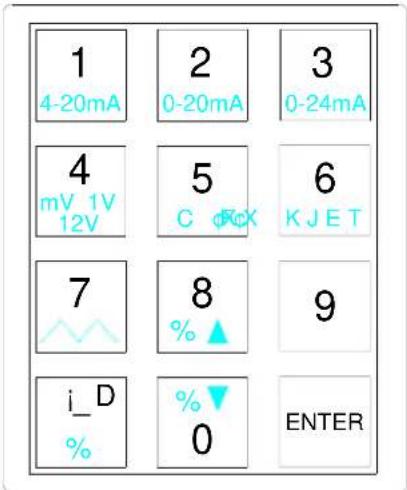

1 4-20mA 2 0-20mA 3 0-24mA 4 mV 1V 12V 5 C φCK 6 KJET 7 8 % 9 i_D % 0 ENTER

1

PCE Instruments 123 - Panel Description - 4

Press SHIFT button, and then press one of these three buttons to select desired mA range

2.

PCE Instruments 123 - Panel Description - 5

Press SHIFT button, then press this button to select desired mV or V range

3.

5 00000 F

Press SHIFT button, then press this button to select °C or °F

4.

6 KJET

Press SHIFT button, then press this button to select desired type of thermocouple.

5.

7

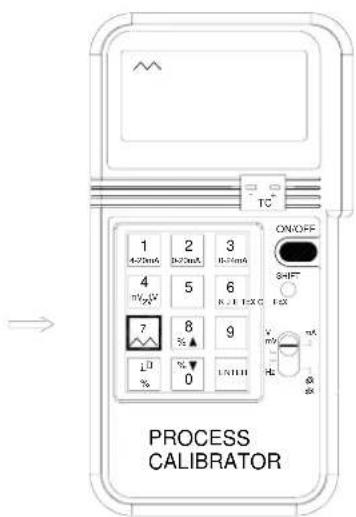

Press SHIFT button, then press this button to perform auto-ramp function. To stop the auto-ramp function, press this button again

6.

i_D %

4

Press this button to enter negative temperature. Or press SHIFT button, then press this button first to enter percentage in the mA, mV, and V functions.

7.

8 % ▲ % ▼ 0

While the calibrator is in the SHIFT mode, and the percentage is entered, press this button to increment %.

8.

PCE Instruments 123 - Panel Description - 11

Always press this button to complete the entry of numbers.

II. Operating Instruction

  1. mA Output

1a. General Operation 4 - 20mA

1 Turn the power on, and wait until the STBY symbol disappears (about 1

min.)

2 Plug the test leads into the output connectors of calibrator accordingly (Black to black, red to red). Attach alligator clip if necessary.

3 Move the sliding switch to mA position

4 Press the keypad (including the decimal point) to enter the value of mA directly.

5 Using the test leads or alligator clips, touch or clip on the terminals to be calibrated.

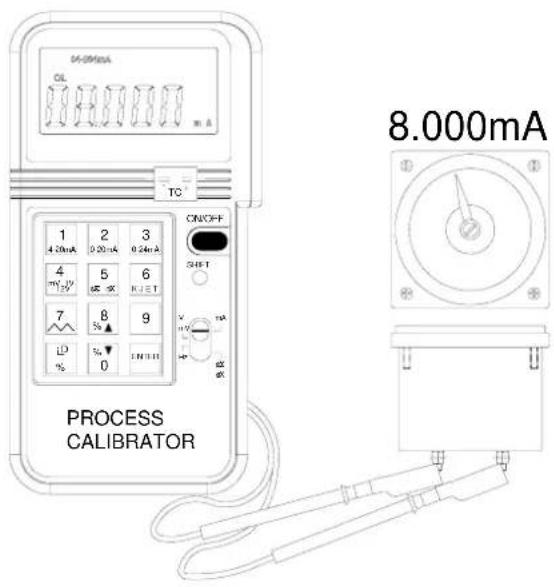

0-20mA OL mA TC 1 2 3 4 5 6 mV 7 8 9 L0 % 0 CNVCHF PHI-T V mA S 8.000mA PROCESS CALIBRATOR

Note: Always waits until STBY (standby) symbol in the LCD disappears before any operation.

Note: Maximum 5 digits can be entered. If users enter less than 5 digits (1 to 4 digits), users must press ENTER button to indicate the end of entry. If users enter 5 or more digits, calibrator will automatically end the entry and output specified value current.

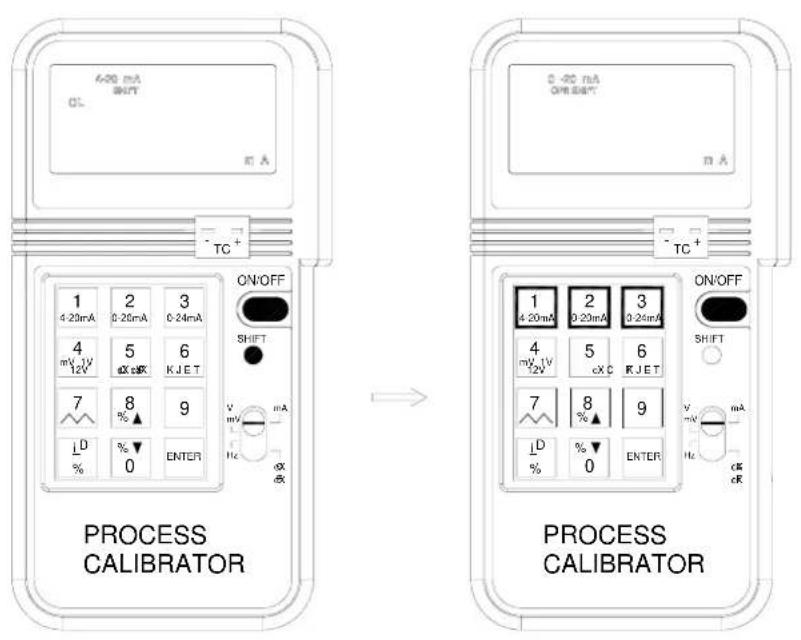

1b. Select 0 - 20mA or 0 - 24mA

The default setting for mA function is 4 - 20mA. But users can select 0 - 20mA or 0 -24 mA by pressing the SHIFT button to enter the SHIFT mode. Then press the NUMBER 2 or NUMBER 3 button to select desired DC current range. After desired range is selected, press the shift button to exit the SHIFT mode. Corresponding current range symbol will be displayed in the LCD.

4-20 mA CL 6 A TC+ 1 2 3 4.20mA 0.20mA 0.24mA mV 1V 5 6 12V dX cX K J E T 7 8 9 % ▲ D % ▼ % 0 ENTER ON/OFF SHIFT V mV mA Hz dX dX PROCESS CALIBRATOR C -20 mA ON/OFF TC+ 1 2 3 4.20mA 0.20mA 0.24mA mV 1V 5 6 12V dX c X K J E T 7 8 9 D % ▼ % 0 ENTER ON/OFF SHIFT V mV mA Hz dX cX dX PROCESS CALIBRATOR

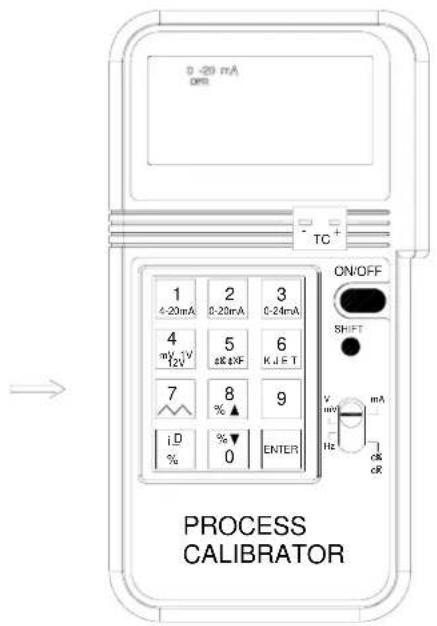

0 -20 mA OFF TC+ 1 2 3 ON/OFF 4 5 6 mV, 1V 2.2mA 3.2mA 12V 4.8kΩF KJET 7 8 9 iD %▲ % 0 ENTER PROCESS CALIBRATOR SHIFT V mV Hz mA CK OK

1c. Enter a value less than 1

In the mA functions, the standard way to enter a value less than 1 is to press leading 0 before pressing the decimal point. Though the decimal point can be entered, the decimal point will not be shown in the LCD.

2. mV, V Output

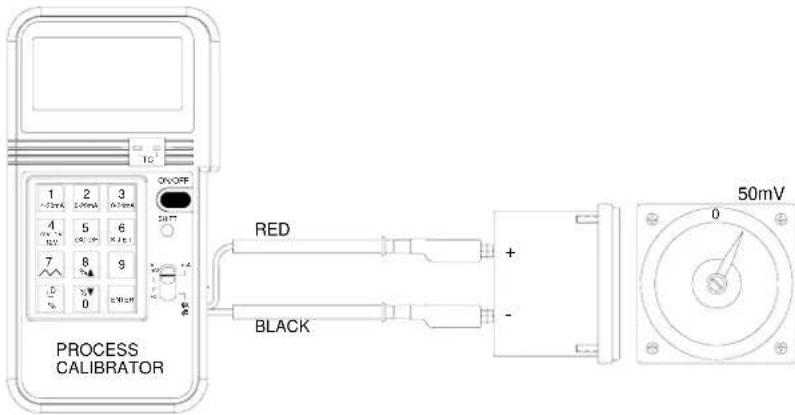

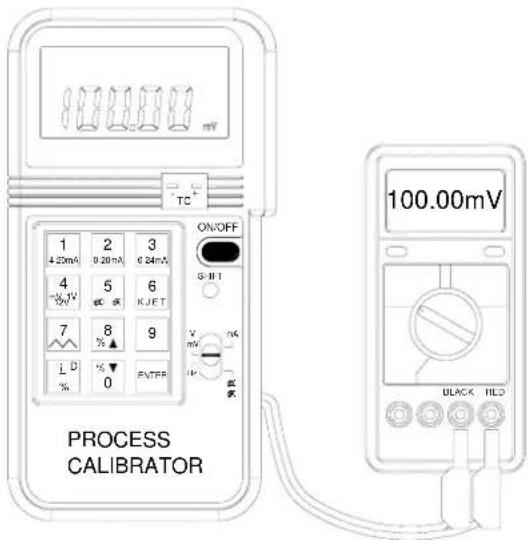

2a. General Operation 0 - 100mV

  1. Turn the power on, and wait until the STBY symbol disappears (about 2 min.).

  2. Plug the test leads into the output connectors of calibrator accordingly (Black to black, red to red). Attach alligator clip if necessary.

  3. Move the sliding switch to mV, V position

  4. Press the keypad (including the decimal point) to enter the value of mA directly.

  5. Using the test leads or alligator clips, touch or clip on the terminals to be calibrated.

mV TC 1 2 3 4.25mA 0.20mA 0.24mA 4 5 6 10V 10V 10V 7 8 9 i U % ▼ P/TPR % ▼ ON/OFF S-III-T V mV 10V 10V 100.00mV BLACK TLD PROCESS CALIBRATOR

Note: Always wait until STBY (standby) symbol in the LCD to disappear before any operation.

Note: Maximum 5 digits can be entered. If users enter less than 5 digits (1 to 4 digits), users must press ENTER button to indicate the end of entry. If users enter 5 or more digits, calibrator will automatically end the entry and output specified value current.

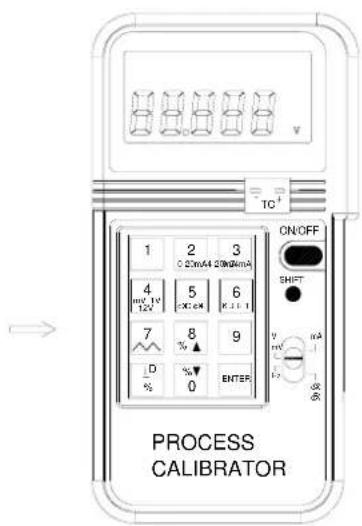

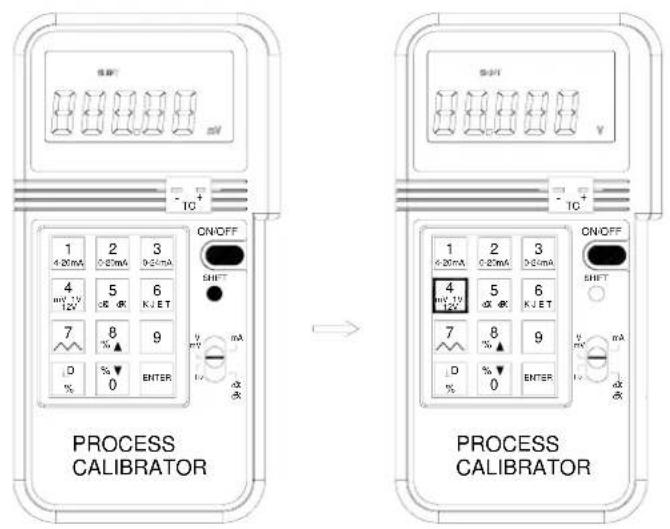

2b. Select 0 - 1V or 0 - 12V

The default setting for mV, V function is 0 - 100.00mV. Users can select 0 - 1.0000V or 0 -12.000V by pressing the SHIFT button to enter SHIFT mode. Then press the NUMBER 4 button repeatedly to select desired DC voltage range. After desired range is selected, press the SHIFT button again to exit the SHIFT mode. Corresponding voltage range symbol will be displayed in the LCD.

Process CALIBRATOR ON/OFF 1 2 3 4 5 6 4 5 6 mV 1V 12V 0K KJET 7 8 9 D % ▲ % 0 ENTER ON/OFF 1 2 3 4 5 6 4 5 6 4 5 6 4 5 6 7 8 9 D % ▲ % 0 ENTER ON/OFF 1 2 3 4 5 6 4 5 6 4 5 6 7 8 9 D % ▲ % 0 ENTER

TC 1 2 3 C:20mA/4 20mA/mA 4 5 6 mv.1V 125 C/C.CM E.I.I. I 7 8 9 D % ▲ % 0 ENTER ON/OFF SHIFT % HV R S PROCESS CALIBRATOR

2c. Enter a value less than 1

In the mV/V functions, the standard way to enter a value less than 1 is to press the leading 0 before pressing the decimal point. Though the decimal point can be entered first, the decimal point will not be shown in the LCD.

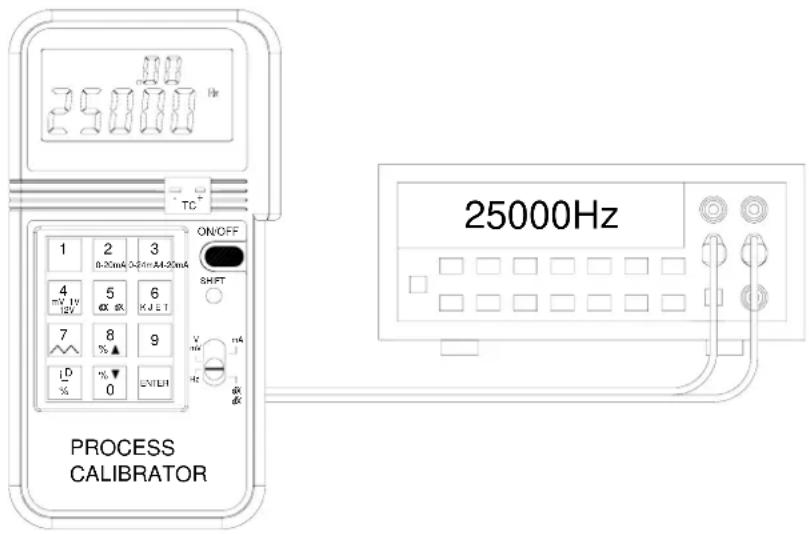

3. Hz, Frequency Output

  1. Turn the power on, then plug the test leads into the output connectors of calibrator accordingly (Black to black, red to red). Attach alligator clip if necessary.

  2. Move the sliding switch to Hz position

  3. Press the keypad (excluding the decimal point) to enter the value of Hz directly.

  4. Using the test leads or alligator clips, touch or clip on the terminals to be calibrated.
  5. Because not all the frequencies are available between 126 to 62500Hz, calibrator will automatically adjust and display the users input value to a frequency, which is available and always larger or equal to users input.

25 Hz TC+ 1 2 3 0-20mA 0-24mA 4A-20mA 4 5 6 mV 1V 6X 8K J E T 7 8 9 % ▲ LD % ▼ % 0 LVT LH ON/OFF SHIFT V R dX dX PROCESS CALIBRATOR 25000Hz

Note: The resolution of Hz function is 1 Hz. For the range 1-12 5Hz, all the frequencies in between are available. But for the range 126 - 62500Hz, not all the frequencies are available (total 604 frequencies available). Please refer to section III Electrical Specifications for available frequencies.

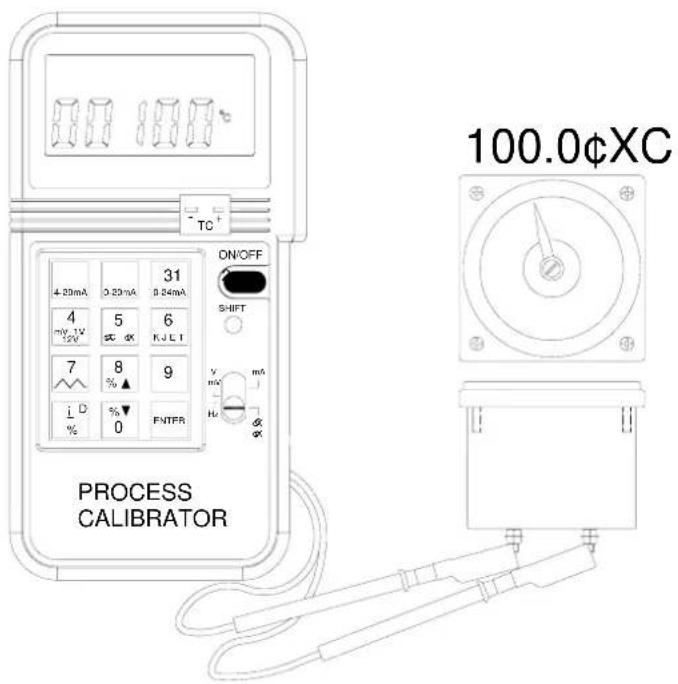

  1. Thermocouple Calibration of °C, °F.

4a. General Operation

  1. Turn the power on, and wait until the STBY symbol disappears (about 1 min.).

  2. Plug the corresponding connector (K-type connector for K-type thermocouple, J-type connector for J-type thermocouple, ...) into TC terminals of calibrator and thermometer to be calibrated.

  3. Move the sliding switch to °C, °F position

  4. Press the keypad (including the minus - button) to enter the value of Temperature directly.

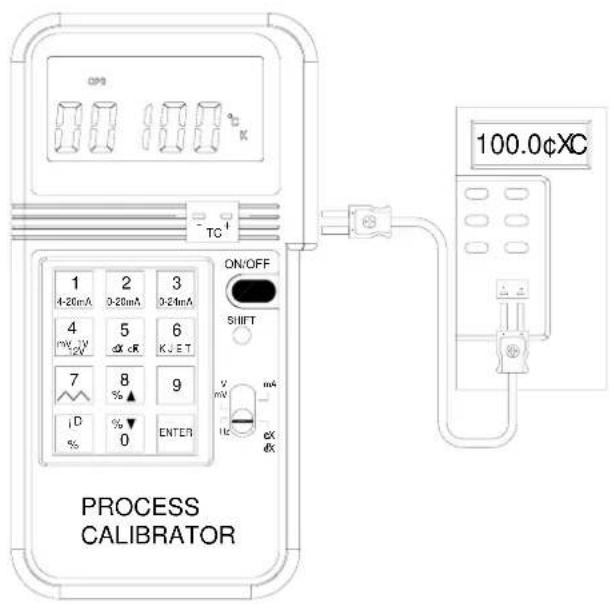

OP3 TC 1 4-20mA 2 3 0-20mA 3-24mA 4 mW 1V 2V 5 dX 6 cR KJ ET 7 8 % 9 iD % 0 ENTER ON/OFF SHIFT V mV 1k mA cX dX 100.0¢XC PROCESS CALIBRATOR

100.0¢XC ON/OFF 4-20mA 0.20mA 0.24mA 31 4 5 6 ~W % 7 K J L I % D % 8 9 % 0 ENTER PROCESS CALIBRATOR

Note: Users can plug the connector into the TC terminals of calibrator even before the power is turned on for better thermal equilibrium between the TC terminal and thermocouple connector.
Note: Only in the °C and °F functions, the negative values are allowed to be entered. To enter negative temperature, press the minus"-" button first.
Note: Maximum 4 digits (including the "-" sign) can be entered. If users enter less than 4 digits (1 to 3 digits), users must press ENTER button to indicate the end of entry. If users enter 4 or more digits, calibrator will automatically end the entry and output specified value of temperature.

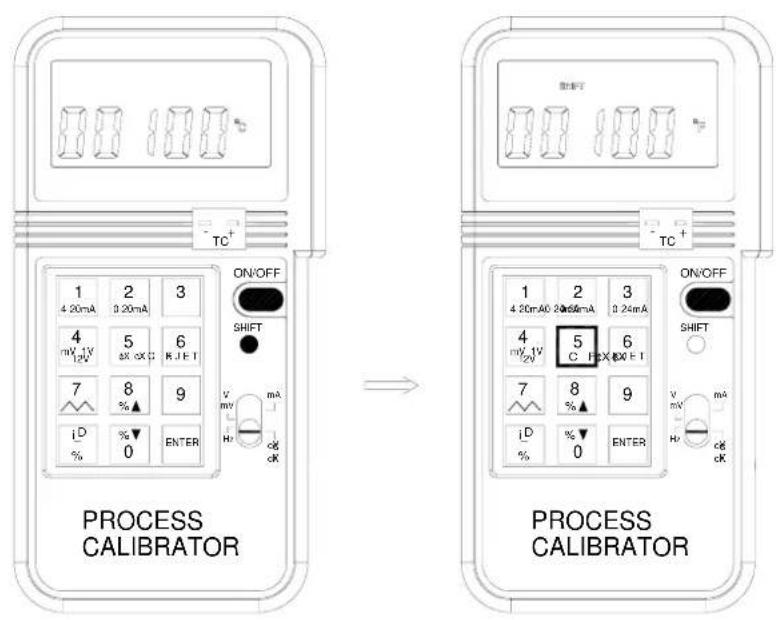

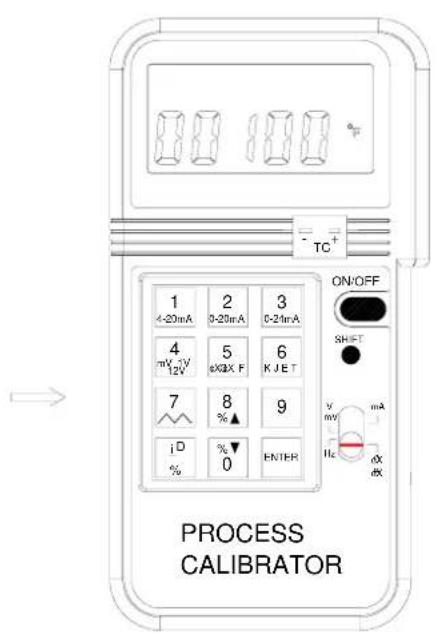

4b. Select °C, or °F

Users can select °C or °F by pressing the shift button to enter SHIFT mode. Then press the NUMBER 5 button repeatedly to select desired temperature unit. After desired unit is selected, press the SHIFT button again to exit the SHIFT mode.

Corresponding voltage °C or °F symbol will be displayed in the LCD.

ON/OFF 1 2 3 4 5 6 mV 1V 2A 3A 12V 3X 4X 5X 7 8 9 iD %▲ % ▼ 0 ENTER SHIFT V mv mA Hz cK TC+ → ON/OFF 1 2 3 4 5 6 mV 1V 2A 3A 12V 3X 4X 5X 7 8 9 iD %▼ % ▼ 0 ENTER SHIFT ON/OFF PROCESS CALIBRATOR PROCESS CALIBRATOR V mV mA Hz cK

1 4-20mA 2 0-20mA 3 0-21mA 4 mV 1V 12V 5 6 6X8 X F K J E T 7 8 % 9 iD % 0 ENTER ON/OFF SHIFT Y mV mA Hz dX dX PROCESS CALIBRATOR

4c. Select K, J, E, or T type Thermocouple

Users can select K, J, E, or T type Thermocouple by pressing the shift button to enter SHIFT mode. Then press the number 6 button repeatedly to select desired type of thermocouple. After desired type is selected, press the shift button again to exit the SHIFT mode. Corresponding thermocouple type (K, J, E, or T) symbol will be displayed in the LCD.

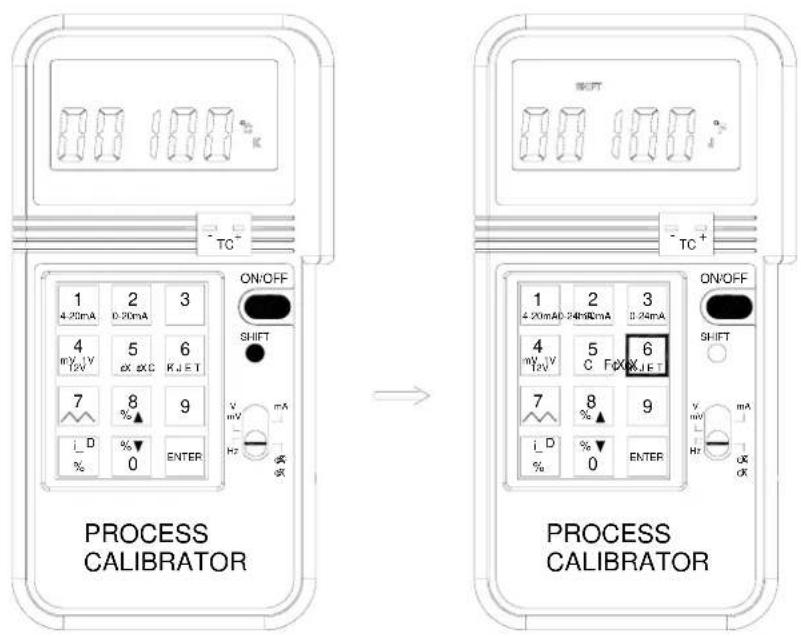

1 4.20mA D 20mA 3 4 mV 1V 12V 6 ex exC K J E T 7 8 % i_D % 0 ENTER ON/OFF SHIFT V mA Hz → 1 4.20mA D 20mA 3 D 20mA 5 mV 1V 12V 6 C F x X J E T 7 8 % i_D % 0 ENTER ON/OFF SHIFT V mA Hz OK OK PROCESS CALIBRATOR PROCESS CALIBRATOR

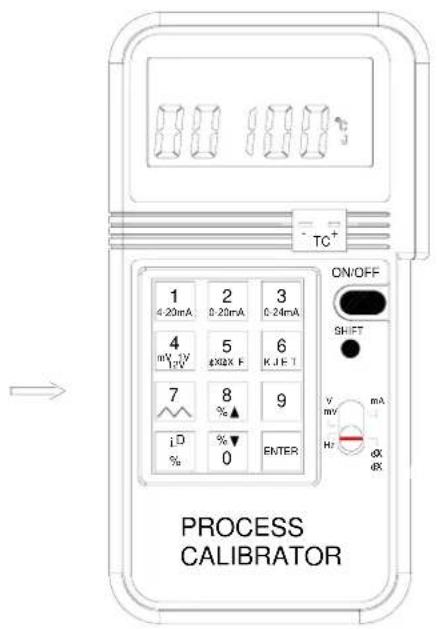

TC+ 1 2 3 4 5 6 mV 1V 20kF KJET 7 8 9 iD % ▲ % 0 ENTER ON/OFF SHIFT v mV mA H φX φX PROCESS CALIBRATOR

4d. Enter a Negative Temperature

The resolution of temperature is 1 degree, so the decimal point is used a minus "-" sign. To enter a negative temperature, press the "-" button first.

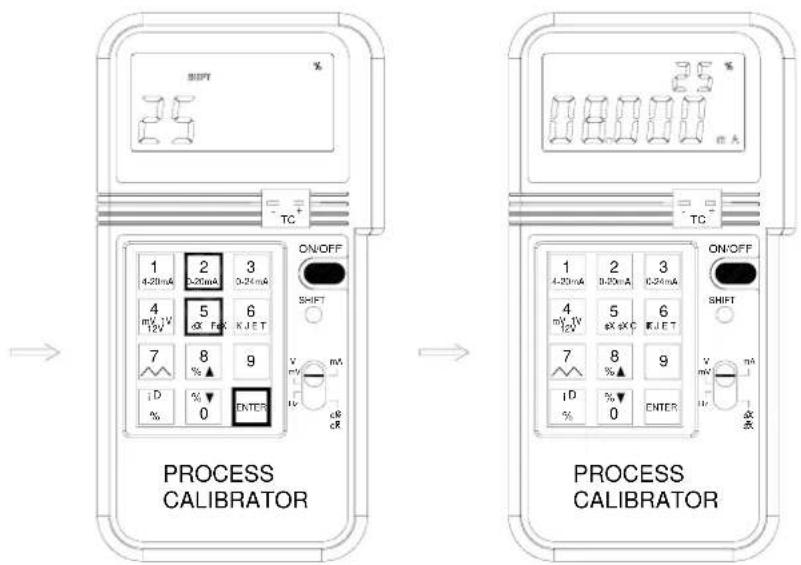

  1. % input in the mA, mV, V functions

In the mA, mV, or V function, users can enter percentage. To enter percentage (%)

  1. Users press the shift button first, then SHIFT symbol will be displayed in the LCD.
    2 Press % button first, then press the number (no decimal number, the % resolution is 1%).
    3 After percentage is entered, the percentage will be displayed in the upper LCD, and the corresponding value will be displayed in the lower LCD.

  2. The corresponding value is calculated based upon the range selected.

4-20mA: 1% = 0.16mA

0-20mA: 1% = 0.2mA

0-24mA: 1% = 0.24mA

0-100mV: 1% = 1mV

0-1V: 1% = 0.01V

0-12V: 1% = 0.12V

  1. To exit the percentage-input mode, press the SHIFT button again.

  2. After the SHIFT button is pressed, the upper LCD will become blank, while the lower LCD retains its last value.

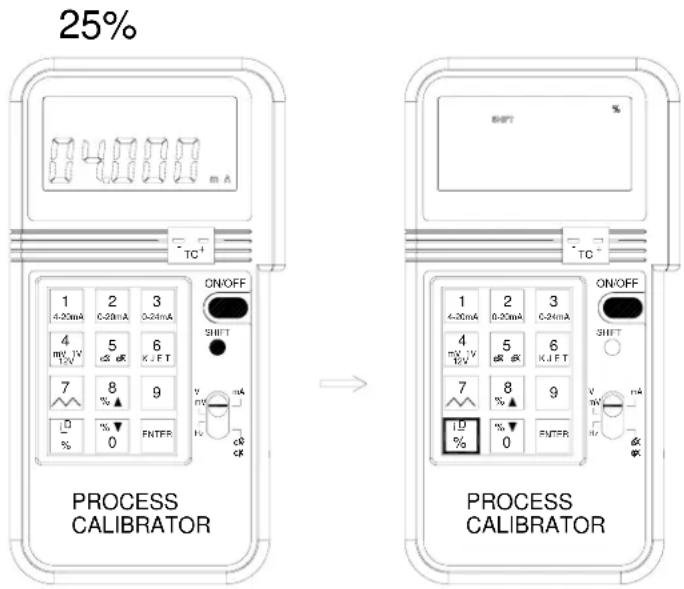

25% TC 1 4-20mA 2 3 0-24mA 4 mV/V 5 KJFT 7 8 9 D % ▲ % ▼ ON/OFF SHIFT Process CALIBRATOR 1 4-20mA 2 3 0-24mA 4 mV/V 5 KJFT 7 8 9 D % ▲ % ▼ ON/OFF SHIFT → PROCESS CALIBRATOR 1 4-20mA 2 3 0-24mA 4 mV/V 5 KJFT 7 8 9 D % ▲ % ▼ ON/OFF SHIFT V mV/V 6 KJFT DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC AC TC

SHIFT % TC 1 2 3 4.28mA D-20mA D-24mA mV 1V 5 6 12V α Fe K J E T 7 8 9 iD % ENTER % % 0 ON/OFF SHIFT V mV cR aR PROCESS CALIBRATOR ON/OFF SHIFT 1 2 3 4.28mA D-20mA D-24mA 4 mV 1V 5 6 12V α Fe K J E T 7 8 9 1D % ENTER % % 0 PROCESS CALIBRATOR

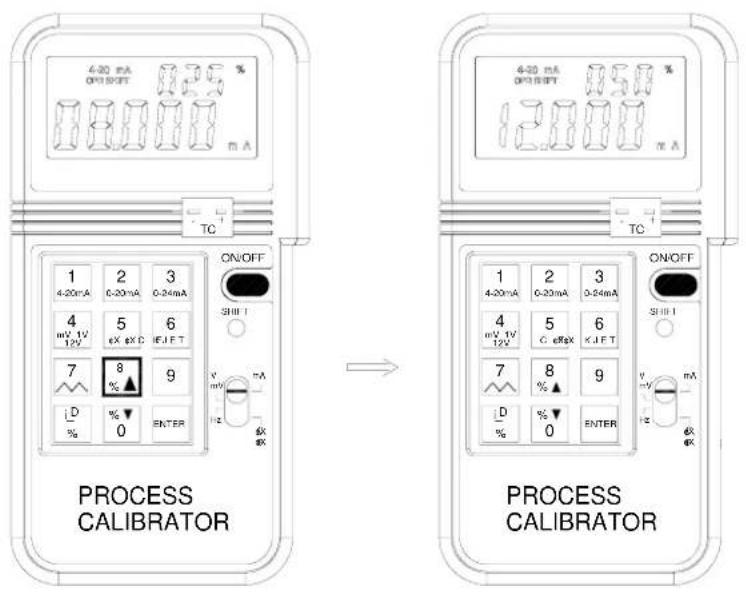

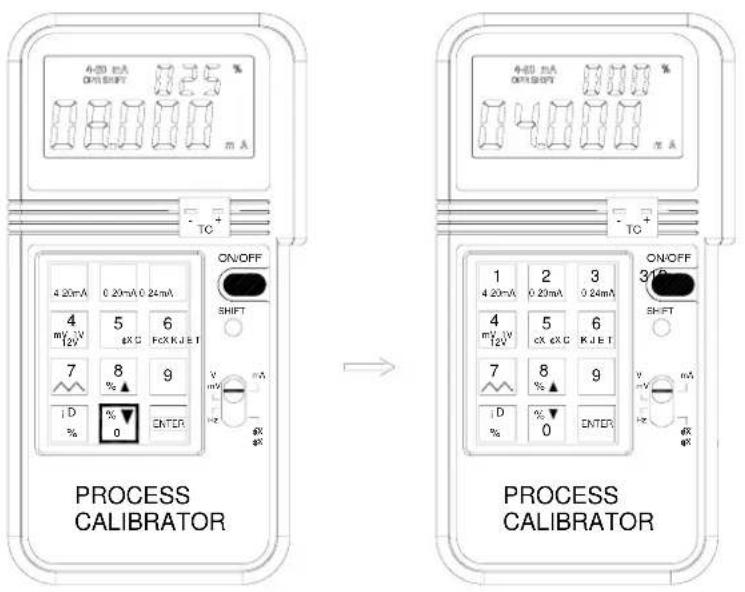

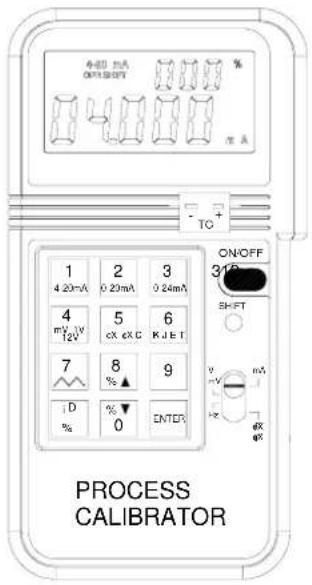

  1. Easy Step in the mA, mV, and V Functions

While the percentage is entered and calibrator is still in the SHIFT mode, users can step up or down by the percentage entered. The maximum percentage is 100% while the minimum percentage is 0%. If the next step up or down exceeds the maximum or minimum percentage, the percentage will stay in the previous step.

Example 1: Step Up and Down(25%):

25% -> 50% -> 75% -> 100% -> 75% -> 50% -> 25% -> 0% -> 25%

Example 2: Step Up and Down(30%):

30%->60%->90%->60%->30%->0%->30%

4-20 mA ON/OFF TC 1 2 3 4-20mA 0-20mA 0-24mA mV, 1V 6x 8xC 9EJ T 7 8 9 iD % ▼ % 0 ENTER ON/OFF THI1 V mA 1/2 Process CALIBRATOR 4-20 mA ON/OFF 4 5 6 mV, 1V 6x 8xC 9EJ T 7 8 9 iD % ▼ % 0 ENTER ON/OFF THI1 4-20mA 0-20mA 0-24mA 4 mV, 1V C effX KJ F T 7 8 9 iD % ▼ % 0 ENTER PROCESS CALIBRATOR

PCE Instruments 123 - Hz, Frequency Output - 11

4-20 mA ON/OFF SHIFT mA TC+ 4-20 mA ON/OFF SHIFT mA 4-20 mA ON/OFF SHIFT mA 4 20mA 0.20mA 0.24mA 4 mV 1V 12V 6 8 FCK K J E T 7 % 1D % 0 ENTER ON/OFF SHIFT V mA mV - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - * % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % %

PCE Instruments 123 - Hz, Frequency Output - 13

4-HD mA ON/OFF % π Å TC+ 1 4.20mA 2 0.23mA 3 0.24mA 4 mV 1V 12V 5 ex EX C 6 K J E T 7 8 % 9 D % 0 ENTED ON/OFF 310° SK-FT v mV 12V ex EX %

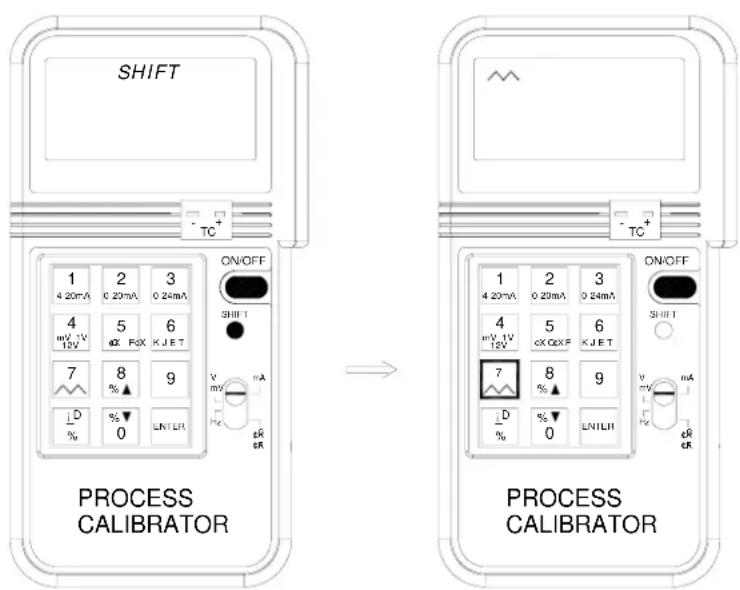

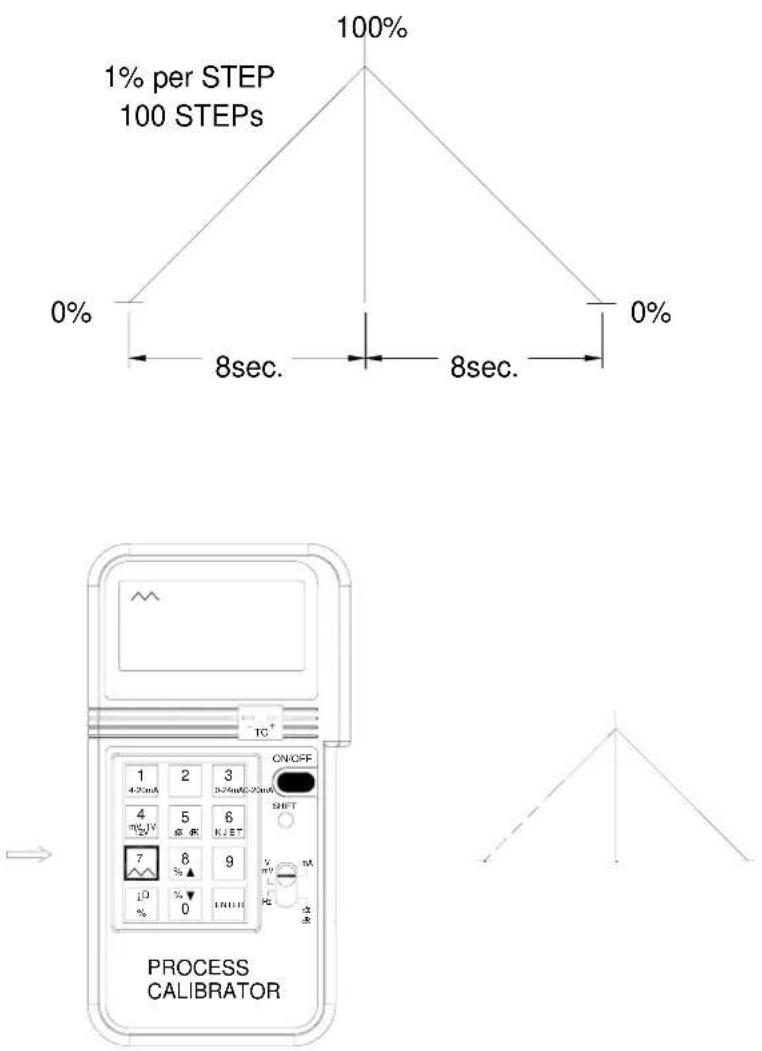

7. Auto Ramp in the mA, mV, and V functions

In the mA, mV, and V function, auto ramp function is available to the users. To start the ramp function:

  1. Press the SHIFT button to enter the SHIFT mode.
  2. Press the NUMBER 7 key to start
  3. Ramp function increment from 0% to 100%, then decrements from 100% to 0% repeatedly. The resolution of each step is 1% (with respect the range selected) at an interval of 0.08 seconds. So it takes 8 seconds to ramp from 0 to 100%.

  4. To temporarily stop the ramp function, press the NUMBER 7 key, and the output will stay at the value when the NUMBER 7 key is pressed. These features will facilitate the checking of trigger point of tested device, such as valve controller.

  5. To restart again, press the NUMBER 7 button again.

  6. To return to the regular output mode, press the SHIFT button again when ramp function is stopped.

SHIFT TC+ 1 2 3 4 20mA 0.20mA 0.24mA 4 5 6 mV 1V 4X F/X K J E T 7 8 9 D % ▲ % ▼ LNT LH ON/OFF SHIFT V mV mA HV eR OR PROCESS CALIBRATOR → 1 2 3 4 20mA 0.20mA 0.24mA 4 5 6 mV 1V 4X F/X K J E T 7 8 9 D % ▼ % ▼ LNT LH ON/OFF SHIFT V mV mA HV eR OR PROCESS CALIBRATOR

PCE Instruments 123 - Auto Ramp in the mA, mV, and V functions - 2

TC 1 2 3 4 5 6 7 8 9 10 0 ON/OFF SHIFT FOX PROCESS CALIBRATOR

PCE Instruments 123 - Auto Ramp in the mA, mV, and V functions - 4

natural_image Simple geometric diagram showing a triangle with two dashed lines extending from its vertices (no text or symbols)

Note: Do not press any button while the calibrator is performing the ramp function (except NUMBER 7 button to stop the ramp function).

8. How to Get Negative Output

If negative output (mA, mV, or V) is needed, users can achieve it by interchange the connection of test leads.

ON/OFF 1 2 3 4 5 6 7 8 9 0 PROCESS CALIBRATOR RED BLACK + - 50mV 0

ON/OFF 1 2 3 4 5 6 7 8 9 3 0 0 PROCESS CALIBRATOR RED BLACK -50mV 0

III. Electrical Specification (23°C ± 5°C, 5 minutes after power is on)

mA DC Current (1KΩ Max. Load, 24V Loop Supply)

RangeResolutionAccuracy
4 - 20mA, 0 - 20mA, 0 -24 mA 1 A ± 0.025% ± 3 A

Beeper warning when output is open and specified current output > 1mA

mV, V DC Voltage (1mA Supply Current)

RangeResolutionAccuracy
0 - 100.00mV 10 V ± 0.05% ± 30 V
0 - 10.000V 1mV ± 0.05% ± 3mV
0 - 1.0000V 100 V ± 0.05% ± 300 V

Beeper warning when output is short and specified voltage output > 10mV

K, J, E, T type Thermocouples(1°C, 1°F Resolution, 1KΩ load Min.)

RangeAccuracyRangeAccuracy
K: -200 to 0 °C°C K: -328 to 321.1 °F°F ±
K: 0 to 1370 °C°C K: 32 to 24008 °F°F ±
J: -100 to 0 °C°C J±-148 to 32 0.9 °F°F ± 1.6
J: 0 to 760 °C± 0.7°C J: 32 to 1400 °F°F ±
E: -100 to 0 °C°C E±-148 to 320.9 °F°F ±
E: 0 to 700 °C°C E±327 to 1292 °F°F ±
T: -200 to 0 °C°C T±-328 to 321.0 °F± 1.8°F
T: 0 to 400 °C± 0.8°C T: 32 to 752 °F°F ± 1.5

2.0

1.5

1.2

1.6

1.2

Frequency (1 - 125Hz, 1K_ Load Min.)

RangeResolutionAccuracy
1 - 125 Hz 1 Hz ± 0.04Hz

Available Frequencies
(126 - 62500Hz, Accuracy ± 0.01% ± 0.04Hz, 1KΩ Load Min):

126.00127.03128.07129.13130.20131.30132.41133.54
134.12135.28136.46137.06138.27139.50140.13141.40
142.04143.34144.00145.34146.02147.40148.10149.52
150.24151.69152.43153.18154.70155.47156.25157.03
158.62159.43160.25161.08162.76163.61164.47165.34
166.22167.11168.01169.83170.76171.70172.65173.61
174.58175.56176.55177.55178.57179.59180.63181.68
182.74183.82184.91186.01187.12188.25189.39190.54
191.71192.90194.09195.31196.54197.78199.04200.32
201.61202.92204.24205.59206.95208.33209.73211.14
212.58214.04215.51217.01218.53220.07221.63223.21
224.82226.44228.10229.77231.48233.20234.96236.74
238.54240.38242.24244.14246.06248.01250.00252.01
254.06256.14258.26260.41262.60264.83267.09269.39
271.73274.12276.54279.01281.53284.09286.69289.35
292.05294.81297.61300.48303.39306.37309.40312.50
315.65318.87322.16325.52328.94332.44336.02339.67
343.40347.22351.12355.11359.19363.37367.64372.02
376.50381.09385.80390.62395.56400.64405.84411.18
416.66422.29428.08434.02440.14446.42452.89459.55
466.41473.48480.76488.28490.19492.12494.07496.03
498.00500.00502.00504.03506.07508.13510.20512.29
514.40516.52518.67520.83523.01525.21527.42529.66
531.91534.18536.48538.79541.12543.47545.85548.24
550.66553.09555.55558.03560.53563.06565.61568.18
570.77573.39576.03578.70581.39584.11586.85589.62
592.41595.23598.08600.96603.86606.79609.75612.74
615.76618.81621.89625.00628.14631.31634.51637.75
641.02644.32647.66651.04654.45657.89661.37664.89
668.44672.04675.67679.34683.06686.81690.60694.44
698.32702.24706.21710.22714.28718.39722.54726.74
730.99735.29739.64744.04748.50753.01757.57762.19
766.87771.60776.39781.25786.16791.13796.17801.28
806.45811.68816.99822.36827.81833.33838.92844.59
850.34856.16862.06868.05874.12880.28886.52892.85
899.28905.79912.40919.11925.92932.83939.84946.96
954.19961.53968.99976.56984.25992.06
1000.001008.061016.261024.591033.051041.661050.421059.32
1068.371077.581086.951096.491106.191116.071126.121136.36
1146.781157.401168.221179.241190.471201.921213.591225.49
1237.621250.001262.621275.511288.651302.081315.781329.78
1344.081358.691373.621388.881404.491420.451436.781453.48
1470.581488.091506.021524.391543.201562.501582.271602.56
1623.371644.731666.661689.181712.321736.111760.561785.71
1811.591838.231865.671893.931923.071953.121960.781968.50
1976.281984.121992.032000.002008.032016.122024.292032.52
2040.812049.182057.612066.112074.682083.332092.052100.84
2109.702118.642127.652136.752145.922155.172164.502173.91
2183.402192.982202.642212.382222.222232.142242.152252.25
2262.442272.722283.102293.572304.142314.812325.582336.44
2347.412358.492369.662380.952392.342403.842415.452427.18
2439.022450.982463.052475.242487.562500.002512.562525.25
2538.072551.022564.102577.312590.672604.162617.802631.57
2645.502659.572673.792688.172702.702717.392732.242747.25
2762.432777.772793.292808.982824.852840.902857.142873.56
2890.172906.972923.972941.172958.572976.192994.013012.04
3030.303048.783067.483086.413105.593125.003144.653164.55
3184.713205.123225.803246.753267.973289.473311.253333.33
3355.703378.373401.363424.653448.273472.223496.503521.12
3546.093571.423597.123623.183649.633676.473703.703731.34
3759.393787.873816.793846.153875.963906.253937.003968.25
4000.004032.254065.044098.364132.234166.664201.684237.28
4273.504310.344347.824385.964424.774464.284504.504545.45
4587.154629.624672.894716.984761.904807.694854.364901.96
4950.495000.005050.505102.045154.635208.335263.155319.14
5376.345434.785494.505555.555617.975681.815747.125813.95
5882.355952.386024.096097.566172.836250.006329.116410.25
6493.506578.946666.666756.756849.316944.447042.257142.85
7246.377352.947462.687575.757692.307812.507936.508064.51
8196.728333.338474.578620.688771.928928.579090.909259.25
9433.969615.389803.92
10000.0010204.0810416.6610638.2910869.5611111.1111363.6311627.90
11904.7612195.1212500.0012820.5113157.8913513.5113888.8814285.71
14705.8815151.5115625.0016129.0316666.6617241.3717857.1418518.51
19230.7620000.0020833.3321739.1322727.2723809.5225000.0026315.78
27777.7729411.7631250.0033333.3335714.2838461.5341666.6645454.54
50000.0055555.5562500.00

General Specification:

Battery Type: 9V Alkaline Battery

Power Consumption: 60mA - 180mA (depends on output)

Low battery: 5.5V at 150mA Load

Display: 4 and 5 Digits

Operating Temperature: 0 to 50 °C (32 to 122 °F)

Operating Humidity: Less than 85% relative

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Storage Humidity: Less than 85% relative

Dimension: 88 x 168 x 26 mm (3.46" x 6.61" x 1.03")

Weight: 330 g / 11.63 oz

Accessories: Carrying case x 1

Users Manual x 1

K type thermocouple connector

External Battery Pack Holder

1.5V AA Batteries x 6

Test leads with Alligator clip x 1

IV. Use the AC adapter

If long term usage of the calibrator is required, AC adapter can be used. The 12V AC terminal is located in the back of the calibrator. The voltage should be regulated between 9 to 15V.

DC 12V DC 12V

V. Use External Battery Pack

An external battery pack is included for a longer period usage. The external battery pack needs to be packed with 6 pieces of 1.5 volts AA batteries. To use the external battery pack, plug into the AC terminals located in the back of the calibrator.

BATTERY HOLDER ← BATTERIES 6x1.5V AA

VI. Battery Replacement

When the low battery symbol is displayed on LCD, follow the following procedures to replace the battery.

1 Turn off the calibrator by pushing the On/Off button.

2 Remove the screw of the battery compartment cover and remove the battery compartment cover.

3 Replace the old 9V battery with a new alkaline 9V battery.

4 Replace the battery compartment cover and fasten the screw.

PCE Instruments 123 - Battery Replacement - 1

natural_image Technical line drawing of a mechanical device with a base and internal components, showing no text or symbols.

Note: In the mA, mV, V, 0°C, and °F functions, status of low battery is detected. While in the Hz function, status of low battery is not detected.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PCE Instruments

Model : 123

Category : Multimeter
