Product Type	Universal Projector Wall Mount
Brand	StarTech.com
Model	PROJWALLMNT
Weight Capacity	33.1 lb (15 kg)
Tilt Range	+5° to -5°
Swivel Range	+10° to -10°
Rotation Range	±10°
Horizontal Adjustment	±20 mm
Projector Pole Length Adjustment	420 mm to 705 mm
Maximum Width	352.5 mm
Maximum Depth	881 mm
Height	215 mm
Compatible Wall Types	Wood stud, solid concrete, cinder block
Mounting Hardware Included	Wall anchors, mounting screws, washers, nuts, hex key, wrench
Adjustment Knobs	Tilt (yellow), Swivel (grey), Rotation (black)
Cable Management	On-wall and in-wall options with decorative covers
Installation	Requires 2 people (optional), certified professional recommended
Warranty	2 years

Frequently Asked Questions - PROJWALLMNT StarTech.com

What is the maximum weight capacity of the PROJWALLMNT wall mount?

The maximum weight capacity is 33.1 lb (15 kg). The wall structure must support at least four times the weight of the mounted equipment.

On which wall types can the mount be installed?

The mount is designed for wood stud, solid concrete, or cinder block walls. If you are unsure, consult a professional.

What tools are required for installation?

You will need a Phillips head screwdriver, a spirit/bubble level, and the included 5 mm hex key and 10 mm wrench. Optional: two people for assistance.

How do I adjust the tilt angle?

Loosen the four M6x8 mm hex screws on the side of the wall mount, then use the M6x25 mm hex screw to adjust the angle (clockwise for up, counterclockwise for down). Retighten the four screws.

How do I adjust the swivel?

First loosen the adjustment screw next to the grey knob using the 10 mm wrench. Then turn the grey knob clockwise to move the image right, counterclockwise to move left. Tighten the adjustment screw afterwards.

Can I route cables through the wall?

Yes, for in-wall cable management, feed power and video cables into the wall before attaching the wall bracket. For on-wall, route cables through the decorative covers and break away the plastic tab as needed.

What is the horizontal lateral adjustment range?

The horizontal adjustment range is ±20 mm. Loosen the two adjustment screws on top of the adjustment module, slide the assembly left or right, then retighten.

How do I attach the mounting arms to the projector?

Place the four mounting arms on the projector with the tubular portions over the mounting holes. Use the appropriately sized M-type screws (M3, M4, M5, M6) provided and tighten with a Phillips screwdriver. Do not overtighten.

What is included in the package?

The package includes the wall bracket, projector pole, pole end cap, decorative covers, adjustment module, mounting arms and covers, hinge connector, wall anchors, screws, washers, nuts, 10 mm wrench, 5 mm hex key, and user manual.

Is professional installation recommended?

Yes, certified professional installation is recommended to ensure safety and compliance with local building codes. The wall must support at least four times the projector's weight.

USER MANUAL PROJWALLMNT StarTech.com

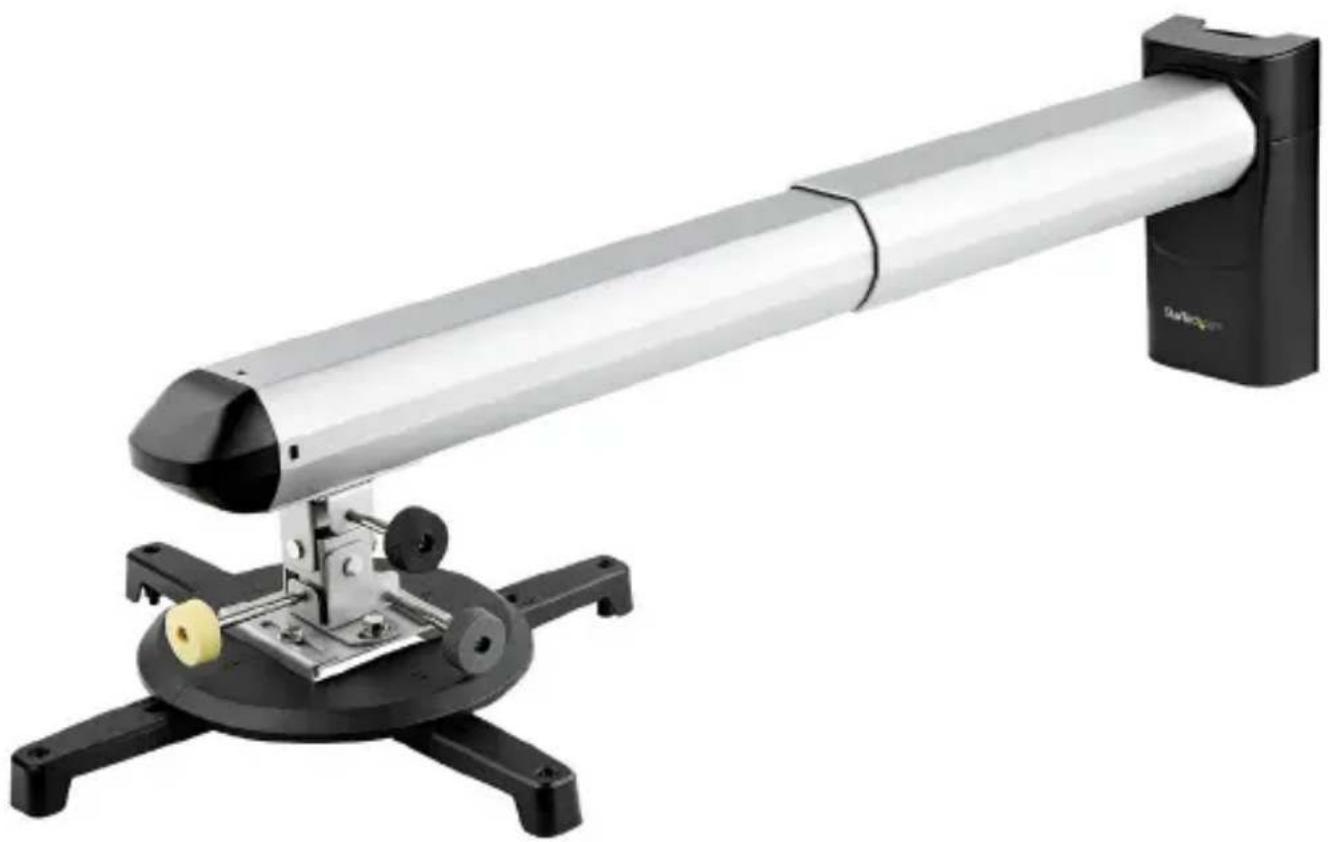

Universal Projector Wall Mount

Exterior view of a modern office building (no signage)

Actual product may vary from photos

User Manual

SKU#: PROJWALLMNT

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Safety Statements

Safety Measures

- Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

- Never use this product if parts are missing or damaged.

- The projector wall mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should also be capable of supporting at least four times the weight of the mounted equipment.

- The mounting hardware included with this product may not be adequate for installation on certain wall structures. Failure to comply with these warnings may result in personal injury or damage to the equipment.

- If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

Mensagens de Aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

注意

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements......i

Safety Statements ...... ii

Warning Statements...... iii

Product Diagram .... 1

Front-Side View....1

Rear-Side View....2

Adjustment Knobs....3

Product Dimensions....4

Product Information....5

Package Contents ....5

Technical Specifications....8

Installation....9

Fasten the Wall Bracket to a Wall 9

Attach the Mounting Arms....10

Attach the Adjustment Module....12

Attach the Projector Mount Assembly 13

Cable Management 17

Operation....18

Adjust the Wall Mount Tilt Angle....18

Adjust the Swivel....19

Adjust the Tilt....20

Adjust the Rotation 21

Adjust the Horizontal Lateral Position....22

Warranty Information 23

Product Diagram

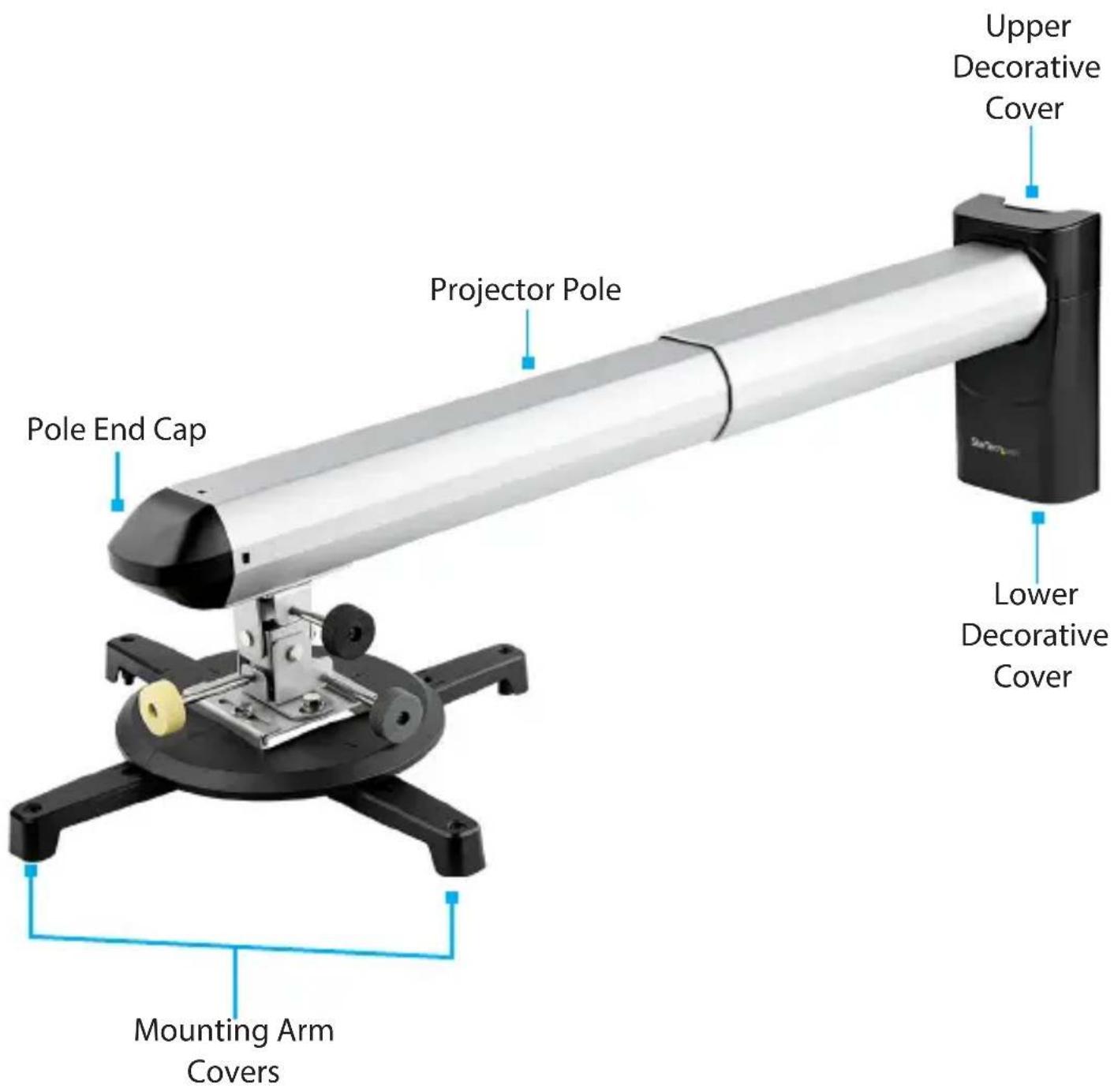

Front-Side View

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

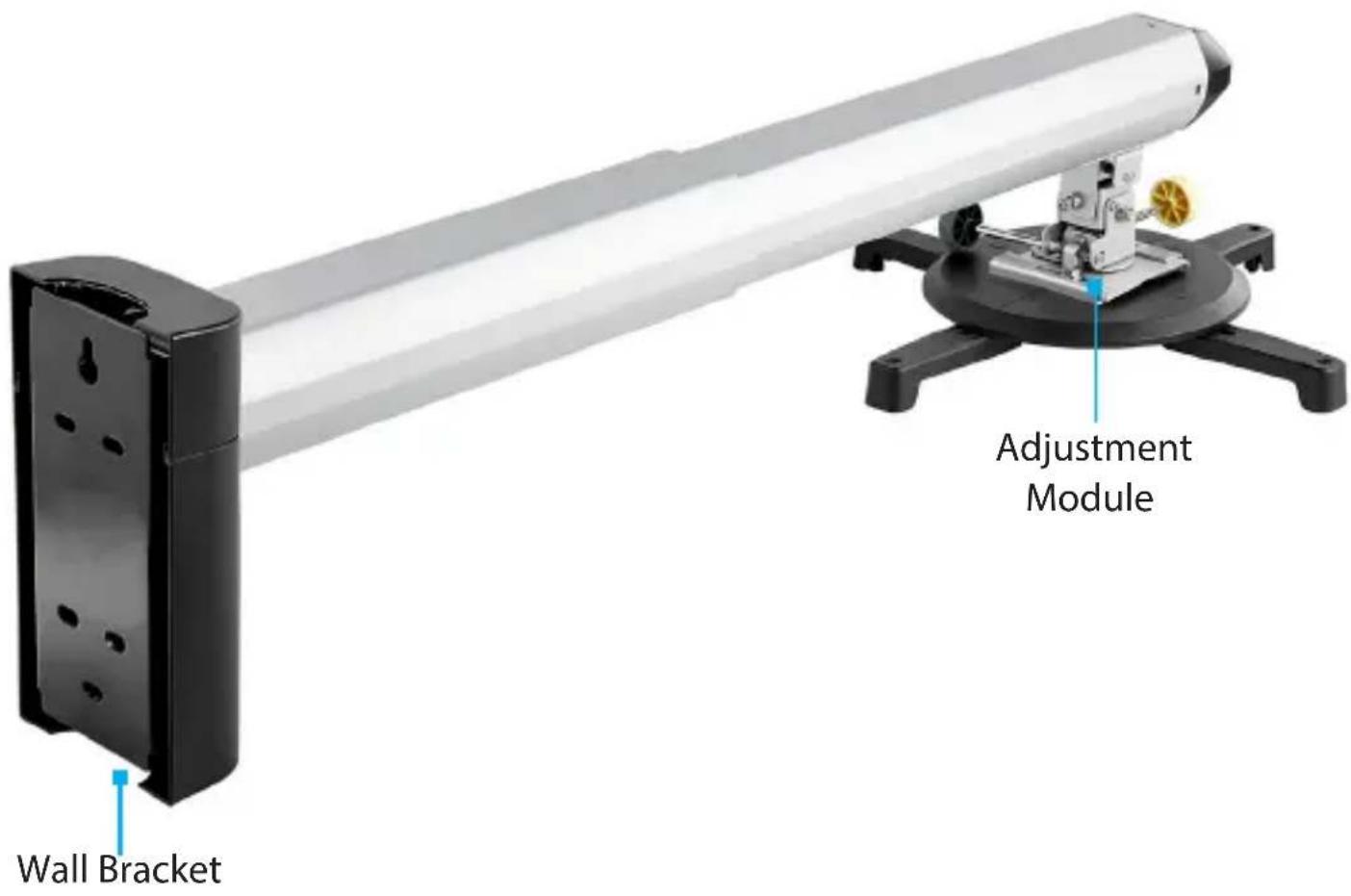

Rear-Side View

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

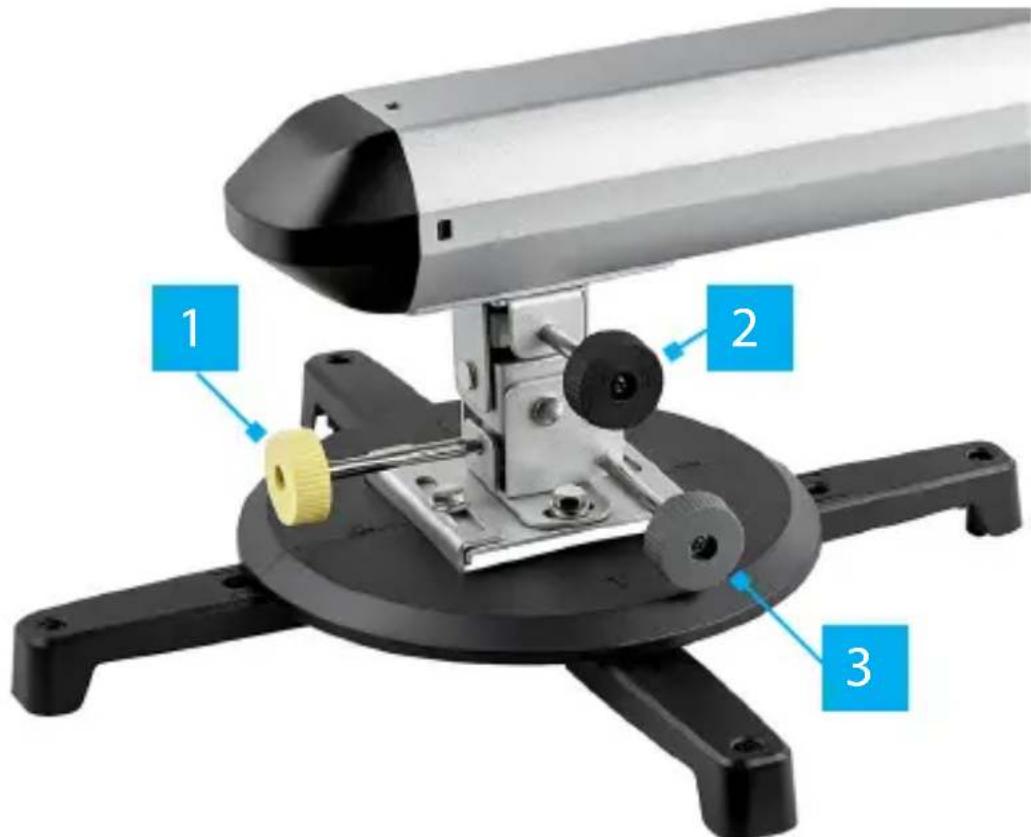

Adjustment Knobs

1) Tilt

Turn clockwise to adjust the picture down.

Turn counterclockwise to adjust the picture up.

2 ) Rotate

Turn clockwise to adjust the picture counterclockwise.

Turn counterclockwise to adjust the picture clockwise.

3) Swivel

Turn clockwise to adjust the picture to the right.

Turn counterclockwise to adjust the picture to the left.

Note: An Adjustment Screw must be loosened before the Grey Adjustment Knob can be turned. See the Adjust the Swivel Angle section for more information.

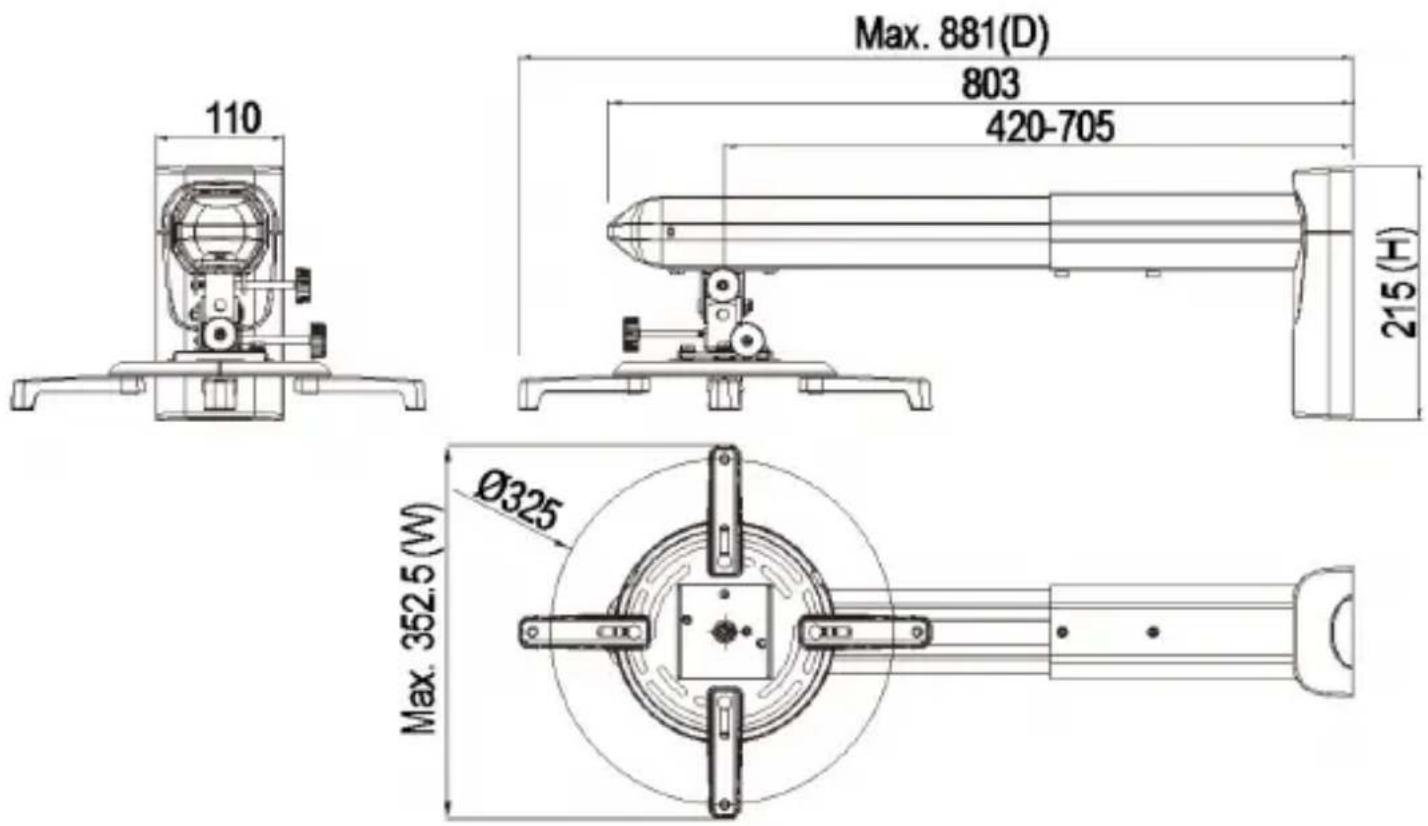

Product Dimensions

Note: All measurements are listed in millimeters.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Wall Bracket Qty: 1	Projector Pole Qty: 1	Pole End Cap Qty: 1	Upper Decorative Wall Cover Qty: 1
Lower Decorative Wall Cover Qty: 1	Adjustment Module Qty: 1	Right Adjustment Module Cover Qty: 1	Left Adjustment Module Cover Qty: 1
Mounting Arms Qty: 4	Mounting Arm Covers Qty: 4	Hinge Connector Qty: 1	Wall Anchors Qty: 6
Mounting Screws Qty: 6	Washers Qty: 4	10 mm Wrench Qty: 1	5 mm Hex Key Qty: 1
M3 x 24 mm Screws
M4 x 24 mm Screws
M5 x 24 mm Screws	M6 x 8 mm Hex Screws	M6 x 10 mm Screws	M6 x 25 mm Hex Screw Qty: 1
M6 x 24 mm Screws Qty: 4 (Of Each)	Qty: 4 (Of Each)	Qty: 2
Nuts Qty: 4	User Manual Qty: 1

Requirements

• Phillips Head Screwdriver
- Spirit/Bubble Level
- Mounting Surface
• (Optional) Two People for the Installation

Technical Specifications

Type of Measurement Measurement
Weight Capacity
	Up to 33.1 lb. (15 kg)
Tilt
	+5° to -5°
Swivel
	+10° to -10°
Horizontal Movement
	+20 mm to -20 mm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Fasten the Wall Bracket to a Wall

Warning! The Universal Projector Wall Mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should be capable of supporting at least four times the weight of the mounted equipment. The Mounting Hardware included with this product may not be adequate for installation on certain wall structures. Contact a construction professional to install the Universal Projector Wall Mount. Failure to do so may result in personal injury and/or equipment damage.

PROJWALLMNT can be mounted using the included Mounting Hardware. Ensure the top of the Wall Bracket is level with a Spirit/Bubble Level before fastening it to the Mounting Surface.

Cable Routing

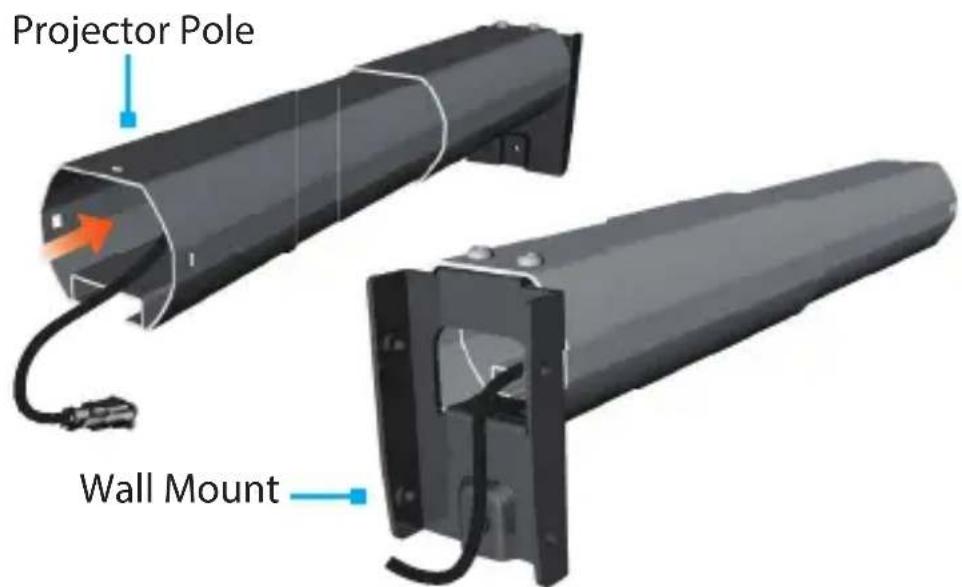

1. Route the Power and Video Cables through the Projector Pole. (Figure 1)

Figure 1

1. (Optional, For In-Wall Cable Management) Feed the Power and Video Cables into the Wall. Connect the Power Cable to an available Power Source. Connect the Video Cable to the Video Source Device.
2. Press the Projector Pole into the Wall Mount and hold the Projector Pole in place. Align the four holes in the Projector Pole with the four holes in the Wall Mount.

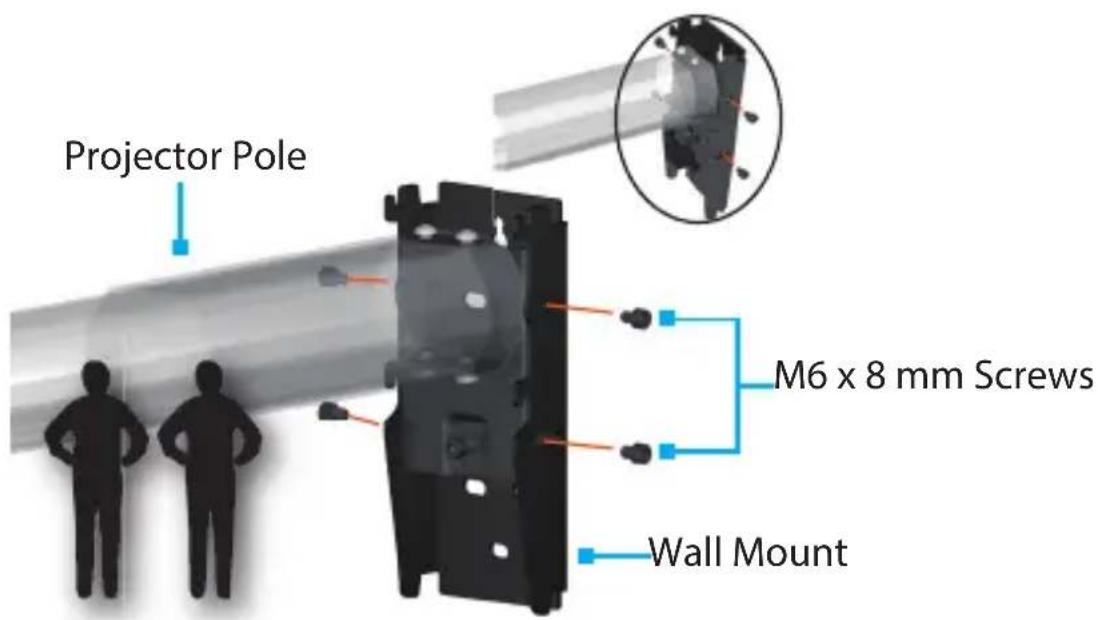

Attach the Projector Pole to the Wall Mount

- Thread the four M6 x 8 mm Hex Screws through the Wall Mount and into the Projector Pole. Tighten using the 5 mm Hex Key.

(Figure 2)

Figure 2

Attach the Mounting Arms

1. Place the Projector on a flat and level Surface, with the Mounting Holes facing upwards.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

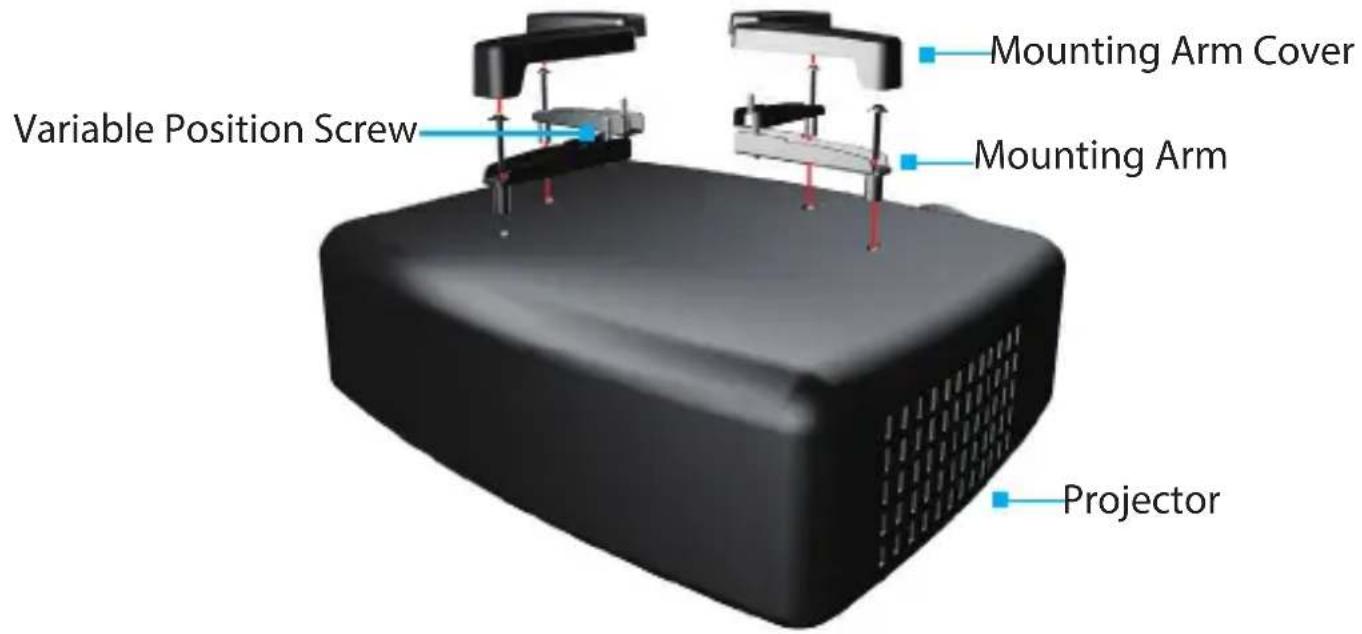

1. Place the four Mounting Arms onto the Projector, with the tubular portion of the Mounting Arms aligned over the Mounting Holes in the Projector. (Figure 3)

Note: The threads of the Variable Position Screws, that are built into the Mounting Arms, should be facing upwards.

Figure 3

1. Thread the appropriately sized M-Type Screws (e.g. M4 x 24 mm Screws) through the Mounting Arms and into the Projector.
2. Tighten the M-Type Screws with a Phillips Head Screwdriver.

Warning! Do not over-tighten the M-Type Screws. If you encounter any unexpected resistance, immediately stop and attempt to use a different length of M-Type Screw.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

5. Place the Mounting Arm Covers over the Mounting Arms.

Attach the Adjustment Module

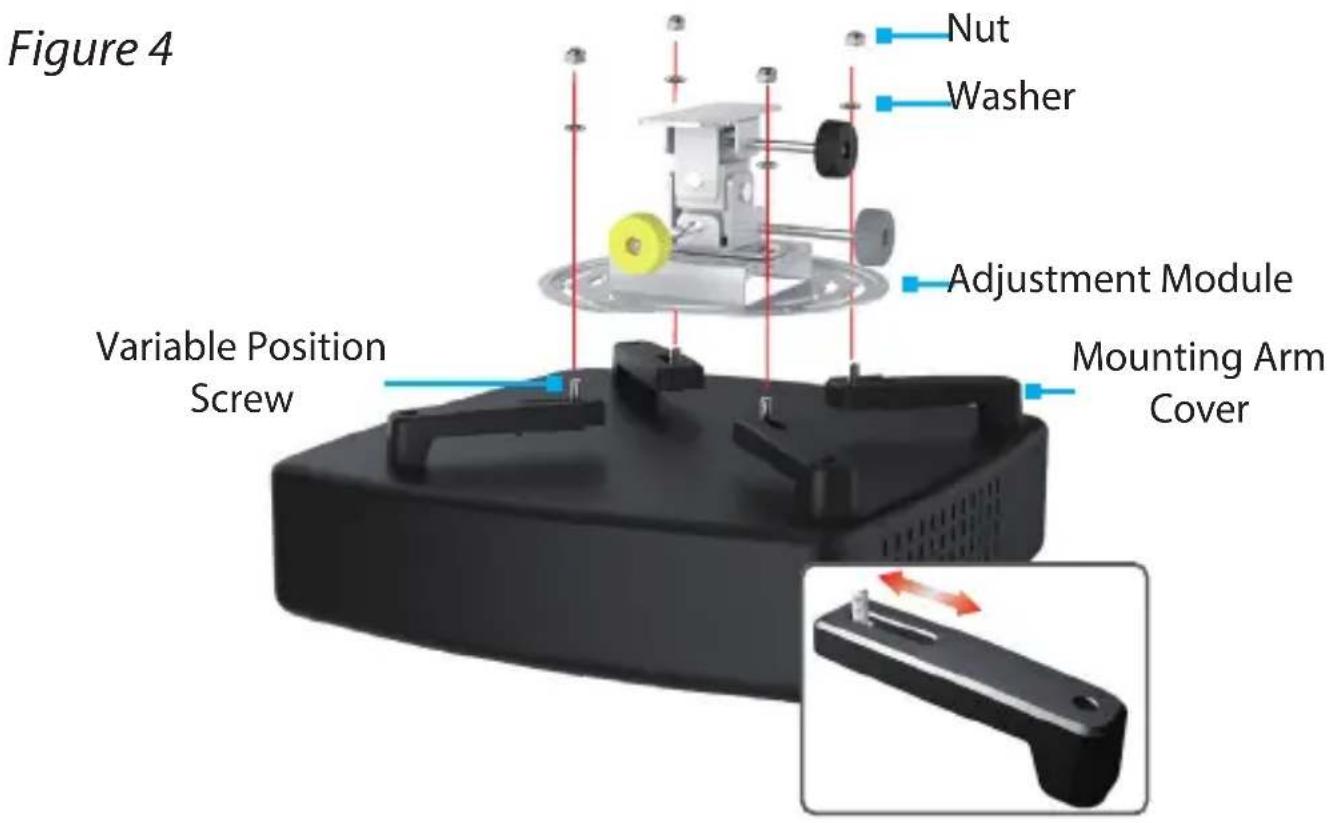

1. Place the Adjustment Module onto the Mounting Arms. Align the Variable Position Screws with the cutouts in the Adjustment Module. (Figure 4)

Note: If the Adjustment Module does not fit onto the Mounting Arms, loosen the M-Type Screws with a Phillips Head Screwdriver and readjust the position of the Mounting Arms. Tighten the M-Type Screws once the correct position has been achieved.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Place the four Washers over the Variable Position Screws.
2. Thread the four Nuts onto the Variable Position Screws. Tighten using the 10 mm Wrench.

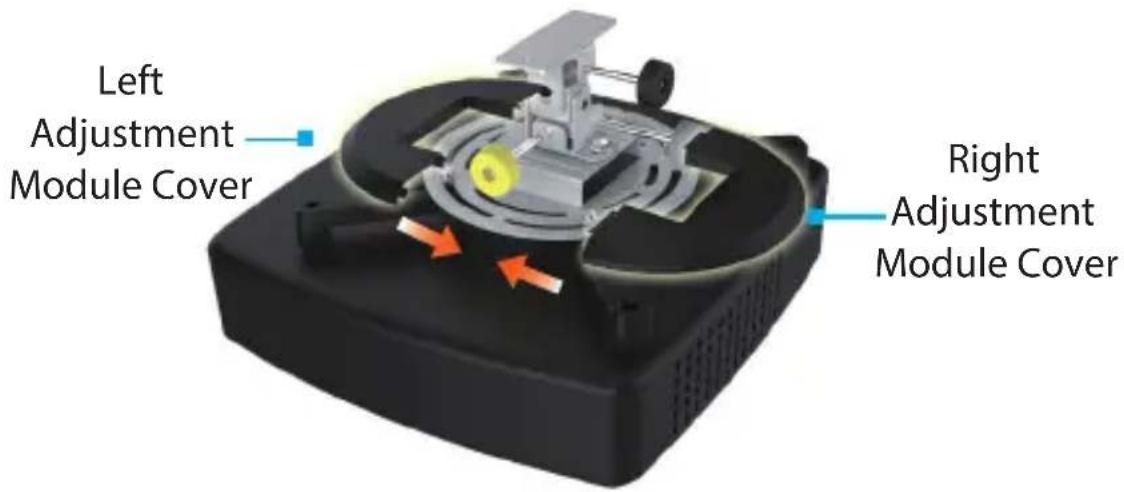

3. Attach the Right and Left Adjustment Module Covers by sliding the Covers together over the Adjustment Module until the two Covers snap together. (Figure 5)

Note: To remove these Adjustment Module Covers, locate the labels that say Open. Apply pressure to one of these labels while pulling the two Covers apart. Repeat for the other side.

Figure 5

Attach the Projector Mount Assembly

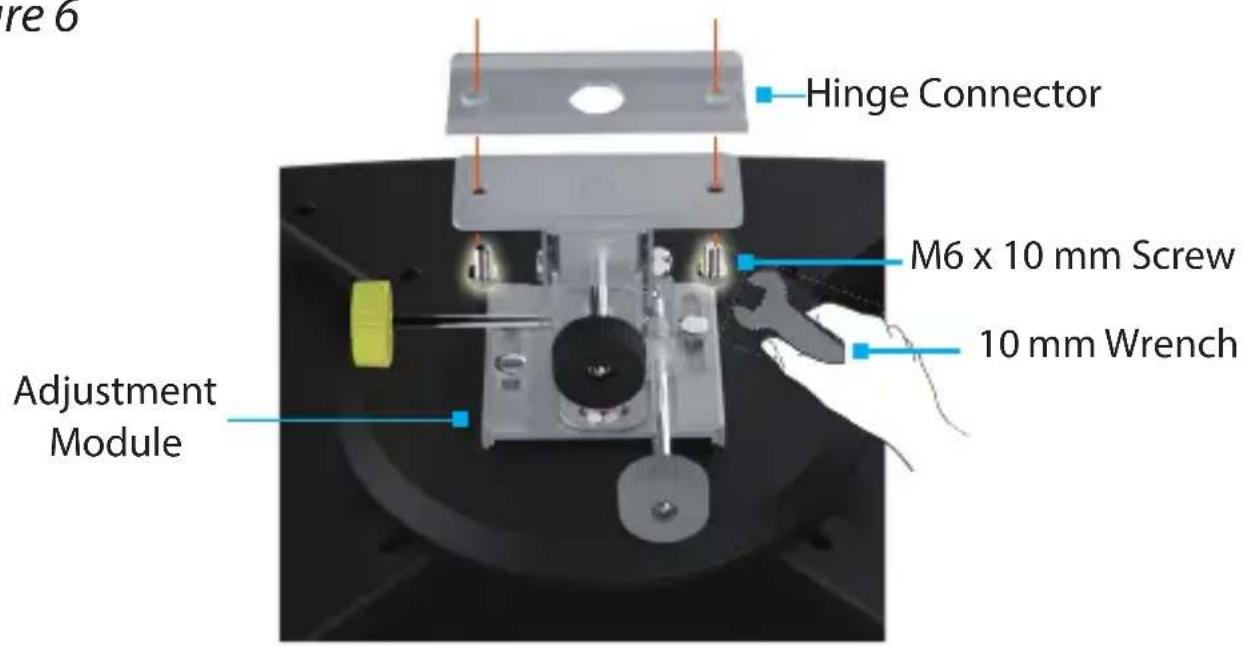

1. Place the Hinge Connector onto the Adjustment Module. Align the holes in the Hinge Connector with the holes in the Adjustment Module.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Thread the two M6 x 10 mm Screws through the Adjustment Module and into the Hinge Connector. Hand tighten the M6 x 10 mm Screws by one rotation. (Figure 6)

Note: There must be a 2-3 mm gap between the Adjustment Module and the Hinge Connector in order to complete the following installation steps.

Figure 6

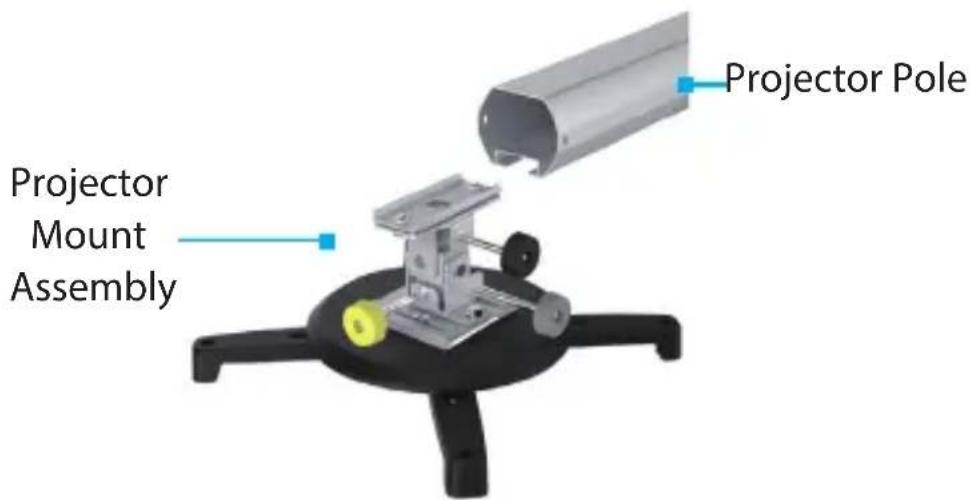

1. Slide the Projector Mount Assembly onto the Projector Pole. Ensure the grooves in the Projector Pole are aligned with the 2-3 mm gap created in Step 2. Ensure the weight of the Projector is supported during this step. (Figure 7)

Figure 7

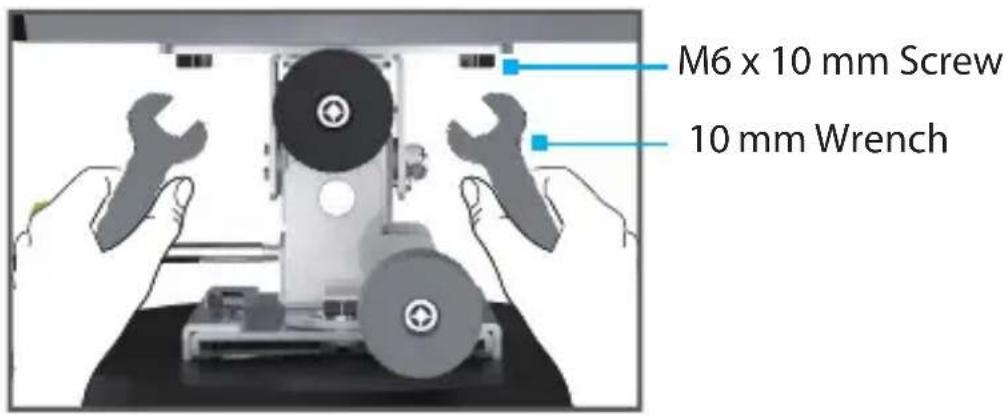

1. Tighten the M6 x 10 mm Screws that were threaded through the Adjustment Module and Hinge Connector in Step 2 using the 10 mm Wrench. (Figure 8)

Figure 8

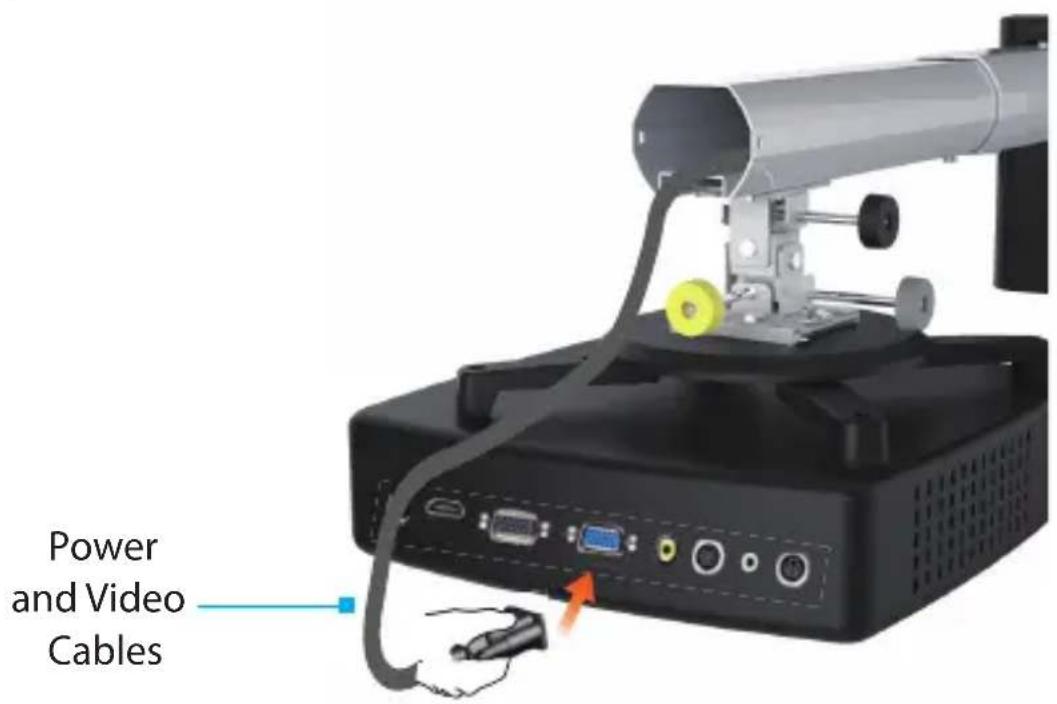

1. Attach the Power and Video Cables to the Projector. (Figure 9)

Figure 9

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

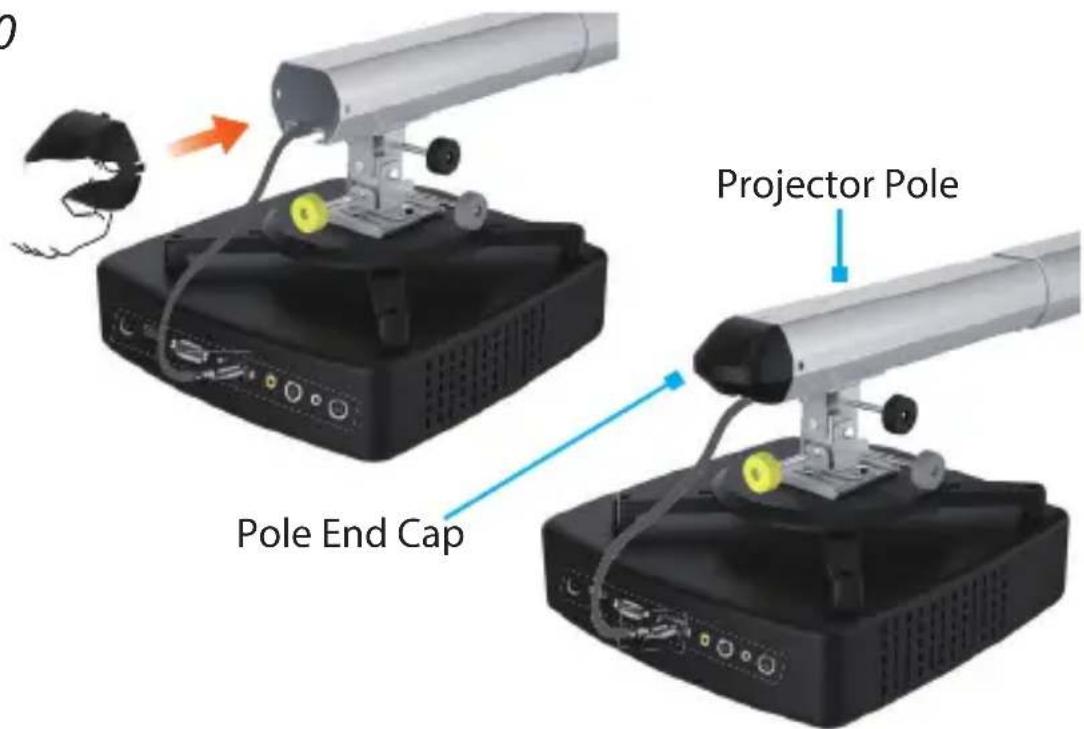

1. Insert the Pole End Cap into the Projector Pole until it snaps into place. (Figure 10)

Note: Pinch the sides and top of the Pole End Cap during insertion.

Figure 10

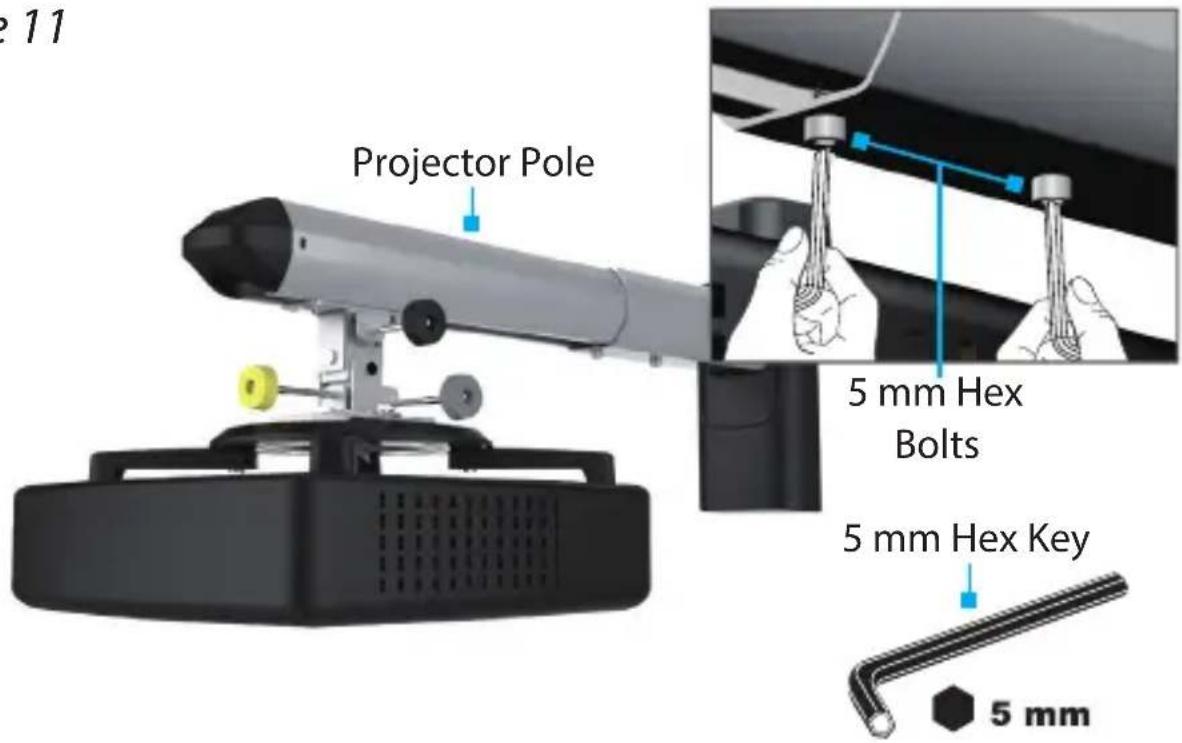

1. Adjust the length of the Projector Pole by pulling apart to lengthen and pushing together to shorten. Tighten the two 5 mm Hex Bolts located underneath, using the 5 mm Hex Key. (Figure 11)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 11

Cable Management

1. Ensure the Power and Video Cables have been connected to the Projector.

(Optional) For On-Wall Cable Management

1. Determine if the Power and Video Cables will be routed out of the Upper or Lower Decorative Cover.

2. Break away the Plastic Tab on the Decorative Cover that was chosen in Step 2. (Figure 12)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

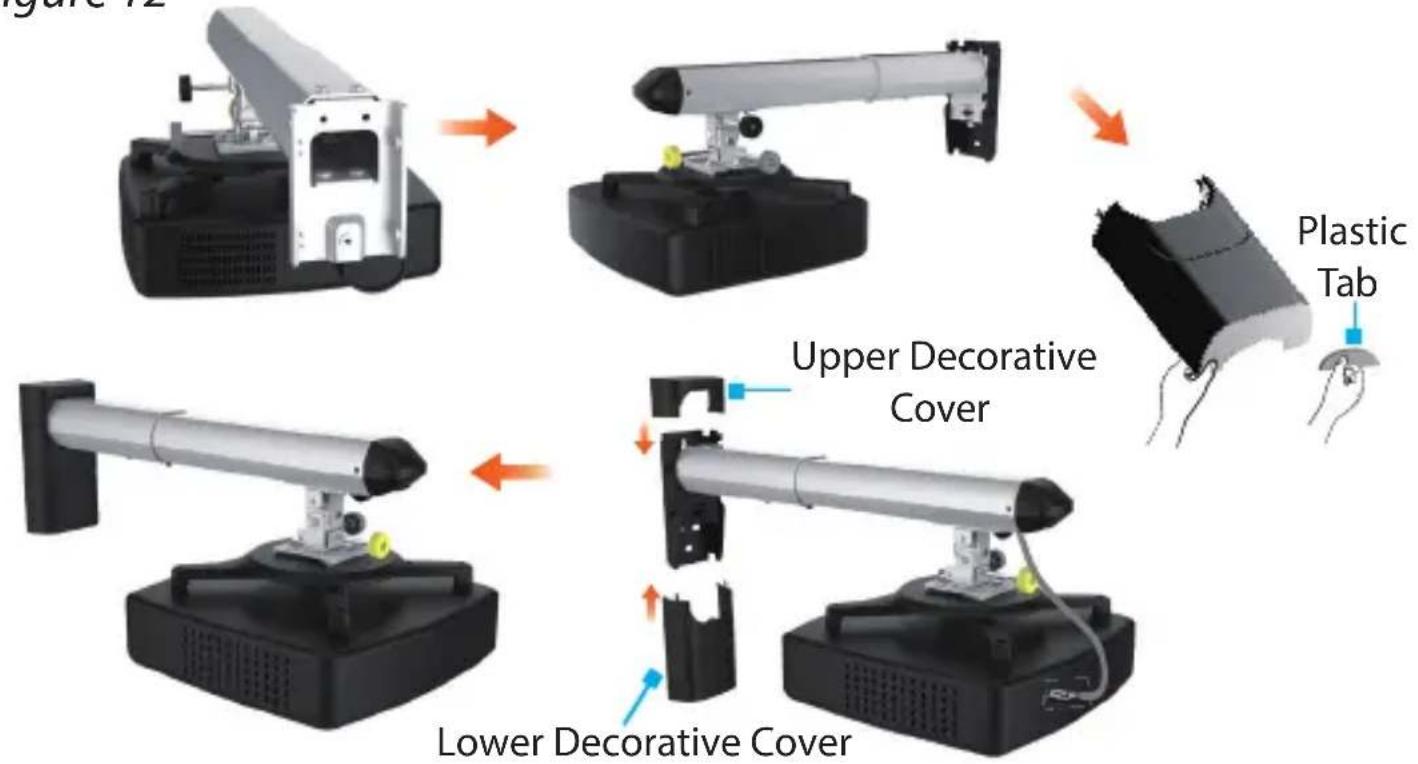

Figure 12

1. Slide the Upper and Lower Decorative Covers together, over the Wall Bracket, until the two Covers snap into place.

Note: To remove these Decorative Covers, press the sides at the top of the Lower Decorative Cover and pull apart.

1. Connect the Power Cable to an available Power Source. Connect the Video Cable to the Video Source Device.

Operation

Adjust the Wall Mount Tilt Angle

1. Remove the Upper and Lower Decorative Covers.

Note: To remove these Decorative Covers, press the sides at the top of the Lower Decorative Cover and pull apart.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

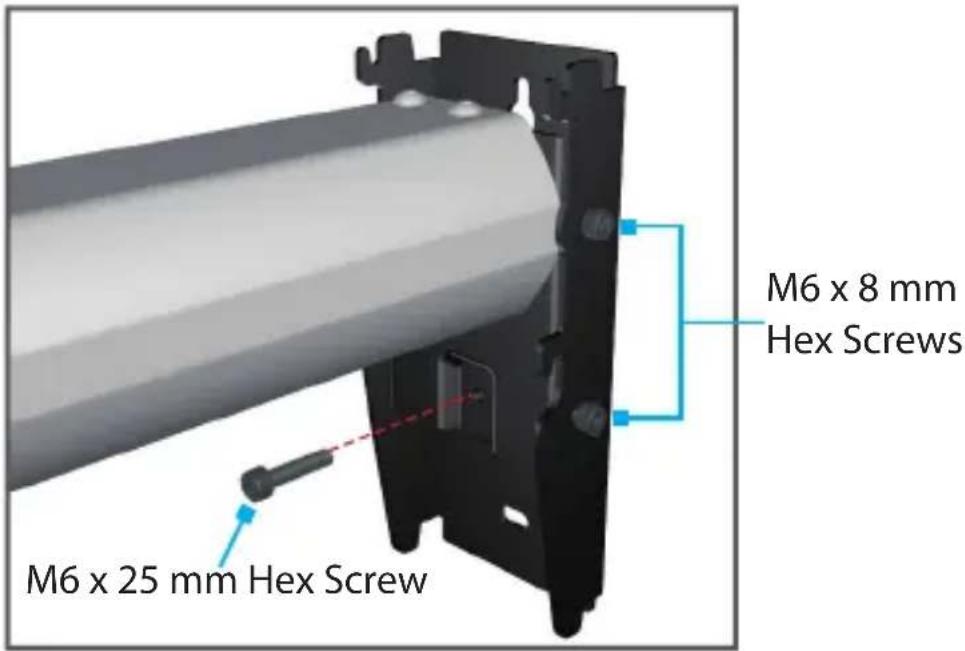

1. Loosen the four M6 x 8 mm Hex Screws on the side of the Wall Mount, using the 5 mm Hex Key.

2. Insert the M6 x 25 mm Hex Screw into the hole in the Wall Mount and tighten (angle up) or loosen (angle down), using the 5 mm Hex Key until the desired angle is met. (Figure 13)

Figure 13

1. Tighten the four M6 x 8 mm Hex Screws on the side of the Wall Mount, using the 5 mm Hex Key.

2. Slide the Upper and Lower Decorative Covers together, over the Wall Bracket, until the two Covers snap into place.

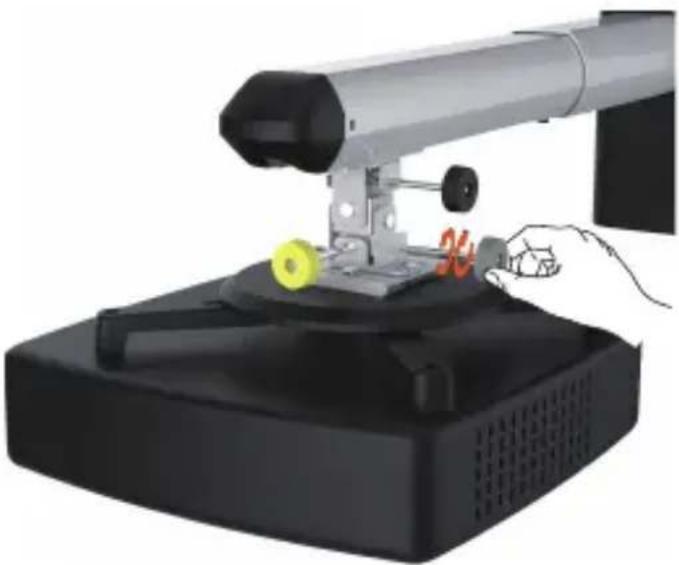

Adjust the Swivel

1. Loosen the Adjustment Screw, located next to the Grey Adjustment Knob, using the 10 mm Wrench.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Turn the Grey Adjustment Knob in a Clockwise direction to adjust the Projected Image to the right.

- or -

Turn the Grey Adjustment Knob in a Counterclockwise direction to adjust the Projected Image to the left. (Figure 14)

Figure 14

Close-up of a microscope with a mounted optical bench and yellow components, no visible text or symbols

1. Tighten the Adjustment Screw, located next to the Grey Adjustment Knob, using the 10 mm Wrench.

Adjust the Tilt

- Turn the Yellow Adjustment Knob in a Clockwise direction to adjust the Projected Image down.

- or -

- Turn the Yellow Adjustment Knob in a Counterclockwise direction to adjust the Projected Image up. (Figure 15)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 15

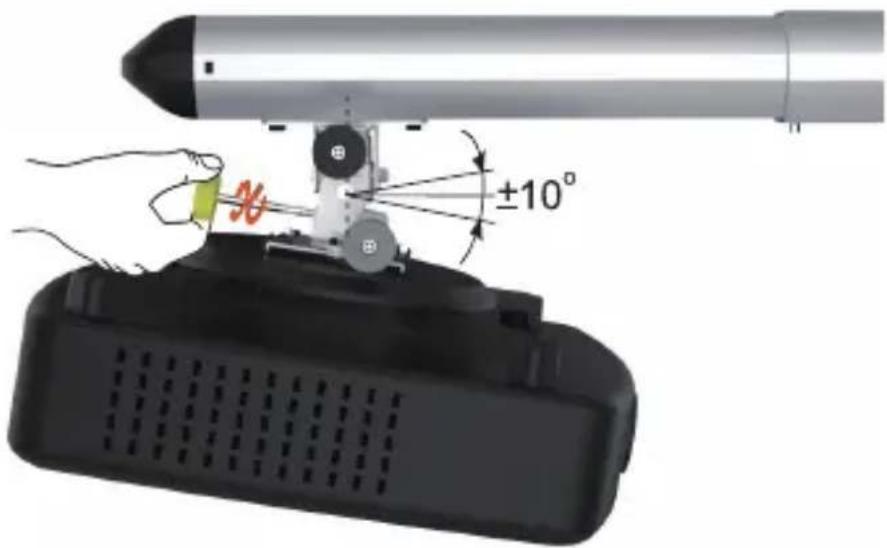

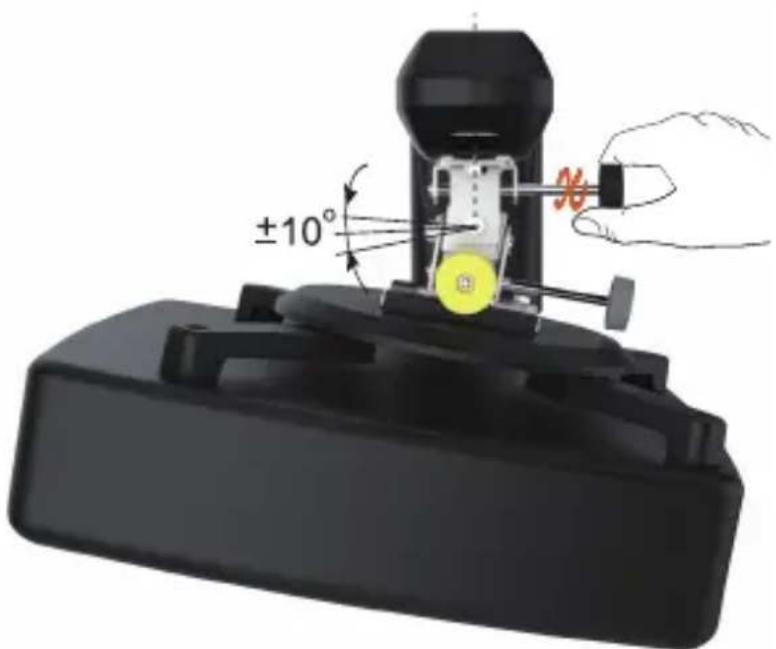

Adjust the Rotation

- Turn the Black Adjustment Knob in a Clockwise direction to rotate the Projected Image counterclockwise.

- or -

- Turn the Black Adjustment Knob in a Counterclockwise direction to rotate the Projected Image clockwise. (Figure 16)

Figure 16

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

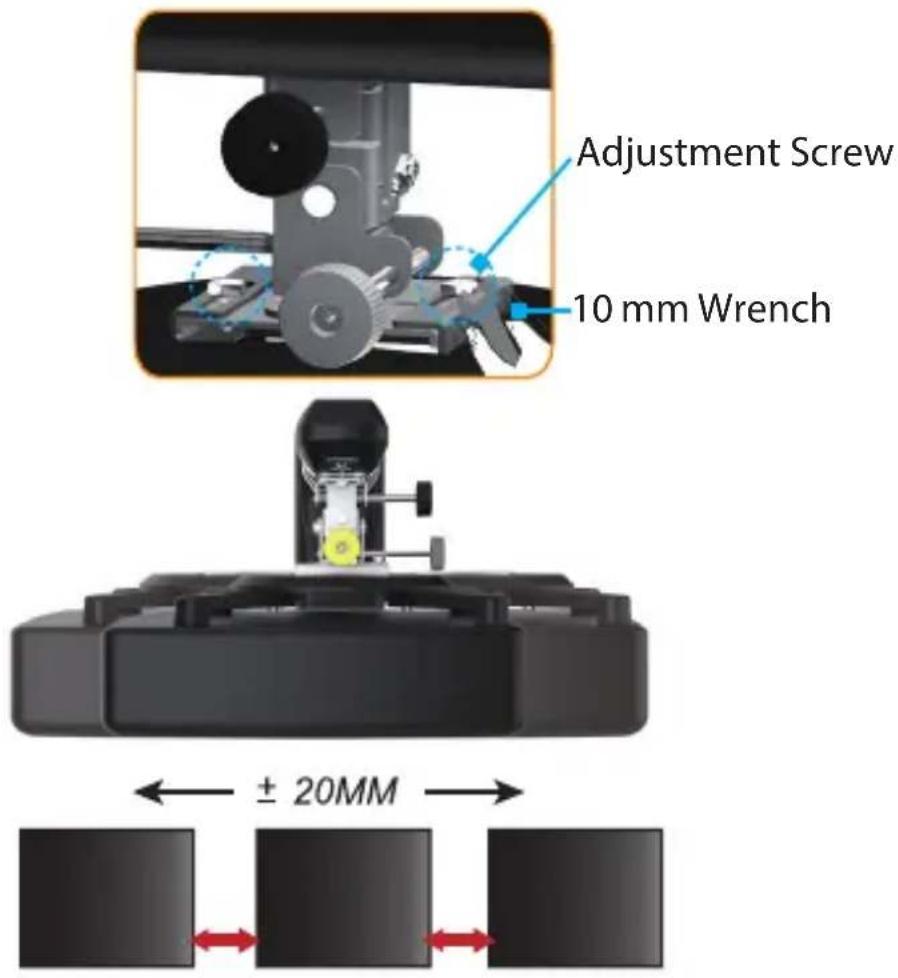

Adjust the Horizontal Lateral Position

1. Loosen the two Adjustment Screws located on the top of the Adjustment Module, using the 10 mm Wrench.

2. Slide the Projector Mount Assembly to the left or the right to adjust the Projected Image to the left or right. (Figure 17)

Figure 17

1. Tighten the two Adjustment Screws located on the top of the Adjustment Module, using the 10 mm Wrench.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans Cres.

London, Ontario

N5V 5E9

Canada

StarTech.com LLP

2500 Creekside Pkwy.

Lockbourne, Ohio

43137

U.S.A.

StarTech.com Ltd.

Unit B, Pinnacle

15 Gowerton Rd., Brackmills

Northampton

NN4 7BW

United Kingdom

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com
